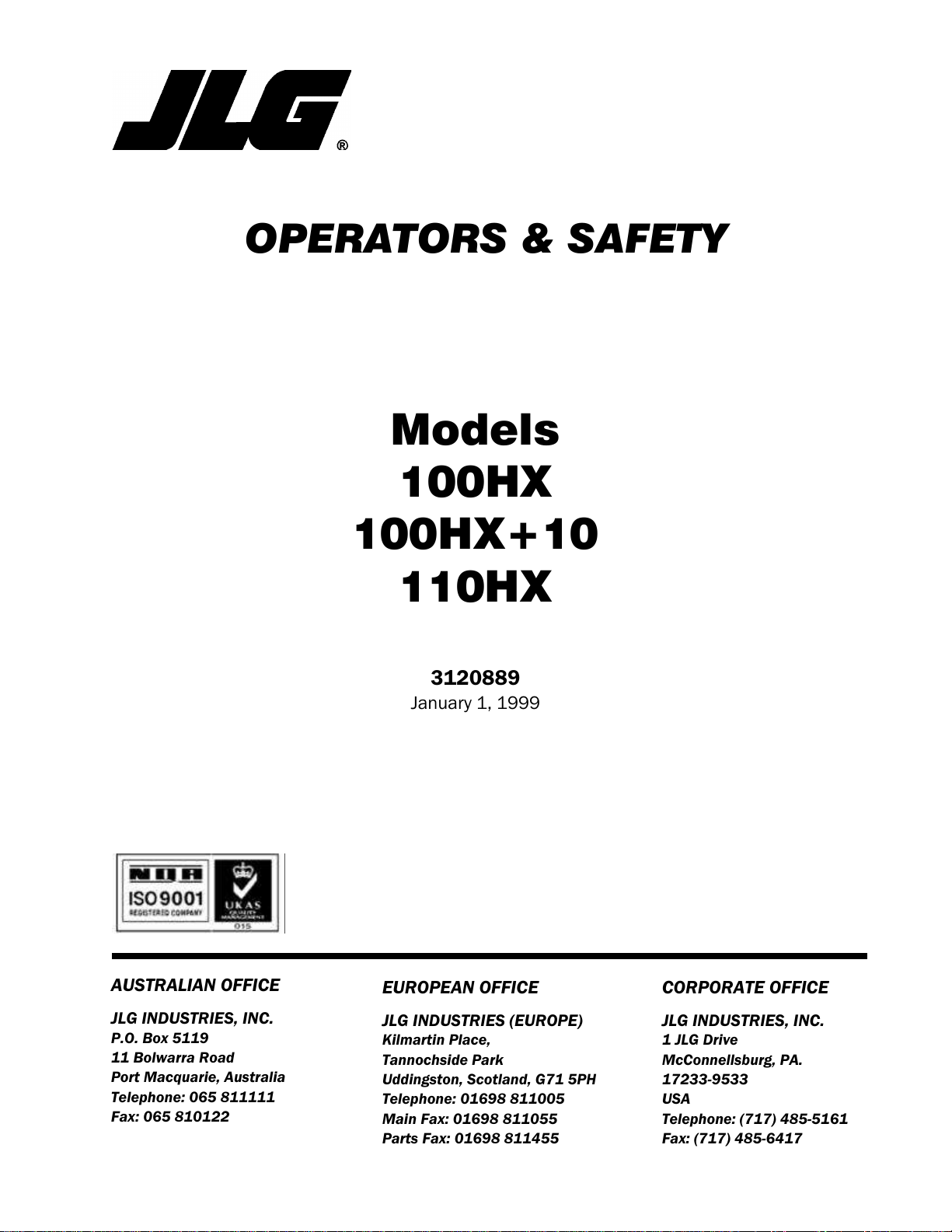

JLG 100HX User manual

OPERATORS & SAFETY
Models
100HX
100HX+10
110HX
3120889
January 1, 1999
AUSTRALIAN OFFICE
JLG INDUSTRIES, INC.
P.O. Box 5119
11 Bolwarra Road
Port Macquarie, Australia
Telephone: [phone]
Fax: [phone]
EUROPEAN OFFICE
JLG INDUSTRIES (EUROPE)
Kilmartin Place,
Tannochside Park
Uddingston, Scotland, G71 5PH
Telephone: [phone]
Main Fax: [phone]
Parts Fax: [phone]
CORPORATE OFFICE
JLG INDUSTRIES, INC.
1 JLG Drive
McConnellsburg, PA.
17233-9533
USA
Telephone: [phone]
Fax: [phone]
Courtesy of Crane.Market

Courtesy of Crane.Market

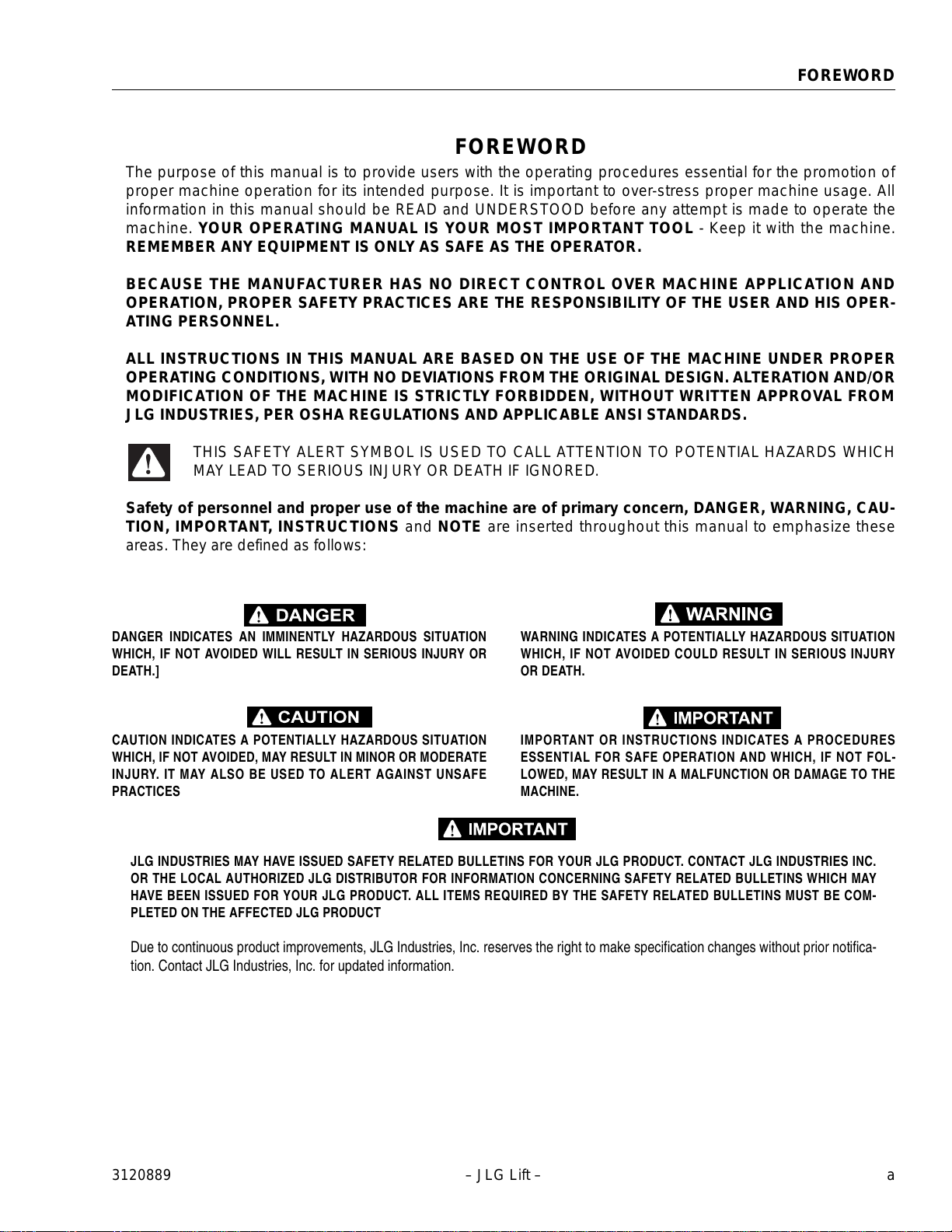

FOREWORD
3120889 – JLG Lift – a
FOREWORD
DANGER INDICATES AN IMMINENTLY HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED WILL RESULT IN SERIOUS INJURY OR
DEATH.]
CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED, MAY RESULT IN MINOR OR MODERATE
INJURY. IT MAY ALSO BE USED TO ALERT AGAINST UNSAFE
PRACTICES
WARNING INDICATES A POTENTIALLY HAZARDOUS SITUATION
WHICH, IF NOT AVOIDED COULD RESULT IN SERIOUS INJURY
OR DEATH.
IMPORTANT OR INSTRUCTIONS INDICATES A PROCEDURES
ESSENTIAL FOR SAFE OPERATION AND WHICH, IF NOT FOL-
LOWED, MAY RESULT IN A MALFUNCTION OR DAMAGE TO THE
MACHINE.
The purpose of this manual is to provide users with the operating procedures essential for the promotion of
proper machine operation for its intended purpose. It is important to over-stress proper machine usage. All
information in this manual should be READ and UNDERSTOOD before any attempt is made to operate the
machine. YOUR OPERATING MANUAL IS YOUR MOST IMPORTANT TOOL - Keep it with the machine.
REMEMBER ANY EQUIPMENT IS ONLY AS SAFE AS THE OPERATOR.
BECAUSE THE MANUFACTURER HAS NO DIRECT CONTROL OVER MACHINE APPLICATION AND
OPERATION, PROPER SAFETY PRACTICES ARE THE RESPONSIBILITY OF THE USER AND HIS OPER-
ATING PERSONNEL.
ALL INSTRUCTIONS IN THIS MANUAL ARE BASED ON THE USE OF THE MACHINE UNDER PROPER
OPERATING CONDITIONS, WITH NO DEVIATIONS FROM THE ORIGINAL DESIGN. ALTERATION AND/OR
MODIFICATION OF THE MACHINE IS STRICTLY FORBIDDEN, WITHOUT WRITTEN APPROVAL FROM
JLG INDUSTRIES, PER OSHA REGULATIONS AND APPLICABLE ANSI STANDARDS.
THIS SAFETY ALERT SYMBOL IS USED TO CALL ATTENTION TO POTENTIAL HAZARDS WHICH
MAY LEAD TO SERIOUS INJURY OR DEATH IF IGNORED.
Safety of personnel and proper use of the machine are of primary concern, DANGER, WARNING, CAU-
TION, IMPORTANT, INSTRUCTIONS and NOTE are inserted throughout this manual to emphasize these
areas. They are defined as follows:
JLG INDUSTRIES MAY HAVE ISSUED SAFETY RELATED BULLETINS FOR YOUR JLG PRODUCT. CONTACT JLG INDUSTRIES INC.
OR THE LOCAL AUTHORIZED JLG DISTRIBUTOR FOR INFORMATION CONCERNING SAFETY RELATED BULLETINS WHICH MAY
HAVE BEEN ISSUED FOR YOUR JLG PRODUCT. ALL ITEMS REQUIRED BY THE SAFETY RELATED BULLETINS MUST BE COM-
PLETED ON THE AFFECTED JLG PRODUCT
Due to continuous product improvements, JLG Industries, Inc. reserves the right to make specification changes without prior notifica-
tion. Contact JLG Industries, Inc. for updated information.
Courtesy of Crane.Market

FOREWORD
b– JLG Lift – 3120889
This page left blank intentionally.
Courtesy of Crane.Market

FOREWORD
3120889 – JLG Lift – c

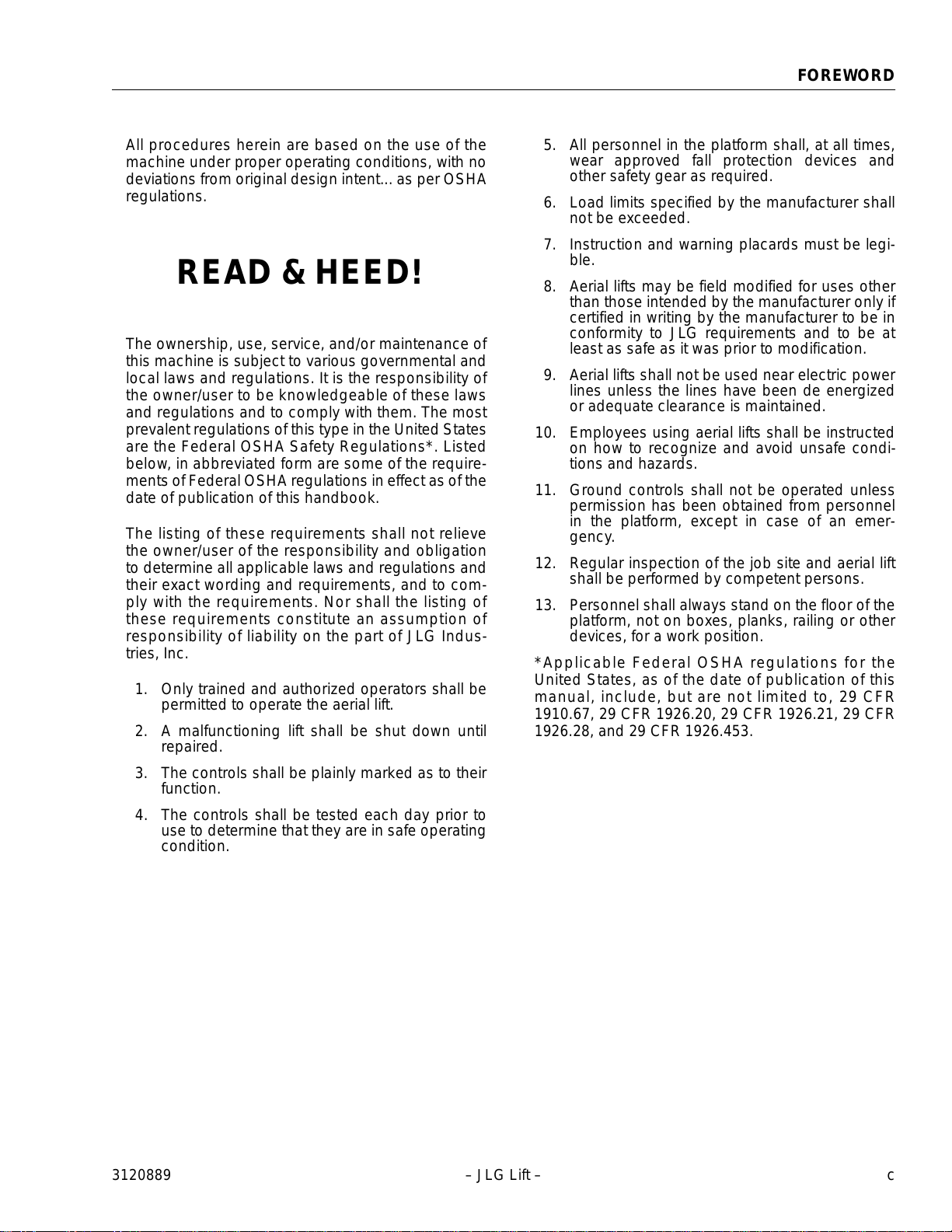

All procedures herein are based on the use of the
machine under proper operating conditions, with no
deviations from original design intent... as per OSHA
regulations.
READ & HEED!
The ownership, use, service, and/or maintenance of
this machine is subject to various governmental and
local laws and regulations. It is the responsibility of
the owner/user to be knowledgeable of these laws
and regulations and to comply with them. The most
prevalent regulations of this type in the United States
are the Federal OSHA Safety Regulations*. Listed
below, in abbreviated form are some of the require-
ments of Federal OSHA regulations in effect as of the
date of publication of this handbook.
The listing of these requirements shall not relieve
the owner/user of the responsibility and obligation
to determine all applicable laws and regulations and
their exact wording and requirements, and to com-
ply with the requirements. Nor shall the listing of
these requirements constitute an assumption of
responsibility of liability on the part of JLG Indus-
tries, Inc.
1. Only trained and authorized operators shall be
permitted to operate the aerial lift.
2. A malfunctioning lift shall be shut down until
repaired.
3. The controls shall be plainly marked as to their
function.
4. The controls shall be tested each day prior to
use to determine that they are in safe operating
condition.
5. All personnel in the platform shall, at all times,
wear approved fall protection devices and
other safety gear as required.
6. Load limits specified by the manufacturer shall
not be exceeded.
7. Instruction and warning placards must be legi-
ble.
8. Aerial lifts may be field modified for uses other
than those intended by the manufacturer only if
certified in writing by the manufacturer to be in
conformity to JLG requirements and to be at
least as safe as it was prior to modification.
9. Aerial lifts shall not be used near electric power
lines unless the lines have been de energized
or adequate clearance is maintained.
10. Employees using aerial lifts shall be instructed
on how to recognize and avoid unsafe condi-
tions and hazards.
11. Ground controls shall not be operated unless
permission has been obtained from personnel
in the platform, except in case of an emer-
gency.
12. Regular inspection of the job site and aerial lift
shall be performed by competent persons.
13. Personnel shall always stand on the floor of the
platform, not on boxes, planks, railing or other
devices, for a work position.
*Applicable Federal OSHA regulations for the
United States, as of the date of publication of this
manual, include, but are not limited to, 29 CFR
1910.67, 29 CFR 1926.20, 29 CFR 1926.21, 29 CFR
1926.28, and 29 CFR 1926.453.
Courtesy of Crane.Market

FOREWORD
d– JLG Lift – 3120889
REVISON LOG
January, 1999 - Original Issue
Courtesy of Crane.Market

3120889 – JLG Lift – i
TABLE OF CONTENTS
TABLE OF CONTENTS
SUBJECT - SECTION, PARAGRAPH PAGE NO.
SECTION - FOREWORD

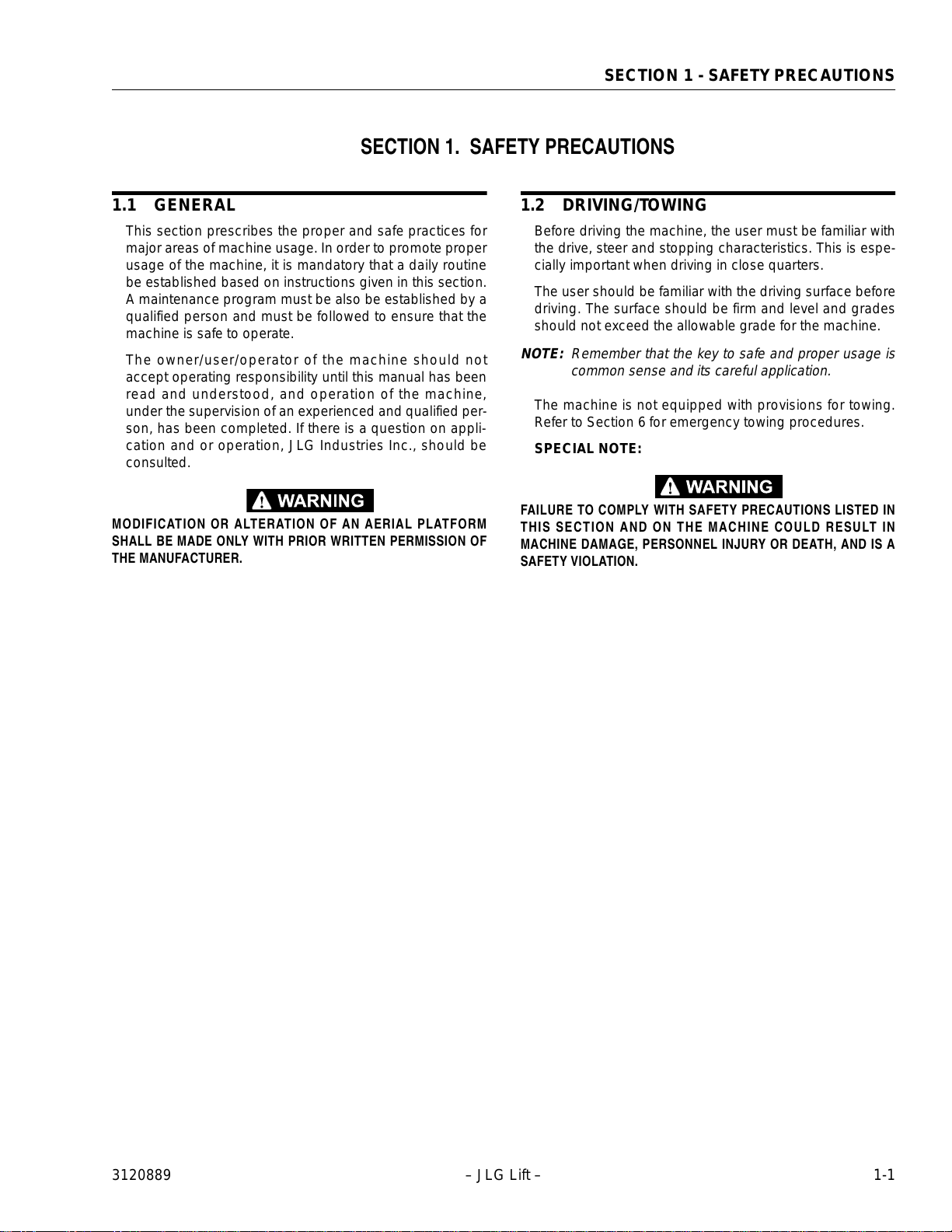

SECTION 1 - SAFETY PRECAUTIONS
1.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
1.2 Driving/Towing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

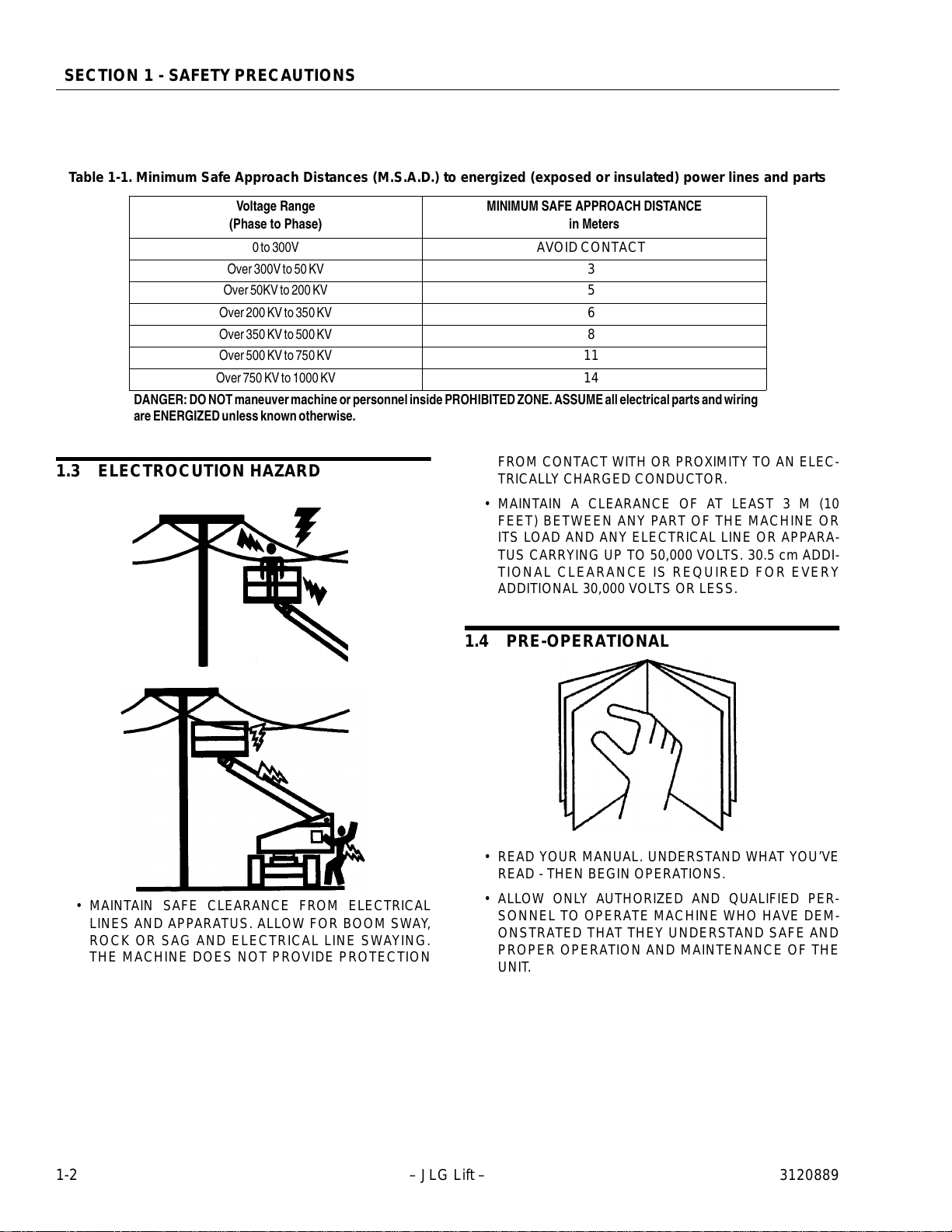

1.3 Electrocution Hazard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
1.4 Pre-Operational . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

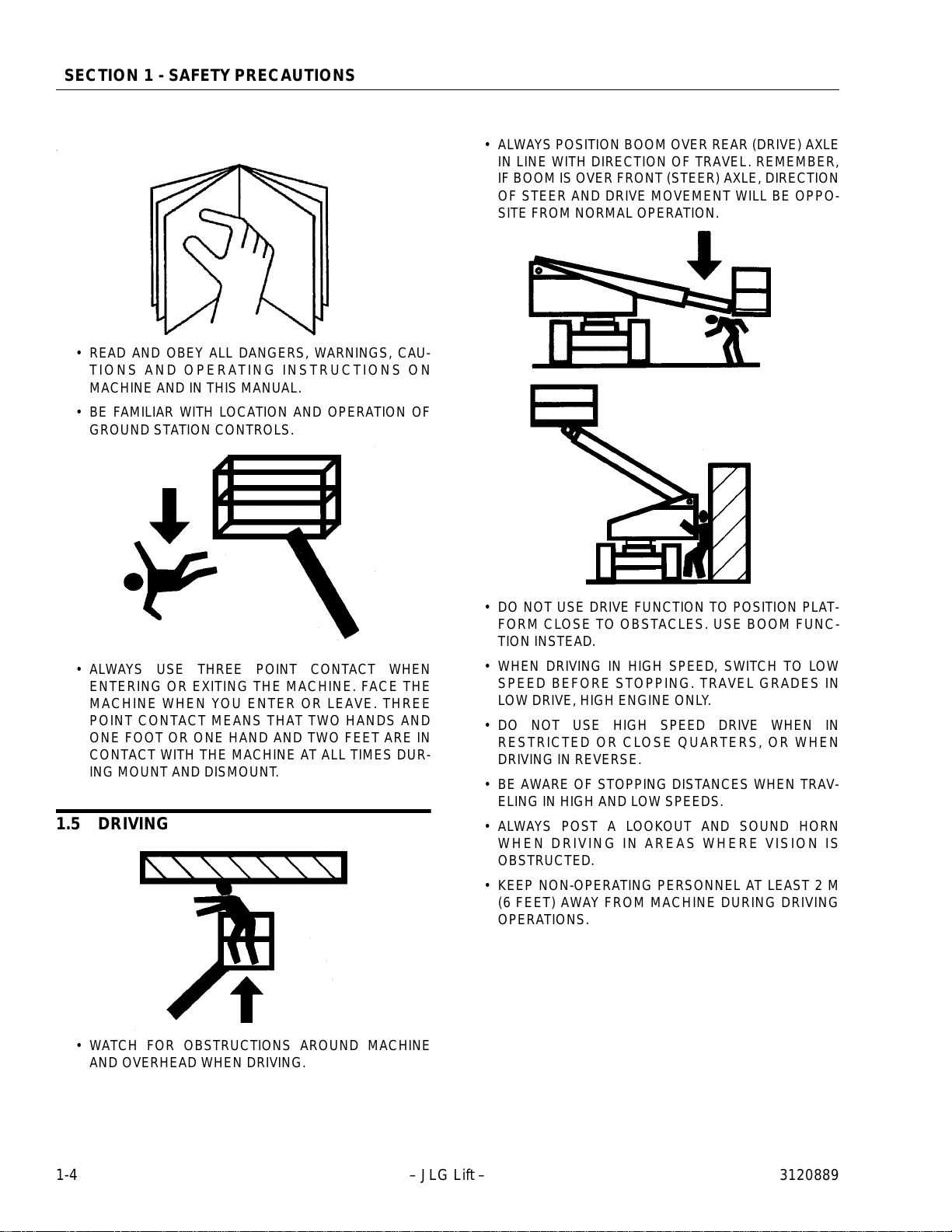

1.5 Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4

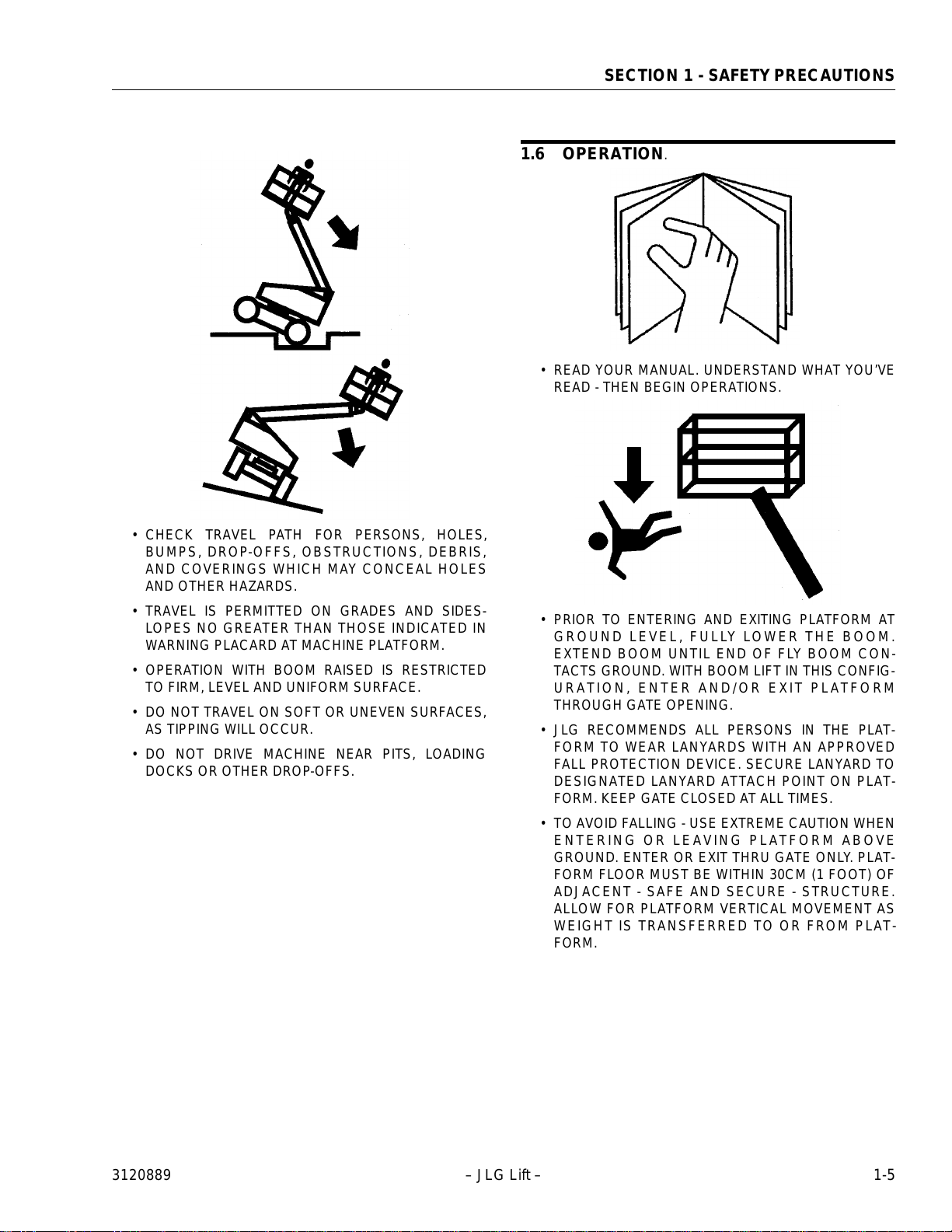

1.6 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5

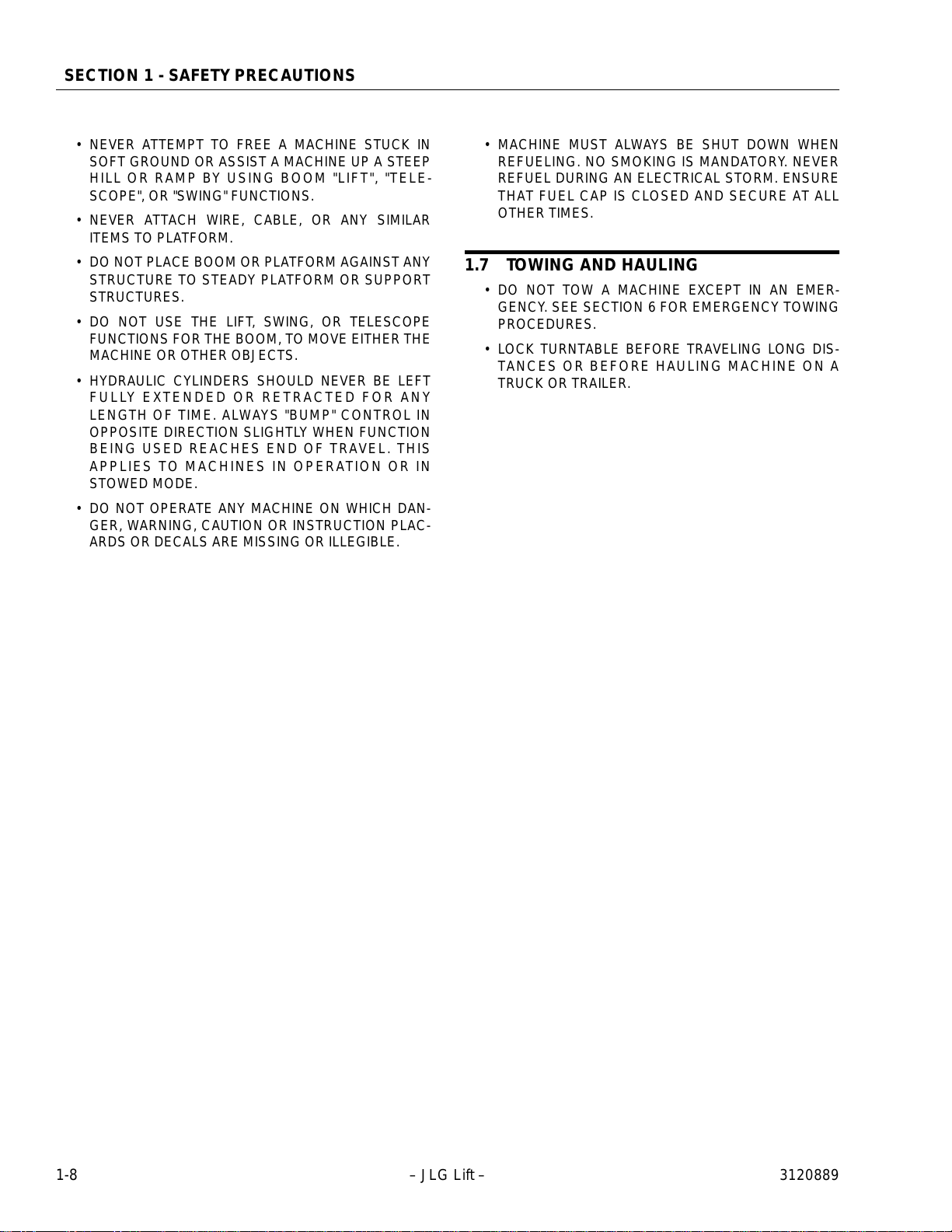

1.7 Towing and Hauling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

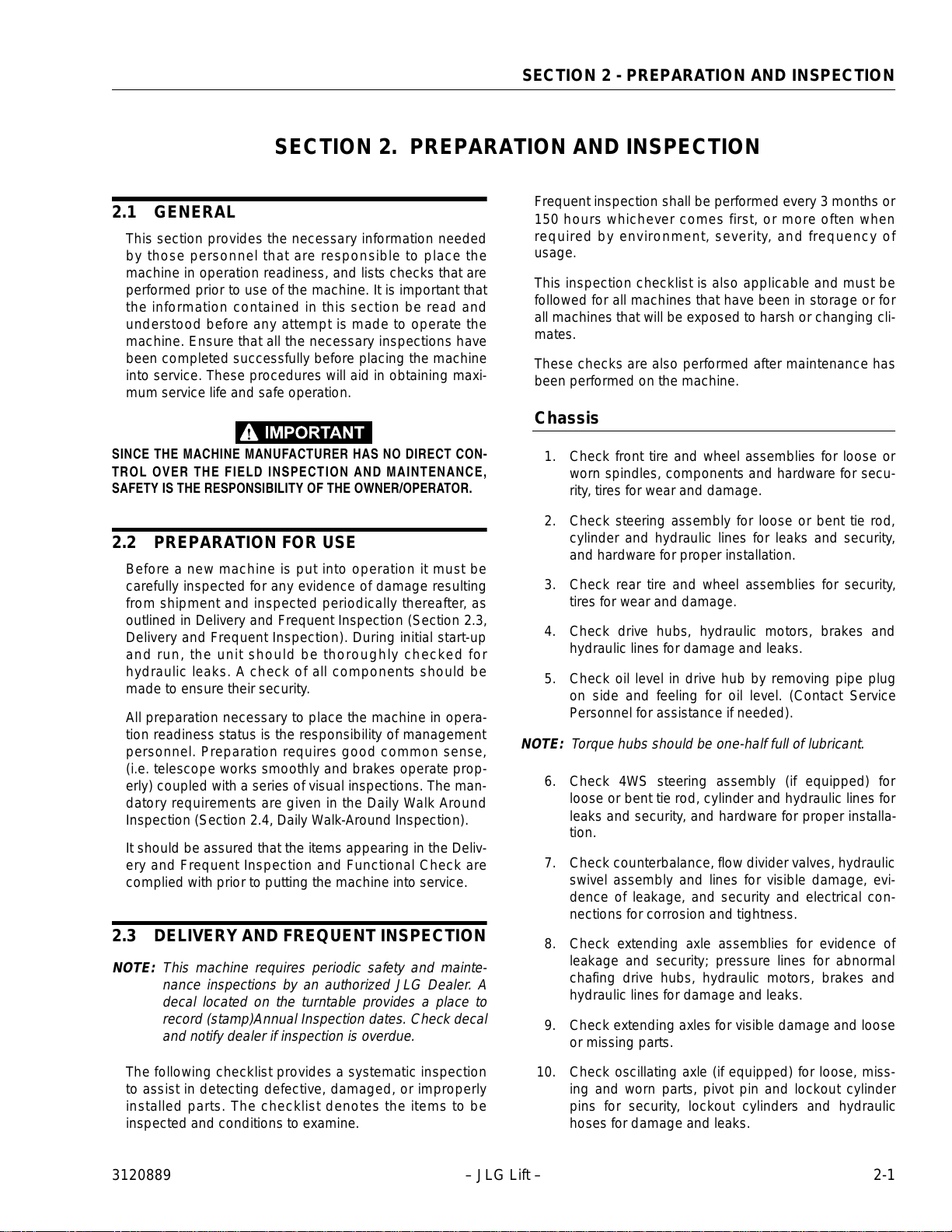

SECTION 2 - PREPARATION AND INSPECTION
2.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
2.2 Preparation For Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
2.3 Delivery and Frequent Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
2.4 Daily Walk-Around Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
2.5 Daily Functional Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8
2.6 Torque Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-13
2.7 Battery Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-13
SECTION 3 - USER RESPONSIBILITIES AND MACHINE CONTROL
3.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
3.2 Personnel Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
3.3 Operating Characteristics and Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
3.4 Controls and Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
3.5 Placards and Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-19
SECTION 4 - MACHINE OPERATION
4.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
4.2 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
4.3 Engine Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
4.4 Traveling (Driving). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-2
4.5 Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
4.6 Parking and Stowing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
4.7 Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
4.8 Axles, Extending and Retracting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . .4-4
4.9 Boom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
4.10 Shut Down and Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
4.11 Tie Down and Lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10
4.12 Steer/tow Selector (If Equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10
4.13 Towing (If Equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10
SECTION 5 - OPTIONAL EQUIPMENT
5.1 Rotator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
5.2 Dual Fuel System (Gas Engine Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .5-1
5.3 Tow Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
5.4 Travel Alarm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
5.5 Tilt Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
5.6 Foam Filled Tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .5-1
5.7 Rotating Beacon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
5.8 Cylinder Bellows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
5.9 Boom Wipers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
5.10 Hostile Environment Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
5.11 Motion Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
Courtesy of Crane.Market

ii – JLG Lift – 3120889

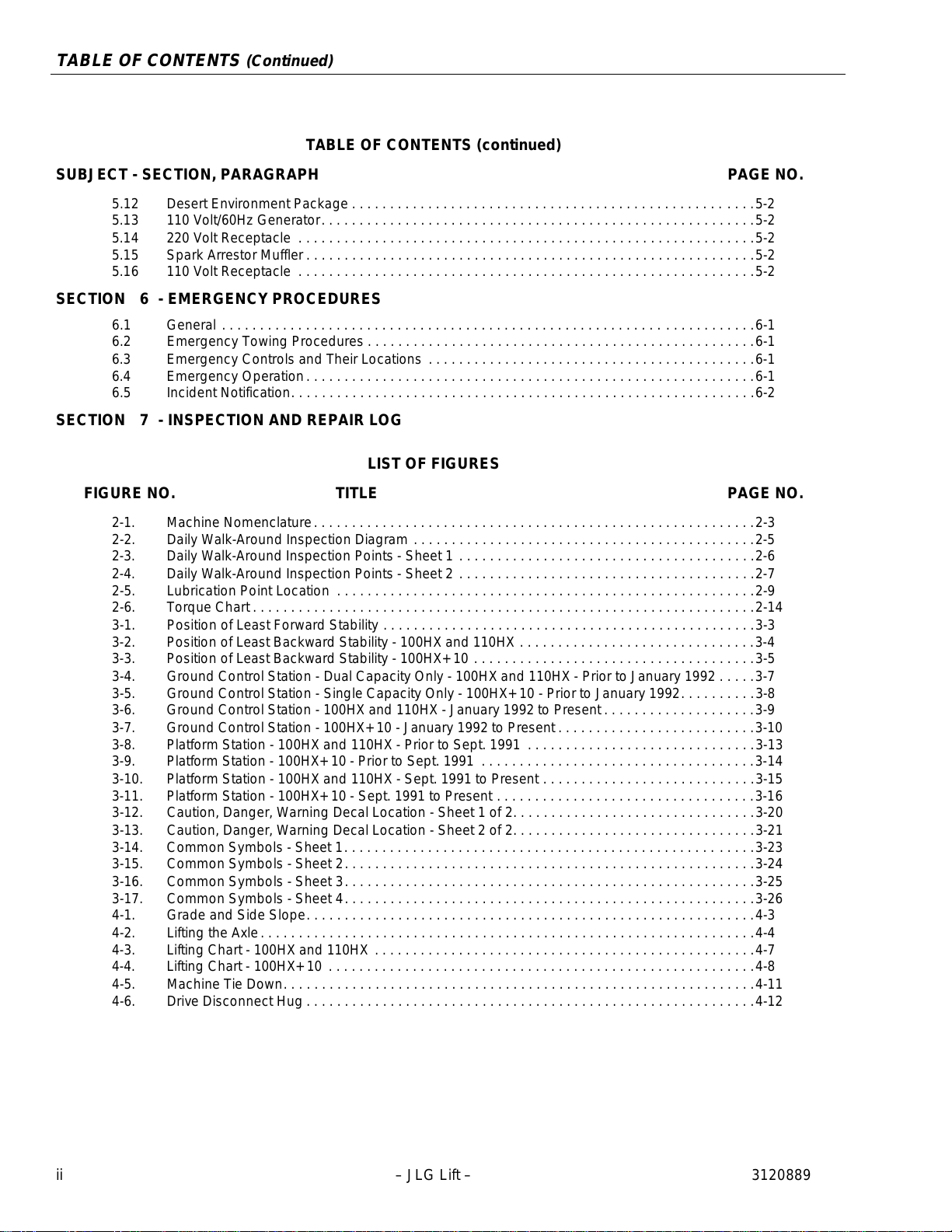

TABLE OF CONTENTS (Continued)
TABLE OF CONTENTS (continued)
SUBJECT - SECTION, PARAGRAPH PAGE NO.
5.12 Desert Environment Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
5.13 110 Volt/60Hz Generator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
5.14 220 Volt Receptacle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
5.15 Spark Arrestor Muffler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
5.16 110 Volt Receptacle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
SECTION 6 - EMERGENCY PROCEDURES
6.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
6.2 Emergency Towing Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
6.3 Emergency Controls and Their Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
6.4 Emergency Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
6.5 Incident Notification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
SECTION 7 - INSPECTION AND REPAIR LOG
LIST OF FIGURES
FIGURE NO. TITLE PAGE NO.
2-1. Machine Nomenclature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
2-2. Daily Walk-Around Inspection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-5
2-3. Daily Walk-Around Inspection Points - Sheet 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-6
2-4. Daily Walk-Around Inspection Points - Sheet 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7
2-5. Lubrication Point Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-9
2-6. Torque Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-14
3-1. Position of Least Forward Stability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
3-2. Position of Least Backward Stability - 100HX and 110HX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
3-3. Position of Least Backward Stability - 100HX+ 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
3-4. Ground Control Station - Dual Capacity Only - 100HXand 110HX - Prior to January 1992 . . . . .3-7
3-5. Ground Control Station - Single Capacity Only - 100HX+ 10 - Prior to January 1992. . . . . . . . . .3-8
3-6. Ground Control Station - 100HX and 110HX - January 1992 to Present . . . . . . . . . . . . . . . . . . . .3-9
3-7. Ground Control Station - 100HX+ 10 - January 1992 to Present . . . . . . . . . . . . . . . . . . . . . . . . . .3-10
3-8. Platform Station - 100HX and 110HX - Prior to Sept. 1991 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-13
3-9. Platform Station - 100HX+ 10 - Prior to Sept. 1991 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-14
3-10. Platform Station - 100HX and 110HX - Sept. 1991 to Present . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-15
3-11. Platform Station - 100HX+ 10 - Sept. 1991 to Present . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-16
3-12. Caution, Danger, Warning Decal Location - Sheet 1 of 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-20
3-13. Caution, Danger, Warning Decal Location - Sheet 2 of 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-21
3-14. Common Symbols - Sheet 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-23
3-15. Common Symbols - Sheet 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-24
3-16. Common Symbols - Sheet 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-25
3-17. Common Symbols - Sheet 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-26
4-1. Grade and Side Slope. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-3
4-2. Lifting the Axle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
4-3. Lifting Chart - 100HX and 110HX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
4-4. Lifting Chart - 100HX+ 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8
4-5. Machine Tie Down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-11
4-6. Drive Disconnect Hug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-12
Courtesy of Crane.Market

3120889 – JLG Lift – iii

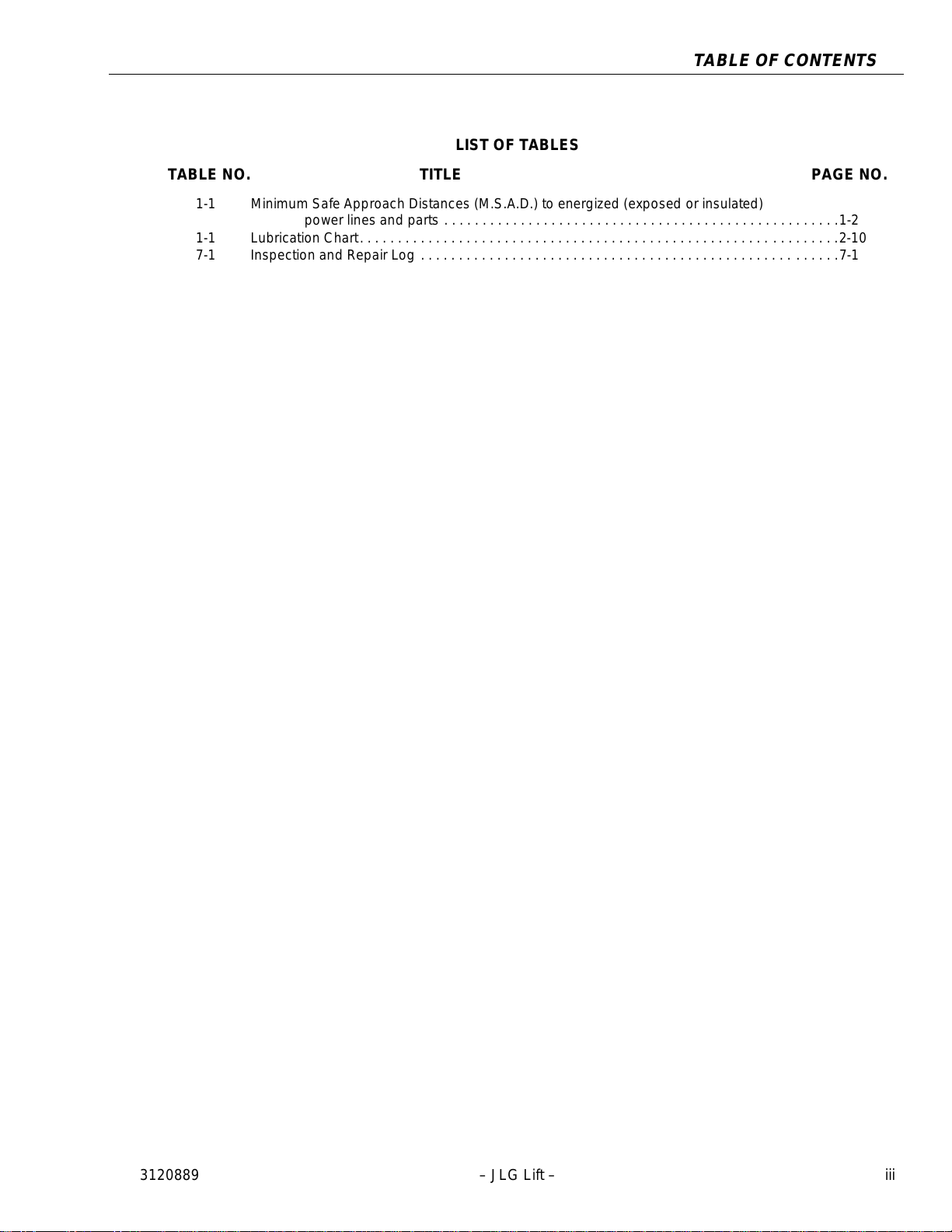

TABLE OF CONTENTS
LIST OF TABLES
TABLE NO. TITLE PAGE NO.
1-1 Minimum Safe Approach Distances (M.S.A.D.) to energized (exposed or insulated)
power lines and parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
1-1 Lubrication Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-10
7-1 Inspection and Repair Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Courtesy of Crane.Market

iv – JLG Lift – 3120889
TABLE OF CONTENTS (Continued)
This page left blank intentionally.
Courtesy of Crane.Market

SECTION 1 - SAFETY PRECAUTIONS
3120889 – JLG Lift – 1-1
SECTION 1. SAFETY PRECAUTIONS
1.1 GENERAL
This section prescribes the proper and safe practices for
major areas of machine usage. In order to promote proper
usage of the machine, it is mandatory that a daily routine
be established based on instructions given in this section.
A maintenance program must be also be established by a
qualified person and must be followed to ensure that the
machine is safe to operate.
The owner/user/operator of the machine should not
accept operating responsibility until this manual has been
read and understood, and operation of the machine,
under the supervision of an experienced and qualified per-
son, has been completed. If there is a question on appli-
cation and or operation, JLG Industries Inc., should be
consulted.
MODIFICATION OR ALTERATION OF AN AERIAL PLATFORM
SHALL BE MADE ONLY WITH PRIOR WRITTEN PERMISSION OF
THE MANUFACTURER.
1.2 DRIVING/TOWING
Before driving the machine, the user must be familiar with
the drive, steer and stopping characteristics. This is espe-
cially important when driving in close quarters.
The user should be familiar with the driving surface before
driving. The surface should be firm and level and grades
should not exceed the allowable grade for the machine.
NOTE: Remember that the key to safe and proper usage is
common sense and its careful application.
The machine is not equipped with provisions for towing.
Refer to Section 6 for emergency towing procedures.
SPECIAL NOTE:
FAILURE TO COMPLY WITH SAFETY PRECAUTIONS LISTED IN
THIS SECTION AND ON THE MACHINE COULD RESULT IN
MACHINE DAMAGE, PERSONNEL INJURY OR DEATH, AND IS A
SAFETY VIOLATION.
Courtesy of Crane.Market

SECTION 1 - SAFETY PRECAUTIONS
1-2 – JLG Lift – 3120889
1.3 ELECTROCUTION HAZARD
• MAINTAIN SAFE CLEARANCE FROM ELECTRICAL
LINES AND APPARATUS. ALLOW FOR BOOM SWAY,
ROCK OR SAG AND ELECTRICAL LINE SWAYING.
THE MACHINE DOES NOT PROVIDE PROTECTION
FROM CONTACT WITH OR PROXIMITY TO AN ELEC-
TRICALLY CHARGED CONDUCTOR.
• MAINTAIN A CLEARANCE OF AT LEAST 3 M (10
FEET) BETWEEN ANY PART OF THE MACHINE OR
ITS LOAD AND ANY ELECTRICAL LINE OR APPARA-
TUS CARRYING UP TO 50,000 VOLTS. 30.5 cm ADDI-
TIONAL CLEARANCE IS REQUIRED FOR EVERY
ADDITIONAL 30,000 VOLTS OR LESS.
1.4 PRE-OPERATIONAL
• READ YOUR MANUAL. UNDERSTAND WHAT YOU’VE
READ - THEN BEGIN OPERATIONS.
• ALLOW ONLY AUTHORIZED AND QUALIFIED PER-
SONNEL TO OPERATE MACHINE WHO HAVE DEM-
ONSTRATED THAT THEY UNDERSTAND SAFE AND
PROPER OPERATION AND MAINTENANCE OF THE
UNIT.
Table 1-1. Minimum Safe Approach Distances (M.S.A.D.) to energized (exposed or insulated) power lines and parts
Voltage Range
(Phase to Phase)
MINIMUM SAFE APPROACH DISTANCE
in Meters
0 to 300V AVOIDCONTACT
Over 300V to 50 KV 3
Over 50KV to 200 KV 5
Over 200 KV to 350 KV 6
Over 350 KV to 500 KV 8
Over 500 KV to 750 KV 11
Over 750 KV to 1000 KV 14
DANGER: DO NOT maneuver machine or personnel inside PROHIBITED ZONE. ASSUME all electrical parts and wiring
are ENERGIZED unless known otherwise.
Courtesy of Crane.Market

SECTION 1 - SAFETY PRECAUTIONS

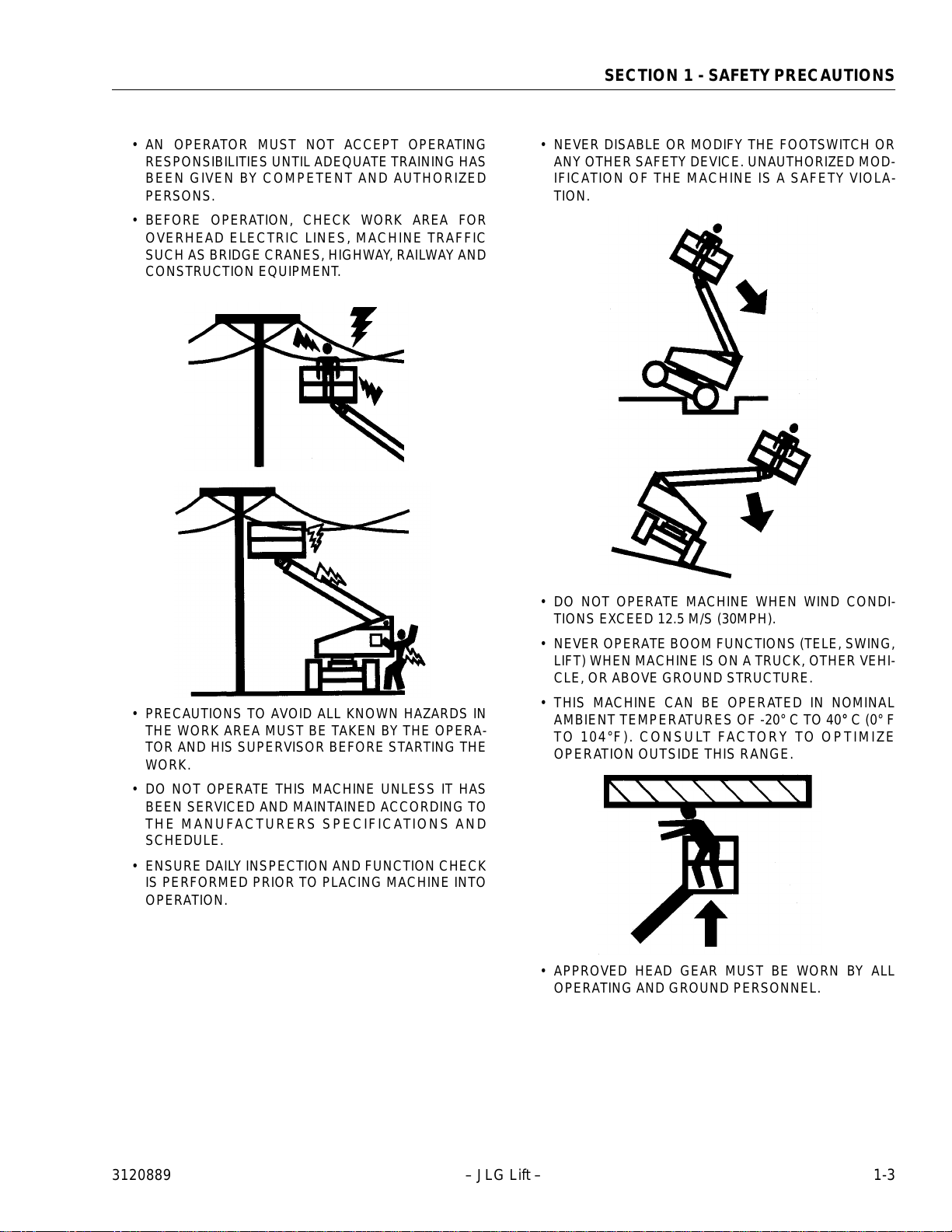

3120889 – JLG Lift – 1-3
• AN OPERATOR MUST NOT ACCEPT OPERATING
RESPONSIBILITIES UNTIL ADEQUATE TRAINING HAS
BEEN GIVEN BY COMPETENT AND AUTHORIZED
PERSONS.
• BEFORE OPERATION, CHECK WORK AREA FOR
OVERHEAD ELECTRIC LINES, MACHINE TRAFFIC
SUCH AS BRIDGE CRANES, HIGHWAY, RAILWAY AND
CONSTRUCTION EQUIPMENT.
• PRECAUTIONS TO AVOID ALL KNOWN HAZARDS IN
THE WORK AREA MUST BE TAKEN BY THE OPERA-
TOR AND HIS SUPERVISOR BEFORE STARTING THE
WORK.
• DO NOT OPERATE THIS MACHINE UNLESS IT HAS
BEEN SERVICED AND MAINTAINED ACCORDING TO
THE MANUFACTURERS SPECIFICATIONS AND
SCHEDULE.
• ENSURE DAILY INSPECTION AND FUNCTION CHECK
IS PERFORMED PRIOR TO PLACING MACHINE INTO
OPERATION.
• NEVER DISABLE OR MODIFY THE FOOTSWITCH OR
ANYOTHERSAFETYDEVICE. UNAUTHORIZED MOD-
IFICATION OF THE MACHINE IS A SAFETY VIOLA-
TION.
• DO NOT OPERATE MACHINE WHEN WIND CONDI-
TIONS EXCEED 12.5 M/S (30MPH).
• NEVER OPERATE BOOM FUNCTIONS (TELE, SWING,
LIFT) WHEN MACHINE IS ON A TRUCK, OTHER VEHI-
CLE, OR ABOVE GROUND STRUCTURE.
• THIS MACHINE CAN BE OPERATED IN NOMINAL
AMBIENT TEMPERATURES OF -20° C TO 40°C (0° F
TO 104°F). CONSULT FACTORY TO OPTIMIZE
OPERATION OUTSIDE THIS RANGE.
• APPROVED HEAD GEAR MUST BE WORN BY ALL
OPERATING AND GROUND PERSONNEL.
Courtesy of Crane.Market

SECTION 1 - SAFETY PRECAUTIONS
1-4 – JLG Lift – 3120889
.
• READ AND OBEY ALL DANGERS, WARNINGS, CAU-
TIONS AND OPERATING INSTRUCTIONS ON
MACHINE AND IN THIS MANUAL.
• BE FAMILIAR WITH LOCATION AND OPERATION OF
GROUND STATION CONTROLS.
• ALWAYS USE THREE POINT CONTACT WHEN
ENTERING OR EXITING THE MACHINE. FACE THE
MACHINE WHEN YOU ENTER OR LEAVE. THREE
POINT CONTACT MEANS THAT TWO HANDS AND
ONE FOOT OR ONE HAND AND TWO FEET ARE IN
CONTACT WITH THE MACHINE AT ALL TIMES DUR-
ING MOUNT AND DISMOUNT.
1.5 DRIVING
• WATCH FOR OBSTRUCTIONS AROUND MACHINE
AND OVERHEAD WHEN DRIVING.
• ALWAYS POSITION BOOM OVER REAR (DRIVE) AXLE
IN LINE WITH DIRECTION OF TRAVEL. REMEMBER,
IF BOOM IS OVERFRONT (STEER) AXLE, DIRECTION
OF STEER AND DRIVE MOVEMENT WILL BE OPPO-
SITE FROM NORMAL OPERATION.
• DO NOT USE DRIVE FUNCTION TO POSITION PLAT-
FORM CLOSE TO OBSTACLES. USE BOOM FUNC-
TION INSTEAD.
• WHEN DRIVING IN HIGH SPEED, SWITCH TO LOW
SPEED BEFORE STOPPING. TRAVEL GRADES IN
LOW DRIVE, HIGH ENGINE ONLY.
• DO NOT USE HIGH SPEED DRIVE WHEN IN
RESTRICTED OR CLOSE QUARTERS, OR WHEN
DRIVING IN REVERSE.
• BE AWARE OF STOPPING DISTANCES WHEN TRAV-
ELING IN HIGH AND LOW SPEEDS.
• ALWAYS POST A LOOKOUT AND SOUND HORN
WHEN DRIVING IN AREAS WHERE VISION IS
OBSTRUCTED.
• KEEP NON-OPERATING PERSONNEL AT LEAST 2 M
(6 FEET) AWAY FROM MACHINE DURING DRIVING
OPERATIONS.
Courtesy of Crane.Market

SECTION 1 - SAFETY PRECAUTIONS
3120889 – JLG Lift – 1-5
• CHECK TRAVEL PATH FOR PERSONS, HOLES,
BUMPS, DROP-OFFS, OBSTRUCTIONS, DEBRIS,
AND COVERINGS WHICH MAY CONCEAL HOLES
AND OTHER HAZARDS.
• TRAVEL IS PERMITTED ON GRADES AND SIDES-
LOPES NO GREATER THAN THOSE INDICATED IN
WARNING PLACARD AT MACHINE PLATFORM.
• OPERATION WITH BOOM RAISED IS RESTRICTED
TO FIRM, LEVEL AND UNIFORM SURFACE.
• DO NOT TRAVEL ON SOFT OR UNEVEN SURFACES,
AS TIPPING WILL OCCUR.
• DO NOT DRIVE MACHINE NEAR PITS, LOADING
DOCKS OR OTHER DROP-OFFS.
1.6 OPERATION.
• READ YOUR MANUAL. UNDERSTAND WHAT YOU’VE
READ - THEN BEGIN OPERATIONS.
• PRIOR TO ENTERING AND EXITING PLATFORM AT
GROUND LEVEL, FULLY LOWER THE BOOM.
EXTEND BOOM UNTIL END OF FLY BOOM CON-
TACTS GROUND. WITH BOOM LIFT IN THIS CONFIG-
URATION, ENTER AND/OR EXIT PLATFORM
THROUGH GATE OPENING.
• JLG RECOMMENDS ALL PERSONS IN THE PLAT-
FORM TO WEAR LANYARDS WITH AN APPROVED
FALL PROTECTION DEVICE. SECURE LANYARD TO
DESIGNATED LANYARD ATTACH POINT ON PLAT-
FORM. KEEP GATE CLOSED AT ALL TIMES.
• TO AVOID FALLING - USE EXTREME CAUTION WHEN
ENTERING OR LEAVING PLATFORM ABOVE
GROUND. ENTER OR EXIT THRU GATE ONLY. PLAT-
FORM FLOOR MUST BE WITHIN 30CM (1 FOOT) OF
ADJACENT - SAFE AND SECURE - STRUCTURE.
ALLOW FOR PLATFORM VERTICAL MOVEMENT AS
WEIGHT IS TRANSFERRED TO OR FROM PLAT-
FORM.
Courtesy of Crane.Market

SECTION 1 - SAFETY PRECAUTIONS

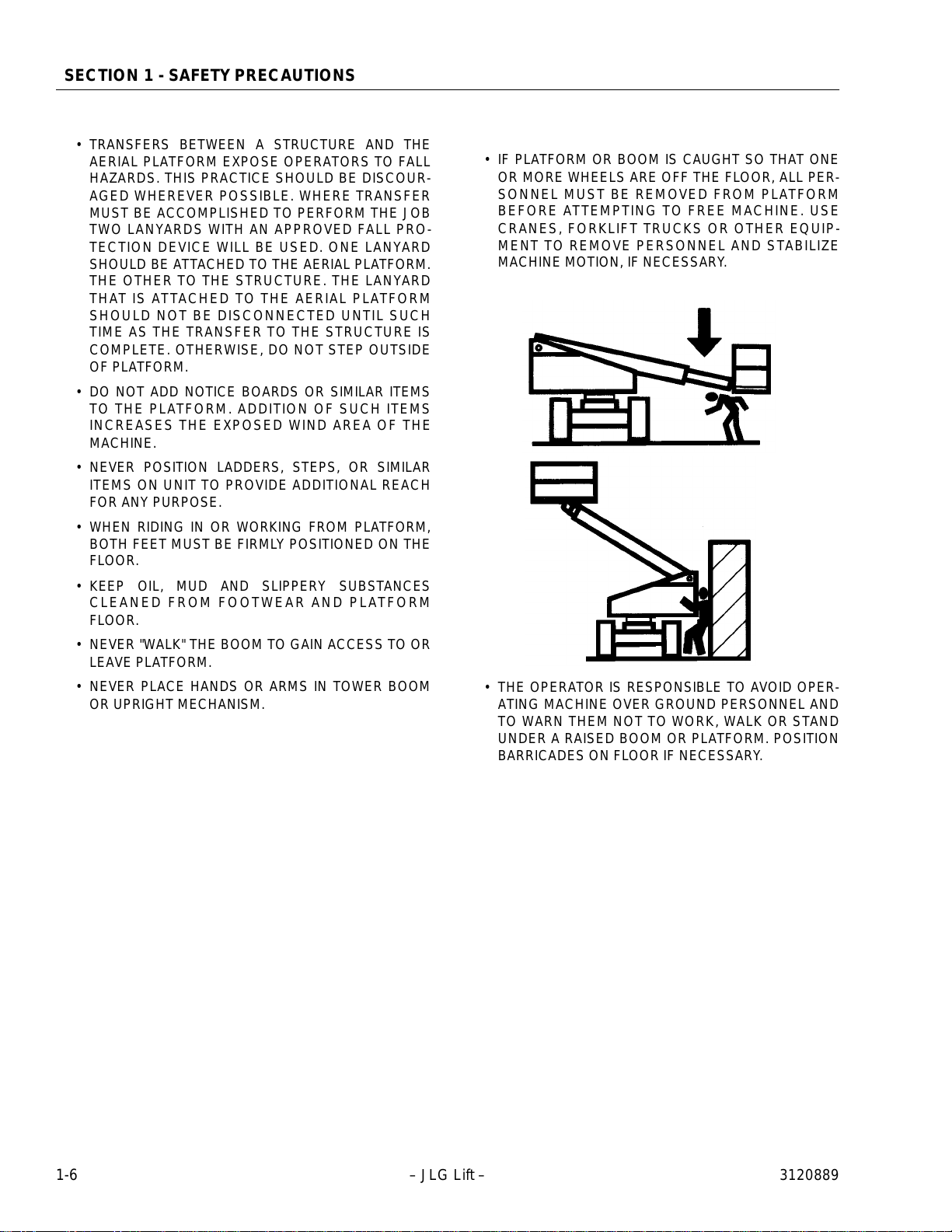

1-6 – JLG Lift – 3120889
• TRANSFERS BETWEEN A STRUCTURE AND THE
AERIAL PLATFORM EXPOSE OPERATORS TO FALL
HAZARDS. THIS PRACTICE SHOULD BE DISCOUR-
AGED WHEREVER POSSIBLE. WHERE TRANSFER
MUST BE ACCOMPLISHED TO PERFORM THE JOB
TWO LANYARDS WITH AN APPROVED FALL PRO-
TECTION DEVICE WILL BE USED. ONE LANYARD
SHOULD BE ATTACHED TO THE AERIAL PLATFORM.
THE OTHER TO THE STRUCTURE. THE LANYARD
THAT IS ATTACHED TO THE AERIAL PLATFORM
SHOULD NOT BE DISCONNECTED UNTIL SUCH
TIME AS THE TRANSFER TO THE STRUCTURE IS
COMPLETE. OTHERWISE, DO NOT STEP OUTSIDE
OF PLATFORM.
• DO NOT ADD NOTICE BOARDS OR SIMILAR ITEMS
TO THE PLATFORM. ADDITION OF SUCH ITEMS
INCREASES THE EXPOSED WIND AREA OF THE
MACHINE.
• NEVER POSITION LADDERS, STEPS, OR SIMILAR
ITEMS ON UNIT TO PROVIDE ADDITIONAL REACH
FOR ANY PURPOSE.
• WHEN RIDING IN OR WORKING FROM PLATFORM,
BOTH FEET MUST BE FIRMLY POSITIONED ON THE
FLOOR.
• KEEP OIL, MUD AND SLIPPERY SUBSTANCES
CLEANED FROM FOOTWEAR AND PLATFORM
FLOOR.
• NEVER "WALK" THE BOOM TO GAIN ACCESS TO OR
LEAVE PLATFORM.
• NEVER PLACE HANDS OR ARMS IN TOWER BOOM
OR UPRIGHT MECHANISM.
• IF PLATFORM OR BOOM IS CAUGHT SO THAT ONE
OR MORE WHEELS ARE OFF THE FLOOR, ALL PER-
SONNEL MUST BE REMOVED FROM PLATFORM
BEFORE ATTEMPTING TO FREE MACHINE. USE
CRANES, FORKLIFT TRUCKS OR OTHER EQUIP-
MENT TO REMOVE PERSONNEL AND STABILIZE
MACHINE MOTION, IF NECESSARY.
• THE OPERATOR IS RESPONSIBLE TO AVOID OPER-
ATING MACHINE OVER GROUND PERSONNEL AND
TO WARN THEM NOT TO WORK, WALK OR STAND
UNDER A RAISED BOOM OR PLATFORM. POSITION
BARRICADES ON FLOOR IF NECESSARY.
Courtesy of Crane.Market

SECTION 1 - SAFETY PRECAUTIONS

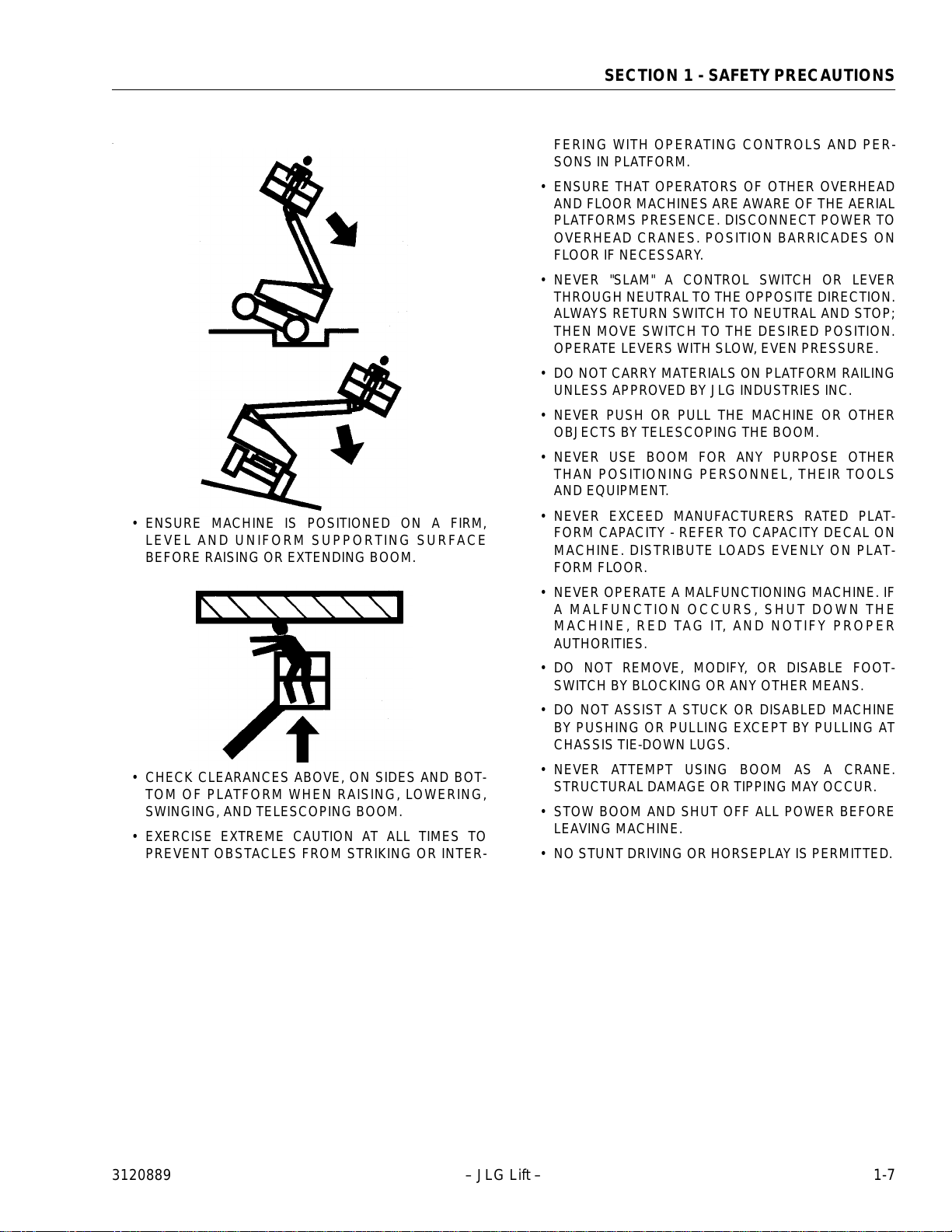

3120889 – JLG Lift – 1-7
.
• ENSURE MACHINE IS POSITIONED ON A FIRM,
LEVEL AND UNIFORM SUPPORTING SURFACE
BEFORE RAISING OR EXTENDING BOOM.
• CHECK CLEARANCES ABOVE, ON SIDES AND BOT-
TOM OF PLATFORM WHEN RAISING, LOWERING,
SWINGING, AND TELESCOPING BOOM.
• EXERCISE EXTREME CAUTION AT ALL TIMES TO
PREVENT OBSTACLES FROM STRIKING OR INTER-
FERING WITH OPERATING CONTROLS AND PER-
SONS IN PLATFORM.
• ENSURE THAT OPERATORS OF OTHER OVERHEAD
AND FLOORMACHINES ARE AWARE OF THE AERIAL
PLATFORMS PRESENCE. DISCONNECT POWER TO
OVERHEAD CRANES. POSITION BARRICADES ON
FLOOR IF NECESSARY.
• NEVER "SLAM" A CONTROL SWITCH OR LEVER
THROUGH NEUTRAL TO THE OPPOSITE DIRECTION.
ALWAYS RETURN SWITCH TO NEUTRAL AND STOP;
THEN MOVE SWITCH TO THE DESIRED POSITION.
OPERATE LEVERS WITH SLOW, EVEN PRESSURE.
• DO NOT CARRY MATERIALS ON PLATFORM RAILING
UNLESS APPROVED BY JLG INDUSTRIES INC.
• NEVER PUSH OR PULL THE MACHINE OR OTHER
OBJECTS BY TELESCOPING THE BOOM.
• NEVER USE BOOM FOR ANY PURPOSE OTHER
THAN POSITIONING PERSONNEL, THEIR TOOLS
AND EQUIPMENT.
• NEVER EXCEED MANUFACTURERS RATED PLAT-
FORM CAPACITY - REFER TO CAPACITY DECAL ON
MACHINE. DISTRIBUTE LOADS EVENLY ON PLAT-
FORM FLOOR.
• NEVER OPERATE A MALFUNCTIONING MACHINE. IF
A MALFUNCTION OCCURS, SHUT DOWN THE
MACHINE, RED TAG IT, AND NOTIFY PROPER
AUTHORITIES.
• DO NOT REMOVE, MODIFY, OR DISABLE FOOT-
SWITCH BY BLOCKING OR ANY OTHER MEANS.
• DO NOT ASSIST A STUCK OR DISABLED MACHINE
BY PUSHING OR PULLING EXCEPT BY PULLING AT
CHASSIS TIE-DOWN LUGS.
• NEVER ATTEMPT USING BOOM AS A CRANE.
STRUCTURAL DAMAGE OR TIPPING MAY OCCUR.
• STOW BOOM AND SHUT OFF ALL POWER BEFORE
LEAVING MACHINE.
• NO STUNT DRIVING OR HORSEPLAY IS PERMITTED.
Courtesy of Crane.Market

SECTION 1 - SAFETY PRECAUTIONS
1-8 – JLG Lift – 3120889
• NEVER ATTEMPT TO FREE A MACHINE STUCK IN
SOFT GROUND OR ASSIST A MACHINE UP A STEEP
HILL OR RAMP BY USING BOOM "LIFT", "TELE-
SCOPE", OR "SWING" FUNCTIONS.
• NEVER ATTACH WIRE, CABLE, OR ANY SIMILAR
ITEMS TO PLATFORM.
• DO NOT PLACE BOOM OR PLATFORM AGAINST ANY
STRUCTURE TO STEADY PLATFORM OR SUPPORT
STRUCTURES.
• DO NOT USE THE LIFT, SWING, OR TELESCOPE
FUNCTIONS FORTHE BOOM, TO MOVE EITHERTHE
MACHINE OR OTHER OBJECTS.
• HYDRAULIC CYLINDERS SHOULD NEVER BE LEFT
FULLY EXTENDED OR RETRACTED FOR ANY
LENGTH OF TIME. ALWAYS "BUMP" CONTROL IN
OPPOSITE DIRECTION SLIGHTLY WHEN FUNCTION
BEING USED REACHES END OF TRAVEL. THIS
APPLIES TO MACHINES IN OPERATION OR IN
STOWED MODE.
• DO NOT OPERATE ANY MACHINE ON WHICH DAN-
GER, WARNING, CAUTION OR INSTRUCTION PLAC-
ARDS OR DECALS ARE MISSING OR ILLEGIBLE.
• MACHINE MUST ALWAYS BE SHUT DOWN WHEN
REFUELING. NO SMOKING IS MANDATORY. NEVER
REFUEL DURING AN ELECTRICAL STORM. ENSURE
THAT FUEL CAP IS CLOSED AND SECURE AT ALL
OTHER TIMES.
1.7 TOWING AND HAULING
• DO NOT TOW A MACHINE EXCEPT IN AN EMER-
GENCY. SEE SECTION 6 FOR EMERGENCY TOWING
PROCEDURES.
• LOCK TURNTABLE BEFORE TRAVELING LONG DIS-
TANCES OR BEFORE HAULING MACHINE ON A
TRUCK OR TRAILER.
Courtesy of Crane.Market

SECTION 2 - PREPARATION AND INSPECTION
3120889 – JLG Lift – 2-1
SECTION 2. PREPARATION AND INSPECTION
2.1 GENERAL
This section provides the necessary information needed
by those personnel that are responsible to place the
machine in operation readiness, and lists checks that are
performed prior to use of the machine. It is important that
the information contained in this section be read and
understood before any attempt is made to operate the
machine. Ensure that all the necessary inspections have
been completed successfully before placing the machine
into service. These procedures will aid in obtaining maxi-
mum service life and safe operation.
SINCE THE MACHINE MANUFACTURER HAS NO DIRECT CON-
TROL OVER THE FIELD INSPECTION AND MAINTENANCE,
SAFETY IS THE RESPONSIBILITY OF THE OWNER/OPERATOR.
2.2 PREPARATION FOR USE
Before a new machine is put into operation it must be
carefully inspected for any evidence of damage resulting
from shipment and inspected periodically thereafter, as
outlined in Delivery and Frequent Inspection (Section 2.3,
Delivery and Frequent Inspection). During initial start-up
and run, the unit should be thoroughly checked for
hydraulic leaks. A check of all components should be
made to ensure their security.
All preparation necessary to place the machine in opera-
tion readiness status is the responsibility of management
personnel. Preparation requires good common sense,
(i.e. telescope works smoothly and brakes operate prop-
erly) coupled with a series of visual inspections. The man-
datory requirements are given in the Daily Walk Around
Inspection (Section 2.4, Daily Walk-Around Inspection).
It should be assured that the items appearing in the Deliv-
ery and Frequent Inspection and Functional Check are
complied with prior to putting the machine into service.
2.3 DELIVERY AND FREQUENT INSPECTION
NOTE: This machine requires periodic safety and mainte-
nance inspections by an authorized JLG Dealer. A
decal located on the turntable provides a place to
record (stamp)Annual Inspection dates. Check decal
and notify dealer if inspection is overdue.
The following checklist provides a systematic inspection
to assist in detecting defective, damaged, or improperly
installed parts. The checklist denotes the items to be
inspected and conditions to examine.
Frequent inspection shall be performed every 3 months or
150 hours whichever comes first, or more often when
required by environment, severity, and frequency of
usage.
This inspection checklist is also applicable and must be
followed for all machines that have been in storage or for
all machines that will be exposed to harsh or changing cli-
mates.
These checks are also performed after maintenance has
been performed on the machine.
Chassis
1. Check front tire and wheel assemblies for loose or
worn spindles, components and hardware for secu-
rity, tires for wear and damage.
2. Check steering assembly for loose or bent tie rod,
cylinder and hydraulic lines for leaks and security,
and hardware for proper installation.
3. Check rear tire and wheel assemblies for security,
tires for wear and damage.
4. Check drive hubs, hydraulic motors, brakes and
hydraulic lines for damage and leaks.
5. Check oil level in drive hub by removing pipe plug
on side and feeling for oil level. (Contact Service
Personnel for assistance if needed).
NOTE: Torque hubs should be one-half full of lubricant.
6. Check 4WS steering assembly (if equipped) for
loose or bent tie rod, cylinder and hydraulic lines for
leaks and security, and hardware for proper installa-
tion.
7. Check counterbalance, flow divider valves, hydraulic
swivel assembly and lines for visible damage, evi-
dence of leakage, and security and electrical con-
nections for corrosion and tightness.
8. Check extending axle assemblies for evidence of
leakage and security; pressure lines for abnormal
chafing drive hubs, hydraulic motors, brakes and
hydraulic lines for damage and leaks.
9. Check extending axles for visible damage and loose
or missing parts.
10. Check oscillating axle (if equipped) for loose, miss-
ing and worn parts, pivot pin and lockout cylinder
pins for security, lockout cylinders and hydraulic
hoses for damage and leaks.
Courtesy of Crane.Market

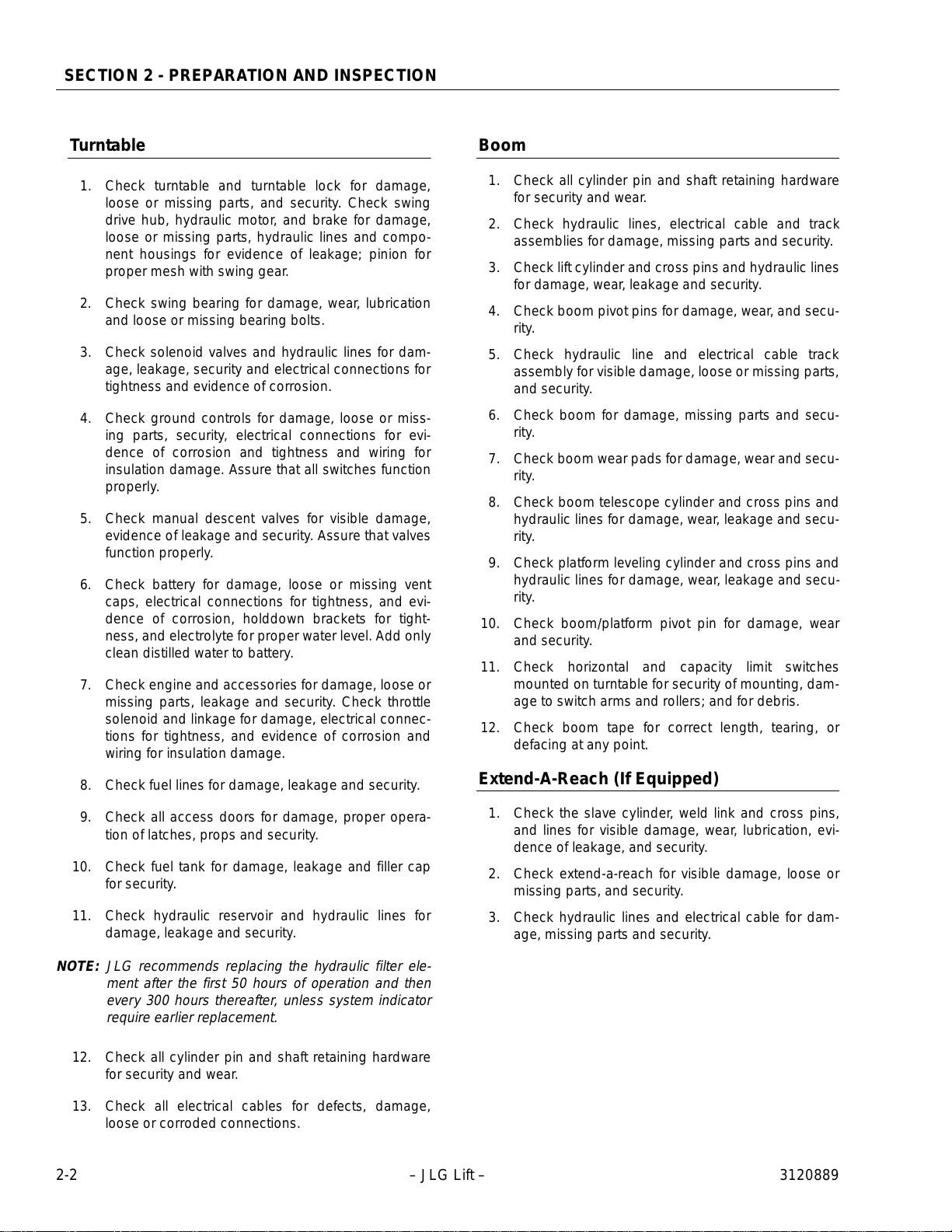

SECTION 2 - PREPARATION AND INSPECTION
2-2 – JLG Lift – 3120889
Turntable
1. Check turntable and turntable lock for damage,
loose or missing parts, and security. Check swing
drive hub, hydraulic motor, and brake for damage,
loose or missing parts, hydraulic lines and compo-
nent housings for evidence of leakage; pinion for
proper mesh with swing gear.
2. Check swing bearing for damage, wear, lubrication
and loose or missing bearing bolts.
3. Check solenoid valves and hydraulic lines for dam-
age, leakage, security and electrical connections for
tightness and evidence of corrosion.
4. Check ground controls for damage, loose or miss-
ing parts, security, electrical connections for evi-
dence of corrosion and tightness and wiring for
insulation damage. Assure that all switches function
properly.
5. Check manual descent valves for visible damage,
evidence of leakage and security. Assure that valves
function properly.
6. Check battery for damage, loose or missing vent
caps, electrical connections for tightness, and evi-
dence of corrosion, holddown brackets for tight-
ness, and electrolyte for proper water level. Add only
clean distilled water to battery.
7. Check engine and accessories for damage, loose or
missing parts, leakage and security. Check throttle
solenoid and linkage for damage, electrical connec-
tions for tightness, and evidence of corrosion and
wiring for insulation damage.
8. Check fuel lines for damage, leakage and security.
9. Check all access doors for damage, proper opera-
tion of latches, props and security.
10. Check fuel tank for damage, leakage and filler cap
for security.
11. Check hydraulic reservoir and hydraulic lines for
damage, leakage and security.
NOTE: JLG recommends replacing the hydraulic filter ele-
ment after the first 50 hours of operation and then
every 300 hours thereafter, unless system indicator
require earlier replacement.
12. Check all cylinder pin and shaft retaining hardware
for security and wear.
13. Check all electrical cables for defects, damage,
loose or corroded connections.
Boom
1. Check all cylinder pin and shaft retaining hardware
for security and wear.
2. Check hydraulic lines, electrical cable and track
assemblies for damage, missing parts and security.
3. Check lift cylinder and cross pins and hydraulic lines
for damage, wear, leakage and security.
4. Check boom pivot pins for damage, wear, and secu-
rity.
5. Check hydraulic line and electrical cable track
assembly for visible damage, loose or missing parts,
and security.
6. Check boom for damage, missing parts and secu-
rity.
7. Check boom wear pads for damage, wear and secu-
rity.
8. Check boom telescope cylinder and cross pins and
hydraulic lines for damage, wear, leakage and secu-
rity.
9. Check platform leveling cylinder and cross pins and
hydraulic lines for damage, wear, leakage and secu-
rity.
10. Check boom/platform pivot pin for damage, wear
and security.
11. Check horizontal and capacity limit switches
mounted on turntable for security of mounting, dam-
age to switch arms and rollers; and for debris.
12. Check boom tape for correct length, tearing, or
defacing at any point.
Extend-A-Reach (If Equipped)
1. Check the slave cylinder, weld link and cross pins,
and lines for visible damage, wear, lubrication, evi-
dence of leakage, and security.
2. Check extend-a-reach for visible damage, loose or
missing parts, and security.
3. Check hydraulic lines and electrical cable for dam-
age, missing parts and security.
Courtesy of Crane.Market
