jobmate YT5107 User manual

3
Know Your Product................................................................................................. 4
Technical Specications......................................................................................... 4
Description of Symbols...........................................................................................5
Contents of Electric Garden Lawn Mower............................................................. 6
General Safety Instructions.................................................................................... 7
Additional Safety Instructions for Electric Garden Lawn Mower.............................9

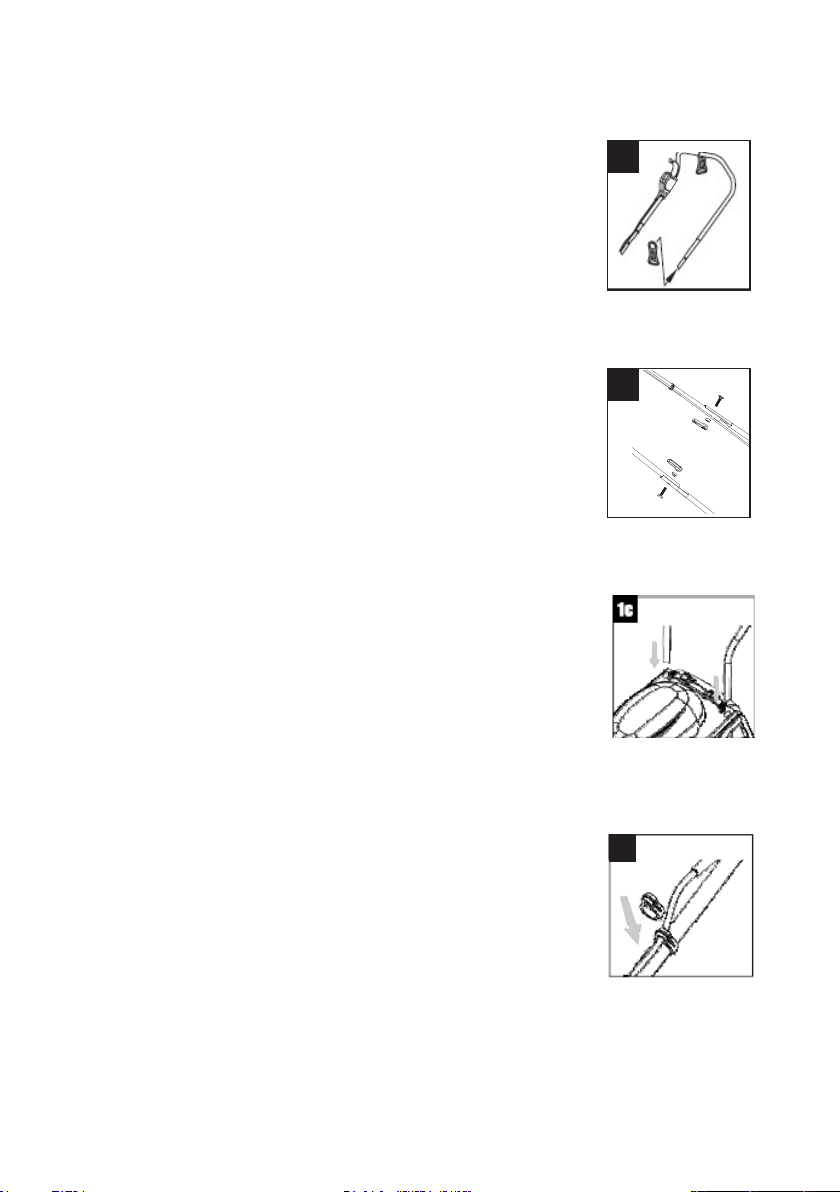

Assembly Instructions............................................................................................12
Operation...............................................................................................................14
Connecting to Power Supply............................................................................14
Staring..............................................................................................................14
Mowing ............................................................................................................15
Tips for Using Your Electric Lawn Mower.........................................................15
Maintenance.......................................................................................................... 16
Warranty ................................................................................................................17
CONTENTS

4
1 Upper handle 2 Lower handle
3Switch box assembly 4Grass catcher
5Wheel 6 Motor assembly
7Cord retainer
SKU 232480 SKU 232483
Voltage 230V ~ 50Hz 230V ~ 50Hz
Rated power 1000W 1300W
No-load speed 3250/min 3250/min
Cutting capacity 320mm 380mm
Adjustable height position 20-60mm 20-60mm
Collection bag 25L 35L
Wheel diameter 140/140mm(front/rear) 160/160mm(front/rear)
KNOW YOUR PRODUCT
TECHNICAL SPECIFICATIONS
6
5
4
2
1
7
3

5

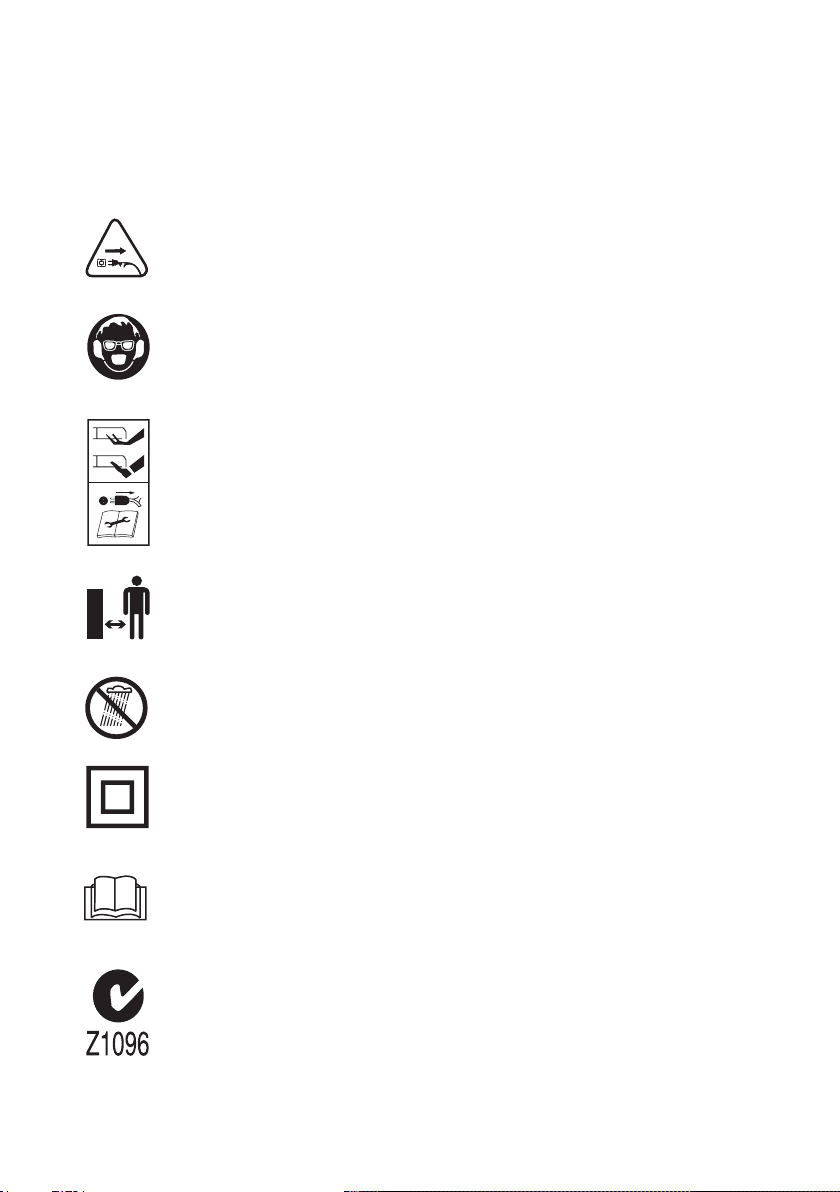

The rating plate on your tool may show symbols. These represent important
information about the product or instructions on its use.
Disconnect from mains power immediately if the power cord becomes
damaged.
Wear hearing protection.
Wear eye protection.
Wear respiratory protection.
Beware of sharp blades - remove plug from mains before maintenance
or if cord is damaged.
Keep bystanders, especially children and pets, at a distance of greater
than 10m.
Do not use in the rain or leave the mower outdoors while it is raining.
WARNING: To reduce the risk of injury, user must read instruction
manual.
Conforms to relevant standards for electromagnetic compatibility.
Class II tool.
DESCRIPTION OF SYMBOLS

6

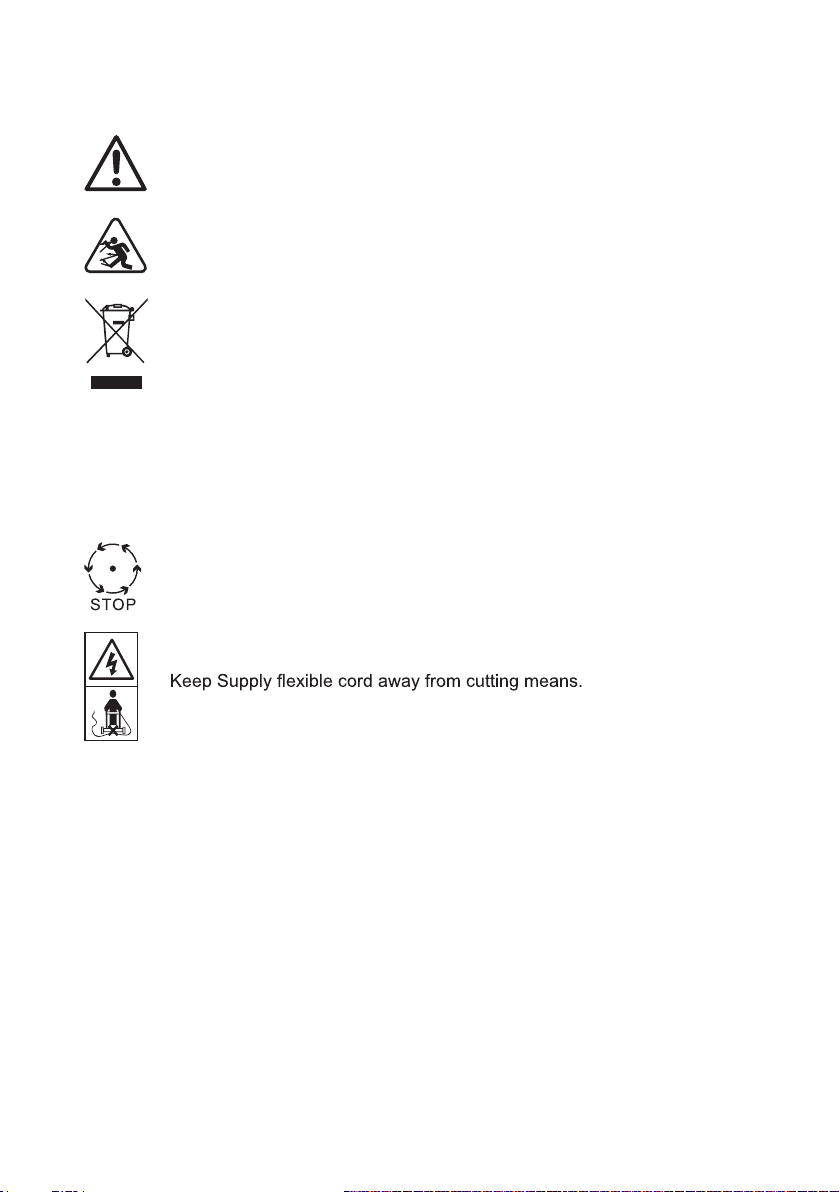

Indicated danger, warning, or caution
Do not run the machine over objects. They can be thrown and cause
severe injury
1* Grass catcher
1* Unit
2* Knobs
1* Upper handle
2* Lower handle tubes
2* Screws
1* Instruction manual
The blade continues to rotate after the mower is switched off. Wait until
all parts are stationary before touching them.
This symbol is known as the ’Crossed-out Wheelie Bin Symbol’. When
this symbol is marked on a product or battery, it means that it should not
be disposed of with your general household waste. Some chemicals
contained within electrical/electronic products or batteries can be harmful
to health and the environment. Only dispose of electrical/electronic/
battery items in separate collection schemes, which cater for the recovery
and recycling of materials contained within. Your co-operation is vital
to ensure the success of these schemes and for the protection of the
environment.
DESCRIPTION OF SYMBOLS (CONT.)
CONTENTS OF ELECTRIC GARDEN LAWN MOWER
CARTON

7
WARNING! Read all instructions. Failure to follow all the instructions listed
in all of the warnings listed below refers to your mains operated (corded) power tool
or battery operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) Work area
• Keep work area clean and well lit. Cluttered or dark areas can lead to accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can
cause a loss of control.
2) Electrical safety
• Power tool plugs must match the outlet. Never modify the plug in any way. Do not
matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body
is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord awayfrom heat, oil, sharp edgesor moving parts. Damaged
or entangled cords increase the risk of electric shock.
• Replace of the supply cord. If the supply cord is damaged, it must be replaced by
an electrician or a power tool repairer.
• When operating a power tool outdoors, use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
• Have your tool repaired by an electrician or a power tool repairer. This power tool
complies with relevant safety requirements. To avoid danger, electrical appliances
this may result in considerable damage to the user.
3)Personal safety
• Stay alert, watch what you are doing and use common sense when operating a
drugs, alcohol or medication. A moment of inattention while operating power tools
may result in serious personal injury.
• Use safety equipment. Always wear eye protection. Safety equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used whenever
conditions require will reduce personal injuries.
• Avoid accidental starting. Ensure the switch is in the ‘off’ position before plugging
GENERAL SAFETY INSTRUCTIONS

8
GENERAL SAFETY INSTRUCTIONS (Cont.)
that have the switch on may cause an accident.
• Remove any adjusting key or wrench before turning the power tool on. A wrench
or key left attached to a rotating part of the power tool may result in personal
injury.
• Do not overreach. Keep proper footing and balance at all times. This enables
better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
• If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used. Use of these devices
can reduce dust related hazards.
4)Power Tool Use and Care
• Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was
designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making any adjustments,
changing accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or sticking of moving parts,
breakage of parts and any other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to stick and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these
instructions, and in the manner intended for the particular type of power tool,
taking into account the working conditions the work to be performed. Use of the
power tool for operations different from intended use could lead to a hazardous
situation.
5)Service
replacement parts. This will ensure that the safety of the power tool is maintained.

9
• Only use this Lawn Mower when a Residual Current Device (RCD ) with a tripping
current of not more than 30mA is in the circuit.
• If an extension cord is used make sure it is for outdoor use and marked as
such. The recommended size of extension cord is not lighter than 1.5 mm
2
and
a maximum of 10 metres in length.
• Completely uncoil your extension cable before use to prevent over heating and
kinking.
• This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the mower.
WARNING: After switching off the machine, the cutting blades continue to
rotate for a few more seconds.
• Frequently inspect the condition of the cutting blade. Damaged blades must be
replaced immediately. Blunt blades should be sharpened. Follow all the required
precautions when replacing the blade.
• Before use check the supply and extension cord for signs of damage or ageing.
If the cord becomes damaged during use, disconnect the cord from the supply
immediately.
DO NOT TOUCH THE CORD BEFORE
DISCONNECTING FROM THE POWER SUPPLY.
• Do not connect a damaged cord to the power supply or touch a damaged cord
before it is disconnected from the power supply. A damaged cord can lead to
contact with live parts.
• Do not use the mower if the cord is damaged or worn.
• Read the instructions carefully. Be familiar with the controls and proper use of the
equipment.
• Keep extension cord away from cutting blades.
• Wear eye and ear protection. Wear dust protection if the mowing action causes
the raising of dust or particles.
• Never allow children, impaired people or people unfamiliar with these instructions
to use this mower.
• Avoid using the mower while people, especially children and the impaired, or pets
are nearby.
• Never operate the mower with a damaged base.
• When starting up and when the machine is in operation, keep the cutting section
away from all parts of the body, especially the hands and feet.
ADDITIONAL SAFETY INSTRUCTIONS FOR
ELECTRIC GARDEN LAWN MOWER

10
ADDITIONAL SAFETY INSTRUCTIONS FOR
ELECTRIC GARDEN LAWN MOWER (CONT.)
• Do not start the machine when it is not in the operating position.
• Thoroughly inspect the mower for loose or damaged parts before each use. Do
not use the unit before adjustments or repairs are made.
• Use only the manufacturer's recommended replacement parts and accessories.
• Always disconnect the mower from the mains when leaving it unattended.
• Switch the motor off and pull out the plug when the machine is not being used,
being cleaned, being moved from one place to another or when the blade is being
changed or adjusted.
• If there is an interruption to the power supply or the extension cable is damaged,
switch off the machine immediately and remove the plug from the power point.
• Inspect and maintain the mower regularly. Have the mower repaired only by an
authorised repairer.
• If power cord is damaged, only have it repaired or replaced by an authorised
service agent.
• Check that all grass cuttings and dirt have been removed from the ventilation
vents.
• When not in use, store the mower out of the reach of children and impaired
people.
WARNING: In order to reduce the risk, disconnect the plug from the supply
power, only use recommended accessories as required, otherwise personal injury
may result.
• Do not switch on the machine in enclosed or poorly ventilated spaces or in the
and powders.
• Always stop the mower and switch off at the mains when cutting is delayed,
emptying the grass box or when walking from one cutting location to another.
• Do not cross roads or gravel paths with the machine still running.
• Do not move the machine by pulling on the electrical cable. Always use the
handgrip.
• Keep a balanced and stable stance while using the machine.
• Ensure that the area being cut is free from strings, stones and debris. Remove
any objects that could be thrown during cutting or could wind around the cutting
mechanism. Carefully check the area to be mown for wildlife such as hedge hogs,
frogs etc . And move them to a safe location.
• If you hit or become entangled with a foreign object, stop the motor and
disconnect from the mains immediately to check for damage. Repair any damage
before further operation is attempted.
• Do not operate the mower with loose or damaged parts.
• Do not cut against hard objects. This could cause injury to the operator and
damage to the machine.

11
• Keep your hands, face and feet away from all moving parts.
• If possible, avoid cutting wet grass.
• Exercise proper precaution when mowing on sloping ground. Watch your footing
and wear non-slip footwear. Mow along the slope not up and down it. Do not mow
on steep slopes. Be especially cautious when changing direction on slopes, stand
above the mower to avoid risk of injury.
• Never operate the mower barefoot or when wearing open sandals or canvas
shoes.
• Do not mow by pulling the machine towards you.
• When mowing, keep the cable away from the mower. Your direction of work
should be away from the power point. Mow in straight lines, not in circles.
• Always keep hands and feet away from rotating parts.
• Check the grass box frequently for wear or deterioration.
• After use, disconnect the machine from the power supply and check for damage.
If you have the slightest doubts, check with an authorised service centre.
• Only use the machine according to the instructions given in this manual.
Keep the mower free of grass, leaves and other debris build-up.
• Do not tilt the mower when switching on the motor, except if the mower has to
be tilted for starting. In this case, do not tilt it more than is absolutely necessary
and lift only the part which is away from the operator. Always ensure that both
hands are in operating position before returning the mower to the ground.
• Do not try to repair the machine or access internal parts. Use authorised service
centres only.
• Do not get distracted and always concentrate on what you are doing. Use
common sense. Never operate the machine when you are tired, sick or under the
• Keep these instructions. Refer to them frequently and use them to instruct other
users. If you loan some one this unit, also loan them these instructions.
• The operator or user is responsible for accidents or hazards occurring to other
people or their property.
• Failure to follow operating instructions and safety precautions in this instruction
manual can result in serious injury. Read the manual before starting or operating
this unit.
Wear eye protection
Wear hearing protection
Wear respiratory protection
ADDITIONAL SAFETY INSTRUCTIONS FOR
ELECTRIC GARDEN LAWN MOWER (CONT.)

12
Preparation:
1) Put the cable hook on upper handle.(g.1 a)
2) Connect upper and lower handles with supplied
screws and knobs.(g.1b)
3) Insert the handles into the mower body and tighten
the xed screws.(g.1c)
4) Fix the cable holders.(g.1d)
ASSEMBLY INSTRUCTIONS
1a
1b
1d

13
ASSEMBLY INSTRUCTIONS (CONT.)
5) Grass collection box assembly. Assemble two
the lugs.(Fig.1g)
7) Before using, always visually inspect to see that the blades, blade bolts and
cutter assembly are not worn or damaged. Replace worn or damaged blades
and bolts in sets to preserve balance.
8) Keep all nuts, bolts and screws tight to be sure the equipment is in safe
working condition.
CUTTING HEIGHT ADJUSTMENT
To obtain the desired cutting height, the front and rear axles are repositioned on the
underside of the mower housing.
Warning! Disconnect the mower from the power supply and ensure the blade
has stopped coasting before adjusting the height.
1). Turn the mower upside down.
2). Pull the wheel axle towards the front of the mower.
3). Locate the wheel asle into the desired cutting height adjustment position.
Note: Make sure that both front right and left wheel are located in the same cutting
height adjustment position.
1f
1g

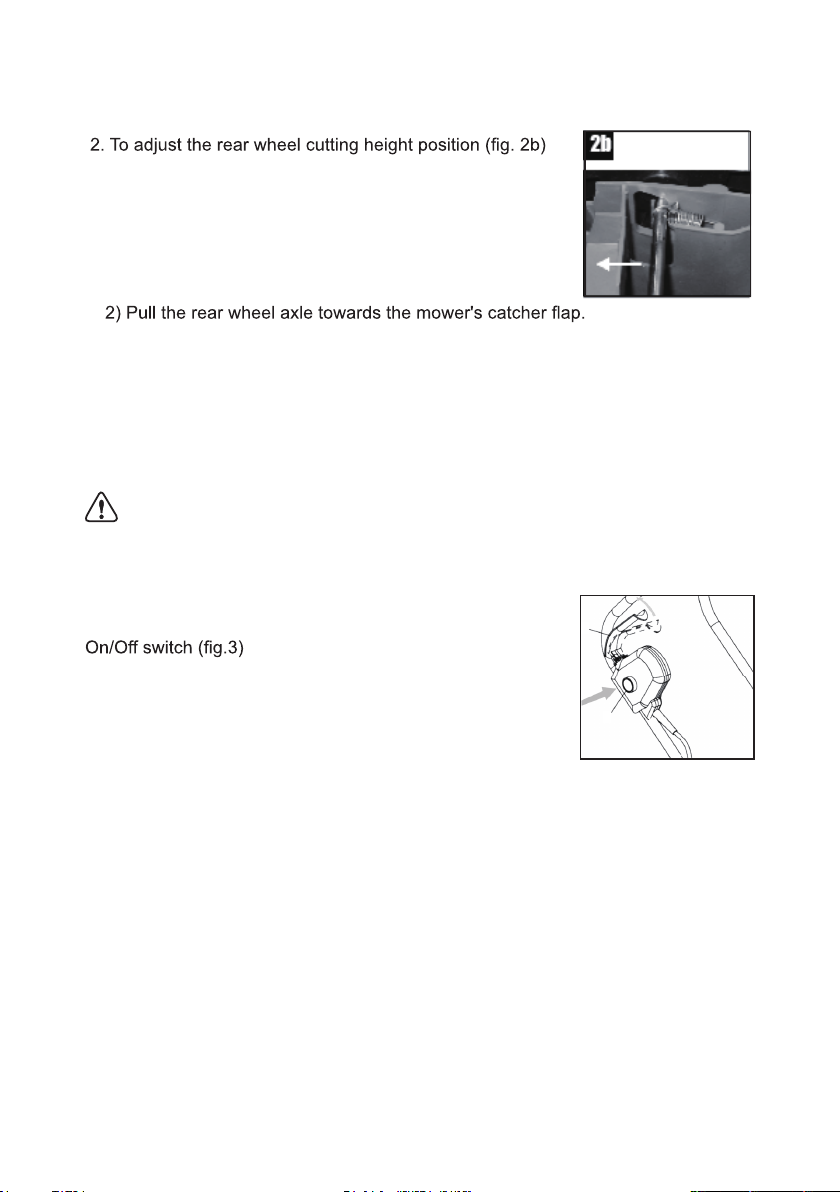

1. To adjust the front wheel cutting height position.(fig.2a)

14
ASSEMBLY INSTRUCTIONS (CONT.)
OPERATION
1) Turn the mower on its side.
3) Locate the wheel axle into the desire cutting height adjustment position.
Connect to power supply
Warning! Before connecting to the mains supply, always check the switch is in
the off position!
Connect the plug into the RCD protected power supply.
Starting
Caution! Do not start the mower if it is standing in long grass.
Press the safety button (A) of the switch assembly and then pull the switch lever (B)
against the bar.
Keep the switch lever held whilst releasing the safety button.
To stop the mower release the switch lever and it automatically returns to its off
position.
B
A

15
OPERATION (CONT.)
We recommend to use your mower as outlined in this section in order to achieve
optimum results and to reduce the risk of cutting the mains cable.
• Place the bulk of the mains cable on the lawn, close to the starting point.
• Switch the mower on as decribed above.
• Move from position 1 to position 2.
• Turn right and proceed towards position 3.
• Turn left and move towards position 4.
• Repeat the above procedures as required.
Warning!
Tips for using your electric Lawn Mower
WARNING: In order to reduce the risk, disconnect the plug from the supply
power,only use recommended accessories as required, otherwise personal injury
may result.
• After use, disconnect the machine from the power supply and check for damage.
If you have the slightest doubts, check with an authorized service centre.
• Only use the machine according to the instructions given in this manual.
Keep the mower free of grass, leave s and other debris build-up.
• Do not tilt the mower when switching on the motor, except of the mower has to
be tilted for starting. In this case, do not tilt it more than is absolutely necessary
and lift only the part which is away from the operator. Always ensure that both
hands are in operating position before returning the mower to the ground.
• Do not try to repair the machine or access internal parts. Use authorized service
centers only. Do not get distracted and always concentrate on what you are
doing. Use common sense. Never operate the machine when you are tired, sick

16
OPERATION (CONT.)
MAINTENANCE
Your mower has been designed to operate over a long period of time with a
minimum amount of maintenance. Continuous satisfactory operation depends upon
proper mower care and regular cleaning.
1. Keep the mower clean and dry.
2. Regularly use a blunt scraper to remove grass and dirt from the mower.
3. To clean the mower, use only mild soap and a damp cloth.
4. Never let any liquid get inside the tool and never immerse any part of the tool into
liquid.
5. Do not use any abrasive or solvent –based cleaner.
them frequently and use them to instruct other users. If you loan some one this
unit, also loan them these instructions. The operator or user is responsible for
accidents or hazards occurring to other people or their property. Failure to follow
operating instructions and safety precautions in this instruction manual can result
in serious injury. Read the manual before starting or operating this unit.
Wear eye protection
Wear hearing protection
Wear respiratory protection

17
WARRANTY POLICY
Congratulations on your purchase of Electric lawn mower. In order to get maximum
benefit from your new purchase, please be aware of the warranty provisions
outlined in this document.
2 YEAR [REPLACEMENT/REPAIR] WARRANTY
Your lawn mower is guaranteed for a period of 24 months from the original date
of purchase. As the product is intended exclusively for home DIY (Do It Yourself)
use, thus use of this product for professional, industrial or high frequency use will
VOID this warranty. If your product is defective, it will be repaired or replaced in
accordance with the terms of this warranty.
The warranty is provided by Mitre 10 (New Zealand) Limited (“known as Mitre 10”)
Rights & Remedies
We are dedicated to delivering a quality product to all our customers. All of our
products are warranted for two years from date of purchase against defects in
material and workmanship.
If we determine that the product has a manufacturing fault, we will repair or replace
it free of charge to you. The decision to repair or replace is solely at the discretion of
Mitre 10 (New Zealand) Limited.
What do we require?
It is our requirement that all warranty claims are accompanied by a proof of
purchase (sales receipt) to allow verication of the date of purchase. Where proof
of purchase is not provided, Mitre 10 (New Zealand) Limited reserves the right to
charge a service fee and/or charge for parts replaced/repaired. A return freight
charge may apply.
The warranty is ‘return to base’ and not a free in-home service. This means the
customer is responsible for any inwards freight charge to return the product to the

18
Mitre 10 or Mitre 10 MEGA store where the product was purchased from, for the
warranty to be applicable.
Please retain your Proof of Purchase.
Only the original owner is covered by the manufacturer’s warranty and must have
purchased the product from a Mitre 10 or Mitre 10 MEGA store in New Zealand.
What is not covered under warranty?
• Professional, Industrial or high frequency use if the purpose of the tool is stated
as DIY (Do It Yourself) in the instruction manual.
•
If the tool has been operated on a supply voltage other than th
• If the tool has been operated with incorrect oil, fuel or fuel mix.
• If the tool shows signs of damage or defects caused by or resulting from abuse,
accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• General wear and tear.
• Servicing by an unauthorized service agent.
• Any consumable parts.
Exclusions
• Any consequential loss or damage to any person or property directly or indirectly
as a result of using product.
outside of the country of purchase you will be charged fees by the local provider.
