SAFETY AND OPERATING MANUAL
210 mm
MITRE SAW
JMBMS210G

2
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to
your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or
grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an
increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
e) When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes,
hard hat, or hearing protection used for
appropriate conditions will reduce personal
injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energising power tools that have the
switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power
tool may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better
control of the power tool in unexpected
situations.
f) Dress properly. Do not wear loose clothing
or jewellery. Keep your hair and clothing
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
h) Do not let familiarity gained from frequent
use of tools allow you to become complacent
and ignore tool safety principles. A careless
action can cause severe injury within a
fraction of a second.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at
the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing

3
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools and accessories.
Check for misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power tool’s
operation. If damaged, have the power tool
repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow
for safe handling and control of the tool in
unexpected situations.
5) SERVICE
a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
SAFETY INSTRUCTIONS FOR
MITRE SAWS
a) Mitre saws are intended to cut wood or
wood-like products, they cannot be used with
abrasive cut-off wheels for cutting ferrous
material such as bars, rods, studs,etc.
Abrasive dust causes moving parts such as
the lower guard to jam. Sparks from abrasive
cutting will burn the lower guard, the kerf
insert and other plastic parts.
b) Use clamps to support the workpiece
whenever possible. If supporting the
workpiece by hand, you must always keep
your hand at least 100 mm from either
side of the saw blade. Do not use this saw to
cut pieces that are too small to be securely
clamped or held by hand. If your hand is
placed too close to the saw blade, there is an
increased risk of injury from blade contact.
c) The workpiece must be stationary and
clamped or held against both the fence
and the table. Do not feed the workpiece
into the blade or cut “freehand” in any way.
Unrestrained or moving workpieces could be
thrown at high speeds, causing injury.
d) Push the saw through the workpiece. Do
not pull the saw through the workpiece. To
make a cut, raise the saw head and pull it out
over the workpiece without cutting, start
the motor, press the saw head down and
push the saw through the workpiece. Cutting
on the pull stroke is likely to cause the saw
blade to climb on top of the workpiece and
violently throw the blade assembly towards
the operator.
e) Never cross your hand over the intended
line of cutting either in front or behind the
saw blade. Supporting the workpiece “cross
handed” i.e. holding the workpiece to the right
of the saw blade with your left hand or vice
versa is very dangerous.
f) Do not reach behind the fence with either
hand closer than 100 mm from either side of
the saw blade, to remove wood scraps, or for
any other reason while the blade is spinning.
The proximity of the spinning saw blade to
your hand may not be obvious and you may be
seriously injured.
g) Inspect your workpiece before cutting. If
the workpiece is bowed or warped, clamp
it with the outside bowed face toward the
fence. Always make certain that there
is no gap between the workpiece, fence
and table along the line of the cut. Bent or
warped workpieces can twist or shift and may
cause binding on the spinning saw blade while
cutting. There should be no nails or foreign
objects in the workpiece.
h) Do not use the saw until the table is clear
of all tools, wood scraps, etc., except for
the workpiece. Small debris or loose pieces
of wood or other objects that contact the
revolving blade can be thrown with high speed.
i) Cut only one workpiece at a time. Stacked
multiple workpieces cannot be adequately
clamped or braced and may bind on the blade
or shift during cutting.
j) Ensure the mitre saw is mounted or placed
on a level, firm work surface before use. A
level and firm work surface reduces the risk of
the mitre saw becoming unstable.
k) Plan your work. Every time you change the
bevel or mitre angle setting, make sure the

4
adjustable fence is set correctly to support
the workpiece and will not interfere with
the blade or the guarding system. Without
turning the tool “ON” and with no workpiece
on the table, move the saw blade through a
complete simulated cut to assure there will be
no interference or danger of cutting the fence.
l) Provide adequate support such as table
extensions, saw horses, etc. for a workpiece
that is wider or longer than the table top.
Workpieces longer or wider than the mitre
saw table can tip if not securely supported. If
the cut-off piece or workpiece tips, it can lift
the lower guard or be thrown by the spinning
blade.
m) Do not use another person as a substitute
for a table extension or as additional
support. Unstable support for the workpiece
can cause the blade to bind or the workpiece
to shift during the cutting operation pulling
you and the helper into the spinning blade.
n) The cut-off piece must not be jammed or
pressed by any means against the spinning
saw blade. If confined, i.e. using length stops,
the cut-off piece could get wedged against the
blade and thrown violently.
o) Always use a clamp or a fixture designed
to properly support round material such as
rods or tubing. Rods have a tendency to roll
while being cut, causing the blade to “bite” and
pull the work with your hand into the blade.
p) Let the blade reach full speed before
contacting the workpiece. This will reduce
the risk of the workpiece being thrown.
q) If the workpiece or blade becomes jammed,
turn the mitre saw off. Wait for all moving
parts to stop and disconnect the plug
from the power source and/or remove the
battery pack. Then work to free the jammed
material. Continued sawing with a jammed
workpiece could cause loss of control or
damage to the mitre saw.
r) After finishing the cut, release the switch,
hold the saw head down and wait for the
blade to stop before removing the cut-off
piece. Reaching with your hand near the
coasting blade is dangerous.
s) Hold the handle firmly when making an
incomplete cut or when releasing the switch
before the saw head is completely in the
down position. The braking action of the saw
may cause the saw head to be suddenly pulled
downward, causing a risk of injury.
SYMBOLS
To reduce the risk of injury, user must
read instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Double insulation
RCM marking

5
1
2
5
3
6
4
7
8910
11
12
13
15
14

6
1. Hand le
2. Safety release lever
3. Carbon brush cap
4. Retractable safety guard
5. Fence
6. Rotary table
7. Rotary table locking knob
8. Rotary table slot
9. Rotary table mitre angle scale
10. Mounting hole
11. Work clamp securing knob
12. Work clamp
13. Dust bag
14. Upper blade guard
15. Transportation handle
16. Dust extraction port (See Fig. A)
17. Left & Right extension rail (See Fig. B1, B2)
18. Support stand (See Fig. C1)
19. Trigger switch (See Fig. G)
20. Bevel lock lever (See Fig. H1)
21. Bevel scale (See Fig. L2)
22. Spindle lock (See Fig. M3)
ACCESSORIES
Work clamp 1
Dust bag 1
Wrench 1
Support stand 1
Blade: Ø 210 1
Extension rail 2
We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the
accessory packaging for further details. Store personnel can assist you and offer advice.
TECHNICAL DATA
Rated voltage 230-240V~50Hz
Rated input power 1200W
No load speed 4500/min
Bevel capacity 0 - 45º
Mitre capacity 0-45 º
Blade size 210mm
Double insulation /II
Machine weight 6.52kg
CUTTING CAPACITY:
Max cutting mitre/bevel 0°/90° 120*55mm
Max cutting mitre/bevel 45°/90° 120*32mm
Max cutting mitre/bevel 0°/45° 80*55mm
COMPONENT LIST

7
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book
carefully.
INTENDED USE
The electro-tool is intended as a stationary machine for
making straight lengthways and crossways cuts in wood.
Horizontal mitre angles of -45° to +45° as well as vertical
bevel angles of 0° to +45° are possible.
ASSEMBLY
WARNING: To prevent the accidental starting that
could cause possible serious personal injury, ALWAYS
assemble all parts to your saw BEFORE connecting it to
the power supply. The saw should NEVER be connected to
a power supply when you are assembling parts, making
adjustments, installing or removing blades, or when not in use.

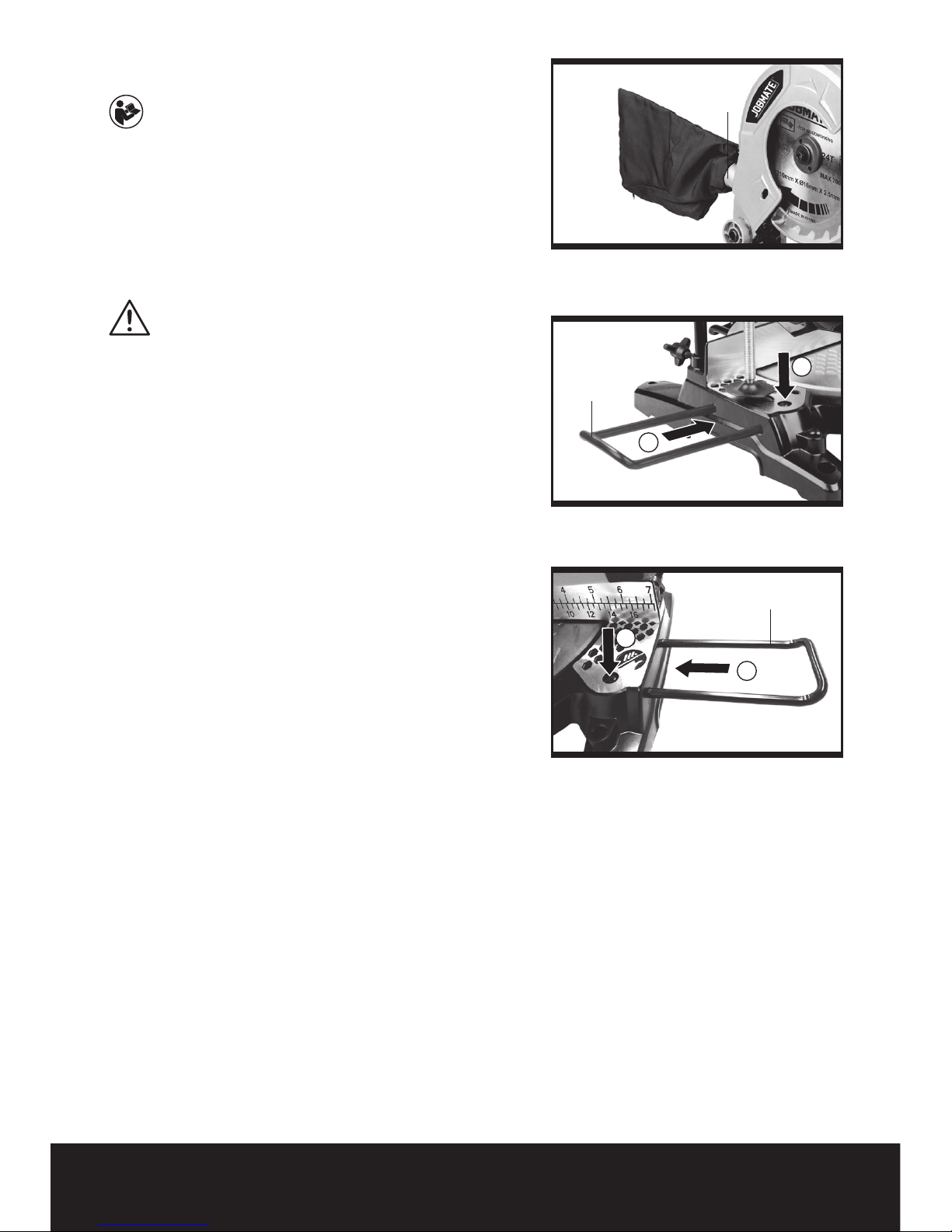

1. DUST EXTRACTION PORT (SEE FIG. A)
To reduce build up of saw dust and maintain top efficiency of
cutting, the saw dust collection can be achieved by clipping
adjust bag on the dust extraction port (16).
A dust bag is provided for use on your miter saw. To install it,
simply fit the dust bag over the extraction port on the upper
blade guard.
To empty the dust bag, remove it from the dust exhaust port,
open the dust bag by unzipping the slide fastener.
NOTE: To ensure optimal dust collecting, empty the dust bag
when it becomes filled to approximately 2/3 of its capacity.
2. TABLE EXTENSION RAIL (SEE FIG. B1,B2)
To install table extension rail, simply insert ends of extensions
into the holes in either or both sides of the base. Secure them
in place by tightening clamp screw on the base.
The table extension rail is used for supporting the long pieces.
16
17
17
a
19
2
1
1
2
2
18
Fig.A
Fig.B1
Fig.B2
Fig.C1
Fig.E
Fig.D
Fig.C2
Fig.G
Fig.F2
Fig.F1

8
THE SUPPORT STAND (SEE FIG. C1,C2)
Pull the support stand to its extreme, as shown in Fig. C1,C2
WARNING: Always keep the support stand at its
extreme out position when using the product.
3. WORK CLAMP (SEE FIG. D)
1) The work clamp can be fitted on either side of the saw and
is fully adjustable to suit the size of the workpiece.
2) Do not operate the saw without clamping the workpiece.
3) Make sure that the work clamp securing screws are
tightened.
4. MOUNTING HOLES (SEE FIG. E)
Before use, the saw can be fixed to a firm, level surface with
the 4 mounting bolts (not supplied).
Four holes are provided in the base of the saw to enable it to
be fixed to a bench, or other supporting surface.
To mount the saw, proceed as follows:
1) Locate and mark where the saw is to be mounted.
2) Drill 4 holes through the surface.
3) Place the sliding miter saw on the surface aligning holes
in base with holes drilled in the surface. Install bolts, washers
and hex nuts.
16
17
17
a
19
2
1
1
2
2
18
Fig.A
Fig.B1
Fig.B2
Fig.C1
Fig.E
Fig.D
Fig.C2
Fig.G
Fig.F2
Fig.F1

9
16
17
17
a
19
2
1
1
2
2
18
Fig.A
Fig.B1
Fig.B2
Fig.C1
Fig.E
Fig.D
Fig.C2
Fig.G
Fig.F2
Fig.F1
OPERATION
1. RELEASING THE SAW HEAD (SEE FIG. F1, F2)
When boxed or during storage, transportation, the saw head
is locked in the down position.
To release the head ready for operation, apply downward
pressure and pull out the lock pin(a) The head will be raised
gently to upper position.
2. STARTING THE SAW (SEE FIG. G)
Depress the trigger switch (19). Allow the motor to reach full
speed. When the blade has reached maximum speed, unlock
the blade guard by operating the safety release lever (2)
using your thumb.

10
3. CHOP CUT (See FIG. H1, H2)
Chop cut is used mainly for narrow pieces, i.e. the lock screw
of slide rod is tightened and the head assembly is lowered to
cut through the workpiece.
1) Connect the machine to power outlet, ensure that the
mains cable is clear of the blade and base plate.
2) Position the material to be cut on the rotary table, ensure
it is firmly clamped so that it will not move during cutting.
3) Ensure that the rotary table locking knob (7) and bevel lock
lever (20) is tightened before cutting.
4) Press the trigger switch and allow the saw blade to run up
the speed.
5) Still holding in the trigger, using your thumb simply press
the safety release lever. It will then be possible to push the
saw head down by the handle.
6) Continue to move the saw head down smoothly and make
the cut exerting only gentle pressure on the downward
stroke, letting the saw do the work.
4. MITER CUT (SEEFIG. I1, I2)
A miter cut is made at 0° bevel and any miter angle in the
range from 45° left to 45°right. It can be made as a chop cut.
For most convenient operation, your sliding miter saw is
equipped with miter detents for fast and accurate miter cuts
of common miter angles (Left:45°,30°,22.5°,15°;0°;Right: 0°
,15°,22.5°,30°,45°).
The rotary table locking knob(8)is used to lock the table at the
desired mitre angle. To adjust the mitre angle, put the saw
on a stable surface and fix it, loosen the rotary table locking
knob(8)counter-clockwise, hold the handle (1) firmly to rotate
the saw head to the desired position, then tighten the rotary
table locking knob (7) clockwise.
20
20
b
7
b
21
Fig.H1
Fig.H2
Fig.I1
Fig.I2
Fig.K1
Fig.J2
Fig.J1
Fig.L2
Fig.L1
Fig.K2

11
5. MITRE CUT (SEE FIG. J1, J2)
A bevel cut is made at 0° mitre and any bevel angle in the
range of 0° to 45° left.
The saw can be moved from the normal 0° perpendicular
position to an angled position down to 45° from the
horizontal, on the left only.
Loosen the bevel lock lever (20) and tilt the saw head to the
left, until the desired angle is reached on the bevel scale. Re-
tighten the bevel lock lever and make your cut.
WARNING: Remove the plug from the socket before
carrying out any adjustment, servicing or maintenance.
When all the adjustments, settings or maintenance have
been done, make sure that all keys and wrenches have been
removed and that all screws, bolts and other fittings are
securely tightened.
There are no user serviceable parts in your power tool. Never
use water or chemical cleaners to clean your power tool.
Wipe clean with a dry cloth. Always store your power tool
in a dry place. Keep the motor ventilation slots clean. Keep all
working controls free of dust.
Occasionally you may see sparks through the ventilation slots.
This is normal and will not damage your power tool.
If the supply cord of this power tool is damaged, it must be
replaced by a specially prepared cord available through the
service
MAINTENANCE
WARNING: Remove the plug from the socket before
carrying out any adjustment, servicing or maintenance.
When all the adjustments, settings or maintenance have
been done, make sure that all keys and wrenches have been
removed and that all screws, bolts and other fittings are
securely tightened.
There are no user serviceable parts in your power tool. Never
use water or chemical cleaners to clean your power tool.
Wipe clean with a dry cloth. Always store your power tool
in a dry place. Keep the motor ventilation slots clean. Keep
all working controls free of dust. Occasionally you may see
sparks through the ventilation slots. This is normal and will
not damage your power tool.
If the supply cord of this power tool is damaged, it must be
replaced by a specially prepared cord available through the
service.
1. PRECISION SETTING OF ANGLES (SEE FIG. K1, K2, L1, L2)
While the machine has been factory set, it is advisable that
the 0o setting of the rotary table
and the 90o perpendicular setting of the tilt be checked, as
these positions may have moved
20
20
b
7
b
21
Fig.H1
Fig.H2
Fig.I1
Fig.I2
Fig.K1
Fig.J2
Fig.J1
Fig.L2
Fig.L1
Fig.K2

12
in transit. (Ensure power is disconnected while making these
adjustments).
To confirm the 0o rotary table setting, set the rotary table at
0o and tighten the rotary table
locking knob. Check that the angle between the straight guide
and the blade is 90o using a
try square (b, not supplied) as shown in Fig. K1. If the angle
requires adjustment, loosen the
locking screws for straight guide, and align the fence against
the try square.
Re-tighten the locking screws for straight guide. (SEE FIG. K1,
K2)
Similarly, check that the angle of the blade to the face of the
rotary table is 90o. If necessary,
adjust the tilt angle of the saw head at the 90o position:
loosen the bevel lock (20) and adjust the 0° bevel adjustment
screw (c) to bring the saw blade into alignment with the
square. Loosen the head screw (c) holding the pointer of the
bevel scale (21) and adjust the position of the pointer so that
it accurately indicates zero on the scale. Retighten the screw.
Retighten the bevel lock (20) and the 0° bevel adjustment
screw . (SEE FIG. L1, L2)
20
20
b
7
b
21
Fig.H1
Fig.H2
Fig.I1
Fig.I2
Fig.K1
Fig.J2
Fig.J1
Fig.L2
Fig.L1
Fig.K2

13

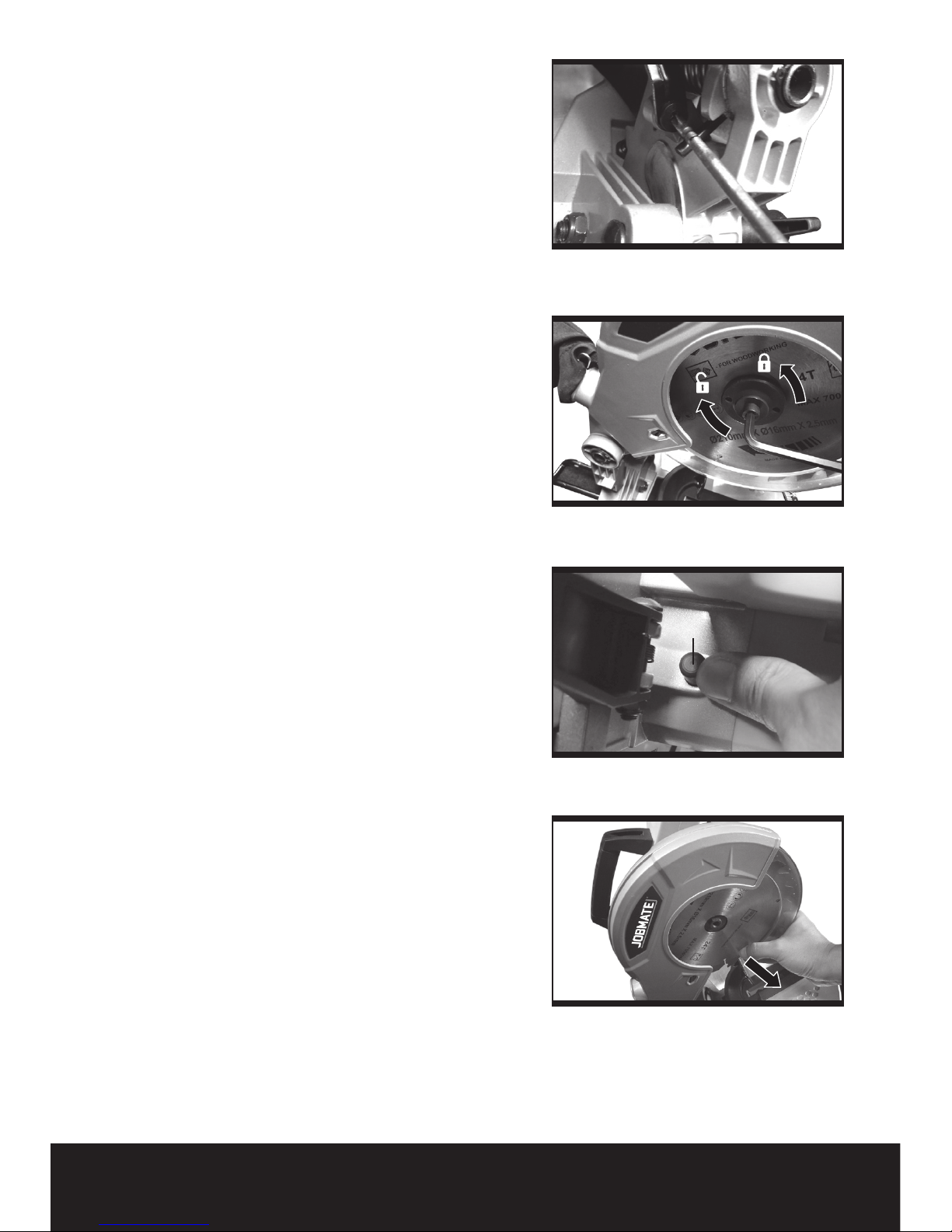

2. CHANGING THE SAW BLADE (SEE FIG. M1-M5)
Disconnect the saw from the power supply.
Remove the linkage screw with a screwdriver.
Press the blade spindle lock (22) and rotate the blade until
it is locked, then rotate clockwise to loosen and remove the
blade securing bolt, the outer flange with the hex key.
NOTE: Blade securing bolt has a left hand thread.
Remove the blade, (we recommend the use of a stout glove
for this). Clean any saw dust
and debris from the arbor and saw blade securing flanges.
To refit the blade, follow the above procedure in reverse
order.
CAUTION: ALWAYS install the blade with the blade teeth
and the arrow printed on the side
of the blade pointing down at the front of the saw. The
direction of blade rotation is also
stamped with an arrow on the upper blade guard.
1
2
22
Fig.M1
Fig.M2
Fig.M3
Fig.M4
Fig.N2
Fig.N1
Fig.M5
Fig.N3

14
1
2
22
Fig.M1
Fig.M2
Fig.M3
Fig.M4
Fig.N2
Fig.N1
Fig.M5
Fig.N3
3. REPLACING THE CARBON BRUSHES(SEE FIG. N1-N3)
Check the carbon brushes regularly. If the carbon brushes
are worn down to about 4mm,
replace them with the new set (not supplied). It must be
replaced in pairs.
With a suitable slotted screwdriver turn the cap anti-
clockwise until the carbon brush is released, replace the
brush and make sure that they locate well and are secured
within the brush retainer.
4. MOVING THE SAW
1) When transporting the saw with fixed locations, make
sure that the saw head is locked in the lower position.
2) The rotary table locking knob, the bevel lock lever and the
slide rod securing knob, must all be securely tightened.
3) Use the transportation handle to lift the saw. Do not lift
the saw by the switch handle.
MAINTENANCE
Remove the plug from the socket before carrying out any
adjustment, servicing or maintenance.
There are no user serviceable parts in your power tool. Never
use water or chemical cleaners to clean
your power tool. Wipe clean with a dry cloth. Always store
your power tool in a dry place. Keep the motor
ventilation slots clean. Keep all working controls free of dust.
Occasionally you may see sparks
through the ventilation slots. This is normal and will not
damage your power tool.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.

15
WARRANTY
This product is warranted for a 2-year period for
home domestic use from the date of the original
purchase. If found to be defective in materials
or workmanship, the tool or the offending faulty
component will be replaced free of charge with
another of the same item. A small freight charge
may apply.
The battery and charger only have a 1 year
manufacturer’s warranty.
The warranty replacement unit is only made
available by returning the tool to the place of
purchase with a confirmed register receipt.
Proof of purchase is essential.
We reserve the right to reject any claim where
the purchase cannot be verified.
This warranty does not include damage or defects
to the tool caused by or resulting from abuse,
accidents, alterations or commercial or business use.
TROUBLESHOOTING
Problem Probable cause Suggested remedy
motor will not run 1. Switch in OFF position
2. No electrical power at wall
outlet
3. switch broke down
4. motor broke down
5. defective cable
1. Make sure saw is plugged in and switch is
pressed
2. Check circuit breaker or fuse at electrical
panel.
3. replace switch
4. contact service center for Replacing
motor assembly.
5. replace cable
Motor hums but
cannot
run or runs slowly
1.Low voltage
2.Loose electrical connections
3.Wrong gauge wire or length of
extension cord
4.Shorted or open motor winding
1. Check voltage at wall outlet with voltmeter.
2. Check all electrical connections.
3. Check extension cord chart for proper
extension cord usage.
4. contact service center for Replacing
motor assembly.
Flow blows/circuit
breaker trips
repeatedly
1. circuit overloaded
2. Wrong gauge wire or length
of extension cord
3. Motor shorted or seized
1. Disconnect other electrical appliances
from circuit or operate saw on its own
branch circuit.
2. Check extension cord chart for proper
extension cord usage.
3. contact service center for Replacing
motor assembly.
