CONTENTS
ERROR CODES
16
NOTE:
If you cannot solve the problems by yourself, please ask for help from a
professional technician.
The manufacturer, following a policy of constant development and updating of
the product, may make modifications without giving prior notice.
If lost or out-of-date, you can receive a new user manual from the manufacturer
or responsible vendor.
PROGRAMMING THE DISHWASHER
Wash Cycle Table
Starting A Cycle Wash
Changing The Program Mid-cycle
Forget To Add A Dish?
USING YOUR DISHWASHER
Control Panel
Water Softener
Preparing And Loading Dishes
Function Of The Rinse Aid And Detergent
Filling The Rinse Aid Reservoir
Filling The Detergent Dispenser
4
4
6
12
7
10
11
13
13
14
14
15
TECHNICAL INFORMATION
17

5

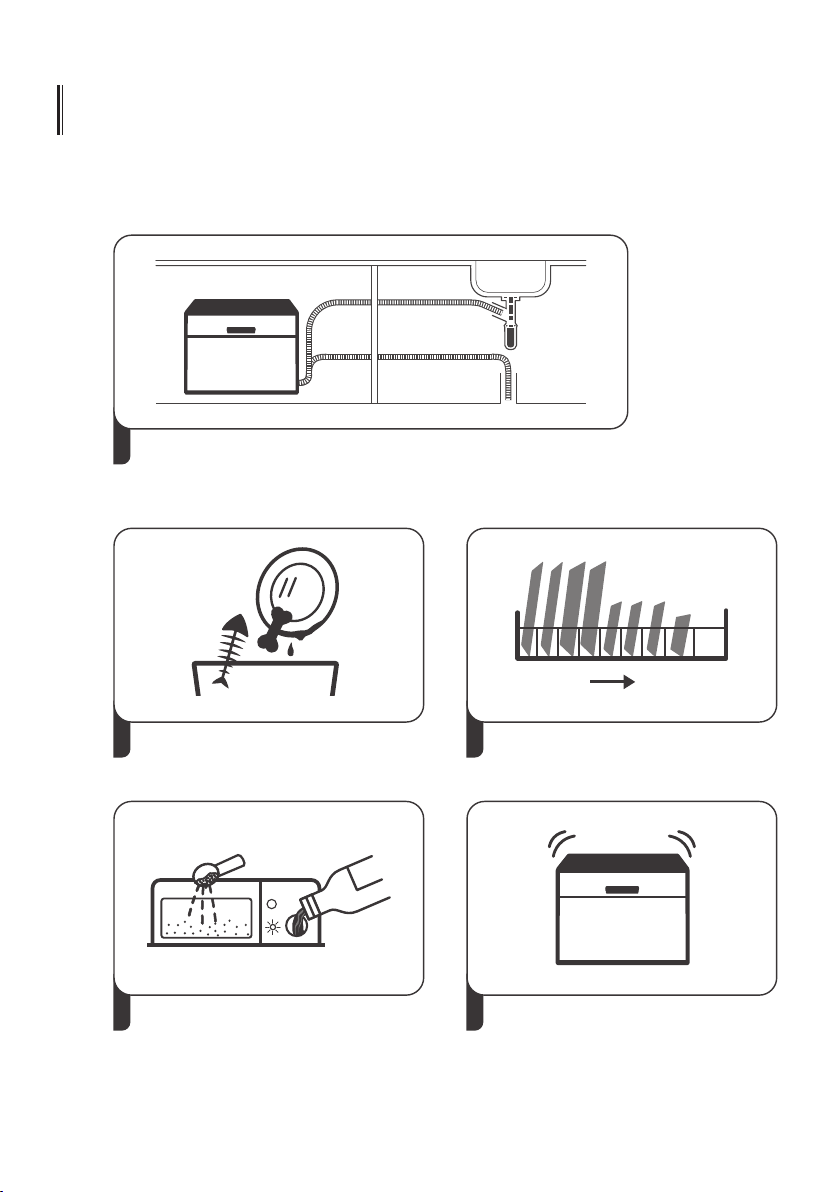

QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.
2Removing the larger residue on the
cutlery
3Loading the baskets
4Filling the dispenser Selecting a program and running
the dishwasher
Inside Outside
3
1Install the dishwasher
(Please check the section 5 “INSTALLATION INSTRUCTION ”
of PART Ⅰ: Generic Version.)

USING YOUR DISHWASHER

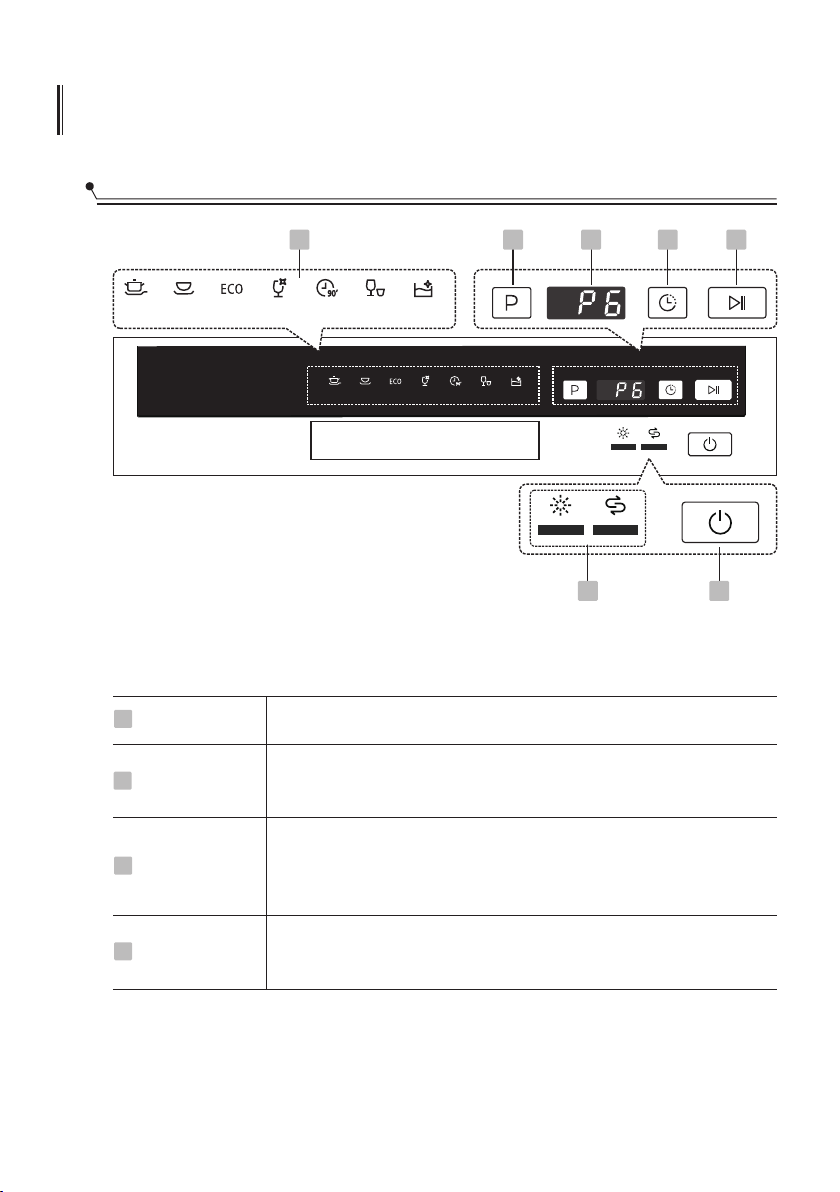

Control Panel
4
Operation (Button)
Power
1
Delay
3
Program
4
Press this button to turn on your dishwasher, the screen lights up.
Press this button to set the delayed hours for washing. You can
delay the start of washing up to 24 hours. One press on this
button delays the start of washing by one hour.
Press this button to select the appropriate washing program, the
selected program indicator will be lit.
To start the selected washing program or pause it when the
dishwasher is working.
2Start / Pause

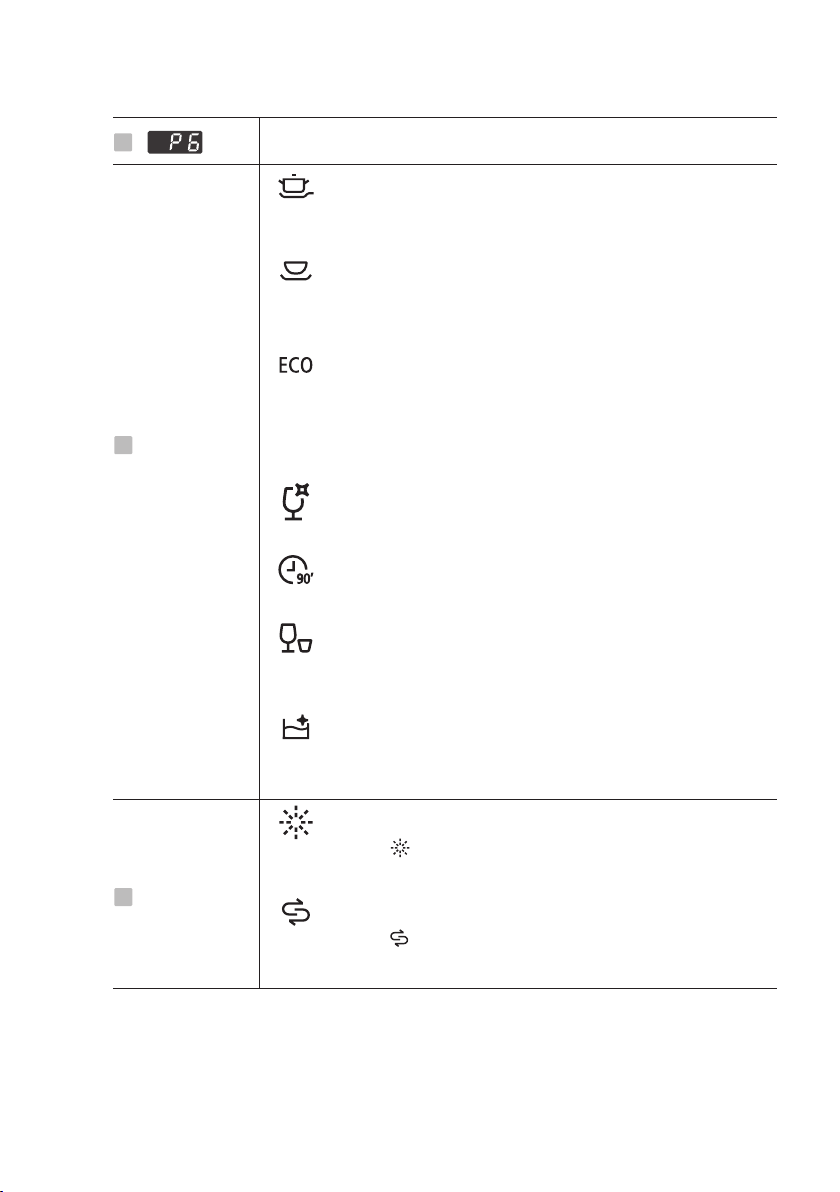

P1 P2 P3 P4 P5 P6 P7P1
71
2 3 546
P1 P2 P3 P4 P5 P6 P7P1

5
Display
5
7Warning
indicator
To show which program you have chose.
6Program
indicator
Salt
Rinse Aid
If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher rinse aid and requires a refill.
If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher salt and needs to be refilled.
Self-cleaning
This program provides an effective cleaning of the
dishwasher itself.
Intensive
For heaviest soiled crockery, and normally soiled pots, pans,
dishes etc. With dried-on food.
Normal
For normally soiled loads, such as pots, plates, glasses and
lightly soiled pans.
ECO
This is standard program, it is suitable to clean normally
soiled tableware and it is the most efficient program in
terms of its combined energy and water consumption for
that type of tableware.
Rapid
A shorter wash for lightly soiled loads that do not
need drying.
90 Min
For normally soiled loads that need quick wash.
Glass
For lightly soiled crockery and glass.

Water Softener
The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, which
would have a detrimental or adverse effect on the operation of the appliance.
The more minerals there are, the harder your water is.
The softener should be adjusted according to the hardness of the water in your area.
Your local Water Authority can advise you on the hardness of the water in your area.
Adjusting salt consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed
based on the hardness of the water used. This is intended to optimise and customise
the level of salt consumption.
1. Switch on the appliance;
2. Press the Start/Pause button for more than 5 seconds to start the water softener set
model within 60 seconds after the appliance was switched on;
3. Press the Start/Pause button to select the proper set according to your local
environment, the sets will change in the following sequence:
H1->H2->H3->H4->H5->H6;
4. Without any operation in five seconds, the machine will exit from set mode, the
machine is into standby status.
Please follow the steps below for adjustment in salt consumption.
6
1) German degree of measurement for the water hardness
2) millimol, internationel unit for water hardness
* factory setting
0 - 5
6 - 11
12 - 17
18 - 22
23 - 34
35 - 45
dH dH
0 - 0.9
1.0 - 2.0
2.1 - 3.0
3.1 - 4.0
4.1 - 6.1
6.2 - 8.0
Mmol/lMmol/l
Digital display stalls
WATER HARDNESS
H1
H2
H3
H4
H5
H6
Setting on the
water softener
1
2
3
4
5
6
1) 2)
*

NOTE:
If your model does not have any water softener, you may skip this section.
Water Softener
The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits will form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt container
specifically designed to eliminate lime and minerals from the water.
Preparing And Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolour during washing
Glazed patterns may fade if machine washed frequently
For washing the following cutlery/dishes
Are not suitable
Are of limited suitability
7
Please check the section 3 “Loading The Salt Into The Softener”
of PART Generic Version, If your dishwasher lacks salt.Ⅰ:
Please check the section 3 “Loading The Salt Into The Softener”
of PART Ⅰ: Generic Version, If your dishwasher lacks salt.

Items such as cups, glasses, pots/pans, etc. are faced downwards.
Curved items, or ones with recesses, should be loaded aslant so that water can run
off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotate freely during
washing.
Load hollow items such as cups, glasses, pans etc. With the opening facing
downwards so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage, glasses should not touch one another.
The upper basket is designed to hold more delicate and lighter dishware such as
glasses, coffee and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
Long and / or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall
out of the basket.
To prevent water dripping from the upper basket into the lower basket, we
recommend that you empty the lower basket first, followed by the upper basket.
Removing the dishes
WARNING
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
8
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans. It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
(Features and appearance of baskets and cutlery baskets may vary from
your model.)
Place objects in the dishwasher in following way:

Loading the basket
9
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Generic VersionⅠ:
For the best washing effect, please load the baskets refer to standard
loading options on last section of PART Ⅰ: Generic Version
WARNING
Do not let any item extend through
the bottom.
Always load sharp utensils with the
sharp point down!

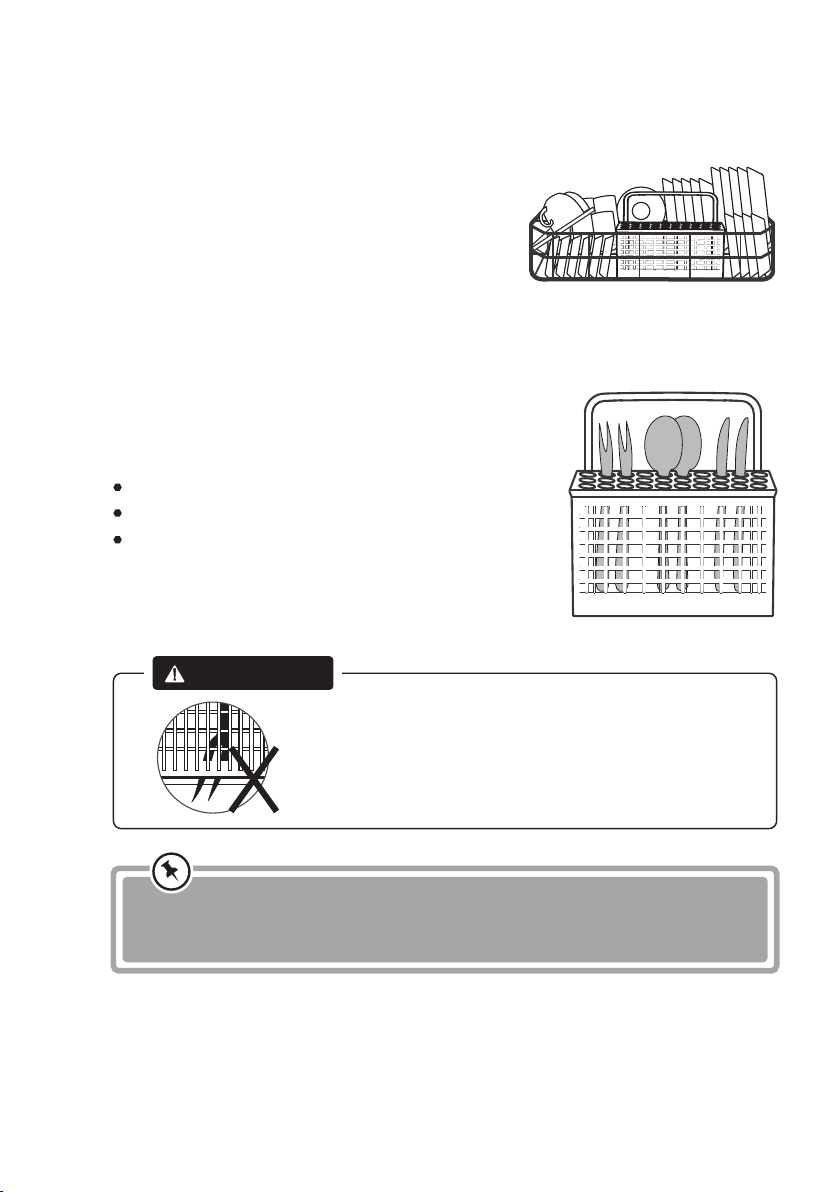

Loading the cutlery basket
For personal safety and a top quality cleaning,
place the silverware in the basket making sure that:
They do not nest together.
Silverware is placed with the handles-down.
But place knives and other potentially dangerous
utensils are placed handles-up.
All tableware can't be placed face up, in order
to improve the cleaning area and washing
performance, it is recommended to place the
dirty side towards the spray arm.
Please don't let tableware out of basket bottom
to make sure not block the moving of the spray arm.
The maximum diameter advised for plates in front
of the detergent dispenser is of 19 cm, this not to
hamper the opening of it.

The rinse aid is released during the final rinse to prevent water from forming droplets
on your dishes, which can leave spots and streaks. It also improves drying by allowing
water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
When to refill the rinse aid dispenser
WARNING
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser
with any other substances (e.g. Dishwasher cleaning agent, liquid detergent).
This would damage the appliance.
Unless the rinse-aid warning light ( ) on the control panel is on, you can always
estimate the amount from the color of the optical level indicator located next to the
cap. When the rinse-aid container is full, the indicator will be fully dark. The size of the
dark dot decreases as the rinse-aid diminishes. You should never let the rinse aid level
be less than 1/4 full.
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator
changes, as illustrated below.
Full 3/4 full 1/2 full 1/4 full Empty
Function Of The Rinse Aid And Detergent
Function of detergent
The chemical ingredients that compose the detergent are necessary to remove, crush and
dispense all dirt out of the dishwasher. Most of the commercial quality detergents are
suitable for this purpose.
WARNING
Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent
fresh and dry.
Don't put powdered detergent into the dispenser until you are ready to wash
dishes.
Dishwasher detergent is corrosive! Keep dishwasher
detergent out of the reach of children.
10

3Replace the cap by inserting it
aligned with "open" arrow and
turning it to the closed (right) arrow.
NOTE:
Clean up any spilled rinse aid with
an absorbent cloth to avoid
excessive foaming during the next
wash.
1 2
To open the dispenser, turn the cap
to the "open" (left) arrow and lift
it out.
Carefully pour in the rinse-aid into
its dispenser, whilst avoiding it to
overflow.
Rinse-Aid indicator
Filling The Rinse Aid Reservoir
Adjusting the rinse aid reservoir
The rinse aid reservoir has six settings. Both the
recommended setting and the factory setting is “4”. If the
dishes are not drying properly or are spotted, adjust the dial
to the next higher number until your dishes are spot-free.
Reduce it if there are sticky whitish stains on your dishes or
a bluish film on glassware or knife blades.
Adjust lever(Rinse)
11

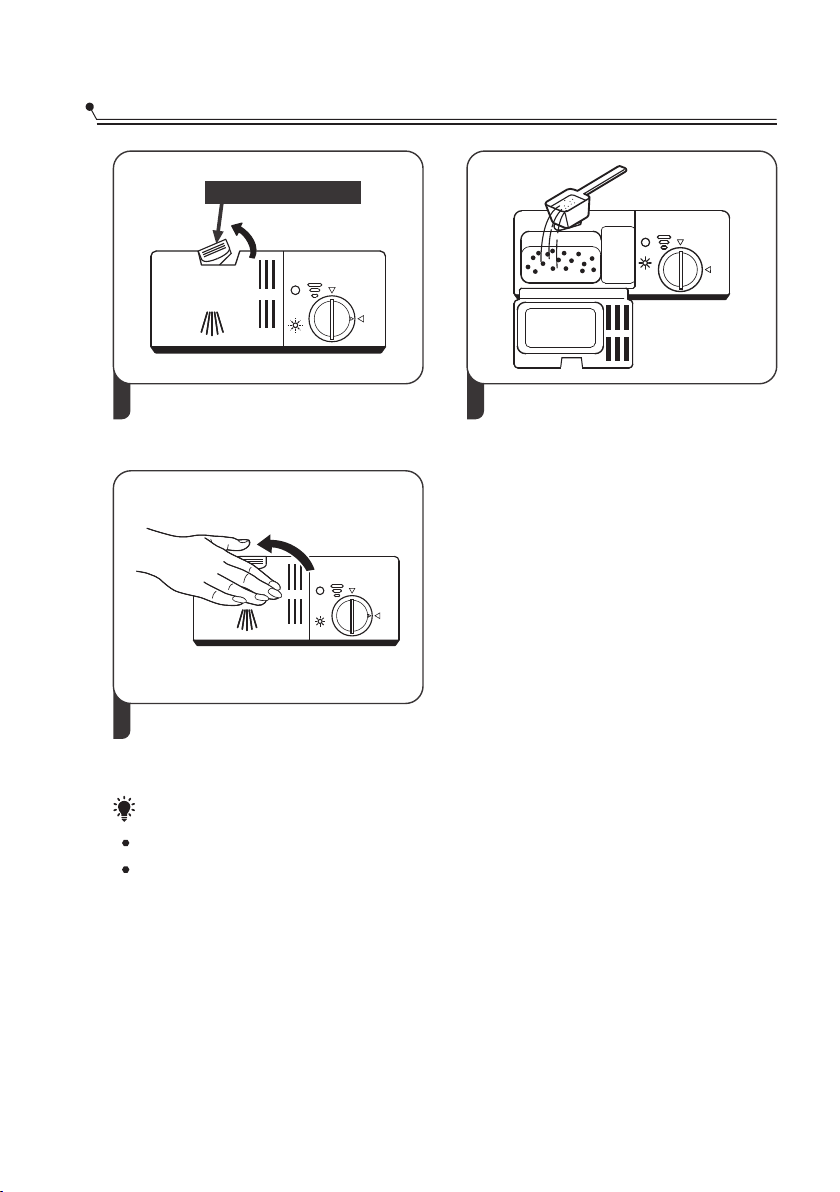

Filling The Detergent Dispenser
1 2
Press the release catch on the detergent
dispenser to open the cover.
Push latch to open
AAB
Add detergent into the larger cavity
(A) for the main wash cycle .
For more heavily soiled wash loads,
also add some detergent into the
smaller cavity (B) for the pre-wash
cycle .
3Close the cover and press on it until
it locks into place.
NOTE:
Be aware that depending on the soiling of water, setting may be different.
Please observe the manufacturer's recommendations on the detergent packaging.
12

PROGRAMMING THE DISHWASHER
Wash Cycle Table
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information about
the programs.
( )Means: need to fill rinse into the Rinse-Aid Dispenser.
Program Running
Time(min)
140
120
180
75
30
Energy
(Kwh)
0.9
0.7
0.61
0.5
0.23
Water
(L)
10
8
6.5
7
6
Description
Of Cycle
Pre-wash(50℃)
Wash(70℃)
Rinse
Rinse
Rinse(70℃)
Drying
Pre-wash
Wash(60℃)
Rinse
Rinse(70℃)
Drying
Pre-wash
Wash(50℃)
Rinse(70℃)
Drying
Rinse
Wash(45℃)
Rinse
Rinse(60℃)
Drying
Wash(40℃)
Rinse
Rinse(40℃)
Rinse
Aid
Detergent
Pre/Main
15g
(Or 3 in 1)
3/15g
13
90 0.65 7
Wash(65℃)
Rinse(70℃)
Drying
( r 3 in 1)O
3/15g
( r 3 in 1)O
3/15g
( r 3 in 1)O
18g
( r 3 in 1)O
18g
Glass
Rapid
90 Min
Normal
Intensive
(*EN 50242)

14
EN 50242:
accordance with EN 50242.
This program is the test cycle. The information for comparability test in
NOTE:
Starting A Cycle Wash
1. Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one.
2. Pour in the detergent.
3. Insert the plug into the socket. The power supply refer to last page ”Product fiche”.
Make sure that the water supply is turned on to full pressure.
4. Close the door, press the Power button, to switch on the machine.
5. Choose a program, the response light will turn on. Then press the Start/Pause
button, the dishwasher will start its cycle.
Changing The Program Mid-cycle
A wash cycle can only be changed if it has been running for a short time otherwise,
the detergent may have already been released and the dishwasher may have already
drained the wash water. If this is the case, the dishwasher needs to be reset and the
detergent dispenser must be refilled. To reset the dishwasher, follow the
instructions below:
1. Press the Start/Pause button to pause the washing.
2. Press Program button for more than 3 seconds - the program will cancel.
3. Press the Program button to select the desired program.
4. Press the Start/Pause button, after 10 seconds, the dishwasher will start.
3 sec
80 0.58 6.6
Wash(70℃)
Rinse
Rinse(65℃)
Drying
Salf-cleaning
(Or 3 in 1)
15g
Program Running
Time(min)
Energy
(Kwh)
Water
(L)
Description
Of Cycle
Rinse
Aid
Detergent
Pre/Main

Forget To Add A Dish?
A forgotten dish can be added any time before the detergent dispenser opens. If
this is the case, follow the instructions below:
1. Press the Start/Pause button to pause the washing.
2. Wait 5 seconds then open the door.
3. Add the forgotten dishes.
4. Close the door.
5. Press the Start/Pause button after 10 seconds, the dishwasher will start.
After 5 sec
WARNING
It is dangerous to open the door
mid-cycle, as hot steam may
scald you.
15

ERROR CODES
If there is a malfunction, the dishwasher will display error codes to identify these:
Codes Meanings Possible Causes
Longer inlet time.
Overflow. Some element of dishwasher leaks.
E1
E4
Faucets is not opened, or water intake is
restricted, or water pressure is too low.
WARNING
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, the water
should be removed before restarting the dishwasher.
16
WARNING

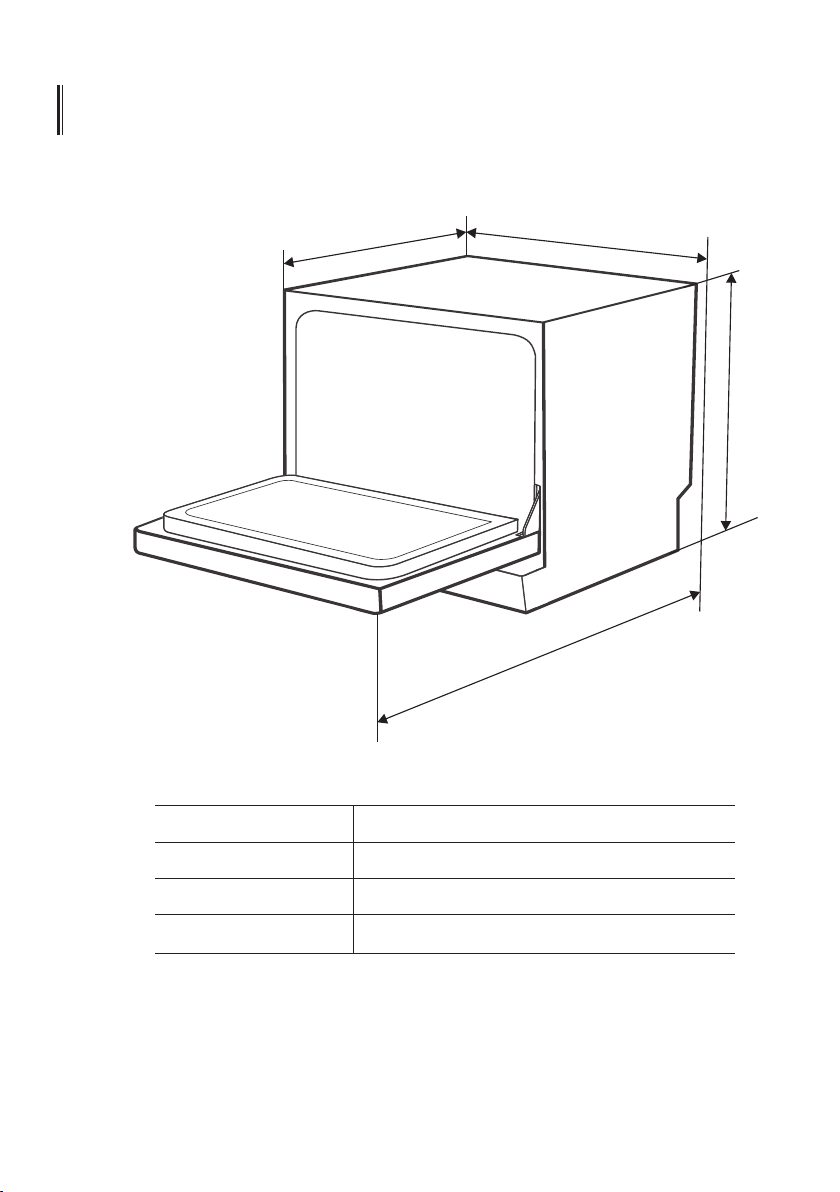

TECHNICAL INFORMATION
Height (H)
Width (W)
Depth (D1)
Depth (D2)
438mm
550mm
500mm (with the door closed)
812mm (with the door opened 90°)
17
D1D1
W
W
H
H
D2
D2

MIDEA
WQP6-3602F
6
A+
174 kWh
0.61 kWh
0.45 W
0.49W
1820 liter
A
180 min
Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010:
Manufacturer
Type / Description
Standard place settings
Energy efficiency class
Annual energy consumption
Energy consumption of the standard cleaning cycle
Power consumption of off-mode
Power consumption of left-on mode
Annual water consumption
Drying efficiency class
Standard cleaning cycle
Program duration of the standard cleaning cycle
Noise level
Mounting
A + + + (highest efficiency) to D (lowest efficiency)
Energy consumption based on 280 standard cleaning cycles using cold water fill and the
consumption of the low power modes. Actual energy consumption will depend on how the
appliance is used.
Water consumption based on 280 standard cleaning cycles. Actual water consumption will depend
on how the appliance is used.
A (highest efficiency) to G (lowest efficiency)
This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient
program in terms of its combined energy and water consumption for that type of tableware.
NOTE：
1
2
3
4
5
1
2
3
4
5
ECO 50℃
49 dB(A) re 1 pW
Free standing
Product fiche
18
Rated voltage / frequency 230V/50Hz
Water pressure (flow pressure) 0.04-1.0MPa=0.4-10 bar
Could be built-in YES
1280 W
Power consumption

No.20, Gangqian Road, Beijiao,Shunde, Foshan, Guangdong,
528311 P.R.China
Foshan Shunde Midea Washing Appliances Mfg. Co., Ltd
