OPERATOR’S MANUAL

2
SNOW BLOWER STORAGE DOLLIES
Introduction
Using Your Operator’s Manual
Read this entire operator’s manual, especially the safety
information,before operating.
This manual is an important part of your machine. Keep all
manuals in a convenient location so they can be
accessed easily.
Use the safety and operating information in the attachment
operator’s manual, along with the machine operator’s
manual, to operate and service the attachment safely
and correctly.
If your attachment manual has a section called Preparing
the Machine, it means that you will have to do something
to your tractor or vehicle before you can install the
attachment. The Assembly and Installation sections of
this manual provide information to assemble and install
the attachment to your tractor or vehicle. Use the Service
section to make any needed adjustments and routine
service to your attachment.
If you have any questions or concerns with the assembly,
installation, or operation of this attachment, see your local
John Deere dealer or call Agri-Fab at 1-800-448-9282 for
assistance.
Warranty information on this John Deere attachment can
be found in the warranty that came with your John Deere
tractor or vehicle.
Original instructions. All information, illustrations and
specifications in this manual are based on the latest
information available at the time of publication.
The right is reserved to make changes at any time without
notice.
Note : Retain these installation instructions with the
machine operators manual.
LP70692 (04/25/2022)
Table of Contents
Introduction.......................................................................2
Product Compatibility .......................................................2
Safety ...............................................................................3
Assembly......................................................................... 4
Installation ........................................................................5
Removal ...........................................................................6
Specifications .................................................................. 7
Getting Quality Service ....................................................8
Warranty...........................................................................8
Product Compatibility
This kit is compatible with 47” and 54” quick hitch snow
blowers.

3
SNOW BLOWER STORAGE DOLLIES
Read Safety in Machine Operator’s Manual
Read the general safety operating precautions in your
machine installation instruction manual for additional
safety information.
Operating Safely
• Read the machine and attachment operator’s manual
carefully. Be thoroughly familiar with the controls and
the proper use of the equipment. Know how to stop
the machine and disengage the controls quickly.
• This attachment is intended for use in lawn and
property maintenance applications. Do not use for use
other than intended by the manufacturer.
• Do not modify machine or safety devices.
Unauthorized modifications to the machine or
attachment may impair its function and safety.
• Do not let children or an untrained person
operate machine.
• Make any necessary adjustments before you operate.
Never attempt to make any adjustments while
the engine is running, unless if recommended in
adjustment procedure.
• Look behind machine before you back up.
Back up carefully.
• Do not let anyone, especially children, ride on
machine or attachment. Riders are subject to injury
such as being struck by foreign objects and being
thrown off. Riders may also obstruct the operator’s
view, resulting in the machine being operated in an
unsafe manner.
•Disengage any power to the attachment when the
machine is transported or not in use.
• Do not operate controls while outside of machine.
Parking Safety
1. Stop machine on a level surface.
2. Lock the park brake
3. Stop the engine
4. Remove the key
5. Wait for engine and all moving parts to stop before
you leave the operator’s seat
Practice Safe Maintenance
• Only qualified, trained adults should
service this machine.
•Understand service procedure before doing work.
Keep area clean and dry.
• Do not operate the engine in a confined space where
dangerous carbon monoxide fumes can collect.
• Never lubricate, service or adjust the machine or
attachment while it is moving. Keep safety devices in
place and in working condition. Keep hardware tight.
• Keep hands, feet, clothing, jewelry, and long hair away
from any moving parts, to prevent them from
getting caught.
• Lower any attachment completely to the ground or
to an existing attachment mechanical stop before
servicing the attachment. Disengage all power and
stop the engine. Lock park brake and remove the key.
Let machine cool.
• Disconnect battery or remove spark plug wire (for
gasoline engines) before making any repairs.
• Before servicing machine or attachment, carefully
release pressure from any components with stored
energy, such as hydraulic components and springs.
• Release hydraulic pressure by lowering attachment or
cutting units to the ground or to a mechanical stop and
move hydraulic control levers.
• Securely support any machine or attachment
elements that must be raised for service work.
Use jack stands or lock service latches to support
components when needed.
• Never run engine unless park brake is locked.
• Keep all parts in good condition and properly installed.
Fix damage immediately. Replace worn or broken
parts. Replace all worn or damaged safety and
instruction decals.
• Check all hardware at frequent intervals to be sure the
equipment is in safe working condition.
• Do not modify machine or safety devices.
Unauthorized modifications to the machine or
attachment may impair its function and safety
Wear Appropriate Clothing
• Always wear eye protection when operating
the machine.
• Wear close fitting clothing and safety equipment
appropriate for the job.
• While operating this machine, always wear substantial
footwear and long trousers. Do not operate the
equipment when barefoot or wearing open sandals.
• Wear a suitable protective device such as earplugs.
Loud noise can cause impairment or loss of hearing.
Safety

4
SNOW BLOWER STORAGE DOLLIES
Assembly

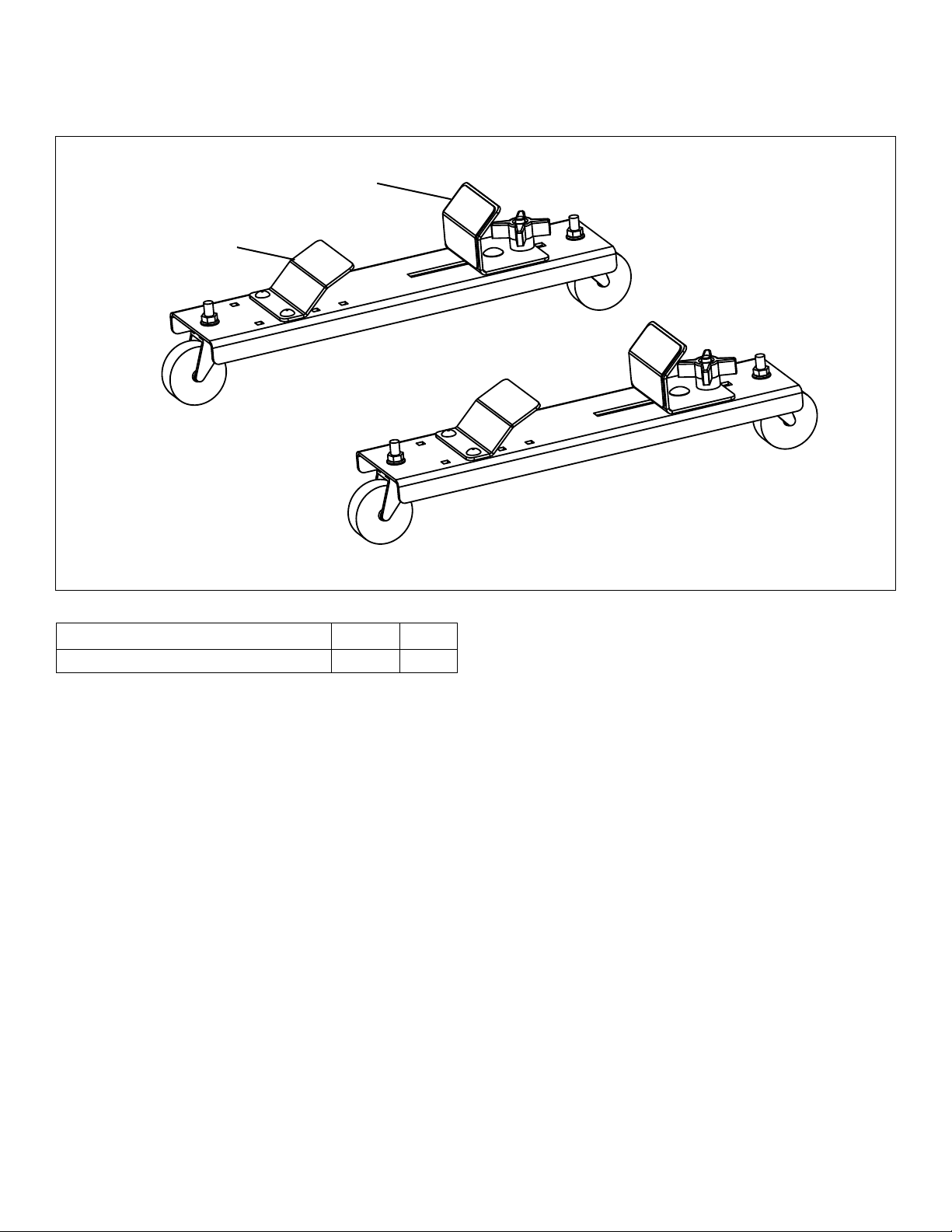

Parts in Kit
Main Components
Description Letter Qty
Snow Blower Storage Dollies A 2
A
Front Angle
Rear Brace

5
SNOW BLOWER STORAGE DOLLIES
Installation
Caution: Avoid injury! Wear gloves while
installing dollies. Scraper blades may be
sharp.
Installing Dollies

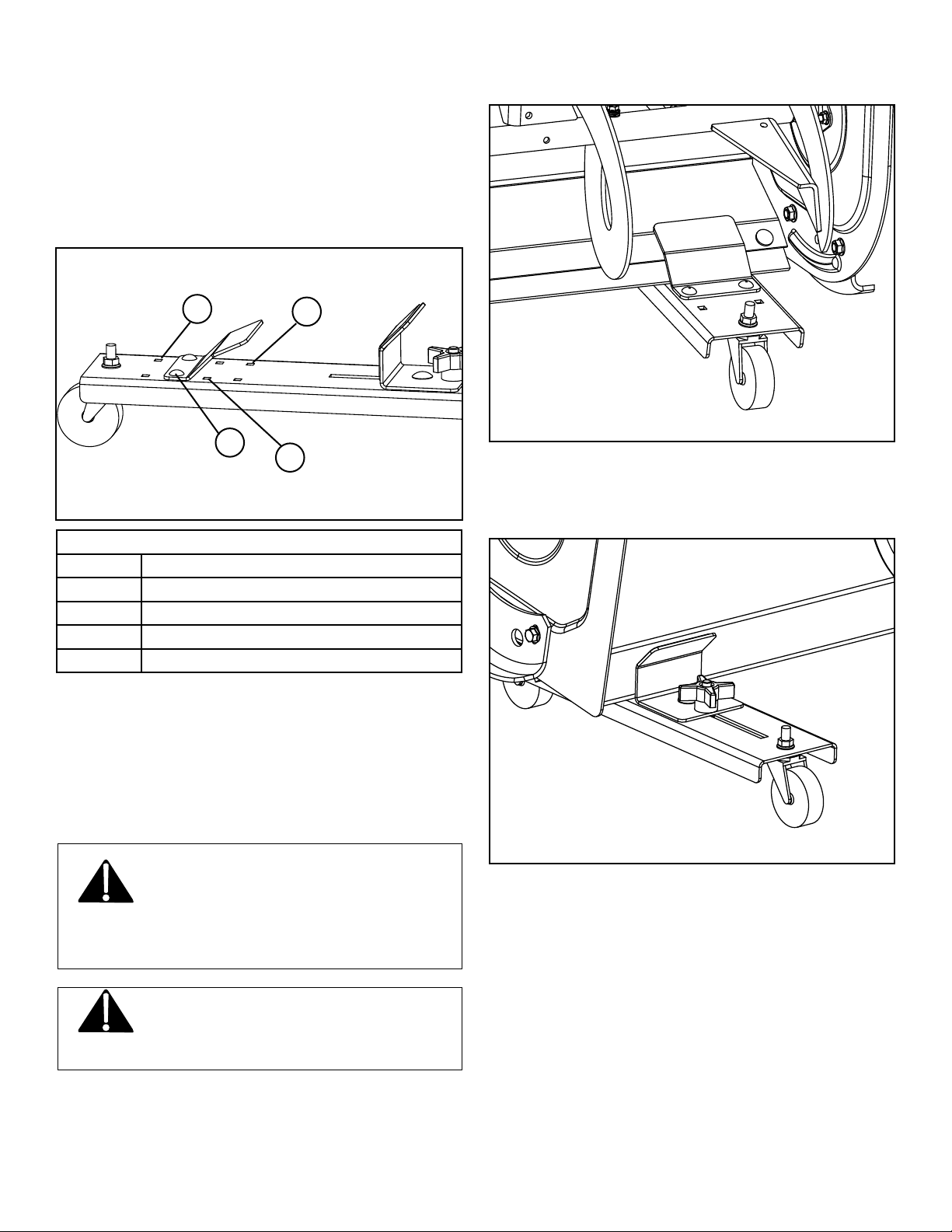

1. Lift snow blower to highest position
2. Loosen lock knob and slide rear brace rearward.
3. Position a dolly on each side of snowblower near
the sideplate with the front angle overlapping the
scraper bar as far as possible.
Note: When raised the snow blower dollies may
hang down.
4. Lift dolly flush with bottom of snow blower, adjust
rear brace inward then tighten lock knob.
5. Slowly lower snow blower to the ground, then follow
the snow blower removal instructions as normal.
6. Ensure the snow blower is sitting level on the dollies
and roll snowblower away from tractor.
Note: Snow Blower Storage Dollies are designed to
be used on flat and level surfaces only. Take care
when maneuvering over uneven surfaces.
Adjusting Dollies
Width Adjustment
Position Distance
A5 3/8” - 9 5/8” (137 - 244 mm)
B4 1/3” - 8 3/8” (105 - 212 mm)
C2 7/8” - 7 1/3” (73 - 181 mm)
D1 5/8” - 5 7/8” (41 - 149 mm)
D
A
C
B
Assembling Dollies
1. Measure width of the bottom of the snowblower
(including scraper bar) and adjust dollies
accordingly. See Adjustment of Dollies.
Warning: Avoid injury! Do not allow operator
or bystanders to operate Tractor controls
while installing or removing dollies. Make
sure hands and feet are clear of snowblower
when lowering snowblower onto dollies.

6
SNOW BLOWER STORAGE DOLLIES
Removal
Removing Dollies
1. Attach snow blower following snowblower installation
instructions.
2. Raise snow blower to highest position.
3. Remove snowblower dollies. It may be necessary to
loosen the lock knob and adjust the rear brace to remove
the dolly.
Caution: Avoid injury! Wear gloves while
removing dollies. Scraper blades may be
sharp.

7
SNOW BLOWER STORAGE DOLLIES
Specifications
Snow Blower Storage Dollies
Max Carrying Load 380 lb.(172.365 kg)

8
SNOW BLOWER STORAGE DOLLIES
Getting Quality Service
John Deere Quality Continues with Quality Service
John Deere provides a process to handle your questions
or problems, should they arise, to ensure that product
quality continues with quality parts andservice support.
Follow the steps below to get answers to any questions
you may have about your product.
Refer to your attachment and machine operator manuals.
In North America or Canada, call Agri-Fab at
1-800-448-9282 and provide product serial number (if
available) and model number.
LICENSED
Warranty
Limited Warranty for New John Deere
Licensed Products
Agri-Fab's attachments are guaranteed to be free from
defects in material and workmanship from the date of
purchase for 2 years residential use, 6 months commercial
use, provided that the purchaser properly assembles,
installs, uses and maintains the products in accordance
with this manual.
Purchaser’s failure to adhere to such requirements will
void the warranty. To the extent permitted by applicable
law, all other warranties, representations, obligations and
conditions, expressed or implied, including but not limited
toimplied warranties ofmerchantability, fitness forany
particular purpose and non-infringement, are hereby
disclaimed and excluded.
Any product which does not meet warranty shall, as
purchaser’s sole and exclusive remedy, be repaired
or replaced by Agri-Fab. This warranty is non-
transferable.
• In addition, our warranty does not cover:
•Labor charges.
• Loss or consequential, incidental or special damages
of any kind.
