It is most important that this instruction manual should be retained with the appliance for
future reference.
Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is supplied with the appliance in order that the
new owner can get to know the functioning of the appliance and the relevant warnings.
These warnings have been provided in the interest of safety.
You MUST read them carefully before use or installation by a qualified person. If you are
unsure of the meanings of these warnings contact the John Lewis branch from which you
purchased the appliance.
9000 335 083 A 24.10.2008 8:40 Uhr Seite 2

3
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Disposal information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Your vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Setting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Vacuuming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
When the work is done . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Changing the dust bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Repairs - After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Spare parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9000 335 083 A 24.10.2008 8:40 Uhr Seite 3

4
Please keep this instruction manual.
When passing the vacuum cleaner on to a
third party, please also pass on this
instruction manual.
Intended use
This vacuum cleaner is intended for
domestic use only, not for commercial use.
This vacuum cleaner should only be used in
accordance with the instructions in this
manual.
The manufacturer will not accept any
responsibility for damage caused by
improper use or incorrect operation.
Therefore, please note the following points.
The vacuum cleaner must only be operated
with:
•Original dust bags
•Manufacturer’s replacement parts,
accessories and optional accessories
The vacuum cleaner is not to be used
for:
•Vacuuming persons or animals
•Vacuuming up:
– Insects and spiders
– Hazardous, sharp-edged, hot or burning
substances.
– Damp or liquid substances.
– Highly flammable or explosive
substances and gases
– Ash, soot from tiled stoves and central
heating systems
Safety information
This vacuum cleaner complies with the
recognised rules of technology and the
relevant safety regulations.
We confirm compliance with the following
European directives: 89/336/EEC (amended
by Directives 91/263/EEC, 92/31/EEC and
93/68/EEC). 73/23/EEC (amended by
Directive 93/68/EEC).
•Only connect to a power supply and
operate the vacuum cleaner in accordance
with the rating plate.
•Never use the vacuum cleaner without
the dust bag.
=> This can damage the vacuum cleaner!
•Only allow children to use the vacuum
cleaner under supervision.
•Keep suction away from your face when
using the handle, nozzles or pipe.
=> Risk of injury!
•Do not carry/transport the vacuum
cleaner by the power cord.
•Remove the power cord completely from
the power supply after using the vacuum
cleaner continuously for several hours.
•When disconnecting the appliance from
the mains, pull the plug, not the power
cord.
•Do not pull the power cord around sharp
corners or allow it to become trapped.
•Unplug the power cord from the mains
before carrying out any work on the
vacuum cleaner or its accessories.
•Do not use the vacuum cleaner if it is
damaged. Unplug the power cord from
the mains if a fault is detected.
•For safety reasons, only authorised after-
sales service personnel are permitted to
carry out repairs and fit replacement parts
to the vacuum cleaner.
•Protect the vacuum cleaner from
moisture and sources of heat.
•Do not vacuum any drill dust or building
rubble
=> this can damage the vacuum cleaner.
9000 335 083 A 24.10.2008 8:40 Uhr Seite 4

5
•Switch off the vacuum cleaner when it is
not in use.
•At the end of its life, the vacuum cleaner
should be disposed of in an appropriate
manner.
•For safety reasons, vacuumcleaners with
an output of 2,000 watts or more are
fitted with a temperature safety switch,
which automatically switches the vacuum
cleaner off if it is blocked and overheating.
Unplug the power cord from the mains
and make sure that the nozzle, tube and
hose are not blocked.Also check whether
the dust bag needs changing.
Having cleared the blockage, leave the
vacuum cleaner to cool down for at least
one hour. It can then be switched back on
again.
Disposal information
•Packaging
The packaging is designed to protect the
vacuum cleaner from being damaged
during transportation.
It is made of environment-friendly
materials and can be recycled.
Dispose of unneeded packaging at the
appropriate recycling points.
•Used vacuum cleaners
Old appliances still contain many
recyclable materials.
Therefore, please take used appliances to
your retailer or recycling centre so that
they can be recycled.
For current disposal methods, please
enquire at your appliance dealership or
local council.
!Please note
The mains socket must be protected by a
13A fuse.
If a fuse should blow when you switch
on the vacuum cleaner, this may be
because other electrical appliances
which have a high current draw are
connected to the same power circuit.
To prevent the fuse from tripping,
select the lowest power setting before
switching the vacuum cleaner on, and
increase the power only once it is
running.
This appliance is labelled in accordance with
European Directive 2002/96/EG concerning
used electrical and electronic appliances
(waste electrical and electronic equipment -
WEEE).
The guideline determines the framework for
the return and recycling of used appliances
as applicable throughout the EU.
9000 335 083 A 24.10.2008 8:40 Uhr Seite 5

6

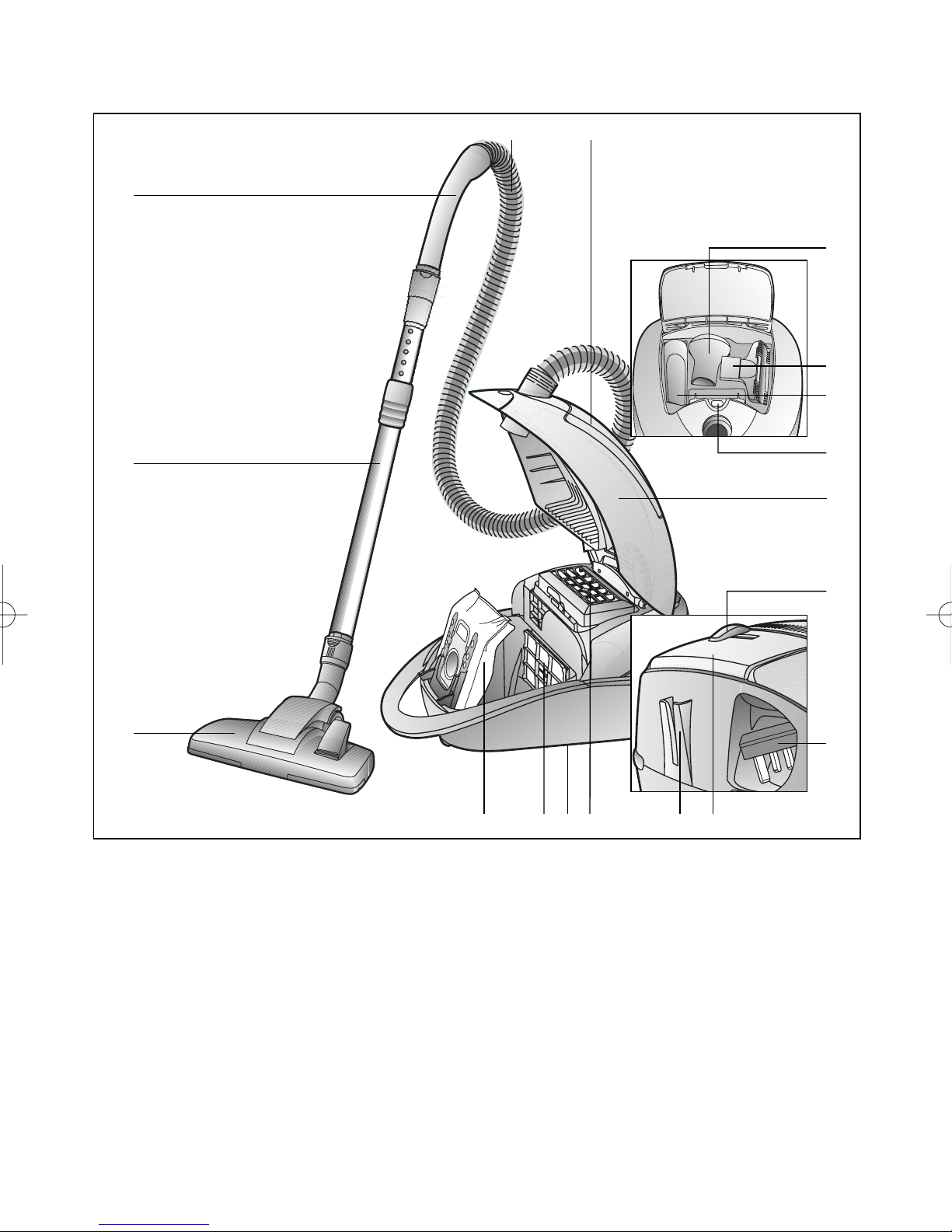

Your vacuum cleaner
1 Adjustable floor tool with locking collar
2 Telescopic tube with adjusting sleeve
and locking collar
3 Handle
4 Flexible hose
5 Accessory compartment
6 Furniture brush
7 Upholstery nozzle
8 Crevice nozzle
9 Dust bag change indicator
10 Cover
11 Electronic slide control
12 Power cord
13 ON/OFF button
14 Parking aid
15
Exhaust filter (HEPA)
16 Parking aid (on underside of unit)
17 Motor protection filter
18 Dust bag
4 5
15
1718 16
10
7*
6*
8*
9
1
2
3
13
12
14
11
9000 335 083 A 24.10.2008 8:40 Uhr Seite 6

7
Setting up

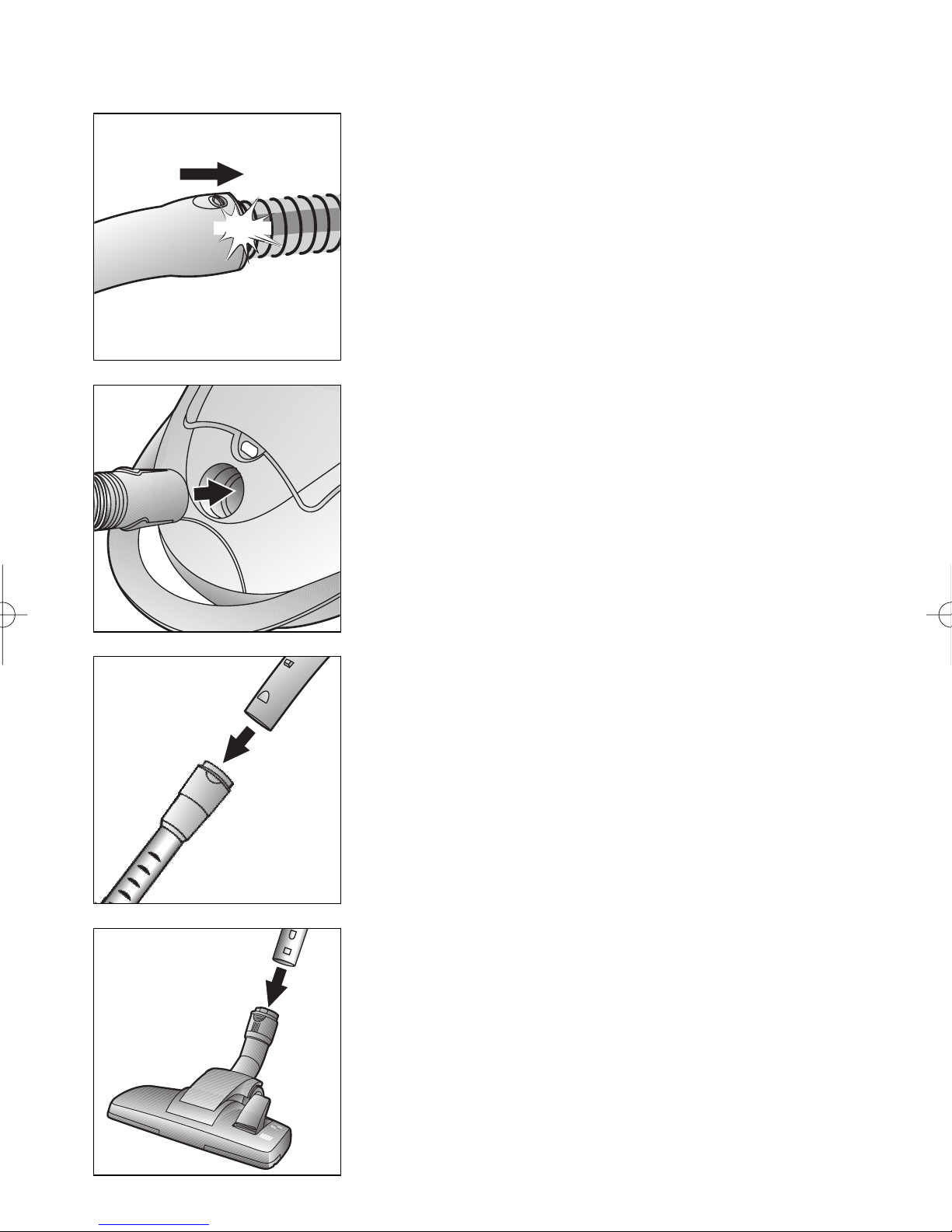

Insert the flexible hose connector into the opening on the
vacuum cleaner until it engages.
Push the handle into the telescopic tube until it
engages.
Push the telescopic tube into the connecting piece of the
floor nozzle until it engages.
Before using for the first time
Push the handle onto the flexible tube and until it engages.
CLICK!
9000 335 083 A 24.10.2008 8:40 Uhr Seite 7

8
Setting up

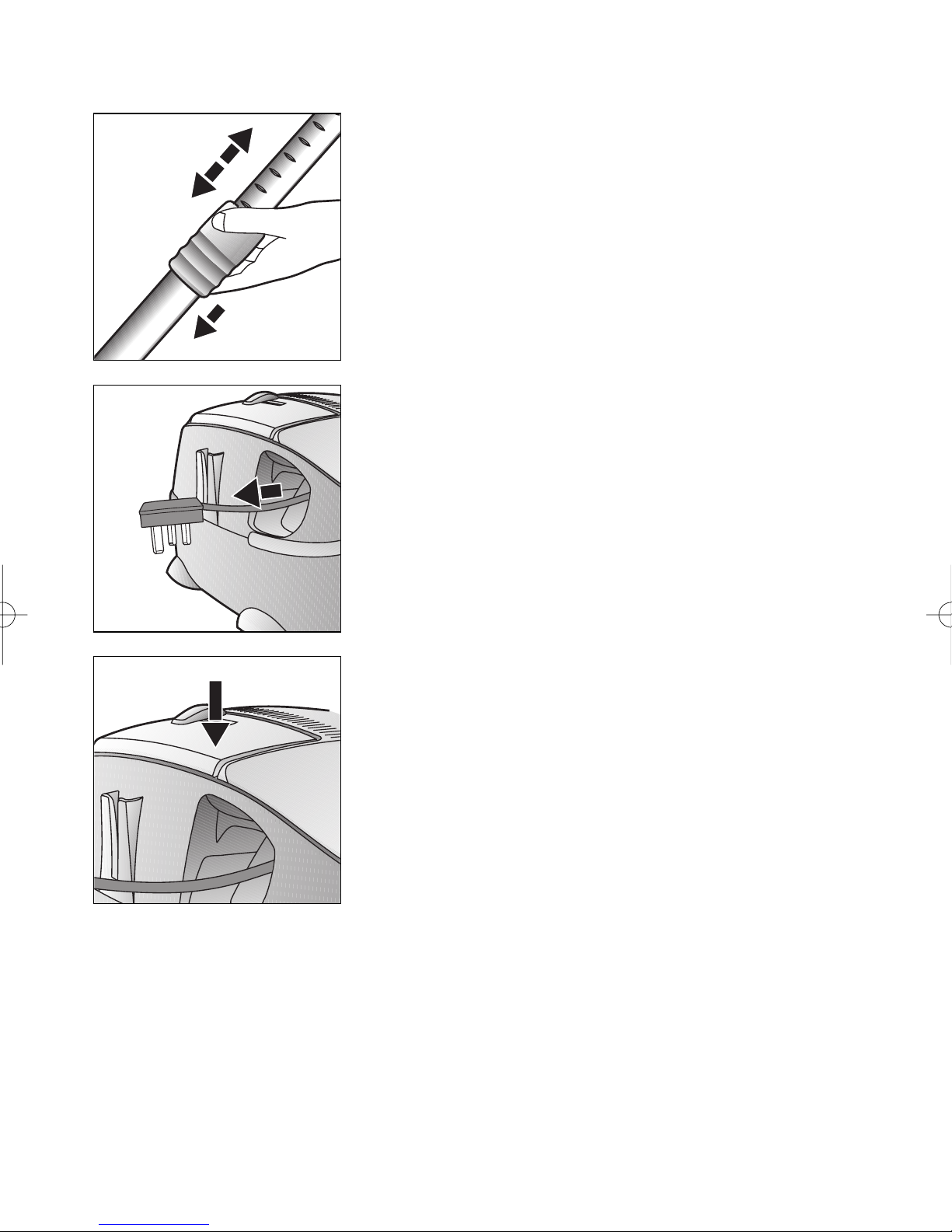

To adjust the length of the telescopic tube, press the adju-
sting button/adjusting sleeve in the direction of the arrow
and adjust the tube to the required length.
Take the mains plug, pull the mains cable to the required
length and insert the plug into a wall socket.
To switch your vacuum cleaner on, press the On/Off button in
direction of arrow.
9000 335 083 A 24.10.2008 8:40 Uhr Seite 8

99
Vacuuming

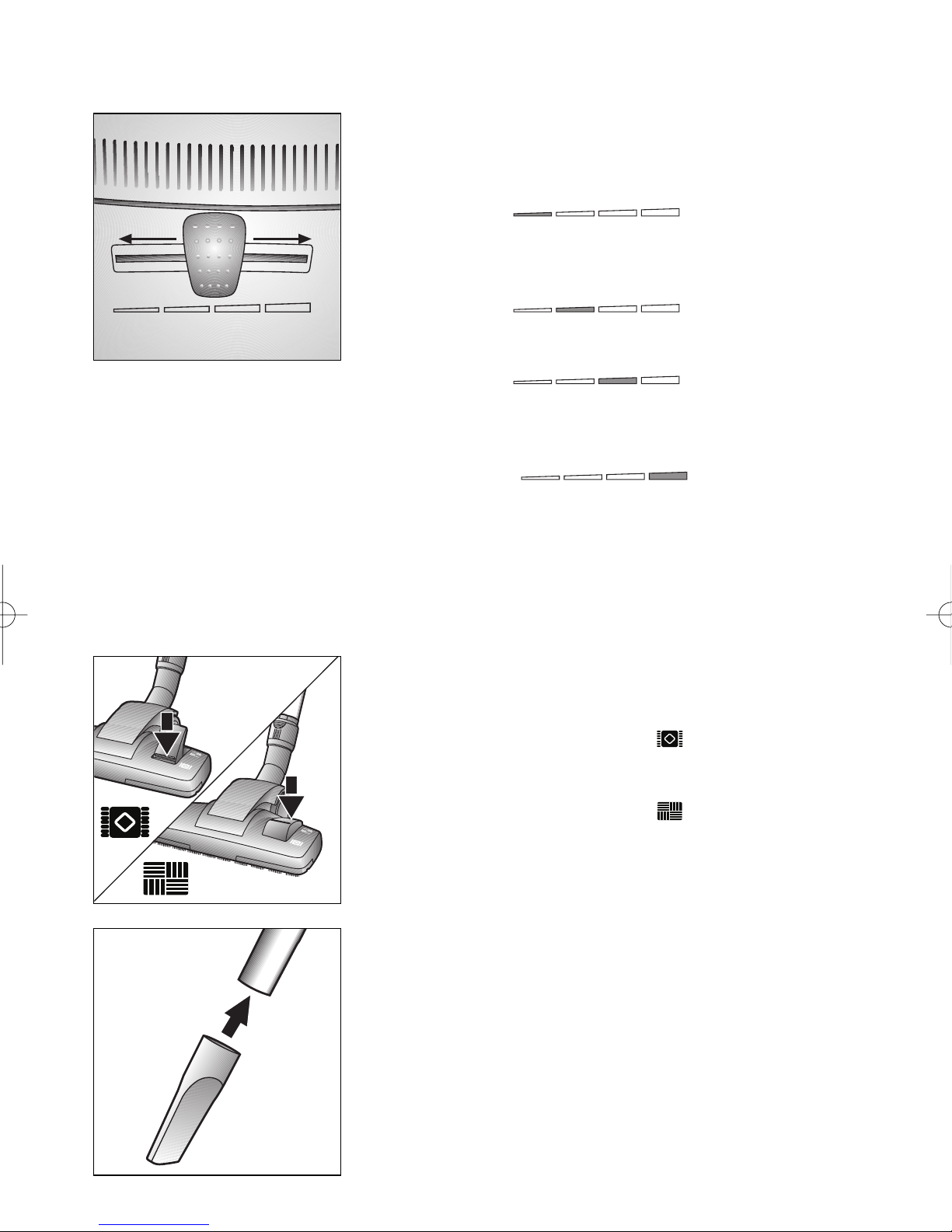

Adjusting the floor tool:
•For cleaning rugs
and carpets =>
•For cleaning
hard floors =>
Vacuuming with accessories
(attach to handle or suction pipe as required).
Crevice nozzle
For cleaning crevices and corners.
The required suction power can be selected infinitely variably
by adjusting the slide control.
•Lowest
suction range:
For vacuuming delicate fabrics,
e.g. curtains.
•Low
suction range:
For cleaning carpets and when there is little dirt.
•Medium
suction range:
For vacuuming durable floor coverings, hard floors and
for heavily soiled surfaces.
•High
suction range: :
For vacuuming stubborn dirt and very heavily soiled
surfaces.
min max
9000 335 083 A 24.10.2008 8:40 Uhr Seite 9

10
Vacuuming
You can use the parking aid on the back of the appliance
during short pauses in vacuuming after switching off the
vacuum cleaner.
To do this, slide the catch on the floor tool into the groove
on the back of the appliance.
Furniture brush
For vacuuming picture frames, books, delicate
furniture, etc.
Small accessories that you do not need can be stored in the
vacuum cleaner lid.
Upholstery nozzle
For cleaning upholstered furniture, curtains, etc.
9000 335 083 A 24.10.2008 8:40 Uhr Seite 10

11

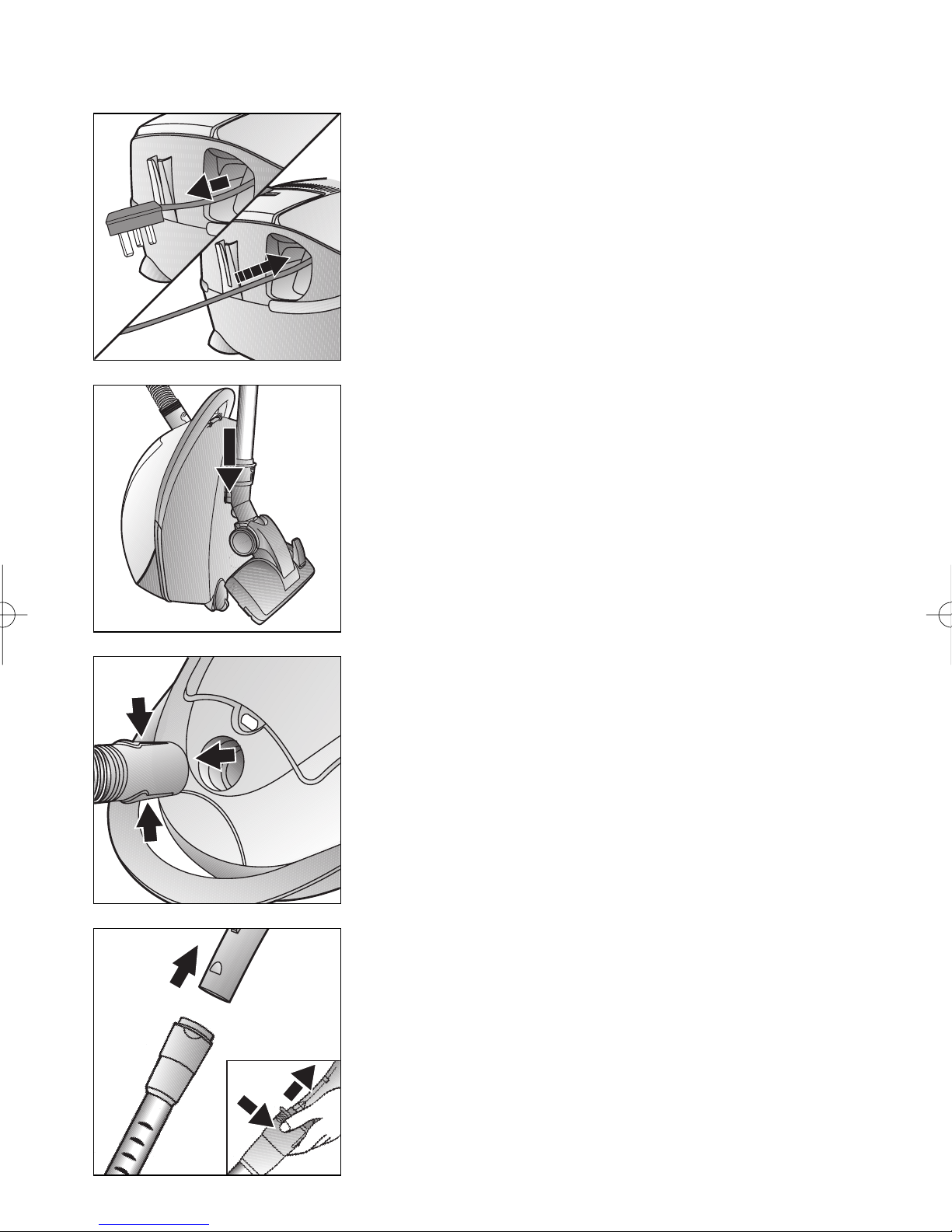

•Rewinding the power cord.
•Tug the power cord and let go (the cable automatically
rewinds).
To store or transport the vacuum cleaner, use the storage
aid on the underside of the cleaner.
Stand the vacuum cleaner up on its end.
Slide the catch on the floor tool into the groove on the
underside of the appliance.
When the work is done
To release the connection, press the unlatching sleeve and
pull the handle out.
To remove the flexible hose, press the release button and
pull out the hose.
9000 335 083 A 24.10.2008 8:40 Uhr Seite 11

12
When the work is done
To release the connection, press the unlatching sleeve and
pull the telescopic tube out.
9000 335 083 A 24.10.2008 8:40 Uhr Seite 12

13
Seal and remove the dust bag by pulling on the tab as
shown.
Place a new dust bag in the holder and close the dust bag
compartment lid.
Caution:The cover only closes when a dust bag
has been inserted.
Changing the dust bag
Replacing the dust bag
If the dust bag change indicator in the cover is completely
yellow when the floor tool is lifted off the floor and the
highest suction setting is selected, the dust bag must be
replaced even if it should not be completely full yet. In this
case it is essential to change the dust bag due to the type of
material it contains.
The nozzles, suction pipe and flexible hose should not be
blocked, as this will also trigger the dust bag change
indicator.
Open the cover by moving the locking lever in the direction
of the arrow.
9000 335 083 A 24.10.2008 8:40 Uhr Seite 13

14
Changing the dust bag
•If the motor protection filter is very dirty, wash it out.
Leave the filter to dry for at least 24 hours.
•After cleaning, insert the motor protection filter in the
machine and close the dust compartment cover.
Cleaning the motor protection filter
The motor protection filter should be cleaned at regular
intervals by tapping it or washing it out.
•Open the dust compartment cover.
•Remove the motor protection filter in the direction of
the arrow.
•Empty the motor protection filter by tapping it.
9000 335 083 A 24.10.2008 8:40 Uhr Seite 14

15

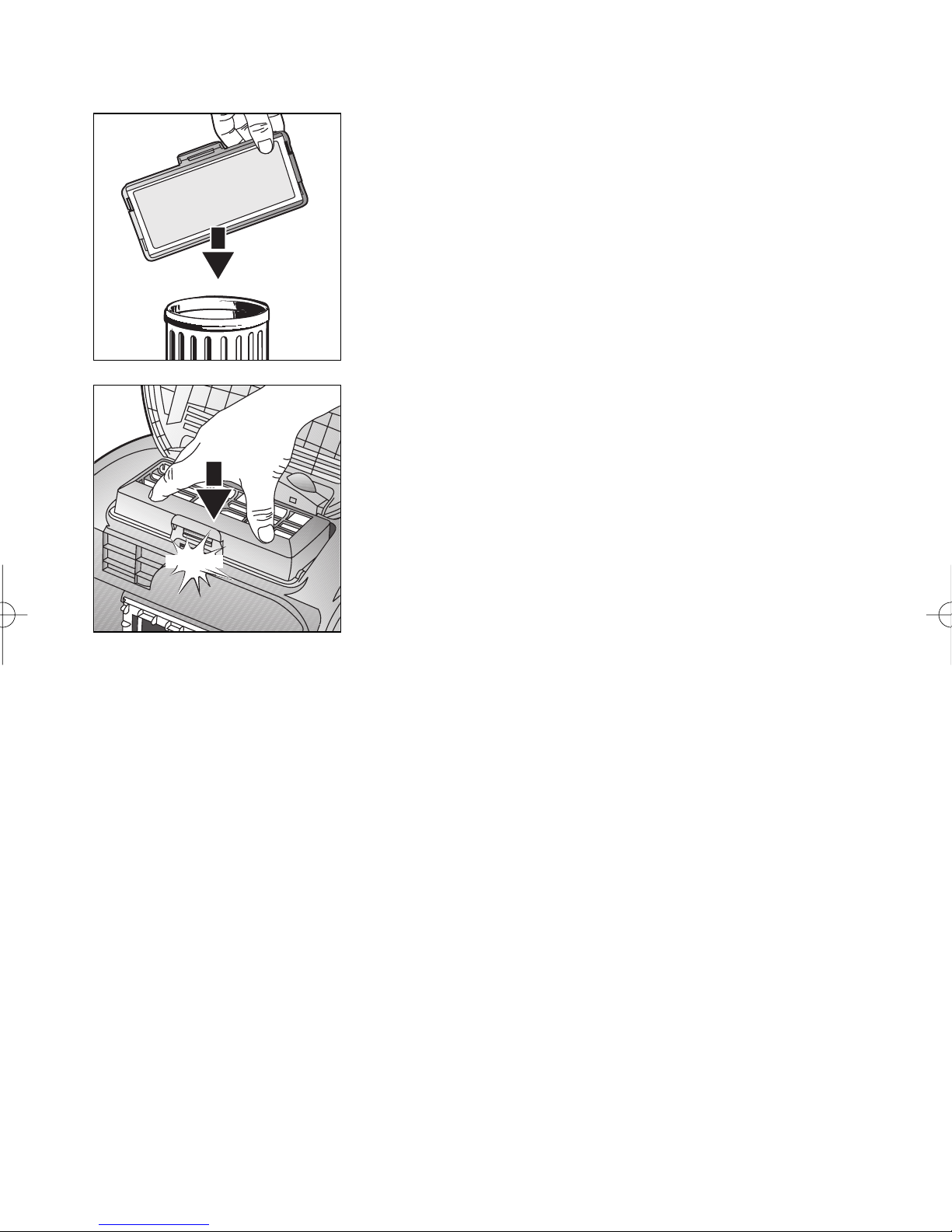

Replacing the HEPA filter
•Open the dust bag compartment lid
•Unlock the HEPA filter by pushing the locking tab in the
direction of the arrow and remove it from the vacuum
cleaner.
CLICK!
•Insert the new HEPA filter and click it into place.
After vacuuming up fine dust particles, shake out
the motor protection filter to clean it and replace
the micro-hygiene filter, activated carbon filter or
HEPA filter if necessary.
Changing the dust bag
9000 335 083 A 24.10.2008 8:40 Uhr Seite 15

16
•Always switch the vacuum cleaner off and disconnect the power cord from the mains
before cleaning the vacuum cleaner.
•The vacuum cleaner and plastic accessories can be cleaned with a commercial
plasticcleaner.
Do not use abrasive, glass or all-purpose cleaners.
Never immerse the vacuum cleaner in water.
•The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or
simply wiped with a a dry cloth or dusting brush.
Subject to technical changes.
Care
9000 335 083 A 24.10.2008 8:40 Uhr Seite 16

17
In the event of your appliance requiring service, or if you wish to purchase spare parts, please
contact our extended warranty administrators by telephoning:
0844 8929037
They will give you details for your local Service Force Centre.
Service Force are the appointed national appliance repair agents responsible for warranty
repairs to this appliance.
When you contact the Service Force Centre you will need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The purchase date and found on your receipt.

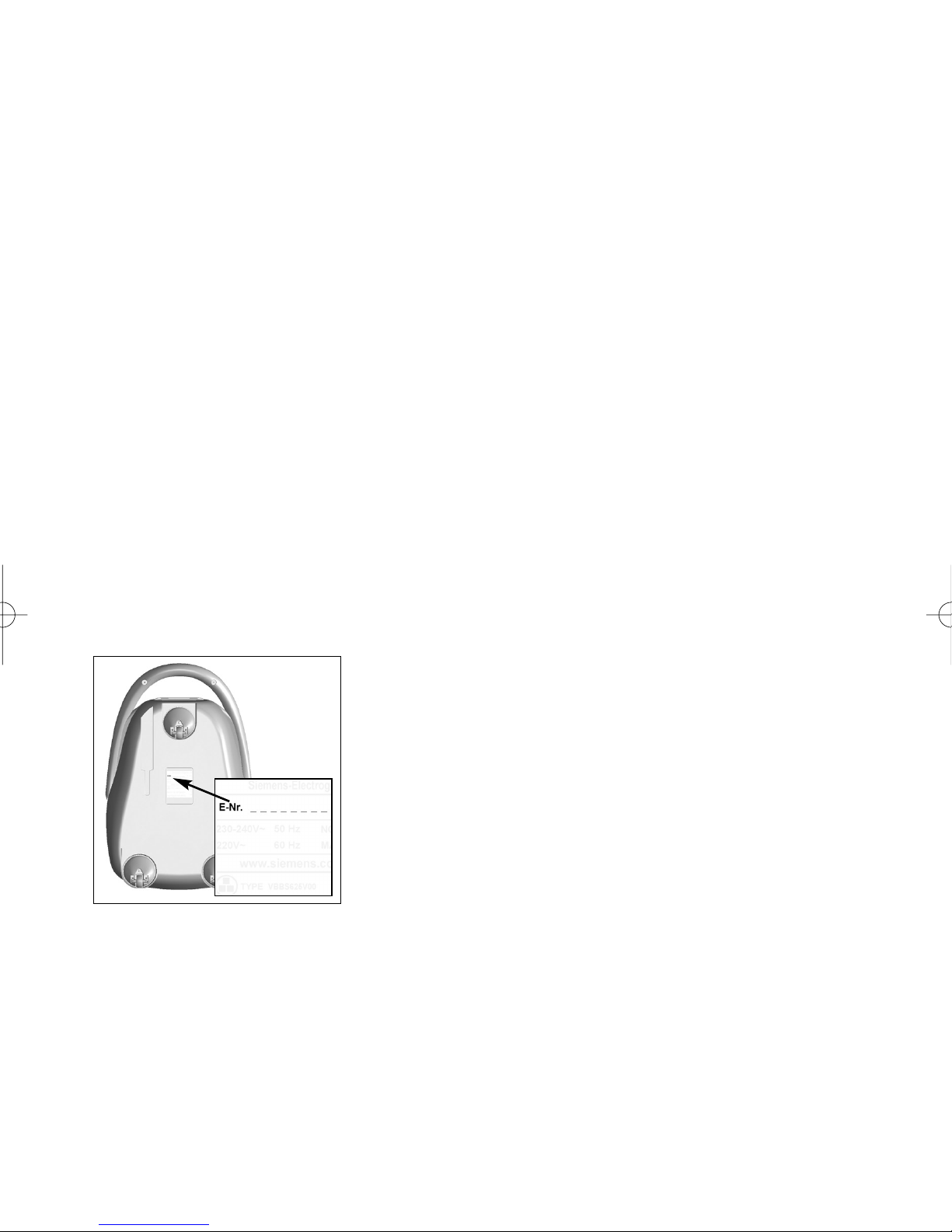

5. The model number of the appliance (found on the rating plate - see picture)
So that you always have this number to hand, we recommend you to make a note of it here.
Model (E-Nr.) . . . . . . . . . . . . . . . . . . . . . . . . . . .
Repairs - After Sales Service
UK Guarantee
For 3 years in respect of defects found to be due to faulty
workmanship or materials. Proof of purchase is required for
validity of the guarantee. This guarantee is no longer valid if
the damage has been caused by fall, alteration or repair by
any unauthorised persons.
This guarantee in no way affects your statutory rights.
9000 335 083 A 24.10.2008 8:41 Uhr Seite 17

18
Spare parts
Always insist on genuine spare parts.
An authorised service engineer should service this product, and only genuine spare parts
should be used.
Under no circumstances should you attempt to repair the vacuum cleaner yourself.
Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.
Contact your local John Lewis Branch.
Replacement bags 856 67211
Contains:
5 replacement filters with lid
HEPA filter (Class H12) 856 67213
Recommended for allergy sufferers. Ensures very clean
exhaust air.
Replace annually.
9000 335 083 A 24.10.2008 8:41 Uhr Seite 18

19
9000 335 083 A 24.10.2008 8:41 Uhr Seite 19

John Lewis Partnership
171 Victoria Street
London SW1E 5NN
www.johnlewis.com 9000 335 083 A
9000 335 083 A 24.10.2008 8:41 Uhr Seite 20
