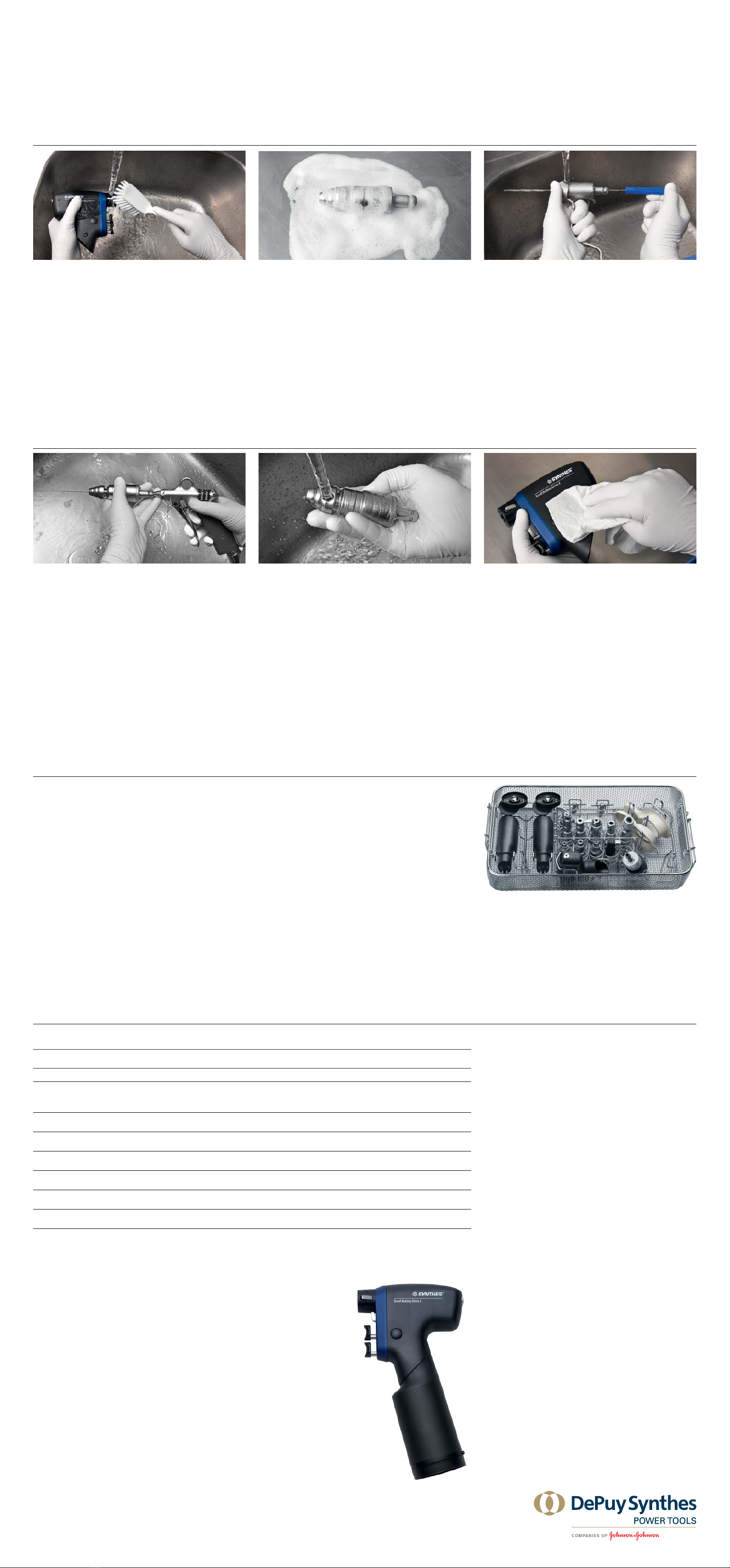

SMALL BATTERY DRIVE II
Manual and Mechanical Cleaning Instructions
1 Remove debris.
Rinse the device under running cold tap water for a
minimum of 2 minutes. Use a sponge, soft lint-free cloth,
or soft-bristled brush to assist in removing gross soil.
For cannulations of the handpiece and attachments, the
cleaning brush (519.40) should be used.
Note: Do not use pointed objects for cleaning.
2 Manipulate moving parts.
Manipulate all moving parts such as the triggers, sleeves,
and switches under running tap water to loosen and
remove gross debris.
Manual Cleaning Instructions
Mechanical/Automated Cleaning Instruction with Manual Pre-cleaning
Important:
xManual precleaning prior to mechanical/automated
cleaning/disinfection is important to ensure that
cannulations and other difficult to access areas
are clean.
xCleaning/disinfection procedures other than
in the procedure described below (including
manual precleaning) have not been validated by
DePuy Synthes Power Tools.
3 Spray and wipe.
Spray and wipe the device using a neutral pH enzymatic
solution for a minimum of 2 minutes.
Follow the enzymatic detergent manufacturer’s
directions for correct temperature, water quality
(i.e., pH, hardness) and concentration/dilution.
4 Clean with detergent.
Clean the device manually under running warm water
using an enzymatic cleaner or detergent for a minimum
of 5 minutes. Manipulate all moving parts under running
water. Use a soft-bristled brush and/or soft lint-free cloth
to remove all visible soil and debris.
Follow the enzymatic cleaner or detergent
manufacturer’s instructions for use for correct
temperature, water quality, and concentration/dilution.
5 Rinse with tap water.
Rinse the device thoroughly using cool to lukewarm
running water for a minimum of 2 minutes. Use a
syringe, pipette, or water jet to flush lumens and
channels. Actuate joints, handles, and other movable
device features in order to rinse thoroughly under
running water.
6 Visually inspect device.
Inspect the cannulations, coupling sleeves, etc., for visible
soil. Repeat steps 1 to 6 until no visible soil remains.
7 Final rinse with de-ionized/
purified water.
Final rinse with de-ionized or purified water for a
minimum of 2 minutes.
8 Dry.
Dry device using a soft lint-free cloth or clean
compressed air.
Follow steps 1 through 6 of the
Manual Cleaning Instructions.
7 Load washing basket.
Place devices in the specially designed tray for machine
washing supplied by DePuy Synthes Power Tools
(68.001.610). Ensure that all cannulations (handpiece
and attachments), if applicable, are positioned vertically,
i.e., in an upright position as shown.
Note: Specific lid (68.001.602) is available for the
washing basket.
9 Inspect the device.
Remove all the devices from the washing basket. Inspect the cannulations,
coupling sleeves, etc., for visible soil. If necessary, repeat the manual
preclean/automated cleaning cycle. Confirm that all parts are completely dry.
Mechanical cleaning/disinfection is an additional stress for power equipment,
especially for seals and bearings. Therefore, systems must be properly
lubricated and regularly sent to be serviced at least once per year.
Step Duration Cleaning instructions
(minimum)
Rinse 2 minutes Cold tap water
Pre-wash 1 minute Warm water (≥ 40°C); use detergent
Cleaning 2 minutes Warm water (≥ 45°C); use detergent
Rinse 5 minutes Rinse with de-ionized (DI) or purified water (PURW)
Thermal disinfection 5 minutes Hot DI water, ≥93°C
Dry 40 minutes ≥90°C
8 Automated cleaning cycle parameters
Note: The washer/disinfector should fulfill the requirements as specified in ISO 15883.
