HSM2HOST 2-Way Wireless
Transceiver Installation Manual
WARNING: This manual contains information on limitations regarding product use and function and information
on the limitations as to liability of the manufacturer. The entire manual should be carefully read.

Table of Contents
Specifications and features 4
Compatible Devices 5
Safety instructions 6
Introduction 7
Installation Process Overview 7
Controls and indicators 7
Status LEDs 7
Tamper 8
Installing the HSM2HOST 9
Temporary mounting requirements 9
Connecting the HSM2HOST to the alarm panel 9
Enrolling The HSM2HOST 10
Permanently mounting the HSM2HOST and wireless devices 10
Other Options 11
Wireless device setup and programming 12
[804][000] Enrolling wireless devices 12
[804][001]-[716] Wireless Device Configuration 12
[804][801] RF Jam Detect 13
[804][802] Wireless supervisory time window 13
[804][810] Wireless Option 1 14
[804][841] Motion cameras 15
[804][901]-[905] Deleting wireless devices 16
[804][921]-[925] Replacing wireless devices 16
[804][990][001 – 005] Show all devices 16
[804][999] Reset to factory defaults 17
[904] Placement testing of wireless devices 17
Programming Worksheets 19

3
[804] Wireless programming 19
[804][000] Wireless Device Enrollment – Zones 20
[804][000] Wireless device enrollment – Wireless keys 21
[804][000] Wireless device enrollment – Wireless keypads 21
[804][000] Wireless device enrollment – Wireless repeaters 22
[804][001]-[248] Configure wireless zones 1-248 23
[804][551]-[566] Configure wireless sirens 1-16 (copy as needed) 24
Toggle Options 24
Toggle Options 25
[804][601]-[632] Configure Wireless Keys (copy as needed) 25
-[632] Wireless Key 1-32 26
[804]-[701]-[716] Wireless Keypad Programming (copy as needed) 26
[804][801] Jam Detect 30
[804][802] Supervisory Window 30
[804][810] Wireless Options 30
[804][841] Motion Cameras 30
[804][901]-[905] Delete Wireless Devices 31
[804][921]-[925] Replace Wireless Devices 31
[804][990] Show All Devices 31
FCC Compliance Statement 38
IC Statement 38
EU Compliance Statement 38
HSM2HOST Installation Manual

4
Specifications and features
Specifications and features
lCurrent Draw: 60mA
lVoltage: Draws current from the PowerSeries Neo or PowerSeries Pro alarm controller
(10.8VDC to 12.5VDC) - (Limited Power Supply)
lFrequency: 433MHz (HSM2HOST4), 868MHz (HSM2HOST8), 912-919MHz
(HSM2HOST9UL)
lZones - can receive signals from up to 128 wireless zones, plus 16 wireless keypads. Also
sup-ports up to 32 wireless keys or 32 panic pendants
lSupervisory - programmable supervisory window
lCan be wired up to 1000 ft. / 230 m from the main panel with 22 AWG wire
lConnects to Corbus
lCompatibility: The HSM2HOST is used with PowerSeries Neo or PowerSeries Pro alarm
pan-els
lOperating temperature: NA= 0°C – +49°C (32-122°F); EU= -10°C – +55°C
lRelative humidity: 93% non-condensing
lBuilt-in wall and case tampers
Note: For Commercial BURG (UL) the Supervisory window shall be set to 4 hours.
For Residential Fire (UL/ULC) the Supervisory window shall be set to 200 seconds.
For Residential BURG (UL/ULC) the supervisory window shall be set to 24 hours.
For UL Home Healthcare applications the supervisory window shall be set to 24 hours
Only models operating in the band 912-919 MHz are UL/ULC listed where indicated. Only UL
approved devices are to be used with UL/ULC listed systems.

5
Compatible Devices
The HSM2HOSTx (x= 4/8/9) can receive signals from the devices listed in the following table.
Refer to the individual device instruction sheet. Throughout this document, x in the model number
represents the operating frequency of the device for one of the following models: 9 (912-919 MHz),
8 (868MHz), 4 (433MHz).
Alarm Controllers
Alarm Controllers HS2016/HS2032/HS2064/HS2128/HS3032/HS3128/HS3248
Modules
Wireless keypads HS2LCDWFx/HS2LCDWFPx/HS2LCDWFPVx
Wireless Devices
PowerG wireless short range ceiling mount detector with temperature monitoring PGx862UL
PowerG wireless long range ceiling mount detector with temperature monitoring PGx872UL
PowerG wireless outdoor curtain PIR PGx902UL
PowerG wireless PRI motion detector with optional animal resistance PGx904(P)UL
PowerG wireless PIRmotion detector with temperature monitoring PGx914(P)UL
PowerG wireless curtain PIR motion detector PGx924UL
PowerG wireless PIR motion detector with camera PGx934(P)UL
PowerG wireless outdoor PIRmotion detector with camera and with anti-masking PGx944UL
PowerG wireless mirror optic PIR motion detector PGx974(P)UL
PowerG wireless dual technology (PIR and MW) with anti-masking PGx984(P)UL
PowerG wireless outdoor PIRmotion detector with anti-masking PGx994
PowerG wireless recessed door/window contact PGx307
PowerG wireless outdoor contact with auxiliary input, temperature monitoring, and anti-
masking PGx312UL
PowerG wireless door/window contact with auxiliary input PGx945UL
PowerG wireless vanishing door/window contact PGx975UL / PGx303UL
PowerG wireless glassbreak detector PGx912 / PGx922UL
PowerG wireless shock detector with auxiliary input PGx935UL
PowerG wireless flood detector PGx985UL
PowerG wireless temperature detector PGx905UL
PowerG wireless temperature probe extender (requires PGx905) PGTEMP-PROBE
PowerG wireless CO detector (USonly) PGx913UL
PowerG wireless CO detector with temperature monitoring PGx933UL
PowerG wireless smoke and heat detector PGx916UL
PowerG wireless smoke and heat detector with temperature monitoring PGx936UL
PowerG wireless smoke detector PGx926UL
PGx901UL
PowerG wireless outdoor siren PGx911UL
PowerG wireless repeater PGx920UL
PowerG wireless 1-button security panic button PGx938UL
PowerG wireless 2-button security panic button
PGx949UL
PGx929UL
PGx939UL
PowerG wireless 4-button security panic button
PGx929UL
PGx939UL
HSM2HOST Installation Manual
PowerG wireless smoke detector

6
Safety instructions
Safety instructions
Read the safety information before you install the equipment.
This equipment must be installed by a skilled person only. A skilled person is an installer with appro-
priate technical training. The installer must be aware of potential hazards during installation and meas-
ures available to minimize risks to the installer and other people.
lBefore you install this equipment, disconnect all power sources (for example mains, battery,
and telephone line) connected to the alarm panel.
lInstall the equipment indoors in a non-hazardous environment where the following conditions
are met:
- Pollution degree - Maximum 2
- Over voltages - Category II
lInternal wiring must be routed to prevent strain on wire and terminal connections, loose ter-
minal connections, and damage to conductor insulation.
lInstruct the user that there are no user serviceable parts in this equipment. All equipment must
be serviced by a skilled person.

7
Introduction

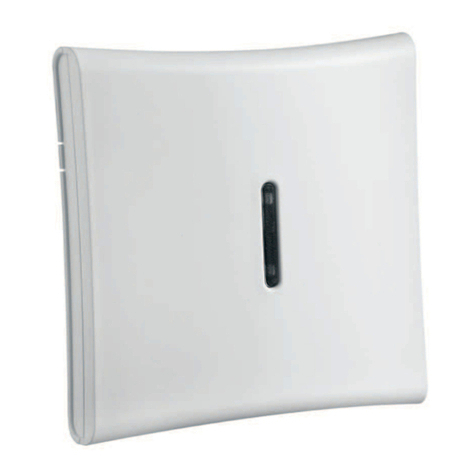

The HSM2HOSTx two-way wireless transceiver adds wireless capability to alarm controllers, mod-
els HS2016, HS2032, HS2064, HS2128, HS3248, HS3128, HS3032.The HSM2HOST receives sig-
nals from wireless zones and wireless keys, and provides information to the alarm controller it is
connected to. This manual describes how to install, program and maintain the HSM2HOST. Note
that only one HSM2HOST or one RFK keypad can be enrolled on the alarm system.
Before installing:
1. Plan the placement and wiring of the security system (see system installation manual).
2. Install the control panel and optional modules.
3. Temporarily mount all wireless devices in the intended location.
Installation Process Overview
To install and set up the HSM2HOST and wireless devices:
1. Temporarily mount and wire the HSM2HOST module ("Temporary mounting requirements"
on page 9).
2. Enroll the HSM2HOST and first wireless keypad ("Enrolling The HSM2HOST" on page 10).
3. Check the location for RF interference levels ("[804][801] RF Jam Detect" on page 13).
4. Enroll wireless devices ("[804][000] Enrolling wireless devices" on page 12).
5. Complete zone and other programming on the system ("Wireless device setup and pro-
gramming" on page 12).
6. Test the placement of all the wireless devices ("[904] Placement testing of wireless devices"
on page 17).
7. Permanently mount the HSM2HOST and wireless devices ("Permanently mounting the
HSM2HOST and wireless devices" on page 10).
Controls and indicators
Status LEDs
The LEDs on the front of the HSM2HOST provide feedback regarding the installation, operation
and troubleshooting of the unit. The LEDs function as follows:
HSM2HOST Installation Manual

8
Tamper
Red LED Operation
Module Power
Up: On steady during module power-up sequence then off.
Firmware Update:
Slow flashing = update in progress
Rapid flashing = update failed
Trouble Condi-
tion:
lNo trouble: 1 rapid flash every 10 seconds.
If troubles are present, a series of flashes occur every 2 seconds. Each series of
flashes indicate troubles as follows:
l1 flash: Module not enrolled
l2 flashes: Loss of contact with module for over 60 seconds
l3 flashes: Corbus low voltage
l8 flashes: RF interference (jam condition)
Module Con-
firmation: Flashes rapidly during module confirmation process.
Placement Test: On steady when location is bad. Off when location is good.
Green LED Operation
Placement Test:
On steady when location is suitable. Off when location is unsuitable.
For UL/ULC listed systems, signal must be “Strong”. See Wireless Device
Status Indications on page 10 for details.
Status LEDs
Tamper
The HSM2HOST has built-in wall and case tampers. The tamper function is disabled by default on
the NA version (enabled on the EU version). Section [804][810] option 3 on page 10 enables or dis-
ables the tamper function. The case tamper activates when the case is opened and restores when the
case is closed. The wall tamper on the back of the unit is depressed by the mounting surface when
properly installed. If the unit is removed, the tamper activates. Ensure the mounting surface is smooth
and free of obstructions that block access to the rear of the unit. Electrical wires should not run over
or under the module when it is mounted.
The built in wall and case tamper must be installed and enabled for UL/ULC listed Commercial/ Res-
idential Burglary applications.

9
Installing the HSM2HOST
This section describes how to install the HSM2HOST module.
Temporary mounting requirements
Before installing the HSM2HOST, you must temporarily mount the HSM2HOST in a location that
meets the following requirements.
lEnsure that the location is dry.
lEnsure that the location is within the operating temperature range.
lEnsure that the location is central to the proposed placement of all wireless devices.
lMount the module in a high location. Mounting the module below ground level can reduce the
range of the system.
lMount the module in a location that is far away from sources of interference, such as com-
puters, electric motors, appliances, heating, air conditioning units, and other sources of elec-
trical noise. Large metal objects like heating ducts and plumbing can also shield the
electromagnetic waves
lEnsure that there are no obstructions blocking the rear of the unit.
Connecting the HSM2HOST to the alarm panel
Ensure that you disconnect all power supplies from the system before connecting the modules to the
Corbus. Power supplies can include AC, DC, and telephone lines.
To connect the HSM2HOST to the alarm panel, complete the following steps:
1. Connect the HSM2HOST to the four-wire Corbus in the alarm panel. For more information,
see Figure 1.
2. Turn on the system.
Wiring Diagram
HSM2HOST Installation Manual

10
Enrolling The HSM2HOST
Enrolling The HSM2HOST
The enrollment of a HSM2HOST to an alarm panel is dependent on the system configuration.
Enrolling the HSM2HOST without a hardwired keypad
To enroll the HSM2HOST without a hardwired keypad, complete the following steps:
1. Turn on the wireless keypad by connecting the power source.
2. Simultaneously press [*] and [1] on the keypad.
The system can take up to 30 seconds to complete the enrollment
Enrolling the HSM2HOST with an enrolled hardwired keypad
To enroll the HSM2HOST with an enrolled hardwired keypad, complete the following steps:
1. On the enrolled keypad, enter Installer Programming section [902][000] (Auto Enroll All Mod-
ules).
2. When the system prompts you, press [*].
Enrolling the HSM2HOST with only unenrolled hardwired keypads
To enroll the HSM2HOST with only unenrolled hardwired keypad(s), complete the following steps:
1. Enroll only one hardwired keypad onto the system by pressing any key on the keypad.
2. Enter Installer Programming section [902][000](Auto Enroll All Modules).
3. When the system prompts you, press [*] to enroll the HSM2HOST and all other keypads or
modules on the system.
Permanently mounting the HSM2HOST and wireless devices
Once you identify a suitable location to permanently mount the HSM2HOST and wireless devices,
complete the following steps:
1. Pull the Corbus wires through the holes at the back of the HSM2HOST cabinet.
2. Using a screwdriver, securely mount the HSM2HOST cabinet of to the wall using the three
screw supplied. For more information, see Figure 2.
3. To install the wall tamper, securely attach the breakaway wall tamper bracket to the wall using
the screws supplied.
4. Install the wireless devices. For more information, refer to the device's Installation Guide.

11
Mounting the HSM2HOST
Other Options
The following actions may be performed on the HSM2HOST:
Section Action
[902][106] Delete the HSM2HOST from the alarm system.
[903][106] Confirm that the HSM2HOST is enrolled.
[000][806] Add a label to appear on LCD keypads.
[900][461] View HSM2HOST model information.
HSM2HOST Installation Manual

12
Wireless device setup and programming
Wireless device setup and programming
This section describes how to enroll and program wireless devices such as contacts, motion sensors
and sirens on the alarm panel.
[804][000] Enrolling wireless devices
Once the HSM2HOST is installed and enrolled on the alarm panel, wireless devices can be enrolled
using the following method:
1. Enter Installer Programming section [804][000].
2. When prompted, either activate the device (see device installation sheet) to enroll immediately
or enter a device ID number. Do the latter to pre-enroll devices then enroll them later at the cus-
tomer site. The alarm panel determines the type of device being enrolled and presents the
appropriate programming options.
Device Type Programming Options
Zone
(01) Zone type
(02) Partition assignment
(03) Zone label
Wireless Key
(01) Partition assignment
(02) User label
Siren
(01) Partition assignment
(02) Siren label
Repeater (01) Repeater label
Wireless Device Options
3. Use the scroll keys or type in the corresponding number to select an option.
4. Scroll through the available selections, key in a number or enter text as appropriate.
5. Press [*] to accept and move to the next option.
6. Once all options are configured, the system prompts to enroll the next device.
7. Repeat the process described above until all wireless devices are enrolled.
The configuration options listed above can be modified using [804][911] Modify Device.
[804][001]-[716] Wireless Device Configuration
To configure wireless devices, complete the following steps:
1. Enter Installer Programming section [804] then select one of the following sub-sections:
l001-248 – Configure Wireless Zones
l601-632 – Configure Wireless Keys
l701-716 – Configure Wireless Keypads

13
2. Select a device to configure using the scroll keys or go directly to a specific device by entering
a hotkey.
3. Use the scroll buttons or enter a hotkey to select a configuration option for the device. See
device sheets for details.
4. Press [*] to accept and move to the next option.
5. Once all options are configured, the system returns to the base configuration menu.
6. Repeat the process described above to configure other wireless devices.
[804][801] RF Jam Detect
RF jam detection (continuous interfering transmissions on the radio network) can be turned on or off.
When on, RF jamming is logged and reported.
To configure RF jamming, complete the following steps:
1. Enter Installer Programming section [804][801] then select one of the following options:
00 Disabled Jamming detection and reporting is enabled/disabled Note: Must be
Enabled for UL/ULC listed installations.
01 UL 20/20-
USA Continuous RF jamming for 20 seconds
02 EN 30/60-
Europe 30 seconds of accumulated jamming within 60 seconds
03 Class 6 30/60-
British
As EN (30/60) but reported only if the jamming duration exceeds 5
minutes
2. Press [*] to accept the selection.
3. Press [#] to exit the section.
[804][802] Wireless supervisory time window
This option is used to program the length of time a wireless device can be absent from the system
before a fault is generated.
Before programming the wireless supervisory time window, note the following UL/ULC spe-
cifications:
HSM2HOST Installation Manual

14
[804][810] Wireless Option 1
UL/ULC specifications Maximum wireless supervision time window
UL Residential Burglary (UL1023) 24 hours
Home Health Care (UL1637) 24 hours
ULC Residential Burglary (ULC/ORD-C1023) 24 hours
UL Residential Fire (UL985) installations 200 seconds
UL Commercial Burglary (UL1610/UL365) 4 hours
ULC Residential Fire (ULC-S545) 4 hours
UL/ULC Wireless Supervision Time
To program the wireless supervisory time window, complete the following steps:
1. Enter Installer Programming section [804][802].
2. Select one of the following options by scrolling or entering the hot key:
l00 – Disabled
l01 – After 1 Hour
l02 – After 2 Hours
l03 – After 4 Hours
l04 – After 8 Hours
l05 – After 12 Hours
l06 – After 24 Hours
3. Press [*] to accept the selection.
4. Press [#] to exit the section.
For EN installations, 1 hour or 2 hours must be selected.
When option 06 is used, which configures the system to generate fault conditions after a device has
been detected as absent for 24 hours, smoke detectors generate a fault condition after a maximum of
18 hours when the 200s supervision toggle option is disabled.
[804][810] Wireless Option 1
To program wireless options, complete the following steps:
1. Enter Installer Programming section [804][810].
2. Select one of the following options by scrolling or entering the hotkey:

15
01 RF Delin-
quency
On: the system cannot be armed if a wireless supervisory trouble
exists. An RF delinquency trouble is generated.
Off: wireless supervisory troubles do not prevent arming.
02
Wireless
Supervisory/
RF Jam
Alarm
On: if a supervisory or jamming trouble occurs during Away arming,
the siren activates and the event is logged and reported.
Off: supervisory or RF jam troubles during Away arming do not activ-
ate the siren or get logged and reported.
03 Wireless
Tamper
On: module tampers are logged and reported.
Off: module tampers are not logged or reported.
04 Fire Super-
vision
On: fire devices are supervised every 200 seconds. If the device fails to
report within this window, a supervision trouble is generated.
Off: fire devices follow the supervision window programmed in sec-
tion 802, up to a maximum of 18 hours. The supervisory window can
be programmed with a higher value, but detectors still go into fault
after 18 hours.
05
Smart Tem-
perature
Reporting
On: Wireless devices with smart temperature reporting support will
periodically report their ambient temperature to the control panel. Off:
Smart temperature reporting is disabled on all devices.
3. Press [*] to accept the selection and [#] to exit.
[804][841] Motion cameras
To program motion cameras, complete the following steps:
1. Enter Installer Programming section [804][841].
2. Select one of the following options by scrolling or entering the hotkey:
[001] Visual Verification
On: Alarms trigger image capture from PIR Cameras
Off: Alarms do not trigger image capture from PIR Cameras
[002] View Time Window
01 Alarm + 5 Minutes
02 Alarm + 15 minutes
03 Alarm + 1 Hour
[003] View Other Alarms
01 Fire key enabled/disabled
02 Duress enabled/disabled
03 Medical key enabled/disabled
04 Panic key enabled/disabled
HSM2HOST Installation Manual

16
[804][901]-[905] Deleting wireless devices
[804][901]-[905] Deleting wireless devices
To delete wireless devices, complete the following steps:
1. Enter Installer Programming section [804] then select one of the following sub-sections:
[901] – Delete wireless zone devices
[902] – Delete wireless key
[904] – Delete repeaters
[905] – Delete keypads
2. Select a device to delete using the scroll keys or go directly to a specific device by entering a
hotkey.
3. Press [*] to delete or [#] to exit.
[804][921]-[925] Replacing wireless devices
Use this option to replace a faulty device enrolled on the system with another device of the same type
while maintaining the configuration of the original. The faulty device does not need to be deleted.
To replace a wireless device, complete the following steps:
1. Enter Installer Programming section [804] then select one of the following sub-sections:
[921] – Replace wireless zone devices
[922] – Replace wireless key
[924] – Replace repeaters
[925] – Replace keypads
2. Press [*] to select a sub-section. The first available device is displayed.
3. Select a device to replace using the scroll keys or go to a specific device by entering a hotkey.
4. Press [*]. When prompted, activate the device (full enrollment) or enter the device ID (pre-
enrollment). A message is displayed confirming enrollment.
[804][990][001 – 005] Show all devices
Use this section to review wireless devices enrolled on the system and to view serial numbers asso-
ciated with each device.
To review wireless device information, complete the following steps:

17
1. Enter Installer Programming section [804][990] then select one of the following sub-sections:
l[001] – All zones
l[002] – Repeaters
l[004] – Wireless keys
l[005] – keypads
2. Press [*] to select a wireless device type. The first available device is displayed.
3. Use the scroll keys to view the enrolled devices.
This option is not fully supported by LED and ICON keypads.
[804][999] Reset to factory defaults
Selecting this option resets HSM2HOST programming to factory default settings.
[904] Placement testing of wireless devices
This test is used to determine RF signal status for wireless devices and can be performed at a system
keypad or at the individual device. These instructions pertain to testing at the keypad. For instruc-
tions on placement testing at the device, refer to the installation sheet provided with the wireless
equipment. The following test modes are available:
[904][001]-
[248] Test wireless zones
Test wireless devices individually by zone.
Zones with vanishing contacts must be activated
to placement test.
[904][521]-
[528] Test all repeaters Test each enrolled wireless repeater. 521-528 for repeaters 1-8
[904][551]-
[566] Test all sirens Test each enrolled wireless siren. 551-566 for sirens 1-16
[904][601]-
[632]
Test all wireless
keys
Test individual wireless keys. Once in this sec-
tion, press a button on the wireless key to begin
the test. 601-632 for wireless keys 1-32.
[904][701]-
[716] Test all keypads Test each enrolled keypad. 701-716 for keypads 1-16
Two test results are provided:
l24-hour: Average results of signal strength testing over a 24-hour period.
lNow: Signal status results of the current test.
A flashing Trouble LED indicates RF interference. The following status indicators may be dis-
played:
HSM2HOST Installation Manual

18
[904] Placement testing of wireless devices
LCD Icon* LED+ Status
Strong 1 9 Strong signal strength
Good 2 10 Good signal strength
Poor 3 11 Poor signal strength
Not Test 5 13 Displayed as the Now result if no test was performed
Not Test 5 13 Always displayed as the 24-hour result when testing wireless keys
*For Icon keypads, digit 1 indicates 24-hour test results; digit 2 indicates Now test results.
+For LED keypads, the first digit indicates 24-hour results; the second digit indicates Now test res-
ults.
Note: For EN/UL/ULC installations, only STRONG signal levels are acceptable.

19
Programming Worksheets
Use these pages for recording custom programming options (Installers Programming: [*][8]).
[902]
Enroll Module
000 - Auto Enroll
001 - Enroll Modules
002 - Module Slot Assignment (LED/ICON)
003 - Module Slot Assignment (LED only)
Delete Module
101 - Delete Keypads
102 - Delete Zone Expander
103 - Delete Output Expander
106 - Delete HSM2HOST
108 - Delete Audio Verification
109 - Delete Power Supply
[903] Confirm Module
001 - Confirm Keypad
002 - Confirm Zone Expander
003 - Confirm Output Expander
006 - Confirm HSM2HOST
008 - Confirm Audio Verification
009 - Confirm Power Supply
[804] Wireless programming
[000]
Enroll Wireless Device
Zone
Wireless Key
Siren
Keypad
Repeater
HSM2HOST Installation Manual

20
[804][000] Wireless Device Enrollment – Zones
[804][000] Wireless Device Enrollment – Zones
Zone Label Zone Defin-
ition
Zone
Type Partition
