JRC NSVS884 User manual

NSVS884 Jan. 2005
Application
304.3MHz R.K.E.
Electrical Specification: (Table 1)
The device characteristics are measured in the circuit shown in Fig.1.
Maximum Rating: (Table 2)
Mechanical Specifications: (Fig.2)
Package is designed as small as 3.5x3.5x1.0[mm3] for SMD (Surface Mount Device) type.
Notice:
This part is electrostatic discharge sensitive and may be damaged by improper handling.
Table 1. Electrical Specifications
Item Spec. Typ.
Input and Output Impedance 50Ω -
Nominal Center Frequency (f0) 304.3MHz -
Insertion Loss 303.8~304.8MHz 3.0dB max. 1.8dB
Response Variation 303.8~304.8MHz 1.5dB max. 0.8dB
Input and Output VSWR 303.8~304.8MHz 2.5 max. 1.32
282.9MHz 50dB min. 75dB
293.6MHz 55dB min. 69dB
298.95MHz 20dB min. 39dB
315MHz 20dB min. 26dB
Out of Band Rejection
(Relative to
Through Level)
325.7MHz 45dB min. 56dB
(Operating Temperature Range: -20~+70ºC)
Table 2. Maximum Ratings
Item Rating
Maximum Input Power +20dBm
Maximum DC Voltage 7.5V
Operating Temperature Range -20~+70ºC
Storage Temperature -30~+80ºC
JRC SAW FILTER
NSVS884
Communications Equipment Division
Communications Equipment Marketing Department
10-1, Nishi-Shinjuku 6-chome, Shinjuku-ku,
Tokyo, 160-8328 Japan
Tel. [phone]
Fax. [phone]
http://www.jrc.co.jp/jp/product/device/saw/index.html (Japanese)
http://www.jrc.co.jp/eng/product/saw/index.html (English)

NSVS884 Jan. 2005
Marking
(1) Manufacture’s Mark
(2) Lot Number
(a) Year
(b) Month
*Oct.--- X
Nov.--- Y
Dec.--- Z
(3) Part number Mark
Pin no. Connection
1 GND
2 IN/OUT
3 GND
4 GND
5 GND
6 OUT/IN
7 GND
8 GND
3.5±0.2
3.5±0.2
1.0±0.2
(0.95) (0.8)
[5x]
(2.54)
(1.27)
(0.6)
[8x]
(0.6)
2
3
4
5
6
7
8
1
(1.0)
(3)
(2)
(b)
(a)
(1)
[2x]

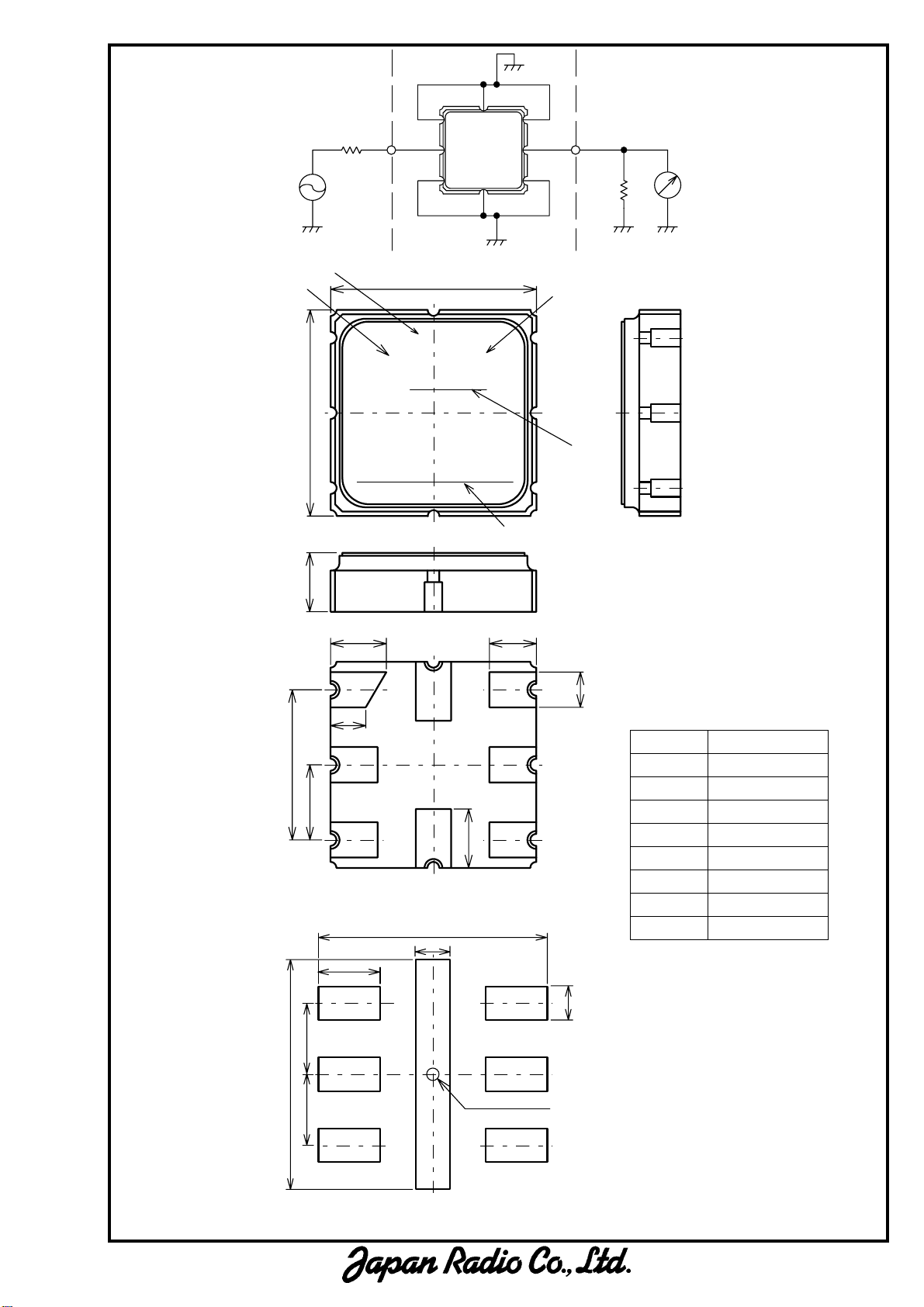

Fig.1 Measuring circuit
Fig.2 Package dimensions (in mm)
Fig.3 Desirable land area (in mm)
J06
DX
1
2
345
6
7
8
SAW
IN
50ΩOUT
50Ω
Via-Hole(
Φ
0.3)
1.27
1.27
1.3 0.8
4.3
4.3
0.8
[6x]
[6x]

NSVS884 Jan. 2005
Notice
1. Use this component within operating temperature range. It might not be
satisfied with electrical specification without operating temperature range.
When it is used less than -20ºC or more than +70ºC, it might be a cause of
degradation or destruction of the component. Even if it endures during a short
time, it causes degradation of qualification.
2. When soldering iron is used, solder with the temperature at the tip of soldering
iron: 350ºC max., the time of soldering: 10 seconds max., the power of
soldering iron: 30W max..
3. Notice that the allowed time of soldering with soldering iron is accumulated
time, when soldering is repeated.
4. As rapid temperature change for cleaning after reflow soldering might be a
cause of destruction clean this component after confirming that temperature of
this component goes down to room temperature.
5. Confirm that there are not any influence for qualification to this component in
mounting on PCB when this component is cleaned.
6. As it might be a cause of degradation of destruction to apply static electricity to
this component, do not apply static electricity or excessive voltage while
assembling and measuring. And do not transport this component with bare
hand.
7. As it might be a cause of degradation or destruction to apply D.C. voltage
between each terminal, apply D.C. voltage 7.5V max. in actual circuit.
Note
1. This specification specifies the quality of this component as a single unit. Make
sure that this component is evaluated and confirmed against this specification
when it is mounted to your products.
2. The information contained herein may be changed without prior notice. It is
therefore advisable to contact Japan Radio Company before proceeding with the
design of equipment incorporating this product.
3. The products are designed to be used with ordinary electronic equipment (data
and communications equipment, office equipment, audio-video equipment,
measuring instruments, etc). Japan Radio Company does not assume any
liability for the case using the products with the application required high
reliability or safety extremely (such as space equipment, sea-bottom equipment,
medical equipment etc). When intending to use any our product please
contact our sales representatives in advance.

Japan Radio Co.,Ltd.
0
20
40
60
80
100
S21
Insertion Loss [dB]
0
2
4
6
8
10
CH1 : center 304.3 span 100
CH2 : center 304.3 span 100
Insertion Loss [dB]

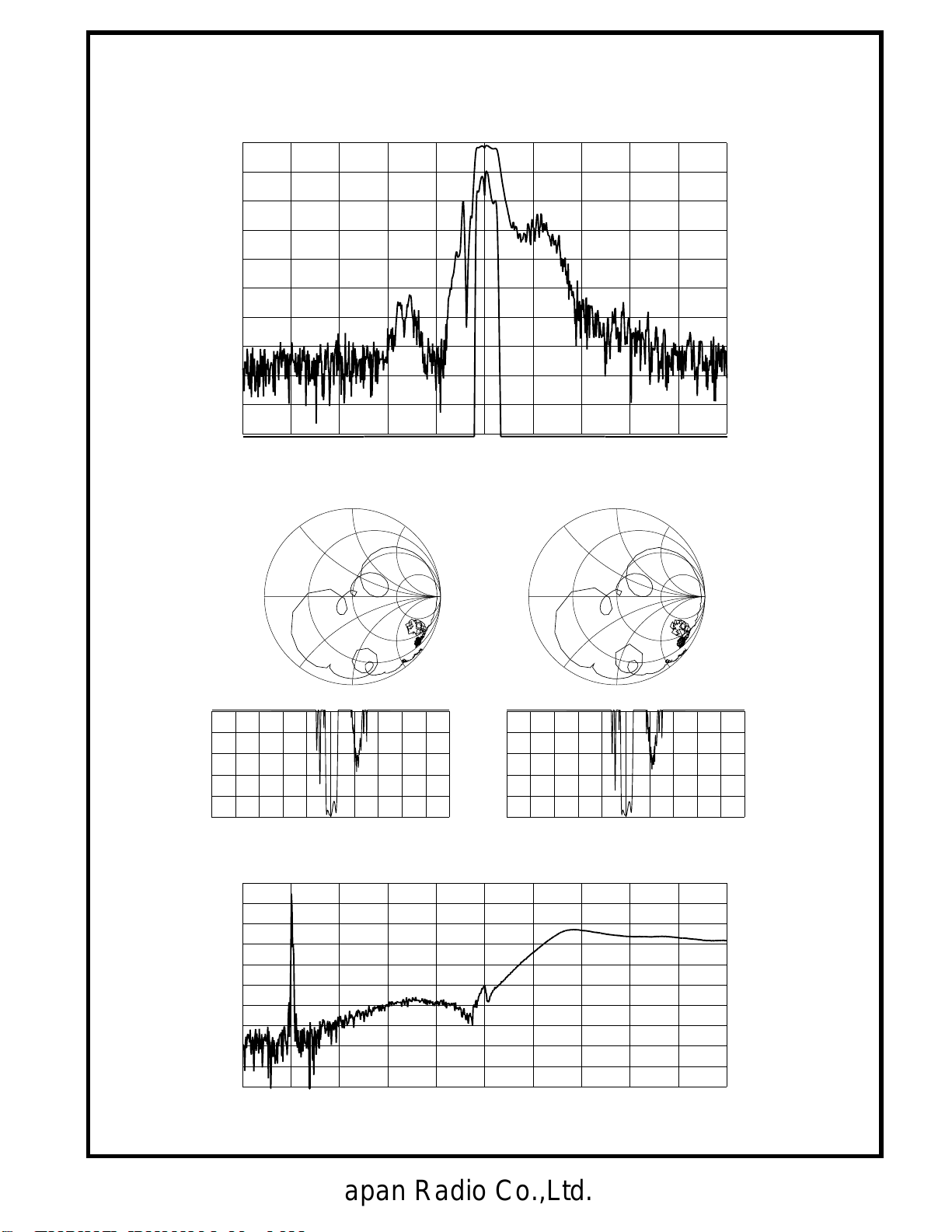

FREQUENCY CHARACTERISTICS
NSVS884 Jan. 2005
S11 S22
S11 S22
1 1
3 3
5 5
7 7
9 9
11 11
254.3 254.3354.3 354.3
Frequency [MHz] Frequency [MHz]
VSWR VSWR
InsertionLoss [dB]
0
20
40
60
80
100
0.3 3000
S21
Frequency [MHz]
NSVS971 Dec-04
Fig.1 Measuring circuit
13.30±0.20
6.5±0.20
(R0.3)
[4×]
(0.76)
(2.54)
(1.4)
(0.8)
[12×]
(2.54±0.15)
Pin No. Connection
1GND(PKG)
2GND(PKG)
3 GND(PKG)
4GND(PKG)
5OUT/IN
6 GND(signal)
7GND(PKG)
8GND(PKG)
9GND(PKG)
10 GND(PKG)
11 IN/OUT
12 GND(signal)
2.0 max.
(1)
(a) (b)
(3)
Marking
(1) Manufacture's Mark
(2) Lot Number
(a) Year
(b) Month
*Oct.--- X
Nov.--- Y
Dec.--- Z
(c) Date
1-9--- 0
10-19 --- 1
20-31 --- 2
(3) Part Number Mark
(1.26±0.13)
[12×]
[12×]
(2.54)
(R0.3)
(2.54±0.15)
(2)
12345
6
7
8
910
11
12
(C)
Fig.2 Package dimensions(in mm)
J4Y1
VS971
１２３４
10
９８７
11
12
６
５
OUT
50O
IN
50O
SAW
*27nH
*27nH
39pF
33pF
*murata LQW18A series
