JTS WA-88 EXA User manual

Instruction Manual
WA-88 EXP
Expansion Passive Speaker
WA-88 EXA
UHF PLL Wireless Expansion Active Speaker
TABLE OF CONTENTS
Installation Assignment
Features
Specification
Wireless Module
Panel Identification
Safety Instructions
Thank you for choosing the portable speaker. In order to obtain the best
efficiency from the systems, you are recommended to take a few minutes to read
this instruction manual carefully.
01
02
03
05
06
08
Installation Assignment

01
WA-88 EXA
DC 24-28V
EXT. DC IN
ON OFF
AC POWER
+
-
DC FUSE
8A/250V
SWITCH
AC FUSE : T2AL/250V
AC INPUT
To reduce the risk of electrical shock, do not remove the
cover(or back). No user serviceable par ts inside; refer
servicing to qualied personnel.
To reduce the risk of re or electrical shock, do not expose
this appliance to rain or moisture.
CAUTION:
WARNING:
FLASH: CHARGING
LIGHT: FULL
FLASH: LOW VOLTAGE
LIGHT: NORMAL VOLTAGE
GREEN
RED
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
MASTER TREBLE BASS
LINE
LINELINE AMP
CH
-20dB
0dB
POWER
/PEAK
MIN MAX
VOL.
MTX-16 UHF Transmitter Module
PT-920BG
( Optional )
Mh-8800G
( Optional )
(Optional)(Optional)
Mh-8800Gi
-+
24V BATTERY
AC ADAPTOR
WA-88 EXP
Expansion Passive Speaker
UHF PLL Diversity Receiver Module
Mh-8800Gi
Mh-8800G
Features

1. A portable active speaker with volume control,Treble/Bass control and AUX in/output with
volume control, PLL wireless module and extending speaker output.
2. Using AC 220V or 110V power that contains RMS 75 Watts(4Ω) output.
3. Adopting bi-amp design with high quality active crossover, and 8-inch woofer that provide
the best sound quality.
4. The power amplifier uses IC circuit design that not only provides high efficiency and better
sound quality, but also protects overheat and short circuit.
5. Adopting high-quality, toroidal transformer design.
6. Using medium-density wood fiberboard as the speaker box.
7. Detachable wheels and trolley create the convenience for free moving.
8. Equipped with stand insert for heightening use.
9. PLL UHF wireless microphone system, which is able to reach over 80M without any
interference.
10. Two sealed lead-acid batteries with automatic charging design.The charger will be
activated immediately when AC power is plugged in,and AC power switch is in "ON" .
11. Two rechargeable batteries with 12V/5Ahr capacity each that could be used over 3.5 hours
with in general volume & over 7.5 hours with normal volume.
12. Uninterrupted power supply (UPS) design that will automatically switch to DC battery without
any effect when pulling out the AC power cable.
13. Two-steps LED charger indicator (Red and Green LED) with low voltage detection. It
would flash red light when charging, light red when full charged, and would light
green when the voltage is normal, and flash green light under the low voltage.
Notice:
1. Please charge the rechargeable batteries more than 8 hours for first time operation.
2. Please refresh the batteries every three months when not using. The batteries will be
damaged if left unused for a long time. (over three months)
3. Refresh the rechargeable battery before operation each time to ensure the best performance.
02
Specication

Mh-8800Gi/Mh-8800G(Optional)
UHF PLL Handheld Microphone
Frequency preparation
:
PLL Synthesized Control
Carrier Frequency Range
:
502~960 MHz
RF Outputs
:
10mW
Stability
:
±10KHz
Frequency Deviation
:
±48kHz
LCD Display
:
Channel, Battery Fuel Gauge, Sensitivity
Controls
:
Power On/Off, Mode Setting, AF Level,
Channel Up/Down, Lock-on Mode
Spurious Emissins
:
<-60 dBc
Audio Frequency Response
:
50~16,000 Hz
Battery
:
UM3,AA 1.5V*2
WA-88 EXA
UHF PLL Wireless Expansion Active Speaker
AC Power :115V/230V
DC power :24V~30V
Lead-acid Battery :12V/5AH*2
Woofer :8” 6Ω/100W
Tweeter :piezoelectric
Sensitivity of AUX IN/GUITAR :-11dB/10K
AUX Output :-3dB/600Ω
Treble Control :±10dB at 10KHz
Bass Control :±10dB at 100Hz
Power Output(RMS) :75W at 4Ω loading (THD10%)
Power Consumption :180VA
T.H.D. :<0.5% at 1 Watt output
S/N ratio :>60dB at 50W output
Control Switcher :Power
Rotary switch :TREBLE, BASS, MASTER
Dimension :310mm(W)*515mm(H)*380mm(D)
WA-88 EXP
Expansion Passive Speaker
Woofer :8” 6Ω/100W
Tweeter :piezoelectric
Dimension :310mm(W)*515mm(H)*380mm(D)
03
Specication

PT-920BG (Optional)
UHF PLL Body-Pack Transmitter
Frequency Preparation
:
PLL Synthesized Control
Carrier Frequency Range
:
502~960MHz
RF Outputs
:
10mW
Stability
:
±10KHz
Frequency Deviation
:
±48kHz
LCD Display
:
Channel, Battery Fuel Gauge
Controls
:
Power On/Off, AF Level,
Channel Up/Down, Lock-on Mode.
Spurious Emissins
:
<-50 dBC
Audio Frequency Response
:
40~18,000 Hz
Battery
:
UM3,AA 1.5V*2
CM-501 (Optional)
Condenser Lavaliere Microphone
Connector
:
4P Mini XLR
Frequency Response
:
100~15,000Hz
Polar Pattern
:
Cardioid
Sensitivity (at 1000Hz)
:
-60±3 dB* (1mV)*0dB=1V/μbar,1kHz
Impedance
:
2.2kΩ
Max. SPL for 1% THD
:
130dB
Dimension(mm)
:
Ø10.1mm(W)* 26.4mm(H)
Net Weight
:
21.5g
USM-16GF (Optional)
UHF PLL Diversity Receiver Module
Frequency
:
502~960MHz
Frequency Stability
:
±10KHz
S/N Ratio
:
>100dB
Receiving Mode
:
Antenna diversity
Mute
:
Noise and Pilot Tone Squelch
Operation Voltage
:
12-18VDC
Output Connector
:
0dB/4.7kΩ(40kHz Div)
Dimension(mm)
:
60mm(W)*25mm(H)*123mm(D)
MTX-16 (Optional)
UHF PLL Transmitter Module
Frequency
:
502~960MHz
Frequency Stability
:
±10KHz
S/N Ratio
:
>100dB
Receiving Mode
:
Antenna diversity
Mute
:
Noise and Pilot Tone Squelch
Operation Voltage
:
12-18VDC
Output Connector
:
0dB/4.7kΩ(40kHz Div)
Dimension(mm)
:
60mm(W)*25mm(H)*123mm(D)
04
Wireless Module

05
CH
-20dB
0dB
POWER
/PEAK
MIN MAX
VOL.
MTX-16 UHF Transmitter Module
Group Selector
Channel Selector
RF LED
Wireless MIC Volume Control
AF LED
Group Selector
PAD
Power/Peak
Wireless MIC Volume Control
3
4
5
7
8
6
2
1
3 4
5
2
1
9
786 9
UHF PLL Diversity Receiver Module
06
Panel Identication

WA-88 EXA BACK PANEL
█ Volume and Effect Control
Master volume control: for all sound except AUX input/output
Bass tone control: for all sound except AUX input/output
Treble tone control: for all sound except AUX input/output
█ AUX input
AUX input: ∅6.3 phone jack
AUX input: with RCA jack
█ AUX output
AUX output: with RCA jack
█ Power & Battery Function
Main Power Switch
AC Power Switch:Only when AC Power switch is in “ON”, the external AC power will connect
to the system.
External 24V battery input: Outside DC input would not charge the batteries.
AC Fuse:T2AL/250V for AC input
DC Fuse: 8A/250V for DC input
█ Wireless Module and Control
USM-16GF (Optional): UHF PLL Diversity Receiver Module
MTX-16 (Optional): UHF PLL Diversity Transmitter Module
Extended speaker terminal (∅6.3 phone jack): suggested using 8Ω external speaker
since it will be parallelly connected with internal speaker.
3
4
5
7
11
9
8
12
13
14
10
6
2
1
WA-88 EXA
DC 24-28V
EXT. DC IN
ON OFF
AC POWER
+
-
DC FUSE
8A/250V
SWITCH
AC FUSE : T2AL/250V
AC INPUT
To reducethe risk of elec trical shock, do not remove the
cover(or back). No user serviceable parts inside; refer
servicing to qualied personnel.
To reducethe risk of re or electr ical shock, do not expose
this appliance to rain or moisture.
CAUTION:
WARNING:
FLASH: CHARGING
LIGHT: FULL
FLASH: LOW VOLTAGE
LIGHT: NORMAL VOLTAGE
GREEN
RED
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
MASTER TREBLE BASS
LINE
LINELINE AMP
345
7
11
9
8
12 13
10
6
21
14
CH
-20dB
0dB
POWER
/PEAK
MIN MAX
VOL.
MTX-16 UHF Transmitter Module
UHF PLL Diversity Receiver Module
07

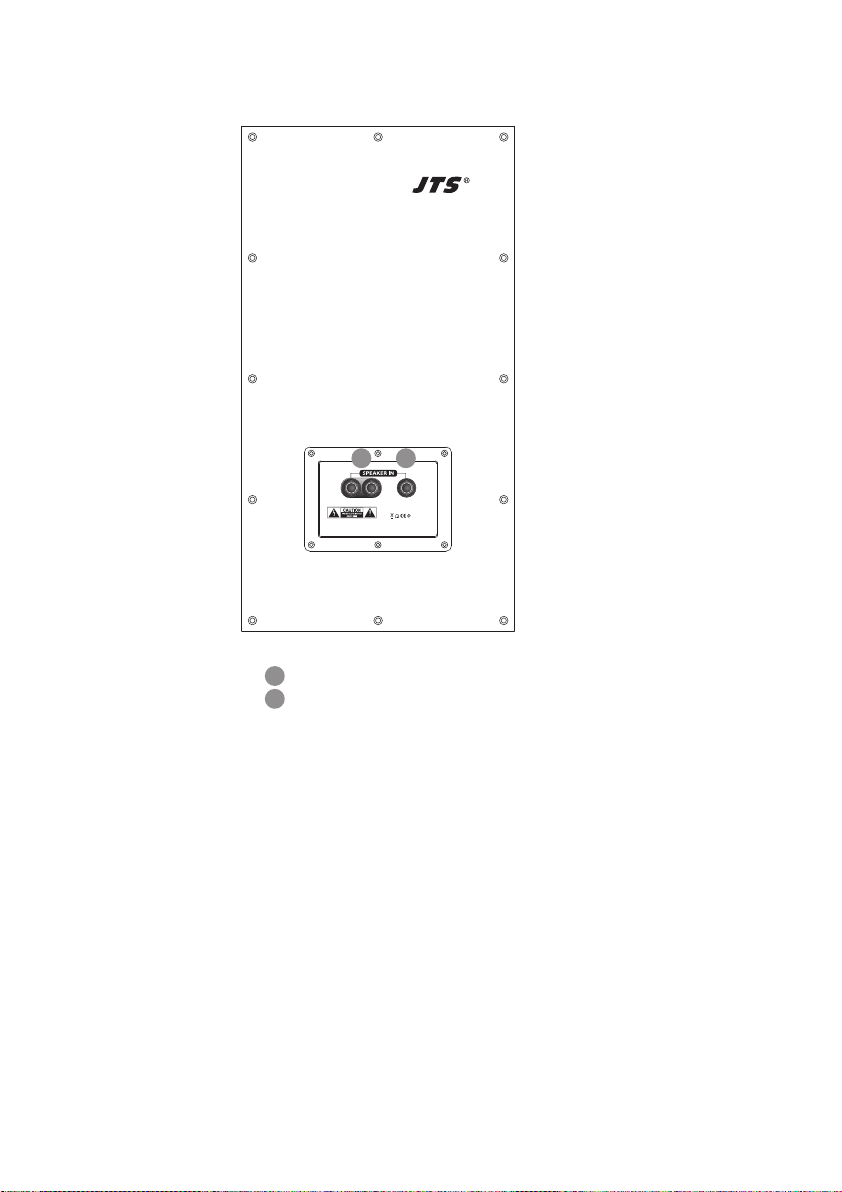

WA-88 EXP BACK PANEL
Speaker jack
∅6.3Speaker input
2
1
+
-
WA-88 EXP
Passive Speaker
+
-
Toreduce the risk of electrical shock, do not remove the cover(or back).
No user serviceable parts inside; refer servicing to qualied personnel.
Toreduce the risk of re or electrical shock, do not expose this appliance
to rain or moisture.
CAUTION:
WARNING:
21
Satety Instructions








08

While setting up and installing this machine
Do not wet the machine
Do not exposure to rain, or heavy humidity to prevent fire or electric shock.
Confirming the intensity of the place for setting the machine
Install the machine in a place that can bear one’s own weight or steady shelf. It can prevent the
machine from causing casualties or property loss while dropping.
Do not touch the loudspeaker terminal
High impendence of loudspeaker terminal can reach the voltage of 110V, please do
not touch it, in order to avoid electric shock.
Do not involve the cable
While pulling out the plug, please don’t involve the cable; the electric wire damage is apt to
cause the fire. Be sure to hold the plug to pull out.
Do not damage the cable
Do not prune, twist, damage or change the cable definitely. Moreover avoid using it in the
place close to electric heater and do not place a heavy object and machine itself on the cable
which may cause electric shock and fire.
Do not use the voltage of power out of appointing
Limit the use of the voltage of the power stipulated in the machine, if use higher voltage will
cause electric shock or fire.
Pay attention to the place to set up
Avoiding installing the machine on the moist and dust, airtight space, the directly sunlight
penetrates or close to the electric heater, the place of soot or the vapor is apt to cause
electric shock or fire.
While moving the machine, please pull out the plug
It may cause electric shock or fire if not pulling out the plug while moving the machine.










09

While using this machine
When in case there are unusual states to take place
While using the machine that is stating any abnormal state, please get in touch with the
distributor as quickly as possible after turn off the power and pulling out the plug at once,
Please do not continue using the machine, it may cause electric shock or fire,
1. If find that the machine smolders or smells until strange smell.
2. When if there are water or object fall into the machine.
3. If at the time of the machine drops or outer housing damage.
4. If at the time of the electric cable or wire damage.
5. When the machine emits the unusual sound or has no sound.
When thunders & lightning occurring, do not touches the plug
Do not touch the plug while the thunder & lightnign occurring, it may cause shock by electricity.
Do not put any object into the machine
Do not put any object; it may cause the spark or electric shock.
Clean up the plug and socket
If the dust is piled up on the plug and socket for a long time, it is apt to cause the fire, Please
clean up regularly and insert the plug firmly on the socket.
When maintain and do not use this machine for a long time
When maintain and do not use this machine for a long time, please must pull out the plug in
order to consider safty and may cause shocking by electricity and fire.
Do not open the upper housing of machine or overhaul the inside by oneself
In order to avoid shocking by electricity, should not open the upper housing of machine definitely,
because it contains the high voltage of parts in the machine. The movements such as inside
Overhauling, adjustment and repairing, etc., please trust the distributor to deal with it.
Before turn on the power of machine, please adjust volume to the lowest level
Do not place any article on the machine
Please do not place any article on the machine, it may drop and cause personnel’s injury.
The sound is unstable for a long time (twist), please do not use it
This is a sign of a trouble; it is apt to cause loudspeaker generating heat and fire to use
continuously.
Clean up the inside regularly
Notify your distributor to clean up the machine regularly. if the dust is piled up on the machine
for a long time it is apt to cause damage & fire.
WA-88 EXA / WA-88 EXP PROFESSIONAL CO., LTD.
No. 148, 9th Industry Road, Ta-Li Industrial Park,
Taichung City, Taiwan, R.O.C.
Tel: 886-4-24938803 Fax: 886-4-24914890
E-mail: [email protected]
www.jts.com.tw
59504-213-04

Other JTS Speakers manuals

JTS WA-88 User manual

JTS

JTS WA-88 User manual

JTS WA-35 User manual

JTS

JTS WA-35 User manual

JTS AWA-75 Pro User manual

JTS

JTS AWA-75 Pro User manual

Popular Speakers manuals by other brands

PBX PBSK201 user guide

PBX

PBX PBSK201 user guide

KEF BLADE ONE Meta user manual

KEF

KEF BLADE ONE Meta user manual

Harman JBL Professional EON ONE Compact user guide

Harman

Harman JBL Professional EON ONE Compact user guide

urmet domus 1083 manual

urmet domus

urmet domus 1083 manual

Bosch LC1 Installation and user instructions

Bosch

Bosch LC1 Installation and user instructions

Withings Pulse Quick installation guide

Withings

Withings Pulse Quick installation guide

RCF DMW 20A owner's manual

RCF

RCF DMW 20A owner's manual

Wonky Monkey Colorwave XL User instructions

Wonky Monkey

Wonky Monkey Colorwave XL User instructions

MartinLogan Motion 20 user manual

MartinLogan

MartinLogan Motion 20 user manual

August MS425 user manual

August

August MS425 user manual

Naxa VIBE 3 NAS-3082 instruction manual

Naxa

Naxa VIBE 3 NAS-3082 instruction manual

EDIFIER iF355BT user manual

EDIFIER

EDIFIER iF355BT user manual

Hama BTL-200 manual

Hama

Hama BTL-200 manual

Idea EXO12 quick start guide

Idea

Idea EXO12 quick start guide

Performance PA6 user manual

Performance

Performance PA6 user manual

Nady Audio SM-250A Features, instructions & technical data

Nady Audio

Nady Audio SM-250A Features, instructions & technical data

YORKVILLE LS800P Service manual

YORKVILLE

YORKVILLE LS800P Service manual

Valcom V-762-W installation instructions

Valcom

Valcom V-762-W installation instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
