DN101 – Accessory for CX Family of Low-Noise Preamps Page 3
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
Read This Firs
Before operating the unit, please read this manual thoroughly.
Any future revisions will be posted on the website and available for download.
Notes regarding documentation in this manual are as follows:
- References to markings/labels on the unit are denoted in underline/bold. For example: HPF.
- Warnings will be preceded with WARNING.
Warnings - General
WARNING: Failure to read and observe notes and warnings may result in personal injury, and/or possible damage
to this device and your other equipment.
WARNING - LOSS OF HEARING: This device, as well as any device with a headphone amplifier, is capable of
driving the signal at levels that can be damaging to hearing. Always operate the headphone volume at the lowest
practical level. Do not wear the headphones over your ears in any of the following circumstances:
- While plugging the headphones into the headphone driving device.
- While plugging the mixer into the headphone driving device.
- While turning on or off the mixer.
- While turning on or off the phantom power.
- While plugging a device into the input of the mixer.
WARNING - RISK OF ELECTRICAL SHOCK: This device, its enclosure, and the connections to cable shields that
plug into this device are conductive. Avoid electrocution and observe caution with cable runs near areas where
high-voltages and/or currents may exist.
Checking Supplied I ems
Your package should include the following items:
- DN101 Accessory for CX Family of Low-Noise Preamps
- Stereo 3.5mm mini plug cable
- Flat head Phillips machine screw 4-40 thread, 3/16” length, undercut head
- Welcome Card:
oRead this User Manual
oSave your receipt in the event you require warranty service.

Page 4 www.juicedLink.com
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
General
Fea ures
•Accessory for CX Family of Low-Noise Preamps
oMounts directly to CX Preamp (requires minor modification to battery tray)
oUtilizes the battery of the CX Preamp
oSmall size
oAluminum chassis (black anodized) for EMI protection and rugged use
•Adds audio features that are missing from many DSLR cameras
oHeadphone Amplifier
oLevel Meter
oCamera Automatic Gain Control (AGC) disabling for improved signal-to-noise performance
•“Normal” and “AGC Disable” operation settings
oAutomatic meter recalibration and headphone gain adjustment for the different modes of operation
o“AGC Disable” uses a safe, stable, robust, and reliable method (not a tone) of forcing the AGC
amps in your camera down for improved signal-to-noise performance.
•Inputs
o3.5mm stereo minijack
oConnects to output of the CX Family Preamp
•Output
o3.5mm stereo minijack output connects to camera input
Panel Descrip ions

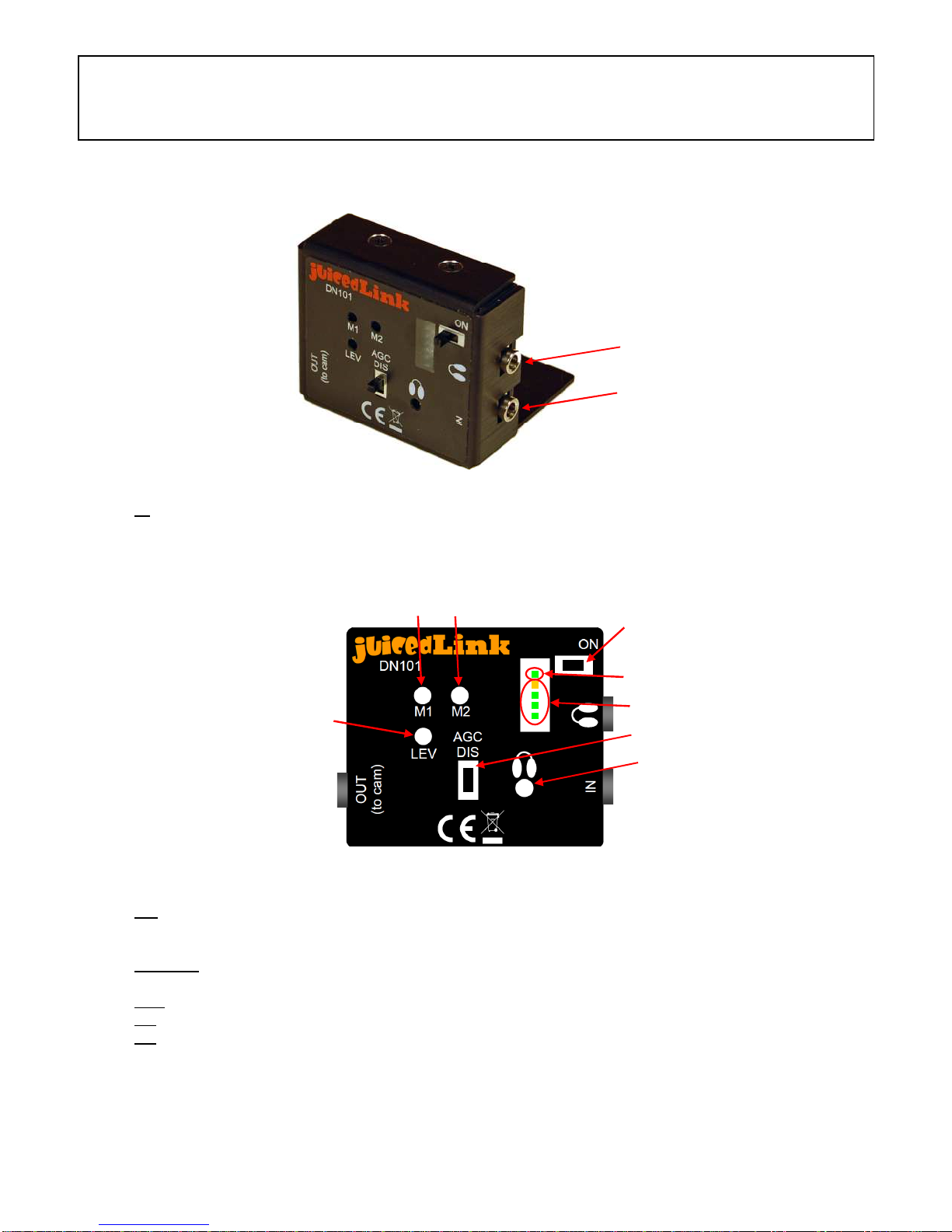

LEFT SIDE
1
2
1) 9V Battery Terminal
2) OUT - Output jack (to camera)

DN101 – Accessory for CX Family of Low-Noise Preamps Page 5
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
RIGHT SIDE
1
2
1) IN - Input jack (from CX Preamp output
2) Headphone output jack
FRONT PANEL
1
2
3
4
5
6
7 8
1) ON - Power Switch
2) Power LED
3) Level Meter
4) AGC DIS – “AGC Disable” / “Normal Operation” Switch
5) Headphone amplifier gain adjustment
6) LEV - AGC Disable signal level adjustment
7) M1 - Meter Level Adjustment for “Normal” operation
8) M2 - Meter Level Adjustment for “AGC Disable” operation

Page 6 www.juicedLink.com
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
Se ing up DN101 wi h he CX Preamp
Bol ing he DN101 o he CX Preamp

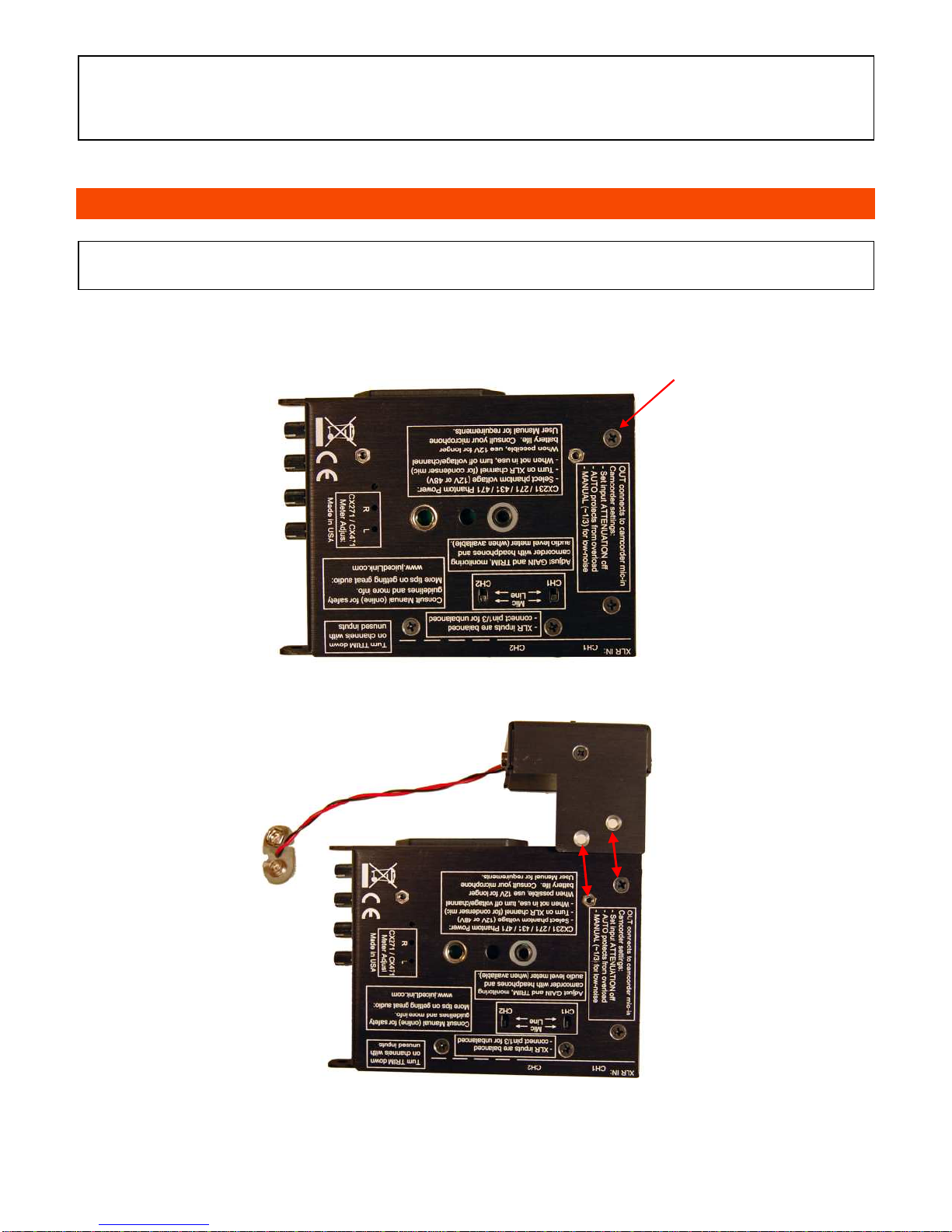

Turn over the CX preamp, and remove this screw:
Align the holes of the DN101 with the threaded hole left by the removed screw, and the threaded hole of the bottom
of the circuit board post:
Note: The DN101 must use/share the 9V battery with the CX preamp, and it must be placed in the CX battery
tray (per the instructions below). The DN101 will not operate properly if these instructions are not followed.

DN101 – Accessory for CX Family of Low-Noise Preamps Page 7
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
Replace the screw that was just removed back into the same position:
Use the additional screw provided with the DN101 to secure this position:

Page 8 www.juicedLink.com
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
Ba ery Tray Modifica ion

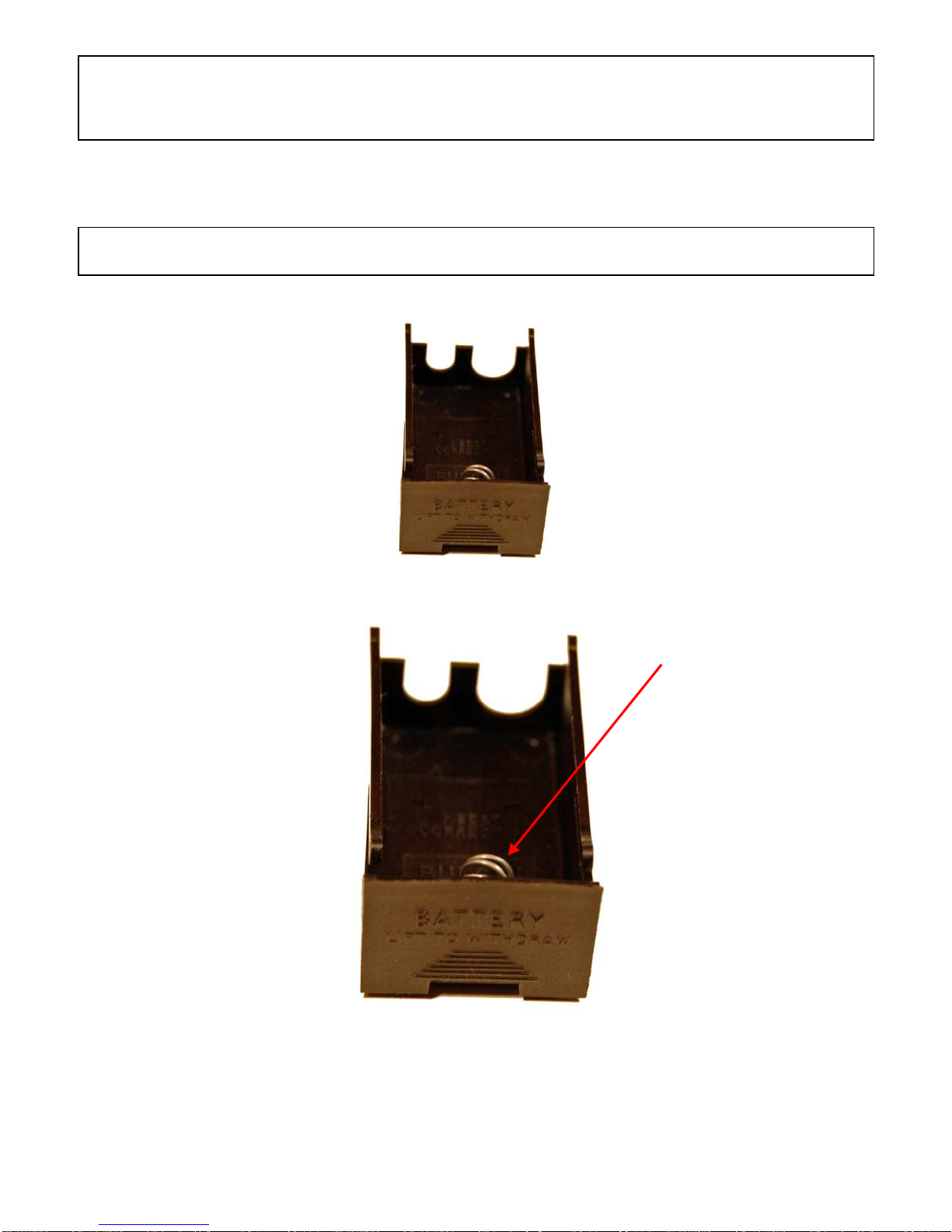

1. Remove the battery tray from the CX Pramp:
2. Remove the spring in the back of the battery try:
Make sure that you save the spring, in case you want to replace it later.
Note: The DN101 must use/share the 9V battery with the CX preamp, and it must be placed in the CX battery
tray (per the instructions below). The DN101 will not operate properly if these instructions are not followed.

DN101 – Accessory for CX Family of Low-Noise Preamps Page 9
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
3. Take a pair of cutters, and cut off this tongue:
4. Use the cutters to cut a notch in the front of the battery tray for a place for the DN101 wires to escape:

Page 10 www.juicedLink.com
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]

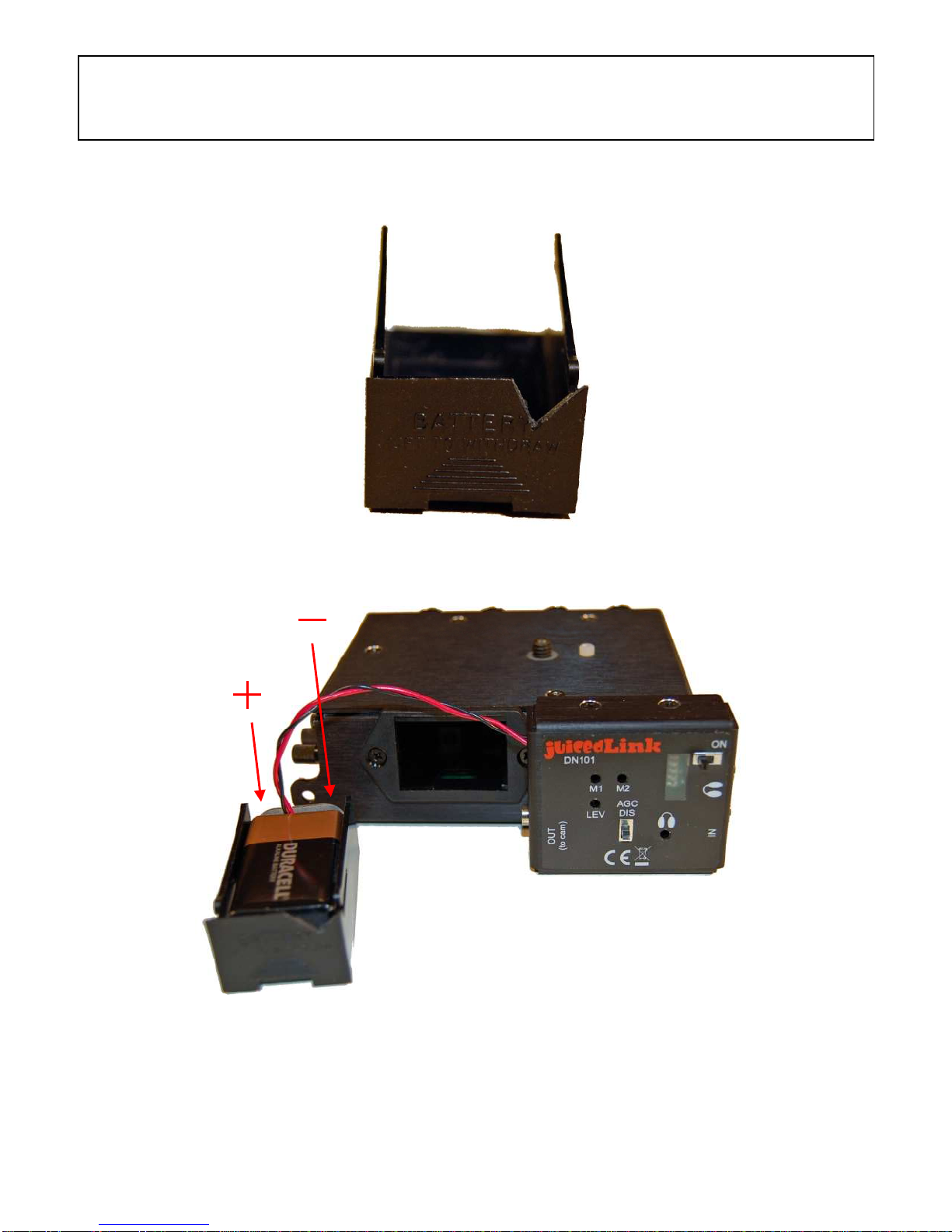

5. The battery tray now looks like this
6. Attach the battery leads to the 9V alkaline battery. Place the battery and leads into the battery tray with the
correct orientation (+ to +, - to -):

DN101 – Accessory for CX Family of Low-Noise Preamps Page 11
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
7. Insert the battery tray into the CX preamp. It will take some more force to insert it all of the way to get the
latch to engage. It will also take some more force to de-latch. This is normal.

Page 12 www.juicedLink.com
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
Opera ion
Powering
1. Switch the DN101 power switch to the ON position. The power indicator LED should light up.
2. You must also power the CX Family Preamp, by selecting the ON position for its power switch. The
preamp PWR LED should light up. If not, then check that the battery has been placed into the battery tray
with the correct orientation, and that you are using a fresh 9V alkaline battery.
Inpu / Ou pu Connec ion
1. Use the stereo minijack cable to connect the CX Preamp OUT to the DN101 IN.
2. Use the CX Preamp stereo minijack cable to connect the DN101 OUT to the camera’s microphone input.
Normal Opera ion
1. Select the down position for the AGC DIS switch. This places the DN101 in the normal operating mode.
2. In the normal operating mode, the DN101 is simply providing headphone monitoring and metering.
3. The meter has been calibrated for levels assuming that the camera’s AGC is free running. The peaks of
your audio should hit the 3rd LED (green), but remain below the 4th LED (yellow).
4. Adjustment to the level meter in the normal mode can be made with a small screwdriver with the M1
potentiometer.
5. Adjustment to the headphone amplifier gain can be made with a small screwdriver with the trim
potentiometer next to the “headphone” symbol. The headphone monitoring in mono, meaning that both the
right and left inputs are present in each of the headphone ear cups.
6. In this operating mode, the headphone amp requires significantly more gain. Therefore, the signal is fairly
noisy. Of course, this noise is not present in the recorded audio.
7. WARNING: Since this mode requires more gain from the headphone amp, you must be careful if you are
wearing your headphones and switching back and forth between the two operating modes. The signal in
the headphone in the normal mode will be very LOUD.
This DN101 User Manual does not go into the detailed operation of the CX Family XLR Adapter / Preamp. For
details regarding the operation of the preamp, please refer to the preamp User Manual.
The DN101 will NOT operate without the use, and being connected to, one of the CX Family of XLR Adapter /
Preamps, where they share the same 9V battery placed in the CX battery tray.

DN101 – Accessory for CX Family of Low-Noise Preamps Page 13
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
AGC Disable Opera ion
1. Select the up position for the AGC DIS switch. This places the DN101 in the AGC disable operating mode.
2. The meter has been calibrated for levels assuming that the camera’s AGC amplifiers are being forced to
turn down their gain. The peaks of your audio should hit the 3rd LED (green), but remain below the 4th LED
(yellow).
3. Adjustment to the level meter in the AGC disable mode can be made with a small screwdriver with the M2
potentiometer.
4. Adjustment to the headphone amplifier gain can be made with a small screwdriver with the trim
potentiometer next to the “headphone” symbol.
5. In the AGC disable mode, the DN101 is injecting an uncorrelated broadband noise signal into the camera’s
right channel. The right channel is not available for recording audio.
6. A broadband noise signal is the most reliable and repeatable, and safest, method of spoofing the camera
AGC. Tones are coherent signals, and can be picked up by the human ear and brain, even at very low
levels. Using a tone means that you are depending on unspecified aspects of the camera to prevent the
tone from corrupting your audio (Nyquist anti-aliasing filter effectiveness, frequency stability, crosstalk, etc).
The most evil part of using a tone is that these problems could be happening in your camera, and you
would have no way of knowing, because you can’t monitor with headphones inside the camera. Using an
uncorrelated broadband noise source, if your camera does have any of these issues, then the signal simply
tucks itself away with the rest of the electronic noise in your system. There is no coherent tone artifacts for
your ear and brain to pick out.
7. Each of your XLR inputs on the CX preamp that you wish to record need to be panned left in the preamp.
For example, if you were using the CX431 with 4 mics, you would pan all 4 mics to the left channel.
DN101
Left
Right
Camera
Disable
Signal
L
R
CX Preamp

Page 14 www.juicedLink.com
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
8. When you pull your clip into your editor, your right track will be a noise signal, and your clean audio will
remain on the left track:
9. In your editor, you will select the left track to be used for your final mix (deleting the right track). This is
easily done in your editor. Here are some tips on how to do this using some popular video editors:
a. Sony Vegas
i. Right click on the audio track
ii. Select Channels
iii. Select Left Only for the final mix
b. Final Cut Express
i. Delete the right track
1. Modify > Link to unlink the audio from video
2. Modify > Stereo Pair to unlink the right and left audio tracks
3. Use mouse and select the right track
4. Delete the right track
ii. Copy the left track to the right track position
1. Make sure the “Auto Toggle” icon (the icon to the right of the “lock audio track”
icon) for the right track is the only “Auto Toggle” icon activated
2. Use mouse to select the left track
3. Copy
4. Paste. Since the right track is the only track with the “Auto Toggle” icon activated,
it will paste into this track
5. You may need to select the right edge of the pasted audio track and expand
(stretch) the track to fill the rest of the timeline
10. You will notice that the audio level of the clean track will be a little lower than a separate clip where you did
not use the AGC disable technique and let the AGC amps run free. This is normal. The meter for the AGC
disable mode has been calibrated intentionally for this level to provide adequate headroom inside the
camera (since the signal no longer has the AGC operation at its disposal to further throttle back its gain for
high signal levels).
DN101
Left
Right
Camera
Disable
Signal
L
R
CX Preamp
Mic 1
Mic 2
Mic 3
Mic 4
Left Track
Right Track
(clean audio)
(disable signal)

DN101 – Accessory for CX Family of Low-Noise Preamps Page 15
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
No es on Specific Cameras
Canon 5D MarkII, 7D, 1D Mark IV
1. The microphone input on the camera does not get activated until the camera begins to RECORD for the
first time.
2. Until you hit RECORD and activate the microphone input, you will hear noise in the DN101 headphones.
Once you hit RECORD, the noise in the headphones goes away, and doesn’t return until the camera power
gets cycled.
3. After the camera power gets cycled, you will need to hit RECORD again to eliminate the noise in the
headphones.
Panasonic Lumix GH1
1. The microphone input is a 2.5mm stereo minijack. The cables provided in the CX preamps and DN101 are
3.5mm stereo minijack. There are inexpensive adapters that can be purchased. A 8” 3.5mm to 2.5mm
cable can be purchased (part number CMC-T1772022) from Bay Electronics, 731 Airport Road, Panama
City, FL 32405.
Nikon D300s, D3s
1. These cameras have different level settings for the AGC (Low, Med, High). Using the Low setting with one
of the CX preamps will yield great audio. However, the DN101 is still useful for headphone monitoring and
metering.
2. You will want to use the DN101 in the Normal operating mode, but you will need to re-calibrate the meter
M1 for the camera’s Low setting. Matching the Normal operating mode meter level to the AGC Disable
mode can work well. Here is a simple procedure for doing this:
a. In the DN101 AGC Disable mode, set the CX gain/trim such that speaking at a constant level yields
peaking at the 3rd meter LED
b. Switch over to the Normal mode and turn back M1 (using a small screwdriver) so it yields peaking
at the 3rd meter LED (matching the AGC Disable mode)

Page 16 www.juicedLink.com
NOTICE: The design objective for the DN101 was to fill the gap of missing key audio features in DLSR cameras, and support juicedLink’s
loyal CX Family of Preamplifier customers by providing them with a solution to protect their investment in their juicedLink preamps. As such,
use of the DN101 requires some modification to the CX Preamp. While these steps are easy and clearly explained in this document, they
require some basic tools, skills, and a little bit of your time and patience. We would greatly appreciate any comments on this manual that
will help enhance the experience of DN101 users as they are bringing up their system. [e-mail]
Appendix
Subscribe o he juicedLink Blog
Get notified on new revisions of this User Manual, product updates, new product releases, and tutorial videos.
Subscribe to the blog: www.juicedlink.com/blog/index.html
Care and Main enance
There is no specific maintenance regimen recommended.
Warran y, Service, and Re urns
The design of the juicedLink family of ultra portable mixers is uncompromising in quality and performance, and
utilizes top grade professional components. We are proud of our product, and are committed to servicing you to
make your customer experience positive.
The Policies page on the juicedLink.com website describes the details of the conditions for returns, limited one year
warranty, and instructions for obtaining service for your product.
Compliance
This device falls under the classification of FCC part 15, subpart B, section 15.103. Please refer to the FCC part 15
manual for details on conditions of operation.
This device has also been tested to meet CE certification standards.
