JUNO JSI5461 User manual

Geschirrspüler
Lave-vaisselle
Afwasmachine
Dishwasher
JSI 5461
Gebrauchsanweisung
Mode d’emploi
Gebruiksaanwijzing
Instruction booklet

PID03GB
44
CONTENTS
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 45
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 46
Positioning, levelling, water supply connections, water outlet connection, electrical connections . . . . . .page 46
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 47
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 47
The water softener, filling with salt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 48
Use of rinse aid, use of detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 49
Loading the machine, use of the lower basket, use of the upper basket . . . . . . . . . . . . . . . . . . . . . . . . .page 50
Helpful hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 51
Washing programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 52
Operating sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 53
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 54
Cleaning the central filters, cleaning the large filter, internal and external cleaning . . . . . . . . . . . . . . . . .page 54
Prolonged periods of Non-Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 54
Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 55
Building-in instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 56
TECHNICAL SPECIFICATIONS
DIMENSIONS Width 59,6 cm
Height 81,8 ÷ 87,8 cm
Max depth 57,5 cm
Max depth with door open 115 cm
ELECTRICAL CONNECTION Voltage 220-230 V/50Hz
POWER OF HEATING ELEMENT 2800 W
OVERALL POWER 3000 W
WATER SUPPLY PRESSURE minimum 5 N/cm2
maximum 80 N/cm2
CAPACITY (STANDARD IEC PLACE SETTINGS) 12
CONSUMPTION: Water 22 lt
Electricity 1.5 kW/h
This appliance complies with the following E.E.C. Directives:
- 73/23 of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
ENGLISH

It is most important that this instruction book
should be retained with the appliance for future
reference.
Should the appliance be sold or transferred to
another owner, or should you move house and
leave the appliance, always ensure that the book
is left with the appliance in order that the new
owner can get to know the functioning of the
appliance and the relevant warnings.
These warnings are provided in the interest of
safety. You MUST read them carefully before
installing or using the appliance.
■Unplug the appliance and turn off the water after
use.
■If the appliance is supplied with obvious damage,
consult the supplier before installing it.
■Any plumbing work required to install this appliance
should be carried out by a qualified plumber or
competent person.
■Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
■This appliance is designed to be operated by adults.
Children should not be allowed to tamper with
controls or play with the product.
■Care must be taken to ensure that the appliance
does not stand on the electrical supply cable or on
the water inlet and drain hoses.
■These dishwashers are designed to be used for
washing normal household utensils. Items that are
contaminated by petrol, paint, steel or iron debris,
corrosive, acidic or alkaline chemicals are not to be
washed in a dishwasher.
■Under no circumstances should you open the door
whilst, the appliance is in operation. Always turn off
the appliance before opening the door.
However, the dishwasher features a special safety
device which cuts off the water inlet, should the door
be accidentally opened, thus avoiding water leaks.
■Never touch the heating element during or
immediately after the end of the washing cycle.
■When finishing loading or unloading close the door,
as an open door can be a hazard.
■It is dangerous to lean or to sit on the dishwasher
door: the appliance could tip over.
■Built-in dishwashers only: the appliance must be
secured to the underside of the worktop using the
brackets provided. Failure to do this could result in
an unstable appliance which may cause damage or
injury.
■Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning.
■This appliance should be serviced only by an
authorised Service Centre.
■Before disposing of the appliance, disconnect the
water hose, cut the electrical cable and ensure that
the door cannot close.
■For proper disposal of the appliance, contact your
local waste collection service.
WARNINGS
PAV05GB
45
ENGLISH

PIN14GB
46
INSTALLATION
Remove all packaging before positioning the
machine.
Positioning
If possible, position the machine next to a water tap
and a drain.
The dishwasher features fill and drain hoses which
can be turned either to the left or the right to suit the
installation.
Levelling
Good levelling is essential for correct closure and
sealing of the door.
Loosen or tighten the adjustable support feet, until the
machine is perfectly level.
Water Outlet Connection
The end of the drain hose can be connected as fol-
lows:
to the sink outlet siphon, securing it if necessary with
a clip;
to a wall outlet provided with vent-hole, minimum in-
ternal diameter 4 cm;
The waste connection must be at a height of between
30 cm (minimum) and 100 cm (maximum) from the
floor.
It makes no difference which way the drain hose
faces, either to the right or left of the dishwasher.
Avoid bending or kinking the hose as this could
prevent or slow down the discharge of water.
If you use a drain hose extension it must be no longer
than 2 metres and its internal diameter must be no
smaller than the diameter of the hose provided.
Likewise the internal diameter of the couplings used
for connection to the waste outlet must be no smaller
than the diameter of the drain hose.
Water Supply Connections
This dishwasher must be plumbed into a cold water
supply and it is preferable for it to be permanently
plumbed in.
The water pressure must be within the limits given in the
technical specifications, as it will not function correctly if
outside these specifications.
For making the connection itself, the coupling nut fit-
ted to the machine's supply hose is designed to screw
onto either a 3/4 inch gas thread spout, or to a pur-
pose made quick-coupling tap such as the Press-
Block.
This hose is fitted with a
safety device which stops
the water inflow in the event
of the internal tube breaking
due to wear. The problem is
signalled by the appear-
ance of a red marker in the
window (B). If this happens,
shut the water tap and have
the hose replaced.
Be sure to incorporate the strainer (A) supplied with
the machine into the joint.
The water pressure must be within the limits given in
the technical specifications, as it will not function cor-
rectly if pressure is outside these specifications.
Note: the end of the hose
connected to the machine
can be positioned as re-
quired, by simply slacken-
ing the retaining ring.
Caution: the retaining ring must be properly fitted so
as to avoid water leaks.
Re-tighten the ring securely to avoid water leaks.
Avoid bends or kinks in the hose, which could prevent
or slow down the flow of water.
If the machine is connected to new pipes or pipes
which have not been used for a long time, you are ad-
vised to run the water for a few minutes before con-
necting the inlet hose. This will prevent deposits of
sand or rust clogging the inlet hose filter.
Electrical connection
Electrical connection 220 - 230V (50 Hz).
Maximum power absorbed 3.00 kW ca.
The domestic wiring system (including wall sockets,
interior wiring, fuses and electricity meters) should
therefore be adequate and suitable to carry such a
load.
Safety standards require the appliance to be
earthed.
The Manufacturer accepts no liability for failure to
observe the above safety precautions.
B
A
CA01
CA06
min 30 cm max 100 cm
max 100 cm
+ 2 m max
min 4 cm
Ø 21
Ø 18
Ø 18 Ø 21
CS01
ENGLISH

1 «Mains-on» indicator light
This comes on when the ON/OFF button (2) is de-
pressed, indicating that the appliance is switched on.
2 On/Off button
On
When this button is depressed, the machine starts
operating and, at the same time, the «mains on» indi-
cator light (1) comes on.
Off
When the washing programme has finished, the ma-
chine stops automatically and the «mains on» indica-
tor light (1) remains on. To switch the indicator light off
or to stop the machine at any time, press the same
button again.
Before selecting a washing programme or changing
an operating programme, switch off the machine
pressing the On/Off button .
3 Programme guide
This is a summary of the «washing programme chart»
which will help you to select the correct programme.
4 Door handle
To open the door, press the catch in the top of the re-
cess and pull the door towards you at the same time.
To close the door, simply push it.
5 Programme selector knob
This allows you to select the required washing pro-
gramme. Turn the knob clockwise until the number of
the programme required is opposite the mark on the
knob.
6 Programme sequence indicator
This continuously indicates what phase in the wash-
ing programme the appliance has reached. Each
phase is represented by a symbol:
Prewash - Hold
Wash
Cold rinse
Hot rinse
Hot air drying
USE
PPC01GB
47
Control panel
1
2
3
4
12 3 4 5 6
ENGLISH

PAA03GB
48

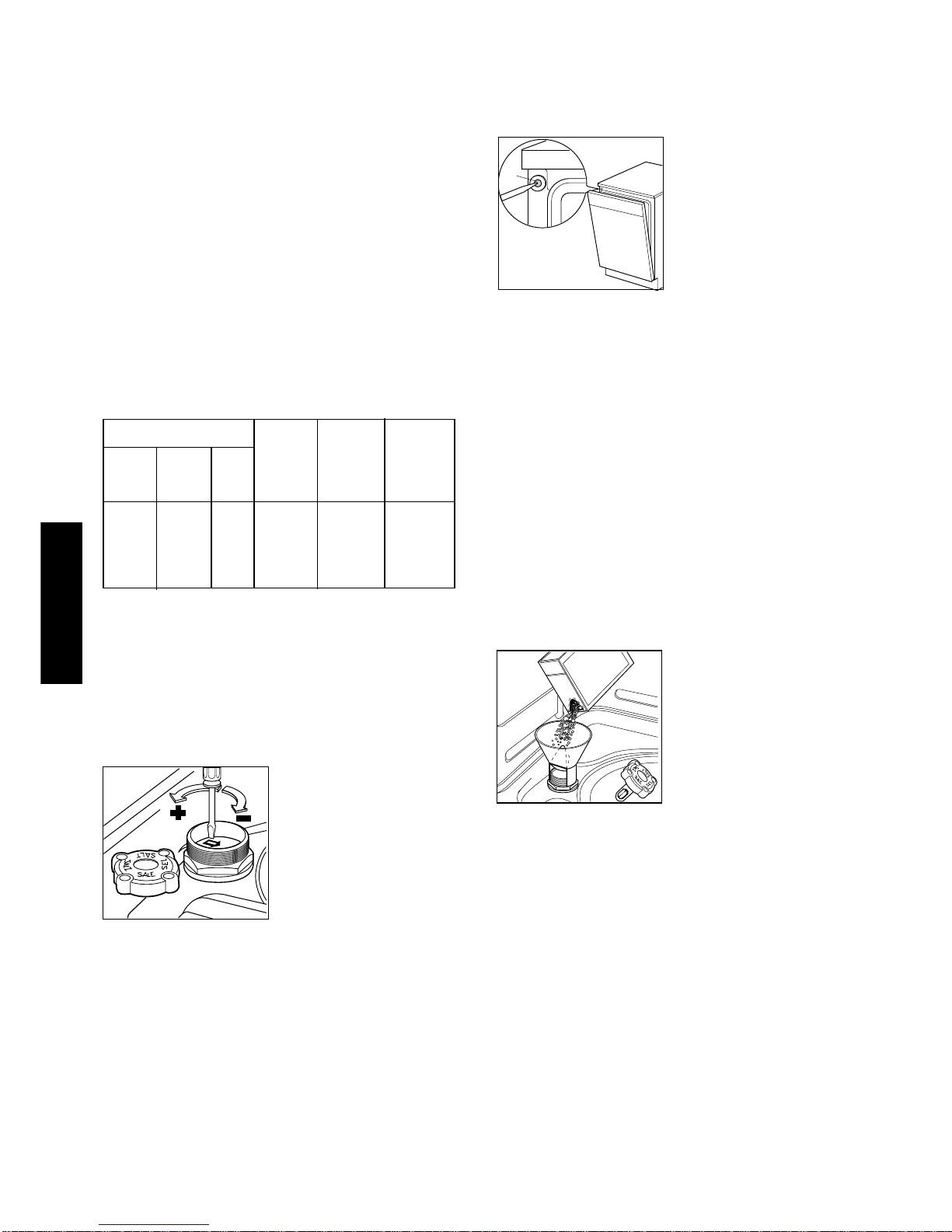

The Water Softener
Water contains varying amounts of lime and mineral
salts depending on the area in which you live: these
are deposited on the dishes leaving white marks.
The higher the content of these salts, the harder your
water will be. The «hardness» level is measured on 2
equivalent scales: German degrees or French
degrees. Contact your local Water Authority to find the
exact water hardness level for your area.
The dishwasher is equipped with a softener which
uses special dishwasher salt to provide lime-free
(softened) water. The softener can treat water hard-
ness up to 90 French degrees via 5 adjustment levels.
Find on the table below the level corresponding to the
hardness of your water and the required adjustments:
*The water softener is factory set at level 2 as this suits most users.
** If you use phosphate free detergents containing enzymes, use salt starting
from 4°dH (7°TH).
Level 1
If your water is «level 1» it is already soft and there-
fore there is no need to use salt.
Levels 3 and 5 (water softener adjustment)
If your water is level 3 or 5, proceed as follows:
slide out the lower basket
and unscrew the cap of the
salt container; turn the two-
position selector anticlock-
wise from position - to posi-
tion + with the aid of a knife
or a screwdriver.
Levels 4 and 5 (adjustment on the machine)
If your water is level 4 or 5,
open the door and drill
membrane (A) on the
upper left-hand corner of
the machine.
With a water hardness of level 5 both adjustments
must be made.
Important
Salt MUST be used regularly from level 2 upward.
Filling with Salt
Only use salt designed specifically for use in dish-
washers. Other types of salt contain high percentages
of other substances which may reduce the efficiency
of the softener.
Unscrew the cap of the salt container.
Fill the container with 1 litre of water (this operation is
necessary only the first time).
Place approximately 1,5 ÷ 1,8 kg of dishwasher salt
inside using the funnel provided (see figure).
Replace the cap making
sure that there is no trace
of salt on the screw thread
or on the gasket.
Screw the cap on tightly.
When this has been done,
all that is required is to pe-
riodically add salt to the
container.
You are reminded of this by a green refill indicator on
the cap of the salt container. When the green indicator
disappears, the water softener needs refilling with
salt.
The salt container has always some water inside
which will normally overflow when refilling with salt.
Caution
Only fill with salt just before starting one of the com-
plete washing programmes (not Rinse and Hold pro-
gramme). This will prevent any grains of salt or salty
water, which may have been spilled, remaining on the
bottom of the machine for any period of time. This
could cause corrosion.
Water hardness
Level Use of
salt
Water
softener
adjustment
Adjustment
on the
machine
°dH
German
degrees
°TH
French
degrees
0- 7
8-21
22-28
29-39
40-50
0-14
15-39
40-50
51-70
71-90
1
*2
3
4
5
**NO
YES
YES
YES
YES
NO
NO
YES
NO
YES
NO
NO
NO
YES
YES
SALE
SALT
SALZ
SEL
S
R05
A
AA04
AA02
ENGLISH

49
PBR01GB
Rinse Aid
The use of this liquid ensures thorough rinsing, spot
and streak free drying, making the water run quickly
off the dishes for sparkling results. It is automatically
added during the hot rinse. The dispenser, which is
positioned inside the door, holds about 110 ml of rinse
aid, which is sufficient for 16-40 dishwashing
programmes, depending upon the dosage setting.
Filling with Rinse Aid
Open the container by turning the lid (A) anticlockwise.
Add rinse aid until the container is completely full
(approx. 110 ml). The indicator (B) will be completely
dark.
Top up with rinse aid when the indicator (B) becomes
clear
Remember to CLOSE the lid after every refill.
Caution
Clean up any rinse aid spilt during filling with an ab-
sorbent cloth to avoid excess foaming during the next
wash.
Adjusting the Dose
According to the finish and drying results obtained, adjust
the dose of rinse aid by means of the 6 position selector
(C) (position 1 - minimum dose, position 6 - maximum
dose).
Gradually increase the dose
if there are drops of water
or lime spots on the dishes
after washing. Reduce it if
there are sticky whitish
streaks on the dishes.
Caution: Do not put liquid detergent into the rinse aid
compartment.
Use of Detergent
Before starting any of the dishwashing programmes,
except for the rinse and hold programme, load the
detergent in the dispenser.
Use only tablets, powder or liquid detergents
specifically designed for domestic dishwashers.
Unsuitable detergents (such as those for washing by
hand) do not contain the right ingredients for machine
washing and hamper correct functioning of the
machine.
To open the dispenser lid, pull the catch (D). This will
open it.
To help you to correctly dose
the right amount of deter-
gent, inside the container
there are two reference
marks:
- MIN = 15 ml
- MAX = 30 ml
The amount of detergent to be used varies depending
on how soiled the dishes are and the type of dishes
being washed. We recommend the amounts shown in
the programme chart on the next pages.
After filling the dispenser with detergent, close
the lid.
All the programmes with
prewash require a small
extra amount of detergent
of approximately 5g to be
poured over the lid of the
dispenser, as shown on the
picture.
At the end of any washing programme the lid is
always open, ready for the next wash.
Since not all detergents are the same, you should
also consult the instructions on the packet.
Remember that insufficient quantities of detergent will
produce poor washing results whereas an excessive
amount of detergent does not improve washing
results and is also wasteful.
Using no more than the correct amount of detergent
also contributes to reducing pollution.
Phosphate free detergents with enzymes
These new detergents, although welcome from an eco-
logical point of view, react far more susceptibly to water
hardness than conventional products. Therefore, in
order to avoid white lime deposits on crockery and the
inner tub, you should add salt in the water softener even
if the hardness of your water is as low as 4 °dH (7 °TH),
when using these new detergents.
6
5
4
3
2
1
6
5
3
2
1
C
B
BR04
A
D
MIN
MAX
DE07
DE02
ENGLISH

PCE16GB
50
Loading your Machine
Before placing dishes in the machine, remove any
scraps of food from the plates (small bones,
toothpicks, fish bones, scraps of meat and vegetables,
fruit skins etc.) to avoid clogging the filters and
consequently reducing performance.
Open the door and slide out the baskets to load the
dishes.
Use of the Lower Basket
The lower basket is designed to take saucepans, lids,
plates (up to 27 cm in diameter), salad bowls, cutlery
etc.
Serving dishes and large lids should be arranged
around the edge of the basket, ensuring that the up-
per spray arm can turn freely.
Cutlery should be placed in the removable cutlery
basket with the handles facing downwards. If the
handles protrude from the bottom of the basket,
obstructing the lower spray arm, load the cutlery with
the handles facing upward.
Mix spoons with the other cutlery to prevent them
sticking together.
Use of the Upper Basket
The upper basket is designed for plates (dessert
plates, saucers, dinner plates up to 24 cm in diame-
ter), salad bowls, cups and glasses; these should be
arranged as shown in the pictures. Glasses with long
stems can be placed upside-down in the raised cup-
racks.
Caution
When loading the dishes,
ensure that you do not cover
the water inlet funnel in the
middle of the upper basket
IEC 436 / DIN 44990
UI05
IEC 436 / DIN 44990
US13
US12
UI19
US16
US16
Before closing the door, ensure that the spray
arms can rotate freely.
ENGLISH

51
PCL04GB
Adjusting the Height of the Upper Basket
If washing very large plates (over 27 cm and up to 31
cm in diameter) you can load them in the lower
basket after moving the upper basket to the higher
position as follows:
Move the front runner stops
(A) of the upper basket
outward and slide the
basket out.
Refit the basket in the
higher position and replace
the stops (A) in their original
position.
When the top basket is in the higher position it will
only take plates up to 20 cm in diameter and you will
not be able to use the raised cup racks.
For Best Washing Results:
Before loading, remove all scraps of food and soak
very heavily soiled pots and pans.
Always arrange saucepans, cups and glasses etc. up
side-down.
Tilt items with convex or concave surfaces so that
the water drains off easily.
Long items of cutlery such as ladles, carving knives
etc. should be positioned horizontally in the upper
basket.
Avoid contact between the dishes as far as possible;
correct arrangement of the items will give better
washing results.
Light items (plastic bowls etc.) should be loaded in
the upper basket and arranged so that they do not
move during washing.
You will improve drying results by leaving the dish-
washer door ajar for at least 15-30 minutes as soon
as the programme finishes.
To Save Energy
Do not prewash dishes under running water.
Place dishes in the machine immediately after every
meal and wait until the dishwasher is full before
washing.
If necessary run the Rinse and Hold programme (see
Programme Chart on the following pages), so that
any food scraps do not become caked on the dishes
while you are waiting to run the complete wash pro-
gramme.
Care must be taken when opening the door, as
steam will escape.
Items not Suitable for Dishwashers
The following should not be washed in the dish-
washer:
Cutlery or dishes with wooden or horn handles or
glued parts.
Handmade items, wooden objects, antiques or hand-
painted china.
Certain types of decoration can discolour when
washed in a dishwasher.
Crystal-ware and plastic objects, if not guaranteed
dishwasher-proof, should be washed by hand. You
are advised to place them in the upper basket.
Certain types of glass can also become opaque after
being washed several times in a dishwasher.
Silver cutlery tends to go black if mixed with steel
cut- lery. Place it in the cutlery basket separated from
the others.
Iron and cast iron objects can rust and stain other
items.
Aluminium tends to go black; copper, pewter and
brass tend to stain.
Caution: You are advised not to load very small or
plastic items which can fall through the baskets.
Note: When buying new dishes, ensure that they are
dishwasher-proof.
A
RC01
HELPFUL HINTS
ENGLISH

PTP03GB
52
2 level dessert spoons
(20 g)
2 dessert spoons
(25 g)
1/2 dessert spoon
(5 g)
//
/
/
1 heaped dessert spoon
(15 g)
Programmes Type of
load Degree of soil Starting
position of the programmer
Required push- button
in the
dispenser
on the
door
on the
dispenser
lid
Programme
duration
in minutes
Energy
consumption
in kWh
Water
consumption
in litres
Cycle description
Cold prewash Main wash up to 65°C 1 cold rinse 1 hot rinse up to 65°C Hot air drying
Main wash up to 65°C 2 cold rinses 1 hot rinse up to 65°C Hot air drying
Main wash up to 65°C 1 cold rinse 1 hot rinse up to 65°C
1 cold rinse (to avoid food scraps from sticking to the crockery).
Recommended quantity
of detergent Approximate
consumption values ***
Pots - Pans Crockery
Normally or heavily soiled, also dried up and/or containing starch (i.e. pasta, rice, semolina, potatoes, egg, sauces, roast).
Lightly soiled, even dried up and containing starch (i.e. pasta, rice, semolina, potatoes, egg, sauces, roast).
Lightly soiled, not dried up (i.e. meat, cooked or uncooked vegetables, milk coffee, drinks). Due to the shortness of this programme, no drying phase is provided.
Partial load to be completed later. This programme does not require any detergent.
Crockery, cutlery
*Normal
Programme
65°
Normal
Programme
without
prewash 65°
** Quick
Programme
65°
Rinse & Hold
3 4
1
2
Washing programmes
*This programme is equivalent to IEC 436/DIN44990.
Recommended quantity of detergent: 20 g in the dispenser
5 g over the dispenser lid
Standard place settings: 12
** This is a special programme for quick washing (approx.44 minutes) a full load of lightly soiled dishes,
glasses and crockery (except pots) so that you may re-use them promptly. Due to the shortness of this programme, no drying phase is provided.
*** These specifications are indicative values and depend on the pressure and temperature of the water,
and also on voltage modification.
1,5 22
64
1,5 18
58
1,4 18
44
0,1 14
10
ENGLISH

PSO01GB
53
Operating Sequence
1 Check that the filters are clean
(see cleaning instructions)
2 Check that there is salt and rinse aid
3 Load the dishes
Remove larger scraps of food.
Pull the lower basket out and arrange the saucepans,
plates and cutlery in it.
Pull the upper basket out and arrange the plates,
saucers, glasses and cups etc. in it.
Slide the baskets back into the machine. Ensure that
the spray arms can rotate freely.
4 Measure out detergent
Pour the required amount of detergent into the
dispenser according to the indications in the Washing
Programmes chart and close the lid.
Close the dishwasher door.
5 Set the programme
Turn the selector knob clockwise until the number of
the required programme is opposite the mark on the
knob.
6 Start the programme
Insert the plug into the wall socket.
Open the water tap.
Depress the ON/OFF pushbutton . The «mains on»
indicator light will come on and the machine will start.
If you wish to interrupt the wash at any time press
button again.
To restart the machine, depress the same button
again and the programme will continue from the point
where it was interrupted.
7 At the end of the washing programme
The machine will stop and the «mains on»indicator
light remains on until ON/OFF button is depressed.
Turn off the water tap.
Open the door and wait a few minutes before
removing the dishes; in this way you will avoid
burning your fingers and drying will be improved.
Empty the lower basket first and then the upper one;
this will avoid water dripping from the upper basket
onto the dishes in the lower one.
Caution
In general it is not advisable to open the door while the
machine is working; if the door is opened however, a
safety device ensures that the machine stops.
If you have to open the door while the machine is
working, always switch off the appliance first by press-
ing the ON/OFF button .
Care must be taken if opening the door, as steam will
escape.
1
2
3
4
SO102
ENGLISH

54
MAINTENANCE AND CLEANING
PMA01GB
Cleaning the Central Filters
(After each wash)
Inspect the central filters (B) and (C) and remove any
scraps of food with a brush, under running water.
Filters (B) and (C) are both removed by lifting up the
outer one (B) (pulling the central funnel upwards); the
smaller filter (C) can then be removed by pressing the
two tongues (D).
Once cleaned, refit the filters by pressing them
down until they click into place.
Cleaning the Large Filter
(Once a month)
Clean the large filter (A) on both sides under running
water, using a brush.
To take it out, remove the spray arm by pressing the
two tongues (E), turn the ring (F) anticlockwise
(towards the left) and then slide the whole part out.
Refit the filter following the above instructions in
reverse order.
Caution: the dishwasher must not be used
without filters.
Incorrect repositioning of the filters will produce
poor washing results.
Cleaning of the filters is vital to ensure correct
operation of the machine.
Internal and External Cleaning
You must ensure that the seals around the door, the
detergent and rinse aid dispensers are cleaned
regu larly with a damp cloth.
Check that the spray arm nozzles are not obstructed.
To remove the bottom spray arm, release it from its
securing catches and pull it out.
To clean the nozzles of the top spray arm, slide out
the top basket whereby the spray arm will become
accessible. To remove it, lift up the central funnel and
unscrew the ring nut.
Clean the external surfaces of the machine and
control panel with a soft damp cloth. If necessary use
only neutral detergents. Never use abrasive products,
scouring pads or solvents (acetone, trichloroethylene
etc...).
Prolonged Periods of Non-Operation
If you are not using the machine for any period of time
you are advised to:
unplug the appliance and turn off the water;
fill the rinse aid dispenser;
leave the door ajar to prevent the formation of
unpleasant smells;
leave the inside of the machine clean.
Frost Precautions
Avoid placing the machine in a location where the
temperature is below 0°C.
If this is unavoidable, empty the machine, close the
water inlet tap, disconnect the water inlet pipe and
empty it.
Moving the Machine
If you have to move the machine (you are moving
house etc...):
unplug it;
turn off the water tap;
remove the water inlet and discharge hoses;
pull the machine out together with the hoses.
Caution: avoid over tilting the machine during
transport.
MA13
B
C
D
MA01
F
A
E
MA08
ENGLISH

PRA15GB
55
SERVICING
Certain problems are due to lack of simple mainten-
ance or oversights and can be solved easily without
having to call out an engineer.
The machine will not start
■The door has not been properly closed.
■The plug is not properly inserted in the power socket.
■There is no current at the socket. Check the fuse.
The machine will not fill with water
■The water tap is shut.
■The water supply has been cut off.
■The inlet hose is kinked.
■The water inlet hose filter is clogged.
The machine will not drain
■The drain hose is kinked.
■The sink drain is blocked.
■The drain hose extension is not correct.
■There is no air vent in the end of the drain hose.
The dishes are not clean (poor wash)
■The baskets are too full.
■The dishes have not been arranged properly.
■The spray arms do not rotate.
■The spray arm holes are clogged.
■The water inlet funnel in the centre of the upper
basket is covered by dishes.
■The end of the drain hose is submerged in waste
water (in the sink).
■The filters are clogged.
■The filters are not in position.
■Not enough detergent has been used or it is un-
suitable.
■The detergent is old or has gone hard.
■The washing programme selected is too gentle.
Visible lime deposits or white film on the dishes
■The rinse aid has run out or too little is being used.
The machine is noisy
■The dishes are rattling against each other.
■The spray arms are knocking against the dishes.
The dishes are not quite dry
■The dishes have been left too long inside the
machine.
The door is difficult to close
■The dishwasher is not level or is not properly built-in.

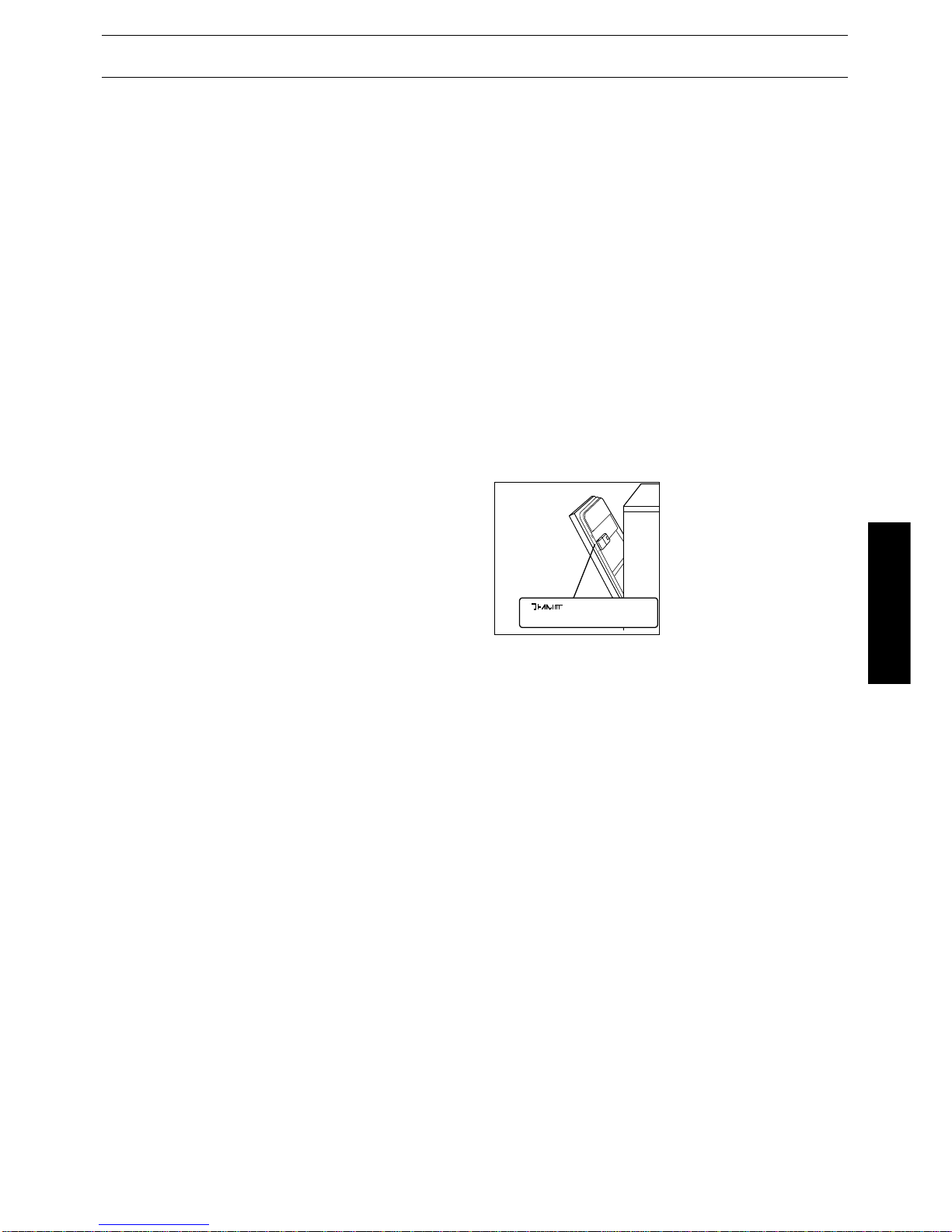

If, after the above checks, the fault persists, call your
local Service Centre. Please make sure you give the
model and serial number of the appliance. This infor-
mation can be found on the rating plate located on the
right-hand side of the dishwasher door (see picture).
Original spare parts can be purchased from Service
Centres.
Protection against flooding
In order to prevent water floods, the machine has
been provided with two additional devices, having the
following characteristics:
1. In the water inlet hose (see water connection): the
device comes into operation as a result of any
damage to the water inlet hose and stops the water
inflow. It functions even with the machine off.
2. In the bottom of the machine: the device comes
into operation as a result of any water leaks in the
machine and it functions only with the machine on.
To repair the machine, call the Service Centre.
Prod.No. ........ Ser. No. .........
Mod. ........
RA01
ENGLISH

Building-in features
This dishwasher is designed to be fitted under a
kitchen counter or sink.
In either case, it is essential that the recess dimen-
sions indicated in the picture are followed.
No further openings for venting of the dishwasher are
required, but only to let the water inlet and drain
hoses and power supply cable pass through.
The recess height may be anywhere between 820
and 880 mm from the floor since the dishwasher in-
corporates levelling feet adjustable over a wide range
(max 60 mm).
Adjust the height of the appliance by turning these
feet.
A distance of 2 mm should be allowed between the
top of the dishwasher and the counter top.
Two pads are also supplied
to make sliding-in or sliding-
out of the appliance easier.
Fit the pads by pressing
them on the feet.
Fitting the vapour protecting strip
Screw the vapour protecting
strip onto the front part of
the worktop using four 3,5
x16 screws.
Fitting under a counter
(kitchen worktop or sink)
It is absolutely essential that the dishwasher is discon-
nected from the electricity supply before gaining access
to any internal component.
Fit the dishwasher into the appropriate housing space
and connect it. Make sure that the water fill and drain
hoses and the power supply cable are not bent or
kinked.
Fitting the panel to the door
The door which comes with this model is designed for the
overlay of a panel having the following dimensions:
Width: 596 mm
Height: 594 mm
Thickness: 20 mm max
Weight: 2 to 7.5 kg max
Note: The panel height should not be more than that
indicated, otherwise complete opening of the door will
no longer be possible as the panel hits against the
dishwasher plinth.
Furthermore, it is possible to fine up the control panel to
correspond with the height of the drawers of the
adjacent pieces of furniture, thus perfectly co-ordinating
with the style of the rest of the unit furniture in your
kitchen.
Add one or more of the
fillets provided until you
reach the desired height.
Secure the fillets as shown
in the picture, by means of
two screws 4,2 x 38 provid-
ed therewith.
Prepare the panel as follows:
Measure the distance (B)
between the part below the
control panel (or fillets) and
the reference notch (X) on
the door.
Measure the same distance
(B) on the wooden panel
starting from the upper edge.
At this distance position the supporting cross-bar provided,
in correspondence with the reference (Z). Keep the same
distance between the centre of the support's fastening
holes and the lateral edges of the wooden panel.
On the panel sign the seats for the four fastening
screws. Drill the panel with a Ø 2 x 12 bit and fix the
supporting cross-bar onto the wooden panel with the
3,5 x 16 screws provided.
Mount the decor panel by inserting the two pivots of
the cross-bar into the slotted holes of the door.
Lift the decor panel until the perfect alignment with the
facia panel is obtained.
BUILDING-IN
PII01GB
56
818÷878
600
820÷880
II31
596
555
575
max.
max.
0 ÷60mm
II07
II20
600 mm
600 mm
II25
II04
A
A
B
Z
X
==
550
B
2
1
II22
ENGLISH

PII10GB
57
Once the correct position
has been found, open the
door and fasten the decor
panel on the lower section
by means of the two long 4
x 40 screws provided, using
the holes through the inner
door (see fig.).
Securing under a counter
Open the door; vertically in-
sert the two mounting
brackets (A) on the front
part of the dishwasher and
turn them 90° (see fig.).
Secure the brackets to the
counter by means of two
3.5 x16 screws provided.
Important!
The dishwasher must be secured against tilting.
Therefore, make sure that the counter it is fitted un-
der, is suitably secured to a fixed structure (adjacent
kitchen cabinets, wall).
Attention!
When the dishwasher is secured to the kitchen
cabinets, do not drill any holes into the sides of
the machine.
Adjusting the door balance
The door of the dishwasher is balanced when it is
open in any position.
Fitting the decor panel
may sometimes affect this
balance. In this case it will
be necessary to adjust the
balance as follows:
Half-open the door and
regulate the screws located
on the kick plate.
By screwing or unscrewing these screws, the tension
of the door balancing springs is increased or
decreased respectively.
Attention!
The weight of the panel should be within the limits
given in the "dimensions of the panel", otherwise
balancing the door will not be possible.
Levelling
Make sure that the dishwasher door closes properly,
without rubbing on sides. Otherwise level the machine
by slightly screwing or unscrewing the two front feet
until perfect closure of the door is reached.
Kitchen plinth adjustment
To allow correct opening of
the door it is sometimes
necessary to cut the
kitchen plinth. Refer to the
cutting table below.
According to dimensions of
(a) and (b) as shown on
the figure, you will find on
the following table the
depth (x) of the cut to be
made on the plinth.
The dimensions (a) and (b) of the table are those
more frequently used in the kitchen furnitures.
12
A
90°
II18
A
II40
a
b
II15
II08
II10
170 160 150 140 130 120 110 100
136 131 125 118 110 100 93 85
135 131 125 118 110 102 92 85
137 132 125 118 110 102 94 85
138 134 128 120 110 104 95 85
139 130 124 115 105 98 88
138 129 120 110 100 90
135 125 115 105 95
/
/ /
/
40
50
60
70
80
90
100 / /
Height (a)*
Depth (b)*
X
X
600 mm
minimum
Dimensions of the
cut-out in plinth
(*) mm
ENGLISH

152996 26/0 0/0197
Total Chlorine free
FNL GBD
