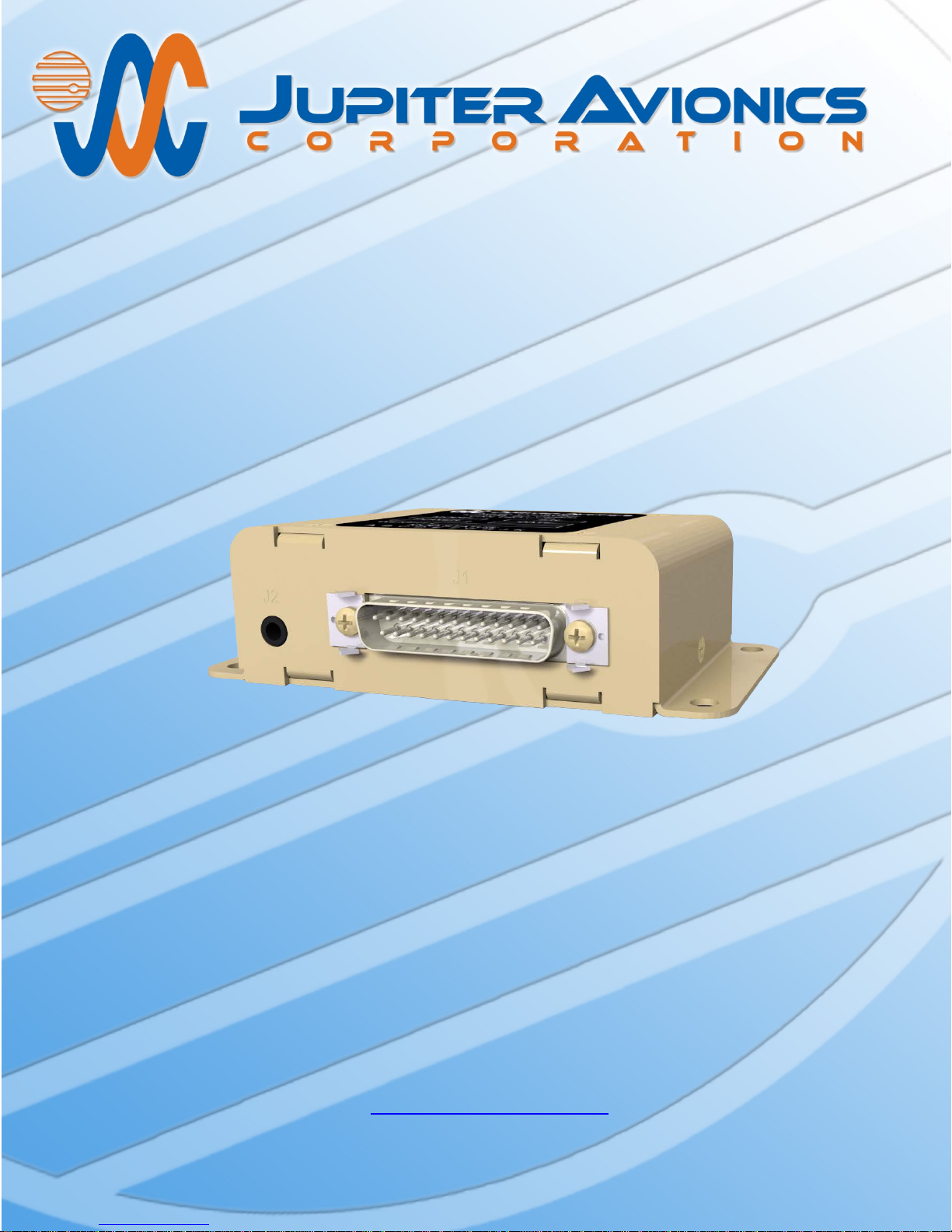

Jupiter Avionics JA34-001 User manual

JA34-001
Universal Radio Adapter
Installation and Operating Manual
Rev. A
Jupiter Avionics Corporation
1959 Kirschner Road
Kelowna BC
Canada V1Y 4N7
Tel: [phone]
Toll-Free: 855-478-2232
www.jupiteravionics.com

JA34-001 Audio Controller
Installation Manual
Rev A Page ii
Copyright 2014 Jupiter Avionics Corp.
All rights reserved
Jupiter Avionics Corporation (JAC) permits a single copy of this manual to be printed or downloaded for the express
use of an installing agency. Any such electronic or printed copy of this manual must contain the complete text of this
copyright notice. Any unauthorized commercial distribution of this manual is strictly prohibited. Except as described
above, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded, or stored in any
storage medium for any purpose without the express prior written consent of JAC.
RECORD OF REVISIONS
Revision
Rev Date
Description
ECR
A
Nov 2014
Initial release, Serial number 1001 and higher.
2628
Prepared:
MPB
Checked:
Approved:
IMPORTANT:
Information in this document is subject to change without notice.
To confirm the current revision status of this manual, visit the JAC website:
www.jupiteravionics.com
INVALID! INVALID!
JAC
SRM
11-06-14 JAC
KDV
11-07-14

JA34-001 Audio Controller
Installation Manual
Rev A Page iii
Table of Contents
SECTION 1 - DESCRIPTION...........................................................................................................................................1
1.1 System Overview..............................................................................................................................................1
1.2 Features Overview............................................................................................................................................1
1.3 Inputs and Outputs ...........................................................................................................................................1
1.3.1 Inputs........................................................................................................................................................1
1.3.2 Outputs .....................................................................................................................................................1
1.4 Specifications....................................................................................................................................................2
1.4.1 Electrical Specifications............................................................................................................................2
1.4.2 Mechanical Specifications ........................................................................................................................3
1.4.3 Flammability of Materials..........................................................................................................................3
SECTION 2 – INSTALLATION........................................................................................................................................4
2.1 Introduction.......................................................................................................................................................4
2.2 Continued Airworthiness...................................................................................................................................4
2.3 Unpacking and Inspecting Equipment..............................................................................................................4
2.3.1 Warranty .......................................................................................................................................................4
2.4 Installation Procedures .....................................................................................................................................4
2.4.1 Cabling and Wiring .......................................................................................................................................4
2.4.2 Mechanical Installation .................................................................................................................................5
2.4.3 Post Installation Checks ...............................................................................................................................5
2.5 System Operation.............................................................................................................................................5
2.5.1 Configuration Operation............................................................................................................................5
2.5.2 Receive Operation....................................................................................................................................5
2.5.3 Sidetone Operation...................................................................................................................................5
2.5.4 Relay Operation........................................................................................................................................6
2.5.5 Microphone Operation..............................................................................................................................6
2.6 Adjustments and Configuration using ProCS™ ...............................................................................................6
2.6.1 ProCS™ Setup .........................................................................................................................................6
2.6.2 Configurable Settings ...............................................................................................................................6
2.6.3 JA34-001 Settings ....................................................................................................................................6
2.6.4 Aircraft Audio Systems List.......................................................................................................................8
2.6.5 Non-Aircraft Radios List............................................................................................................................8
2.6.6 Other Configuration Features...................................................................................................................8
2.7 Installation Kit ...................................................................................................................................................8
2.7.1 Recommended Crimp tools......................................................................................................................8
2.8 Installation Drawings.........................................................................................................................................8
SECTION 3 – OPERATION .............................................................................................................................................9
3.1 Introduction.......................................................................................................................................................9
3.2 Operation..........................................................................................................................................................9
Appendix A - Installation Drawings........................................................................................................................... A1
A1 Introduction.....................................................................................................................................................A1
A2 Installation Drawings.......................................................................................................................................A1
Appendix B - Installation Documents........................................................................................................................ B1
B1 Airworthiness ..................................................................................................................................................B2
B2 Instructions for Continued Airworthiness........................................................................................................B2

Rev A Page 1
JA34-001 Universal Radio Adapter
SECTION 1 - DESCRIPTION
1.1 System Overview
The JA34-001 Universal Radio Adapter allows the aircraft audio management system access to a non-aviation radio.
The JA34-001 provides fully isolated audio signal paths to and from the radio to allow a noise-free installation.
Microphone biasing and artificial sidetone generation are selectable for radios without them.
The JA34-001 is setup on a 'per installation' basis using cable CAB-USB-0002 and the JA99-001 Configuration Cable,
or cable CAB-USB-0006, and downloading the system configuration settings from a PC into non-volatile control
devices.
1.2 Features Overview
The JA34-001 unit features an industry standard D-Sub connector pin-out to allow easy field upgrades.
All internal settings are quickly adjusted using the proprietary ProCS™ (Product Configuration Software).
Two Configuration ports are provided for configuration loading; one is beside the main connector and one is on the
back of the unit.
All audio outputs are balanced.
The JA34-001 provides relay contact keying, artificial sidetone generation and microphone voltage biasing.
1.3 Inputs and Outputs
Refer to the JA34-001 connector map for the mating connector designators and contact assignments for the
input and output signals.
1.3.1 Inputs
Name
Qty
Type
CONFIG DATA TO JA34
1
Data signal
MODE SELECT TO JA34
1
'LVFUHWHsignal
RECEIVE INPUT
1
Audio signal
MIC INPUT
1
Audio signal
+28 VDC POWER
1
Electrical power input
POWER GROUND
1
Power supply
RELAY KEY INPUT
1
'LVFUHWH6LJQDO
1.3.2 Outputs
Name
Qty
Type
CONFIG DATA FROM JA34-001
1
Data signal
RECEIVE OUT
1
Audio signal
MIC OUTPUT
1
Audio signal
RELAY CONTACTS
6
Audio signal

JA34-001 Universal Radio Adapter
Installation Manual
Rev A Page 2
1.4 Specifications
1.4.1 Electrical Specifications
Power Input
Nominal voltage 28 Vdc
Maximum voltage 30.3 Vdc
Minimum voltage 22.0 Vdc
Emergency voltage 18.0 Vdc
Input current 0.5 A max
1.4.1.1 Audio Performance
Rated Input Level
Receive audio rated input level 7.75 Vrms ±10%
Microphone input level 250 mVrms ±10%
Rated Output Power
Rated output power 7.75 Vrms ±10%
Microphone rated output (150 Ohm mode) 250 mVrms ±10%
Microphone rated output (8 Ohm mode) 50 mVrms ±10%
Audio Frequency Response
Receive output audio frequency response ≤3dB from 300 to 6000 Hz
Microphone audio output audio frequency response ≤3dB from 300 to 6000 Hz
Distortion Characteristics
Audio output distortion at rated power ≤10%
Input Impedance
Microphone input impedance 150 Ω±10%
Receive Audio input impedance 600 Ω±10%
Output Load
Receive load 600 Ω±10%
Microphone load (150 Ohm mode) 150 Ω±10%
Microphone load (8 Ohm mode) 8 Ω±20%
Input to Input Crosstalk Level
Input to Input crosstalk ≤60 dB
Audio Noise Level without Signal
Noise level below the rated output ≥60 dB
1.4.1.2 Audio Performance, Other
MIC input designed for MIC type amplified dynamic/electret
MIC input bias voltage 12 Vdc ±10%
MIC input circuitry type differential
RECEIVE AUDIO input circuitry type Transformer Coupled
RECEIVE output circuitry type Transformer Coupled
MIC output circuitry type Transformer Coupled

JA34-001 Universal Radio Adapter
Installation Manual
Rev A Page 3
1.4.1.3 Discrete Signals
RELAY KEY INPUT, active signal level ≤+3 Vdc
RELAY KEY INPUT, inactive signal level ≥+10 Vdc
Relay contacts shall pass ≤1ADC @ ≤30V, Resistive Load
1.4.2 Mechanical Specifications
Height 1.27 in [32.3 mm] maximum
Depth 2.61 in [66.3 mm] maximum
Width 4.52 in [114.8 mm] maximum
Weight 0.38 lb [0.17 kg] maximum
Material brushed aluminum with conversion
coating
Connectors (3): J2, J3 Two 4 pole 3.5mm jack
J1 One 25-pin D-Sub male V5 locking
Mounting 4 x 10-32 fasteners
Bonding ≤2.5 mΩ
Installation kit part number INST-JA34
1.4.3 Flammability of Materials
The JA34-001 complies with the requirements of RTCA/DO-160G Sec 26.3.3 "Flammability", through equivalent
flammability testing of materials and the Small Parts Exemption.

Rev A Page 4
JA34-001 Universal Radio Adapter
SECTION 2 – INSTALLATION
2.1 Introduction
This section contains unpacking and inspection procedures, installation information, and post-installation checks.
2.2 Continued Airworthiness
Maintenance of the JA34-001 is on condition only. Scheduled inspection and/or periodic maintenance of this unit is
not required.
2.3 Unpacking and Inspecting Equipment
Unpack the equipment carefully. Check for shipping damage and report any problems to the relevant carrier. Confirm
that the Certificate of Conformance is included. Complete the on-line warranty card from the Jupiter Avionics
Corporation (JAC) website – www.jupiteravionics.com.
2.3.1 Warranty
This product manufactured by JAC is warranted to be free of defects in workmanship or performance for 2 years from
the date of installation by an approved JAC dealer or agency. This warranty covers the cost of all materials and labour
to repair or replace the unit, but does not include the cost of transporting the defective unit to and from JAC or its
designated warranty repair centre, or of removing and replacing the defective unit in the aircraft. This warranty does
not cover failures due to abuse, misuse, accident, or unauthorized alteration or repairs.
THIS WARRANTY IS VOID IF THE PRODUCT IS NOT INSTALLED BY AN AUTHORIZED JAC DEALER. If the on-
line warranty card is not completed, the product will be warranted from the date of manufacture.
Contact JAC for return authorization, and for any questions regarding this warranty and how it applies to your unit(s).
JAC is the final arbiter concerning warranty issues.
2.4 Installation Procedures
WARNING: Loud noise can cause hearing damage. Set the headset volume to minimum before
conducting tests, and slowly increase the volume to a comfortable listening level.
CAUTION: The power input circuitry of the unit may be damaged if the installation does not conform
to the wiring instructions in this manual.
2.4.1 Cabling and Wiring
All wire shall be selected in accordance with the original aircraft manufacturer’s maintenance instructions, or AC43.13-
1B Change 1, Paragraphs 11-76 through 11-78. Unshielded wire types shall qualify to MIL-W-22759 as specified in
AC43.13-1B Change 1, Paragraphs 11-85, 11-86, and listed in Table 11-11. For shielded wire applications, use Tefzel
MIL-C-27500 shielded wire with tag ring or equivalent (for shield terminations) to make the most compact and easily

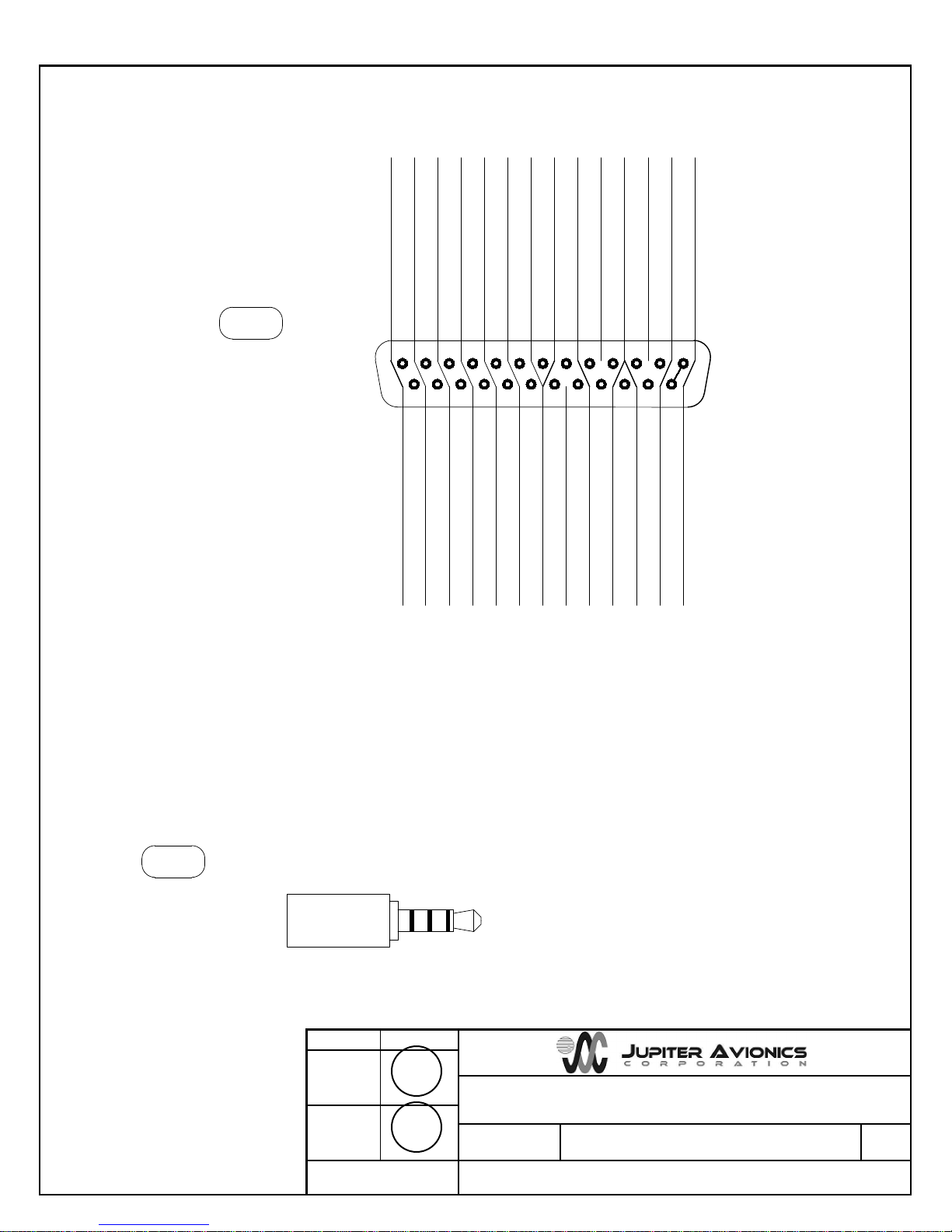

terminated interconnect. Follow the Connector Map in Appendix A of this manual.
Allow 3” from the end of the shielded wiring to the shield termination to allow the connector hood to be easily installed.

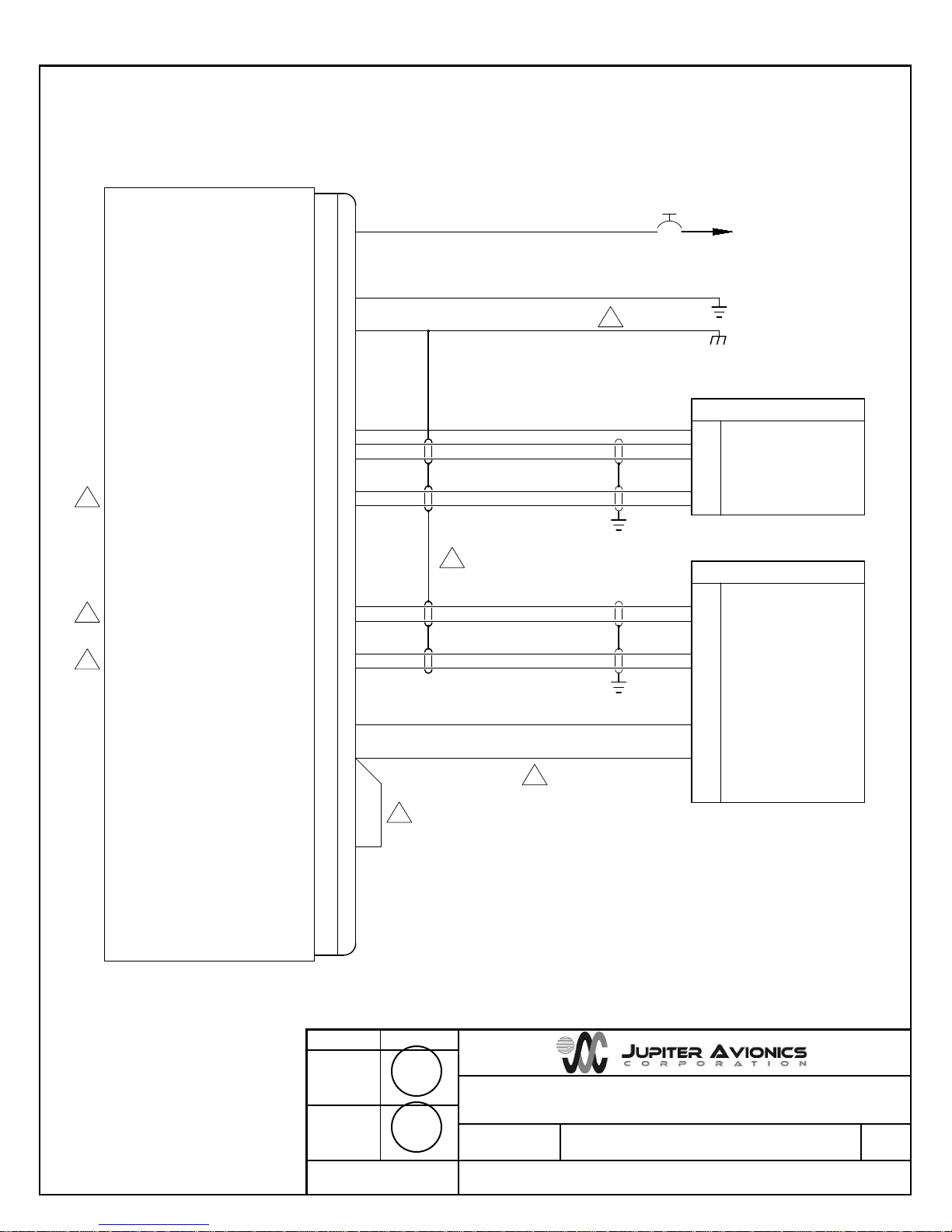

Refer to the Interconnect drawing in Appendix A of this manual for shield termination details. Note that this unit has a
‘clamshell’ hood that is installed after the wiring is complete.
Maintain wire segregation and route wiring in accordance with the original aircraft manufacturer’s maintenance
instructions.

JA34-001 Universal Radio Adapter
Installation Manual
Rev A Page 5
Unless otherwise noted, all wiring shall be a minimum of 24 AWG, except power and ground lines, which shall be a
minimum of 22 AWG. Refer to the Interconnect drawing for additional specifications. Check that the ground
connection is clean and well secured, and that it shares no path with any electrically noisy aircraft accessories such
as blowers, turn-and-bank instruments, or similar loads.
2.4.2 Mechanical Installation
The JA34-001 can be mounted in any attitude and location with adequate space and sufficient clearance for the
connector and wiring harness. It requires no direct cooling.
2.4.3 Post Installation Checks
2.4.3.1 Voltage/Resistance checks.
Do not attach this unit until the following conditions are met:
a) Check P1 pin 1 for +28 Vdc power.
b) Check P1 pin 14 (Power Ground) for continuity to ground (less than 0.5 Ω).
c) Check P1 pin 15 (Chassis Ground) for continuity to ground (less than 0.5 Ω).
d) Check P1 pins 8, 20,21 and 23 (Output Ground) for continuity to ground (less than 0.5 Ω).
e) Check all pins for shorts to ground or adjacent pins.
2.4.3.2 Configuration
Ensure that the JA34-001 contains the correct configuration settings. This may be done at the factory, on the
maintenance bench or in the aircraft before the power on checks are performed. Refer to section 2.5.
2.4.3.3 Power on Checks.
Power up the aircraft’s systems and confirm normal operation of all functions of the JA34-001 (see section 2.4.5).
a) Begin with only the pilot’s headset attached. Confirm radio operation for both receive and transmit. Check the
radio selection and inputs. Do not proceed until the radios are functioning correctly.
b) Unusual buzzes, hums or other background audio are symptomatic of multiple grounds, or noisy external
systems such as blowers or pumps sharing wiring with the audio system. If a transmitter fails to key or
correctly modulate it is often the result of not connecting all required grounds to the radio or external audio
system.
c) Check that all configurations settings are correct.
When all performance checks are satisfied, complete the necessary regulatory documentation before releasing the
aircraft for service. Refer to Appendix B.
2.5 System Operation
The JA34-001 is a remote mount unit and has no user accessible controls.
2.5.1 Configuration Operation
The JA34-001 accepts commands on the Configuration connector via the configuration cable (JA99-001) and the
configuration tool (ProCs™). (See section 2.6 Adjustments and Configuration)
2.5.2 Receive Operation
The RECEIVE INPUT is level controlled and summed with the MIC INPUT (Sidetone) and routed to the RECEIVE
OUTPUT.
2.5.3 Sidetone Operation
The MIC INPUT audio is level controlled and summed with the Receive Audio and routed to the RECEIVE OUTPUT.

JA34-001 Universal Radio Adapter
Installation Manual
Rev A Page 6
2.5.4 Relay Operation
The RELAY KEY INPUT selects the connection of both of the relay common contacts to either their normally closed
contact or their normally open contact.
2.5.5 Microphone Operation
The MIC INPUT audio is level controlled and routed to the MIC OUTPUT.
2.6 Adjustments and Configuration using ProCS™
The JA34-001 has no internal mechanical adjustments. Configuration data is sent to the JA34-001 via the
programming port input, using the ProCS™ configuration tool and configuration cables (JA99-001 and CAB-USB-
0002, or CAB-USB-0006).
For full information on the configuration process, and for installation of ProCS™ on your computer, refer to the
ProCS™ manual on the Jupiter Avionics website.
2.6.1 ProCS™ Setup
The JA34-001 menu items 'ProCS Setup' provide Setup drawings showing the cabling arrangement for
connecting the JA34-001 to a computer to allow configuration using ProCS™.
2.6.2 Configurable Settings
A standard unit is shipped from the factory with all internal adjustments configured to the default levels shown in bold
on the JA34-001 Settings page. At installation, it may be desirable to change some of these settings to suit the local
operating environment.
The Aircraft Audio Selection and Non-Aircraft Radio Selection choices are made from drop-down boxes as shown. For
further information, refer to sections 2.6.3.1 and 2.6.3.3. All input, output, MIC bias information etc. is automatically
added to suit the selected radios.
2.6.3 JA34-001 Settings
The Settings window is divided into three sections: the Aircraft Audio System; the Universal Radio Adapter; and the
Non-Aircraft Radio. Each section is colour-coded to keep the relevant information together.
The required radios can be selected
from the dropdown boxes at the top of
the 'Aircraft Audio System' and 'Non-
Aircraft Radio' sections.
New radios may be added (see
sections 2.6.4 and 2.6.5 below).

JA34-001 Universal Radio Adapter
Installation Manual
Rev A Page 7
2.6.3.1 Aircraft Audio System Selection (Green block)
The appropriate aircraft audio system is selected from a drop-down list at the top of the block, and all relevant configuration
information is added automatically. Other aircraft Audio systems can be added to the list (see section 2.5.4).
2.6.3.2 JA34-001 Universal Radio Adapter Adjustments (Blue block)
The blue block refers to the adjustments and settings for the JA34-001 Universal Radio Adapter.
Receive Input
The level of the RECEIVE INPUT can be adjusted from 1.50 to 10.00 Vrms. (Default 7.75 Vrms)
Artificial Sidetone
The Artificial Sidetone may be selected as On or Off. When selected ON, the level of the MIC INPUT sidetone may be
adjusted from -35 to 0 dB. (Default -10 dB) (When Off, the level is -35 dB)
Mic Bias
The MIC Bias may be On or Off. (Default On)
Mic Output
The level of the MIC OUTPUT signal may be adjusted from 0.010 to 0.625 Vrms. (Default 0.625 Vrms)
Mic Output Load Impedance
The MIC OUTPUT impedance may be set to 8 Ohms or 150 Ohms. (Default 150 Ohms)
2.6.3.3 Non-Aircraft Radio Selection (Orange block)
The appropriate Non-Aircraft Radio is selected from a drop-down list at the top of the block, and all relevant configuration
information is added automatically. Other Non-Aircraft Radios can be added to the list (see section 2.6.5).
