SERVICE MANUAL
Regarding service information other than these sections, refer to the service manual No. 86740 (GR-DX75EX).
Also, be sure to note important safety precautions provided in the service manual.
Camcorder
General
Power supply : DC 11.0V (Using AC Adapter)
DC 7.2V (Using battery pack)
Power consumption
LCD monitor off,
viewfinder on : Approx. 3.4 W
LCD monitor on,
viewfinder off : Approx. 4.6 W
Dimensions
(W x H x D) : 55 mm x 102 mm x 96 mm
(with the LCD monitor closed and
the viewfinder pushed back in)
Weight : Approx.440 g (without grip belt)
Operating
temperature :0°C to 40°C
Operating
humidity : 35% to 80%
Storage
temperature : –20°C to 50°C
Pickup : 1/6" CCD
Lens : F1.6, f =2.7 mm to 43.2 mm,
16:1 power zoom lens
Filter diameter : ø30.5 mm
LCD monitor : 3" diagonally measured, LCD
panel/TFT active matrix system
(GR-DX55/DX45)
2.5" diagonally measured, LCD
panel/TFT active matrix system
(GR-DX35/DX25)
Viewfinder : Electronic viewfinder with 0.24"
black/white LCD
Speaker : Monaural
DigitalVideo Camera
Format : DV format (SD mode)
Signal format : PAL standard
Recording/
Playback format : Video:
Digital component recording
: Audio:PCM digital recording,
32 kHz 4-channel (12-bit),
48 kHz 2-channel (16-bit)
Cassette : Mini DV cassette
Tape speed : SP : 18.8 mm/s
LP : 12.5 mm/s
Maximum
recording time : SP : 80 min.
(using 80 min. LP : 120 min.
cassette)
Connectors
S/AV
S-Video output : Y : 1 V (p-p), 75 Ω, analogue
C : 0.29 V (p-p), 75 Ω, analogue
S-Video input* : Y : 0.8 V (p-p) – 1.2V (p-p), 75Ω,
analogue
C : 0.2 V (p-p) – 0.4V (p-p), 75Ω,
analogue
Video output : 1 V (p-p), 75 Ω, analogue
Video input* : 0.8V (p-p) – 1.2V (p-p), 75 Ω,
analogue
Audio output : 300 mV (rms), 1 kΩ, analogue,
stereo
Audio input* : 300 mV (rms), 50 kΩ, analogue,
stereo
Edit : ø3.5 mm, 2-pole
DV
Output : 4-pin, IEEE 1394 compliant
Input* : 4-pin, IEEE 1394 compliant
USB : 5-pin
* GR-DX55/DX35 only.
AC Adapter
Power requirement : AC 110V to 240V`, 50 Hz/60 Hz
Output : DC 11 V , 1 A
Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject
to change without notice.
No.86735
2003/06
GR-DX25EX, GR-DX25EY, GR-DX25EZ, GR-DX25EK,
GR-DX35EX, GR-DX35EY, GR-DX35EZ, GR-DX35EK
GR-DX25EK M3D324
GR-DX25EX M3D324
GR-DX25EY M3D324
GR-DX25EZ M3D324
GR-DX35EK M3D325
GR-DX35EX M3D325
GR-DX35EY M3D325
GR-DX35EZ M3D325
DIGITAL VIDEO CAMERA
SPECIFICATIONS (The specifications shown pertain specifically to the model GR-DX25EK, GR-DX35EK, GR-DX45EK and GR-DX55EK.)

CONTENTS
DIFFERENT LIST .............................................................................................................................................................. 1 only
5. PARTS LIST.................................................................................................................................................................... 5-1
The following table indicate main different points between models GR-DX75EX, GR-DX25EK, GR-DX25EX, GR-DX25EY, GR-
DX25EZ, GR-DX35EK, GR-DX35EX, GR-DX35EY and GR-DX35EZ.
DIFFERENT LIST
DIFFERENT TABLE OF FEATURE
Notes: Mark is same as left.
MODEL
GR-DX25EK
ITEM
VIDEO FLASH USED NOT USED
DSC FLASH MEMORY(MEMORY CARD) USED(MMC-8MB) NOT USED
DV TERMINAL USED(IN/OUT) USED(OUT) USED(IN/OUT)
ANALOG INPUT USED NOT USED USED
E-MAIL VIDEO CLIP REC USED NOT USED
DIGITAL STILL CAMERA USED NOT USED
AC CORD CEE PLUG BS PLUG CEE PLUG BS PLUG CEE PLUG
MEMORY CARD PROVIDED(MMC 8MB) NOT USED
GR-DX25EX GR-DX25EY GR-DX25EZ GR-DX35EK GR-DX35EY GR-DX35EZGR-DX75EX
1
GR-DX35EK

VICTOR COMPANY OF JAPAN, LIMITED
12,3-chome,Moriya-cho,Kanagawa-ku,Yokohama,Kanagawa-prefecture,221-8528,JapanAV & MULTIMEDIA COMPANY.
Printed in Japan
0306 VP

4-1
SECTION 4
CHARTS AND DIAGRAMS

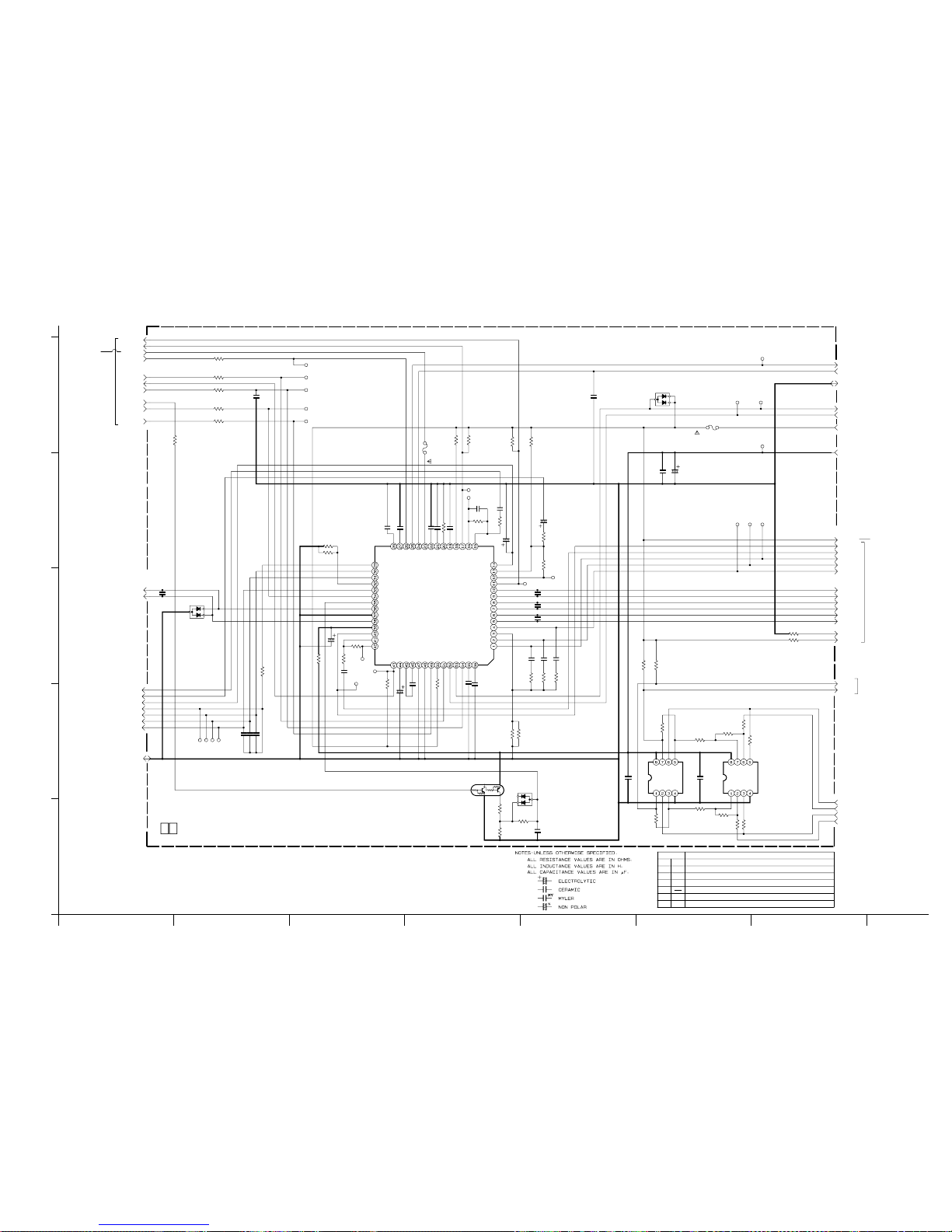

NOTES OF SCHEMATIC DIAGRAM
Safety precautions
The Components identified by the symbol are
critical for safety. For continued safety,replace safety
critical components only with manufacturer's recom-
mended parts.
1. Units of components on the schematic diagram
Unless otherwise specified.
1) All resistance values are in ohm. 1/6 W, 1/8 W (refer to
parts list).
Chip resistors are 1/16 W.
K: KØ (1000Ø), M: MØ (1000KØ)
2) All capacitance values are in µF, (P: PF).
3) All inductance values are in µH, (m: mH).
4) All diodes are 1SS133, MA165 or 1N4148M (refer to parts
list).
2. Indications of control voltage
AUX : Active at high.
AUX or AUX(L) : Active at low.
3. Interpreting Connector indications
Note: If the voltages are not indicated on the schematic
diagram, refer to the voltage charts.
123
2.5
(5.0) 1.8
PB and REC modes
(Voltage of PB and REC modes
are the same)
PB mode
REC mode
4. Voltage measurement
1) Regulator (DC/DC CONV) circuits
REC : Colour bar signal.
PB : Alignment tape (Colour bar).
— : Unmeasurable or unnecessary to measure.
4) Indication on schematic diagram
Voltage Indications for REC and PB mode on the sche-
matic diagram are as shown below.
5. Signal path Symbols
The arrows indicate the signal path as follows.
NOTE :The arrow is DVC unique object.
Playback signal path
Playback and recording signal path
Recording signal path
(including E-E signal path)
Capstan servo path
Drum servo path
(Example)
R-Y
YPlayback R-Y signal path
RecordingY signal path
6. Indication of the parts for adjustments
The parts for the adjustments are surrounded with the circle as
shown below.
7. Indication of the parts not mounted on the circuit board
“OPEN” is indicated by the parts not mounted on the circuit
board.
R216
OPEN
1
2
3
1
2
3
1
2
3
1
4
23
Removable connector
Wire soldered directly on board
Non-removable Board connector
Board to Board
Connected pattern on board
The arrows indicate signal path
Note: The Parts Number, value and rated voltage etc. in
the Schematic Diagram are for references only.
When replacing the parts, refer to the Parts List.
Note: For the destination of each signal and further line
connections that are cut off from the diagram,
refer to "BOARD INTERCONNECTIONS"
4-2 S40889-01
CIRCUIT BOARD NOTES
1. Foil and Component sides
1) Foil side (B side) :
Parts on the foil side seen from foil face (pattern face)
are indicated.
2) Component side (A side) :
Parts on the componentsideseenfrom component face
(parts face) indicated.
2. Parts location guides
Parts location are indicatedbyguidescaleon the circuit board.
Note: For general information in service manual, please
refer to the Service Manual of GENERAL INFORMA-
TION Edition 4 No. 82054D (January 1994).
LOCATION
REF No.
IC101 B C 6 A
IC Category : IC
Horizontal “A” zone
Vertical “6” zone
B : Foil side
(A : Component side)
C : Chip component
D : Discrete component)

HGFEDCBA
4
5
3
2
1
y10371001a_rev0
CCD
(Page 4-65)
C_FG[+]
Vout
HG_BS[-]
C_FG[-]
HG_U[-]
HG_W[+]
HG_W[-]
SUB_OPE
HG_U[+]
HG_V[-]
HG_V[+]
LOAD_REV
GND
C_COIL_U
C_COIL_U
C_COIL_W
C_COIL_W
C_COIL_V
C_COIL_V
GND
D_PFG[+]
COIL_COM
D_COIL_W
D_COIL_W
D_COIL_V
D_COIL_V
D_COIL_U
D_COIL_U
D_PG[-]
D_FG[-]
MAIN
SPEAKER
MDA_2.9V
TRIG_SW
2S
2F
1S
1F
GND
MULTI
GND
GND
GND
MONITOR
(Page 4-71)
01
T_RL[+]
A_AD/DA
GND
SERVO
CAM_SW_A
SIDE OPE
CAM_SW_B
CAM_SW_C
PRE/REC
NC/VB
TAPE_LED
NC
NC
CN107, CN103
SERVO
SYSCON
02
GND
BL
V_OUT
AUDIO
REM_OUT
CONN.
F_PTR_AD
H_GAIN
IRIS_O/C
OP BLOCK
DIAL_AUTO
MDA_2.9V
0
GND
SYSCON
GND
GND
CN113
GND
SUB
Y_OUT
DV_MAIN
J102
V1
GND
DEW_SENS
6MONITOR
HG_BS[+]
LOAD_REV
H1
LOAD_FWD
LOAD_FWD
8MB
SENSOR
HEAD
Victor
MultiMediaCard
REG
CLK4M5
MM
SELCT_SW
INT MIC
M
R.E.SW
Z_PTR_AD
CAPSTAN MOTOR DRUM MOTOR HEAD
CU-MMC04
DATA_OUT
LOADING MOTOR
V2
C_OUT
OP_THRMO
DSC
ROTARY
ENCODER
SW
OP_DRV
GND
V4
P_DET
LCD_VEE
+
-
V_I/O
DV
DIAL_MANU
AUDIO
AD/DA
(Page 4-23)
MINUS_SW
PRE/REC
SPK+
SPK-
JIG
REG
DV_MAIN
(Page 4-31)
SD/MMC
JIG
CAM_DSP
AUDIO
SERVO
J101
JIG
CAM_DSP
GND
ADP_DC
A_AD/DA
CAS_SW
REC_SAFE
AU_SIG/R
DV_MAIN
S_SENS
V3
REG
DSC
DV_MAIN
T_RL[-]
LCD_COM
VF_COM
HLTOR
USB
REEL_VCC
HALL_AD
F/Z_RST
MMC
SD/
IRIS_PWM
CAMERA OPE
HODL
S_RL[+]
CAM_VD
E_SENS
GND
ADP_DC
GND
CVF_B
CVF_R
CVF_G
PDR
REG_3V
M_RVS
GND
GND
GND
GND
GND
H_OFFSET
VDD
AU_SIG/L
GND
PT
IRIS_C
F/Z_CS
M_REG4.8
STOP_SW
DIAL_PB
MENU_SW
SUB OPE
GND
S_RL[-]
GND
GND
Z_LED
NAVI_SW
Z_PTR_AD
Z_VCC
HGout+
M_REG4.8
M_REG4.8
GND
CLK_OUT
ZOOM01
ZOOM04
ZOOM03
INFO_SW
ADP_DC
ZOOM02
F_VCC
REG_4.8
F_LED
REG_4.8
REG_3V
FOCUS01
FOCUS04
FOCUS03
FOCUS02
DRIVE-
OP_THRMO
PDR
REG_3V
F_PTR_AD
INDEX_SW
R
CVF_G
CVF_R
ADP_DC
PLUS_SW
CVF_B
ADP_DC
HODL
HLTOR
VF_COM
VF_VEE2V
VF_VDD9V
VREF
HPL
HCK
NC
MON_B
MON_G
MON_R
RENEN
LCD_RVS
RENON
VIDL
REG_12V
LCD_G
LCD_R
LCD_B
LV_OUT
LV_CLK
M_CS
LV_IN
ROM_CS
REG
(Page 4-53)
STH1
OEH
Q2H
REG
CLK1
SYSCON
CLK2
CLK3
HDCVF
GND
OP_DRV (Page 4-67)
VDCVF
AUDIO
(Page 4-25)
HRP
REG_4.8V
MDA (Page 4-21)
REG_4.8V
PRE/REC
(Page 4-37)
REG_4.8V
STH2
REG_4.8V
MON_B
VGH
VDD
STV1
OEV
CPV
UD
MDA
STV2
NC/-15V
VGL
ADP_DC
BL_GND
GND
GND
HV
LCD(MONITOR) PANEL
HL
GND
GND
H1
GND
USBSENSE
H2
DV_MAIN
DC JACK
ADP_DC
ADP_DC
T
USB_DN_RX
BATT.TERM.
MON_G
ZOOM_SW
REG_3V
REG_15V
DIAL_OFF
REG_-15V
USB_DP_TX
T_BATT
LCD_CTL
TPB-
PHOTO_SW
GND
VF_LCD
GND
V4
TPB+
CCD-8V
V1
GND
V3
TPA-
CCD_OUT
V2
GND
TPA+
H2
CCD+12V
GND
SUB
CCD+12V
GND
GND
CCD-8V
SUBSW2
HL
RG
REG_3V
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
MIC3
MIC2
MIC1
USB (Page 4-64)
DAMP-
CN101
CVF_G
PDR
VF_VEE2V
SENSOR
HGVcc+
VREF
CVF_B
CVF_R
PWR_LED
VF_VDD9V
HLTOR
SPK-
SPK-
HODL
VF_VEE2V
HPL
HDCVF
VF_COM
VREF
REG_12V
VF_VDD9V
SYSCON
HCK
HPL
GND
MECHA
VF_LCD
RENON
RENEN
MON_B
VFREG4.8
HGout-
HGVss-
DRIVE+
DAMP+
VIDL
SD_WP
MMC_CD
MULTI
JIG
REG_-15V
GND
REG
M32_MMC_CS
MMC_CMD
EJT_SW
P_MEDIA
GND
GND
HRP
S_CLK
MULTI
SYSCON
CN114
CN113
M_BL_ON
REG
CAM_DSP
SYSCON OP
KEY_A
SPK+
GND
LITHIUM
RENEN
VIDEO_I/O
(Page 4-39)
CAM_DSP
RENON
MON_G
REG_15V
VF_SW
JIG
MMC_DATA
MMC_CLK
REG
SERVO
GND
GND
VFREG4.8
VIDL
RENON
RENEN
REG
USB
CAM_DSP
SYSCON
DSC (Page 4-57)
HCK
HCK
VIDL
LCD_G
LCD_R
LCD_B
S_DT_OUT
M_CS
S_DT_IN
ROM_CS
VDCVF
REG_4.8V
REG_4.8V
REG_4.8V
REG_4.8V
MONI_SW
SPK+
HPL
VREF
VF_VDD9V
VF_VEE2V
VF_COM
HLTOR
HODL
CVF_B
CVF_R
CVF_G
PDR
GND
GND
VFREG4.8
VIDL
RENON
RENEN
HCK
HPL
VREF
VF_VDD9V
VF_VEE2V
VF_COM
HLTOR
HODL
VPL
VCK
VIDH
PDR
THH
PDR
VIDH
VCK
VPL
HODL
HLTOR
VF_COM
VF_VEE2V
VF_VDD9V
GND
VREF
HPL
HCK
RENEN
RENON
VIDL
TCL
THL
TV
VF_COM
CVF_G
M_RVS
REG_3V
GND
CVF_R
CVF_B
GND
HCK1
HCK2
HST
VDD
VCK2
VST
VDD
EN
STB
GND
VDD(12V)
MIC/L
MIC/R
MIC_GND
MIC_GND
VF_SW
LITHIUM
KEY_A
P_MEDIA
EJT_SW
REG_3V
GND
STO_E
STO_C
REG_4.8V
STO_OFF
GATE
CHG_ON
DTRB_AD
GND
GND
GND
M_REG4.8
M_REG4.8
STROBE
SENSOR
(Page 4-9)
REG
SYSCON
DV_MAIN
STROBE
STO_SENS
TO SYSCON
04
SIDE OPE
(Page 4-69)
LITHIUM
08VF BW
(Page 4-70)
08CVF
LCD(VF BW)PANEL
LCD(CVF)PANEL
03SD
(Page 4-66)
07STROBE
(Page 4-73)
J104
CN104
CN106
CN108
CN103
REG
REG
OR
REG
CN7601
CN7602
STO_SENS
REG
A_ADDA
MDA
AUDIO
OP_DRV
CN113
DV_MAIN
JIG
DV_MAIN
CDS/AD
CDS/AD
(Page 4-63)
CAM_DSP
(Page 4-43)
USB
MULTI
CDS/AD
SERVO
(Page 4-19)
SYSCON
(Page 4-15)
REG
SYSCON
TG/VDR
(Page 4-49)
CAM_DSP
TG/VDR
CN102
CDS
CAM_DSP
SERVO
VIDEO_I/O
TG/VDR
SERVO
SYSCON
REG
JIG
TO DV_MAIN
CAMERA_OPE
AUDIO
REG
VIDEO_I/O
SYSCON REG
CAM_DSP CN102
TG/VDR
DSC
OP_DRV
DSC
SYSCON
CAM_DSP
CN107CN103CN104CN108
REG_3V
CN101
RECH
PBH
HID3
DUMP_CTL
HG_U[+]
HG_W[-]
HG_BS[-]
HG_W[+]
HG_BS[+]
HG_U[-]
HG_V[+]
HG_V[-]
C_COIL_U
C_COIL_W
C_FG[+]
C_FG[-]
C_COIL_V
MDA_PS
RECH
LCD_R
LCD_B
CVF_G
PDR
CN7601
NOSIG_LV
ATF_GAIN
RECCADJ
Z_VCC
ATFI
HLTOR
REF_CLK
CN105
REC_DATA
REC_CTL
MONI_CHG
NAVI_SW
HID1
REC_CLK
VRB_AGC
VRB_ATF
AGC_OUT
GND
USBDOWN
CN301
REG_4.8V
MD_AU/L
DRUM_ERR
DSC_RST
CN106
REG_3V
REG_2.5V
V_OUT
REG_4.8V
VREF_1.1
S_REEL
ENV_OUT
2S
2F
CN110
1S
M_REG4.8
1F
AL_3V
MD_DEM1
GND
REG_1.8V
CN303
HID1
AGC_OUT
VRB_AGC
ATFI
VRB_ATF
REC_DATA
REC_CTL
I_MTR
REF_CLK
VREF_1.1
LCD_G
CVF_B
EM_AU/L
DISCRI
SPA
J103
J104
FS_PLL
MAIN_VCO
DRIVE-
PB_CLK
ZOOM04
F_PTR_AD
F_VCC
F_LED
ZOOM03
ZOOM02
ZOOM01
GND
DAMP+
DCO[0-3]
EXT_IN_L
HGout+
DAMP-
OP_THRMO
HGout-
HGVss-
HGVcc+
DRIVE+
REG_2.5V
GND
M_CS
Z_PTR_AD
IRIS_PWM
LV_IN
CVF_R
CN305
M_UNREG
CN109
S_IN_L
TBC_RST
DYO[0-3]
TBC_CS
TBC_CLK
TBC_DTO
DCI[0-3]
TBC_DTI
CN113
DUMP_CTL
VC[0-3]
NOSIG_LV
REC_CLK
ATFI
EM_AU/R
CN111
CN112
ADDT[00-15]
USB_DP
PWAD2
CLK27A
DV_WAIT
ATF_GAIN
DRWSEL
CDDSTB
DWE
DALE
INV
INH
OUTV
OUTH
BLK[A-C]
EM_AU/L
TBCCTL
DOBCK2
OSD_HD
OSD_VD
DOT_CLK
RECCADJ
J101
OUT_Y[0-3]
DYI[0-3]
AIDAT
AODAT
AILRCK
AIBCK
AIMCK
TSR
CN302
FRP
CLK27A
DV_RST
SPA
TPA+
TPA-
TPB+
TPB-
ROM_CS
HDCVF
VDCVF
HRP
DCO[0-3]
MON_B
MON_G
CLK27SEL
SRV_TRK
LCD_CTL
LD_ON
DYO[0-3]
VF_LCD
DOMCK2
DOLRCK2
DODAT2
FOCUS04
FOCUS03
FOCUS02
MD_AU/R
CARD_DET
BATT_+
MD_AU/L
INV
ADP_DC
HDCVF
USB_DN GI03
DRUM_PWR
DRUM_ERR
CJIG_RST
VF_CTL
FOCUS01
REG_3V
HALL_AD
IRIS_O/C
CAP_PWR
F/Z_CS
CAP_ERR
REG_15V
CAM_OUT
V_BATT
I_MTR
M_UNREG
INH
OUT_C[0-3]
OUT_VS
AREG_SO
AREG_CLK
OUT_HS
REG_CS
REG_3V
REG_2.5V
GND
REG_1.8V
M_REG4.8
REG_4.8V
VFREG4.8
D_GAIN
REG_12V
REG-CCD
REG_-15V
LIT_3V
LITHIUM
CHRG_EVR
CAM_CLK
TG_RST
M_REG4.8
OP_THRMO
SD_WP
STV2
H_GAIN
CAM_VD
CLK4M5
H_GAIN
EM_AU/R
LCD_G
LCD_B
LCD_R
H_OFFSET
H_OFFSET
ASPECT1
VDCVF
REG_4.8V
REG_3V
REG_1.8V
SD_DATA2
MMC_CS
GND
Dat2MMC
VSS(GND)
ASPECT2
A_CSYNC
VDD(DSC_3V)
MMC_CLK
VSS2/CD
Dat2Host
SD_DATA1
STV1
Q2H
CLK1
CPV
GND
SD_WP
M32_MMC_CS
MMC_CMD
MD_AU/R
CLK2
REG_3V
PBH
CLK3
MMC_CLK
LCD_RVS
MMC_CD
MMC_DATA
OEH
CAP_PWR
DRUM_REF
DRUM_PG
BL_4.8V
LOAD_FWD
LOAD_REV
C_FRB
COIL_COM
D_PFG[+]
D_COIL_W
D_COIL_V
D_COIL_U
D_PG[-]
D_FG[-]
CAP_ERR
GND
DRUM_PWR
GI06
CAP_REF
CAP_FG
DRUM_FG
REG_3V
OEV
STH1
STH2
MON_R
MON_G
MON_B
CN102
GND
GND
Z_PTR_AD
F_PTR_AD
REG_3V
REG_4.8V
AIDAT2
GND
REG_CCD
AILRCK
AIMCK
AIBCK
AODAT
AIDAT
USB DOWN
SPK-
SPK+
MIC/L
MIC/R
S_SHUT
AU_SIG/R
AU_SIG/L
EM_CS2
PD_L
CLK_OUT
AUDIO_CS
DATA_OUT
A_MUTE
BUZZER
J102
HRP
T_REEL
A10
Z_LED
MIC_GND
ADCLK
PBLK
SHP
HID3
ROM_CS
MONI_CHG
REG_12V
REG_3V
GND
REG_4.8V
CN7602
VGL
LCD_COM
GND
GI015
NC/VB
LCD_VEE
VGH
VDD
NC/-15V
UD
CN7001
C_OUT
V_OUT
Y_OUT
L_FRB
USBSENS
FLSH_WE
FLSH_OE
REG_4.8V
REG_15V
REG_-15V
D[0-15]
FLSH_RST
DSC_RST
EEPROM_CS
EEP_DT_CLK
IRIS_C
CLK_OUT
HODL
VF_COM
DATA_OUT
CAM_SW_C
HDIN
CPOB
AIDAT2
CAM_SW_B
RENEN
SHD
VREF
VF_VDD9V
VF_VEE2V
HCK
LV_CLK
LV_OUT
RENON
VIDL
DSC_CLK
HPL
DSC_DT_OUT
DSC_DT_IN
DSC_CS
MXDT_OUT
DSC_STS
CAPT_REQ
DSC_WKUP
MMC_CLK
MMC_DATA
MMC_CMD
M32_MMC_CS
MMC_CD
SD_WP
VDDSC
DSYIO[0-7]
DSCIO[0-7]
DSCO[0-7]
DSYO[0-7]
FLDDSC
HDDSC
CLKDSC
CLK27B
REG_1.8V
REG_3V
GND
D[0-15]
A10
EM_CS2
FLSH_OE
FLSH_WE
USBDOWN
GI03
GI06
GI015
CLK27B
S_DC_IN
DOBCL2
DOMCK2
DOLRCK2
DODAT2
CN7001
CN7002
CN7002
CN304
CN114
CN401
CN115
CN6501
REG_3V
STRB_CHG
SENS_EVR
SENSPULS
STRB_AD
GATEPULS
REG_12V
GND
REG_4.8V
STO_OFF
STO_E
STO_C
STO_OFF
GATE
CHG_ON
DTRB_AD
SENS_EVR
DATA_OUT
CLK_OUT
DAC_CS
PWDA2
CAM_SW_A
HID1
S_CLK
EEP_DT_OUT
EEP_IN
REG_1.8V
SRV_CS
S_CLK
CALE
SUBSW2
HL
VDIN
TAPE_LED
MDA_2.9V
T_RL[+]
MDA_2.9V
T_RL[-]
S_RL[+]
S_RL[-]
S_DT_IN
E_SENS
REEL_VCC
L_FRB S_DT_OUT
S_REEL
S_SENS
MIC_1
MIC_2
MIC_3
REC_SAFE
DEW_SENS
SRV_RDY
MDA_PS
CAM_VD
CAP_REF
CAP_FG
DRUM_REF
DRUM_PG
DRUM_FG
CLK9A
LD_ON
DRST
CAM_VD
HID1
SPA
SRV_RST
HID1
FRP
TSR
SRV_TRK
CLK27SEL
DV_RST
T_REEL
C_FRB
SRV_RX
SRV_TX
D_GAIN ADDT[00-15]
OUTV
DV_WAIT
EEPROM_CS
TG_36M
EEP_DT_CLK
EEP_DT_OUT
EEP_IN
MONI_CHG
REG_4.8V
S_DT_IN
VPPD
MD_DEM1
REG_3V
GND
CJIG_RST
CLK_OUT
TG_CS
DIAL_PB
DIAL_OFF
DIAL_AUTO
DIAL_MANU
TRIG_SW
PWR_LED
ZOOM_SW
PHOTO SW
STOP SW
IF_TX
VPPC
AL_3VSYS
JLIP_TX
T_BATT
ADP_H
V_BATT
VF_CTL
I_MTR
AREG_SO
AREG_CLK
REG_CS
S_DC_IN
ASPECT2
ASPECT1
REM_OUT
JLIP_RX
CJIG_RST
STO_OFF
STRB_AD
GATEPULS
SENSPULS
STRB_CHG
F/Z_CS
EXT_IN_L
S_IN_L
TBC_RST
TBC_CS
TBC_CLK
TBC_DTO
TBC_DTI
REG-CCD
CHRG_EVR
REG_12V
TG_RST
H2
H1
RG
SUB
REG_3V
V1
V2
V3
V4
M_CS
S_DT_OUT
M_BL_ON
M_RVS
P_MEDIA
PWAD2
PD_L
PWDA2
AUDIO_CS
A_MUTE
BUZZER
KEY_A
VF_SW
MONI_SW
CAS_SW
VF_CTL
CAS_SW
DATA_OUT
DAC_CS
TBCCTL
OUT_Y[0-3]
OUT_C[0-3]
OUT_VS
OUT_HS
GND
HALL_AD
IRIS_O/C
HDDSC
VDDSC
FLDDSC
OP_THRMO
F_PTR_AD
P_DET
Z_PTR_AD
F/Z_RST
DATA_OUT
CLK_OUT
AL_3V
CLK27B
FLSH_RST
DSC_RST
DSC_CLK
DSC_DT_OUT
DSC_DT_IN
DSC_CS
MXDT_OUT
DSC_STS
CAPT_REQ
DSC_WKUP
SD0CD
LIT_3V
GND
REG_3V
DSCIO[0-7]
CLK_OUT
DATA_OUT
CRWSEL
CDSTB
CLKDSC
CRWSEL
CDSTB
DSP_RST
DSP_RST
ADCLK
CLK9A
HDIN
TG_36M
VDIN
REG_3V
CLK27A
IRIS_C
ADIN[0-9]
CPOB
CLK27A
PBLK
CDS_CS
BUS[0-15]
OMT
DSYO[0-7]
DSCO[0-7]
GND
CPOB
SHP
SHD
CLK27B
BLK[A-C]
DSYIO[0-7]
CCD_CTL
A_CSYNC
PBLK
CCD_OUT
CDS_CS
CLK_OUT
DATA_OUT
ADIN[0-9]
REG_4.8V
GND
CPOB
PBLK
IRIS_PWM
OSD_HD
BUS[0-15]
OSD_VD
DOT_CLK
VC[0-3]
CAM_VD
CLK4M5
MVD
CALE
OMT
MFLD
MFLD
OUTH
OUTV
DYI[0-3]
MVD
DCI[0-3]
INV
DCO[0-3]
INH
DYO[0-3]
S_SHUT
S_DT_IN
VF_LCD
DATA_OUT
CLK_OUT
USBDOWN
DSC_RST
CCD_CTL
EJT_SW
CAS_SW
CLK_OUT
DATA_OUT
TG_RST
DRWSEL
DRE
DWE
DALE
TG_CS
SRV_RDY
SRV_CS
S_CLK
S_DT_OUT
SRV_RST
PB_CLK
MAIN_VCO
HID1
FS_PLL
DRST
SRV_TX
TXD2
IF_TX
CJING_RST
JLIP_TX
MONI_CHG
VPPC
VPPD
AL_3VSYS
GND
DISCRI
JLIP_RX
RXD2
ENV_OUT
GND
REG_3V
SRV_RX
ATFI
CVF_G
SPA
V_OUT
GND
VIDL
MON_G
MON_B
SD0CD JIG TXD2
RXD2
1 2 3 4 5 6 7 8 9
10
11
12 13 14 15 16 17 18
1 2 3 4 5 6 1 2 3 4 5 6 7 8 9
10
11
6 5 4 3 2 1
∗
YTU94074-18
YTU94077-18
NOTE ) :
∗
The number of patch cords are
indicated by interconnected.
∗
YTU94074-6
YTU94077-6
∗
YTU94074-11
YTU94077-11
∗
YTU94074-16
YTU94077-16
∗
YTU94074-18
YTU94077-18
∗
YTU94074-8
YTU94077-8
∗
YTU94074-6
YTU94077-6
∗
YTU94074-12
YTU94077-12
∗
YTU94074-9
YTU94077-9
∗
YTU94074-11
YTU94077-11
∗
YTU94074-24
YTU94077-24
4.1 BOARD INTERCONNECTIONS [FOR MEGA PIXEL with DSC MODEL]
4-3 4-4

HGFEDCBA
4
5
3
2
1
y10369001a_rev0
CCD
C_FG[+]
Vout
HG_BS[-]
C_FG[-]
HG_U[-]
HG_W[+]
HG_W[-]
HG_U[+]
HG_V[-]
HG_V[+]
LOAD_REV
GND
C_COIL_U
C_COIL_U
C_COIL_W
C_COIL_W
C_COIL_V
C_COIL_V
GND
D_PFG[+]
COIL_COM
D_COIL_W
D_COIL_W
D_COIL_V
D_COIL_V
D_COIL_U
D_COIL_U
D_PG[-]
D_FG[-]
MAIN
SPEAKER
MDA_2.9V
TRIG_SW
2S
2F
1S
1F
GND
MULTI
GND
GND
GND
MONITOR
01
T_RL[+]
AD/DA
GND
SYSCON
CAM_SW_A
CAM_SW_B
CAM_SW_C
NC/VB
TAPE_LED
NC
NC
02
GND
BL
V_OUT
AUDIO
REM_OUT
CONN.
F_PTR_AD
H_GAIN
IRIS_O/C
OP BLOCK
(Page 4-69)
(Page 4-70)
(Page 4-73)
(Page 4-11)
(Page 4-68) (Page 4-51)
(Page 4-41)
(Page 4-37)
(Page 4-21)
(Page 4-33)
(Page 4-45)
(Page 4-59)
(Page 4-64)
(Page 4-23)
(Page 4-27)
(Page 4-65)
(Page 4-66)
DIAL_AUTO
DAMP+
HGVcc+
HGout+
Z_LED
ZOOM03
FOCUS02
FOCUS01
FOCUS04
FOCUS03
F_VCC
F_LED
ZOOM01
GND
OP_THRMO
F_PTR_AD
HGout-
ZOOM02
PB_CLK
MAIN_VCO
ZOOM04
MDA_2.9V
0
GND
SYSCON
DAMP-
GND
Z_PTR_AD
GND
DRIVE+
HGVss-
Z_VCC
GND
CN113
GND
RG
Y_OUT
DV_MAIN
J102
V1
GND
DEW_SENS
6MONITOR
HG_BS[+]
LOAD_REV
H2
LOAD_FWD
LOAD_FWD
8MB
SENSOR
HEAD
Victor
MultiMediaCard
REG
CLK4M5
MM
SELCT_SW
INT MIC
M
R.E.SW
Z_PTR_AD
CAPSTAN MOTOR DRUM MOTOR HEAD
CU-MMC04
CAM_OUT
LOADING MOTOR
V2
C_OUT
OP_THRMO
DSC
ROTARY
ENCODER
SW
OP DRV
GND
V4
P_DET
LCD_VEE
+
-
VIDEO_I/O
DV
DIAL_MANU
AUDIO
MINUS_SW
PRE/REC
SPK+
SPK-
AD/DA
MDA
CN106
PRE/REC
CN107
CN103
JIG
REG
HID1
DVMAIN
SD/MMC
JIG
CAM_DSP
OP DRV
AUDIO
SYSCON
J101
JIG
FS_PLL
CAM DSP
GND
ADP_DC
AD/DA
CAS_SW
REC_SAFE
AU_SIG/R
DVMAIN
S_SENS
V3
REG
DSC
DVMAIN
T_RL[-]
LCD_COM
DVMAIN
VF_COM
JIG
DVMAIN
HLTOR
USB
REEL_VCC
HALL_AD
NC
NC
TG_RST
MMC
SD/
IRIS_PWM
NC
MMOD_1
CAMERA OPE
MMOD_0
HODL
S_RL[+]
CAM_VD
E_SENS
CAM DSP
GND
ADP_DC
GND
VPL
VCK
VIDH
PDR
REG_3V
M_RVS
JLIP_TX
GND
GND
GND
GND
GND
H_OFFSET
VDD
AU_SIG/L
GND
SUB
IRIS_C
F/Z_CS
M_REG4.8
MONI_CHG
STOP_SW
DIAL_PB
MENU_SW
SUB OPE
GND
S_RL[-]
GND
EXMOD_1
GND
NAVI_SW
IF_TX
M_REG4.8
M_REG4.8
I_MTR
CAM_CLK
INFO_SW
ADP_DC
REG_4.8
REG_4.8
REG_3V
PDR
GND
REG_3V
INDEX_SW
VL
VIDH
VCK
ADP_DC
PLUS_SW
DISCRI
VPL
ADP_DC
HODL
HLTOR
VF_COM
VF_VEE2V
VF_VDD9V
VREF
HPL
HCK
NC
MON_B
MON_G
MON_R
RENEN
LCD_RVS
RENON
VIDL
REG_12V
LCD_G
LCD_R
LCD_B
LV_OUT
LV_CLK
M_CS
LV_IN
ROM_CS
SYSCON
REG
JLIP_RX
STH1
OEH
Q2H
REG
CLK1
SYSCON
SYSCON
CLK2
CLK3
HDCVF
GND
OP DRV TG/VDR
VDCVF
AUDIO
HRP
REG_4.8V
MDA
REG_4.8V
PRE/REC
REG_4.8V
STH2
REG_4.8V
MON_B
VGH
VDD
STV1
OEV
CPV
UD
MDA
STV2
NC/-15V
VGL
ADP_DC
BL_GND
VCK
GND
GND
HV
LCD(MONITOR) PANEL
ENV_OUT
H1
GND
GND
H2
GND
USBSENSE
TEST
DVMAIN
DC JACK
ADP_DC
ADP_DC
T
USB_DN
BATT.TERM.
MON_G
ZOOM_SW
REG_3V
REG_15V
DIAL_OFF
REG_-15V
USB_DP
T_BATT
LCD_CTL
TPB-
PHOTO_SW
GND
VF_LCD
GND
TG/VDR
V4
TPB+
SUB
V1
GND
V3
TPA-
CCD_OUT
V2
GND
TPA+
CCD_-7.5V
GND
GND
CCD_15V
CCD_15V
GND
GND
CCD_CTL
GND
H1
RG
REG_3V
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
MIC3
MIC2
MIC1
USB
GND
CJIG_RST
AL_3VSYS
CN101
CN102
VIDH
PDR
AUDIO
VIDEO_I/O
VF_VEE2V
SENSOR
VREF
VPL
ATFI
VCK
PWR_LED
VF_VDD9V
HLTOR
SPK-
SPK-
HODL
VF_VEE2V
HPL
HDCVF
VF_COM
VREF
REG_12V
VF_VDD9V
SYSCON
HCK
HPL
GND
MECHA
VF_LCD
RENON
TG/VDR
RENEN
MON_B
VFREG4.8
VIDL
SD_WP
MMC_CD
MULTI
JIG
REG_-15V
GND
REG
M32_MMC_CS
MMC_CMD
EJT_SW
P_MEDIA
GND
GND
J104
CAMERA OPE
AUDIO
REG
HRP
LV_CLK
J103
SYSCON
CN114
CN113
MULTI
LCD_CTL
REG
CAM DSP
SYSCON OP
STO_SENS
KEY_A
SPK+
GND
LITHIUM
RENEN
VIDEO I/O
CAM DSP
RENON
MON_G
VIDEO_I/O
REG_15V
SYSCON REG
CAM_DSP CN102
REG
VF_SW
DSC
JIG
MMC_DATA
MMC_CLK
DSC
USB
SIDE OPE
CAM DSP
VIDH
REG
SYSCON
GND
GND
VFREG4.8
VIDL
RENON
RENEN
VPL
V_OUT
GND
VIDL
MON_G
MON_B
REG
USB
CAM DSP
SYSCON
DSC
HCK
HCK
VIDL
LCD_G
LCD_R
LCD_B
LV_OUT
M_CS
LV_IN
ROM_CS
VDCVF
REG_4.8V
REG_4.8V
REG_4.8V
REG_4.8V
MONI_SW
SPK+
HPL
VREF
VF_VDD9V
VF_VEE2V
VF_COM
HLTOR
HODL
CVF_B
CVF_R
CVF_G
PDR
GND
GND
VFREG4.8
VIDL
RENON
RENEN
HCK
HPL
VREF
VF_VDD9V
VF_VEE2V
VF_COM
HLTOR
HODL
VPL
VCK
VIDH
PDR
THH
PDR
VIDH
VCK
VPL
HODL
HLTOR
VF_COM
VF_VEE2V
VF_VDD9V
GND
VREF
HPL
HCK
RENEN
RENON
VIDL
TCL
THL
TV
VF_COM
CVF_G
M_RVS
REG_3V
GND
CVF_R
CVF_B
GND
HCK1
HCK2
HST
VDD
VCK2
VST
VDD
EN
STB
GND
VDD(12V)
MIC/L
MIC/R
MIC_GND
MIC_GND
VF_SW
LITHIUM
KEY_A
P_MEDIA
EJT_SW
REG_3V
GND
STO_E
STO_C
REG_4.8V
STO_OFF
GATE
CHG_ON
DTRB_AD
GND
GND
GND
M_REG4.8
M_REG4.8
STROBE
SENSOR
REG
SYSCON
DVMAIN
STROBE
CN113
STO_SENS
AD/DA
04SIDE OPE
LITHIUM
08VFBW
08CVF
LCD(VFBW)PANEL
LCD(CVF)PANEL
03SD
07STROBE
OP DRV
J104
CN104
CN106
CN108
CN103
REG
SYSCON
REG
REG
CN7601
CN7602
SUB OPE
CN101
C_FRB
CN107CN103CN104CN108
REG_3V
CN302
CN101
RECH
PBH
HID3
DUMP_CTL
HG_U[+]
HG_W[-]
HG_BS[-]
HG_W[+]
HG_BS[+]
HG_U[-]
HG_V[+]
HG_V[-]
C_COIL_U
C_COIL_W
C_FG[+]
C_FG[-]
C_COIL_V
MDA_PS
LCD_R
LCD_B
VIDH/
PDR
PBH
CN7601
NOSIG_LV
ATF_GAIN
RECCADJ
Z_VCC
ATFI
HLTOR
CLK54
REF_CLK
PBLK
SHP
CN105
REC_DATA
REC_CTL
MONI_CHG
HID3
INV
L_FRB
HID1
REC_CLK
VRB_AGC
VRB_ATF
AGC_OUT
CAM_CLK
GND
CAM_OUT
CAM_SW_C
CN301
XAHD
CLK18
REG_4.8V
MD_AU/L
DRUM_ERR
CAM_SW_B
CN106
SHD
REG_3V
REG_2.5V
V_OUT
REG_4.8V
VREF_1.1
S_REEL
ENV_OUT
2S
2F
CN110
1S
M_REG4.8
1F
AL_3V
MD_DEM1
GND
REG_1.8V
CAM_SW_A
CN303
HID1
AGC_OUT
VRB_AGC
ATFI
VRB_ATF
REC_DATA
REC_CTL
I_MTR
REF_CLK
VREF_1.1
LCD_G
VPL/
HID1
LV_CLK
EM_AU/L
DISCRI
J103
REG_1.8V
J104
EXMOD_1
PLUS_SW
VF_LCD
XINT
CAPT_REQ
CCD_CTL
XAVD
TAPE_LED
FS_PLL
LV_IN
MAIN_VCO
ZOOM01
DRIVE-
PB_CLK
E_SENS
ZOOM04
F_PTR_AD
F_VCC
F_LED
REEL_VCC
ZOOM03
ZOOM02
GND
DAMP+
DCO[0-3]
EXT_IN_L
HGout+
DAMP-
OP_THRMO
HGout-
HGVss-
HGVcc+
DRIVE+
REG_2.5V
GND
S_SENS
MIC_1
M_CS
MIC_2
MIC_3
REC_SAFE
DEW_SENS
Z_PTR_AD
IRIS_PWM
LV_IN
MDA_PS
CLK27
CAP_REF
CAP_FG
DRUM_REF
DRUM_PG
VCK/
CN305
DRUM_FG
M_UNREG
OBCLP
CN109
LD_ON
MONI_CHG
S_IN_L
TG_RST
DYO[0-3]
VENC_CS
VIFO_CLK
VIFO_OUT
DCI[0-3]
VIFO_IN
S_SHUT
OSD_VD
HID1
SPA
ID
HID1
FRP
TSR
DV_CS
SRV_TRK
CLK27SEL
DV_RST
CN113
MD_DEM1
PHOTO_SW
DIAL_OFF
DUMP_CTL
VC[0-3]
MMOD_0
NOSIG_LV
MMOD_1
D_GAIN
ADDT[00-15]
S2_DET
REC_CLK
DV_WAIT
ATFI
EM_AU/R
CN111
PWDA2
CN112
REG_3V
MONI_CHG
ADDT[00-15]
USB_DP
PWAD2
CLK27A
JLIP_RX
RECH
CJIG_RST
AU_CLK
DV_WAIT
ATF_GAIN
DRWSEL
TG_CS
CDDSTB
CDWE
CDALE
INV
INH
OUTV
OUTH
BLK[A-C]
SELCT_SW
MENU_SW
EM_AU/L
INDEX_SW
DIAL_AUTO
DIAL_MANU
TBCCTL
DOBCK2
OSD_HD
OSD_VD
DOT_CLK
RECCADJ
TRIG_SW
VIFO_OUT
J101
ZOOM_SW
OUT_Y[0-3]
DIAL_PB
DYI[0-3]
AIDAT
AODAT
AILRCK
AIBCK
AIMCK
TSR
FRP
VIFO_CLK
CLK27A
DV_RST
SPA
TPA+
TPA-
TPB+
TPB-
STOP_SW
PWR_LED
MINUS_SW
IF_TX
S_REEL
AL_3VSYS
ROM_CS
HDCVF
VDCVF
HRP
DCO[0-3]
MON_B
MON_G
JLIP_TX
INFO_SW
T_BATT
ADP_H
REM_OUT
V_BATT
CJIG_RST
T_REEL
VF_CTL
I_MTR
P_DET CLK27SEL
AREG_SO
AREG_CLK
SRV_TRK
DAC_CS
REG_CS
ASPECT2
ASPECT1
LCD_CTL
LD_ON
DYO[0-3]
VF_LCD
DOMCK2
DOLRCK2
CLK27B
FOCUS04
FOCUS03
FOCUS02
MD_AU/R
CARD_DET
BATT_+
MD_AU/L
INV
ADP_DC
CDDSTB
HDCVF
USB_DN
NAVI_SW
GIO3
DRUM_PWR
DRUM_ERR
D_GAIN
CJIG_RST
FOCUS01
REG_3V
HALL_AD
IRIS_O/C
CAP_PWR
F/Z_CS
CAP_ERR
REG_15V
CAM_OUT
V_BATT
I_MTR
M_UNREG
INH
OUT_C[0-3]
OUT_VS
AREG_SO
AREG_CLK
OUT_HS
REG_CS
REG_3V
REG_2.5V
GND
REG_1.8V
M_REG4.8
REG_4.8V
VFREG4.8
VF_CTL
REG_12V
REG-CCD
REG_-15V
LIT_3V
LITHIUM
CHRG_EVR
F/Z_CS
EXT_IN_L
S_IN_L
CAM_CLK
TG_RST
M_REG4.8
OP_THRMO
SD_WP
STV2
H_GAIN
CAM_VD
CLK4M5
H_GAIN
EM_AU/R
LCD_G
LCD_B
LCD_R
H_OFFSET
H_OFFSET
INH
ASPECT1
VDCVF
REG_4.8V
REG_3V
REG_1.8V
SD_DATA2
MMC_CS
GND
Dat2MMC
VSS(GND)
ASPECT2
REG-CCD
VDD(DSC_3V)
MMC_CLK
VSS2/CD
Dat2Host
SD_DATA1
STV1
Q2H
CLK1
CPV
GND
SD_WP
CHRG_EVR
M32_MMC_CS
MMC_CMD
MD_AU/R
CLK2
REG_15V
REG_3V
TG_RST
H2
H1
RG
CCD -7.5V
SUB
CLK3
MMC_CLK
LCD_RVS
MMC_CD
MMC_DATA
OEH
CAP_PWR
DRUM_REF
DRUM_PG
CCD_15V
BL_4.8V
LOAD_FWD
LOAD_REV
C_FRB
COIL_COM
D_PFG[+]
D_COIL_W
D_COIL_V
D_COIL_U
D_PG[-]
D_FG[-]
CAP_ERR
GND
DRUM_PWR
GIO6
CAP_REF
CAP_FG
DRUM_FG
REG_3V
OEV
STH1
GND
STH2
V1
V2
V3
V4
MON_R
MON_G
MON_B
CN102
OPEN
GND
GND
Z_PTR_AD
F_PTR_AD
CDALE
REG_3V
REG_4.8V
REG_CCD
AIDAT2
DODAT2
GND
AILRCK
AIMCK
AIBCK
AODAT
AIDAT
USBDOWN
M_CS
DCO[0-3]
LV_OUT
SPK-
MXDT_OUT
SPK+
LCD_CTL MIC/L
MIC/R
S_SHUT
M_RVS
P_MEDIA
PD_L
VF_SW
AUDIO_CS
AU_DATA
A_MUTE
BUZZER
AU_SIG/R
AU_SIG/L
EM_CS2
PD_L
AU_CLK
AUDIO_CS
AU_DATA
A_MUTE
BUZZER
ROM_CS
KEY_A
MONI_SW
CDWE
XINT
J102
PWAD2
HRP
DV_CS
T_REEL
A10
VIFO_OUT
VIFO_CLK
DAC_CS
TBCCTL
Z_LED
OUT_Y[0-3]
OUT_C[0-3]
OUT_VS
OUT_HS
DYO[0-3]
HALL_AD
IRIS_O/C
MIC_GND
CAM_CS
HDDSC
VDDSC
FLDDSC
OP_THRMO
F_PTR_AD
Z_PTR_AD
TG_RST
USBDOWN
DSC_RST
REG_12V
CAM_OUT
REG_3V
CAM_CLK
DSC_STS
FLSH_RST
DSC_RST
DSC_CS
DSC_DT_IN
GND
REG_4.8V
DSC_DT_OUT
DSC_CLK
DSC_WKUP
USBDOWN
CN7602
VGL
MMC_CD
AL_3V
LCD_COM
GND
GIO15
NC/VB
LCD_VEE
VGH
VDD
NC/-15V
UD
CN7001
C_OUT
TG_RST
Y_OUT
V_OUT
VIFO_IN
L_FRB
CLK18
LIT_3V
GND
REG_3V
USBSENS FLSH_WE
FLSH_OE
DSCIO[0-7]
CLKDSC
REG_4.8V
REG_15V
REG_-15V
D[0-15]
CDDSTB
CDWE
DSP_RST
DSP_RST
FLSH_RST
DSC_RST
CLK27
ID
CLK54
PBLK
REG_4.8V
CLK27A
IRIS_C
IRIS_C
XAVD
OBCLP
CDS_CS
HODL
VF_COM
OMT
CAM_CLK
CAM OUT
OSD_VD
DSYO[0-7]
DSCO[0-7]
SHD
SHP
XAHD
CLK27B
BLK[A-C]
DSYIO[0-7]
AIDAT2
CCD_CTL
RENEN
VREF
VF_VDD9V
VF_VEE2V
HCK
LV_CLK
LV_OUT
RENON
VIDL
CCD_OUT
CDS_CS
CAM_CLK
CAM_OUT
DSC_CLK
HPL
IRIS_PWM
DSC_DT_OUT
DSC_DT_IN
OSD_HD
DSC_CS
MXDT_OUT
DSC_STS
CAPT_REQ
ADDT[0-15]
OSD_VD
DOT_CLK
VC[0-3]
CAM_VD
CLK4M5
MMC_CD
DSC_WKUP
MVD
CDALE
OMT
MFLD
MFLD
OUTH
OUTV
DYI[0-3]
MVD
DCI[0-3]
MMC_CLK
MMC_DATA
MMC_CMD
M32_MMC_CS
MMC_CD
SD_WP
VDDSC
DSYIO[0-7]
DSYIO[0-7]
DSCO[0-7]
DSYO[0-7]
FLDDSC
HDDSC
CLKDSC
CLK27B
REG_1.8V
REG_3V
GND
D[0-15]
A10
EM_CS2
FLSH_OE
FLSH_WE
USBDOWN
GIO3
GIO6
GIO15
REG_3.1V
GND
VIFO_OUT
VIFO_CLK
VENC_CS
CLK27B
S2_DET
DOBCK2
DOMCK2
DOLRCK2
DODAT2
CAM_CS
CDALE
CDDSTB
CDWE
ADDT[0-15]
CN7001
CN7002
CN7002
CN304
CN114
CN401
CN115
CN6501
REG_3V
STRB_CHG
SENS_EVR
SENSPULS
STRB_AD
GATEPULS
REG_12V
GND
REG_4.8V
STO_OFF
STRB_AD
STO_E
STO_C
STO_OFF
GATE
CHG_ON
DTRB_AD
SENSPULS
GATEPULS
STRB_CHG
STO_OFF
SENS_EVR
PWDA2
MDA_2.9V
T_RL[+]
MDA_2.9V
T_RL[-]
S_RL[+]
S_RL[-]
CCD_CTL
EJT_SW
CAS_SW
CAM_CLK
CAM_OUT
TG_RST
DRWSEL
TG_CS
(Page 4-71)
(Page 4-17)
(Page 4-55)
USBDOWN
DSC_RST
∗
YTU94074-18
YTU94077-18
NOTE ) :
∗
The number of patch cords
are indicated by interconnected.
∗
YTU94074-6
YTU94077-6
∗
YTU94074-11
YTU94077-11
∗
YTU94074-16
YTU94077-16
∗
YTU94074-18
YTU94077-18
∗
YTU94074-8
YTU94077-8
∗
YTU94074-6
YTU94077-6
∗
YTU94074-12
YTU94077-12
∗
YTU94074-9
YTU94077-9
∗
YTU94074-11
YTU94077-11
∗
YTU94074-24
YTU94077-24
4.2 BOARD INTERCONNECTIONS [FOR NON-MEGA PIXEL with DSC MODEL]
4-5 4-6

CCD
(Page 4-65)
C_FG[+]
Vout
HG_BS[-]
C_FG[-]
HG_U[-]
HG_W[+]
HG_W[-]
HG_U[+]
HG_V[-]
HG_V[+]
LOAD_REV
GND
C_COIL_U
C_COIL_U
C_COIL_W
C_COIL_W
C_COIL_V
C_COIL_V
GND
D_PFG[+]
COIL_COM
D_COIL_W
D_COIL_W
D_COIL_V
D_COIL_V
D_COIL_U
D_COIL_U
D_PG[-]
D_FG[-]
MAIN
SPEAKER
MDA_2.9V
TRIG_SW
2S
2F
1S
1F
GND
MULTI
GND
GND
GND
MONITOR
(Page 4-71)
01
T_RL[+]
A_AD/DA
GND
SYSCON
CAM_SW_A
CAM_SW_B
CAM_SW_C
NC/VB
TAPE_LED
NC
NC
02
GND
BL
V_OUT
AUDIO
REM_OUT
CONN.
F_PTR_AD
H_GAIN
IRIS_O/C
OP BLOCK
DIAL_AUTO
DAMP+
HGVcc+
HGout+
Z_LED
ZOOM03
FOCUS02
FOCUS01
FOCUS04
FOCUS03
F_VCC
F_LED
ZOOM01
GND
OP_THRMO
F_PTR_AD
HGout-
ZOOM02
PB_CLK
MAIN_VCO
ZOOM04
MDA_2.9V
0
GND
SYSCON
DAMP-
GND
Z_PTR_AD
GND
DRIVE+
HGVss-
Z_VCC
GND
CN113
GND
RG
Y_OUT
DV_MAIN
V1
GND
DEW_SENS
6MONITOR
HG_BS[+]
LOAD_REV
H2
LOAD_FWD
LOAD_FWD
SENSOR
HEAD
REG
CLK4M5
MM
SELCT_SW
INT MIC
M
R.E.SW
Z_PTR_AD
CAPSTAN MOTOR DRUM MOTOR HEAD
CAM_OUT
LOADING MOTOR
V2
C_OUT
OP_THRMO
ROTARY
ENCODER
SW
OP_DRV
GND
V4
P_DET
LCD_VEE
+
-
DV
DIAL_MANU
AUDIO AD/DA
(Page 4-24)
MINUS_SW
PRE/REC
SPK+
SPK-
A_AD/DA
MDA/MECHA
PRE/REC
MECHA
JIG
REG
HID1
DV_MAIN
(Page 4-35)
JIG
CAM_DSP
VIDEO I/O
PIXELA
OP_DRV
AUDIO
SYSCON
J101
JIG
FS_PLL
CAM_DSP
GND
ADP_DC
CAS_SW
REC_SAFE
AU_SIG/R
DV_MAIN
S_SENS
V3
REG
DV_MAIN
T_RL[-]
LCD_COM
DV_MAIN
VF_COM
JIG
DV_MAIN
HLTOR
USB
REEL_VCC
PIXELA
HALL_AD
NC
NC
TG_RST
IRIS_PWM
NC
MMOD_1
CAMERA OPE
MMOD_0
HODL
S_RL[+]
CAM_VD
E_SENS
CAM_DSP
(Page 4-47)
GND
ADP_DC
GND
CVF_B
CVF_R
CVF_G
PDR
REG_3V
M_RVS
JLIP_TX
GND
GND
GND
GND
GND
H_OFFSET
VDD
AU_SIG/L
GND
SUB
IRIS_C
F/Z_CS
M_REG4.8
MONI_CHG
STOP_SW
DIAL_PB
MENU_SW
SUB OPE
GND
S_RL[-]
GND
EXMOD_1
GND
CAM_DSP
NAVI_SW
IF_TX
M_REG4.8
M_REG4.8
I_MTR
CAM_CLK
INFO_SW
ADP_DC
REG_4.8
REG_4.8
REG_3V
PDR
GND
REG_3V
INDEX_SW
VL
CVF_G
CVF_R
ADP_DC
PLUS_SW
DISCRI
CVF_B
ADP_DC
HODL
HLTOR
VF_COM
VF_VEE2V
VF_VDD9V
VREF
HPL
HCK
NC
MON_B
MON_G
MON_R
RENEN
LCD_RVS
RENON
VIDL
REG_12V
LCD_G
LCD_R
LCD_B
LV_OUT
LV_CLK
M_CS
LV_IN
ROM_CS
SYSCON
(Page 4-17)
REG
(Page 4-55)
JLIP_RX
STH1
OEH
Q2H
REG
CLK1
CPU
SYSCON
CLK2
CLK3
HDCVF
GND
OP_DRV (Page 4-68)
TG/VDR
(Page 4-51)
VDCVF
AUDIO (Page 4-29)
HRP
REG_4.8V
MDA
(Page 4-21)
REG_4.8V
PRE/RE
(Page 4-37)
REG_4.8V
STH2
REG_4.8V
MON_B
VGH
VDD
STV1
OEV
CPV
UD
MDA
STV2
NC/-15V
VGL
ADP_DC
BL_GND
CVF_R
GND
GND
HV
LCD(MONITOR) PANEL
ENV_OUT
H1
GND
GND
H2
GND
USBSENSE
TEST
DV_MAIN
DC JACK
ADP_DC
ADP_DC
T
USB_DN_RX
BATT.TERM.
MON_G
ZOOM_SW
REG_3V
REG_15V
DIAL_OFF
REG_-15V
USB_DP_TX
T_BATT
LCD_CTL
TPB-
PHOTO_SW
GND
VF_LCD
GND
TG/VDR
V4
TPB+
SUB
V1
GND
V3
TPA-
CCD_OUT
V2
GND
TPA+
CCD_-7.5V
GND
GND
CCD_15V
CCD_15V
GND
GND
CCD_CTL
GND
H1
RG
REG_3V
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
MIC3
MIC2
MIC1
GND
CJIG_RST
PIXELA
REG
AL_3VSYS
CN101
CN102
CVF_G
PDR
AUDIO
VIDEO I/O
VF_VEE2V
SENSOR
VREF
CVF_B
ATFI
CVF_R
PWR_LED
VF_VDD9V
HLTOR
SPK-
SPK-
HODL
VF_VEE2V
HPL
HDCVF
VF_COM
VREF
REG_12V
VF_VDD9V
SYSCON
HCK
HPL
GND
MECHA
VF_LCD
RENON
TG
RENEN
MON_B
VFREG4.8
VIDL
SD_WP
MMC_CD
MULTI
REG_-15V
GND
REG
M32_MMC_CS
MMC_CMD
EJT_SW
P_MEDIA
GND
GND
J104
CAMERA OPE AUDIO
REG
HRP
LV_CLK
MULTI
SYSCON
CN114
CN113
MULTI
LCD_CTL
REG
CAM_DSP
SYSCON OP
KEY_A
SPK+
GND
LITHIUM
RENEN
VIDEO_I/O
(Page 4-41)
CAM_DSP
RENON
MON_G
VIDEO_I/O
REG_15V
SYSCON REG
CAM_DSP CN102
REG
VF_SW
A_AD/DA
JIG
MMC_DATA
MMC_CLK
DVMAIN
CAM_DSP
CVF_G
REG
SYSCON
GND
GND
VFREG4.8
VIDL
RENON
RENEN
CVF_B
V_OUT
GND
VIDL
MON_G
MON_B
J102
SYSCON
PIXELA
(Page 4-61)
HCK
HCK
VIDL
LCD_G
LCD_R
LCD_B
LV_OUT
M_CS
LV_IN
ROM_CS
VDCVF
REG_4.8V
REG_4.8V
REG_4.8V
REG_4.8V
MONI_SW
SPK+
HPL
VREF
VF_VDD9V
VF_VEE2V
VF_COM
HLTOR
HODL
CVF_B
CVF_R
CVF_G
PDR
GND
GND
VFREG4.8
VIDL
RENON
RENEN
HCK
HPL
VREF
VF_VDD9V
VF_VEE2V
VF_COM
HLTOR
HODL
VPL
VCK
VIDH
PDR
THH
PDR
VIDH
VCK
VPL
HODL
HLTOR
VF_COM
VF_VEE2V
VF_VDD9V
GND
VREF
HPL
HCK
RENEN
RENON
VIDL
TCL
THL
TV
VF_COM
CVF_G
M_RVS
REG_3V
GND
CVF_R
CVF_B
GND
HCK1
HCK2
HST
VDD
VCK2
VST
VDD
EN
STB
GND
VDD(12V)
MIC/L
MIC/R
MIC_GND
MIC_GND
VF_SW
LITHIUM
KEY_A
P_MEDIA
EJT_SW
REG_3V
GND
CN113
04
SIDE OPE
(Page 4-69)
LITHIUM
08VF BW
(Page 4-70)
08CVF
LCD(VF BW)PANEL
LCD(CVF)PANEL
03SD
(Page 4-66)
OP_DRV
SIDE OPE
J104
CN104
CN106
CN108
CN103
PIXELA
OR
REG
CN7601
CN7602
SUB OPE
CN101
C_FRB
CN107CN103CN104CN108
REG_3V
CN302
CN101
RECH
PBH
HID3
DUMP_CTL
HG_U[+]
HG_W[-]
HG_BS[-]
HG_W[+]
HG_BS[+]
HG_U[-]
HG_V[+]
HG_V[-]
C_COIL_U
C_COIL_W
C_FG[+]
C_FG[-]
C_COIL_V
MDA_PS
LCD_R
LCD_B
CVF_G
PDR
PBH
CN7601
NOSIG_LV
ATF_GAIN
RECCADJ
Z_VCC
ATFI
HLTOR
CLK54
REF_CLK
PBLK
SHP
CN105
REC_DATA
REC_CTL
MONI_CHG
HID3
INV
L_FRB
HID1
REC_CLK
VRB_AGC
VRB_ATF
AGC_OUT
CAM_CLK
GND
CAM_OUT
CAM_SW_C
CN301
XAHD
CLK18
REG_4.8V
DRUM_ERR
CAM_SW_B
CN106
SHD
REG_3V
REG_2.5V
V_OUT
REG_4.8V
VREF_1.1
S_REEL
ENV_OUT
2S
2F
CN110
1S
M_REG4.8
1F
AL_3V
MD_DEM1
GND
REG_1.8V
CAM_SW_A
CN303
HID1
AGC_OUT
VRB_AGC
ATFI
VRB_ATF
REC_DATA
REC_CTL
I_MTR
REF_CLK
VREF_1.1
LCD_G
CVF_B
HID1
LV_CLK
EM_AU/L
DISCRI
J103
REG_1.8V
J104
EXMOD_1
PLUS_SW
VF_LCD
XINT
TDB
CCD_CTL
XAVD
TAPE_LED
FS_PLL
LV_IN
MAIN_VCO
ZOOM01
DRIVE-
PB_CLK
E_SENS
ZOOM04
F_PTR_AD
F_VCC
F_LED
REEL_VCC
ZOOM03
ZOOM02
GND
DAMP+
DCO[0-3]
EXT_IN_L
HGout+
DAMP-
OP_THRMO
HGout-
HGVss-
HGVcc+
DRIVE+
REG_2.5V
GND
S_SENS
MIC_1
M_CS
MIC_2
MIC_3
REC_SAFE
DEW_SENS
Z_PTR_AD
IRIS_PWM
LV_IN
MDA_PS
CLK27
CAP_REF
CAP_FG
DRUM_REF
DRUM_PG
CVF_R
DRUM_FG
M_UNREG
OBCLP
CN109
LD_ON
MONI_CHG
S_IN_L
TG_RST
DYO[0-3]
VENC_CS
VIFO_CLK
VIFO_OUT
DCI[0-3]
VIFO_IN
S_SHUT
OSD_VD
HID1
SPA
ID
HID1
FRP
TSR
DV_CS
SRV_TRK
CLK27SEL
DV_RST
CN113
MD_DEM1
PHOTO_SW
DIAL_OFF
OUT_Y[0-3]
DUMP_CTL
VC[0-3]
MMOD_0
NOSIG_LV
MMOD_1
D_GAIN
ADDT[00-15]
S2_DET
REC_CLK
DV_WAIT
ATFI
EM_AU/R
CN111
PWDA2
CN112
REG_3.1V
MONI_CHG
ADDT[00-15]
PWAD2
CLK27A
JRIP_RX
RECH
CJIG_RST
AU_CLK
DV_WAIT
ATF_GAIN
DRWSEL
TG_CS
CDDSTB
CDWE
CDALE
INV
INH
OUTV
OUTH
BLK[A-C]
SELCT_SW
MENU_SW
EM_AU/L
INDEX_SW
DIAL_AUTO
DIAL_MANU
TBCCTL
OSD_HD
OSD_VD
DOT_CLK
RECCADJ
TRIG_SW
VIFO_OUT
J101
ZOOM_SW
OUT_C[0-3]
OUT_Y[0-3]
DIAL_PB
DYI[0-3]
AIDAT
AODAT
AILRCK
AIBCK
AIMCK
TSR
FRP
VIFO_CLK
CLK27A
DV_RST
SPA
TPA+
TPA-
TPB+
TPB-
STOP_SW
PWR_LED
MINUS_SW
IF_TX
S_REEL
AL_3VSYS
ROM_CS
HDCVF
VDCVF
HRP
DCO[0-3]
MON_B
MON_G
JLIP_TX
INFO_SW
T_BATT
ADP_H
REM_OUT
CJIG_RST
V_BATT
T_REEL
VF_CTL
I_MTR
P_DET CLK27SEL
AREG_SO
AREG_CLK
SRV_TRK
DAC_CS
REG_CS
ASPECT2
ASPECT1
LCD_CTL
LD_ON
DYO[0-3]
VF_LCD
DOBCK3
DOMCK3
FOCUS04
FOCUS03
DOLRCK3
FOCUS02
BATT_+
INV
ADP_DC
CDDSTB
HDCVF
NAVI_SW
DRUM_PWR
DRUM_ERR
D_GAIN
CJIG_RST
FOCUS01
REG_3V
HALL_AD
IRIS_O/C
CAP_PWR
F/Z_CS
CAP_ERR
REG_15V
CAM_OUT
V_BATT
I_MTR
M_UNREG
INH
OUT_C[0-3]
OUT_VS
AREG_SO
AREG_CLK
OUT_HS
REG_CS
REG_3V
REG_2.5V
GND
REG_1.8V
M_REG4.8
REG_4.8V
VFREG4.8
VF_CTL
REG_12V
REG-CCD
REG_-15V
LIT_3V
LITHIUM
CHRG_EVR
F/Z_CS
EXT_IN_L
S_IN_L
CAM_CLK
TG_RST
M_REG4.8
OP_THRMO
STV2
H_GAIN
CAM_VD
CLK4M5
H_GAIN
EM_AU/R
LCD_G
LCD_B
LCD_R
H_OFFSET
H_OFFSET
AIDAT3
INH
ASPECT1
VDCVF
REG_4.8V
REG_3V
REG_1.8V
GND
ASPECT2
REG-CCD
STV1
Q2H
CLK1
CPV
CHRG_EVR
CLK2
REG_15V
TG_RST
H2
H1
RG
CCD-7V
SUB
CLK3
LCD_RVS
OEH
CAP_PWR
DRUM_REF
DRUM_PG
CCD_15V
BL_4.8V
LOAD_FWD
LOAD_REV
C_FRB
COIL_COM
D_PFG[+]
D_COIL_W
D_COIL_V
D_COIL_U
D_PG[-]
D_FG[-]
CAP_ERR
GND
DRUM_PWR
CAP_REF
CAP_FG
DRUM_FG
REG_3V
OEV
STH1
GND
STH2
V1
V2
V3
V4
MON_R
MON_G
MON_B
CN102
GND
GND
Z_PTR_AD
F_PTR_AD
CDALE
REG_3V
REG_4.8V
GND
REG_CCD
AILRCK
AIMCK
AIBCK
AODAT
AIDAT
M_CS DCO[0-3]
LV_OUT
SPK-
SPK+
LCD_CTL
CLK27A
MIC/L
MIC/R
S_SHUT
M_RVS
CLK27B
PD_L
VF_SW
AUDIO_CS
AU_DATA
A_MUTE
BUZZER
AU_SIG/R
AU_SIG/L
PD_L
AU_CLK
AUDIO_CS
AU_DATA
A_MUTE
BUZZER
ROM_CS
KEY_A
MONI_SW
CDWE
XINT
J102
PWAD2
HRP
DV_CS
T_REEL
PIX_ACLK
VIFO_OUT
VIFO_CLK
DAC_CS
TBCCTL
Z_LED
OUT_Y[0-3]
OUT_C[0-3]
OUT_VS
OUT_HS
DYO[0-3]
HALL_AD
IRIS_O/C
MIC_GND
CAM_CS
OP_THRMO
F_PTR_AD
Z_PTR_AD
TG_RST
VFREG4.8
REG_12V
CAM_OUT
REG_3.1V
CAM_CLK
OUT_VS
OUT_HS
REG_3V
GND
CN7602
VGL
AL_3.1V
LCD_COM
GND
NC/VB
LCD_VEE
VGH
VDD
NC/-15V
UD
CN7001
C_OUT
TG_RST
Y_OUT
VIFO_IN
L_FRB
CLK18
LIT_3V
GND
REG_3V
PIX_ACLK
AIDAT3
DOLRCK3
DOMCK3
CAM_OUT
CAM_CLK
DOBCK3
REG_4.8V
REG_15V
REG_-15V
CDDSTB
CDWE
DSP_RST
DSP_RST
OUT_Y[0-3]
OUT_C[0-3]
CLK27
ID
CLK54
PBLK
REG_4.8V
CLK27A
IRIS_C
IRIS_C
CLK27A
XAVD
OBCLP
CDS_CS
HODL
VF_COM
OMT
CLK27B
OUT_VS
OUT_HS
USB_STS
DSC_RST
SHD
SHP
XAHD
CLK27B
USB_CS
USB_CLK
BLK[A-C]
USB_OUT
USB_IN
CCD_CTL
RENEN
USBDOWN
USBSENS
VREF
VF_VDD9V
VF_VEE2V
HCK
LV_CLK
LV_OUT
RENON
REG_3V
VIDL
CCD_OUT
CDS_CS
CAM_CLK
CAM_OUT
USB_DP
USB_DN
HPL
IRIS_PWM
OSD_HD
ADDT[0-15]
OSD_VD
DOT_CLK
VC[0-3]
CAM_VD
CLK4M5
MVD
CDALE
OMT
MFLD
MFLD
OUTH
OUTV
DYI[0-3]
MVD
DCI[0-3]
USB_STS
REG_3.1V
GND
VIFO_OUT
VIFO_CLK
VENC_CS
DSC_RST
CLK27B
USB_CS
USB_CLK
USB_OUT
USB_IN
S2_DET
USBDOWN
CAM_CS
CDALE
CDDSTB
CDWE
ADDT[0-15]
CN7001
CN7002
CN7002
CN304
CN114
CN401
PWDA2
MDA_2.9V
T_RL[+]
MDA_2.9V
T_RL[-]
S_RL[+]
S_RL[-]
CCD_CTL
EJT_SW
CAS_SW
CAM_CLK
CAM_OUT
TG_RST
DRWSEL
TG_CS
HGFEDCBA
4
5
3
2
1
y10370001a_rev0
∗
YTU94074-18
YTU94077-18
NOTE ) :
∗
The number of patch cords
are indicated by interconnected.
∗
YTU94074-6
YTU94077-6
∗
YTU94074-11
YTU94077-11
∗
YTU94074-16
YTU94077-16
∗
YTU94074-18
YTU94077-18
∗
YTU94074-8
YTU94077-8
∗
YTU94074-6
YTU94077-6
∗
YTU94074-9
YTU94077-9
∗
YTU94074-11
YTU94077-11
∗
YTU94074-24
YTU94077-24
4-7 4-8
4.3 BOARD INTERCONNECTIONS [FOR NON-MEGA PIXEL without DSC MODEL]

HGFEDCBA
4
5
3
2
1
y20267001a_rev0
NOTE : The parts with marked (
∗
) is not used.
TO SD (SD IF) CN301
∗
∗
0
MAIN (MAIN IF)
∗
∗∗
1
JIG CONN.
∗
MONITOR PWB
∗
∗
TO CAMERA OPE
TO SUB OPE
INFO_SW
∗
MENU_SW
PLUS_SW
MINUS_SW
SELCT_SW
INDEX_SW
∗∗
∗
∗
∗
∗
∗
∗
∗
∗
MULTI
TO R.E.SW
L.MOTOR
W/B SENSOR
USB
NC
NC
DRUM MOTOR
CAPSTAN MOTOR
TO SENSOR
OUT
IR_SENSOR
TALLY
VccGND
R2901
R2902
R2903
VIDL
R2904
R2905
KEY_C
GND NC
CN112
NAVI_SW
CVF_G
D2807
GND
CN105
MONI_CHG
TDI
R2007
RXD2
TXD2
R2008
R2009
REG_3V
GND
JLIP_RX
JLIP_TX
HID1
V_OUT
ENV_OUT
AL_3VSYS
DISCRI
ATFI
MAIN_VCO
VPPC
VPPD
R6619
IC6602
C6614
R6621
C2803 C2804
A_MUTE
R2811
R2813
R2812
R6620
TH6601
L6602
REG_12V
C1851
IF_TX
CJIG_RST
FS_PLL
GND
TDO
TCMK
TMS
CN109
TRST
GND
SPA
SRV_TX
DRST
MON_B
SRV_RX
MON_G
VF_SW
MMC_DATA
GND
MMC_CMD
TL2003
P_MEDIA
TL2004
REG_3V
PB_CLK
LITHIUM
SD_WP
EJT_SW
MMC_CD
RENON
VFREG4.8
M32_MMC_CS
MMC_CLK
HCK
RENEN
KEY_A
VIDL
HPL
VF_VEE2V
R6622
R6623
C6602
VF_COM
SPK+
VF_VDD9V
VREF
CVF_R
PDR
CVF_G
HLTOR
HODL
CVF_B
SPK-
R6617
IC6601
R6602
MON_G
HRP
CVF_R
HODL
HLTOR
GND
VF_VEE2V
VREF
HPL
S_DT_OUT
HDCVF
M_BL_ON
GND
MONI_SW
M_RVS
VF_LCD
REG_15V
REG_12V
REG_-15V
MON_B
REG_4.8V
VDCVF
ROM_CS
M_CS
S_CLK
LCD_B
LCD_R
LCD_G
REG_3V
VIDL
RENON
RENEN
HCK
S_DT_IN
VF_VDD9V
VF_COM
CVF_B
CVF_G
PDR
C6601
GND
F/Z_CS
CN111
CN113
C6603
Q6601
CN103
GND
LOAD_REV
LOAD_FWD
R6618
Q6615
C6605
DEW_SENS
CN104
GND
Q6602
Q6613
Q6612
Q6611
R6601
R6604
R6603
R6605
C6613
C6604
L6601
R6615
R6616
R6611
C6611
R6606
R6614
Q6614
R6613 R6612
C6612
REG_3V
REG_4.8V
GND
SENS_EVR
STRB_CHG
CAM_SW_C
CAM_SW_B
CAM_SW_A
D2801
SENSPULS
GATEPULS
STRB_AD
STO_OFF
D2802
Q2801
R2804R2803
R2802
R2801
R2805 AU_SIG/L
AU_SIG/R
L_MUTE
D_FG[-]
D_PG[-]
D_PFG[+]
COIL_COM
D_COIL_U
D_COIL_V
D_COIL_W
GND
C_FG[+]
C_FG[-]
C_COIL_W
C_COIL_U
C_COIL_V
HG_U[+]
HG_V[+]
HG_W[+]
HG_BS[+]
HG_W[-]
HG_V[-]
HG_BS[-]
HG_U[-]
CN106
S_RL[+]
T_RL[-]
CN108
S_RL[-]
T_RL[+]
E_SENS
MIC2
MIC3
MIC1
S_SENS
REEL_VCC
TAPE_LED
CAS_SW
REC_SAFE
GND
GND
MDA_2.9V
MDA_2.9V
GND
L2805
L2804
GND
CN115
M_REG4.8
D2806
D2804
D2805
GND
C_OUT
Y_OUT
REM_OUT
L2802
USBSENS
USB_DP
USB_DN
V_OUT
L2803
P_DET
L2801
C2801 C2802
D2803
GND
J102
R2810
R2808
R2809
L2806
REG-CCD
REG_4.8V
DIAL_PB
DIAL_AUTO
DIAL_MANU
REG_3V
ZOOM_SW
TRIG_SW
STOP_SW
PHOTO_SW
GND
PWR_LED
DIAL_OFF
J103
R2807
R2806
D1801
R1851
C1852
IC1851
CN107
GND
REG_4.8V
TALLY
IR_RMC
CLK_OUT
OP_THRMO
IRIS_C
HALL_AD
IRIS_O/C
DATA_OUT
Z_PTR_AD
F/Z_RST
IRIS_PWM
REG_4.8V
F_PTR_AD
H_GAIN
REG_3V
CLK4M5
CAM_VD
H_OFFSET
M_REG4.8
IR_AMP
REG_4.8V
IR_OUT
Q1801
L1801
C1802
R1801
R1802
R1808
R1803
C1807
R1804R1806
R1807
R1805
C1805
C1806
C1804
C1803
IC1801
C1801
GND
6.8k
3.9k
2.7k
1.8k
1.5k
33k
0.47
56k
0Ω
0Ω
100k
0Ω
1M
1.0
27k
0.01
0.001
150k
8.2k
100k
68k
180k
120p
0.047
10µ
470k
3.3M
0.033
82k
47k
47k 470k
220p
560k560k
820
820
3.3k
0Ω
0Ω
0Ω
0.0047 0.0047
0Ω
0Ω
0Ω
0Ω
0Ω
47
0Ω
22
1M
4.7k
3k
33k
1.0
1M10k
10k
4.7k
10
0.1
0.022
0.022
0.01
RSA6.1J4-W
BA10358FVM-W
NQR0129-002X
CK
Q-
GND
VCC
PR
CLR
TC7W74FU-X
DTC144EE-X
UMC4N-W
UMS1N-W
2SC4617/RS/-X
UMS1N-W
2SA1774/RS/-X
CH
RN1702-X
CH
UMX1N-W
NQR0251-004X
NQR0251-004X
QNZ0617-001X
NNZ0088-001X TLSU1002/LM/-X
RPM7138-V4
RPM-22PB
/6.3
/6.3
VCC
VEE
BA10358FVM-W
D
Q
T
T
T
TO STROBE
CN6501
TO REG
TO MDA
TO MDA
TO MDA
TO MDA
TO SERVO
TO SERVO
TO SERVO
TO REG
TO SERVO
TO SYSCON
TO REG
TO SYSCON
TO SYSCON
TO REG
TO CN113, CN105
TO CN113, CN105 TO CN113, CN105
TO CN113
TO REG
TO REG
TO REG
TO SYSCON
TO SYSCON
TO DV MAIN
TO DV MAIN
TO CAM DSP TO CAM DSP
TO SYSCON
TO CAM DSP
TO CN113 TO DSC
TO
MDA
TO
SERVO
TO REG
TO REG
TO REG
TO SYSCON
TO SERVO
TO MDA
TO MDA
TO AUDIO
TO SYSCON
TO SYSCON
TO REG
TO REG
TO SYSCON
TO SYSCON
TO SYSCON
TO REG
TO REG
TO REG
TO REG
TO REG
TO SYSCON
TO CN105, CN109
TO CN105, CN109
TO CN109
TO SERVO
TO SERVO
TO SERVO
TO SERVO
TO SYSCON
TO SYSCON
TO SYSCON
TO CAM_DSP, DV MAIN
TO SYSCON TO SYSCON
TO SERVO
TO DSC
TO DV MAIN
TO DV MAIN
TO DV MAIN
TO DV MAIN
TO VIDEO I/O
TO REG
TO REG
TO REG
TO PRE/REC
TO REG
TO CN113 TO CN109
TO REG
TO VIDEO I/O
TO VIDEO I/O
TO CN105
TO SYSCON
TO REG
TO SYSCON
TO REG
TO REG
TO REG
TO REG
TO REG
TO REG
TO USB
TO REG
TO
REG
TO DV MAIN
TO SYSCON
TO SYSCON
TO SYSCON
TO
SYSCON
TO
AUDIO
TO
SYSCON
TO
VIDEO_I/O
VACANT No.
LAST
No.
2001-2006 2815-2900
Symbol No.
21002001 ~
2009
D
VACANT No.VACANT No.
R
C
Q
L
Symbol No.
IC
1807
1801
6603~6610,
LAST
No.
6602
1852
1801 ~ 1850
Symbol No.
VACANT No.
LAST
No.
2801
2804
LAST
No.
19001851 ~
Symbol No.
29502801 ~
2806
1808 29051851
VACANT No.
LAST
No.
6615
6614
Symbol No.
67006601 ~
1851
6623
1801
2807
6602
6607~6610,
6606~6610,
1801
1801
4-9 4-10
4.4 MAIN(MAIN IF) SCHEMATIC DIAGRAM [FOR MEGA PIXEL with DSC MODEL]

HGFEDCBA
4
5
3
2
1
y20265001a_rev0
TO CAMERA OPE
TO SD (SD IF) CN301
TO SUB OPE
∗
∗
∗
∗
∗
0
MAIN (MAIN IF)
∗∗∗
1
∗∗
TO MONITOR
∗
∗
∗
∗
TO R.ENC.SW
TO L.MOTOR
JIG CONN.
W/B SENSOR
∗
∗
∗
USB
NC
NC
TO DRUM MOTOR
TO CAPSTAN MOTOR
TO SENSOR
OUT
IR_SENSOR
TALLY
VccGND
TO STROBE CN6501
TO MULTI
CN105
AL_3VSYS
CJIG_RST
MMOD_1
MMOD_0
EXMOD_1
IF_TX
PB_CLK
ENV_OUT
MAIN_VCO
ATFI
HID1
DISCRI
FS_PLL
MONI_CHG
I_MTR
V_OUT
MON_G
R6619
MON_B
VIDH
VCK
VPL
USB_CLK
USB_IN
VIDL
GND
JLIP_RX
GND
JLIP_TX
GND
USB_OUT
IC6602
USB_CS
C6614
R2814
USB_STS
R6621
C2803 C2804
A_MUTE
R2811
TL1044
TL1042
TL1041
TL1040
TL1043
R2813
R2812
R6620
TH6601
L6602
REG_12V
GND
SPK+
SPK-
CN112
INFO_SW
MENU_SW
PLUS_SW
MINUS_SW
SELCT_SW
INDEX_SW
NAVI_SW
MON_G
HRP
VCK
HODL
HLTOR
GND
VF_VEE2V
VREF
HPL
LV_OUT
HDCVF
LCD_CTL
GND
MONI_SW
M_RVS
VF_LCD
REG_15V
REG_12V
REG_-15V
MON_B
REG_4.8V
VDCVF
ROM_CS
M_CS
LV_CLK
LCD_B
LCD_R
LCD_G
REG_3V
VIDL
RENON
RENEN
HCK
LV_IN
VF_VDD9V
VF_COM
VPL
VIDH
PDR
R6622
C1851
R6623
D2807
CN111
C6602
CN109
CN113
R6617
IC6601
R6602
C6601
C6603
Q6601
GND
R6618
Q6615
C6605
Q6602
Q6613
Q6612
Q6611
R6601
R6604
R6603
R6605
C6613
C6604
L6601
R6615
R6616
R6611
C6611
R6606
R6614
Q6614
R6613 R6612
C6612
REG_3V
REG_4.8V
GND
SENS_EVR
STRB_CHG
D2801
SENSPULS
GATEPULS
STRB_AD
STO_OFF
D2802
CN103
GND
LOAD_REV
LOAD_FWD
Q2801
R2804R2803
R2802
R2801
R2805
DEW_SENS
CN104
AU_SIG/L
AU_SIG/R
L_MUTE
D_FG[-]
D_PG[-]
D_PFG[+]
COIL_COM
D_COIL_U
D_COIL_V
D_COIL_W
GND
C_FG[+]
C_FG[-]
C_COIL_W
C_COIL_U
C_COIL_V
HG_U[+]
HG_V[+]
HG_W[+]
HG_BS[+]
HG_W[-]
HG_V[-]
HG_BS[-]
HG_U[-]
CN106
CN108
GND
MDA_2.9V
L2805
L2804
GND
CN115
M_REG4.8
D2806
D2804
D2805
GND
C_OUT
Y_OUT
REM_OUT
L2802
USBSENS
USB_DP
USB_DN
V_OUT
L2803
P_DET
L2801
C2801 C2802
D2803
GND
J102
R2810
R2808
R2809
L2806
D1801
R1851
C1852
IC1851
CN107
REG-CCD
REG_4.8V
GND
REG_4.8V
TALLY
IR_RMC
IR_AMP
REG_4.8V
IR_OUT
J103
R2807
Q1801
L1801
C1802
R1801
R1802
R1808
R1803
C1807
R1804R1806
R1807
R1805
C1805
C1806
C1804
C1803
IC1801
C1801
R2806
GND
DIAL_PB
DIAL_AUTO
DIAL_MANU
REG_3V
ZOOM_SW
TRIG_SW
STOP_SW
PHOTO_SW
GND
PWR_LED
DIAL_OFF
33k
0.47
10k
56k
0Ω
0Ω
100k
0Ω
1M
1.0
27k
0.01
0.001
150k
8.2k
100k
68k
180k
120p
0.047
10µ
470k
3.3M
0.033
82k
47k
47k 470k
220p
560k560k
820
820
3.3k
0Ω
0Ω
0Ω
0.0047 0.0047
0Ω
47
0Ω
0Ω
22
1M
4.7k
3k
33k
1.0
1M10k
10k
4.7k
10
0.1
0.022
0.022
0.01
0Ω
BA10358FVM-W
NQR0129-002X
RSA6.1J4-W
CK
Q-
GND
VCC
PR
CLR
TC7W74FU-X
DTC144EE-X
UMC4N-W
UMS1N-W
2SC4617/RS/-X
UMS1N-W
2SA1774/RS/-X
CH
RN1702-X
CH
UMX1N-W
NQR0251-004X
NQR0251-004X
QNZ0617-001X
SML-711UW-X
RPM7138-V4
NNZ0088-001X
RPM-22PB
/6.3
/6.3
VCC
VEE
BA10358FVM-W
D
Q
T
T
T
NOTE : The parts with marked (
∗
) is not used.
TO REG
S_RL[+]
T_RL[-]
S_RL[-]
T_RL[+]
E_SENS
MIC2
MIC3
MIC1
S_SENS
REEL_VCC
TAPE_LED
CAS_SW
REC_SAFE
GND
REG_3V
GND
F/Z_CS
CAM_CLK
OP_THRMO
IRIS_C
HALL_AD
IRIS_O/C
CAM_OUT
Z_PTR_AD
TG_RST
IRIS_PWM
REG_4.8V
F_PTR_AD
H_GAIN
CLK4M5
CAM_VD
H_OFFSET
M_REG4.8
GND
REG_3V
VF_SW
MMC_DATA
MMC_CMD
P_MEDIA
LITHIUM
SD_WP
EJT_SW
MMC_CD
RENON
VFREG4.8
M32_MMC_CS
MMC_CLK
HCK
RENEN
KEY_A
VIDL
HPL
VF_VEE2V
VF_COM
VF_VDD9V
VREF
VCK
PDR
VIDH
HLTOR
HODL
VPL
GND
CAM_SW_C
CAM_SW_B
CAM_SW_A
GND
STROBE SENSOR
CN7601
TO MDA
TO REG
TO MDA
TO SYSCON
TO SYSCON
TO REG
TO SYSCON
TO REG
TO MDA TO MDA
TO SYSCON
TO DVMAIN
TO DVMAIN
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO REG
TO CAM DSP
TO CAM DSP
TO CAM DSP
TO REG
TO CN105, CN113
TO CN105, CN113
TO CN105, CN113
TO CN113
TO CN113
TO REG
TO REG
TO SYSCON
TO DSC
TO SYSCON
TO REG
TO SYSCON
TO MDA
TO SYSCON
TO REG
TO REG
TO REG
TO SYSCON
TO SYSCON
TO VIDEO I/O, J103
TO REG
TO REG
TO REG
TO REG
TO PRE/REC
TO CN113
TO DVMAIN
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO DVMAIN
TO DVMAIN
TO CN113
TO REG
TO SYSCON
TO SYSCON
TO REG
TO SYSCON
TO SYSCON
TO REG
TO CN109
TO SYSCON
TO REG
TO REG TO REG TO REG TO REG
TO CN109
TO CN105, CN109
TO VIDEO I/O TO VIDEO I/O
TO CN105
TO REG
TO SYSCON
TO CN105, CN109
TO SYSCON
TO AUDIO
TO SYSCON
TO SYSCON
TO REG
TO SYSCON
TO SYSCON
TO REG
TO AUDIO
TO SYSCON,AUDIO
TO USB
TO REG
TO REG
TO VIDEO I/O
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO MDA TO MDA
TO REG
TO REG
TO SYSCON
TO REG
TO DVMAIN
TO SYSCON
TO REG
TO REG
D
VACANT No.VACANT No.
R
C
Q
L
Symbol No.
IC
1807
1801
6603~6610,
LAST
No.
6602
1852
1801 ~ 1850 Symbol No.
VACANT No.
LAST
No.
2801
2804
LAST
No.
19001851 ~ Symbol No. 29002801 ~
2806
1808 28141851
VACANT No.
LAST
No.
6615
6614
Symbol No. 67006601 ~
1851
6623
1801
2807
6602
6607~6610,
6606~6610,
1801
1801
4-11 4-12
4.5 MAIN(MAIN IF) SCHEMATIC DIAGRAM [FOR NON-MEGA PIXEL with DSC MODEL]

HGFEDCBA
4
5
3
2
1
y20266001a_rev0
NOTE : The parts with marked (
∗
) is not used.
TO CAMERA OPE
TO SD (SD_IF) CN301
TO SUB OPE
NC
∗
∗
∗
∗
0
MAIN (MAIN IF)
∗
∗∗
1
∗∗
MONITOR CN7601
∗
NC
∗
NC
NC
TO R.ENC. SW
TO L.MOTOR
JIG CONN.
W/B SENSOR
∗
∗
∗
USB
NC
NC
TO DRUM MOTORTO CAPSTAN MOTOR
TO SENSOR
OUT
IR_SENSOR
TALLY
VccGND
NC
MULTI
NC
CN105
TL1056
TL1054
TL1055
TL1057
TL1058
AL_3VSYS
CJIG_RST
MMOD_1
MMOD_0
EXMOD_1
IF_TX
PB_CLK
ENV_OUT
MAIN_VCO
ATFI
HID1
DISCRI
FS_PLL
MONI_CHG
I_MTR
V_OUT
MON_G
MON_B
CVF_G
CVF_R
CVF_B
VIDL
GND
JLIP_RX
GND
JLIP_TX
GND
R2814
C2803 C2804
A_MUTE
R2811
R2813
R2812
GND
SPK+
SPK-
CN112
INFO_SW
MENU_SW
PLUS_SW
MINUS_SW
STRB_CHG
SELCT_SW
SENSPULS
INDEX_SW
NAVI_SW
MON_G
GATEPULS
STRB_AD
STO_OFF
HRP
CVF_R
HODL
HLTOR
GND
VF_VEE2V
VREF
HPL
LV_OUT
HDCVF
LCD_CTL
GND
MONI_SW
M_RVS
VF_LCD
REG_15V
REG_12V
REG_-15V
MON_B
REG_4.8V
VDCVF
ROM_CS
M_CS
LV_CLK
LCD_B
LCD_R
LCD_G
REG_3V
VIDL
RENON
RENEN
HCK
LV_IN
VF_VDD9V
VF_COM
CVF_B
CVF_G
PDR
C1851
D2807
CN111
CN109
GND
CN113
VF_SW
GND
D2801
P_MEDIA
LITHIUM
EJT_SW
RENON
VFREG4.8
HCK
RENEN
KEY_A
VIDL
HPL
VF_VEE2V
VF_COM
VF_VDD9V
VREF
CVF_R
PDR
CVF_G
HLTOR
HODL
CVF_B
GND
F/Z_CS
D2802
CN103
GND
LOAD_REV
LOAD_FWD
Q2801
R2804R2803
R2802
R2801
R2805
DEW_SENS
CN104
GND
AU_SIG/L
AU_SIG/R
CAM_SW_C
CAM_SW_B
CAM_SW_A
L_MUTE
D_FG[-]
D_PG[-]
D_PFG[+]
COIL_COM
D_COIL_U
D_COIL_V
D_COIL_W
GND
C_FG[+]
C_FG[-]
C_COIL_W
C_COIL_U
C_COIL_V
HG_U[+]
HG_V[+]
HG_W[+]
HG_BS[+]
HG_W[-]
HG_V[-]
HG_BS[-]
HG_U[-]
CN106
S_RL[+]
T_RL[-]
CN108
S_RL[-]
T_RL[+]
TO MDA
TO MDA
TO MDA
TO MDA
TO REG
TO REG
TO REG
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO DV MAIN
TO DV MAIN
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO REG
TO REG
TO CN113
TO REG
TO REG
TO REG
TO REG
TO SYSCON
TO SYSCON
TO SYSCON
TO CN113
TO CN105, CN113
TO CN105, CN113
TO CN105, CN113
TO CAM DSP
TO CAM DSP
TO CAM DSP
E_SENS
MIC2
MIC3
MIC1
S_SENS
REEL_VCC
TAPE_LED
CAS_SW
REC_SAFE
GND
GND
MDA_2.9V
REG_3V
GND
L2805
L2804
GND
D2806
D2804
D2805
C_OUT
Y_OUT
REM_OUT
L2802
USBSENS
USB_DP
USB_DN
V_OUT
L2803
P_DET
L2801
C2801 C2802
D2803
GND
J102
R2810
R2808
R2809
L2806
D1801
R1851
C1852
IC1851
CN107
REG-CCD
REG_4.8V
GND
REG_4.8V
TALLY
IR_RMC
CAM_CLK
OP_THRMO
IRIS_C
HALL_AD
IRIS_O/C
CAM_OUT
Z_PTR_AD
TG_RST
IRIS_PWM
REG_4.8V
F_PTR_AD
H_GAIN
REG_3V
CLK4M5
CAM_VD
H_OFFSET
M_REG4.8
IR_AMP
REG_4.8V
IR_OUT
J103
R2807
Q1801
L1801
C1802
R1801
R1802
R1808
R1803
C1807
R1804R1806
R1807
R1805
C1805
C1806
C1804
C1803
IC1801
C1801
R2806
GND
DIAL_PB
DIAL_AUTO
DIAL_MANU
REG_3V
ZOOM_SW
TRIG_SW
STOP_SW
PHOTO_SW
GND
PWR_LED
DIAL_OFF
10k
0Ω
0Ω
560k560k
820
820
3.3k
0Ω
0Ω
0Ω
0.0047 0.0047
0Ω
47
0Ω
0Ω
22
1M
4.7k
3k
33k
1.0
1M10k
10k
4.7k
10
0.1
0.022
0.022
0.01
0Ω
RSA6.1J4-W
UMX1N-W
NQR0251-004X
NQR0251-004X
QNZ0617-001X
SML-711UW-X
RPM7138-V4
NNZ0088-001X
RPM-22PB
/6.3
/6.3
VCC
VEE
BA10358FVM-W
T
T
T
TO MDA
TO REG
TO REG
TO REG
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO AUDIO
TO REG
TO REG
TO REG
TO REG
TO REG
TO REG
TO REG
TO REG
TO CN105, CN109
TO CN105, CN109
TO CN109 TO CN109
TO VIDEO I/O
TO VIDEO I/O
TO CN105
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO SYSCON
TO DV MAIN
TO DV MAIN
TO DV MAIN
TO CN113
TO CN113
TO VIDEO I/O
TO REG
TO REG
TO REG
TO REG
TO PRE/REC
TO SYSCON
TO MDA TO MDA
TO SYSCON
TO SYSCON
TO SYSCON, AUDIO
TO AUDIO
TO SYSCON
TO SYSCON
TO SYSCON
TO VIDEO I/O
TO SYSCON
TO REG
TO REG
TO REG
TO REG
TO REG
TO PIXELA
D
VACANT No.VACANT No.
R
C
Q
L
Symbol No.
IC
1807
1801
LAST
No.
1852
1801 ~ 1850
Symbol No.
VACANT No.
LAST
No.
2801
2804
LAST
No.
19001851 ~
Symbol No.
29002801 ~
2806
1808 28141851
18511801
2807
1801
1801
4-13 4-14
4.6 MAIN(MAIN IF) SCHEMATIC DIAGRAM [FOR NON-MEGAPIXEL without DSC MODEL]

HGFEDCBA
4
5
3
2
1
y10373001a_rev0
VDD
OUT
16MHZ
∗
∗
32kHz
VSS
[-]
[+]
∗
FOCUS_PA/
FOCUS_PB/
BATT_H/
(builtin capacitor 15pf)
RESET_DET
STRB_AD/
TG_RST
S_DT_IN
S_DT_OUT
TL1026
IC1004
PWR_LED
SRV_RST
CALE
CCD_CTL
TL1001
R1058
R1060
R1016
R1077
GND
P_MEDIA
CRWSEL
GND
V_BATT
C1017
TL1005
R1066
TL1006
TL1028
R1088
X1001
R1025
VF_SW
R1035
GATEPULS
OP_THRMO
DSC_CLK
REG_3V
R1026
BLKC
R1023
R1036
TL1009
CLK_OUT
DATA_OUT
R1001
R1029
TL1029
BUS1
BUS2
BUS3
BUS4
BUS5
BUS6
BUS7
BUS9
C1019
Q1003
BUS11
BUS8
BUS12
BUS10
BUS13
BUS14
BUS15
R1063
F_PTR_AD
CDSTB
DSP_RST
MFLD
CAS_SW
M_BL_ON
IC1005
R1038
R1017
DSC_DT_OUT
R1022
DSC_STS
R1020 EEPROM_CS
R1018 SRV_RDY
A_MUTE
RA1009
RA1008
OSD_VD
R1027
EEP_DT_CLK
SRV_CS
R1085
R1046
R1050
T_BATT
R1049
R1048
DSC_DT_IN
C1028
RA1010
R1010
C1029
C1030
AL_3V
F/Z_CS
TL1031
AL_3VSYS
IRIS_O/C
F/Z_RST
Z_PTR_AD
HALL_AD
OMT
BUS0
OSD_HD
MVD
STOP_SW
I_MTR
TL1011
R1037
IC1003
IC1006
CJIG_RST
MONI_SW
L1002
VPPC
DSC_CS
R1030
TG_CS
C1006
TL1014
CDS_CS
IF_TX
IC1002
P_DET
TL1016
C1004
R1072
JLIP_RX
X1002
S_CLK
Q1004
JLIP_TX
TL1030
C1026
VF_LCD
AREG_SO
AREG_CLK
R1047
IC1007
REM_OUT
D1002
C1034
C1037
KEY_A
C1023
LIT_3V
C1027
R1044
R1045
IR_OUT
C1018
C1036
C1038
C1007
R1014
R1004
R1005
C1015
TL1024
C1013
TL1023
C1011
R1076
C1016
ASPECT1
ASPECT2
AUDIO_CS
PWAD2
M_CS
M_RVS
IR_RMC
IR_AMP
TALLY
TL1022
R1084
R1071
MD_DEM1
TL1019
R1090
R1021
BUZZER
PWDA2
Q1002
Q1001
R1055R1056
R1053 R1051
R1052
C1031
D1001
R1054
R1015
R1006
R1007
R1003
R1002
EEP_IN
R1039
TL1015
BLKA
VC3
BLKB
VC2
VC1
VC0
DOT_CLK
EEP_DT_OUT
USBDOWN
DSC_RST
SD0CD
DSC_WKUP
R1064
TBC_CLK
TBC_DTO
TBC_DTI
A_CSYNC
S_IN_L
EXT_IN_L
TBC_CS
TBC_RST
PD_L
ROM_CS
REG_CS
S_DC_IN
R1011
R1012
IC1008
R1024
FLSH_RST
CAPT_REQ
MXDT_OUT
DIAL_PB
DIAL_OFF
DIAL_AUTO
DIAL_MANU
ZOOM_SW
TRIG_SW
TL1003
KEY_C
NAVI_SW
PHOTO_SW
Q1005
R1009
EJT_SW
DAC_CS
R1019
C1020
C1009
C1010
C1021
R1028
ADP_H
R1065
R1032
R1031
R1111
R1033
R1081
IC1001
TL1025
CHRG_EVR
TL1002
SENSPULS
STRB_AD TO
MAIN IF
STROBE SENSOR
VF_CTL
TL1017
TL1018
IC1009
TL1008
TL1004
Q1007
Q1006
R1041
R1042
L_MUTE
C1005
IC1001
STRB_CHG
STO_OFF
2.2k
47K
0R0
0.01
47K
10k
47K
4.7K
10k
1k
100K
47K
0.01
1K
100k
1K
330
330
10K
100k
100k
100k
1K
10k
22k
39k
100K
0.01
100K
470
0.01
0.01
10K
22µ
100k
10p
0.1
100K
0.1
47K
0.01
0.01
0.1
0.01
12k
8.2k
0.01
0.01
0.01
0.01
10K
15K
0.01
0.01
0.01
0R0
0.01
0R0
470K
10k
330
10K
4.7K
150K 2.7K
18K
1
47K
470K
10K
33K
4.7K
0R0
10k
1K
82k
470
62k
0.01
0R0
0R0
0.01
1.8M
1K
100k
1k
0R0
1k
0R0
10K
1K
10µ/
NJU7108F3-X
NAX0474-001X
MC74HC1G00DF-X
SN74AHC1G00K-X
DTC143EE-X
74HC1G00GW-X
VCC
HOLD
SCK
SI
CS
SO
WP
VSS
AT25320N-10SI-X
SCLK
CS
DATA
RST
VDD
SDR
XD
EXD
TEST
VSS BLKC
TST0
BLKB
VC3
VD
HD
VC0
VC1
VC2
BLKA
MB90097PFV149-X
VSS
VDD
SIO
CLK
CS Xin
Xout
INTR
RS5C314-X
NAX0564-001X
DTC143XE-X SN74AHC1G08K-X
1SS376-X
2SC4617/QR/-X
DTC124EE-X
DA221-X
74HC2G08DP-X
2SJ347-X
DSC_CLK
RXD
EEPROM_CS
S_DT_IN
TXD
S_DT_OUT
S_CLK
DATA_IN
DATA_OUT
CLK_OUT
SRV_CS
SRV_RDY
VDD
VSS
SRV_RST
RTC_CS
VF_CS
PWR_CTL
TIMER_OUT
IR_WB
OSD_CS
OSD_TBC_IN
OSD_TBC_OUT
OSD_TBC_CLK
TBC_CS
BZ_FREQ
BZ_ENV
A_CSYNC
TBC_RST
EXT_IN_L
S_IN_L
TGFZ_RST
TG_CS
CDS_CS
CCD_CTL
M_CS
VDD
VSS
M_RVS
FLSH_RST DAC_CS
HP_DET
DIAL_PB
DIAL_OFF
DIAL_AUTO
DIAL_MANU
SHOE_PWM
P_MEDIA
GATEPULS
F/Z_CS
IRIS_O/C
VPP
XT1
RESET
VDD
OSCO
OSCI
VSS
AUDIO_CS
A_MUTE
PWDA2
PWAD2
MD_DEM1
VDD
VSS
SHUT_ATT
VF_SW
JLIP_INT
SHOE_VON
MXDT_OUT MONI_SW
CAS_SW
EJCT_SW
VD
OMT
DSC_CS
VDD
VSS
REMOTE
STO_OFF
FLD
DSP_RST
ASPECT1
ASPECT2
CAPT_REQ
RTC_INT
MMC_L
TALLY
TRG_OUT
V_BATT
HALL_AD
Z_PTR_AD
F_PTR_AD
SHOE_AD
OP_THRMO
ZOOM_SW
IR_DET
KEY_A
KEY_B
KEY_C
SHOE_DET
S_DC_IN
AVREF
AVSS
AVDD
VDD
VSS
NC
NC
R/W
DSTB
ASTB
ADP_H
BUS0
BUS1
BUS2
BUS3
BUS4
BUS5
BUS6
BUS7
BVDD
BVSS
BUS8
BUS9
BUS10
BUS11
BUS12
BUS13
BUS14
BUS15
P_DET
TRIG_SW
KENTO
SYSCLK
WAIT
DSC_STS
DSC_RST
DSC_PCTL
USBDOWN
DSC_DT_IN
DSC_DT_OUT
ROM_CS
REG_CS
CHRG_WKUP
AVREF_OFF/SEGL_CS
SEGL_CD
CHRG_EVR
PD_L
EM_DET
EL_CTL
FOCUS_PB
POP_STRB
MENU_P_A
MENU_P_B
SENSPULS
MENU_KEY
I_MTR
T_BATT
CHRG_LED
S_DET
NAVI_SW
STRB_SEL
SHOE_GATE
FOCUS_PA
VF_LCD
M_BL_ON
VF_CTL
NC
STRB_CHG
L_MUTE
LAMP_ON/NIGHT_LED
NC
PHOTO_SW
STRB_CLS
ZMIC_ATT
UPD70F3038F1
UPD70F3038F
UPD703038F1
IC-PST3423U-X UMC3N-W
DTC143XE-X
6V
D
G
S
T
1 0 MAIN (SYSCON)
TO SERVO
TO SERVO
TO DSC, USB
TO DSC
TO DSC
TO USB
TO SERVO,
MAIN IF CN113
TO
CAM DSP
TO REG
TO DV MAIN
TO MAIN IF
TO VIDEO I/O
TO CAM DSP
TO MAIN IF
TO AUDIO AD/DA
TO AUDIO,
MAIN IF
TO AUDIO
TO
MAIN IF
STROBE SENSOR
TO VIDEO I/O
TO REG
TO MAIN IF
TO MAIN IF
TO REG
TO MAIN IF CN105
TO MAIN IF CN111
TO REG
TO REG, MAIN IF CN105
TO AUDIO, DV MAIN,
TG/VDR, CDS/AD,
MAIN IF CN109
TO VIDEO I/O
TO TG/VDR
TO TG/VDR
TO AUDIO
TO SERVO
TO SERVO
TO MAIN IF
CN113
TO MAIN IF
CN109
TO MAIN IF CN109
TO MAIN IF CN109
TO MAIN IF CN113
TO MAIN IF CN111
TO MAIN IF CN111
TO MAIN IF CN112
TO MAIN IF CN109
TO MAIN IF CN112
TO MAIN IF
CN111
TO CDS/AD
LAST NO VACANT NO
R
C
D
Q
L
IC
RA 1009
1002
1002
1007
1041
1111
1010 1001-1007
1001
1001-1003, 1008, 1012, 1014, 1022, 1024,1025,1032,1033,1035, 1039-1040
1008,1034,1040,1057,1059,1061,1062,1067, 1078-1080,1082,1083,1086,1087,1091-1110
NOTE : The parts with marked (
∗
) is not used.
4-15 4-16
4.7 MAIN(SYSCON) SCHEMATIC DIAGRAM [FOR MEGA PIXEL MODEL]

HGFEDCBA
4
5
3
2
1
y10372001a_rev0
∗
VDD
OUT
20MHz
∗
VSS
[-]
[+]
∗
∗
∗
∗
∗
∗
∗
∗
∗
(KEY_B)
∗
∗
∗
∗
∗
∗
(KEY_B)
(MENU_SET)
(FOCUS_SW)
/
/
TG_RST
C1030
IC1005
C1032
R1039
MENU_SW
C1055
TL1002
R1094
C1035
R1052
R1007
R1008
R1009
P_MEDIA
R1010
CCD_CTL
STO_OFF
STRB_AD
STRB_CHG
SENSPULS
MONI_SW
R1016
RA1008
R1013
TL1001
R1012
PWR_LED
MMOD_1
MMOD_0
R1058
OP_THRMO
R1059
R1056
R1055
C1044
C1045
AL_3VSYS
GND
DSC_WKUP
GATEPULS
R1093
R1054
R1092
R1091
EXT_IN_L
TL1029
R1095
TL1030
S_IN_L
USB_CLK
USB_IN
USB_OUT
USB_CS
S2_DET
VF_LCD
F_PTR_AD
CAS_SW
LCD_CTL
R1003
RA1003
RA1002
R1081
R1079
R1078
R1077
C1048
RA1004
C1049
C1050
F/Z_CS
IRIS_O/C
IC1001
Z_PTR_AD
HALL_AD
TG_CS
CDS_CS
R1002
C1043
R1076
KEY_A
C1047
R1082
R1080
IC1001
M_CS
M_RVS
BUZZER
Q1007
Q1008R1073
R1074
R1070 R1071
R1072
C1046
D1001
R1075
RA1005
RA1006
RA1007
R1006
R1089
VF_CTL
ROM_CS
Q1006
L_FRB
DIAL_PB
DIAL_OFF
DIAL_AUTO
DIAL_MANU
ZOOM_SW
TRIG_SW
PHOTO_SW
R1084
STOP_SW
PLUS_SW
MINUS_SW
R1088
EJT_SW
R1087 R1086
C1054
D_GAIN
Q1004
C1053C1052C1051
LV_IN
REC_SAFE
SELCT_SW
LV_CLK
MIC1
OUTV
MIC2
MIC3
E_SENS
S_SENS
INFO_SW
R1031
S_REEL
R1030
MONI_CHG
CAM_SW_B
CAM_SW_A
CAM_SW_C
Q1005
R1014
INDEX_SW
T_REEL
DEW_SENS
R1099
Q1003
Q1002
C1065
TAPE_LED
REEL_VCC
R1097
R1015
R1057
R1028
C1002
R1001
X1001
C1001
ADDT06
ADDT07
ADDT08
ADDT09
ADDT10
ADDT11
ADDT12
ADDT13
ADDT14
ADDT15
ADDT00
ADDT01
ADDT02
ADDT03
ADDT04
ADDT05
CDDSTB
TSR
IC1001
HID1
SPA
SRV_TRK
RA1001
CAP_FG
DRUM_PG
DRUM_FG
DRWSEL
CDALE
CDWE
R1096
C1057
DRUM_REF
CAP_REF
C_FRB
MDA_PS
TL1036
LD_ON
R1032
R1033
R1034
Q1001
C1058
C1059
JLIP_TX
FRP
TL1026
PWDA2
R1017
R1018
CLK27SEL
DV_RST
HID3
RECH
PBH
DV_WAIT
C1064
MD_DEM1
R1019
L1002
IC1004
L_MUTE
Q1010
USB_STS
R1035
C1042
REM_OUT
NAVI_SW XINT
R1036
R1037
EXMOD_1
GND
V_BATT
R1083
VF_SW
R1051
R1068
C1056
R1085
C1060
C1061
C1063
C1062
TALLY
DSC_CLK
REG_3V
JLIP_RX
BLKC
R1048
CAM_CLK
CAM_OUT
R1053
TL1004
TL1003
DV_CS
CAM_CS
C1018
C1017
C1016
DSP_RST
MFLD
IC1003
R1047
DSC_DT_OUT
DSC_STS
R1060
R1061
A_MUTE
OSD_VD
R1046
T_BATT
DSC_DT_IN
LV_OUT
AL_3V
OMT
R1020
OSD_HD
MVD
I_MTR
IC1002
CJIG_RST
L1001
DSC_CS
C1040
R1021
IF_TX
IC1006
P_DET
C1041 X1002
AREG_SO
AREG_CLK
C1036
LIT_3V
IR_OUT
C1039
R1064
R1065
VENC_CS
ASPECT1
ASPECT2
AUDIO_CS
VIFD_CLK
IR_RMC
IR_AMP
VIFD_OUT
PWAD2
VIFD_IN
R1023
R1066
R1067
R1063
R1062
R1069
R1022
BLKA
VC3
BLKB
VC2
VC1
VC0
DOT_CLK
USBDOWN
DSC_RST
MMC_CD
PD_L
REG_CS
R1050
FLSH_RST
CAPT_REQ
MXDT_OUT
R1049
C1038
C1037
R1045
ADP_H
R1044
R1043
IC1007
CHRG_EVR
R1027
R1004
R1005
C1003
C1004
C1005
C1006
C1007
C1008
C1009
C1010
C1011
C1012
C1013
C1014
C1015
C1019
C1020
C1021
TL1023 TL1024TL1022
DAC_CS
R1024
TL1025
AU_CLK
AU_DATA
R1025
TL1021
Q1009
R1029
C1024
C1025
C1022
C1029
10
0.01
1.5K
0.1
10K
0.01
100K
0
10K
10K
0
10K
100K
1K
1K
1K
1K
330K
330K
47p
47p
10K
100K
10K
10K
1K
100K
100k
100k
10k
22k
39k
100k
0.01
100K
0.01
0.01
100K
0.1
47K
0.01
12k
8.2k
10K
4.7K
150K 2.7K
18K
1
47K
10K
1K
1K
1K
3.3K
1K
3.3K
3.3K 3.3K
0.0220.0220.0220.022
330k
75k
1K
22k
6.8k
1K
1K
47K
10p8p
47k
3.3k
3.3k
3.3k
3.3k
470K
470K
22
1K
10µ
1K
0.1
100k
1K
47K
1K
1K
10k
2.2K
100k
560
560
100k
100K
10µ
10p
100K
0.1
0.1
0.01
10K
15K
1K
10K
330K
4.7K
220K
100K
1K
82k
62k
0.01
0.01
1M
100k
1k
0
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.01
0.0068
0.0068
100K
100K
0.01
0.01
0.01
0.01
6.3
CS
HOLD
Vcc Vss SI
SCK
SO WP
25LC320X-I/ST-X
OSD_CS NMIRQ
L_FRB2
L_FRB1
CAM_SW_A
CAM_SW_B
CAM_SW_C
DSC_OUT
DSC_IN
VF_SW
MONI_SW
EJECT_SW
CAS_SW
DIAL_OFF
DIAL_PB
MDA_PS
C_FRB2
LD_ON
TAPE_LED
GATEPULS
IR_WB
D_GAIN
MONI_CHG
CLK27SEL
DV_RST
PBH
RECH
HID3
BZ_ENV
OSCO
FRQS
MMOD1
MMOD0
RESET
CKSEL
ADM15
ADM14
ADM13
ADM10
ADM9
ADM8
ADM7
ADM6
ADM5
D_REF
ASPECT1/EXMOD0
OSD_CLK
OSD_OUT LON
DSC_CLK
DIAL_MANU
DIAL_AUTO
C_FRB1
OSCI
BZ_FREQ
ADM12
ADM11
ADM4
ADM3
ADM2
ADM1
ADM0
CDALE
DV_WAIT
CDDSTB
KENTO1
KENTO2
CDWE
DRWSEL
DV_CS
STRB_CHG
SENSPULS
CAM_CS
TRIG_SW
STOP_SW
NAVI_SW
S2_DET
STRB_AD
I_MTR
T_BATT
KEY_B
KEY_A
ZOOM_SW
IR_DET
F_PTR_AD
Z_PTR_AD
HALL_AD
V_BATT
MIC1
MIC2
MIC3
DEW_SENS
E_SENS
S_SENS
REL_ON
CAM_CLK
CAM_OUT
REC_SAFE
TDO
TCK
TMS
TDI
TRSTL
S_DET
P_DET
ADP_H
BATT_H
CHRG_LED
STO_OFF
RSV
RSV
MENU_P_B
MENU_P_A
REMOTE
ROM_CS
M_CS
VF_LCD
LCD_CTL
VF_CTL
M_RVS
VENC_CS
VIF_DAC_CLK
VIF_DAC_OUT
VIF_IN
EXT_IN_L
TG_RST
CCD_CTL
DAC_CS
AVREFOFF
DSP_RST
IRIS_O/C
S_IN_L
RSV
REG_RTC_CLK
REG_RTC_OUT
RTC_IN
LV_CLK
LV_OUT
LV_IN
MFLD
FRP
TSR
SRV_TRK
SPA
DRUM_FG
PD_L
S_REEL
T_REEL
MP_MUTE
A_MUTE
RTC_INT MD_DEM1
RSV
CAP_FG
DRUM_FG
PWDA2
PWAD2
JLIP_INT
CHG_WKUP
DSC_CS
OMT
OUTV
VD
CHRG_EVR
EEP_CLK
EEP_OUT
EEP_IN
TXD
RXD
AU_CLK
AU_DATA
AU_CS
SCL
SDA
MIC_CTL
TALLY
MXDT_OUT
MMC_L
USBDOWN
DSC_STS
CAPT_REQ
FLSH_RST
DSC_WKUP
DSC_RST
EEP_CS
REG_CS
FZ_CS
CDS_CS
TG_CS
RTC_CS
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
ND
C_REF
RSV
RSV
USB_STS
USB_CLK
USB_OUT
USB_IN
TRG_OUT
RSV
OP_THRMO
PHOTO_SW
ASPECT2/EXMOD1
SHOE_VON
SHOE_DET
P_MEDIA
SHOE_PWM
USB_CS
XINT
ND
2SC4617/QR/-X
DTC124EE-X
PDTC124EE-X
DA221-X
UMC3N-W
UMC3N-W
DTC143XE-X
UMC3N-W
UMC3N-W
PVDD
PVSS
AVSS
AVDD
AVREFH
VREFL
VOUT
VOUT
VDD
VDD
VDD
VDD
VDD
VDDF
VDDF
VDDH
VDDH
VDDH
VDDH
VDDH
VDDH
VDDB
VDDB
VDDB
VDD2
VDD2
VDD2
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
DTA114EE-X
RN2102-X
PDTA114EE-X
6.3
NJU7108F3-X
DTC143EE-X
SN74AHC1G00K-X
SCLK
CS
DATA
RST
VDD
SDR
XD
EXD
TEST
VSS BLKC
TST0
BLKB
VC3
VD
HD
VC0
VC1
VC2
BLKA
MB90097PFVXXX
VSS
VDD
SIO
CLK
CS Xin
Xout
INTR
RS5C314-X
NAX0564-001X
IC-PST3423U-X
2SJ347-X
D
G
S
MN103S33NJG
MN103SF33NY4JG
LAST NO VACANT NO
R
C
D
Q
L
1099
1065
TL 1039
1001
1010
1002
IC
RA 1008
1007
1011, 1028, 1038, 1040, 1041, 1042, 1042,
1023, 1026, 1027, 1028, 1031, 1033, 1034,
MY
NOTE : The parts with marked (
∗
) is not used.
TO MAIN IF CN105
TO MAIN IF CN111
TO REG
TO REG
TO DV MAIN
TO MAIN IF IR SENSOR
TO W/B SENSOR
TO MAIN IF CN109, TG/VDR, VIDEO I/O
TO TG/VDR
TO CAM DSP
TO TG/VDR
TO MAIN IF CN109,
TG/VDR, CAM DSP
TO MAIN IF CN113
TO MAIN IF CN113
TO AUDIO
TO REG
TO MAIN IF TALLY
TO MAIN IF CN105
TO MAIN IF CN109
TO MAIN IF CN111
TO MAIN IF CN111
TO MAIN IF CN109
TO MAIN IF CN109
TO MAIN IF CN113
TO MAIN IF CN106
TO MAIN IF J103
TO DV MAIN, MAIN IF CN105, PRE/REC
TO REG
TO REG
TO MAIN IF CN112
TO MDA
TO MDA
TO MAIN IF CN111
TO REG
TO MAIN IF CN112
TO MAIN IF CN112
TO MAIN IF CN111
TO MAIN IF CN109
TO MAIN IF CN109
TO DV MAIN
TO MAIN IF CN105
TO REG, MAIN IF CN105
TO MAIN IF CN105
TO VIDEO I/O
TO VIDEO I/O
TO VIDEO I/O, CAM DSP
TO DSC, USB
(FOR NON-MEGA PIXEL
with DSC MODEL)
TO PIXELA
(FOR NON-MEGA PIXEL
without DSC MODEL)
TO USB
(FOR NON-MEGA PIXEL
with DSC MODEL)
TO PIXELA
(FOR NON-MEGA PIXEL
without DSC MODEL)
TO MAIN IF
(FOR NON-MEGA PIXEL
with DSC MODEL)
TO PIXELA
(FOR NON-MEGA PIXEL
without DSC MODEL)
TO MAIN IF STROBE SENSOR
(FOR NON-MEGA PIXEL
with DSC MODEL)
TO MAIN IF
(FOR NON-MEGA PIXEL
without DSC MODEL)
TO DSC
(ONLY NON-MEGA PIXEL
with DSC MODEL)
TO DSC
(ONLY NON-MEGA PIXEL
with DSC MODEL)
TO MDA
TO MAIN IF J103
TO VIDEO I/O
TO REG
TO VIDEO I/O
TO DV MAIN, VIDEO I/O
TO VIDEO I/O
TO DV MAIN
TO DV MAIN
TO AUDIO
TO AUDIO AD/DA
TO PRE/REC
TO DV MAIN
TO DV MAIN, CAM DSP
TO CAM DSP
TO MAIN IF CN105, PRE/REC
TO DV MAIN
TO MAIN IF CN106
TO ROTARY ENCODER SW CN107
TO MAIN IF CN106
TO DV MAIN
TO CAM DSP
TO LOADING MOTOR CN103
TO MAIN IF CN106
TO DV MAIN, CAM DSP
TO AUDIO, MAIN IF MULTI
TO MAIN IF MULTI
0 1 MAIN (SYSCON)
4-17 4-18
4.8 MAIN(SYSCON) SCHEMATIC DIAGRAM [FOR NON-MEGAPIXEL MODEL]

HGFEDCBA
4
5
3
2
1
y10359001a_rev0.2
UPD703040YF-M20
DRST
SPA
∗
FFREWH
UPD70F3040YFM20
XI164SEL
SRV_TRK
VPPD
DRUM_REF
CAP_REF
SRV_TRK
SRV_CS
TAPE_LED
REEL_VCC
FRP
SPA
TSR
HID
FRP
TSR
TESTDA0 TESTDA1
IC1401
GND
REG_3V
IC1401
TL1418
EEPROM_CS
TL1419
R1428
R1429
TL1401
S_DT_IN
S_DT_OUT
S_CLK
L_FRB
R1432
TL1415
D_GAIN
CAS_SW
SRV_CS
SRV_RST
SRV_RDY
TL1405
R1402
C1416
REC_SAFE
MIC1
OUTV
MIC2
MIC3
R1403
R1414 R1413 R1412 R1411
C1414C1415 C1413 C1412
E_SENS
S_SENS
R1427
R1430
R1431
R1409 REEL_VCC
TAPE_LED
S_REEL
R1408
MONI_CHG
CAM_SW_B
CAM_SW_A
CAM_SW_C
T_REEL
DEW_SENS
Q1403
Q1402
R1410
R1415
R1416
C1402
R1401
X1401
C1401
TL1410
TL1409
TL1408
ADDT06
ADDT07
ADDT08
ADDT09
ADDT10
ADDT11
ADDT12
ADDT13
ADDT14
ADDT15
ADDT00
ADDT01
ADDT02
ADDT03
ADDT04
ADDT05
DRE
TL1407
TSR
VPPD
DRST
TL1403 TL1404
TL1411
TL1406
HID1
SPA
SRV_TRK
L1401
NQR0006-001X C1403C1408
0.1
RA1401
CAS_SW
C1404
C1405
CAP_FG
DRUM_PG
DRUM_FG
C1406 DRWSEL
DALE
DWE
DRUM_REF
CAP_REF
MDA_PS
C_FRB
LD_ON
R1407
R1406
R1405
Q1401
C1407
EEP_DT_CLK
EEP_DT_OUT
EEP_IN
R1404
FRP
CAM_VD
C1411
C1410
C1409
TL1402
TL1416
CLK27SEL
DV_RST
HID3
RECH
PBH
DV_WAIT
SRV_RX
SRV_TX
TL1417
TL1412
TL1413
R1417
TL1414
0
10K
10K
1k
0.1 10K
3.3k 3.3k 3.3k 3.3k
0.0220.022 0.022 0.022
10K
10K
0
330k
75k
4.7K
4.7K
22p
1M
10p
0.1
47k
0.1
0.1
0.1
3.3k
3.3k
3.3k
0.1
4.7k
0.01
0.01
0.01
100
MDA_PS
NC
C_FRB2
C_FRB1
LD_ON
D_GAIN
L_FRB2
L_FRB1
CAM0
CAM1
CAM2
REC_SAFE
HID
NC
NC
XI164SEL
VDD
VSS
REEL_ON
MONI_CHG
CLK27SEL
FFREWH
DV_RST
NC
NC
NC
NC
NC
NC
NC
NC
CAP_REF
DRUM_REF
KENTO1_REF
KENTO2_REF
NC
NC
NC
NC
VPP
XT1
RESET
XT2
VDD
OSCO
OSCI
VSS
NC
HID
PBH
RECH
NC
NC
NC
NC
VDD
VSS
NC
NC
NC
NC
NC
NC
MSELECT
NC
NC
NC
DRUM_FG
DRUM_PG
NC
OUTV
NC
NC
VDD
VSS
T_REEL
S_REEL
TSR
FRP
NC
NC
NC
NC
SPA
SRVTRK
DRUM_FG
CAP_FG
NC
NC
NC
NC
S_SENS
E_SENS
DEW_SENS
BCID1
BCID2
BCID3
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
AVREF
AVSS
AVDD
VDD
VSS
DEW
NC
DRWSEL
DRE
DALE
NC
NC
ADDT00
ADDT01
ADDT02
ADDT03
ADDT04
ADDT05
ADDT06
ADDT07
BVDD
BVSS
ADDT08
ADDT09
ADDT10
ADDT11
ADDT12
ADDT13
ADDT14
ADDT15
NC
NC
NC
NC
SYS_OUT
KENTO1
KENTO2
NC
NC
CLK_OUT
NC
NC
NC
SYS_IN
READY
MIC_SDA
MIC_CTL
MIC_SCL
EEP_READ
EEP_WRITE
EEP_CLK
EEP_CS
NC
Vdd
Vss
CAM_VD
NC
NC
NC
TAPE_LED
NC
NC
NC
HID3
DV_WAIT
SYS_CLK
RXD
TXD
NC
UMC3N-W
UMC3N-W
NAX0204-001X
DTA114EE-X
RN2102-X
PDTA114EE-X
T
TO REG
TO CAM DSP
TO DV MAIN
TO DV MAIN
TO DV MAIN, PRE/REC,
MAIN IF CN105
TO SYSCON
TO SYSCON
TO MAIN IF
CN105
TO REG
TO SYSCON
TO MDA
TO MDA
TO MAIN IF
CN103
TO MAIN IF
CN107
TO PRE/REC
TO MAIN IF CN105,
PRE/REC
TO DV MAIN
TO MDA
0 1 MAIN (SERVO)
NOTE : The parts with marked (
∗
) is not used.
4-19 4-20
4.9 MAIN(SERVO) SCHEMATIC DIAGRAM [FOR MEGA PIXEL MODEL]

HGFEDCBA
4
5
3
2
1
y20268001a_rev0
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
IC1601
DRUM_ERR
Q1601
C1624
C1625
LOAD_FWD
C1627
R1625
C1626
C1641
C1628
C1630
C1629
C1622
MDA_2.9V
R1616
C1623
R1624
C1621
TL1608
TL1605
R1622
R1620
D_FG[-]
R1604
R1641
R1603
R1612
R1613
R1617
TL1620
TL1629
R1642
D1604
C1615
R1618
LOAD_REV
C1614
C1601
CAP_ERR
M_REG4.8
DRUM_PWR
CAP_PWR
REG_3V
R1629
R1601
C1607
D_PG[-]
D_PFG[+]
C1616
R1631
R1602
C1618
GND
R1630
R1611
R1610
COIL_COM
D_COIL_U
C1617
D_COIL_V
R1632
D_COIL_W
C1619
C1620
C_COIL_V
R1621
C_FG[-]
R1639
R1633
C1603
DRUM_FG
DRUM_PG
TO REG
TO SERVO
(FOR MEGA
PIXEL MODEL)
TO SYSCON
(FOR NON-MEGA
PIXEL MODEL)
CAP_FG
GND
C_FG[+]
R1634
C1644
MDA_PS
C_COIL_W
C_COIL_U
HG_V[-]
L_FRB
C_FRB
C1631
HG_V[+]
HG_U[-]
HG_BS[+]
R1640
HG_W[+]
CAP_REF
HG_BS[-]
HG_W[-]
TL1618
HG_U[+]
TL1601
TL1619
LD_ON
M_UNREG
DRUM_REF
C1645
C1643
TL1613
TL1607 TL1610
C1602
C1606
C1605
TL1609
C1632
TL1606
F1602
TL1617
TL1612
R1615
TL1625
TL1624
TL1623
TL1622
TL1603
D1602
R1637
F1601
R1636
R1635
C1633
D1603
TL1602
R1648
R1614
R1638
TL1626TL1627TL1628
IC1702 IC1701
C1701
C1702
R1708
R1707
R1706
R1705
R1704 R1703
R1702
R1701
R1709
R1711
R1710
R1712
S_RL[+]
T_RL[-]
S_RL[-]
T_RL[+]
T_REEL
S_REEL
0.01
100p
0.0082
360
0.0082
0.47
0.22
0.33
10µ
0.022
3.3k
0.047
18k
1
10k
10k
100k
0
4.7k
100k
1k
0.33
0
10µ
0.01
560k
680
0.047
0
120k
0.0022
0
470
470
0.0022
0.0022
10k
0
10µ
0
10µ
0.0015
0.1
10
R50
150K
R20
12k
3.3k
0.47
0
0.33
0
0.1
0.1
120K
10K
82K
2.2K
2.2K
2.2K
2.2K
82K
10K
1K
120K
1K
C.U
C.V
C.RNF
C.W
C.HU+
C.HU-
C.HV+
C.HV-
C.HW+
C.HW-
D.PGSMT
D.PGAMP
D.PGIN-
D.FGPGIN+
D.FGIN-
D.FGAMP
D.FGSMT
VCC
D.DETECT
D.ISET
D.SL1
D.SL2
UNREG
D.VM
D.VS
D.EC
D.PCI
D.PCV
D.COM
D.U
D.V
D.RNF
D.W
L.FRB
L.REF
L.FWD
L.GND
L.REV
L.VM
C.FGIN+
C.FGIN-
C.FGAMP
C.FGSMT
VG
CP1
CP2
GND
GDX
PS
C.RCC
C.FRB
C.VM
C.VS
C.EC
C.PCI
C.PCV
BD6637KS
UMC3N-W
/20
DAP222-X
/6.3
/6.3
/6.3
/6.3
NMFZ007-R50X-K
DAP222-X
NMFZ007-R20X-K
DAP222-X BA10393F-XE LM358DR2-X
T
T
T
T
NOTE : The parts with marked (
∗
) is not used.
TO MAIN IF CN103
TO MAIN IF CN104
TO MAIN IF
CN104, CN106, CN108
TO REG
TO MAIN IF
CN106, CN108
TO MAIN IF CN108
TO SERVO
(FOR MEGA
PIXEL MODEL)
TO SYSCON
(FOR NON-MEGA
PIXEL MODEL)
TO MAIN IF CN106
01MAIN (MDA)
LAST NO VACANT NO
R
C
D
Q
L
1712
1702
1601
1702IC
1604
F 1602
1604,1608-1613,1634-1640,1642,1646-1700
1601
1602-1700
1605-1609,1619,1623,1626-1628,1643-1647,1649-1700
4-21 4-22
4.10 MAIN(MDA) SCHEMATIC DIAGRAM

NOTE : The parts with marked (
∗
) is not used.
DCBA
4
5
3
2
1
y30239001a_rev0
2109-2111
LAST No. VACANT No.
R C
D Q L
VACANT No. (
∗
NO USED)
SYMBOL No.
2111
2101~
2101 2103
IC 2101
2199
TO DSC TO SYSCON
∗
∗
∗
0 1 MAIN (AUDIO AD/DA)
TO AUDIO
TO REG
EM_AU/R EM_AU/L
AIDAT2 REG_3V GND DOBCK2
L2101
C2105C2108
PWDA2 MD_DEM1
IC2101
DOLRCK2
C2106
R2102
R2101
C2104
C2103
DODAT2 DOMCK2 PWAD2
C2107
MD_AU/R MD_AU/L
C2102 C2101
R2103
C2109
C2110
C2111
10µ
104.7
0.1
470 470
0.0022
0.0022
0.1
1.0 1.0
0Ω
/6.3/6.3
VCOM
AINR
AINL
VSS
VDD
DEM0
DEM1
SDTO
SDTI
LRCK
MCLK
SCLK
PWAD
PWDA
AOUTL
AOUTR
AK4550VT-X
TT
DCBA
4
5
3
2
1
y30240001a_rev0
NOTE : The parts with marked (
∗
) is not used.
TO PIXELA TO SYSCON
(See:Fig IC2101)
Fig IC2101
ROHM/BU7800FV ASAHI KASEI/AK5355
∗
∗
∗
0 1 MAIN (AUDIO AD/DA)
TO AUDIO
TO REG
Clock
Divider
Audio I/F Controller
ADC HPF
VCOM
Rin
Lin
VSS VA VD SEL NC
TEST NC
DIF
PDN
BCLK
MCLK
LRCK
STDO
12345678
910111213141516
16 15 14 13 12 11 10 9
12345678
30k 30k
Serial Interface
ADC HPF
VCOM
Rin
Lin
VSS VDD NC NC
SDTO
TOUT GCTL TEST PDN
BCLK
MCLK
LRCK
NC
EM_AU/R
EM_AU/L
R2106
REG_3V GND DOBCK3
L2101
C2105C2108
R2105
R2103
IC2101
DOLRCK3
C2106
R2102
R2101
C2104
C2103
DOMCK3 PWAD2
C2107
AIDAT3
C2102 C2101
C2109
C2110
10µ
104.7
0Ω
0Ω
0.1
470 470
0.0022
0.0022
0.1
1.0 1.0
/6.3/6.3 TT
2109-2111
LAST No. VACANT No.
R C
D Q L
VACANT No.( NO WEAR)
SYMBOL No.
∗
2110
2101~
2104 2106
2101 2106
IC 2101
2199
4-23 4-24
4.11 MAIN(AUDIO AD/DA) SCHEMATIC DIAGRAM [FOR with DSC MODEL] 4.12 MAIN(AUDIO AD/DA) SCHEMATIC DIAGRAM [FOR without DSC MODEL]

HGFEDCBA
4
5
3
2
1
y20271001a_rev0
NOTE : The parts with marked (
∗
) is not used.
∗
∗∗
∗∗
∗
∗∗
*
*
*
*
0 1
MAIN (AUDIO)
MIC Power Supply
MRF
Control
MPWR
I/F
CSN
CCLK
CDTI
Register
Audio
I/F
Controller
BCLK
MCLK
LRCK
SDTO
SDTI
EXTR
EXTL
INTR
INTL
MVDD
PDN
HPL
HVDD
DVDD
SVDD
LOUT1
ROUT1
LOUT2
ROUT2
LIN1
LIN2
RIN1
RIN2
ATT
DAC
AVDD
HPR HVCMVCOM MUTET BEEP2
ADC
EQ
LPF
HPF
ALC1
MIX
ALC2
SPK+
SPK-
+2dB
+2dB
BEEP1
MUTE
+
+-
-
MGND
SGND
DGND
AGND
TO MAIN IF
CN113
∗∗∗
∗
∗
∗
∗
∗
∗
∗
TO REG
TO CAM DSP
TO
AUDI AD/DA
TO
MAIN IF
J103
TO
DV MAIN
TO
SYSCON
R2408
PD_L
S_SHUT
R2230
REG_3V
AODAT
DATA_OUT
AIMCK
REG_4.8V
BUZZER
AIBCK
CLK_OUT
AUDIO_CS
AU_SIG/L
AILRCK
R2229
L2602
L2603
L2601
R2602 R2601
TO INT MIC
CN114
C2604
C2603
R2612
C2610
C2606
C2605
C2609
C2613
R2610
R2609
R2607
R2608
C2611
C2612
R2201
R2203
C2201
C2223
C2224
R2611
R2204
R2613
C2202
R2202
C2615
R2614
C2617
C2618
D2204
C2620
C2619
L2401
D2203
C2402
C2401
Q2401
R2401
D2205
R2407
L2402
C2403
AIDAT
C2405
C2204
C2203
R2217
C2219
C2220
C2221
C2222
A_MUTE
SPK+
MIC/R
MIC_GND
MIC_GND
MIC/L
SPK-
R2213
R2212
C2218
C2217
C2210
C2214
C2209
C2213
R2207
R2206
R2209
R2208
C2212
C2216
C2211
C2215
EM_AU/R
EM_AU/L
MD_AU/R
MD_AU/L
D2206
GND
R2225
R2226
R2228
R2227
IC2201
R2409
C2406
C2614
Q2403
R2402
R2403C2404
REG-CCD
C2205
AU_SIG/R
33k
33k
0Ω
0Ω
0Ω
2.7K 2.7K
0.015
0.015
0.001
0.0047
0.0047
0.001
1.0
1.0
1.0
680K
39k
0.1
0.1
0.1
150k
1.0
560k
100p
10µ
10
10
4.7k
10
10µ
10
0.1
1.0
1.0
10
2.7
2.7
0.1
0.1
1.0
0.1
1.0
0.1
33k
33k
22k
22k
0.1
0.1
0.1
0.1
0Ω
0Ω
8.2k
8.2k
10
100p
4.7k
18k10
1.0
CH
/6.3
/6.3
2SC4617/QR/-X
/6.3
AK4564VQ
/6.3
CH
2SC4617/QR/-X
/6.3
T
T
T
T
T
*
VALUE CHANGE
C
LAST No. VACANT No.
R
2620
D
Q
L
VACANT No.( NO WEAR)
SYMBOL No.
∗
2201-2400
2201-2699
2402
2201-2400 2403-2600
2603
2206-2208 2225-2400
2614
IC 2201
2407-2602
2205
2403
PAL
22K
R2607
22K
R2610
R2609
2.2K
22K
NTSC
R2608 2.2K
22K
220K
220K
*
2210-2211 2214-2216 2218-2224 2231-2400 2404-2406 2410-2600 2603-2606
2616
2206 2201-2202 2203-2206
2611-2614 2408-2409
2219-2222 2617-2620
11
1
1
4-25 4-26
4.13 MAIN(AUDIO) SCHEMATIC DIAGRAM [FOR MEGA PIXEL with DSC MODEL]

NOTE : The parts with marked (
∗
) is not used.
HGFEDCBA
4
5
3
2
1
y20269001a_rev0
C
LAST No. VACANT No.
R
2620
D
Q
L
VACANT No. (∗ NOT USED)
SYMBOL No.
2201-2400
2201-2699
2402
2201-2400 2403-2600
2603
2206-2208 2225-2400
2614
IC 2201
2407-2602
2205
2403
2210-2211 2214-2216 2218-2224 2231-2400 2404-2406 2410-2600 2603-2606
2616
2206 2201-2202 2203-2206
2611-2614 2408-2409
2219-2222 2617-2620
NTSC
PAL
R2607 R2608 R2609 R2610
2.2K 2.2K 22K 22K
22K 22K 220K 220K
# EXCHANGE PARTS LIST
01MAIN (AUDIO)
MIC Power Supply
MRF
Control
MPWR
I/F
CSN
CCLK
CDTI
Register
Audio
I/F
Controller
BCLK
MCLK
LRCK
SDTO
SDTI
EXTR
EXTL
INTR
INTL
MVDD
PDN
HPL
HVDD
DVDD
SVDD
LOUT1
ROUT1
LOUT2
ROUT2
LIN1
LIN2
RIN1
RIN2
ATT
DAC
AVDD
HPR
HVCMVCOM MUTET BEEP2
ADC
EQ
LPF
HPF
ALC1
MIX
ALC2
SPK+
SPK-
+2dB
+2dB
BEEP1
MUTE
+
+-
-
MGND
SGND
DGND
AGND
∗∗∗
∗
∗
∗
∗
∗
∗
∗
TO REG
TO CAM DSP
TO DVMAIN
TO SYSCON
R2408
PD_L
S_SHUT
R2230
REG_3V
AODAT
AU_DATA
AIMCK
REG_4.8V
BUZZER
AIBCK
AU_CLK
AUDIO_CS
AU_SIG/L
AILRCK
R2229
L2602
L2603
L2601
R2602 R2601
CN114
TO MAIN IF CN113
C2604
C2603
R2612
C2610
C2606
C2605
C2609
C2613
R2610
R2609
R2607
R2608
C2611
C2612
R2201
R2203
C2201
C2223
C2224
R2611
R2204
R2613
C2202
R2202
C2615
R2614
C2617
C2618
D2204
C2620
C2619
L2401
D2203
C2402
C2401
Q2401
R2401
D2205
R2407
L2402
C2403
AIDAT
C2405
C2204
C2203
R2217
C2219
C2220
C2221
C2222
A_MUTE
SPK+
SPK-
MIC/R
MIC_GND
MIC_GND
MIC/L
R2213
R2212
C2218
C2217
C2210
C2214
C2209
C2213
R2207
R2206
R2209
R2208
C2212
C2216
C2211
C2215
EM_AU/R
EM_AU/L
MD_AU/R
MD_AU/L
D2206
GND
R2225
R2226
R2228
R2227
IC2201
R2409
C2406
C2614
Q2403
R2402
R2403C2404
REG-CCD
C2205
AU_SIG/R
33k
33k
0Ω
0Ω
0Ω
2.7K 2.7K
0.015
0.015
0.001
0.0047
0.0047
0.001
1.0
1.0
1.0
680K
39k
0.1
0.1
0.1
150k
1.0
560k
100p
10µ
10
10
4.7k
10
10µ
10
0.1
1.0
1.0
10
2.7
2.7
0.1
0.1
1.0
0.1
1.0
0.1
33k
33k
22k
22k
0.1
0.1
0.1
0.1
0Ω
0Ω
8.2k
8.2k
10
100p
4.7k
18k10
1.0
CH
/6.3
/6.3
2SC4617/QR/-X
/6.3
AK4564VQ
/6.3
CH
2SC4617/QR/-X
/6.3
T
T
T
T
T
11
1
1
TO AUDIO AD/DA
TO MAIN IF J103
#
#
#
#
TO INT MIC
∗∗
∗∗
∗∗
∗∗
4-27 4-28
4.14 MAIN(AUDIO) SCHEMATIC DIAGRAM [FOR NON-MEGA PIXEL with DSC MODEL]

NOTE : The parts with marked (
∗
) is not used.
∗
∗∗
∗∗
∗
∗
∗
*
*
*
*
0 1
MAIN (AUDIO)
MIC Power Supply
MRF
Control
MPWR
I/F
CSN
CCLK
CDTI
Register
Audio
I/F
Controller
BCLK
MCLK
LRCK
SDTO
SDTI
EXTR
EXTL
INTR
INTL
MVDD
PDN
HPL
HVDD
DVDD
SVDD
LOUT1
ROUT1
LOUT2
ROUT2
LIN1
LIN2
RIN1
RIN2
ATT
DAC
AVDD
HPR HVCMVCOM MUTET BEEP2
ADC
EQ
LPF
HPF
ALC1
MIX
ALC2
SPK+
SPK-
+2dB
+2dB
BEEP1
MUTE
+
+-
-
MGND
SGND
DGND
AGND
TO MAIN IF
CN113
∗∗∗
∗
∗
∗
∗
∗
∗
∗
TO REG
TO CAM DSP
TO AUDIO AD/DA
TO MAIN IF
J103
TO
DV MAIN
TO
SYSCON
R2408
PD_L
S_SHUT
REG_3V
AODAT
AU_DATA
AIMCK
REG_4.8V
BUZZER
AIBCK
AU_CLK
AUDIO_CS
AU_SIG/L
AILRCK
L2602
L2603
L2601
R2602 R2601
TO INT MIC
CN114
C2604
C2603
R2612
C2610
C2606
C2605
C2609
C2613
R2610
R2609
R2607
R2608
C2611
C2612
R2201
R2203
C2201
C2223
C2224
R2611
R2204
R2613
C2202
R2202
C2615
R2614
C2617
C2618
D2204
C2620
C2619
L2401
D2203
C2402
C2401
Q2401
R2401
D2205
R2407
L2402
C2403
AIDAT
C2405
C2204
C2203
R2217
C2219
C2220
C2221
C2222
A_MUTE
SPK+
MIC/R
MIC_GND
MIC_GND
MIC/L
SPK-
R2213
R2212
C2218
C2217
C2210
C2214
C2209
C2213
R2207
R2206
R2209
R2208
C2212
C2216
C2211
C2215
EM_AU/R
EM_AU/L
D2206
GND
R2225
R2226
IC2201
R2409
C2406
C2614
Q2403
R2402
R2403C2404
REG-CCD
C2205
AU_SIG/R
0Ω
0Ω
0Ω
2.7K 2.7K
0.015
0.015
0.001
0.0047
0.0047
0.001
1.0
1.0
1.0
680K
39k
0.1
0.1
0.1
150k
1.0
560k
100p
10µ
10
10
4.7k
10
10µ
10
0.1
1.0
1.0
10
2.7
2.7
0.1
0.1
1.0
0.1
1.0
0.1
33k
33k
22k
22k
0.1
0.1
0.1
0.1
0Ω
0Ω
10
100p
4.7k
18k10
1.0
CH
/6.3
/6.3
2SC4617/QR/-X
/6.3
AK4564VQ
/6.3
CH
2SC4617/QR/-X
/6.3
T
T
T
T
T
*
VALUE CHANGE
C
LAST No. VACANT No.
R
2620
D
Q
L
VACANT No.( NO WEAR)
SYMBOL No.
∗
2201-2400
2201-2699
2402
2201-2400 2403-2600
2603
2206-2208 2225-2400
2614
IC 2201
2407-2602
2205
2403
PAL
22K
R2607
22K
R2610
R2609
2.2K
22K
NTSC
R2608 2.2K
22K
220K
220K
*
2210-2211 2214-2216 2218-2224 2227-2400 2404-2406 2410-2600 2603-2606
2616
2206 2201-2202 2203-2206
2611-2614 2408-2409
2219-2222 2617-2620
HGFEDCBA
4
5
3
2
1
y20270001a_rev0
4-29 4-30
4.15 MAIN(AUDIO) SCHEMATIC DIAGRAM [FOR NON-MEGA PIXEL without DSC MODEL]

HGFEDCBA
4
5
3
2
1
y10376001a_rev0
PHYFIL
TPA+
TPA-
SBE
[12ch_EVR_DAC]
TPB+
TPB-
TDI
[DVMAIN]
0.5
0.5
ANALOG_2.5V
ANALOG_1.8V
DIGITAL_1.8V
DIGITAL_3V
PHY_2.85V
VCO D/AA/D A/DD/A
VCO
AMP+
AMP-
AMPO GND
VCC
NORI1
NORI2
TRICSW
0.5
0.5
0.5
IC3001
GND
REG_2.5V
CLK27SEL
REG_3V
ADDT15
ADDT07
L3002
L3004
C3040
ADDT06
RA3001
C3005
ADDT05
ADDT04
ADDT03
ADDT02
ADDT01
ADDT00
ADDT08
ADDT09
ADDT10
ADDT11
ADDT12
ADDT13
ADDT14
C3037
R3020
IC3002
DV_WAIT
R3026
RA3002
DRWSEL
DRE
DWE
DALE
INV
INH
OUTV
OUTH
DCO3
DCO2
DCO1
DCO0
DYO3
DYO2
DYO1
DYO0
DCI3
DCI2
DCI1
DCI0
DYI3
DYI2
DYI1
DYI0
AIDAT
AODAT
AILRCK
AIBCK
AIMCK
C3059
C3030
C3060
L3014
PB_CLK
C3031
C3028
RECCADJ
R3010
FS_PLL
MAIN_VCO
ATF_GAIN
TSR
C3075
R3015
C3027
R3013
R3014
R3018
NOSIG_LV
R3019
R3016
R3017
C3026
R3036
C3017
DUMP_CTL
SPA
R3032
TL3001
HID1
CLK27A
DV_RST
C3049
C3024
C3023
R3009
X3002
C3025
AGC_OUT
FRP
TDO
VRB_AGC
ATFI
VRB_ATF
REC_DATA
C3015
REC_CTL
RA3003
L3005
TMS
TCMK
C3008
C3007
C3011
H_GAIN
C3013
H_OFFSET
C3043
C3016
C3029
C3048
C3020
C3038
C3045
C3003
C3056
C3036
Q3001
RA3004
REF_CLK
SENS_EVR
TRST
RA3005
TDI
R3057
L3001
C3001
R3002
VREF_1.1
TL3006
DAC_CS
CLK_OUT
DATA_OUT
R3072
R3025
Q3002
R3007
R3008
C3006
C3050
DISCRI
R3034
R3029
R3071
C3047
R3030
D3002
REG_1.8V
C3042
C3039
R3037
L3012
R3074
R3073
C3044
R3075
C3070
D3004
L3015
C3009
D3001
R3011
R3027
C3021
C3012
R3004
C3064
R3005
R3006
SRV_TRK
C3033
C3055
C3046
REC_CLK
C3022
L3007
L3008
D3003
C3032
R3031
C3067
C3066
R3067
R3066
IC3005
R3068
C3068
C3069
R3069
OPEN
47
10
8P
5.1k
OPEN
47
22
0.1
0.01
10µ
0.1
270p
10k
OPEN
3.9k
0.0047
2.4k
3.9k
56
56
56
56
1
10K
0.1
1M
2200P
0.001
33p
10k
0.1
0.01
10
10
47
0.1
0.01
0.01
0.1
0.01
0.047
0.1
0.1
0.1
1
OPEN
8P
10k
0Ω
10
10
10k
OPEN
1K
5.6k
2.2k
1
0.01
2.2k
8.2K
0
0.1
220k
0.01
0.1
680
10K
OPEN
0.1
OPEN
OPEN
1
220k
10k
0.1
0.1
10k
1000P
10
10
22P
0.01
0.01
0.1
2.2µ
12µ
0.001
220k
1000P
1
560
560
180
OPEN
0.1
4.7K
LPFIN
LPFOUT
ADVIN0
ADAVD0
ADAVS0
ADVRH0
ADVRL0
EXDATAI7
EXDATAI6
EXDATAI5
EXDATAI4
EXDATAI3
EXDATAI2
EXDATAI1
EXDATAI0
PBCLKO
PBCLKI
VSSP
VCI4185
VDDP
DAAOUT0
DAVRO0
DAVREF0
DAAVS0
DAAVD0
DAAOUT1
DAVRO1
DAVREF1
DAAVS1
DAAVD1
SBE
HID
HSP
RECDATA
RECCLK
RECCTL
SPA
VSS
VDDE
VSS
OSC4185I
OSC4185O
DISCRI
REFCLK
ADVIN1
ADAVD1
ADAVS1
ADVRH1
ADVRL1
VSS
PWM27O
VDDE
OSC27I
OSC27O
CLK27I
CLK27O
CLK27SEL
VSS
CLK135O
VDDI
FRRES
FRREF
TRKREF
SERVOFRREF
SERVOTRKREF
PHYTPA
PHYTPB
PHYTPBIAS
PHYXTPA
PHYXTPB
PHYRO
PHYRF
PHYFIL
XRESET
PHYVDA
PHYVDR
PHYVSA
PHYVSR
PHYAVS3
VDDE
N.C
VDDE
VSS
PWMAUDIO
VDDE
VSSP
VCIAUD
VDDP
VCXO11I
VCXO11O
VCXO12I
VCXO12O
OSC24I
OSC24O
OSC11I
OSC11O
DILRCK
DIBCK
DIMCK
DIDAT
AILRCK
AIBCK
AIMCK
AIDAT1
AIDAT0
DOLRCK
DOBCK
VDDI
DODAT
AOLRCK
AOBCK
VSS
AODAT1
AODAT0
YSO0
YSO1
YSO2
YSO3
BRSO0
BRSO1
BRSO2
BRSO3
YSI0
YSI1
YSI2
YSI3
BRSI0
BRSI1
BRSI2
BRSI3
OUTH
OUTV
INH
INV
CPUALE
XCPUDSTB0
XCPUDSTB1
XCPURW
XCPUCS
XINT
CPUWAIT
CPUWAITLOGIC
CPUDSLOGIC
CPUBUSTYPE
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
VSS
VDDE
VDDI
VSS
ADRS0
ADRS1
ADRS2
ADRS3
ADRS4
VDDE
VDDI
BUSCLK
VSS
ADRS5
ADRS6
ADRS7
ADRS10
ADRS8
ADRS9
VSS
VDDI
VSS
EXTFRP
EXTREQ
EXTACCESS
EXTDATA0
EXTDATA2
VDDE
EXTDATA5
VSS
EXTDATA6
N.C
N.C
EXTDATA1
VSS
EXTDATA3
EXTDATA4
EXTDATA7
N.C
N.C
TTST
VPD
N.C
N.C
N.C
PBI
TBST
N.C
DCTEST0
VSS
TDI TDI
DCTEST1
TRST
TCK
TMS
TDO
VDDI
MON2
MON5
N.C
VDDE
MON3
N.C
MON0
MON1
MON4
VSS
MON6
MON9
MON11
VDDE
MON14
MON16
MON7
MON8
MON12
VDDI
MON13
MON17
MON10
MON15
MON27
N.C
MON18
MON19
MON21
VDDE
VSS
MON20
MON22
MON23
VDDE
MON24
MON25
MON26
VDDE
VSS
N.C
VSS
VDDE
VDDP
VSSP
VDDA
N.C
VDDE
VSS
VSS
VDDI
VDDE
VDDI
VSS
VSS
MTEST
PHYAVD2
BUSRST
PMODE
VDDI
PHYAVD3
PWR3
PHYAVS2
PWR1
PWR2
PHYAVS1
PHYAVD1
VSS
VSS
VDDE
VDDI
JCY0152
NQR0129-002X
NQR0006-001X
/6.3
CH
AO1
AO2
GND
DI
CLK
LD
DO
AO12
AO11
VCC VREFU
AO10
AO9
AO8
AO7
AO6
AO5
AO4
AO3
VREFL
BU2501FV-X
/4
CH
CH
[NAX0480-001X]
NQR0006-001X
/6.3
/4
CH
2SC4617
NRZ0040-0R0X
NQR0129-002X
/6.3
2SC4617
EC2C01C-X
NQR0129-002X
MA2Z720-X
NQR0006-001X
EC2C01C-X
CH
EC2C01C-X
JCY0136-X
T
T
T
T
T
0 1 MAIN (DV MAIN)
TO MAIN IF
TO REG
TO PRE/REC
TO MAIN IF CN109
TO SYSCON
TO PRE/REC
TO MAIN IF STROBE SENSOR
TO DV J101
TO MAIN IF CN105
TO SERVO
TO SERVO, MAIN IF CN105
TO SERVO
TO AUDIO
TO CAM DSP
TO CAM DSP
TO CAM DSP,
VIDEO I/O
TO CAM DSP, VIDEO I/O
LAST NO VACANT NO
R
C
D
Q
L
4-31 4-32
4.16 MAIN(DV MAIN) SCHEMATIC DIAGRAM [FOR MEGA PIXEL with DSC MODEL]

HGFEDCBA
4
5
3
2
1
y10374001a_rev0
PHYFIL
TPA+
TPA-
SBE
[12ch_EVR_DAC]
TPB+
TPB-
TDO
TMS
TCMK
TRST
TDB
[DVMAIN]
0.5
0.5
ANALOG_2.5V
ANALOG_1.8V
DIGITAL_1.8V
DIGITAL_3V
PHY_2.85V
VCO D/AA/D A/DD/A
VCO
AMP+
AMP-
AMPO
GND
VCC
NORI1
NORI2
TRICSW
0.5
0.5
0.5
IC3001
GND
REG_2.5V
CLK27SEL
REG_3V
ADDT15
ADDT07
L3002
L3004
C3040
ADDT06
RA3001
C3005
ADDT05
ADDT04
ADDT03
ADDT02
ADDT01
ADDT00
ADDT08
ADDT09
ADDT10
ADDT11
ADDT12
ADDT13
ADDT14
C3037
R3020
IC3002
DV_WAIT
R3026
RA3002
DRWSEL
CDDSTB
CDWE
CDALE
INV
INH
OUTV
OUTH
DCO3
DCO2
DCO1
DCO0
DYO3
DYO2
DYO1
DYO0
DCI3
DCI2
DCI1
DCI0
DYI3
DYI2
DYI1
DYI0
AIDAT
AODAT
AILRCK
AIBCK
AIMCK
C3059
C3030
C3060
L3014
PB_CLK
C3031
C3028
RECCADJ
R3010
FS_PLL
MAIN_VCO
ATF_GAIN
TSR
DV_CS
R3015
C3027
R3013
R3014
R3018
NOSIG_LV
R3019
R3016
R3017
C3026
R3036
C3017
DUMP_CTL
SPA
R3032
TL3001
HID1
CLK27A
DV_RST
C3049
C3024
C3023
R3009
X3002
C3025
AGC_OUT
FRP
TL3007
VRB_AGC
ATFI
VRB_ATF
REC_DATA
C3015
REC_CTL
RA3003
L3005
TL3008
TL3009
C3008
C3007
C3011
H_GAIN
C3013
H_OFFSET
C3043
C3016
C3029
C3048
C3020
C3038
C3045
C3003
C3056
C3036
Q3001
RA3004
REF_CLK
SENS_EVR
RA3005
TL3011
R3057
L3001
C3001
R3002
VREF_1.1
R3021
R3022
XINT
TL3006
DAC_CS
VIFD_CLK
VIFD_OUT
R3072
R3025
Q3002
R3007
R3008
C3006
C3050
DISCRI
R3034
R3029
R3071
C3047
R3030
D3002
REG_1.8V
C3042
C3039
R3037
L3012
R3074
R3073
C3044
R3075
C3070
D3004
L3015
C3009
D3001
R3011
R3027
C3021
C3012
R3004
C3064
R3005
R3006
SRV_TRK
C3033
C3055
C3046
REC_CLK
C3022
L3007
L3008
D3003
C3032
R3031
C3067
C3066
R3067
R3066
IC3005
R3068
C3068
C3069
R3069
47
10
8P
5.1k
47
22
0.1
0.01
10µ
0.1
270p
10k
3.9k
0.0047
2.4k
3.9k
56
56
56
56
1
10K
0.1
1M
2200P
0.001
33p
10k
0.1
0.01
10
10
47
0.1
0.01
0.01
0.1
0.01
0.047
0.1
0.1
0.1
1
8P
10k
0Ω
10
10
10k
0
1K
5.6k
2.2k
1
0.01
2.2k
15K
0
0.1
220k
0.01
0.1
680
10K
0.1
1
220k
10k
0.1
0.1
10k
1000P
10
10
12P
0.01
0.01
0.1
2.2µ
12µ
0.001
220k
1000P
1
560
560
270
0.1
4.7K
LPFIN
LPFOUT
ADVIN0
ADAVD0
ADAVS0
ADVRH0
ADVRL0
EXDATAI7
EXDATAI6
EXDATAI5
EXDATAI4
EXDATAI3
EXDATAI2
EXDATAI1
EXDATAI0
PBCLKO
PBCLKI
VSSP
VCI4185
VDDP
DAAOUT0
DAVRO0
DAVREF0
DAAVS0
DAAVD0
DAAOUT1
DAVRO1
DAVREF1
DAAVS1
DAAVD1
SBE
HID
HSP
RECDATA
RECCLK
RECCTL
SPA
VSS
VDDE
VSS
OSC4185I
OSC4185O
DISCRI
REFCLK
ADVIN1
ADAVD1
ADAVS1
ADVRH1
ADVRL1
VSS
PWM27O
VDDE
OSC27I
OSC27O
CLK27I
CLK27O
CLK27SEL
VSS
CLK135O
VDDI
FRRES
FRREF
TRKREF
SERVOFRREF
SERVOTRKREF
PHYTPA
PHYTPB
PHYTPBIAS
PHYXTPA
PHYXTPB
PHYRO
PHYRF
PHYFIL
XRESET
PHYVDA
PHYVDR
PHYVSA
PHYVSR
PHYAVS3
VDDE
N.C
VDDE
VSS
PWMAUDIO
VDDE
VSSP
VCIAUD
VDDP
VCXO11I
VCXO11O
VCXO12I
VCXO12O
OSC24I
OSC24O
OSC11I
OSC11O
DILRCK
DIBCK
DIMCK
DIDAT
AILRCK
AIBCK
AIMCK
AIDAT1
AIDAT0
DOLRCK
DOBCK
VDDI
DODAT
AOLRCK
AOBCK
VSS
AODAT1
AODAT0
YSO0
YSO1
YSO2
YSO3
BRSO0
BRSO1
BRSO2
BRSO3
YSI0
YSI1
YSI2
YSI3
BRSI0
BRSI1
BRSI2
BRSI3
OUTH
OUTV
INH
INV
CPUALE
XCPUDSTB0
XCPUDSTB1
XCPURW
XCPUCS
XINT
CPUWAIT
CPUWAITLOGIC
CPUDSLOGIC
CPUBUSTYPE
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
VSS
VDDE
VDDI
VSS
ADRS0
ADRS1
ADRS2
ADRS3
ADRS4
VDDE
VDDI
BUSCLK
VSS
ADRS5
ADRS6
ADRS7
ADRS10
ADRS8
ADRS9
VSS
VDDI
VSS
EXTFRP
EXTREQ
EXTACCESS
EXTDATA0
EXTDATA2
VDDE
EXTDATA5
VSS
EXTDATA6
N.C
N.C
EXTDATA1
VSS
EXTDATA3
EXTDATA4
EXTDATA7
N.C
N.C
TTST
VPD
N.C
N.C
N.C
PBI
TBST
N.C
DCTEST0
VSS
TDI
DCTEST1
TRST
TCK
TMS
TDO
VDDI
MON2
MON5
N.C
VDDE
MON3
N.C
MON0
MON1
MON4
VSS
MON6
MON9
MON11
VDDE
MON14
MON16
MON7
MON8
MON12
VDDI
MON13
MON17
MON10
MON15
MON27
N.C
MON18
MON19
MON21
VDDE
VSS
MON20
MON22
MON23
VDDE
MON24
MON25
MON26
VDDE
VSS
N.C
VSS
VDDE
VDDP
VSSP
VDDA
N.C
VDDE
VSS
VSS
VDDI
VDDE
VDDI
VSS
VSS
MTEST
PHYAVD2
BUSRST
PMODE
VDDI
PHYAVD3
PWR3
PHYAVS2
PWR1
PWR2
PHYAVS1
PHYAVD1
VSS
VSS
VDDE
VDDI
JCY0152
NQR0129-002X
NQR0006-001X
/6.3
CH
AO1
AO2
GND
DI
CLK
LD
DO
AO12
AO11
VCC VREFU
AO10
AO9
AO8
AO7
AO6
AO5
AO4
AO3
VREFL
BU2501FV-X
/4
CH
CH
[NAX0480-001X]
NQR0006-001X
/6.3
/4 NBE20GM-476X
CH
2SC4617
NRZ0040-0R0X
NQR0129-002X
/6.3
2SC4617
EC2C01C-X
NQR0129-002X
MA2Z720-X
NQR0006-001X
EC2C01C-X
CH
EC2C01C-X
JCY0136-X
T
T
T
T
T
NOTE : The parts with marked (
∗
) is not used.
MAIN (DV MAIN)
01
TO REG
TO PRE/REC
TO MAIN IF STROBE SENSOR
TO PRE/REC
TO SYSCON
TO MAIN IF CN109
TO MAIN IF CN105
TO DV J101
TO AUDIO
TO SYSCON
TO SYSCON
TO CAM DSP
TO CAM DSP, VIDEO I/O
TO CAM DSP, VIDEO I/O
TO CAM DSP
∗
∗
∗
∗
∗
∗
∗
∗
∗
4-33 4-34
4.17 MAIN(DV MAIN) SCHEMATIC DIAGRAM [FOR NON-MEGA PIXEL with DSC MODEL]
