GY-HD250U Studio Systems Reference Manual

Version 1.12
Table of contents
1
Page
Section I - Short Length Multi Core Studio Configurations 4
SD Studio System：4
SD System with RM-P210U 4
SD Studio System Components Price List 5
SD Studio Key features and users benefits 6
Additional Information 7
HD Studio System: 8
HD System Diagram with RM-HP250AU SYSTEM 1 (HD SDI) 8
HD System Diagram with RM-HP250AU SYSTEM 2 (HD analog component) 9
HD System Diagram with RM-P210U 10
HD Studio System Components Price List 11
HD Studio Key features and user benefits 12
Additional Information 13
Section II - Medium Length Fiber Cable Studio Configurations 14
CAMPLEX: 14
Shoulder CP-301C/CP-701C studio system diagram 15
Shoulder Studio Components Price List (Fiber) 16
Tripod mounted CP-301C/CP-701C studio system diagram w/o Sled 17
Tripod Mounted Studio Components Price List (Fiber) 18
Sled mounted CP-301C/CP-701C studio system diagram 19
Sled Mounted Studio with Sled Components Price List (Fiber) 20
CAMPLEX System Key features and Customer Benefit 21
Additional Information and Limitations 22
Section III - Long Length Fiber Cable connected Studio Configurations 23
Telecast Fiber: 23
Key Features and Customer Benefit 23
Shoulder/w power studio system diagram 24
Shoulder Studio with Power Components Price List (Fiber) 25
Tripod mounted/w power studio system diagram 26
Tripod Mounted Studio with Power Components Price List (Fiber) 27

Version 1.12
Table of contents
2
Page
Sled Mounted/w Power studio system diagram 28
Sled Mounted Studio with Power Studio Components List (Fiber) 29
Telecast System Key Features and User Benefit 30
Additional Information 31
Telecast Fiber CCU locally Power 32
Shoulder battery powered studio system diagram 33
Shoulder Battery Powered Studio Components Price List (fiber) 34
Tripod Mounted w/o Sled battery powered studio system diagram 35
Tripod Mounted Battery Powered Studio Components Price List (Fiber) 36
Sled Mounted with battery or off board of on board AC power studio system
diagram 37
Sled Mounted Battery Powered Studio Components Price List (Fiber) 38
Section IV - POV System configuration 39
POV Pan/Tilt System: 39
POV Pan/Tilt system diagram 39
POV System Components Price List 40
Key features and user benefits 40
RCU control of cameras up to 2000 feet with ESI Model 55 System: 41
RCU control of cameras up to 2000 feet system diagram 41
RCU control of cameras up to 2000 feet with ESI Model 55 System Components
Price List 42
Key features and user benefits 42
Section V - Supplementary Information 43
“VF SIGNAL” Menu 43
How to use Sony 26Pin Cable with KA-HD250U 44
How to use Sony 26Pin cable with RM-P210U 45
GY-HD250U/KA-HD250U and JVC CCUs Power connectivity table 45
HD-SDI Cable Lengths 46
Telecast Fiber Rattler –Fiber Tx/Rx 46

Version 1.12
Table of contents
3
Page
Section VI - Accessories 47
KA-R25U: Return Video Box 47
KA-BP250: Intermediate Plate (handled by JPC) 48
HD 1/3”mount bayonet lenses: 49
KA-V400U: 6pin/20pin Viewfinder Adapter 50
RM-LP25U: Local Remote Control Panel 51
RM-HP250AU: HD/SD 26Pin CCU 52
RM-HP250AU Interconnect Diagram 53
Interfacing RM-HP250AU with common Intercom system: 54
Connection to an unbalanced audio Intercom system 55
Connection to a balanced audio Intercom system 56
VF-HP840U: Color Studio View Finder 57
VF-HP840U and KA-HD250U Interconnect Diagram 58
VC-P840U: 20Pin Viewfinder Cable 59
Power applied to GY-HD250U/GY-HD200UB via Battery Mount 60
Power applied to GY-HD250U/GY-HD200UB via 4 pin XLR 61
KA-HD300U: Portable HD Studio Adapter 62
KM-H3000U/KM-H2500U: Multi Format HD-SDI Production Switcher 63
Studio System Components Weight and Power Dissipation List for Tripod Mounted 64

Version 1.12
DT-109 or RH-1R5
Live video
Switcher
VF-P400U
w/KA-V400U
VC-PxxxU Control cable
SD Analog
Component
VC-PxxxU Control cable
RM-P210U
House Sync
DT-109 or RH-1R5
Typical Application: SD -production studio, Schools etc
VF-HP840U
KA-HD250U* / KA-HD250U(A)**
* Use KA-HD250U / KA-HD250U(A) with VF-P400U.
** Use KA-HD250U(A) with VF-HP840U.
*** Supplied with KA-HD300E
VC-PxxxU Control cable
JVC-PV***
KA-HD300E
KA-R25U***
Section I - Short Length Multi Core Studio Configurations
SD Studio System：
SD System with RM-P210U
4

Version 1.12
SD Studio System Components Price List
Model Description Price Note
GY-HD250CHU Pro HD Camcorder $9,995.00 without 16X lens
GY-HD250U Pro HD Camcorder $10,995.00 With 16X Lens
KA-HD250U(A) Studio Adapter $3,000.00 For Tripod mount
KA-HD300E Studio Adapter (for shoulder mount) TBD with KA-R25U and JVC-PV
VF-HP840U 8.4" HD/SD Studio Viewfinder $3,200.00
VF-P400U 4" Viewfinder $875.00
KA-V400U Viewfinder Cable $225.00 20-pin/6-pin Adapter
RM-P210U SD Camera Control Unit $1,995.00
VC-P110U Multi core Camera Cable 5M $480.00 5m
VC-P112U Multi core Camera Cable 20M $1,050.00 20m
VC-P113U Multi core Camera Cable 50M $1,850.00 50m
VC-P114U Multi core Camera Cable 100M $3,250.00 100m
Optional Components
Th13X3.5BRMU Fujinon Wide Angle $7,650.00
Th17X5BRM Fujinon Wide Angle $3,300.00
HTs18x4.2BRM Fujinon 18x High Quality Lens $10,800.00
KT20x5BKRS Canon 20x High Quality Lens $9,800.00
HZ-FM13U Manual FocusControl $685.00 Fujinon 17X, 13X
HZ-FM15U Manual Focus Control $685.00 Canon 20X
HZ-FM500 Manual Focus Control $820.00 Fujinon 16X
HZ-ZS13U Zoom Servo Control $750.00 Fujinon 13X, 16X, 17X, Canon 20X
ACM-12 1/2" to 1/3" Mount Converter $799.00
ACM-17 1/2" to 2/3" Mount Converter $799.00
MS-11 Zoom & Focus kit Fuji 18X lens $2,880.00 Fujinon 18X
Third Party Components
Model Description Price Note
DT-109 Headset $209.95 BeyerDynamic
K109.38 1.5m DT-109 Connecting cable $49.50 BeyerDynamic
PH-1R5 Headset $175.50 Telex
5

Version 1.12
The GY-HD250U w/KA-HD250U/U(A) can be used to construct an economical SD studio system that produces
stunning 16:9 or 4:3 SD images.
Investment is future proofed. Upgrading from an SD to an HD system will require changing the video interface only.
When replacing a GY-DV550U, the original CCU the RM-P210U; the 26pin control cable and the studio viewfinder VF-
P400U can continue to be used.
When needed, the GY-HD250U can be used as an ENG camera by detaching it from the KA-HD250U/U(A).
RM-P210U
GY-HD250U + KA-HD250U/U(A)

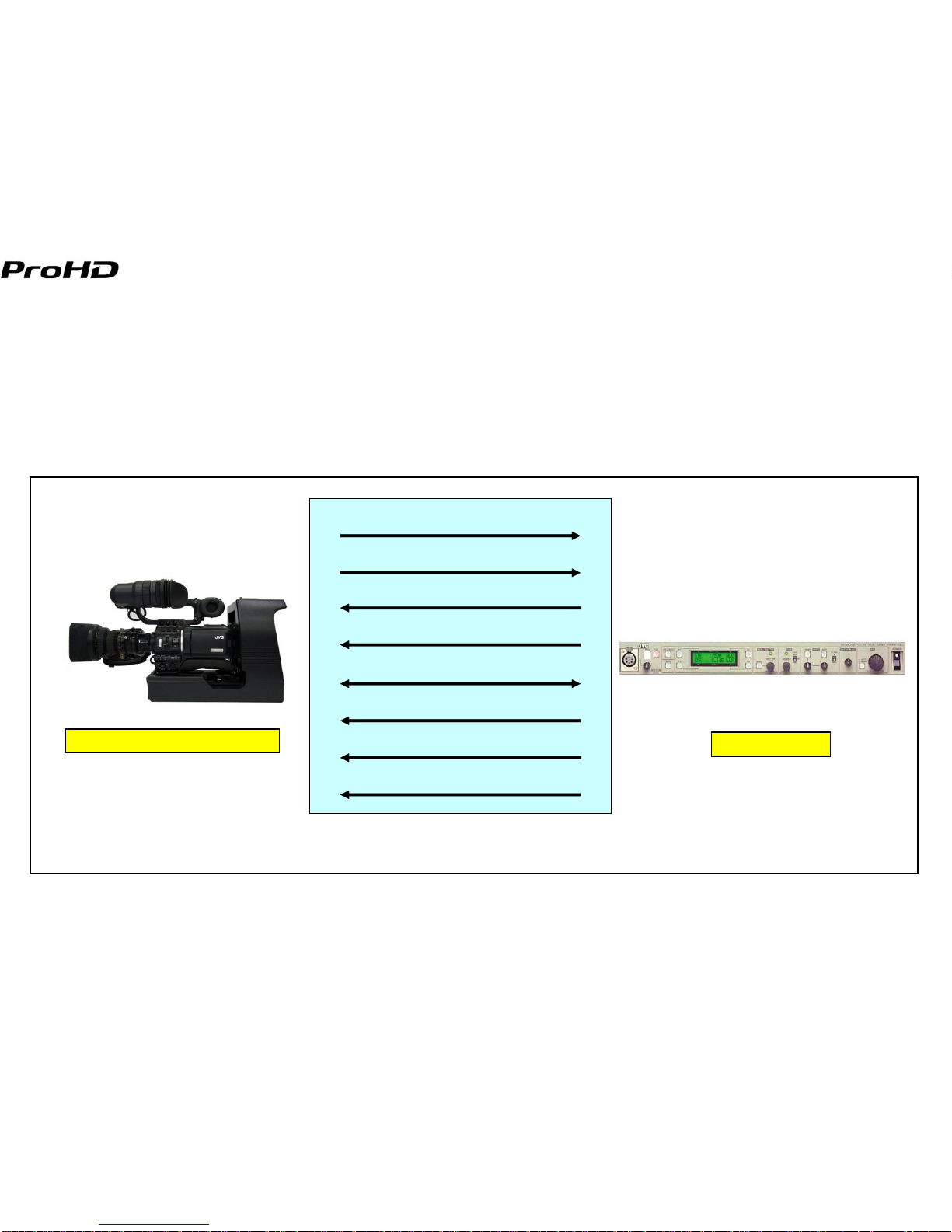

Fig. 1 Signal Flow between CCU and Camera
SD Composite
SD Component
Genlock, VBS
Power
Call/Tally
Control
Return Video
Intercom
SD Studio Key features and users benefits
6

Version 1.12
GY-HD250U’s “VF SIGNAL” menu should be set to “RGB” when VF-P400U is used.All VF displays are available
except focus assist.
When using VF-HP840U in a SD studio, Set the GY-HD250U’s “VF SIGNAL” menu to “RGB”.
SD CMP available only; RM-P210U can not pass full bandwidth HD Y, R-Y, B-Y.
Genlock must be NTSC VBS only –HD Tri level sync can not be passed by RM-P210U back to the GY-HD250U.
GY-HD250U’s “ANALOG OUT CHAR.” menu should be set to “OFF”, –otherwise they will appear at RM-P210U
component outputs.
GY-HD250U’s “TALLY SYSTEM” menu should be set to “STUDIO”.
Sony 26pin Cable can be used to connect RM-P210U with the KA-HD250U/U(A).
Additional Information
7

Version 1.12
VC-PxxxU Control cable
RM-HP250AU
House sync
KM-H2500U/H3000U
HD-SDI*
* Either the HD-SDI outputs of the RM-HP250AU derived from the HD component signal or the HD-SDI output of the GY-HD250U can be applied to
the HD-SDI switcher inputs.
RM-LP25U
(RM-LP55U/LP57U)
HD-SDI * or
** When using VF-HP840U as viewfinder, camera adapter must be KA-HD250U(A).
DT-109 or RH-1R5
VF-P400U
w/KA-V400U
VF-HP840U
KA-HD250U* / KA-HD250U(A)**
JVC-PV KA-HD300U
KA-R25U
DT-109 or RH-1R5
VC-PxxxU Control cable
VC-PxxxU Control cable
HD Studio System:
HD System Diagram with RM-HP250AU SYSTEM 1 (HD SDI)
8

Version 1.12
* The component HD signal output of the RM-HP250AU can be applied to a HD component analog switcher.
VC-PxxxU Control cable
RM-HP250AU
House sync
HD Analog Switcher
HD Analog
Component*
VC-PxxxU Control cable
** When using VF-HP840U as viewfinder, camera adapter must be KA-HD250U(A).
RM-LP25U
(RM-LP55U/LP57U)
DT-109 or RH-1R5
VF-P400U
w/KA-V400U
VF-HP840U
KA-HD250U* / KA-HD250U(A)**
JVC-PV KA-HD300U
KA-R25U
DT-109 or RH-1R5
VC-PxxxU Control cable
HD System Diagram with RM-HP250AU SYSTEM 2 (HD analog component)
9

Version 1.12
VC-PxxxU Control cable
RM-P210U
House sync
HD-SDI
VC-PxxxU Control cable
** When using VF-HP840U as viewfinder, camera adapter must be KA-HD250U(A).
DT-109 or RH-1R5
VF-P400U
w/KA-V400U
VF-HP840U
KA-HD250U* / KA-HD250U(A)**
JVC-PV KA-HD300U
KA-R25U
KM-H2500U/H3000U
VC-PxxxU Control cable
DT-109 or RH-1R5
DT-109 or RH-1R5
HD System Diagram with RM-P210U
10

Version 1.12
HD Studio System Components Price List
Model
Description Price Note
GY-HD250CHU Pro HD Camcorder $9,995.00 without 16X lens
GY-HD250U Pro HD Camcorder $10,995.00 With 16X Lens
KA-HD250U(A) Studio Adapter $3,000.00 For Tripod mount
KA-HD300E Studio Adapter (for shoulder mount) TBD with KA-R25U and JVC-PV
VF-P400U 4" Viewfinder $875.00
KA-V400U Viewfinder Cable $225.00 20-pin/6-pin Adapter
VF-HP840U 8.4" HD/SD Studio Viewfinder $3,200.00
RM-P210U SD Camera Control Unit $1,995.00
RM-HP250AU HD Camera Control Unit $3,495.00
RM-LP25U Local Remote Control Panel $3,995.00
RM-LP55U Local Remote Control Unit $815.00
RM-LP57U Local Remote Control Panel $910.00
KM-H2500U HD-SDI Switcher $14,500.00 6 SDI MultiDefinition Input
KM-H3000U HD-SDI Switcher $17,500.00 12 SDI MultiDefinition Input
VC-P110U Multi core Camera Cable 5M $480.00 5m
VC-P112U Multi core Camera Cable 20M $1,050.00 20m
VC-P113U Multi core Camera Cable 50M $1,850.00 50m
VC-P114U Multi core Camera Cable 100M $3,250.00 100m
Options
Th13X3.5BRMU Fujinon Wide Angle $7,650.00
Th17X5BRM Fujinon Wide Angle $3,300.00
HTs18x4.2BRM Fujinon 18x High Quality Lens $10,800.00
KT20x5BKRS Canon 20x High Quality Lens $9,800.00
HZ-FM15U Manual Focus Control $685.00 Canon 20X
HZ-FM13U Manual FocusControl $685.00 Fujinon 17X, 13X
HZ-FM500 Manual Focus Control $820.00 Fujinon 16X
HZ-ZS13U Zoom Servo Control $750.00 Fujinon 13X, 16X, 17X, Canon 20X
ACM-12 1/2" to 1/3" Mount Converter $799.00
ACM-17 1/2" to 2/3" Mount Converter $799.00
MS-11 Zoom & Focus kit Fuji 18X lens $2,880.00 Fujinon 18X
Third Party Components
Model
Description Price Note
DT-109 Headset $209.95 BeyerDynamic
K109.38 1.5m DT-109 Connecting cable $49.50 BeyerDynamic
PH-1R5 Headset $175.50 Telex
RG-59 or RG6 or RG 11 HD-SDI Cable Belden, Canare
11

Version 1.12
The GY-HD250U w/KA-HD250U/U(A) can be used to build an economical HD studio system that produces stunning
images.
Both HD component and HD-SDI video is supported giving user flexibility of using a component switcher or a HD-SDI
switcher.
The new RM-HP250AU gives the user the flexibility of connecting an additional local remote control to the studio system.
A live 720P or 1080i signal can be outputted depending on the user’s switcher requirements.
When replacing a GY-DV550U based studio system, the original 26pin control cable and studio viewfinder VF-P400U can
continue to be used, or replaced with the new VF-HP840U HD/SD viewfinder.
Existing user’s 26Pin Sony Cable can be used to connect RM-HP250AU and KA-HD250U/U(A).
When needed, the GY-HD250U can be readily detached from the KA-HD250U/U(A)(Sled) and used as an ENG camera.
HD-SDI
RM-HP250AU/RM-P210U
GY-HD250U w/KA-HD250U/U(A)
RED- with RM-HP250AU
Fig 2 HD System Signal Flow between CCU and Studio Camera
SD Composite
SD Component/HD Component
Genlock, VBS/Tri-level sync
Power
Call/Tally
Control
Return Video
Intercom
HD Studio Key features and user benefits
12

Version 1.12
When using a VF-HP840U and a component or digital switcher:
GY-HD250U’s “ANALOG OUT CHAR.” menu should be set to “OFF”.
Set the “VF SIGNAL” menu to “COMPONENT”.
If a VF-P400U is used as the view finder, set the GY-HD250U’s “VF SIGNAL” menu to “RGB”.
Do not turn “SDI OUT CHAR.” menu setting to “ON”.
GY-HD250U’s “TALLY SYSTEM” menu should be set to “STUDIO”.
Additional Information
13

Version 1.12
Typical Applications:
Medium length Fiber Cable Studio Configurations are used for EFP, Sports and Events requiring the CCU to be located
more than 100m from the Camera’s location. When multi-core cable lengths exceed 100m, the multi-Core cable weight
becomes excessive. For lengths greater than 100m a fiber cable can be used for applications that do not need power to be
delivered to the camera or a hybrid (combined fiber and copper cable) that also delivers power is used to connect the Studio
Camera to the base station. Camplex and Telecast Fiber are two companies that produce systems that use either fiber or
hybrid cables to connect the camera to the CCU.
GY-HD250U
CP-301C/CP-701C
Camera Adapter
Cabling
Hybrid Cable
Base Station (CCU)
Power and Signals

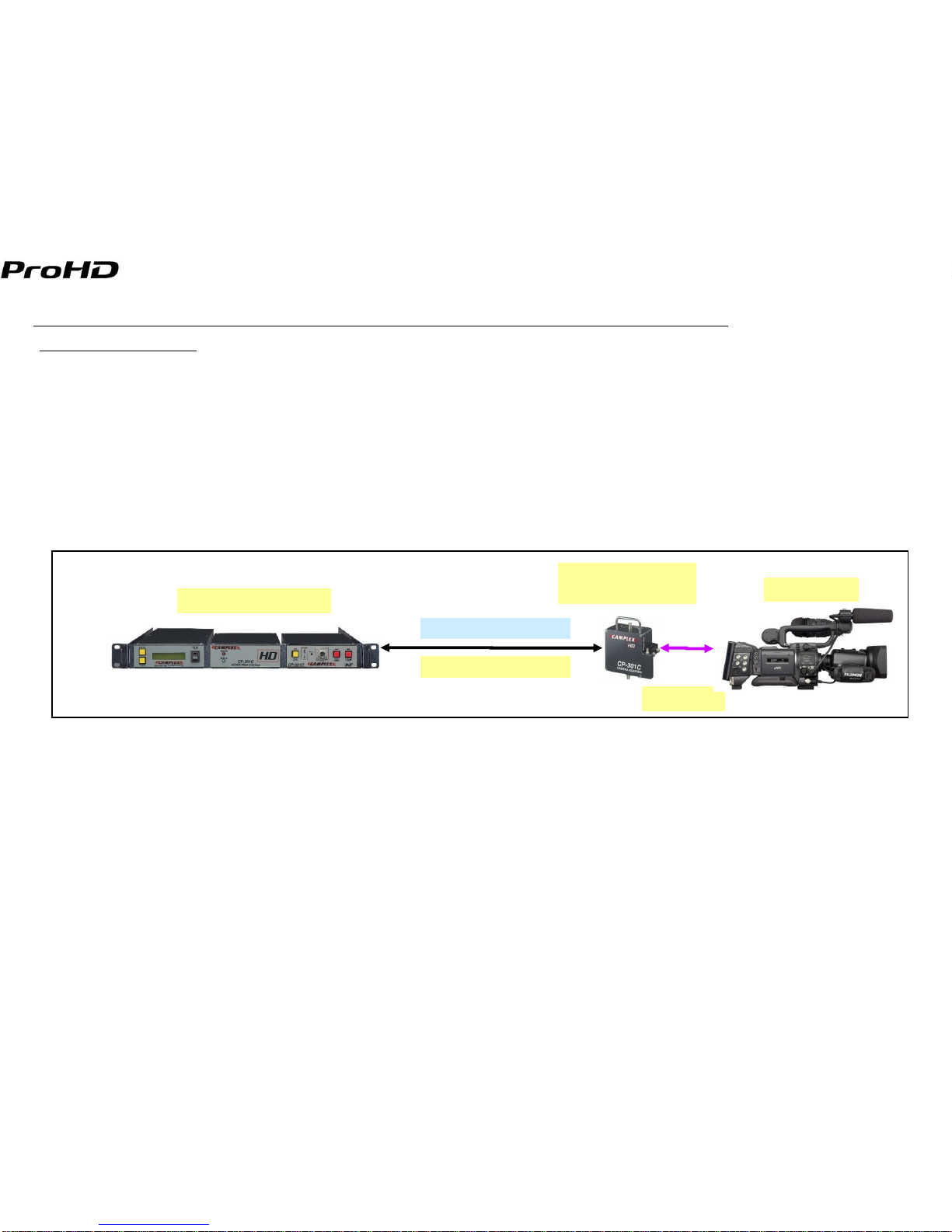

Camplex System Diagram
The Camera Adapter with additional cabling provides a signal interface between the camera and the Hybrid Cable.
The Hybrid cable consists of a coaxial cable whose center conductor gauge depends on the customer’s power
requirements and a fiber cable. Both are enclosed in a single sheath.
The Fiber cable carries the HD-SDI optical signal back to the base station where it is converted back to an electrical
signal HD-SDI signal.
The center conductor in the coax carries both power and all the required signals between the Base station and the
Camera adapter.
Section II - Medium Length Fiber Cable Studio Configurations
CAMPLEX:
CAMPLEX produces economical hybrid cable connected systems that integrate with the GY-HD250U. Their system
consists of a CameraAdapter mounted on the Camera, a Hybrid Fiber Cable and a Base Station.
14

Version 1.12
Hybrid Cable- BNC and ST
Fiber connectors
900m
Power
Signal
Cabling
CP-301C/CP-701C
Base Station CP301C/CP701C
HD-SDI
KA-R25U
GY-HD250U
RM-LP25U
(RM-LP55U/LP57U)
Battery Powered
BKW - V mount Plate
KM-H2500U/H3000U
DT-109 or RH-1R5
DT-109 or RH-1R5

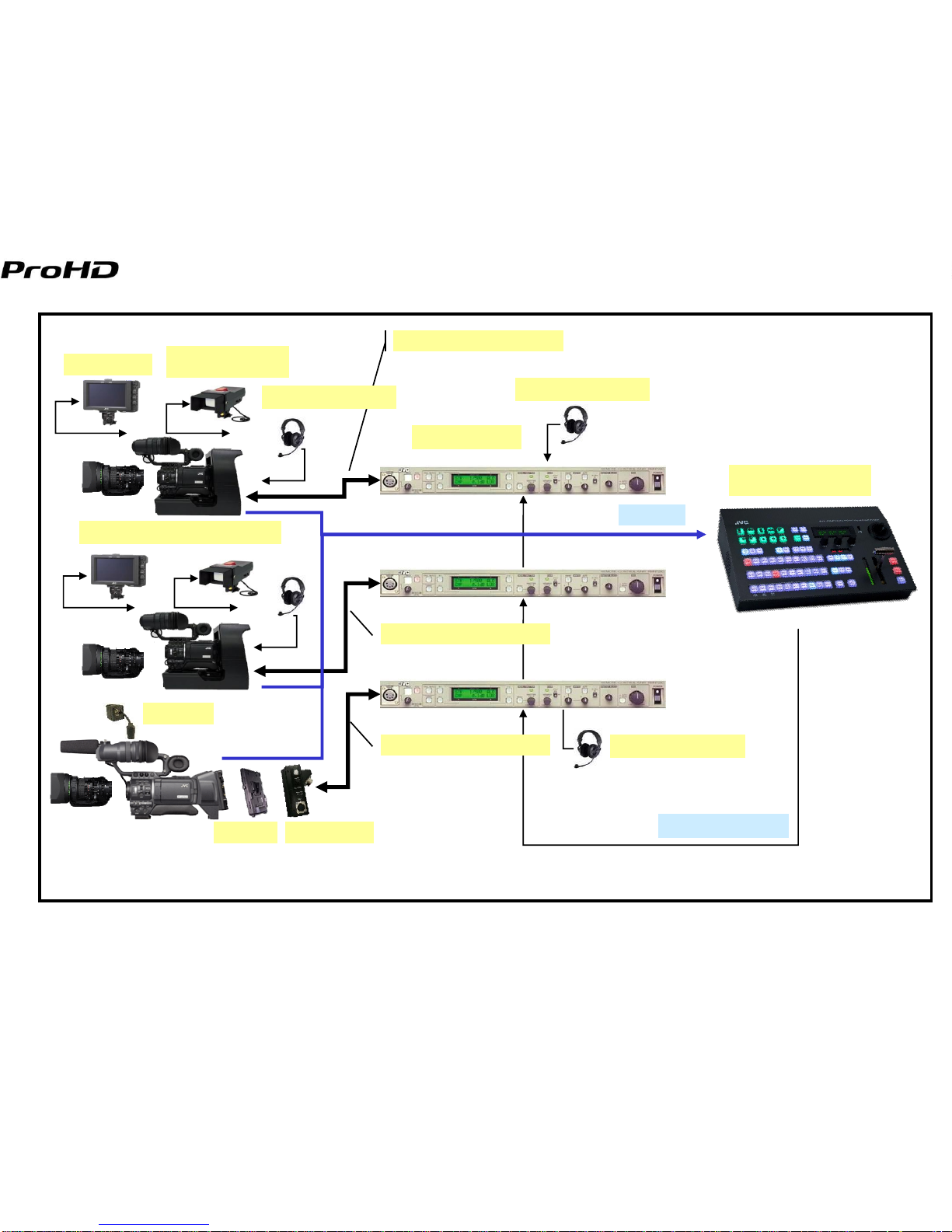

Shoulder CP-301C/CP-701C studio system diagram
15

Version 1.12
Model Description Price Note
GY-HD250CHU Pro HD Camcorder $9,995.00 without 16X lens
GY-HD250U Pro HD Camcorder $10,995.00 With 16X Lens
RM-LP25U Local Remote Control Panel $3,995.00
RM-LP55U Local Remote Control Unit $815.00
RM-LP57U Local Remote Control Panel $910.00
KM-H2500U HD-SDI Switcher $14,500.00 6 SDI MultiDefinition Input
KM-H3000U HD-SDI Switcher $17,500.00 12 SDI MultiDefinition Input
KA-R25U Return Video Box $599.00
Options
Th13X3.5BRMU Fujinon Wide Angle $7,650.00
Th17X5BRM Fujinon Wide Angle $3,300.00
HTs18x4.2BRM Fujinon 18x High Quality Lens $10,800.00
KT20x5BKRS Canon 20x High Quality Lens $9,800.00
HZ-FM15U Manual Focus Control $685.00 Canon 20X
HZ-FM13U Manual Focus Control $685.00 Fujinon 17X, 13X
HZ-FM500 Manual Focus Control $820.00 Fujinon 16X
HZ-ZS13U Zoom Servo Control $750.00 Fujinon 13X, 16X, 17X, Canon 20X
MS-11 Zoom & Focus kit Fuji 18X lens $2,880.00 Fujinon 18X
ACM-12 1/2" to 1/3" Mount Converter $799.00
ACM-17 1/2" to 2/3" Mount Converter $799.00
Model Description Price Note
CP701 Camera Adapter + Base station + Pwr $13,335.00 This price includes all necessary options
CP301C S5 Camera Adapter + Base stationm + Pwr $10,134.00 This price includes all necessary options
CP301C S2 Camera Adapter + Base Station + Battery Mount $8,984.00 For Battery powered applications
Hybrid cable 2 Fibers + Coax $1.50 Camplex
Power Surge Absorber $625.00 Absorbs additional current draw used
Reel $500.00 Camplex
Interface Cabling $425.00 Camplex Fiber $400 to $450
DT-109 Headset $209.95 BeyerDynamic
K109.38 1.5m DT-109 Connecting cable $49.50 BeyerDynamic
PH-1R5 Headset $175.50 Telex
Third Party Components
Shoulder Studio Components Price List (Fiber)
16

Version 1.12
Hybrid Cable- BNC and ST
Fiber connectors
900m
Power
Signal
Cabling
KA-R25U
CP-301C/CP-701C
Base Station CP301C/CP701C
HD-SDI
RM-LP25U
(RM-LP55U/LP57U)
Battery Powered
BKW - V mount Plate VF-HP840U VC-P840U
VC-Y250US GY-HD250U
SA-K840
KM-H2500U/H3000U
DT-109 or RH-1R5
DT-109 or RH-1R5
Tripod mounted CP-301C/CP-701C studio system diagram w/o Sled
17

Version 1.12
Model Description Price Note
GY-HD250CHU Pro HD Camcorder $9,995.00 without 16X lens
GY-HD250U Pro HD Camcorder $10,995.00 With 16X Lens
RM-LP25U Local Remote Control Panel $3,995.00
RM-LP55U Local Remote Control Unit $815.00
RM-LP57U Local Remote Control Panel $910.00
KM-H2500U HD-SDI Switcher $14,500.00 6 SDI MultiDefinition Input
KM-H3000U HD-SDI Switcher $17,500.00 12 SDI MultiDefinition Input
KA-R25U Return Video Box $599.00
VF-HP840U 8.4" HD/SD Studio Viewfinder $3,200.00
SA-K840 Viewfinder Bracket $300.00 For VF-HP840U without KA-HD250U
VC-P840U Viewfinder Cable $315.00 For VF-HP840U without KA-HD250U
VC-Y250US Y XLR Power Cable $75.00
Options
Th13X3.5BRMU Fujinon Wide Angle $7,650.00
Th17X5BRM Fujinon Wide Angle $3,300.00
HTs18x4.2BRM Fujinon 18x High Quality Lens $10,800.00
KT20x5BKRS Canon 20x High Quality Lens $9,800.00
HZ-FM15U Manual Focus Control $685.00 Canon 20X
HZ-FM13U Manual Focus Control $685.00 Fujinon 17X, 13X
HZ-FM500 Manual Focus Control $820.00 Fujinon 16X
HZ-ZS13U Zoom Servo Control $750.00 Fujinon 13X, 16X, 17X, Canon 20X
MS-11 Zoom & Focus kit Fuji 18X lens $2,880.00 Fujinon 18X
ACM-12 1/2" to 1/3" Mount Converter $799.00
ACM-17 1/2" to 2/3" Mount Converter $799.00
Model Description Price Note
CP701 Camera Adapter + Base station + Pwr $13,335.00 This price includes all necessary options
CP301C S5 Camera Adapter + Base stationm + Pwr $10,134.00 This price includes all necessary options
CP301C S2 Camera Adapter + Base Station + Battery Mount $8,984.00 For Battery powered applications
Hybrid cable 2 Fibers + Coax $1.50 Camplex
Power Surge Absorber $625.00 Absorbs additional current draw used
Reel $500.00 Camplex
Interface Cabling $425.00 Camplex Fiber $400 to $450
DT-109 Headset $209.95 BeyerDynamic
K109.38 1.5m DT-109 Connecting cable $49.50 BeyerDynamic
PH-1R5 Headset $175.50 Telex
Third Party Components
Tripod Mounted Studio Components Price List (Fiber)
18

Version 1.12
Battery Mount
(Q-X2 or P-V)
GY-HD250U
Hybrid Cable
Camera Adapter
48watts Base Station
HD-SDI
RM-LP25U
(RM-LP55U/LP57U)
Battery Powered
BKW - V mount Plate VF-HP840U
Intermediate
Plate(KA-BP250U) KA-HD250U / KA-HD250U(A)*
* When using VF-HP840U as viewfinder, camera adapter must be KA-HD250U(A).
KM-H2500U/H3000U
DT-109 or RH-1R5
DT-109 or RH-1R5
Sled mounted CP-301C/CP-701C studio system diagram
19
