JVC Super LoLux TK-C9510E User manual

COLOUR VIDEO CAMERA
TK-C9510E
TK-C9511EG
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D’INSTRUCTIONS
MANUAL DE INSTRUCCIONES
ISTRUZIONI
ИHСТРУКЦИR ПО ЭКСПЛУАТАЦИИ
LST1119-001A

.
AVERTISSEMENT
POUR EVITER LES RISQUES D'INCENDIE OU D'ELECTRO-
CUTION, NE PAS EXPOSER L'APPAREIL A L'HUMIDITE OU
A LA PLUIE.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
POWER SYSTEM (TK-C9511EG only)
Connection to the mains supply
This unit operates on voltage of 220 V to 240 V AC, 50 Hz/60 Hz.
CAUTION
To prevent electric shock, do not open the cabinet.
No user serviceable parts inside. Refer servicing to qualified
service personnel.
Dear Customer
This apparatus is in conformance with the valid European
directives and standards regarding electromagnetic compatibility
and electrical safety.
European representative of Victor Company of Japan, Limited is:
JVC Technical Services Europe GmbH
Postfach 10 05 04
61145 Friedberg
Germany
Safety Precautions
E-2

.
Information for Users on Disposal of Old Equipment
[European Union]
Attention:
This symbol is
only valid in
the European
Union.
This symbol indicates that the electrical and
electronic equipment should not be disposed as
general household waste at its end-of-life.
Instead, the product should be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment for proper
treatment, recovery and recycling in accordance
with your national legislation.
By disposing of this product correctly, you will help
to conserve natural resources and will help
prevent potential negative effects on the
environment and human health which could
otherwise be caused by inappropriate waste
handling of this
product. For more information
about collection point and recycling of this product,
please contact your local municipal office, your
household waste disposal service or the shop
where you purchased the product.
Penalties may
be applicable for incorrect disposal of this waste,
in accordance with national legislation.
(Business users)
If you wish to dispose of this product, please visit our web page
http://www.jvc.eu to obtain information about the take-back of the
product.
[Other Countries outside the European Union]
If you wish to dispose of this product, please do so in accordance
with applicable national legislation or other rules in your country
for the treatment of old electrical and electronic equipment.
Safety Precautions
E-3

.
R
R
The unit is to be powered by an AC 24 V or a DC 12 V
power supply. (TK-C9510E only)
The AC 24 V and 12 V DC power supply shall conform to
the following: Isolated power supply only. (TK-C9510E only)
RThis installation should be made by a qualified service person
and should conform to all local codes.
RThis installation shall be in accordance with the National Electrical
Code, ANSI/NFPA 70.
RAny Mention in this manual of Alarm inputs have not been
evaluated by UL to be used for Burglar Alarm Functionality.
RSpecial technique is required when installing this product.
Please refer to your dealer for installation.
RRating label is pasted on the camera unit.
RJVC is not liable for any compensation if you drop the camera
due to insecure mounting by not following the installation
description. Pay careful attention during installation.
RWhen mounting this product to a ceiling or wall, select a location
strong enough to support the weight, be sure to reinforce the
ceiling or wall before installation.
Safety Precautions
E-4

.
RThe camera may drop if the mounting screws are not tightened
securely. Check that the screws are tightened appropriately and
securely.
RDo not install the camera near lighting fixtures of high
temperature, such as spot lights. It might result in failure or fires.
Safety Precautions
E-5

Features
Camera Characteristics
Realizes stable
image quality
vThis camera employs a 1/2-inch CCD,
which realizes colour with a minimum
illumination of 0.025 lx (F1.2, 25 %).
A page 71
vEquipped with a wide dynamic range.
Corrects dark and white regions due to
drastic brightness differences in the
subject. Realizes a clear and stable
image quality.
A page 38
Effective for
shooting at
dimly-lit places
vEquipped with a DAY/NIGHT feature
for 24-hour surveillance in colour in the
day and in black-and-white at night.
A page 42
vEquipped with a three-dimensional
DNR feature that significantly improves
the image quality in low-light conditions.
Realizes noise-free, clear and vivid
images.
A page 45
vEquipped with an Electronic Sense Up
feature that corrects the brightness to
reproduce clear images at night or dark
environment. The sensitivity level can
be increased up to x128.
A page 37
Supports
Pelco-D and
Pelco-P
protocols

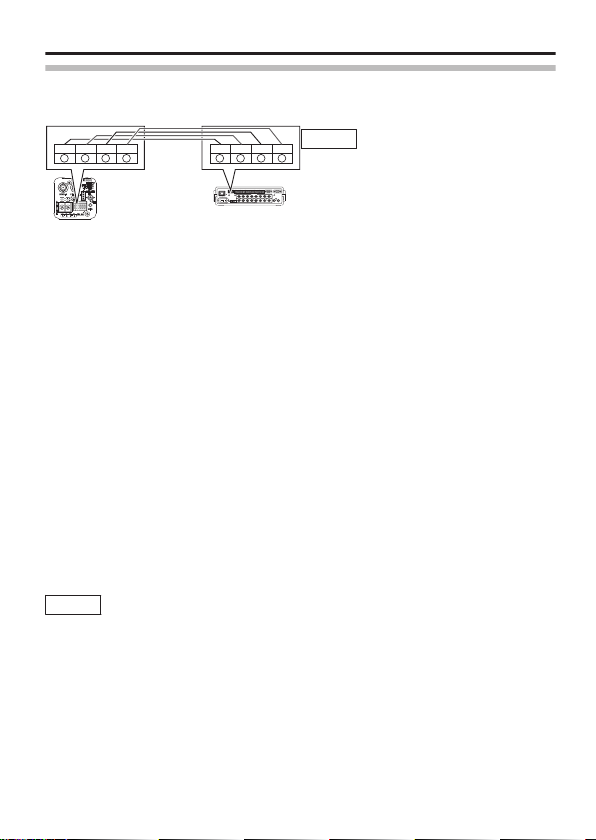

vEquipped with an RS-485 terminal for
communication, which supports Pelco-
D and Pelco-P protocols.
A page 49
Introduction
E-6

Camera Functions
Supports registration
of scene files for
different
environments
vEight scene files are available.
Each scene file has preset
settings for different applications.
They can also be customized.
A page 35
Detects suspicious
movements inside
setting area
vChanges in scene such as
movement inside the set area are
automatically detected, and an
alarm display or signal can be
output.
A page 47
Hides specific areas
and protects privacy
vUp to four locations on the
shooting screen can be hidden.
A page 65
Introduction
E-7

Contents
Introduction
Features ............................................................................................ 6
Contents ............................................................................................ 8
How to Read This Manual ............................................................... 10
Operating Precautions ..................................................................... 11

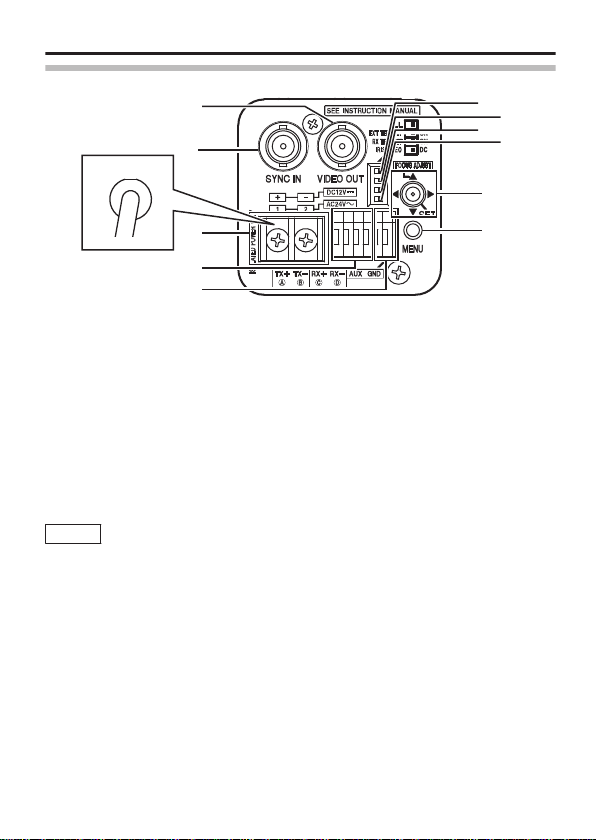

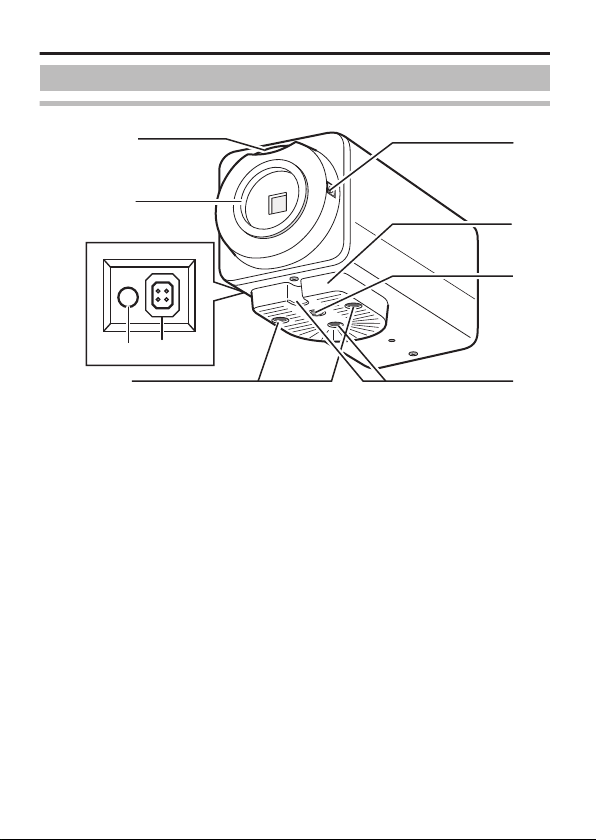

Names of Parts ................................................................................ 14
Connection/Installation

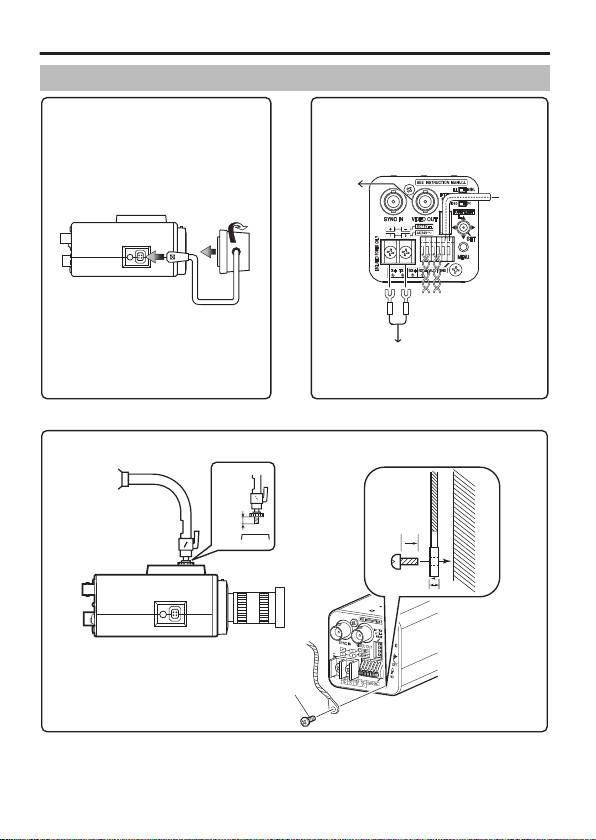

Quick Installation ............................................................................. 16
System Connection ......................................................................... 18
Mounting the Lens ........................................................................... 20
Connection ...................................................................................... 21
Mounting the Camera ...................................................................... 24
Setting/Adjustment
Switch Settings ................................................................................ 26
Adjusting the Back Focus ................................................................ 28
Fine-tuning the Focus ...................................................................... 30
Adjusting the Auto White Balance ................................................... 31
Menu Settings
Menu Screen Flow ........................................................................... 32
Menu Setting ................................................................................... 34
SCENE FILE .................................................................................... 35
BASIC SETTINGS ........................................................................... 36
VIDEO SETTINGS .......................................................................... 44
VIDEO EFFECT .............................................................................. 46
MOTION DETECT ........................................................................... 47
MAINTENANCE .............................................................................. 49
PRIVACY MASK .............................................................................. 51
AUX FUNCTION .............................................................................. 52
Introduction
E-8

Detailed Settings
Default Values of Scene Files ......................................................... 54
Motion Detect Area Setting .............................................................. 56
Scene Name/Camera Title Setting .................................................. 58
Manual White Balance Adjustment .................................................. 60
Output of Black-and-white/Colour Switch Signal ............................. 61
Controlling Black-and-white/Colour Switch Signal Externally .......... 63
Privacy Mask Setting ....................................................................... 65
BLC Photometry Area Setting ......................................................... 66
Others
Troubleshooting ............................................................................... 67
Index ................................................................................................ 70
Specifications .................................................................................. 71
Introduction
E-9

Thank you for purchasing this product.
Before use, please read this "INSTRUCTIONS" and the information
materials included to ensure proper use of this product.
The instructions in this manual are for TK-C9510E/TK-C9511EG.
How to Read This Manual
How to Read This Manual
Conventions and symbols
Note : Indicates operating precautions.
Memo : Indicates reference data regarding limitations on functions,
usage and the like.
A: Indicates a reference page or item.
Contents of this manual
vJVC holds the copyright to this manual. Any part or all of this
manual may not be reproduced without prior consent from the
company.
vProduct names of other companies described in this manual are
trademarks or registered trademarks of the respective companies.
Symbols such as E, T, and R are omitted in this manual.
vDesign, specifications and other contents described in this manual
are subject to change for improvements without prior notice.
vIllustrations of TK-C9510E are used in the descriptions in this
manual.
Introduction
E-10

Operating Precautions
mStorage and Location of Use
vDo not install the camera in the following places.
v
In a place exposed to rain or moisture.
v
In a place with vapor or oil, for example in a kitchen.
v
When the ambient temperature rises above or falls below the
acceptable range (from -10 f to 50 f).
v
In a place at which corrosive gases are emitted.
v
Near a source of radiation, X-rays, strong radio waves or magnetism.
v
In a place subject to vibrations.
v
In a place with excessive dirt.
v
Using this unit in the vicinity of the transmitting antenna of a radio or TV,
devices that emit strong electromagnetic waves such as a transformer or
motor, or wireless devices such as a transceiver or mobile phone may
give rise to noise in the image and changes in its colour.
v
This camera has been designed for indoor use. When using it outdoors, it
is necessary to use an outdoor camera housing (optional).
mMaintenance
v
Wipe the camera with a dry, soft cloth to remove any dirt.
Do not use benzene or thinner to wipe the camera. Doing so may melt
the surface or cause it to fog. For tough stains, wipe with a neutral
detergent diluted with water, followed by wiping with a dry cloth.
mEnergy Conservation
vWhen the camera is not in use for a long time, turn off the power for
safety and energy conservation reasons.
mCopyright Protection
vWith the exception of the user being the copyright holder or when
permission such as for duplication has been granted by the copyright
holder, permission is required in principle for the duplication,
modification, or transmission of copyrighted material.
vUnauthorized duplication, modification, or transmission of copyrighted
material may constitute a copyright infringement, and the user may
be liable to compensate for any damages. When using copyrighted
material, be sure to check the license agreement of the copyrighted
material thoroughly.
vWhen rights or rights holders are involved with regard to the targeted
duplicating subject, permission may be required for shooting or using
(processing) it. Be sure to check the licensing conditions thoroughly.
Introduction
E-11

Operating Precautions (Continued)
mDisclaimer
vMotion detection is not a feature to prevent theft or fire. We do not
accept liability for any damages that may occur.
vWe will not be responsible for any inconveniences or disturbances
caused in the event of privacy invasion as a result of camera
footages of this product.
mOthers
v
When this camera is moved from a cold to warm place, condensation
may occur and the camera may not work. In this case, leave the camera
under room temperature for about one hour before turning on the power.
vWhen the power supply voltage is momentarily disrupted or drops
due to lightning, turning on the air-conditioner or the like, image
distortion or noise may occur.
vWhen the power supply voltage of the camera drops, the input
protection circuit inside the camera operates, and the camera may be
turned off. Make use of a voltage rating within 510 % for the
camera’s power supply voltage.
vDo not direct the lens toward a strong light source, such as the sun.
This will result in a malfunction.
vBefore mounting the camera to the mounting location, attach the lens
to be used on the camera and check the back focus.
vWhen shooting an extremely bright object (e.g. lamp), the image on
the screen may have white vertical tailings (smear) or expansion
(blooming) may appear around it. This is a characteristic of the CCD
and not a malfunction.
vWhen this camera is used under high temperatures, vertical stripes
may appear on the screen. This is a characteristic of the CCD and
not a malfunction.
vWhen using this camera with [AGC] set to “MID” or “HIGH”, the
sensitivity increases automatically for dark images and the screen
may appear grainy. This is not a malfunction.
vWhen [DAY/NIGHT] is set to “AUTO”, the camera switches to the
B&W (black-and-white) mode in a dark location. As the sensitivity
level is increased in this case, the screen may appear grainy and
more white spots may appear. When switching between modes, the
brighter area on the screen is emphasized and visibility may be
reduced. This is not a malfunction.
Introduction
E-12

v
When the [WHITE BALANCE] of this camera is set to “ATW-N” or
“ATW-W”, the colour tone may differ slightly from the actual colour
depending on the condition of the subject. This is due to the principle of
the automatic tracking white balance circuit, and is not a malfunction.
vWhen switching from colour to black-and-white images, operation
sound of optical filter switching may be heard, and the image may
become noisy and dark momentarily. This is not a malfunction.
vDue to the principle of the three-dimensional DNR function of the
camera, image lag may occur when shooting moving objects. Image
lag tends to occur more easily when [DNR LEVEL] is set to “HIGH”
during use. This is not a malfunction.
Introduction
E-13

Names of Parts
Front/Top/Side
.
POWER IRIS
B
G
D
I
A
H
E
C
F
A Back focus adjustment ring
B Lens mount
C [POWER] Power indicator
D [IRIS] Iris terminal
E Camera-mounting bracket fastening screws (x2, M2.6 x 6 mm)
F Rotation preventive hole
G Camera mounting screw hole (1/4-20UNC)
H Camera mounting bracket
I Back focus fastening screw
Introduction
E-14

Rear
.
INT/VL
B
D
E
F
C
A
H
I
JK
L
G
TK-C9511EG
A [VIDEO OUT] Video signal output terminal
B [SYNC IN] Synchronizing signal input terminal
C AC 220 V - AC 240 V power cord (TK-C9511EG)
D AC 24 V, DC 12 V power input terminal (TK-C9510E)
E [TX+ E, TX- F, RX+ G, RX- H] Control signal connectors
(RS-485-compliant)
F AUX, GND connectors
G [MENU] button
H Cross key, [SET] button, [FOCUS ADJUST] button
Memo Press the [SET] button down vertically. If the button is pressed
down at an angle, the operation may not be performed.
I [IRIS VIDEOlDC] Lens selector switch
J [RX TERM OFFlON] RX terminal ON/OFF switch
K [EXT TERM OFFlON] External synchronous terminal ON/OFF
switch
L [LLlINT/VL] Synchronous system selection switch
Introduction
E-15

Quick Installation
.
POWER IRIS
(TK-C9510E)
M3 x 6 mm
POWERIRIS
7mm
2 mm
6 mm
MAX.
B
Mounting the Lens (Apage 20) Connection (Apage 21)
Monitor
Connect to
external
device (e.g.
sensor)
To AC 24 V or DC 12 V power supply
Connect to remote
control unit, etc.
A
CMounting the Camera (Apage 24)
Connection/Installation
E-16

.
BFLOCK
POWER
SUPPLY
REMOTE
CONTROL
F G
Menu Setting (Apage 34) Completion
Switch Settings (Apage 26) Adjusting the Back Focus
(Apage 28)
D E
BF LOCK
Connection/Installation
E-17

System Connection
Connection Diagram
.
1
TO CAMERA DATA I / O
RX+RX
-
TX+TX
-
COM 1 2 3 4 5 6 7 8 COM 9/1 10/2 11/3 12/4 13/5 14/6 15/7 16/8 COM COM COM
CAMERA
SW
UNIT
ALARM AUTO
431 2 875 6
2 3 4 5 6 7 8
1
MONITOR
OUTPUT MONITOR
SERIAL-2SERIAL-1
VIDEO INPUT
VIDEO OUTPUT
OUTPUT
2
1
ON
2 3 4 5 6 7 8
ALC LEVEL
Av PkL H
ALC LEVEL
Av PkL H
ALC LEVEL
Av PkL H
MACHINE ID : 1
（MENU Screen）RX TERM : OFF
(Switch)MACHINE ID : 2
（MENU Screen）RX TERM : OFF
(Switch)MACHINE ID : 8
（MENU Screen）RX TERM : ON
(Switch)RM-P2580
CAMERA1
CAMERA2
CAMERA8
Monitor
Video signal cable
Control signal
cable
Power cable
Memo v
During control using RM-P2580, select “JCCP” for the
[COMMUNICATION] item on the [MAINTENANCE] screen. On
the [COMMUNICATION (JCCP)] screen, set [PROTOCOL 1] to
“MULTIDROP”, and [PROTOCOL 2] to “DUPLEX”.
v
For control using a device other than RM-P2580, perform
setting using the switches and menu screen according to the
system in use.
v
For systems using RM-P2580, multiple cameras (up to 16 units)
are connected using a set of control signal cables. As such, the
entire system will not function properly if the switch setting for
any one of the connected cameras is incorrect. "Control Signal
Cable Connection on Camera (Rear)" (A page 19)
Connection/Installation
E-18

Connection Settings
mControl Signal Cable Connection on Camera (Rear)
Memo
Connect the cables correctly such
that the A,B, C, D marks of the
camera terminals coincide with those
of the RM-P2580 terminals.
mRear Switch Settings (A page 26)
Set the [RX TERM OFFlON] switch.
Set only the camera connected by the control signal line to “ON”. Set to
“OFF” for all other cameras.
mMenu Screen Settings (A page 34)
① Select the [MAINTENANCE] item on the [MENU] screen, and
press the [SET] button.
The [MAINTENANCE] screen appears.
② Move the cross key up/down to select the [COMMUNICATION]
item, move the cross key to the left/right to set to “JCCP”,
followed by pressing the [SET] button.
The [COMMUNICATION (JCCP)] screen appears.
③ Set [PROTOCOL 1] to “MULTIDROP”.
④ Set [PROTOCOL 2] to “DUPLEX”.
⑤ Set the [MACHINE ID] item according to the number of the
RM-P2580[VIDEO INPUT] terminal on each camera.
⑥ Press the [MENU] button to exit setting.
⑦ Turn off and on the power.
Memo vTurn off the power of the device to be used.
vRefer also to the instruction manual of the device to be
used.
vFor details on the type of connection cable and distance,
refer to "Power Supply Connection" (A page 22).
vControl signal cables do not support loop connection.
CAMERA
1
TOCAMERA DATAI/ O
RX+RX
-
TX+TX
-
COM 1 2 3 4 5 6 7 8 COM 9/110/2 11/3 12/413/514/615/716/8 COMCOM COM
CAMERA
SW
UNIT
ALARM AUTO
4312 8756
2 3 4 5 6 7 8
1
MONITOR
OUTPUTMONITOR
SERIAL-2SERIAL-1
VIDEOINPUT
VIDEOOUTPUT
OUTPUT
2
1
ON
2 3 4 5 6 7 8
RM-P2580
RX -
RX+ TX
-
TX+
A B C D
RX -
RX+
TX
-
TX+
A B C D
Connection/Installation
E-19

Mounting the Lens
1Check the mounting method of the lens before mounting.
This camera is compatible with CS-mount lens.
To use a C-mount lens, a C-mount adapter is necessary. For details on
the C-mount adapter, consult your JVC dealer.
Never use a lens that exceeds the dimension （a） in the below figure as
it will damage the inner part of the camera and will not allow normal
installation. This will result in a malfunction.
Dimension (a) : 5.5 mm or below
Flange focus (b) : 12.5 mm
2Turn the lens clockwise and mount it securely on the camera.
3Set the [IRIS VIDEOlDC] Lens selector switch (A page 15) on
the rear panel according to the lens in use.
4Check the pin arrangement and connect the lens cable to the
socket.
.
POWER IRIS
4
22
1
23 4
Memo vIf the plug of the lens cable is different, connect with a four-
pin plug. For details on the four-pin plug, consult your JVC
dealer. (Part no.: SCV2859-001)
Pin No. DC IRIS lens Video Iris Lens
1 Damping (-) +9 V (max. 50 mA)
2 Damping (+) NC
3 Driving (+) Video Signal
4 Driving (-) GND
(a)
(b)
F
１２３４
4 pin plug
Connection/Installation
E-20
