JVC XL-PM400S User manual

XL-PM400S / LVT1179-005A [E] / Cover
EnglishEspañolNederlands
INSTRUCTIONS
INSTRUCCIONES
GEBRUIKSAANWIJZING
XL-PM400S
PORTABLE CD PLAYER
LECTOR PORTÁTIL DE DISCOS COMPACTOS
PORTABLE DRAAGBARE CD-SPELER
LVT1179-005A [E]

G-1
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RE-
SULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICINGTO QUALIFIED
PERSONNEL.
WARNING:
TO REDUCETHE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
¡ADVERTENCIA!
ESTE APARATO UTILIZA UN LÁSER.
EL USAR LOS CONTROLES, HACER LOS
REGLAJES O LOS PASOS REQUERIDOS EN
FORMA DIVERSA DE LA AQUÍEXPUESTA PUE-
DE REDUNDAR EN EXPOSICIÓN PELIGROSA
A LA RADIACIÓN.
NO ABRA LAS TAPAS NI HAGA REPARACIO-
NES USTED MISMO. EN CASO DE PRODUCIR-
SE ANOMALÍAS SOLICITE AYUDA DE PERSO-
NAL CUALIFICADO.
AVISO:
PARA REDUCIR EL RIESGO DE INCENDIOS
O SACUDIDAS ELÉCTRICAS, NO LO EXPON-
GA A LA LLUVIA O HUMEDAD.
Warnings, Cautions and Others
Avios, precauciones y otras notas
Waarschuwingen, voorzorgen en andere mededelingen

G-2
XL-PM400S / LVT1179-005A [E] / Safety
CAUTION:
• Do not block the ventilation opening or holes. (If the venti-
lation openings of holes are blocked by a newspaper or
cloth, etc., the heat may not be able to get out.)
• Do not place any naked flame sources, such as lighted
candles, on the apparatus.
• When discarding batteries, environmental problems must
be considered and local rules or laws governing the dis-
posal of these batteries must be followed strictly.
• Do not expose this apparatus to rain, moisture, dripping or
splashing and that no objects filled with liquids, such as
vases, shall be placed on the apparatus.
WAARSCHUWING!
IN DIT APPARAAT WORDT EEN LASER GE-
BRUIKT.HET GEBRUIKVAN REGELAARS EN HET
MAKEN VAN AFSTELLINGEN OF BEDIENINGEN
DIE NIET IN DEZE GEBRUIKSAANWIJZING
STAAN BESCHREVEN, KAN LEIDENTOT BLOOT-
STELLING AAN GEVAARLIJKE STRALING.
MAAK HET APPARAAT NIET OPEN EN GA NIET
ZELF REPAREREN. LAAT HET ONDERHOUD
AAN ERKENDE VAKMENSEN OVER.
WAARSCHUWING:
TENEINDE HET GEVAAR VOOR BRAND OF
ELEKTRISCHE SCHOKKEN TE VERKLEINEN,
MAG DIT APPARAAT NIET WORDEN BLOOT-
GESTELD AAN REGEN OF VOCHT.
PRECAUCIÓN:
• No obstruya las rendijas o los orificios de ventilación.
(Si las rendijas o los orificios de ventilación quedan tapados con
un periódico, un trozo de tela, etc., no se podrá disipar el calor).
• No ponga sobre el aparato ninguna llama al descubierto, como
velas encendidas.
• Cuando tenga que descartar las pilas, tenga en cuenta los proble-
mas ambientales y observe estrictamente los reglamentos o las
leyes locales sobre disposición de las pilas.
• No exponga este aparato a la lluvia, humedad, goteos o
salpicaduras. Tampoco ponga recipientes conteniendo líquidos,
como floreros, encima del aparato.
VOORZICHTIG:
• Zorg dat u de ventilatieopeningen en -gaten niet afsluit.
(Als de ventilatieopeningen en -gaten worden afgesloten door
bijvoorbeeld papier of een doek, kan er hitte in het apparaat wor-
den opgebouwd.)
• Zet geen bronnen met open vuur, zoals brandende kaarsen, op
het apparaat.
• Wees milieubewust en gooi lege batterijen niet bij het huishou-
delijk afval. Lege batterijen dient u in te leveren met het KCA of
bij een innamepunt voor batterijen.
• Stel dit apparaat niet bloot aan regen, vocht, drupwater of spat-
water en plaats geen enkel voorwerp waarin zich een vloeistof
bevindt, zoals een vaas, op het apparaat.

G-3
XL-PM400S / LVT1179-005A [E] / Safety
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRODUCT
2. CAUTION: Do not open the top cover. There are
no user serviceable parts inside the unit; leave all
servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation
when open and interlock failed or defeated. Avoid
direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL,
PLACED OUTSIDE THE UNIT.
BELANGRIJK VOOR LASERPRODUKTEN
1. KLASSE 1 LASERPRODUKT
2. VOORZICHTIG: Open de bovenste afdekking niet.
Er zijn geen door de gebruiker te repareren onder-
delen in het toestel; laat onderhoud en reparatie
over aan erkend onderhoudspersoneel.
3. VOORZICHTIG: Zichtbare en onzichtbare laser-
straling indien open en interlock defect of buiten
werking gesteld. Voorkom directe blootstelling aan
de straal.
4. REPRODUCTIE VAN LABEL: WAARSCHUWING-
SLABEL IN TOESTEL AANGEBRACHT.
IMPORTANTE PARA PRODUCTOS LÁSER
1. PRODUCTO LÁSER CLASE 1
2. PRECAUCIÓN: No abra la tapa superior. En el in-
terior de la unidad no hay piezas que pueda repa-
rar el usuario; encargue el servicio a personal
técnico cualificado.
3. PRECAUCIÓN: Radiación láser visible e invisible
en caso de apertura o con interbloqueo averiado o
defectuoso. Evite la exposición directa a los haces.
4. REPRODUCCIÓN DE LA ETIQUETA: ETIQUETA
DE PRECAUCIÓN, COLOCADA EN EL INTE-
RIOR DE LA UNIDAD.
VARNING: Synlig Och
osynlig laserstrålning när
den öppnas och spärren är
urkopplad. Betrakta ej
strålen. (s)
CAUTION: Visible and invisible
laser radiation when open and
interlock failed or defeated.
AVOID DIRECT EXPOSURE TO
BEAM. (e)
ADVARSEL: Synlig og usynlig
laserstråling når maskinen er
åben eller interlocken fejle.
Undgådirekte eksponering
til stråling. (d)
VARO: Avattaessa ja
Suojalukitus ohitettunatai
viallisena olet alttiina näkyvälle
ja näkymättömälle lasersäteilylle.
Vältäsäteen kohdistumista
suoraan itseesi. (f)

1
EnglishEspañol
Nederlands
XL-PM400S / LVT1179-005A [E]
Stereo headphone .............................................................. 1 pc.
Supplied Accessories
Thank you for purchasing this JVC product. Please read these
instructions carefully before starting operation to be sure to ob-
tain optimum performance and a longer service life from the unit.
Table of Contents
Put the grip band on your
hand
Adjust the grip band to your hand size.
Put the grip band on your hand ......................1
Power Supply Preparations............................ 2
About MP3 files ............................................... 4
Basic Play ........................................................ 5
Other Play Methods ........................................ 8
Concerning Compact Discs ......................... 12
Cautions ......................................................... 13
Troubleshooting ............................................ 15
Specifications ................................................ 16
Maintenance .................................................. 16

2
English
Español
Nederlands
XL-PM400S / LVT1179-005A [E]
Power Supply Prepara-
tions
The illustration of the grip band is omitted.
Using dry-cell batteries (not supplied)
Caution:
Do not forcibly open the battery lid too wide.
Two “R6”(LR6) alkaline batteries.
Battery indicator
Battery indicator
This indicator appears when the batteries are almost out
of power. Power will be cut off a short while later.
Note:
Turning off the Anti-Shock Protection EX will save the battery
power more or less. For details, see “Anti-shock Protection EX”
on page 11. (Available for an Audio CD only)

3
EnglishEspañol
Nederlands
XL-PM400S / LVT1179-005A [E]

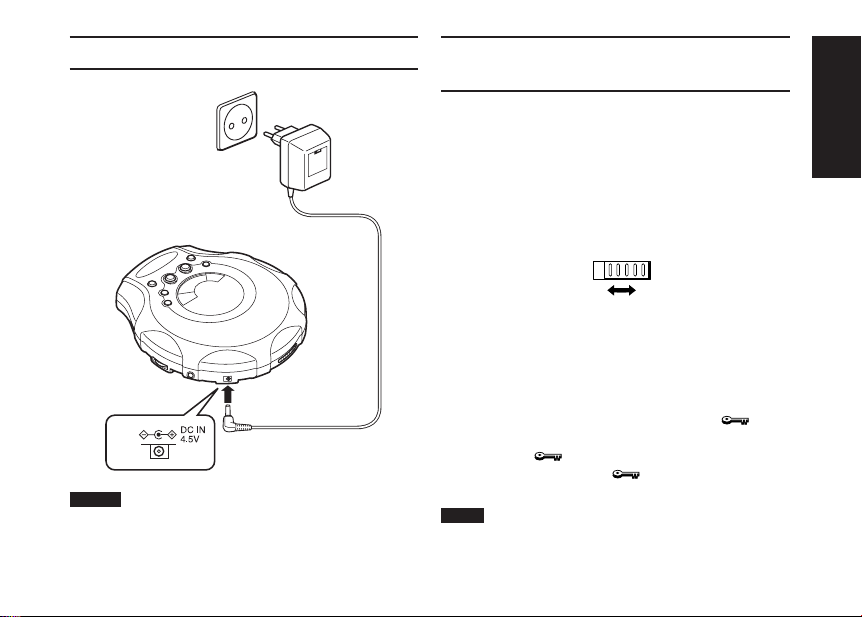

AC adaptor
AC power outlet
Preventing Accidental Operation
(Hold mode)
This function causes the unit to ignore, accidental but-
ton presses.
Hold mode prevents the following:
•Powering on the unit accidentally (which can cause
the batteries to go dead).
•Play being cut off unexpectedly.
To use the Hold mode
OFF ON
HOLD
•To prevent the unit from powering on accidentally, set
the HOLD switch to the ON position while the unit is
turned off.
•To prevent the unit from unexpected operation during
play, set the HOLD switch to the ON position after you
starts playing the disc.
•When the unit is in Hold mode, “HOLd”and “”lights
as follows.
Power on : “”stays lit.
Power off : “HOLd”and “”lights up for a few sec-
onds when 6is pressed.
Note:
If the HOLD switch is set to the ON position, you cannot turn on
the unit.
Using the AC adaptor (not supplied)
Notes:
•Even if the unit is turned off, small power is consumed as long
as the AC adaptor is connected to the AC power outlet.
•When you want to purchase the AC adaptor, see page 14.

4
English
Español
Nederlands
XL-PM400S / LVT1179-005A [E]
About MP3 files
MP3 File Compatibility
•This player can read MP3 files that are recorded in the format
that is compliant with ISO 9660.
•The player can read or play an MP3 file with the extension code
—“.mp3”.
Playing order of MP3 files
The illustration below shows the normal playing order of the
MP3 files. You will see that the MP3 files are played back in
the order from the higher hierarchy to the lower one.
3
4
9
8
10
6
7
1
2
5
Hierarchy
Group
MP3 file

5
EnglishEspañol
Nederlands
XL-PM400S / LVT1179-005A [E]
Basic Play
The illustration of the grip band is omitted.
3
4, 6
5
2
1
1
RL
2
3
OFF ON
HOLD
4
VOLUME
Firmly connect
Label side
(To be continued on the next page)

6
English
Español
Nederlands
XL-PM400S / LVT1179-005A [E]
5
01
02
0
53
01
02
0 10
53
MP3
Play stops automatically when all the track have been
played.
6
VOLUME
For your reference:
“dISC”
This indication appears if 6is pressed when no disc
is loaded or if the disc is not properly seated.
“– –”
Preparation period before playing the track
Flashes for several seconds after pressing 6to play.
“OPEn”
This indication appears when the lid is open.
Removing discs
Turn off the unit and, after the disc has stopped rotating,
remove the disc as shown below:
Auto power off
If the unit is left in stop mode for 30 seconds, the unit turns itself
off automatically to prevent the batteries from running down.
Disc rotation noise
The portable CD player uses a power-saving operation
method so that disc rotation noise will intermittently be emit-
ted. But, it is not a failure.
Track number in play
Elapsed playing time of each track
For Audio CD
For MP3
Elapsed
playing time of
each track
Group number
Lights when a
MP3 disc is
used
Track number (in the
group) in play

7
EnglishEspañol
Nederlands
XL-PM400S / LVT1179-005A [E]
To pause
During play,
For Audio CD
07
00 18
For MP3
4
00
0
07
01
Press again to restart play.
To stop
During play,
For Audio CD
1044 48
For MP3
35
10
Total number of tracks
Total playing time
Total number of groups
Total number of tracks
To turn off the unit
While stopped,
Fast forward/reverse
Skip function
During play,
Search function
Keep depressed during play.
•To skip back to the previous track, quickly press 4twice.
•During Program play, the button is used to fast forward or back
through the programmed sequence of tracks.
•During Random play, the skip button cannot be used to skip back
to tracks that were played previously in the random sequence.
Group skip (MP3 only)
During play or while stopped,
A.S.P./
GROUP UP
01
02
0
Forward
Reverse
No indication
Group number

8
English
Español
Nederlands
XL-PM400S / LVT1179-005A [E]

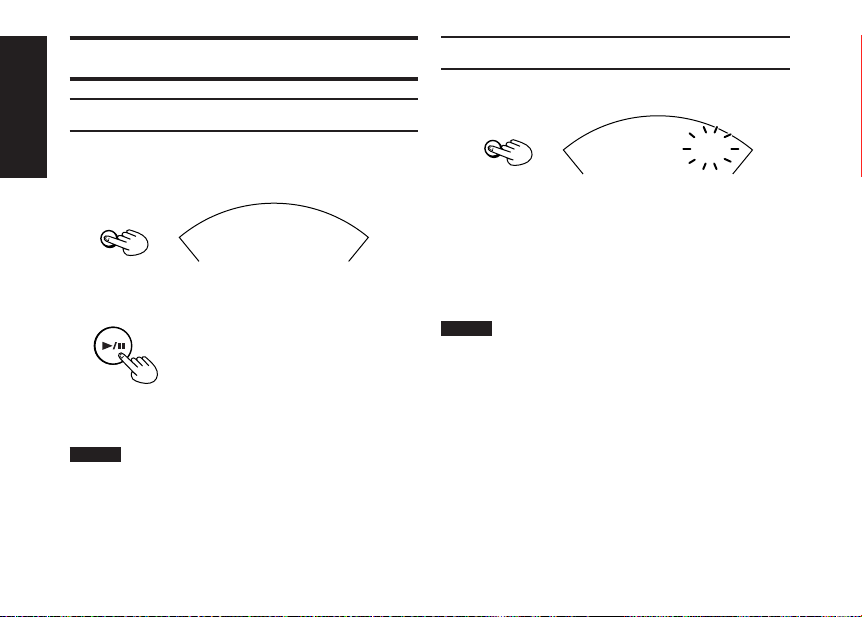

Random play
During playback,
MODE
RND
After playing all tracks, the unit stops.
To cancel
Press MODE until “RND”goes out, or press 7to stop
the disc.
Notes:
•You can also select Random play in stop mode.
•During Program play, you can not select Random play.
(Repeatedly)
Other Play Methods
Intro play
You can successively play the first 10 seconds of every track.
1While stopped,
INTRO
MODE
2
To cancel
Press MODE repeatedly until “INTRO”goes out.
Notes:
•You can also select Intro play during playback.
In this case, Intro play will start from the next track after the
current track has finished.
•You can also select Intro play during Program play mode.
(Repeatedly)

9
EnglishEspañol
Nederlands
XL-PM400S / LVT1179-005A [E]
Program play
You can program up to 64 tracks in any desired order
including the same tracks.
For Audio CD, go to step 3.
Though the display differs a little, operation is the same.
1(MP3 only) While stopped,
PROGRAM
00
00
P
00-1
2(MP3 only) Select the desired group number.
(e.g.02)
-
01
02
P
001
Group number
Program sequence number
(To be continued on the next page)
3
PROGRAM
01
02
P
001
-
4Select the desired track.
03
02
P
00-1
5
PROGRAM
PROG
00
00
P
00-2
The track is registered.
Track number

10
English
Español
Nederlands
XL-PM400S / LVT1179-005A [E]
Repeat play
During playback,
MODE
GROUP
ALL
To cancel
Press MODE repeatedly until the repeat indicator goes out.
Notes:
•You can also select Repeat play during Program play.
•You can also select Repeat play while stopped.
Hyper-Bass Sound effect
You can enjoy powerful bass sound.
OFF 21
HBS
(Repeatedly)
1 track repeat
1 group repeat
(MP3 only)
All track repeat
6For MP3, repeat steps 2-5 to select other tracks.
For Audio CD, repeat steps 4 and 5.
When you program exceeding 64 tracks, the program
sequence number returns to “01”and will overwrite
the previous setting.
7
•To confirm the program
While stopped, press PROGRAM repeatedly. At this time, you
can add and change the program, if required.
•To delete the entire program
While stopped, press STOP. Or turn off the unit.

11
EnglishEspañol
Nederlands
XL-PM400S / LVT1179-005A [E]
[Fully stored]
Anti-Shock Protection EX
This function achieves excellent performance against
sound interruption caused by vibrations. You will be able
to enjoy listening to music during (not vigorous) jogging.
By utilizing the high-performance servo circuit, audio data
will be stored in the memory ahead of time.
For Audio CD: Up to 175 seconds worth (Anti-Shock
Protection on/off selectable)
For MP3: Up to 426 seconds worth at 128 kbps
(Anti-Shock Protection is fixed to on.)
Normally, this function is in effect.
ASP
As the audio data is gradually stored, the indicator changes as
follows:
ASP ASP
ANTI SHOCK
indicator
(Audio CD only) To cancel
A.S.P./
GROUP UP
The “ANTI SHOCK”indicator goes out.
(Audio CD only) To activate again
Press A.S.P./GROUP UP.
Notes:
•During this operation, the disc rotates at a higher rate than usual
in order to collect extra audio data. This may cause the batter-
ies to run out faster and could result in a slight increase in disc
rotation noise.
•This function can be switched ON and OFF during playback.
However, this may cause a slight interruption in the sound be-
cause the disc’s rotational speed changes.

12
English
Español
Nederlands
XL-PM400S / LVT1179-005A [E]
Concerning Compact Discs
Only compact discs bearing this mark can be used with this unit.
However, continued use of irregular shape CDs (heart-shape, oc-
tagonal, etc.) can damage the unit.
CD-R and CD-RW discs recorded with the audio CD format can
be played back, though some may not be played back because
of the disc characteristics or recording condition.
How to remove a disc from its case
How to store the disc in its case
How to hold a disc
Label side up
If the disc surface is dirty
Wipe it with a damp cloth and then wipe dry.
Wipe from the center toward the outer edge.
\
If moisture has formed on a disc
When moisture has formed because the disc was brought sud-
denly into a warm room from a cold environment, wipe off the
moisture using a soft dry cloth.
When storing discs
Avoid locations which are
•Exposed to direct sunlight.
•Susceptible to high levels of humidity or dust.
•Directly exposed to heat from a heating appliance.
•On top of a car dashboard or near the rear window.
Handling precautions
•On the label side (the side with writing)
Do not write anything using a pencil, ball-point pen, etc. Do not
use adhesive paper or labels.
•On the disc (shiny) side
Handle this side carefully to keep it free from fingerprints or
scratches. Do not use record cleaners, solvents, etc.
•Do not attach labels or stickers to CDs.
Do not use CDs with exposed adhesive from tape or left over
peeled off stickers.
•Do not use scratch-proof protectors or covers other than those
specified for use with this unit.
Play surface (shiny surface)

13
EnglishEspañolNederlands
XL-PM400S / LVT1179-005A [E]
Cautions
Listening Precautions
• Do not play your headphones at a high volume. Hearing ex-
perts advise against continuous extended play.
• If you experience a ringing in your ears, reduce volume or dis-
continue use.
• Do not use while operating a motorized vehicle. It may create a
traffic hazard and is illegal in many areas.
• You should use extreme caution or temporarily discontinue use
in potentially hazardous situations.
• Even if your headphones is an open-air type designed to let
you hear outside sounds, don’t turn up the volume so high that
you can’t hear what’s around you.
Rechargeable batteries
• Rechargeable batteries (not supplied) can be used.
• To use the rechargeable batteries, follow the instruction manual
attached to the rechargeable batteries and charger (not sup-
plied).
Dry cell batteries
To prevent damage to the batteries and electrolyte leakage, heed
the following points.
• Align the ,and .polarities properly when inserting the bat-
teries.
• Do not mix different types or makers of batteries or old and
new batteries.
• Remove the batteries if you do not plan to use the unit for a
long period of time.
• Do not throw batteries into a fire, and do not short-circuit, dis-
assemble or subject them to excessive heat.
• Do not attempt to recharge dry cell batteries.
Carrying dry cell batteries around
When putting dry cell batteries in a pocket or bag, ensure that no
other metal objects such as a necklace are placed together with
them. Contact with metal may cause short-circuiting which, in
turn, may cause a fire.

14
English
Español
Nederlands
XL-PM400S / LVT1179-005A [E]
AC adaptor
•Handle the AC adaptor carefully. Improper handling is dan-
gerous.
•Do not touch it with wet hands.
•Do not place heavy objects on top of it.
•Do not forcibly bend it.
•Be sure to connect only the specified AC adaptor with the unit.
•Disconnect the AC adaptor from the power outlet if the unit is
not going to be used for a long time.
Unit
No altering or remodeling
This can cause malfunctioning.
No dropping or strong impacts
This may damage the unit.
Locations to be avoided
Avoid using the unit in the following locations since they can cause
malfunctioning.
1.Bathrooms and other moisture-prone places.
2.Warehouses and other dusty places
3.Very hot places near heating appliances, etc.
Do not leave the unit exposed to direct sunlight for long
periods of time
This may deform or discolor the cabinet and may also cause
malfunctioning.
When purchasing AC adaptor
Be absolutely sure to purchase the AC adaptor designed espe-
cially for this unit.
AC adaptor: AA-R4514
For details, check with your dealer.

15
EnglishEspañol
Nederlands
XL-PM400S / LVT1179-005A [E]
Problem
Does not turn on.
Cannot close the lid.
Cannot play discs.
Cannot hear music—too noisy.
TV picture is distorted.
Radio reception is noisy.
“dISC”or “Er”is displayed when a disc
is in the player.
Check this
•Is the AC adaptor securely connected?
•Is the HOLD switch set to OFF position?
Is the disc properly secured in place?
•Is the disc properly secured in place?
•Is there moisture condensation on the lens?
(Wait for about an hour and then try again.)
•Are MP3 files recorded on the disc?
•Do MP3 files have the extension code—.mp3?
•Are MP3 files recorded in the format compliant with ISO 9660?
•Is the headphone plug inserted all the way?
•Is the plug dirty? (Wipe away dirt on the plug.)
•Are you playing a compatible disc? While playing a non-MP3 file, you will
hear a noise. (Note it may not be an MP3 file although it has the extension
code—.mp3.)
Are you using the unit too near a TV or tuner? (If the TV or tuner is connected
to a simple indoor antenna, connect it to an outdoor antenna.)
•Is the disc damaged?
•Is the disc playable on this player?
•Has the disc been inserted upside down?
If the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized Service Centers (enclosed with this
unit) to locate a convenient service center, or consult your dealer for instructions.
Troubleshooting

16
English
Español
Nederlands
XL-PM400S / LVT1179-005A [E]
Maintenance
Unit
Wipe the unit with a soft cloth. Remove stubborn dirt using a cloth
which has been dipped in water or soapy water and wrung out,
and then wipe dry.
•If you intend to use a chemically treated cleaning cloth, read its
directions first.
•Do not use alcohol or paint thinners.
Lens Air blower for
camera lens
Lens
Specifications
Portable CD player
Type : Compact disc player
Signal detection system : Non-contact optical pickup (semicon-
ductor laser)
Pickup system : 3 beam laser
Number of channels : 2 channels (stereo)
Frequency response : 20 Hz to 20 kHz
Wow & flutter : Unmeasurable
Output : Headphones (3.5 mm dia. stereo ×1)
9 mW/ch at 10 % THD/16 Ωmatching
impedance (16 Ωto 1 kΩ)
Duration of battery : Approx. 30 hours when using two
(with Anti-Shock alkaline batteries (LR6)
Protection EX OFF)
Power requirements : DC 3 V (“R6”size battery ×2)
DC 2.4V (rechargeable battery ×2)
DC IN 4.5 V
Dimensions (W×H×D) : 133.2 mm ×30.8 mm ×146.8 mm
(Excluding buttons and controls)
Mass : 250 g
(with grip band, without batteries)
AC adaptor (not supplied)
Input power source : AC 230 V, 50 Hz
Output voltage : DC 4.5 V, 600 mA
* Design and specifications are subject to change without notice.
