JVC AV-14JT5EU, AV-21JT5EU User manual

AV-14JT5EU / AV-21JT5EU
AV-14JT5EU
AV-21JT5EU
VICTOR COMPANY OF JAPAN, LIMITED
PMJV1V2022
0500-T-CR-DW
2000 VICTOR COMPANY OF JAPAN, LIMITED
COLOURTELEVISION
VIDEO AUDIO
P TV/AV
INSTRUCTIONS

ADDITIONAL INFORMATIONS FORTHE SET SOLD IN GREAT BRITAIN
The appliance is supplied with a moulded three pin main plug fitted with 5Amp fuse.
Should the fuse require replacement, it must be replaced with a fuse rated at 5 amp
and approved by ASTA or BSI to BS1362.
The plug contains a removable fuse cover that must be refitted when the fuse is
replaced.In the event of the fuse cover being lost or damaged, the plug must not be
used until a replacement cover has been obtained.Replacement fuse covers can be
purchased from your nearest electrical dealer and must be the same colour as the
original.
If the moulded means plug is unsuitable for the socket outlet in your home or is
removed for any other reasons, then the fuse should be removed and the cut off plug
dispose of safely to prevent the hazard of electric shock.
There is a danger of electric shock if the cut off plug is inserted into any socket outlet.
If a replacement plug is to be fitted, please observe the wiring code shown below.The
wires in the mains lead are are coloured in the accordance with the following code:
Blue-neutral Brown-live
As the colours of the wires in the main lead of this appliance may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked
with theletter N or coloured black.The wire which is coloured brown must be connected
to the terminal which is marked with the letter E or coloured red.
Do not make any connections to the terminal in the plug which is marked by the letter
E by the safety earth symbol or coloured green or green and yellow.
AV-14JT5/21JT5 (TOC) EN 5/3/00, 1:33 PM2

IMPORTANT SAFEGUARDS ................................ 2
BEFORE LAUNCHING ......................................... 3
CONNECTING THE EXTERNAL EQUIPMENT.... 4
IDENTITY OF FEATURES ON LOCAL AND
REMOTE CONTROL ............................................ 6
INSTALLATION...................................................... 8
DAILY USE............................................................ 16
TELETEXT ............................................................ 24
TROUBLESHOOTING .......................................... 26
SPECIFICATIONS................................................. 27
CONTENTS
1
AV-14JT5/21JT5 (TOC) EN 5/3/00, 1:33 PM3

2
IMPORTANT SAFEGUARDS
WATER AND MOISTURE
Never install the set in the following places; In a wet basement, bath-
room. Do not place any container with liquid on the set.
HEAT
Never place the set near heat sources.
VENTILATION
Do not cover the ventilation opening in the cabinet and never place
the set in a confined space such as bookcase or built-in unless
proper ventilation is provided.
Leave a minimum 10cm gap all around the unit.
OBJECT ENTRY
Do not insert foreign objects, such as needles and coins, in the venti-
lation openings.
LIGHTNING STRIKING
You should disconnect the set from the mains and the aerial system
during thunderstorms.
CLEANING
Unplug the set from the mains during cleaning.
AFTER MOVING THE SET
If the set is moved in a different direction, the MAIN POWER button
must be switched off for at least 15 minutes in order to take out a
colour strain on the screen.

3
INSERTING BATTERIES INTO THE CONTROL UNIT
Insert the batteries (two 1.5V, type AAA(R03))
MAINS CONNECTION
Plug the mains cable into the power socket with
230V/50Hz AC.
AERIAL CONNECTION
When using an outdoor aerial, it is usually con-
nected to the set by means of 75 ohms.
SWITCHING ON AND OFF
Switching on
Switch the set on with the MAIN POWER button ( ), and
then PR UP or DOWN button (8P9) on the front of the set.
Or POWER button ( / I ) or the UP/DOWN button or one of
the NUMBER buttons on the remote control.
Switching off
Press POWER button ( / I ) on the remote control to return
the set to its stand by mode.
If you do not use the set for an extended period of time, turn
it off with MAIN POWER button ( ) on the set.
P TV/AV
BEFORE LAUNCHING
31 2
64 5
97 8
0
P
AV
P.MODE / OK
MENU

4
TV and AV
Use the AV button on the remote control, or on the front of the set to select one of the
three options.Whenever the AV button is pressed, on the on-screen display will be
changed as shown: AV S-VHS TV
SCART JACK ( ):
This is used to connect a VCR 1, a PERI-TV decoder 2, a
Camcoder or a video game console.
In most case, the set changes automatically to AV when the
VCR connected is in display mode.
If not, press the AV button on the remote control or on the
front of the set.You must turn the external equipment off to
return to the TV mode.
CONNECTINGTHE EXTERNAL EQUIPMENT
1
21

5
FRONT AV JACK (AUDIO/VIDEO)
Connect the AV (Audio/Video) socket with an appreciate cable to the corresponding
socket of the external equipment.
Select AV mode by pressing the AV button.
Press the AV button to return to the TV mode.
Note that you can play only one apparatus, if two apparatuses are connected FRONT AV
JACK and SCART JACK.
VIDEO AUDIO
P TV/AV
HEADPHONES JACK
Insert the headphones plug (3,5 mm) into
the headphones socket.
The sound from the speaker will be cut off.
CAMCODER
VIDEO GAME
OR

6
IDENTITY OF FEATURES ON LOCAL AND REMOTE CONTROL
LOCAL CONTROL
Front
VIDEO AUDIO
P TV/AV
VIDEO AUDIO
P TV/AV
MAIN
POWER
BUTTON
PROGRAMME
DOWN/UP
BUTTONS
VOLUME
DOWN/UP
BUTTONS
AV
BUTTON STAND-BY INDICATOR REMOTE SENSOR VIDEO
INPUT AUDIO
INPUT HEAD PHONE
AERIAL TERMINAL
Back
ANT
SCART JACK

7
1 POWER
2 NUMBER 0-9
3 P. MODE/OK
4AV
5 (PR/CURSOR) UP
6 VOLUME UP (CURSOR RIGHT)
7 MENU
8 (PR/CURSOR) DOWN
9 VOLUME DOWN (CURSOR LEFT)
10 MUTING
11 RECALL
12 SLEEP
13 Not used
14 MOVE
15 SKIP
16 TV/TEXT
17 DELETE
18 MODE
19 VCR/ /DVD switch
20 VCR/DVD Control buttons
REMOTE CONTROL
31 2
64 5
97 8
0
P
P
AV
P.MODE / OK
MENU
RM-C71
TV
?
VCR DVD
1
10
15
14
3
6
18
17
7
5
13
4
8
20
16
12
2
9
11
19
TV mode TELETEXT mode
1 POWER
2 NUMBER 0-9
3 INDEX
4 Not used
5 PAGE UP
6 SUBPAGE
7 MENU
8 PAGE DOWN
9 HOLD
10 MUTE
11 REVEAL
12 SIZE
13 CANCEL
14 GREEN KEY
15 RED KEY
16 TV/TEXT
17 YELLOW KEY
18 CYAN KEY
19 VCR/ /DVD
switch
20 Not used

8

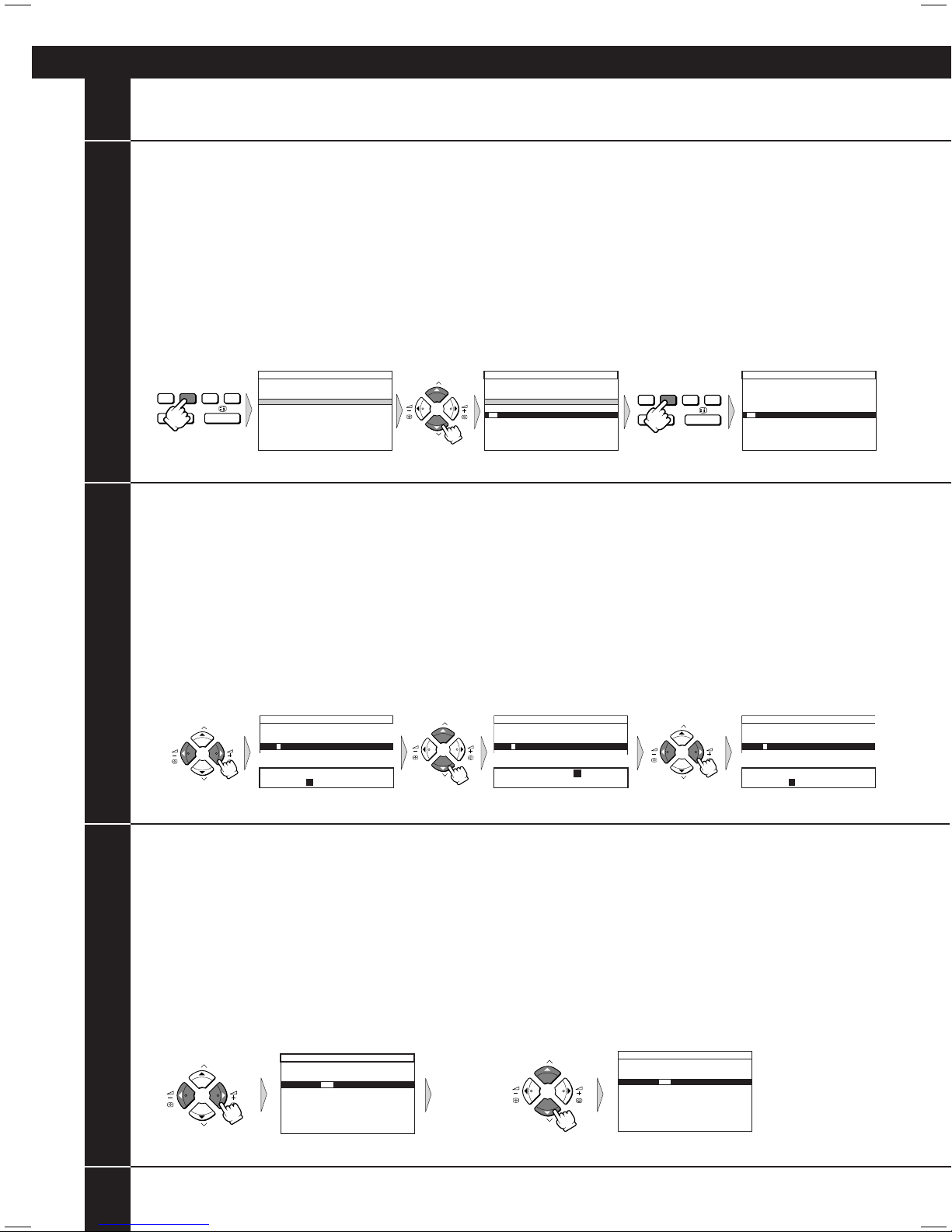

USINGTHE MENU
AUTO SETUP
INSTALLATION
Read this “INSTALLATION” before using the TV for the first time.
1Press the MENU button to dis-
play the MENU.
To exit the MENU, press the
MENU button again.
2Select the sub-menu title with the UP/
DOWN buttons, then press the RIGHT
button to display the sub-menu.
To return to the MENU, press the
MENU button.
MENU
Menu
Timer
Language
Install
Menu
Timer
Language
Install
P
P
P
P
Install
Auto setup
Manual tune
Fine tune
Edit
1Select INSTALL from the MENU
with the UP/DOWN buttons, then
press the RIGHT button.
Menu
Timer
Language
Install
P
P
2Press the RIGHT button.
Menu
Timer
Language
Install
P
P
Install
Auto setup
Manual tune
Fine tune
Edit
P
P
Edit
Pr Name Ch Picture Sound Skip
01 ----- C01 Euro BG No
02 ----- C07 Euro BG No
03 ----- C25 Euro BG No
04 ----- C35 Euro I No
05 ----- C50 Euro INo
06 ----- C63 Euro BG No
07 ----- C72 France LL' No
08 ----- C77 E/Euro DK No
4When the AUTO SETUP has been completed, the EDIT menu is displayed.
When not editing the programmes, press the MENU button 3 times and exit
from the MENU.
When you want to edit the programmes, proceed to “USING THE EDIT
MENU”.
