JVC AV-21QMG7 User manual

The illustrations of AV-21QMG7 is used in this instruction manual for explanation purpose.
Your TV may not look exactly the same as illustrated.
This illustration shows AV-21QMG7
COLOUR TELEVISION
INSTRUCTIONS
AV-21Q17
AV-21QMG7
AV-21QMG7B
AV-21S19
PREPARATION FUNCTIONS REFERENCE
Contents
Safety precautions ......................... 2
Connections .................................. 3
Initial settings ................................. 3
Remote control buttons
and functions ................................. 4
TV buttons and functions ............... 4
Using the TV’s MENU .................... 5
Presetting TV channels ................. 6
Using the timer .............................. 7
Playing game ................................. 7
Sound and Colour system in your
country or region ........................... 7
Troubleshooting ............. Back cover
Specifications ................ Back cover
GGT0177-002A-H

2
If a television is not positioned in a sufficiently stable
location, it can be potentially hazardous due to
falling. Many injuries, particularly to children, can be
avoided by taking simple precautions such as:
• Using cabinets or stands recommended by the
manufacturer of the television.
• Only using furniture that can safely support the
television.
• Ensuring the television is not overhanging the edge of
the supporting furniture.
• Not placing the television on tall furniture (for example,
cupboards or bookcases) without anchoring both the
furniture and the television to a suitable support.
• Not standing the televisions on cloth or other materials
placed between the television and supporting furniture.
• Educating children about the dangers of climbing on
furniture to reach the television or its controls.
• The surface of the TV screen is easily damaged.
Be very careful with it when handling the TV. Should
the TV screen become soiled, wipe it with a soft dry
cloth. Never rub it forcefully. Never use any cleaner
or detergent on it.
• The apparatus shall not be exposed to
dripping or splashing and that no objects
filled with liquids, such as vases, shall be
placed on the apparatus.
• Do not allow objects or liquid into the
cabinet openings.
Thank you for buying this JVC colour television.
To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
WARNING
TO ENSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING
RULES REGARDING THE USE OF THIS TV.
• Operate only from the power source
indicated on the rear of the TV.
• Avoid damaging the power cord and
mains plug. When unplugging the TV,
grasp the mains plug. Do not pull on the
power cord.
• This TV can be turned on/off power by
connecting/disconnecting the AC plug
into AC outlet. While this TV is being
installed, enough space should be
reserved for connection/disconnecting the
AC plug into AC outlet by hand.
• Never block or cover the ventilation openings.
• Never install the TV where good ventilation is unattainable.
• When installing this TV, leave spaces for ventilation around the TV of
more than the minimum distances as shown.
In the event of
a fault, unplug the unit
and call a service technician. Do
not attempt to repair it yourself or
remove the rear cover.
CAUTION
• Never listen to headphones at high volume!
- It may damage your hearing.

3

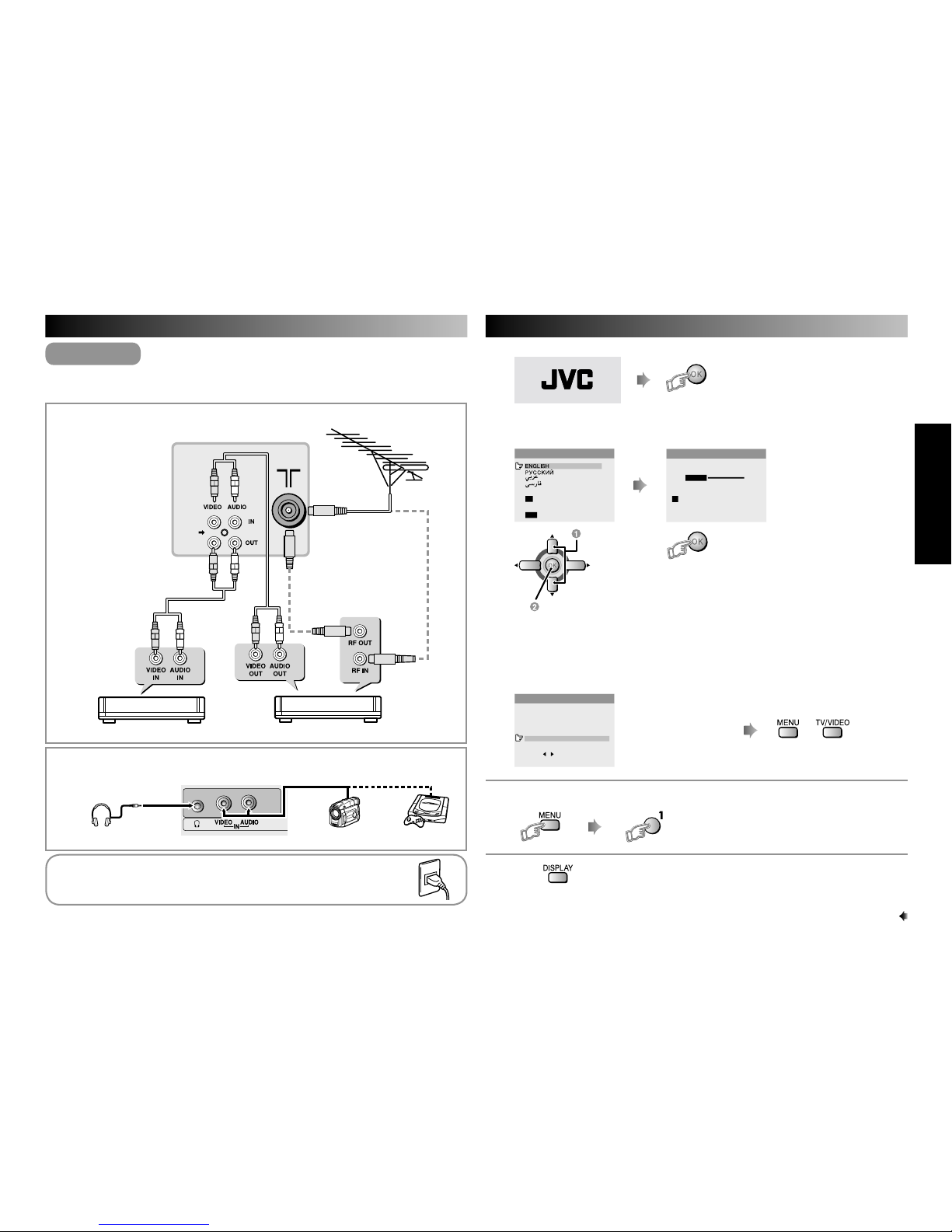

PREPARATION
Connections Initial settings
Ensure to turn off all equipments including the TV before connecting the
AC mains plug to the AC outlet.
VHF/UHF
outdoor aerial
75-ohm coaxial
cable (not supplied)
Connecting to the aerial cable and VCR
After all the connections have been made, insert the mains
plug to the AC outlet.
Camcorder TV gameHeadphones
Connecting to the TV front terminals
1
2
Turn on the TV.
or wait 15 seconds to run Setup Tour
JVC logo appears.
3
Select a language.
to stop or wait until AUTO
PROGRAM finishes
LANGUAGE
MENU
DISPLAY
OK
: AUTO PROGRAM
: EXIT
: BACK
FRANÇAIS
Select
Proceed to AUTO PROGRAM
Searching for the channels.
AUTO PROGRAM
OK
: MANUAL PROGRAM
VH
Search a channel manually or fine-tune a channel.
MANUAL PROGRAM
VOLUME-/+ : SEARCH-/+
/ : FINE-/+
DISPLAY : SOUND SYSTEM
PR CH / CC
05 B/G CC 06
06 B/G CH 05
07 B/G CH 08
08 B/G CH 10
09 B/G CH 12
To perform manual
search and fine-tune
(FINE), \ page 6. To complete
Setup Tour
To restart Setup Tour after above setup has completed
If you press when LANGUAGE is displayed (Step 2), the screen will exit to MENU.
CAUTION
OR
VCR (for recording) VCR
TV rear terminals
TV front terminals
(while the cursor is pointing to PICTURE
MODE and within 3 seconds)
or
Note
This Language Menu’s on screen is used for explanation purpose only.
Your TV may not show the same as this on screen.
* This illustration
shows AV-21QMG7
* This illustration shows AV-21QMG7

4
POWER
ON TIMER
Remote control buttons and functions
TV buttons and functions
Turn the TV on from standby and vice versa
Set OFF TIMER (\ page 7)
Select ECO MODE (\ page 5)
Select programme number
Operating the menus (\ page 5)
Turn the volume Off / On
Adjust the volume level, Turn off Muting
Select Channel
Select the desired channel number.
For Hyper Scan:
Press and hold
PR changes without changing the picture. Once
you stop pressing CHANNEL+ or CHANNEL-
button, picture will change to the desired PR.
Display the programme number or video terminal number.
Select PICTURE MODE (\ page 5)
RETURN PLUS function
Return to the frequently viewed channel.
RETURN PLUS
PROGRAMMED!
Press and hold
RETURN PLUS
CANCELED!
To cancel
Choose the channel
you want to
programme
RETURN function
If you have not set or have canceled the RETURN PLUS channel, this will
return to the previously viewed channel.
Press and hold
Remote control
sensor
POWER lamp - Indicates the TV’s status.
No colour : TV’s main power is being turned off.
Red : TV’s main power is being turned on.
Blink : While the TV is in standby mode, ON
TIMER function is in used. While the
TV is in turn on mode, OFF TIMER
function is in used.
Note: When you turn off the power switch while
TV is in standby mode, the power lamp will go
off in 5 -10 seconds. When you operate the TV,
POWER Lamp will blink.
TV’s main
power on/off
Video and audio input jack
Headphone jack
Display the TV’s MENU,
Exit after finish setting
Adjust volume level
Select Channel
Select TV or video input
For two digits programme number
• Insert two batteries by following
the and polarities and inserting the end first.
• Use AA/R6/UM-3 dry cell batteries.
• If the remote control does not work properly, fit new
batteries. The supplied batteries are for testing, not
regular use.
WARNING:
Batteries shall not be exposed
to excessive heat such as direct
sunshine, fire or the like.
If this symbol is
shown, it is only valid
in the European
Union.
* This illustration shows AV-21QMG7

5

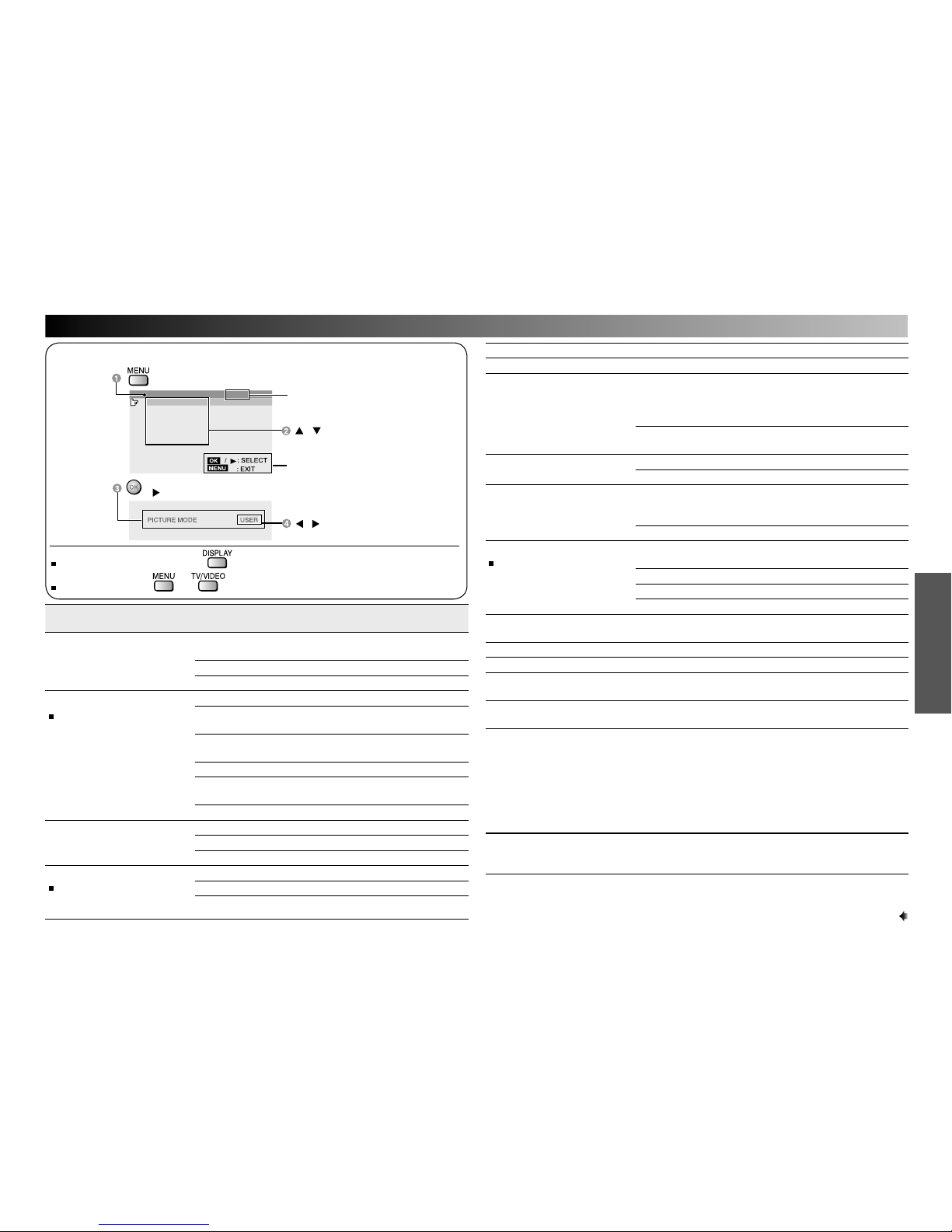

PICTURE MODE
PICTURE SETTING
WHITE BALANCE NORMAL
ECO MODE
ON TIMER
OFF TIMER
MENU (1 / 3)
FUNCTIONS
Using the TV’s MENU
MENU Item Description
(Setting / Adjustment)
PICTURE MODE USER Change picture settings
(\ PICTURE SETTING)
VIVID Heightens contrast and sharpness
SOFT Softens contrast and sharpness
PICTURE SETTING
PICTURE SETTING can
operate when PICTURE
MODE is set to USER
(\ PICTURE MODE)
On screen scale colour
Center position : Yellow
Others position : Green
CONTRAST Adjust contrast (Lower j Higher)
BRIGHT Adjust brightness
(Darker j Brighter)
SHARP Adjust sharpness
(Softer j Higher)
COLOUR Adjust colour (Lighter j Deeper)
TINT Adjust colour tint
(Reddish j Greenish)
RESET Reset all items level to center
WHITE BALANCE NORMAL Normal white balance
COOL Bluish white
WARM Reddish white
ECO MODE
Adjust picture contrast
according to room
brightness
OFF Cancel the function
ECO-1 Mild contrast (recommended)
ECO-2 Even contrast
ON TIMER Turns on the TV from standby mode (\ page 7)
OFF TIMER Turns off the TV to standby mode (\ page 7)
AI VOLUME ON Sets the volume level for all
channels and video inputs
automatically depends on the
strength of signal from the source.
OFF Volume can be adjusted individually
for each channel
CHILD LOCK ON Disable the front buttons of the TV
OFF Cancel the function
BLUE BACK ON Displays a blue screen and mutes
the sound when signal from the
aerial is weak or absent
OFF Cancel the function
VNR
To reduces the picture
noise
AUTO Effect of VNR is automatically
controlled
MIN Effect of VNR becomes minimum
MAX Effect of VNR becomes maximum
OFF Cancel the function
GAME Select a game to play (PUZZLE / TWINS)
(\ page 7)
LANGUAGE Choose your desired on screen display language.
AUTO PROGRAM Automatically registers channels (\ page 6)
MANUAL PROGRAM Manually search channels and fine-tunes
channels (\ page 6)
INSERT / DELETE Add, delete and move registered channels
(\ page 6)
COLOUR SYSTEM Select the appropriate system
In TV mode :
(AV-21Q17 / AV-21S19 : AUTO / PAL / SECAM)
(Other models : AUTO / PAL / SECAM /
NTSC3.58 / NTSC4.43)
In VIDEO mode (All models) :
(AUTO / PAL / SECAM / NTSC3.58 / NTSC4.43)
(\ page 7)
SOUND SYSTEM Select the appropriate system:
(AV-21Q17 / AV-21S19 : BG / I / DK)
(Other models : BG / I / DK / M) (\ page 7)
To return to previous screen
To exit from Menu or
Display MENU
Showing MENU
page 1 of 3
On-screen guide
/ Select function, go to
previous/next page
/ Display function setting.
/ Change setting
Operating the menus

6
Presetting TV channels
AUTO PROGRAM
AUTO PROGRAMMENU
1
2
3
4
or
to stop or when AUTO PROGRAM finishes.
MANUAL PROGRAM screen appears (\ MANUAL PROGRAM).
MANUAL PROGRAM
MENU
1
2
3
4to exit.
MANUAL PROGRAM
MANUAL PROGRAM
VOLUME-/+ : SEARCH-/+
/ : FINE-/+
DISPLAY : SOUND SYSTEM
PR CH / CC
05 B/G CC 06
06 B/G CH 05
07 B/G CH 08
08 B/G CH 10
09 B/G CH 12
To search for a
channel manually
(SEARCH)
1. Select the PR number you wish to store the
channel.
2. Press the VOLUME +/- button to start searching
from the present channel. Searching stops when
the following channel is found.
To fine-tune a channel
(FINE)
1. Select the channel you wish to fine-tune.
2. Press the or button until a clear picture is
obtained.
INSERT / DELETE
After this operation, other channel's PR number will be changed.
INSERT / DELETEMENU
1
2
To add the new
channel (INSERT)
1. Select the PR number you wish to store the new
channel.
2. Press the VOLUME+ button.
3. Press button to choose “CH” or “CC”.
4. Enter the CH/CC number for the channel you wish to
add. The TV starts to search for the channel.
Certain channels are not available in some countries.
If you cannot receive a channel by INSERT, use
MANUAL PROGRAM.
To delete a
channel (DELETE) Select the channel you wish to delete and press .
To change the PR
number (MOVE)
1. Select the PR number you wish to move.
2. Press the button.
3. Press or button to move it to the new PR number.
4. Press button.
4to exit.
AUTO PROGRAM
OK
: MANUAL PROGRAM
VH
INSERT / DELETE
MOVE
VOLUME+ : INSERT
MUTING : DELETE
PR CH / CC
05 B/G CC 06
06 B/G CH 05
07 B/G CH 08
08 B/G CH 10
09 B/G CH 12
or
or
3
CH/CC CCIR OIRT CH/CC CCIR OIRT CH/CC CCIR OIRT
CH02 E2 R1 CH21 E21 CC01 S-1
CH03 E3 CH22 E22 CC02 S-2
CH04 E4 R2
CH05 E5 R6
CH06 E6 R7
CH07 E7 R8 CC41 S-41
CH08 E8 R9 CC75 X
CH09 E9 CC76 Y R3
CH10 E10 R10 CC77 Z R4
CH11 E11 R11 CC78 Z+1 R5
CH12 E12 R12 CH69 E69 CC79 Z+2
CCIR: Middle East, Southeast Asia, etc.. OIRT: Russia etc..
Channel table
If noisy sound is heard
and unsuitable sound
system for your broad-
casting (\ Page 7)
1. Press DISPLAY button then on screen will
change to Sound System,
2. Choose an appropriate sound system.

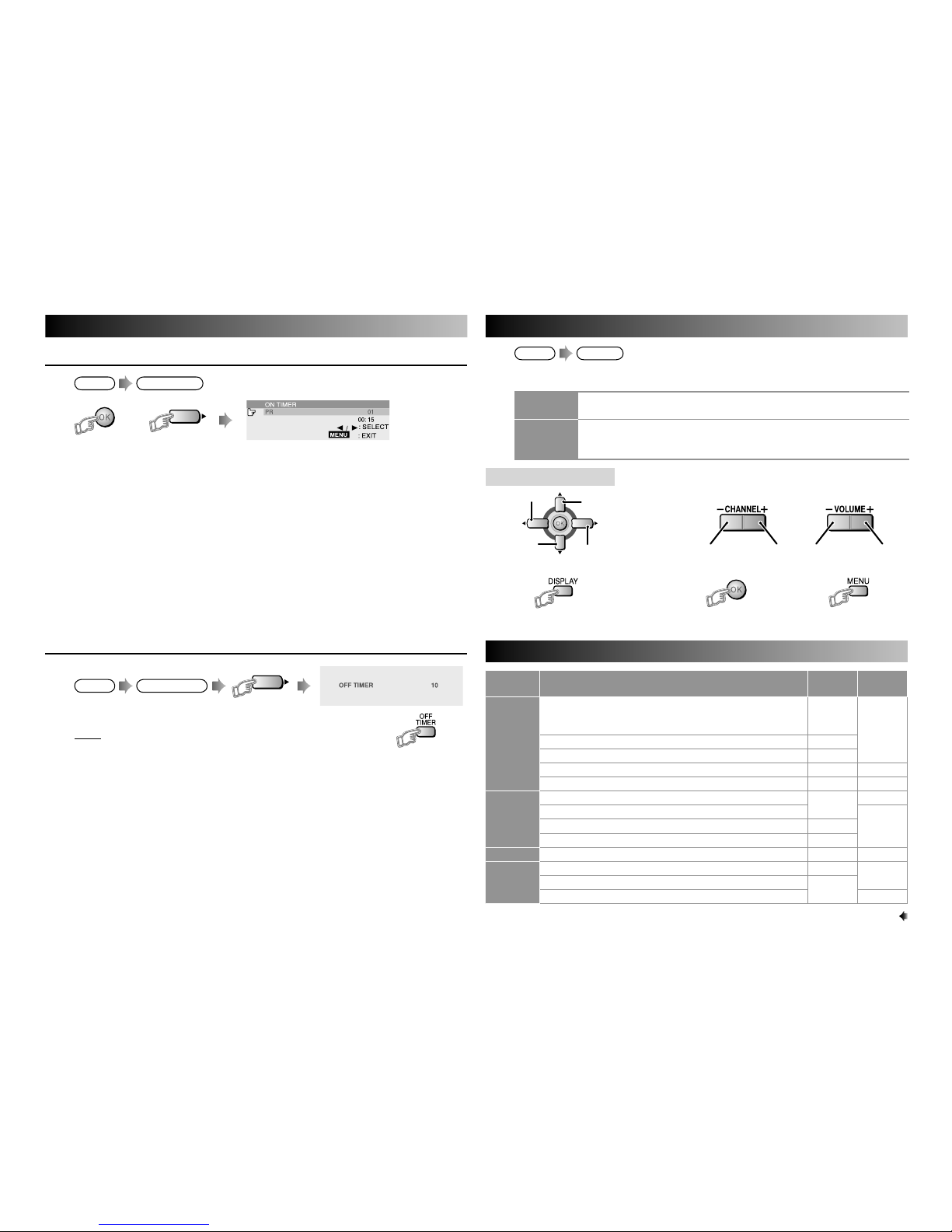

7
Using the timer Playing game
ON TIMER
ON TIMERMENU
1
2
3
ON TIMER
Choose the PR (channel) that you want to watch when the TV turns
on. External input, AV position and any un-preset channel cannot be
chosen for PR.
Set the ON TIMER to your desired period of time. When the ON TIMER
is set to other than 00:00, the ON TIMER is activated. You can set the
period of time to a maximum of 12 hours in 15-minute intervals.
To off the ON TIMER, set the time to 00:00.
OFF TIMER
When the remaining elapse time is one minute, “GOOD NIGHT!”
appears on the screen.
You can display the OFF TIMER screen again to confirm or change
the remaining time.
To off the OFF TIMER, select OFF or turn off the TV’s main power.
OFF TIMER
MENU
MENU
1GAME
2Select a game.
PUZZLE This game needs you to rearrange the numbers 1 to 15 in order
by swapping the blank card with the numbered card.
TWINS This game needs you to find all the matching pairs of cards. If
you open a correct pair, the card will stay uncovered. If you miss,
they will flip back.
Instructions to play
Up
Right
Down
Left
OR
To move
Up Left RightDown
To move
To open a card (TWINS only) To restart the game To exit the game
Sound and Colour system in your country or region
Area Country or Region Sound
System
Colour
System
Asia,
Middle
East
Bahrain, Kuwait, Oman, Qatar, United Arab
Emirates, Yemen, etc.
Indonesia, Malaysia, Singapore, Thailand, India, etc
B/G
PAL
China, Vietnam, etc. D/K
Hong Kong, etc. I
Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. B/G SECAM
Philippines, Taiwan, Myanmar, etc. M NTSC
Europe
Russia, etc. D/K SECAM
Czech Republic, Poland, etc.
PAL
Germany, Holland, Belgium, etc. B/G
UK, etc. I
Oceania Australia, New Zealand, etc. B/G PAL
Africa
Republic of South Africa, etc. IPAL
Nigeria, etc. B/G
Egypt, Morocco, etc. SECAM
4
You can set the period of time to a maximum of 120 minutes in 10
minutes intervals.
1
2
3
4
5
or
5
Note You can select OFF TIMER function by direct key.

Troubleshooting Specifications
If a problem occurs when you are using the TV, check the below
troubleshooting guide before calling for repair.
Problem Cause / Solution
No or poor picture • Turn OFF BLUE BACK if it is ON. (\ page 5)
• Adjust the COLOUR or BRIGHT setting. Refer to
“PICTURE SETTING”. (\ page 5)
• Choose the appropriate colour system. (\ page 5)
Snowy picture • Check the aerial and TV connections. (\ page 3)
Stripes or coloured
patches appeared
• Interference caused by electrical appliances or
speakers. Move them away from the TV.
Double-picture
(ghosting)
• Interference caused by signal reflecting from mountains
or buildings. Adjust the aerial’s direction or use another
antenna.
No or poor sound • Choose the appropriate sound system. (\ page 5)
White and bright still
image looks as if it is
coloured
• Inevitable phenomenon due to the nature of the picture
tube. This is not a malfunction.
Image from video input
is distorted
• The image was not properly recorded. This is not a
malfunction.
Cannot operate the
remote control
• Replace the batteries. (\ page 2)
• Operate it at less than 7 meters from the TV.
Cannot operate the
MENU
• Exit and enter the MENU again.
Cannot operate the
front panel buttons
• Turn OFF CHILD LOCK if it is ON.
Image takes a while to
be displayed
• Image requires time to stabilize before display.
This is not a malfunction.
TV emits crackling
sound
• Caused by a sudden change in temperature and it is not
a malfunction. Call a service technician for inspection.
Static shock when
touch the TV screen
• Caused by static electricity of the picture tube and it will
not harm the human body. This is not a malfunction.
© 2009 Victor Company of Japan, Limited 0209SCT-NF-MT
TV RF systems AV-21Q17 / AV-21S19 : B, G, I, D, K
Others models : B, G, I, D, K, M
Colour systems AV-21Q17 / AV-21S19 : PAL, SECAM, NTSC 3.58 MHz /
NTSC 4.43 MHz
(in VIDEO mode only)
Others models : PAL, SECAM, NTSC 3.58 MHz /
NTSC 4.43 MHz
Receiving
channels
VHF low channel (VL), VHF high channel (VH), UHF channel (U)
Receives cable channels in mid band, super band and hyper band.
Power requirements
For Malaysia AC 160 to 240 V, 50 Hz / 60 Hz
For others AC 110 to 240 V, 50 Hz / 60 Hz
External input / output
INPUT VIDEO input, AUDIO input
OUTPUT VIDEO output, AUDIO output
Headphone jack Stereo mini jack (3.5 mm diameter)
Design and specifications are subject to change without notice.
