JVC TH-S560B User manual

Audio Home Theater System
Soundbar With Wireless Subwoofer
TH-S560B

Bluetooth SIG, Inc. and any use of such marks by AJS Electronics Limited is
under license. Other trademarks and trade names are those of their
respective owners.
by E & S International Enterprises, Inc. “JVC” is the trademark of
JVCKENWOOD Corporation, used by such company under license."
NOTE: For Spanish and French Manual, please visit www.jvcproducts.com/support
NOTA: Para el Manual de Español y Francés, por favor visite www.jvcproducts.com/support
REMARQUE: Pour l’espagnol et Français manuel,s’il vous plaît visitez
www.jvcproducts.com/support

IC: 26551-AT212560B
IC: 26551-AT212S560B
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Note: The Grantee is not responsible for any changes or modifications not expressly approved
by the party responsible for compliance. such modifications could void the user's authority to
operate the equipment.
The device has been evaluated to meet general RF exposure requirement.
To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm
between the radiator and your body, and fully supported by the operating and installation
configurations of the transmitter and its antenna(s).
IC Warning
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
The device has been evaluated to meet general RF exposure requirement. To maintain
compliance with RSS-102 — Radio Frequency (RF) Exposure guidelines, this equipment should
be installed and operated with a minimum distance of 20cm between the radiator and your body.
le dispositif de a été évalué à répondre général rf exposition exigence.pour maintenir la
conformité avec les directives d'exposition du RSS-102-Radio Fréquence (RF). ce matériel doit
être installé et exploité à une distance minimale de 20 cm entre le radiateur et votre corps.
Supplier’s Declaration of Conformity
Model No. TH-S560B
Trade Name: JVC
Responsible Party: Russell Distribution Company
Address: 7801 Hayvenhurst Avenue, Van Nuys, Ca 91406 USA
Telephone No. 888-582-8870
Contact Information: https://jvcproducts.com

Warning
Caution:
Notice:

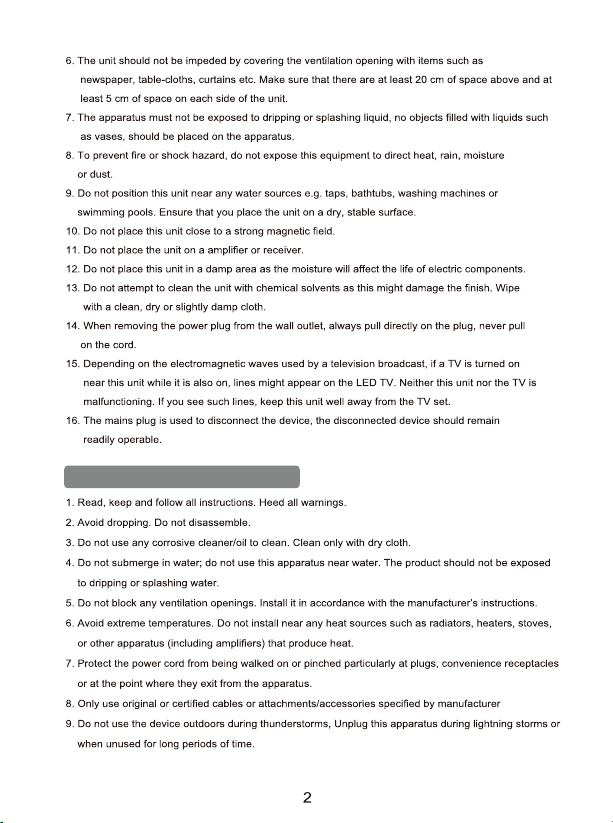

Important Safety Instruction

Important Safety Instructions

Preparation for Use
Unpacking and Set Up
Protect Your Furniture
Power Source

Important Notes

DISPLAY PANEL.
AC IN: Connect to power supply.
HDMI OUT (ARC):Connect to HDMI (ARC)/HDMI IN on TV.
HDMI IN 1 : Connect to HDMI OUT of Satellite/Network/
Set-top box/BD/Blue Ray DVD/DVD player.
HDMI IN 2 : Connect to HDMI OUT of Satellite/
Network/Set-top box/BD/Blue Ray DVD/DVD player.
USB PORT: Audio input from a USB storage device.
Upgrade software of this product.
OPTICAL: Connect to an optical audio output on TV or digital devices.
AUX: Auxiliary Audio input from Mp3/Phone/set-top box devices.

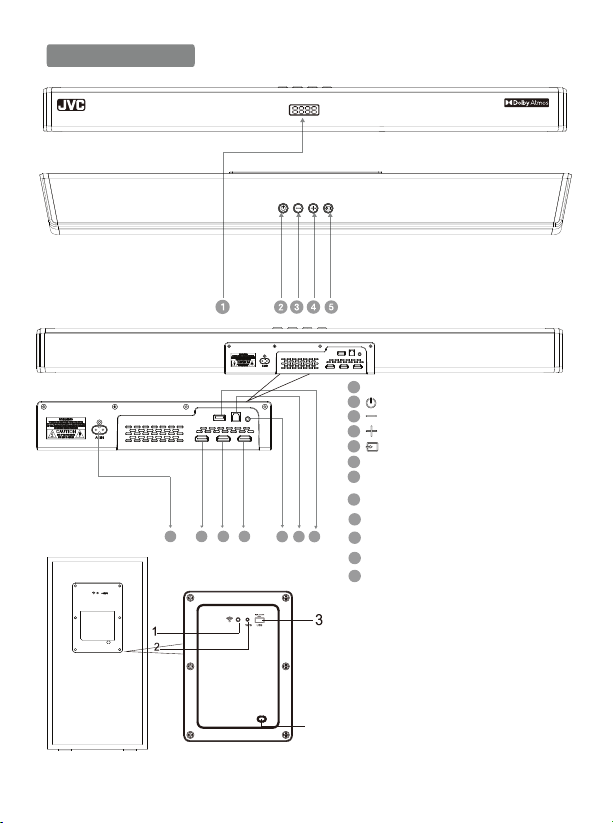

Product Diagram
5
1
2
3
4
5
6
7
6 7 8 9 10 11 12
8
9
10
11
12
INPUT: Select an input source for the Soundbar.
Volume: Decrease the volume.
Volume: Increase the volume.
Standby-on: Switch the Soundbar On or to standby.
4
1. LED Subwoofer indicator: It indicates pairing and paired between the
soundbar and the subwoofer. (Make sure that both soundbar and
subwoofer are connected to the power supply at the same time,
and then switch on sound bar and subwoofer.)
2. WPS Button: It automatically pairs the sound bar with subwoofer.
Press and hold it to reset the connection between the sound bar
and subwoofer.
3. USB Port (CAN'T PLAY MP3 MUSIC, FOR SOFTWARE
UPGRADE ONLY)
4. AC IN (Connect to the power supply.)

Pair up with the subwoofer
Note:
Software upgrading
Soundbar Upgrade
Subwoofer upgrade

REMOTE CONTROL BATTERY REPLACEMENT
REMOTE CONTROL
2. Pair button: long-press pair button more than 2 seconds to conect and disconect last device.
short-press pair button, the display will be shown “
Surround eectiveness will only work when the signal source is from a Dolby Atmos device
”, it is indicated that the surround
shown “OFF
3. VOL+: to increase the volume.
4. Previous button: Skip to the previous track in USB & BT mode.
5. VOL-: to decrease the volume.
7. Treble-up button: to increase the treble volume.
8. Treble-down button: to decrease the treble volume.
10. Source input button: to select an input source for playback:
ARC: sound from connected HDMI ARC device
Hd 1: sound from connected HDMI 1 port
Hd 2: sound from connected HDMI 2 port
bLUE: sound from connected Bluetooth drive.
AUX: sound from connected Auxiliary Line-in
USb: sound from connected USB driver
OPTI: Sound from connected Digital Optical device.
11. Next button: Skip to the next track in USB & BT mode.
12. Play/Pause button: Start, pause or resume play in USB & BT mode.
Reset button: Press and hold the button more than 2 seconds to restore factory default settings.
15. Bass+ button: To increase the bass.
16. Bass- button: To decrease the bass.

Risk of explosion if the battery is replaced by an incorrect type
Handling the battery
Handling the Remote Control
Operating range of the remote control
Remote control sensor
Within 8 m (26.2 feet )

Table Placement
Wall Mount Installation
Positioning the Sound Bar
Please note

Mount the unit on a wall
5

Note: Keep the sound bar display mode the same as input source. For example, if input
source is HDMI ARC, Meanwhile the display will be switched to on the screen of
sound bar.
Power ON and OFF
Basic Operation
Using the Soundbar
Input Source
Description

Auto Standby
Select Modes
What you need
INPUT
3. After 10 seconds with no input the screen will go black. Pressing the power or increasing/decreasing the volume
on either the remote or soundbar will wake up the screen.
TH-S560B
Playing Audio via BT Connection

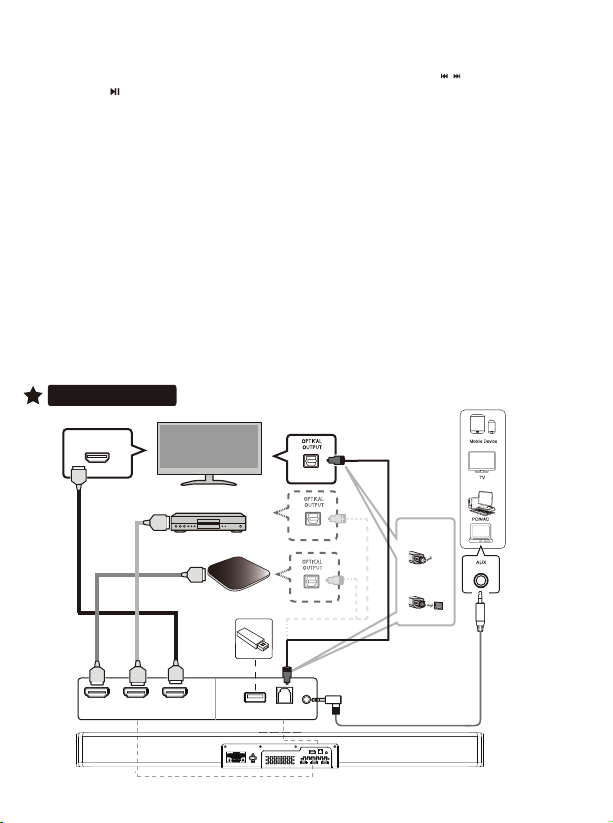

Connections
Notes:
• Having connection problems? Remove TH-S560B from your device's Bluetooth history and ensure it’s less
than 8 meters away. Then try pairing again. To get the best sound quality, make sure there is a clear line of sight
between the connected device and your sound bar.
• If your pairing device or connected device is switched off or manual disconnected, the sound bar will
automatically enter pairing mode.
•The music streaming may be interrupted by obstacles between the device and Soundbar, such as wall,
metallic casing that covers the device, or other devices nearby that operate in the same frequency.
• If you want to connect your Soundbar with another Bluetooth device, press and hold Pair on the remote control
to disconnect the currently connected Bluetooth device.
13
4. Select and play audio files or music on your Bluetooth device.
• During play, if a call is coming, music play is paused. Play resumes when the call ends
• If your Bluetooth device supports AVRCP profile, on the remote control you can press / to skip to a track,
or short-press to pause/ resume play; Press and hold the RESET button more than 2 seconds to restore factory
default settings; Hold Pair button on the remote control for more than 2 seconds to disconnect paired BT device or
connect back last disconnect BT device.
5. You can use the volume buttons on the sound bar or on the remote controller to adjust the volume to your requirements
6. To exit Bluetooth, select other relevant input source.
• When your switch back to Bluetooth mode, Bluetooth connection remains active.
7. Press the VOL +/– buttons to adjust the volume to your desired level.
STB(Set Top Box)
HDMI OUT
HDMI(ARC)
/HDMI IN
HDMI OUT
USB flash driver
satellite or network set-top
box, or BD/Blue Ray DVD player
TV
1. Remove the cap
2. Check the
direction of the
plug
HDMI OUT
(ARC)
HDMI IN 1HDMI IN 2 USB OPTICAL AUX
OUTPUT

Playing Audio via USB Port
VOL +/–
Playing Audio via Audio input(Aux)Connection
Note:

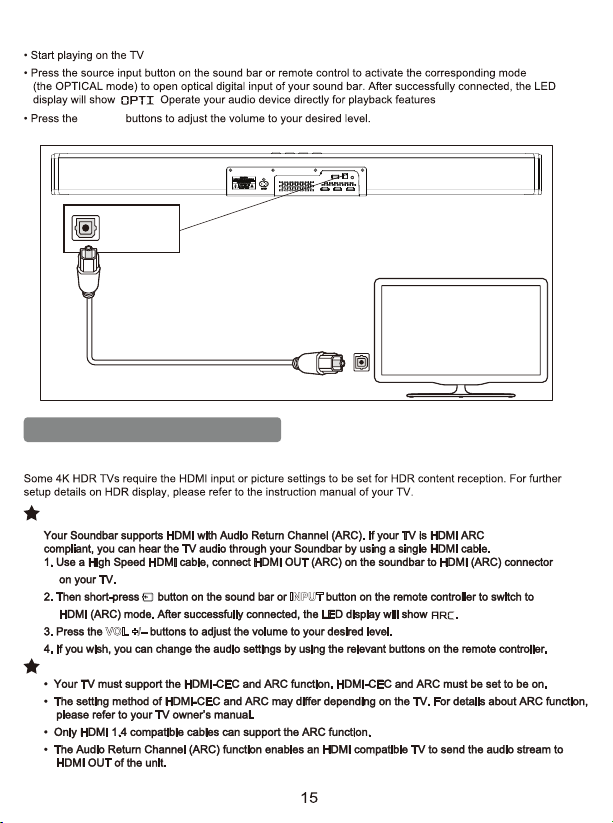

Optical Mode
Headphon e
AUXAUX
R
L
AUDIO OUT

Connect to HDMI (ARC) Socket
INPUT
VOL +/–
Option 1: ARC (Audio Return Channel)
Note:
HDMI IN & HDMI (ARC) MODE
. .
VOL +/–
OPTICALOU T
OPTICAL

TIPS: (OPTICAL / HDMI ARC / HDMI 1 / HDMI 2 / DOLBY ATMOS)
HDMI OUT(ARC)
HDMI IN 1HDMI IN 2
HDMI IN
HDMI OUT
satellite or network set-top
box, or BD/Blue Ray DVD player
TV
HDMI OUT STB(Set Top Box)
Important Note:

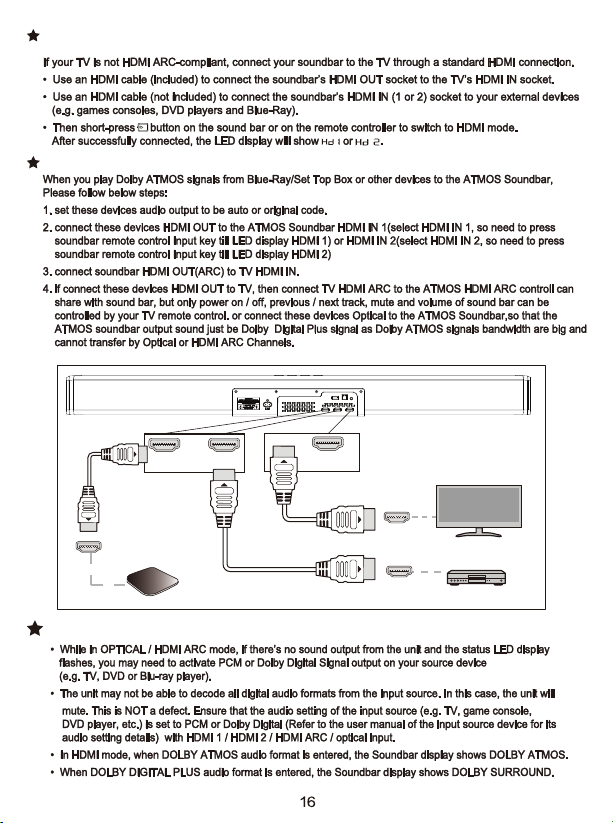

Option 2: Standard HDMI
