2.1 Multimedia Speaker System
OPERATION MANUAL

ENG
2.1 Multimedia Speaker System
2
Congratulations on your purchase of the Sven speaker system!
COPYRIGHT
© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Мanual and information contained in it are copyrighted. All rights reserved.
TRADEMARKS
All trademarks are the property of their legal holders.
NOTICE OF RESPONSIBILITY RESTRICTION
Despite the exerted efforts to make this Мanual more exact, some discrepancies may occur. The
information in this Мanual is given on «as is» terms. The author and the publisher do not bear any liability
to a person or an organization for loss or damage which has arisen from the information contained in
this Мanual.
1. BUYER RECOMMENDATIONS
• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the device
for damage; if the product was damaged during transportation, address the firm which carried out the
delivery; if the product functions incorrectly, address the dealer at once.
•
Check up the package contents and availability of the warranty card. Make sure the warranty card
has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods number
corresponds to that in the warranty card.
•
Do not switch on the speaker system immediately after you bring it into a room from environment
with negative temperature! After unpacking, the speaker system should be kept in conditions of room
temperature for at least 4 hours.
• Before installing and using the speaker system, read this Manual carefully and keep it for future reference.
CONTENTS
1. BUYER RECOMMENDATIONS ............................................................................2
2. PACKAGE CONTENTS ......................................................................................3
3. SAFETY PRECAUTIONS ....................................................................................3
4. TECHNICAL DESCRIPTION................................................................................ 3
5. PREPARATION AND OPERATION ........................................................................4
6. TROUBLESHOOTING .......................................................................................5
7. TECHNICAL SPECIFICATIONS ............................................................................5

Operation Manual
ENG
MS-915
3
2. PACKAGE CONTENTS
• Subwoofer — 1 pc
• Satellites — 2 pcs
• Mini-jack to mini-jack signal cable — 1 pc
• Operation manual — 1 pc
• Warranty card — 1 pc
3. SAFETY PRECAUTIONS
• To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and
repairs should be performed only by qualified specialists in an authorized service center. The list of
authorized service centers is available on www.sven.fi
• Do not allow the circuit of wires (including the grounded ones) between the speakers, on the power
amplifier or the ground, for it causes damage to the power amplifier output stage.
• Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.
• Do not put foreign objects inside the holes of the MSS.
• Protect the MSS from high humidity, water and dust.
• Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose it to
direct sunlight.
• Do not place any open flame sources on or close to MSS.
• Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When operating the
MSS, do not put any devices on it, do not cover it with cloth or other objects preventing it from cooling.
• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.
4. TECHNICAL DESCRIPTION
Device is designed for music playback, movies, videogames e.t.c. you can use this device with PC, TV,
mp3-player and other audio signal source.
Special features
• Speaker system is compatible with PCs, DVD/Media-players,
mobile devices and other sound sources
• Magnetic shielding
• Master volume control
• Subwoofer volume control
• Treble level control
Control panel
a VOLUME: master volume control knob
b TREBLE: treble level control knob
c BASS: subwoofer volume control knob
d Power LED
e POWER SOURCE ON/OFF: power on/o switch
f AUDIO OUTPUT: satellite output
g AUDIO INPUT: audio device connection input
h Power cord
Caution! High voltage inside! To avoid the risk of electric shock do not open or
touch elements inside.
Fig.1. Control panel
a
b
c
d
eh
g
f

ENG
2.1 Multimedia Speaker System
4
5. PREPARATION AND OPERATION
Speaker placement
• Place the satellites symmetrically to the listener at the distance not less than one meter.
• Place MSS far away from monitors and TV sets, as insignificant image distortion in these super-
sensitive devices is possible. We recommend that the subwoofer should be placed on the table.
Installation and operation guide
WARNING! All the components should be switched off before connection.
• Connect the built-in audio cables to the audio outputs on the subwoofer rear panel (see Fig. 2).
Note that the red RCA-jack of the right satellite should be connected to the red subwoofer terminal
(AUDIO OUTPUT R) and the white RCA-jack of the left speaker – to the white subwoofer terminal (AUDIO
OUTPUT L).
• The mini-jack of the stereo signal cable should be inserted into the subwoofer input connector (AUDIO
INPUT), and the other mini-jack of the cable should be plugged into a Ø 3.5 mm LINE OUT port of the
computer sound card or an audio output of your CD/MP3 player as shown above (see Fig. 2).
• Plug the power cord h (Fig. 1) on the subwoofer rear panel into a mains outlet.
• Set the master volume to minimum by turning VOLUME a knob counter-clockwise until it stops.
• Switch on the device with POWER e switch (ON position) on the subwoofer rear panel. Power LED d
will light up. Turn on your audio source.
• To adjust the master volume, turn VOLUME knob a. By turning the knob clockwise you increase
volume level, while by turning it counter-clockwise you reduce it.
• To adjust the subwoofer and treble levels, turn BASS knob c and TREBLE b respectively. By turning
the knob clockwise you increase the volume level, while by turning it counter-clockwise you reduce it.
Notes:
• If you don’t use the MSS for a long time, mind to switch off the system with POWER switch on
the subwoofer rear panel and unplug the power cord.
• Use the soundcard Line-Out port to improve sound quality.

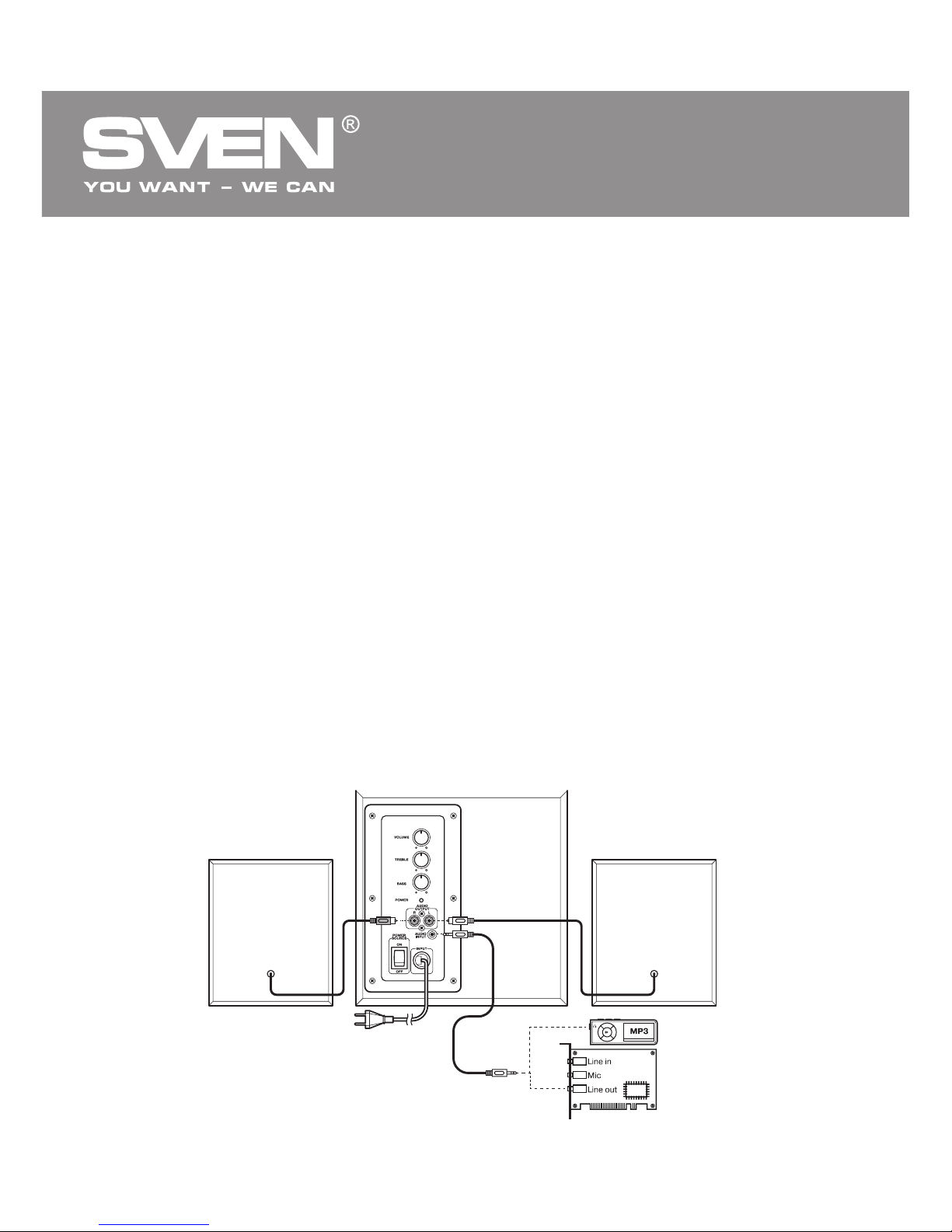

Fig. 2. Connection diagram

Operation Manual
ENG
MS-915
5
Cause
The MMS isn’t connected to the mains outlet.
Power switch is o.
Volume level is set at minimum value.
Improperly connected audio source.
Volume level is set at minimum value.
Large amplitude of the input signal.
Solution
Check the connection.
Turn on the switch.
Adjust the volume control knob.
Connect audio sources correctly.
Adjust the volume control knob.
Turn down the source volume and
MSS volume.
Problem
The MMS doesn’t
turn on.
No sound.
There is too quiet
sound of speakers.
Distortion of
sound.
If none of the above methods can solve the problem, please seek professional advice at your nearest service center.
Never attempt to repair the product yourself.
6. TROUBLESHOOTING
7. TECHNICAL SPECIFICATIONS
Notes:
• Technical specifications given in this table are supplemental information and cannot give
occasion to claims.
• Technical specifications and package contents are subject to change without notice due to
the improvement of SVEN production.
Parameter, measurement unit
Output power (RMS), W
subwoofer
satellites
Speaker diameters, mm
subwoofer
satellites
Supply voltage, V/Hz
Frequency range, Hz
subwoofer
satellites
Dimensions (one speaker), mm
subwoofer
satellites
Weight, kg
Value
26 (10 + 2 × 8)
10
2 × 8
= 137
full range =75
~220/50
50 – 140
140 – 20 000
212 × 221 × 239
119 × 154 × 122
6

2.1 Multimedia Speaker System
