SERVICE MANUAL
No.20966C
Mar. 2002
COPYRIGHT 2002 VICTOR COMPANY OF JAPAN, LTD.
MX-DVA5
MX-DVA5
Area Suffix
This service manual is printed on 100% recycled paper.
Supplement
US -------------------Singapore
UW ------- Brazil,Mexico,Peru
UY -------------------Argentina
UG - Turkey,South Africa,Egypt
COMPACT COMPONENT SYSTEM
The schematic diagrams and Parts list were incorrected,and
please exchange on this supplement.

MX-DVA5
3-1
PARTS LIST
* All printed circuit boards and its assemblies are not available as service parts.
- Contents -
Exploded view of general assembly and parts list (Block No.M1)
Electrical parts list (Block No.01~06)
[ MX-DVA5 ]
3-2
3-4
Area suffix
US ---------------------- Singapore
UW ---------- Brazil,Mexico,Peru
UY ----------------------- Argentina
UG - Turkey,South Africa,Egypt

MX-DVA5MX-DVA5
3-2
MIC J.board
48
b
b
b
b
b
b
b
b
b
b
b
bb
b
b
b
b
b
9
50
DVD changer unit
Front key switch board
CD key
switch board
bb
b
b
b
b
b
b
b
b
46
54
53
51
b
b
b
36
44
33
b
b
b
f
42
68
b41
40
e
c
57
59
61
64
65
66
67
62
63
c
c
e
e
e
38
37
34
b
b
23 28
27
32
31
30
b
6
d
15
16
b
18
17
12
13
19
20
2
4
1
3
8
7
b
10
5
d
22
b
a
21 24
26
22
23
Tuner board
Front / display board
Amp board
Trans. board
Main board
f
43
c
49
47
58
39
b
b
b
b
35
a
H.phone
J.board
b
Cassette mechanism assembly
DVD Sub board
Voice Cancel board
L/Caution
Voltage Selector
#

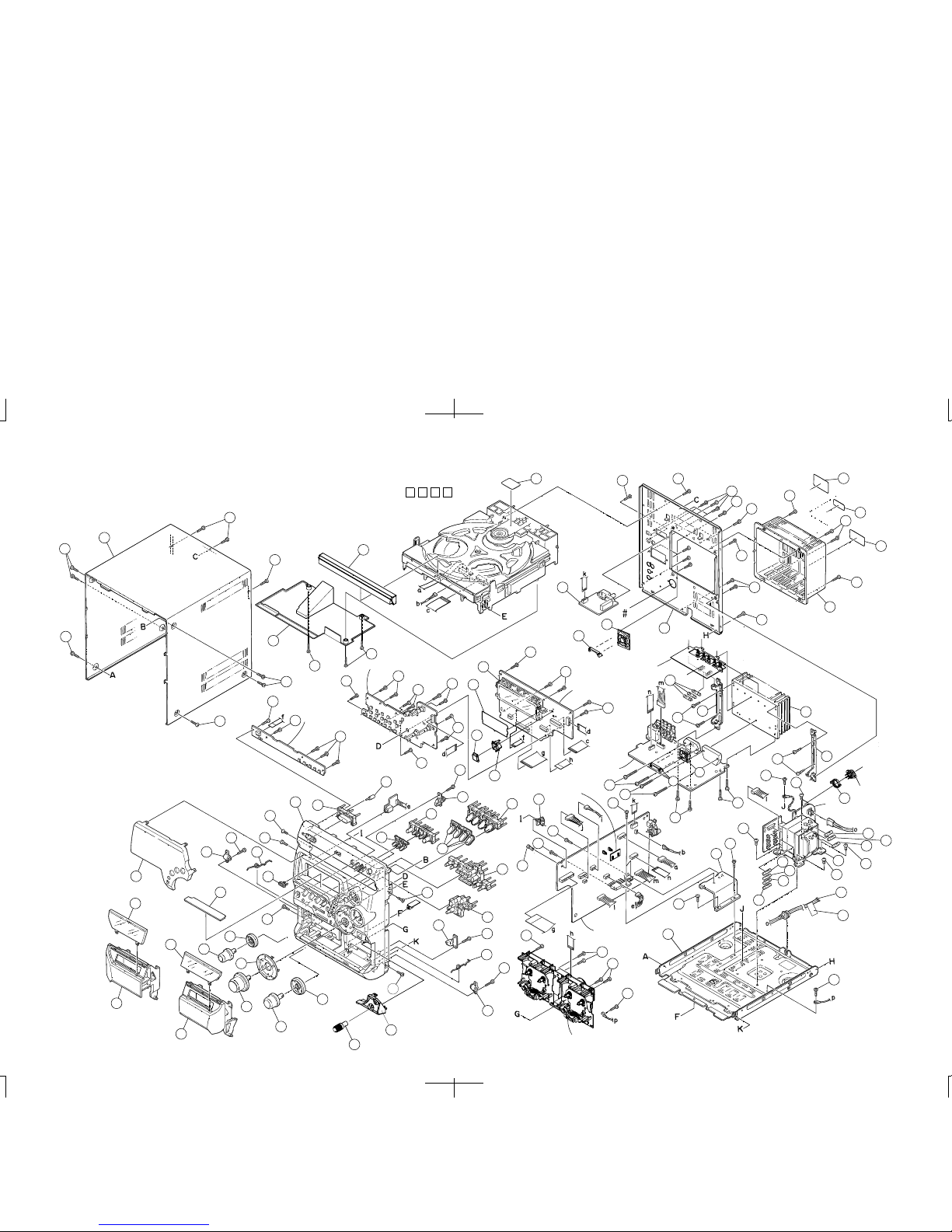

Exploded view of general assembly and parts list
Block No. MM
M
1
60
58
65
f
70
69
b
b
71

3-3
MX-DVA5
Item Parts number Parts name Area
A
Parts list
Q'ty Description
Block No. M1MM
1 AH64-01141A WINDOW 1DOOR A
2 AH64-01142A WINDOW 1DOOR B
3 AH64-01128E DOOR 1CASSETTE A
4 AH64-01129E DOOR 1CASSETTE B
5 AH61-00552A DOOR SPRING 1DOOR A
6 AH61-00553A DOOR SPRING 1DOOR B
7 AH64-01140N WINDOW-VFD 1VFD
8 AH63-00252A SHEET 1PC T0.5
9 AH64-01127B DOOR-TRAY DVD 1TRAY DVD
10 AH64-00462B JVC BADGE 1
12 AH64-01135B KNOB 1VOLUME
13 AH61-00659D CAP 1VOLUME
15 AH61-00657B CAP 1MIC
16 AJ64-01136B KNOB 1MIC VOL
17 AH64-01134B KNOB 1WOOFER
18 AH67-00105A LENS 1 WOOFER
19 AH64-01133B KNOB 1S/MODE
20 AH67-00104A LENS 1 S/MODE
21 AH64-01123L CABINET-FRONT 1
22 AH61-80030A DAMPER ASSY 2
23 AH95-50001A LATCH ASSY 2
24 AH64-01130B KNOB 1POWER
26 AH67-00106A LENS 1 POWER
27 AH67-00103C LENS 1 FUNCTION
28 AH61-00661A HOLDER 1FUNCTION
30 AH64-01138B KNOB 1MAIN
31 AH67-00102C LENS 1 CD
32 AH64-01132B KNOB 1DISC
33 AH67-00107B LENS 1DVD
34 AH61-00660A HOLDER 1DVD
35 AH64-01137B KNOB 1STOP
36 AH61-00662A HOLDER 1VFD
37 AH61-40014A SUPPORT 1RIVET
38 AH61-00021B SUPPORT-PCB 1PCB
39 AH64-30416C BOTTOM CABINET 1SECC T1.0
40 AH62-00043C HEAT-SINK 1
41 AH61-00655A BRACKET 1T1.0 H/SINK R
42 AH61-00656A BRACKET 1T1.1 H/SINK L
43 AH64-01125M CABINET-REAR 1
AH64-01125L CABINET 1RECC T0.8
44 AH63-00254A FILTER 1PVC T0.5 VFD
46 AH63-00250A REAR COVER 1
47 AH39-00257G POWER CORD 1
48 AH64-30390F TOP CABINET 1PCM T0.625
49 AH62-00042A HEAT SINK 4959 1
50 AH68-50275D CD STICKER 1T0.1 YEL
51 AH68-00848E LABEL-RATING 1
AH68-00848C LABEL-RATING 1T0.05
(General assembly)
UG
UY,UW,US
A
UG
UY,UW,US
Item Parts number Parts name Area
A
Parts list
Q'ty Description
Block No. M1MM
53 AH68-00093L LABEL-NO4 1
AH68-00093J LABEL-NO3 1
AH68-00093G LABEL-NO2 1
54 AH68-50482B CLASS1-LABEL 1
57 AH26-00113A POWER-TRANS 1
58 AH68-50282K CAUTION LABEL 1T0.1
59 AH61-00721A HOLDER 1
60 AH40-00011A TUNER ASS'Y 1
61 3601-000263 FUSE 1FOR RFS3
62 3601-000263 FUSE 1FOR RFS4
63 3601-000297 FUSE 1FOR RFS2
64 3601-000282 FUSE 1FOR RFS5
65 3601-000282 FUSE 1FOR RFS6
66 3601-000282 FUSE 1FOR RFS7
67 3601-000282 FUSE 1FOR RFS8
68 3601-000263 FUSE 3FOR RFS1,2,3
69 AH61-00793A HOLDER 1SECC +1.0,-1.0
70 3103-001105 FAN 1DC-12V
71 AH63-00216A MECHA COVER 1
A 6002-000126 SCREW 2FH M3*10 BLK
B 6003-000276 SCREW 89 BH M3*10 YEL
C AH60-10107A SCREW 4M4*6 YEL
D 6003-000277 SCREW 2BH M3*12 YEL
E 6002-000398 SCREW 3BH M3*6 YEL
F 6003-000278 SCREW 4
(General assembly)
UY,UW
US
UG
A
A
A
A
A
A
A
A
A

MX-DVA5
3-4
Item Parts number Parts name Ar
ea
Electrical parts list
Remarks
Block No. 01
A
AUX 3722-000377 RCA JACK
ECW1 3711-001062 CONNECTOR
EC1 2202-000148 C.CAPACITOR
EC10 2401-001465 E.CAPACITOR
EC11 2202-000854 C.CAPACITOR
EC12 2202-000797 C.CAPACITOR
EC15 2202-000797 C.CAPACITOR
EC2 2202-000817 C.CAPACITOR
EC3 2401-002180 E.CAPACITOR
EC4 2401-002180 E.CAPACITOR
EC5 2202-000797 C.CAPACITOR
EC6 2202-000809 C.CAPACITOR
EC7 2202-000797 C.CAPACITOR
EC8 2401-001889 E.CAPACITOR
EC9 2401-000907 E.CAPACITOR
ED1 0401-000101 DIODE
ED2 0401-000101 DIODE
EIC1 1204-001730 IC
E
Q
1 0501-000398 TRANSISTOR
E
Q
2 0504-000118 DEGI TRANSISTOR
E
Q
3 0504-000118 DEGI TRANSISTOR
ER10 2001-000290 RESISTOR
ER11 2001-000734 RESISTOR
ER12 2001-000563 RESISTOR
ER13 2001-000290 RESISTOR
ER14 2001-000319 CARBON RESISTOR
ER15 2001-000563 RESISTOR
ER16 2001-000034 CARBON RESISTOR
ER2 2001-000522 RESISTOR
ER25 2001-000786 RESISTOR
ER3 2001-000290 RESISTOR
ER4 2001-000977 RESISTOR
ER5 2001-000522 RESISTOR
ER6 2001-000563 RESISTOR
ER7 2001-000429 RESISTOR
ER8 2001-000734 RESISTOR
ER9 2001-000008 RESISTOR
EZD1 0403-000354 ZENER DIODE
FCW1 3708-000122 CONNECTOR
FCW2 3708-001094 CONNECTOR
FCW3 3708-001577 CONNECTOR
FC1L 2201-000368 C.CAPACITOR
FC1R 2201-000368 C.CAPACITOR
FC10L 2301-000216 M.CAPACITOR
FC10R 2301-000216 M.CAPACITOR
FC11 2401-001975 E.CAPACITOR
FC12L 2202-000781 C.CAPACITOR
FC12R 2202-000781 C.CAPACITOR
FC13L 2202-000806 C.CAPACITOR
FC13R 2201-000368 C.CAPACITOR
FC15 2301-000361 M.CAPACITOR
FC16 2301-000375 M.CAPACITOR
FC17 2401-001954 E.CAPACITOR
FC2L 2401-001912 E.CAPACITOR
FC2R 2401-001912 E.CAPACITOR
FC23 2401-000419 E.CAPACITOR
FC251 2401-001912 E.CAPACITOR
FC252 2401-001912 E.CAPACITOR
FC253 2401-001912 E.CAPACITOR
FC3L 2401-001912 E.CAPACITOR
FC3R 2401-001912 E.CAPACITOR
FC31 2401-000759 E.CAPACITOR
FC32 2401-001954 E.CAPACITOR
FC4L 2401-001912 E.CAPACITOR
FC4R 2401-001912 E.CAPACITOR
FC5L 2401-001912 E.CAPACITOR
FC5R 2401-001912 E.CAPACITOR
FC51 2202-000806 C.CAPACITOR
FC52 2202-000806 C.CAPACITOR
FC53 2401-001912 E.CAPACITOR
FC54 2401-001912 E.CAPACITOR
FC56L 2401-001912 E.CAPACITOR
FC56R 2401-001912 E.CAPACITOR
FC57 2401-001975 E.CAPACITOR
FC57L 2201-000368 C.CAPACITOR
FC57R 2201-000368 C.CAPACITOR
FC6L 2401-002180 E.CAPACITOR
FC6R 2401-002180 E.CAPACITOR
FC7L 2401-001912 E.CAPACITOR
FC7R 2401-001912 E.CAPACITOR
FC8L 2301-000454 M.CAPACITOR
FC8R 2301-000454 M.CAPACITOR
FC9 2401-000419 E.CAPACITOR
FC9L 2301-000216 M.CAPACITOR
FC9R 2301-000216 M.CAPACITOR
FD2 0401-000101 DIODE
FD3 0401-000101 DIODE
FIC1 1204-001776 IC
FIC2 1201-000163 IC
FIC4 1201-000163 IC
FIC5 1201-000163 IC
F
Q
11L 0504-000122 DEGI TRAMSISTOR
F
Q
11R 0504-000122 DEGI TRAMSISTOR
F
Q
12 0504-001003 DEGI TRANSISTOR
F
Q
151 0504-000144 DEGI TRAMSISTOR
F
Q
152 0504-000118 DEGI TRANSISTOR
F
Q
4 0501-000398 TRANSISTOR
FR1L 2001-000411 RESISTOR
FR1R 2001-000411 RESISTOR
FR10L 2001-000429 RESISTOR
FR10R 2001-000429 RESISTOR
FR11L 2001-000429 RESISTOR
FR11R 2001-000429 RESISTOR
FR12L 2001-000591 RESISTOR
FR12R 2001-000591 RESISTOR
FR13L 2001-000734 RESISTOR
FR13R 2001-000734 RESISTOR
FR15L 2001-000591 RESISTOR
FR15R 2001-000591 RESISTOR
FR18 2001-000515 RESISTOR
FR2L 2001-000411 RESISTOR
FR2R 2001-000411 RESISTOR
FR20 2001-000515 RESISTOR
FR21 2001-000864 RESISTOR
FR22 2001-000864 RESISTOR
FR23 2001-000773 RESISTOR
FR24 2001-000290 RESISTOR
FR25 2001-000429 RESISTOR
FR251 2001-000591 RESISTOR
FR252 2001-000786 RESISTOR
FR253 2001-000290 RESISTOR
FR26 2001-000850 RESISTOR
FR27L 2001-000786 RESISTOR
FR27R 2001-000786 RESISTOR
FR28 2001-000645 RESISTOR
FR29L 2001-000429 RESISTOR
Item Parts number Parts name Ar
ea
Remarks
A
(Main board)

MX-DVA5
3-5
Item Parts number Parts name Ar
ea
Electrical parts list
Remarks
Block No. 01
A
FR29R 2001-000429 RESISTOR
FR30L 2001-000429 RESISTOR
FR30R 2001-000429 RESISTOR
FR31L 2001-000411 RESISTOR
FR31R 2001-000411 RESISTOR
FR32L 2001-000290 RESISTOR
FR32R 2001-000290 RESISTOR
FR33L 2001-000429 RESISTOR
FR33R 2001-000429 RESISTOR
FR34L 2001-000890 RESISTOR
FR34R 2001-000890 RESISTOR
FR4L 2001-000780 RESISTOR
FR4R 2001-000780 RESISTOR
FR5L 2001-000864 RESISTOR
FR5R 2001-000864 RESISTOR
FR501 2001-000003 RESISTOR
FR502 2001-000003 RESISTOR
FR51 2001-000515 RESISTOR
FR52 2001-000786 RESISTOR
FR53 2001-000515 RESISTOR
FR54 2001-000786 RESISTOR
FR55 2001-000890 RESISTOR
FR56 2001-000411 RESISTOR
FR57 2001-000273 RESISTOR
FR58 2001-000273 RESISTOR
FR59 2001-000411 RESISTOR
FR6L 2001-000331 RESISTOR
FR6R 2001-000331 RESISTOR
FR61 2001-000429 RESISTOR
FR62 2001-000429 RESISTOR
FR8L 2001-000802 RESISTOR
FR8R 2001-000802 RESISTOR
FR81 2001-000786 RESISTOR
FR82 2001-000591 RESISTOR
FR9 2001-000027 RESISTOR
FZD1 0403-000372 ZENER DIODE
HCW2 AH39-00247A LEAD CONNECTOR
HCW3 3711-001062 CONNECTOR
HC1 2401-000795 E.CAPACITOR
HC1L 2401-001912 E.CAPACITOR
HC1R 2401-001912 E.CAPACITOR
HC2 2401-000795 E.CAPACITOR
HC2L 2401-001465 E.CAPACITOR
HC2R 2401-001465 E.CAPACITOR
HC3L 2201-000642 C.CAPACITOR
HC3R 2201-000642 C.CAPACITOR
HD1 0401-000101 DIODE
HIC1 1201-000163 IC
HJK1 3722-000351 PHONE JACK
H
Q
1L 0501-000407 TRANSISTOR
H
Q
1R 0501-000407 TRANSISTOR
HRFS5 3602-000147 FUSE HOLDER
HRFS6 3602-000147 FUSE HOLDER
HRFS7 3602-000147 FUSE HOLDER
HRFS8 3602-000147 FUSE HOLDER
HR1 2001-000028 RESISTOR
HR1L 2001-000449 RESISTOR
HR1R 2001-000449 RESISTOR
HR10 2001-000411 RESISTOR
HR2 2001-000028 RESISTOR
HR2L 2001-000591 RESISTOR
HR2R 2001-000449 RESISTOR
HR3L 2001-000734 RESISTOR
HR3R 2001-000734 RESISTOR
HR4L 2001-000290 RESISTOR
HR4R 2001-000290 RESISTOR
HR5L 2001-000019 RESISTOR
HR5R 2001-000019 RESISTOR
JACK1 3722-000377 RCA JACK
JCW1 3711-003107 CONNECTOR
JCW2 3711-003111 CONNECTOR
JCW3 3711-003107 CONNECTOR
JC1L 2301-000370 M.CAPACITOR
JC1R 2301-000370 M.CAPACITOR
JC10 2401-001954 E.CAPACITOR
JC10L 2201-000368 C.CAPACITOR
JC10R 2201-000368 C.CAPACITOR
JC11 2401-000795 E.CAPACITOR
JC13L 2401-002180 E.CAPACITOR
JC13R 2401-002180 E.CAPACITOR
JC14L 2401-001465 E.CAPACITOR
JC14R 2401-001465 E.CAPACITOR
JC15L 2401-002180 E.CAPACITOR
JC15R 2401-002180 E.CAPACITOR
JC151 2401-001912 E.CAPACITOR
JC152 2401-001912 E.CAPACITOR
JC16L 2201-000368 C.CAPACITOR
JC16R 2201-000368 C.CAPACITOR
JC162 2401-000419 E.CAPACITOR
JC17L 2301-000412 M.CAPACITOR
JC17R 2301-000412 M.CAPACITOR
JC19L 2301-000462 M.CAPACITOR
JC19R 2301-000462 M.CAPACITOR
JC20L 2401-000419 E.CAPACITOR
JC21L 2401-000419 E.CAPACITOR
JC21R 2401-000419 E.CAPACITOR
JC22L 2301-000407 M.CAPACITOR
JC22R 2301-000407 M.CAPACITOR
JC23L 2201-000674 C.CAPACITOR
JC23R 2201-000674 C.CAPACITOR
JC24L 2301-000370 M.CAPACITOR
JC24R 2301-000370 M.CAPACITOR
JC26 2301-000404 M.CAPACITOR
JC27 2301-000404 M.CAPACITOR
JC28 2401-001975 E.CAPACITOR
JC29 2301-000407 M.CAPACITOR
JC3L 2401-001465 E.CAPACITOR
JC3R 2401-001465 E.CAPACITOR
JC30L 2201-000368 C.CAPACITOR
JC30R 2201-000368 C.CAPACITOR
JC31 2401-002180 E.CAPACITOR
JC35 2201-000601 C.CAPACITOR
JC37 2201-000601 C.CAPACITOR
JC4L 2301-000412 M.CAPACITOR
JC4R 2301-000412 M.CAPACITOR
JC5L 2401-001954 E.CAPACITOR
JC5R 2401-001954 E.CAPACITOR
JC51 2401-001938 E CAPACITOR
JC7 2401-000419 E.CAPACITOR
JC8L 2301-000412 M.CAPACITOR
JC8R 2301-000412 M.CAPACITOR
JC9 2401-000240 E.CAPACITOR
JD1 0401-000101 DIODE
JD2 0401-000101 DIODE
JD3 0401-000101 DIODE
JIC1 1201-001819 IC
Item Parts number Parts name Ar
ea
Remarks
A
(Main board)

MX-DVA5
3-6
Item Parts number Parts name Ar
ea
Electrical parts list
Remarks
Block No. 01
A
JIC2 1201-000163 IC
JL1 2701-000298 INDUCTOR
JL1L AH27-10001D CHOKE COIL
JL1R AH27-10001D CHOKE COIL
JL2 AH26-10003C TRAP COIL PCHNS-5371E
Q
J
J
Q
10 0501-000398 TRANSISTOR
J
Q
11L 0501-000407 TRANSISTOR
J
Q
11R 0501-000407 TRANSISTOR
J
Q
14 0501-000610 TRANSISTOR
J
Q
15 0501-000369 TRANSISTOR
J
Q
16 0501-000398 TRANSISTOR
J
Q
2L 0501-000010 TRANSISTOR
J
Q
2R 0501-000010 TRANSISTOR
J
Q
3L 0501-000010 TRANSISTOR
J
Q
3R 0501-000010 TRANSISTOR
J
Q
4L 0501-000398 TRANSISTOR
J
Q
4R 0501-000398 TRANSISTOR
J
Q
5L 0501-000407 TRANSISTOR
J
Q
5R 0501-000407 TRANSISTOR
J
Q
51 0504-001003 DEGI TRANSISTOR
J
Q
6 0504-001003 DEGI TRANSISTOR
J
Q
8 0504-001003 DEGI TRANSISTOR
JR1L 2001-000890 RESISTOR
JR1R 2001-000890 RESISTOR
JR10L 2001-000449 RESISTOR
JR10R 2001-000449 RESISTOR
JR11L 2001-000802 RESISTOR
JR11R 2001-000802 RESISTOR
JR12L 2001-000734 RESISTOR
JR12R 2001-000734 RESISTOR
JR13 2001-000773 RESISTOR
JR14 2001-000802 RESISTOR
JR15 2001-000708 CARBON RESISTOR
JR16L 2001-000613 RESISTOR
JR16R 2001-000613 RESISTOR
JR17L 2001-000003 RESISTOR
JR17R 2001-000003 RESISTOR
JR18L 2001-000734 RESISTOR
JR18R 2001-000734 RESISTOR
JR19L 2001-000522 RESISTOR
JR19R 2001-000522 RESISTOR
JR2L 2001-000890 RESISTOR
JR2R 2001-000890 RESISTOR
JR20L 2001-000977 RESISTOR
JR20R 2001-000977 RESISTOR
JR21 2001-000027 RESISTOR
JR22 2001-000660 RESISTOR
JR23 2001-000591 RESISTOR
JR24L 2001-000613 RESISTOR
JR24R 2001-000613 RESISTOR
JR25 2001-000429 RESISTOR
JR251 2001-000008 RESISTOR
JR252 2001-000449 RESISTOR
JR253 2001-000449 RESISTOR
JR254 2001-000008 RESISTOR
JR26 2001-000734 RESISTOR
JR27 2001-000706 CARBON RESISTOR
JR28L 2001-000734 RESISTOR
JR28R 2001-000734 RESISTOR
JR29 2001-000786 RESISTOR
JR3L 2001-000591 RESISTOR
JR3R 2001-000591 RESISTOR
JR30 2001-000591 RESISTOR
JR31 2001-000734 RESISTOR
JR32 2001-000456 RESISTOR
JR33 2001-000290 RESISTOR
JR37L 2001-000786 RESISTOR
JR37R 2001-000786 RESISTOR
JR38 2001-000890 RESISTOR
JR39 2001-000290 RESISTOR
JR4 2001-000522 RESISTOR
JR40 2001-000290 RESISTOR
JR40L 2001-000302 RESISTOR
JR40R 2001-000302 RESISTOR
JR41L 2001-000008 RESISTOR
JR41R 2001-000008 RESISTOR
JR42L 2001-000429 RESISTOR
JR42R 2001-000429 RESISTOR
JR43 2001-000591 RESISTOR
JR44 2001-000522 RESISTOR
JR45 2001-000522 RESISTOR
JR46 2001-000591 RESISTOR
JR5L 2001-000449 RESISTOR
JR5R 2001-000449 RESISTOR
JR51 2001-000660 RESISTOR
JR52 2001-000591 RESISTOR
JR53 2001-000319 CARBON RESISTOR
JR6L 2001-000449 RESISTOR
JR6R 2001-000449 RESISTOR
JR61 2001-000734 RESISTOR
JR7L 2001-000890 RESISTOR
JR7R 2001-000890 RESISTOR
JR9L 2001-000281 RESISTOR
JR9R 2001-000281 RESISTOR
JSR1L 2103-000492 ROTA V RESISTOR
JSR1R 2001-000591 RESISTOR
JSR2L 2103-000248 ROTA V RESISTOR
JSR2R 2103-000248 ROTA V RESISTOR
KCW1 3711-001557 CONNECTOR
KCW2 3711-001557 CONNECTOR
LPF1L AH26-10002W TRAP COIL BIAS-TRAP105K
LPF1R AH26-10002W TRAP COIL BIAS-TRAP105K
OCW AH39-00096B LEAD CONNECTOR
OC1 2202-000807 C.CAPACITOR
OC2 2201-000483 C.CAPACITOR
OC3 2401-000240 E.CAPACITOR
OJACK 0603-001069 OPTICCAL JACK
OLPF 2901-001139 EMI FILTER
PCW1 3711-003112 CONNECTOR
RBD1 0402-000450 BRIDGE DIODE
A
RBD2 0402-001258 DIODE
A
RCW6 AH39-00096B LEAD CONNECTOR
RC1 2401-001928 E.CAPACITOR
A
RC11 2201-000161 C.CAPACITOR
RC13 2401-000230 E.CAPACITOR
RC14 2401-000795 E.CAPACITOR
RC19 2401-001895 E.CAPACITOR
RC2 2401-001928 E.CAPACITOR
A
RC20 2401-001895 E.CAPACITOR
RC3 2401-003381 AL E.CAPACITOR
A
RC37 2401-000438 E.CAPACITOR
RC4 2401-003381 AL E.CAPACITOR
A
RC5 2401-001954 E.CAPACITOR
RC6 2401-000907 E.CAPACITOR
RC7 2401-001912 E.CAPACITOR
RC8 2401-001954 E.CAPACITOR
Item Parts number Parts name Ar
ea
Remarks
A
(Main board)

MX-DVA5
3-7
Item Parts number Parts name Ar
ea
Electrical parts list
Remarks
Block No. 01
A
RC81 2201-000161 C.CAPACITOR
RD1 0402-000127 DIODE
RD10 0402-000127 DIODE
RD2 0402-000127 DIODE
RD3 0402-000127 DIODE
RD30 0402-000151 DIODE
RD31 0402-000151 DIODE
RD32 0402-000151 DIODE
RD5 0402-000127 DIODE
RD7 0401-000101 DIODE
RD8 0402-000151 DIODE
RD9 0402-000127 DIODE
RFS5 3601-000282 FUSE
A
RFS6 3601-000282 FUSE
A
RFS7 3601-000282 FUSE
A
RFS8 3601-000282 FUSE CARTRIDGE
A
RF23 2008-000135 FUSE RESISTOR
RIC1 1203-001653 IC
RL1 2701-000298 INDUCTOR
R
Q
1 0501-000610 TRANSISTOR
R
Q
3 0501-000331 TRANSISTOR
R
Q
4 0501-000294 TRANSISTOR
RR1 2003-000701 OMF RESISTOR
RR10 2001-000055 RESISTOR
RR11 2001-000591 RESISTOR
RR12 2001-000734 RESISTOR
RR13 2001-000111 RESISTOR
RR15 2001-000734 RESISTOR
RR16 2001-000038 RESISTOR
RR17 2001-000429 RESISTOR
RR20 2001-000786 RESISTOR
RR3 2001-000023 RESISTOR
RR4 2001-000023 RESISTOR
RR5 2001-000613 RESISTOR
RR51 2001-000890 RESISTOR
RR6 2001-000734 RESISTOR
RR7 2001-000429 RESISTOR
RR8 2003-000455 OMF RESISTOR
RR800 2001-000660 RESISTOR
RR9 2001-000563 RESISTOR
RW1 AH39-00245A LEAD CONNECTOR
RW2 AH39-00244A LEAD CONNECTOR
RZD1 0403-000379 ZENER DIODE
RZD2 0403-000570 ZENER DIODE
RZD3 0403-000570 ZENER DIODE
RZD4 0403-000354 ZENER DIODE
RZD5 0403-001010 ZENER DIODE
TC101 2201-000783 C.CAPACITOR
TC102 2201-000783 C.CAPACITOR
VCW1 AH39-00096C CONNECTOR-WIRE
VC4 2401-001364 E.CAPACITOR
VC5 2201-000783 C.CAPACITOR
VJCK2 AH37-00005A JACK RCA S-440B YELLOW
VJCK3 3722-001502 JACK DIN
VR1 2001-000273 RESISTOR
VR2 2001-000273 RESISTOR
VR3 2001-001035 CARBON RESISTOR
VR4 2001-001035 CARBON RESISTOR
(Main board)

MX-DVA5
3-8
Item Parts number Parts name Ar
ea
Electrical parts list
Remarks
Block No. 02
A
MCW1 AH39-00246A LEAD CONNECTOR
MCW2 AH39-00248A LEAD CONNECTOR
MC1 2401-001975 E.CAPACITOR
MC10 2401-001954 E.CAPACITOR
MC11 2201-000300 C.CAPACITOR
MC12 2401-001912 E.CAPACITOR
MC2 2201-000504 C.CAPACITOR
MC3 2401-001954 E.CAPACITOR
MC4 2401-001954 E.CAPACITOR
MC5 2401-001954 E.CAPACITOR
MC6 2401-001975 E.CAPACITOR
MC7 2401-001954 E.CAPACITOR
MC8 2401-001912 E.CAPACITOR
MC9 2201-000653 C.CAPACITOR
MD1 0401-000101 DIODE
MD2 0401-000101 DIODE
MIC 3722-000351 PHONE JACK
MIC1 1201-000163 IC
M
Q
1 0501-000398 TRANSISTOR
M
Q
2 0501-000398 TRANSISTOR
MR1 2001-000356 CARBON RESISTOR
MR10 2001-000472 RESISTOR
MR11 2001-000522 RESISTOR
MR12 2001-000734 RESISTOR
MR13 2001-000734 RESISTOR
MR14 2001-000734 RESISTOR
MR15 2001-000660 RESISTOR
MR2 2001-000290 RESISTOR
MR3 2001-000290 RESISTOR
MR4 2001-000449 RESISTOR
MR5 2001-000472 RESISTOR
MR6 2001-000290 RESISTOR
MR7 2001-000429 RESISTOR
MR8 2001-000734 RESISTOR
MR9 2001-000273 RESISTOR
MVR1 2101-001052 ROTA V.RESISTOR 10KOHM XV092PVP
R-EYE AC59-60060A REMOCON EYE
UCW1 3708-000492 CONNECTOR
UCW2 3708-000178 CONNECTOR
UCW3 3708-001212 CONNECTOR
UCW4 3708-000451 CONNECTOR
UCW5 3708-000492 CONNECTOR
UCW6 3708-001488 CONNECTOR
UCW7 3708-000181 CONNECTOR
UC1 2401-000475 E.CAPACITOR
UC10 2401-000240 E.CAPACITOR
UC11 2401-000759 E.CAPACITOR
UC12 2401-001355 E.CAPACITOR
UC15 2201-000565 C.CAPACITOR
UC17 2401-001954 E.CAPACITOR
UC2 2201-000565 C.CAPACITOR
UC20 2202-000797 C.CAPACITOR
UC21 2201-000163 C.CAPACITOR
UC3 2401-000475 E.CAPACITOR
UC30 2201-000146 C.CAPACITOR
UC32 2401-001364 E.CAPACITOR
UC33 2202-000797 C.CAPACITOR
UC34 2201-000783 C.CAPACITOR
UC37 2201-000783 C.CAPACITOR
UC38 2201-000783 C.CAPACITOR
UC4 2201-000565 C.CAPACITOR
UC40 2201-000565 C.CAPACITOR
UC5 2401-001465 E.CAPACITOR
UC6 2201-000426 C.CAPACITOR
UC7 2201-000426 C.CAPACITOR
UC8 2201-000247 C.CAPACITOR
UC9 2201-000247 C.CAPACITOR
UD11 0401-000101 DIODE
UD14 0402-000127 DIODE
UD15 0402-000127 DIODE
UD16 0401-000101 DIODE
UD17 0401-000101 DIODE
UD18 0402-000127 DIODE
UD19 0402-000127 DIODE
UD2 0401-000101 DIODE
UD20 0401-000101 DIODE
UD21 0401-000101 DIODE
UD22 0401-000101 DIODE
UD23 0402-000127 DIODE
UD3 0401-000101 DIODE
UD7 0401-000101 DIODE
UD8 0401-000101 DIODE
UIC1 AH11-00038A IC LC866P548-5W14
UIC2 0904-001316 IC
UIC3 AH14-10004M IC
ULD1 0601-001238 LED (RED) LTL-1CHESS-UA
ULD10 0601-001238 LED (RED) LTL-1CHESS-UA
ULD11 0601-001238 LED (RED) LTL-1CHESS-UA
ULD12 0601-001238 LED (RED) LTL-1CHESS-UA
ULD13 0601-001490 LED
ULD14 0601-001238 LED (RED) LTL-1CHESS-UA
ULD15 0601-001238 LED (RED) LTL-1CHESS-UA
ULD16 0601-001238 LED (RED) LTL-1CHESS-UA
ULD17 0601-001238 LED (RED) LTL-1CHESS-UA
ULD2 0601-001238 LED (RED) LTL-1CHESS-UA
ULD3 0601-001238 LED (RED) LTL-1CHESS-UA
ULD4 0601-001238 LED (RED) LTL-1CHESS-UA
ULD5 0601-001238 LED (RED) LTL-1CHESS-UA
ULD6 0601-001238 LED (RED) LTL-1CHESS-UA
ULD7 0601-001238 LED (RED) LTL-1CHESS-UA
ULD8 0601-001238 LED (RED) LTL-1CHESS-UA
ULD9 0601-001238 LED (RED) LTL-1CHESS-UA
U
Q
1 0504-000117 DEGI TRANSISTOR
U
Q
10 0501-000610 TRANSISTOR
U
Q
11 0501-000610 TRANSISTOR
U
Q
12 0504-000117 DEGI TRANSISTOR
U
Q
13 0504-000117 DEGI TRANSISTOR
U
Q
14 0504-000117 DEGI TRANSISTOR
U
Q
15 0504-000117 DEGI TRANSISTOR
U
Q
17 0504-000118 DEGI TRANSISTOR
U
Q
18 0501-000398 TRANSISTOR
U
Q
19 0504-001003 DEGI TRANSISTOR
U
Q
2 0504-000117 DEGI TRANSISTOR
U
Q
3 0504-000117 DEGI TRANSISTOR
U
Q
4 0504-000117 DEGI TRANSISTOR
U
Q
5 0504-000118 DEGI TRANSISTOR
U
Q
6 0501-000398 TRANSISTOR
U
Q
7 0504-000118 DEGI TRANSISTOR
U
Q
8 0501-000610 TRANSISTOR
U
Q
9 0504-000118 DEGI TRANSISTOR
UR1 2001-000003 RESISTOR
UR10 2001-000258 RESISTOR
UR101 2001-000786 RESISTOR
UR102 2001-000786 RESISTOR
UR103 2001-000786 RESISTOR
UR104 2001-000734 RESISTOR
Item Parts number Parts name Ar
ea
Remarks
A
(Front board)

MX-DVA5
3-9
Item Parts number Parts name Ar
ea
Electrical parts list
Remarks
Block No. 02
A
UR105 2001-000734 RESISTOR
UR106 2001-000734 RESISTOR
UR107 2001-000734 RESISTOR
UR108 2001-000734 RESISTOR
UR109 2001-000734 RESISTOR
UR11 2001-000449 RESISTOR
UR110 2001-000995 RESISTOR
UR111 2001-000855 RESISTOR
UR112 2001-000241 RESISTOR
UR113 2001-000855 RESISTOR
UR114 2001-000258 RESISTOR
UR115 2001-000855 RESISTOR
UR116 2001-000591 RESISTOR
UR117 2001-000449 RESISTOR
UR118 2001-000890 RESISTOR
UR119 2001-000290 RESISTOR
UR120 2001-000890 RESISTOR
UR121 2001-000290 RESISTOR
UR122 2001-000522 RESISTOR
UR123 2001-000010 RESISTOR
UR124 2001-000734 RESISTOR
UR125 2001-000734 RESISTOR
UR126 2001-000591 RESISTOR
UR127 2001-000449 RESISTOR
UR128 2001-000258 RESISTOR
UR129 2001-000241 RESISTOR
UR130 2001-000221 RESISTOR
UR131 2001-000429 RESISTOR
UR132 2001-000295 RESISTOR
UR133 2001-000435 RESISTOR
UR134 2001-000793 RESISTOR
UR135 2001-000591 RESISTOR
UR136 2001-000508 RESISTOR
UR137 2001-000734 RESISTOR
UR138 2001-000449 RESISTOR
UR139 2001-000429 RESISTOR
UR140 2001-000429 RESISTOR
UR141 2001-000429 RESISTOR
UR142 2001-000429 RESISTOR
UR143 2001-000281 RESISTOR
UR144 2001-000281 RESISTOR
UR145 2001-000281 RESISTOR
UR146 2001-000290 RESISTOR
UR147 2001-000290 RESISTOR
UR148 2001-000290 RESISTOR
UR149 2001-000515 RESISTOR
UR150 2001-000290 RESISTOR
UR151 2001-000290 RESISTOR
UR152 2001-000290 RESISTOR
UR153 2001-000290 RESISTOR
UR154 2001-000290 RESISTOR
UR155 2001-000290 RESISTOR
UR156 2001-000290 RESISTOR
UR157 2001-000290 RESISTOR
UR158 2001-000290 RESISTOR
UR159 2001-000290 RESISTOR
UR160 2001-000290 RESISTOR
UR161 2001-000290 RESISTOR
UR162 2001-000290 RESISTOR
UR163 2001-000290 RESISTOR
UR164 2001-000290 RESISTOR
UR165 2001-000290 RESISTOR
UR166 2001-000290 RESISTOR
UR167 2001-000290 RESISTOR
UR168 2001-000290 RESISTOR
UR169 2001-000290 RESISTOR
UR170 2001-000290 RESISTOR
UR171 2001-000290 RESISTOR
UR172 2001-000290 RESISTOR
UR173 2001-000290 RESISTOR
UR174 2001-000005 RESISTOR
UR175 2001-001178 RESISTOR
UR176 2001-001178 RESISTOR
UR177 2001-001178 RESISTOR
UR178 2001-000290 RESISTOR
UR179 2001-000429 RESISTOR
UR180 2001-000857 RESISTOR
UR181 2001-000281 RESISTOR
UR182 2001-000281 RESISTOR
UR183 2001-000281 RESISTOR
UR184 2001-000281 RESISTOR
UR185 2001-000281 RESISTOR
UR186 2001-000281 RESISTOR
UR187 2001-000281 RESISTOR
UR188 2001-000281 RESISTOR
UR189 2001-000281 RESISTOR
UR190 2001-000281 RESISTOR
UR191 2001-000281 RESISTOR
UR192 2001-000281 RESISTOR
UR194 2001-000281 RESISTOR
UR195 2001-000281 RESISTOR
UR196 2001-000855 RESISTOR
UR197 2001-000281 RESISTOR
UR198 2001-000281 RESISTOR
UR199 2001-000855 RESISTOR
UR2 2001-000995 RESISTOR
UR200 2001-000786 RESISTOR
UR201 2001-000290 RESISTOR
UR202 2001-000290 RESISTOR
UR203 2001-000290 RESISTOR
UR204 2001-000290 RESISTOR
UR205 2001-000290 RESISTOR
UR206 2001-000786 RESISTOR
UR207 2001-000995 RESISTOR
UR208 2001-000786 RESISTOR
UR209 2001-000786 RESISTOR
UR210 2001-000786 RESISTOR
UR211 2001-000786 RESISTOR
UR212 2001-000786 RESISTOR
UR213 2001-000786 RESISTOR
UR214 2001-000786 RESISTOR
UR215 2001-000855 RESISTOR
UR216 2001-000855 RESISTOR
UR220 2001-000734 RESISTOR
UR221 2001-000734 RESISTOR
UR222 2001-000734 RESISTOR
UR223 2001-000734 RESISTOR
UR224 2001-000734 RESISTOR
UR225 2001-000734 RESISTOR
UR226 2001-000734 RESISTOR
UR227 2001-000734 RESISTOR
UR228 2001-000734 RESISTOR
UR229 2001-000734 RESISTOR
UR230 2001-000786 RESISTOR
UR231 2001-000786 RESISTOR
UR232 2001-000786 RESISTOR
Item Parts number Parts name Ar
ea
Remarks
A
(Front board)
