JVC TV-20F243 User manual

Serial Number
IMPORTANT NOTE TO THE CUSTOMER:
In the space below, enter the serial number for your
television (located on the rear of the television cabinet).
Staple your sales receipt or invoice to the inside cover of this guide.
Keep this user's guide in a convenient place for future reference.
Keep the carton and original packaging for future use.
For model :
TV-20F243
TV/VCR COMBO
USER’S GUIDE
PLAY
STOPREC PAUSE
FFREW
TRACKING AUTO
SLEEPCALL
INPUT
ENTER
SET —
SET +
AUDIO SELECT
MENU
ZERO RETURN RESET
PROGRAM
SP/ EP RE-VIEW
EZ JECT
TV
CATV
TIMER
CANCEL
POWER
COUNTER
— INDEX SEARCH + C.C.
RETURN SKIP SEARCH
0
8
5
2
7
4
1
9
6
3
MUTING
CH
CH
VOL VOL
TV
RM-C393G
STOP/EJECT
FF
PLAY
REW
REC/ ITR
ON TIMER
REC TIMER
REC
POWER
5B40401A-E/COV-IN 23/01/2002, 10:251

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product's
enclosure that may be of sufficient magni-
tude to constitute a risk of electric shock to
persons.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THISAPPLIANCE TO RAIN OR
MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS POLARIZED PLUG WITH AN EXTEN-
SION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE.
WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try correcting the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance with the
FCC Rules could void the user's authority to operate this equipment.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
5B40401A-E/COV-IN 15/01/2002, 12:482

1
1. READ INSTRUCTIONS
All the safety and operating instructions should be read before the unit is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be retained for future reference.
3. HEED WARNINGS
All warnings on the unit and in the operating instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this unit from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
6. ATTACHMENTS
Do not use attachments not recommended by the unit’s manufacturer as they may cause hazards.
7. WATER AND MOISTURE
Do not use this unit near water. For example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool.
8. ACCESSORIES
Do not place this unit on an unstable cart, stand, tripod, bracket, or table.
The unit may fall, causing serious injury, and serious damage to the unit.
Use only with a cart, stand, tripod, bracket, or table recommended by the
manufacturer.
8A. An appliance and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the appliance and cart
combination to overturn.
9. VENTILATION
Slots and openings in the cabinet and in the back or bottom are provided for ventilation, and to ensure reliable
operation of the unit, and to protect it from overheating. These openings must not be blocked or covered. The
openings should never be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This unit
should never be placed near or over a radiator or heat source. This unit should not be placed in a built-in installa-
tions such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have
been adhered to.
10. POWER SOURCES
This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure
of the type of power supply to your home, consult your appliance dealer or local power company. For units
intended to operate from battery power, or other sources, refer to the operating instructions.
11. GROUNDING OR POLARIZATION
This unit is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other).
This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of the polarized plug, if your unit is equipped with a 3-wire
grounding-type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power
outlet. This too, is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to
replace your obsolete outlet.
Do not defeat the safety purpose of the grounding-type plug.
IMPORTANT SAFEGUARDS
S3126A
PORTABLE CARTWARNING
(symbol provided by RETAC)
5B40401A-E/P01-09 15/01/2002, 12:531

2
IMPORTANT SAFEGUARDS (CONTINUED)
12. POWER-CORD PROTECTION
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon
or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they
exit from the appliance.
13. LIGHTNING
To protect your unit from a lightning storm, or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the unit
due to lightning and power line surges.
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be
fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.
16. OBJECT AND LIQUID ENTRY
Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out
parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded
so as to provide some protection against voltage surges and built-up static charges, Section 810 of the National
Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and support-
ing structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location
of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
18. SERVICING
Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service personnel.
19. DAMAGE REQUIRING SERVICE
Unplug this unit from the wall outlet and refer servicing to qualified service personnel under the following
conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only those controls
that are covered by the operating instructions, as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to restore the unit to its normal
operation.
e. If the unit has been dropped or the cabinet has been damaged.
f. When the unit exhibits a distinct change in performance, this indicates a need for service.
20. REPLACEMENT PARTS
When replacement parts are required, be sure the service technician uses replacement parts specified by the
manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
5B40401A-E/P01-09 15/01/2002, 12:532

3

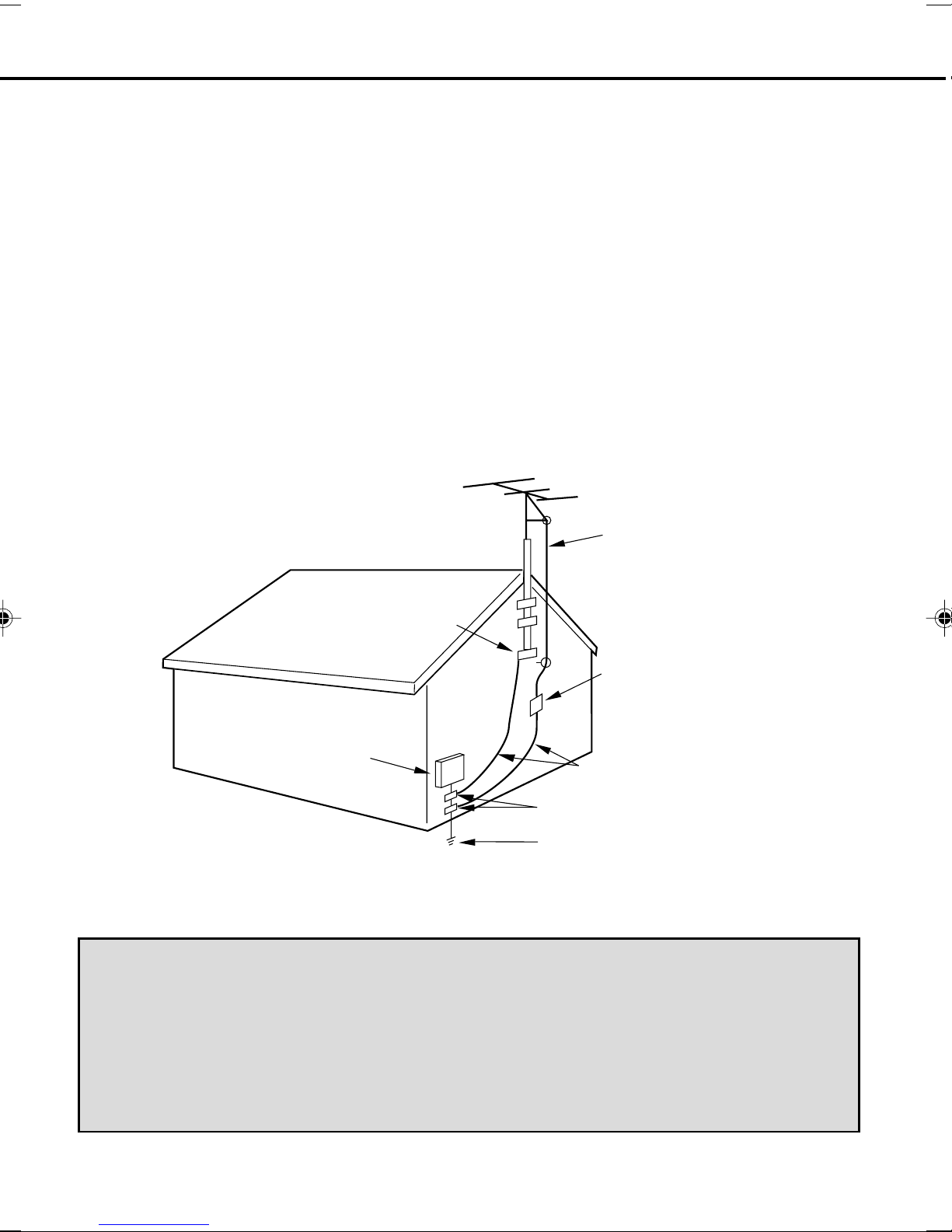

EXAMPLE OF ANTENNA GROUNDING AS PER THE
NATIONAL ELECTRICAL CODE
ANTENNA LEAD
IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC SERVICE
EQUIPMENT GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
NEC-NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
S2898A
21. SAFETY CHECK
Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.
22. WALL OR CEILING MOUNTING
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
23. HEAT
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.
24. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer’s attention toArticle 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of cable entry as practical.
IMPORTANT RECYCLING INFORMATION
This product utilizes both a Cathode Ray Tube (CRT) and other com-
ponents that contain lead. Disposal of these materials may be regu-
lated in your community due to environmental considerations. For
disposal or recycling information, please contact your local athori-
ties, or the Electronic Industries Alliance: http://www.eiae.org
5B40401A-E/P01-09 15/01/2002, 12:533

4
FEATURES
Real Flat Picture Tube - It reduces the influence of surrounding light resulting in outstanding image detail
and clarity.
4 Video Heads - Provides optimal picture quality for special effects playback.
19µm HEAD - For superior picture quality even in EP mode, 19micron width technology heils to avoid
crosstalk and boost EP picture quality to near SP levels. With procision technology, ghosts and color
beats are virtually eliminated.
Hi-Fi Stereo Sound - With a frequency response of 20 to 20,000 Hz and a dynamic range of better than
90dB, this TV/VCR provides a level of excellence that rivals compact discs.
Stereo/SAP Reception - This TV/VCR is designed to receive stereo and separate audio program (SAP)
broadcasts where available.
Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen
for hearing impaired viewers.
8-Programs/ 1-Month Programmable Timer With Everyday/Every Week Capability - The built-in
timer allows automatic absentee recording of up to 8 TV programs within 1 month. It is also possible to
record a program which is broadcast at the same time everyday or every week.
Auto Clock Set - Once your TV/VCR is pluged into the AC outlet, it automatically sets the correct date
and time.
Programmable ON/OFF Timer - Allows you to automatically turn on or off your TV/VCR at a set time.
Programmable TV Sleep Timer - Operable from the remote control, the TV can be programmed up to
120 minutes to turn off automatically.
Skip Search - When the SKIP SEARCH button is pressed during playback, the TV/VCR will automati-
cally search forward in 30 second increments to a maximum of 3 minutes with each press of the SKIP
SEARCH button, and then return to normal playback.
Index Search - Locates the beginning of any recording mode on the TV/VCR.
Automatic Repeat Play System - When Auto Repeat option is turned on, the TV/VCR will automatically
play back the same cassette tape repeatedly.
Instant Timer Recording (ITR) - Simply by pressing the REC and PLAY buttons, the TV/VCR can be
programmed for up to 5 hours of recording with an immediate start.
Audio/Video Input Jacks - A VCR or other video device may be hooked up to this TV/VCR for dubbing
or playback purposes.
EZ JECT - Automatically ejects the tape after rewinding the tape.
RE-VIEW - This feature helps you to watch the recorded program by the timer recording quickly.
TV/CATV switch - You can operate your Cable Box with the remote control supplied after you have
registered the 3-digit codes for their brand name.
Real Time Tape Counter With Zero Return - The counter displays the real tape time and the zero
return can be used to return the tape to a preselected position (00:00:00) while the counter can be used
to locate programs.
Digital Auto Tracking - Automatically adjusts tracking during playback for the best possible picture.
On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for on-
screen programming.
V-Chip - The V-Chip function can rate a TV program or a movie content. It allows you to set a restriction
level.
5B40401A-E/P01-09 15/01/2002, 12:534

5
TABLE OF CONTENTS
It is recommended that you carefully read the descriptions and operating procedures contained in this
User’s Guide prior to operating your new TV/VCR.
PREPARATION
PRECAUTIONS ...................................................................................................................................................... 6
LOCATION OF CONTROLS ................................................................................................................................... 8
REMOTE CONTROL .............................................................................................................................................. 9
REMOTE PROGRAMMING...................................................................................................................................11
ANTENNA CONNECTIONS.................................................................................................................................. 12

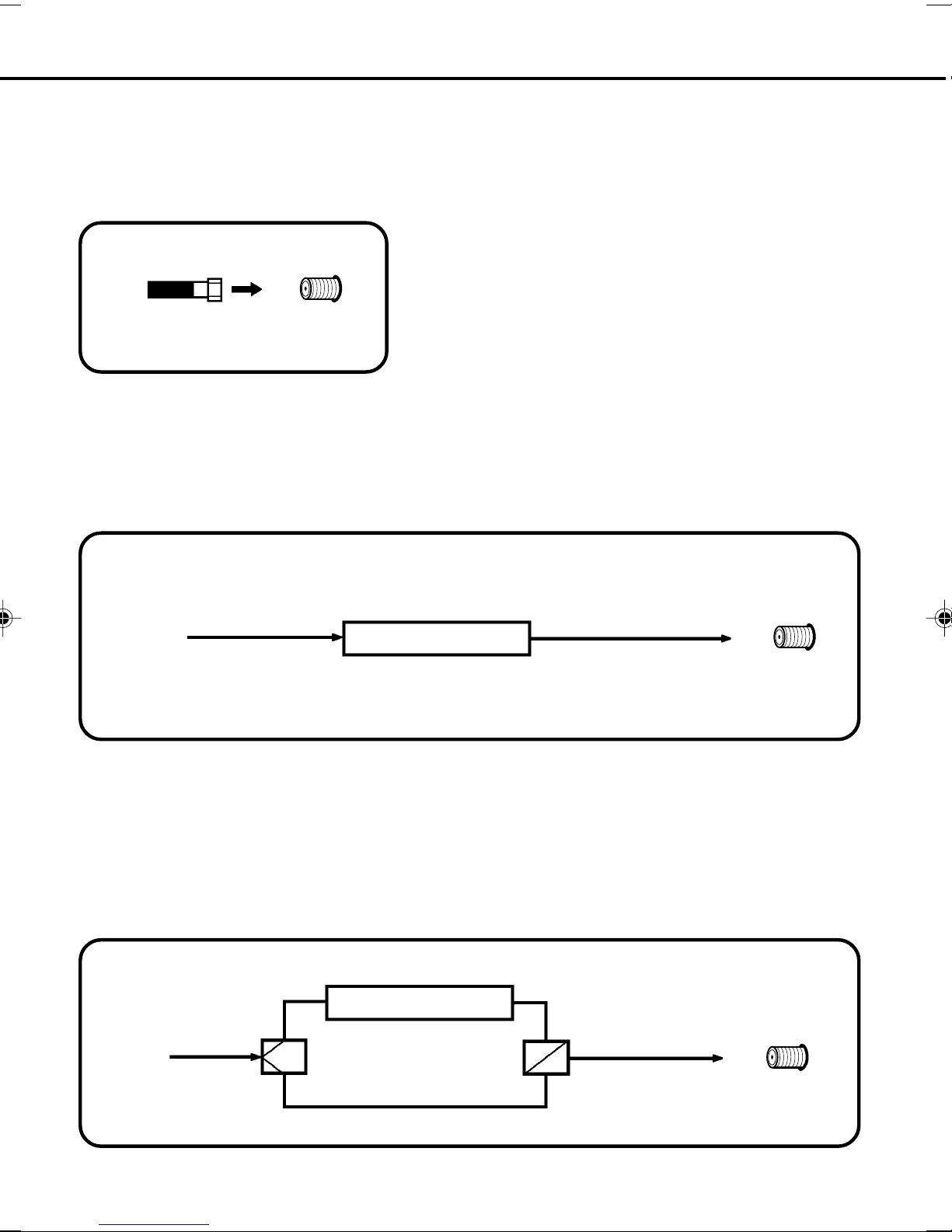

CABLE TV CONNECTIONS ................................................................................................................................. 13
SETTING LANGUAGE.......................................................................................................................................... 14
AUTO CLOCK SETTING ...................................................................................................................................... 15
MANUAL CLOCK SETTING ................................................................................................................................. 17
TV OPERATION
TV OPERATION.................................................................................................................................................... 18
STEREO AND SEPARATE AUDIO PROGRAM (SAP) .........................................................................................22
TO MEMORIZE CHANNELS ................................................................................................................................ 23
SETTING THE V-CHIP ......................................................................................................................................... 26
PICTURE CONTROLADJUSTMENTS ................................................................................................................ 30
SOUND CONTROLADJUSTMENTS ................................................................................................................... 32
TO SET THE ON TIMER....................................................................................................................................... 33
TO SET THE OFF TIMER..................................................................................................................................... 34
PLAYBACK
LOADING AND UNLOADING A VIDEO CASSETTE ............................................................................................ 35
PLAYBACK ........................................................................................................................................................... 36
SPECIAL PLAYBACK ........................................................................................................................................... 38
VIDEO INDEX SEARCH SYSTEM (INDEX SEARCH)......................................................................................... 41
RECORDING
RECORDING ATV PROGRAM ............................................................................................................................ 42
INSTANT TIMER RECORDING (ITR)................................................................................................................... 44
TIMER RECORDING ............................................................................................................................................ 45
OTHER FUNCTIONS FOR THE TIMER RECORDING........................................................................................ 47
ADDITIONAL INFORMATION
USING THE REALTIME TAPE COUNTER .......................................................................................................... 49
USING ZERO RETURN........................................................................................................................................ 50
DUPLICATING A VIDEO TAPE ............................................................................................................................. 51
TROUBLESHOOTING GUIDE.............................................................................................................................. 52
RECEPTION DISTURBANCES ............................................................................................................................ 54
VIDEO HEAD CLEANING..................................................................................................................................... 55
SPECIFICATIONS ................................................................................................................................................ 56
5B40401A-E/P01-09 15/01/2002, 12:535

6
MOISTURE CONDENSATION
DO NOT OPERATE ANY FUNCTIONS ON THIS UNIT FOR AT LEAST TWO OR
THREE HOURS WHEN MOISTURE IN THE AIR CONDENSES ON IT. LET THE
UNIT STAND WITH POWER ON (SEE BELOW).
WHAT IS MOISTURE CONDENSATION?
When a cold liquid is poured into a glass, for example, water vapor in the air will
condense on the surface of the glass. This is called moisture condensation.
MOISTURE WILL CONDENSE ON THE UNIT IN THE FOLLOWING CASES;
•When you move the unit from a cold to a warm place.
•After heating a cold room or under extremely humid conditions.
WHEN YOU EXPERIENCE THEABOVE CONDITIONS,
Plug the power cord into an AC outlet, set the POWER switch to ON and leave the
unit at room temperature until moisture condensation disappears.
Depending on the surrounding conditions, this may take two or three hours.
Head Drum
Video Tape
PRECAUTIONS
If you cause a static discharge when touching the
unit, and the unit fails to function, simply unplug the
unit from the wall outlet, wait a few minutes, and
plug it back in. The unit should return to normal
operation.
Avoid extreme heat.
Avoid extreme cold.
Do not place the unit on or near appliances which
may cause electromagnetic interference (e.g. speak-
ers, etc). Doing so may cause erratic operation of the
unit including picture and/or sound distortion or noise.
Avoid extreme moisture and dust. The ventilation holes prevent overheating. Do not
block or cover these holes. Especially avoid
covering the holes with soft materials such as cloth
or paper.
5B40401A-E/P01-09 15/01/2002, 12:536

7
POWER SOURCE
Polarized AC Cord
(One blade is wider than the other.)
To protect the unit from a lightning storm, unplug the
AC power cord from the wall outlet and disconnect
the antenna.
Do not insert fingers or any other objects into the
cassette loading slot. Do not spray cleaner or wax
directly on the unit or use forced air to remove dust.
Keep the unit away from flower vases, sinks, etc.
If liquids should be spilled into the unit, serious
damage will result. If you spill any liquids into the
unit, unplug the AC power cord immediately and
consult qualified service personnel before attempting
to use it again.
When you leave your home for a long time, unplug
the AC power cord.
When you finish operating the unit, always unload
the cassette and turn off the power.
Avoid places subject to strong vibration. Use in a
horizontal (flat) position only.
AC Outlet
Wider Hole
and Blade
TO USEAC POWER SOURCE
Use the AC polarized line cord provided for operation on AC. Insert
the AC cord plug into a standard 120V 60Hz polarized AC outlet.
NOTES:
1. Never connect the AC line cord plug to other than the specified
voltage (120V 60Hz). Use the attached power cord only.
2. If the polarized AC cord does not fit into a non-polarized AC outlet,
do not attempt to file or cut the blade. It is the user’s responsibility
to have an electrician replace the obsolete outlet.
3. If you cause a static discharge when touching the unit, and the unit
fails to function, simply unplug the unit, from the AC outlet, wait a
few minutes, and plug it back in. The unit should return to normal
operation.
5B40401A-E/P01-09 15/01/2002, 12:537

8
STOP/EJECT
FF
PLAYREW
REC / ITR
ON TIMER
REC TIMERREC
POWER
CHANNEL
+–+ VIDEO L
(MONO) – AUDIO–R–
VOLUME LINE IN

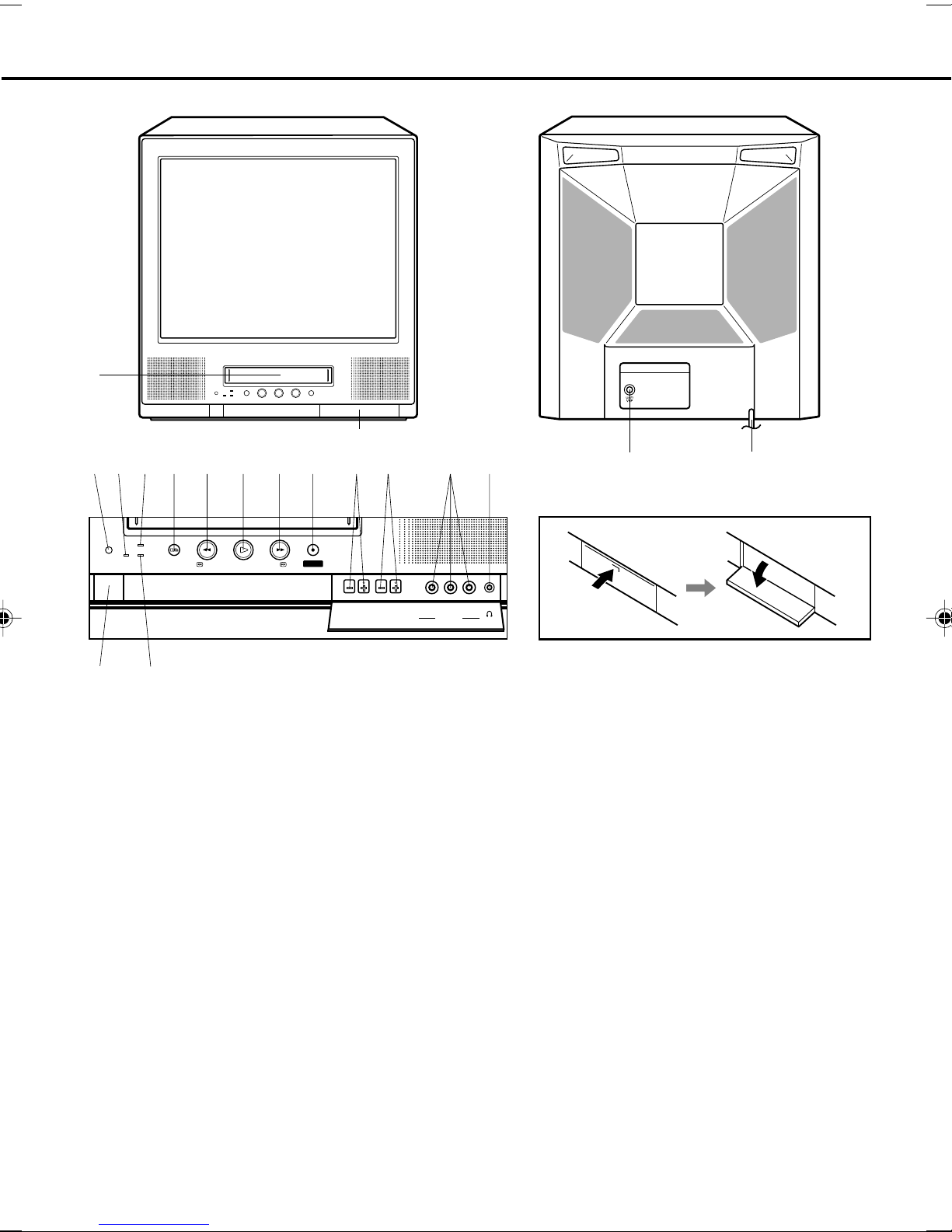

LOCATION OF CONTROLS
REARFRONT
1
16 17
HOW TO OPEN THE FRONT DOOR
14
23 654 789
15
10 11 12 13
DOOR
11. VOLUME + / –Buttons - Press to raise or lower the
volume of the sound.
12. AUDIO (L/R)/VIDEO IN Jacks - Audio and video signal
cables from an external source can be connected here.
13. Headphone Jack - Plug headphones with an 1/8" miniplug
into this jack for private listening.
14. POWER Button - Press to turn the TV/VCR on or off.
15. REC TIMER Indicator - This lights when the TIMER
button is pressed.
REAR:
16. UHF/VHF Antenna Jack - Connect the 75 ohm coaxial
cable from the antenna or Cable TV service to this jack.
17. AC Power Cord - Connect to a 120V, 60Hz outlet.
DESCRIPTION OF CONTROLS
FRONT:
1. Cassette Loading Slot - To insert orremoveavideotape.
2. Remote Sensor - Signals from the Remote Control are
received here.
3. REC Indicator - Lights when the TV/VCR is recording.
4. ON TIMER Indicator - This indicator lights up when the
powered up. It also lights up when ON TIMER program
is turned ON while power is OFF.
5. STOP/EJECT Button - Press once to stop the tape in
any mode. Press again to eject the tape.
6. REW (Rewind) Button - In the Stop mode, this button
rapidly winds the tape backwards. In the Play mode,
this button activates reverse search.
7. PLAY Button - Press to play a prerecorded tape.
8. FF (Fast Forward) Button - In the Stop mode, this
button rapidly winds the tape forward. In the Play mode,
this button activates forward search.
9. REC / ITR Button - Press once to start normal recording.
Additional presses activate Instant Timer Recording.
10. CHANNEL + / –Buttons - Press to select a channel for
viewing or recording.
5B40401A-E/P01-09 15/01/2002, 12:548

9

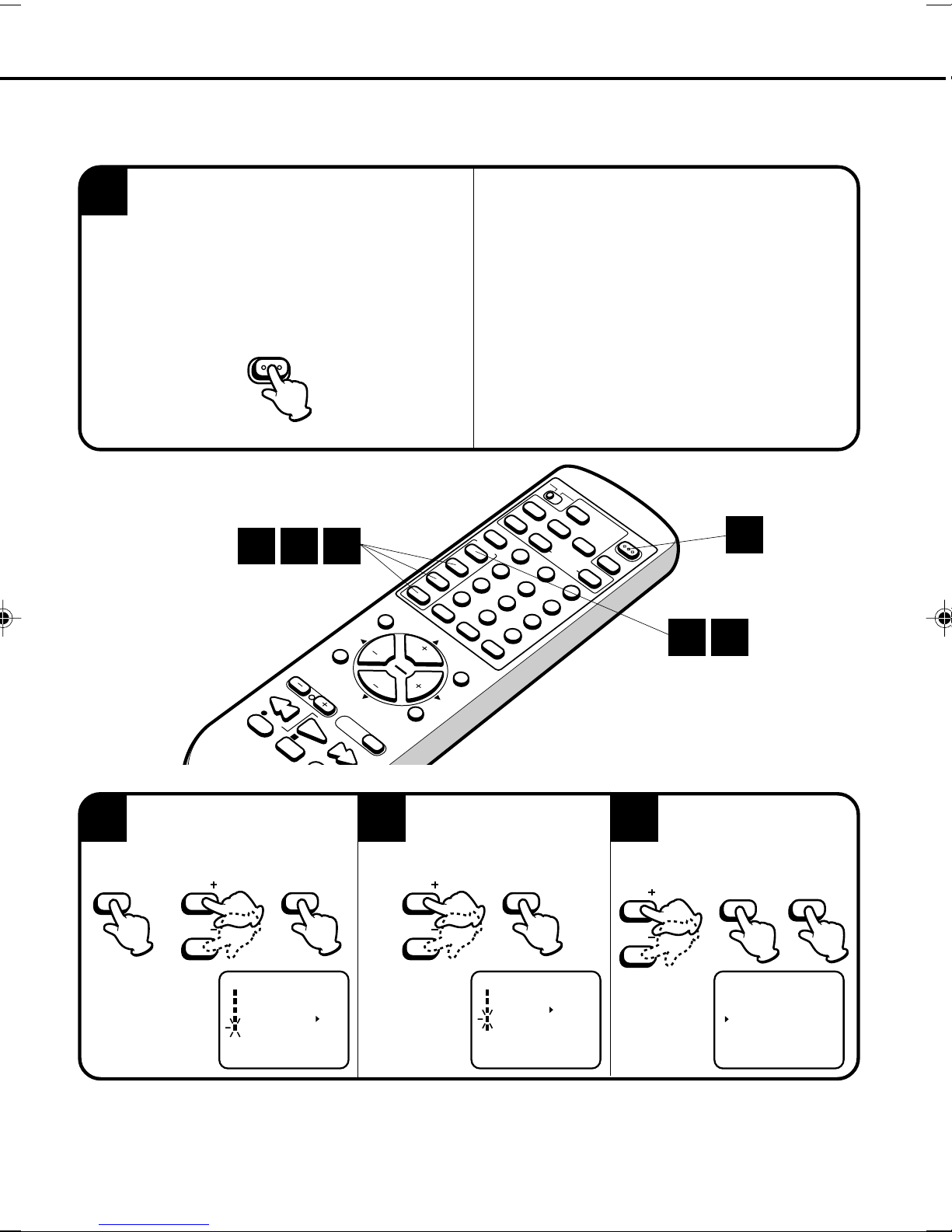

REMOTE CONTROL
17. INPUT Selector Button - Switches the program for
viewing between the VCR and external input source.
18. SLEEP Button - Sets the TV to turn off automatically after
up to 120 minutes.
19. FF (Fast Forward) Button - In the Stop mode, this button
rapidly winds the tape forward. In the Play mode, this
button activates forward search.
20. PAUSE Button - During recording, this button temporarily
stops the tape. During playback, it stops the tape and
displays a still image on the TV screen.
21. EZ JECT Button - Press this button after finished watching
the rental video tape. The tape will be rewound and ejected
automatically.
22. SP/EP Selector Button - Sets the tape speed for recording.
23. ZERO RETURN Button - Use to stop the tape when the
counter reaches 00:00:00.
24. SKIP SEARCH Button - Press in the playback mode to
search forward in 30 second increments to a maximum of 3
minutes.
25. CHANNEL + / – Buttons - Press the + button to change to
a higher numbered channel set into memory.
Press the – button to change to a lower numbered channel
set into memory.
26. STOP Button - Press once to stop the tape.
27. PROGRAM Button - Press to confirm the programmed
timer recording and ON/OFF timer.
28. Direct Channel Selection Buttons (0-9) - Allows direct
access to any channel.
29. INDEX SEARCH + / – Buttons - Used to search for the
INDEX mark.
30. VOLUME + / – Buttons - Press the + button to increase, or
the – button to decrease the volume level.
31. Digital AUTO TRACKING Buttons - Allows automatic or
manual adjustment of tracking to minimize picture noise
during playback.
32. PLAY Button - Press to play a prerecorded tape.
DESCRIPTION OF CONTROLS
1. TV/CATV Switch - Used to select the TV/VCR or Cable
Box to be operated. (You can operate your cable box after
you have programed the remote control.)
2. TIMER Button - Used to set the TV/VCR to start recording
at a preset time.
3. CANCEL Button - Press to cancel existing setups or to
restore default values.
4. AUDIO SELECT Button - Switches sound between mono
and stereo, and SAP when receiving broadcasts in stereo
or SAP.
5. MENU Button - Press to display the On-Screen menu
function.
6. SET + / – Buttons - Used to select the option in the menu
or set timer recording, ON/OFF timer, channel set, picture
adjustment, auto repeat, clock and language.
7. ENTER Button - Press to enter selected setup.
8. MUTING Button - Press to turn off the sound. Press again
to turn the sound back on.
9. CALL Button - Displays the present time/day of the week,
channel, counter, speed selection (and VCR mode if VCR
is playing) on the TV screen.
10. REW (Rewind) Button - In the Stop mode, this button
rapidly winds the tape backwards. In the Play mode, this
button activates reverse search.
11. REC Button - Press once together with the PLAY button
to start normal recording. Additional presses activate
Instant Timer Recording.
12. POWER Button - Press to turn the TV/VCR on. Press
again to turn the TV/VCR off.
13. RE-VIEW Button - Used to locate the beginning of the
recorded program by the timer recording and starts playback
automatically.
14. COUNTER RESET Button - Used to reset the counter to
00:00:00.
15. RETURN Button - Switches between the present channel
and the last channel selected.
16. C.C. (Closed Caption) Button - Switches between Caption,
Text and TV modes for Closed-Captioned programs.
PLAY
STOPREC PAUSE
FFREW
TRACKING AUTO
SLEEPCALL
INPUT
ENTER
SET –
SET +
AUDIO SELECT
MENU
ZERO RETURN RESET
PROGRAM
SP/ EP RE-VIEW
EZ JECT
TV
CATV
TIMER
CANCEL
POWER
COUNTER
–INDEX SEARCH + C.C.
RETURN SKIP SEARCH
0
8
5
2
7
4
1
9
6
3
MUTING
CH
CH
VOL VOL
2
5
7
8
9
10
11
12
16
20
18
17
14
15
19
1
3
4
13
6
PLAY
STOPREC PAUSE
FFREW
TRACKING AUTO
SLEEPCALL
INPUT
ENTER
SET –
SET +
AUDIO SELECT
MENU
ZERO RETURN RESET
PROGRAM
SP/ EP RE-VIEW
EZ JECT
TV
CATV
TIMER
CANCEL
POWER
COUNTER
–INDEX SEARCH + C.C.
RETURN SKIP SEARCH
0
8
5
2
7
4
1
9
6
3
MUTING
CH
CH
VOL VOL
21
25
27
30
28
26 32
22
23
24 29
31
5B40401A-E/P01-09 23/01/2002, 10:269

10
BATTERY INSTALLATION
BATTERYPRECAUTIONS
NOTE: •When there is an obstacle between the TV/VCR and the transmitter, the transmitter may not operate.
•When direct sunlight, an incandescent lamp, fluorescent lamp or any other strong light shines on the
Remote sensor of the TV/VCR, the remote operation may be unstable.
The precautions below should be followed when using batteries in this device:
1. Use only the size and type of batteries specified.
2. Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment.
Reversed batteries may cause damage to the device.
3. Do not mix different types of batteries together (e.g.Alkaline and Carbon-zinc) or old batteries with fresh
ones.
4. If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury
from possible battery leakage.
5. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow
battery manufacturer’s directions.)
6. When you change the batteries, try to complete the task within three minutes. If you take longer than three
minutes, the remote control codes for your Cable Box may have to be reset (see page 11).
EFFECTIVE DISTANCE OF THE REMOTE CONTROL TRANSMITTER
REMOTE CONTROL (CONTINUED)
Install two “AA” (penlight
size) batteries, paying
attention to the polarity
diagram in the battery compartment.
Slide the battery compart-
ment cover in the direction
of the arrow.
Replace the compartment
cover.
1
2
3
15 FEET
30˚30˚
5B40401A-E/P10-19 15/01/2002, 12:5410

11
REMOTE PROGRAMMING
Setting the CATV or Satellite receiver
You can program your remote to operate your cable box, satellite receiver by using the instructions and codes listed
below. If the equipment does not respond to any of the codes listed below or to the search code function, use the
remote control supplied by the manufacturer.
Cable Box or Satellite setup
The remote control is programmed with CATV and/or Satellite codes for power on, power off, channel up, channel
down, and 10 key operation.
1. Find the CATV/Satellite brand from the list of codes shown below.
2. Slide the 2-way selector switch (TV/CATV switch) to “CATV”.
3. Press and hold down the CALL button.
4. With the CALL button held down, enter the first code number listed using the 10 key pad.
5. Release the CALL button.
6. Confirm the operation of the Cable Box/Satellite receiver.
•If your CATV or Satellite box does not respond to the first code, try the others listed. If it does not respond to any
code, try the Search Codes Function at the bottom of the page.
Search Codes Function:
1. Slide the 2-Way Mode Selector switch (TV/CATV switch) to CATV.
2. Press the TV POWER and RETURN buttons. Hold for at least three seconds and release.
3. Press TV POWER, see if the CATV or Satellite box responds.
4. If there was a response, press RETURN. The operating codes are now set. If there was no response, repeat
Step 3. If you repeat Step 3 52 times without a response, use the remote control which came with the equipment.
5. Press RETURN to exit.
ABC
Archer
Cableview
Citizen
Curtis
Dlamond
Eagle
Eastern
GC Brand
Gemini
General instrument
Hamlin
Hitachi
Jerrold
Macom
Magnavox
Memorex
Movietime
Oak
Panasonic
Paragon
Philips
Pioneer
Pulsar
024
032, 025
051, 032
022, 051
058, 059
024, 032, 025
029
034
032, 051
022, 043
065, 024, 025, 026, 027, 020,
021, 022, 057, 023
040, 041, 042, 045, 058, 064
049, 024
065, 024, 025, 026, 027, 020,
021, 022, 057, 023
049, 050,051,054
033
030
032, 051
039, 037, 048
055, 056, 060, 071
063
028, 029, 030, 052, 053, 031, 069
047, 062
051, 032
Puser
RCA
Realistic
Regal
Regency
Rembrandt
Samsung
Scientific Atlanta
SLMark
Sprucar
Strargate
Telecaption
Teleview
Texscan
Tocom
Toshiba
Unika
Universal
Videoway
Viewstar
Zenith
Zenith/Drake
Satellite
032
061, 070
032
058, 064, 040, 041, 042, 045,
068
034
037, 032, 051, 038
051
057, 058, 059
051, 047
051, 066
032, 051
067
047, 051
044
035, 036, 066
050
032, 025
022, 032
052
029, 030
063, 046
046
Echostar
Express VU
G.E.
G.I.
Gradiente
Hitachi
HNS (Hughes)
Panasonic
Philips
Primestar
Proscan
RCA
Sony
Star Choice
Toshiba
Uniden
100, 113, 114
100, 113
106
108
112
104, 111
104
105
102, 103
108
106, 109, 110
106, 109, 110
107
104, 108
101
102, 103
CODESDigital
Satellite
System
Cable Box CODES Cable Box CODES
5B40401A-E/P10-19 15/01/2002, 12:5411

12
UHF/
VHF
If you are using outdoor antenna (outdoor antenna not included), follow the instructions below that
correspond to your antenna system. If you are using a cable TV service (CATV), see page 13 for Cable TV
connections.
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm twin-lead wires)
Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
ANTENNA CONNECTIONS
Connect the UHF 300 ohm twin-lead wire to the
combiner (not supplied). Connect the VHF 300 ohm
twin-lead wire to the 300-75 ohm matching trans-
former. Attach the transformer to the combiner, then
attach the combiner to the antenna jack.
Separate VHF/UHFAntennas (75 ohm VHF cable and 300 ohm UHF twin-lead wires)
Connect the 75 ohm cable from the combination VHF/
UHF antenna to the antenna jack.
If your combination VHF/UHF antenna has a 300 ohm
twin-lead wire, the use of the 300-75 ohm matching
transformer may be necessary.
Connect the VHF 75 ohm cable and UHF 300 ohm
twin-lead wire to the combiner. Attach the combiner
to the antenna jack.
UHF/
VHF
UHF/
VHF
UHF/
VHF
75 OHM
COAXIAL
CABLE
VHF 300 ohm
UHF 300 ohm
300-75 OHM
MATCHING
TRANSFORMER
(not included)
COMBINER
(not included)
300-75 OHM
MATCHING
TRANSFORMER
(not included)
VHF 75 ohm
UHF 300 ohm
COMBINER
(not included)
5B40401A-E/P10-19 15/01/2002, 12:5412

13
This TV/VCR has an extended tuning range and can tune most cable channels without using a CableTV converter box.
Some cable companies offer “premium pay channels”in which the signal is scrambled. Descrambling these signals for
normal viewing requires the use of a descrambler device which is generally provided by the cable company.
FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE
For basic cable service not requiring a converter/descrambler box,
connect the CATV 75 ohm coaxial cable directly to the antenna jack
on the back of the TV/VCR.
CABLE TV CONNECTIONS
If you subscribe to a cable TV service which requires the use of a converter/descrambler box, connect the incoming
75 ohm coaxial cable to the converter/descrambler box. Using another 75 ohm coaxial cable, connect the output jack
of the converter/descrambler box to the antenna jack on the TV/VCR. Follow the connections shown below. Set the
TV/VCR to the output channel of the converter/descrambler box (usually channel 3 or 4) and use the converter/
descrambler box to select channels.
FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE
75 OHM
COAXIAL CABLE
If you subscribe to a cable TV service in which basic channels are unscrambled and premium channels require the
use of a converter/descrambler box, you may wish to use a signal splitter and an A/B switch box (available from the
Cable company or an electronics supply store). Follow the connections shown below. With the switch in the “B”
position, you can directly tune any nonscrambled channels on your TV/VCR. With the switch in the “A”position, tune
your TV/VCR to the output of the converter/descrambler box (usually channel 3 or 4) and use the converter/
descrambler box to tune scrambled channels.
FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE WITH
SCRAMBLED PREMIUM CHANNELS
SPLITTER B
A
INCOMING
75 OHM
CATV CABLE A/B SWITCH
75 OHM CABLE
TO TV/VCR
INCOMING
75 OHM
CATV CABLE 75 OHM CABLE
TOTV/VCR
CONVERTER/
DESCRAMBLER
CONVERTER/
DESCRAMBLER
UHF/
VHF
UHF/
VHF
UHF/
VHF
5B40401A-E/P10-19 15/01/2002, 12:5413

14
ENTER
SET –
SET +
AUDIO SELECT
MENU
ZERO RETURN
EZ JECT
TV
CATV
RESET
PROGRAM
SP/
EP RE-VIEW
TIMER
CANCEL
POWER
COUNTER
– INDEX SEARCH
+
C.C.
RETURN
SKIP SEARCH
0
8
5
2
7
4
1
9
6
3
PLAY
STOP
REC PAUSE
FF
REW
TRACKINGAUTO
SLEEP
CALL
INPUT
MUTING
CH
CH
VOL VOL
3
SETTING LANGUAGE
SYSTEM SET-UP
CLOCK SET
LANGUAGE/IDIOMA/LANGUE
AUTO CLOCK ON OFF
STANDARD TIME
DAYLIGHT SAVING TIME
〈
+/–/ENTER/MENU
〉
12
M E N U
TIMER REC SET
TV SET-UP
CH SET-UP
AUTO REPEAT ON OFF
SYSTEM SET-UP
〈
+/–/ENTER/MENU
〉
Press the MENU button.
Press the SET + or –button to select the SYSTEM
SET-UP option, then press the ENTER button.
This TV/VCR can display the on screen language in English, Spanish or French.
Language selection (step 3) will automatically appear on the screen when you press the MENU button
initially. Select language to use the other menu options.
Press the SET + or –button to select the
LANGUAGE option, then press the ENTER
button.
Press the SET + or –button to select the
desired language: English (ENGLISH), Spanish
(ESPAÑOL) or French (FRANCAIS), then press
the ENTER button.
ENGLISH
ESPAÑOL
FRANCAIS
〈
+/–/ENTER/MENU
〉
LANGUAGE/IDIOMA/LANGUE
4
Press the MENU button twice to return to
normal TV viewing.
MENU
SET
SET
ENTER
SET
SET
ENTER
SET
SET
ENTER
MENU
1 2 3
41
•If you press the MENU button
before the clock is not set,
SYSTEM SET-UP screen will
appear. See step 2 in this case.
5B40401A-E/P10-19 23/01/2002, 10:2914

15
3
AUTO CLOCK SETTING
1
The Auto Clock feature enables the automatic clock setting and updating, and also to set the Time Zone and Daylight
Saving Time by receiving XDS (Extended Data Service) information carried on the channel signal.
You must set the antenna connection before the AC cord plug is inserted into the AC outlet.
AUTO CLOCK SETTING
2
4
Press the MENU button.
Press the SET + or –button to
select the SYSTEM SET-UP
option, then press the ENTER button.
Using the SET + or –button,
select your Time Zone, then
press the ENTER button.
Press the MENU button until the
MENU screen is cleared.
2Press the SET + or –button
to select the STANDARD
TIME option, then press the
ENTER button.
NOTE: •AfterAuto Clock setting, in some case the clock may display the other time zone’s. You can correct the clock
by selecting your Time Zone setting above.
•When the clock is not set or you set the clock manually, Time Zone setting is not available.
SYSTEM SET-UP
CLOCK SET
LANGUAGE/IDIOMA/LANGUE
AUTO CLOCK ON OFF
STANDARD TIME
DAYLIGHT SAVING TIME
〈
+/–/ENTER/MENU
〉
ATLANTIC
CENTRAL
PACIFIC
HAWAII
AUTO
EASTERN
MOUNTAIN
ALASKA
〈
+/–/ENTER/MENU
〉
STANDARD TIME
M E N U
TIMER REC SET
TV SET-UP
CH SET-UP
AUTO REPEAT ON OFF
SYSTEM SET-UP
〈
+/–/ENTER/MENU
〉
TIME ZONE SETTING (STANDARD TIME)
•When shipped from factory, theAUTO CLOCK
option is set to AUTO position.
•If you turn the TV/VCR on inAuto Clock setting, the
clock is not set.
•With cable box connection, if theAuto Clock Setting
is unsuccessful, please select the PBS channel
carrying the XDS information, then turn the TV/VCR
off.After 30 minutes, turn the TV/VCR on, and if the
clock is not set automatically, set the clock manually.
(See page 17.)
CanadianViewers:
Please see note regarding the AUTO CLOCK SETTING
option on page 55.
WAIT 30 MINUTES! when the power
switch is off, after the connections of the
antenna and the power plug. Because the Auto
Clock setting feature is activate.
After the clock is set automatically, you may have to set
the Time Zone and Daylight Saving Time.
Press the POWER button to turn on the TV/VCR after
the Auto Clock operation completed.
POWER
MENU
SET
SET
ENTER
SET
SET
ENTER
SET
SET
ENTER
MENU
ENTER
SET –
SET +
AUDIO SELECT
MENU
ZERO RETURN
EZ JECT
TV
CATV
RESET
PROGRAM
SP/
EP RE-VIEW
TIMER
CANCEL
POWER
COUNTER
–INDEX SEARCH
+
C.C.
RETURN
SKIP SEARCH
0
8
5
2
7
4
1
9
6
3
PLAY
STOP
REC P
AU
FF
REW
TRACKING AUTO
SLEEP
CALL
INPUT
MUTING
CH
CH
VOL VOL
234
42
1
5B40401A-E/P10-19 23/01/2002, 10:2915

16
ENTER
SET –
SET +
AUDIO SELECT
MENU
ZERORETURN
EZ JECT
TV
CATV
RESET
PROGRAM
SP/
EP RE-VIEW
TIMER
CANCEL
POWER
COUNTER
–INDEX SEARCH+
C.C.
RETURN
SKIP SEARCH
0
8
5
2
7
4
1
9
6
3
PLAY
STOP
REC PAUSE
FF
REW
TRACKING AUTO
SLEEP
CALL
INPUT
MUTING
CH
CH
VOLVOL
1Press the MENU button. Press the SET + or –
button to select the SYSTEM SET-UP option,
then press the ENTER button. 2Press the SET + or –button to select the DAY-
LIGHT SAVING TIME option, then press the
ENTER button.
NOTE: •When shipped from factory, the DAYLIGHT SAVING TIME option is set toAUTO position.
•When the clock is not set, Daylight Saving Time setting is not available.
•When there is no Daylight Saving Time in your area, always select OFF position in step 3.
3Press the SET + or –button to select one of the
options, then press the ENTER button. Press the
MENU button until the MENU screen is cleared.
When you want to set the Daylight Saving Time manually,
on the first Sunday in April you set to “ON”, and on the last
Sunday in October you set to “OFF”.
M E N U
TIMER REC SET
TV SET-UP
CH SET-UP
AUTO REPEAT ON OFF
SYSTEM SET-UP
〈
+/–/ENTER/MENU
〉
SYSTEM SET-UP
CLOCK SET
LANGUAGE/IDIOMA/LANGUE
AUTO CLOCK ON OFF
STANDARD TIME
DAYLIGHT SAVING TIME
〈
+/–/ENTER/MENU
〉
ON
OFF
AUTO
〈
+/–/ENTER/MENU
〉
DAYLIGHT SAVING TIME
DAYLIGHT SAVING TIME SETTING
You can set the Daylight saving time automatically or manually.
MENU
SET
SET
ENTER
SET
SET
ENTER
1 2 3
31
for manual setting
(forward one hour)
for manual setting
(back one hour)
for automatic setting
(read XDS in the signal)
ON:
OFF:
AUTO:
MENU
SET
SET
ENTER
AUTO CLOCK SETTING (CONTINUED)
5B40401A-E/P10-19 23/01/2002, 10:2916

17
ENTER
SET –
SET +
AUDIO SELECT
MENU
ZERO RETURN
EZ JECT
TV
CATV
RESET
PROGRAM
SP/
EP RE-VIEW
TIMER
CANCEL
POWER
COUNTER
–INDEX SEARCH +
C.C.
RETURN
SKIP SEARCH
0
8
5
2
7
4
1
9
6
3
PLAY
STOP
REC PAUSE
FF
REW
TRACKING AUTO
SLEEP
CALL
INPUT
MUTING
CH
CH
VOL VOL
MANUAL CLOCK SETTING
1
You must set the date and time manually for timer recordings, ON/OFF Timer and Daylight Saving Time if
the Auto Clock process did not set them correctly.
Press the MENU button.
Press the SET + or –button to select the SYSTEM
SET-UP option, then press the ENTER button.
Pressthe SET+ or –buttonto select theCLOCK
SET option, then press the ENTER button.
SYSTEM SET-UP
CLOCK SET
LANGUAGE/IDIOMA/LANGUE
AUTO CLOCK ON OFF
STANDARD TIME
DAYLIGHT SAVING TIME
〈
+/–/ENTER/MENU
〉
M E N U
TIMER REC SET
TV SET-UP
CH SET-UP
AUTO REPEAT ON OFF
SYSTEM SET-UP
〈
+/–/ENTER/MENU
〉
NOTE: •After a power failure or disconnection of the power plug, the time display will be lost. In this case, set the
present time again if the Auto Clock did not set correctly.
•If you want to correct the digits while setting, press the CANCEL button until the item you want to correct,
then press the SET+ or –button to correct the desired setting.
•When you set the minute, you can change in 10-minutes step by holding down the SET + or –button.
Press the SET + or –button
to set the month, then press
the ENTER button.
3
Set the day, year and time
as in step 3. After setting the clock, date and time
starts functioning automatically.
CLOCK SET
〈
+/—/ENTER/CANCEL/MENU
〉
MONTH
DAY
YEAR
TIME
1
1 (SAT)
2000
12 :00 AM
8:30 AM WED
CLOCK SET
〈
+/—/ENTER/CANCEL/MENU
〉
MONTH
DAY
YEAR
TIME
1
23 (WED)
2002
8 :30 AM
2
EXAMPLE: Setting the clock to “8:30 AM”, 23th (WED) January, 2002.
4
MENU
SET
SET
ENTER
SET
SET
ENTER
1
1
SET
SET
ENTER
SET
SET
ENTER
234
•If you press the MENU button
before the clock is not set,
SYSTEM SET-UP screen will
appear. See step 2 in this case.
5B40401A-E/P10-19 23/01/2002, 10:2917

18
ENTER
SET –
SET +
AUDIO SELECT
MENU
ZERO RETURN
EZ JECT
TV
CATV
RESET
PROGRAM
SP/
EP RE-VIEW
TIMER
CANCEL
POWER
COUNTER
–INDEX SEARCH +
C.C.
RETURN
SKIP SEARCH
0
8
5
2
7
4
1
9
6
3
PLAY
STOP
REC PAUSE
FF
REW
TRACKING AUTO
SLEEP
CALL
INPUT
MUTING
CH
CH
VOL VOL
buttons. (for example, to select channel 2, press “0”, then “2”. If you press only “2”, channel selection will be delayed for
a few seconds.) For channels 10 and above, press the 2 digits in order.
CATV mode direct channel selection
When the TV/CATV menu option is in the CATV position, channels can be selected as follows:
TO SELECT CATV CHANNELS:
1-9 Press “0”twice, then 1-9 as needed. Example, to select channel 2, press “002”.
10-12 Press “0”, then the remaining 2 digits. Example, to select channel 12, press “012”.
13-99 Press the 2 digits in order. Example, to select channel 36, press “36”.
100-125 Press the 3 digits in order. Example, to select channel 120, press “120”.
TV OPERATION
VHF/UHF/CATV CHANNELS
CATV
VHF
2-13
STD/HRC/IRC
14-36
(A) (W)
37-59
(AA) (WW)
60-85
(AAA) (ZZZ)
86-94
(86) (94)
95-99
(A-5) (A-1)
100-125
(100) (125)
01
(5A)
TV
VHF
2-13
UHF
14-69
Press the Direct Channel selection buttons to select the channel.
TV mode direct channel selection
When the TV/CATV menu option is in the TV position, all channels can be instantly selected by using two
4
NOTE: •If a channel with no broadcast is selected, the sound will automatically be muted.
•If a station being viewed stops broadcasting, the TV will automatically shut itself off after 15 minutes.
To turn on the TV/VCR,
press the POWER button. Adjust the volume level by
pressing the VOLUME + or –
button. The volume level will
be indicated on the screen by green
bar. As the volume level increases,
so do the number of bar. If the
volume decreases, the number of
green bar also decreases.
Set the TV/CATV menu
option to the appropriate
position. (See page 23.)
TV - VHF/UHF Channels
CATV - CABLE TV Channels
VOLUME 32
0
1
3
NOTE FOR CHANNELS 1-12:
If only 1 or 2 buttons are pressed, the corresponding channel will be selected in 2 seconds.
CH 012
2
12
2
1
4
VOL VOL
POWER
TV CATV
•Make sure the TV/CATV switch on
the remote is set to “TV”. Move the
switch to “CATV”only if you plan to
operate a cable box. On the CATV
setting the remote will only operate
the cable box functions.
5B40401A-E/P10-19 23/01/2002, 10:2918
