SERVICE MANUAL
COPYRIGHT © 2006 Victor Company of Japan, Limited No.YA415
2006/7
COLOUR TELEVISION
YA41520067
AV-21B16
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-26
BASIC CHASSIS
CG4

1-2 (No.YA415)
SPECIFICATION
Design and specifications are subject to change without notice.
Items Contents
Dimensions (W ×H ×D) 59.8 cm ×47.6 cm ×47.7 cm
Mass 22 kg
TV RF System B/G, I, D/K
Colour System PAL
SECAM
NTSC 3.58 / NTSC 4.43
Receiving
Frequency
VHF Low
VHF High
UHF
CATV
46.25 MHz to 140.25 MHz
147.25 MHz to 423.25 MHz
431.25 MHz to 863.25 MHz
Mid (X to Z+2, S1 to S10) / Super (S11 to S20) / Hyper (S21 to S41) bands
Intermediate Frequency VIF 38.0 MHz (B/G, I, D/K)
SIF 32.5 MHz (5.5 MHz: B/G)
32MHz (6.0 MHz: I)
31.5MHz (6.5 MHz: D/K)
Colour Sub Carrier PAL
SECAM
NTSC
4.43 MHz
4.40625 MHz / 4.25 MHz
3.58 MHz / 4.43 MHz
Power Input AC110 V to AC240 V, 50 Hz / 60 Hz
Power Consumption 100 W (Max) / 65 W(Avg)
Picture Tube Visible size: 52.3 cm measured diagonally
( H : 41.6 cm ×V : 31.5 cm)
High Voltage 26.5 kV±1.5kV (at zero beam current)
Speaker 5 cm ×9 cm, Oval type ×1
Audio Power Output 3 W (monaural)
Aerial Input Terminal 75 Ωunbalanced, coaxial
Input Terminal
[Front / Rear]
Video
Audio
1 V(p-p), 75 Ω, RCA pin jack ×2
500 mV(rms) (-4 dBs), High impedance, RCA pin jack ×2
Output Terminal
[Rear]
Video
Audio
1 V(p-p), 75Ω, RCA pin jack ×1
500 mV(rms) (-4 dBs), Low impedance, RCA pin jack ×1
Headphone Jack 3.5 mm mini jack ×1
Remote Control Unit RM-C360GY (Battery size : AA / R6 / UM-3 ×2)

1-4 (No.YA415)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 FEATURES
PICTURE MODE
This function can adjust the picture settings automatically.
There are BRIGHT, STANDARD and SOFT in the PICTURE
MODE.
RETURN +
This function can set a channel you frequently view to the
Return Channel and you can view that channel at any time with
one-touch.
CHILD LOCK
Use this function to prevent children from operating the TV
without parental consent.
VNR
This function can reduce the picture noise.
2.2 TECHNINAL INFORMATION
2.2.1 MAIN MI-COM (CPU) PIN FUNCTION
Pin
No. Pin name I/O Function Pin
No. Pin name I/O Function
1 REMOCON I Remote control 22 PROTECT I Low B protect detection [Detect: H]
2 SDA2 I/O Data for Inter IC control (For main memory) 23 P_ON/OFF I Main power control [ON : H]
3 SCL2 O Clock for Inter IC contorl (For main memory) 24 LOCK - Not used
4 BUS_FREE - Not used 25 3.58/OTH - Not used
5 NC - Not used 26 4.5/OTH - Not used
6 KEY1 I Key scan for front key (Menu CH -/+) 27 H_SYNC I Horizontal sync
7 KEY2 I Key scan for front key (Vol -/+) 28 I/II - Not used
8 ECO IN - Not used 29 OSD_Ys O Ys (blanking) for OSD
9 AFT I AFT voltage for tuner 30 OSD_B O Blue for OSD
10 LED[POW] - Not used 31 OSD_G O Green for OSD
11 LED[TIM] O Liting for timer [Liting : H] 32 OSD_R O Red for OSD
12 GND - GND 33 NC - Not used
13 NC - Not used 34 RST I CPU reset [Reset:L]
14 NC - Not used 35 V_SYNC I Vertical sync
15 TV/V - Not used 36 TCLOCK - Not used
16 TEXT RESET - Not used 37 SDA1 I/O Data for Inter IC control (For generally)
17 ACL ON/OFF - Not used 38 SCL1 O Clock for Inter IC contorl (For generally)
18 VOL O Volume control 39 VDD I 3.3V
19 A_MUTE O Aodio muting [Muting : H] 40 OSC1 I System clock oscillation (4MHz)
20 NC - Not used 41 OSC2 O System clock oscillation (4MHz)
21 TEXT/OTH - Not used 42 VSS - GND

(No.YA415)1-5
SECTION 3
DISASSEMBLY
3.1 DISASSEMBLY PROCEDURE
3.1.1 REMOVING THE REAR COVER
• Unplug the power cord.
(1) Remove the 6 screws [A], 1 screw [B] and 1 screw [C] as
shown in Fig.1.
(2) Withdraw the REAR COVER toward you.
CAUTION:
When reinstalling the rear cover, carefully push it inward after
inserting the MAIN PWB into the REAR COVER groove.
3.1.2 REMOVING THE MAIN PW BOARD
• Remove the REAR COVER.
(1) Slightly raise the both sides of the MAIN PWB by hand.
(2) Withdraw the MAIN PWB backward.
(If necessary, take off the wire clamp and connectors, etc.)
3.1.3 REMOVING THE SPEAKER
• Remove the REAR COVER.
(1) Remove the 2 screws [D] as shown in Fig.1.
(2) Follow the same steps when removing the other hand
SPEAKER.

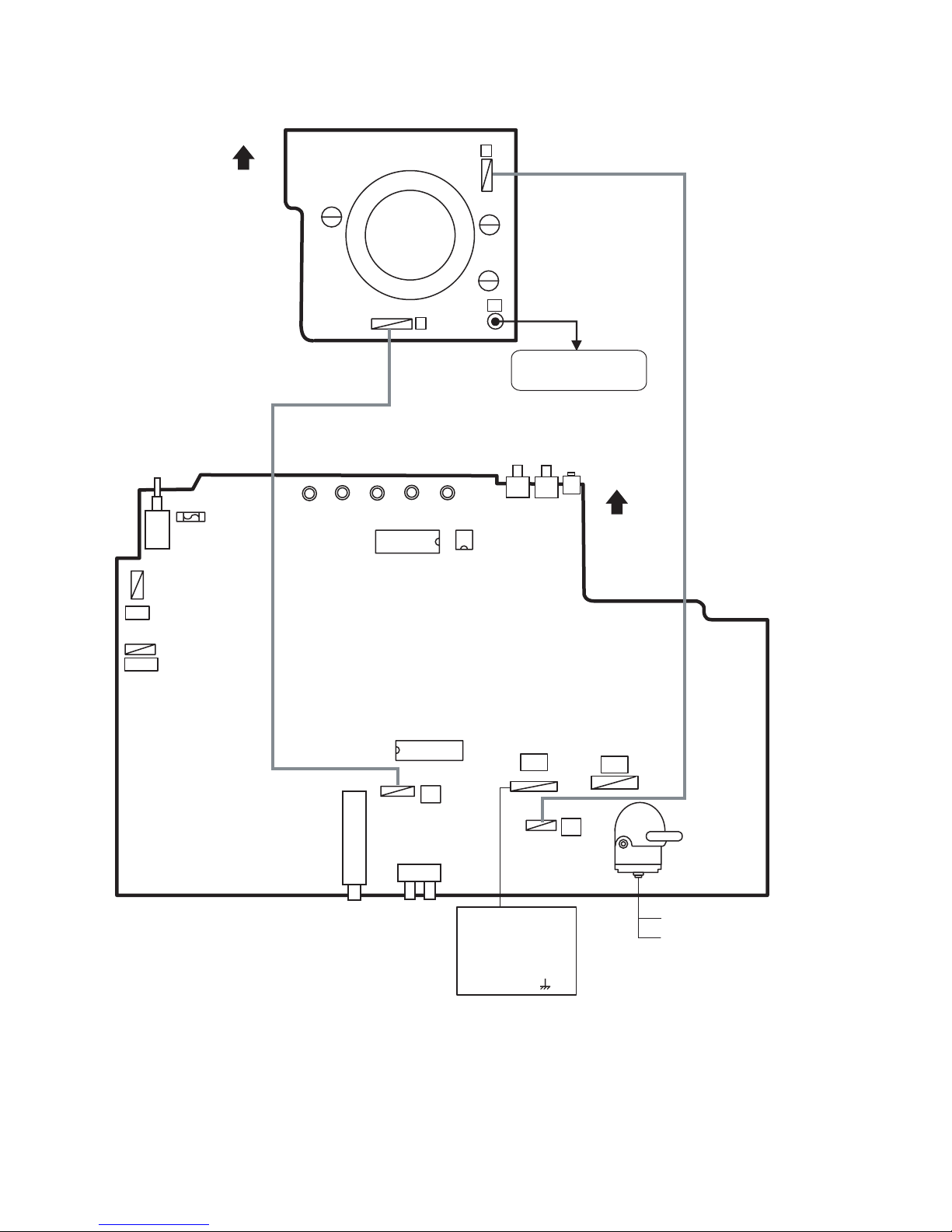

3.1.4 CHECKING THE MAIN PW BOARD
• To check the back side of the MAIN PWB.
(1) Pull out the MAIN PWB. (Refer to REMOVING THE MAIN
PW BOARD).
(2) Erect the MAIN PWB vertically so that you can easily check
its back side.
CAUTIONS:
• Before turning on power, make sure that the CRT earth wire
and other connectors are properly connected.
• When repairing, connect the DEG. COIL to the DEG.
connector on the MAIN PWB.
3.1.5 WIRE CLAMPING AND CABLE TYING
(1) Be sure to clamp the wire.
(2) Never remove the cable tie used for tying the wires
together.
Should it be inadvertently removed, be sure to tie the wires
with a new cable tie.

1-6 (No.YA415)

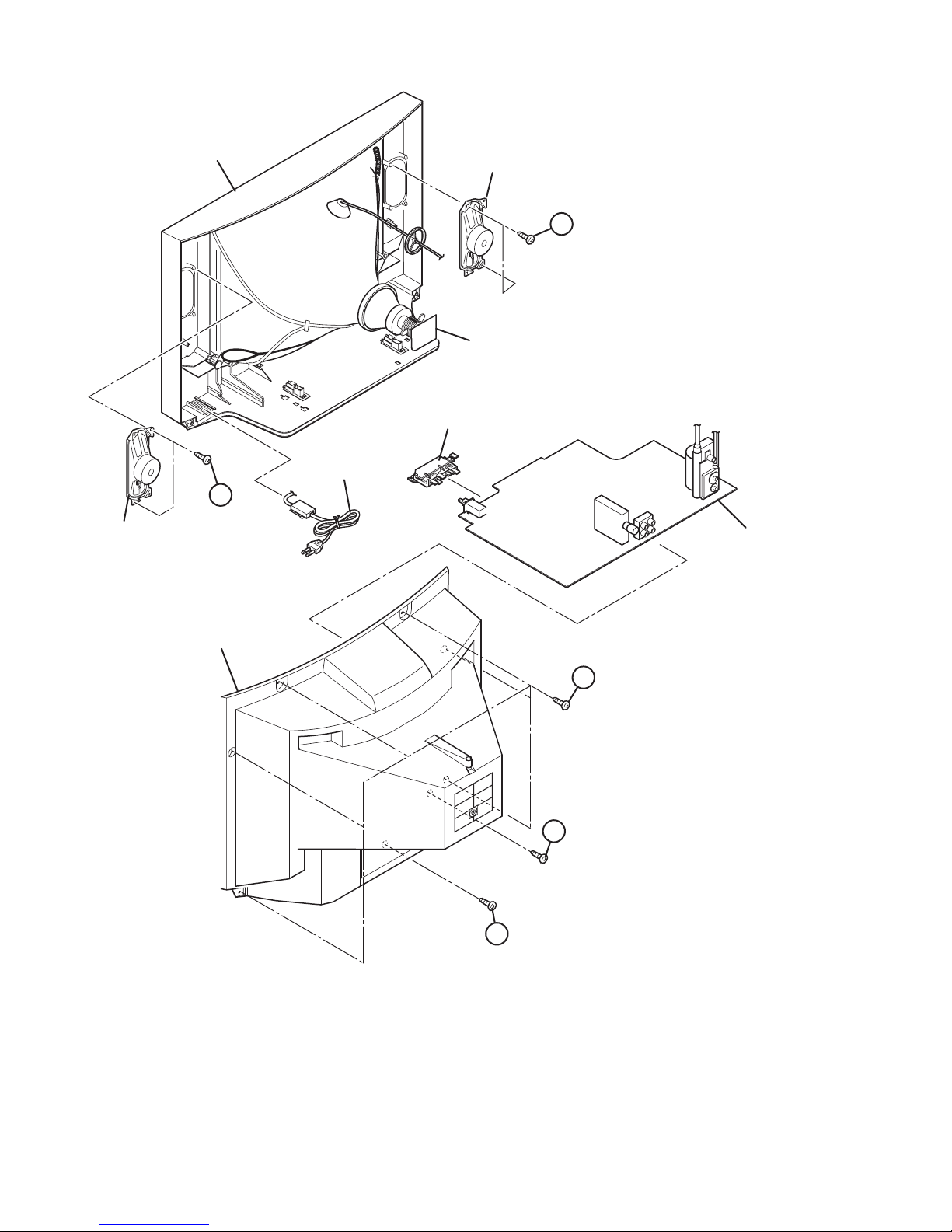

Fig.1
FRONT CABINET SPEAKER
REAR COVER
MAIN PWB
SPEAKER
CRT SOCKET PWB
(Within MAIN PWB)
A
C
B
D
D
POWER CORD
FRONT LED PWB
(Within MAIN PWB)

(No.YA415)1-7
3.2 MEMORY IC REPLACEMENT
• This model uses the memory IC.
• This memory IC stores data for proper operation of the video and drive circuits.
• When replacing, be sure to use an IC containing this (initial value) data.
3.2.1 MEMORY IC REPLACEMENT PROCEDURE
1. Power off
Switch off the power and disconnect the power plug from the
AC outlet.
2. Replace the memory IC
Be sure to use the memory IC written with the initial setting
values.
3. Power on
Connect the power plug to the AC outlet and switch on the
power.
4. System constant check and setting
• It must not adjust without adjustment signals.
(1) Press the [DISPLAY] key and the [PICTURE MODE]
key of the REMOTE CONTROL UNIT simultaneously.
(2) The SERVICE MENU screen of Fig. 1 will be displayed.
(3) While the SERVICE MENU is displayed, again press the
[DISPLAY] key and [PICTURE MODE] key
simultaneously, and the SYSTEM CONSTANT SET
screen of Fig. 2 will be displayed.
(4) Check the setting values of the SYSTEM CONSTANT
SETTING. If the value is different, select the setting item
with the [MENU /]key, and set the correct value with
the [MENU - / +] key.
(5) Press the [DISPLAY] key twice, and return to the normal
screen.
5. Receiving channel setting
Refer to the OPERATING INSTRUCTIONS and set the
receive channels (Channels Preset) as described.
6. User settings
Check the user setting items according to the given in page
later.
Where these do not agree, refer to the OPERATING
INSTRUCTIONS and set the items as described.
7. SERVICE MENU setting
Verify what to set in the SERVICE MENU, and set whatever is
necessary (Fig.1).
Refer to the SERVICE ADJUSTMENT for setting.
Fig.1
Fig.2
POWER
123
456
789
RETURN+0-/--
MODE
SYSTEM
COLOUR
TV/VIDEO
CHANNEL
SCAN
OFF
TIMER
DISPLAY
MENU
CHANNEL VOLUME
MUTING
SOUND
MENU
MODE key
MENU
/ key
DISPLAY key
MENU
- / + key
NUMBERS
key
KEY ASSIGNMENT OF REMOTE CONTROL UNIT
SERVICE MENU
1.IF 2.V/C
3.DEF 4.VSM PRESET
5.PRESET
6.SETUP TOUR OFF
1-6 : SELECT DISP : EXIT
************ **.***
*** ** **** ***
COLOUR : TRIPLE
BILINGUAL : NO
TUNER : MU
ECO SENSOR
: NO
LANGUAGE : E/C/M/I
SYSTEM CONSTANT SET 1
: SELECT
- / + : OPERATE DISP : EXIT
/
B/B SOUND : OFF
LOCK : 180
COLOUR AUTO
: NO
QSS
: MINT
ALC : NO
TEXT RATE
: 20
SYSTEM CONSTANT SET 2
: SEL - / + : OPE DISP : EXIT
/
AMP TUNER : NO
VNR
: YES
TEXT TABLE : CYL
VOLUME PWM : POS
SYSTEM CONSTANT SET 3
: SEL - / + : OPE DISP : EXIT
/
SYSTEM CONSTANT- I
SYSTEM CONSTANT- II
SYSTEM CONSTANT- III

1-8 (No.YA415)
3.2.2 SETTINGS OF FACTORY SHIPMENT
3.2.2.1 BUTTON OPERATION
3.2.2.2 REMOTE CONTROL DIRECT OPERATION
3.2.2.3 REMOTE CONTROL MENU OPERATION
(1) MENU-1
(2) MENU-2
(3) MENU-3
(4) MENU-4
3.2.3 SYSTEM CONSTANT SETTING
Setting item Setting position
POWER Off
CHANNEL PR1
VOLUME 10
Setting item Setting position
CHANNEL PR1
VOLUME 10
TV/VIDEO TV
PICTURE MODE BRIGHT
COLOUR SYSTEM PAL
SOUND SYSTEM B/G
Setting item Setting position
INPUT TV
ON TIMER PR1 0:00
VNR OFF
Setting item Setting position
AUTO SHUTOFF OFF
CHILD LOCK OFF
BLUE BACK OFF
Setting item Setting position
SETUP TOUR ON
LANGUAGE ENGLISH
Setting item Setting position
BRIGHT STANDARD SOFT
TINT 15 15 15
COLOUR 15 15 15
BRIGHT 15 15 15
CONT. 30 15 11
SHARP 151512
Setting item Setting value
COLOUR TRIPLE
BILINGUAL NO
TUNER MU
ECO SENSOR NO
LANGUAGE E / C / M / I
B/B SOUND OFF
LOCK 180
COLOUR AUTO NO
QSS MINT
ALC NO
TEXT RATE 20
AMP TUNER NO
VNR YES
TEXT TABLE CYL
VOLUM PWM POS

(No.YA415)1-9

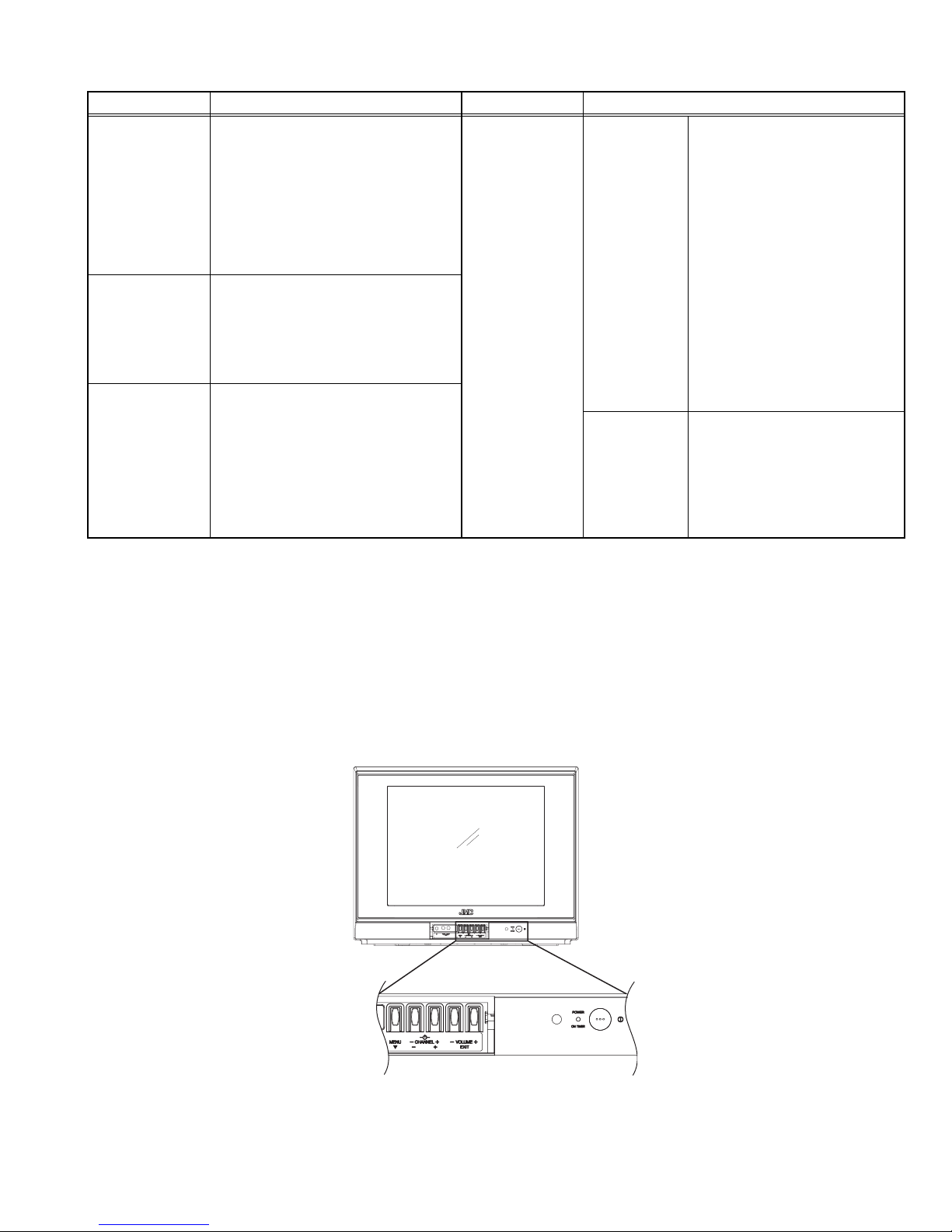

3.2.4 SERVICE MENU SETTING ITEMS
3.2.5 REPLACEMENT OF IC301 (IF V/C DECODER)
•For the IC301(IF V/C DECODER) of this model, all data are written in the micro-computer. So, write the data in the micro-
computer in accordance with the following procedures before starting adjustment.
PROCEDURES
(1) Turn the POWER OFF.
(2) Replace the IC301 with a new one.
(3) While pressing [MENU] button and [VOL+] button ON the FRONT CABINET simultaneously, turn the POWER ON. When the
POWER is turned ON, the data is written in the micro-computer immediately.
LOCATIONS OF FRONT PANEL BUTTONS
Setting item Setting value Setting item Setting value
2. V/C 1.CUT OFF
2.DRIVE
3.BRIGHT
4.CONT.
5.COLOUR
6.TINT
7.SECAM BL ADJUST
8.SHARP [Do not adjust]
9.AMP T. SHARP [Do not adjust]
5. PRESET
[Do not adjust]
Colour System 1. C-TRAP FIX
2. SHARP PEAK
3. ABL
4. GAMMA
5. Y. DELAY TIME
6. BLACK EXP START
7. C-BPF
8. CW / SCP
9. VIF DET LEVEL
11. IF AGC MIN
12. VIF AGC
13. VIF PMOD
19. VNR
20. RGB LIM
21. RGB LIMIT LEVEL
23. TEXT H. POSITION
24. READ DATA
3. DEFLECTION 1. VER. POSITION
2. HOR. POSITION
3. VER. HEIGHT
4. VER. LINEARITY
5. VER. SCURVE
6. HOR. VCO ADJUST [Do not adjust]
4.VSM PRESET TINT
COLOUR
BRIGHT
CONT.
SHARP
Sound System 10. SIF DET LEVEL
14. SIF BPF BW ADJUST
15. SIF TRAP F0 ADJUST
16. SIF TRAP F0 ADJUST 2
17. SIF -TRAP
18. SIF -BPF
22. SIF SW

1-10 (No.YA415)
3.3 REPLACEMENT OF CHIP COMPONENT
3.3.1 CAUTIONS
(1) Avoid heating for more than 3 seconds.
(2) Do not rub the electrodes and the resist parts of the pattern.
(3) When removing a chip part, melt the solder adequately.
(4) Do not reuse a chip part after removing it.
3.3.2 SOLDERING IRON
(1) Use a high insulation soldering iron with a thin pointed end of it.
(2) A 30w soldering iron is recommended for easily removing parts.
3.3.3 REPLACEMENT STEPS
1. How to remove Chip parts
[Resistors, capacitors, etc.]
(1) As shown in the figure, push the part with tweezers and
alternately melt the solder at each end.
(2) Shift with the tweezers and remove the chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply extra solder to each lead.
(2) As shown in the figure, push the part with tweezers and
alternately melt the solder at each lead. Shift and remove
the chip part.
NOTE :
After removing the part, remove remaining solder from the
pattern.
2. How to install Chip parts
[Resistors, capacitors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder. Then heat and melt the solder at both ends of the
chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder.
(3) First solder lead Aas indicated in the figure.
(4) Then solder leads Band C.
SOLDER SOLDER
A
B
C
A
B
C

(No.YA415)1-11
SECTION 4
ADJUSTMENT
4.1 ADJUSTMENT PREPARATION
(1) There are 2 ways of adjusting this TV : One is with the
REMOTE CONTROL UNIT and the other is the
conventional method using adjustment parts and
components.
(2) The adjustment using the REMOTE CONTROL UNIT is
made on the basis of the initial setting values. The
setting values which adjust the screen to the optimum
condition can be different from the initial setting
values.
(3) Make sure that connection is correctly made AC to AC
power source.
(4) Turn on the power of the TV and measuring instruments for
warming up for at least 30 minutes before starting
adjustments.
(5) If the receive or input signal is not specified, use the most
appropriate signal for adjustment.
(6) Never touch the parts (such as variable resistors,
transformers and condensers) not shown in the adjustment
items of this service adjustment.
4.2 PRESET SETTING BEFORE ADJUSTMENT
Unless otherwise specified in the adjustment items, preset the
following functions with the REMOTE CONTROL UNIT.
4.3 MEASURING INSTRUMENT AND FIXTURES
(1) DC voltmeter (or digital voltmeter)
(2) Oscilloscope
(3) Signal generator
(Pattern generator : PAL / SECAM / NTSC)
(4) Remote control unit
4.4 ADJUSTMENT ITEMS
CHECK ITEM
• B1 VOLTAGE check
TUNER / IF CIRCUIT
• IF VCO adjustment
• DELAY POINT adjustment
FOCUS
• FOCUS adjustment
DEFLECTION CIRCUIT
• V.HEIGHT / V.POSITION adjustment
• H. POSITION adjustment
• V.LINEARITY / V.S-CURVE adjustment
VIDEO CIRCUIT
• WHITE BALANCE adjustment
• SUB BRIGHT adjustment
• SUB CONTRAST adjustment
• SUB COLOUR adjustment
• SUB TINT adjustment
• SECAM BALACK OFFSET adjustment
VSM PRESET SETTING
• VSM PRESET setting
Item Preset value
PICTURE MODE BRIGHT
TINT / COLOUR / BRIGHT / CONT. / SHARP Centre
VNR OFF
BLUE BACK OFF
OFF TIMER OFF
AUTO SHUT OFF OFF

1-12 (No.YA415)
4.5 ADJUSTMENT LOCATIONS
1Pin TP-91(B1)
2Pin NC
3Pin X-ray1
4Pin X-ray2
5Pin TP-E( )
HVT
S1 HV
U
IC301
MEMORY IC
IC702
IC701
F901
DEG
TU001
FRONT
TOP
MAIN PWB
CRT SOCKET PWB (SOLDER SIDE)
E1
U
T
PW
UPPER:FOCUS
LOWER:SCREEN
TP-47G/R TP-47B
TP-E
T
CRT EARTH WIRE
(BRAIDED ASS'Y)
51

(No.YA415)1-13
4.6 BASIC OPERATION OF SERVICE MENU
4.6.1 TOOL OF SERVICE MENU OPERATION
Operate the SERVICE MENU with the REMOTE CONTROL UNIT.
4.6.2 SERVICE MENU ITEMS
With the SERVICE MENU, various adjustments can be made, and they are broadly classified in the following items of settings.
4.6.3 HOW TO ENTER THE SERVICE MENU
Press the [DISPLAY] key and the [PICTURE MODE] key of
the REMOTE CONTROL UNIT simultaneously. Then enter the
SERVICE MENU mode as shown in Fig.1.
Fig.1
4.6.4 HOW TO STORE OF SETTING VALUE
The setting value will be stored automatically when release the
REMOTE CONTROL UNIT keys
4.6.5 HOW TO EXIT THE SERVICE MENU
When complete the adjustment work, press the [DISPLAY]
key to return to the SERVICE MENU. And then press the
[DISPLAY] key again, return to the normal screen.
4.6.6 SELECTION OF SUB MENU SCREEN
Press one of [1] to [5] keys of the REMOTE CONTROL UNIT
and select the SUB MENU SCREEN form the SERVICE
MENU.
1.IF Adjustment of the IF circuits.
2.V/C Adjustment of the VIDEO circuit.
3.DEF Adjustment of the DEFLECTION circuit.
4.VSM PRESET Adjustment of the initial setting values of VSM condition as STANDARD, SOFT and BRIGHT.
5.PRESET Adjustment of the RF circuit [Do not adjust].
6.SETUP TOUR It should be able to select mode (LANGUAGE and AUTO CH PRESET) [Should be OFF].
SERVICE MENU
1.IF 2.V/C
3.DEF 4.VSM PRESET
5.PRESET
6.SETUP TOUR OFF
1-6 : SELECT DISP : EXIT
************ **.***
*** ** **** ***
POWER
123
456
789
RETURN+0-/--
MODE
SYSTEM
COLOUR
TV/VIDEO
CHANNEL
SCAN
OFF
TIMER
DISPLAY
MENU
CHANNEL VOLUME
MUTING
SOUND
MENU
MODE key
MENU
/ key
DISPLAY key
MENU
- / + key
NUMBERS
key
SERVICE MODE SELECT KEY

1-14 (No.YA415)
4.6.7 METHOD OF SETTING
1. IF
[1. VCO]
[2. DELAY POINT]
NOTE:
When the setting value has been changed, the new value will be stored in memory immediately.
2. V/C, 3. DEF and 4. VSM PRESET
NOTE:
When the setting value has been changed, the new value will be stored in memory immediately.
5. PRESET (Do not adjust)
6. SETUP TOUR
(1) [1] key Select 1. IF.
(2) [1] key Select 1. VCO.
(3) [MENU /]keys Select setting items.
(4) [MENU - / +] keys Adjust the values of the items.
(5) [DISPLAY] key As you press this key twice, you will return to the SERVICE MENU.
(1) [1] key Select 1. IF.
(2) [2] key Select 2. DELAY POINT.
(3) [MENU - / +] keys Set (adjust) the setting values of the setting items.
(4) [DISPLAY] key When this is pressed twice, you will return to the SERVICE MENU.
(1) [2] to [4] keys Select one from 2. V/C, 3. DEF and 4. VSM PRESET.
(2) [MENU /]keys Select setting items.
(3) [MENU - / +] keys Adjust the values of the items.
(4) [DISPLAY] key When this is pressed, return to the SERVICE MENU.
(1) By pressing the [6] key, you can change the ON or OFF [should be OFF].
Should be OFF:
If it is ON, when you turn off the power and turn on a power again, the JVC’s logo will be shown
about 15 seconds automatically, and the SETUP TOUR starts.
(2) [MENU - / +] keys Select Language.
(3) [MENU ]key Auto Search.

(No.YA415)1-15
4.6.8 SERVICE MENU FLOW CHART
SERVICE MENU
IF
1. VCO
2. DELAY POINT
1-2 : SELECT DISP : EXIT
1. IF
VCO (CW) ***.** MHz
TOO HIGH
ABOVE REFERENCE
JUST REFERENCE
BELOW REFERENCE
TOO LOW
AFT ADJUST *** (**)
VCO ADJUST *** (**)
FINE
DISP : EXIT
DELAY POINT UHF
AGC TAKE-OVER
**
- / + : OPERATE DISP : EXIT
6. SETUP TOUR OFF
BRIGHT
TINT **
COLOUR **
BRIGHT **
CONT. **
SHARP **
- / + : OPERATE DISP : EXIT
4. VSM PRESET
/ : SELECT
DEF PAL
- / + : OPERATE DISP : EXIT
3. DEF
/ : SELECT
50Hz
1. VER. POSITION **
V/C PAL
1. CUTOFF
(R) * **
(G) * **
(B) * **
- / + : OPERATE DISP : EXIT
50Hz
2. V/C
/ : SELECT
PRESET PAL
1. C-TRAP FIX *
- / + : OPERATE DISP : EXIT
50Hz B/G
5. PRESET
/ : SELECT
SERVICE MENU
1.IF 2.V/C
3.DEF 4.VSM PRESET
5.PRESET
6.SETUP TOUR OFF
1-6 : SELECT DISP : EXIT
************ **.***
************ **.***
*** ** **** ***
ON / OFF
(By pressing [6] key)

1-16 (No.YA415)
4.7 INITIAL SETTING VALUE OF SERVICE MENU
•Adjustment of the SERVICE MENU is made on the basis of the initial setting values ; however, the new setting values which
set the screen in its optimum condition may differ from the initial setting.
•Do not change the initial Setting Values of the Setting (Adjustment) items not listed in "ADJUSTMENT PROCEDURE".
[2. V/C]
[3. DEFLECTION]
[4.VSM PRESET]
Setting item Variable range Initial setting value
PAL SECAM NTSC 3.58 NTSC 4.43
1.CUT OFF RED -128 - [phone]
GREEN -128 - [phone]
BLUE -128 - [phone]
2.DRIVE RED -128 - +127 +0 +0 +0 +0
BLUE -128 - +127 +0 +0 +0 +0
3.BRIGHT -128 - +127 +0 +0 +0 +0
4.CONT. -63-+63+0+0+0+0
5.COLOUR -63 - +63 +0 +0 +0 -5
6.TINT TV -63 - +63 --- --- --- ---
VIDEO -63 - +63 --- --- +0 -2
7.SECAM BL ADJUST -31 - +31 +0 +0 +0 +0
8.SHARP
(Do not adjust)
TV -31 - +31 +2 (Fixed) +2 (Fixed) +2 (Fixed) +2 (Fixed)
VIDEO -31 - +31 +15 (Fixed) +15 (Fixed) +15 (Fixed) +15 (Fixed)
Setting item Variable range Initial setting value
fv : 50Hz fv : 60Hz
1. VER. POSITION -4 - +3 -1 -3
2. HOR. POSITION -16 - +15 +3 +3
3. VER. HEIGHT -64 - +63 -35 +1
4. VER. LINEARITY -32 - +31 +15 -1
5. VER. SCURVE -32 - +31 -32 +0
6. HOR. VCO ADJUST [Do not adjust] -63 - +63 +0 +0
Setting item Variable range Initial setting value
BRIGHT STANDARD SOFT
TINT 0 - 30 15 15 15
COLOUR 0 - 30 15 15 15
BRIGHT 0 - 30 15 15 15
CONT. 0 - 30 30 15 11
SHARP 0 - 30 15 15 12

(No.YA415)1-17
[5. PRESET]
The items in the following table, it is no requirement for adjustment.If values had changed by the miss operation, set the
initial setting values in the following table.
zCOLOUR SYSTEM (Do not adjust)
zSOUND SYSTEM (Do not adjust)
Setting item Variable range Initial setting value (Fixed value)
PAL SECAM NTSC 3.58 NTSC 4.43
1. C TRAP FIX 0 - 1 1 1 1 1
2. SHARP PEAK 0 - 1 0 0 0 0
3.ABL 0-11111
4. GAMMA 0 - 1 0 0 0 0
5. Y. DELAY TIME TV 0 - 3 0 2 2 3
VIDEO 0-30202
6. BLACK EXP START 0 - 3 3 3 3 3
7.C-BPFTV 0-11100
VIDEO 0-11111
8. CW / SCP 0 - 1 0 0 0 0
9. VIF DET LEVEL -63 - +63 +0 +0 +0 +0
11. IF AGC MIN 0 - 1 0 0 0 0
12. VIF AGC 0 - 1 0 0 0 0
13. VIF PMOD 0 - 1 0 0 0 0
19. VNR 0 - 63 15 15 15 15
20. RGB LIM 0 - 1 1 1 1 1
21. RGB LIMIT LEVEL 0 - 7 2 2 2 2
23. TEXT H. POSITION -16 - +15 -3 -3 -3 -3
24. READ DATA --- --- --- --- ---
Setting item Variable range Initial setting value (Fixed value)
B/G I D/K M
10. SIF DET LEVEL -7 - +7 +0 +0 +0 +0
14. SIF BPF BW ADJUST -7 - +7 +0 +0 +0 +0
15. SIF TRAP FO ADJUST -7 - +7 +0 +0 +0 +0
16. SIF TRAP FO ADJUST 2 -7 - +7 +0 +0 +0 +0
17.SIF-TRAP 0-10000
18.SIF-BPF 0-10001
22.SIFSW 0-11110

1-18 (No.YA415)
4.8 ADJUSTMENT PROCEDURE
4.8.1 CHECK ITEM
4.8.2 TUNER / IF CIRCUIT
Item Measuring
instrument Test point Adjustment part Description
B1 VOLTAGE Signal
generator
DC voltmeter
TP-B1 : 1-pin
TP-E : 5-pin
(S1 connector)
[MAIN PWB]
(1) Receive a whole black signal.
(2) Connect a DC voltmeter to 1-pin and 5-pin of S1
connector.
(3) Make sure that the voltage is DC116.2V±2.0V.
Item Measuring
instrument Test point Adjustment part Description
IF VCO Signal
generator
Remote
control unit
[1. IF]
1. VCO
• Please use a signal generator which frequency output is
correctly calibrated.
(1) Receive any broadcast.
(2) Select 1.IF from the SERVICE MENU.
(3) Select < 1.VCO >.
(4) Select VCO ADJUST with [MENU /]key.
(5) Press [MENU - / +] keys until the colour of the
characters TOO HIGH changes blue to yellow. Then
gradually press the [MENU - / +] keys until the TOO
LOW changes yellow. At this time, confirm that the
value of VCO ADJUST is near +00.
(6) Select AFT ADJUST with [MENU /]key.
(7) Press [MENU - / +] keys until the characters JUST
REFERENCE changes blue to yellow.
(8) Press the [DISPLAY] key three times to return to
normal screen.
VCO (CW) ***.** MHz
TOO HIGH
ABOVE REFERENCE
JUST REFERENCE
BELOW REFERENCE
TOO LOW
AFT ADJUST ***(**)
FINE
DISP : EXIT
VCO ADJUST ***(**)
YELLOW
ADJUSTMENT AT THIS POINT
IS USELESS
ABOVE REFERENCE
TOO HIGH
BELOW REFERENCE
JUST REFERENCE
TOO LOW
ADJUSTMENT POINT

(No.YA415)1-19
4.8.3 FOCUS
DELAY POINT
(AGC)
Signal
generator
Remote
control unit
[1. IF]
2. DELAY POINT
(AGC TAKE-OVER)
(1) Receive a black and white signal (colour off).
(2) Select 1. IF.
(3) Select < 2. DELAY POINT >.
(4) Set the setting values of the setting items as shown
bellow table.
(5) Then adjust the [MENU - / +] keys until video noise
disappears.
(6) Turn to other channels and make sure that there are
no irregularities.
Item Measuring
instrument Test point Adjustment part Description
DELAY POINT UHF
AGC TAKE-OVER **
- / + : OPERATE DISP : EXIT
Setting Item Variable range Initial setting value
45
35
DELAY POINT
(AGC TAKE-OVER) 0 - 127
NTSC3.58
OTHER
Item Measuring
instrument Test point Adjustment part Description
FOCUS Signal
generator
FOCUS VR
[In HVT]
(1) Receive a crosshatch signal.
(2) While watching the screen, adjust the FOCUS VR to
make the vertical and horizontal lines as fine and
sharp as possible.
(3) Make sure that when the screen is darkened, the
lines remain in good focus.

1-20 (No.YA415)
4.8.4 DEFLECTION CIRCUIT
• There are 2 modes of adjustment (setting value) 50Hz mode and 60Hz mode, depending upon the kind of signals (vertical frequency
50Hz / 60Hz).
• When adjusted in 50Hz mode and 60Hz mode will be automatically set.
The setting (adjustment) using the REMOTE CONTROL UNIT is made on the basis of the initial setting values.The setting
values which adjust the screen to the optimum condition can be different from the initial setting values.
• Make sure that the adjustment is properly done on the screen of 60Hz mode.
NOTE:
• Adjust to make both 50Hz & 60Hz are the same v. size and fine straight line.
• When adjust again, adjust 50Hz mode first.
• When adjust in 60Hz mode, only 60Hz mode is adjust.
Item Measuring
instrument Test point Adjustment part Description
V. HEIGHT /
V. POSITION
Signal
generator
Remote
control unit
[3. DEF]
1. VER. POSITION
3. VER. HEIGHT
(1) Receive a crosshatch signal.
(2) Select 3. DEF from the SERVICE MENU.
(3) Select < 1. VER. POSITION >.
(4) Set the initial setting value of < 1. VER. POSITION >.
(5) Adjust < 1. VER. POSITION > to make the vertical
centre fall on the display centre.
(6) Select <3. VER. HEIGHT >.
(7) Set the initial setting value of <3. VER. HEIGHT >.
(8) Adjust <3. VER. HEIGHT > to make the vertical
screen size be 92% of the picture size.
Fig.1
H. POSITION Signal
generator
Remote
control unit
[3. DEF]
2. HOR. POSITION
(1) Receive a circle pattern signal.
(2) Select 3. DEF from the SERVICE MENU.
(3) Select < 2. HOR. POSITION >.
(4) Set the initial setting value of < 2. HOR. POSITION >.
(5) Adjust <2.HOR. POSITION> to be equal the width of
(A) and (B) as shown in Fig.2.
Fig.2
V.LINEARITY /
V.S-CURVE
Signal
generator
Remote
control unit
[3. DEF]
4. VER. LIN.
5. VER. SCURVE
• If the vertical linearity is noticeably deteriorated, perform
the following steps.
(1) Receive a crosshatch signal.
(2) Select 3. DEF from the SERVICE MENU.
(3) Select < 4. VER. LIN. >.
(4) Set the initial setting value of < 4. VER. LIN. >.
(5) Select < 5. VER. SCURVE >.
(6) Set the initial setting value of < 5. VER. SCURVE >.
(7) Adjust < 4. VER. LIN. > and < 5. VER. SCURVE >
so that the space of upper and lower lines as shown
in Fig.3 on TOP, CENTRE and BOTTOM become
uniform.
Fig.3
Screen
size
size
100%
(A) (B)
Top
Centre
Bottom

(No.YA415)1-21
4.8.5 VIDEO CIRCUIT
The setting (adjustment) using the REMOTE CONTROL UNIT is made on the basis of the initial setting values. The setting
values which adjust the screen to the optimum condition can be different from the initial setting values. Do not change the
initial setting values of the setting items not listed in "ADJUSTMENT PROCEDURE".
Item Measuring
instrument Test point Adjustment part Description
WHITE
BALANCE
(LOW LIGHT)
Signal
generator
Remote
control unit
[2.V/C]
1. CUT OFF (R)
1. CUT OFF (G)
1. CUT OFF (B)
SCREEN VR
[IN HVT]
(1) Receive a black and white signal (colour off).
(2) Select 2. V/C from the SERVICE MENU.
(3) Select < 1. CUT OFF >.
(4) Set the initial setting value of < 1. CUT OFF >.
(5) Press the [1] key to show the single horizontal line
on screen.
(6) Turn the SCREEN VR fully counter-clockwise, then
slowly turn it clockwise to where one of a red, blue or
green colour is faintly visible.
(7) Adjust the two colors which did not appear until the
single horizontal line that is displayed becomes
white using the [4] to [9] keys.
(8) Turn the SCREEN VR to where the single horizontal
line glows faintly.
(9) Press the [2] key to turn off the single horizontal line.
(10) Press the [DISPLAY] key twice to return to the nor-
mal screen.
WHITE
BALANCE
(HIGH LIGHT)
Signal
generator
Remote
control unit
[2.V/C]
2. DRIVE (R)
2. DRIVE (B)
(1) Receive a black and white signal (colour off).
(2) Select 2. V/C from the SERVICE MENU.
(3) Select < 2. DRIVE >.
(4) Set the initial setting value of < 2. DRIVE >.
(5) Adjust the screen until it becomes white using the
[4], [6], [7] and [9] keys.
(6) Press the [DISPLAY] key twice to return to the nom-
al screen.
SUB BRIGHT Remote
control unit
[2. V/C]
3. BRIGHT
(1) Receive any broadcast.
(2) Select 2. V/C from the SERVICE MENU.
(3) Select < 3. BRIGHT >.
(4) Set the initial setting value of < 3. BRIGHT >.
(5) If the brightness is not the best with the initial setting
value, make fine adjustment until you get the best
brightness.
SUB
CONTRAST
Remote
control unit
[2. V/C]
4. CONT.
(1) Receive any broadcast.
(2) Select 2. V/C from the SERVICE MENU.
(3) Select < 4. CONT >.
(4) Set the initial setting value of < 4. CONT >.
(5) If the contrast is not the best with the initial setting
value, make fine adjustment until you get the best
contrast.
123
CUTOFF ON
(H.LINE ON)
CUTOFF OFF
(H.LINE OFF)
R G B
G.CUTOFF( )
B. CUTOFF( )
B. CUTOFF( )
G.CUTOFF( )
456
789
KEY ASSIGNMENT OF REMOTE CONTROL UNIT
R. CUTOFF( )
R. CUTOFF( )
123
R B
456
789
KEY ASSIGNMENT OF REMOTE CONTROL UNIT
B. DRIVE( )R. DRIVE( )
R. DRIVE( ) B. DRIVE( )
