JVC AV32L5EKGY User manual

No.51779
A
V32L5EKG
Y
A
V32L5EIG
Y
1COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD. Jun. 2001
AV32L5EKGY
AV32L5EIGY
CONTENTS
!SPECIFICATIONS ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･････････････････････････････
･･････････････････････････････････････････････････････････
･････････････････････････････ 2
!SAFETY PRECAUTIONS ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･･･････････････････････
･･････････････････････････････････････････････
･･･････････････････････ 4
!FEATURES････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･･･
･･････
･･･ 5
!MAIN DIFFERENCE LIST ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･･･････････････････････
･･････････････････････････････････････････････
･･･････････････････････ 5
!SPECIFIC SERVICE INSTRUCTIONS ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･････････････
･･････････････････････････
･････････････ 6
!SERVICE ADJUSTMENTS ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･････････････････････
･･････････････････････････････････････････
･････････････････････ 12
!PARTS LIST････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ･
･･
･31
★
OPERATING INSTRUCTIONS
★
STANDARD CIRCUIT DIAGRAM ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････ ････････････････
････････････････････････････････
････････････････ 2-1
SERVICE MANUAL
COLOUR TELEVISION
BASIC CHASSIS
MF

No.51779
A
V32L5EKG
Y
A
V32L5EIG
Y
2
SPECIFICATIONS
CONTENTS
Item AV32L5EKGY AV32L5EIGY
Dimensions ( W×
××
×H×
××
×D ) 855mm×550mm×568mm
Mass 54.2kg
TV RF System CCIR I CCIR B/G, I, D/K, L, L’
Colour System PAL
NTSC 3.58 / 4.43 (Play back only) PAL / SECAM NTSC 3.58 / 4.43 (Play back only)
Sound System NICAM(I) A2 (B/G, D/K), NICAM (B/G, I, D/K, L)
Teletext System Fastext(United Kingdom system)
TOP(German system) Fastext(United Kingdom system)
TOP(German system)
WST(World standard system)
Receiving Frequency
VHF 47MHz～470MHz
UHF 470MHz～862MHz 470MHz～862MHz
French CATV 116MHz～172MHz / 220MHz～469MHz
Intermediate Frequency
VIF Carrier 38.9MHz(I) 38.9MHz(B/G, D/K, I, L), 33.95MHz(L’)
SIF Carrier 33.5MHz(6.0MHz : I) 33.4MHz(5.5MHz : B/G) / 32.9MHz(6.0MHz : I)
Colour Sub Carrier
PAL 4.43MHz 4.43MHz
SECAM 4.40625MHz / 4.25MHz
NTSC 3.58MHz / 4.43MHz 3.58MHz / 4.43MHz
Power Input AC 220V～240V , 50Hz
Power Consumption 189W(Maximum), 140W(Average)
Picture Tube Visible size : 76cm, Measured diagonally
High Voltage 31.0kV (at zero beam current)
Speaker 20×4cm Oval×2
Audio Output Rated power output : 7.5W+7.5W
Input / Output terminals
EXT-1 21-pin Euro connector (SCART socket), Video, Audio L/R, RGB signal input are available
TV broadcast output (Video and Audio L/R) are available
EXT-2 21-pin Euro connector (SCART socket), S-Video, Video, Audio L/R, RGB signal input are available
AV selector (TV LINK) function is available
EXT-3 21-pin Euro connector (SCART socket), Video, Audio L/R, RGB signal input are available
EXT-4 RCA pin type, S-Video, Video, Audio L/R signal input are available
Audio output RCA pin type, Variable audio L/R and sub woofer output are available
Aerial socket 75Ωunbalanced, Coaxial
Headphone jack Stereo mini jack (φ3.5mm )
Remote Control Unit RM-C56 (AAA/R03 dry cell battery×2)
Design & specifications are subject to change without notice.
+1kV
-1.5kV

No.51779
A
V32L5EKG
Y
A
V32L5EIG
Y
3
■
■■
■21-pin Euro connector (SCART socket) : EXT-1 / EXT-2 / EXT-3
(P-P= Peak to Peak, S-W= Sync tip to white peak, B-W= Blanking to white peak)
Pin
No. Signal Designation Matching Value EXT-1 EXT-2 EXT-3
1 AUDIO R output 500mVrms(Nominal),
Low impedance ○
(TV OUT) ○ (LINE OUT) NC
2 AUDIO R input 500mVrms(Nominal),
High impedance ○○○
3 AUDIO L output 500mVrms(Nominal),
Low impedance ○
(TV OUT) ○ (LINE OUT) NC
4 AUDIO GND ○○○
5 GND (B) ○○○
6 AUDIO L input 500mVrms(Nominal),
High impedance ○○○
7Binput 700mVB-W, 75Ω○○
NC
8FUNCTION SW
(SLOW SW) Low : 0-3V, High : 8-12V, High impedance ○○○
9 GND (G) ○○○
10 SCL3 NC ○NC
11 G input 700mVB-W, 75Ω○○
NC
12 SDA3 NC ○NC
13 GND (R) ○○○
14 GND (YS)○○ NC
15 R / C input R : 700mVB-W, 75Ω
C : 300mVP-P, 75Ω
○
(only R) ○○ (only C)
16 Ys input Low : 0 - 0.4, High : 1 - 3V, 75Ω○ ○ NC
17 GND(VIDEO output) ○○○
18 GND(VIDEO input) ○○○
19 VIDEO output 1VP-P(Negative going sync), 75Ω○
(TV) ○ (LINE OUT) NC
20 VIDEO / Y input 1VP-P(Negative going sync), 75Ω○
(only VIDEO input) ○○
21 COMMON GND ○○○
[
Pin assignment]

No.51779
A
V32L5EKG
Y
A
V32L5EIG
Y
4
SAFETY PRECAUTIONS
1. The design of this product contains special hardware and many
circuits and components specially for safety purposes. For
continued protection, no changes should be made to the original
design unless authorized in writing by the manufacturer.
Replacement parts must be identical to those used in the original
circuits. Service should be performed by qualified personnel
only.
2. Alterations of the design or circuitry of the product should not be
made. Any design alterations or additions will void the
manufacturer's warranty and will further relieve the manufacturer
of responsibility for personal injury or property damage resulting
therefrom.
3. Many electrical and mechanical parts in the product have special
safety-related characteristics. These characteristics are often not
evident from visual inspection nor can the protection afforded by
them necessary be obtained by using replacement components
rated for higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in the
Parts List of Service Manual. Electrical components having such
features are identified by shading on the schematics and by (!)
on the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety
characteristics as the recommended replacement part shown in
the Parts List of Service Manual may cause shock, fire, or other
hazards.
4. The leads in the products are routed and dressed with ties,
clamps, tubing’s, barriers and the like to be separated from live
parts, high temperature parts, moving parts and / or sharp edges
for the prevention of electric shock and fire hazard. When
service is required, the original lead routing and dress should be
observed, and it should be confirmed that they have been
returned to normal, after re-assembling.
WARNING
1. The equipment has been designed and manufactured to meet international safety standards.
2. It is the legal responsibility of the repairer to ensure that these safety standards are maintained.
3. Repairs must be made in accordance with the relevant safety standards.
4. It is essential that safety critical components are replaced by approved parts.
5. If mains voltage selector is provided, check setting for local voltage.

No.51779
A
V32L5EKG
Y
A
V32L5EIG
Y
5
FEATURES
"New chassis design enable use of an interactive on screen
control.
"The TELETEXT SYSTEM has a built-in FASTEXT (UK system),
TOP (German system) and WST (world standard system)
system.
"Pure FLAT CRT reproduce fine textured.
"Digi Pure pro : Auto digi pure with motion picture compensation.
"Because this TV unit corresponds to multiplex broadcast, users
can enjoy music programs and sporting events with live realism.
In addition, BILINGUAL programs can be heard in their original
language.
"Built-in ECO (ECONOMY, ECOLOGY) MODE.
In accordance with the brightness in a room, the brightness
and/or contrast of the picture can be adjusted automatically to
make the optimum picture which is easy on the eye.
"Users can make VCR dubbing of picture and sound by controlling
the AV selector to select an optional source at the EXT-2 output
shown in figure bellow.
MAIN DIFFERENCE LIST
!
!!
!
Model name
Part name AV32L5EKGY AV32L5EIGY
MAIN PWB SMF-1901A-U2 SMF-1001A-U2
!RATING LABEL LC20091-024A-U LC20091-042A-U
EURO LABEL AEM1052-021-E AEM1052-020-E
!INST BOOK LCT0909-001A-U LCT0910-001A-U
REG. SHEET AEM3148-001-E ×
TV EXT-1 EXT-3
EXT-2
EXT-4

No.51779
A
V32L5EKG
Y
A
V32L5EIG
Y
6
SPECIFIC SERVICE INSTRUCTIONS
DISASSEMBLY PROCEDURE
REMOVING THE REAR COVER
1. Unplug the power cord.
2. As shown in the Fig. 1, remove the 11 screws marked A.
3. Withdraw the rear cover toward you.
REMOVING THE SIDE CONTROL JACK ASSEMBLY
"After removing the rear cover.
1. As shown in the Fig. 1, remove the screw marked B.
2. While slightly raise the side control jack assembly, remove the 2
claws under the side control jack assembly.
3. As shown in Fig 2, disconnect the connector “SR”, “SL”, “S”, “F”
and “K”.
REMOVING THE SIDE CONTROL PWB
"After removing the rear cover and side control jack assembly.
1. As shown in Fig.2, remove the 3 claws Cfrom back side of the
side control jack assembly.
2. Pull out the SIDE CONTROL PWB.
REMOVING THE CHASSIS
"After removing the rear cover.
1. Slightly raise the both sides of the chassis by hand and remove
the two claws under the both sides of the chassis from the front
cabinet.
2. Withdraw the chassis backward.
(If necessary, take off the wire clamp, connectors etc.)
REMOVING THE SPEAKER BOX
"After removing the rear cover.
1. As shown in Fig. 1, remove the 2 screws marked D.
NOTE : When removing the screws marked Dof the speaker box
assembly, remove the lower side screw first, and then
remove the upper one.
2.Remove the 2 screws Eattaching the speaker box.
3.Remove the 2 screws Fattaching the speaker.
4.Follow the same steps when removing the other hand speaker.
REMOVING THE AV TERMINAL BOARD
"After removing the rear cover.
1.As shown in Fig. 1, remove the 3 screws marked G.
2.As shown in Fig. 3, remove the 2 claws marked Hunder the
CHASSIS.
3.As shown in Fig. 3, remove the AV TERMINAL BOARD slightly in
the direction of arrow I.
CHECKING THE PW BOARD
To check the back side of the PW Board.
1) Pull out the chassis. (Refer to REMOVING THE CHASSIS).
2) Erect the chassis vertically so that you can easily check the
back side of the PW Board.
[CAUTION]
"When erecting the chassis, be careful so that there will be no
contacting with other PW Board.
"Before turning on power, make sure that the wire connector is
properly connected.
"When conducting a check with power supplied, be sure to confirm
that the CRT EARTH WIRE (BRAIDED ASS’Y) is connected to the
CRT SOCKET PW board.
WIRE CLAMPING AND CABLE TYING
1.Be sure to clamp the wire.
2.Never remove the cable tie used for tying the wires together.
Should it be inadvertently removed, be sure to tie the wires with a
new cable tie.
Fig. 3
AV SW PWB
H
I
A
V TERMINAL
BOARD
SIDE CONTROL
PWB
Fig. 2
H
SR
SL
S
F
K
Connector
C
C
(Rear view)

No.51779
A
V32L5EKG
Y
A
V32L5EIG
Y
7
FRONT CABINET
CRT
SOCKET
PWB
FRONT
CONTROL
PWB POWER &
DEF. PWB
CLAW
CLAW
MAIN PWB
CONTROL
BASE
CHASSIS
REAR COVER
Fig. 1
SPEAKER
BOX
A
V SＷ
ＷＷ
Ｗ
PWB
BG
A
SIDE
CONTROL
JACK
ASSEMBLY
SPEAKER
BOX
SPEAKER
D
E
F
SPEAKER
A
V TERMINAL
BOARD
D
E
F
Fig. 2
100Hz
PWB
MICON
PWB
POWER CORD

No. 51779
A
V32L5EKG
Y
A
V32L5EIG
Y
8
REMOVING THE CRT
!Replacement of the CRT should be performed by 2 or more
persons.
"After removing the cover, chassis etc.,
1. Putting the CRT change table on soft cloth, the CRT change table
should also be covered with such soft cloth (shown in Fig.4).
2. While keeping the surface of CRT down, mount the TV set on the
CRT change table balanced will as shown in Fig.5.
3. Remove 4 screws marked by arrows with a box type screw driver
as shown in Fig.5.
"Since the cabinet will drop when screws have been removed, be
sure to support the cabinet with hands.
4. After 4 screws have been removed, put the cabinet slowly on
cloth (At this time, be carefully so as not to damage the front
surface of the cabinet) shown in Fig.6.
"The CRT should be assembled according to the opposite
sequence of its dismounting steps.
!The CRT change table should preferably be smaller that the CRT
surface, and its height be about 35cm.
!About CRT Spacer
An appropriate CRT spacer should be used in the corresponding
CRT in accordance with the type of the CRT.
When a CRT is replaced, special attention should be paid to this
matter.
COATING OF SILICON GREASE FOR ELECTRICAL
INSULATION ON THE CRT ANODE CAP SECTION.
"Subsequent to replacement of the CRT and HV transformer or
repair of the anode cap, etc. by dismounting them, be sure to
coat silicon grease for electrical insulation as shown in Fig.7.
Wipe around the anode button with clean and dry cloth. (Fig.7)
Coat silicon grease on the section around the anode button. At
this time, take care so that any silicon greases dose not stick to
the anode button. (Fig.8)
★
★★
★Silicon grease product No. KS - 650N
CRT CHANGE TABLE
CLOTH
A
PPROX.
35cm
Fig. 4
Fig. 7 Fig. 8
A
pprox.
20mm (Do not
coat grease on
this section
Silicon grease
should be coated
by 5mm or more
from the outside
diameter of
anode cap.
A
node button
(No sticking of
silicon grease) Coating position
of silicon grease
A
node cap
A
node button
CRT
Silicon grease
coating
Fig. 6
CRT
CABINET CRT
CHANGE TABLE
Fig. 5

No. 51779
A
V32L5EKG
Y
A
V32L5EIG
Y
9

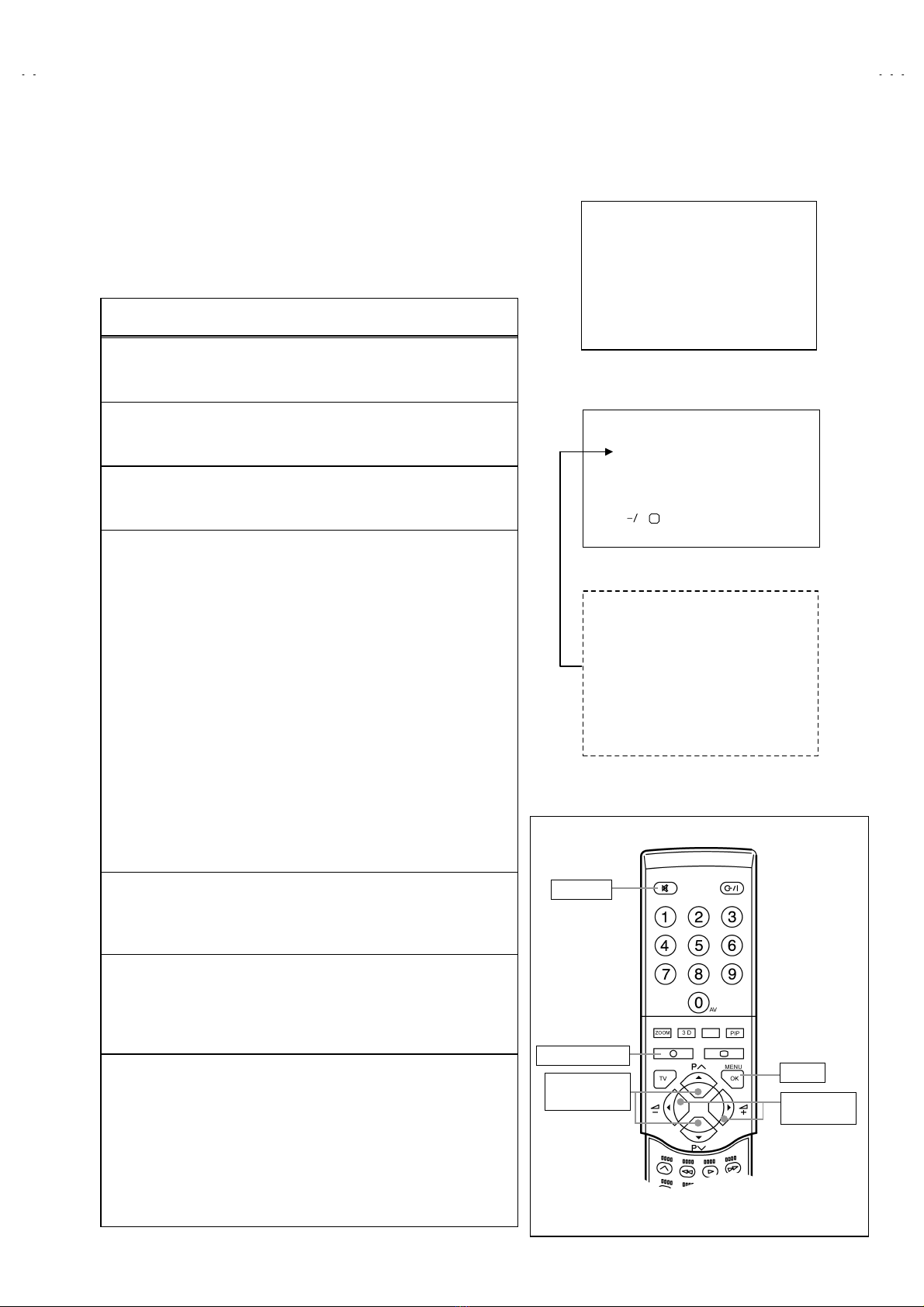

REPLACEMENT OF MEMORY ICs
1. Memory ICs
This TV use memory ICs. In the memory ICs, there are memorized data
for correctly operating the video and deflection circuits. When replacing
memory ICs, be sure to use ICs written with the initial values of data.
2. Procedure for replacing memory ICs
PROCEDURE
(1) Power off
Switch the power off and unplug the power cord from the wall outlet.
(2) Replace ICs.
Be sure to use memory ICs written with the initial data values.
(3) Power on
Plug the power cord into the wall outlet and switch the power on.
(4) Check and set SYSTEM CONSTANT SET:
It must not adjust without signal.
1) Press the
INFORMATION key and the MUTING key of the
REMOTE CONTROL UNIT simultaneously.
2) The SERVICE MENU screen of Fig. 1 will be displayed.
3) While the SERVICE MENU is displayed, press the
INFORMATION key and MUTING key simultaneously, and the
SYSTEM CONSTANT SET screen of Fig. 2 will be displayed.
4) Check the setting values of the SYSTEM CONSTANT SET of
Table 1. If the value is different, select the setting item with the
FUNCTION UP/DOWN key, and set the correct value with the
FUNCTION -/+ key.
5) Press the
MENU(OK) key to memorize the setting value.
6) Press the
INFORMATION key twice, and return to the normal
screen.
(5) Setting of receive channels
Set the receive channel.
For setting, refer to the OPERATING INSTRUCTIONS.
(6) Setting of SERVICE MENU
Verify the setting items of the SERVICE MENU of Table 2, and reset
where necessary.
For setting, refer to the SERVICE ADJUSTMENTS.
(7) User settings
Check the user setting values of Table 3, and if setting value is
different, set the correct value.
For setting, refer to the OPERATING INSTRUCTIONS.
SERVICE MENU
1. IF 2. V/C
3. AUDIO 4. DEF
5. VSM PRESET 6. STATUS
7. PIP 8. ---
9. SHIPPING (OFF) 0. BUS FREE
1-9 : SELECT : EXITi
Fig.1
SYSTEM CONSTANT SET
+ : STORE : EXIT
1. DESTINATION **
OK i
Fig.2
2. CRT TYPE 16 : 9
3. PURITY NO
4. PICTURE TILT YES
5. DIGIPURE PRO YES
6. PIP 1 TUNER
7. PIC & TEXT YES
8. DOLBY NO
9. BBE YES
10. PROGRESSIVE YES
11. TDA9178 YES
12. TONE IC YES
13. FLAT YES
REMOTE CONTROL UNIT KEY ASSIGNMENT
INFORMATION MENU
MUTING
FUNCTION
UP/DOWN FUNCTION
- / +

No. 51779
A
V32L5EKG
Y
A
V32L5EIG
Y
10
SETTING VALUES OF SYSTEM CONSTANT SET (TABLE 1)
Setting item Setting content AV32L5EKGY AV32L5EIGY
1.DESTINATION EK EI
2.CRT TYPE 16 : 9 16 : 9
3.PURITY NO NO
4.PICTURE TILT YES YES
5.DIGIPURE PRO YES YES
6.PIP 1 TUNER 1 TUNER
7.PIC & TEXT YES YES
8.DOLBY NO NO
9.BBE YES YES
10.PROGRESSIVE YES YES
11.TDA9178 YES YES
12.TONE IC YES YES
13.FLAT YES YES
SERVICE MENU SETTING ITEMS (TABLE 2)
Setting item Setting value Setting item Setting value
1. IF 1. VCO
2. ATT ON/OFF 5. VSM PRESET COOL
NORMAL
WARM
1.CONT.
2.BRIGHT
3.SHARP
4.COLOUR
5.HUE
6.WDR R
7.WDR G
8. WDR B
6. STATUS
(Do not adjust) VPS
PDC
2. V / C 1. RGB BLK
2. WDR R
3. WDR G
4. WDR B
5. BRIGHT
6. CONTRAST
7. COLOUR
8. HUE
9. SHARP
10. VCO ADJUSTMENT
11. VIDEO AGC
12. SYNC SLICE
3. AUDIO
(Do not adjust) 1. ERR LIMIT
2. A2 ID THR
7. PIP 1. PIP VCO ADJ
9. SHIPPING
(Do not adjust) OFF4. DEF. 1. V-SHIFT
2. V-SIZE
3. H-CENT
4. H-SIZE
5. TRAPEZ
6. EW-PIN
7. COR-PIN
8. COR-UP
9. COR-LO
10. ANGLE
11. BOW
12. V-S.CR
13. V.LIN
0.BUS FREE
(Do not adjust)
EK EU EI
16 : 9 4 : 3
YES NO
YES NO
YES NO
YES NO
YES NO
YES NO
1 TUNER 2 TUNER NO
YES NO
YES NO
YES NO
YES NO

No. 51779
A
V32L5EKG
Y
A
V32L5EIG
Y
11
USER SETTING VALUES (TABLE 3)
Setting item Setting value Setting item Setting value
SUB POWER ON VOLUME 10
SHIPPING CHANNEL PR1 DISPLAY INDICATED
PRESET CHANNEL See ; OPERATING
INSTRUCTIONS. ZOOM MODE PANORAMIC
PICTURE SETTING EXT SETTING
TINT
CONTRAST
BRIGHT
SHARP
COLOUR
ECO MODE
COOL
CENTER
CENTER
CENTER
CENTER
OFF
ID
DUBBING BLANK
EXT-1→EXT-2
PICTURE FEATURES FEATURES
DIGITAL VNR
DIGIPURE PRO
COLOUR SYSTEM
4:3 AUTO ASPECT
AUTO
AUTO
TV : According to preset CH
EXT : AUTO
PANORAMIC
SLEEP TIMER
BLUE BLACK
CHILD LOCK
DECODER (EXT-2)
OFF
ON
ID : No.0000, All CH : OFF
All CH : OFF
SOUND SETTING INSTALL
BASS
TREBLE
BALANCE
TV SPEAKER
HYPER SOUND
BBE
CENTER
CENTER
CENTER
L / R
OFF
ON
LANGUAGE
EDIT ENGLISH PR CHANNEL ONLY
OTHERS : BLANK

No. 51779
A
V32L5EKG
Y
A
V32L5EIG
Y
12
SERVICE ADJUSTMENTS
BEFORE STARTING SERVICE ADJUSTMENT
1. There are 2 ways of adjusting this TV: One is with the
REMOTE CONTROL UNIT and the other is the conventional
method using adjustment parts and components.
2. The setting (adjustment) using the REMOTE CONTROL
UNIT is made on the basis of the initial setting values. The
setting values that adjust the screen to the optimum
condition can be different from the initial setting values.
3. Make sure that connection is correctly made to AC power
source.
4. Turn on the power of the TV and measuring instrument for
warming up for at least 30 minutes before starting adjustment.
5. If the receive or input signal is not specified, use the most
appropriate signal for adjustment.
6. Never touch parts (such as variable resistors, transformers and
condensers) not shown in the adjustment items of this service
adjustment.
7. Preparation for adjustment (presetting):
Unless otherwise specified in the adjustment items, preset the
following functions with the REMOTE CONTROL UNIT:
Setting position
PICTURE MODE (VSM) NORMAL
TINT, CONTRAST, BRIGHT
SHARP, COLOUR CENTER
SLEEP TIMER OFF
BALANCE CENTER
ECO OFF
ZOOM PANORAMIC
MEASURING INSTRUMENT AND FIXTURES
1.DC voltmeter (or digital voltmeter)
2.Oscilloscope
3.Signal generator (Pattern generator) [PAL / SECAM / NTSC]
4.Remote control unit
ADJUSTMENT ITEMS
●
CHECKING ITEMS.
●
ADJUSTMENT OF FOCUS AND SCREEN.
●
IF CIRCUIT ADJUSTMENT.
●
VSM PRESET SETTING.
●
VIDEO / CHROMA CIRCUIT ADJUSTMENT.
●
PIP CIRCUIT VCO ADJUSTMENT.
●
AUDIO CIRCUIT ADJUSTMENT. (DO NOT ADJUST)
●
DEFLECTION CIRCUIT ADJUSTMENT.

No. 51779
A
V32L5EKG
Y
A
V32L5EIG
Y
13

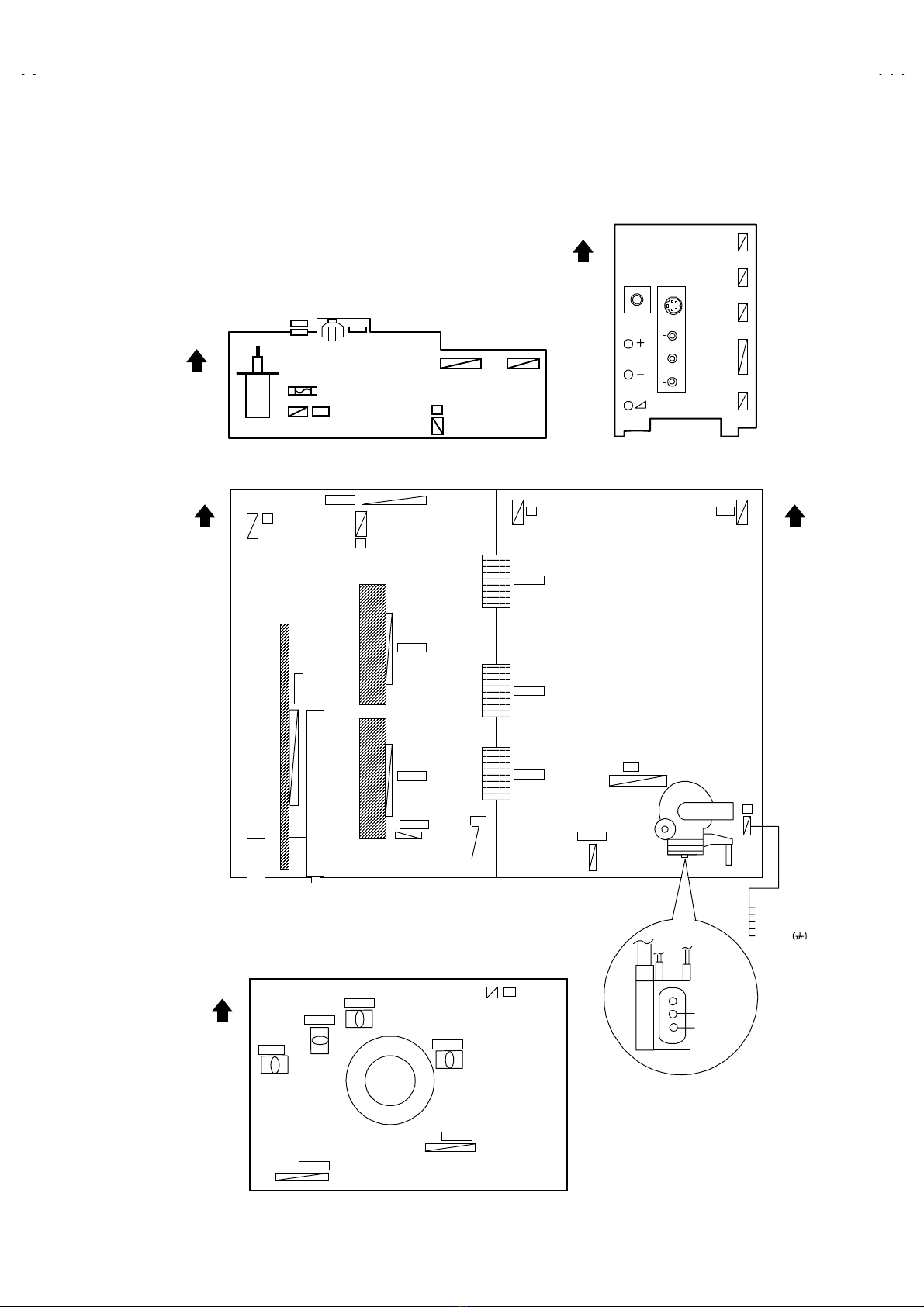

ADJUSTMENT LOCATIONS
E1
TP-47R
CN014
CN013
CRT SOCKET PWB
(SOLDER SIDE)
TOP
FRONT
MAIN PWB POWER&DEF PWB
CN006
AV SW PWB
TUNER
CN002 WDEG
1pin:B1
(
TP-91
)
2pin:NC
3pin:X-RAY
4pin:X-RAY
5pin:GND
5
1
X
FRONT CONTROL PWB
FRONT
HV
SCREEN VR
FOCUS 1 VR
TP-47G
TP-47B
CN014
L
CN003
W
CN102
PW
F901
POWER SW
S-IN S
SL
SR
F
SIDE CONTROL PWB
FOCUS 2 VR
FRONT
TOP
HVT
E
X
T
4
HEAD
PHONE
K
CN004
CN005
CN006
C2
TP-E
MICON PWB
100Hz PWB
CN007
S
CN013

No. 51779
A
V32L5EKG
Y
A
V32L5EIG
Y
14
BASIC OPERATION SERVICE MENU
1. TOOL OF SERVICE MENU OPERATION
Operate the SERVICE MENU with the REMOTE CONTROL UNIT.
2. SERVICE MENU ITEMS
With the SERVICE MENU, various settings (adjustments) can be made, and they are broadly classified in the following items of settings
(adjustments):
(1) 1. IF ･･･････････････････････ This mode adjusts the setting values of the IF circuit.
(2) 2.V/C ･･････････････････････ This mode adjusts the setting values of the VIDEO / CHROMA circuit.
(3) 3.AUDIO･･･････････････････ This mode adjusts the setting values of the multiplicity SOUND circuit.
(4) 4.DEF ･････････････････････ This mode adjusts the setting values of the DEFLECTION circuit for each aspect mode given below.
ASPECT MODE Vertical frequency / Scan mode
FULL 100Hz inter-race / 60Hz Progressive
PANORAMIC 100Hz inter-race / 60Hz Progressive
SUBTITLE 100Hz inter-race / 60Hz Progressive
(5) 5.VSM PRESET･････････････ This mode adjusts the initial setting values of COOL,NOMAL and WARM.
(VSM : Video Status Memory)
(6) 7.PIP ･･････････････････････ This mode adjusts the setting values of the PIP circuit.
3. BASIC OPERATION OF SERVICE MENU
(1) How to enter SERVICE MENU
Press the INFORMATION key and the MUTING key of the
REMOTE CONTROL UNIT simultaneously (Fig.2), and the
SERVICE MENU screen (Fig. 1) will be displayed.
(2) Selection of SUB MENU SCREEN
Press one of keys 1～5 of the REMOTE CONTROL UNIT
and select the SUB MENU SCREEN (See Fig. 3), form the
SERVICE MENU.
SERVICE MENU →SUB MENU
1. IF
2. V / C
3. AUDIO
4. DEF.
5. VSM PRESET
6. STATUS
7. PIP
8. －
－－
－－
－－
－－
－－
－
9. SHIPPING (OFF)
0. BUS FREE
The item of number 6, 8, 9, and 0 are not to work.
SERVICE MENU
SERVICE MENU
1. IF 2. V/C
3. AUDIO 4. DEF
5. VSM PRESET 6. STATUS
7. PIP 8. ---
9. SHIPPING (OFF) 0. BUS FREE
1-9 : SELECT : EXITi
Fig.1
REMOTE CONTROL UNIT KEY ASSIGNMENT
INFORMATION MENU
MUTING
FUNCTION
UP/DOWN FUNCTION
- / +

No. 51779
A
V32L5EKG
Y
A
V32L5EIG
Y
15
COOL
NORMAL
WARM
1. RGB BLK
2. WDR R
3. WDR G
4. WDR B
5. BRIGHT
6. CONTRAST
7. COLOUR
8. HUE
9. SHARP
10.VCO ADJUSTMENT
11. VIDEO AGC
12. SYNC SLICE
1.ERR LIMIT
2. A2 ID THR
SERVICE MENU
SERVICE MENU
1. IF 2. V/C
3. AUDIO 4. DEF
5. VSM PRESET 6. STATUS
7. PIP 8.
---
9. SHIPPING(ON) 0. BUS FREE
1-9 : SELECT i : EXIT
SUB MENU 5. VSM PRESET
VSM PRESET NORMAL
- / +
: STORE i : EXIT
OK
SUB MENU 3. AUDIO (Do not adjust)
DEF FULL
**
****
**
Hz
1. V-SHIFT
SUB MENU 4. DEF
***
(
**
)
- / +
: STORE i : EXIT
OK
1. V-SHIFT
2. V-SIZE
3. H-CENT
4. H-SIZE
5. TRAPEZ
6. EW-PIN
7. COR-PIN
8. COR-UP
9. COR-LO
10. ANGLE
11. BOW
12. V-S.CR
13. V.LIN
1. CONT.
2. BRIGHT
3. SHARP
4. COLOUR
5. HUE
6. WDR R
7. WDR G
8. WDR B
IF SERVICE MENU
1. VCO
2. ATT ON/OFF
1-2 : SELECT i : EXIT
VCO (CW)
**
****
**.
..
.**
****
**
MHz
MAIN
TOO HIGH
ABOVE REF
JUST REF
BELOW REF
TOO LOW
i : EXIT
SUB MENU 1.IF (VCO)
V/C
1. RGB. BLK
****
SUB MENU 2. V/C
PAL
- / +
: STORE i : EXIT
OK
AUDIO
1. ERR LIMIT 0AH
C AD BITS =
********
- / +
: STORE i : EXIT
OK
1.CONT.
***
SUB MENU 1.IF
SUB MENU 7. PIP
1. PIP VCO ADJ
***
- / +
: STORE i : EXIT
OK
PIP PAL
Do not select it.

No. 51779
A
V32L5EKG
Y
A
V32L5EIG
Y
16
(3) Setting methods
"Method of Setting 1.IF as [VCO] : It must not adjust without signal.
①1 Key･････････････････････････ Select 1.IF.
②1 Key ････････････････････････ Select 1. VCO (CW)
Check the arrow position from the “ABOVE REF.” to “BELOW REF.”
The receive channel is automatically set by selecting VCO mode.
③INFORMATION Key････････････ Return to the SERVICE MENU screen.
"Method of setting 2.V/C, 3.AUDIO, 4.DEF, 5.VSM PRESET and 7.PIP.
①2～5, 7 Key ･･･････････････････ Select one from 2. V/C, 3. AUDIO, 4. DEF,5. VSM PRESET and 7.PIP.
②FUNCTION UP/DOWN Key ･････ Select setting items.
③FUNCTION -/+･････････････････ Set (adjust) the setting values of the setting items.
④MENU (OK) Key ･･･････････････ Memorize the setting value.
(Before storing the setting values in memory, do not press the CH, TV, POWER ON / OFF key -
if you do, the values will not be stored in memory.)
⑤INFORMATION Key････････････ Return to the SERVICE MENU screen.
"Do not adjust 6. STATUS, 8. --- , 9. SHIPPING(OFF) and 0. BUS FREE functions.
(4) Release of SERVICE MENU
1) After completing the adjustment, return to the SERVICE MENU, then again press the INFORMATION (OK) key to return to the normal
screen.

No. 51779
A
V32L5EKG
Y
A
V32L5EIG
Y
17

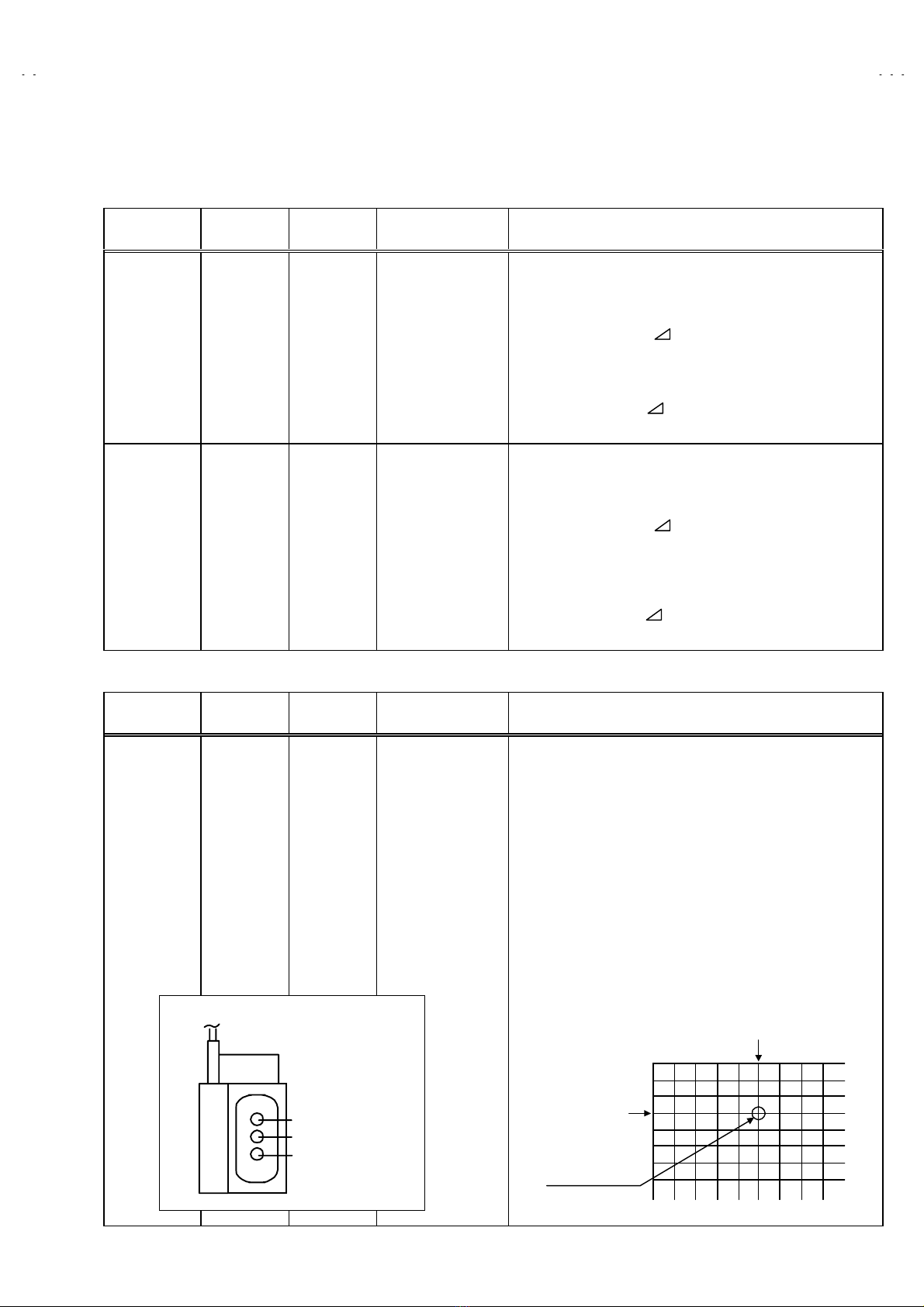

ADJUSTMENT
CHECKING ITEM

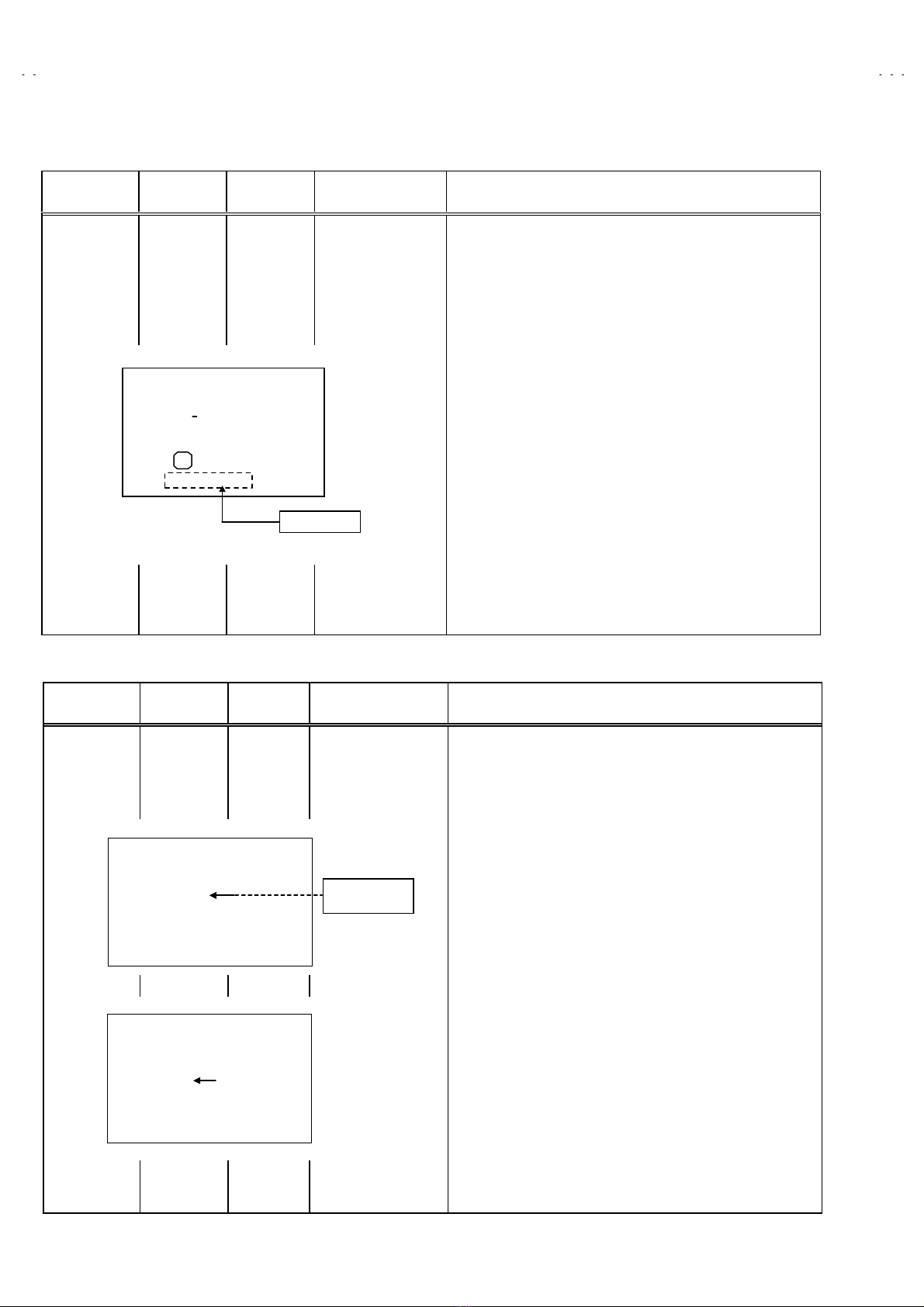

Item Measuring
instrument Test point Adjustment part Description
Check of B1
Power Supply
DC voltmeter
Remote
Control unit
TP-91(B1)
TP-E("
""
")
[X connector
on POWER
DEF PWB]
1. Receive any broadcast.
2. Press the ZOOM key and select the FULL mode.
3. Select 2. V/C from the SERVICE MENU.
4. Select 1. RGB BLK with function UP / DOWN key.
5. Press the function +( ) key to turn on the cutoff screen
condition (all black screen).
6. Connect a DC voltmeter to TP-91(B1) and TP-E(").
7. Make sure that the voltage is DC139.9 ±2.0V.
8. Press the function – ( ) key to return to service menu.
Check of High
Voltage High voltage meter
Remote
Control unit
CRT anode
Chassis GND
1. Receive any broadcast.
2. Press the ZOOM key and select the FULL mode.
3. Select 2. V/C from the SERVICE MENU.
4. Select 1. RGB BLK with function UP / DOWN key.
5. Press the function +( ) key to turn on the cutoff screen
condition (all black screen).
6. Connect a High voltage meter to CRT ANODE and chassis
GND.
7. Make sure that the voltage is DC 31.0kV .
8. Press the function – ( ) key to return to service menu.
ADJUSTMENT OF FOCUS AND SCREEN
Item Measuring
instrument Test point Adjustment part Description
Adjustment of
FOCUS Signal generator FOCUS 1 VR
FOCUS 2 VR
[In HVT]
1. Receive a cross-hatch signal.
2. By turning the FOCUS 2 VR, to make the vertical lines as fine
and sharp as possible.
3. By turning the FOCUS 2 VR, adjust the picture so that the 6th
vertical line from left side of the cross-hatch picture becomes
thinnest.
4. By turning the FOCUS 1 VR, adjust the 4th horizontal line from
the upper side may become uniform at the line center and its
periphery.
5. Carry out adjustment by repeating the steps 3 and 4 about.
6. Make sure that when the screen is darkened, the lines remain in
good focus.
SCREEN VR
FOCUS 1 VR
FOCUS 2 VR
FOCUS 2 VR
FOCUS 1 VR
Adjustment point
+1kV
-1.5kV

No. 51779
A
V32L5EKG
Y
A
V32L5EIG
Y
18
Item Measuring
instrument Test point Adjustment part Description
Adjustment of
SCREEN VR Signal generator
Remote
control unit
SCREEN VR
(Within FBT) 1. Input the whole black signal.
2. Press the ZOOM key and select the FULL mode.
3. Select 2. V/C from the SERVICE MENU.
4. Turn the SCREEN VR clockwise from the full counterclockwise
position, and stop it at the point where “CLOW” status (marked
in figure) changes from “1” →“0” →“1” (which is indicated at
the 3rdcolumn from the right).
5. Then turn the SCREEN VR to the counterclockwise, and stop
where “CLOW” status change “1” →“0”.
IF CIRCUIT CHECKING
Item Measuring
instrument Test point Adjustment part Description
Checking of
VCO Remote control unit
1. VCO "Under normal conditions, no adjustment is required.
Confirmation adjustment.
1. Receive any broadcast.
2. Select 1.IF from the SERVICE MENU.
3. Then select 1.VCO from the IF SERVICE MENU.
4. In the VCO adjustment screen, the yellow allow point to the
characters. Check the allow position where pointed to the
character from “ABOVE REF” to “BELLOW REF”.
TOO HIGH
ABOVE REF
JUST REF
BELOW REF
TOO LOW i : EXIT
VCO
(
CW
)
****
MHz
MAIN
1. VCO
2. ATT ON/OFF
i: EXIT
IF SERVICE MENU
1-2 : SELECT
Do not select
this mode
V/C
1. RGB BLK 00
CLOW status
- / + : STORE i : EXIT
OK
0 0 0 0 0 1 0 0
PAL
Screen VR adjustment

No. 51779
A
V32L5EKG
Y
A
V32L5EIG
Y
19
VSM PRESET SETTING
Item Measuring
instrument Test point Adjustment part Description
Setting of
VSM PRESET Remote control unit 1. CONT. 2. BRIGHT
3. SHARP
4. COLOUR
5. HUE
6. WDR R
7. WDR G
8. WDR B
1. Press the MENU key and select COOL mode with the remote
control unit.
2. Select 5.VSM PRESET from the SERVICE MENU.
3. Adjust the FUNCTION UP/DOWN and -/+ key to bring the set
values of 1.CONT ～8. WDR B to the values shown in the
table.
4. Press the MENU key and memorize the set value.
5. Respectively select the VSM PRESET mode for NORMAL and
WARM, and make similar adjustment as in 3 above.
6. Press the MENU key and memorize the set value.
!Refer to OPERATING INSTRUCTIONS for the PICTURE
MODE.
VSM preset mode
Setting item COOL NORMAL WARM
1. CONT. +16 -4 -13
2. BRIGHT 0 0 0
3. SHARP -12 -12 -12
4. COLOUR 0 0 -1
5. HUE 0 0 0
6. WDR R -25 0 +5
7. WDR G -12 0 0
8. WDR B 0 0 0
SETTING VALUES OF VSM PRESET
