JVC AV-29BH11ENS User manual

No.52085
AV-29BH11ENS
AV-29BH11EPS
AV-29BH11EES
1COPYRIGHT © 2002 VICTOR COMPANY OF JAPAN, LTD.
Sep. 2002
AV-29BH11ENS
AV-29BH11EPS
AV-29BH11EES
CONTENTS
!SPECIFICATIONS ････････････････････････････････
････････････････････････････････････････････････････････････････
･････････････････････････････････････････････････････････････
･･････････････････････････････････････････････････････････
･････････････････････････････ 2
!SAFETY PRECAUTIONS ････････････････････････････････
････････････････････････････････････････････････････････････････
･･･････････････････････････････････････････････････････
･･････････････････････････････････････････････
･･･････････････････････ 4
!FEATURES････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････････････････････････････････････
･･･････････････････････････････････
･･････
･･･ 5
!MAIN DIFFERENCE LIST ････････････････････････････････
････････････････････････････････････････････････････････････････
･･･････････････････････････････････････････････････････
･･････････････････････････････････････････････
･･･････････････････････ 5
!SPECIFIC SERVICE INSTRUCTIONS ････････････････････････････････
････････････････････････････････････････････････････････････････
･････････････････････････････････････････････
･･････････････････････････
･････････････ 6
!SERVICE ADJUSTMENTS ････････････････････････････････
････････････････････････････････････････････････････････････････
･･････････････････････････････････････････････････････
････････････････････････････････････････････
･･････････････････････ 9
!PARTS LIST ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････････････････････････････････････
･････････････････････････････････
･･
･19
★OPERATING INSTRUCTIONS
★STANDARD CIRCUIT DIAGRAM ････････････････････････････････
････････････････････････････････････････････････････････････････
････････････････････････････････････････････････
････････････････････････････････
････････････････ 2-1
SERVICE MANUAL
COLOUR TELEVISION

No.52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
2
SPECIFICATIONS
Content
ITEM AV-29BH11ENS AV-29BH11EPS AV-29BH11EES
Dimensions (WxHxD) 78.4 × 58.2 × 49.3 cm
Mass 46.2 kg
TV RF System B/G B/G, L B/G, D/K, K1
TV Mode PAL PAL / SECAM
Colour System
Video Mode PAL / NTSC 3.58 /
NTSC 4.43
PAL / SECAM / NTSC 3.58 /
NTSC 4.43
Teletext System Fastext / Toptext
Stereo System German + NICAM
Tuning System Frequency Synthesizer Tuning System
Number Of CH memory position 200 ch
VHF (VL) 46.25MHZ ~ 168.25MHz
VHF (VH) 175.25MHz ~ 463.25MHz
UHF 471.25MHz ~ 863.25MHz
Receiving Frequency
CATV B/G : S1-S41 & S75-S79 B/G : S1-S41 & S75-S79
L : S1-S41&S75-S77
B/G : S1-S41 & S75-S79
D/K : S1-S41
VIF Carrier 38.9MHz
32.4MHz (6.5MHz)
32.9MHz (6.0MHz)
Intermediate Frequency SIF Carrier
33.4MHz (5.5MHz)
Colour Sub Carrier Frequency PAL (4.43MHz), SECAM (4.43MHz), NTSC (3.58MHz/4.43MHz)
Aerial Input Terminal 75 Ohm Unbalanced
Power Input AC 220 ~ 240V, 50Hz
Power Consumption 135W(Max.) <4W(Stand-by)
Picture Tube 68cm measured diagonally
High Voltage 28.55kV (in cut-off service mode)
Speaker ( 77 ×128 mm Oval type + Tweeter ) ×2
Audio Output 12W + 12W
Video 1V(p-p), 75 Ohm
Input Audio (L/R) 500 mV(rms), High Impedance
Video 1 V(p-p), 75 Ohm
Output Audio (L/R) 500 mV(rms), Low Impedance
AV 1 (Video/Audio/RGB)
Rear Side AV 2 (Video/Audio/S-VHS)
Input Terminal
Front Side AV 3 (Video/Audio)
Front Side Headphone jack (Stereo mini jack 3.5∅)
AV 1 (Video/Audio)Output Terminal
Rear Side AV 2 (Video/Audio) (Selected TV, AV1 or AV3)
Remote Control Unit VE-30015781 (RM-C85) , Battery size:AAA/R03 x 2
Design & specifications are subject to change without notice.

No.52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
3
■
■■

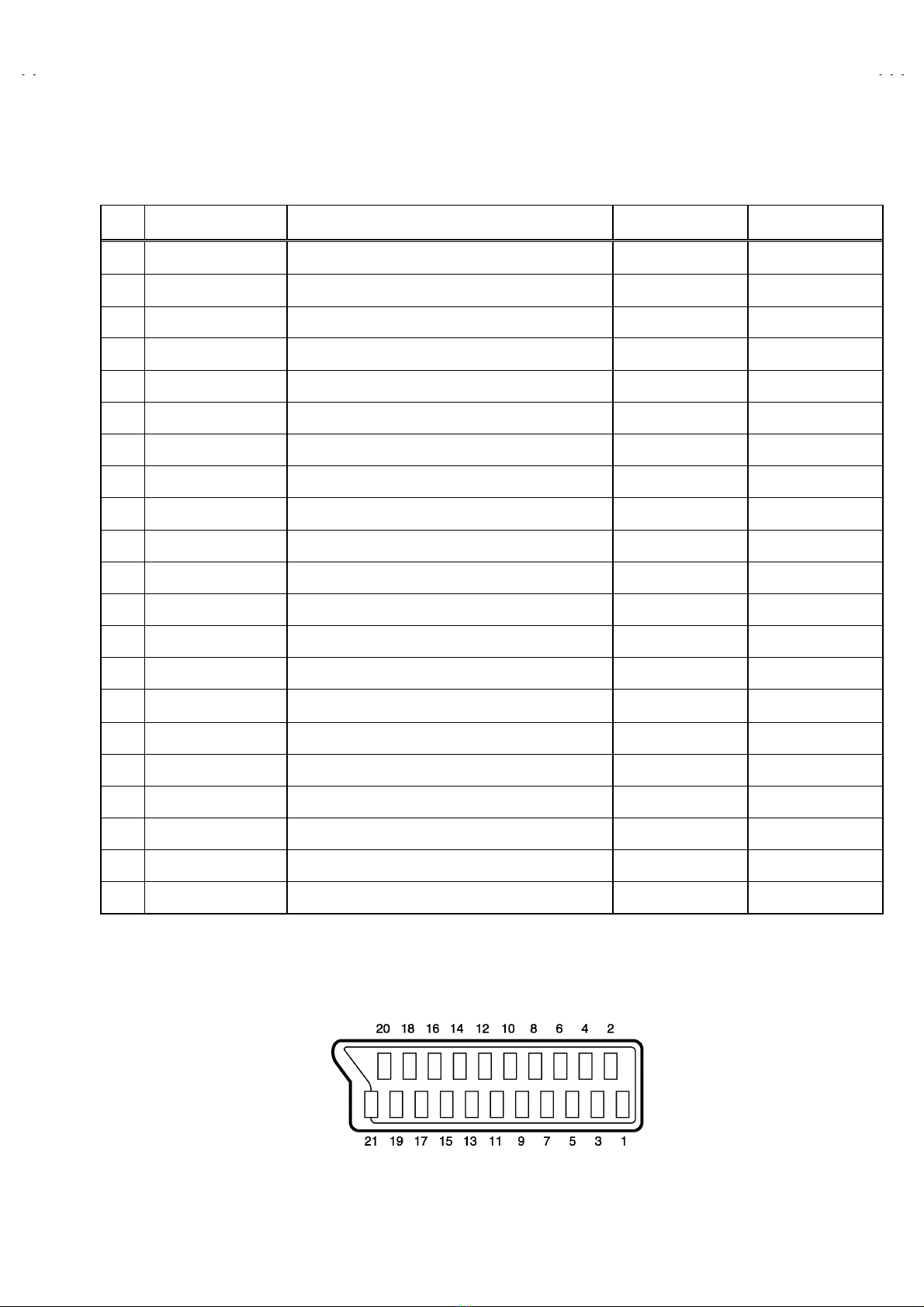

■21-pin Euro connector (SCART socket) : AV 1 / AV 2
(P-P= Peak to Peak, S-W= Sync tip to white peak, B-W= Blanking to white peak)
Pin
No. Signal Designation Matching Value AV 1 AV 2
1 AUDIO R output 500mV(rms) (Nominal),Low impedance ○
(TV OUT)
○
(TV/LINE OUT)
2 AUDIO R input 500mV(rms) (Nominal),High impedance ○○
3 AUDIO L output 500mV(rms) (Nominal),Low impedance ○
(TV OUT)
○
(TV/LINE OUT)
4 AUDIO GND ○○
5 GND (B) ○○
6 AUDIO L input 500mV(rms) (Nominal), High impedance ○○
7Binput 700mVB-W, 75Ω○
NC
8FUNCTON SW
(SLOW SW) Low : 0-3V, High : 8-12V, High impedance ○NC
9 GND (G) ○○
10 - NC -
11 G input 700mVB-W, 75Ω○
NC
12 - NC -
13 GND (R) ○○
14 GND (YS) ○NC
15 R / C input R : 700mVB-W, 75Ω
C : 300mV (P-P), 75Ω
○
(R/C)
○
(only C)
16 Ys input Low : 0 – 0.4, High : 1 - 3V, 75Ω○ NC
17 GND(VIDEO output) ○○
18 GND(VIDEO input) ○○
19 VIDEO output 1VS-W(Negative going sync), 75Ω○
(TV)
○
(TV/LINE OUT)
20 VIDEO / Y input 1VS-W(Negative going sync), 75Ω○○
21 COMMON GND ○○
[
Pin assignment]

No.52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
4
SAFETY PRECAUTIONS
1. The design of this product contains special hardware, many
circuits and components specially for safety purposes. For
continued protection, no changes should be made to the original
design unless authorized in writing by the manufacturer.
Replacement parts must be identical to those used in the original
circuits. Service should be performed by qualified personnel
only.
2. Alterations of the design or circuitry of the products should not be
made. Any design alterations or additions will void the
manufacturer's warranty and will further relieve the manufacturer
of responsibility for personal injury or property damage resulting
therefrom.
3. Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics are
often not evident from visual inspection nor can the protection
afforded by them necessarily be obtained by using replacement
components rated for higher voltage, wattage, etc. Replacement
parts which have these special safety characteristics are
identified in the parts list of Service manual. Electrical
components having such features are identified by shading
on the schematics and by (!
!!
!) on the parts list in Service
manual. The use of a substitute replacement which does not
have the same safety characteristics as the recommended
replacement part shown in the parts list of Service manual may
cause shock, fire, or other hazards.
4. Don't short between the LIVE side ground and ISOLATED
(NEUTRAL) side ground or EARTH side ground when
repairing.
Some model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE side GND, the
ISOLATED(NEUTRAL) side GND and EARTH side GND. Don't
short between the LIVE side GND and ISOLATED(NEUTRAL)
side GND or EARTH side GND and never measure with a
measuring apparatus (oscilloscope etc.) the LIVE side GND and
ISOLATED(NEUTRAL) side GND or EARTH side GND at the
same time.
If above note will not be kept, a fuse or any parts will be broken.
5. If any repair has been made to the chassis, it is recommended
that the B1 setting should be checked or adjusted (See
ADJUSTMENT OF B1 POWER SUPPLY).
6. The high voltage applied to the picture tube must conform with
that specified in Service manual. Excessive high voltage can
cause an increase in X-Ray emission, arcing and possible
component damage, therefore operation under excessive high
voltage conditions should be kept to a minimum, or should be
prevented. If severe arcing occurs, remove the AC power
immediately and determine the cause by visual inspection
(incorrect installation, cracked or melted high voltage harness,
poor soldering, etc.). To maintain the proper minimum level of
soft X-Ray emission, components in the high voltage circuitry
including the picture tube must be the exact replacements or
alternatives approved by the manufacturer of the complete
product.
7. Do not check high voltage by drawing an arc. Use a high voltage
meter or a high voltage probe with a VTVM. Discharge the
picture tube before attempting meter connection, by connecting
a clip lead to the ground frame and connecting the other end of
the lead through a 10kΩ2W resistor to the anode button.
8. When service is required, observe the original lead dress. Extra
precaution should be given to assure correct lead dress in the
high voltage circuit area. W here a short circuit has occurred,
those components that indicate evidence of overheating should
be replaced. Always use the manufacturer's replacement
components.
9. Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
terminals, video/audio input and output terminals, Control knobs,
metal cabinet, screwheads, earphone jack, control shafts, etc.)
to be sure the product is safe to operate without danger of
electrical shock.
(1) Dielectric Strength Test
The isolation between the AC primary circuit and all metal parts
exposed to the user, particularly any exposed metal part having a
return path to the chassis should withstand a voltage of 3000V
AC (r.m.s.) for a period of one second.
(. . . . Withstand a voltage of 1100V AC (r.m.s.) to an appliance
rated up to 120V, and 3000V AC (r.m.s.) to an appliance rated
200V or more, for a period of one second.)
This method of test requires a test equipment not generally found
in the service trade.
(2) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use a line
isolation transformer during this check.). Using a "Leakage
Current Tester", measure the leakage current from each exposed
metal part of the cabinet, particularly any exposed metal part
having a return path to the chassis, to a known good earth
ground (water pipe, etc.). Any leakage current must not exceed
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
"
""
"Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not use a line
isolation transformer during this check.). Use an AC voltmeter
having 1000 ohms per volt or more sensitivity in the following

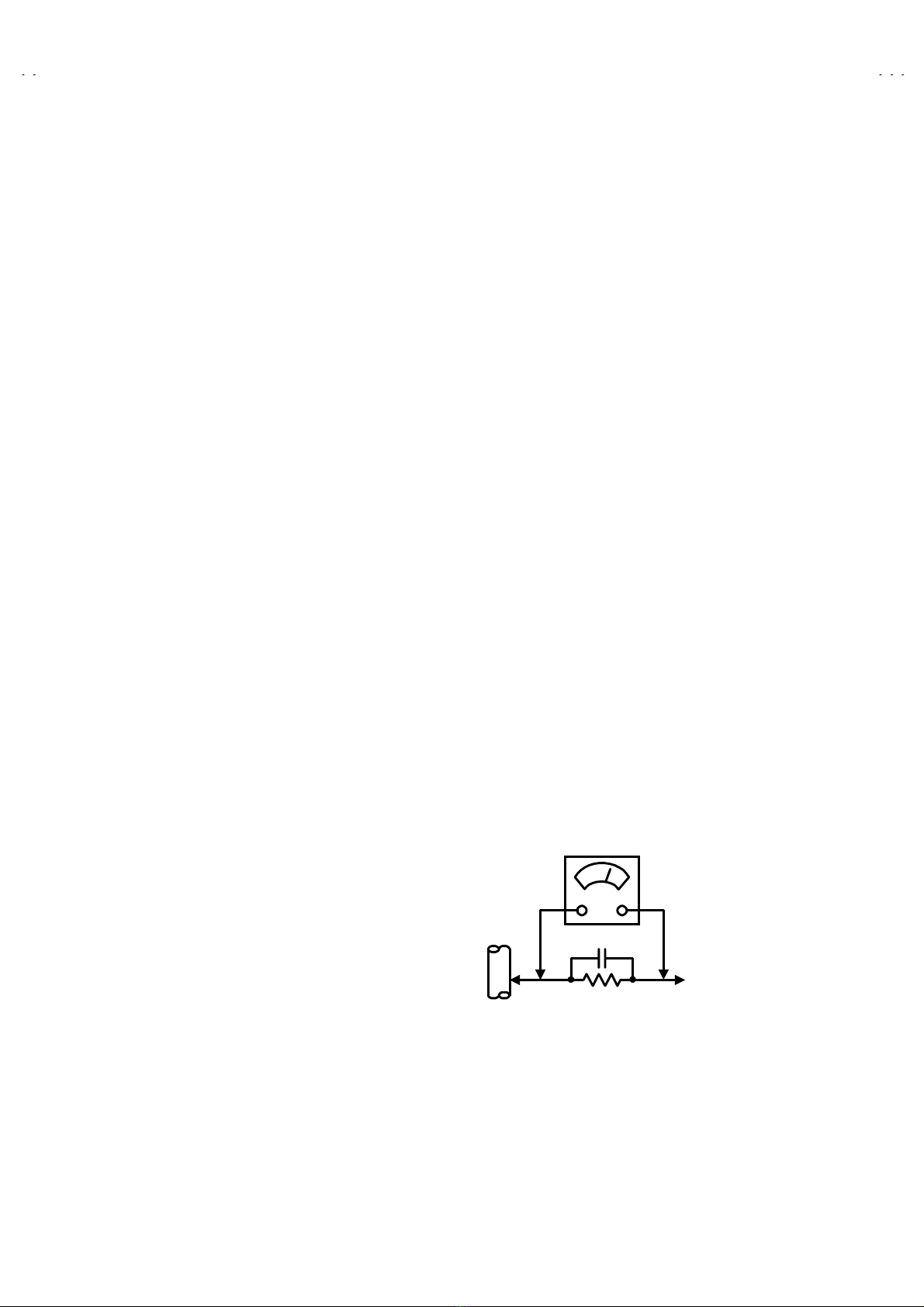

manner. Connect a 1500Ω10W resistor paralleled by a 0.15µF
AC-type capacitor between an exposed metal part and a known
good earth ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the resistor
connection to each exposed metal part, particularly any exposed
metal part having a return path to the chassis, and measure the
AC voltage across the resistor. Now, reverse the plug in the AC
outlet and repeat each measurement. Any voltage measured
must not exceed 0.75V AC (r.m.s.). This corresponds to 0.5mA
AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC (r.m.s.).
This corresponds to 0.2mA AC (r.m.s.).
0.15
μ
F AC-TYPE
1500 Ω10W
GOOD EARTH GROUND
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
AC VOLTMETER
(HAVING 1000 Ω/V,
OR MORE SENSITIVITY)

No.52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
5
FEATURES
1. It is a remote controlled color television.
2. 200 programs from VHF, UHF bands or cable channels can be
preset.
3. It can tune cable channels.
4. Controlling the TV is very easy by its menu driven system.
5. It has two Euroconnector sockets for external device (such as
video recorder, video games, audio set, etc.)
6. Front AV Input available.
7. Stereo sound systems (German + Nicam) are available.
8. Full function Teletext (Fastext, Toptext).
9. It is possible to connect headphone.
10. Direct channel access.
11. APS (Automatic Programming System).
12. All programs can be named.
13. Forward or backward automatic tuning.
14. Automatic sound mute when no transmission.
15. 5 minutes after the broadcasting (closedown), the TV switches
itself automatically to stand-by mode.
MAIN DIFFERENCE LIST
MODEL No.
Parts Name AV-29BH11ENS AV-29BH11EPS AV-29BH11EES
MAIN PWB VE-20101060 VE-20101082 VE-20101061
LABEL VE-20102005
VE-20101990 (Only ITA) VE-20101971 VE-20101987
VE-20101985 (Only POL)
F CARTON BOX VE-50028449
VE-50028445 (Only ITA) VE-50028438 VE-50028443
VE-50028442 (Only POL)
INST BOOK VE-50028435 VE-50028433 VE-50028434

No.52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
6
SPECIFIC SERVICE INSTRUCTIONS
DISASSEMBLY PROCEDURE
REMOVING THE REAR COVER
1. Remove the 8screws marked A.
2. Remove the 4screws marked B.
3. Withdraw the rear cover toward you.
REMOVING THE MAIN PWB
"Removing the rear cover.
1. Slightly raise the both sides of the chassis by hand and withdraw
MAIN PWB back ward.
[CAUTIONS]
If necessary, take off the wire clamp, connectors etc.
Be careful enough when developing a main chassis.
REMOVING THE FRONT AV & HEADPHONE
BOARD ASS’Y
"Removing the rear cover.
"Removing the MAIN PWB.
1. Remove the 2screws marked C, and remove the FRONT AV &
HEADPHONE BOARD ASS’Y.
REMOVING THE FRONT CONTROL PWB
"Removing the rear cover.
"Removing the MAIN PWB.
1. Remove the 3screws marked D, and remove the FRONT
CONTROL PWB.
REMOVING THE WOOFER and TWEETER
"Removing the rear cover.
1. Remove the 4screws marked E, and remove the WOOFER.
2. Remove the 2screws marked F, and remove the TWEETER.
3. Remove an opposite side similarly.
REMOVING THE MAIN SWITCH
"Removing the rear cover.
"Removing MAIN PWB.
1. Remove the 2screws marked G, and remove the MAIN
SWITCH.
CHECKING THE PW BOARD
To check the back side of the PW Board.
1) Pull out the PW Board. (Refer to REMOVING THE MAIN
PWB).
2) Erect the PW Board vertically so that you can easily check
the back side of the PW Board.
[CAUTION]
"When erecting the PW Board, be careful so that there will be no
contacting with other PW Board.
"Before turning on power, make sure that the wire connector is
properly connected.
"When conducting a check with power supplied, be sure to confirm
that the CRT EARTH WIRE (BRAIDED ASS’Y) is connected to
the CRT SOCKET PW board.
WIRE CLAMPING AND CABLE TYING
1. Be sure to clamp the wire.
2. Never remove the cable tie used for tying the wires together.
Should it be inadvertently removed, be sure to tie the wires with
a new cable tie.

No.52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES

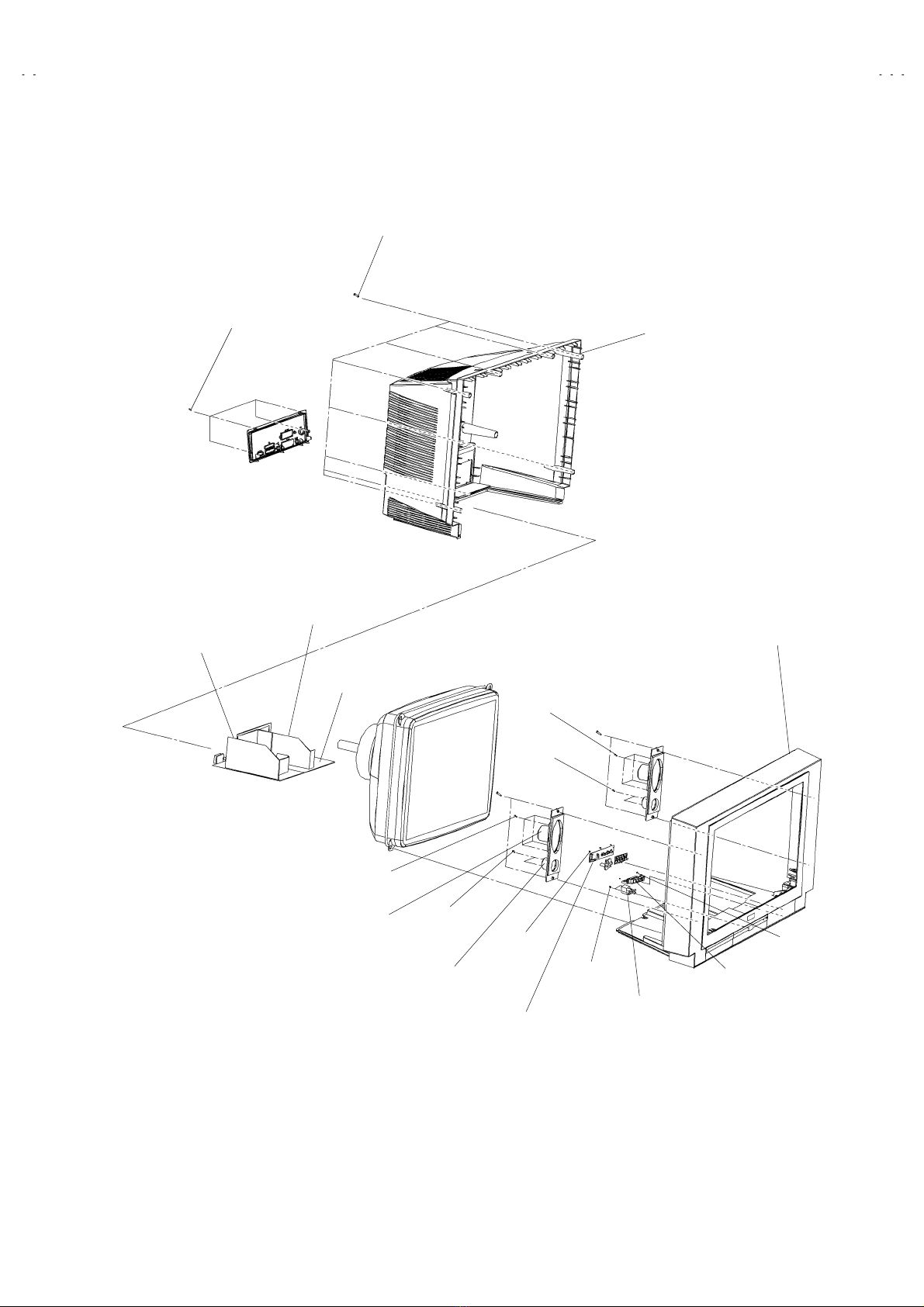

7
REAR COVER
SPEAKER
(WOOFER)
MAIN PWB
FRONT CABINET
FRONT AV &
HEADPHONE
PWB
FRONT CONTROL
PWB
B
(×4)
SPEAKER
(TWEETER)
A
(×8)
E
(×4)
E
(×4)
F
(×2)
F
(×2)
C
(×2)
D
(×3)
MAIN
SWITCH
G
(×2)
STEREO
MODULE PWB
FEATURE BOX
PWB

No. 52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
8
SETTING OF THE LAST MEMORY FOR SHIPMENT
■
■■
■USER SETTING VALUES
Setting Item Setting Value Setting Item Setting Value
SOUND MENU FEATURE MENU
BASS CENTER SLEEP TIMER OFF
TREBLE ↑CHILD LOCK OFF
BALANCE ↑
EFFECT OFF
PICTURE MENU INSTALL
BRIGHTNESS LANGUAGE ENGLISH
COLOUR COUNTRY Other
CONTRAST AV-2 OUTPUT TV
SHARPNESS
HUE (only NTSC)
These adjust are automatically
restored when APS bit in Service
menu is set.
The procedure for setting APS
bit is described bellow.
■SETTING APS BIT IN SERVICE MENU
1) Enter service menu in TV mode by pressing “INFO” and “MUTING” keys simultaneously. Service Menu will appear.
2) Select VIDEO by pressing “GREEN” key on the remote control unit.
3) Select APS items by pressing the Up/Down keys on the remote control unit.
4) Change the value to “ON” by pressing LEFT/RIGHT keys on the remote control unit.
5) Store the change by pressing “INFO” key.
6) Press “STANDARD” key on remote control unit to exit service mode.

No. 52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
9
SERVICE ADJUSTMENTS
ADJUSTMENT PREPARATION
1. You can make the necessary adjustments for this unit with
either the Remote Control Unit or with the adjustment tools
and parts as given below.
2. Adjustment with the Remote Control Unit is made on the
basis of the initial setting values, however, the new setting
values which set the screen to its optimum condition may
differ from the initial settings.
3. Make sure that AC power is turned on correctly.
4. Turn on the power for set and test equipment before use, and
start the adjustment procedures after waiting at least 30 minutes.
5. Unless otherwise specified, prepare the most suitable reception
or input signal for adjustment.
6. Never touch any adjustment parts which are not specified in the
list for this adjustment - variable resistors, transformers,
condensers, etc.
7. Presetting before adjustment.
Unless otherwise specified in the adjustment instructions, preset
the following functions with the remote control unit:
TINT / COLOUR
PICTURE/BRIGHT
CENTER
ADJUSTMENT EQUIPMENT
1. DC voltmeter (or digital voltmeter)
2. Signal generator (Pattern generator)［PAL/SECAM/NTSC］
3. Remote control unit

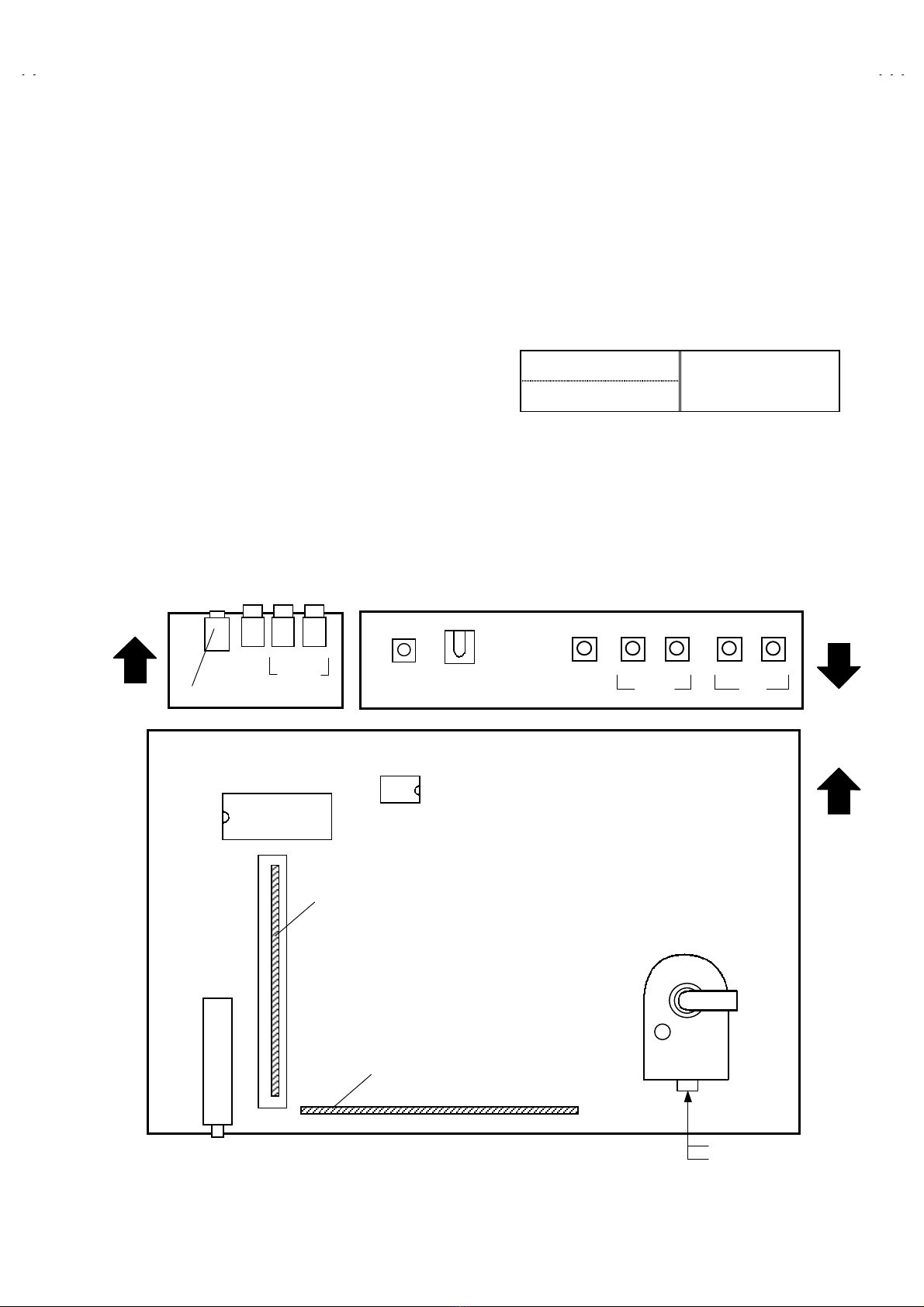

MAIN PARTS LOCATIONS
IC302
MEMORY IC
TUNER
FBT
UPPER : FOCUS VR
LOWER : SCREEN VR
VOL
（＋）
（＋）（＋）
（＋） （－）
（－）（－）
（－）
PROG
/Ch.
（＋）
（＋）（＋）
（＋） （－）
（－）（－）
（－）
MENU
LED REMOCON
RECEIVER
FRONT
TOP
FRONT
AUDIO
VIDEO RL
HEADPHONE JACK
IC304
MICOM
MAIN PWB
FRONT CONTROL PWB
FRONT AV & HEADPHONE PWB
FEATURE BOX PWB
STEREO MODULE PWB

No. 52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
10
BASIC OPERATION SERVICE MENU
■
■■
■HOW TO ENTER THE SERVICE MODE
1) Press the INFORMATION key and MUTING key of
REMOTE CONTROL UNIT simultaneously, and the
SERVICE MENU screen of Fig.1 will be displayed.
2) While the Fig.1 is displayed, press the BLUE key for
access to the SERVICE MENU (2/2) (Fig.2).
■HOW TO EXIT SERVICE MODE
1) Press the MENU Key on REMOTE CONTROL UNIT.
REMOTE CONTROL UNIT key NAME
MUTING key
UP / DOWN
(
/ ) key
INFORMATION
key
COLOUR key
LEFT / RIGHT
(
/ ) key
BLUE key
YELLOW key
RED key
GREEN key
A
K41 G035
18. 12. 2001
SERVICE
H/V
V-SHIFT 000
V-SIZE 0038
H-SHIFT 1224
H-SIZE 023
S-COR 027
LINRT -07
ANGLE 003
BOW 002
TRAPEZ -07
PARAB -39
U.COR -01
L.COR 002
TILT 000
TRPZD 018
VIDEO
WdR 079
WdG 064
WdB 067
CuR 064
CuG 064
CuB 064
YDP -04
AGC 045
APSW 2
APS ON
T_T THO
T_P SAM
YDS -06
YDN -01
DVD OFF
C.M OFF
BLUE ON
SERVICE MENU (1/2)
Fig.1
PRODUCTION i >STORE MENU >EXIT
OPTIONS
0.HPHONE OFF
1.CRT 4:3
2.S-VHS OFF
3.f(IF) 38.9
4.Turk ON
5.VGA OFF
6.FRONT ON
7.DPL OFF
8.VD OFF
9.NSL ON
SERVICE MENU (2/2)
A
DJUSTMENTS
PIP CNTRST 000
PIP YDelay 000
PIP Frame 0
EHTHP 001
EHTH TC 000
EHTH -36
EHTV -14
EHTV TC 005
SVDEL 000
BCLTHRES T1
OSD CONT 080
OSD BRI 035
TEXT BRI 030
INIT NVM
Prescaler
FM 015
NICAM 035
I2S 016
SCART 025
SYSTEM
0.PAL B/G ON
1.PAL D/K OFF
2.PAL I OFF
3.SECAM B/G ON
4.SECAM D/K OFF
5.SECAM L/L’ ON
6.AUST. OFF
Fig.2
PRODUCTION i >STORE MENU >EXIT
MENU key

No. 52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
11
■
■■
■SELECTION OF ADJUSTMENT ITEMS
1) Press the COLOUR key and select the service menu section.
2) Select the ADJUST Item, use UP ( ) / DOWN( ) key of
remote control unit.
3) To change the selected parameter, use LEFT ( ) and
RIGHT ( ) key.
4) Press the INFORMATION key to STORE.
OPTIONS
0.HPHONE OFF
1.CRT 4:3
2.S-VHS OFF
3.f(IF) 38.9
4.Turk ON
5.VGA OFF
6.FRONT ON
7.DPL OFF
8.VD OFF
9.NSL ON
SERVICE MENU (2/2)
A
DJUSTMENTS
PIP CNTRST 000
PIP YDelay 000
PIP Frame 0
EHTHP 001
EHTH TC 000
EHTH -36
EHTV -14
EHTV TC 005
SVDEL 000
BCLTHRES T1
OSD CONT 080
OSD BRI 035
TEXT BRI 030
INIT NVM
Prescaler
FM 015
NICAM 035
I2S 016
SCART 025
SYSTEM
0.PAL B/G ON
1.PAL D/K OFF
2.PAL I OFF
3.SECAM B/G ON
4.SECAM D/K OFF
5.SECAM L/L’ ON
6.AUST. OFF
RED key
select ADJUSTMENTS
GREEN key
select Prescaler
BLUE key
select OPTIONS
YELLOW key
select SYSTEM
Do Not Adjust
A
K41 G035
18. 12. 2001
SERVICE
H/V
V-SHIFT 000
V-SIZE 0038
H-SHIFT 1224
H-SIZE 023
S-COR 027
LINRT -07
ANGLE 003
BOW 002
TRAPEZ -07
PARAB -39
U.COR -01
L.COR 002
TILT 000
TRPZD 018
VIDEO
WdR 079
WdG 064
WdB 067
CuR 064
CuG 064
CuB 064
YDP -04
AGC 045
APSW 2
APS ON
T_T THO
T_P SAM
YDS -06
YDN -01
DVD OFF
C.M OFF
BLUE ON
SERVICE MENU (1/2)
RED key
select H/V
GREEN key
select VIDEO
BLUE key
access SERVICE
(SERVICE MENU 2/2)
PRODUCTION i >STORE MENU >EXIT
PRODUCTION i >STORE MENU >EXIT

No. 52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
12
ADJUSTMENTS
■
■■
■DEFLECTION CIRCUIT
Item Measuring
instrument Test point Adjustment part Description
V-SHIFT
adjustment
Signal
generator
Remote
control unit
V- SHIFT 1. Receive a circle pattern signal of vertical frequency 50Hz.
2. Enter the SERVICE MENU.
3. Press the RED key on the remote control unit, then enter the
H/V adjustment group.
4. Select V-SHIFT with the UP/DOWN ( / ) key.
5. Adjust V-SHIFT with the LEFT/RIGHT ( / ) key to make
A = B.
6. Check and readjust V-SHIFT item if the adjustment becomes
improper after some other geometric adjustments are done.
7. Press the INFORMATION key and memorize the set value.

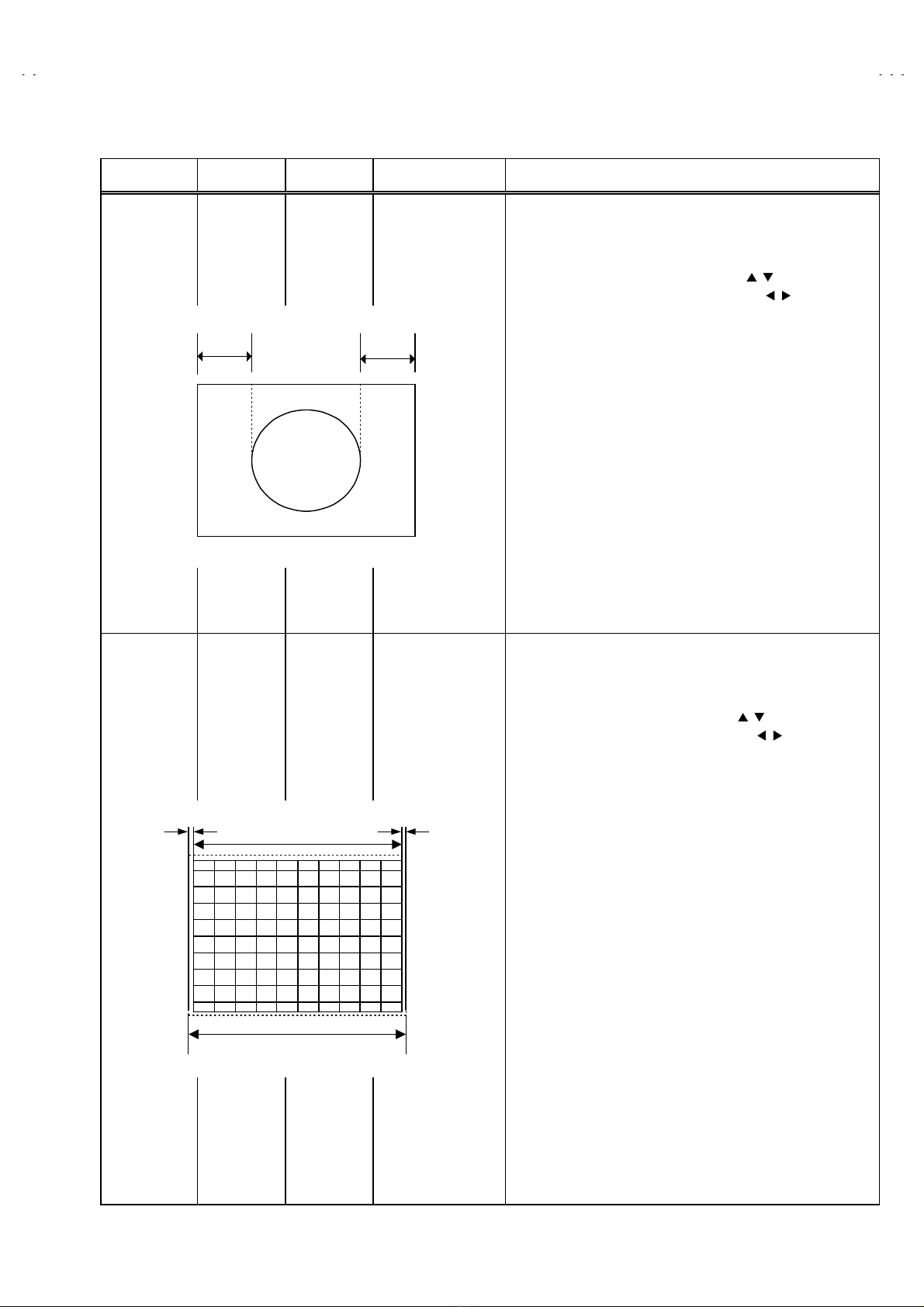

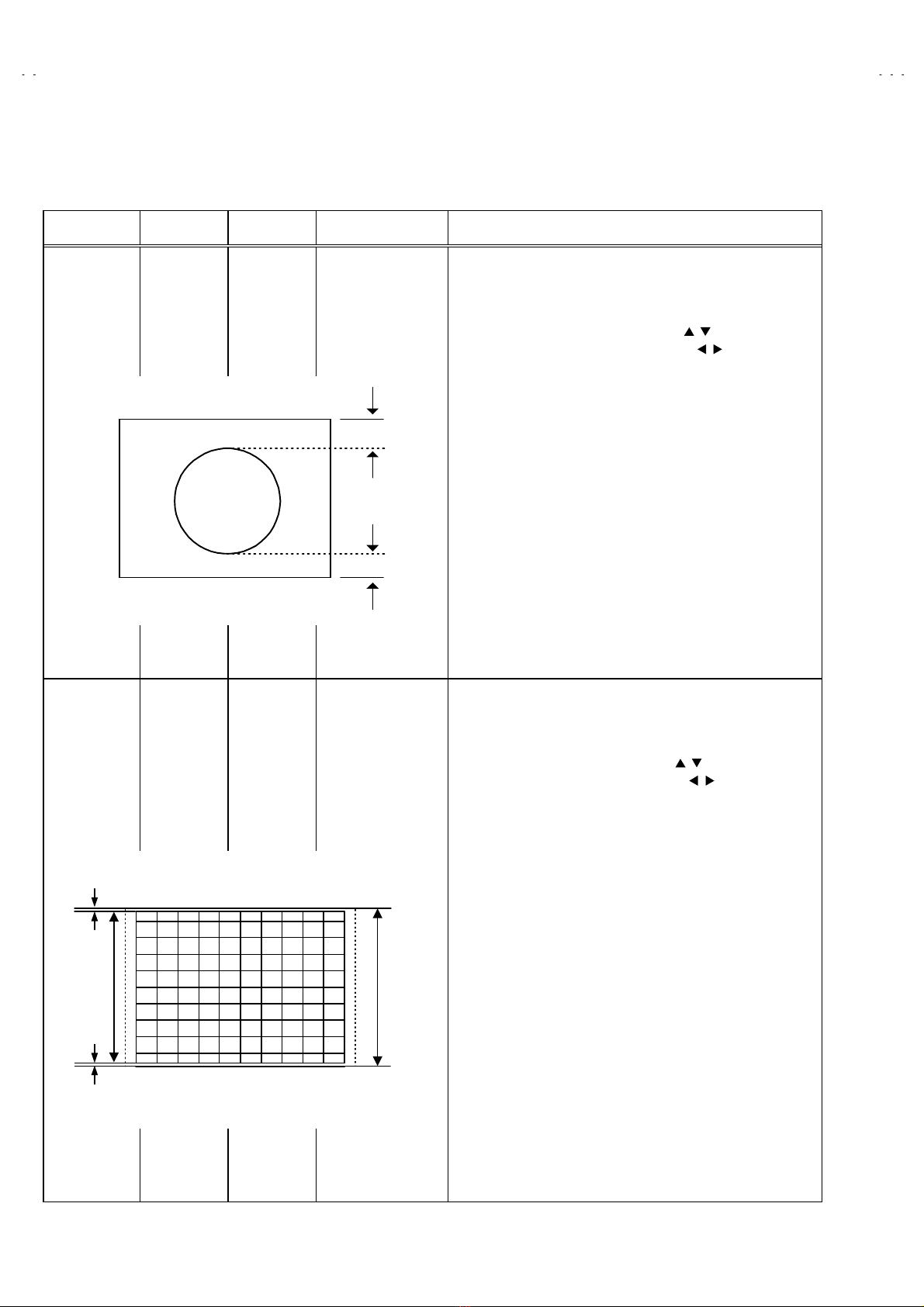

V-SIZE
adjustment
Signal
generator
Remote
control unit
V-SIZE 1. Receive a cross-hatch signal.
2. Enter the SERVICE MENU.
3. Press the RED key on the remote control unit, then enter the
H/V adjustment group.
4. Select V-SIZE with the UP/DOWN ( / ) key.
5. Adjust V-SIZE with the LEFT/RIGHT ( / ) key until
horizontal black lines on both the upper and lower part of the
cross-hatch pattern become very close to the upper and lower
horizontal sides of picture size and nearly about to disappear.
6. Check and readjust V-SIZE item if the adjustment becomes
improper after some other geometric adjustments are done.
7. Press the INFORMATION key and memorize the set value.
size
100%
Screen
size
very close
very close
A
B

No. 52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
13
Item Measuring
instruments Test point Adjustment part Description

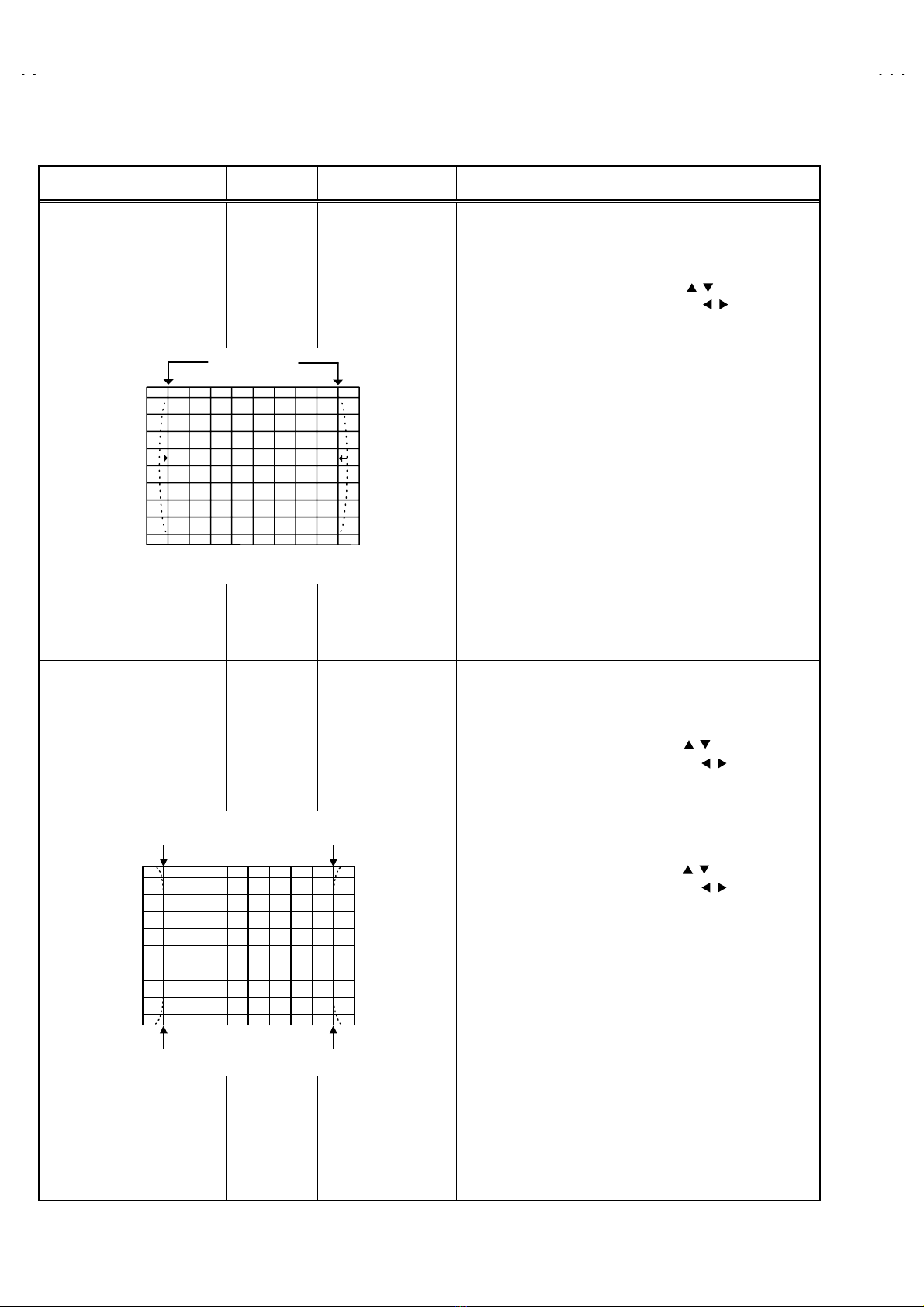

H-SHIFT
adjustment
Signal
generator
Remote
control unit
H-SHIFT 1. Receive a circle pattern signal.
2. Enter the SERVICE MENU.
3. Press the RED key on the remote control unit, then enter the
H/V adjustment group.
4. Select H-SHIFT with the UP/DOWN ( / ) key.
5. Adjust H-SHIFT with the LEFT/RIGHT ( / ) key to make
C= D.
6. Check and readjust H-SHIFT item if the adjustment
becomes improper after some other geometric adjustments
are done.
7. Press the INFORMATION key and memorize the set value.
H-SIZE
adjustment
Signal
generator
Remote
control unit
H-SIZE 1. Receive a cross-hatch signal.
2. Enter the SERVICE MENU.
3. Press the RED key on the remote control unit, then enter the
H/V adjustment group.
4. Select H-SIZE with the UP/DOWN ( / ) key.
5. Adjust H-SIZE with the LEFT/RIGHT ( / ) key till vertical
lines on both the left and right part of the cross-hatch will be
visible nor screen will be so wide.
6. Check and readjust H-SIZE item if the adjustment becomes
improper after some other geometric adjustments are done.
7. Press the INFORMATION key and memorize the set value.
CD
Screen size
Picture size 100%
very
close
very
close

No. 52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
14
Item Measuring
instruments Test point Adjustment part Description
V.
S-CORRECT.
& LINEARITY
adjustment
Signal
generator
Remote
control unit
S-COR
LINRT
1. Receive a cross-hatch signal.
2. Enter the SERVICE MENU.
3. Press the RED key on the remote control unit, then enter the
H/V adjustment group.
4. Select S-COR with the UP/DOWN ( / ) key.
5. Adjust S-COR with the LEFT/RIGHT ( / ) key till the size
of squares on both the upper and lower part of cross-hatch
pattern become equal to the square laying on the vertical
center of the cross-hatch pattern.
6. Check and readjust S-COR item if the adjustment becomes
improper after some other geometric adjustments are done.
7. Press the INFORMATION key and memorize the set value.
8. Select LINRT with the UP/DOWN ( / ) key.
9. Adjust LINRT with the LEFT/RIGHT ( / ) key till all the
size of squares of the cross-hatch pattern become in equal
size from the top of the screen to its bottom of the whole
screen.
10. Check and readjust LINRT item if the adjustment becomes
improper after some other geometric adjustments
(especially after than S-COR adjustment) are done.
11. Press the INFORMATION key and memorize the set value.

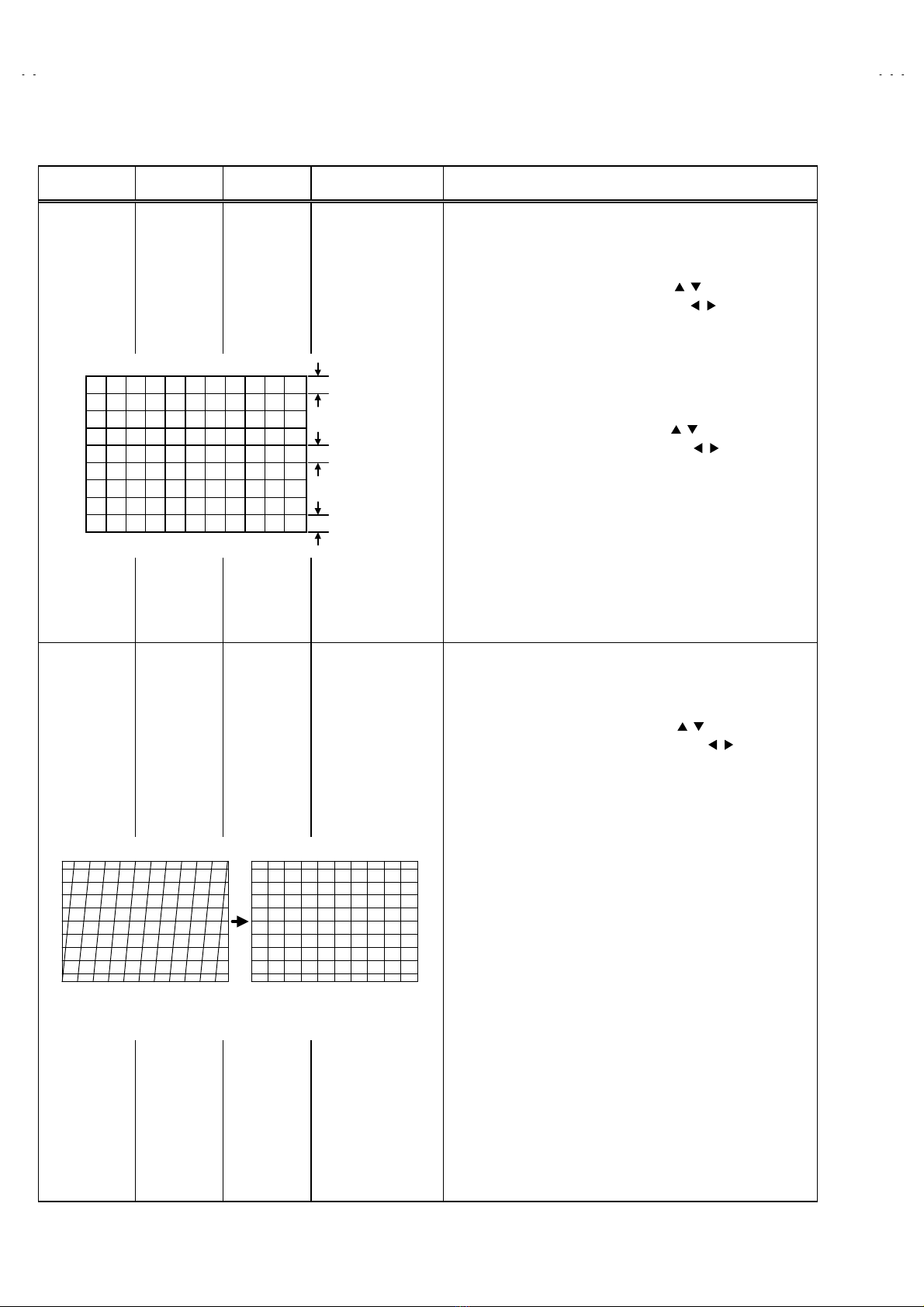

ANGLE
adjustment
Signal
generator
Remote
control unit
ANGLE 1. Receive a cross-hatch signal.
2. Enter the SERVICE MENU.
3. Press the RED key on the remote control unit, then enter the
H/V adjustment group.
4. Select ANGLE with the UP/DOWN ( / ) key.
5. Adjust ANGLE with the LEFT/RIGHT ( / ) key till the
vertical lines of the crosshatch pattern become straight.
6. Check and readjust ANGLE item if the adjustment becomes
improper after some other geometric adjustments are done.
7. Press the INFORMATION key and memorize the set value.
CENTER
UPPER
LOWER

No. 52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
15
Item Measuring
instruments Test point Adjustment part Description

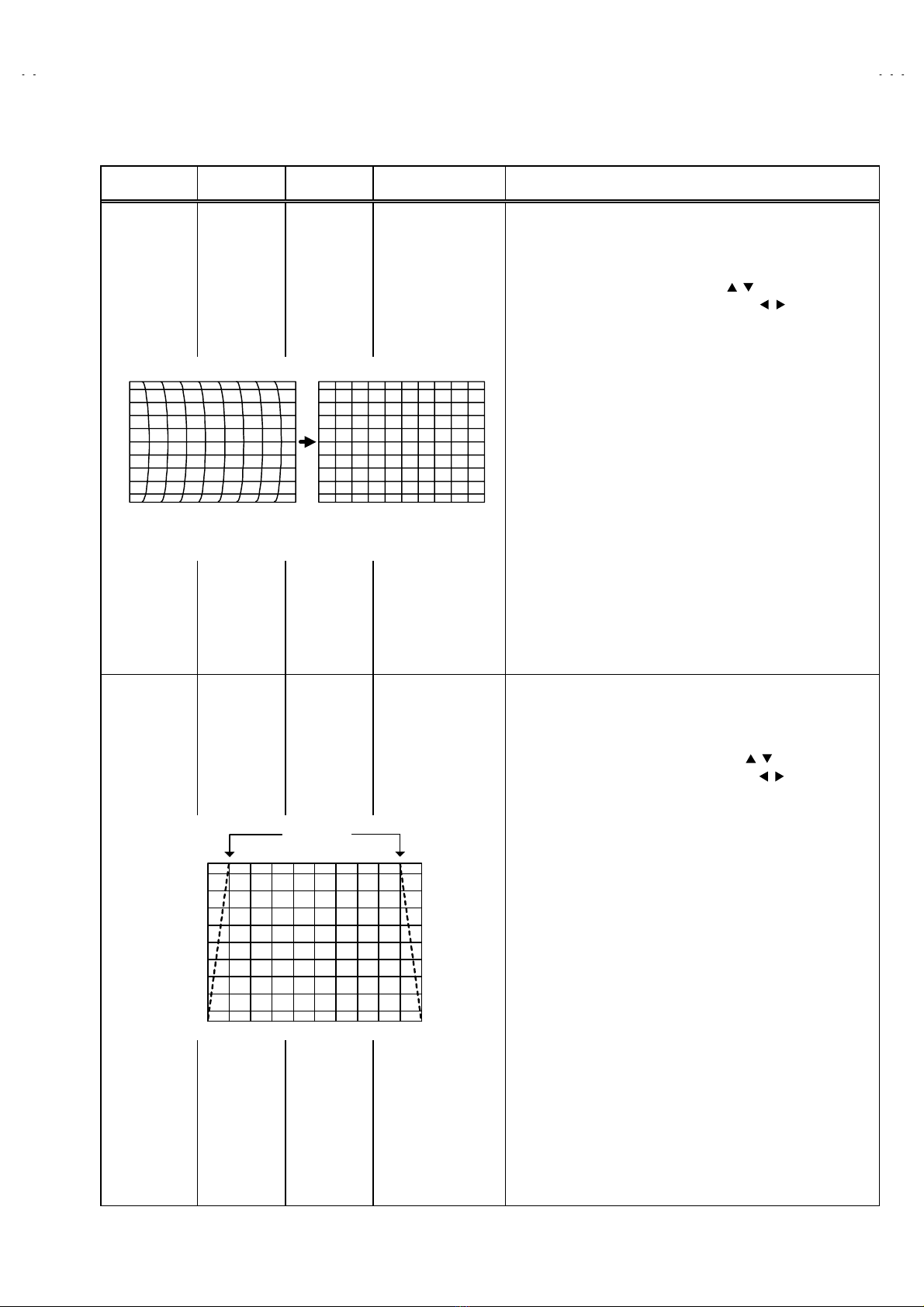

BOW
adjustment
Signal
generator
Remote
control unit
BOW 1. Receive a cross-hatch signal.
2. Enter the SERVICE MENU.
3. Press the RED key on the remote control unit, then enter the
H/V adjustment group.
4. Select BOW with the UP/DOWN ( / ) key.
5. Adjust BOW with the LEFT/RIGHT ( / ) key and the
vertical line straight.
6. Check and readjust BOW item if the adjustment becomes
improper after some other geometric adjustments are done.
7. Press the INFORMATION key and memorize the set value.
NOTE :
In case where there is a bow-shaped distortion of images on
the screen. (Figure)
TRAPEZIUM
adjustment
Signal
generator
Remote
control unit
TRAPEZ 1. Receive a cross-hatch signal.
2. Enter the SERVICE MENU.
3. Press the RED key on the remote control unit, then enter the
H/V adjustment group.
4. Select TRAPEZ with the UP/DOWN ( / ) key.
5. Adjust TRAPEZ with the LEFT/RIGHT ( / ) key till vertical
lines, especially lines at the sides of the picture frame
became parallel to the both sides of picture tube as close as
possible.
6. Check and readjust TRPEZ item if the adjustment becomes
improper after some other geometric adjustments are done.
7. Press the INFORMATION key and memorize the set value.
Parallel

No. 52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
16
Item Measuring
instrument Test point Adjustment part Description
SIDE PIN
adjustment
Signal
generator
Remote
control unit
PARAB 1. Receive a cross-hatch signal.
2. Enter the SERVICE MENU.
3. Press the RED key on the remote control unit, then enter
the H/V adjustment group.
4. Select PARAB with the UP/DOWN ( / ) key.
5. Adjust PARAB with the LEFT/RIGHT ( / ) key till vertical
lines close to the both sides of the picture frame become
parallel to vertical sides of picture tube without any bending
to left or to right side of the screen.
6. Check and readjust PARAB item if the adjustment becomes
improper after some other geometric adjustments are done.
7. Press the INFORMATION key and memorize the set value.
CORNER
adjustment
Signal
generator
Remote
control unit
U.COR
L.COR
1. Receive a cross-hatch signal.
2. Enter the SERVICE MENU.
3. Press the RED key on the remote control unit, then enter
the H/V adjustment group.
4. Select U.COR with the UP/DOWN ( / ) key.
5. Adjust U.COR with the LEFT/RIGHT ( / ) key till vertical
lines at the upper corners of the picture frame become
vertical and parallel to vertical corner sides of picture tube.
6. Check and readjust U.COR item if the adjustment becomes
improper after some other geometric adjustments are done.
7. Press the INFORMATION key and memorize the set value.
8. Select L.COR with the UP/DOWN ( / ) key.
9. Adjust L.COR with the LEFT/RIGHT ( / ) key till vertical
lines at the lower corners of the picture frame become
vertical and parallel to vertical corner sides of picture tube.
10. Check and readjust L.COR item if the adjustment becomes
improper after some other geometric adjustments are done.
11. Press the INFORMATION key and memorize the set value.
Parallel
Straight Straight

No. 52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
17
■
■■
■VIDEO CIRCUIT
Item Measuring
instrument Test point Adjustment part Description
WHITE
BALANCE
adjustment
Signal
generator
Remote
control unit
WdR
WdG
WdB
1. Receive a black & white signal.
2. Enter the SERVICE MENU.
3. Press the GREEN key on the remote control unit, then enter
the VIDEO adjustment group.
4. Select WdR, WdG and WdB with the UP/DOWN ( / ) key
respectively.
5. Adjust W dR, WdG and W dB with the LEFT/RIGHT ( / ) key
respectively, until the white part turns to pure white without
any other colour.
6. Press the INFORMATION key and memorize the set value.
COLOUR
CUTOFF
LEVEL
adjustment
Signal
generator
Remote
control unit
CuR
CuG
CuB
1. Receive a cross-hatch signal.
2. Enter the SERVICE MENU.
3. Press the GREEN key on the remote control unit, then enter
the VIDEO adjustment group.
4. Select CuR, CuG and CuB with the UP/DOWN ( / ) key
respectively.
5. Adjust CuR, CuG and CuB with the LEFT/RIGHT ( / ) key
respectively and set the values of these items as 64
(constant).
6. Press the INFORMATION key and memorize the set value.
PAL
Y DELAY
adjustment
Signal
generator
Remote
control unit
YDP 1. Receive a PAL COLOUR BAR signal.
2. Enter the SERVICE MENU.
3. Press the GREEN key on the remote control unit, then enter
the VIDEO adjustment group.
4. Select YDP with the UP/DOWN ( / ) key.
5. Adjust YDP by pressing with the LEFT/RIGHT ( / ) key till
the colour transients on the colour bar pattern becomes as
sharper and possible as colours between transients do not
mix with each other.
6. Press the INFORMATION key and memorize the set value.
AGC
adjustment
Signal
generator
Remote
control unit
AGC 1. Receive a PAL BG signal at 60dBμV RF signal level.
2. Enter the SERVICE MENU.
3. Press the GREEN key on the remote control unit, then enter
the VIDEO adjustment group.
4. Select AGC with the UP/DOWN ( / ) key.
5. Adjust AGC by pressing with the LEFT/RIGHT ( / ) key till
voltage at pin9 of PL202 is equal to 3.0V
6. Press the INFORMATION key and memorize the set value.

No. 52085
A
V-29BH11ENS
A
V-29BH11EPS
A
V-29BH11EES
18
Item Measuring
instrument Test point Adjustment part Description
SECAM
Y DELAY
adjustment
Signal
generator
Remote
control unit
YDS 1. Receive a SECAM COLOUR BAR signal.
2. Enter the SERVICE MENU.
3. Press the GREEN key on the remote control unit, then enter
the VIDEO adjustment group.
4. Select YDS with the UP/DOWN ( / ) key.
5. Adjust YDS by pressing with the LEFT/RIGHT ( / ) key till
the colour transients on the colour bar pattern becomes as
sharper and possible as colours between transients do not
mix with each other.
6. Press the INFORMATION key and memorize the set value.
NTSC
Y DELAY
adjustment
Signal
generator
Remote
control unit
YDN 1. Receive a NTSC COLOUR BAR signal from an external
source (e.g. AV 1).
2. Enter the SERVICE MENU.
3. Press the GREEN key on the remote control unit, then enter
the VIDEO adjustment group.
4. Select YDN with the UP/DOWN ( / ) key.
5. Adjust YDN by pressing with the LEFT/RIGHT ( / ) key till
the colour transients on the colour bar pattern becomes as
sharper and possible as colours between transients do not
mix with each other.
6. Press the INFORMATION key and memorize the set value.

SCHEMATIC DIAGRAMS
COLOUR TELEVISION
No.52085
Sep. 2002
COPYRIGHT 2002 VICTOR COMPANY OF JAPAN, LTD.
AV-29BH11ENS
AV-29BH11EPS
AV-29BH11EES
AV-29BH11ENS
AV-29BH11EPS
AV-29BH11EES

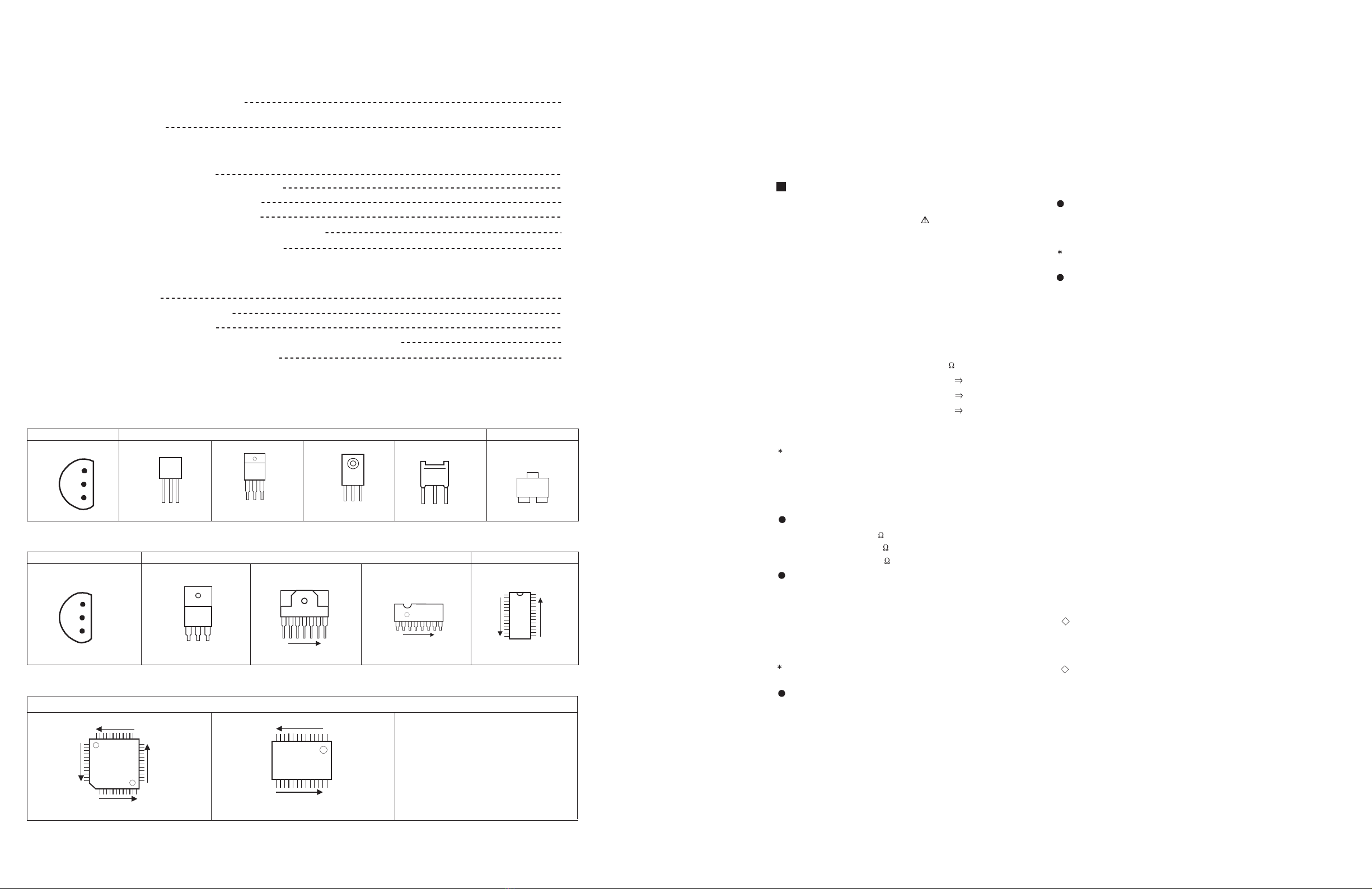

NOTE ON USING CIRCUIT DIAGRAMS
SEMICONDUCTOR SHAPES
BLOCK DIAGRAM
CIRCUIT DIAGRAMS
PATTERN DIAGRAMS
2-1
2-2
2-3
2-5
2-19
CD-ROM No.SML200209
CONTENTS

AV-29BH11ENS
AV-29BH11EPS
AV-29BH11EES
2
No.52085
AV-29BH11ENS
AV-29BH11EPS
AV-29BH11EES
2-2 Sep. 2002 No. 52085
STANDARD CIRCUIT DIAGRAM
NOTE ON USING CIRCUIT DIAGRAMS
1.SAFETY
The components identified by the symbol and shading are
critical for safety. For continued safety replace safety critical
components only with manufactures recommended parts.
2.SPECIFIED VOLTAGE AND WAVEFORM VALUES
The voltage and waveform values have been measured under the
following conditions.
(1)Input signal : Colour bar signal
(2)Setting positions of
each knob/button and
variable resistor
(3)Internal resistance of tester :DC 20k /V
(4)Oscilloscope sweeping time :H 20µS/div
:V 5mS/div
:Others Sweeping time is
specified
(5)Voltage values :All DC voltage values
Since the voltage values of signal circuit vary to some extent
according to adjustments, use them as reference values.
3.INDICATIONS ON THE CIRCUIT DIAGRAM
(1)Resistors
Resistance value
No unit :[ ]
K:[K ]
M
Type
No indication :Carbon resistor
OMR :Oxide metal film resistor
MFR :Metal film resistor
MPR :Metal plate resistor
UNFR :Uninflammable resistor
FR :Fusible resistor
Composition resistor 1/2 [W] is specified as 1/2S or Comp.
(2)Capacitors
: Original setting position
when shipped
4.NOTE FOR REPAIRING SERVICE
This model's power circuit is partly different in the GND. The
difference of the GND is shown by the LIVE side GND and the
ISOLATED(NEUTRAL) side GND.Therefore, care must be
taken for the following points.
(1)Do not touch the LIVE side GND or the LIVE side GND and the
ISOLATED(NEUTRAL) side GND simultaneously. If the above
caution is not respected, an electric shock may be caused.
Therefore, make sure that the power cord is surely removed from
the receptacle when, for example, the chassis is pulled out.
(2)Do not short between the LIVE side GND and ISOLATED(NEUTRAL)
side GND or never measure with a measuring apparatus measure
with a measuring apparatus ( oscilloscope, etc.) the LIVE side GND
and ISOLATED(NEUTRAL) side GND at the same time.
If the above precaution is not respected ,a fuse or any parts will be broken.
Since the circuit diagram is a standard one, the circuit and
circuit constants may be subject to change for improvement
without any notice.
NOTE
Due improvement in performance, some part numbers show
in the circuit diagram may not agree with those indicated in
the part list.
When ordering parts, please use the numbers that appear
in the Parts List.
Type
MM :Metalized mylar capacitor
PP :Polypropylene capacitor
MPP :Metalized polypropylene capacitor
MF :Metalized film capacitor
TF :Thin film capacitor
BP :Bipolar electrolytic capacitor
TAN :Tantalum capacitor
(3)Coils
No unit :[ µH]
Others :As specified
:[M ]
Capacitance value
1 or higher :[pF]
less than 1 :[µF]
Withstand voltage
No indication :DC50[V]
Others :DC withstand voltage[V]
AC indicated :AC withstand voltage [V]
Electrolytic Capacitors
47/50[Example]:Capacitance value [µF]/withstand voltage[V]
No indication :Ceramic capacitor
AV-29BH11ENS
AV-29BH11EPS
AV-29BH11EES
CONTENTS
SEMICONDUCTOR SHAPES 2-2
CIRCUIT DIAGRAMS
2-5
2-11
2-13
2-15
PATTERN DIAGRAMS
MAIN PWB CIRCUIT DIAGRAM
STEREO MODULE PWB CIRCUIT DIAGRAM
FEATURE BOX PWB CIRCUIT DIAGRAM
CRT SOCKET PWB CIRCUIT DIAGRAM
MAIN PWB PATTERN
STEREO MODULE PWB PATTERN
FEATURE BOX PWB PATTERN
2-19
2-21
SEMICONDUCTOR SHAPES
TRANSISTOR
BOTTOMVIEW FRONT VIEW TOP VIEW
CHIP TR
IC
BOTTOMVIEW FRONTVIEW TOPVIEW
CHIP IC
TOP VIEW
1 N
N
1
OUT
E
IN
IN OUTE
1 N
N
1
N
N
N
1
N
E
C
B
ECB
C
BE
BCE
(G)(D)(S)
ECB
ECB
BLOCK DIAGRAM 2-3
2-23
CRT SOCKET PWB PATTERN & FRONT CONTROL PWB PATTERN
2-25
FRONT AV & HEADPHONE PWB PATTERN
2-26
2-18
FRONT CONTROL PWB CIRCUIT DIAGRAM
2-17
FRONT AV & HEADPHONE PWB CIRCUIT DIAGRAM
