INSTRUCTIONS
GGT0118-001A-H
AV-29MS16
AV-29SS16
AV-25MS16
AV-21MS16
COLOUR TELEVISION EQUALIZER • CINEMA SURROUND • COMPONENT INPUT
Contents
Knowing your TV’s features .......................................................3
Remote control buttons and basic functions ..............................4
TV buttons and functions............................................................6
Setting up your TV......................................................................7
Basic setting for picture ..............................................................9
Advanced setting for picture..................................................... 11
Basic setting for sound .............................................................12
Advanced setting for sound......................................................13
DVD Menu................................................................................14
Customized setting...................................................................15
TV channel presetting ..............................................................17
Additional preparation ..............................................................20
Troubleshooting........................................................................21
Specifications .............................................................Back cover
GGT0118-001A-H(EN).indd 1GGT0118-001A-H(EN).indd 1 25.05.2006 14:22:20 Uhr25.05.2006 14:22:20 Uhr

2

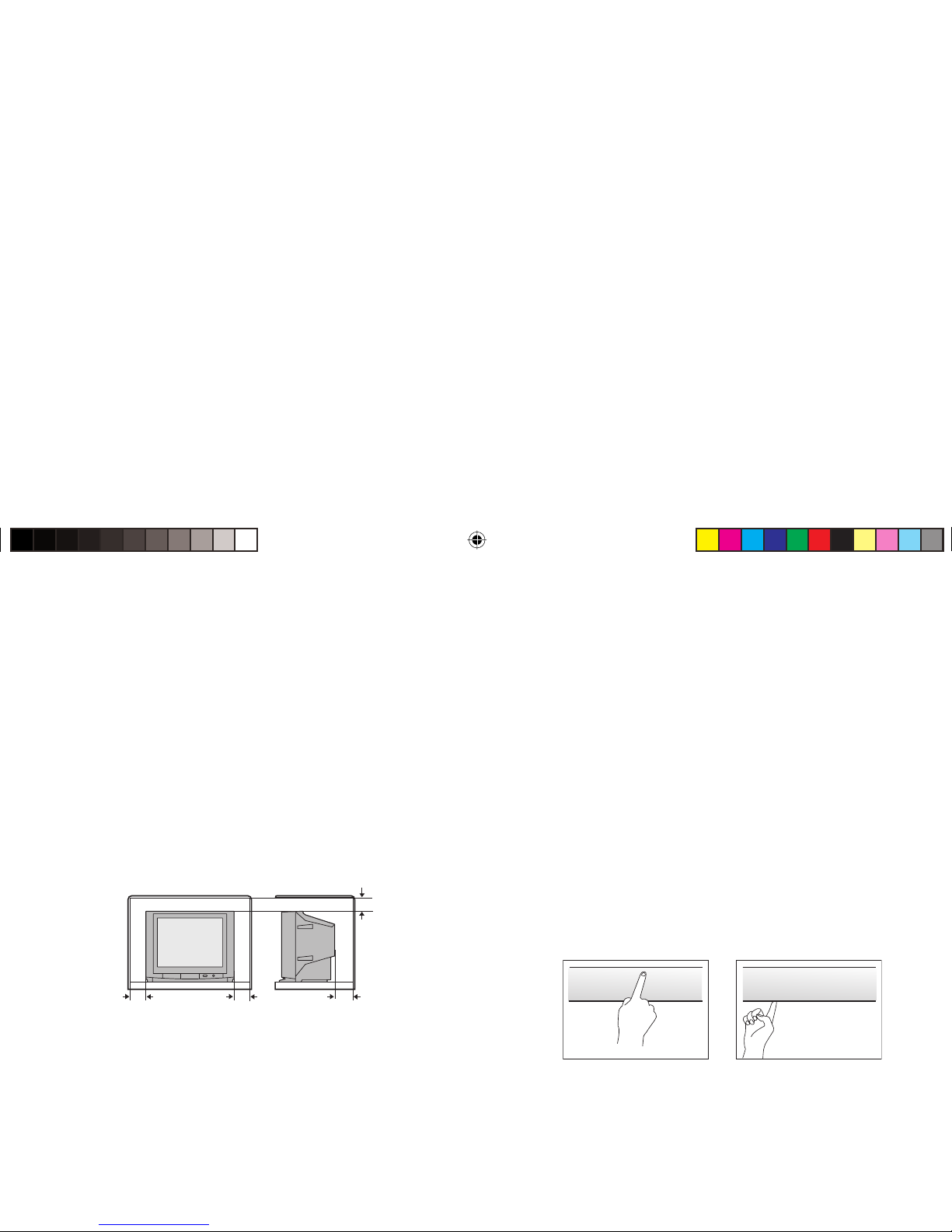

15 cm
10 cm 10 cm 15 cm
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO ENSURE PERSONAL SAFETY, OBSERVE THE
FOLLOWING RULES REGARDING THE USE OF THIS TV.
1 Operate only from the power source indicated on the rear of the TV.
2 Avoid damaging the power cord and mains plug. When unplugging the
TV, grasp the mains plug. Do not pull on the power cord.
3 Never block or cover the ventilation openings.
Never install the TV where good ventilation is unattainable.
When installing this TV, leave spaces for ventilation around the TV of
more than the minimum distances as shown.
4 Do not allow objects or liquid into the cabinet openings.
5 In the event of a fault, unplug the unit and call a service technician.
Do not attempt to repair it yourself or remove the rear cover.
6 The surface of the TV screen is easily damaged. Be very careful with it
when handling the TV. Should the TV screen become soiled, wipe it with
a soft dry cloth. Never rub it forcefully. Never use any cleaner or detergent
on it.
7 This TV can be turned on/off power by connecting/disconnecting the AC
plug into AC outlet. While this TV is being installed, enough space should
be reserved for connection/disconnecting the AC plug into AC outlet by
hand.
8 The apparatus shall not be exposed to dripping or splashing and that
no objects filled with liquids, such as vases, shall be placed on the
apparatus.
WARNING: <AV-21M, AV-25M, AV-29M Series>
YOU CAN DETACH THE PROTECT SHEET ON THE TOP
AND BOTTOM OF FRONT FRAME IF YOU NEEDED.
THE FRONT BUTTON DOOR OF THE TV SHOULD BE
PULLED OUT FROM ITS BOTTOM. DO NOT PRESS THE
UPPER PART, OR YOUR FINGER MAY BE PINCHED.
Thank you for buying this JVC colour television.
To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.
✓
PULL PULL
GGT0118-001A-H(EN).indd 2GGT0118-001A-H(EN).indd 2 25.05.2006 14:22:21 Uhr25.05.2006 14:22:21 Uhr

3
Knowing your TV’s features
EXIT
RM-C1286
Confirm your TV’s functions
Some functions written in this instruction manual may not be available for your TV.
Please see the chart below and check the functions that are equipped for your TV’s model number.
The model number is indicated at the rear of your TV. When you press a button concerned to a function that
is not available for your TV, it does not work and the logo “Ø” appears on the screen.
NO.
Model No.
Function
AV-29MS16 AV-29SS16 AV-25MS16 AV-21MS16
—PICTURE TILT O——
Main features
DVD MENU Just connect DVD player to the television. The television will detect DVD signal and display
picture on the screen automatically and you can adjust pictures and sound while you are
watching DVD as your desire. When disconnect DVD player, the television will display the
previous channel.
MaxxBass MaxxBass enhances bass sound that cannot be reproduced by normal speakers to be
heard by our ears.
FAVORITE CH (Channel) You can register up to four favorite channels for quick recall with one press.
A2/NICAM
(STEREO / I.II)
You can listen the stereo sound or bilingual sound from TV programme broadcasting by A2
or NICAM Sound-multiplex system.
AI ECO SENSOR TV detects the brightness of your room and automatically adjust the picture brightness to
a suitable level for a better eyecare.
AI VOLUME TV adjusts the volume automatically to the same level for all TV channels to avoid sudden
change of the volume when selecting different TV channels or selecting Video Mode.
VNR You can reduce the picture noise when viewing noisy TV programmes or video sources.
WHITE BALANCE You can choose one of three tones of white to match to the video source such as movie, sport,
etc. Changing White balance affects the appearance of all other colours on the screen.
TINT You can adjust TINT setting for all colour systems, including PAL.
GGT0118-001A-H(EN).indd 3GGT0118-001A-H(EN).indd 3 25.05.2006 14:22:22 Uhr25.05.2006 14:22:22 Uhr

4
Remote control buttons and basic functions
EXIT
RM-C1286
1
6
3
7
9
5
8
2
!
4
"
No. Press To
1POWER Turn on or off the TV from standby mode.
2MENU/OK Display menu and confirm selected function.
35/ ∞/ 2/ 3Select and adjust menu function.
4CHANNEL -/+ Select the desired channel number.
5VOLUME -/+ Adjust the volume level.
6TV/VIDEO
EXIT
Select TV or video terminal input.
On the other hand, you can use this button to EXIT from the menu.
7MUTING Turn off the volume.
Press this button again to resume the volume.
8DISPLAY
/BACK
Display the programme number or video terminal number, stereo/bilingual broadcast system and
PR list (channel list) on the screen.
You can select the channel using the PR list.
1Press the DISPLAY button once to display the PR list.
2Press 5/ ∞/ 2/ 3buttons to choose a channel, then press the MENU/OK button.
You can confirm the favorite channels in the PR list. The channels set to favorite channels are
indicated with coloured mark.
On the other hand, you can use this button to return to the previous menu.
90~9, -/-- Select the programme number. For two digits programme number, press -/--, then press the
number button.
!RETURN+ a) Return to the frequently view channel with one touch.
1Choose the channel you want to register.
2Press and hold RETURN+ button until “RETURN PLUS PROGRAMMED!” appears.
To cancel, press and hold RETURN+ button until “RETURN PLUS CANCELED!” appears.
b) Return to the previously viewed channel, if you have not set or have cancelled the Return
channel as above.
"FAVORITE
CHANNEL
(colour buttons: red,
green, yellow, blue)
Register and recall 4 favorite channels.
1. Choose the TV channel you want to register then press and hold a colour button until
“PROGRAMMED! ■" appears.
2. To register other favorite channels, repeat step 1.
To recall the favorite channel, press the colour button.
When the TV is in menu mode, the favorite channel function is not available.
GGT0118-001A-H(EN).indd 4GGT0118-001A-H(EN).indd 4 25.05.2006 14:22:22 Uhr25.05.2006 14:22:22 Uhr

5
Remote control buttons and basic functions (continued)
The following chart shows locations of functions in menus. In this manual,
location of a function is described as follows:
Note: Some functions have the 4th menus as the sub-menus.
How to operate menus and menus locations
To Operation Note
Display the MENU Press the MENU/OK button 2.
PICTURE MENU is displayed on
first press.
To exit the MENU,
press the DISPLAY/
BACK button 8or
choose EXIT menu
or TV/VIDEO/EXIT
button 6.
Choose a Top
menu
Press 2/3buttons 3to choose
a menu title when the cursor is
pointing at MENU.
—
Choose a 2nd
menu
Press 5/∞buttons 3to choose a
2nd menu title.
Press ∞button 3
to display the next
functions.
Display the 3rd
menu
Press 5/∞buttons 3to choose a
2nd menu title. Then press MENU/
OK button 2.
Return to the
previous menu
Press the DISPLAY/BACK button
8.—
Choose the setting
of a function
Press 5/∞buttons 3to choose
a function. Then press the 2/3
buttons 3to change the setting.
Press the TV/ VIDEO/
EXIT button 6to exit
from the menu.
Adjust the effect
level of a function
Press 5/∞buttons 3to choose
a function. Then press the 2/3
buttons 3to adjust the effect
level.
Display the sub
menu of a function.
Press the 5/∞buttons 3to
choose a function. Then press
MENU/OK button 2to display
the sub menu.
—
MENU Top menu 2nd menu
Top menu 3rd menuMENU 2nd menu
Top menu 2nd menu Location 3nd menu Location
MENU PICTURE PICTURE MODE P.9 – –
PICTURE SETTING P.10 CONTRAST P.10
BRIGHT P.10
SHARP P.10
COLOUR P.10
TINT P.10
WHITE BALANCE P.10 – –
VNR P.15 – –
SOUND STEREO/I■II P. 1 3––
AI VOLUME P.13 ––
SOUND MODE P.12 ––
EQUALIZER P.13 ––
BALANCE P.12 ––
CINEMA SURROUND P.13 ––
MaxxBass P.13 ––
FEATURES DVD MENU P.14
AUTO SIGNAL DETECT P.14
DVD PICTURE MODE P.14
DVD THEATER STATUS P.14
DVD SOUND MODE P.14
ON TIMER P.15 PR P.15
ON TIMER P.15
OFF TIMER P.15 ––
CHILD LOCK P.15 ––
COMPRESS (16:9) P.11 ––
AI ECO SENSOR P.11 ––
INSTALL AUTO PROGRAM P.17 ––
EDIT/MANUAL P.17 DELETE, MOVE,
MANUAL, INSERT
P.17-
P.19
COLOUR SYSTEM P.9 ––
LANGUAGE P.15 LANGUAGE P.15
VIDEO-2 SETTING P.16 ––
BLUE BACK P.11 ––
PICTURE TILT P.11 ––
BEEP P.16 ––
GGT0118-001A-H(EN).indd 5GGT0118-001A-H(EN).indd 5 25.05.2006 14:22:23 Uhr25.05.2006 14:22:23 Uhr

6
TV buttons and functions
The illustrations shown below is for AV-21MS16 and AV-29SS16 only, which are used for explanation purpose.
Your TV may not look exactly the same as illustrated.
POWER
TV/VIDEO
MENU/OK
CHANNEL
VOLUME
RVL/MONO
IN(VIDEO-3)
Front of the TV
AV-29SS16
Rear of the TV
AV-29SS16
6
,
22
,-/./
9
#
"
# 2
6
6
3
/6%2
,
2
-/./
/54054
6)$%/ #/-0/.%.4
6)$%/
).054
).054
AV-21MS16
No. Button/terminal Description Page
1L(main power) Press to turn on or turn off the TV’s main power. –
2POWER lamp Indicate the TV’s status. –
No colour : TV’s main power is being turned off.
Red : TV’s main power is being turned on.
Blink :
While the TV is in standby mode, ON TIMER function is in used.
While the TV is in turn on mode , OFF TIMER function is in used.
Note: When you turn off the power switch while TV is in standby mode,
the power lamp will go off in 10 -15 seconds.
When you operate the TV, POWER Lamp will be blink.
3ECO sensor –
4Remote control sensor –
5TV/VIDEO
Press to select TV or Video terminal input or exit from menu. –
6VOLUME -/+ Press to adjust the volume level. –
7CHANNEL -/+
Press to select the desired channel (Both of RF and Video input.) –
8MENU/OK Press to display the menu. –
9IN (VIDEO-3) Video and audio input jacks for VIDEO-3 mode. 20
!Headphone jack. 20
"Aerial socket. 7
#OUTPUT Video and audio output jacks. (The component video
signal cannot be output.)
20
$COMPONENT
(VIDEO-2) INPUT
Video or component video, and audio input jacks for VIDEO-2
mode. You can select the input signal by setting the “VIDEO-2
SETTING” function (see page 16).
20
%VIDEO-1 INPUT
Video or S-VIDEO, and audio input jacks for VIDEO-1 mode. 7
How to operate the menus with the TV button
TV button Work as same as the button on
the remote control unit Note
MENU MENU/OK button To display main menu and exit menu after
finish setting.
CHANNEL -/+ ∞/5button To select menu function.
VOLUME -/+ 2/3button To choose a Top menu and adjust the
desired menu function.
GGT0118-001A-H(EN).indd 6GGT0118-001A-H(EN).indd 6 25.05.2006 14:22:24 Uhr25.05.2006 14:22:24 Uhr

7
2Connecting the main plug to the AC outlet.
Setting up your TV
CAUTION
• Turn off the equipment including the TV before connecting.
VHF/UHF outdoor aerial
75-ohm coaxial cable (not supplied)
1Connecting the aerial cable.
3Inserting batteries into the remote control.
Insert two batteries by following the +and -polarities
and inserting the -end first.
CAUTION:
Follow the cautions printed on the batteries.
Notes:
• Use AA/R6/UM-3 dry cell batteries.
• If the remote control does not work properly, fit
new batteries. The supplied batteries are for testing,
not regular use.
4Turn on the TV by pressing the main power button.
JVC logo appears on the screen.
V
L
RR
L/MONO
Y
C
B
C R
/V
V
S
OVER
L
R
/MONO
OUTPUT
VIDEO-1 COMPONENT
(VIDEO-2)
INPUT
INPUT
Rear of TV
AV-29SS16
VHF/UHF outdoor aerial
VCR
If you connect a VCR, connect the aerial output jack of your VCR and
the aerial jack on the TV with aerial cable. Then connect the output
jacks of your VCR and the VIDEO-1 input jacks of the TV with the
video cable (or S-VIDEO cable if available) and audio cables. For
details, see the manual of your VCR.
The illustration shown is just a sample. It may not be same as your TV.
JVC logo will appear on the screen again at the phase of “SETUP
TOUR RESTART?” function. Then the initial setting can be performed
according to page 8.
Note:
While in the INSTALL menu with the cursor pointing at INSTALL, pressing
the blue button will also display the JVC logo.
GGT0118-001A-H(EN).indd 7GGT0118-001A-H(EN).indd 7 25.05.2006 14:22:26 Uhr25.05.2006 14:22:26 Uhr

8
5Making the initial settings
Set up your TV by pressing MENU/OK button or waiting for 15 seconds, then operate
the TV by following the steps below:
• Press 5/∞button to
select your desired
language.
• TV will start searching
for the channels.
To stop AUTO
PROGRAM, press
MENU/OK button.
Setting up your TV (continued)
• To complete the initial
setting, press the
MENU/OK button. To
edit the channel list,
see page 17.
• “SETUP TOUR
RESTART?” will be
displayed.
Press the MENU/OK
button to cancel
the SETUP TOUR
RESTART function.
If you want to make
initial settings again
when the next time
you turn on the TV,
press the Red button
to activate the SETUP
TOUR RESTART
function.
LANGUAGE
MENU : OK
DISPLAY : BACK
TV/VIDEO : EXIT
AUTO PROGRAM
MENU : OK
22%
EDIT
MENU : OK
MOVE
■ INSERT
■ DELETE
■ MANUAL
■
■
■
■
PR CH/CC
AV
1 CH 04
2 CH 76
3 CH 78
4 CH 05
5 CH 28
3
6 CH 10
AUTO PROGRAM
MENU : NO
SETUP TOUR RESTART?
■ : YES
ENGLISH
When turn on the TV at
the next time
GGT0118-001A-H(EN).indd 8GGT0118-001A-H(EN).indd 8 25.05.2006 14:22:26 Uhr25.05.2006 14:22:26 Uhr

9
COLOUR SYSTEM
You can select the appropriate colour system when the picture is
not clear or no colour appears.
Press the COLOUR SYSTEM button to select a setting.
To operate this function with a menu:
For the colour system in each country or region, see the table below:
PICTURE MODE
You can choose the desired picture setting with one-touch.
Press the PICTURE MODE button to select a setting.
SOFT Softens contrast and sharpness.
BRIGHT Heightens contrast and sharpness.
STANDARD Standard picture setting.
USER You can change this picture setting as you like.
Select USER and adjust following items in the
PICTURE SETTING menu. (CONTRAST, BRIGHT,
SHARP, COLOUR, TINT)
When you select VIDEO-2 Mode, you cannot adjust SHARP.
When you set DVD THEATER STATUS in DVD MENU to ON, you
cannot adjust PICTURE MODE.
To operate this function with a menu:
To return the USER setting to default, press the blue button when
the PICTURE SETTING menu is displayed.
Basic setting for picture
AUTO PAL SECAM NTSC3.58
NTSC4.43
MENU INSTALL menu COLOUR SYSTEM

MENU PICTURE menu PICTURE MODE

Area Country or Region System
Asia, Middle
East
Bahrain, Kuwait, Oman, Qatar, United Arab Emirates,
Yemen, etc.
Indonesia, Malaysia, Singapore, Thailand, India, etc.
PAL
China, Vietnam, etc. PAL
Hong Kong, etc. PAL
Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. SECAM
Philippines, Taiwan, Myanmar, etc. NTSC
Europe
Russia, etc. SECAM
Czech Republic, Poland, etc. PAL
Germany, Holland, Belgium, etc. PAL
UK, etc. PAL
Oceania Australia, New Zealand, etc. PAL
Africa
Republic of South Africa, etc. PAL
Nigeria, etc. PAL
Egypt, Morocco, etc. SECAM
About the basic operations of the menu, please see the “How to
operate menus and menus locations” on page 5.
GGT0118-001A-H(EN).indd 9GGT0118-001A-H(EN).indd 9 25.05.2006 14:22:27 Uhr25.05.2006 14:22:27 Uhr

10
PICTURE SETTING
You can adjust the desired picture setting when selecting USER in
PICTURE MODE.
1Select USER in PICTURE MODE under PICTURE menu.
2Select PICTURE SETTING in PICTURE menu, then adjust the
setting.
CONTRAST 2: Lower contrast 3: Higher contrast
BRIGHT 2: Darker 3: Brighter
SHARP 2: Softer 3: Higher
COLOUR 2: Lighter 3: Deeper
TINT 2: Reddish 3: Greenish
When you select VIDEO-2 Mode, you cannot adjust SHARP.
Basic setting for picture (continued)
WHITE BALANCE
You can change the white balance of the picture to better match
the type of video being viewed.
Select WHITE BALANCE in the PICTURE menu, then choose the
desired setting.
NORMAL Normal white balance.
COOL Bluish white.
WARM Reddish white.
When you set DVD THEATER STATUS in DVD MENU to ON, you
cannot adjust WHITE BALANCE.
MENU PICTURE menu WHITE BALANCE
MENU PICTURE menu PICTURE MODE
USER

MENU PICTURE menu PICTURE SETTING


About the basic operations of the menu, please see the “How to
operate menus and menus locations” on page 5.
GGT0118-001A-H(EN).indd 10GGT0118-001A-H(EN).indd 10 25.05.2006 14:22:28 Uhr25.05.2006 14:22:28 Uhr

11
AI ECO SENSOR (ECO)
You can adjust TV screen contrast according to the brightness of
your room.
Press the ECO button to select the desired mode.
OFF Cancel the function.
MODE-1 Mild contrast (recommended.)
MODE-2 Even contrast.
DISPLAY Display the graphic of the function.
To operate this function with a menu:
When you set DVD THEATER STATUS in DVD MENU to ON, you
cannot adjust AI ECO SENSOR.
Correcting the Slanting Picture (PICTURE TILT)
You can correct the picture tilt caused by the earth’s magnetic force.
1Select PICTURE TILT in the INSTALL menu, then press MENU/
OK button.
The following display appears.
2Press the 5/∞buttons until the picture becomes level. Then
press the MENU/OK button.
COMPRESS (16:9)
You can convert a normal picture (4:3 aspect ratio) into a wide
picture (16:9 aspect ratio).
Select COMPRESS (16:9) in the FEATURES menu, then choose
ON or OFF.
BLUE BACK
You can set the TV to automatically change to a blue screen and
mute the sound if the signal is weak or absent, or when there is no
input from an antenna.
Select BLUE BACK in the INSTALL menu, then choose ON or OFF.
If you wish to continue viewing the poor picture, off the BLUE BACK
function.
Advanced setting for picture
PICTURE TILT
MENU : OK
DISPLAY : BACK
TV/VIDEO : EXIT
MENU INSTALL menu PICTURE TILT
MENU INSTALL menu BLUE BACK

MENU FEATURES menu COMPRESS (16:9)

MENU FEATURES menu
AI ECO SENSOR

About the basic operations of the menu, please see the “How to
operate menus and menus locations” on page 5.
GGT0118-001A-H(EN).indd 11GGT0118-001A-H(EN).indd 11 25.05.2006 14:22:28 Uhr25.05.2006 14:22:28 Uhr

12
SOUND SYSTEM
You can select an appropriate sound system when abnormal sound
occurs even when the picture appears normally.
Press the SOUND SYSTEM button to select a setting.
This function is not available in video mode.
For the sound system in each country or region, see the table below:
Basic setting for sound
B/G I D/K M
SOUND MODE
You can choose the desired sound setting.
Select the SOUND MODE in SOUND menu, then choose the setting.
USER You can change this sound setting as you like.
Select USER and adjust the frequencies in EQUALIZER
(100, 300, 1K, 3K, 8K Hz).
For details, see “EQUALIZER” on page 13.
SOUND TURBO Emphasize on low and high frequency levels.
THEATER Emphasize on movie sound.
MUSIC Emphasize on music effect.
NEWS Emphasize on vocal sound.
When you select VIDEO-2, you cannot adjust SOUND MODE
function. You can adjust it in DVD Menu.
When SOUND MODE is set to SOUND TURBO, EQUALIZER,
CINEMA SURROUND and MaxxBass functions are not available.
BALANCE
You can adjust the volume balance between the left and right
speakers.
Select BALANCE in SOUND menu, then adjust the setting.
MENU SOUND menu SOUND MODE

MENU SOUND menu BALANCE

Area Country or Region System
Asia, Middle
East
Bahrain, Kuwait, Oman, Qatar, United Arab Emirates,
Yemen, etc.
Indonesia, Malaysia, Singapore, Thailand, India, etc.
B/G
China, Vietnam, etc. D/K
Hong Kong, etc. I
Islamic Republic of Iran, Lebanon, Saudi Arabia, etc. B/G
Philippines, Taiwan, Myanmar, etc. M
Europe
Russia, etc. D/K
Czech Republic, Poland, etc. D/K
Germany, Holland, Belgium, etc. B/G
UK, etc. I
Oceania Australia, New Zealand, etc. B/G
Africa
Republic of South Africa, etc. I
Nigeria, etc. B/G
Egypt, Morocco, etc. B/G
About the basic operations of the menu, please see the “How to
operate menus and menus locations” on page 5.
GGT0118-001A-H(EN).indd 12GGT0118-001A-H(EN).indd 12 25.05.2006 14:22:29 Uhr25.05.2006 14:22:29 Uhr

13
CINEMA SURROUND
You can enjoy an enhanced sound for wider audience.
Press the CINEMA SURROUND button to select a setting.
OFF Cancel the function.
ON Listen to sound with wider audience effect.
This function is not available when SOUND MODE is set to SOUND
TURBO.
To operate this function with a menu:
STEREO / I■II ( )
You can enjoy the stereo and bilingual broadcasted programmes.
Press the button to select the desired mode.
Select stereo sound.
Select monaural sound.
ISelect bilingual I(sub I).
II Select bilingual II (sub II).
This function is not available in video mode.
To operate this function with a menu:
Advanced setting for sound
EQUALIZER
You can adjust the sound level of each frequencies when selecting
USER mode in SOUND MODE.
1Select USER in SOUND MODE under SOUND menu.
2Select EQUALIZER in SOUND menu.
The following display appears.
3Select and adjust the desired frequencies.
4Press the MENU/OK button to exit the menu.
Adjust high frequency will affect higher pitch sound and vice versa.
When you select VIDEO-2, you cannot adjust EQUALIZER.
AI VOLUME
You can adjust the volume of all the channels and video inputs to
the same level automatically depends on the strength of signal of
the sources.
Select AI VOLUME in SOUND menu, then choose ON or OFF.
About the basic operations of the menu, please see the “How to
operate menus and menus locations” on page 5.
IIIIIII
IIIIIIIIIIIIIIII
IIIIIIII
100 300 1K 3K 8K Hz
EQUALIZER
MENU : OK
DISPLAY : BACK
TV/VIDEO : EXIT
IIIIIIIIIIIIIIII
MENU SOUND menu CINEMA SURROUND

MENU SOUND menu STEREO / I■II

MENU SOUND menu SOUND MODE USER

MENU SOUND menu EQUALIZER

MENU SOUND menu AI VOLUME

MaxxBass
You can enjoy an enhanced bass sound which cannot be reproduced
by normal speakers.
Select MaxxBass in SOUND menu, then choose the desired setting.
OFF MaxxBass is turned off.
HIGH MaxxBass effect is high.
LOW MaxxBass effect is low.
MENU SOUND menu MaxxBass

This function is not available when SOUND MODE is set to SOUND
TURBO.
“MaxxBass” is a registered trademark of Waves Audio Ltd. in the
USA, Japan and other countries.
GGT0118-001A-H(EN).indd 13GGT0118-001A-H(EN).indd 13 25.05.2006 14:22:30 Uhr25.05.2006 14:22:30 Uhr

14
DVD Menu
AUTO SIGNAL DETECT
When the DVD input signal is detected, the input mode will be changed
to VIDEO-2 automatically. And when the DVD input signal is not
detected, the input mode will be changed to RF previous input mode.
Select AUTO SIGNAL DETECT in DVD MENU under FEATURES
menu then choose ON or OFF (Factory setting is ON).
Press the “POWER ON” button on the DVD players or VCRs (follow
by the “PLAY” button for VCRs) so that the signal can be detected.
ON Enjoy movie playback with suitable colour temperature, sharp
subtitles and improved gradation for black, like in a theater.
OFF Cancel the function.
When you set DVD THEATER STATUS to ON, PICTURE MODE,
WHITE BALANCE and AI ECO SENSOR functions are not
available.
MENU FEATURES menu DVD MENU
AUTO SIGNAL DETECT
DVD THEATER STATUS
MENU FEATURES menu
DVD MENU
DVD SOUND MODE
MENU FEATURES menu
DVD MENU
About the basic operations of the menu, please see the “How to
operate menus and menus locations” on page 5.
DVD SOUND MODE
You can choose different sound setting for viewing different types
of DVD content.
Select DVD SOUND MODE in DVD MENU under FEATURES menu,
then choose the desired setting.
MUSIC Select when watching a music concert.
USER
Select if you want to adjust the sound setting to your preference.
DRAMA Select when watching a drama movie.
THEATER Select when watching an action movie.
DVD THEATER STATUS
You can enjoy an enhanced picture quality for movie playback in a
dark room, like watching a movie in the theater.
Select DVD THEATER STATUS in DVD MENU under FEATURES
menu, then choose ON or OFF.
DVD PICTURE MODE
You can enhance the picture quality of the DVD or VIDEO-2.
Select DVD PICTURE MODE in DVD MENU under FEATURES
menu, then choose the desired setting.
OFF Cancel the function.
CLEAR-1
Select when the disc is with lots of noise (To soften the picture).
CLEAR-2 Select when the disc is with less noise (To sharpen the picture).
DVD PICTURE MODE
MENU FEATURES menu
DVD MENU
GGT0118-001A-H(EN).indd 14GGT0118-001A-H(EN).indd 14 25.05.2006 14:22:30 Uhr25.05.2006 14:22:30 Uhr

15
Customized setting
VNR
You can reduce the picture noise.
Select VNR in PICTURE menu, then choose a setting of VNR function.
OFF VNR is turned off.
AUTO Effect of VNR is automatically controlled.
MIN Effect of VNR becomes minimum level.
MAX Effect of VNR becomes maximum level.
If you select MAX, the picture becomes softer even if the original
picture is sharp.
When you select VIDEO-2, you cannot adjust VNR function.
LANGUAGE
You can choose your desired on screen display language.
Select LANGUAGE in the INSTALL menu, then choose a language.
CHILD LOCK
You can disable the front control buttons of the TV.
Select CHILD LOCK in the FEATURES menu, then choose ON or
OFF.
ON TIMER
You can set the TV to turn on automatically from standby mode at
a set channel and time.
1 Select ON TIMER in the FEATURE menu.
The following display appears.
MENU INSTALL menu LANGUAGE

MENU PICTURE menu
VNR
About the basic operations of the menu, please see the “How to
operate menus and menus locations” on page 5.
OFF TIMER
You can set the TV to turn off automatically to standby mode after
a set time.
Press the OFF TIMER button to select a desired period of time.
You can set the period of time to a maximum of 120 minutes in 10
minute intervals.
To operate this function with a menu:
When the remaining elapse time is one minute, “GOOD NIGHT!”
appears on the screen.
You can display the OFF TIMER menu again to confirm or change
the remaining time.
MENU FEATURES menu OFF TIMER

MENU FEATURES menu CHILD LOCK

2Choose the PR (channel) by pressing the 2/3button.
External input, AV position and any un-preset channel cannot be
chosen for PR.
3Set the ON TIMER to your desired period of time by pressing the
2/3button. ON TIMER starts. You can set the period of time to
a maximum of 12 hours in 15-minute intervals.
To off the ON TIMER, set the ON TIMER to OFF.
Note : If TV is not in standby mode when ON TIMER is reach the
setting time, this case is not available.
PR 01
00:15
ON TIMER
ON TIMER
DISPLAY : BACK
TV/VIDEO : EXIT
MENU FEATURES menu
ON TIMER

GGT0118-001A-H(EN).indd 15GGT0118-001A-H(EN).indd 15 25.05.2006 14:22:31 Uhr25.05.2006 14:22:31 Uhr

16
Customized setting (continued)
DISPLAY
You can display the programme number, video terminal number
and PR list on the screen.
Press the DISPLAY button to select the desired mode:
Choose a TV channel or a VIDEO terminal.
1Press the DISPLAY button to display the PR LIST.
2Select a programme number or video terminal by pressing the
5/∞button to move up/down on the programme number or press
the 2/3button to skip for each 7 programme numbers, then press
MENU/OK button.
ON OFF PR LIST
PR CH/CC
V1
V2
V3
AV
1
2
3
CH 09
CC 76
CC 78
PR LIST
MENU : OK
-7 +7
■
■
■
VIDEO-2 SETTING
You can set the VIDEO-2 SETTING according to the video signal
output from external devices connected to the VIDEO-2 terminal.
Select VIDEO-2 SETTING in INSTALL menu, then choose a setting
(Factory setting is COMPONENT).
MENU INSTALL menu VIDEO-2 SETTING

VIDEO
If a normal video signal (composite video signal) is input.
COMPONENT If a component video signal (Y/CB/CR) is input.
You must choose a setting according to the signal that you input to
VIDEO-2. (If you input the VIDEO Signal or VCR Signal to VIDEO-2,
you must set VIDEO-2 SETTING to VIDEO.)
For connecting methods, see “Additional Preparation” on page 20.
About the basic operations of the menu, please see the “How to
operate menus and menus locations” on page 5.
BEEP
You can use the BEEP function to alert you during DVD AUTO
SIGNAL DETECT, AI ECO SENSOR Detect, Stereo Detect, ON
TIMER/OFF TIMER operations and when some buttons on the
remote control are pressed.
Select BEEP in the INSTALL menu, then choose ON or OFF.
When the volume is level 0, then BEEP function is not available.
MENU INSTALL menu BEEP

GGT0118-001A-H(EN).indd 16GGT0118-001A-H(EN).indd 16 25.05.2006 14:22:32 Uhr25.05.2006 14:22:32 Uhr

17
To register the TV channels automatically
(AUTO PROGRAM)
You can register the TV channels into the TV’s channel list
automatically.
1Display the INSTALL menu.
2Choose AUTO PROGRAM, then press the MENU/OK button.
AUTO PROGRAM function starts, and the channels received are
registered in the channel list (PR LIST) automatically.
3The EDIT menu appears.
To edit the channel list Proceed to Step 3 of “To edit the channel list
(PR LIST)” on page 18.
If a channel is not
registered
Proceed to Step 3 of “To register the TV
channels manually” on this page.
To exit the menu Press the MENU/OK button.
To register the TV channels manually
(MANUAL in the EDIT menu)
You can register the TV channels into the TV’s channel list
manually.
1Display the INSTALL menu.
TV channel presetting
2Choose EDIT/MANUAL, then press the MENU/OK button.
EDIT menu appears.
3Choose the channel which you want to register.
4Press the blue button to activate the MANUAL function.
The sound system of the channel appears at the right of the
CH/CC number.
5Press the 3button to choose an appropriate sound system.
For details, see “SOUND SYSTEM” on page 12.
6Press the green or red button to search for the TV channel.
Searching stops when a channel is found and displayed.
7Repeat step 5 until your desired TV channel appears.
If the reception is poor Press the blue or yellow button to fine tune
the TV channel.
If noisy sound is heard Press the 3button to choose an appropriate
sound system.
8Press the MENU/OK button to exit the menu.
EDIT
MENU : OK
MOVE
■ INSERT
■ DELETE
■ MANUAL
■
■
■
■
PR CH/CC
AV
1 CH 04
2 CH 76
3 CH 78
4 CH 05
5 CH 28
3
6 CH 10
MENU INSTALL menu

MENU INSTALL menu

About the basic operations of the menu, please see the “How to
operate menus and menus locations” on page 5.
GGT0118-001A-H(EN).indd 17GGT0118-001A-H(EN).indd 17 25.05.2006 14:22:33 Uhr25.05.2006 14:22:33 Uhr

18
To add in the new channel
(INSERT in the EDIT menu)
You can add in new channels in the TV channel list as you like.
You need to find the “CH/CC” number for the TV channel. Find the
“CH/CC” number corresponding to the channel number of the TV
channel from “CH/CC number list” on page 19.
1Display the INSTALL menu.
2Choose EDIT/MANUAL, then press the MENU/OK button.
EDIT menu appears.
3Choose the PR number for which you will register a new TV
channel. When you add a new TV channel of NTSC-M system,
press the SOUND SYSTEM button to change the sound system
to M. Then proceed to the next step.
4 Press the green button, then press 3button to choose “CC” or
“CH”.
5Press the number button to enter the CH/CC number for the TV
channel you wish to add.
The TV starts to search the TV channel, and the picture of the TV
channel appears. If the TV finds no TV channel, a noisy picture
appears.
When a TV channel has already been registered in PR99, using the
INSERT function deletes that TV channel.
TV channel presetting (continued)
To edit the channel list (PR LIST)
(MOVE and DELETE in the EDIT menu)
You can edit the TV channel list as you like.
Note: After this operation, other channel’s PR numbers will be
changed.
1Display the INSTALL menu.
2Choose EDIT/MANUAL, then press the MENU/OK button.
EDIT menu appears.
3Choose the channel which you want to change its PR number,
or delete.
4Do the following action:
To change the PR number
(MOVE)
Press the 3button. Then move it to the new
PR number you want to use for the channel
by pressing the 5/∞button. Finally press
the 2button.
To delete the channel
(DELETE)
Press the yellow button.
5Press the MENU/OK button to exit the menu.
EDIT
MENU : OK
MOVE
■ INSERT
■ DELETE
■ MANUAL
■
■
■
■
PR CH/CC
AV
1 CH 04
2 CH 76
3 CH 78
4 CH 05
5 CH 28
3
6 CH 10
MENU INSTALL menu

MENU INSTALL menu

About the basic operations of the menu, please see the “How to
operate menus and menus locations” on page 5.
GGT0118-001A-H(EN).indd 18GGT0118-001A-H(EN).indd 18 25.05.2006 14:22:33 Uhr25.05.2006 14:22:33 Uhr

19
TV channel presetting (continued)
CH/CC number
When you want to use the INSERT function
on page 18, find the CH/CC number
corresponding to the channel number of the
TV channel from this table.
Channel No. Country
US United States, Philippines, etc..
CCIR
Middle East, Southeast Asia, etc..
OIRT Eastern Europe, Russia, Vietnam,
etc..
AUSTRALIA Australia, etc..
Channel
CC US CCIR OIRT AUSTRALIA
CC 18 E S-18
CC 19 F S-19
CC 20 G S-20
CC 21 H S-21
CC 22 I S-22
CC 23 J S-23
CC 24 K S-24
CC 25 L S-25
CC 26 M S-26
CC 27 N S-27
CC 28 O S-28
CC 29 P S-29
CC 30 Q S-30
CC 31 R S-31
CC 32 S S-32
CC 33 T S-33
CC 34 U S-34
CC 35 V S-35
CC 36 W S-36
CC 37 W+1 S-37
CC 38 W+2 S-38
CC 39 W+3 S-39
CC 40 W+4 S-40
CC 41 W+5 S-41
CC 42 W+6
CC 43 W+7
CC 44 W+8
CC 45 W+9
CC 46 W+10
CC 47 W+11
CC 48 W+12
CC 49 W+13
CC 50 W+14
CC 51 W+15
CC 52 W+16
CC 53 W+17
CC 54 W+18
CC 55 W+19
CC 56 W+20
CC 57 W+21
CC 58 W+22
CC 59 W+23
CC 60 W+24
CC 61 W+25
CC 62 W+26
CC 63 W+27
CC 64 W+28
CC 75 X
CC 76 Y R3
CC 77 Z R4 AU-3
CC 78 Z+1 R5
CC 79 Z+2 AU-4
CC 95 A-5
CC 96 A-4
CC 97 A-3
CC 98 A-2
CC 99 A-1
CH US CCIR OIRT AUSTRALIA
CH 33 US-33, W+48 E33 AU-34
CH 34 US-34, W+49 E34 AU-35
CH 35 US-35, W+50 E35 AU-36
CH 36 US-36, W+51 E36 AU-37
CH 37 US-37, W+52 E37 AU-38
CH 38 US-38, W+53 E38 AU-39/AU-40
CH 39 US-39, W+54 E39 AU-41
CH 40 US-40, W+55 E40 AU-42
CH 41 US-41, W+56 E41 AU-43
CH 42 US-42, W+57 E42 AU-44
CH 43 US-43, W+58 E43 AU-45
CH 44 US-44, W+59 E44 AU-46
CH 45 US-45, W+60 E45 AU-47/AU-48
CH 46 US-46, W+61 E46 AU-49
CH 47 US-47, W+62 E47 AU-50
CH 48 US-48, W+63 E48 AU-51
CH 49 US-49, W+64 E49 AU-52
CH 50 US-50, W+65 E50 AU-53
CH 51 US-51, W+66 E51 AU-54
CH 52 US-52, W+67 E52 AU-55/AU-56
CH 53 US-53, W+68 E53 AU-57
CH 54 US-54, W+69 E54 AU-58
CH 55 US-55, W+70 E55 AU-59
CH 56 US-56, W+71 E56 AU-60
CH 57 US-57, W+72 E57 AU-61
CH 58 US-58, W+73 E58 AU-62
CH 59 US-59, W+74 E59 AU-63/AU-64
CH 60 US-60, W+75 E60 AU-65
CH 61 US-61, W+76 E61 AU-66
CH 62 US-62, W+77 E62 AU-67
CH 63 US-63, W+78 E63 AU-68
CH 64 US-64, W+79 E64 AU-69
CH 65 US-65, W+80 E65
CH 66 US-66, W+81 E66
CH 67 US-67, W+82 E67
CH 68 US-68, W+83 E68
CH 69 US-69, W+84 E69
CC US CCIR OIRT AUSTRALIA
CC 01 S-1 AU-5
CC 02 S-2
CC 03 S-3
CC 04 S-4
CC 05 S-5
CC 06 S-6 AU-5A
CC 07 S-7
CC 08 S-8
CC 09 S-9
CC 10 S-10
CC 11 S-11
CC 12 S-12
CC 13 S-13
CC 14 A S-14
CC 15 B S-15
CC 16 C S-16
CC 17 D S-17
CH US CCIR OIRT AUSTRALIA
CH 02 US-2 E2 R1 AU-0
CH 03 US-3 E3 AU-1
CH 04 US-4 E4 R2 AU-2
CH 05 US-5 E5 R6 AU-6
CH 06 US-6 E6 R7 AU-7
CH 07 US-7 E7 R8 AU-8
CH 08 US-8 E8 R9 AU-9
CH 09 US-9 E9
CH 10 US-10 E10 R10 AU-10
CH 11 US-11 E11 R11 AU-11
CH 12 US-12 E12 R12
CH 13 US-13
CH 14 US-14, W+29
CH 15 US-15, W+30
CH 16 US-16, W+31
CH 17 US-17, W+32
CH 18 US-18, W+33
CH 19 US-19, W+34
CH 20 US-20, W+35
CH 21 US-21, W+36 E21
CH 22 US-22, W+37 E22
CH 23 US-23, W+38 E23
CH 24 US-24, W+39 E24
CH 25 US-25, W+40 E25
CH 26 US-26, W+41 E26
CH 27 US-27, W+42 E27
CH 28 US-28, W+43 E28 AU-28
CH 29 US-29, W+44 E29 AU-29
CH 30 US-30, W+45 E30 AU-30
CH 31 US-31, W+46 E31 AU-31/AU-32
CH 32 US-32, W+47 E32 AU-33
GGT0118-001A-H(EN).indd 19GGT0118-001A-H(EN).indd 19 25.05.2006 14:22:34 Uhr25.05.2006 14:22:34 Uhr

20
V
L
RR
L/MONO
Y
C
B
C R
/V
V
S
OVER
L
R
/MONO
OUTPUT
VIDEO-1 COMPONENT
(VIDEO-2)
INPUT
INPUT
The illustrations shown in this section are for AV-21MS16 and AV-
29SS16 only, which are used for explanation purpose. Your TV may
not look exactly the same as illustrated.
Before connecting
• Read the manuals provided with the devices for the proper
connection.
• Turn off all the devices including the TV.
• Note that connecting cables are not supplied.
Connecting to front video input terminals
Additional preparation
Connecting to rear component/video input
terminals and output terminals
VR
L / MONO
IN (VIDEO-3)
MENU
OK
RVL/MONO
IN(VIDEO-3)
Front of TV
Headphones
AV-29SS16
AV-21MS16
Camcorder or TV game
When connecting to COMPONENT (VIDEO-2) input, depending on
the connection, choose the appropriate video input using the menu
(see “VIDEO-2 SETTING” on page 16)
Rear of TV
AV-29SS16
VCR (for playing)
DVD player
(composite signals)
VCR (for recording)
DVD player
(component video
signals)
GGT0118-001A-H(EN).indd 20GGT0118-001A-H(EN).indd 20 25.05.2006 14:22:35 Uhr25.05.2006 14:22:35 Uhr
