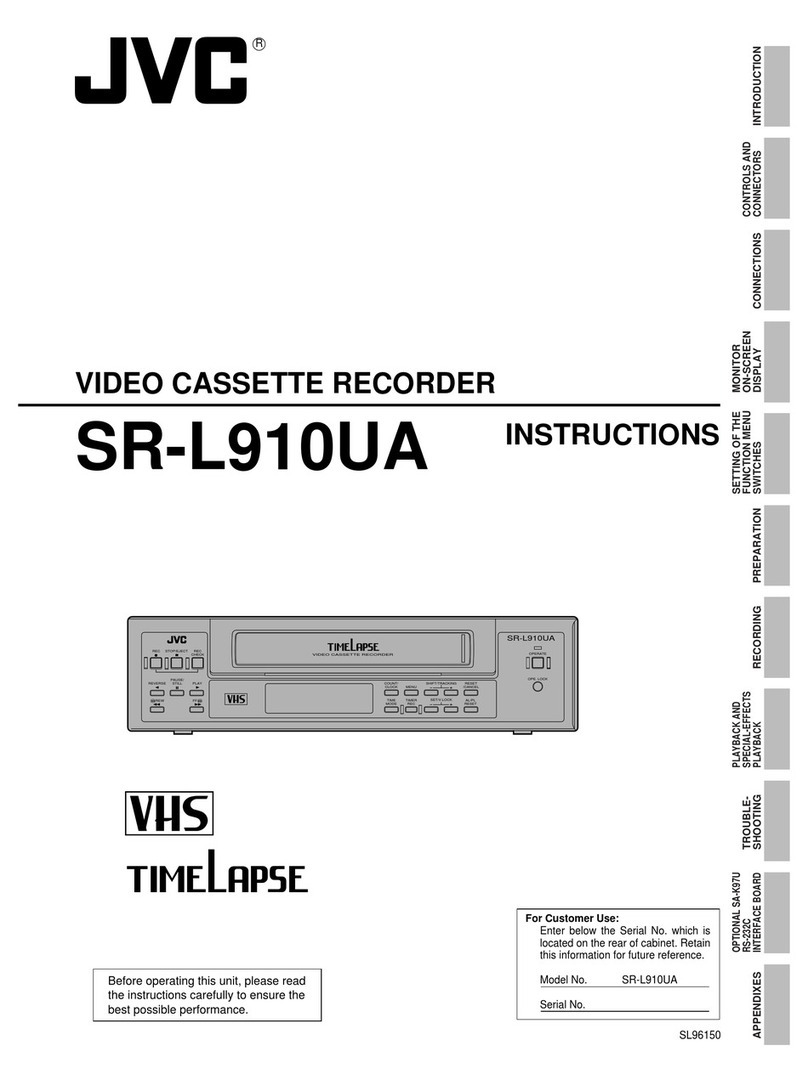

JVC SR-L910UA - 24 Hour Time Lapse Vcr User manual

JVC

JVC SR-L910UA - 24 Hour Time Lapse Vcr User manual

JVC HR-S8010UM User manual

JVC

JVC HR-S8010UM User manual

JVC HR-S6970AG User manual

JVC

JVC HR-S6970AG User manual

JVC HR-J4020UA User manual

JVC

JVC HR-J4020UA User manual

JVC Mini DV DV3000U User manual

JVC

JVC Mini DV DV3000U User manual

JVC HR-E249E User manual

JVC

JVC HR-E249E User manual

JVC HR-VP653U User manual

JVC

JVC HR-VP653U User manual

JVC HR-S3902/3912U User manual

JVC

JVC HR-S3902/3912U User manual

JVC HR-S2913U User manual

JVC

JVC HR-S2913U User manual

JVC HR-J391EM User manual

JVC

JVC HR-J391EM User manual

JVC HR-S9600EK User manual

JVC

JVC HR-S9600EK User manual

JVC HR-J461MS User manual

JVC

JVC HR-J461MS User manual

JVC HR-S7965EF User manual

JVC

JVC HR-S7965EF User manual

JVC HR-DD845EK User manual

JVC

JVC HR-DD845EK User manual

JVC HR-J278EU Quick start guide

JVC

JVC HR-J278EU Quick start guide

JVC HR-DVS3EU User manual

JVC

JVC HR-DVS3EU User manual

JVC HM-DT100U User manual

JVC

JVC HM-DT100U User manual

JVC SR-9090U - High Resolution 960 Hour Density User manual

JVC

JVC SR-9090U - High Resolution 960 Hour Density User manual

JVC HR-5910U User manual

JVC

JVC HR-5910U User manual

JVC HR-J690EU User manual

JVC

JVC HR-J690EU User manual

JVC HR-J347EM User manual

JVC

JVC HR-J347EM User manual

Popular VCR System manuals by other brands

RCA VR678HF user guide

RCA

RCA VR678HF user guide

Zenith VRL4270HF Operating guide & warranty

Zenith

Zenith VRL4270HF Operating guide & warranty

Akai VS-606EA Operator's manual

Akai

Akai VS-606EA Operator's manual

Panasonic NV-SJ412EE operating instructions

Panasonic

Panasonic NV-SJ412EE operating instructions

FUNAI 27C-450 Service manual

FUNAI

FUNAI 27C-450 Service manual

Sanyo VHR-M262EV Service manual

Sanyo

Sanyo VHR-M262EV Service manual

Sony SLV-X37 operating instructions

Sony

Sony SLV-X37 operating instructions

Grundig GV 7400 EURO Service manual

Grundig

Grundig GV 7400 EURO Service manual

Zenith VCM321 Installation and operating guide

Zenith

Zenith VCM321 Installation and operating guide

Aiwa VX-S135U operating instructions

Aiwa

Aiwa VX-S135U operating instructions

RCA VR725HF user guide

RCA

RCA VR725HF user guide

TruTech ZV450TT8 owner's manual

TruTech

TruTech ZV450TT8 owner's manual

Sensory Science DDV2120 user guide

Sensory Science

Sensory Science DDV2120 user guide

RCA VR611HF user guide

RCA

RCA VR611HF user guide

Panasonic AG-6840P operating instructions

Panasonic

Panasonic AG-6840P operating instructions

Philips VR6293 operating instructions

Philips

Philips VR6293 operating instructions

SV2000 SVX142AT Specifications

SV2000

SV2000 SVX142AT Specifications

Philips VRZ263AT owner's manual

Philips

Philips VRZ263AT owner's manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.

VICTOR COMPANY OF JAPAN, LIMITED
Printed in Japan
SL96197-002
BR-D95U VIDEO CASSETTE RECORDER
R
is a registered trademark owned by VICTOR COMPANY OF JAPAN, LTD.
is a registered trademark in Japan, the U.S.A., the U.K. and many other countries.
© 2002 VICTOR COMPANY OF JAPAN, LIMITED
INSTRUCTIONS
For Customer Use:
Enter below the Serial No. which is
located on the rear of cabinet. Retain
this information for future reference.
Model No. BR-D95U
Serial No.
VIDEO CASSETTE RECORDER
BR-D95U
R
INTRODUCTION
CONTROLS,
CONNECTORS
AND DISPLAY
CONNECTIONS
MENU SWITCH
SETTING
MENU SWITCH
SETTING
DETAILS
PREPARATION
RECORDING
PLAYBACK
EDITING
OTHER
FUNCTIONS
HOW TO USE
TIME CODE
RS-232C
PROTOCOL
EDITING SYSTEM
PHASE
ADJUSTMENT
TROUBLE-
SHOOTING
SPECIFICA -
TIONS
APPENDIX
COMPONENT DIGITAL
POWER
ON
I
OFF
O
M
HF
S
REC
MENU
PLAY PAUSE/ STILL
REW STOP FF
EJECT
PHONES CH1 CH2 CH3 CH4
REC
PLAY
PULL FOR VARIABLE
TRACKING
CH1
CH1
CH2 CH3
CH4/
TRACKING
SET HOLD PB
PB/EE
COUNTER
UB
CONDITION
AUDIO
INPUT VIDEO
INPUT
AUDIO
MONITOR
PULL
RELEASE
RESET VCON REMOTE
TOP VIDEO AUDIO
OTHERSON SCREENTIME CODESERVO/SYS
USER
INSERT
STAND BY
PLAYER
SEARCH VAR
P.PLAY
DA3
DA2
DA1VIDEO
ASSEM
IN ENTRY OUT
CANCEL
SHIFT REVIEW
METER MODE
TRACKING
FINE
PREVIEW AUTO EDIT PREROLL
TC
RECORDER
DA4
VIDEO CASSETTE RECORDER
BR-D95U
STILL
X-1
REV FWD
X1
CH2 CH3 CH4
CH1 CH2 CH3 CH4
CH1 CH2 CH3 CH4
SIF
SDI
AES/EBU
AUDIO INPUT / AUDIO MONITOR SELECT
LINE
CPN
L
ANALOG
R
PULL
RELEASE
CTL
P.READ
AUTO OFF V.VAR
REMOTE
PB/EE
16:9
TC UB DF SERVO GENCF AP 525
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
R P
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
R P
625
Variable Motion
COMPONENT DIGITAL
•This manual provides instructions in English and
German.
English : pp. 2 to 151
German: pp. 154 to 174
• To maintain picture and sound quality, use the
exclusive head cleaning cassette after every 20
hours of operation.
For details on head cleaning, refer to page 11.
SL96197-002
This instruction book is made from 100% recycled paper.
This section of instruction manual is specially edited for service
purpose with modified contents.
It is not recommended to use, this section for the substitution of
the original book in the merchandise.
CAUTION
2
1. Read all of these instructions.
2. Save these instructions for later use.
3. All warnings on the product and in the operating instructions should be adhered to.
4. Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
5. Do not use attachments not recommended by the appliance manufacturer as they may cause hazards.
6. Do not use this appliance near water – for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool, etc.
7. Do not place this appliance on an unstable cart, stand, or table. The appliance may fall, causing
serious injury to a child or adult, and serious damage to the appliance.
Use only with a cart or stand recommended by the manufacturer, or sold with the appliance.
Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit
approved by the manufacturer.
An appliance and cart combination should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart combination to overturn.
8. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure
reliable operation of the appliance and to protect it from overheating, these openings must not be
blocked or covered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar
surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed
in a built-in installation such as a bookcase unless proper ventilation is provided.
9. This appliance should be operated only from the type of power source indicated on the marking label. If you are not sure of
the type of power supplied to your home, consult your dealer or local power company. For appliance designed to operate
from battery power, refer to the operating instructions.
10. This appliance system is equipped with a 3-wire grounding type plug (a plug having a third (grounding) pin). This plug will
only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding plug.
11. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due
to lightning and power-line surges.
12. Do not allow anything to rest on the power cord. Do not locate this appliance where the cord will be abused by persons
walking on it.
13. Follow all warnings and instructions marked on the appliance.
14. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
15. Never push objects of any kind into this appliance through cabinet slots as they may touch dangerous voltage points or short
out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appliance.
16. Do not attempt to service this appliance yourself as opening or removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service personnel.
17. Unplug this appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the appliance.
c.If the appliance has been exposed to rain or water.
d. If the appliance does not operate normally by following the operating instructions. Adjust only those controls that are
covered by the operating instructions as improper adjustment of other controls may result in damage and will often
require extensive work by a qualified technician to restore the appliance to normal operation.
e. If the appliance has been dropped or the cabinet has been damaged.
f.When the appliance exhibits a distinct change in performance – this indicates a need for service.
18. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufac-
turer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or
other hazards.
19. Upon completion of any service or repairs to this appliance, ask the service technician to perform routine safety checks to
determine that the appliance is in safe operating condition.
IMPORTANT SAFEGUARDS
3
SAFETY PRECAUTIONS
( FOR USA AND CANADA )
CAUTION ATTENTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE D'ELECTROCUTION
NE PAS OUVRIR
Le symbole de l’éclair à l’intérieur d'un triangle
équilatéral est destiné à alerter l’utilisateur sur la
présence d’une “tension dangereuse” non isolée
dans le boîtier du produit. Cette tension est suffisante
pour provoquer l’électrocution de personnes.
Le point d’exclamation à l’intérieur d’un triangle
équilatéral est destiné à alerter l’utilisateur sur la
présence d’opérations d’entretien importantes au
sujet desquelles des renseignements se trouvent
dans le manuel d’instructions.
*Ces symboles ne sont utilisés qu’aux Etats-Unis.
NOTE:
The rating plate (serial number plate) is on the rear of the unit.
AVERTISSEMENT:
POUR EVITER LES RISQUES D'INCENDIE OU
D'ELECTROCUTION, NE PAS EXPOSER
L'APPAREIL A L'HUMIDITE OU A LA PLUIE.
Ce magnétoscope ne doit être utilisé que sur du
courant alternatif en 120 V.
ATTENTION:
Afin d'éviter tout resque d'incendie ou
d'électrocution, ne pas utiliser d'autres sources
d'alimentation électrique.
ATTENTION: POUR EVITER TOUT RISQUE D'ELECTROCUTION
NE PAS OUVRIR LE BOITER.
AUCUNE PIECE INTERIEURE N'EST
A REGLER PAR L'UTILISATEUR.
SE REFERER A UN AGENT QUALIFIE EN CAS DE PROBLEME.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INDIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
This unit should be used with 120 V AC only.
CAUTION:
To prevent electric shocks and fire hazards, do NOT
use any other power source.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
Cet appareil numérique de la classe A respecte toutes les
exigences du Reglement sur le matériel brouilleur du Canada.
REMARQUE:
La plaque d'identification (numéro de série) se trouve sur le
panneau arrière de l'appareil.
INFORMATION
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the eqipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communica-
tions.
Operation of this eqipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
CAUTION
CHANGES OR MODIFICATIONS NOT APPROVED BY JVC
COULD VOID USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
This Class A digital apparatus meets all requirements of the
canadian Interference-Causing Eqipment Regulations.
4
SAFETY PRECAUTIONS
( FOR EUROPE AND AUSTRALIA )
Warning Notice
FOR YOUR SAFETY (Australia)
1. Insert this plug only into effectively earthed three-
pin power outlet.
2. If any doubt exists regarding the earthing, consult
a qualified electrician.
3. Extension cord, if used, must be three-core correctly
wired.
IMPORTANT (In the United Kingdom)
Mains Supply (AC 230 V `)
WARNING – THIS APPARATUS
MUST BE EARTHED
The wires in this mains lead are coloured in
accordance with the following code;
GREEN-and-YELLOW: EARTH
BLUE : NEUTRAL
BROWN : LIVE
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows.
The wire which is coloured GREEN-AND-YELLOW
must be connected to the terminal in the plug which is
marked with the letter E or by the safety earth symbol
or coloured GREEN or GREEN-AND-YELLOW. The
wire which is coloured BLUE must be connected to the
terminal which is marked with the letter N or which is
coloured BLACK. The wire which is coloured BROWN
must be connected to the terminal which is marked with
the letter L or coloured RED.
POWER SYSTEM
Connection to the mains supply
This unit operates on voltage of 110 V to 240 V AC,
50 Hz/60 Hz.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION
To prevent electric shock, do not open the cabinet. No
user serviceable parts inside. Refer servicing to
qualified service personnel.
WARNING
This is a Class A product. In a domestic environment
this product may cause radio interference in which
case the user may be required to take adequate
measures.
Note:
The rating plate and the safety caution are on the rear
of the unit.
WARNING
It should be noted that it may be unlawful to re-record
pre-recorded tapes, records, or discs without the
consent of the owner of copyright in the sound or video
recording, broadcast, or cable programme and in any
literary, dramatic, musical or artistic work embodied
therein.
CAUTION
RED colour indications on the operation panel are
provided but they are not safety related.
RED colour indications:
(1) For Cassette Recording Button
(2) For Level Over Audio In/Out Indicator
(3) For Tape Error Indicator
This apparatus is designed in compliance with ISO
7779/1999 (Acoustics -- Measurement of airborne
noise emmited by information technology telecom-
munications equipment), whose acoustic noise is
less than 70 dB.
5
This equipment is in conformity with the provisions and protection requirements of the corresponding European
Directives. This equipment is designed for professional video appliances and can be used in the following
environments:
䡲Controlled EMC environment (for example purpose built broadcasting or recording studio), and the rural
outdoors environment (far away from railways, transmitters, overhead power lines, etc.)
In order to keep the best performance and furthermore for electromagnetic compatibility we recommend to use
cables not exceeding the following length:
Port Cable Length
AC INPUT Power supply cord 2.5 meters
SERIAL V/A IN Coaxial cable 10 meters
SERIAL V/A OUT Coaxial cable 10 meters
AES/EBU IN, OUT Coaxial cable 10 meters
RS-232C Shielded cable 3 meters
REMOTE Exclusive cable 5 meters
VIDEO CONTROL Exclusive cable 5 meters
COMPOSITE IN, OUT Coaxial cable 10 meters
REF IN Coaxial cable 10 meters
Y/R-Y/B-Y IN, OUT Coaxial cable 10 meters
TIME CODE IN, OUT Coaxial cable 10 meters
AUDIO IN CH1, CH2 Shielded twist pair cable 10 meters
AUDIO OUT CH1, CH2 Shielded twist pair cable 10 meters
AUDIO MONITOR Shielded cable 10 meters
PHONES Cable with headphones 3 meters
The inrush current of this apparatus is 17 amperes.
Caution
When in case that the strong electromagnetic waves or magnetism is near the audio in ch1, ch2 cable, the sound
will contain noise.
In such case, please keep the cable away from the disturbance.
6
MAIN FEATURES
●Do not record important material in the first two or
three minutes of a tape.
●It may be unlawful to use any material recorded
from TV broadcast programs or pre-recorded
programs without the consent of the owner of
copyright, except in cases where this material is
recorded exclusively for personal use.
●JVC is not liable for compensation for loss or
damage to recordings in the event this unit fails to
record or play back properly because the unit
malfunctions or a defective video cassette tape is
used.
●This unit is designed for professional use.
CAUTION: 4-channel audio
insert editing
Do not try to perform audio insert
editing on tapes with 4 audio channels
when using a 2-channel audio DIGITAL
S VCR (BR-D85U/E, BR-D80U/E, BR-
D750U/E).
If audio insert editing is executed,
audio signals recorded on DA3 and
DA4 will be erased.
Thank you for purchasing the BR-D95U DIGITAL S
Video Cassette Recorder with electronic editing
capabilities.
●This unit can be used with either NTSC or PAL
signal systems. Before using this unit, first select
the signal system.
The signal system
you select will be
indicated on the
counter display
with “525” for NTSC
and “625” for PAL. For instructions on how to
select the signal system, refer to “4-2 VIDEO
SIGNAL SYSTEM SELECTION” on page 30.
●The optional SA-D95U digital interface board is
required for input/output of serial digital signals.
CONDITION
525
625
Signal system indication
Counter display
●Superb picture quality achieved by the DIGITAL S
format using 4:2:2 component digital processing
●Independently editable 4-channel PCM high-quality
sound
4-channel PCM high-quality sound with 16-bit 48
kHz sampling. 4-channel audio can be edited
independently.
●High-density metal tape based on the W-VHS
format
●Built-in time code generator/reader to enable
recording and reading of SMPTE/EBU-Standard
time code and user bits
●Pre-read function
This function makes it possible to execute A/B roll
editing using only one player (video/audio insert
only).
●Swap editing
The swap control function allows the player VCR to
be controlled from the recorder VCR via 9-pin
remote cable. This allows automatic editing even
when an editing controller is not available.
●Audio split editing
Audio edit start points can be set separately with
the video signal edit start point as a reference.
●Color frame servo function
This function ensures that continuity of the color
subcarrier phase is maintained during editing.
●Audio V fade function
This function fades the audio level during a
transition in V shape to reduce noise.
●Complete analog interface with input/output
terminals for composite, color difference component
and analog audio signals included as standard
●Internally installable serial digital interface board
optionally available for configuration of fully digital
systems
●Jog/search dial
●Built-in noiseless slow playback facility for noiseless
playback within a speed range of approximately
–1 to +1 normal
●Audio monitor facility for search
The D-9 format provides two linear audio channels,
enabling audio monitoring even during video shuttle
search.
●Tiltable front panel
●Playback audio output adjustment function
●Recording audio input adjustment function
●Video output adjustment function
Whenever (NTSC) or (525) is specified in this
manual, the accompanying information applies only
to the NTSC signal system. Similarly, information
that is specified as (PAL) or (625) applies only to the
PAL signal system.
This video cassette recorder uses the DIGITAL
S format. It can only be used with video tape
cassettes bearing the “ ” or “
COMPONENTDIGITAL
” logo.
COMPONENT DIGITAL
7
CONTENTS
1INTRODUCTION ............................................... 8
1-1 Outline .................................................... 8
1-2 Maintenance ........................................... 9
1-3 Precautions ............................................. 10
1-4 Video Cassette ....................................... 11
1-5 Head Cleaning ........................................ 11
2CONTROLS, CONNECTORS AND DISPLAYS 12
2-1 Front Panel ............................................. 12
2-2 Sub Panel ............................................... 18
2-3 Rear Panel .............................................. 19
2-4 Counter Display ...................................... 21
2-5 On-screen Display .................................. 23
3CONNECTIONS ................................................ 25
3-1 Input Connections ................................... 25
3-2 Output Connections ................................ 26
3-3 Control System Connections .................. 27
4MENU SWITCH SETTING ................................. 28
4-1 Menu Display Modes .............................. 28
4-2 Video Signal System Selection ............... 30
4-3 Menu Switch Setting ............................... 31
4-4 Saving and Calling Up Menu Switch
Settings ................................................... 32
4-5 Calling Up Functional Menu Switch (Direct
Access Function) .................................... 33
4-6 User Page Registration/Change/Delete
(User Page Function) .............................. 34
4-7 How to Lock the Menu Switch Settings ..... 37
4-8 Recording Current Adjustment ............... 38
4-9 Hour Meter Data Display ........................ 39
5MENU SWITCH SETTING DETAILS ................ 40
5-1 Menu Switch List..................................... 40
5-2 Menu Switch Setting Content ................. 43
6 PREPARATION ................................................. 65
6-1 Operation Mode Lock ............................. 65
6-2 Standby ON/OFF .................................... 66
6-3 Loading and Unloading the Cassette...... 67
7 RECORDING ..................................................... 68
7-1 Preparation for Recording....................... 68
7-2 Input Video and Audio Signal Selection.. 69
7-3 Audio Monitor Output Signal Selection ... 70
7-4 Audio Record level Adjustment............... 71
7-5 Basic Recording Operations ................... 73
7-6 Digital audio signal input/output .............. 74
8 PLAYBACK ....................................................... 75
8-1 Preparation for Playback ........................ 75
8-2 Basic Playback Operations ..................... 76
8-3 Audio Playback Level Adjustment .......... 77
8-4 Manual Tracking Adjustment .................. 79
8-5 Error Correction ...................................... 80
8-6 Audio V.Fade Function ........................... 80
8-7 Simplified Playback Speed
Adjustment Function ............................... 81
8-8 Shuttle Search/Jog Operation................. 82
8-9 Variable Slow Playback .......................... 83
8-10 Program Playback .................................. 85
8-11 FF, REW and Counter Memory
Functions ................................................ 86
8-12 Repeat Playback ..................................... 86
9OTHER FUNCTIONS ........................................ 87
9-1 Extra Line Data Recording/Playback ...... 87
9-2 EXTRA LINE, VITC LINE, V. BLANK
MASK and PB EXTENSION LINE
settings ................................................... 89
9-3 Simultaneous Operation ......................... 90
9-4 Fixed Time Cue Up Function .................. 91
9-5 Multi Cue-Up Function ............................ 92
9-6 Striping Rec Function ............................. 94
10 HOW TO USE TIME CODE ............................... 96
10-1 Time Code Display ................................. 96
10-2 Time Code Initial Setting (Preset) ........... 97
10-3 Time Code Recording .............................. 99
10-4 Time Code Playback............................. 101
10-5 Sub Time Code Recording and
Playback ............................................... 102
10-6 Time Code Switch Setting for Editing ... 103
11 EDITING ........................................................... 104
11-1 Outline .................................................. 104
11-2 Color Frame Servo Setting ................... 105
11-3 Swap Editing ......................................... 107
11-4 Audio Split Editing................................. 112
11-5 Other Function ...................................... 113
11-6 Manual Editing ...................................... 114
11-7 Editing with the Pre-read Function........ 115
12 EDITING SYSTEM PHASE ADJUSTMENT .... 117
12-1 Connection ............................................ 117
12-2 Adjustment ............................................ 118
12-3 Dubbing Loop Function .......................... 122
13 RS-232C Protcol ............................................. 123
13-1 Command tables................................... 123
13-2 RS-232C commands ............................ 124
13-3 Speed/data correspondence table ........ 134
13-4 Contents of the sense commands ........ 135
13-5 Menu switch setting information ........... 137
14 TROUBLESHOOTING .................................... 145
14-1 Warnings with Indicators....................... 145
14-2 Troubles not to be Warned by
Indicators .............................................. 147
15 APPENDIX ....................................................... 148
15-1 Operation button combinations ............. 148
15-2 Optional Accessories ............................ 148
15-3 Index ..................................................... 149
16 SPECIFICATIONS ........................................... 150
8
1 INTRODUCTION
1-1 OUTLINE
This manual consists of the following sections.
Section 1 INTRODUCTION
Read this section carefully as it describes the
precautions to be taken when operating this unit
and the type of cassette to be used.
Section 2 CONTROLS, CONNECTORS AND
DISPLAYS
If you are already familiar with the operation of
professional VCRs, you will probably only need to
read this section to get started.
Section 3 CONNECTIONS
This section describes basic connections between
the BR-D95U and other units.
Section 4 MENU SWITCH SETTING
This unit incorporates a “Menu” function which
allows you to set a variety of switches on screen.
Setting procedures and setting items are described
in this section.
Section 5 MENU SWITCH SETTING DETAILS
This section describes the menu switch items and
setting contents in detail.
Section 6 PREPARATION
This section describes how to set up the unit prior
to operation and notes any precautions that need to
be taken.
Section 7 RECORDING
This section describes recording operations and
settings.
Section 8 PLAYBACK
This section describes playback operations and
settings.
Section 9 OTHER FUNCTIONS
This section describes the following special functions.
•Setting the unit to record or play back information
added to a video signal on an extra video line.
•Simultaneous operation of more than one VCR
•Cue-up function
Section 10 HOW TO USE TIME CODE
This section describes time code presetting,
recording, and time code playback operation.
Section 11 EDITING
This section describes the editing operation and
pre-read editing.
Section 12 EDITING SYSTEM PHASE ADJUST
MENT
This section describes internal TBC phase
adjustment and the dubbing loop function.
Section 13 RS-232C protocol
This section describes the data protocols used to
control of this unit with a personal computer or
other external RS-232C controller.
Section 14 TROUBLESHOOTING
This section suggests ways to handle potential
difficulties or malfunctions.
Section 15 APPENDIX
This section includes descriptions of optional units
and the index for this manual.
Section 16 SPECIFICATIONS
9
Use time Every 750H 1500H 3000H 4500H 6000H
Drum assembling 䢇䢇䢇䢇䢇
(including heads)
Head cleaner 䢇䢇䢇䢇䢇
Tape guide roller, etc. 䡬䢇䢇䢇䢇
Fixed head 夡䡬䢇䡬䢇
Belt pinch roller, etc. 䡬䢇䢇䢇䢇
Driving system parts 䡬䡬䡬䡬䢇
The video cassette recorder/player incorporates precision components. Regular maintenance is necessary to
maintain the performance level required for professional use. The information below will help you determine a
maintenance schedule that will ensure optimum performance over a long period of time.
●Maintenance
Just as regular oil changes, brake checks, and
tune-ups are essential to keep your car running well
over a long period, your VCR must be maintained
regularly to ensure optimum long-term
performance.
Continued use of the VCR without maintenance
may lead to the following malfunctions.
●
Recording or playback cannot be executed.
●
Picture and sound distortion.
●
Repeated warnings (stopping the operation).
These malfunctions are mostly due to wear or
deterioration of the VCR's internal components.
Having these repaired can be expensive.
Moreover, a sudden malfunction can not only lead
to downtime and lost productivity, but can also
damage the video cassette.
1-2 MAINTENANCE
This table should be used as reference only. Actual maintenance requirements will vary according to how the unit
is used.
Maintenance consultation
Consult your local JVC dealer for more information about maintenance scheduling and costs.
1 INTRODUCTION
●Keeping track of operation (running) time
The total operation time reached by an ordinary
home VCR in five to six years may be reached by a
professional VCR in as few as five to six months.
Therefore, it is important to closely monitor the total
operation time. You can check the running time on
the provided hour meter (drum running time). The
hour meter is shown on the counter display or on-
screen display on the monitor.
Hour meter indication
The hour meter can be displayed by selecting
“DRUM HOUR” on the menu switch setting screen.
For details, refer to “Hour meter indication” on page
39.
●Maintenance schedule
Depending on the operation time, inspect or
replace the following mechanism components.
Replace the drum assembly (including the heads)
and head cleaner every 750 hours.
夡:Cleaning, check and adjustment
䡬:Check or replace as required. If replacement is
not required, clean it.
䢇: Replace.
10
1-3 PRECAUTIONS
1 INTRODUCTION
The BR-D95U incorporates highly sophisticated and complex technology. To ensure proper operation, be sure to
take the following precautions.
Condensation
●Do not use this unit immediately after moving it
from a cold place to a warm place or after switching
on a heater in a cold room. This will cause water
vapor to condense on the video head drum and
tape guides and may damage the tape and the
VCR.
●When condensation occurs, the warning message
“02 1” is shown on the tape counter display. The
cassette is automatically ejected (see page 145).
The head drum then rotates automatically to dry
itself. Leave the VCR in this state with the power
on. Once the warning message “02 1” has turned
off, operation can be resumed.
POWER
ON
I
OFF
O
M
HF
S
REC
MENU
PLAY PAUSE/ STILL
REW STOP FF
EJECT
SET HOLD PB
PB/EE
COUNTER
UB
CONDITION RESET VCON REMOTE
TOP VIDEO AUDIO
OTHERSON SCREENTIME CODESERVO/SYS
USER
INSERT
STAND BY
PLAYER
SEARCH VAR
P.PLAY
DA3
DA2
DA1VIDEO
ASSEM
IN ENTRY OUT
CANCEL
SHIFT REVIEW
PREVIEW AUTO EDIT PREROLL
TC
RECORDER
DA4
VIDEO CASSETTE RECORDER
BR-D95U
STILL
X-1
REV FWD
X1
PULL
RELEASE
CTL
P.READ
AUTO OFF V.VAR
REMOTE
PB/EE
16:9
TC UB DF SERVO GENCF AP 525
625
Variable Motion
COMPONENT DIGITAL
Head drum
Video tape
Transportation
Always hold this unit by the side panels when
carrying or moving it. If you hold it by the front panel,
the tilt panel may open and you could drop the unit.
Installation and storage
●Avoid using the unit in places subject to the follow-
ing conditions:
●
extreme heat or cold
●
strong magnetic field
●
high humidity
●
dust and soil
●
vibrations
●Handle the unit carefully
Do not block the ventilation openings, or place
anything heavy on the unit. Do not put any foreign
materials into the cassette loading slot.
●Use the unit in a horizontal (flat) position only.
●Avoid violent shocks to the recording chassis
during transportation. Remove the cassette tape
from the unit prior to transportation.
●Avoid leaving tapes in the Still or Record Pause
mode for a long time as this may damage the tape.
●When not using the unit, set the [POWER] switch to
“OFF” to avoid unnecessary power consumption.
●Do not stand or sit on the unit. This will damage the
unit and may cause it to fall, resulting in injury.
●Do not install the BR-D95U in a location where it
exposed to radiation, x-rays or corrosive gases.
Maintenance and cleaning
●This unit contains precision components to ensure
the highest performance. For optimum long-term
performance, proper maintenance and care are
required. Consult your JVC dealer for replacement
of parts, adjustment and servicing.
●Use a soft cloth to clean the cabinet. Do not use
benzene or thinner as these may melt or cloud the
cabinet surface. To remove excessive dirt, clean
the unit with a mild detergent diluted with water,
then wipe it with a dry cloth.
About the provided power cables
Two power cables are provided with the BR-D95U.
Use the one that corresponds to your power-supply.
●When usage voltage is 120 V or less; use the
A-type (flat-pin type) power cable.
●When usage voltage is 127 V or over; use the
C-type (round-pin type) power cable.
11
REC
OFF
ON
REC
OFF
ON
1-4 VIDEO CASSETTE
●Only cassettes bearing the “ ” logo can be
used with this VCR.
●Cassettes bearing the S-VHS or VHS logo cannot be
used with this unit. If an S-VHS or VHS cassette is
inserted, it will be automatically ejected.
●Video cassettes cannot be used upside down.
●Leaving the tape in a partially wound condition for a
long time may damage the tape. Rewind the tape
to the beginning before storage.
●Tape performance cannot be maintained if a
cassette is used repeatedly. The more a tape is
used, the more dropouts occur. Do not use dirty
tapes or tapes which have been damaged as doing
so may shorten the service life of the rotary heads.
1-5 HEAD CLEANING
䢇Cassettes bearing the “ ” logo on the back
are provided with a safety slide to prevent
accidental erasure.
●Move the slide to OFF to prevent erasure.
●Move the slide to ON to allow recording.
Slide
Recordable
Not recordable
1 INTRODUCTION
Repeated recording and playback leads to accumulation of dust and other particles on the video and audio heads.
Excessive accumulation will adversely affect the picture or sound quality. If head cleaning is not performed
periodically, a type of mosaic noise called block noise may appear in the picture or the sound may be interrupted.
Be sure to clean the tape transport system with a dedicated head cleaning tape (optionally available
DCL-5) once every 20 hours.
Use a dedicated head cleaning tape only. For details on use of the dedicated head cleaning tape, refer to the
instructions provided with it.
Block noise
This unit is provided with a built-in head cleaner. Use
it to remove dust from the heads.
REW STOP FF
OTHERSON SCREENTIME CODESERVO/SYS
STAND BY
Head Cleaning mode
Cleaning procedure
1. Unload the cassette.
2. Press the [STANDBY], [REW], [STOP] and [FF]
buttons simultaneously.
The built-in head cleaner in this unit cleans the
heads for about 5 seconds.
●If a cassette is inserted during head cleaning, the
head cleaning operation stops.
12
2-1 FRONT PANEL
2 CONTROLS, CONNECTORS AND DISPLAYS
1
[POWER] switch
When power is ON, the counter display is
illuminated.
2
Cassette loading slot
S-VHS/VHS tapes cannot be used for either
recording or playback.
3
Counter display
Usually displays tape time. With the MENU button
pressed, it displays menu switch and hour meter
settings. Displays warning codes when an
abnormality occurs. For details, refer to page 21.
4
Level meter section
Indicates the audio recording or playback levels.
●The [CH4/TRACKING] meter can be switched
between tracking display and CH4 audio level
display with the [METER MODE TRACKING]
button.
●Audio Level Display mode can be selected with
the [METER MODE FINE] button.
●When the audio level adjust mode is set to Unity,
the [P] or [R] indicator in the upper section of the
meter lights. The [P] indicator lights in the Play
Volume mode and the [R] indicator lights in the
Record Volume mode.
When the audio level adjust mode is set to
Variable, the indicator goes out. You can use
the audio level adjust knobs to adjust the levels
in this mode.
●The audio reference level can be set with menu
switch No. 257 <AUD REF. SIGNAL LEV.>
(-20 dB or -18 dB).
5
[PHONES] headphone level adjust control
Adjusts signal level output from the [PHONES]
jack.
4
POWER
ON
I
OFF
O
M
HF
S
REC
MENU
PLAY PAUSE/ STILL
REW STOP FF
EJECT
PHONES CH1 CH2 CH3 CH4
REC
PLAY
PULL FOR VARIABLE
TRACKING
CH1
CH1
CH2 CH3
CH4/
TRACKING
SET HOLD PB
PB/EE
COUNTER
UB
CONDITION
AUDIO
INPUT VIDEO
INPUT
AUDIO
MONITOR
PULL
RELEASE
RESET VCON REMOTE
TOP VIDEO AUDIO
OTHERSON SCREENTIME CODESERVO/SYS
USER
INSERT
STAND BY
PLAYER
SEARCH VAR
P.PLAY
DA3
DA2
DA1VIDEO
ASSEM
IN ENTRY OUT
CANCEL
SHIFT REVIEW
METER MODE
TRACKING
FINE
PREVIEW AUTO EDIT PREROLL
TC
RECORDER
DA4
VIDEO CASSETTE RECORDER
BR-D95U
STILL
X-1
REV FWD
X1
CH2 CH3 CH4
CH1 CH2 CH3 CH4
CH1 CH2 CH3 CH4
SIF
SDI
AES/EBU
AUDIO INPUT / AUDIO MONITOR SELECT
LINE
CPN
L
ANALOG
R
PULL
RELEASE
CTL
P.READ
AUTO OFF V.VAR
REMOTE
PB/EE
16:9
TC UB DF SERVO GENCF AP 525
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
625
Variable Motion
COMPONENT DIGITAL
321
5
678
CH1 CH2 CH3 CH4/
TRACKING
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
6
[PHONES] jack
Connect a set of headphones with a 6 mm-dia.
plug to listen to the audio channel selected with
the [AUDIO MONITOR] button.
7
[PLAY] audio playback level adjust knobs
Adjust the playback level for each channel (CH1 to
CH4). To adjust the audio playback level, pull out
the audio level adjust knobs. Turn clockwise to
increase the level and counterclockwise to lower it.
When audio level adjust knobs are pushed in, the
Unity mode is engaged. Turning the knobs in this
mode has no effect on the audio level.
There are two ways to adjust playback levels:
One way is to independently adjust playback levels
for each channel (CH1 to CH4 channels); the other
is to use the CH1 or CH3 adjust knob as a master
volume control and the CH2 or CH4 knob as a
balance control. You can select the method you
prefer with menu switch No. 216 <AUD PB
VOLUME MODE1>.
8
[REC] audio recording level adjust knobs
Adjust the recording level for each channel (CH1
to CH4). To adjust the audio recording level, pull
out the audio level adjust knobs. Turn clockwise
to increase the level and counterclockwise to
lower it.
When audio level adjust knobs are pushed in, the
Unity mode is engaged. Turning the knobs in this
mode has no effect on the audio level.
There are two ways to adjust recording levels:
One way is to independently adjust recording
levels for each channel (CH1 to CH4 channels);
the other is to use the CH1 or CH3 adjust knob as
a master volume control and the CH2 or CH4
knob as a balance control. You can select the
method you prefer with menu switch No. 215
<AUD REC VOLUME MODE1>.
13
2-1 FRONT PANEL
2CONTROLS, CONNECTORS AND DISPLAYS
POWER
ON
I
OFF
O
M
HF
S
REC
MENU
PLAY PAUSE/ STILL
REW STOP FF
EJECT
PHONES CH1 CH2 CH3 CH4
REC
PLAY
PULL FOR VARIABLE
TRACKING
CH1
CH1
CH2 CH3
CH4/
TRACKING
SET HOLD PB
PB/EE
COUNTER
UB
CONDITION
AUDIO
INPUT VIDEO
INPUT
AUDIO
MONITOR
PULL
RELEASE
RESET VCON REMOTE
TOP VIDEO AUDIO
OTHERSON SCREENTIME CODESERVO/SYS
USER
INSERT
STAND BY
PLAYER
SEARCH VAR
P.PLAY
DA3
DA2
DA1VIDEO
ASSEM
IN ENTRY OUT
CANCEL
SHIFT REVIEW
METER MODE
TRACKING
FINE
PREVIEW AUTO EDIT PREROLL
TC
RECORDER
DA4
VIDEO CASSETTE RECORDER
BR-D95U
STILL
X-1
REV FWD
X1
CH2 CH3 CH4
CH1 CH2 CH3 CH4
CH1 CH2 CH3 CH4
SIF
SDI
AES/EBU
AUDIO INPUT / AUDIO MONITOR SELECT
LINE
CPN
L
ANALOG
R
PULL
RELEASE
CTL
P.READ
AUTO OFF V.VAR
REMOTE
PB/EE
16:9
TC UB DF SERVO GENCF AP 525
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
OVER
–60
–2
–4
+2
+4
0
–40
–30
–20
–10
0
dB
dB
RP
625
Variable Motion
COMPONENT DIGITAL
20 19
21
22
18 17 16 15 14
12
11
910 13
23
24
9
[METER MODE] buttons
䡲[TRACKING] tracking meter mode button
●Press this button to switch between CH-4 audio
level meter and tracking meter.
This button lights or blinks when the tracking
meter is selected. Blinking indicates that auto
tracking is OFF. (When setting menu switch No.
005 <AUTO TRACKING> to “OFF”)
䡲[FINE] fine meter mode button
●Press this button to change the display
accuracy of the audio level meter.
When the [FINE] indicator is illuminated, the
meter display is in Fine mode. More precise
level adjustment is possible in this mode.
0
[TRACKING] adjust knob
Manually adjusts tracking during playback.
After setting the [CH4/TRACKING] meter to
Tracking Display mode with the [TRACKING
METER MODE] button, adjust this knob until the
meter swings to the maximum level.
*To manually adjust tracking, set menu switch
No. 005 <AUTO TRACKING> to “OFF (0)”.
!
[SEARCH] button
●Starts search at the search speed set by the
search dial.
●In the Menu Switch Setting mode, the menu
switch setting can be changed by turning the
jog dial while keeping this button pressed.
●During time code presetting, preset data can be
changed by turning the jog dial while keeping
this button pressed.
●Use this button to change the fixed time cue up
data or the video control adjust parameters.
@
[VAR/P.PLAY] button
●To engage the Variable mode, press this button.
The button will light when the Variable mode is
engaged. In this mode, you can use the
#
search
dial to control slow-motion playback speed.
●Press this button while holding the [SHIFT]
button down. The button blinks and the Program
Play mode is engaged.
*Before engaging the Program Play mode,
engage the Still or Stop mode.
For details, refer to “Program Playback” on page
85.
#
Search/jog dials
Turn for search/jog operation.
The outer dial serves as a search control.
The inner dial serves as a jog control.
●During playback, turn the jog dial while holding
the [PLAY] button down to increase or decrease
the playback speed. Playback speed corre-
sponds to the speed with which you turn the dial.
Turning the dial clockwise allows you to increase
playback speed to up to 2 times normal speed.
Turning it counterclockwise allows you to de-
crease playback speed until tape running stops.
If you stop turning the jog dial, normal playback
speed is restored.
●In the Variable mode, turn the outer search dial
for variable slow playback from -1x to +1x.
●When menu switch No. 301 <DIRECT
SEARCH> is set to “OFF”, hold the [PLAY]
button down and turn the search dial during play
to execute variable slow playback.
●In the Program Playback mode, hold the
@
[VAR/P.PLAY] button down and turn the inner
jog dial to set the initial speed for program
playback or to vary program playback speed.
●The jog dial is also used to select items when
setting the menu switches or to set data when
presetting the time code.
Caution
To use the search dial, first set it to the “STILL”
position (with power ON).
14
2-1 FRONT PANEL
2CONTROLS, CONNECTORS AND DISPLAYS
LINE: Lights when composite video signal input
(via rear panel's [COMPOSITE LINE IN]
connector) is selected.
CPN: Lights when component video signal input
(via rear panel's [COMPONENT IN]
connector) is selected.
All lit: All indicators light when the signal from the
internal signal generator is selected.
The type of signal can be selected with
menu switch No. 111 “REC SIGNAL
SELECT”.
Blinking: The indicator blinks if no signal is input or
if the wrong type of signal is input.
q
[AUDIO INPUT/AUDIO MONITOR SELECT]
indicators
Show whether the input or monitor audio signal is
selected. Press the
w
[AUDIO INPUT] button or
e
[AUDIO MONITOR] button to switch between
the input or monitor indication.The channel
indicator blinks if the selected signal does not
conform to the standard.
Along with the input indication, the type of signal
(SDI, AES/EBU or ANALOG) is shown. With the
monitor indication, the audio channel (CH1, CH2,
CH3, or CH4) output to the monitor output L or R
channel is shown.The channels can be switched
with the
r
audio signal select buttons. When
these three indicators (SDI, AES/EBU, ANALOG)
are lit simultaneously, audio signals (1 kHz sine
wave) from the built-in signal generator are
selected. The signals from the built-in signal
generator can be either 1 kHz audio signals or no
sound. This is selectable with menu switches
(No. 253 to No. 256).
When the input audio signal indication is selected,
these indicators blink if no SDI or AES/EBU signal
is input. SDI and AES/EBU can only be selected
when the optional SA-D95U digital interface board
is installed.
w
[AUDIO INPUT] button
Press to select the input audio signal for the
[AUDIO INPUT/AUDIO MONITOR SELECT]
indicators. The button illuminates when selected.
e
[AUDIO MONITOR] button
Press to select the monitor audio signal for the
[AUDIO INPUT/AUDIO MONITOR SELECT]
indicators. The button illuminates when selected.
r
Audio signal select buttons
Press to select the input audio signal or monitor
audio signal.
The selected audio signal is shown by the
q
[AUDIO INPUT/AUDIO MONITOR SELECT]
indicators.
$
[PB PB/EE] button
Press to select the playback (PB) exclusive mode
or PB/EE auto switching mode. The selected mode
is shown by the indicators in the upper section of
the counter display. When the PB/EE Auto
Switching mode is engaged, set the VCR to the EE
mode with menu switch No. 314 <PB/EE MODE>.
%
[REMOTE] button
Press to select remote/local operation. When
remote operation is selected, “REMOTE” is shown
in the upper section of the counter display. In the
“REMOTE” mode, the unit can be operated via the
remote controller connected to the rear panel’s
[REMOTE IN (9P)] or [RS-232C] connector. On
the VCR itself, only the [STAND BY], [STOP] and
[EJECT] buttons will remain operable.
To operate the VCR locally, that is with its
operation buttons, press the [REMOTE] button so
that the “REMOTE” indicator goes out.
^
[VCON] button
Press to adjust the video/audio parameters.
Adjustable items are shown on the counter display.
Turn the jog dial while pressing the [SEARCH]
button to make adjustments.
You can adjust the video parameters by connecting
an optional video controller to the rear panel’s
[VIDEO CONTROL] connector. (See page 118.)
&
[RESET] button
Press to reset the CTL counter to “0:00:00:00”.
The time code and user bits cannot be reset.
When the edit points have been set, these
settings are canceled.
When setting the fixed time cue up, press this
button to reset the counter to “00:00:00:00”. For
details, refer to “Fixed Time Setting” on page 91.
*
[COUNTER] button
Press to switch the counter between CTL counter,
time code, or user bits display. Press this button while
pressing the [SHIFT] button to display user bits.The
selected counter display mode is shown by the
indicators in the upper section of the counter display.
CTL: CTL counter display
TC: Time code display
UB: User bits display
(
Input video signal button
Press to select input video signals. The selected
video signal is shown by the
)
[VIDEO INPUT]
indicators.
SIF can only be selected when the optional
SA-D95U digital interface board is installed.
A menu switch is provided to prevent
misoperation. Refer to the menu switch setting for
No. 371 “INPUT SELECT SAFETY”.
)
[VIDEO INPUT] indicators
Show the type of video signal selected with the
(
input video signal switch.
SIF: Lights when serial video signal input (via rear
panel's [SERIAL V/A IN] connector) is
selected.
15
