The recorder illustrations appearing in this instruction manual are
of the HR-J449MS.
CONTENTS
SAFETY FIRST 2
Safety Precautions ................................... 2
Precautions ............................................. 3
INDEX 4
INSTALLING YOUR NEW RECORDER 10
Basic Connections ................................. 10
Connection To A Stereo System
(HR-J746MS Only).............................. 12
INITIAL SETTINGS 14

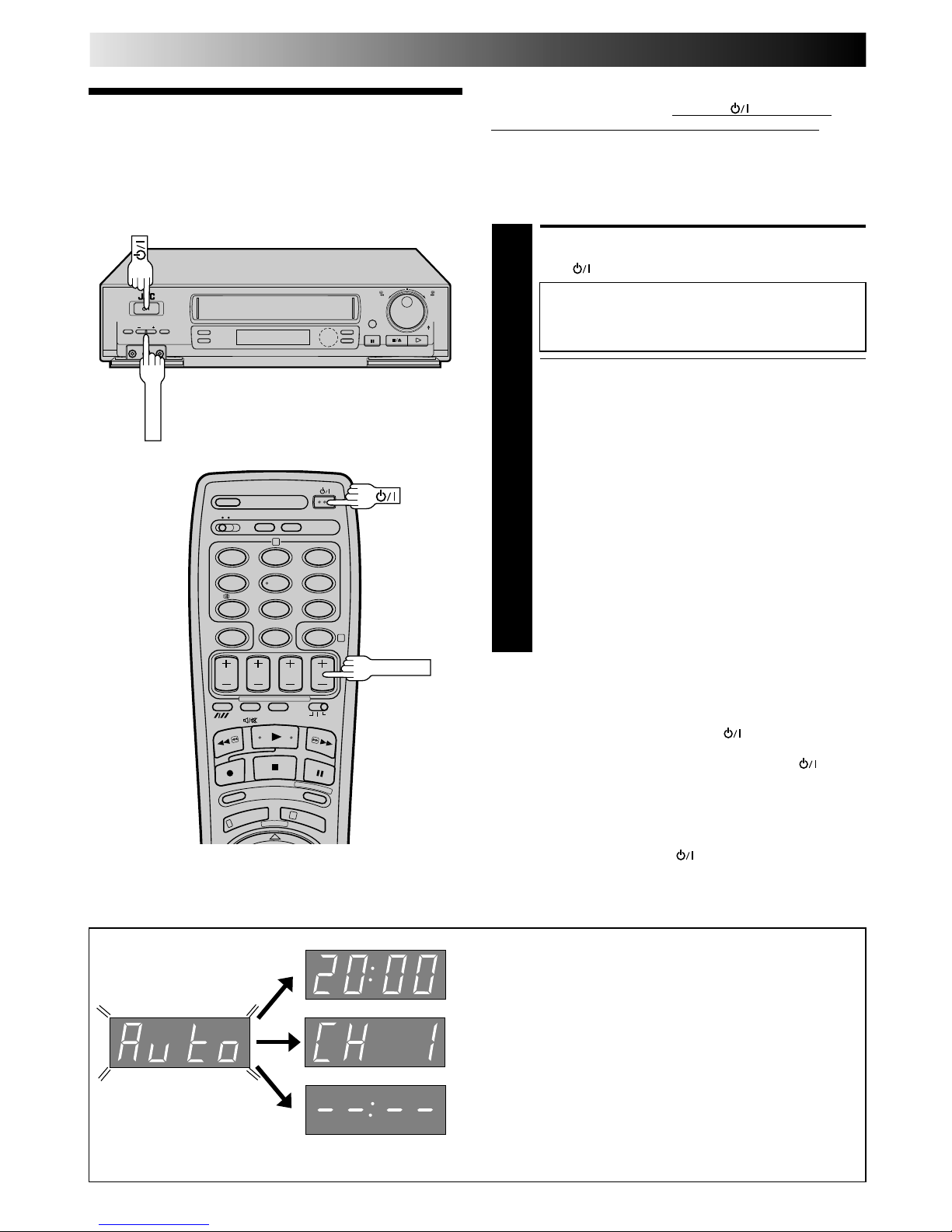

Auto Set Up .......................................... 14
Tuner Set ............................................... 16
Using The Confirmation Screen ............. 18
Storing Channels Manually ................. 18
Delete A Channel ............................... 19
Change Station Preset Position............ 19
Fine-Tuning Channels Already Stored . 20
Set Stations ......................................... 20
TV Station And ID List ........................ 21
Clock Set ............................................... 22
SHOWVIEW Setup.................................... 24
REMOTE CONTROL 26
TV Multi-Brand Remote Control ............ 26
Satellite Receiver Multi-Brand
Remote Control .................................. 27
PLAYBACK 28
Basic Playback ...................................... 28
Playback Features ................................. 29
RECORDING 35
Basic Recording .................................... 35
B.E.S.T. Picture System .......................... 36
On-Screen Displays .............................. 38
Recording Features................................ 39
TIMER RECORDING 42
SHOWVIEW Timer Recording ................... 42
Regular Timer Programming .................. 44
Check And Cancel Programmes.......... 46
Auto Timer ......................................... 46
Timer Warning .................................... 47
Auto VN/LD Timer .............................. 47
PDC Recording................................... 47
EDITING 48
Edit To Or From Another Video
Recorder ............................................... 48
Edit From A Camcorder ......................... 50
INFORMATION ON COLOUR SYSTEM 51
INFORMATION ON AUDIO SYSTEM
(HR-J746MS Only) 51
TROUBLESHOOTING 52
QUESTIONS AND ANSWERS 54
SPECIFICATIONS 55

2
SECURITE D'ABORD
La plaque d'identification et les précautions à observer pour votre sécurité se trouvent sur l'arrière de l'appareil.
ATTENTION: TENSION DANGEREUSE A L'INTERIEUR
ATTENTION: POUR EVITER TOUT RISQUE D'INCENDIE OU D'ELECTROCUTION, NE PAS EXPOSER
CET APPAREIL A LA PLUIE NI A L'HUMIDITE.
Pour votre sécurité
ATTENTION
nSi vous n'avez pas l'intention d'utiliser le magnétoscope
pendant une longue période, il est recommandé de
débrancher son cordon d'alimentation de la prise secteur.
nTension dangereuse à l'intérieur. Pour les réparations
internes, s'adresser à un personnel qualifié. Pour éviter
l'électrocution ou les risques d'incendie, débrancher le
cordon d'alimentation de la prise secteur avant de raccorder
ou de débrancher tout câble de signal ou d'antenne.
IMPORTANT
nBien lire les diverses précautions de cette page avant
d'installer ou de faire fonctionner le magnétoscope.
nIl peut être illégal de réenregistrer des cassettes
préenregistrées, des disques ou d'autres matériels protégés
par copyright sans le consentement du détenteur des
droits d'auteur du son ou de l'enregistrement vidéo.
La touche MARCHE ne coupe pas complètement
l'alimentation de l'appareil, mais commute le courant de
fonctionnement.
A PROPOS DU NETTOYAGE DES TÊTES
L’accumulation de poussières et d’autres particules sur les têtes
vidéo peut rendre l’image de lecture brouillée ou interrompue.
Contacter le revendeur JVC le plus proche si de tels problèmes
se produisent.
Les bandes vidéo enregistrées avec ce magnétoscope dans
le mode LD (longue durée) ne peuvent pas être lues sur un
magnétoscope à simple vitesse.
nSeules les cassettes portant la marque "VHS" peuvent être
utilisées avec ce magnétoscope.
nLe VHS HQ est compatible avec le matériel VHS existant.
nSHOWVIEW est une marque déposée par Gemstar Develop-
ment Corporation. Le système SHOWVIEW est fabriqué sous
licence de Gemstar Development Corporation.
nCertain audio features of this product manufactured under a
license from Desper Products, Inc. Spatializertis a trademark
owned by Desper Products, Inc.
PAL SECAM

3
Bien respecter ces consignes de sécurité. Ne pas le faire peut causer des dommages au magnétoscope, à la
télécommande ou à la cassette.
Eviter les endroits très chauds et
l'exposition au soleil
Eviter les endroits très humides
Eviter les endroits très poussiéreux
Eviter les endroits très froids
Eviter les endroits soumis à des vibra-
tions
Eviter les champs magnétiques
puissants
Ne pas boucher les grilles d'aération sur
le magnétoscope
Ne pas poser d'objets lourds sur le
magnétoscope ou sur la télécommande
Ne pas poser d'objets susceptibles de se
renverser sur le dessus du magnétoscope
ou de la télécommande
Ne pas placer le magnétoscope sur des
coussins, des oreillers ou sur une
carpette épaisse. Remettre les cassettes dans leurs
boîtes et les ranger verticalement.
En cas de transport
nBien retirer la cassette du
magnétoscope avant de l'emballer
nEviter des chocs violents au
magnétoscope en cours d'emballage et
de transport
Attention à la condensation
L'humidité dans l'air se condensera sur
le magnétoscope quand vous le
transportez d'une pièce froide à une
pièce chaude, ou sous des conditions de
très forte humidité, comme des
gouttelettes d'eau qui se forment à la
surface d'un verre rempli avec un
liquide froid. La condensation de
l'humidité sur le tambour de têtes
causera des dommages à la bande. Dans
les cas où de la condensation se produit,
laisser l'alimentation pendant quelques
heures pour que le magnétoscope sèche.
Utiliser l'appareil en position
horizontale et stable seulement
Précautions à observer

4
FRONT VIEW
INDEX
SPATIALIZER
3R
q
MARCHE
RETOUR AVANCE 

RECH. VAR.
CHAINE/
IMAGE/IMAGE
VIDEO (MONO)G – AUDIO – D
AUTO VN/LD
AUTO CHAINE SYSTEME
COULEUR
VN/ LD
+8
4
0
6
10
–20dB
NORM
GD
M
VIDEO
VN LD EP
T.REST
REVIEW
2 5 761 348
9 0 $ % ! @# ^& * (
1Timer Button (AUTO) engages timer standby
mode. Zpg. 43
2Operate Button ( ) turns recorder on/off
(loading a cassette also turns power on). Zpg. 14
3Channel +/– Buttons (CHAINE) select a channel.
Zpg. 35
4Colour System Button (SYSTEME COULEUR)
selects the appropriate colour system for record-
ing/playback. Zpg. 51
5Cassette Loading Slot is where cassette is in-
serted; with cassette inserted, the "cassette
loaded" indicator lights up on front display panel.
6Record Button starts regular recording (press
once) or Instant Timer Recording (press twice);
also sets duration of ITR. Zpg. 35, 41
7TV Programme Dial (CHAINE) scans to desired
preset during Stop mode. Zpg. 35
Jog Dial (IMAGE/IMAGE) plays back frame by
frame during Still or Play mode. Zpg. 29
8Shuttle Ring (RECH. VAR.) rewinds or fast-
forwards tape during Stop mode; performs
forward and reverse slow-motion and search
during Still or Play mode. Zpg. 28
9VIDEO Input Connector enables easy connec-
tion of video output from another recorder or
camcorder for editing. Zpg. 50
0AUDIO Input Connector enables easy connec-
tion of audio output from another recorder,
camcorder or other source for editing. Zpg. 50
* The HR-J449MS has only one audio input connector.
!AUTO VN/LD Button engages Auto VN/LD
Timer for automatic switching from VN to LD
mode during recording. Zpg. 47
@3R Button enables/disables 3R Picture. Zpg. 31
#Display Panel provides clear view of various
displays and indicators. Zpg. 7
$Infrared Beam Receiving Window is where
remote control should be aimed when in use.
%VN/LD Button selects tape speed. Zpg. 35
^REVIEW Button "reviews" timer-recorded
programme. Zpg. 32 (HR-J449MS)
SPATIALIZER Button enables/disables Spatializer.
Zpg. 34 (HR-J746MS)
&Pause Button stops tape temporarily during
recording Zpg. 35; stops tape temporarily
during playback; plays back frame by frame
with each additional press. Zpg. 29
*Stop/Eject Button stops tape; ejects tape during
Stop mode. Zpg. 28
(Play Button plays back tape Zpg. 28; cancels
Pause, Still, Slow, Search modes. Zpg. 29

5
REAR VIEW
4AV2 ENTREE/DECODEUR Connector enables
connection of satellite receiver or second
recorder; input recordable when "AU-2" se-
lected. Zpg. 25, 48
Also, you can view scrambled programmes with
a decoder connected to this connector.
5AV1 ENTREE/SORTIE Connector enables AV
connection to TV. Zpg. 10
6RF Output Connector (SORTIE ANTENNE)
enables connection to aerial terminal of TV
receiver. Zpg. 10
1Mains Power Cord supplies power to recorder.
Zpg. 10
2Aerial Input Connector (ENTREE ANTENNE)
enables connection of aerial. Zpg. 10
3Remote Pause (TELEC.) Connector enables
connection to second recorder equipped with
R.A. Edit connector, or to JVC camcorder
equipped with Master Edit Control, for easy
editing. Zpg. 50
AV1 ENTREE / SORTIE
AV2 ENTREE / DECODEUR SORTIE
ENTREE
ANTENNE
DG
SORTIE AUDIO
TELEC.
25
47 3 6
1
HR-J749MS
AV2 ENTREE/DECODEUR AV1 ENTREE/SORTIE
ANTENNE
ENTREE
SORTIE
TELEC.
2
4 5
36
1
HR-J449MS

6
INDEX (cont.)
DISPLAY PANEL [J746MS]
1B.E.S.T. Picture System Display lights from
bottom to top while B.E.S.T. is active. Zpg. 36
Audio Level Indicator displays audio input and
output levels.
2 Symbolic Mode Indicators
3"Timer" Indicator lights when TIMER has been
pressed to engage Timer mode. Zpg. 43
4PDC Indicator lights when PDC has been
engaged for timer recording. Zpg. 47
5Counter Memory Indicator lights when the
video recorder is in the Counter Memory mode.
Zpg. 33
6Channel Display shows preset position where
the station currently being received is stored.
Mode shows external input mode selected.
Clock Display shows current time. Zpg. 14
STILL:
SLOW:
RECORD:
RECORD PAUSE:
PLAY:
FF/REW VARIABLE
SHUTTLE SEARCH:
+8
4
0
6
10
–20dB
NORM
GD
M
VIDEO
VN LD EP
T.REST
REVIEW
34 5
1
8 #
9! 0 @
67
2
7Instant REVIEW Indicator blinks after timer-
recording and shows how many programmes
have been timer-recorded. Z pg. 32
8Audio Mode Indicator displays audio output
mode currently selected.
9"Cassette Loaded" Mark lights once a cassette is
inserted; remains lit until cassette ejected or
power turned off.
0VIDEO indicator lights when the video recorder
is in the VIDEO mode.
!Tape Speed Indicators display mode of record-
ing; light during Record or Play mode. Zpg. 35
@Tape Remaining Time Indicator displays time
remaining on tape when certain buttons are
pressed. Zpg. 39
#Counter shows time elapsed since playback or
recording began.
T. REST displays time remaining from current
tape position to end of tape.
* Counter, Remain and Clock Display appear
alternately when AFFICHAGE is pressed.

7
DISPLAY PANEL [J449MS]
1B.E.S.T. Picture System Display lights from
bottom to top while B.E.S.T. is active. Zpg. 36
2 Symbolic Mode Indicators
3"Timer" Indicator lights when TIMER has been
pressed to engage Timer mode. Zpg. 43
4PDC Indicator lights when PDC has been
engaged for timer recording. Zpg. 47
5Counter Memory Indicator lights when the
video recorder is in the Counter Memory mode.
Zpg. 33
6Channel Display shows preset position where
the station currently being received is stored.
Mode shows external input mode selected.
Clock Display shows current time. Zpg. 14
7Instant REVIEW Indicator blinks after timer-
recording and shows how many programmes
have been timer-recorded. Z pg. 32
8"Cassette Loaded" Mark lights once a cassette is
inserted; remains lit until cassette ejected or
power turned off.
9VIDEO indicator lights when the video recorder
is in the VIDEO mode.
0Tape Speed Indicators display mode of record-
ing; light during Record or Play mode. Zpg. 35
!Tape Remaining Time Indicator displays time
remaining on tape when certain buttons are
pressed. Zpg. 39
@Counter shows time elapsed since playback or
recording began.
T. REST displays time remaining from current
tape position to end of tape.
* Counter, Remain and Clock Display appear
alternately when AFFICHAGE is pressed.
VIDEO
VNLDEP
REVIEW
T.REST
M
1 3 4 5
2
@
8 9 !
0
6 7
STILL:
SLOW:
RECORD:
RECORD PAUSE:
PLAY:
FF/REW VARIABLE
SHUTTLE SEARCH:

8
C
O
N
T
R
O
L
E
P
R
O
G
.
V
O
L
.
T
V
AFFICHAGEM COMPTEUR
+DUREE
AUX
0000
ANNUL.
DATEFIN DEBUT
CONTROLE AUDIO
TV/VIDEO TV SAT.MAG.
AUTO
HEBDOQTDN.
PDC
A
12
45
3
6
8
0
79
B
MULTI-
FONCTIONS
CHAINE
P
R
O
G
.
/
M
E
N
U
O
K
PROGRAMMATION EXPRESS
2
4
1
3
R
E
C
H
.
S
E
Q
.
TELECOMMANDE
0
9
#
@
$
u
y
p
Q
4
5
1
6
2
3
)
o
i
w
q
(
&
*
e
r
t
7
8
!
W
E
%
^
INDEX (cont.)
REMOTE CONTROL 1REVIEW Button "reviews" timer-recorded
programme. Zpg. 32
2A/B Code Switch enables setting of recorder to
respond to A- or B-code command signals.
Zpg. 33
3Counter Memory (M. COMPTEUR) Button
engages Counter Memory mode. Zpg. 33
4NUMBER Keys are used in channel selection
Zpg. 35, SHOWVIEW timer programming
Zpg. 42.
5(PDC) Button enables/disables PDC record-
ing. Zpg. 47
6Cancel Button (ANNUL.) erases previously
entered data in on-screen selection menus.
Zpg. 25
Counter Reset Button (0000) resets counter to
0:00:00. Zpg. 39
7Start +/– Button (DEBUT) accesses Regular
Program screen; inputs programme Start Time.
Zpg. 44
8Stop +/– Button (FIN) inputs programme Stop
Time. Zpg. 44
9VN/LD Button selects tape speed. Zpg. 35
Digit Entry Button is used in controlling con-
nected TV. Zpg. 26
0Audio Monitor Button (CONTROLE AUDIO)
changes output sound mode. Zpg. 34
TV Mute Button mutes sound of connected TV.
Zpg. 26
!Rewind Button rewinds the tape Zpg. 28;
initiates high-speed reverse search. Zpg. 30
@Play Button — same as button on recorder.
Zpg. 28
#Record Button — same as button on recorder.
Zpg. 35
$Scene Finder Button (RECH. SEQ.) initiates cycle
of 5-second forward (or reverse) search and 10-
minute fast-forward (or reverse) on counter.
Zpg. 33
%PROG./MENU Button accesses Program screen
(press once) or Main Menu screen (press twice).
Zpg. 42, 16
^MULTI-FONCTIONS %fi Button is used for
selection in on-screen menus. Zpg. 16
MULTI-FONCTIONS Button sets TV
channels Zpg. 26; initiates functions such as
Index Search Zpg. 32, variable-speed search,
frame by frame playback. Zpg. 29
&Operate Button ( ) — same as button on
recorder. Zpg. 14
*Display Button (AFFICHAGE) switches display
between clock time, counter readings, tape
remaining time. Zpg. 39
%
%
%
%

9
(Add Time Button (+DUREE) adds time to end of
recording (5 minutes each time button is
pressed.) Zpg. 43
)Daily Button (QTDN) enables timer recording
of daily serials. Zpg. 43
qWeekly Button (HEBDO) enables timer record-
ing of weekly serials. Zpg. 43
wAUX Button selects recorder's auxiliary input
mode. Zpg. 48
eTimer Button (AUTO) — same as button on
recorder. Zpg. 43
rChannel +/– Button (CHAINE) — same as
button on recorder. Zpg. 35
tDATE +/– Button inputs date of program for
timer recording. Zpg. 44
yTV/SAT./MAG. Switch enables remote control
of VCR or connected TV or satellite receiver.
Zpg. 26, 27
uTV/VIDEO Button switches control between TV
and VCR. Zpg. 26
iFast Forward Button fast-forwards tape Zpg. 28;
initiates high-speed forward search. Zpg. 30
oPause Button — same as button on recorder.
Zpg. 29
pStop Button — same as button on recorder.
Zpg. 28
QProgramme Check Button (CONTROLE PROG)
accesses Program screens (next program's
information screen appears each time button is
pressed). Zpg. 47
WOK Button enters selections made in on-screen
menus. Zpg. 16
EVOL. TV %fi Button controls volume of con-
nected TV. Zpg. 26
Installing Batteries
1Open the battery compartment cover.
2Insert 2 "R6"-size batteries (provided) in the correct
directions.
3Replace the cover.
How To Use
The remote control can operate most of your video recorder's
functions, as well as basic functions of TV sets and satellite
receivers of JVC and other brands. Zpg. 26, 27.
●Point the remote control toward the sensor window.
●The maximum operating distance of the remote control
is about 8 m.
NOTE:
If for some reason the remote control doesn't work properly,
remove its batteries, wait a short time and then try again.

10
D
SO
R
INSTALLING YOUR NEW RECORDER
Basic Connections
It's essential that your video recorder be properly connected.
Follow these steps carefully. THESE STEPS MUST BE COMPLETED
BEFORE ANY VIDEO OPERATION CAN BE PERFORMED.
CHECK CONTENTS
1
Make sure the package contains all of the accessories
listed in “Specifications” (Zpg. 55).
SITUATE RECORDER
2
Place the recorder on a stable, horizontal surface.
CONNECT RECORDER TO
TV
3
a– Disconnect the TV aerial cable from the TV.
b– Connect the TV aerial cable to the ENTREE
ANTENNE jack on the rear panel of the recorder.
c– Connect the provided RF cable between the SORTIE
ANTENNE jack on the rear panel of the recorder and
the TV’s aerial terminal with the provided antenna
adapter directly connected to the TV as illustrated.
d– Connect the provided SCART cable between the
AV1 ENTREE/SORTIE socket on the rear panel of the
recorder and the TV’s 21-pin SCART connector.
Before operating the recorder, make sure the TV
is set to the VIDEO (or AV) mode.
CONNECT RECORDER TO
MAINS
4
Plug the end of the mains power cord into a mains
outlet.
Aerial terminal
21-pin SCART connector
21-pin SCART Cable (provided)
Antenna adapter (provided)
RF Cable (provided)
Back of TV
Mains Power
Cord
Mains outlet
21
(n
o
