K2 CrossRail 44-X User manual

k2-systems.com
We support PV systems
Formerly Everest Solar Systems
CrossRail System
ASSEMBLY INSTRUCTIONS

2
Content
T About Us 3
T General Safety Information 4
·Roof requirements 5
·Structural requirements 5
·Important mounting instructions 5
T Bonding and Grounding 6
T Fire Rating 7
T Compatible Modules 8
T Tools Overview 12
T Components 13
·Roof Attachments 14
·Accessories 15
T Assembly 16
T Notes 22
Quality tested – several certifications
K2 Systems stands for secure connections, highest quality and precision. Our
customers and business partners have known that for a long time. Independent
institutes have tested, confirmed and certified our capabilities and components.
Please find our quality and product certificates under:
https://k2-systems.com/en-US/company/quality-management-and-certificates

3
Engineering strength is at our core
With sophisticated product innovations and a deep customer focus, K2 Systems is the engineering leader
for all your mounting system needs. We are a market leader with more than 20 GW installed worldwide.
We offer proven product solutions and innovative designs. Wind tunnel testing along with advanced
structural and electrical validation to facilitate permitting, design and installation. Our designs result in
cost competitive racking systems with dedicated support that will position you to win more projects.
We partner with our customers and suppliers for the long-term. High quality materials and cutting edge
designs provide a durable, yet functional system. Our product line is comprised of a few, coordinated
components that lower the cost of materials, and simplify installation, saving you time and money. All
backed by German engineering, a long track record of quality and a company that is here to stay.
Thank you for choosing K2 Systems for your Solar PV Project.

4
General Safety Information
Please note that our general mounting instructions must be followed at all times and
can be viewed online at https://k2-systems.com/en-US/downloads/documentation
T The equipment may only be installed and operated by
qualified and adequately trained installers.
T Prior to installation, ensure that the product complies
with on-site static loading requirements.
For roof-mounted systems, the roof load-bearing
capacity must always be checked.
T National and local building regulations and environmental
requirements must be adhered to.
T Compliance with health and safety regulations, accident
prevention guidelines and applicable standards are
required.
·Protective equipment such as safety helmet, boots and
gloves must be worn.
·Roofing works must be in accordance with roofing
regulations utilizing fall protection safeguards when
eaves height exceeds 3 m.
·At least two people must be present for the duration of
the installation work in order to provide rapid assistance
in the event of an emergency.
T K2 mounting systems are continuously developed and
improved and the installation process may thereby
change at any time. Prior to installation consult our
website at:
https://k2-systems.com/en-US/downloads/
documentation for up-to-date instructions.
We can send you the latest version on request.
T The assembly instructions of the module manufacturer
must be adhered to.
T Equipotential bonding/grounding/earthing between
individual parts is to be performed according to
country specific standards, as well as national laws and
regulations.
T At least one copy of the assembly instructions should
be available on site throughout the duration of the
installation.
T Failure to adhere to our general safety and assembly
instructions and not using all system components,
K2 is not liable for any resulting defects or damages. We
do not accept liability for any damage resulting in the use
of competitor’s parts. Warranty is excluded in such cases.
T If all safety instructions are adhered to and the system
is correctly installed, there is a product warranty
entitlement of 25 years! We strongly recommend
reviewing our terms of guarantee, which can be
viewed at https://k2-systems.com/en-US/downloads/
documentation
We will also send this information on request.
T Dismantling of the system is performed in reverse order
to the assembly.
T K2 stainless steel components are available in
different corrosion resistance classes. Each structure
or component must be carefully checked for possible
corrosion exposure.

5
The following guidelines apply
The CrossRail System can be installed as standard under the following conditions. Even if the
system is capable of meeting higher demands through the integration of safety standards,
please get in touch with your contact at K2 Systems if the specified values are exceeded.
Roof requirements
T The structural integrity of the roof must be
reviewed on site and approved by a licensed
structural engineer.
T Roof mean height: 0-60 ft
T For allowable roof pitch, refer to the CrossRail
engineering letters on our website: https://k2-
systems.com/en-US/technical-information/
downloads
Structural requirements
T Wind speed: 95-200 mph
T Ground snow load: 0-100 psf
T Clearance: 2" to 10" clear from the top of the
roof to the top of PV panel
T Maximum cantilever: L/3 where "L" is the
span noted in the engineering span tables,
provided there is at least 1 module length
between maximum cantilevers.

6
Bonding and Grounding
Appropriate means of bonding and grounding are required by regulation. The information provided in this manual shall
always be verified with local and national building codes.
Everest Solar Systems has obtained a UL 2703 system listing from Underwriter’s Laboratories (UL).
A sample bonding path diagram is shown in Figure 1 below. Your specific installation may vary, based upon site conditions
and your AHJ‘s requirements.
Each electrical connection has been evaluated to a maximum fuse rating of 30A. At least one ground lug per row of
modules must be used to ground all strings within each sub-array, although additional may be used for redundancy. When
installed per these installation instructions, all connections meet the requirements of NEC 690.43.
This racking system may be used to ground and/or mount a PV module complying with UL 1703 only when the specific
module has been evaluated for grounding and/or mounting in compliance with the included instructions.
Mid Clamp
(typical location)
End Clamp
(typical location)
L-Foot M10 Bonding T-Bolt
(typical location)
Everest Ground Lug
(typical location)

7
Fire Rating
The CrossRail System has undergone fire performance testing in accordance with UL 2703, Fire Performance.
A System Class A fire rating is achieved when using CrossRail 44-X/48-X/48-XL under the following
conditions:
T Roof slope of 2/12" rise per linear foot or greater
T Used in combination with a UL 1703 Listed module with a fire performance rating of Type 1, Type 2, or Type
3. Consult the module manufacturer for specific fire performance rating information.
T CrossRail may be mounted using any stand-off height to maintain the Class A fire rating. Always consult the
module manufacturer‘s installation instructions to ensure your installation is in compliance with their UL
1703 Listing.
T The results of the racking system do not improve a roof covering Class rating.
All documentation can be found on UL‘s Online Database as well as K2 Systems‘ website.

8
Compatible Modules
K2's CrossRail System was tested with the following:
T UL/NRTL Listed Axitec Modules:
·AC-xxP/156-60S
·AC-xxxM/156-60S
·AC-xxxP/60V
·AC-xxxP/60xV
·AC-xxxP/60S
·AC-xxxP/60x
·AC-xxxMH/120S
·AC-xxxM/60V
·AC-xxxM/60xV
·AC-xxxMH/120V
·AC-xxxM/60S
·AC-xxxM/60x
·AC-xxxP/156-72S
·AC-XXXP/72V
·AC-XXXP/72XV
·AC-XXXP/72S
·AC-XXXP/72X
·AC-XXXMH/144S
·AC-XXXM/72V
·AC-XXXM/72XV
·AC-XXXMH/144V
·AC-XXXM/72S
·AC-XXXM/72X
T UL/NRTL Listed Canadian Solar Inc. Modules:
·CS6U-xxx
·CS6K-xxx
·CS6X-xxx
·CS6P-xxx
·CS3K-xxxP
·CS3K-xxxMS
·CS3U-xxxP
·CS3U-xxxMS
·CS3W-xxxP
·CS3U-xxxPB-AG
·CS3U-xxxMB-AG
·CS3W-xxxPB-AG
·CS1H-xxxMS
T CONTINUED - Hanwha Q Cells Modules:
·Q.PEAK DUO L-G6 xxx
·Q.PEAK DUO L-G6.2 xxx
·Q.PEAK DUO L-G6.3 xxx
·Q.PLUS DUO L-G5 xxx
·Q.PLUS DUO L-G5.1 xxx
·Q.PLUS DUO L-G5.2 xxx
·Q.PLUS DUO L-G5.3 xxx
·Q.PEAK DUO L-G5.2 xxx
·Q.PEAK DUO L-G5.3 xxx
·Q.PEAK L-G4.2 xxx
·Q.PEAK L-G4.1 xxx
·Q.PLUS L-G4.2 xxx
·Q.PLUS L-G4.1 xxx
·Q.PLUS L-G4 xxx
·Q.PEAK DUO BLK G6+/SC xxx
·Q.PEAK DUO G5/SC xxx
·Q.PEAK DUO BLK G5/SC xxx
·Q.Plus BFR-G4.1xxx
·Q.Pro BFR-G4.1xxx
·Q.Pro-G4.1/SCxxx
·Q.PLUS BFR G4.1 xxx
·Q.PRO BFR G4 xxx
·Q.PRO BFR G4.1 xxx
·Q.PRO BFR G4.3 xxx
·Q.PEAK-G4.1 xxx
·Q. PEAK DUO BLK G6+/TS XXX
·Q.PEAK DUO G5/TS-XXX
·Q.PEAK DUO BLK G6/TS XXX
·Q.PEAK DUO G6/TS-XXX
·Q.PEAK DUO G6+/TS-XXX
·Q.PEAK DUO ML-G9 XXX
·Q.PEAK DUO ML-G9.2 XXX
·Q.PEAK DUO ML BLK-G9 XXX
·Q.PEAK DUO ML BLK-G9.2 XXX
·Q.PEAK DUO XL-G9 XXX
·Q.PEAK DUO XL-G9.2 XXX
·Q.PEAK DUO XL BLK-G9 XXX
·Q.PEAK DUO XL BLK-G9.2 XXX
·Q.PEAK DUO XL BLK-G9.3 XXX
·Q.PEAK DUO XL -G9.3 XXX
·Q.PEAK DUO ML -G9.3 XXX
·Q.PEAK DUO ML BLK -G9.3 XXX
·Q.PEAK DUO ML -G9 XXX
·Q.PEAK DUO ML -G9+ XXX
·Q.PEAK DUO BLK ML -G9+ XXX
·Q.PEAK DUO BLK ML -G9 XXX
·Q.PEAK DUO BLK-G10+
·Q.PEAK DUO BLK ML-G10+
·Q.PEAK DUO BLK-G10+ / AC
·Q.PEAK DUO BLK ML-G10.a
·Q.PEAK DUO XL-G10.d
·
T UL/NRTL Listed Hansol Modules:
·UB-AN1 Black 270-300
·UBAN1 Silver 270-300
·UD-AN1 330-360
T UL/NRTL Listed ET Solar Modules:
·ET-M660xxxBB
T UL/NRTL Listed Hanwha Q Cells Modules:
·Q.PEAK- G4.1/MAx xxx
·Q.PEAK BLK G4.1 xxx
·Q.PRO G4 xxx
·Q.PLUS G4 xxx
·Q.PEAK-G4.1/TAA xxx
·Q.PEAK BLK G4.1/TAA xxx
·Q.PLUS BFR G4.1/TAA xxx
·Q.PLUS BFR G4.1/MAx xxx
·B.LINE PLUS BFR G4.1 xxx
·B.LINE PRO BFR G4.1 xxx
·Q.PEAK DUO-G5 xxx
·Q.PEAK DUO BLK-G5 xxx
·Q.PEAK DUO-G8 xxx
·Q.PEAK DUO BLK-G8 xxx
·Q.PEAK DUO-G7 xxx
·Q.PEAK DUO BLK-G7 xxx
·Q.PEAK DUO G7.2 xxx
·Q.PEAK DUO-G6 xxx
·Q.PEAK DUO BLK-G6 xxx
·Q.PEAK DUO BLK-G6+ xxx
·Q.PEAK DUO-G6+ xxx
·Q.PEAK DUO-G8+ xxx
·Q.PEAK DUO BLK-G8+ xxx
·Q.PEAK DUO L-G8.3 xxx
·Q.PEAK DUO L-G8.2 xxx
·Q.PEAK DUO L-G8.1 xxx
·Q.PEAK DUO L-G8 xxx
·Q.PEAK DUO L-G7.3 xxx
·Q.PEAK DUO L-G7.2 xxx
·Q.PEAK DUO L-G7.1 xxx
·Q.PEAK DUO L-G7 xxx
T UL/NRTL Listed Aptos Solar Modules:
·DNA-120-MF26-XXXW
·DNA-144-MF26-XXXW
·DNA-120-BF23-XXXW
·DNA-120-MF23-XXXW
·DNA-144-BF23-XXXW
·DNA-144-MF23-XXXW T UL/NRTL Listed CertainTeed Modules:
·CTXXXHC11-04
·CTXXXHC00-04
·CTxxxHC11-06
T UL/NRTL Listed Boviet Modules:
·BVM6612M 72-Cell Mono
T CONTINUED - Canadian Solar Inc Modules:
·CS6K-xxxM
·CS6K-P-FG DYMOND
·CS1Y-xxxMS
·CS3N-xxxMS

9
T UL/NRTL Listed Hyundai Modules:
·HiS-MxxxMG
·HiS-MxxxMI
T UL/NRTL Listed Itek Modules
·IT-xxx-SE
·Hipro TP672M-xxx
T UL/NRTL Listed JA Solar Modules:
·JAP6(DG)
·JAM6(K)-60-xxx/4BB
T UL/NRTL Listed Jinko Solar Modules::
·JKMxxxPP-72-DV
·JKMxxxPP-60-DV
·JKMxxxM-60HBL
·JKMxxxM-72HL-V
·JKMxxxM-72HL-TV
·JKMxxx-P-60
·JKMxxxM-72HL4-TV
·JKMxxxM-6RL3-B
T UL/NRTL Listed Kyocera Modules:
·KUxxxMCA
T UL/NRTL Listed Longi Modules:
·LR6-72-xxxM (xxx=320-350)
·LR6-72HV-xxxM (xxx=320-350)
·LR6-72BK-xxxM (xxx=320-350)
·LR6-72PE-xxxM (xxx=340-380)
·LR6-72PH-xxxM (xxx=340-380)
·LR6-72PB-xxxM (xxx=340-380)
·LR6-72HPB-xxxM (xxx=360-385)
·LR6-60-xxxM (xxx=270-300)
·LR6-60HV-xxxM (xxx=270-300)
·LR6-60BK-xxxM (xxx=270-300)
·LR6-60PE-xxxM (xxx=280-320)
·LR6-60PH-xxxM (xxx=280-320)
·LR6-60PB-xxxM (xxx=280-320)
T UL/NRTL Listed Lumos Modules:
·LSxxxx-60M-B/C
T UL/NRTL Listed Luxor Solar Modules:
·Lx-xxxP
·Lx-xxxM
T UL/NRTL Listed LG Electronics Inc. Modules:
·LGxxxS1C-G4
·LGxxxN1C-G4
·LGxxxS2WG4
·LGxxxN1K-G4
·LGxxxN2W-G4
·LGxxxN1K-A5
·LGxxxQ1C-V5
·LGxxxQ1K-V5
·LGxxxN2W-A5
·LGxxxS2W-A5
T CONTINUED - LG Electronics Inc. Modules:
·LGxxxN2T-A5
·LGxxxQ1C-A5
·LGxxxQ1K-A5
·LGxxxN2W-V5
·LGxxxN1C-V5
·LGxxxN1W-V5
·LGxxxN1K-V5
·LGXXXN2W-V5
·LGXXXN1C-V5
·LGXXXN1W-V5
·LGXXXN1K-V5
·LGXXXN2T-V5
·LGXXXN1C-N5
·LGXXXQ1C-N5
·LGXXXQ1K-N5
·LGXXXN1K-L5
·LGXXXN2W-L5
·LGXXXN2T-L5
·LGXXXN1W-L5
·LGXXXN1T-L5
·LGXXXA1C-V5
·LGXXXA1K-V5
·LGXXXM1C-N5
·LGXXXM1K-L5
·LGXXXQ1C-A6
·LGXXXQ1K-A6
·LGXXXQAC-A6
·LGXXXQAK-A6
·LGXXXN1C-A6
·LGXXXN1K-A6
·LGXXXN2W-E6
·LGXXXN2W-E6.AW5
·LGXXXN2T-E6
·LGXXXN1K-B6
·LGXXXQ1C-A6
·LGXXXQ1K-A6
·LGXXXQAC-A6
·LGXXXQAK-A6
·LGXXXN1C-A6
·LGXXXN1K-A6
·LGXXXN2W-E6
·LGXXXN2W-E6.AW5
·LGXXXN2T-E6
·LGXXXN1K-B6
·LGXXXA1C-A6
·LGXXXM1C-A6
·LGXXXM1K-A6
·LGxxxN16-E6
·LR6-72BP-xxxM
·LR6-60BP-xxxM
·LR6-72HBD-xxxM
·LR6-60-xxxM
·LR6-60BK-xxxM
·LR6-60PE-xxxM
·LR6-60PB-xxxM
·LR6-60PH-xxxM
·LR6-60HPB/HIB-xxxM
·LR6-60HPH/HIH-xxxM
·LR6-72-xxxM
·LR6-72BK-xxxM
·LR6-72HV-xxxM
·LR6-72PE-xxxM
·LR6-72PB-xxxM
·LR6-72PH-xxxM
·LR6-72HPH/HIH-xxxM
·LR6-72BP-xxxM
·LR6-72HBD/HIBD-xxxM
·LR6-60BP-xxxM
·LR6-60HBD/HIBD-xxxM
·LR4-60HPH/HIH-xxxM
·LR4-60HPB/HIB-xxxM
·LR4-72HPH/HIH-xxxM
·LR4-72HBD/HIBD-xxxM
·LR4-72HBD/HIBD-xxxM
T CONTINUED - Hyundai Modules:
·HiS-MxxxTI
·HiS-MxxxRI
·HiS-SxxxRI
·HiS-MxxxRG
T CONTINUED - Hanwha Q Cells Modules:
·Q.PEAK DUO BLK ML-G10
·Q.PEAK DUO BLK ML-G10.a+
·Q.PEAK DUO BLK ML-G10.a+ /TS
·Q.PEAK DUO XL-G10.2
·Q.PEAK DUO XL-G10.c
·Q.PEAK DUO XL-G10.3
·Q.PEAK DUO ML-G10
·Q.PEAK DUO ML-G10+

10
Compatible Modules continued
K2's CrossRail System was tested with the following:
T UL/NRTL Listed Sunpreme Modules:
·GxB-xxx
·GxB-xxxSM
·GxB-xxxSL
T UL/NRTL Listed Sunspark Modules:
·SST-275-300M
·SMX-250-265P
·SST-xxxM 60 cell
·SST-xxxM 72 cell
·SST-xxxMB 60 cell
·SST-XXXM3B-60/72
·SST-XXXM3-60/72
·SST-XXXM3B-60/72
T UL/NRTL Listed Soluxtec Modules:
·FR xxx Wp
·Power Slate 54 Mono Dark Series
·Power Slate 54 Mono Series
T UL/NRTL Listed SunPower Modules:
·SPR-E19-xxx
·SPR-E20-xxx
·SPR-Axxx-G-AC
·SPR-Axxx-BLK-H-AC
·SPR-Axxx
·SPR-Mxxx-G-AC
·SPR-Mxxx-L-AC
·SPR-Mxxx-E6-AC
·SPR-Mxxx-BLK-G-AC
·SPR-Mxxx-BLK-H-AC
·SPR-Mxxx-BLK-L-AC
·SPR-Mxxx-BLK-E6-AC
T UL/NRTL Listed Solarworld Modules
"Sunmodule":
·Plus SW XXX Mono
·Plus SW XXX Poly
T UL/NRTL Listed Silfab Modules:
·SLAxxxM
·SLG-M-xxx
·SLA-x-xxx
·SLG-x-xxx
·SIL-xxx BL
·SIL-xxx HL
·SIL-xxx NL
·SIL-xxx ML
·SIL-xxx NT
·SIL-xxx BK
·SIL-xxx NU
·SIL-xxx NX
·SIL-xxxHC
T UL/NRTL Listed Seraphim Modules:
·SEG-XXX-6MA-HV
·SEG-XXX-BMA-HV
T UL/NRTL Listed Prism Solar Modules:
·Bi48 xxx Bifacial
·Bi60 xxx Bifacial
T UL/NRTL Listed REC Modules:
·RECxxxTP2 BLK2
·RECxxxTPS 72
·RECxxxTP2S 72 XV
·RECxxxTP2SM 72 XV
·RECxxxTP2SM 72
·RECxxx NP
·RECxxx NP Black
·RECxxxAA
·RECxxxAA Black
·RECxxxTP4
·RECxxxAAPure
·RECxxxTP4Black
T UL/NRTL Listed Panasonic Modules:
·VBHNxxxSA16
·VBHNxxxKA01
·VBHNxxxKA03
·VBHNxxxKA04
·VBHNxxxSA17
·VBHNxxxSA18
·VBHNxxxSA17E
·EVPVxxx
·EVPVxxxK
T UL/NRTL Listed Phono Solar Modules:
·PSxxxMG-20/U
·PSxxxPG-20/U
·PSxxxM-20/U
·PSxxxMH-20/U
T UL/NRTL Listed Peimar Modules:
·SGxxxP-(BF)
·SGxxxP
·SGxxxM-(BF)
·SGxxxM
·MSExxxSR9S
·MSExxxSB1J
·MSExxxSX5T
·MSExxxSX5K
·MSExxxSX6S
·MSExxxSX6W
·MSExxxSX6Z
·MSExxxSX5R
T UL/NRTL Listed Sanyo Electric Co Ltd of Pana-
sonic Group Modules:
·VBHNxxxSA16
·VBHNxxxSA17
·VBHNxxxSA18
·VBHNxxxSA16
·VBHNxxxSA17
·VBHNxxxSA18
·VBHNxxxKA01
·VBHNxxxKA03
·VBHNxxxKA04
T UL/NRTL Listed Sharp Modules:
·NU-SCxxx
·NU-SAxxx
T UL/NRTL Listed Mission Solar Modules:
·MSExxxSB1J
·MSExxxSO5T
·MSExxxSO4J
·MSExxxSQ6S
·MSExxxSO6J
·MSExxxSQ4S
·MSExxxSQ5T
·MSExxxSQ5K
·MSExxxSQ8T
·MSExxxSQ8K
·MSExxxSQ9J
·MSExxxSQ9S
·MSExxxSR8T
·MSExxxSR8K
T UL/NRTL Listed Solaria Modules:
·PowerxT® -xxxR-PD
·PowerxT® -xxxR-BD
·PowerxT® XXXR-PM

11
Compatible Modules continued
K2's CrossRail System was tested with the following:
T UL/NRTL Listed S-Energy Modules:
·SN15-60PAE/PCE-xxxV
·SN10-60PAE/PBE/PCE-xxxV
·SN15-60MAE/MCE-xxxV
·SN10-60MAE/MCE-xxxV
·SNxxxM-10T(SN60)
·SN15-72PAE/PCE-xxxV
·SN10-72PAE/PBE/PCE-xxxV
·SN15-72MAE/MCE-xxxV
·SN10-72MAE/MBE/MCE-xxxV
·SN20-60MAE/MBE/MCE-xxxV
·SN25-60MAE/MCE-xxxV
·SC20-60MAE/MBE/MCE-xxxV
·SC25-60MAE/MCE-xxxV
·SN20-72MAE/MBE/MCE-xxxV
·SN25-72MAE/MCE-xxxV
·SC20-72MAE/MBE/MCE-xxxV
·SC25-72MAE/MCE-xxxV
·SD25-60BDE-xxxV
·SD25-72BDE-xxxV
T UL/NRTL Listed Trina Solar Modules:
·TSM-xxxDE14A
·TSM-xxxDD05A.08
·DUOMAX SPECS 1. PEG14
·DUOMAX SPECS 2. PEG5
·DUOMAX SPECS 3. PEG5.07
·DUOMAX SPECS 4. PDG5
T UL/NRTL Listed Talesun Modules
·Hipro TP660M-xxx
·Hipro TP672M-xxx
T UL/NRTL Listed Yingli Solar Modules:
·YL-xxxP-29b
·YL-xxx-35b
T UL/NRTL Listed V Energy Modules:
·Series 200 PV
·TSM-DE15H(II)
·TSM-DE15M(II)
·TSM-DD06M.05(II)
·TSM-DD06H.05(II)
·TSM-DD06M.t5(II)
·TSM-DD06H.T5(II)
·TSM-PE15H
·TSM-DEG15HC.20(II)
·TSM-DEG15MC.20(II)
·TSM-DEG6HC.20(II)
·TSM-DEG6MC.20(II)
·TSM-xxxDE15V(ll)
·TSM-xxxDE19
·TSM-xxxDEG15VC.20(ll)
·TSM-xxxDEG19C.20
·TSM-xxxDE18M.08
·TSM-xxxDEG18MC.20

12

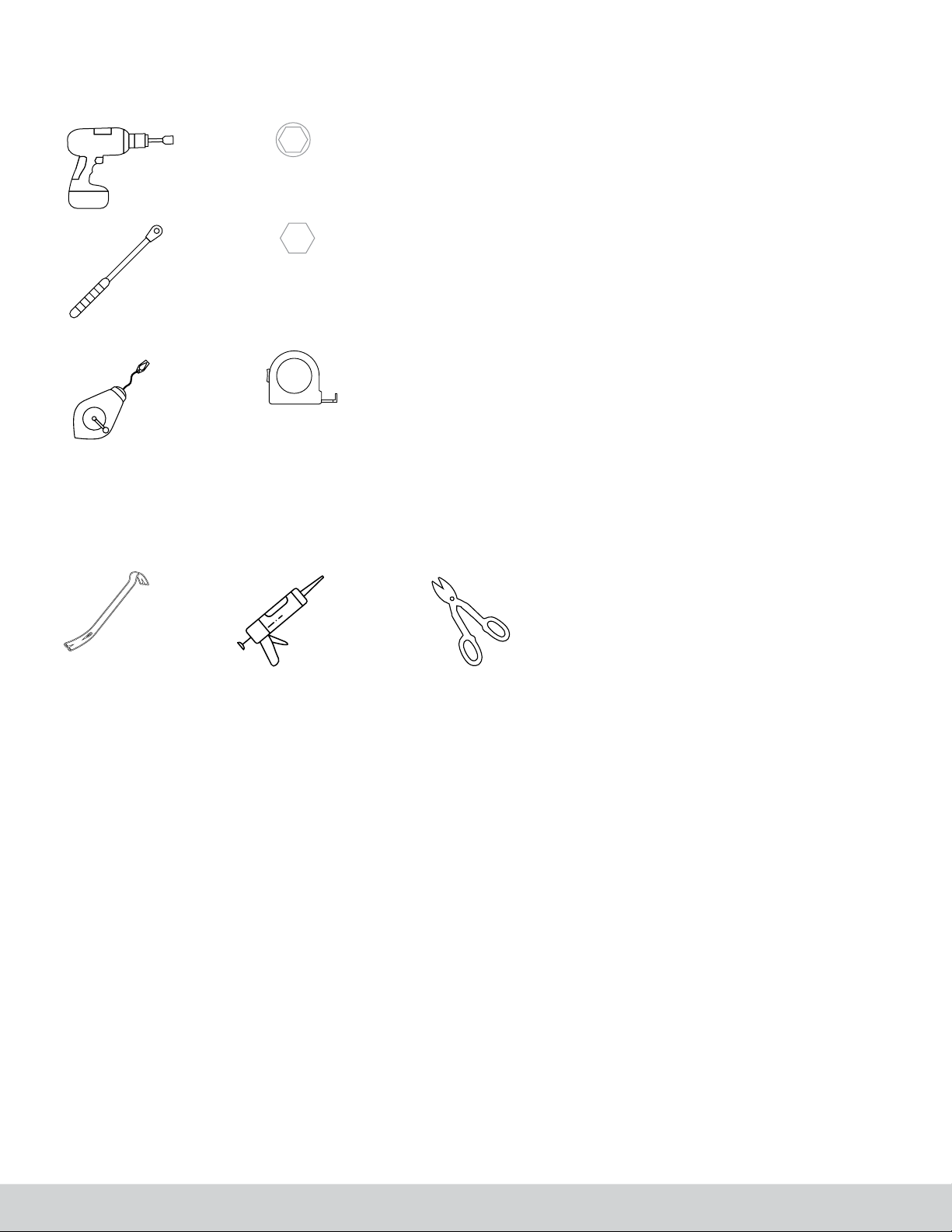

Tools Overview
13mm
6 - 35 Nm
(4.5 - 22.2 lb-ft)
≥ 3.0 m
Torque Overview
T M10 T-Bolts: 25.8 ft-lb (35 Nm)
T Everest Ground Lug:
T M8 Hex Bolt: 10.3 ft-lb [14 Nm]
T Terminal Screw: 2.9-5 ft-lb [3.9-6.7 Nm]
T Mid Clamp M8 Hex Bolt: 12 ft-lb [16.3 Nm]
T End Clamp M8 Allen Bolt: 10.3 ft-lb [14 Nm]
T Yeti Clamp/ CR MLPE Mounting Kit: M8 Hex Bolt: 10.3 ft-lb [14 Nm]
T PowerClamp Set Screw: 24 ga Steel: 12.5-13.3 ft-lb [16.9-18 Nm], 22 ga Steel:
15-16.6 ft-lb [20.3-22.6 Nm]
T WEEB Lug 10.3: 15 ft-lb (20.3 Nm)
Tools and materials for the installation of third party items such as roof attachment products, roof covering and sealing products or items used for bonding and grounding are not listed here. Please refer to
the instructions of those third party products.
Optional

13
Components
1
3
2
4

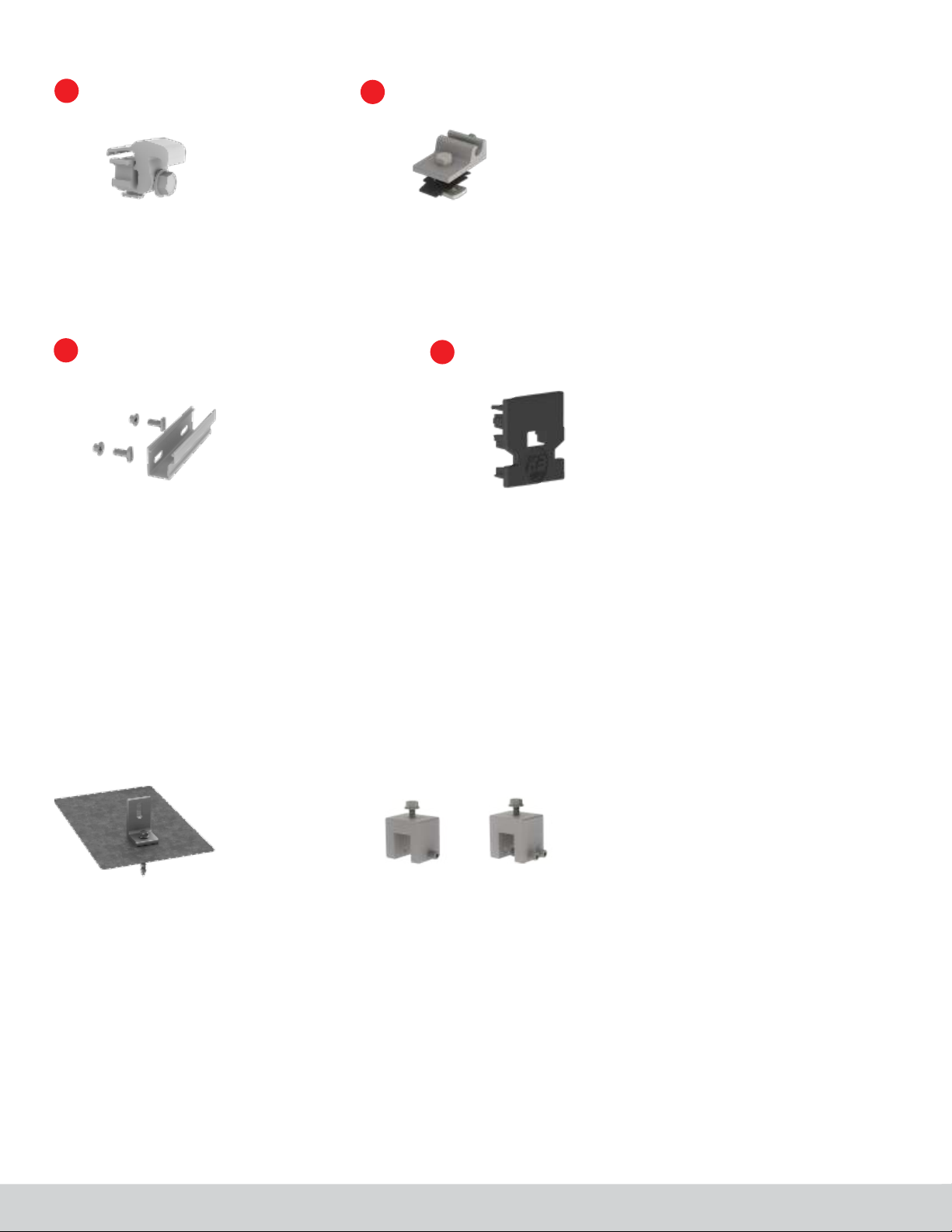

CrossRail 44-X, 48-X or 48-XL
Mid Clamp, 13mm Hex
30 - 50 mm module frame height
L-Foot Slotted Set
End Clamp
30 - 50 mm module frame height
4000019/4000020/4000021/4000022
4000662/4000663
4000695/4000705
4000601-H/4000602-H
4000688-H/4000689-H
4000630/4000631
4000429/4000430
2
3
4
1
5
6
7
8

14
5
7
6
8
Structural Rail Connector
CR 44-X or 48-X/48-XL
Everest Ground Lug, 13mm Hex
End Cap
CR 44-X or 48-X/48-XL
4000050-H
4000051/4000052
4000385/4000386
4000006-H
4000176/4000431
Yeti Clamp, 13mm Hex
Hidden End Clamp
Roof Attachments
EverFlash eComp Kit
Available in Mill or Dark
4000366/4000367
Comp Shingle Standing Seam
Standing Seam PowerClamp
Available in Mini and Standard sizes
4000016/4000017

15

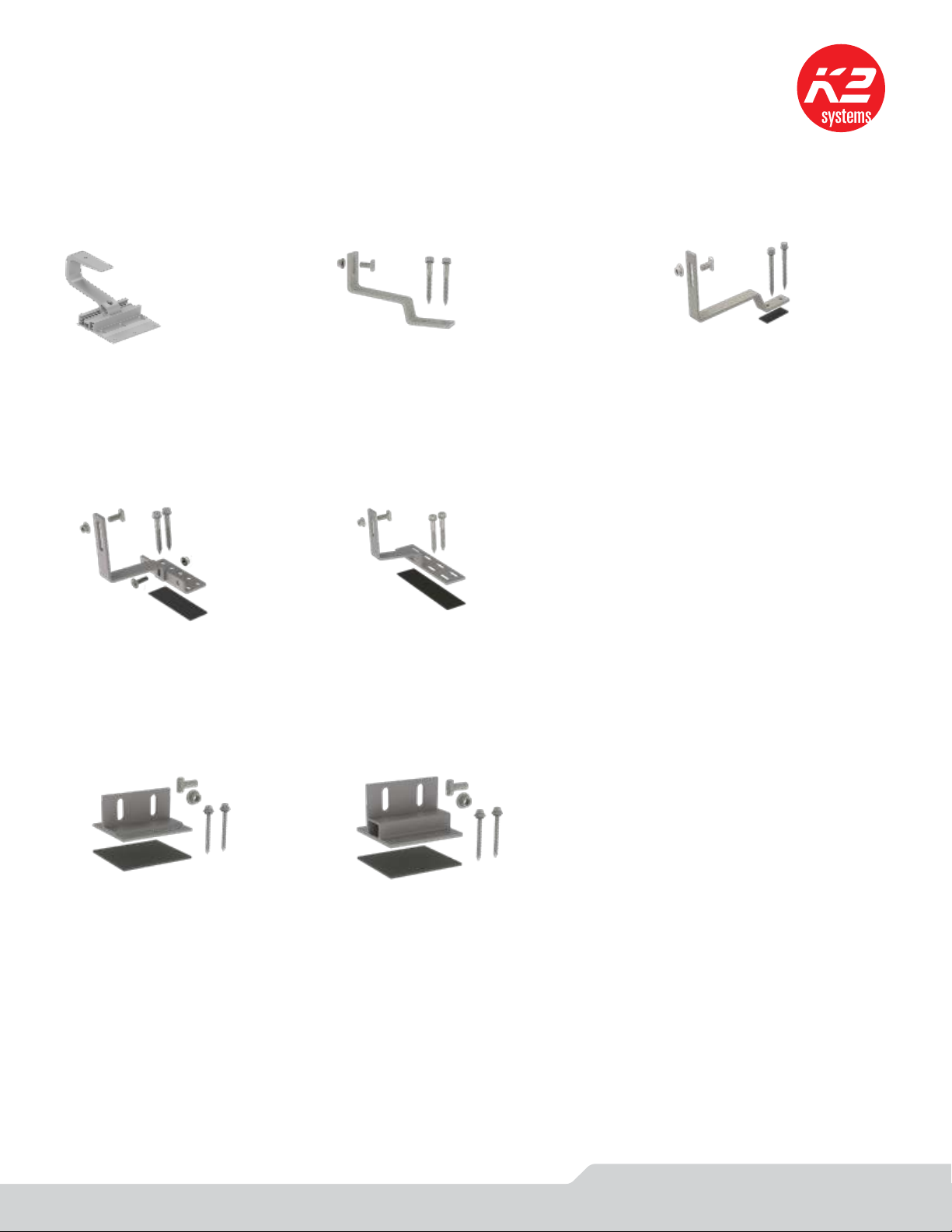

Flat Tile Hook, Set
4000034
Tile
Tile Hook 3S, Set
4001294
Flat Tile Hook X Kit, w/K2 EverSeal
4000141-B
USH +2, 5'5 Base Kit, w/K2 EverSeal
4000142-B
USH, 9", Base Kit, w/K2 EverSeal
4000140-B
Roof Attachments
Splice Foot X Kit, Mill
4000113
Splice Foot XL Kit, Mill
4000162

16
Accessories
CR Microinverter & Optimizer
Mounting Kit, 13mm Hex
4000629-H
CrossRail 3" Black Sleeve
Compatible with CR 48-X/48-XL or CR 44X
4000583/4000177
TC Wire Management Clip
4000069
Wire Management
Omega Cable Clip
4005394
HEYCO Sunrunner Cable Clip
4000382
The Yeti Clamp must be installed in an array. It cannot be installed on a single module that is not connected to the array by
a mid clamp.
Important note for Yeti Clamp installs
Frame Compatibility:
Flange Thickness = 1.2 - 2.5 mm
Flange Width = 15 - 40 mm

17
Assembly
Composition Shingle
!
!
Locate and mark rafters using a hammer and chalk. Snap horizontal
chalk lines within the desired shingle course to mark the rows of
roof attachments. Drill a 7/32" pilot hole on your marks where roof
attachments will be located. Consult a professional roofer to ensure
Backfill the pilot hole with roofing manufacturer's approved sealant. Also,
put an upside-down "U" shape bead of sealant around the hole on the
back side of the flashing. Install the flashing so that it sits on top of the
first shingle course, under the second course above, and reaches under
the third course to create headlap. The bottom of the flashing should sit
2
1

18
!
!
Line up pilot hole with the flashing hole. Insert the lag screw through EPDM
bonded washer, L-Foot, gasketed hole in flashing and into rafter. To roperly
fasten the lag screw and create a watertight seal, drive the lag until the EPDM
sealing washer is seated flush against L-Foot. Over tightening the sealing
washer will flatten and tear the EPDM, compromising the seal. See Figure F1..
Insert T-Bolt through L-Foot slot and into side channel of CrossRail. Turn the T-Bolt clockwise ensuring that the mark
at the end of the shaft is vertical, indicating proper alignment. Tighten to 25.8 ft-lbs (35 Nm).
Due to thermal expansion, we recommend placing a gap of 1.25"-2" (3-5cm) every 65 ft (20m) between
rails. Maximum allowable spacing between thermal expansion gaps shall not exceed 80 ft (24.4m).
In areas that experience snow loads, install the rail on the roof-ridge side of the L-Foot.
4
3
F1

19
!

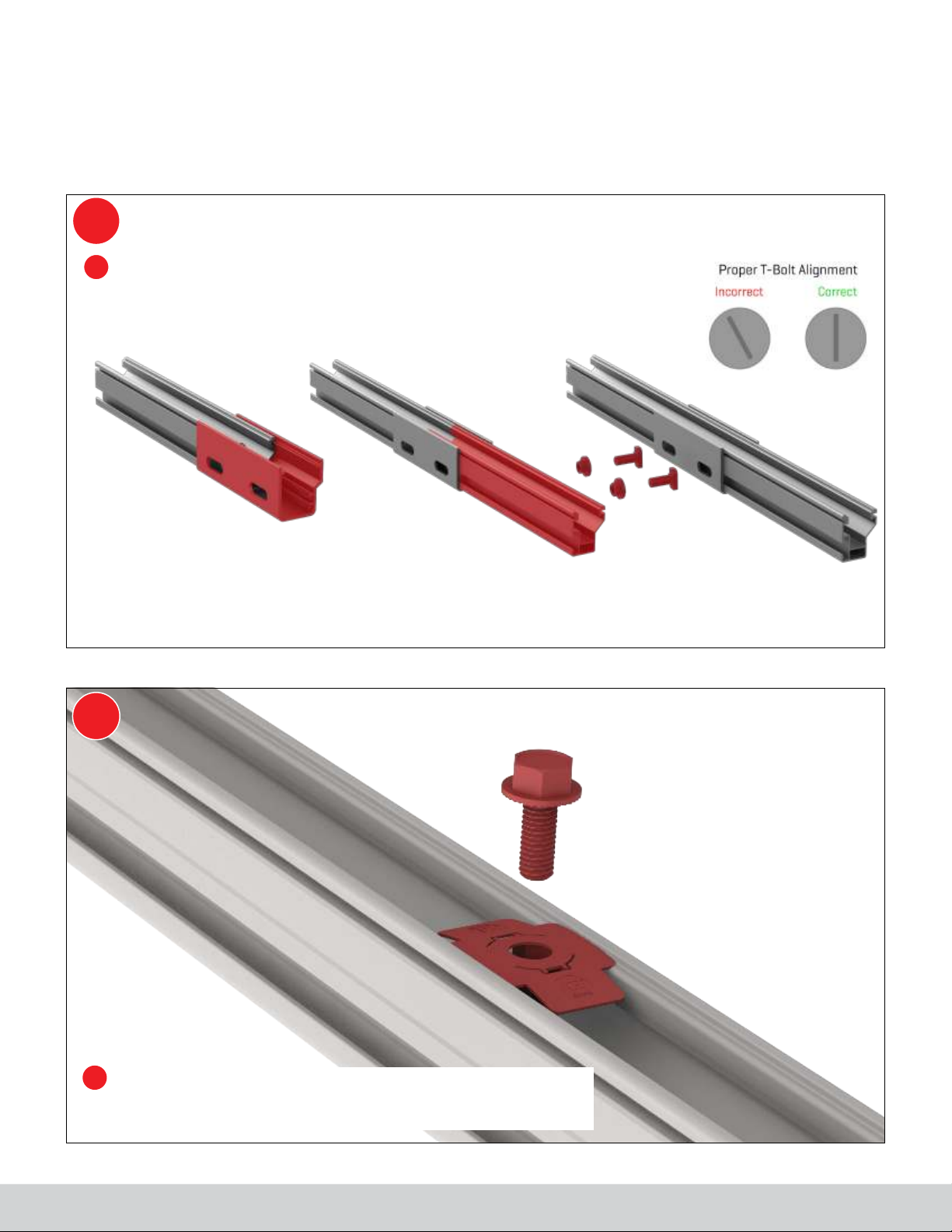

!Align the two rail ends next to each other. Slide rail connector from below
the rails, centering the connector between the rail ends. Attach rail
connector using two T-Bolts and Serrated Hex nuts per side (4 total).
Use the CrossRail Microinverter & Optimizer Mounting Kit hardware
from K2 Systems. Attach your chosen device to the top channel of the
CrossRail. Torque the 13mm Hex Bolt to 10.3 ft-lbs (14 Nm).
6
5

20
!Insert MK3 slot nut of the preassembled end clamps into the top
channel of the CrossRail. While slightly lifting the plastic tabs, rotate
90º clockwise to engage the MK3 into the channel. Torque the M8 bolt
to 10.3 ft-lbs (14 Nm).
!Push zip tie into leash channel located on bottom of Yeti Clamp. Slide clamp into the rail channel with
bolt facing outward. Leave enough room for module to be place. Place module flush to end of rail. Pull
leash toward you so that the clamp slides over module frame and tighten to 10.3 ft-lbs. Use your hand
to check that the Yeti Clamp is fully engaged with the frame of the module, as shown in the image.
Note: The Yeti Clamp must be installed in an array. It can-not be installed on a single module that is not
connected to the array by a mid clamp.
7b
7a
