ECO-WORTHY ECO-SC60A User manual

User Manual
60A Solar Charge Controller
If you are experiencing technical problems and cannot find a solution in this manual,
please contact ECO-WORTHY for further assistance.
SUPPORT
Tel：E-mail:[e-mail] Web:www.eco-worthy.com
[phone](EU)
1-866-939-8222(US)

CATALOG
1.Product Features
2.Panel Structure
3.State Indicators
4.Five Load Working Modes
5.Load Working Mode Settings
6.Safety Advice
7.LCD Screen Illustration
8.Browsing Menu on LCD Screen
9.Setting Menu on LCD Screen
10.Installation Instructions and Precautions
11.Error Code List
12.Common Problems and Solutions
13.Details Parameter
...............................................1
.................................................2
.................................................2
......................................3
...................................4
...................................................4
.........................................5
...............................5
.................................6
....................7
................................................9
...........................9
...........................................10

1. Automatic system voltage identification.
2. Charging program options for sealed, GEL and flooded lead-acid batteries and
lithium batteries are available.
3. An upgraded 3-stage PWM charging algorithm is adopted. Application of an
equalizing charge to the battery periodically or when over discharged, can effectively
prevent the battery from non-equalization and sulfuration, thus extending the
battery’s service life (with the exception of GEL and lithium batteries).
4. With temperature compensation employed, charging parameters can be automat-
ically adjusted (with the exception of lithium batteries).
5. A wide range of load working modes facilitate the product’s application to different
types of street lights and monitoring devices.
6. The product provides overcharge, over-discharge, overload protection, as well as
short-circuit and reverse connection protection.
7. By virtue of an advanced load starting method, large-capacitance loads can be
started smoothly.
8. A range of parameter settings and power-down saving functions are available
,thus requiring no repeated setting.
9. The product provides a dot matrix graphic LCD screen and a human-machine
interface with 2 keys.
l0.The user-friendly design of browser and dynamic interfaces ensures convenient
and intuitive operations.
11. (An optional communication function) provides a RJ12 data port (output of
TTL232 level or bluetooth signals), with the data adopting the standard Modbus
protocol, can be used together with our upper computer monitoring software or
mobile phone APP
12. Boasting an industrial grade design, the product can function well in various
tough conditions.
1 3.TVS lighting protection is adopted.
- 1 -
Product Features

Day time
Night time
Solar panel indication
Boost charging
Floating charging
Equalizing charging
Battery overvoltage
Battery over discharge
Load tumed on
Load turned off
Overload or short-circuit protection
- 2 -

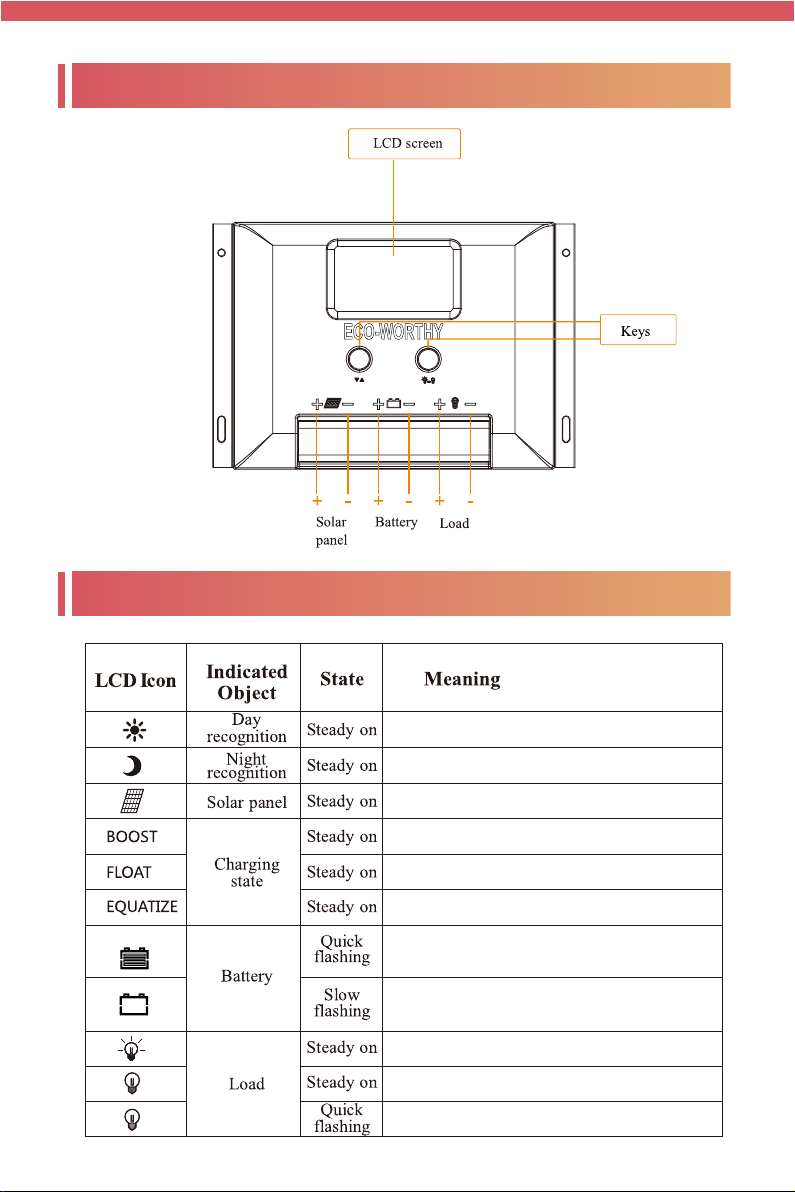

Panel Structure
State Indicators

- 3 -
1 .Pure light control (0): When sunlight disappears and the light intensity drops to the
starting point (light control off), the controller initiates a 10-minute delay (settable) to
confirm the starting signal, and then switches on the load for operation. When
sunlight emerges and the light intensity reaches the starting point, the controller
initiates a 1-minute (fixed) delay to confirm the shutting-down signal, and then shuts
down the output to stop the load’s operation.
2.Light control + time control (1 to 14): The starting process is the same as pure light
control. After operating for a preset period of time (settable from 1 to 14 hours), the
load stops operation automatically.
3 .Manual mode (1 5):In this mode, the user can switch the load on or off by the keys,
no matter whether it’s day or night.
4. Debugging mode (16): When the solar panel voltage is higher than the “light
control off” voltage, switch off the load immediately; when the solar panel voltage is
lower than the “light control on” voltage, switch on the load immediately.
5. Normal on (17): The energized load keeps in output state.
Five load Working Modes

- 4 -
In the load mode menu, long press for 2s, and the number (e.g. 15) will begin
to flash. Press to adjust the mode (from 0 to 17), and then long press again
for 2s to complete and save the setting.
Note: 1. After parameter adjustment, if is not pressed and held long enough for
exiting , the system exits to the main menu after 1 2s, and the parameter that was
set is not saved.
2. When the system is saving data, the screen may shake slightly. This is normal and
the user may ignore it.
Load Working Mode Settings
1)When connected to a 24 V or 48V system, the solar panel terminal voltage may
exceed the limit for human safety. If operation is to be performed, be sure to use
insulation tools and keep your hands dry.
2) If the battery is reversely connected, the controller itself wont be damaged, but the
load end will have a negative voltage output, which may damage your load device.
Take care not to let this happen.
3) In the 48V system, separate reverse connect battery or separate reverse connec-
tion of solar panel controller will not damage; but if in reverse connection of the
battery and is connected solar panels, or solar panels on the reverse connection is
connected to the battery may cause damage to the controller.
4)The battery contains a large amount of energy. Therefore, in no cases should the
battery be short circuited. It’s recommended that a fuse be serially connected to the
battery.
5)Keep the battery away from fire sparks, as the battery may produce flammable
gas.
6) Keep children away from the battery and controller.
7) Follow the safety advice provided by the battery manufacturer.
Safety Advice

- 5 -
LCD Screen Illustration
Browsing Menu on LCD Screen
1).Continuously press , the screen will display the following in order: “main
menu”---”solar panel voltage1’---” solar panel current”---”battery capacity”---
“discharging current”---”charging amphrs”--dischargingamp-hrs”---” temperature
inside controllert’---” load mode”---” load modesettings”---”errorcode”, and then back
to “main menu”. If the keys are not operated for 12s, the system will automatically
return to display the “main menu”
Night time
indicator
Day time
indicator
Solar panel
indicator Charging current
indicator
Battery
indicator Discharging
current
indicator
Load
indicator
Mode
settings
Charging
state
System
voltage
Data
communication
method
Main menu Solar panel voltage Solar panel current Battery voltage Discharging current
Error code Load mode
Load mode setting
Temperature inside
controller Discgarging amp-hrs Charging amp hrs
Fault indication
Units
Battery type

2). When “load mode” is displayed, long press to enter into the load mode
setting. Press to adjust the mode, and long press for 2s to save and exit;
or else, the system will not save the setting that was just made and automatically
exits the setting after 12s.
Battery Types, Charging Voltages (Lithium Battery), Over-Discharge Return
ant’ Over-Discharge Voltage Settings
In the non-load mode menu:
1) When is long pressed, the first interface entered is for battery type setting,
and the flashing one is the battery type currently selected. Press to select among
FLD/GEL/SLD/LI.
2) After selection, short press to enter into over-discharge return and over-dis-
charge voltage settings; or the first to enter charging voltage setting menu for lithium
battery.
3) After parameters have been set, long press for 2 s to save and exit.
Parameters shall be set according to the following rule: over-discharge voltage
<overdischarge return voltage ≤ under-voltage warning <floating charging voltage
<boost charging return ≤ equalizing charging voltage <overcharge voltage; and two
adjacent values shall have a difference greater than 0.5 V.
Setting Menu on LCD Screen
- 6 -
Select flooded lead-acid battery Select GEL Battery
Select sealed lead acid battery
Battery type selection Select lothiun battery Lithium charging point voltage setting
Over-discharge return voltage settingOver-discharge voltage setting
System voltage setting

Installation Instructions and Precautions
In the charging and discharging overload protection mechanism, the relation
between overload current and protection time is as follows: An overload current 1.25
times of the rated current initiates a delay of 30s before starting protection; similarly,
1.5 times, 5s and 2 times, 1 s.
Overload recovery: automatic recovery after 1 minute.
Charging and Discharging Overload Protection and Recovery Time
Short-circuit automatic recovery time: 1st time, 5 s; 2nd time, 10 s; 3rd time, 15 s; 4th
time, 20 s; 5th time, 4 hours or automatic recovery the next day; or long press
to make the load resume output.
1) The controller shall be installed securely, and its dimensions are as follows:
ECO-SC60A External dimensions:
1893x128x53.1(mm)
Installation dimensions: 180x92.2 (mm)
Load Short Circuit and Recovery
- 7 -

①If it is 12V system, the bottom left corner of LCD display will show ‘12V’, 24V
system will show’ 24V’,36V system will show ‘36V’, 48v system will show ‘48V’.
②The first step is to connect the battery. If the connection is made correctly, the
controller screen will light up; otherwise, check whether the connection is correct.
③The second step is to connect the solar panel. If sunlight is present and strong
enough (the solar panel voltage is greater than battery voltage), the sun icon on the
LCD screen is on; otherwise, check whether the connection is correct (it’s recom-
mended that the operation be performed under the debugging mode).
④The third step is to connect the load. Connect the load leads to the controller’s
load output terminal, and the current shall not exceed the controller’s rated current.
⑤ As the controller will generate heat during operation, it’s recommended that the
controller be installed in an environment with good ventilation conditions.
⑥Choose cables with large enough capacity for connection, in case too much loss
incurred on the lines causes the controller to misjudge.
⑦The controller has a common positive pole inside. If grounding is needed, ground
the positive pole.
⑧It’s important to fully charge the battery regularly. At least once full charging every
month is recommended, and failure to do that may cause permanent damage to the
battery. Only when in-flow energy outpaces that out-flow energy can the battery be
charged fully. Users shall bear this in mind when configuring the system.
⑨Check whether the controller’s each connection terminal is tightened securely; if
not, it may suffer damage when large current passes
Precautions
- 8 -

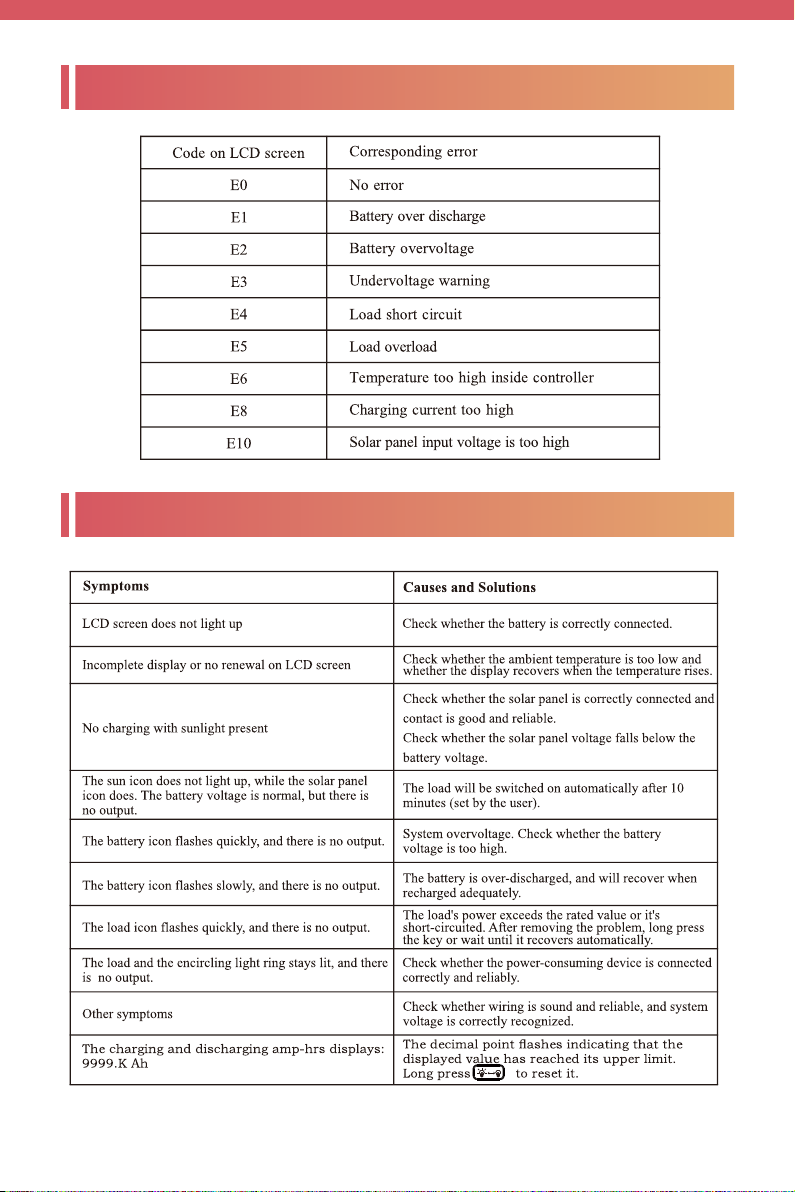

Error Code List
Common Problems and Solutions
- 9 -

- 10 -

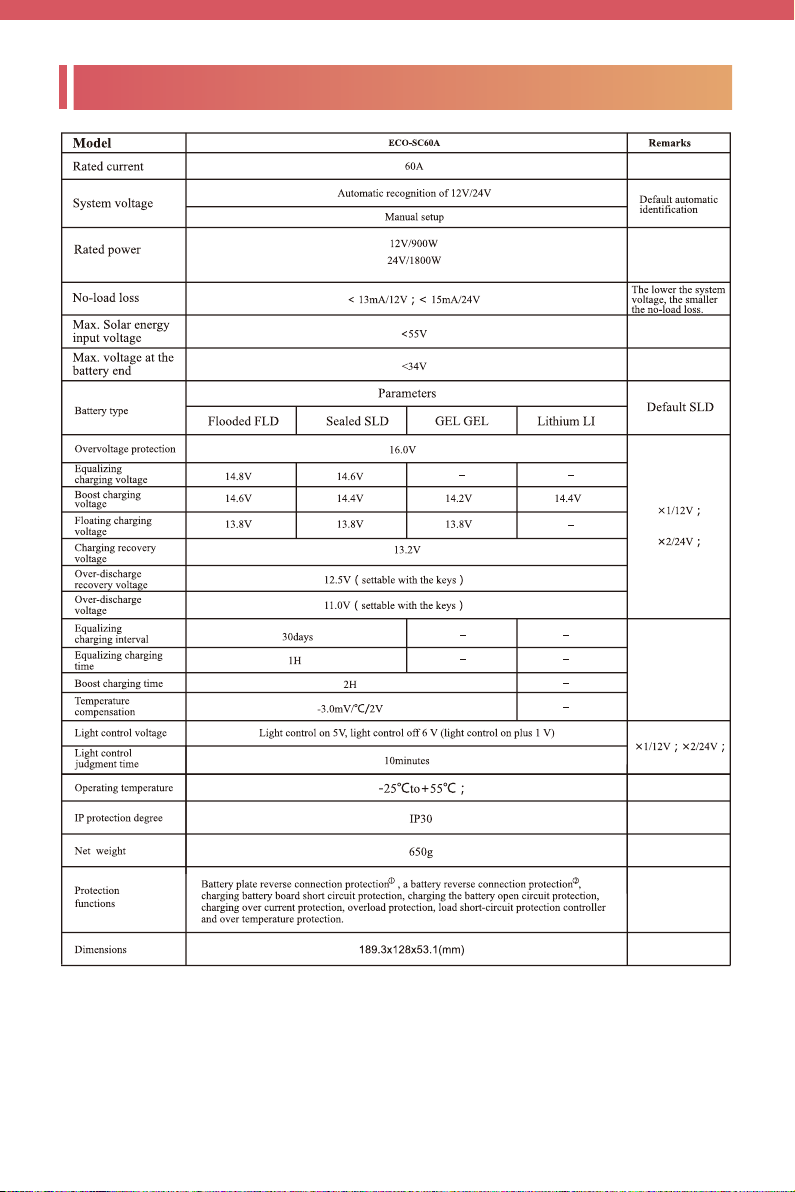

Details Parameter
