K9 4SK-K9 User manual

Item No.: 4SK-K9
User’s Manual
Thank you for purchasing The Original Dash Cam K9.
Please review this guide fully before use. For any
questions not answered in this guide, please visit
www.GetDashCam.com

1
FCC declaration of conformity
Responsible party:
4Sight, Inc.
3325 E. Shelby St.
Ontario, CA 91764
[phone] Fax: [phone]
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause
undesired operation.
Note:
This equipment has been tested and found to comply with the limits for Class
B digital devices, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
Use of shielded cable is required to comply with Class B limits in Subpart B of
Part 15 of the FCC rules. Do not make any changes or modifications to the
equipment unless otherwise specified in the manual. If such changes or
modifications should be made, you could be required to stop operation of the
equipment.
Contains FCC ID: 2ACFIWM7911B
WARNING
THIS DEVICE SHOULD NOT BE ADJUSTED BY THE DRIVER WHILE

2
DRIVING. IN THE EVENT OF AN ACCIDENT, DEVICE MAY DISLODGE
AND BECOME UNSAFE FOR PASSENGERS.
Notice
1) Memory card comes pre-inserted. Please be sure memory card is
in unit before recording.
2) TODC K9 supports microSD cards up to 32GB
3) When the battery is depleted, TODC K9 will display, “Out of
Battery Power” and power off.
4) For questions or technical support, visit www.GetDashCam.com
Canada
Industry Canada (IC)
Unintentional emitter per ICES-003/NMB-003
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the radio interference
regulations of Industry Canada.
Le present appareil numerique n’emet pas de bruits radioelectriques
depassant les limites applicables aux appareils numeriques de Classe B
prescrites dans le reglement sur le brouillage radioelectrique edicte par
Industrie Canada.
Notes on Installation
1. This product is best used when installed near the rear view
mirror, at the center and top of windshield (must follow all local
laws related to mounted devices in vehicle).
2. Do not touch the lens with your fingers. Finger grease may be
left on the lens and will result in unclear videos or snapshots.
Clean the lenses on a regular basis.
3. Do not install the device on a tinted window. Doing so may
damage the tint film.
4. Make sure that the installation position is not hindered by the
tinted window.
5. The operating temperature should be kept between 14˚F and
122˚F (–10˚C and 50˚C).

3
1 Introduction
1.1 Product Overview
Button
Description
POWER /
SCREEN
ON/OFF
A long press of this button will power on or off the Dash
Cam. While recording, a short press will turn on/off the
Dash Cam’s LCD display.
MicroSD Slot
The microSD card is inserted here.
BACK /
EMERGENCY
RECORD /
MENU / MODE
While recording, this button will activate the Dash
Cam’s Emergency Record feature (see G-Sensor).
When NOT recording press and hold this button to
access the Dash Cam’s menu. When NOT recording, a
short press of this button will change between the Dash
Cam’s three modes (Record, Still Photo, Playback).
UP / MUTE
Use this button to scroll up in the Dash Cam’s menus.

4
While recording, press this button to mute or unmute
the Dash Cam’s microphone
DOWN
Scroll down when navigating the Dash Cam’s menus.
OK / RECORD
/ SNAP
Use this button to start or stop recording. In still photo
mode, use this button to take a still snapshot. When
navigating menus, use this button as the “ok” button to
select the highlighted option.
HDMI out
Connect a mini HDMI cable for playback on an HDTV
MicroUSB Port
Attach the microSD cord here for charging, or
connecting to a PC.

5
2 Getting Started
2.1 Inserting the Memory Card

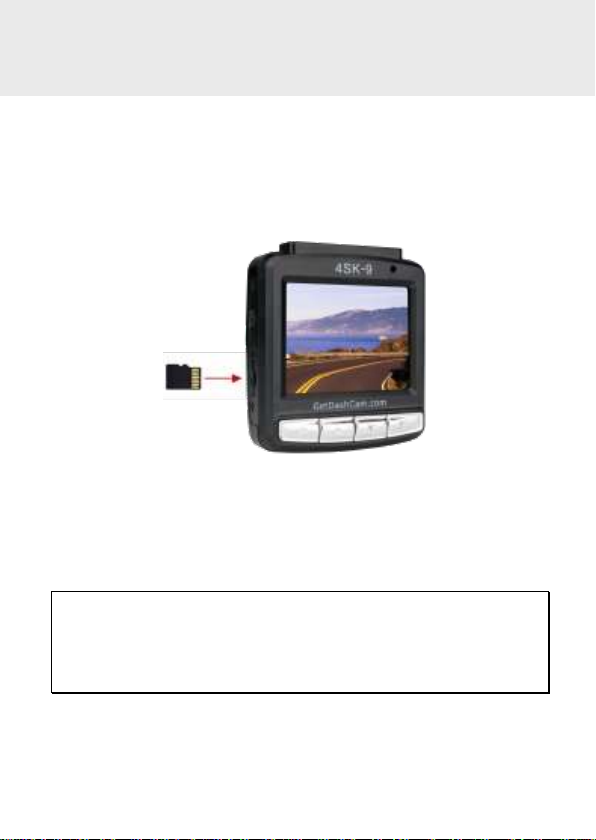

Insert memory card with both the pins on the memory card and the
screen of TODC K9 facing up, as illustrated below. Push the
memory card in until a click sound is heard, indicating the card is
locked in position.
NOTE: microSD card comes pre-installed in the TODC K9
To remove the memory card
Push in the microSD card slightly until you hear a click and release,
the card will eject slightly. Once ejected, take hold of and remove
the memory card.
Note:
1. Do not remove or insert the memory card when the device is turned on. This
may damage thememory card and/or corrupt your video files.
2. Please use a minimum class 6 4GB microSD card,maximum class 10 32GB.
3. Please format the micro SD card before the initial use.

6
4. When removing the memorycard, be careful that the card does not spring out
and get lost. The memory slot has this spring function for easy removal of the
card.
2.2 Installing in Vehicle
2.2.1 Mount to Windshield
1. Push the mount tip into mount socket on top of device and slide,
until firmly locked into place.
2. With the suction-cup lying flat,
position the suction-cup on the
windshield.
3. Hold the base firmly on the
windshield and press down the
clamp to secure the car suction
cup mount to the windshield. Make
sure the base is securely locked in
place.
4. Once TODC K9 is affixed to the
windshield, you can choose
whether to record the interior of the
vehicle, or any other angle simply by rotating the Dash Cam.
Note:
1. The Selleror Manufacturer ofThe Original Dash Cam K9 4SK107 shall not be
held responsible for any traffic violations related to the positioning or improper
use of this product.

7
2.3 Connecting to Power

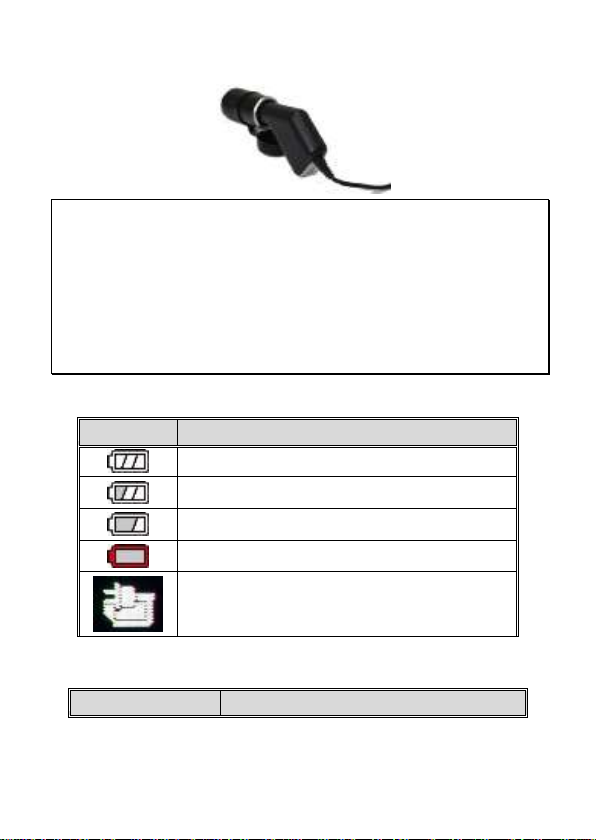

Use the included 12v car charger to power on TODC K9 and charge
the built-in battery (TODC K9 is made to be plugged in continuously
while driving; doing so will not harm TODC K9’s battery).
1. Connect the micro USB end of the car charger to the USB/Power
connector port on TODC K9.
2. Depending on where you’ve chosen to mount TODC K9, run the
power cord around the trim of your vehicle so that it will not
obstruct your view while driving.
3. Plug the other end of the car charger into the 12v port in your
vehicle. Once the vehicle engine is started (depending on your
vehicle), the device will automatically power on.

8
Note:
1. Whether or not your vehicle’s 12v outlet remains active while the car is turned
off varies from vehicle to vehicle. If your vehicle’s 12v outlet remains active
when the vehicle is off, it is recommended to power off or unplug your Dash
Cam to power it down before leaving the vehicle.
2. At full charge, TODC K9’s battery will record for roughly 20 minutes
unplugged. This function is designed so that should an incident occur, the
driver can remove TODC K9 from the mount and capture evidence from
outside the vehicle. Alternatively the battery can be used to playback video
instantly on the device.
Battery Status Indicator:
Icon
Description
Battery is full.
2/3 battery power.
1/3 battery power.
Out of battery power, connect charger.
Power cord connected, battery is charging.
2.4 LED Indicator
Status
LED Indicator Color

9
Power off, battery
charging
Red light will illuminate
Power off, battery full
charged
The red light will shut off, no lights will illuminate
Power on, battery
charging
Blue light will illuminate indicating power is on,
red light will illuminate indicating TODC K9 is
charging
Power on, battery fully
charged
Blue light remains illuminated, red light will
shut off
2.5 Powering the Device On / Off
2.5.1 Auto Power On/Off
The Original Dash Cam K9’s default settings are for TODC K9 to
automatically power on and begin recording when TODC K9 is
connected to a power source. Once the vehicle’s 12v outlet is
powered on, and TODC K9 is connected, TODC K9 will
automatically turn on and begin recording. When TODC K9 is
unplugged or otherwise disconnected from the power source, TODC
K9 will automatically power down and save your footage.
2.5.2 Manual Power On/Off and Reset
2.5.2.1 Manual Power On
To manually power on TODC K9, simply long press the Power
Button (Note: TODC K9 is designed to automatically begin
recording as soon as it is powered on):

10
2.5.2.2 Manual Power Off
To manually power off TODC K9, simply long press the Power
Button –TODC K9 will stop recording and power down. Your
footage will be stored on TODC K9’s microSD card. Caution:
removing the microSD card before powering off TODC K9 will
corrupt your files and you will lose your footage.
2.5.3 Formatting the microSD Card
To format the microSD card follow these instructions:
1. First be sure TODC K9 is NOT recording. Press and hold the
Menu Button to enter the Video Settings Menu and then press the
Menu Button a second time to enter the Setup Settings Menu.

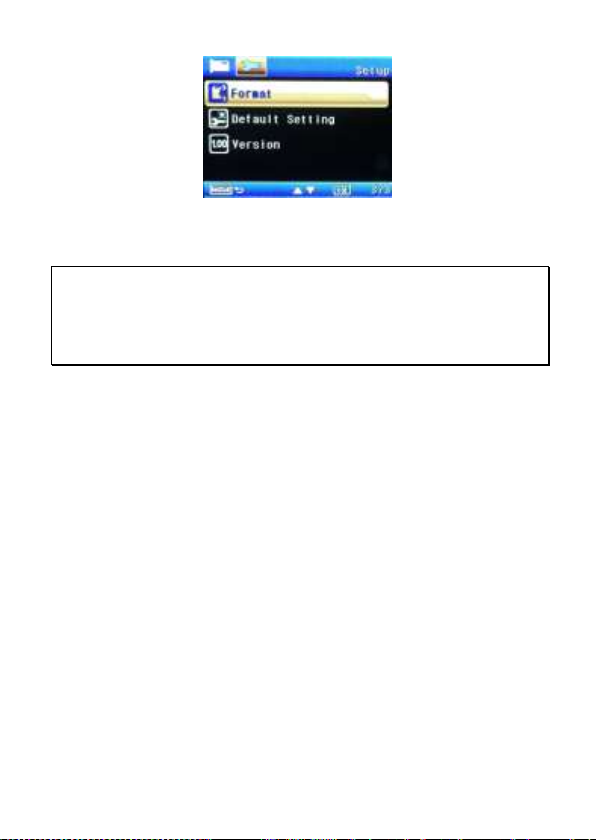

2. Use the Up or Down Buttons until Format is highlighted.

11
3. Press the OK Button. You will be asked to confirm the format –if
you are sure you wish to perform the format, use the OK Button to
select OK.
Note:
1. It is recommended you perform a format before using TODC K9 for the first
time.
2. Caution: Formatting the microSD card will delete all files on the card, including
locked video files.
2.6 Basic Setup
Before using TODC K9, we recommend setting up the correct Date
and Time.
Note: To access setup menus, TODC K9 must NOT be recording.
Menus cannot be accessed while TODC K9 is recording.
2.6.1 Set the Date / Time
To set the correct date and time, do the following:
1. First be sure TODC K9 is NOT recording. Press and hold the
Menu Button to enter the Video Settings Menu.

12
2. Press the Menu Button a second time to enter TODC K9’s
main Setup Menu.
3. Use the Down Button until, “Date/Time” is highlighted and
press the OK Button.

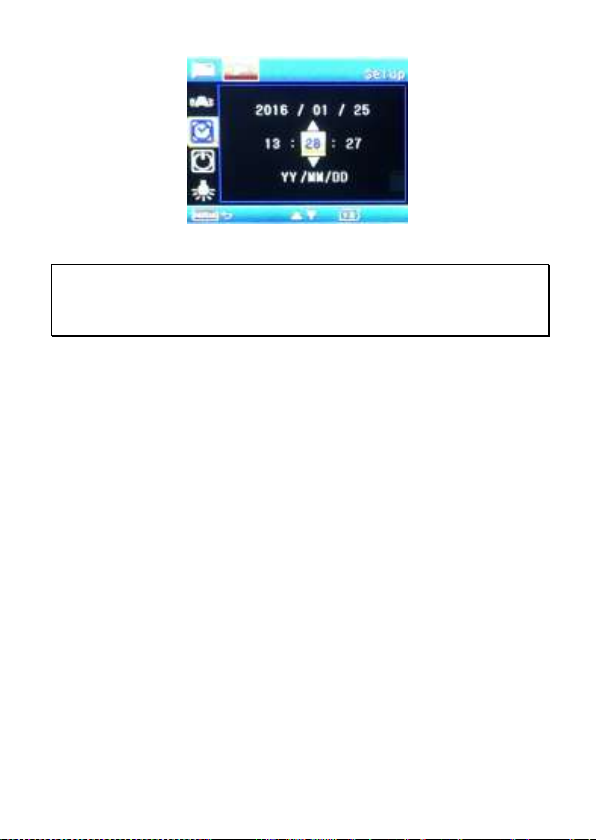

4. Use the Up and Down Buttons to adjust the highlighted
number to the correct date or time.
5. Use the OK Button to move on to the next; from Year, to Day,
to Month, to Hour, Minute etc.

13
6. When you are finished setting the current date and time, press
the Menu Button to return to the main recording screen.
Note:
1. The Original Dash Cam K9 runs on a 24 hour military clock. 1:00pm shows as 13:00 on
TODC K9’s clock. For questions regarding the 24 clock, contact TODC at
www.GetDashCam.com

14
3 Using TODC K9
3.1 Recording Videos
3.1.1 Record videos while driving
When TODC K9 is connected to your vehicle’s 12v power outlet and
the outlet is powered on, TODC K9 will turn on and automatically
begin recording.
When your vehicle’s 12v outlet is powered off, TODC K9 will
automatically stop recording and power off.
Alternatively, you can press the OK Button at any time to manually
start or stop recording:
Note:
1. Whether or not your vehicle’s 12v outlet stays active when the vehicle is
powered off depends on the make and model, each vehicle is different. If your
12v outlet stays active when the vehicle ispowered off, it is recommended to
power off or unplugTODC K9 manually when exiting the vehicle.
2. TODC K9 features loop recording; when the memory card is full, the oldest
video file is deleted and overwritten with the newest. You can choose between
1, 2, 3, 5 or 10 minute video clips.
3.1.2 Emergency Recording

15
The Original Dash Cam K9 has a built in emergency recording
function which, when activated, prevents video files from being
overwritten by TODC K9’s Loop Recording feature. To manually
activate the Emergency Recording function, do the following:
1. While TODC K9 is recording, press the Emergency Lock /
Menu / Mode Button.A key icon will appear at
the top of the screen, and the current file will be protected so it
will not be overwritten by TODC K9’s loop recording feature.
2. When the Emergency recording function is activated, one
looping cycle will be locked, recording will return to normal
when the next loop begins (Caution: formatting the memory
card will erase all files, including emergency protected files!).
Note:
1. If the G-Sensor function is enabled and a collision is detected, emergency
recording will automatically be triggered. For more info, please refer to
G-Sensor (3.1.5).
2. It is recommended that you clear locked videos either by deleting them, or
transferring them to your computer a minimum of once a month in order to
prevent the microSD card from filling up.

16
3.1.3 The Recording Screen
No.
Icon
Item
Description
1
Video
Mode
Icon
When on screen, indicates you are
in video mode.
2
Loop
Recording
Icon
Indicates the currently selected
video loop length.
3
Exposure
Indicates your currently selected
Exposure Value (EV).
4
Date
Stamp
Indicates the current date.
5
Time
Indicates the current time.

17
Stamp
6
Battery
Indicator
Indicates the current status of the
battery.
7
SD Card
Indicator
When on screen, indicates
microSD card IS inserted.
8
Resolution
Indicator
Indicates the currently
selected resolution.
9
Video
Time
Indicator
When white, indicates the
available space in recording time
on the microSD card. When red,
indicates the recording time of the
current video file.
10
Audio
Record
Indicator
Indicates whether TODC K9 is
recording sound. When TODC K9
is muted, a red line will appear
through the icon.
11
IR Sensor
Indicator
When this icon appears on
screen, the IR sensors are turned
on. To turn them off, while
recording quick press the UP / IR
Sensor Button.
12
Recording
Icon
When this icon flashes on screen,
it indicates that you are currently
recording. If this icon does not
appear on screen, you are not
recording.

18
3.1.4 Motion Detection
When Motion Detection is enabled and TODC K9 is powered on,
TODC K9 will detect any motion in front of the lens and TODC K9
will begin to record. TODC K9 will continue to record as long as
there is motion detected. Once motion stops, TODC K9 will stop
recording after ten seconds. Enabling motion detection overrides
TODC K9’s loop recording and G-Sensor features.
To enable Motion Detection, do the following:
1. Be sure TODC K9 is NOT recording.
2. Press and hold the Menu Button to enter the Video Settings
Menu.
3. Use the Down Button to highlight Motion Detection and press
theOK Button.
4. Use the Up or Down Button to highlight On and press the OK
Button.

19
5. Motion Detection is now enabled, press Menu to return to the
home screen.
Note:
1. When the battery is fully charged, Motion Detection can record continuously
for about 20 minutes.
2. As the device is used, the battery storage capacity will decrease gradually.
This is normal for all batteries.
3.1.5 G-Sensor
When enabled, the G-Sensor will detect if and when a collision
happens and will activate emergency recording, locking your video
file so it will not be deleted by the Loop Recording feature. You can
adjust the sensitivity of the G-Sensor, or turn it completely off (on
very bumpy roads, the G-sensor may trigger frequently, in this case
it is recommended to turn the G-Sensor off and lock videos
manually). To adjust the G-Sensor settings:
1. Be sure TODC K9 is NOT recording.
2. Press and hold the Menu Button to enter the Video Settings
Menu.
3. Use the Down Button to highlight G-Sensor and press the OK
Button.
4. Use the Up /Down Buttons to highlight your desired
sensitivity (2G is most sensitive, 8G is least) and press OK.
