ECC-77H
Owner’s Manual
CAUTION BEFORE USAGE
1. PLEASE USE PRODUCTS AFTER READING
MANUAL CAREFULLY FOR SAFE USAGE.
2. ASK EXPERIENCED TECHNICIAN FOR PRODUCTS
INSTALLATION.
3. DO NOT OPEN OR MODIFY THE PRODUCTS.
IT CAUSES PRODUCTS PROBLEM, AN ELECTRIC
SHOCK & FIRE. ALSO, IT CAUSES WATERPROOF
PROBLEM IN CASE OF WATERPROOF PRODUCTS.
ASK YOUR DEALER FOR A/S IF YOU NEED
REPAIRING.
4. DO NOT DROP OR GIVE EXTERNAL SHOCK TO
THE PRODUCTS. IT CAUSES PRODUCT'S DISPLAY,
FEATURE, MALFUNCTION OR COMPONENTS
PROBLEM.
5. USE REGULATED VOLTAGE. MANUFACTURER
DISCLAIM ALL THE RESPONSIBILITY FOR OVER
VOLTAGE.
6. CONNECT MAIN POWER AFTER INSTALLATION.
7. USE SUPPLIED ACCESSORY & COMPONENTS.
OTHERWISE, MANUFACTURER DISCLAIM ALL
THE RESPONSIBILITY.
8. THE PRODUCTS IS DESIGNED FOR NORMAL
CONDITION USAGE. PLEASE ASK OR DISCUSS
WITH YOUR DEALER IF YOU USE THE PRODUCTS
IN SPECIAL CONDITION.
OTHERWISE, IT CAUSES PRODUCTS PROBLEMS
IN ABNORMAL CONDITION USAGE.
!
SAFETY & CAUTION DURING THE USAGE
8. AVOID THE PRODUCTS IN ELECTROSTATIC
CONDITION.
IT CAUSES WRONG OPERATION.
9. DO NOT PILE UP HEAVY STUFF ON PRODUCTS.
IT CAUSES PRODUCTS PROBLEM OR DAMAGE.
10. ASK YOUR DEALER AFTER DISCONNECTING
POWER CABLE IN CASE OF FINDING ANY DEBRIS
INSIDE OF PRODUCTS.
IT CAUSES PRODUCTS PROBLEM OR AN ELECTRIC
SHOCK.
11. DO NOT USE STRONG SOLVENTS SUCH AS
THINNER OR BENZINE AS THEY MIGHT DAMAGE
THE FINISH OF PRODUCTS OR PRODUCTS
PROBLEM.
1. CHECK THE STATUS OF FIXED BRACKET BEFORE
DRIVING. IT CAUSES PRODUCTS PROBLEM WHILE
DRIVING. MANUFACTURER DISCLAIM ALL THE
RESPONSIBILITY FOR USER’S FAULT.
2. DO NOT USE THE PRODUCTS IMMEDIATELY AFTER
LEAVING IT ALONE FOR LONG PERIOD IN SUMMER
OR WINTER.
3. DO NOT USE AND ASK YOUR DEALER IMMEDIATELY
IN CASE OF BURNING
SMELL OR OVER HEATING AT PRODUCTS.
4. DO NOT CUT THE CABLE, CUTTING CABLE CAUSES
PRODUCTS MALFUNCTION OR WATERPROOF
FUNCTION DEFECTS.
OTHERWISE, MANUFACTURER DISCLAIM ALL THE
RESPONSIBILITY.
5. MAKE SURE TO CONNECT POWER CABLE &
CAMERA CABLE IN RIGHT DIRECTION.
IT CAUSES A DAMAGE TO THE PRODUCTS IN CASE
OF THE WRONG WIRE CONNECTION.
6. TIGHTEN CONNECTORS IN CASE OF CONNECTING
EXTENSION CABLE.
OTHERWISE, IT CAUSES CONNECTION PROBLEM OR
WATERPROOF FUNCTION DEFECT ON PRODUCTS.
7. DO NOT WRAP THE PRODUCTS WHILE OPERATING.
IT CAUSES PRODUCTS PROBLEM OR FIRE
COMPOSITION
1INSTALLATION 2
T/H M5X16L
STAINLESS
(4)
P/H W/WASHER
T5X16L
STAINLESS (4)
20M CABLE (1)
(OPTIONAL)
INSTRUCTION
MANUAL
M4X10L W/SPRING
FLATE
WASHER (4)
L-WRENCH (1)MOUNTING BRACKET
CAMERA SUNSHIELD
HEX M5XH5
STAINLESS (4)
INSTALL CAMERA FIRMLY AT THE ADEQUATE POSITION OF
VEHICLE AFTER CHECKING CAMERA'S FIELD OF VIEW.
CAMERAS CAN BE INSTALLED AT SUITABLE POSITION OF
VEHICLE'S REAR SIDE ACCORDING TO USER'S CONVENIENCE.
ASK YOUR DEALER OR EXPERIENCED TECHNICIAN HOW TO
INSTALL CAMERA & MONITOR DUE TO DIFFERENT TYPE OF
VEHICLE.
2-1. FIX THE SUPPLIED MOUNTING BRACKET TO THE VEHICLE.
2-2. ADJUST ANGLE OF THE CAMERA.
2-3. ADJUST ANGLE OF SUNSHIELD AND FIX IT TO CAMERA.
FASTEN THE SCREW FIRMLY AFTER ADJUSTING CAMERA
& SUNSHIELD.
* ADJUST SUNSHIELD ANGLE TO AVOID LENS FIELD OF VIEW
& SUN LIGHT.
* FASTEN THE SCREW FIRMLY TO AVOID PRODUCT'S DAMAGE
OR OPERATION.
A
A-1
B
B-1
HOW TO ADJUST CAMERA SUNSHIELD & ANGLE
A. RECOMMENDED GUIDE LINE FOR ASSEMBLING SUNSHIELD.
B. USER CAN ADJUST THE INSTALLING ANGLE
INSTALLATION
2
COMPOSITION
1
CONNECTION WIRING
3
CAMERA INPUT CONNECTOR PIN DESCRIPTION
4
LENS SPECIFICATION
5
FEATURES
6
SPECIFICATIONS
7
ECC-77 H
Owner’s Manual
INSTALLATI ON
2
COMPOSI TION
1
CONNECT ION WIR ING
3
CAMERA INPUT CONNECTOR PIN DESCRIPTION
4
LENS SPECIFICATION
5
FEATURES
6
SPECIFI CATIONS
7
123

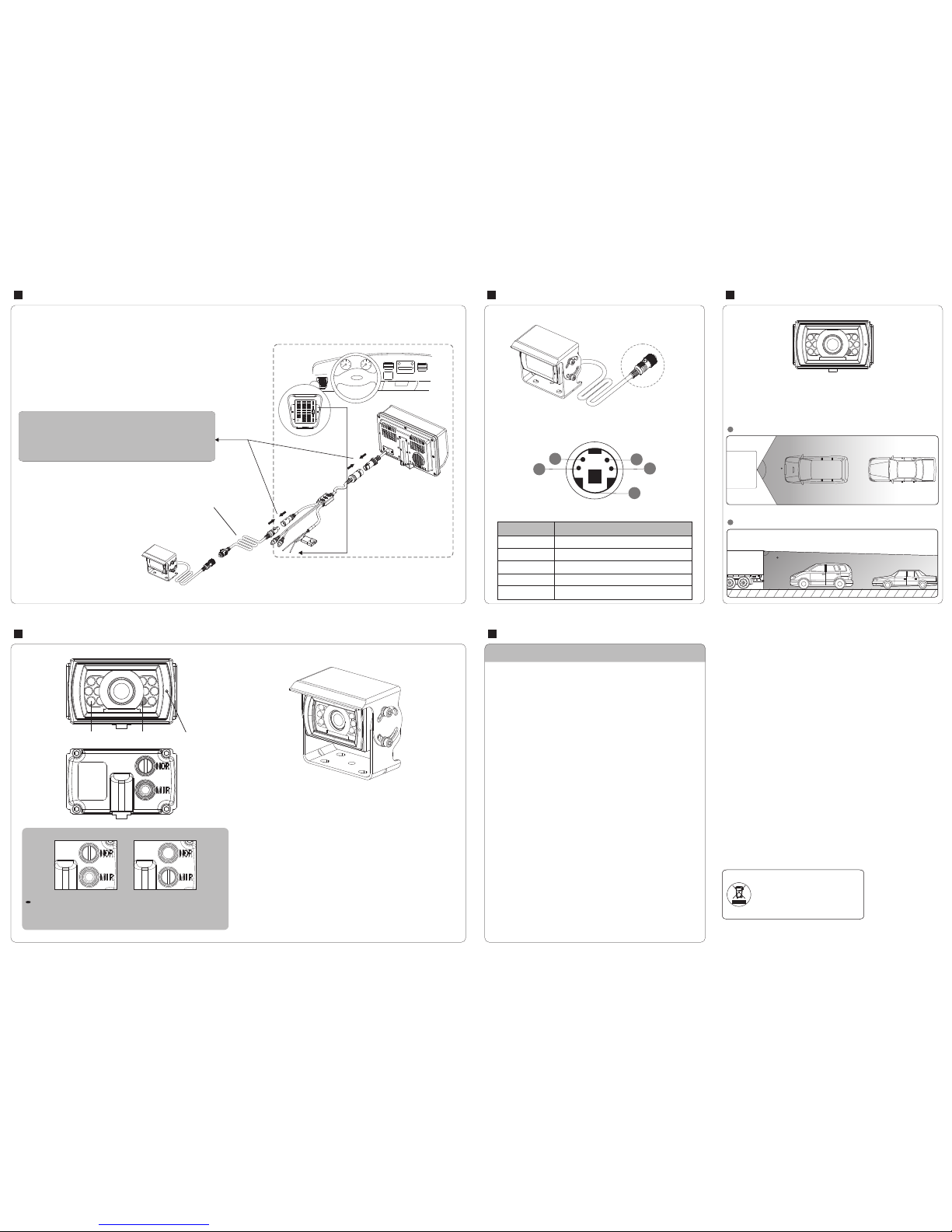

CONNECTION WIRING CAMERA INPUT CONNECTOR PIN DESCRIPTION LENS SPECIFICATION
3 4 5
CONNECT CAMERA & MONITOR AFTER CHECKING
SPECIFICATION OF MONITOR & EXTENSION CABLE.
CONNECT POWER & GROUND WIRE OF MONITOR TO FUSE BOX
OF VEHICLE WHEN YOU CONNECT MONITOR POWER.
20M CABLE
(OPTIONAL)
* POWER CONNECTION SHOULD BE CHOSEN BY USER
ACCORDING TO POWER SUPPLY CONDITIONS.
CONNECT CAMERA BACK CABLE WITH EXTENSION CABLE
AND THEN CONNECT EXTENSION CABLE WITH MONITOR.
* USE ACID FREE VASELINE OR GREASE INSIDE OF
CONNECTOR BEFORE FIXATION FOR A GUARANTEED LONG
LIFETIME. CONNECT CAMERA BACK CABLE WITH
EXTENSION CABLE FIRMLY AFTER CHECKING MALE &
FEMALE CONNECTOR.
OTHERWISE, IT CAUSES PRODUCTS PROBLEM.
4
3
2
5
1
4P IP CONNECTER
DIAGONAL ANGLE : 130 DEGREE
HORIZONTAL ANGLE : 110 DEGREE
VERTICAL ANGLE : 81 DEGREE
110
HORIZONTAL FIELD OF VIEW
81
VERTICAL FIELD OF VIEW
Description
Video Output
NC
Audio Output
Power DC 12V
Ground
Pin No.
1
2
3
4
5
FEATURES
6SPECIFICATIONS 7
MIC
DAY/NIGHT SENSORIR LED
CHANGE MAGNET SCREW POSITION, MIR OR NOR USING
DRIVER.
HOW TO CHANGE MIRROR & NORMAL IMAGE
1/3" CCD High Quality Image Sensor
(SONY SUPER HAD Ⅱ)
Extra-wide Field of View
Ul tra Perfo rma nce in Low Light Wi th IR LED
Normal/Mirror Image Switching(Patent Listed)
Built in Microphone
Vandal Res ist ant
Automatic Electronic Iris
Wide Operating Temperature Range
IP69K
Opti c a l Axi s C o r r ection
Model No.
Picture Element
Image Size
Lens
Synchronization
Horizontal Resolution
Min. Illumination
Signal To Noise Ratio
Power Supply
Power Consumption
Vibration
Impact
IP Factor
Operation Temp.
Case Material
Weight
Dimensions
Supplied Accesories
ECC-77H
Interline transfer type CCD
NTSC: 410,000 pixels
PAL: 470,000 pixels
1/3 Inch
Diagonal Angle : 130 degree
Horizontal Angle :110 degree
Vertical Angle : 81 degree
Internal
NTSC: More than 480TV lines
PAL: More than 530TV lines
0 Lux W/ IR LED
Better than 50dB( at AGC off)
DC 12V
Max. 3.0W
7G
100G
IP 69K
-30℃~80℃(-22℉~176℉)
Window: Flat Glass
Body: Aluminum
Approx. 230g
69(W) X 41(H) X 52(D)mm
Sunshield
Mounting Bracket
Screw Kits
20M Cable (Optional)
Instruction Manual
THIS SYMBOL MEANS DO NOT DISPOSE OF
AS MUNICIPAL WASTE.
RE-USE OR RECYCLE WHEREVER POSSIBLE.
ELECTRICAL / ELECTRONIC COMPONENTS MAY
CONTAIN SUBSTANCES WHICH ARE HARMFUL TO
THE ENVIRONMENT.
FOR ENVIRONMENTALLY SOUND METHODS OF
DISPOSAL, PLEASE CONTACT YOUR LOCAL
GOVERNMENT AUTHORITY.
Part no. 6MNEC77H-00
printed in korea
* Design and specifications are subject to change without
notice.
* Patent registered.
