KanexPro CON-GAMECAPL User manual

4K USB 2.0 Gaming Capture
with HDMI Loop-out
Quick Installation Guide
Ver. 1.0
All brand names and trademarks are properties of their respective owners

2 3
INTRODUCTION:
The KanexPro CON-GAMECAPL is a video capture device
that can capture both HDMI video and HDMI audio,
sending audio and video signals to a computer in order to
preview or record video content. This model features an
HDMI loop-out so that Suitable for video game console
capture, educational recordings, medical imaging, or
streaming with the use of an action camera.
FEATURES:
• Support input max resolution 3840x2160@30Hz;
• Support output max resolution 1920x1080@30Hz;
• Support 8/10/12bit deep color;
• Supports most video recording and streaming
software, such as VLC, OBS, Debut, etc;
• Support Windows, Android and MacOS;
• Conform to USB Video and UVC standard;
• Conform to USB Audio UAC standard;
• No need for an external power supply, USB bus
powered for a compact and portable solution. penguin
PACKAGE CONTENTS:
• 1x Main Unit
• 1x User Manual
• 1x Micro USB cable
• 1x USB cable male to male
• 1x HDMI cable male to male
• 1x Type-C USB3.1 Male to USB 2.0 Female Connector
APPLICATION OPTIONS:

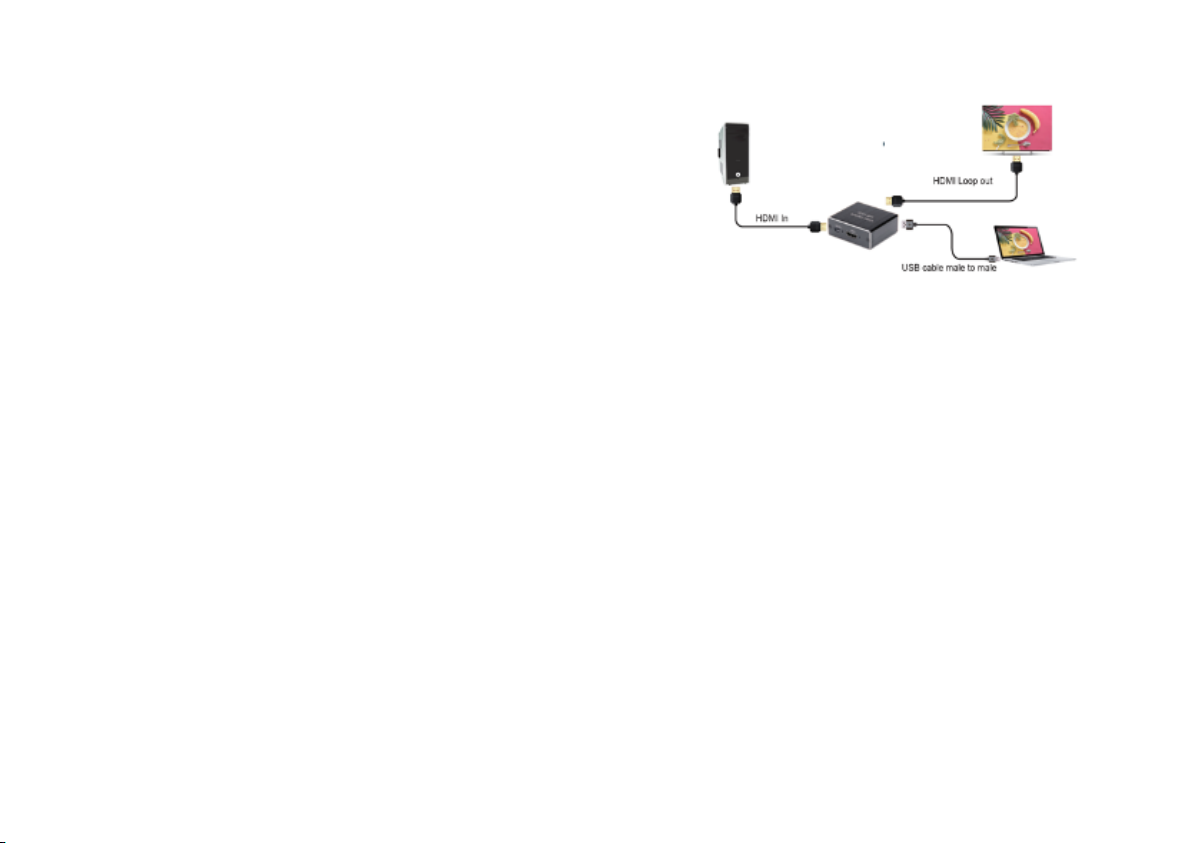

1. Connect the UHD signal source to the HDMI input of
the video capture with the included HDMI cable.
2. Connect the CON-GAMECAPL directly into a USB port on
the computer using the included Male to Male USB Cable.
3. Connect the HDMI Output port to a Display using an
HDMI Cable.
4. Getting Started:
The CON-GAMECAPL is compatible with various video
recording and streaming applications. You can choose any
of the popular programs like VLC, Debut, or OBS Studio
(https://obsproject.com/).
KanexPro recommends OBS Studio for its simplicity and ease of use.

4 5
“Video Capture Device” -> USB Camera
“Audio Input Capture” -> USB Digital Audio
2. Select either Recording or Streaming Mode
a. Follow the on-screen prompts
3. Choose “Studio Mode” (double window)
Open OBS Studio:
1. →Add Sources:

6 7
SPECIFICATIONS:
HDMI resolution ……....……………..........……................ Max input can be 4K
Support video format ……….......................….......... 8/10/12bit Deep color
Video output format ………........................................................... YUV, JPEG
Video output resolution …………..................... Max output can be 1080P
Support audio format ……………......................................................... L-PCM
Input cable distance .…...…................................................... ≤15m, AWG26
HDMI standard cable
Max working current ……………................................…................ 0.7A/5VDC
Operating Temperature range …….................………................ (-10 to +55˚)
Dimension (L x W x H) …………........................................... 60x58x22 (mm)
Weight …….…..………………….......................................…….............................. 52g
