KANSAI SPECIAL MZ Series User manual

INSTRUCTION 


Industrial Sewing Machines
First published : May 1997
No. 970049

INTRODUCTION
INTRODUCTIONINTRODUCTION
INTRODUCTION
Thank you for your purchasing Kansai Special's MZ Series.
Read and study this instruction manual carefully before beginning any of the
procedures and save it for later use.
1. This instruction manual describes adjustments and maintenance procedures on this
machine.
2. Before starting the machine, check to make sure the pulley cover, safety cover, etc.
are secured.
3. Before adjusting, cleaning, threading the machine or replacing the needle, be sure
to turn off the power.
4. Never start the machine with no oil in the reservoir.
5. Refer to the parts list as well as this instruction manual before maintenance.
If the machine includes a thread trimmer, read and study the instruction manual
for the thread trimmer carefully.
6. The contents described in this instruction manual are subject to change without
notice.

CONTENTS
CONTENTSCONTENTS
CONTENTS
1. NEEDLES & THREADING THE MACHINE
1-1 Needles ･･････････････････････････････････ 1
1-2 Replacing the needle ･･････････････････････ 1
1-3 Threading the machine ･･･････････････････ 1
2. MACHINE SPEED
2-1 Machine speed & direction in which the machine
pulley runs ･･････････････････････････････ 2
2-2 Motor & belt ･････････････････････････････ 2
3. LUBRICATION
3-1 Oil ･･････････････････････････････････････ 3
3-2 Oiling ･･･････････････････････････････････ 3
3-3 Replacing the oil and the oil element ･･･････ 3
4. SEWING MACHINE INSTALLATION
4-1 Cutting the machine table ･････････････････ 4
4-2 Installing the machine ････････････････････ 5
5. TIMING OF THE LOOPER TO THE NEEDLES
5-1 Angle and height for installing the looper ･･･ 6
5-2 Looper left-to-right movement ･････････････ 6
5-3 Looper setting distance ･･･････････････････ 6
5-4 Needle height ････････････････････････････ 7
5-5 Needle/looper front-to-back relationship ････ 7
5-6 Changing the looper orbit ･････････････････ 8
5-7 Changing the amount of the looper front-to-back
movement ･･･････････････････････････････ 9
6. FRONT AND REAR NEEDLE GUARDS
6-1 Position of the needle guard (rear) ････････ 10
6-2 Position of the needle guard (front) ････････ 11
7. SPREADER
7-1 Position of the spreader ･･････････････････ 12
7-2 Position of the spreader thread guide ･･････ 12
7-3 Timing of the spreader ･･･････････････････ 13
8. FEED DOGS & STITCH LENGTH
8-1 Feed dog height & tilt ････････････････････ 13
8-2 Stitch length ････････････････････････････ 14
8-3 Differential feed ･････････････････････････ 14
9. PRESSER FOOT
9-1 Presser foot pressure ････････････････････ 15
9-2 Position of the presser foot & foot lift ･･････ 15
10. STITCH FORMATION
10-1 Position of the needle thread guides ･･････ 16
10-2 Position of the thread guide on the needle
thread take-up ････････････････････････ 16
10-3 Timing of the needle thread take-up ･････ 16
10-4 Position of the needle thread guard ･･････ 17
10-5 Position of the thread guide of the spreader
thread take-up ････････････････････････ 17
10-6 Position of the thread guide of the looper thread
take-up ･･･････････････････････････････ 17
10-7 Position of the looper thread take-up ･････ 18
11. REPLACING THE TIMING BELT
11-1 Marks on the timing belts ･･･････････････ 18
11-2 To remove the timing belt ･･･････････････ 18
11-3 To place the timing belt ･････････････････ 19
12. CLEANING THE MACHINE ･･･････････ 19

1
< Note >
Before replacing the needle, be sure to turn off the machine.
A clutch motor continues running for a while after the machine is turned off.
Therefore keep on pressing the pedal until the machine stops.
【1】NEEDLES & THREADING THE MACHINE
1
11
1-
--
-1 Needles
1 Needles1 Needles
1 Needles
UY128GAS of Schmetz or Organ
Select the proper needle for the fabric and thread.
< Needles and needle size >
Schmetz Nm65 Nm70 Nm75 Nm80 Nm90
Organ #09 #10 #11 #12 #14
1
11
1-
--
-2 Replacing the needle
2 Replacing the needle2 Replacing the needle
2 Replacing the needle
To replace the needle, check the needle carefully to see
that the scarf is turned to the rear of the machine (see the
illustration). Then install the needle correctly.
1
11
1-
--
-3 Threading the machine
3 Threading the machine3 Threading the machine
3 Threading the machine
Thread the machine correctly by referring to the illustration below.
Threading the machine incorrectly may cause skip stitching, thread breakage and/or
uneven stitch formation. Thread tension should be changed according to various kinds of
conditions such as the thread to be used and/or the feeding amount (see Chapter 10 for
"Stitch formation").
A，B，C .. Needle threads
D............... Top cover thread
E .............. Looper thread

2
【2】MACHINE SPEED
2
22
2-
--
-1 Machine speed & direction in which the ma
1 Machine speed & direction in which the ma1 Machine speed & direction in which the ma
1 Machine speed & direction in which the machine pulley runs
chine pulley runschine pulley runs
chine pulley runs
Refer to the table below for maximum and standard
speeds of the Series. To extend machine life, run
the machine approximately 15~20% below the
maximum speed for the first 200 hours of operation
(approx. 1 month). Then run the machine at the
standard speed. The machine pulley turns
clockwise as the handwheel does as seen from the
machine pulley.
2
22
2-
--

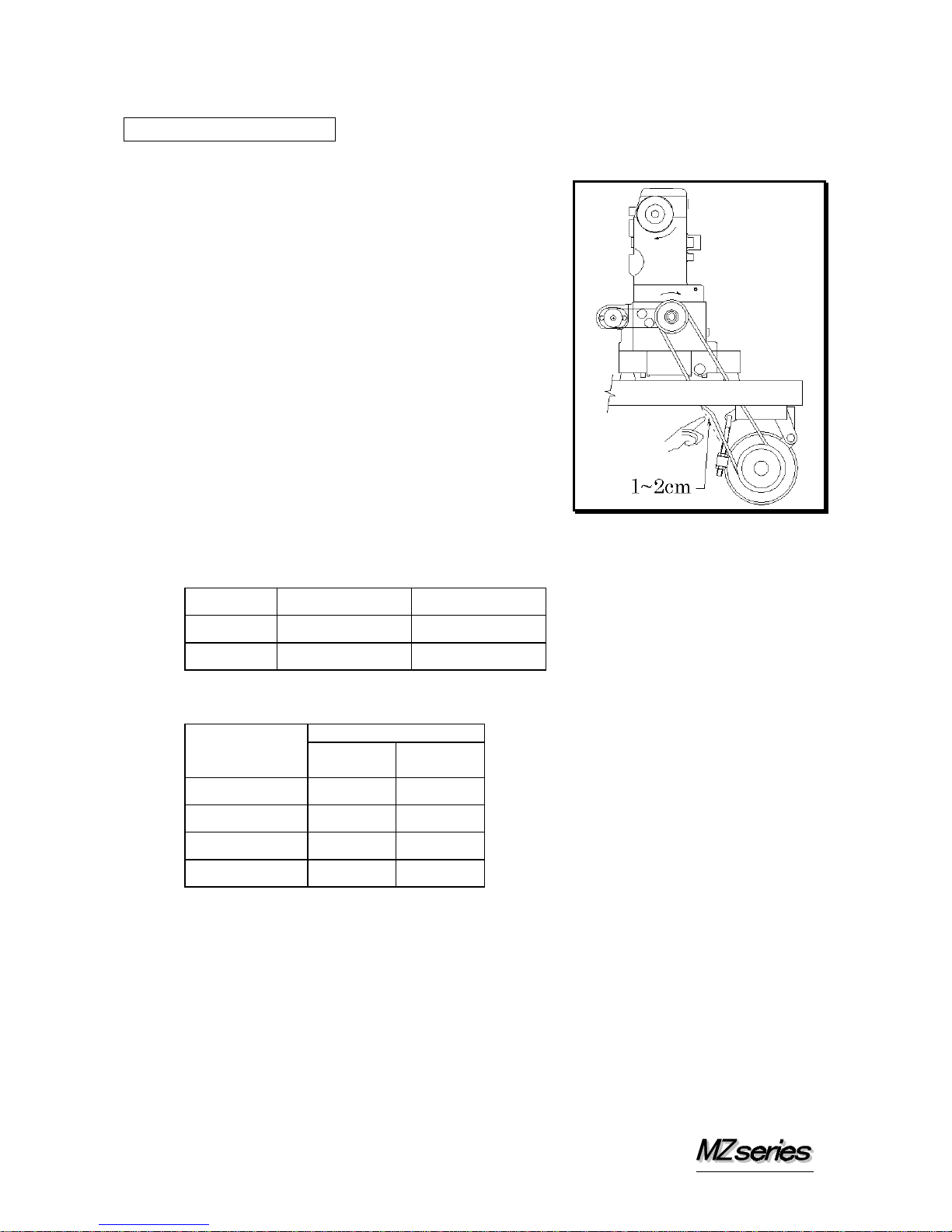

-2 Motor & belt
2 Motor & belt2 Motor & belt
2 Motor & belt
Motor : 3-phase, 2-pole, 400W clutch motor
Belt : M type V belt
Select the proper motor pulley according to the
machine speed (refer to the motor pulley outer
diameter on the table below). Adjust where to
position the motor by pressing the finger onto the
middle of the belt so that 1~2cm deflection can be
achieved (see the illustration on the right).
< Machine speed >
Type Maximum speed Standard speed
MZ1003 4500SPM 4000SPM
MZ1103 4000SPM 3500SPM
< Motor pulley selection table >
Machine speed (SPM)Motor pulley
Outer diameter
(mm) 50Hz 60Hz
80 3300 3900
90 3700 4400
100 4100 4900
110 4500 (5400)

3
< Note >
When the oil filter cap is removed, the oil collected on
the element drips. Be careful.
【3】LUBRICATION
3
33
3-
--
-1 Oil
1 Oil1 Oil
1 Oil
Use Kansai Special’s genuine oil.
(Part No. 28-613 : 1000cc)
3
33
3-
--
-2 Oiling
2 Oiling2 Oiling
2 Oiling
■
To fill the machine with oil
Remove rubber plug A from the oil hole.
Fill the machine with oil until the oil level is at the
top line (see H in the illustration) on oil gauge C.
After the first lubrication, add oil so that the oil
level will be between H and L.
■
To check for proper oil flow
After filling the machine with oil, run the machine
to check the oil is splashing to oil flow sight window
B.
3
33
3-
--
-3 Re
3 Re3 Re
3 Replacing the oil and the oil element
placing the oil and the oil elementplacing the oil and the oil element
placing the oil and the oil element
To extend machine life, be sure to replace the oil
after the first 250 hours of operation.
To replace the oil, follow the procedures below.
1. Remove the V belt from the motor pulley and
then remove the machine from the table.
2. Remove screw D and then drain the oil.
Be careful not to stain V belt with the oil.
3. After draining the oil, be sure to tighten screw
D.
4. Fill the machine with oil by referring to 3-2
shown above.
If element E is contaminated, proper oiling may not
be performed. Clean the filter element every six
months. If just a little or no oil flows out from the
nozzle with the proper amount of oil in the machine,
check the element. To do so, remove oil filter cap F.
Replace the element if necessary.

4
【4】SEWING MACHINE INSTALLATION
4
44
4-
--
-1 Cutting the machine table
1 Cutting the machine table1 Cutting the machine table
1 Cutting the machine table
■Hole A shown below is for installing the electric presser foot lift.

5
4
44
4-
--
-2 Installing the machine
2 Installing the machine2 Installing the machine
2 Installing the machine

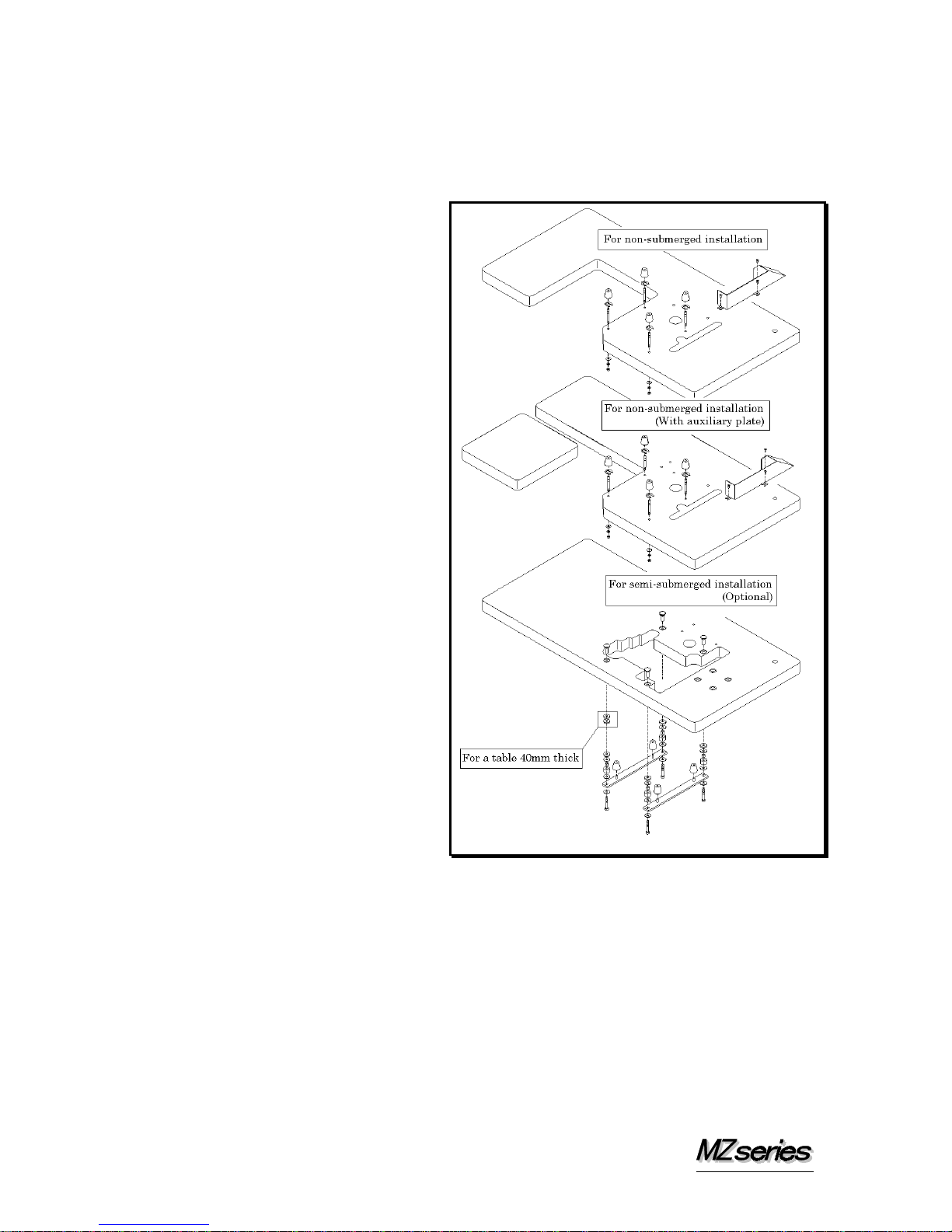

The MZ Series is available in two kinds of installations, non-submerged and
semi-submerged.
■Non-submerged installation
Install the machine correctly by
referring to the illustration.
Install the bolts and nuts to the
machine table.
Fit the rubber cushions onto the
bolts. Then mount the machine
properly onto the rubber cushions.
■Semi-submerged installation
Install the machine correctly by
referring to the illustration.
Secure the oil reservoir
installation brackets to the
machine table with screws. Fit
the rubber cushions onto the
screws.
Then mount the machine properly
onto the rubber cushions.

6
【5】TIMING OF THE LOOPER TO THE NEEDLE
5
55
5-
--
-1 Angle and height for installing the looper
1 Angle and height for installing the looper1 Angle and height for installing the looper
1 Angle and height for installing the looper
To obtain the proper angle and height, insert the looper fully into looper holder A and
then tighten screw B. The proper angle for the looper is 2º 30’. Distance at 25mm from
the point of the looper between the bottom of the looper blade and the extension line from
the point of the looper: Approximately 1.1mm

5
55
5-
--
-2 Looper left
2 Looper left2 Looper left
2 Looper left-
--
-to
toto
to-
--
-right movement
right movementright movement
right movement
On 2, 3 needle machines the point of the looper should be approximately 1mm above the
top of the left needle’s eye when the looper moves to the left on the back side of the
needles.
The point of the looper should be approximately 0.2mm above the top of the left needle’s
eye when the looper moves to the right on the front side of the needles (see the illustration
below). To adjust the timing of the looper to the needles, remove the machine cover,
loosen screws A on the timing pulley (upper), and shift the timing pulley (upper) by
turning the handwheel while holding the timing pulley (upper) by hand.
5
55
5-
--
-3 Looper setting distance
3 Looper setting distance3 Looper setting distance
3 Looper setting distance
The distance from the point of the looper to the center of the
needle bar should be 6mm when the looper is at its farthest
position to the right. The table below shows setting
distance A from the point of the looper to the center of the
right needle when the needle is at the bottom of its stroke
and the looper is at its farthest position to the right.
Setting distance A varies according to the needle space.
To make this adjustment, loosen screw C (see 5-1) on the
looper holder.
Needle space
(inch) Looper setting distance A
3.2mm (1/8) 4.4mm
4.0mm (5/32) 4mm
4.8mm (3/16) 3.6mm
5.6mm (3/32) 3.2mm
6.4mm (1/4) 2.8mm

7
5
55
5-
--
-4 Needle height
4 Needle height4 Needle height
4 Needle height
The point of the looper should be 0.8~1.2mm above the
top of the left needle's eye on the back side of the
needle when the point of the looper has reached the
center of the left needle with the machine pulley
turning in the operating direction (see 5-2).
To adjust the height of the needle,
1. Set the needle bar at the top of its stroke.
2. Remove the plug on the head cover.
3. Loosen screw A.
4. Move the needle bar up or down.
5
55
5-
--
-5 Needle/looper front
5 Needle/looper front5 Needle/looper front
5 Needle/looper front-
--
-to
toto
to-
--
-back relationship
back relationshipback relationship
back relationship

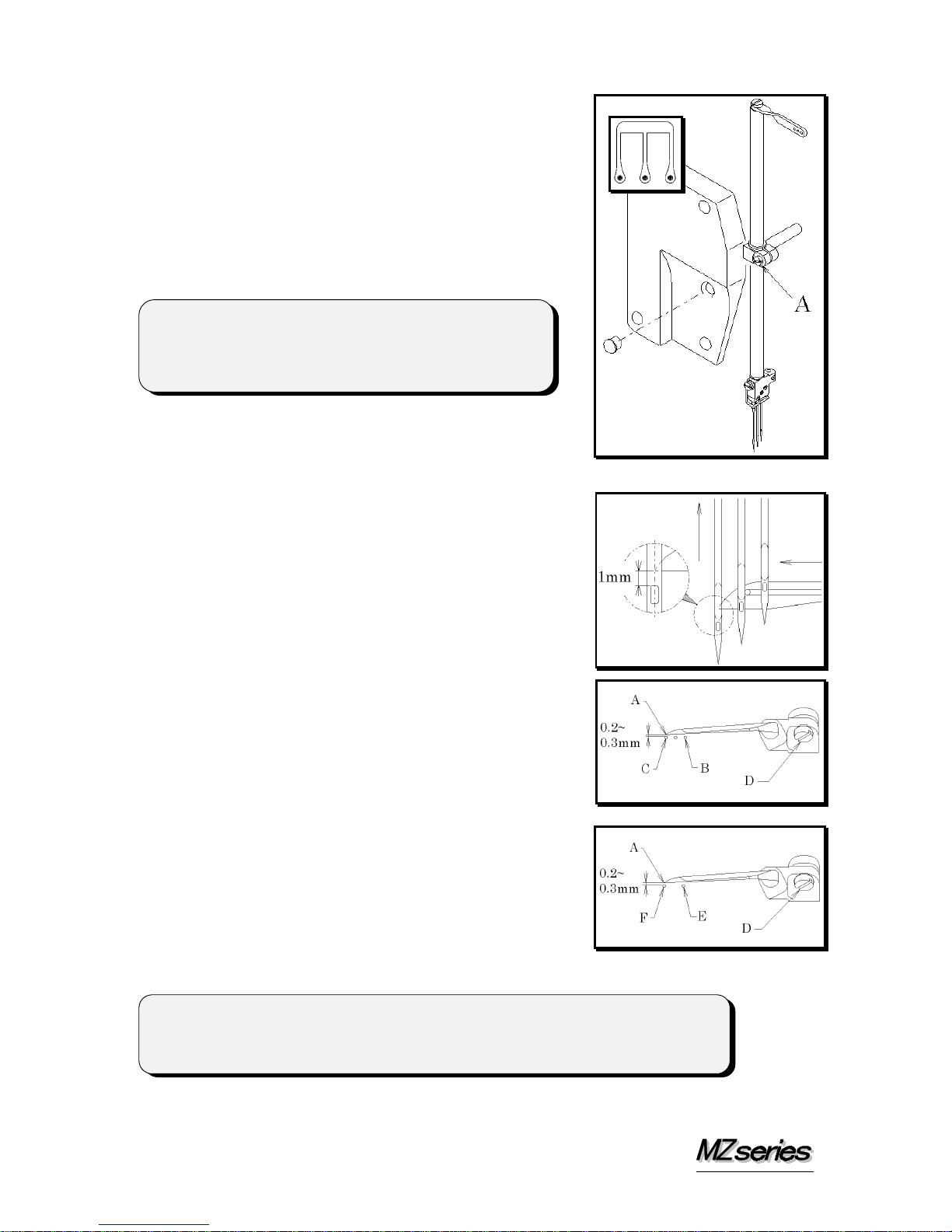

The point of the looper should be 0.8~1.2mm above the
top of the left needle's eye on the back side of the needle
when it has reached the center of the left needle.
With the point of the looper at this position, set the
clearance between the left needle and the point of the
looper at approximately 0.2~0.3mm.
Then the looper should barely touch the right needle.
■On 3 -needle machines, the clearance between point A
of the looper and left needle C should be 0.2~0.3mm.
To make this adjustment, loosen screw D on the looper
holder first. Then adjust the needle guard (rear) so
that it presses right needle B slightly to the front.
With the needle guard (rear) and needle B in this
position, set the clearance between the point of the
looper and needle B at 0~0.05mm.
■On 2-needle machines, the clearance between point A
of the looper and left needle F should be 0.2~0.3mm.
To make this adjustment, loosen screw D on the looper
holder first. Then adjust the needle guard (rear) so
that it presses right needle E slightly to the front.
With the needle guard (rear) and needle E in this
position, set the clearance between the point of the
looper and needle E at 0~0.05mm.
< Note >
After the above adjustment, install the needle plate and
check to make sure each needle drops into the center of
each needle hole.
< Note >
When moving the looper holder front or back, be careful not to change the looper
setting distance.

8
5
55
5-
--
-6 Changing the looper orbit
6 Changing the looper orbit6 Changing the looper orbit
6 Changing the looper orbit
When the looper moves around the needles, the
point of the looper on 2-needle and 3-needle
machines barely touches the right needle and the
clearance between the point of the looper and the
left needle is approximately 0.2~0.3mm.
■The timing mark is at point E: standard
■When the timing mark is at point C, The clearance
between the point of the looper and the left needle
when the looper moves to the left decreases.
The clearance when the looper moves to the right
increases. Then the point of the looper touches the
right needle. Skip stitching may occur when the
looper moves to the right.
A thread chain is not produced smoothly.
■When the timing mark is at point D, The clearance
between the point of the looper and the left needle
increases. Skip stitching may occur when the
looper moves to the left. The needle extremely
touches the back of the looper, causing needle
breakage.
< Note >
To sew under good conditions, after changing the amount of the looper front-to-back
movement adjust the looper orbit by moving the timing mark slightly to C or D.
To change the looper's orbit, loosen screw B on eccentric A and shift the timing mark
by moving eccentric A front or back.
The timing mark is factory-set for standard. Do not change the orbit extremely.

9
5
55
5-
--
-7 Changing the amount of the looper front
7 Changing the amount of the looper front7 Changing the amount of the looper front
7 Changing the amount of the looper front-
--
-to
toto
to-
--
-back movement
back movementback movement
back movement

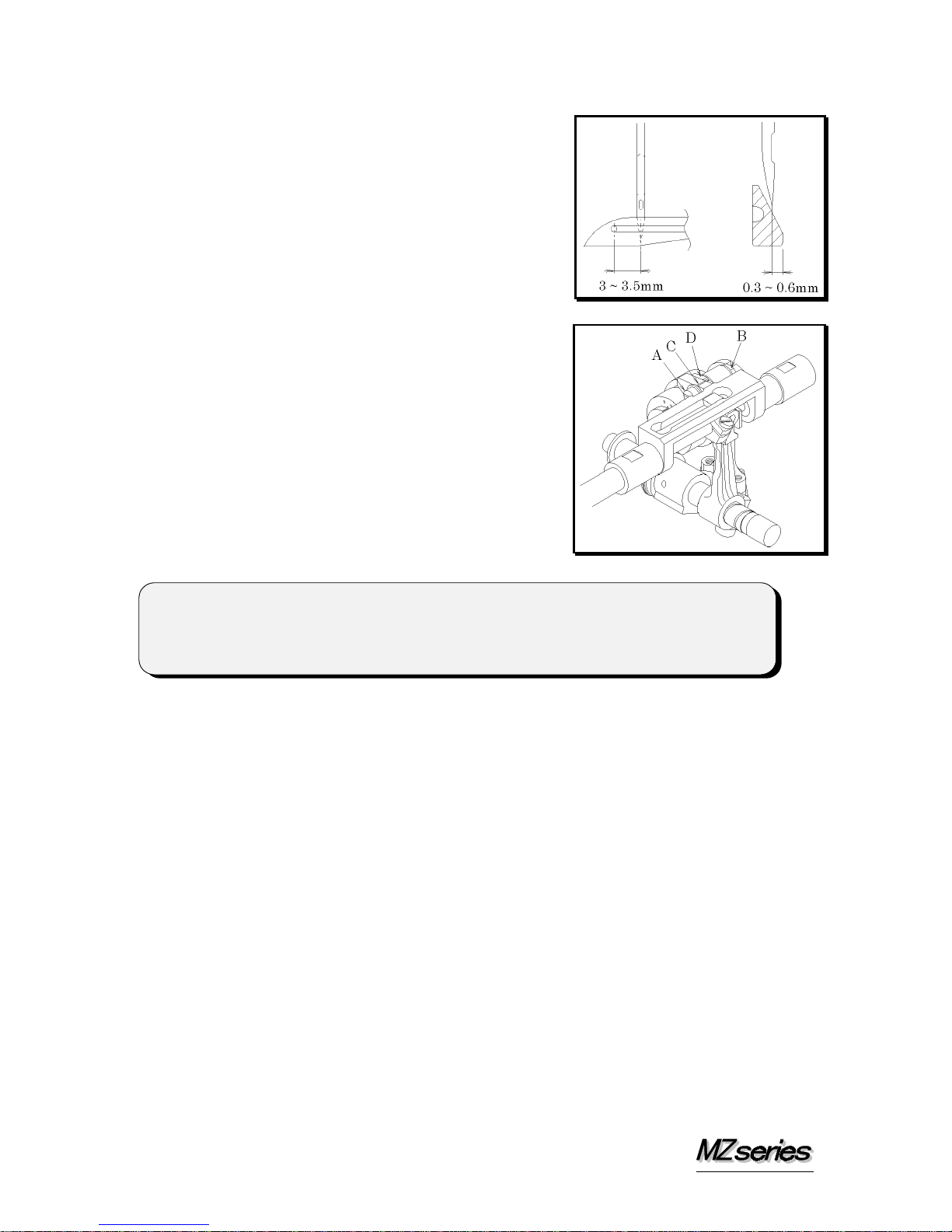

■The clearance between the point of the left needle
and the back side of the looper when the looper
moves to the right from the extreme left end of its
travel should be 0.3~0.6mm (The needle is pressed
to the back). The distance between the point of the
left needle and the center of the looper's eye on the
back side of the looper should be 3~3.5mm.
■The amount of the looper front-to-back movement is
factory-set properly for needle count #11 (Nm75).
If you use needle counts Nm80~90, adjust the
amount as required.
■Remove the inside cover.
Loosen nut B while holding screw A for the looper
front-to-back adjusting pin with a screwdriver.
Then move the front-to-back rod front or back.
To increase the amount, move alignment mark D on
the front-to-back rod to the front from mark C on
the looper bar guide. To decrease the amount,
move mark D to the back. Adjust according to the
needle count.
< Note >
If you change the amount of the looper front-to-back movement, the clearance between
the point of the left needle and the back side of the looper when the looper moves to the
right from the extreme left end of its travel should be 0.3~0.6mm.

10
【6】FRONT AND REAR NEEDLE GUARDS
6
66
6-
--
-1 Position of the needle guard (rear)
1 Position of the needle guard (rear)1 Position of the needle guard (rear)
1 Position of the needle guard (rear)

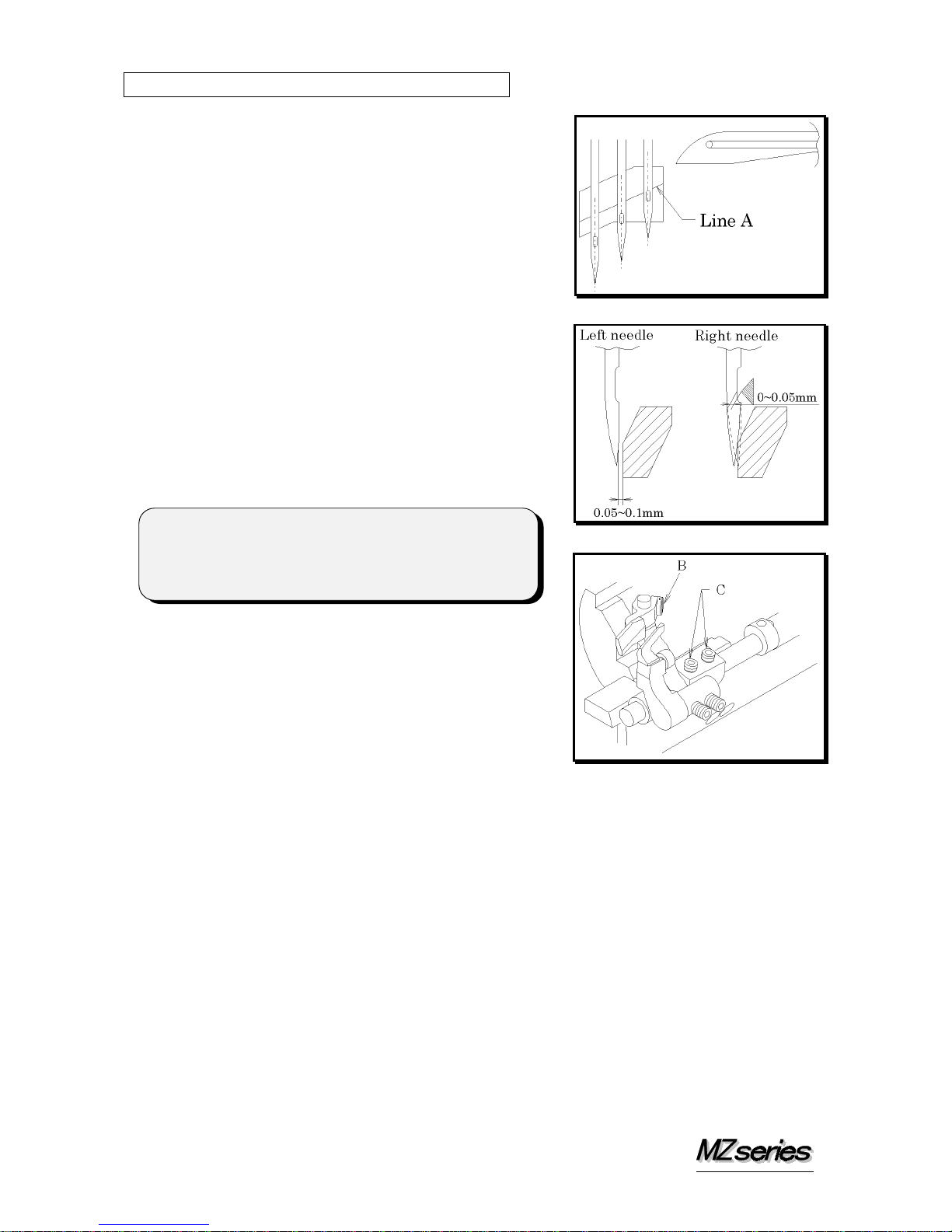

■To adjust the height of the needle guard (rear), align
the top of the right needle's eye with line A on the
needle guard (rear) when the needle bar is at the
bottom of its stroke.
■When the point of the looper has reached the center
of the right needle, push out the needle guard (rear)
slightly toward you. Then there should be a
clearance of 0~0.05mm between the needle and the
looper. In addition, there should be a clearance of
0.05~0.1mm between the left needle and needle
guard (rear). Adjustment is made by loosening
screws (B) and (C). Be careful that the relationship
between related parts is not changed.
< Note >
After the above adjustment, retighten the screws
securely so that the needle guard (rear) will not move
left-to-right.

11
6
66
6-
--
-2 Position of the needle guard (front)
2 Position of the needle guard (front)2 Position of the needle guard (front)
2 Position of the needle guard (front)
■The needle guard (front) should be 1.5~2mm above
the point of the left needle when the point of the
looper has reached the center of the left needle.
The clearance between the needle guard (front) and
the left or right needle when the point of the looper
has reached the center of the left or right needle
should be 0.1~0.3mm.
■To adjust the height of the needle guard (front),
loosen screw A and set the distance from the point of
the left needle to the needle guard (front) when the
point of the looper has reached the center of the left
needle at 1.5~2mm.
■To adjust the needle guard (front) front to back,
loosen screws A and B and set the clearance
between the needle guard (front) and the left or
right needle when the point of the looper has
reached the center of the left or right needle at
0.1~0.3mm.
< Note >
Retighten the screws while checking there is no
left-to-right shake on the needle guard (front).

12
【7】SPREADER
7
77
7-
--
-1 Position of the spreader
1 Position of the spreader1 Position of the spreader
1 Position of the spreader
■Height
The distance between the top surface of the needle plate
and the bottom surface of the spreader should be 9~11mm.
■Left-to-right position
When the spreader is at the extreme left end of its travel,
the distance between the center of the left needle and the
point of the thread carrying notch should be 4.5~5.5mm.
When the spreader passes the left needle, the distance
between the point of the thread carrying notch and the left
needle should be 0.5~0.8mm.
To make the above adjustment, loosen screws A and B.
■Adjust the amount of the spreader movement according to
the number of spreader threads and/or the fabric weight to
make this adjustment, remove the arm top cover, loosen
nut C and then move the adjusting lever pin in direction (a)
or (b). To decrease the amount, move the pin in the
direction of (a).To increase the amount, move the pin in
the direction of (b).
7
77
7-
--
-2 Position of the spreader thread guide
2 Position of the spreader thread guide2 Position of the spreader thread guide
2 Position of the spreader thread guide
The clearance between spreader thread guide B and spreader A should be 0.5~0.8mm.
When the spreader is at the extreme right end of its travel, point (a) of the spreader
thread carrying notch should be aligned with the center line of the slot of spreader thread
guide B.
When the needle bar is at the bottom of its stroke, the
clearance between the spreader thread guide and spreader
thread guide C should be 1mm and the eyelet of spreader
thread guide C should be approximately 0.5mm left to the
center line of the slot of spreader thread guide B.
To make the above adjustment, loosen two screws D and
screw E and move each thread guide up or down, left or right,
or front or back as required.

13
7
77
7-
--
-3 Timing of the spreader
3 Timing of the spreader3 Timing of the spreader
3 Timing of the spreader
The timing of the spreader is factory-set by referring to
the previous procedure (see 7-2). Adjust according to the
thread to be used or other conditions.
To make this adjustment, remove the top arm cover and
loosen two screws for looper eccentric A on the upper
shaft.
Then shift alignment mark C front or back while referring
to alignment mark B. To advance the timing of the
spreader to the needle, shift mark C in the direction of D.
To delay the timing of the spreader to the needle, shift mark C in the direction of E.
【8】FEED DOGS & STITCH LENGTH
8
88
8-
--
-1 Feed dog height & tilt
1 Feed dog height & tilt1 Feed dog height & tilt
1 Feed dog height & tilt
■Height
When the feed dogs are at the top of their stroke, the main
and differential feed dogs should be parallel with and
1~1.2mm above the needle plate.
■Adjustment is made by loosening screws A and moving
each of the feed dogs up or down.
■Tilt adjustment
1. Open the front cover. Remove the cloth plate.
Remove plug B on the top cover.
2. Loosen screw C with a 3mm key wrench.
3. Remove the cylinder cover.
Fit the wrench onto screw D. To tilt up the main
feed dog at its rear end, turn the shaft (rear) toward
the back side of the machine.
To tilt up the main feed dog at its front end, turn the
shaft toward the front side of the machine.

14
8
88
8-
--
-2 Stitch length
2 Stitch length2 Stitch length
2 Stitch length
The stitch length can be adjusted from 1.4 to 4.2mm
with no step. The following table shows the stitch
length with the number of stitches within 1 inch
(25.4mm) and 30mm.
Stitch
Length (mm) No. of stitches (within 1") No. of stitches (within 30mm)
4.2 6.0 7.5
3.6 7.0 8.0
2.4 10.5 12.5
1.4 18.0 21.0
■To change the stitch length
1. To increase the stitch length, turn adjusting
knob A clockwise. To decrease the stitch
length, turn adjusting knob A counterclockwise.
2. To adjust the stitch length with lever B, secure
lever B with nut C as required.
The range extends from the reading read by
lever B when adjusting knob A is turned to the
reading at which lever B is stopped by stopper
D.
To adjust the stitch length during sewing,
connect a chain to the lever.
8
88
8-
--
-3 Differential feed
3 Differential feed3 Differential feed
3 Differential feed
Remove plug A. Loosen screw B.
To gather the fabric, move up screw B (maximum
normal differential feed ratio: 1:4).
To stretch the fabric, move down screw B (maximum
reverse differential feed ratio: 1:0.8).
When alignment mark C is aligned with the center
of screw B, the differential feed ratio is 1:1.
< Note >
Be sure to turn off the motor before changing the
stitch length.

15
【9】PRESSER FOOT
9
99
9-
--
-1 Presser foot pressure
1 Presser foot pressure1 Presser foot pressure
1 Presser foot pressure

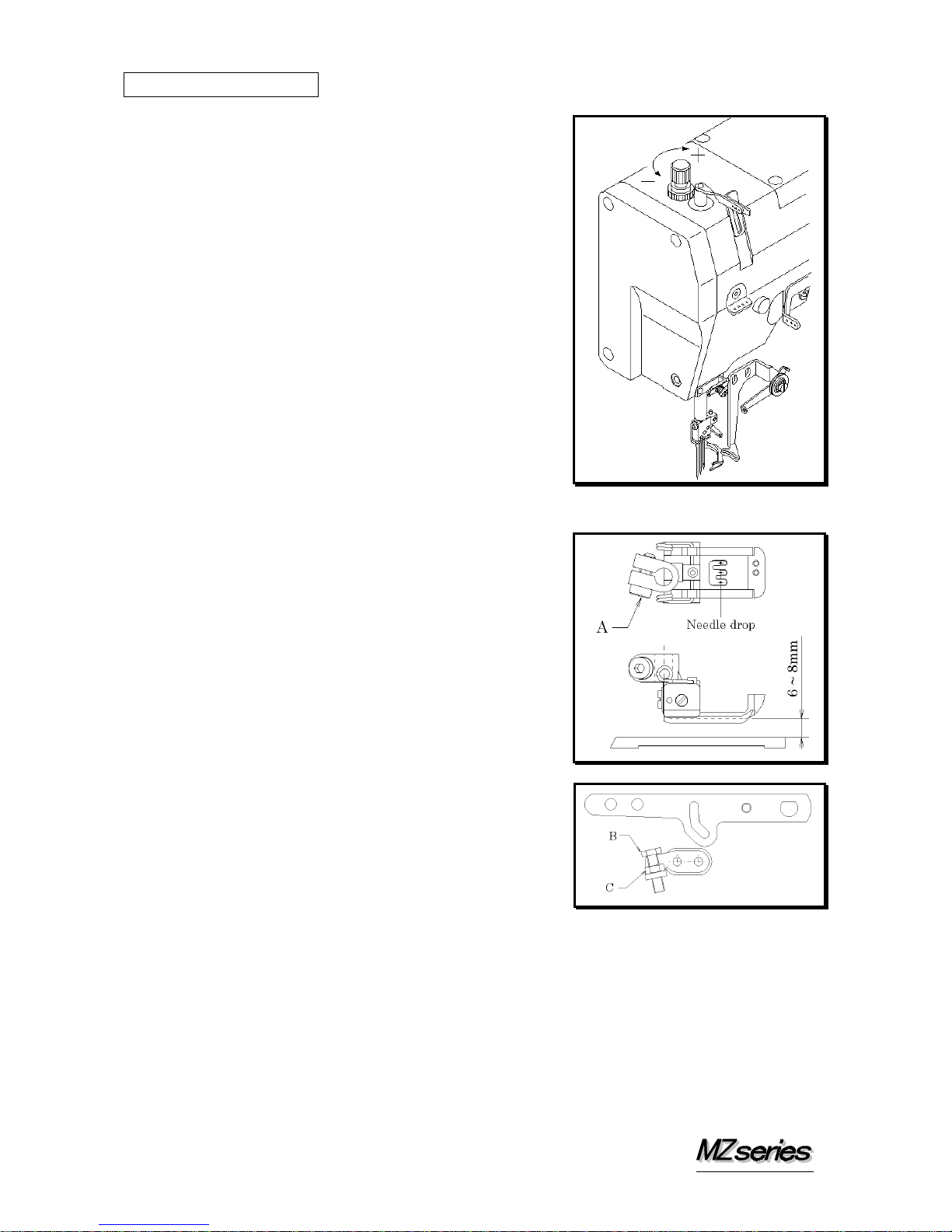

The presser foot pressure should be as light as
possible, yet be sufficient to feed the fabric and
produce uniform stitches.
To increase the presser foot pressure, turn the
adjusting knob clockwise.
9
99
9-
--
-2 Position of the presser foot & foot lift
2 Position of the presser foot & foot lift2 Position of the presser foot & foot lift
2 Position of the presser foot & foot lift
Fit the presser foot onto the presser bar so that the
needle can drop correctly to the center of the presser
foot needle drop hole.
■Position of the presser foot
Loosen screw A. Adjust by moving the presser foot
left or right while checking to make sure the needle
drops correctly to the center of the presser foot
needle drop hole.
■Foot lift
For machines with the spreader, the presser foot
should be 6mm above the top surface of the needle
plate. Check to make sure presser foot does not
touch the spreader with the presser foot in the above
position. For machines without the spreader, the
presser foot should be 8mm above the top surface of
the needle plate.
Set stopper B at the required position.
Fasten the presser foot lift lever with nut C so that
the lever cannot be lowered.

16
【10】STITCH FORMATION
10
1010
10-
--

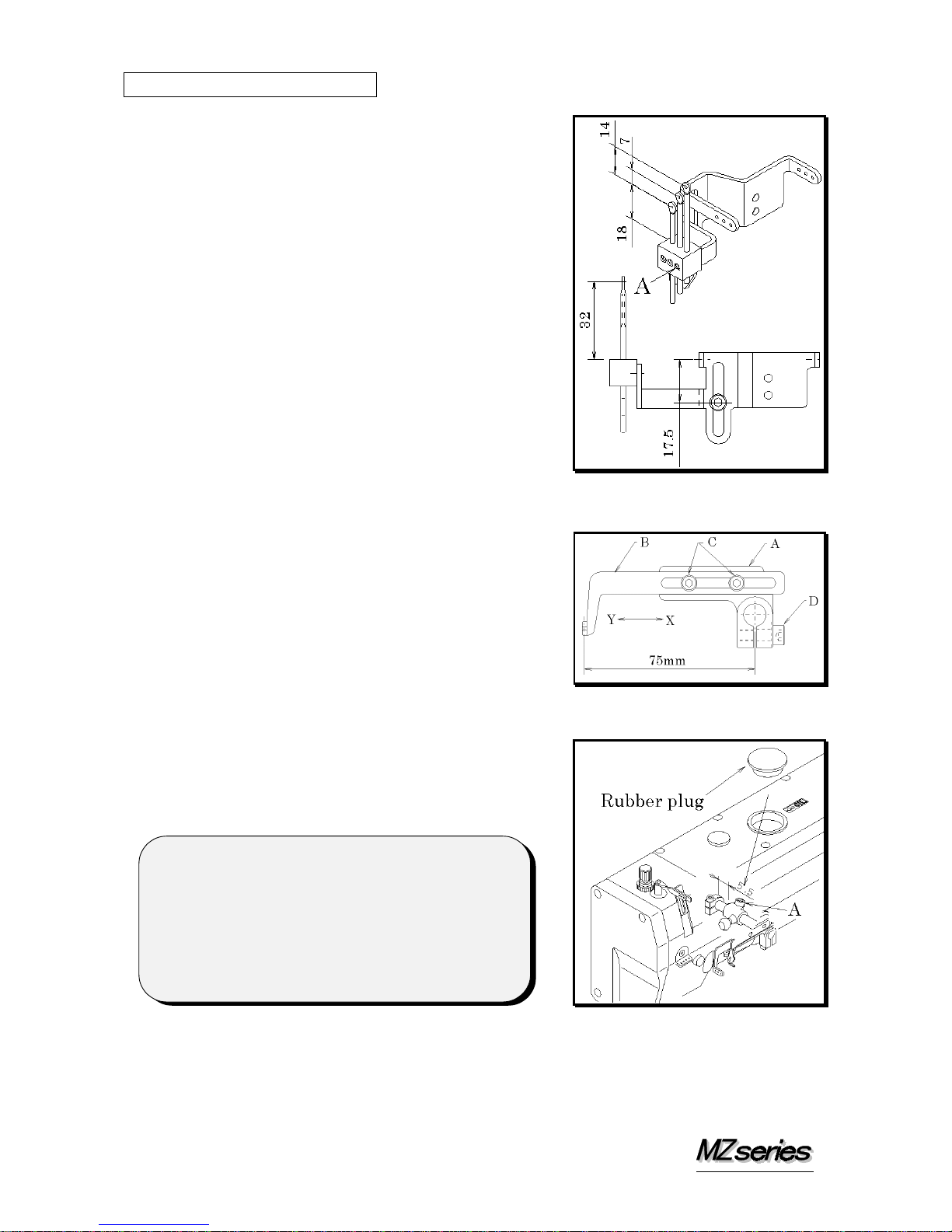

-1 Position of the needle thread guides
1 Position of the needle thread guides1 Position of the needle thread guides
1 Position of the needle thread guides
The distance from the center of the eyelet of the
needle thread guide to that of the set screw should
be approximately 17.5mm (see the illustration).
Adjust the height of the thread guides by loosening
screws A and moving each thread guide up or down
(refer to the distances shown in the illustration).
If the stitch formation cannot be changed extremely
by adjusting the height of the thread guides because
of the thread to be used, unravel the thread after
test sewing and adjust the height of the thread
guides while checking the tension of the needle
thread.
10
1010
10-
--
-2 Position of the thread guide on the needle thread take
2 Position of the thread guide on the needle thread take2 Position of the thread guide on the needle thread take
2 Position of the thread guide on the needle thread take-
--
-up
upup
up
When the needle bar is at the bottom of its stroke,
needle thread take-up bracket A should be level and
the distance from the center of the shaft to the
thread guide of needle thread take-up B should be
75mm.
To make this adjustment, loosen screws C and D.
To tighten the needle thread, move needle thread
take-up to Y. To loosen the needle thread, move
needle thread take-up to X.
10
1010
10-
--
-3 Timing of the needle thread take
3 Timing of the needle thread take3 Timing of the needle thread take
3 Timing of the needle thread take-
--
-up
upup
up
The timing of the needle thread take-up in relation
to the up-and-down movement of the needles can be
adjusted. This timing is factory-set to synchronize
with the up-and-down movement of the needle bar.
< Note >
The rod ball is factory-set at 5.5mm from the rear
end of the shaft. To make the needle thread loop
small, move the rod ball to the front.
To make the needle thread loop large, move the rod
ball to the back. Remove the rubber top plug.
Loosen the screw of (A) with a 5mm wrench.
Then move the rod ball to the front or back.

17
10
1010
10-
--
-4 Position of the needle thread guard
4 Position of the needle thread guard4 Position of the needle thread guard
4 Position of the needle thread guard
When the needle bar is at the bottom of its stroke, the
center of the eyelet of thread guide A should be level with
the top surface of needle thread guard B. In addition, A
should be parallel with B. To adjust the height of needle
thread guard B, loosen screw C and move needle thread
guard B up or down. To tighten the needle thread, move
up B. To loosen the needle thread, move down B.
■For cotton threads (non-stretchable threads)
Bring the needle thread guard 2.0mm below the standard,
or do not use the needle thread guard.
Loosen screw C and move down the needle thread guard.
■For woolly threads (stretchable threads)
Raise the needle thread guard as high as possible.
10
1010
10-
--
-5 Position of the thread guide of the spreader thread take
5 Position of the thread guide of the spreader thread take5 Position of the thread guide of the spreader thread take
5 Position of the thread guide of the spreader thread take-
--
-up
upup
up
When the needle bar is at the top of its stroke, thread any
one of parts A, B and C on the spreader thread take-up
with spreader thread.
■For woolly threads : Thread B or C.
■For cotton threads or spun threads
Thread A and adjust the spreader thread take-up
according to the thread or fabric to be used.
Adjust by moving up or down the spreader thread take-up
with screws D.
10
1010
10-
--
-6 Position of the thread guide of the looper
6 Position of the thread guide of the looper6 Position of the thread guide of the looper
6 Position of the thread guide of the looper thread take
thread takethread take
thread take-
--
-up
upup
up
Align the eyes of thread eyelets B and C with mark A on
the guide plate. Adjustment is made by loosening screws
D.
■To increase the amount of looper thread to be supplied
Move the eyes of B and C to the front.
■To decrease the amount of looper thread to be supplied
Move the eyes of B and C to the back.
■For woolly threads, move thread eyelets B and C all the
way to the front. Do not thread disc E.
