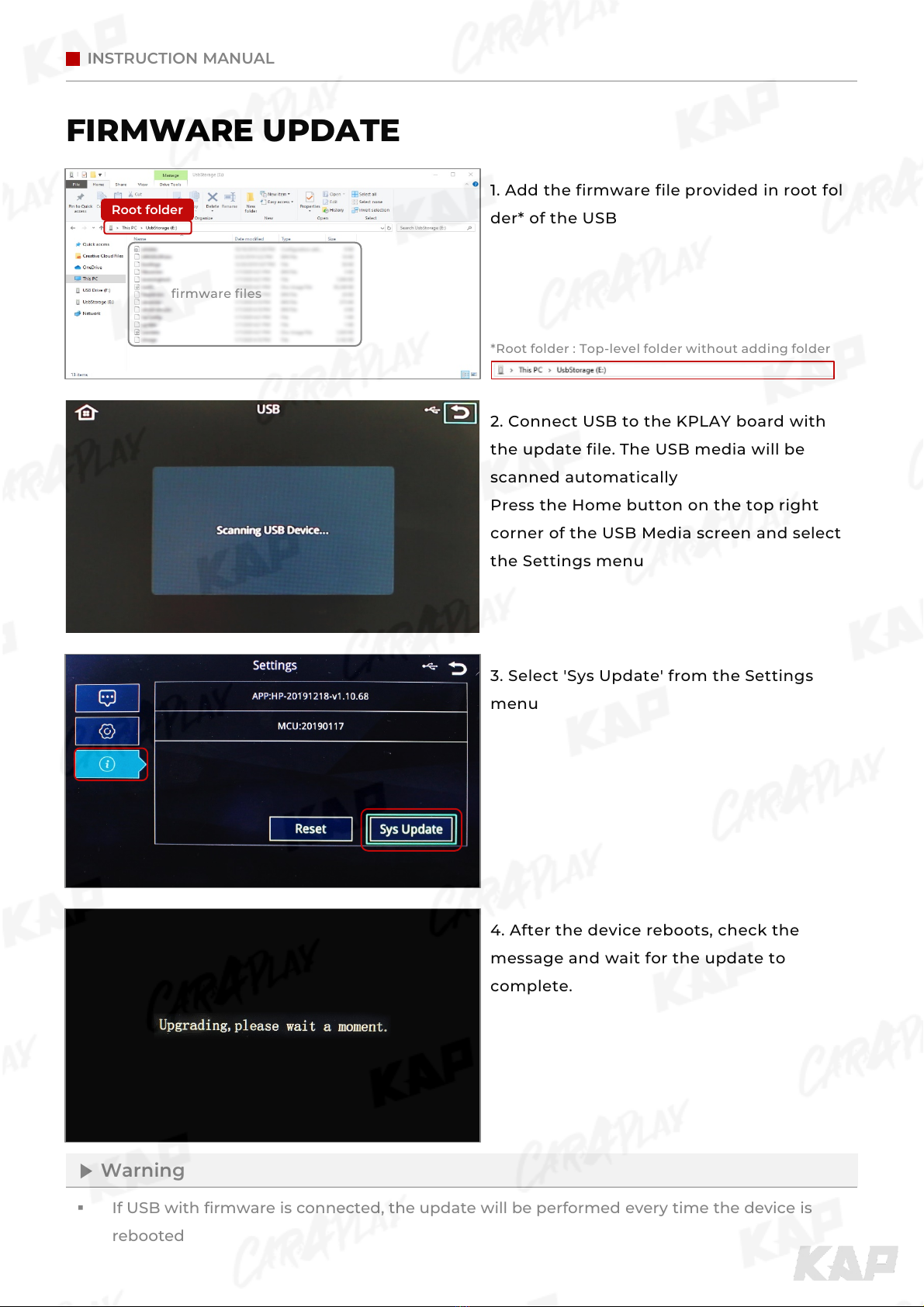

KAP Trader AUDI 4G HIGHEND User manual

INSTRUCTION
MANUAL
CONTACT
W kaptrader.com
E [e-mail]
A (05854) A-912 RM Tera-tower2, 201
Songpa-Dearo, Songpa-gu, Seoul, Korea
F ([phone]
DATA.
Video Interface and Wireless CarPlay & Wired Android Auto
AUDI 4G HIGHEND
2021.09.30
4G SYSTEM CARPLAY INTERFACE

INSTRUCTION MANUAL
CAR COMPATIBILITY SHEET
BRAND MODEL SCREEN KPLAY CONTROL YEAR
AUDI
A3 5.8"/ 7.0"MMI Control
A4 7.0"
Additional
Touch Panel
required
A6 8.0"
Q2 7.0"2017
Q7 7.0"
TT 12.0"
BENTLEY
Mulsanne 8.0"2017 -2018
Bentayga 8.0"2018
PORSCHE PCM 4.0 7.0"Touch Control 2016
VOLKSWAGEN
Golf 5.8"/ 6.5"
/ 8.0"
Additional
Touch Panel
required
Polo 6.5"
Tiguan 8.0"
T-Roc 8.0"

INSTRUCTION MANUAL
COMPONENT
▶Warning
Please contact your dealer if any component is missing.
▶Warning
Please contact your dealer if any component is missing.
KPLAY KPLAY POWER CABLE HDMI CABLE
MIC WIFI/BLUETOOTH
ANTENNA AUX CABLE
INTERFACE POWER CABLE LVDS CABLE
OSD BOARD RGB NAVI CABLEA/V CABLE (24PIN)

INSTRUCTION MANUAL

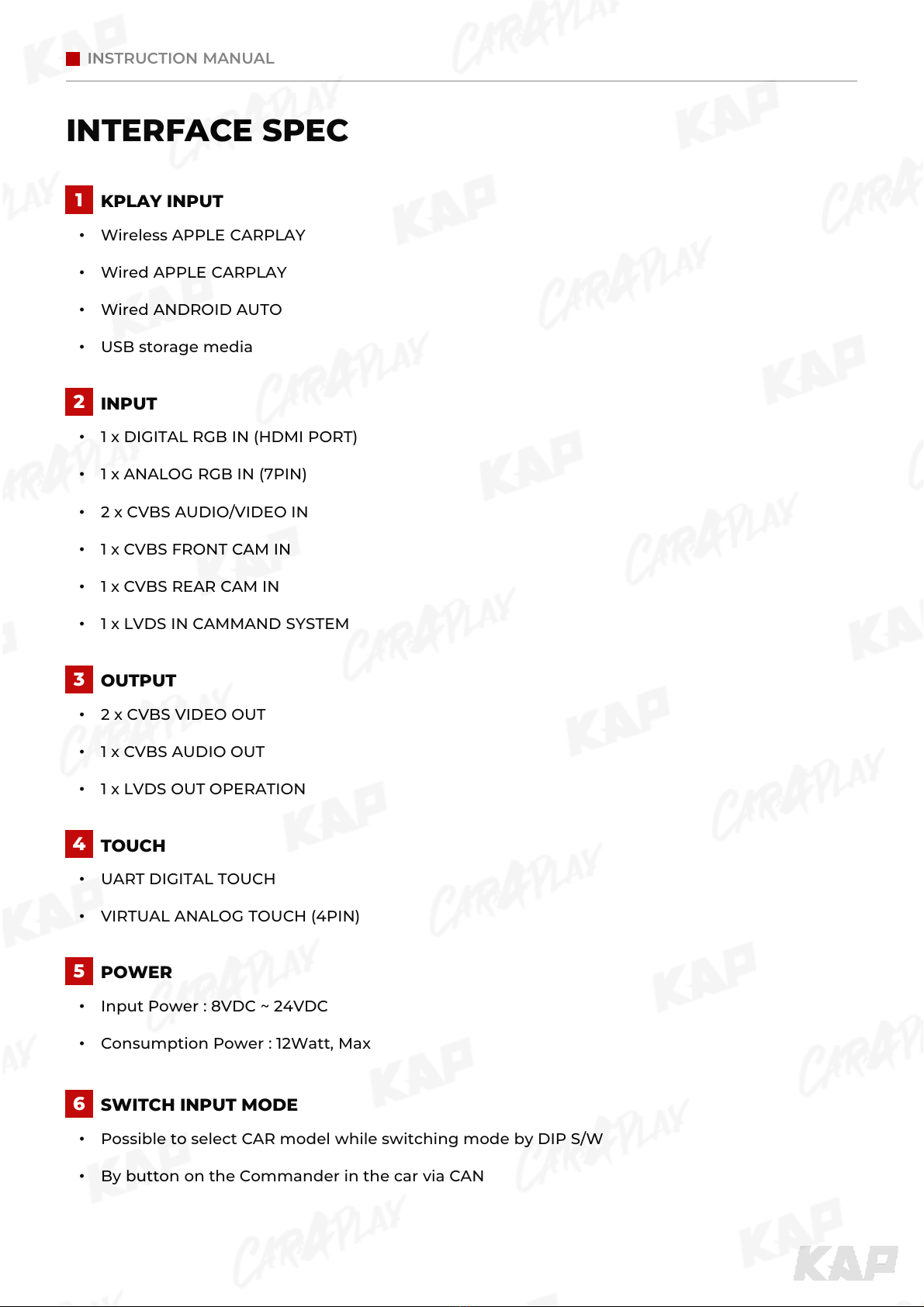

INTERFACE SPEC
1KPLAY INPUT
•Wireless APPLE CARPLAY
•Wired APPLE CARPLAY
•Wired ANDROID AUTO
•USB storage media
2INPUT
•1 x DIGITAL RGB IN (HDMI PORT)
•1 x ANALOG RGB IN (7PIN)
•2 x CVBS AUDIO/VIDEO IN
•1 x CVBS FRONT CAM IN
•1 x CVBS REAR CAM IN
•1 x LVDS IN CAMMAND SYSTEM
3OUTPUT
•2 x CVBS VIDEO OUT
•1 x CVBS AUDIO OUT
•1 x LVDS OUT OPERATION
5POWER
•Input Power : 8VDC ~ 24VDC
•Consumption Power : 12Watt, Max
6SWITCH INPUT MODE
•Possible to select CAR model while switching mode by DIP S/W
•By button on the Commander in the car via CAN
4TOUCH
•UART DIGITAL TOUCH
•VIRTUAL ANALOG TOUCH (4PIN)

INSTRUCTION MANUAL

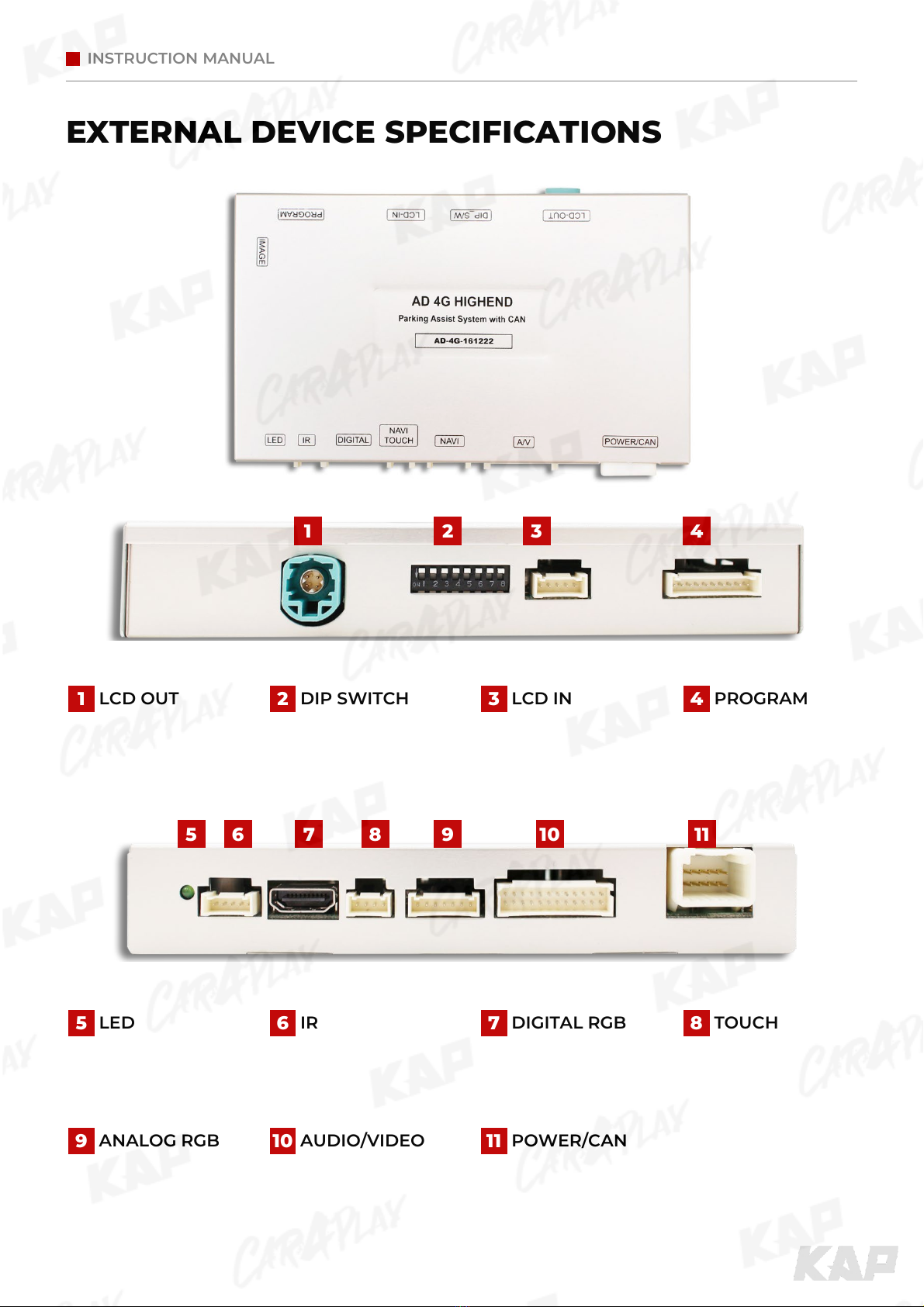

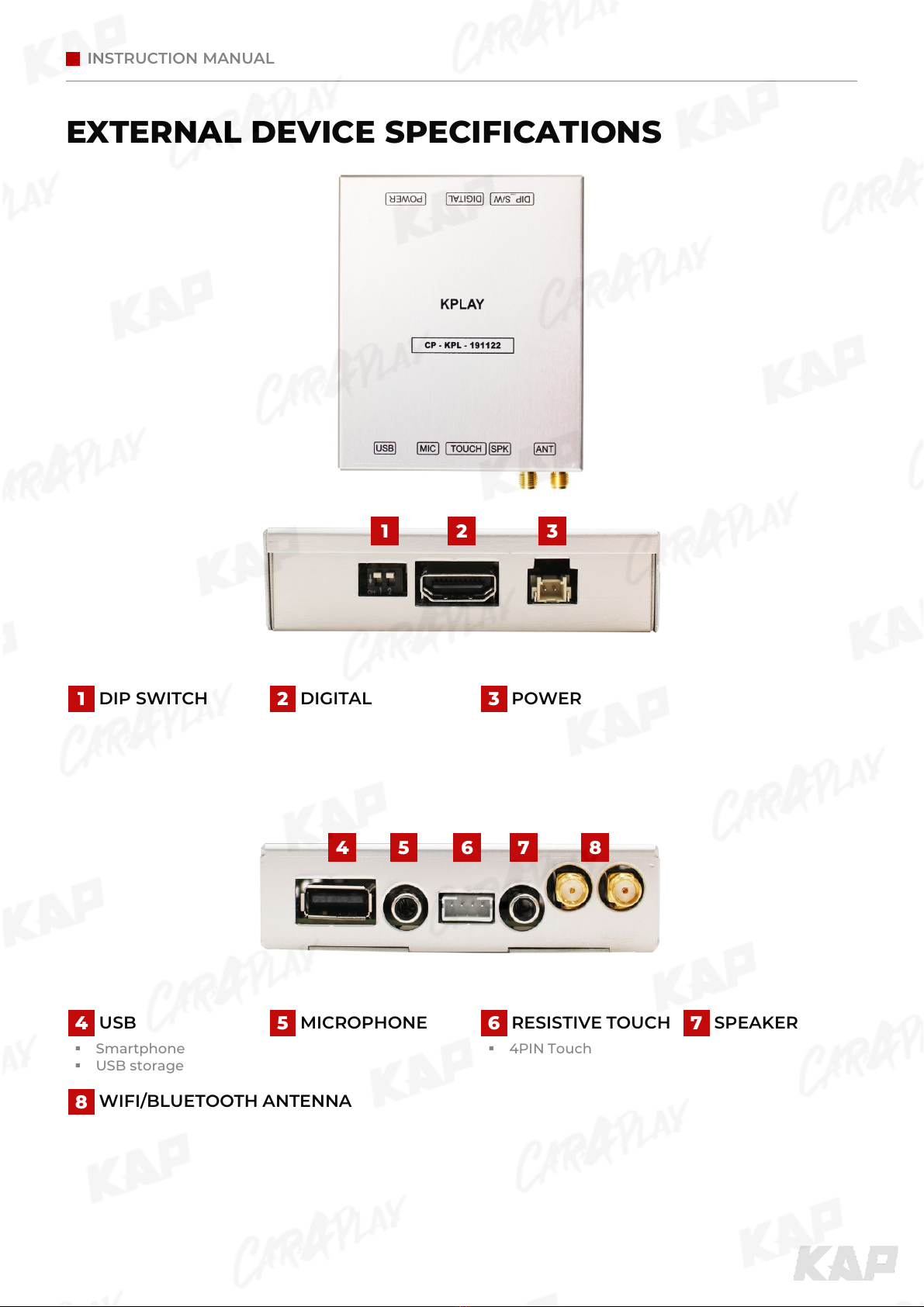

EXTERNAL DEVICE SPECIFICATIONS
1 2 3 4
5 6 7 8 9 10 11
1LCD OUT 2DIP SWITCH 3LCD IN 4PROGRAM
5LED 6IR 7DIGITAL RGB 8TOUCH
9ANALOG RGB 10 AUDIO/VIDEO 11 POWER/CAN
