KAP FORD SYNC3 TDC2 User manual

INSTRUCTION
MANUAL
CONTACT
W kaptrader.com
E [e-mail]
A (05854) A-912 RM Tera-tower2, 201
Songpa-Dearo, Songpa-gu, Seoul, Korea
F ([phone]
DATA.
Video Interface and Wireless Connected Car System
FORD SYNC3 TDC2
2021.04.29
FORD SYNC3 INTERFACE

INSTRUCTION MANUAL
CAR COMPATIBILITY SHEET
SYNC3 SYNC
BRAND MODEL SCREEN YEAR
FORD
F-150 FX4 2015 ~
Mustang 2017 ~
Ranger 2018 ~
Ecosprot 8" 2019 ~
WildTrak 2021/02 ~
Kuga 2019 ~
LINCOLN
MKX 2018 ~
MKZ 2018 ~
Contnental 2018 ~
Navigator 12" 2019 ~

INSTRUCTION MANUAL
COMPONENT
▶Warning
Please contact your dealer if any component is missing.
OSD Board
LVDS OUT CABLE
▶Warning
Please contact your dealer if any component is missing.
LVDS IN CABLE
INTERFACE RGB NAVI CABLE POWER CABLE
MODE SWITCH

INSTRUCTION MANUAL
COMPONENT
▶Warning
Please contact your dealer if any component is missing.
AUX Cable
KPLAY KPLAY Power Cable HDMI Cable
Wifi/Bluetooth AntennaMIC

INSTRUCTION MANUAL

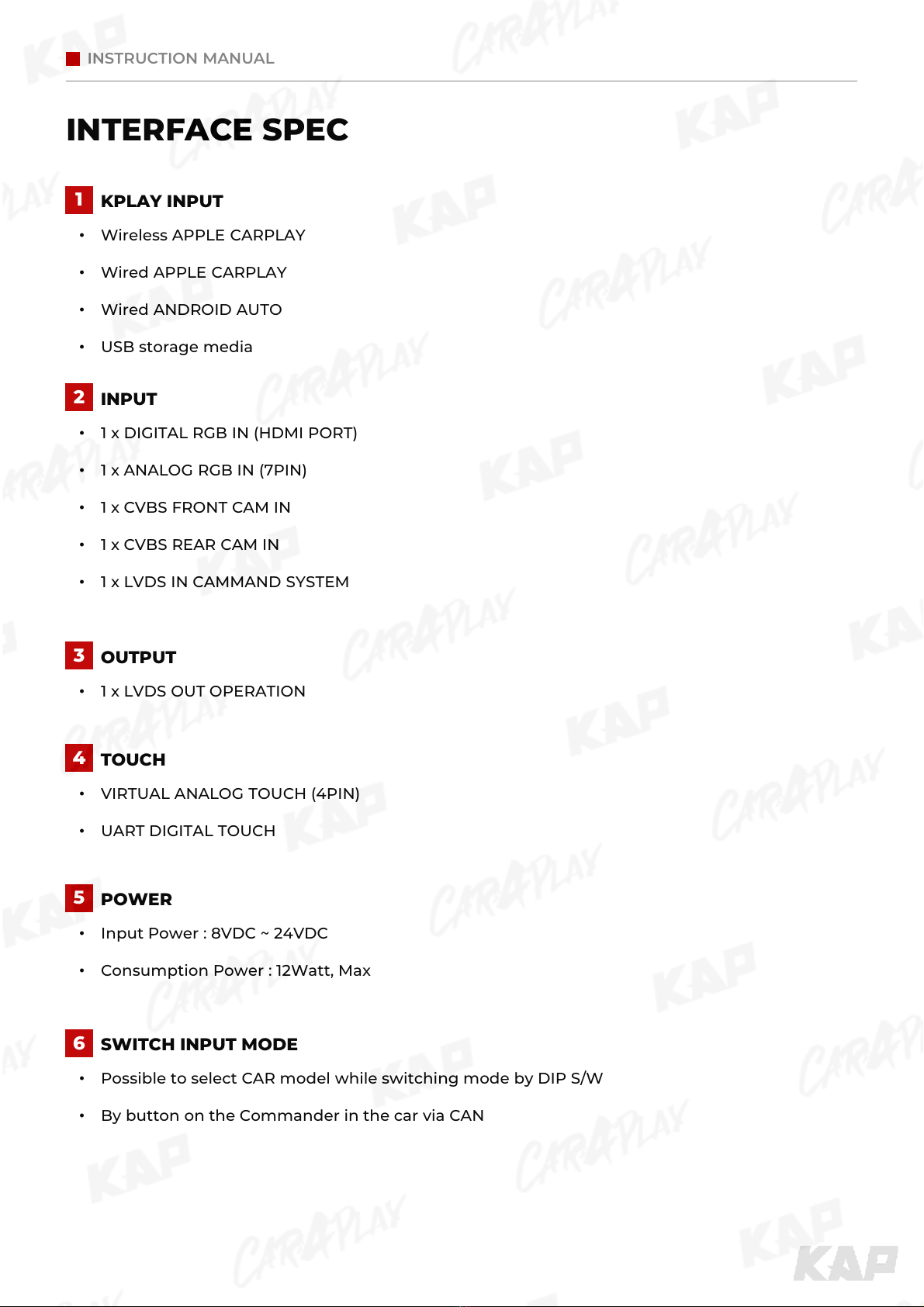

INTERFACE SPEC
1KPLAY INPUT
•Wireless APPLE CARPLAY
•Wired APPLE CARPLAY
•Wired ANDROID AUTO
•USB storage media
2INPUT
•1 x DIGITAL RGB IN (HDMI PORT)
•1 x ANALOG RGB IN (7PIN)
•1 x CVBS FRONT CAM IN
•1 x CVBS REAR CAM IN
•1 x LVDS IN CAMMAND SYSTEM
3OUTPUT
•1 x LVDS OUT OPERATION
5POWER
•Input Power : 8VDC ~ 24VDC
•Consumption Power : 12Watt, Max
6SWITCH INPUT MODE
•Possible to select CAR model while switching mode by DIP S/W
•By button on the Commander in the car via CAN
4TOUCH
•VIRTUAL ANALOG TOUCH (4PIN)
•UART DIGITAL TOUCH

INSTRUCTION MANUAL

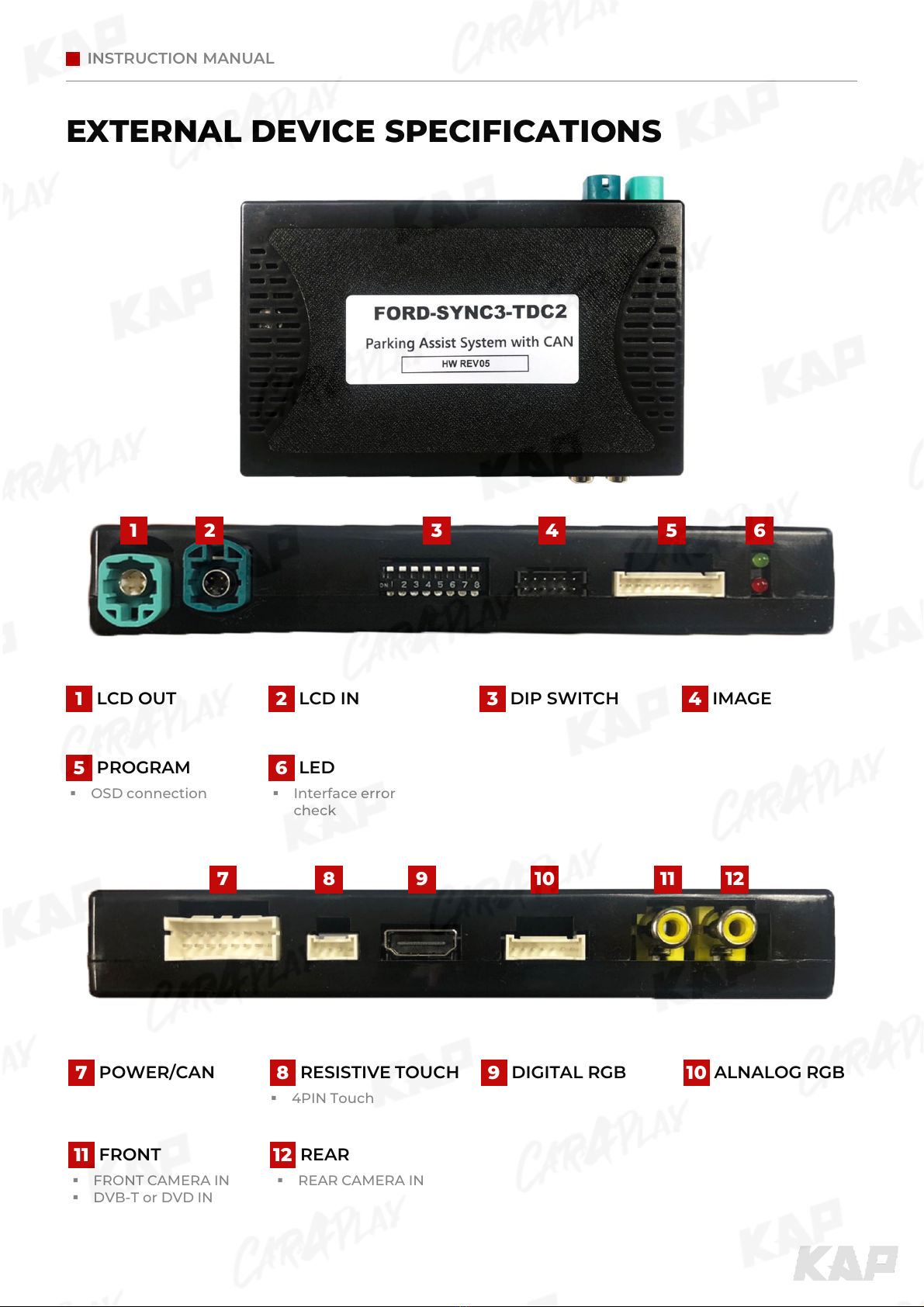

EXTERNAL DEVICE SPECIFICATIONS
3 4 5 6
7 8 9 10 11 12
2LCD IN 1LCD OUT
7POWER/CAN 8RESISTIVE TOUCH 9DIGITAL RGB 10 ALNALOG RGB
11 FRONT 12 REAR
Interface error
check
4PIN Touch
FRONT CAMERA IN
DVB-T or DVD IN
REAR CAMERA IN
1 2
4IMAGE 3DIP SWITCH
OSD connection
6LED 5PROGRAM

INSTRUCTION MANUAL
DIP SWITCH SETTING
PIN FUNCTION
INFORMATION
▲OFF ▼ON
1NAVIGATION USE Do not use
2AV1 (DVB-T) USE Do not use
3AV2 (DVD) USE Do not use
4No function
5
6
Car Type
7
8
ON 1ON 1
2 2
3 3
ON 6 7 8
FORD - F-150
2015~
ON 6 7 8
FORD –WildTrak
2021/02~
(+ Vehicles that do not function as basic DIP-SW
among F150 models)
ON 6 7 8
FORD -Mustang / Ranger
2017~
ON 6 7 8
LINCOLN -Navigator
12" (2019~)
ON 6 7 8
FORD –Ecosprot
8" (2019~)
ON 6 7 8
FORD -Kuga
2019~

INSTRUCTION MANUAL
No PORT INFORMATION
1POWER
/CAN
2TOUCH
3RGB
NAVI
No. Color Signal Assignment No. Color Signal Assignment
1Yellow ACC 2Yellow ACC
3Brown REAR DET 4Blue FRONT DET
5Green CAN LOW 6 Orange CAN H
7 8
910
11 RED ACC 12 Red REAR POWER
13 Red FRONT POWER 14 Green MODE
15 Black GND 16 Black GND
CONNECTOR PIN ASSIGNMENT
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16
1 2 3
No. Color Signal Assignment
1Red Y-
2Green X-
3Blue Y+
4White X+
1 2 3 4
No. Color Signal Assignment
1Red R DATA
2Green G DATA
3Blue B DATA
4White SYNC
5Black GND
6Green DVB-T IR
7 Orange DVD IR
1 2 3 4 5 6 7
1
2
3

INSTRUCTION MANUAL

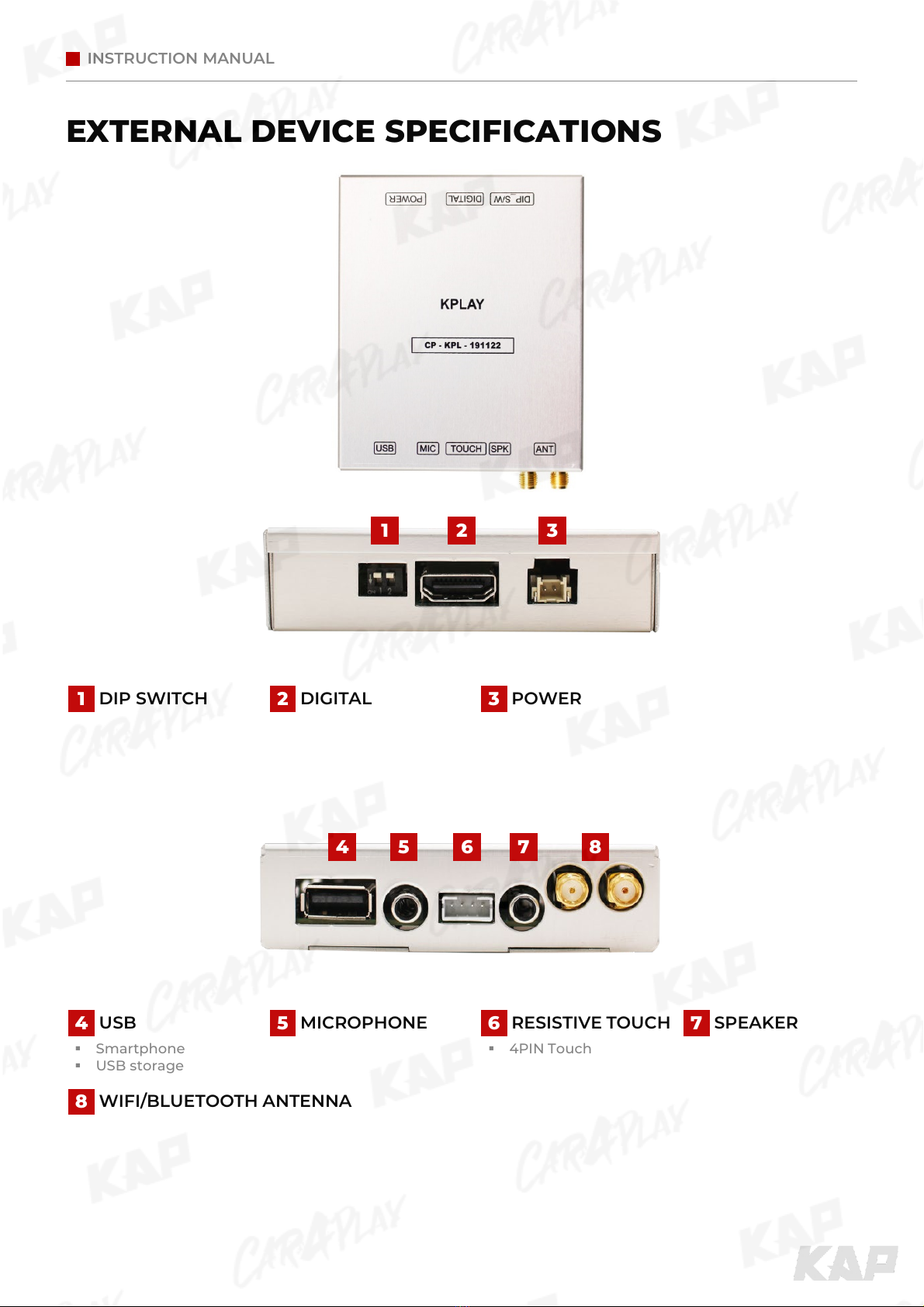

EXTERNAL DEVICE SPECIFICATIONS
1 2 3
4 5 6 7 8
1DIP SWITCH 2DIGITAL 3POWER
4USB 5MICROPHONE 6RESISTIVE TOUCH 7SPEAKER
8WIFI/BLUETOOTH ANTENNA
4PIN TouchSmartphone
USB storage

INSTRUCTION MANUAL
KPLAY CONNECTOR PIN ASSIGNMENT
1 2 3
No PORT INFORMATION
1DIP
SWITCH
2POWER
3TOUCH
No. Color Signal Assignment
1Red ACC
2Black GND
1 2
1 2 3 4
1
2
3
No FUNCTION
1800x480
Resolution
21280x480
Resolution
ON 1 2
ON 1 2
▶Warning
DIP switch No. 2 has no function
No. Color Signal Assignment
1Black Y+
2Green X+
3White Y-
4Red X-

INSTRUCTION MANUAL
KPLAY CONTROL

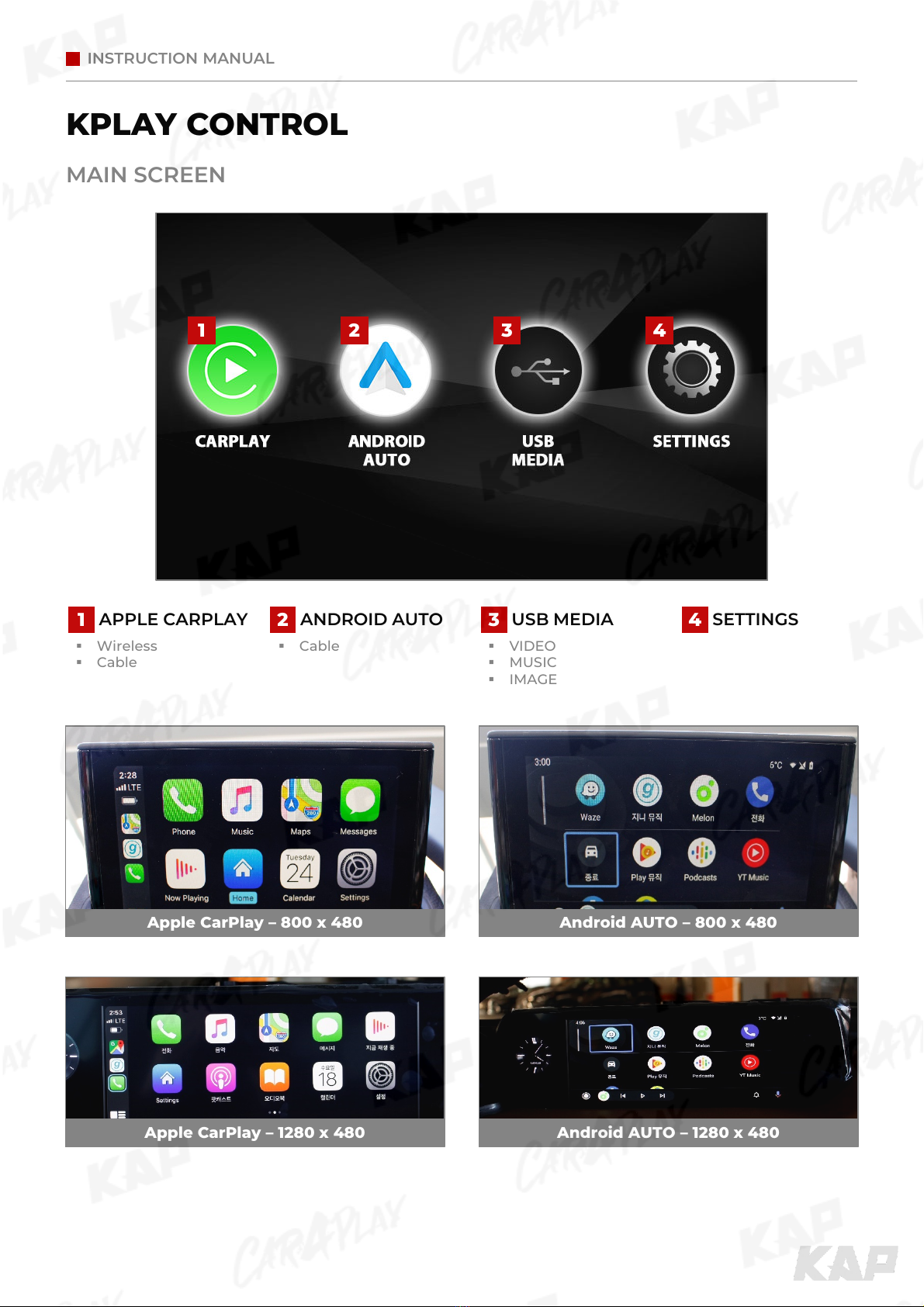

MAIN SCREEN
1 2 3 4
1APPLE CARPLAY 2ANDROID AUTO 3USB MEDIA 4SETTINGS
VIDEO
MUSIC
IMAGE
Wireless
Cable
Cable
Apple CarPlay –800 x 480
Apple CarPlay –1280 x 480
Android AUTO –800 x 480
Android AUTO –1280 x 480

INSTRUCTION MANUAL
KPLAY CONTROL

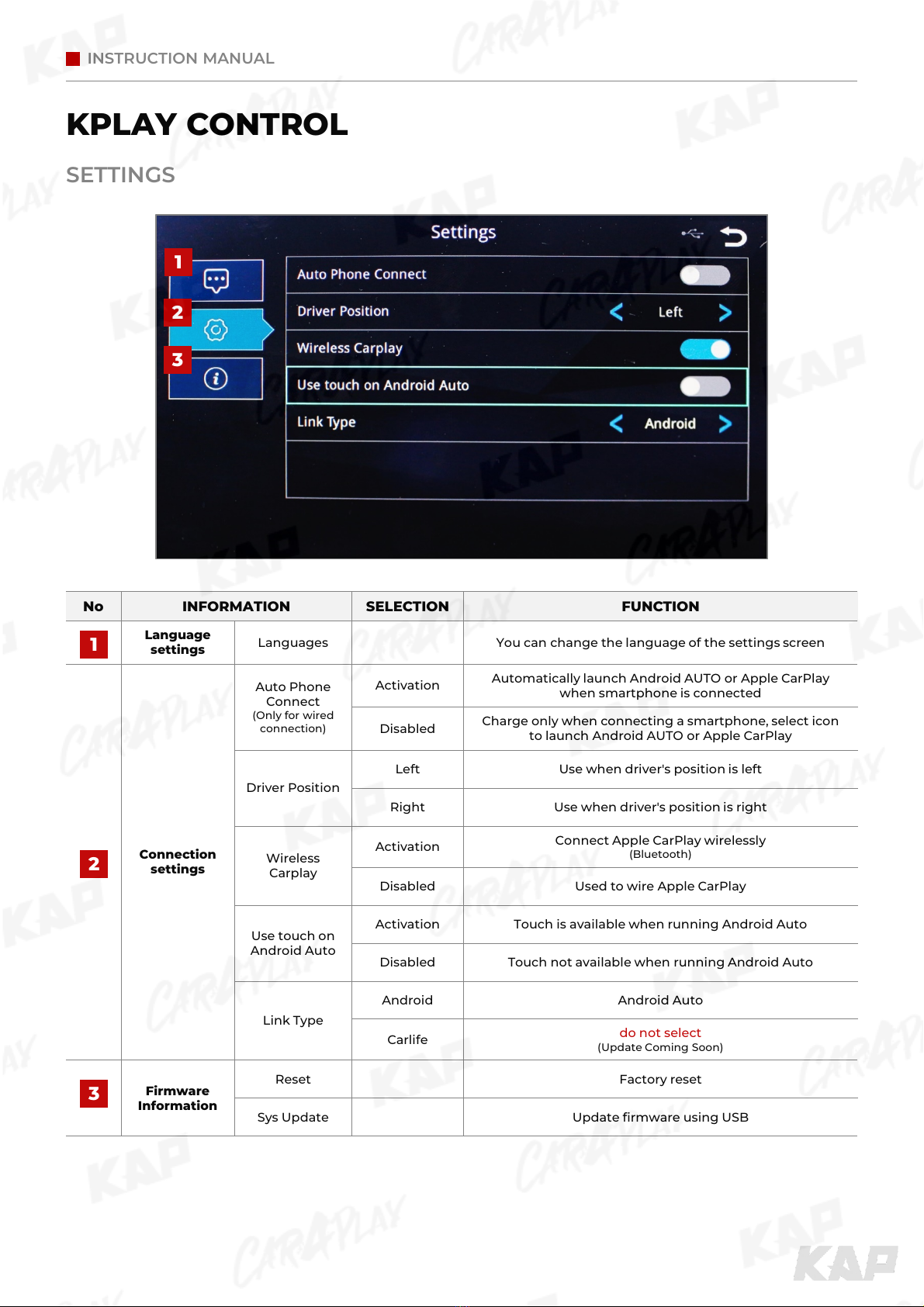

SETTINGS
No INFORMATION SELECTION FUNCTION
1Language
settings Languages You can change the language of the settings screen
2Connection
settings
Auto Phone
Connect
(Only for wired
connection)
Activation Automatically launch Android AUTO or Apple CarPlay
when smartphone is connected
Disabled Charge only when connecting a smartphone, select icon
to launch Android AUTO or Apple CarPlay
Driver Position
Left Use when driver's position is left
Right Use when driver's position is right
Wireless
Carplay
Activation Connect Apple CarPlay wirelessly
(Bluetooth)
Disabled Used to wire Apple CarPlay
Use touch on
Android Auto
Activation Touch is available when running Android Auto
Disabled Touch not available when running Android Auto
Link Type
Android Android Auto
Carlife do not select
(Update Coming Soon)
3Firmware
Information
Reset Factory reset
Sys Update Update firmware using USB
1
2
3
1
2
3

INSTRUCTION MANUAL
KPLAY CONTROL
MEDIA CONTROL
KPLAY
TOUCH SPK ANT
POWER DIGITAL DIP_S/W
MICUSB
APPLE
CARPLAY
Smartphone
connection
Connect AUX to your car and use KPLAY's microphone
No INFORMATION Can be used CONTROL NOTICE
1Apple
CarPlay
Wireless
connection
Use all
Apple CarPlay
Functions
•AUX
•MIC
•TOUCH
•Multiple connections are not supported
•Only one device can be connected
unconditionally
Cable
Connection
2Android
AUTO
Cable
Connection
Use all
Android AUTO
Functions
3USB Media Connection Music, Photo,
Video
USB Media
ANDROID
AUTO
or

INSTRUCTION MANUAL
KPLAY CONTROL

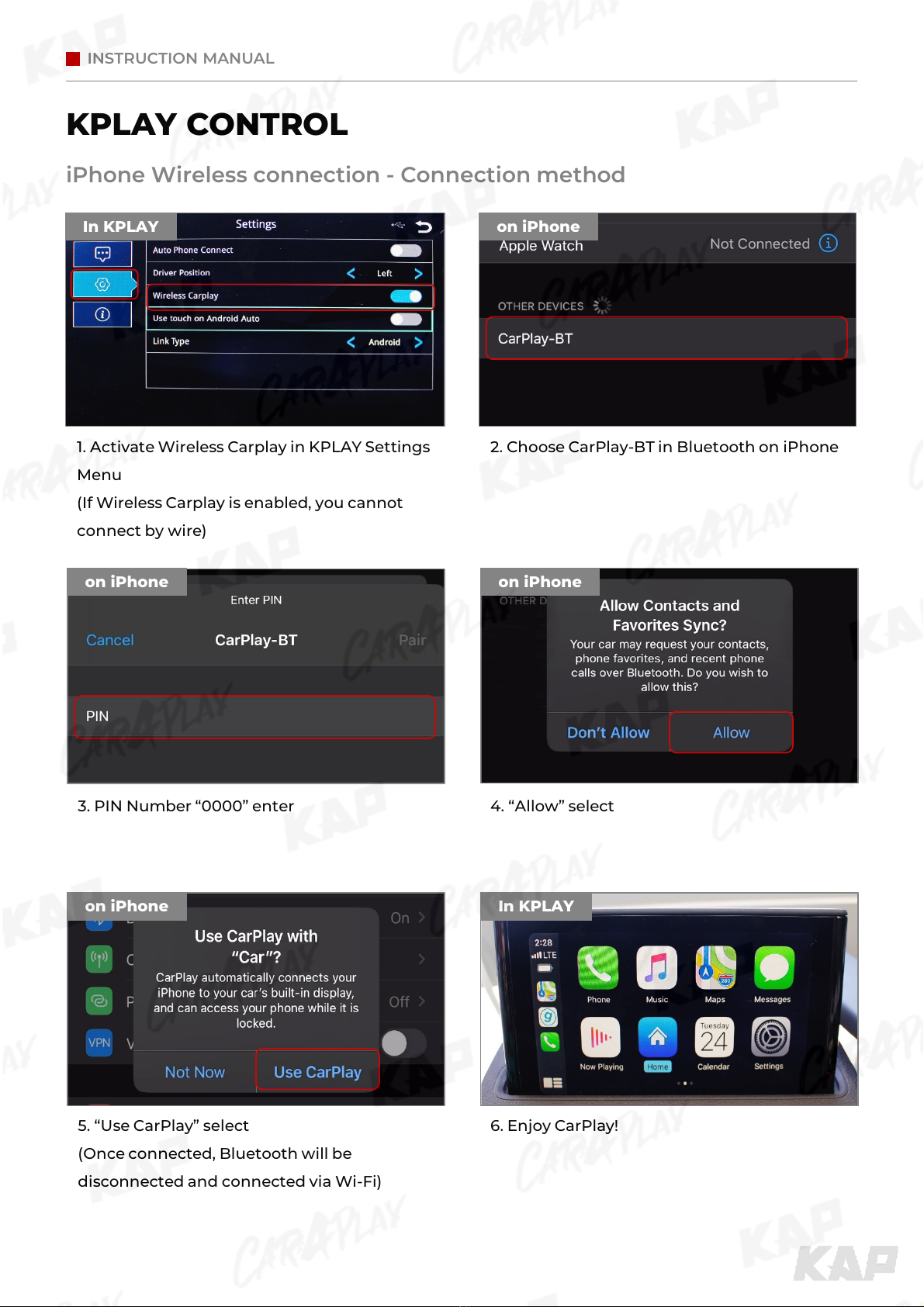

iPhone Wireless connection -Connection method
1. Activate Wireless Carplay in KPLAY Settings
Menu
(If Wireless Carplay is enabled, you cannot
connect by wire)
2. Choose CarPlay-BT in Bluetooth on iPhone
3. PIN Number “0000” enter 4. “Allow” select
5. “Use CarPlay” select
(Once connected, Bluetooth will be
disconnected and connected via Wi-Fi)
6. Enjoy CarPlay!
In KPLAY on iPhone
on iPhoneon iPhone
on iPhone In KPLAY

INSTRUCTION MANUAL
KPLAY CONTROL

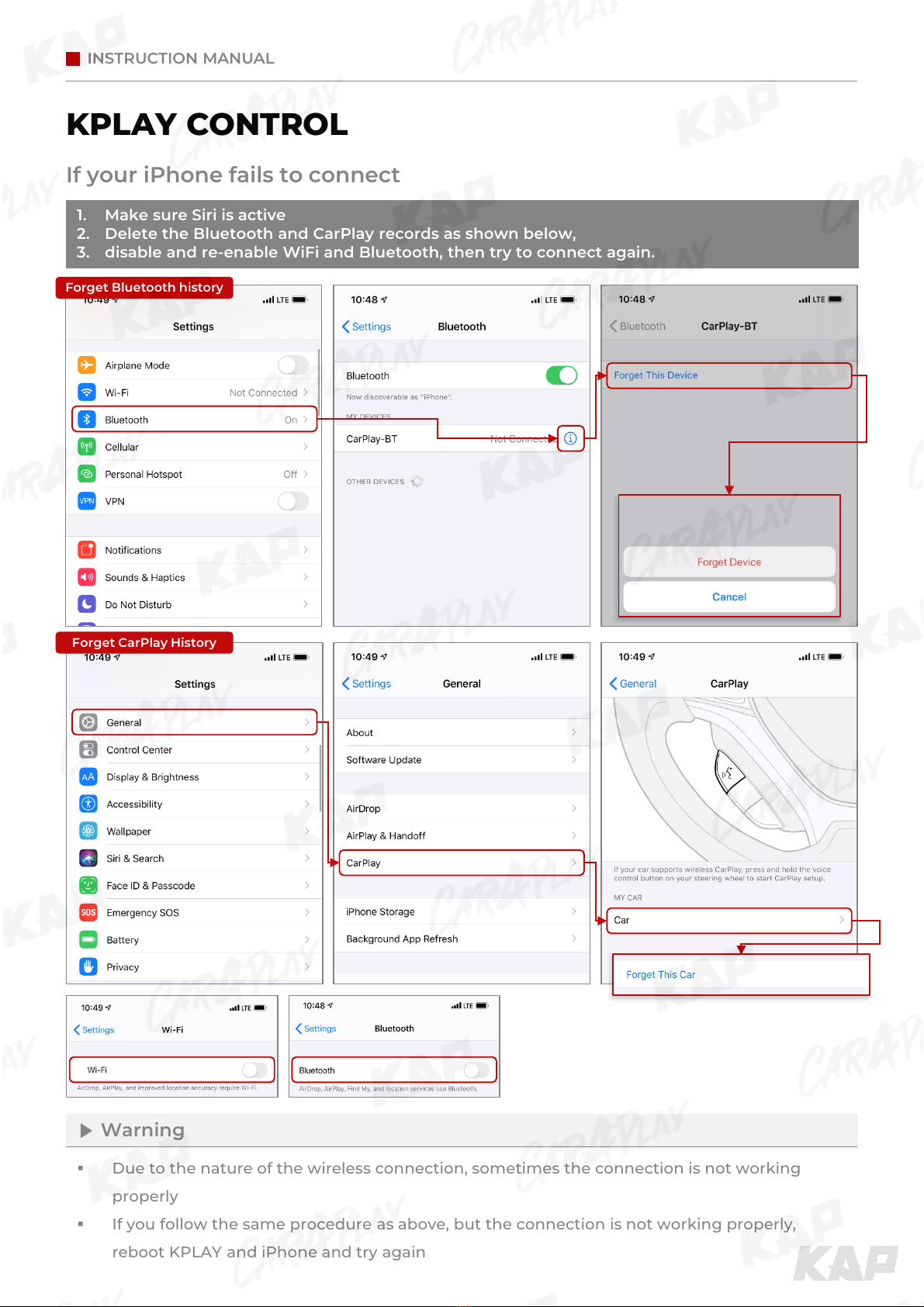

If your iPhone fails to connect
Forget Bluetooth history
1. Make sure Siri is active
2. Delete the Bluetooth and CarPlay records as shown below,
3. disable and re-enable WiFi and Bluetooth, then try to connect again.
Forget CarPlay History
▶Warning
Due to the nature of the wireless connection, sometimes the connection is not working
properly
If you follow the same procedure as above, but the connection is not working properly,
reboot KPLAY and iPhone and try again

INSTRUCTION MANUAL
KPLAY CONTROL

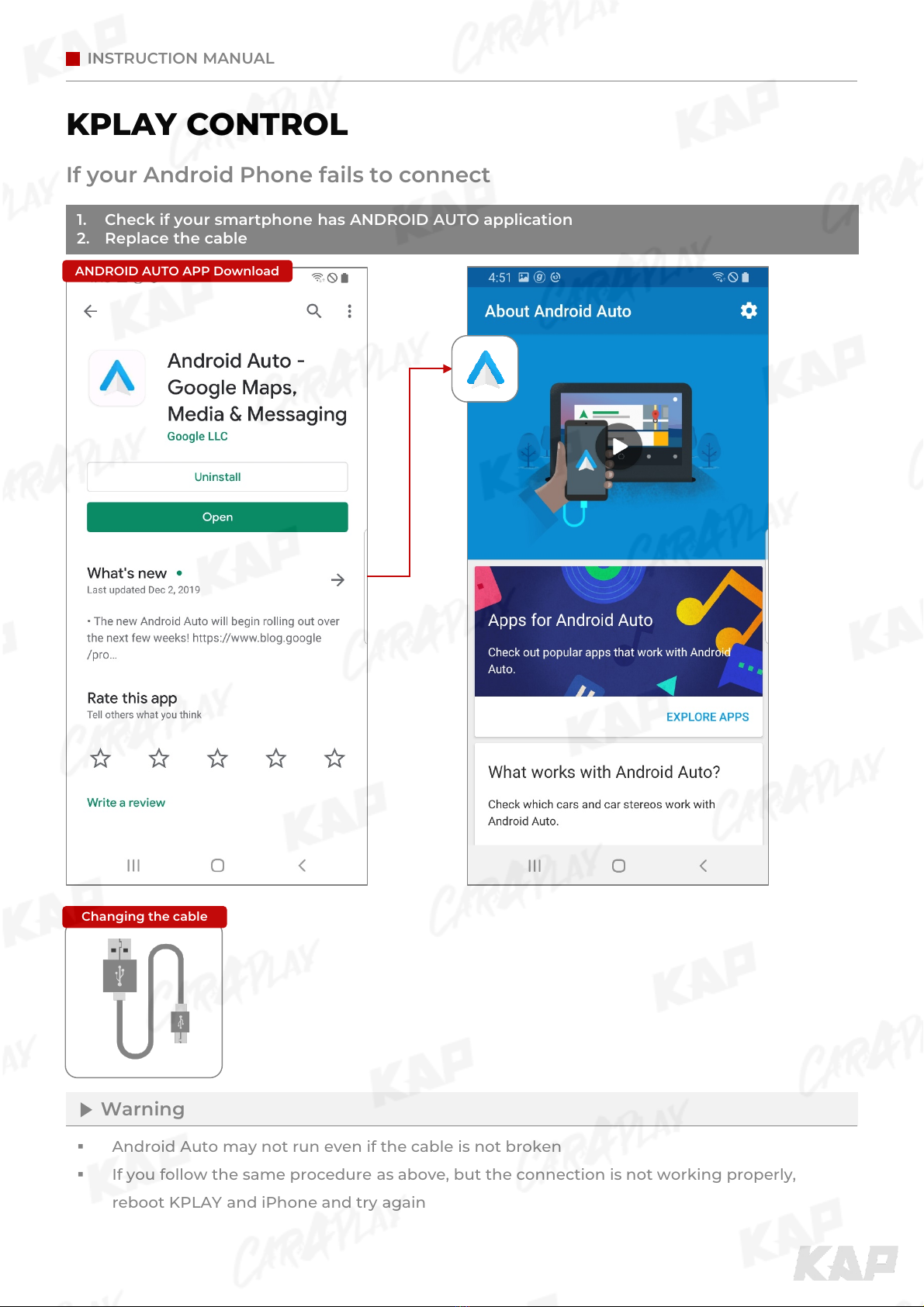

If your Android Phone fails to connect
▶Warning
Android Auto may not run even if the cable is not broken
If you follow the same procedure as above, but the connection is not working properly,
reboot KPLAY and iPhone and try again
ANDROID AUTO APP Download
1. Check if your smartphone has ANDROID AUTO application
2. Replace the cable
Changing the cable

INSTRUCTION MANUAL
FIRMWARE UPDATE
1. Add the firmware file provided in root folder
* of the USB
3. Select 'Sys Update' from the Settings menu
2. Connect USB to the KPLAY board with the
update file. The USB media will be scanned
automatically
Press the Home button on the top right
corner of the USB Media screen and select
the Settings menu
4. After the device reboots, check the
message and wait for the update to complete.
firmware files
Root folder
*Root folder : Top-level folder without adding folder
▶Warning
If USB with firmware is connected, the update will be performed every time the device is
rebooted

INSTRUCTION MANUAL
BUTTON CONTROL
Change Mode to Interface Screen
BUTTON PRESS FUNCTION
LEFT
VOICE
Long press OEM screen to interface screen
Interface screen to the OEM screen
▶Screen change sequence : OEM > NAVI > AV1 > AV2 > OEM
▶Warning
"Left" or "Voice" must be activated in Steering Wheel item in OSD menu
LEFT / VOICE

INSTRUCTION MANUAL
BUTTON CONTROL
Change Mode to Interface Screen
BUTTON PRESS FUNCTION
LEFT
VOICE
Long press OEM screen to interface screen
Interface screen to the OEM screen
▶Screen change sequence : OEM > NAVI > AV1 > AV2 > OEM
▶Warning
Turn on NO.8 on the dip-switch to use the following buttons.
"Left" or "Voice" must be activated in Steering Wheel item in OSD menu
LEFT / VOICE
ON 6 7 8

INSTRUCTION MANUAL
BUTTON CONTROL
Change Mode to Interface Screen
BUTTON PRESS FUNCTION
NAV
Long press OEM screen to interface screen
Interface screen to the OEM screen
▶Screen change sequence : OEM > NAVI > AV1 > AV2 > OEM
▶Warning
“NAV" must be activated in Steering Wheel item in OSD menu
NAV
