Kathrein FTR 100 User manual

1
1
User Manual
FTR 100 2220000012
Tag Reader

2
Introduction
Thank you for purchasing the KATHREIN Digital Systems GmbH tag reader. Please
take the time to read the following safety and installation information carefully and
attentively before using the tag reader. It is imperative to comply with these
instructions in order to ensure the safe operation of the device. If you have any further
questions, please contact your local retailer or KATHREIN Digital Systems GmbH
directly. Your tag reader was developed and built with state-of-the-art technology and
complies with European and German standards.
Please keep this manual safe to be able to answer possible questions in the future.
The manual is an integral part of the product even in case it is resold to a third party.
Disclaimer
All technical details and descriptions in this manual were compiled with the greatest
care. However, KATHREIN Digital Systems GmbH cannot entirely exclude mistakes in
this manual. Therefore, we do not assume any legal responsibility or liability resulting
from wrong information in this manual. Descriptions, technical illustrations and
technical data are subject to change without notice according to technical progress.
In addition, KATHREIN Digital Systems GmbH reserves the right to change the product
and the manual without prior notice. We do not assume any guarantee with regard to
the content of this document. We appreciate any comments on mistakes or
inaccuracies which may help us to improve this product and this manual.
This symbol is intended to attract the user’s attention to the potential
risk of dangerous unprotected voltage inside the housing. This may
lead to electric shock.
This symbol is intended to attract the user‘s attention to user and
maintenance instructions in the manual and documents enclosed
with the product.

3
WARNING:
TO MINIMISE THE RISK OF ELECTRIC SHOCK, YOU MUST NOT EXPOSE THIS PRODUCT
TO WET AND MOIST CONDITIONS AT ANY TIME.
All KATHREIN Digital Systems GmbH products are lead-free and meet
the requirements stated under the European Directive on the
Restriction of Hazardous Substances (RoHS). This guarantees that
the entire production process and the product itself are free of lead
and of all listed hazardous substances.
This product was tested and complies with the regularities for a class
of
digital devices stated under FCC part 15. These limits were
specified to provide reasonable protection against harmful exposure
when operating the device in a commerci
al environment. This
product generates, uses and
may emit radio energy. It may in
addition interfere with other radio
communication systems if not
installed or used according to this manual.
Using the device in
residential areas may cause disturbances to be possibly remedied at
the user’s expense.
Hereby KATHREIN Digital Systems GmbH declares that the tag reader
FTR 100 (order number 2220000012, EAN 4021121548895) is in
conformity with the relevant provisions of Directive 1999/5/EG.
Conformity:
The declaration of conformity is available at http://www.kathrein-ds.com in
the download section of the respective product. Alternatively, you can
request the declaration of conformity directly from us:
KATHREIN Digital Systems GmbH
Anton-Kathrein-Str. 1–3
83022 Rosenheim, Germany

4
Important Safety Information
WARNING
The warranty claim will expire in case of damages resulting from the
non-observance of this manual.
We do not assume any liability for consequential damages.
We do not assume any liability for damages to persons and/or
material whatsoever which result from improper handling or
noncompliance with the safety instructions. The warranty claim
will expire in such cases!
The tag reader FTR 100 is equipped with a high-quality housing. However, please
observe the following safety instructions:
•Operate the tag reader only with the provided batteries.
•Handle the tag reader with care, heavy vibrations or bumps may damage
the tag reader.
•Do not use the tag reader close to strong electric power lines or magnetic
fields, as this may impair the transmission quality significantly.
•Do not install the tag reader directly on iron or aluminium surfaces, as this
may impair the wireless transmission significantly. Use a non-conducting
material to insulate the device from the installation surface.
•Do not expose the tag reader to direct sunlight or strong sources of heat,
e.g. heaters.
•Do not expose the tag reader to moist, very cold or very hot environments.
Please observe the maximum humidity and temperature limits.
•Persons (including children) with limited physical, sensory or mental
abilities and/or lacking experience and/or knowledge must not use this
product.
•Keep children away from the tag reader and other connected electrical
appliances at all times. The tag reader includes cables, which may strangle
children, and small parts they can swallow. Assemble the tag reader out of
children’s reach. Do not leave packaging materials unattended, as they
may be dangerous for playing children.
•Use a damp cloth to clean the tag reader’s surface. Afterwards, dry the
surface. Cleaning agents will damage the surface.

5
Malfunctions and Defects
If you notice any kind of defect, remove the batteries from the tag reader FTR 100 and
contact your retailer or KATHREIN Digital Systems GmbH directly. Any further usage
of the tag reader may lead to fire or electric shock!
Intended Use
The KATHREIN Digital Systems GmbH FTR 100 tag reader is intended to arm or disarm
your FAZ 100 alarm panel. Any other use than that described in this manual is not
permitted and will lead to the expiry of any warranty or guarantee as well as to the
exclusion of liability. The same applies to modifications and retrofitting.
Disposal
Do not dispose of the device with domestic waste!
This product complies with the EU Directive on waste electrical and
electronic equipment (WEEE) and therefore must not be disposed of
with domestic waste. Dispose of the device via your local collection
point for waste electronic equipment!
This product contains software programs subject to the GPL free software license.
This product contains software that was developed by third parties and/or software
subject to the GNU General Public License (GPL) and/or the GNU Lesser General
Public License (LGPL). We will send you the source code of these programs on request.
The GPL and/or LGPL code used and offered in this product is EXCLUSIVE OF ANY
GUARANTEE WHATSOEVER and is subject to the copyright of one or several authors.
For further details, please refer to the GPL and/or LGPL code of this product and to
the terms of use of GPL and LGPL.
You can read the complete license text at http://www.gnu.org/licenses/gpl-2.0.html.
For an unofficial German translation, please go to
http://www.gnu.de/documents/gpl.de.html.

6
Tag reader FTR 100

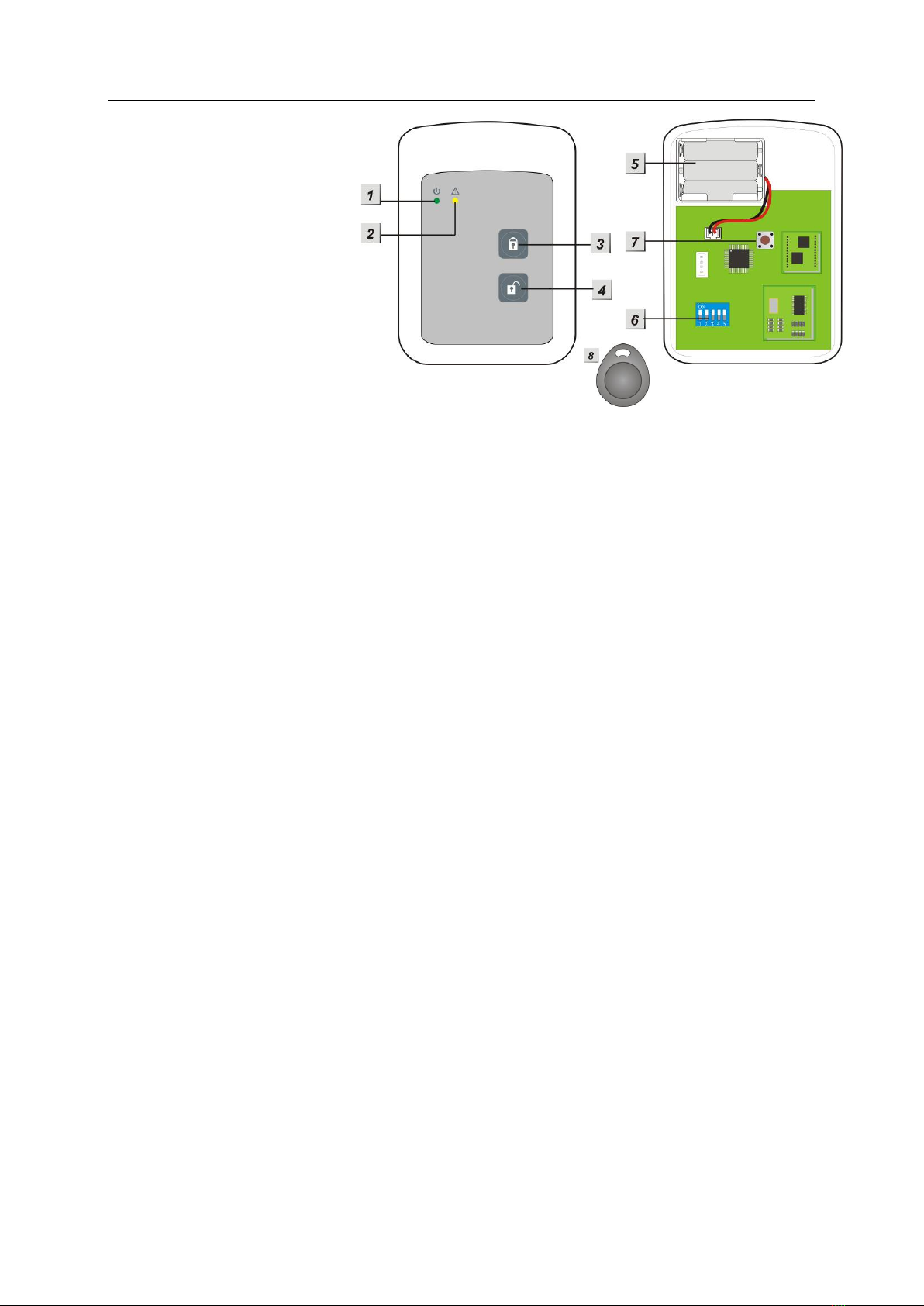

Product description:
1. Power LED (green)
2. Status LED (red)
3. Arm button
4. Disarm button
5. Batteries
6. Function switches
7. Tamper contact
8. Tag (watertight)
LED indicators:
In stand-by mode, both LEDs are off.
•Power LED (green):
oIf a button is pressed, the power LED lights up for 5 seconds to
indicate the readiness of the tag reader.
oThe power LED flashes instead of being on constantly to indicate a low
battery level.
•Status LED (red):
oFlashes fast upon signal transmission.
oIs permanently on in tag learn mode.
oFlashes in installation mode.
Battery:
•The tag reader requires three AAA 1.5 V alkaline batteries. The average
battery life is approx. four years (two activations per day).
•The tag reader indicates the low battery status by the power LED flashing.
The alarm panel is additionally informed about the battery status.
Power saving function:
•As long as the tag reader is not used, it does not consume any electric
power. Only when a button is pressed is the tag reader activated for 5
seconds.
•The tag reader automatically switches off again after 5 seconds.
Tamper protection:
•The tag reader is protected from unauthorised opening or removal.
•If the tamper contact is triggered, the power LED lights up and a warning
signal sounds. The alarm panel is informed about the tampering.
•If the alarm panel is armed, opening the tamper contact triggers an alarm.
•In learn mode, the tamper contact is deactivated.

7
Function switches:
If the tag reader’s housing is open, you will see the function switch block with five
switches. These switches are all set to OFF by default.
Installation of the tag reader:
1. Install the tag readers only indoors.
2. Remove the front of the tag reader by unscrewing the lower screw.
3. Use both screw holes to mark the drill holes at the wall.
4. Make sure that the tamper contact of the tag reader lies flat against the
mounting surface.
5. Screw the tag reader to the wall.
6. Insert the batteries. The power LED lights up for a few seconds and a signal
sounds.
Connecting the tag reader FTR 100 and putting it into operation
1. Open the menu “Sensors” “Add” and press “Start” in the web interface of
the alarm panel.
2. Start the installation mode of the Tag Reader by pressing the Arm or Disarm
button and then promptly setting switch 1(SW1) to ON. The Status LED starts
flashing and one long signal is followed by two short signal sounds.
3. Press the Disarm button of the tag reader.
4. The alarm panel indicates the tag reader as “Keypad” (XT1) or “Tag reader.”
5. Add the tag reader to the alarm panel.
6. End the installation mode of the tag reader by setting SW1 to OFF again,
which is acknowledged with four short signals. Then reinstall the front of the
tag reader by tightening the lower screw.
Note:
•The installation mode ends automatically after five minutes. To restart the
installation mode, you need to set SW1 to ON again.
•Make sure that the tampering contact of the tag reader is not pressed in
during the add process!
Switch no.
Position
Description
SW 1
ON Learn / add mode
OFF Normal operation (default)
SW 2
ON Factory settings
OFF Normal operation (default)
SW 3 OFF
System settings
MUST be OFF, as otherwise no
function
SW 4 OFF
SW 5 OFF Reserved

8
Add a tag to the tag reader:
1. Start the installation mode by pressing the Arm or Disarm button and then
promptly setting switch 1 (SW1) to ON. The status LED starts flashing and one
long signal is followed by two short signal sounds.
2. Press the Arm button once to start the tag learn mode. The status LED lights
up for five seconds and one signal sounds.
3. During this time, hold a tag in front of the tag reader. The status LED flashes
fast three times and two signals sound, indicating the successful integration
of a tag in the tag reader.
Please note:
•Only one signal indicates that this tag was already added.
•If you want to add several tags, hold them one after the other (at intervals
of 5 seconds) in front of the tag reader or restart the entire process.
•Exit the installation mode of the tag reader by setting SW1 back to OFF.
Range test:
To test the signal strength at the desired installation location, perform a range test.
1. Open the alarm panel menu “Sensors” “Range” and press “Start”.
2. Switch SW1 to “ON”.
3. The sensor and the signal strength should be indicated. The higher the
indicated number the better the reception (1 – 9).
4. Switch SW1 to “OFF”.
Please note:
If there is no signal at the installation location or the signal strength is below 4 or
frequently falls below this level (signal fluctuations of 2 to 3 are normal), we
recommend using a repeater to improve the signal.
How to use the tag reader:
After having completed the tag reader installation as described above, you can use
the tag reader as follows:
1. Arming/disarming:
Press the Arm or Disarm button once to activate the tag reader.
2. You have five seconds to hold a tag in front of the tag reader. If the tag is
recognized within this time, the alarm panel is armed or disarmed.
Caution:
If there are system errors in the alarm panel when the system is armed,
repeat the arming process w
ithin 10 seconds, since otherwise the
alarm panel remains disarmed! Alternatively, you can activate the
menu force “arming with failure” in the web interface of your alarm
panel.

9
Restoring the factory default:
1. Open the housing. Remove the batteries, and then press any button to
discharge any residual voltage.
2. Set switch 2 to ON, reinsert the batteries. The tag reader signals the reset
(including the deletion of the added tags) with an audio signal followed by
two more signals.
3. The status LED starts flashing. Set switch 2 to OFF again and close the
housing.
4. Delete the tag reader from the sensor list of the alarm panel.
Please note:
•After a reset, all added tags are also deleted from the tag reader.
•Tags can only be deleted by resetting the tag reader to the factory default.
It is impossible to delete individual tags from the configuration of the tag
reader.
•You can add an unlimited number of tags to the tag reader.
•You can add a tag to an unlimited number of tag readers.

10
For your notes
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________

11
For your notes
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________

12
For your notes
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
www.kathrein-ds.com | [e-mail] 9360000385/b/STM/0321/GB | Subject to change.
KATHREIN Digital Systems GmbH | Anton-Kathrein-Str. 1–3 | 83022 Rosenheim | Germany | Phone [phone]
