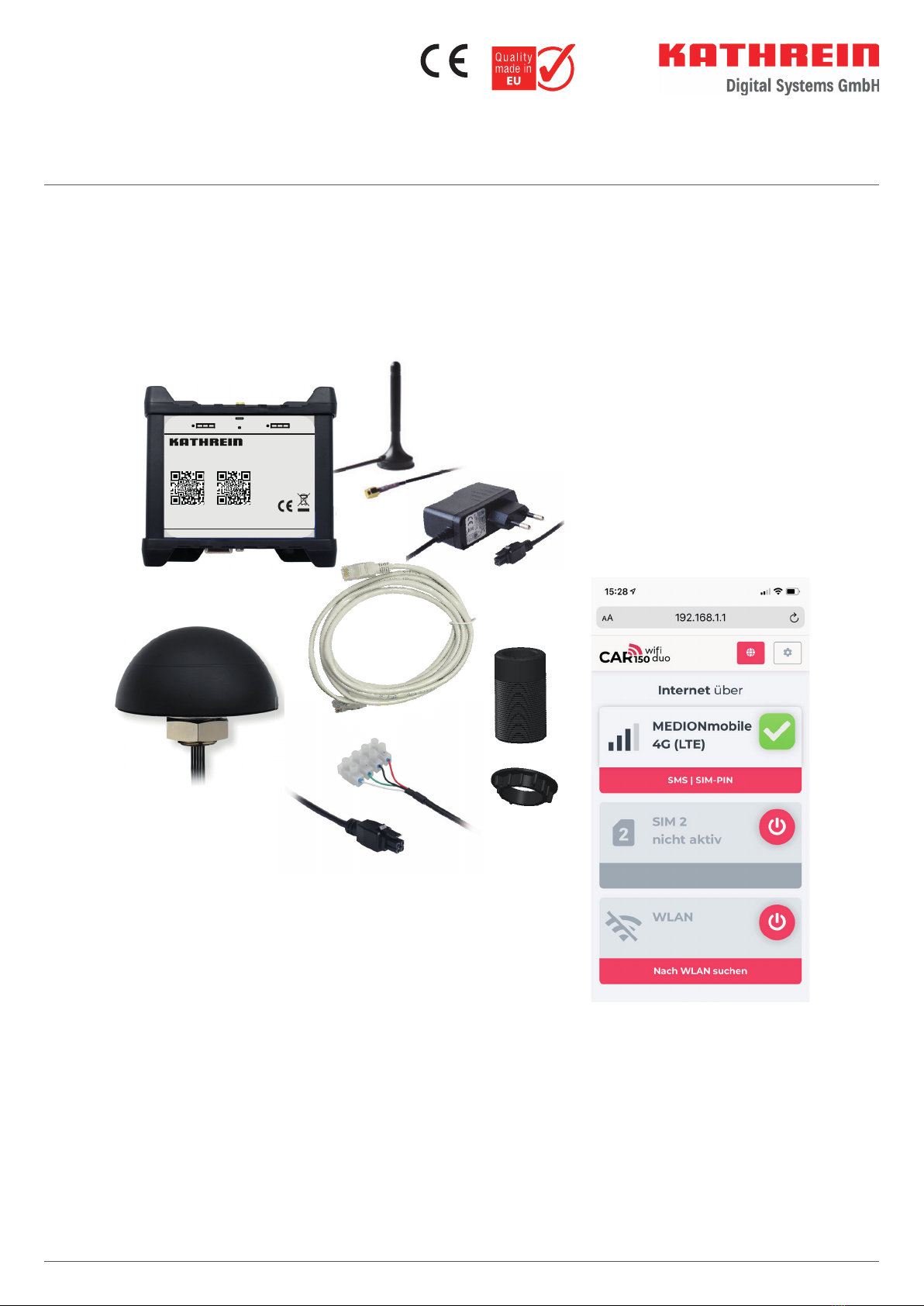

Kathrein CAR 150 WiFi Duo User manual

1 / 20
LTE/4G Dual-SIM WiFi Router Set
Instruction Manual
CAR 150 WiFi Duo 204500013
DE - 83022 Rosenheim
RESET
SIM 2 SIM 1
CAR 150 WiFi Duo 204500013
SSID: Kathrein_XXXX
Passwort: XXXXXXXX
Anmeldung:
http://192.168.1.1
LAN 1 LAN 2 LAN 3 WAN
Made in EU

2 / 20
Contents
About This Manual ...................................................................................................................................................4
Intended Use ...........................................................................................................................................................4
Features 4
Scope of Supply.......................................................................................................................................................5
Notes 5
Legal notes ..........................................................................................................................................................................................5
Safety instructions and general notes..................................................................................................................................................5
Connections and Displays ........................................................................................................................................6
Front view 6
Connection description: power supply plug.........................................................................................................................................6
Back view 6
Installation and Connection ..................................................................................................................................... 7
Tools required ...................................................................................................................................................................................... 7
Dimensions external antenna, cable specification ............................................................................................................................... 7
Mounting the external antenna ........................................................................................................................................................... 7
... using the Kathrein roof gland............................................................................................................................................................................. 7
... with nut and washers.........................................................................................................................................................................................8
Getting Started ........................................................................................................................................................8
Connecting the router..........................................................................................................................................................................8
QR codes on the housing.....................................................................................................................................................................8
Connecting the end device to the router .............................................................................................................................................8
... via the QR code ..................................................................................................................................................................................................8
... manually by entering the access data ................................................................................................................................................................8
Open the router’s web interface ..........................................................................................................................................................9
... via the QR code ..................................................................................................................................................................................................9
... manually by entering the access data ................................................................................................................................................................9
Insert the SIM card(s) ..........................................................................................................................................................................9
Initial login to the router ......................................................................................................................................................................9
After Successful Start-up ....................................................................................................................................... 10
Icons used in the web interface ......................................................................................................................................................... 10
Connecting to the Internet ................................................................................................................................................................ 10
... via SIM1 or SIM2 .............................................................................................................................................................................................. 10
... via WiFi 11
SIM settings........................................................................................................................................................................................12
PUK code 12
General Router Settings ......................................................................................................................................... 13
Troubleshooting..................................................................................................................................................... 13
Reset to Factory Settings........................................................................................................................................ 13

3 / 20
Technical Data ....................................................................................................................................................... 14
Open Source.......................................................................................................................................................... 15
Addresses .............................................................................................................................................................. 15
Service and support........................................................................................................................................................................... 15
Factory repair centre.......................................................................................................................................................................... 15
Service partners................................................................................................................................................................................. 15
Disposal 15

4 / 20
About This Manual
This document is part of the product.
►Read the instruction manual before using the CAR 150 WiFi Duo router set for the first time.
►Perform all operating steps described in the manual in the specified sequence.
►Keep this manual in a safe place for future reference and include it with the unit when passing it on to the next user.
For the most up-to-date version of this document, go to www.kathrein-ds.com.
Features
WiFi/LTE router for caravans and campers
Internet via mobile (LTE) or WiFi network
Two SIM card slots for use of various networks, e.g. D1 and Vodafone, or local providers abroad
12 V or 230 V power supply possible
Connections: 5x antenna, 4x Ethernet, 1x USB and many more
MIMO external antenna for perfect LTE/WiFi reception
Use of existing WiFi networks, e.g. at campsites/restaurants/...
English-speaking service hotline, Made in the EC
Low energy consumption
Easy to operate
Future-proof due to update option via the Internet
Internet also available while driving and internationally
Intended Use
The CAR 150 WiFi Duo LTE/4G dual-SIM WiFi router set enables the connection of mobile devices (mobile phone, tablet,
notebook) to the Internet via a WiFi network or the mobile data of an inserted SIM card.
Any other use will invalidate the warranty or guarantee.
The following circumstances will result in the loss of all warranty and liability claims towards the manufacturer:
■Improper installation
■Use of non-specified mounting materials which cannot guarantee the mechanical safety of the router
■Structural changes or interference with the components and mounting accessories of the set, which may endanger
both the mechanical and functional safety
■Opening the components improperly or by force
■Use of solvent-containing cleaners such as acetone, nitro-thinner, petrol or similar
■Non-observance of installation and safety instructions in this manual
A suitable data SIM card (not included in the scope of supply) is required to establish an Internet connection
to the CAR 150 WiFi Duo. You are free to choose a provider. The choice of the most suitable provider for you
depends on several factors, for example:
■How much you want to spend
■What kind of data you want to stream (surfing, audio, video)
■The data volume required
■Where you are travelling

5 / 20
Scope of Supply
Router
Internal WiFi antenna
230 V power supply unit
Ethernet cable 1.5 m
Roof antenna
Roof duct including fastening screw and knurled nut
12 V connection cable
Scope of supply CAR 150 WiFi Duo
Scope of supply CAR 150 WiFi Duo
DE - 83022 Rosenheim
RESET
SIM 2 SIM 1
CAR 150 WiFi Duo 204500013
SSID: Kathrein_XXXX
Passwort: XXXXXXXX
Anmeldung:
http://192.168.1.1
LAN 1 LAN 2 LAN 3 WAN
Made in EU






Notes
Legal notes
Safety instructions and general notes
KATHREIN Digital Systems GmbH herewith declare that the CAR 150 WiFi Duo (order no. 204500013) is in conformity with
Directive 2014/53/EC. The full text of the EC Declaration of Conformity is available at www.kathrein-ds.com.
KATHREIN Digital Systems GmbH are not liable for product damage due to external influences, wear or improper
handling, unauthorised repair, modifications or accidents.
Danger to life from electric shock when touching electrical installations!
►Maintain a minimum clearance of 1 m from all electrical devices.
►When mounting/repairing/dismantling the router set, disconnect all devices from the mains.
►Make sure that modifications to the electrical installations in the vehicle are only carried out by a
specialist. Never make any unauthorised changes to the electrical installation!

6 / 20
Risk of severe injuries during installation/repairs/dismantling on the vehicle roof!
►Position the vehicle horizontally.
►Wear stable shoes with non-slip soles.
►Use a working platform.
►Make sure that the person carrying out the installation or repair has a secure position to stand and hold
on whilst working.
►Make sure that the person carrying out the installation or repair does not suer from vertigo and can
move around safely on the roof of the caravan or motor home.
►Make sure that the vehicle roof is suciently strong and stable. If in doubt, contact a qualified specialist
dealer or the manufacturer of your vehicle.
►Make sure that the roof and climbing aid are dry, clean and non-slip.
Risk of damage to the router set!
► Risk of collision of the external antenna with objects due to the increase in vehicle height.
► Do not clean the vehicle in a car wash or with a high-pressure cleaner when the CAR 150 WiFi Duo is mounted.
Connections and Displays
Front view Back view
1
2
3
5
4
6
78
9
10
11
1
2
3 5
4
6
7
8
9
10
LAN ports
WAN port
RS485 interface
WAN LED
LED display: signal strength
LED display: mobile connection
Connections: input/output
RS232 interface
Power LED
Connection for power supply
LAN LEDs
Connection LTE Aux
Card holder SIM1
Connection GPS antenna
Card holder SIM2
Connection LTE main
Connection WiFi main (external antenna)
Tool for opening the card holders and for pressing
the reset button (SIM needle)
Reset button
Connection WiFi Aux (internal antenna)
USB port

7 / 20
Installation and Connection
Tools required
■Power drill
■Open-end or ring spanner (SW41)
■Circular drill, ∅ 38 or 27 mm
■Round file and/or sandpaper
■Cleaning agents
When positioning the external antenna and the router, make sure that they are no further than 2.8 m apart,
as it is not possible to extend the cables of the external antenna.
Dimensions external antenna, cable specification
110
LTE Aux LTE Main
WiFi Main
WiFi Aux
GPS
27 53
1,8
WiFi Main/Aux = black
LTE Main/Aux = purple
GPS = blue
M27
Connection description: power supply plug
12 V (red cable)
Ground (black cable)
unallocated
unallocated

8 / 20
Mounting the external antenna ...
... using the Kathrein roof gland
1. Remove the pre-assembled nut (M27) and the two
washers.
1. Clean and mark the installation site.
2. Drill a ∅ 38 mm hole in the roof according to the
marking.
3. Deburr and clean the drill hole.
4. Feed the antenna cables through the roof gland
supplied (observe the correct position!) and screw
them onto the antenna thread until just before the
stop. Screwing on the roof duct first makes it easier to
centre it in the roof hole.
5. Run the cables from the outside through the roof hole
to the inside.
6. Remove the backing from the adhesive pad of the
antenna.
7. Now screw the roof gland onto the thread of the
antenna as far as it will go.
8. Position the antenna correctly and press it down well
(the entire surface must have contact).
9. Run the antenna cable into the interior through the
knurled nut provided.
10. Screw the knurled nut onto the roof gland (hand-
tighten) to secure the antenna.
Auslieferungszustand:
Mutter und Scheiben vormontiert
Trägerfolie
ø38

9 / 20
... with nut and washers
If the motorhome or caravan has a very thin roof struc-
ture, the two washers and the M27 nut may be used for
mounting. In this case, a ∅ 27 mm hole must be drilled.
All further mounting steps can be seen at „Außenantenne
montieren ...“ „... mit Kathrein-Dachdurchführung“ auf Seite 8.
The only dierence to the installation with the ∅ 38 mm
roof gland is that the cables must be run from the inside
to the outside before the washers and the nut are screwed
on.
Getting Started
QR codes on the housing
DE - 83022 Rosenheim
RESET
SIM 2 SIM 1
CAR 150 WiFi Duo 204500013
SSID: Kathrein_XXXX
Passwort: XXXXXXXX
Anmeldung:
http://192.168.1.1
LAN 1 LAN 2 LAN 3 WAN
Made in EU
Use the QR code on the left side or the access data below it to connect
your end device to the router
Use the QR code on the right side or the access data below it to open the
web interface of the router
Connecting the router
1. Connect the cables coming from the external antenna to the router as indicated.
1. We recommend connecting the indoor antenna to the WiFi aux input of the router (not the corresponding cable from
the external antenna).
2. Connect the power supply input of the router either to the on-board power supply using the 12 V connection cable or
to a socket using the 230 V plug-in power supply unit.
3. Connect your end device either wirelessly to the router (see „Connecting the end device to the router ...“ on page 9) or by
connecting it to the LAN port using a network cable.
Connecting the end device to the router ...
... via the QR code
... manually by entering the access data
■Use the camera or an app for scanning QR codes on your end device
■Scan the left QR code
■A connection between your end device and the router’s WiFi network is automatically established
■Open the WiFi settings on your mobile device and select the “Kathrein_xxx” WiFi network
■Enter the password indicated under the left QR code
■The mobile device will be connected to the router
Montage Dachantenne:
Mutter und Scheiben müssen
erst demontiert werden

10 / 20
Open the router’s web interface ...
... via the QR code
... manually by entering the access data
■Use the camera or an app for scanning QR codes on your end device
■Scan the QR code on the right
■Open the scanned link in the browser and register
■Open the browser in your mobile device
■Enter “http://192.168.1.1” and register
Insert the SIM card(s)
When inserting your SIM card into the router, proceed as follows:
1. Start the router without SIM card.
2. In the settings menu of the desired SIM card, enter the corresponding SIM PIN and save it.
3. Switch o the router.
4. Press the SIM needle into the hole next to the desired card holder (SIM1 or SIM2).
5. After pressing lightly, the card holder snaps open and you can take it out.
6. Place your SIM card (full-size) in the card holder.
7. Then push the card holder back into the router and start it.
As connection prices vary greatly from country to country, choosing the right SIM card is often dicult.
Another aspect is that the network coverage of the mobile phone providers also varies greatly. To solve this
problem, the router of the CAR 150 WiFi Duo has two SIM card slots. This gives you the option of using the
second card of your existing mobile phone contract and additionally a prepaid SIM card of your holiday destination.
Initial login to the router
When accessing the web interface of the router for the first time, a new access password must be assigned. You will
need this newly created password every time you access the web interface of the router in the future.
After successful
login, you will
see this window.

11 / 20
Icons used in the web interface
Click on this icon to select the transmission path (SIM1, SIM2, WiFi) for establishing an Internet connection.
Transmission path selected, no connection to the Internet yet.
Internet connection established without restriction.
Registration is required for Internet use. Click on this icon to register with the provider.
Homepage of the web interface
Click on this icon to make settings for the router (see „General Router Settings“ on page 15).
After Successful Start-up
Connecting to the Internet ...
... via SIM1 or SIM2
Click on the red icon to establish the Internet connection via SIM1 or SIM2. Successful connection is indicated by a
green tick.
After activation, you can read SMS messages or make settings on the SIM card, see „SIM settings“ on page 14.
If connections (mobile or WiFi) have already been successfully set up on the router, the active connection is
displayed with a tick after login.

12 / 20
... via WiFi
If a WiFi network has already been selected, it can be accessed.
If you want to use a new or dierent WiFi network for your Internet connection, select "Search for WiFi" or "Search for
other WiFi" on the home screen.
After the successful search, all available WiFi networks are displayed with the respective signal strengths.
Even with an existing mobile phone connection (SIM1/SIM2), you can always check whether WiFi networks
are available by clicking on the "Search for other WiFi" button.

13 / 20
After selecting the desired WiFi network, enter the corresponding password or network key. The router will connect to
the selected WiFi network.
There are open WiFi networks where you do not need a password to connect.
And there are WiFi networks where authentication is required to log on to the network. In this case, the following icon
will pop up . You will get the user name and password from your WiFi provider on site.

14 / 20
SIM settings
In the SIM settings, you have the option of reading received SMS messages. This is important, for example, if your mobile
phone provider informs you that your data volume is almost used up or the download speed has been reduced.
You can also enter the PIN number of your SIM card, activate or deactivate data roaming and auto APN.
PUK code
If the wrong SIM PIN is entered three times in a row, the SIM card is blocked. It can only be unlocked again by entering
the PUK (Personal Unblocking Key). You will find the PUK in the documentation of your SIM card.

15 / 20
Use this page to change the router’s WiFi network name and the
corresponding password. If you make changes here, the infor-
mation on the left QR code of the sticker on the router is no
longer valid!
Use this page to change the router password required for
opening the web interface.
Use this page to check whether the router software is up-to-date. If not, the most up-to-date software can be installed.
General Router Settings

16 / 20
Troubleshooting
Reset to Factory Settings
Error: No Internet with SIM1/SIM2 (tick remains yellow)
Reasons:
– Data volume is used up (check SMS)
– Contract expired (check SMS)
– Network coverage poor/not available -> check signal level on home page
– Check APN settings. Ask provider for APN settings
Error: No Internet with WiFi (tick remains yellow)
Reasons:
– Wrong WiFi password
– Selected WiFi network has no Internet access
– Signal level too low
Error: Login to the web interface not possible
– If you have forgotten the password, perform a factory reset (SIM PINs are not deleted)
In case of other errors, it is recommended to perform a factory reset
Use the SIM needle to press and hold the reset button for 6 seconds. The five LEDs for signal strength will all come on
one by one. When all are o again, the reset button can be released. The SIM PINs will not be deleted.

17 / 20
Technical Data
Type | Order No. CAR 150 WiFi Duo | 20110032
Router
Antenna connections 2 x SMA for LTE/2 x RP-SMA for WiFi/1 x SMA for GPS
Ethernet connections 3 x LAN
1 x WAN
Other connections 1 x USB host, 1 x MicroSD
Mobile communication standards 4G/LTE (Cat 4), 3G, 2G
WiFi standard IEEE 802.11b/g/n
WiFi security WPA2-PSK
Input voltage range V 9–30
Current drain, typ. mA 170
Power consumption, typ. W 2
Permissible ambient temperature °C -40 to +75
Dimensions (W x H x D) mm 109 x 50 x 103
Weight kg 0.295
Antenna
GNSS
Frequency range MHz 1575.42–1610
Polarisation RHCP
LNA gain dB 28 ±2
Impedance Ω50
Connections SMA connector
LTE
Frequency range MHz 698–960/1710–2690
Polarisation Linear
Gain dBi 3
Impedance Ω50
Connections 2 x SMA connector
WiFi
Frequency range MHz 2400–2483.5/4900–5825
Polarisation Linear
Gain dBi 2
Impedance Ω50
Connections 2 x RP-SMA connector
Mechanical data
Protection class IP67
Weight g approx. 550
Dimensions mm ∅110 x 55

Disposal
Electronic equipment
Electronic equipment is not domestic waste – in accordance with directive 2012/19/EC OF THE EUROPEAN
PARLIAMENT AND THE COUNCIL dated 04th July 2012 concerning used electrical and electronic appliances,
it must be disposed of properly. At the end of its service life, take this unit to a designated public collection
point for disposal.
Service and support
Customer support
Eiselauer Weg 13
89081 Ulm, Germany
Phone: [phone]
Email: [email protected]
Business hours:
Mon to Thu 8am to 12pm and 12:45 to 5pm | Fri 8am to 1pm (CET)
Factory repair centre
CSS Caravan-Sat-Service GmbH
Bahnhofstr. 110
83224 Grassau, Germany
Phone: [phone]
Email: [email protected]
Service partners
Service partners can be found at:
https://www.kathrein-ds.com/support/servicestellen/
Addresses
Open Source
www.kathrein-ds.com | [e-mail] 936500089/a/A5/STM/0721/GB | Subject to change.
KATHREIN Digital Systems GmbH | Anton-Kathrein-Str. 1–3 | 83022 Rosenheim | Germany | Phone [phone]
The CAR 150 WiFi Duo contains open source software. Details can be found at “Router settings” -> “Licensing informa-
tion”.

For your notes

For your notes
