MULTI-ELECTRODE ELECTRICAL RESISTIVITY & INDUCED
POLARIZATION IMAGING INSTRUMENTS
MODEL: SibER 64К15
СК.64К15.01РЭ

INSTRUCTION MANUAL
The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019
2
1. Description and work
1.1 Purpose and scope
The equipment is designed to perform ground (including profile, areal, borehole)
electrical exploration by methods of resistance and induced polarization in
modifications of electrical tomography and vertical electrical sensing.
1.2 Instrument panel
1. The power supply terminals.
2. Power ON/OFF.
3. Automatic protection.
4. The connectors of the electrode cable.
5. Charger connector.
6. LAN connector.
1
2
3
6
4
5
7
8
9
10

INSTRUCTION MANUAL
The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019
3
7. Power indicator.
8. Terminals for connection of remote electrodes 0, 65 and measuring electrodes M, N.
9. Source output terminals for diagnostics and connection of supply electrodes A, B.
10. Terminals for connecting an external source.
1.3 Specifications
General
Electrodes: 2 x 32 + 2 remote
External power supply: 12V
Backup power: 12V, 2.3 Ah
Interface: Wi-Fi, Ethernet
Degree of protection: IP67 (transport), IP54 (operation)
Working temperature: -20 ... +50 °C
Dimensions: 502 x 415 x 246 mm
Weight: 17 kg
Multi-channel meter
Number of channels: 15
Input impedance: 10 MOhm
Number of counts: 1 ... Five hundred
Sample rate: 50, 60Hz
ADC bit rate: 24 bit
Input voltage: -20 ... 20 V

INSTRUCTION MANUAL
The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019
4
Resolution: 1 µv
Industrial frequency interference suppression: at least 90 dB
Overvoltage protection: up to 1kV
Power module
Protection against reverse polarity at the entrance: Yes
Supply voltage range: 10.5 ... 15 V
Indication of lack of power: sound, led

INSTRUCTION MANUAL
The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019
5
1.4 Flow chart
EC - Control and communication Module.
𝜇
SD - MicroSD memory Card.
Wi-Fi - is a wireless communication Module.
ETH - Wired communication Module.
DB - Data Bus.
POW - Power Lines.
CH - Charger connection Connector.
SM - Power management Module.
LED - POWER Led on the dashboard.
12 V, 2.3 A*h - Backup battery.

INSTRUCTION MANUAL
The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019
6
CB - Circuit breaker on the instrument panel.
S - Toggle switch on the dashboard.
+ - - The power supply terminals on the dashboard.
12 V - External rechargeable battery.
RX - is a multi-channel meter.
RX1...RX13 - Measure the input voltage.
RX14 - Output voltage Meter.
RX15 - Output current Meter.
A B - Source Output terminals on the instrument panel.
R - Current shunt.
TX - Source.
SW - Switch.
0 ... 65 - Number of the output lines of the switch.
1-32 - connector “1-32 " on the dashboard.
j ... A - connector pin Numbers “1-32”.
33-64 - connector “33-64 " on the dashboard.
A ... j - connector pin Numbers “33-64".
0/M 65/N - Terminals "0/M 65/N" on the dashboard.
TC - Source Controller.
A/B/SYNC - Terminals to connect an external source to the dashboard.
1.5 Device and principle of operation
1. The control and communication module controls the devices included in the
equipment and communicates with the external control panel and data acquisition.
2. The MicroSD card stores the control and communication module software.

INSTRUCTION MANUAL
The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019
7
3. The wireless communication module is designed to connect and exchange data with
an external control panel and collect data via a wireless Wi-Fi network.
4. The wired communication module is designed to connect and exchange data with an
external control panel and collect data via a wired Ethernet network.
5. The data bus links the devices that make up the equipment into a single network for
internal data transmission.
6. The power lines controlled by the power management module are designed to power
the devices included in the equipment.
7. The power management module performs diagnostic (power status monitoring) and
protective functions (emergency shutdown of individual or all power lines due to short
circuits or insufficient supply voltages).
8. The external battery (not included in the equipment) is connected to the power
terminals on the dashboard and is designed to power the devices included in the
equipment.
9. The “POWER" led on the dashboard is used to indicate the status of the external
power supply (lit continuously with normal power, flickers when there is insufficient
power or no power).
10. Backup battery (included in the equipment) and is designed for backup power of
some devices included in the equipment, in moments of insufficient external power.
11. The source creates rectangular voltage pulses of positive and negative polarity of a
given amplitude and duration in the load.
12. An external source (not included in the equipment) is used as a more powerful
alternative.
13. The circuit breaker on the dashboard is designed to protect against a short circuit
inside the source.

INSTRUCTION MANUAL
The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019
8
14. The multichannel meter registers instantaneous values of input voltage, output
voltage of the source, output current of the source (through the current shunt).
15. The source controller switches the input of the active source and controls the
operation of the external source.
16. The switch is designed for switching the supply lines of the source and the measuring
lines of the multichannel meter to the contacts of the electrode cable and the connectors
of the remote electrodes.
17. The output terminals of the source on the instrument panel are designed for operation
by the method of vertical electrical sensing and diagnostics of the equipment.
18. Connectors "1-32" and "33-64" are intended for connection of electrode cables with
corresponding numbers of electrodes.
19. The external source connection terminals are used to connect to the corresponding
external source terminals.
The instrument performs:
1. Measurement of transient resistance of the electrodes after they are ground.
2. Switching of feeding and measuring electrode in a multi electrode cable.
3. Excitation of electric current in the supply lines of electrical installations
4. Registration of instantaneous values of the source output current.
5. Registration of instantaneous value of input voltage.
6. Data transmission to the control panel and data collection.
1.6 Precautions

INSTRUCTION MANUAL
The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019
9
1. Do not touch the dashboard connectors and electrodes during operation to ensure
normal operation and because of the risk of electric shock.
2. Do not operate the equipment, if possible to allow moisture (splash, rain, snow) and
dirt into the dashboard and connectors, as well as prolonged exposure to direct
sunlight on the dashboard due to the risk of overheating of the equipment.
3. Do not inflect with much power the cable (winding cable on a coil with an inner
diameter of less than 100 mm, not arbitrary tightening of nodes). The minimum
bending radius of the geophysical cable is 50 mm. It is not allowed to move the
geophysical cable by pulling it over the surface to avoid exceeding the maximum load
on the spit elements.
4. Do not use the geophysical cable with visible mechanical damage.
5. Do not move the geophysical cable without the cover on the terminal connectors to
prevent moisture and dirt from getting inside, which can lead to equipment damage. It
is necessary to monitor the cleanliness of the contact pads on the cable and electrode
connectors (clips).

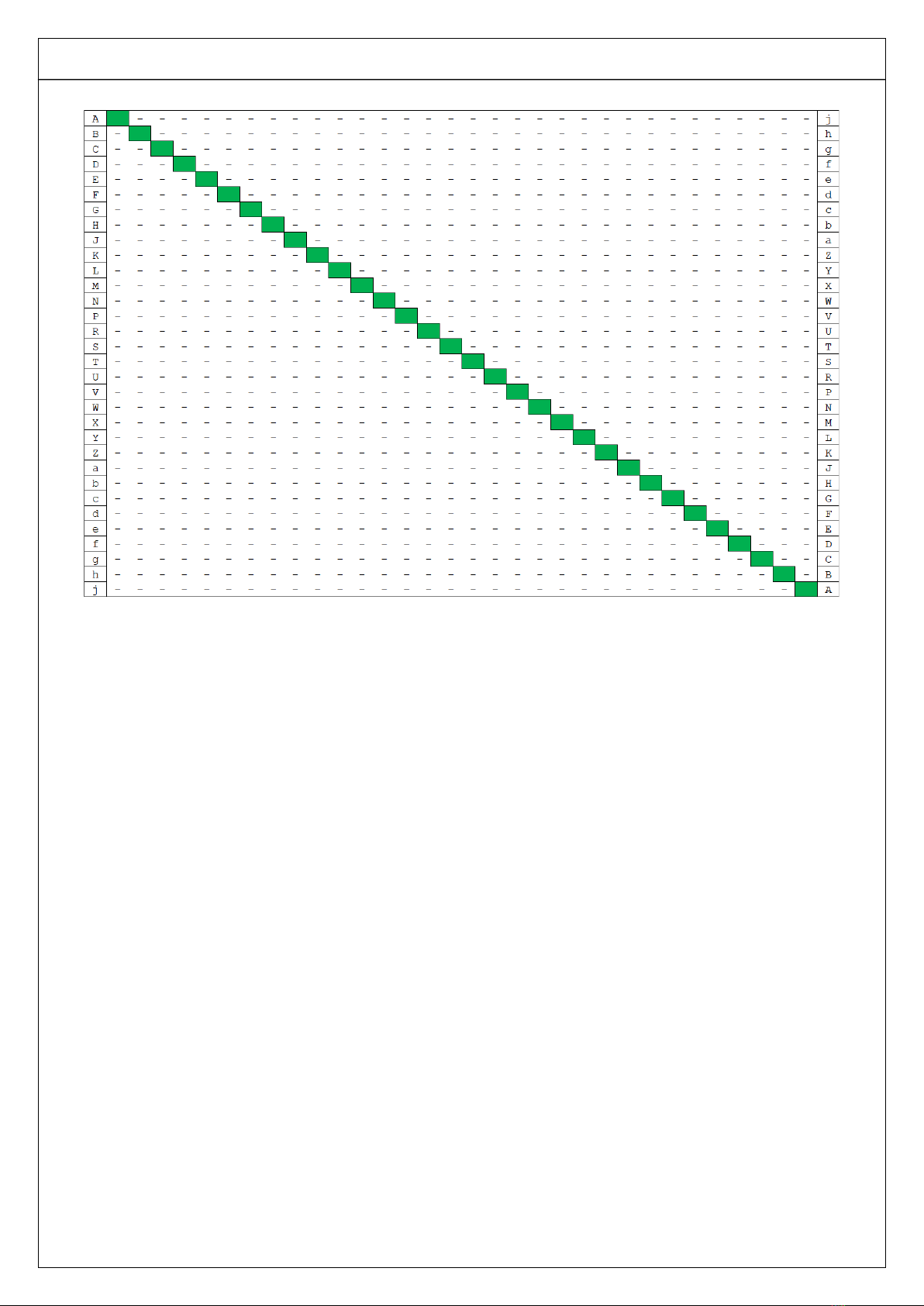

1.7 Scheme of the electrode cable

INSTRUCTION MANUAL
The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019
10
2. Intended use
2.1 power Supply
1. As power cables it is allowed to use insulated copper conductors with a cross section
of at least 6 mm2 and a length of not more than 1 m.
2. The terminals of the equipment, power cables and the external battery should be kept
clean and operated only with as much contact as possible.
3. The use of plug connectors for power supply is not allowed.
2.2 Working Procedure
1. Ground the electrodes and connect them to the electrode cable.
2. Connect the electrode cables and remote electrodes to the equipment.
3. Connect an external source if necessary.

INSTRUCTION MANUAL
The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019
11
4. If necessary, connect the equipment with an external remote control and data
acquisition by cable.
5. Observe the polarity and connect the power cables to the terminals of the equipment.
6. Observe the polarity and connect the power cables to the battery terminals.
7. Push toggle switch in the “ON” position.
8. Connect to a wireless network of Wi-Fi equipment.
9. Start the Xeris control program on the external control and data acquisition panel.
The description of the program is given in the operator's manual.
10. Connect to the equipment in the Session menu.
11. Perform an electrode grounding test in the electrode Test menu.
12. Start a measurement session in the menu "Start a new at session" or "Start a new
VES session".
13. After the measurement session is completed, perform the shutdown in reverse order.
2.3 MicroSD card
The MicroSD card stores the control and communication module software. If necessary,
you can replace the map or update its contents.
How to replace a MicroSD card:
1. Unscrew the 22 screws located on the edges of the dashboard.
2. Carefully remove the equipment from the case.
3. Remove the MicroSD card from the second top module on the left side.
2.4 Backup battery

INSTRUCTION MANUAL
The document was developed in accordance with the requirements of GOST 2.206 and was put into effect 27.11.2019
12
The backup battery requires regular charging regardless of the frequency of use of the
equipment. It is recommended to fully charge the battery before each use. For preventive
purposes, it is recommended to fully charge the battery at least once a month.
How to replace the backup battery:
1. Unscrew the 22 screws located on the edges of the dashboard.
2. Carefully remove the equipment from the case.
3. Disconnect the 2 power wires from the battery.
4. Carefully Unscrew the 4 screws securing the battery.
4. Replace the battery and assemble in reverse order.
