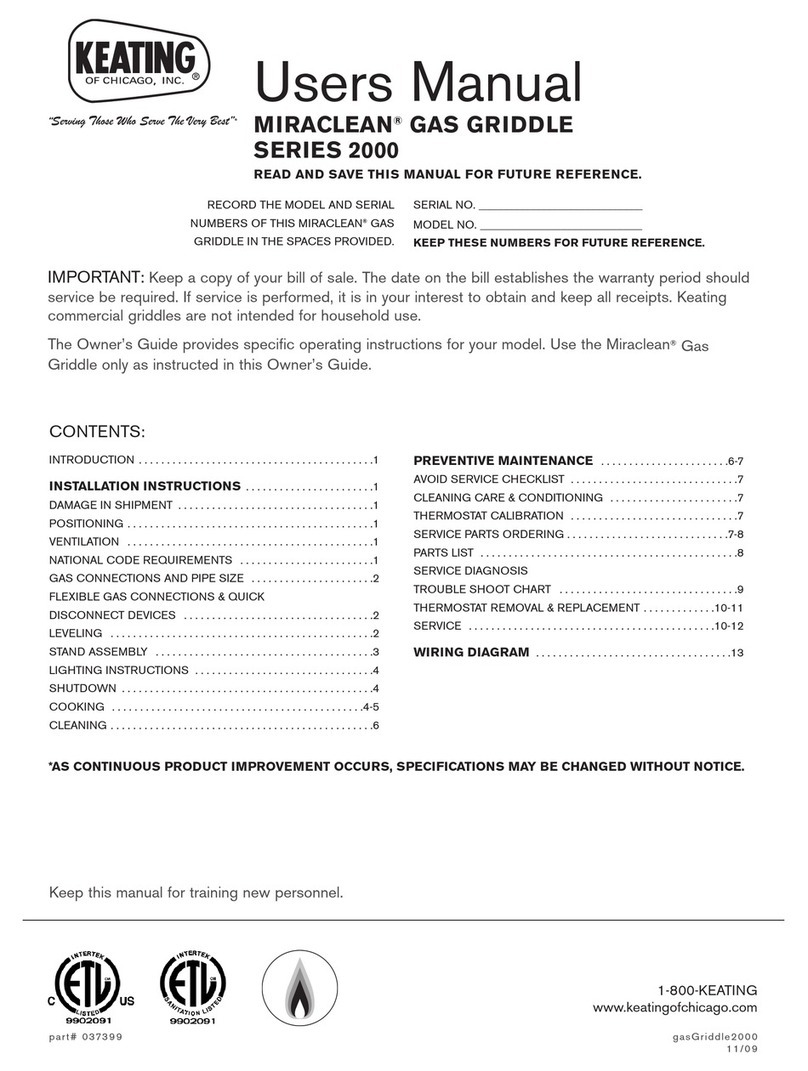

Users Manual

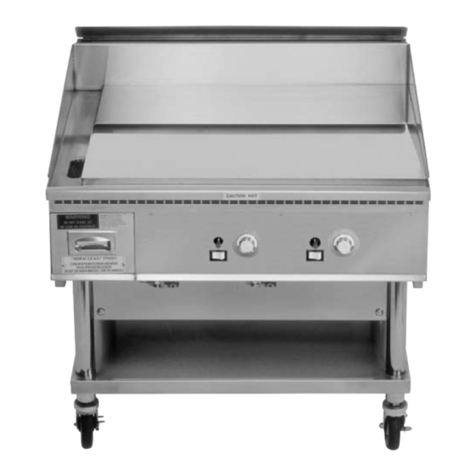

MIRACLEAN®GAS GRIDDLE
SERIES 2000
READ AND SAVE THIS MANUAL FOR FUTURE REFERENCE.
Keep this manual for training new personnel.
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . .1
DAMAGE IN SHIPMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
POSITIONING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
VENTILATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
NATIONAL CODE REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . .1
GAS CONNECTIONS AND PIPE SIZE . . . . . . . . . . . . . . . . . . . . . .2
FLEXIBLE GAS CONNECTIONS & QUICK
DISCONNECT DEVICES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
LEVELING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
STAND ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
LIGHTING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SHUTDOWN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
COOKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PREVENTIVE MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . .6-7
AVOID SERVICE CHECKLIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
CLEANING CARE & CONDITIONING . . . . . . . . . . . . . . . . . . . . . . .7
THERMOSTAT CALIBRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
SERVICE PARTS ORDERING . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-8
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
SERVICE DIAGNOSIS
TROUBLE SHOOT CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
THERMOSTAT REMOVAL & REPLACEMENT . . . . . . . . . . . . .11-12
SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-13
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
CONTENTS:
IMPORTANT: Keep a copy of your bill of sale. The date on the bill establishes the warranty period should
service be required. If service is performed, it is in your interest to obtain and keep all receipts. Keating
commercial griddles are not intended for household use.
The Owner’s Guide provides specific operating instructions for your model. Use the Miraclean®Gas
Griddle only as instructed in this Owner’s Guide.
gasGriddle2000
02/13
part# 037399
RECORD THE MODEL AND SERIAL
NUMBERS OF THIS MIRACLEAN®GAS
GRIDDLE IN THE SPACES PROVIDED.
SERIAL NO. ______________________________
MODEL NO. _____________________________
KEEP THESE NUMBERS FOR FUTURE REFERENCE.
*AS CONTINUOUS PRODUCT IMPROVEMENT OCCURS, SPECIFICATIONS MAY BE CHANGED WITHOUT NOTICE.

Improper installation,
adjustment, alteration,
service or maintenance
can cause property
damage, injury or death.
Read the installation,
operating and maintenance
instructions thoroughly
before installing or
servicing this equipment.
WARNING
Improper installation
can cause damage,
injury or death.
D
ShockBurnsGas
NOT INSTALLED, OPERATED AND MAIN-
TAINED IN ACCORDANCE WITH THE
MANUFACTURER'S INSTRUCTIONS,
THIS PRODUCT COULD EXPOSE YOU
TO SUBSTANCES IN FUEL OR IN FUEL
COMBUSTION WHICH CAN CAUSE
DEATH OR SERIOUS ILLNESS AND
WHICH ARE KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER, BIRTH
DEFECTS OR OTHER REPRODUCTIVE
HARM.
PROPANE GAS MAY EVENTUALLY LOSE
ITS ODOR AND PRECAUTIONS SHOULD BE
TAKEN TO ASSURE THAT PROPANE GAS IS
NOT PRESENT EVEN THOUGH YOU DO
NOT DETECT AN ODOR. IF THERE IS ANY
DOUBT, YOU SHOULD CALL YOUR LOCAL
PROPANE GAS SUPPLIER FOR ASSIS-
TANCE.
FOR YOUR SAFETY
Do not store or use
gasoline or other
flammable vapors or
liquids in the vicinity
of this or any other
appliance.
Purchaser should post in a prominent location instructions to
be followed in the event the user smells gas. This information
shall be obtained by consulting the local gas supplier.
THE EQUIPMENT IS TO BE
INSTALLED TO COMPLY WITH THE
BASIC PLUMBING CODE OF THE
BUILDING OFFICIALS AND CODE
ADMINISTRATORS INTERNATIONAL,
INC. (BOCA) AND THE FOOD SERV-
ICE SANITATION MANUAL OF THE
FOOD AND DRUG ADMINISTRATION
(FDA).
WARNING
Do not store flammable
liquids near this or any
other appliance.

INTRODUCTION
Instructions in this manual should be read thoroughly
before attempting to operate this Miraclean®Griddle.
All installation and service on Keating equipment must
be performed by qualified, certified, licensed and/or
authorized installation or service personnel.
Service information for Keating equipment has been
prepared for use by qualified and/or authorized
personnel.
Keating equipment is made in the U.S.A. and has
American sizes of hardware. All metric conversions are
approximate.
INSTALLATION INSTRUCTIONS
Proper installation will assure top performance.
Alteration to your equipment will void the warranty.
Before uncrating, check equipment carefully for
damage.
IF EQUIPMENT ARRIVES
DAMAGED
Keating does not assume responsibility for loss or
damage incurred in transit.
IMPORTANT
This merchandise has been thoroughly inspected and
carefully packed before leaving our plant.
Responsibility for its safe delivery was assumed by the
carrier at the time of shipment. Claims for loss or dam-
age to the contents should, therefore, be made upon
the carrier, as follows:
CONCEALED LOSS OR DAMAGE
Concealed loss or damage means loss or damage
which does not become apparent until the merchan-
dise has been unpacked. The contents may be dam-
aged in transit due to rough handling even though the
carton may not show external damage. When the dam-
age is discovered upon unpacking, make a written
request for inspection by the carrier’s agent within
fifteen days of the delivery date. Then file a claim with
the carrier since such damage is the carrier’s responsi-
bility. By following these instructions carefully, we
guarantee our full support of your claims to protect you
against loss from concealed damage.
VISIBLE LOSS OR DAMAGE
Any external evidence of loss or damage must be
noted on the freight bill or express receipt, and signed
by the carrier’s agent. Failure to adequately describe
such external evidence of loss or damage may result in
the carrier refusing to honor a damage claim. The form
required to file such a claim will be supplied by the
carrier.
DO NOT RETURN DAMAGED MERCHANDISE
TO KEATING FILE YOUR CLAIM AS ABOVE.
FIRST STEPS
POSITIONING
Keep appliance area free and clear of any
combustibles. Position the Miraclean®Griddle 6 inches
(152mm) from any combustible material. A minimum of
24 inches (610mm) should be provided at the front of
the Miraclean®Griddle for servicing and proper
operation. Air for combustion enters the Miraclean®
Griddle from the bottom of the cabinet and the bottom
of the control panel.
DO NOT BLOCK BOTTOM OF MIRACLEAN
GRIDDLE CABINET. DO NOT OBSTRUCT FLUE.
Your Miraclean®Griddle is designed to be serviced
from the front with adequate clearance for air openings
into the combustion chamber servicing and operation.
MINIMUM CLEARANCE
Suitable for non-combustible floors.
VENTILATION
The Miraclean®Griddle must be installed in an area
providing adequate air supply and ventilation. Do not
obstruct the flow of combustion and ventilation air.
Proper ventilation is one of the important conside
rations for efficient operation of the Miraclean®Griddle.
It should be installed so that the products of combus-
tion are removed efficiently without producing drafts
that will interfere with proper burner operation. The
area around the front and bottom of the Miraclean®
Griddle must be kept clear and unobstructed. In the
U.S.A. the ventilation systems must conform to the
ANSI/NFPA96 latest edition. “A minimum of 18"
(457mm) should be maintained between the flue outlet
and the lower edge of the grease filters.” It is the
responsibility of the owner and the local installer to
comply with national and local codes.
NATIONAL CODE REQUIREMENT
The installation must conform with local codes, or in the
absence of local codes, with the National Fuel Gas
code, ANSI Z223.1 or the Natural gas Installation
Code, CAN/CGA-B49.1 or the Propane Installation
Code, CAN/CGA-B149.2. Keating equipment is
designed and manufactured to operate only on the type
of gas specified by the user and indicated on the serial
plate located on the front panel. The gas may be
natural, propane or manufactured. The type of gas can-
not be converted to another gas fuel by turning or
engaging a switch.
NOTE: NOT FOR OUTDOOR INSTALLATION
1
Clearances Combustible Non-combustible
Construction Construction
Back 6" 0"
Right Side 6" 0"
Left Side 6" 0"

GAS CONNECTIONS AND PIPE SIZE
The Miraclean®Griddle requires a standard gas pipe
size of 3/4 inch (19mm) I.D. connection. The size of the
gas supply pipe is very important if the pipe is too small
you will have low gas pressure at the Miraclean®
Griddle manifold. Low gas pressure will cause slow
recovery and/or delayed ignition. If you have a question
about gas pipe size call your local gas company.
Before connecting new pipe to the Miraclean®Griddle
the pipe must be blown out to remove all foreign parti-
cles. These particles in the controls or burners may
cause improper or dangerous operating conditions.
Pipe joint compounds that are used on threaded joints
of appliance piping shall be resistant to the action of
liquified petroleum gases. When using pipe joint com-
pound do not apply to the first two threads. Use only
very small amount and only on male threads. This will
prevent clogging of burner orifices and the gas valve.
Never use compound on female threads as it might be
pushed into the gas valve.
Have your installer check for gas leaks using a soap
and water solution before operating. DO NOT USE AN
OPEN FLAME TO CHECK FOR GAS LEAKS.
1) The Miraclean®Griddle and its individual shut off
valves must be disconnected from the gas supply pip-
ing system during any pressure testing of that system
at test pressures in excess of 1/2 psi (3.45kPa) (13.84
in WC) High pressure can damage the gas valve caus-
ing a hazardous condition.
2.) The appliance must be isolated
from the gas supply piping system by
closing its individual manual shutoff
valve during any pressure testing of
the gas supply piping system at test
pressures equal to or less than 1/2 psi
(3.45 kPa).
The required gas pressure for proper
operation of each Miraclean®Griddle
is 4" water column for natural gas and 10" water col-
umn for propane gas at the manifold.
If more than one gas unit is on the same supply line,
you may require a larger line. Consult your local gas
company to assure adequate volume and pressure.
Refer to serial plate for proper gas requirement for your
particular model.
FLEXIBLE GAS CONNECTORS AND QUICK DIS-
CONNECT DEVICES
For an appliance equipped with casters:
The installation shall be made with a connector that
complies with the Standard for Connectors for Movable
Gas Appliances, ANSI Z21.69 or the Standard for
Connectors for Moveable Gas Appliances, CAN/CGA-
1.16, and a quick disconnect device that complies with
the Standard for Quick-Disconnect Devices for Use
With Gas Fuel, ANSI Z21.41 or the Standard for Quick
Disconnect devices for Use with Gas Fuel, CAN1-6.9.
RESTRAINING DEVICES
Adequate means must be provided to
limit the movement of the appliance
without depending on the connector
and the quick-disconnect device or its
associated piping to limit the appli-
ance movement.
Griddle installation on stands with
caster, casters and jam nuts must be
completely tightened.
The restraint means must be attached
to the rear of the Miraclean®Griddle within 2" of the
center line and approximately 1-5/8" from the bottom of
the cabinet back to allow the restraining bolt to be
anchored to the cabinet back between the cabinet bot-
tom and inner liner to ensure positive support to
restrain Miraclean®Griddle movement and not depend
on the flexible gas connector, quick-disconnect or pip-
ing to limit the Miraclean®Griddle movement.
If disconnection of the restraint is necessary, it must be
reconnected when the Miraclean®Griddle is returned to
its originally installed position.
LEVELING
The Miraclean®Griddle will operate at its highest effi-
ciency when properly leveled. Place a level on the
Miraclean®Griddle plate from side to side. For griddles
on legs, the bottom foot of the leg is adjustable. Turn
counterclockwise to decrease height, or clockwise to
increase height until level. For griddles on stands with
casters, the casters are adjustable by loosening the
jam nut. When the desired level is reached, tighten the
jam nut. Adjustments of more than 3/4" are not recom-
mended on any caster. The same procedure should be
followed to level the Miraclean®Griddle from front to
back.
2
WARNING
Do not use
open flame
to check for leaks.
NOTICE
Restraining devices
required.

ASSEMBLY INSTRUCTIONS FOR GRIDDLE
STAND ON CASTERS
(THERE IS NO TOP ON THIS STAND)
PLACING MIRACLEAN®
GRIDDLE IN OPERATION
(When all previous instructions have been completed).
Check the serial plate to determine if the burner is set
up for the proper type gas before connecting the quick-
disconnect or piping from the building gas supply pipe.
a. Gas pressure at manifold
NATURAL GAS – 4.0 in. W.C.
b. Gas pressure at manifold
LP GAS – 10 in. W.C. (2.49kPa).
c. Maximum incoming gas pressure
NATURAL GAS – 7 in. W.C. (2.01kPa).
d. Maximum incoming gas pressure
LP GAS – 11 in. W.C. (2.98kPa).
1. Connect incoming gas.
3

4
LIGHTING INSTRUCTIONS
MIRACLEAN®GRIDDLE
(See lighting instructions plate attached to front of MIR-
ACLEAN®Griddle).
Make sure that the main gas valve on the gas supply
line to the Miraclean®Griddle is in the “ON” position.
1. Turn gas valve knob to "pilot" position.
2. Push gas valve knob inwards and push the red
spark ignition button to light the pilot. Then hold the
knob for 90 seconds.
3. Release the pilot gas valve knob; pilot should
remain burning. Turn the knob to the ON position.
4. Turn ON/OFF switch to ON position.
5. Set thermostat knob to desired position.
AIR IN THE SUPPLY LINE MAY REQUIRE A LONGER
THAN NORMAL PERIOD OF TIME TO LIGHT YOUR
MIRACLEAN®GRIDDLE DURING INITIAL INSTALLA-
TION, AFTER OVERNIGHT SHUTDOWN, OR WHEN
RELIGHTING.
A 5 MINUTE COMPLETE SHUT OFF PERIOD IS
REQUIRED BEFORE APPLIANCE IS RELIT.
DO NOT LEAVE YOUR MIRACLEAN® GRIDDLE
UNATTENDED.
SHUT DOWN INSTRUCTIONS
1. Turn ON/OFF switch to "OFF" position.
2. Rotate thermostat knob to left to "OFF" position.
3. Turn gas valve knob to "OFF" position.
4. Check to determine that all burners and pilots are
extinguished.
COOKING WITH YOUR
MIRACLEAN®GRIDDLE
You will find that your new Miraclean®Griddle has
superb heat transfer. The polished trivalent chrome fin-
ish of the Miraclean®reduces the emission of radiant
heat. Radiant heat is measured by emissivity. The radi-
ant heat of a perfect black body has an emissivity of 1.
The radiant heat of a conventionally seasoned Griddle
plate is approximately .87. The radiant heat of the
Miraclean®has an emissivity of .078.
You can prove this to yourself by holding your hand
approximately 1/2" above the Miraclean®Griddle plate.
At this distance it is difficult to tell whether the Griddle
plate is hot or not. It feels as though the Griddle plate is
barely warm, but if you touch the plate, it will burn you.
The polished trivalent chrome finish on the Miraclean®
Griddle plate is a wonderful insulator. It prevents the
radiant heat from leaving the griddle plate. It transfers
conducted heat to the food being cooked more rapidly
than other griddle plates, because the food is placed
directly on the metal surface. It is the understanding of
this rapid heat transfer that permits the practical and
beneficial use of the Miraclean®Griddle.
The Miraclean®Griddle finds an application in all sorts of
griddle work, from cooking wheat cakes to scrambling
eggs. We use these two products as illustrations
because generally wheat cakes are cooked on a hot
griddle. Eggs must be scrambled on a relatively cold
griddle. Between these two extremes fall dozens of grid-
dled items- everything from grilled frankfurters, grilled
Italian sausage, grilled sausage patties, the entire range
of steaks and chops and chicken and fish.
It is necessary to understand that the carmelization of
the meat products being cooked takes place at a higher
rate and at a lower griddle surface temperature because
of the improved heat transfer of the
Miraclean®Griddle.
Eggs can not only be scrambled, but can
be fried in any fashion. If the eggs are to
be basted it is necessary to have a metal
cover, and to spill or splash a small amount of water
under the cover so that the steam will baste the top of
the eggs. Eggs require a very low temperature because
generally you do not want the eggs to
be browned on the bottom where they
come in contact with the griddle plate.
Approximately 250°F is ideal for
scrambling or frying eggs.
There are several griddle tools. A
hamburger spatula is like the one pic-
tured here. The hamburger must stick
at least slightly to the griddle to hold its
shape. If it does not stick it shrinks in
diameter, and the center of the meat
becomes thicker. It becomes more of a meat cake than
a hamburger. Therefore, the hamburger spatula has a
strong cutting edge.
An egg spatula is shown in this illustration. An egg
spatula has a long very thin blade so that it can be
slipped under the egg without damaging it or breaking
the yolk. This spatula can also be used for chopping
the scrambled eggs so as they are turned they can be
cooked to perfection without unnecessary browning.
This same spatula is used for omelettes.
Millivolt Safety
Pilot Valve

The Miraclean®Griddle can be kept in
perfect condition by using a razor
blade griddle scraper to remove the
film that is deposited from the products
that have been previously cooked.
Eggs, being cooked at a lower temper-
ature, require substantially no scrap-
ing; but meat and meat products
cooked at a higher temperature, do
require scraping. Pancakes or wheat
cakes which are cooked at a much
higher temperature, do not require that
the Griddle be scraped. It is merely brushed clean with
the spatula.
The important thing about the satisfactory use of the
Miraclean®Griddle is to understand its rapid heat trans-
fer at low temperatures, and to understand how to
maintain the Griddle plate clean and shiny at all times.
If an accumulation builds up on the Miraclean®Griddle,
it is necessary only to wash it with a palmetto pot brush
and cold water. As you pour water on the Griddle and
wash the Griddle with a palmetto brush, it will come
clean and beautiful in but a few seconds. A scraper is
used to completely remove any deposit left from previ-
ous products on the Griddle surface. Polish the Griddle
so it looks new using KEATING Klenzer and a dry cloth.
(See Cleaning Instructions)
COOKING PROCEDURES
MIRACLEAN®Griddles are designed to provide maxi-
mum production efficiency and deliver high quality food
products. Follow cooking procedures below.
COOKING INSTRUCTIONS
1. Set the thermostat to the desired temperature and
wait ten minutes for preheat. The operating tem-
perature should be from 10° F to 25° F lower than
conventional griddles – at least start at lower tem-
peratures. You may be able to work the tempera-
ture up as you become accustomed to the more
rapid cooking of the Miraclean®Griddle.
2. Cook as usual, but after each batch scrape the
griddle in the work area completely clean, using
the 4" wide scraper supplied by Keating. (This may
be the only cleaning you will ever need.)
HIGH TEMPERATURE – Since the Miraclean®Griddle
does not radiate heat (for all practical purposes) some-
times people turn the griddle all the way up to 400°F.
Eggs, bacon, hash browns and hamburgers will not
cook on a very hot griddle. Use low temperatures and
work your way up to the proper temperature.
BEST COOKING AREAS ON THE
MIRACLEAN®GRIDDLE
To use the best cooking areas, locate the inverted “V’s”
on the front of the griddle cooking plate. Depending on
your model you may have from one to six thermostats.
The “V’s” indicate where the thermostat sensing bulbs
are located below the plate.
If you cook over the sensing bulb only you are drawing
heat from that section; the thermostat calls for heat but
since it has not dissipated in the other areas of the sur-
face, you can overheat the griddle plate.
TOP VIEW SHOWING PLACEMENT OF BURNERS
UNDER MIRACLEAN GRIDDLE PLATE
Do cook around the thermostat sensing bulb.
Don’t cook directly over the thermostat sensing bulb.
MIRACLEAN®TEMPERATURE GUIDE
PRODUCT TEMP
Bacon 325°F
Chicken Breasts (skinless) 350°F
Eggs, basted (with cover) 250°–275°F
Eggs, scrambled 250°–275°F
French Toast 350°F
Hamburgers 325°–350°F
Hot Dogs 310°F
Pancakes 360°–370°F
Potatoes, Hash Browns 315°–350°F
Sausage (patty or link) 315°–325°F
Steak, 10 oz. Butt 325°F
6 oz. Strip 350°F
5
Load #1 Load #3 Load #2
396
285
174
“V”
Thermostat Bulb Location

CLEANING THE
MIRACLEAN® GRIDDLE
The surface of the MIRACLEAN®Griddle is very
durable and with proper care, following the procedures
below, will last many years.
A sample of Keating Klenzer, Keating palmetto brush
and a 4" scraper are included with each new griddle.
1. Scrape MIRACLEAN®
surface.
2. Clean your Miraclean®
Griddle while hot at 300°F
to 350°F. Using a plastic
pitcher, pour water ahead
of a palmetto pot brush.
Then scrub the griddle
clean with the pot brush
sweeping the water into
the drain trough.
3. Sprinkle with Keating
Klenzer. Polish with a soft
cloth (towel). It will sparkle
like new in just a few min-
utes. Rinse with potable
water to remove excess
Keating Klenzer. Proper care should be taken to fully
clean the griddle on a regular basis.
CLEANING UTENSILS
Spatulas should be hand washed in
mild to medium strength detergent
and towel dried.
NOTE: Avoid contact with Chlorine or
bleach, it will discolor steel spatula.
Rubbing the spatula with vegetable
oil will slow discoloration.
Rinse scraper and carefully wipe
blade with a dry cloth. Cover blade
with plastic protection cover when
not in use.
Rinse Palmetto brush until clean.
CLEANING CONTROL PANEL
Clean any grease build-up on switches and thermostat
knobs.
NOTE: If grease gets into the working mechanism of
a switch or thermostat, it may cause the unit to fail.
GREASE BUILD-UP NEAR ANY OPEN FLAME IS A
FIRE HAZARD.
CLEANING CABINET
The front, back and sides of the cabinet should be kept
clean for sanitary reasons.
CARE OF THE MIRACLEAN® SURFACE
The Miraclean®surface is very hard. With proper care,
the MIRACLEAN®surface and its unique cooking prop-
erties will last for many years.
Damage done to the Miraclean®surface is irreplacable.
NEVER USE A GRIDDLE STONE, BRICK OR
SCREEN TO CLEAN THE MIRACLEAN®SUR-
FACE. DAMAGE DONE TO THE MIRACLEAN®
SURFACE BY GRIDDLE STONE, BRICK OR
SCREEN WILL VOID THE WARRANTY.
DO NOT HACK, CHOP, HIT OR CUT ON THE MIR-
ACLEAN®SURFACE. YOU WILL DENT THE
STEEL PLATE UNDER THE TRIVALENT
CHROME. IT IS EVEN POSSIBLE TO HACK TWO
NICKS CLOSE TOGETHER AND ACTUALLY
TEAR THE MIRACLEAN®SURFACE AS THE
CHROMIUM WILL NOT STRETCH. PROPER USE
OF THE UTENSILS SUPPLIED WITH YOUR MIRA-
CLEAN®GRIDDLE WILL PREVENT SURFACE
DAMAGE. THE DAMAGE DONE TO THE MIRA-
CLEAN®SURFACE IS IRREPARABLE.
NEVER USE ICE TO COOL THE MIRACLEAN®
SURFACE. USE OF ICE MAY WARP THE MIRA-
CLEAN®SURFACE.
USE ONLY KEATING SUPPLIED CLEANING
TOOLS AND KLENZER.
USE ONLY A KEATING STEEL SPATULA.
DO NOT WASH STEEL SPATULA WITH CHLO-
RINE OR BLEACH AS IT WILL DISCOLOR.
DO NOT CLEAN SCRAPER ON SPLASHBACK,
GREASE BUILD-UP WILL OCCUR WHICH MAY
RESULT IN A FIRE.
DO NOT OBSTRUCT THE FLUE. THE FLUE HAS
BEEN DESIGNED SPECIFICALLY TO EXHAUST
THE BY-PRODUCT OF ANY COMBUSTION. ANY
OBJECTS (STEAK WEIGHTS, EGG COVERS,
PANS, RAGS, UTENSILS, ETC.) PLACED ON THE
FLUE WILL INHIBIT THE PROPER COMBUSTION
AND EXHAUST, THEREFORE CAUSING HEALTH
HAZARDS.
DO NOT USE A POWER WASH, HOSE OR STEAM
CLEANER FOR DAILY CLEANING.
PREVENTIVE MAINTENANCE
Preventive maintenance should be done in daily, weekly,
monthly and yearly intervals as necessary. Following preven-
tive maintenance procedures will help keep your MIRA-
CLEAN®Griddle working efficiently. Proper care and servic-
ing will lead to years of quality performance.
6
SPATULA
SCRAPER

PREVENTIVE MAINTENANCE CLEANING
CHART
AVOID SERVICE CHECKLIST
Before calling for service, review this list. It may save you
both time and expense. This list includes common occur-
rences that are not the result of defective workmanship or
materials in this appliance.
WARRANTY REPAIRS
Keating’s warranty begins with the date of installation. In the
event that your Miraclean®Griddle, under warranty, needs
repairs other than routine cleaning, you are requested to con-
tact KEATING OF CHICAGO, INC. (1-800 KEATING).
THERMOSTAT CALIBRATION
Calibration is not covered under warranty.
Tools: Accurate surface thermometer
Standard screwdriver
1. Turn the exhaust system ON.
2. Turn on the griddle with thermostat set at 300°F. Allow
burners to cycle on and off three times. (Approximately
60 minutes.)
3. Place accurate thermometer on surface over thermostat
bulb. Use the inverted “V” on the front of the griddle plate
to locate thermostat bulb. Place the surface ther-
mometer about half waytoward the back of the plate.
4. When burners cycle off, the griddle is up to temperature.
If temperature is within 25°F of thermostat setting,
remove knob. Loosen four screws in the thermostat dial
plate. Replace knob. Reset the dial plate to match the
thermometer reading.
Thermostat calibration
Thermostat knob removed to reveal calibration screws.
5. Remove the knob to tighten screws on dial plate and
replace the knob.
For calibration over a 50°F difference, contact a qualified
service company.
DO NOT ADJUST THE THERMOSTAT SET
SCREW - IT VOIDS ANY WARRANTY ON
CONDITIONING THE
MIRACLEAN®GRIDDLE PLATE
The Miraclean®Griddle plate has been “seasoned” at the
factory. The Miraclean®surface when heated creates a thin
layer of chrome oxide which acts as a releasing agent for
food product. You may feel that you need to recondition
your griddle surface.
1. Follow cleaning instructions on page 5.
2. Heat the MIRACLEAN®to 400°F for one hour.
3. Lower thermostat to 350°F, allowing the MIRACLEAN®to
cool to about 350°F, as is evident when griddle cycles on
or surface thermometer indicates correct temperature.
4. Lightly coat the MIRACLEAN®surface with griddle oil.
NOTE: Despite the food releasing properties, the chrome surface is not a true
“non-stick” surface. For best cooking results and product appearance, use grid-
dle oil for products that require the surface to be conditioned.
PARTS ORDERING
Parts may be ordered by part number by calling Keating at 1-
800-KEATING or your service company. You may also order
on-line at Keating’s part store, www.keatingofchicago.com.
Refer to the Keating MIRACLEAN®Griddle Limited Warranty
for complete service and ordering information.
The model/serial plate is located inside the cabinet. Remove
grease drawer. The model and serial numbers are necessary
when ordering.
7
TIME OPERATOR/OWNER
FRAME
At Least •Clean MIRACLEAN®Griddle surface.
Daily •Drain and clean grease drawer.
•Completely wipe down MIRACLEAN®
Griddle cabinet.
At Least •Check MIRACLEAN®Griddle surface
Monthly* to insure proper maintenance.
(Review proper cooking procedures.)
•Check calibration of thermostats.
•Review operating instructions
received with MIRACLEAN®griddle.
Every •Clean gas valve vent tube.
6 Months* •Check burner manifold pressure.
At Least QUALIFIED SERVICE PERSONNEL ONLY
Yearly* •Have MIRACLEAN®griddle completely
checked, calibrated, tested, cleaned, etc.
by qualified service personnel. Be sure to
check color and height of pilot flame.
*High production facilities should be checked more often. Contact the
factory or a local service company to perform maintenance and repairs.
PROBLEM SOLUTION
Miraclean®Griddle • Is the gas connected?
does not operate: • Is the gas supply turned on?
• Is the gas valve knob in the ON posi-
tion?
• Is the pilot lit?
• Is the switch turned on?
• Is the thermostat set at the desired
position?
PART

8
ITEM DESCRIPTION P/N
1 CONTROL PANEL FRAME 1-800-KEATING
2 GREASE DRAWER
30" & 36" Deep 052505
3 SWITCH, ROCKER 035030
4 SPARK IGNITER WITH ELECTRODE
(NO BRACKET) 008327
5 CONTROL PANEL INSERT 1-800-KEATING

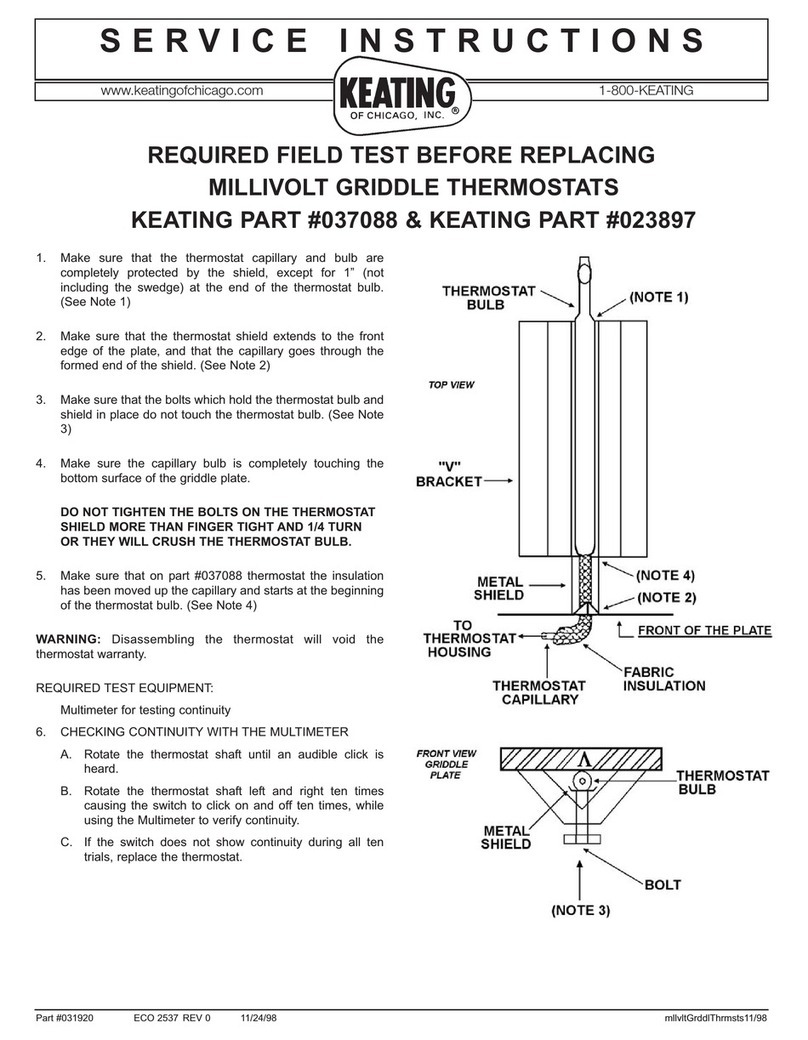

6 THERMOSTAT 400°F 017370
THERMOSTAT 550°F 023897
THERMOSTAT
REPLACEMENT KIT 400°F 037088
7 THERMOSTAT KNOB 400°F, Black 060612
THERMOSTAT KNOB 550°F, Black 038368
8 DIAL PLATE 400°F 034870
DIAL PLATE 200°- 500°F 060105
9 GAS VALVE MILLIVOLT
NAT. 023625
L.P. 023624
10 TAN KNOB ON GAS VALVE 004803
11 SCREW FOR TAN KNOB 004805
(NOT SHOWN)
ITEM DESCRIPTION P/N
1 CONTROL PANEL INSERT 1-800-KEATING
2 DIAL PLATE 200°- 500°F 060105
3 THERMOSTAT 550°F 023897
THERMOSTAT KNOB, BLACK 038368
4 TOGGLE SWITCH SEALED 059141
ON/OFF
5 SPARK IGNITOR 008327
6 GREASE DRAWER
30" & 36" Deep (NOT SHOWN) 052505
7 GAS VALVE (NOT SHOWN)
NAT. 023625
L.P. 023624
8 TAN KNOB ON GAS VALVE 004803
9 SCREW FOR TAN KNOB 004805
(NOT SHOWN)
PARTS LIST
MIRACLEAN®Griddle
1
2
3
45
5
6, 7, 8
9
10
ON
OFF
ON
OFF
C
O
T
F
A
T
B
I
L
R
A
I
E
S
H
T
250
200
450
350
300
400
500
C
O
T
F
A
T
B
I
L
R
A
I
E
S
H
T
250
200
450
350
300
400
500
1
2
3
4
4
Figure 6-2
2011 CONTROL PANEL SERIES 2000 CONTROL PANEL

9
Figure 6-3 Natural and Propane Gas Heating Systems
ITEM DESCRIPTION PART NUMBER
1 SPARK IGNITION ASSEMBLY
SEE Item 4, Figure 6-2
2 THERMOPILE 022770
3 PILOT TUBE (1/4”) 007998
4 PILOT ASSEMBLY 029769
(ALL NATURAL GAS, 24”-30” 029599
LP, 24”-39” BEF)
NATURAL GAS ORIFICE 007696
PROPANE ORIFICE 007766
5 BURNER INSERT REFERENCE ONLY
6 BURNER REFERENCE ONLY
7 AIR SHUTTERS 031477
8 MAIN SUPPLY GAS VALVE 3/4"
(not shown above)
ITEM DESCRIPTION PART NUMBER
9 MAIN GAS PIPE (3/4”) REFERENCE ONLY
10 STREET ELBOW (3/4”) 005738
11 UNION 002658
12 MANIFOLD 1-800-KEATING
13 STREET ELBOW (1/2”) 004194
14 “T” MANIFOLD ASSEMBLY REFERENCE ONLY
15 FITTING (1/2” NPT MALE) 000615
16 BURNER TUBE (1/2” X9”) 1-800-KEATING
17 ELBOW (1/2” x 3/8”) 006477
18 GAS VALVE, MILLIVOLT
NATURAL GAS 023625
PROPANE GAS 023624
PARTS LIST(CONT.)
MIRACLEAN®Griddle

10
SERVICE DIAGNOSIS
The following diagnosis is only to be used as a guide to qualified service personnel. Keating recommends that you use a qual-
ified & licensed service company. (Equipment still under warranty requires it.)
NOTE: To correctly and quickly diagnose the system, the chart below should be followed in sequential order.
TROUBLE SHOOTING CHART
PROBLEM PROBABLE CAUSE SOLUTION
No Pilot a. Gas supply not “ON”.
b. Air in gas lines.
c. Quick disconnect not engaged.
d. Gas valve is on “OFF” position.
e. Faulty Piezo Ignitor.
a. Open gas supply valve.
b. Press gas valve knob in “pilot”
position and hold.
c. Reconnect quick disconnect.
d. Turn valve knob to “pilot”.
e. Replace ignitor.
Pilot won’t stay on a. Loose wires.
b. Faulty thermopile.
c. Inadequate gas supply.
d. Bad gas valve.
a. Tighten connections on all wires.
b. Replace thermopile.
c. Increase line pressure.
d. Replace gas valve.
Pilot on but no main burner ignition a. ON/OFF switch is in “OFF” position.
b. Gas valve is in “pilot” position.
c. Thermostat is not turned on.
d. Low gas presssure.
e. Gas valve failure.
a. Put ON/OFF switch to “ON” position.
b. Turn knob to “ON” position.
c. Turn thermostat to desired temperature.
d. Set manifold pressure to 4” WC
(nat),10” WC (LP).
e. Replace valve.
Temperature of griddle erratic a. Thermostat is not calibrated.
b. Air from exhaust hood excessive.
a. Calibrate thermostat with exhaust
system running.
b. Have exhaust hood inspected and
air flow balanced.
Griddle stays hot or overheats a. Thermostat is not calibrated.
b. Thermostat failure
c. Air from exhaust hood excessive.
d. Improper Cooking Procedured.
a. Calibrate thermostat.
b. Replace thermostat.
c. Have exhaust hood inspected and
air flow balanced.
d. See Cooking Procedure section.
Burners will not shut off a. Thermostat is not calibrated.
b. Thermostat failure
c. Bad gas valve.
a. Calibrate thermostat.
b. Replace thermostat.
c. Replace gas valve.
Flames pulsate. a. Low gas pressure
b. Orifice is dirty or clogged
c. Air from exhaust hood excessive
a. Set manifold pressure to 4” WC (nat),
10”WC (LP). Set line pressure to 7” WC
(nat), 11” WC (LP).
b. Clean orifice
c. Have exhaust hood inspected and air
flow balanced.

SERVICE
Servicing should only be performed by qualified &
licensed service companies.
GAS VALVE
REGULATOR ADJUSTMENT
Recommended gas pressure at manifold
(4.0" W.C. Natural gas 10.0" W.C. Propane gas)
Adjustment of the gas valve pressure regulator is not
normally necessary since it has been preset at the fac-
tory. During installation, the gas pressure should be
checked at each gas valve with all burners operating.
Adjustment may be accomplished as follows:
This adjustment must be performed by a qualified tech-
nician.
1. Locate the gas valves.
2. With the griddle turned off, connect the monometer
to the pressure tap on the gas valve to be tested.
3. Turn the unit on and take the reading after all the
burners have ignited.
4. Make the necessary adjustments by removing the
screw cap on the pressure regulator cover exposing
the adjustment screw (clockwise will increase the
pressure, counterclockwise will decrease the pres-
sure).
Always check the screw cap on the pressure tap for
leaks after it has been removed and replaced.
GAS VALVE
REMOVAL AND REPLACEMENT
Disconnect the griddle from the gas supply.
1. Lower the control panel. Remove the control panel
surround and upper heat shield.
2. Remove the three wires connected to the gas
valve.
3. Disconnect the pilot and burner feed from the front
of the gas valve.
4. Access the pipe union at the rear of the gas valve
either from the front of the griddle or remove the
back of the cabinet and loosen the union.
5. Remove two nuts on the rear of the gas manifold
and pull the gas manifold forward.
6. Remove the gas valve and transfer the pipe and fit-
tings to the new gas valve. Transfer the pressure
tap to the new gas valve.
7. Replace the gas valve by reversing the above
steps.
Always check for leaks at all joints and connections
using a soap solution mixed with water.
DO NOT USE AN OPEN FLAME TO CHECK FOR
GAS LEAKS.
Double check the wire connections to the gas valve;
improper connection could damage the gas valve.
ON/OFF SWITCH
REMOVAL AND REPLACEMENT
1. Lower the control panel by removing the screws.
2. Disconnect the wires on the switch and remove
switch.
3. Snap the new switch into place and reconnect all
wires.
4. Return the control panel to its normal position.
THERMOSTAT
REMOVAL AND REPLACEMENT
1. Lower the control panel by removing the mount-
ing screws.
2. Locate the bulb end of the thermostat and, using
a wrench, loosen the front and rear bolts holding
the thermostat bulb and shield in place.
3. Slide the thermostat bulb assembly towards you
and remove it from under the griddle plate.
4. Remove the knob and the screws from the ther-
mostat dial plate on the control panel.
5. Remove the body of the thermostat.
6. Install the new thermostat in the control panel,
replace the dial plate.
7. Slide the thermostat bulb assembly into the
channel until it reaches the stop.
8. Make sure that the thermostat capillary and bulb
are completely protected by the shield, except for
1” at the tip of the thermostat bulb. (See Note 1).
9. Make sure that the thermostat shield extends to
the front edge of the plate, and that the capillary
goes through the formed end of the shield. (See
Note 2).
10. Make sure that the bolts which hold the thermo-
stat bulb and shield in place do not touch the
thermostat bulb. (See Note 3).
Tighten bolts 1/4 turn past finger tight bulb to be
snug against the bottom of the plate.
DO NOT OVERTIGHTEN THE BOLTS ON THE
THERMOSTAT SHIELD OR THEY WILL
CRUSH THE THERMOSTAT BULB.
11. Close the control panel and replace the panel
mounting screws.
NOTE: IF REPLACING PUSH-ON TERMINAL
STYLE. Before installing thermostat into control
panel, you must unscrew the two brass terminal
screws and install the new ring terminal wire con-
nectors. Prior to connecting these wires, the
existing push-on terminal must be cut off and ring
terminals installed on them. Make sure that the
terminals are secured down.
12. Calibrate the thermostat using an accurate grid-
dle thermometer. Locate the thermometer over
the thermostat bulb (shown by the "Λ" on the
front of the griddle plate) about half way toward
the back of the plate. Calibrate to the cooking
temperature you will be setting on the thermo-
stat.
See Page 11 for
Proper Placement of the Thermostat Bulb
11

MILLIVOLT CHECK (FOR QUALIFIED SERVICE TECHNICIANS ONLY)
The millivolt valve is a thermopile self-powered combination gas control. Before checking the millivolt system, the following
operations should be performed and observations made:
1. A genuine Keating millivolt thermostat should be used for millivolt operation.
2. The thermostat leads and all wire connections should be cleaned and tightened to eliminate all unnecessary resistance.
3. If pilot will not remain lit when gas valve knob is released, check automatic pilot.
NOTE: The millivolt system and individual components may be checked with a millivolt meter having a 1-1000MV range.
Conduct each check below by connecting meter test leads to terminals as indicated. All readings are closed circuit.
A. BURNER COIL CHECK
(“A” Reading. Thermostat contacts CLOSED - Gas Valve knob “ON”. Main burner should come ON.)
1. If the reading is more than 100 millivolts and the automatic valve still does not come one, replace the valve.
2. If the closed circuit reading (“A” reading) is less than 100 millivolts, determine cause for low reading and proceed as follows:
CHECK TO TEST
CONNECT METER LEADS TO
TERMINALS
THERMOSTAT
CONTACTS
METER READING
SHOULD BE:
AMILLIVOLT SYSTEM CHECK TP TH CLOSED 100mV OR MORE
B THERMOPILE OUTPUT THTP TP OPEN BETWEEN 325–700mV
CSYSTEM RESISTANCE CHECK THTP TH CLOSED MEASURE LESS THAN 80mV
D AUTOMATIC PILOT DROPOUT THTP TH OPEN BETWEEN 120mV–30mV
THERMOSTAT BULB PLACEMENT DETAIL
12

B. THERMOPILE OUTPUT CHECK
(“B” Reading. Thermostat contacts OPEN - Main burner
OFF.)
1. Thermopile system - 325 millivolts minimum. If the mini-
mum millivolt reading is not obtainable, readjust ther-
mopile for maximum millivolt output. If millivolt reading is
still below minimum specified, replace thermopile.
C. THERMOSTAT RESISTANCE CHECK
(“C” Reading. Thermostat contacts CLOSED - Gas valve
knob “ON”. Main burner should be ON.)
1. If the “C” reading is above 80 millivolts, the resistance in
the system is excessive and must be reduced. To correct:
a. Clean and tighten thermostat leads and connections.
b. Shorten or replace thermostat lead wires.
c. Cycle thermostat rapidly (manually turn dial) to clean
contacts.
D. AUTOMATIC PILOT DROPOUT CHECK
1. Hold gas valve knob depressed in pilot position until max-
imum output is observed. Then extinguish pilot and
observe meter.
2. Dropout of automatic pilot magnet (sound should be audi-
ble) should occur between 120 millivolts and 30 millivolts. If
dropout occurs outside these limits, change the valve.
MILLIVOLT CONTROL VALVE
To check Resistance of the gas valve, connect one wire
to the valve as shown.
1. Resistance between the THTP & TH terminals
must be 11.5⍀±0.2⍀
2. Resistance between the THTP & TP terminals
must be 10.0⍀±0.2⍀
If resistance is outside of specifications listed, the gas
valve must be replaced.
BEFORE REPLACING THERMOPILE CHECK
MILLIVOLT READINGS
THERMOPILE READINGS
With all wires connected, with the pilot on and burners
off, the thermopile reading at the TP&THTP terminals
should be ~325mv. With the burners on, the millvolt
reading should be ~200mv.
WARNING AND OPERATING PLATES
All warning and operating plates on the Keating MIRA-
CLEAN®Griddle should be in place at all times. If
plates are damaged or lost, replace them immediately.
13

14
GAS GRIDDLE WIRING DIAGRAM - 2011
GAS GRIDDLE WIRING DIAGRAM - SERIES 2000
CONTROL PANEL
THERMOSTAT
ON/OFF
SWITCH
WIRING DETAIL
ORG
BLK
BLK
BLK
thermostat
RED TO ˆTH/TP˜ ON GAS VALVE
WHITE TO ˆTP˜ TERMINAL
ON GAS VALVE
TO ˆTH˜ ON GAS VALVE
TO ˆTH/TP˜ ON GAS VALVE
TO ˆPILOT˜ ON GAS VALVE

16
SERVICE INFORMATION
If you have a service related question call 1-800-KEATING.
Please state the nature of the call; it will ensure speaking with the appropriate person.
Have your serial and model number available when ordering parts.
KEATING OF CHICAGO, INC.
8901 W. 50th Street, McCook, Illinois 60525-6001
Phone: [phone] FAX: [phone]
Toll Free 1-800-KEATING (In U.S. and Canada)
www.keatingofchicago.com
*As continuous product improvement occurs, specifications may be changed without notice.
KEATING LIMITED WARRANTY CARD
PLEASE COMPLETE AND MAIL AT ONCE–WARRANTY IS NOT IN EFFECT UNTIL CARD IS RETURNED.
WARRANTY CARD IS ALSO AVAILABLE TO COMPLETE ONLINE FOR YOUR CONVENIENCE.
COMPANY: __________________________________________________________________________________________________________________
ADDRESS: __________________________________________________________________________________________________________________
CITY: ______________________________________________________________________________ STATE: ________________ ZIP: ____________
DEALER: ____________________________________________________________________________________________________________________
DATE OF PURCHASE: ________________________________________________________________ INVOICE NUMBER: ____________________
SERIAL NUMBER: ________________________________________ FRYER FILTER SYSTEM GRIDDLE
REMARKS: ______________________________________________ TOP-SIDE COOKER HOT PLATE PASTA PLUS
I HAVE READ THE INSTALLATION AND OPERATION INSTRUCTIONS.
SIGNED: ____________________________________________________________________________________ DATE: __________________________
“Serving Those Who Serve The Very Best®”
