Introduction
Thank you for purchasing the Keeler Vantage Plus Indirect
Ophthalmoscope.
We have taken the greatest care in the design, development and
manufacture of this product to ensure that you get many years of
trouble free service. However, it is important that you read the
descriptions, installation and operating instructions carefully prior to
installing or using your new indirect ophthalmoscope.
Back Next

Contents
1. Symbols
2. Warnings and Cautions
3. Setting up and Using the Vantage Plus
4. Accessories
5. Bulb Replacement
6. Power Supplies
a. Wireless
b. SmartPack and WallPack
7. Warranty and Service
8. Cleaning Instructions
9. Technical Information
10. Contact Information
Please click on the contents to go straight to your chosen section or navigate by using the 'Next'
and 'Back' buttons to the right. Clicking on 'Home' will bring you back to this page.
As part of our policy for continued product development we reserve the right to amend specifications at any time without prior notice. Back Next

Symbols
Read user instructions for warnings, cautions and
additional information.
The CE mark on this product indicates it has been
tested to and conforms with the provisions noted
within the 93/42/EEC Medical Device Directive.
Double insulated.
Type B protections against shock.
Back Next Home

Warnings and Cautions
Warning
• Do not use if the product is damaged and periodically inspect
for signs of damage.
• Do not use in the presence of flammable gases.
• This product should not be immersed in fluids.
• Do not fit mains power adapter into a damaged mains
outlet socket.
• Route power cord safely to eliminate risk of tripping or
damage to user.
• There are no user-serviceable parts inside the device. Contact
authorised service representative for further information.
• Federal law restricts this device to sale by or order of a
physician.
• Do not remove bulb whilst hot.
• Do not disassemble or modify the battery. There are no
serviceable parts inside.
• Do not dispose of battery in fire, puncture or short circuit.
• Do not use a battery that is deformed, leaking, corroded or
visually damaged. Handle a damaged or leaking battery with
care. If you come into contact with electrolyte, wash exposed
area with soap and water. If it contacts the eye, seek medical
attention immediately.
Caution
• The product has been designed to function safely when at an
ambient temperature between +10ºC and 35ºC.
• Use only Keeler power supply.
• Dispose of battery in line with local regulations on recycling
batteries.
• Keep out of reach of children.
• To prevent condensation from forming, allow instrument to
come to room temperature before use.
• When replacing lithium battery pack, turn indirect off and
attach new pack.
Back Next Home

Setting up and using the Vantage Plus
Back Next Home
Description o the Product
AHeadband Size Adjustment Knob
BHeadband Height Adjustment Knob
CMetal Outer Brow Band
DBrow Band Tension Knob
EOphthalmoscope Angle Knob
FLithium Battery
GHinge System
HAperture Lever
IFilter Lever
JMirror Angle Control
KIndividual Eyepiece
LFront Window
MHiMag™Lens
NTeaching Mirror
OBinocular Block
PBulb
QRubber Eyecaps
ROptics of Eyepiece
SInterpupillary Distance Control
THead Dimmer Switch
A
B
D
E
F
G
H
IJ
K
L
M
N
O
Q
T
P
R
S
C

Using the Vantage Plus
Back Next Home
Headband Adjustment
Comfortable Fit
Adjust the size (A) fig.1 and the height (B)
fig.2, so that the instrument is supported
comfortably around and on top of the head.

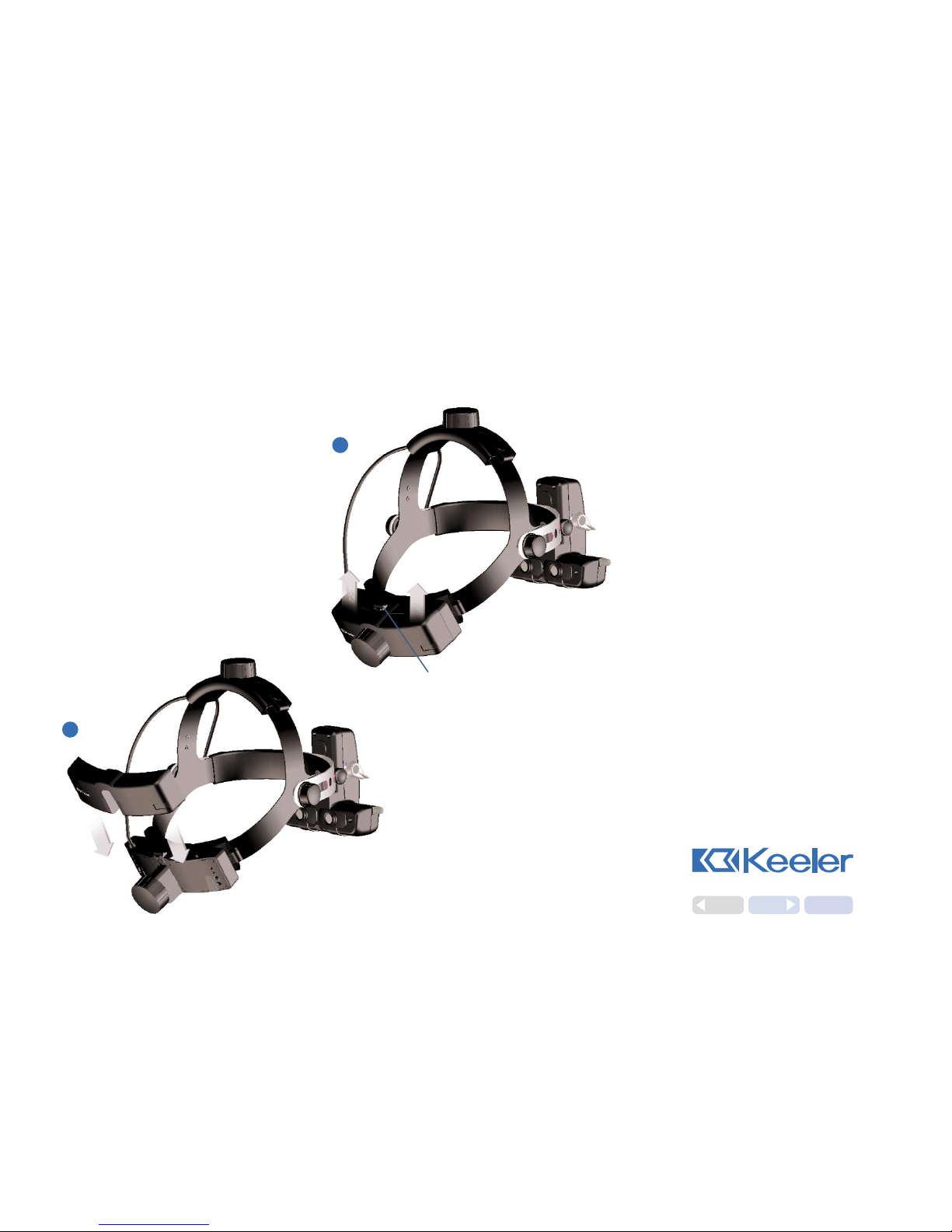

Ophthalmoscope Angle Alignment
For vertical alignment of the eyepieces and
binocular block (O), adjust the height of the
Metal Outer Brow Bar (C) if necessary
by using the browband tension knobs (D)
located on the sides of the headset (fig 3).
Position the Binocular Block (O) as close to the
eyes or spectacles as possible for maximum
field of view. Slightly loosen the ophthalmoscope
angle knob (E) to allow for adjustment and
tighten when in position as in (fig 4).
fig.1
fig.3
fig.2
fig.4

Using the Vantage Plus
Back Next Home
Interpupillary Distance Setting Control (S)
Because the eyes are dissociated, particular care must
be taken to ensure the optics (eyepieces) are set properly
in front of each eye.
Always set the Aperture Selection (H) to the large light
patch for this exercise.
Place an object, perhaps the thumb, approximately 40cm
from the face and centre it horizontally in the light patch.
Then, close one eye. Using the thumb and forefinger of
the opposite hand, slide the P.D.Control (S) of the open
eye (located directly under each eyepiece) so that your
object moves into the centre of the field, keeping the object
in the centre of the light patch. Repeat for the other eye.
Obtaining a Fused Image
Ensure that a singular, fused image is obtained as follows:
Mirror Angle Control (J)
The light is positioned vertically into the upper two thirds
of the field of view by rotating the spindle (J) located on
either side of the binocular block.
Head Dimmer Switch (T)
Turn the illumination on by rotating the headband dimmer (T)
in an anti clockwise direction.
Separate images Fused image Overlapping images

Using the Vantage Plus
Back Next Home
Setting the Aperture
Aperture Lever
Selection (H)
By rotating the knob (H)
different apertures may
be selected.
Large
The large, round, homogeneous patch is suitable for routine
examinations through fully dilated pupils. In this position the
mirror remains in the forward position and the optics are diverged.
Intermediate
The intermediate patch is designed to reduce reflections when
entering a partially or poorly dilated pupil (3mm). It is also ideal
for closer inspection of particular fundal areas. The mirror and
optics stay in the mid position.
Small
This light patch is ideal for small, undilated pupils. The mirror
moves back and the optics automatically converge.
The Keeler Vantage Plus
has 3 light apertures which
offer maximum stereopsis.
When you select the
aperture the illumination
and viewing mirrors
automatically adjust for
maximum stereopsis. Illumination Angle
Adjustment
Mirrors move
forward/back as
apertures are selected
Aperture Selection
Large/Intermediate/Small

Using the Vantage Plus
Back Next Home
Filter Lever Selection (I)
By rotating the lever (I),
different filters may
be selected.
Blue Circle
Cobalt blue filter for fluorescein angioscopy.
White Circle
Clear light – Select the clear with no filter when inspecting a
specific pathology and a brighter, whiter light is desired.
Green Circle
Red Free filter – this filter reduces the red light, so blood will
appear black, silhouetted against a dark background.
Diffuser
This unique extra wide beam of diffused light permits a more
relaxed technique during more challenging fundus examinations.
Beginners may also find this aperture particularly helpful since
the alignment between the headset, the condensing lens and the
pupil, in order to achieve a full lens image, is not as critical as
with the conventional beam.

Accessories
Back Next Home

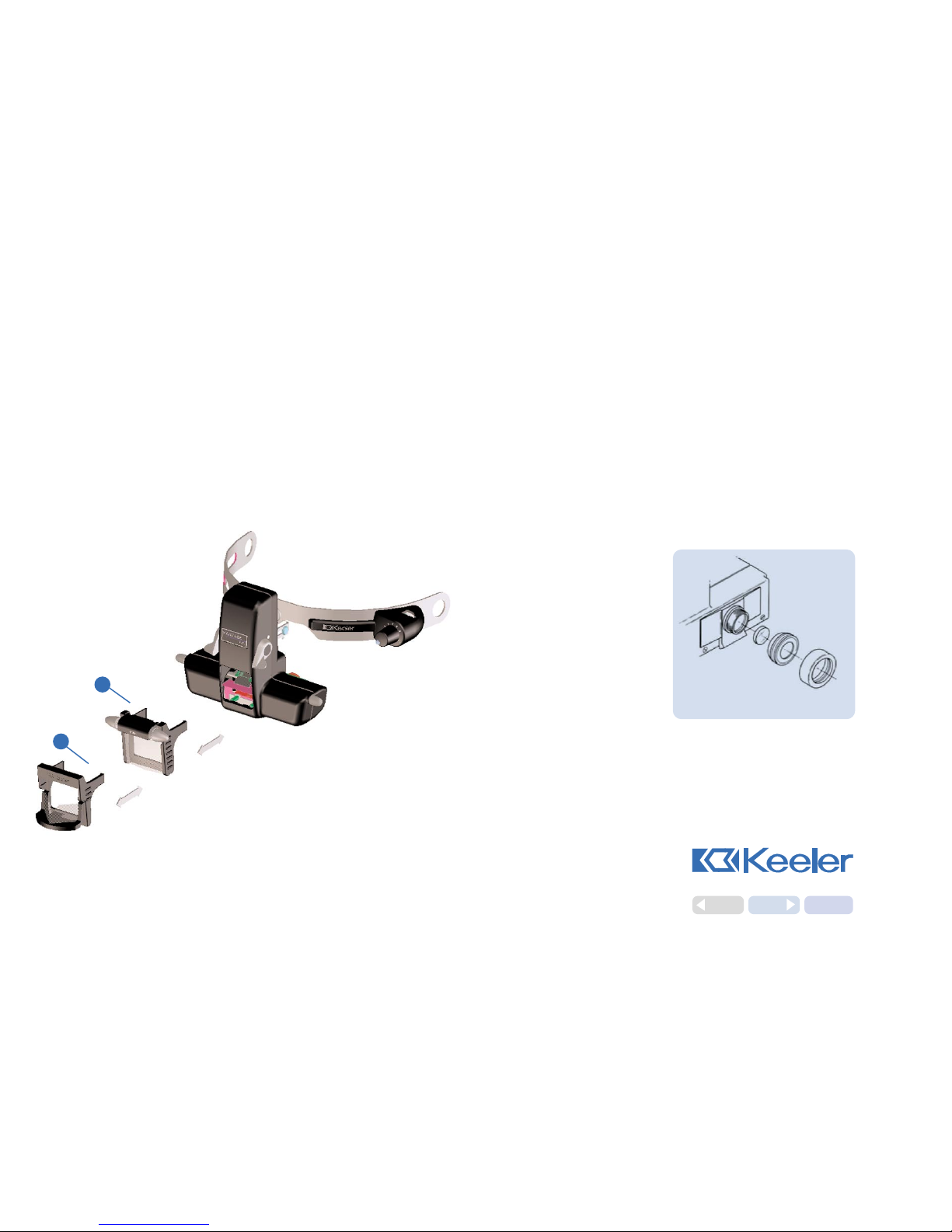

Fitting your HiMag™ Lens (M)
and Teaching Mirror (N)
To fit the HiMag™ lens simply push it onto the front of the
window as shown in the diagram.
To remove simply reverse.
Rubber Eyecaps
Rubber eyecaps are provided to protect spectacles and have been
manufactured in rubber to avoid any abrasions. To use simply fit
over the eyecaps.
Plano Lenses
The Keeler Vantage Plus
supplies as standard +2
dioptre lenses. Plano lenses,
if preferred are available
and can be fitted as shown
in fig.5.
Scleral Depressors
Scleral Depressors are available
to view the ora serrata.
M
N
fig.5

Bulb Replacement
Back Next Home
Caution: The bulb may get
very hot after prolonged use.
Allow bulb to cool and disconnect the
instrument from the electricity supply.
Remove the bulb from the back of the
instrument and insert the new bulb,
ensuring the bulb’s key is aligned with
the aperture and securely pushed in.

Back Next Home
Wireless Power Supplies
Inserting/replacing
the Battery Pack
1. Release battery by pressing release
switch as shown and lift battery pack
from cradle.
2. To insert new battery pack, place in
cradle until fully engaged.
1
2
Press release switch

Back Next Home
Wireless Power Supplies
Charging
1. Replace the blanking plate with the
appropriate mains plug adapter, and
connect plug on cable to power input
socket on charger.
Switch on your Lithium Charger by
plugging it into a mains outlet.
2. Place your spare battery pack or
headset into your Lithium
Charger as shown.
Remove the
blanking plate
Replace with
appropriate
mains plug
adapter
Power Supply
Connect to
charging/docking
station
Charging/docking station
Spare
battery
1
2

Back Next Home
Wireless Power Supplies
Headband Battery Holder
Flashing LED – Battery requires charging.
Charging Station
No LED – Battery is fully charged.
Flashing LED – Top up Charge.
Solid LED – Rapid Charge.
The battery pack can be used at any time
during the charging cycle and will
automatically resume charging when battery
pack is placed back in the charger.
Direction arrow on charger indicates which
battery is being charged.
Charging spare battery only
Charging battery on headband

Back Next Home
Wireless Power Supplies
Charging Cycle
The battery attached to the indirect will take
approximately 2 hours to fully charge.
The battery will last approximately 2 hours on full
power.
The spare battery will take 4 hours to charge.

Back Next Home
Wireless Power Supplies
Wall Mounting
1
2
3
4 5
Caution

Back Next Home
SmartPack and WallPack

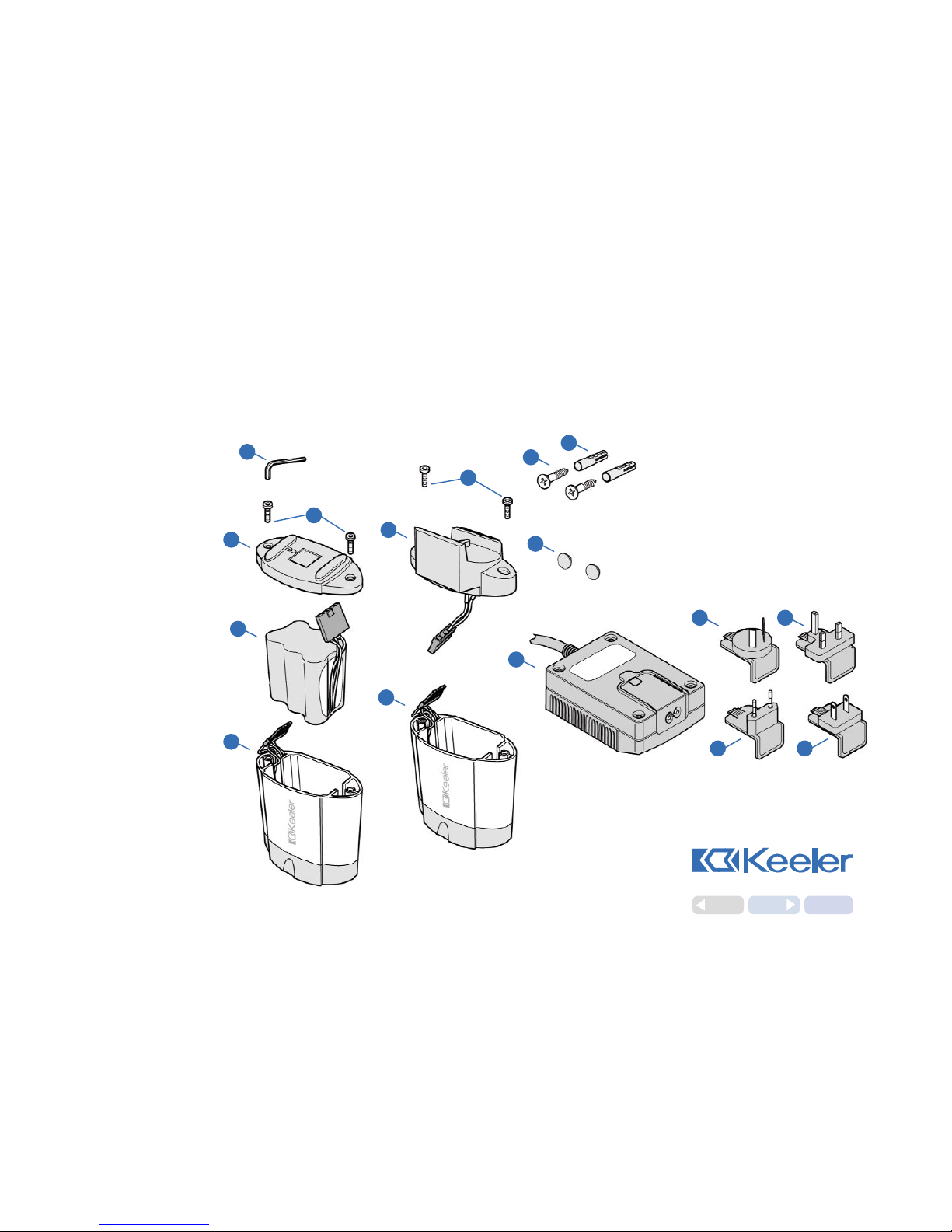

Parts List
AHex Key
BScrews
CScrews
DWall Plugs
EBase Cap
FWall Mount
GAdhesive Pads
HRechargeable battery
Part No. EP39 22079
IBody
JPower Supply
KAustralian Plug
LUK Plug
MEuro Plug
NUSA Plug
B
B
AC
D
EF
G
H
I
I
J
KL
M N

Back Next Home
SmartPack and WallPack
Set Plug
Replace the blanking plate with the appropriate mains plug
adapter if required, or use IEC 60320 TYPE 7 connector
(not supplied).
Power Conversion
Convert to either WallPack or SmartPack by following the
illustration below.
IEC 60320 TYPE 7 connector

Back Next Home
Fixing the Wall Mount
Use the wall plugs and screws to mount
the wall pack unit, attach the adhesive
pads to the side of the case.
Connection
Insert the connectors
into the sockets
as shown. Before
connecting ensure
that both the
dimmer control
and mains outlet
are switched off.
30 mm
Ø 6 x 50 mm
SmartPack and WallPack
Charge Time
Charge the battery for
12 - 14 hours before initial use.
Note: The unit becomes warm
when charging, this is normal.
Recharging may take place while
indirect is in use. Normal battery
life is 1.5 to 5 hours depending on
setting with a recharge time of two
hours or on continuous trickle.
