The KEF Home Theatre (KHT) Series is a good example. By bringing audiophile
quality sound to affordable home entertainment, it’s been breaking new ground ever
since it was first introduced.As its many awards and 5-star ratings prove, the original
outperformed every conventional system in its class.
The latest KHT systems extend this advantage even further, whatever your budget.
With the introduction of radically innovative concepts like Acoustic Compliance
Enhancement (ACE), the latest refinements of KEF’s trademark Uni-Q®technology
and a new generation of powered subwoofers, there’s a formidable line-up of options
to choose from.
KEF and the multi award-winning KHT story
They’re all designed to reproduce every last detail encoded in the latest home
entertainment formats, and having identical drivers for the satellite and centre
speakers of each system guarantees a perfect tonal match. Naturally, they’re all
magnetically shielded to avoid interference with your other equipment.
Although each has its own distinctive look, every system is engineered with
acoustically inert cast aluminium enclosures and high-end components including
metal dome tweeters to create an accurate and compellingly real 3D soundscape -
and with the ultra-wide dispersion characteristics of KEF’s Uni-Q point source array,
it’s enjoyed with equal pleasure by everyone in the room.
KEF's patented driver array, using aerospace materials to allow the tweeter to be mounted at
the acoustic centre of the midrange cone to create a single point source.This is what gives KEF
loudspeakers exceptionally wide dispersion characteristics, with everyone in the room
experiencing the same clear, accurate sound image.
A flat panel speaker configuration that reproduces sound with a wide directivity pattern
without restricting listeners to a particular 'sweet spot'.This diffuse radiation of sound waves
is ideal for reproducing ambient sound effects.
KEF's way of dramatically increasing the effective volume (and therefore output) of bass driver
enclosures by adding granules of activated carbon, whose adsorption characteristics reduce
resistance to each backward movement of the cone. ACE-enabled loudspeakers perform like
units up to three times their size, subjectively as well as objectively.
A patented KEF technology that effectively seals the gap between a moving mid-range cone
and tweeter, which has the effect of dramatically improving sound quality, particularly at
higher volumes.
Wireless transmission dispenses with running cables across the room to the rear speakers by
using radio waves from a discreet sender unit to transmit the audio signal to a receiver built in
to the speaker. KEF’s high performance wireless system ensures exceptional signal integrity
under even the most demanding conditions.
True to the ease of use that underpins the whole kit concept, Selecta-mount is KEF's ingenious
system of concealed brackets designed to simplify wall mounting.
Another KEF innovation, the Bass Extender is a hollow reflex-ported floor stand whose
additional volume helps to enhance bass extension.
Smart Bass allows optimum integration between subwoofer and satellite speakers in the
minimum time using a simple ‘plug & play’ architecture.

They may look cute - but they sound
anything but. Experiencing a movie or
favourite album through KHT1005.2 is
like seeing an old friend after a makeover:
fresh, involving, more intense. The centre
and satellite speakers all have KEF’s
smallest Uni-Q delivering the extended
bandwidth you normally get with much
larger units.
The sound image is completed by the
KUBE-1 subwoofer. With output fully
adjustable for phase, frequency and level,
its attack is as forceful as it is accurate.
Whether you prefer shelf mounting,
wall brackets or optional floor stands
with internal cable management, the
installation is as discreet as can be - until you
press ‘play’, and the whole room fills with
immaculate three-dimensional sound.
High gloss black and matt silver
finishes available.

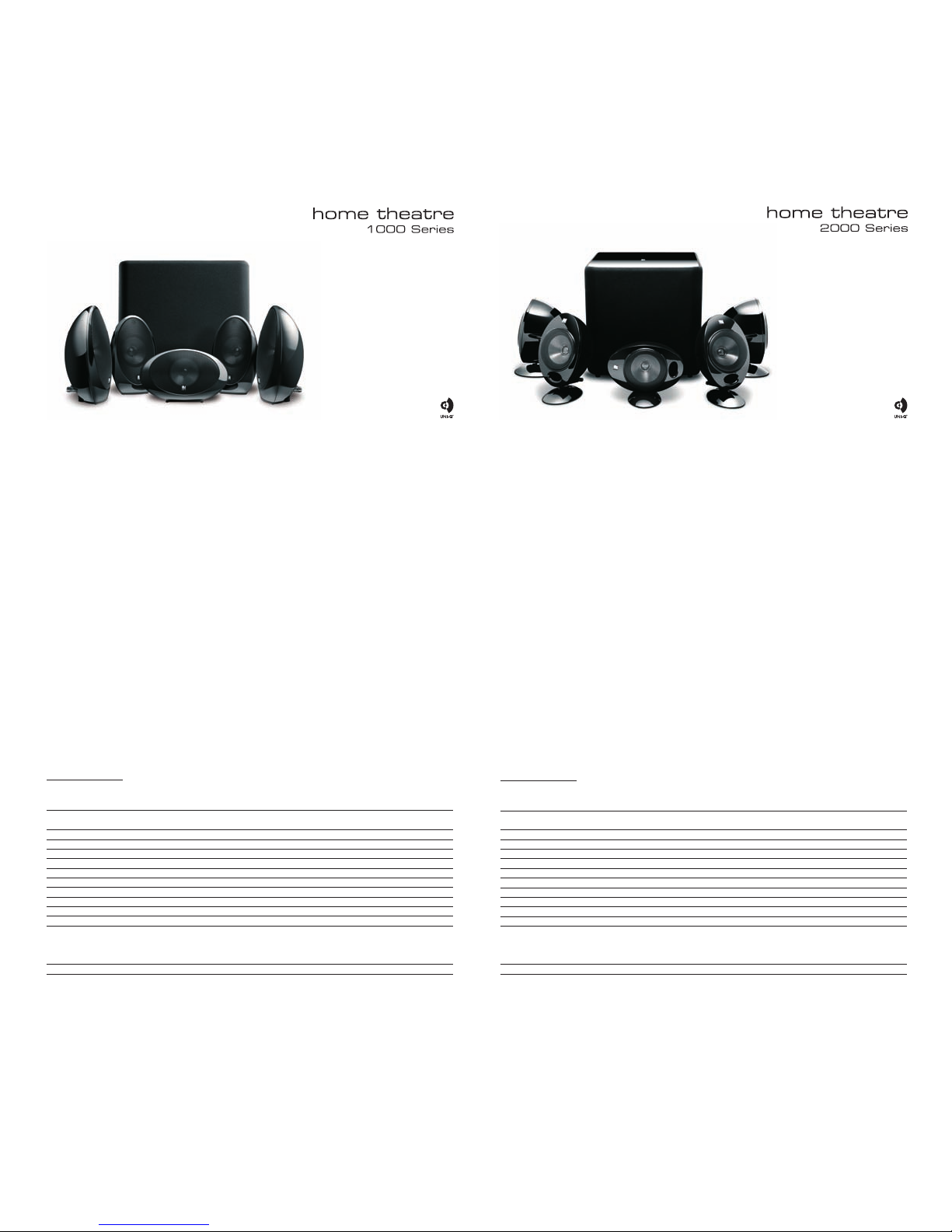

KHT1005.2
Charismatic is the only word to describe it.
Like the multi-award-winning KHT2005 from
which it evolved, the reflex-ported
KHT2005.3* pushes the performance
envelope of midrange home theatre like no
other system.
With parabolic enclosures to eliminate
cabinet distortions, the full range centre and
satellites all feature KEF’s Uni-Q array for
better power handling and precise sound
quality - even whispered dialogue is pin-sharp.
Like all KHT Series subwoofers, the matching
new KUBE-2 has a selectable ‘Bass Boost’
switch for even more bass ‘slam’ with movie
sound effects, and individual phase, frequency
and level controls allow you to fine tune the
output to get the perfect balance with the
satellite speakers and your room acoustics.
An ingenious multi-directional base makes it
easy to place each satellite wherever it suits
you: on a flat surface, at an angle on walls,
or on the optional floor stands.
Available in high gloss black or matt
silver finishes.
KHT2005.3
Design Two-way closed box Satellite/Centre Powered Subwoofer
Drive units 75mm (3in.) Uni-Q array with 1x 200mm (8in.) +
15mm (0.6in.) aluminium HF 1x 200mm (8in.) ABR
Frequency response (±3dB) 120Hz - 22kHz 38Hz - 150Hz
Crossover frequency 3kHz N/A
Power handling 100W N/A
Amplifier N/A 150W built-in Class-D
Sensitivity (2.83V/1m) 86dB N/A
Maximum output (SPL) 104dB 108dB
Impedance 8ΩN/A
Magnetic shielding Yes N/A
Internal volume 0.5litres 15.4litres
Weight 0.7kg (1.5lbs) 9.6kg (21.2lbs)
Dimensions Satellite 165 x 110 x 78 mm 295 x 295 x 295 mm
(H x W x D) (6.5 x 4.4 x 3.1 in.) (11.6 x 11.6 x 11.6 in.)
Centre 107 x 181 x 78 mm
(4.2 x 7.1 x 3.1 in.)
Finish High gloss black, matt silver Black with gloss upper surface
Optional accessories Floorstand N/A
HHTTSS11000011..22//HHTTCC11000011..22
SSppeecciiffiiccaattiioonnss
KKUUBBEE--11
Design Two-way closed box Satellite/Centre Powered Subwoofer
Drive units 100mm (4in.) Uni-Q array with 1x 250mm (10in.) +
19mm (0.75in.) aluminium HF 1x 250mm (10in.) ABR
Frequency response (±3dB) 80Hz - 27kHz 35Hz - 150Hz
Crossover frequency 3kHz N/A
Power handling 100W N/A
Amplifier N/A 200W built-in Class-D
Sensitivity (2.83V/1m) 88dB N/A
Maximum output (SPL) 104dB 112dB
Impedance 8ΩN/A
Magnetic shielding Yes N/A
Internal volume 1.5litres 23.0litres
Weight 2.0kg (4.4lbs) 12.0kg (21.2lbs)
Dimensions Satellite 228 x 130 x 150 mm 335 x 330 x 330 mm
(H x W x D) (9.0 x 5.1 x 5.9 in.) (13.2 x 13.0 x 13.0 in.)
Centre 162 x 190 x 150 mm
(6.4 x 7.5 x 5.9 in.)
Finish High gloss black, matt silver Black with gloss upper surface
Optional accessories Floorstand N/A
HHTTSS22000011..33//HHTTCC22000011..33
SSppeecciiffiiccaattiioonnss
KKUUBBEE--22
* Available from June 2008.

Clearly an evolution of the award winning
3000 Series, the new KHT3005SE is the
latest version of the iconic‘egg’ home theatre
system, updated to provide an even stronger
audio performance with improved clarity
and detail yet maintaining the beauty and
style that helped make its predecessor a
reviewer’s favourite.
The revolutionary Uni-Q driver of the
satellite and centre speaker has been
enhanced by the addition of the ingenious
‘Tangerine’ waveguide, for improved
sensitivity and sound dispersion and have
been comprehensively engineered for an
even cleaner, smoother response.
The cast aluminium enclosures are shaped to
minimise internal resonance with KEF’s
Sealed Suspension Technology - SSTTM (patent
applied for) dramatically improves sound
quality and at higher volumes filling the room
with incredibly detailed 3D sound.
Carrying up to 60% of the sound, the centre
channel is vital in any home theatre system,
and the dedicated centre speaker is in a
class of its own providing an amazingly
clear dialogue in perfect timbre with the
satellite speakers.
Available in high gloss black and high gloss
silver finishes.
The cool minimalism of these slender cast
aluminium column speakers belies the
sophistication of the technology that makes
them sound so authoritative.
Flanked by a pair of long-throw bass drivers
with ultra-low distortion motor systems and
with KEF’s Uni-Q array the KHT5005.2
disperses a seamless sonic image evenly
throughout the listening area.
And what an image it is - richly textured and
spatially precise in every dimension.
Whether you’re watching a film or chilling
out to a few tracks, they sound as clean as
they look.
The sensational HTB2SE subwoofer pumps
out a genius distortion-free bass and with
the SmartBass TM ‘connect and go’ technology
compliments the perfect beat and
sophistication of the satellites.
The 5000 Series is also available with
Wireless technology for the two rear
satellites, providing freedom to locate almost
anywhere without the worry of hiding
lengthy speaker cables.
Available in high gloss black and matt
silver finishes.

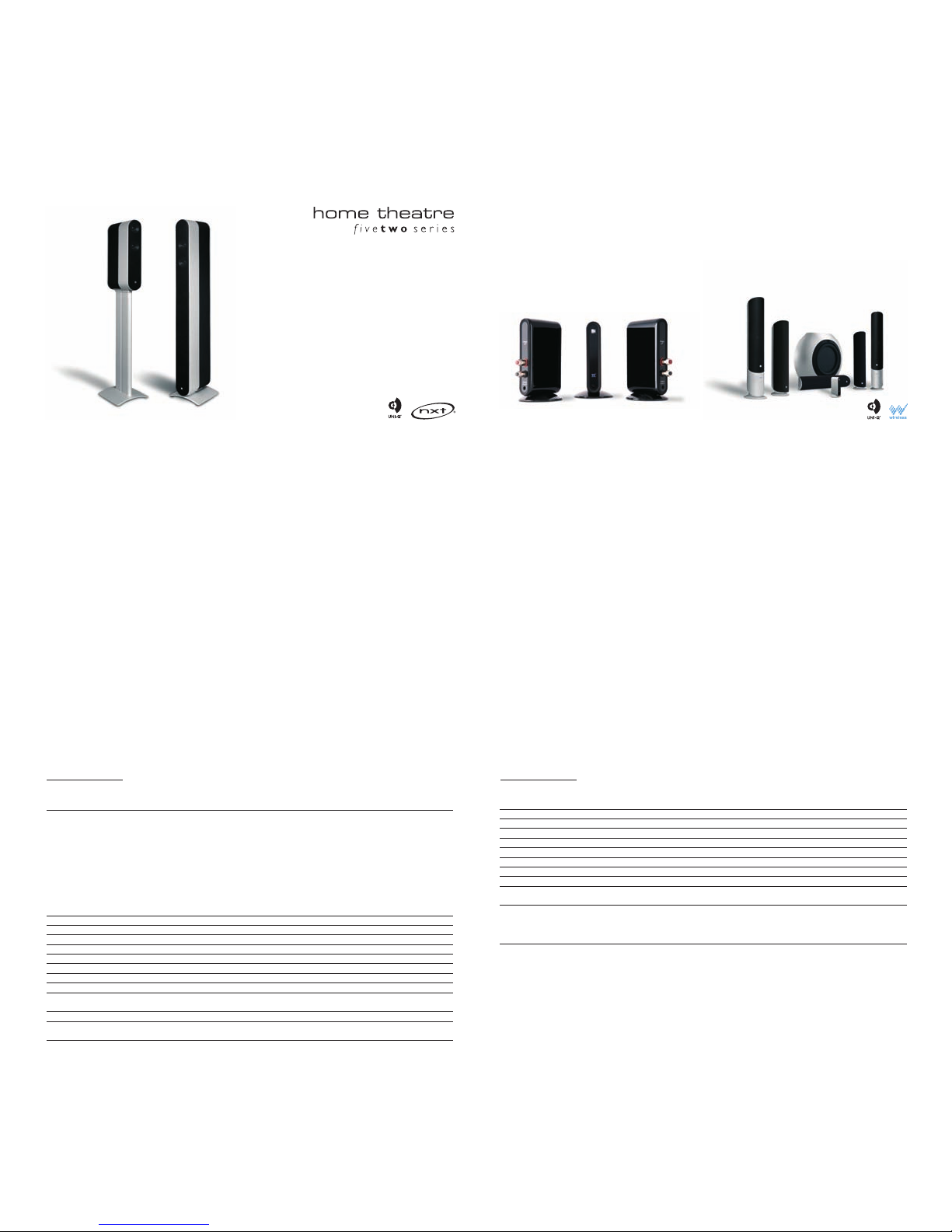

KHT3005SE KHT5005.2 / KHT5005.2W
SSppeecciiffiiccaattiioonnss
HHTTSS55000011..22//HHTTCC55000011..22
SSppeecciiffiiccaattiioonnss
HHTTBB22SSEESSuubbwwooooffeerr
HHTTSS33000011SSEESSaatteelllliitteeHHTTSS33000011SSEECCeennttrreeHHTTBB22SSEESSuubbwwooooffeerr
Design Two-way bass reflex Three-way closed-box Powered Subwoofer
with passive radiator
Drive units 115mm (4.5in.) Uni-Q array with 115mm (4.5in.) Uni-Q array with 1 x 250mm (10in.) +
19mm (0.75in.) aluminium HF 19mm (0.75in.) aluminium HF 1 x 250mm (10in.) ABR
2 x 75mm (3in.) LF
Frequency response (±3dB) 70Hz - 55kHz 65Hz - 55kHz 30Hz - 250Hz
Crossover frequency 2.2kHz 500Hz, 2.2kHz N/A
Power handling 100W 100W N/A
Amplifier N/A N/A 250W built-in Class-D
Sensitivity (2.83V/1m) 88dB 90dB N/A
Maximum output (SPL) 108dB 110dB 110dB
Impedance 8Ω8ΩN/A
Magnetic shielding Yes Yes Yes
Internal volume 1.8litres 2.4litres 15.0litres
Weight 2.0kg (4.5lbs) 2.6kg (5.8lbs) 11.3kg (24.9lbs)
Dimensions 245 x 125 x 150 mm 130 x 300 x 185 mm 390 x 440 x 195 mm (vertical)
(H x W x D) (9.6 x 4.9 x 5.9 in.) (5.1 x 11.8 x 7.3 in.) (15.4 x 17.3 x 7.7 in.)
227 x 440 x 385 mm (horizontal)
(8.9 x 17.3 x 15.2 in.)
Finish High gloss black, high gloss silver High gloss black, high gloss silver High gloss black, high gloss silver
Optional accessories Floorstand N/A N/A
Design Three-way closed box Satellite/Centre Powered Subwoofer with passive radiator
Drive units 75mm (3in.) Uni-Q array with 1 x 250mm (10in.) +
15mm (0.6in.) aluminium HF 1 x 250 mm (10in.) ABR
2 x 75mm (3in.) LF
Frequency response (±3dB) 95Hz - 30kHz 30Hz - 250Hz
Crossover frequency 300Hz, 3kHz N/A
Power handling 100W N/A
Amplifier N/A 250W built-in Class-D
Sensitivity (2.83V/1m) 87dB N/A
Maximum output (SPL) 106dB 110dB
Impedance 8ΩN/A
Magnetic shielding Yes Yes
Internal volume 1.4litres 15litres
Weight 2.0kg (4.4lbs) 11.3kg (24.9lbs)
Dimensions Satellite 419 x 88 x 127 mm 390 x 440 x 195 mm (vertical)
(H x W x D) (16.5 x 3.5 x 5.0 in.) (15.4 x 17.3 x 7.7 in.)
Centre 88 x 419 x 127 mm 227 x 440 x 385 mm (horizontal)
(3.5 x 16.5 x 5.0 in.) (8.9 x 17.3 x 15.2 in.)
Finish High gloss black, matt silver High gloss black, high gloss silver
Optional accessories Height adjustable desktop stand N/A
Floorstand

Every once in a while you come across a
piece of design that looks so right you just
know it’s going to perform superbly - like the
KHT6000. Designed to complement the
latest generation of flat screen TVs,
it combines high-end KEF Audio technologies
in a consummately elegant package.
Centre stage is KEF’s Uni-Q array so
you know that vocals are going to sound
clear, warm and beautifully balanced
wherever you sit.
With a line-up of no less than four
long-throw midrange/bass drivers with ultra-
low distortion motors, you know that the
sound image will be so real you can almost
touch it. Big. Confident. Evenly voiced.
The separate Uni-Q enclosure utilises ACE
technology to move the enclosure resonance
below the working frequency range and
absorb higher frequency acoustic modes.
An ingenious ‘Bass extender’ TM floorstand is
available to further enhance the bass output.
Available in high gloss black and matt
silver finishes.
KHT6000
As the flagship system of the KHT
family, KHT9000 combines KEF’s latest
performance enhancing innovation with
an uncompromised technical specification
to create a true 3D sound picture:
incredibly spacious, intricately detailed and
totally engrossing.
The Uni-Q array brings out the full emotional
depth and texture of vocals, whether sung,
shouted, spoken or whispered.
On either side, a matching pair of long-throw
bass drivers with ultra-low distortion motors
for a low frequency response that’s as lucid
as it is gutsy - and thanks to KEF’s ACE
technology, what you actually hear is the level
of bass extension that’s only normally
obtainable with much larger speakers.
To achieve a genuinely integrated look that
complements modern interiors, you have the
option of using the ‘Selecta-mount’TM
system. An innovative solution of a height
adjustable stand that can also correct the wall
reflection for wall mounting allowing
exceptional tonal accuracy.
Available separately, and with a choice of
compatible powered subwoofers, you’re free
to tailor yourself the set-up that best suits
your tastes.
Available in high gloss black and matt
silver finishes.
KHT9000
HHTTSS66000011SSaatteelllliittee
SSppeecciiffiiccaattiioonnss
HHTTSS66000011CCeennttrreeHHTTSS99000011SSaatteelllliittee
SSppeecciiffiiccaattiioonnss
HHTTSS99000011CCeennttrree
Design Three-way closed box, ACE in MF enclosure Three-way closed box, ACE in MF enclosure
Drive units 75mm (3in.) Uni-Q array with 75mm (3in.) Uni-Q array
15mm (0.6in.) aluminium HF 15mm (0.6in.) aluminium HF
4 x 75mm (3in.) LF 4 x 75mm (3in.) LF
Frequency response (±3dB) 90Hz - 30kHz 90Hz - 30kHz
75Hz - 30kHz
Crossover frequency 800Hz, 3kHz 800Hz, 3kHz
Power handling 100W 100W
Sensitivity (2.83V/1m) 87dB 87dB
Maximum output (SPL) 109dB 109dB
Impedance 8Ω8Ω
Magnetic shielding Yes Yes
Internal volume 2.9litres 2.9litres
Weight 3.9kg (8.6lbs) 3.9kg (8.6lbs)
Dimensions 600 x 121 x 85 mm 121 x 577 x 85 mm
(H x W x D) (23.6 x 4.8 x 3.4 in.) (4.8 x 22.7 x 3.4 in.)
Finish High gloss black, matt silver High gloss black, matt silver
Optional accessories Floorstand with Bass ExtenderTM N/A
(with optional ‘Bass Extender’
bass enhancing stand)
Design Three-way closed box, ACE enclosure Three-way closed box, ACE enclosure
Drive units 165mm (6.5in.) Uni-Q array with 165mm (6.5in.) Uni-Q array with
19mm (0.75in.) aluminium HF 19mm (0.75in.) aluminium HF
2x 165mm (6.5in.) LF 2x 165mm (6.5in.) LF
Frequency response (±3dB) 75Hz - 27kHz 75Hz - 27kHz
Crossover frequency 400Hz, 3kHz 400Hz, 3kHz
Power handling 150W 150W
Sensitivity (2.83V/1m) 88dB 88dB
Maximum output (SPL) 111dB 111dB
Impedance 8Ω8Ω
Magnetic shielding Yes Yes
Internal volume 11.5litres 11.5litres
Weight 9.9kg (21.8lbs) 9.9kg (21.8lbs)
Dimensions 555 x 250 x 125 mm 250 x 555 x 125 mm
(H x W x D) (21.8 x 9.8 x 4.9 in.) (9.8 x 21.8 x 4.9 in.)
Finish High gloss black, matt silver High gloss black, matt silver
Optional accessories Height adjustable desktop stand Height adjustable desktop stand
Floorstand Floorstand

Sound reproduction should be invisible - you
want surround sound, with the hardware as
unobtrusive as possible.
That’s why we came up with an alternative.
As its name implies, the fivetwo series
envelops you in the surround sound of a full
5.1 set-up using only two speakers and a
subwoofer (optional).
Whether you choose the compact model 7
(with seven drivers in each speaker) or the
formidable model 11 (with no less than
eleven), the effect is amazing. Voices sound
real and precisely located. Ambient effects
travel through a realistic three-dimensional
soundscape as the director intended.
On screen action comes alive for everyone
in the room, wherever they sit. The secret
lies in combining KEF’s acclaimed Uni-Q
“sit anywhere” driver concept with NXT flat
panel technology. Each speaker has a front-
firing array of Uni-Q drivers providing true
dedicated centre speakers as well as
spreading a highly detailed sound image to
your left and right.
Behind them, large vertical flat panels act as
high performance rear effect speakers.
And all the channels can be separately
adjusted from your receiver to achieve a
perfectly balanced sound.
Available in high gloss black or matt
silver finishes.
model 7 & model 11
If the problem of hiding lengthy cables has
restricted where you put your loudspeakers,
now you have the freedom to locate them
virtually anywhere you wish. KEF have
developed a remarkable innovation in audio
quality and convenience that at last makes
high-performing wireless speakers a reality.
A remarkable combination of signal
transmission, reception and processing
technologies combine to ensure superb
signal reliability and a CD-quality sound
transmission that is a match for even the
most demanding audio systems.
KEF Wireless System is an ideal add-on for
any existing rear surround sound speaker
set-up (regardless of the brand), and can be
also used for stereo speakers in a hi-fi
system where hiding the cables is an
inconvenience.
This remarkable technology is available as
either a stand-alone kit to support an existing
system or a complete 5.1 home theatre
system in the 5000 Series.
Wireless System is available in high
gloss black.
Wireless System / Wireless 5000 series
Wireless
MMOODDEELL77
SSppeecciiffiiccaattiioonnss
MMOODDEELL1111
Design Closed-box surround sound Closed-box surround sound
Drive units 7 Speaker drivers, comprising: 11 Speaker drivers, comprising:
Dedicated Centre Channel Dedicated Centre Channel
1 x 75mm (3in.) Uni-Q array with 1 x 75mm (3in.) Uni-Q array with
1 x 15mm (0.6in.) aluminium HF 1 x 15mm (0.6in.) aluminium HF
1 x 75mm (3in.) LF
Front Left/Right Channel Front Left/Right Channel
1 x 75mm (3in.) Uni-Q array with 1 x 75mm (3in.) Uni-Q array with
1 x 15mm (0.6in.) aluminium HF 1 x 15mm (0.6in.) aluminium HF
2 x 75mm (3in.) LF 4 x 75mm (3in.) LF
Rear Left/Right Channel Rear Left/Right Channel
1x NXT flat panel 2x NXT flat panels
Frequency range (±3dB) 100Hz - 30kHz 90Hz - 30kHz
Crossover frequency 400Hz, 5kHz 600Hz, 5kHz
Power handling 100W 100W
Sensitivity (2.83V/1m) 87dB 87dB
Maximum output (SPL) 104dB 109dB
Impedance 8Ω8Ω
Internal volume 1.4litres 15litres
Weight 3.9kg (8.6lbs) 8kg (17.6lbs)
Dimensions 400 x 104 x 230 mm 1020 x 210 x 230 mm
(H x W x D) (15.7 x 4.1 x 9.1 in.) (40.2 x 8.3 x 9.1 in.)
Finish High gloss black, matt silver High gloss black, matt silver
Connectors Supplied with connection for any 5.1 Supplied with connection for any 5.1
home theatre receiver/amplifier home theatre receiver/amplifier
Optional accessories Floorstand Wall bracket
Wall bracket
KKHHTT55000055..22WW
SSppeecciiffiiccaattiioonnss
WWiirreelleessssSSyysstteemm
* Environmental factors such as building materials and construction may adversely affect wireless signal range.
Transmission protocol AAFHSS AAFHSS
Frequency band 2.4 -2.4835GHz (ISM band) 2.4 -2.4835GHz (ISM band)
Data rate Up to 1.1Mbps Up to 1.1Mbps
Range 25m Typical maximum*(27.3yds) 25m Typical maximum*(27.3yds)
Amplifier 2x 50W (digital amplifiers) 2x 50W (digital amplifiers)
Sensitivity 80dB 80dB
Frequency response (±3dB) 20Hz - 20kHz 20Hz - 20kHz
Peak audio output 50W rms 50W rms
Crossover frequency 800Hz and 5kHz N/A
Transmitter module 147 x 79 x 79 mm 147 x 79 x 79 mm
Dimensions (H x W x D) (5.8 x 3.1 x 3.1 in.) (5.8 x 3.1 x 3.1 in.)
Receiver module Additional 50mm (height on floorstand) 147 x 79 x 79 mm (H x W x D)
Dimensions Additional 122mm (height on deskstand) (5.8 x 3.1 x 3.1 in.)
(Additional 4.8in.)
(Additional 2in.)
Finish High gloss black, matt silver High gloss black

PL1658EN
www.kef.com
GP Acoustics (UK) Ltd., Eccleston Road,Tovil, Maidstone, Kent, ME15 6QP U.K. Tel: + 44 (0)1622 672261 Fax: + 44 (0)1622 750653
GP Acoustics (US) Inc., 10 Timber Lane, Marlboro, New Jersey 07746 U.S.A. Tel: +(1) 732 683 2356 Fax: +(1) 732 683 2358
GP Acoustics GmbH, Heinrichstraße 51, D-44536 Lünen, Deutschland. Tel: [phone]. Fax: [phone]
GP Acoustics (France) SAS, 39 Rue des Granges Galand - BP60414, 37554 Saint Avertin CEDEX, France. Tel: [phone] Fax : [phone]
GP Acoustics (HK) Ltd., 6F, Gold Peak Building, 30 Kwai Wing Road, Kwai Chung, N.T., Hong Kong. Tel: +(852) 2410 8188 Fax: +(852) 2401 0754
KEF JAPAN, 1-11-17, Honcho, Koganei-city,Tokyo, JAPAN. 184-0004. Tel: [phone] Email:[e-mail]
GP Acoustics reserve the right, in line with continuous research and development, to amend or change specifications without prior notice. E. & O.E.
KEF, Uni-Q, and Selecta-mount are registered trademarks. Uni-Q is protected under GB patent 2 236929, U.S. Pat. No. 5,548,657 and other worldwide patents.
Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories. DTS is a registered trademark of Digital Theatre Systems Inc.
NXT is a trademark of New Transducers Limited.
home theatre
