Kelvinator KD12DW2 User manual

KD12DW2
Instruction Manual

Read this Manual
Before Calling for Service
This manual contains sections of Safety
Instructions,Operating Instructions,
Installation Instructions and Troubleshooting
Tips etc. Carefully reading it before using the
dishwasher w il l help you to use and ma intain
the dishwasher properly.
To review the section on Troubl es hooting Tips
will help you to solve some common problems
by yourself and not need to ask for the help of
professional technicians.
Safety Information
Operating Instructions
Troubleshooting Tips
Installation instruction
Contr ol Pa nel . . . . . . . . . . . . . . . . . . . . . . . . 2
Dis hwa sher Fea ture s . . . . . . . . . . . . . . . . . 2
Was h Cyc le Ta ble . . . . . . . . . . . . . . . . . . . . 3
Wate r Softe ner . . . . . . . . . . . . . . . . . . . . . . 4
Dete rge nt . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Rins e Ai d . . . . . . . . . . . . . . . . . . . . . . . . . 5 ,6
Loadi n g the Di shw as her Rac k . . . . . . . . 6 ,7
Turni ng On t he A pplia nce . . . . . . . . . . . . . . 7
Filte ring S yste m . . . . . . . . . . . . . . . . . . . . . 8
Caring for the Dishw as her . . . . . . . . . . 9. . .
About Ele ctr ici ty conn e cti on . . . . . . . . . . 10
Wate r Conne ction . . . . . . . . . . . . . . . . . . . 11
Dim ens ions . . . . . . . . . . . . . . . . . . . . . . . . 11
Be fo re c al li ng for s er vic e. . . . . . . . . . 12,13
. . . . . . . . . . . . . . . . . . 1
The manufacturer, following a policy of constant
devel opment and up-dating of the product, may
make modifications without giving prior notice.
NOTE:

IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING
WARNING!
WARNING! HYDROGEN GAS IS EXPLOSIVE
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event
of a malf un ctio n or breakdo wn, gro un din g will
reduce the risk of electric shock by providing a
path of least resistance of electric current. This
a p p l i a n c e i s e q u i p p e d w i t h a c o r d h a v i n g a n
equipment-grounding conductor and a grounding
plug. Th e plug must be plu gged into an appropriate
outlet that is installed and grounded in accordance
with all local codes and ordinances.
WARNING!
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service representative if you
are in doubt whether the appliance is
pro perly groun ded . D o n ot mo dif y th e plu g
p r o v i d e d w i t h the appliance ;If it is not fit
for the outlet .have a proper outlet installed
by a qualified electrician.

SAVE THESE INSTRUCTIONS
Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been
used for two weeks or mor e. HYDROGEN GA S IS EX PLOSIV E.
If the hot-water system has not been used for such a period, befor e usi ng the di shw ashe r turn on al l
hot-wa ter faucets and let the water flow from each for several mi nut es. This wil l re le as e any
ac cum ulat e d hydroge n ga s. As the ga s is fla mma ble , d o not sm oke or use an open flame during this
time.
When using your dishwasher, follow the below basic precautions including the following:
1
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY
WARNING! PROPER USE
Keep child away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic
items not so marked, check the manufactures
recommendat ion s.
Use onl y dete rge nt a nd rins e addi t ive s des igne d
for a n a utomati c dis hwa sher. Ne ve r use s o ap ,
laundry detergent, or hand washing detergent
in your dishwasher. Keep these products out of
children.


During installation, the power supply must not
be exce ss iv ely or danger ousl y bent or flattened.
The door should not be left in the open position
since thi s could pr es ent a tri pping hazards.

Do not tamper with controls.

Do not operate your dishwasher unless all
enclosu re panels are prop erly inplace. Open the
door very carefully if the dishwasher is operating,
t here is a risk of water squirting out.

Do not place any heav y objects of stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
1) Loc ate sharp items so that they are not likely to
damage the door sea l;
2) Load sharp knives with the handles up to reduce
the risk of cut-type i nj uri es .

When using your dishwasher, you should prevent
plastic item from contacting with heating element.

If the suppl y cord is damaged, it must be repla ced
by the manufac turer or its ser vi ce agent or a
similarly qualified person in order to avoid a
hazard.

Please di spose of pack ing ma teri al s prope rly .

Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
The appliance is not intended for use by young
children or infirm persons without supervision.
Dishwasher deter gen ts are strongly alk al ine ,they
can be extremely dangerous if swallowed.Avoid
contact with skin and eye s and keep childr en away
from the dishwashe r when the door is open.
Young children should be supervised to ensure that
they do not play with the appliance.
Check tha t the detergent receptable is empty after
completion of the wash cycle .





Control Panel
To get the best performance from your dishwasher,read all operating instructions before using it for the
f i r s t t i m e .
Dishwasher Features
IMPORTANT!
2
Upper Basket
Spray Arm s
Lower Basket
Water Softener
Detergent Dispenser
Silverware B asketMain Fi lte r
Cup Shelf
5
6
7
8
Rinse Aid Dispenser
Coarse Filter
Drain pipe connector
Inlet pipe connector
9
10
12
11
3
2
14
46
7
8
10
1
2
3
4
9
6
7
8
Program Knob: Pr ess the knob to choose the des ire d
program.
Program indicator light
Start / Pau se Knob: Press this knob to start or stop the
dishwasher.
Power Switch: Turn on/off the power supply.
Power On Indicator Light: Comes on when the power is
turned on.
D is play Win dow: Pr o gra m re ma in ing tim e , del ay ti m e,
running ind icator, tem perature of water, fault codes and etc.
Delayed Start Button: Pre ss this button to set the del aye d
hours for washing.
Door Lock : P ull i t to ope n the door .
5
5
10
3
Rinse Aid War ning light: rinse aidAdd more as the
indicator on the front panel lights up(Certain model only).
Salt Warning Light: Add more salt as the indicator on the
front pane l li ghts up .(C er ta in m ode l only )
2
1
11 12
1
2
3
4
5
6
7
8
9
10
9

3
Turning on the Appliance
Sta rt in g a wa sh cyc l e. . . Change the Programme
At the en d o f the was h cycle
At e nd of wa shi ng, the ti me di spla y wi ll fl as h for 8
seconds while the buzzer sound. But at the end of
delayed washing, no sound of the buzzer, only
the flash of the time display.
1
2
3
4
5
6
Press the button to stop was hing.
7
Draw out the lower and upper basket, load the dishes and push them
back. It is commended t hat loading the lower basket first, then the
upper one . The e xpe nsiv e a nd fi ner chinaw ar e shoul d not b e put in.
With a little force to ensure the door is properly closed.
: a s ound of c li ck c ould be hea rd w he n the door is clos ed
perfectly.
Note
Inse rt the plug i nto the s ocket.
The power supply is 230V 50HZ, the specification of the socket is
250V 10A.
Press the ON/OFF butto n
According to the soil level to choose the desired program by
pressing program selection button.
Press this button to start automatic washing.
Press the programme button to sel ec t the
programme.
Press the button to start washing.
Press the ON/OFF button at the end of washing. Open the door of
dishwasher after waiting 30 minutes.
Wash Cycle Table
Cycle CycleSelection
Information Description
ofCycle Rinse
Aid
Detergent
pre/main
Extended wash at 45℃.
Rinse wish cold water.
Rinse with hot water at 70℃
Drying.
For dishes that need to rinsed
and dried only
Rinse wish cold water.
Rinse with hot water at 70℃
Drying.
Shor t was h at 35℃
Warm rinse.
4/20 gr.
4/20 gr.
20 gr.
Pr e-w as h w ith col d wate r.
Extended wash at 45℃.
Rinse wish cold water.
Rinse with hot water at 70℃
Drying.
Pr e-w as h w ith hot w ate r.
Extended wash at 55℃ .
Rinse wish cold water.
Rinse with hot water at 70℃
Drying.
15 gr.
Pre-wash of dishes pots and
pans while waiting for the
loa d to be compl eted a fte r the
subsequent meal.
Short cold wash to pre vent
food residue from drying on
the dis hes .
Strong
For the hea vie st soiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting with dried food on
them for a while.
For normally soi le d loads,
such as , plates,glasses
and lightly soiled pans .
standard daily cycle.
pots
A shorter wash for lightly
soi le d loads tha t do not nee d
drying.
For lightly soiled loads,such
as p lates,glasses,bowl s and
ligh tly soiled pans.
Program
Normal
Economy
Rinse
Glass
Soak
(IEC-EN 50242)

4

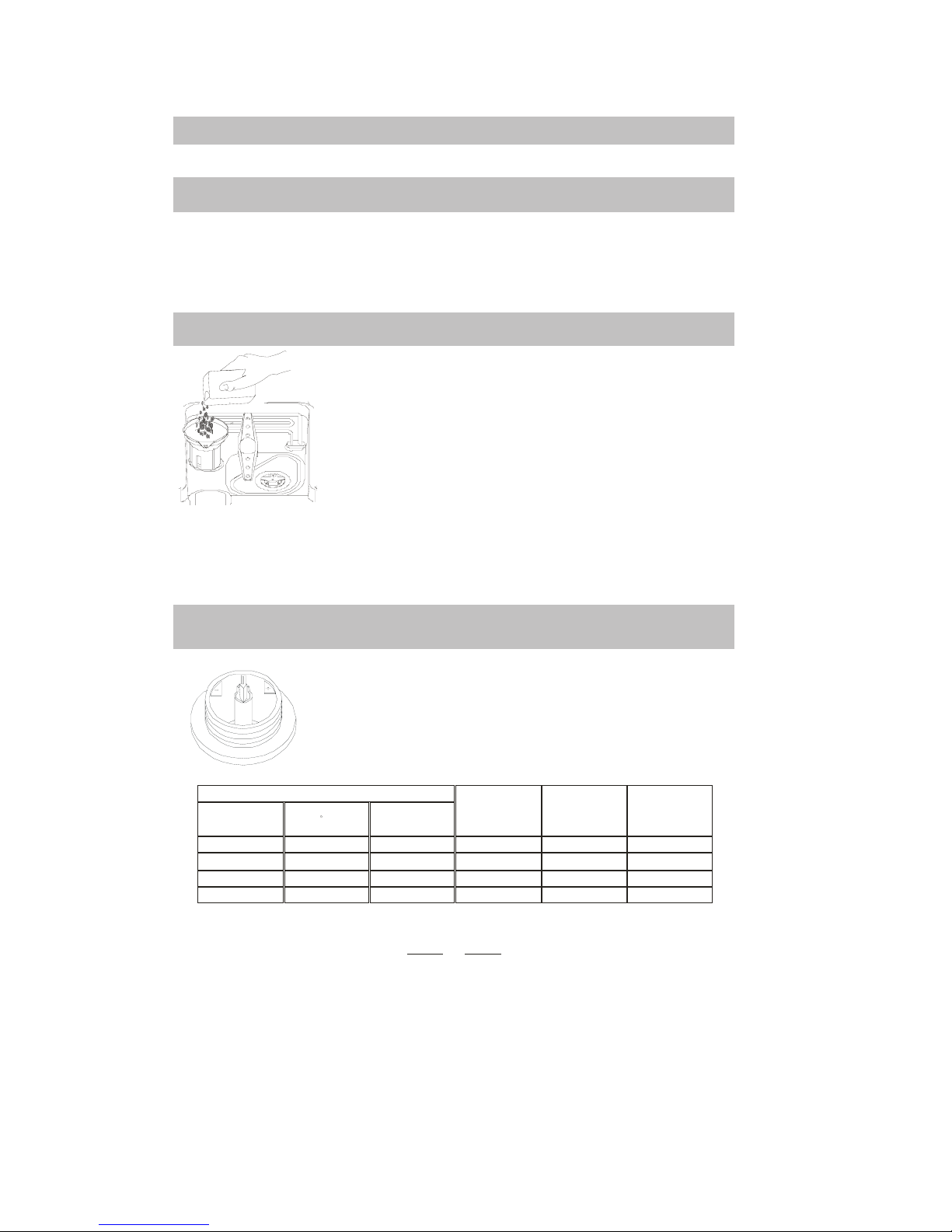

Loading the Salt into the Softener
Always use salt in tended for use with dish washers.
The salt container is located beneath the lower rack and should be filled as follows:
Remove the lower basket and the n unscrew and rem ove the cap from the salt
container.
If you ar e fil li ng the c ontaine r for the fi rs t ti me , fil l 2/3 o f its volume with water.
Place the end of the funnel(supplied) into the hole and introduce about 2kg of
salt .It is normal for a small amount of water to com e out of the sal t container
Carefully screw the cap back on.
1
2
4
3
Adjusting Salt Consumption
Unscre w the cap from the salt containe r.
Ther e is a ri ng on the c onta ine r wi th a n ar row on it (s ee Figur e to the side), if
necessary, rotate the ring in the antic loc kw ise direction fr om the "-" Se tt ing
towa rd the "+" si gn, bas ed on the har dne ss of the w ate r b ei ng us ed. It i s
recommended that adjustments should be made in accordance with the fo llowing
schema:
1
2
1.
2.
The salt conta iner must be refilled when the salt warning light comes on. Though the salt container is filled
enough, the i ndicator light may not black out be fore the salt ful ly dissolve .
If the re a re s p il ls of the s alt, a soa k progr am could be run to wipe them out.
WATER HARDNESS
Clarke Degrees dH mm ol / l Select or Pos it io n Sal t consumption
(g ram/cycle)
Auto nomy
(cycles/2 kgs)
0~14 0~10 0~ 1.7
/
0/
14~3 6 18~44 1.8~ 4.4
-
20 60
36~71 45~89 4.5~8.9 MED 40 40
71 89 8. 9 +60 25
Contact your local water board for information on the hardness of your wate r supply.
The har dness of the wa ter varies from pla ce to place. If hard wate r is use d in the dishw as her, deposits will form on the dishes
and utensils.
The app l ia nce s is equipped with a speci al softener that uses a salt spe cifi ca ll y designed to eliminate lim e and minerals from the
water .
WATER SOFTENER
NOTE:
The dis hwa she r is de si gned to allow for adj usting the amou nt of sal t consum ed based on the hardness of the water used.
This is intended to optimize and customi ze the level of salt consumption so that the salt consumpti on could be set pr oce ed as
follows:
There are two ways to reduce the hardness: one way is using water softener, the other is u sing
detergent.
water
If your model have not water softener, you may skip this section.
NOTE:

5
Dis hwa sher detergent is corr osi ve! Take care to keep it out
of reach of children.
Amoun t o f Detergent to Us e
IF THE WATE R ISN'T TOO HA RD, Y OU M AY A LSO PREV ENT THE FORM ATION OF DEPOSITS BY ADDING DETERGENT.
The amount o f de tergent needed can vary due to differe nce s in water hardness. To determine t he water hardness in your ar ea ,
contact your l oca l water uti lity or area w ater softeni ng company. The harder the water , the mo re deter gent you may nee d.
Remember, you should adjust the amount of detergent you use by small amounts until you find the correct amount.
Proper Use of Detergent
Removing Hard Water Spots
To remove hard water spots, try the following:
Run d i shes thr ough a norma l w ash pr ogr am.
Remov e al l me tal di shw are , s uch as cutle ry , pans , e tc. ,
from the dishwasher.
Do no t add dete rge nt.
Pour two c ups of v ine gar i nto a bowl a nd s et the bowl fa ce
up on the lower rack of the dishwasher.
Run the di shes through a norm al wash pr og ram .
If this doe sn't work, try the same process with 1 / 4 cup of
citric acid crystals inste ad of vinegar.
Use only detergent specifically made for use in dishwashers.
Keep your detergent fresh and dry. Don't put powder detergent
into the dispenser until You're ready to wash dishes.
RINSE AID DISPENSER
The rinse aid is released during the final rinse to prevent water
from forming droplets on your dishes that can leave spots and
streaks. It also improves drying by allowing water to "sheet" off
the dis hes .
Your dishwas hers are designed to use liquid rinse aids. The
rinse aid dispenser is located inside the door next to the
detergent dispenser. To fill the dispenser, open the cap and
pour the rinse aid into the dispenser until the level indicator
turns completely black. The dispenser holds about 100 ml of
liquid rinse aid.
Be careful not to overfill the dispenser, because this could
cause ov er sudsi ng. Wi pe away any spills wi th a da mp cloth.
Don't forget to replace the cap before you close the dishwasher
door.
If you hav e soft water , you may not nee d rinse aid for it may
cause a white film to develop on your dis hes .
WARNING!
YOU M AY NOT A DD TOO MUC H DETERGENT TO P R EVENT THE FORMA TION OF DEPOSITS BECAUS E YOUR DISHWAS HERS
HAVE SPECIALLY-DESIGNED WATER SOFTENERS.
The dispens er m ust be re fil le d be fore the s tar t of ea ch wa sh cy cle foll owing the instructions provided in the" Wash Cycl e
Table".Your dishwashers than conventional dishwashers. Generally, only one tablespoon of
detergent is needed for a normal wash load. Also, more heavily soi le d item s nee d more d e ter ge nt. A lw ays add the dete rgent j ust
before starting dishwasher, otherwise it could ge t damp and will not dissolve properly.
use less detergent and rinse aid
DETERGENT DISPENSER
To open the dispenser, turn the cap to the "open" (left)
arrow and lift it out.
Pour the ri nse a id into the dis pense r, bei ng c ar eful not to
overfill.
Replace the cap by inse rti ng it aligned with "open" arrow
and turning it to the closed (right) arrow.

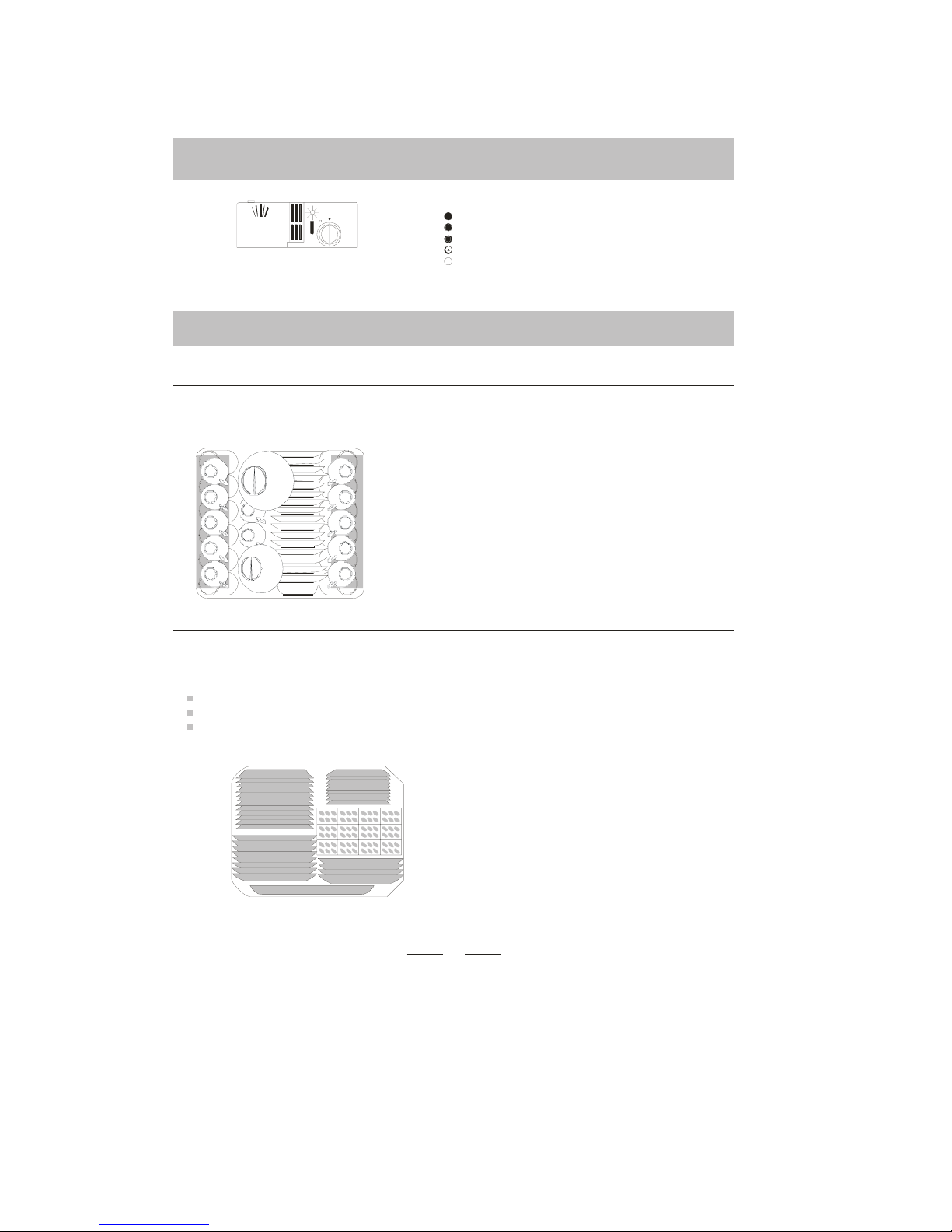

Adjusting Rinse Aid Dispenser
A mea sure d amount of rinse aid is rel eas ed during the final rins e. As w ith dete rge nt, the am ount
of rinse aid needed for your dishes depends on the hardness of the wa ter i n your a rea. Too muc h
rinse aid can result in lather of foaming and cause cloudiness or ste ak s on your di shes. If the
water in your area is very soft, you ma y not need rinse aid. If you do,you c an dilute the rinse aid
wi th an eq u al am ount o f wa ter.
The rinse aid di spens er ha s si x se ttings. Al wa ys s tar t with the d is pens er s et on " 1 ". If spots a nd
poor drying are probl em s, increase the amount of rins e aid dispensed by removing the di spe nser
lid and rotating the dial to "2". If the dishes still are not drying properly or a re spotted, adjust the
dial to the next higher number until your dishes are spot-free. We suggest you to set on "4" .
6
5
4 3
2
1

6
Whe n to Refill the Rinse Aid Dispenser
If there is no ri nse a id wa rni ng light in the c on tr ol pane l, yo u can judge the amount of rinse aid by the following means. The
black dot on the rinse aid dispenser indicates the amount of rin s e ai d in the dis pense r. As the rins e ai d dimi nis hes, the s ize of
the bla ck dot decreases. You should never let the rinse aid get bel ow 1 / 4 full .
As the rinse a id diminishes, the size of the black dot on the rinse
aid lev el indic ator changes , as illus trate d be low .
Fu l l
3 / 4 full
1 / 2 full
1 / 4 full - S hould re fill to eli mina te spotti ng
Empty
Loading the Dishwasher Racks.
For best performance of the dishwasher, follow these loading guideli nes. Features and appearance of racks and
si lverwar e bas kets may vary fr o m your mo del.
The upper rac k i s des igne d to hold mor e del ic ate a nd l ighter dishware suc h as glasses, coffee and tea cup and sauce rs, as wel l
as plate s, sm all bowls and sha llow pans(as long as they are not too dir ty) .
Position the dishes and cookware so that they do not get moved by the spray of water.
The upper rac k can be adj usted for height by putting wheels of di fferent height into the rai ls.
How to use the Upper Rack
1
Cups
2
Small serv ing bow l
3
Large serving bowl
4
Glasses
Saucers
5
6
7
Dish
Plates
How to us e the Lowe r Rack
We recom me nd tha t you place large items which are most difficul t to cl ea n i nto t he lowe r ra ck : pots , pans , l ids,
serving dishes and bowls, as shown in the figure to the right.
It is pr efe rabl e to place serv ing dishes and lids on the side of the racks in order to avoid blocking the rotation of the
top spray arm.
Pots, serving bowls, etc, must always be placed top down .
Deep po ts should be slanted
to allow wa te r to flow out.
The bottom rack feature fold down tine rows so that large r or more pots and pans can be loaded.
1
Oval platter
3
Soup plates
Dessert dishes
4
2
Dinner plates
5
Silverware basket
1
2
3
4
5
7
6
5
3
2
4
1
3

7
SILVERWARE BASKET
Silverware shoul d be plac ed in the sil ver wa re basket with handles at the bo ttom: If the r ac k has side bask ets , the s poon should
be loaded individually into the appropriate slots, Especially long utensils should be placed in the horizontal position at the
front of the upper rack.
Do not let any item extend through bottom.
WARNING!
Teaspoons
4
Soup spoons
2
Forks
1
Se rv ing fork
8
Serving spoon
6
Knife
5
3
Dessert spoons
7
Gravy la dl e
Turning on the Appliance
Starting a wash cycle. . .
Make sure tha t the plug for the appl ia nce is inserted into the wall socket.
Make
sure that the water supply is turned on to full pr es sure.
Load the dishw asher(see
the section entitle d, " Loading the Dishwasher " ).
Pour in the detergent(see the section entitled, " Salt, Detergent and Rinse Aid " ).
Turn the knob located on the right of the control panel in the clockwise direction until
the number or the symbol for the cycle
setting is align ed with the reference mark (see the section entitled, " Wash Cycle Table " ).
Press the ON/ OFF button, and the ON/OFF light will turn on. At this point, the wash cycle will begin.
2
3
4
5
6
1
Digital sign: Display the de layed time,
re ma ini ng ti me a nd fault code s.
Specification of Display
Delay sign: Displ ay the sign when washing.
Delay sign: Displ ay the sign when dela ying.
Temperature display: Display the wash
temperature at any time.
Running sign: Re peatedly display the sign in
turn when runnin g, no flicker when stopping.
Fault codes
Long er inlet time. Faucets is not opened. E1
Codes Meanings Possible Causes
Longer draining t ime. The installation position of the d rain pipe is too high.
E2
Longer heating time,
but not reachin g requ ired t emperature
Malfunction of temperature sensor or of heating element.
E3
Overfilled. Too much inlet water. .
E4
Low voltage.
E5
Abnormal temper ature Short circuit or break of temperature sensor.
E6,E7
Switch can not shut off automatically.
NOTE: When error occour s,the machi ne can shut off automati cally after draining.
4
4
3
8
2
6
7
4
4
4
5
4
4
4
4
1
1
1
1
1
1
1
1
1
4
4
4
1
1
1
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
6

8
Coarse filter
Larger item s, such as pieces of bone or glass, that could clog the drain are trapped in the
coa rs e fil ter. To re move an ite m ca ught i n thi s fil ter , gentl y squeeze the tabs on top of this
filter and lift it out.
Filtering System
For your convenience, we have placed the drain pump and filtering sys tem w ithi n e as y re ach i nside the tub. Ther e ar e thre e
com ponents of the filtering system: the main fi lter, the coarse filter, and the fine fi lter.
12
2
Fine fil ter
This filter holds soil and food residue in the sump area and prev ent s i t fr om bei ng
redeposited on the dishes during a cycle.
Main fil ter
Food and soil particles trapped by this filter are pulverized by a spec ia l jet on the lower spray
arm and washed down the drain.
1
3
3
Caring for the Dishwasher
To cl ean the contr ol p anel use a li ghtly dampened cl oth th en dr y thoroughly. To clean the exterior use a good
appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
Protect Against Freezing
If your dishwasher is left in an unheated place during the winter, ask a service technician to:
Cut off electrical power to the dishwasher. Remove
fuses or trip circuit breaker.
Turn off the water supply and disconnect the water
inlet pipe from the water valve.
Drain water from the inlet and water valve. pipe
(Use a pan to catch the water.)
Reconnect the water inlet to the
water valve.
pipe
Remove the plastic sump cover in the
tub the bottom and use a sponge to
soak up water in rubber boot.
5
4
3
2
1

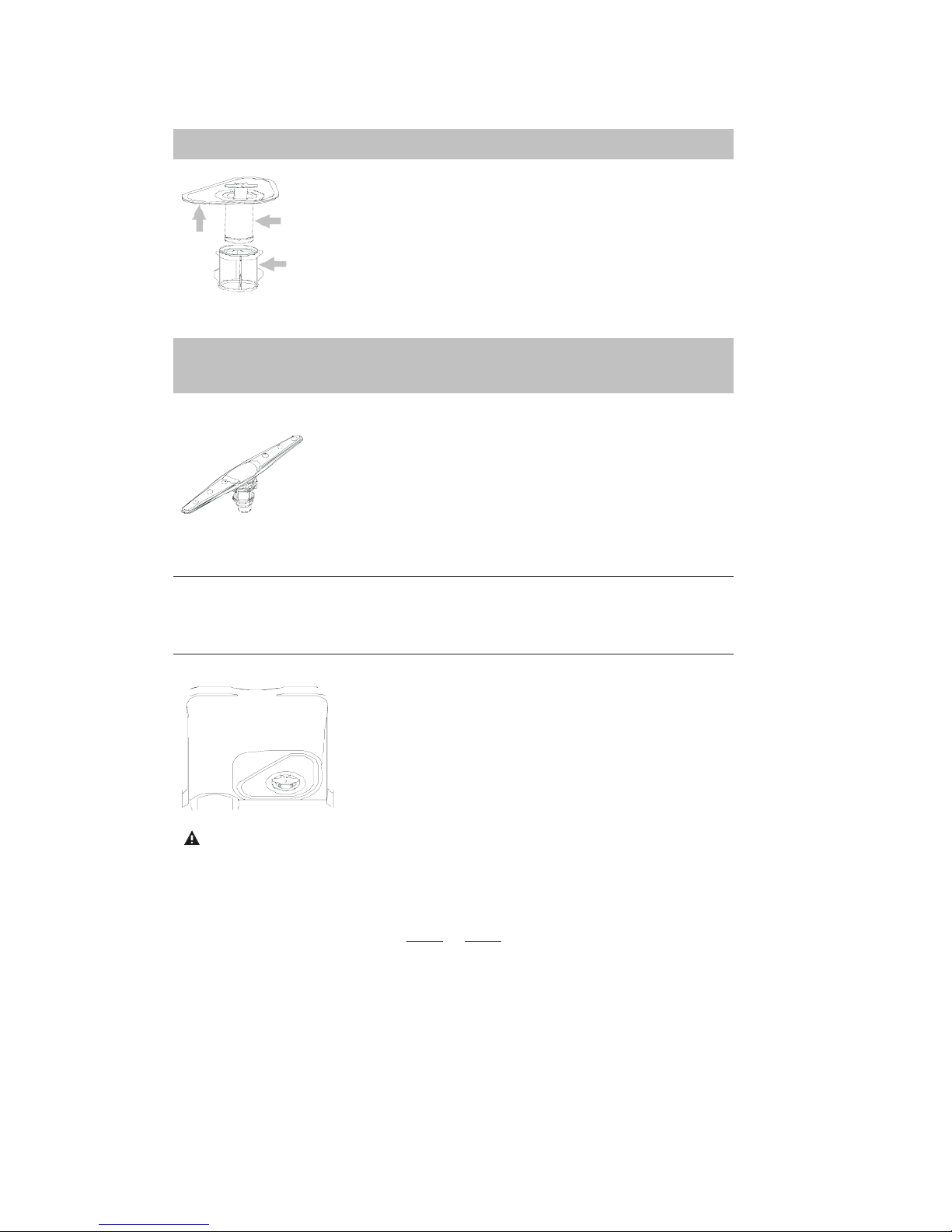

Cleaning the Spray Arms
It is ne ce ssa ry to clea n the spray a rms regular ly for hard water chemicals will clog the spray arm jets and bearings. To remove the
spray arm , scr ew off the nut to take out the washer on top of the spray arm and remove the arm. Wash the arms in soa py and warm
water and use a soft br ush to clean the jets. Replace them after rinsing them thoroughly.
Never run the dishwasher without the filters in pla ce.
WARNING!
Cleaning the Filters
Filter assembly
For best pe rformanc e and resu l ts, the filter assembly must be c le aned.
The fil ter effic ie ntl y removes fo od par tic les from the was h wate r, all o wi ng it to be
recirculated dur ing the cycl e. For thi s reason, it is a good idea to remove the larger
food parti cles tr apped in the filter after each wash cycle by ri nsi ng the sem ic irc ula r
fil ter a nd cup unde r r unni ng wa te r. To rem ove the fi lte r as se mbly, pull on the cup
handl e in th e upw ard di rec tion . The entir e fil ter a ss em bly s houl d be cleaned at least
once a month.
To clean the coarse fil ter and th e fine filter, us e a clea ning brush. Then, reassemble
the filter parts as s hown in the figur es left and reins ert the e ntire as sem bly in the
dishwasher, positioning in its s eat and pressing downward.
The dis hwasher mus t neve r be use d without the filters. Improper re plac em ent of the
filter may reduc e the performance level of the applia nce and damage dishes and utensils.

9
Cleaning the Door
Never us e a spray cl eane r to clean the door panel for it could dam age the door lock and electrical components. It is not allowed
to use the abrasive agent or some paper towe l becauseof the ris k of sc ra tc hing or l eav ing spots on t he s tainl es s steel s urfa ce.
WARNING!
To clean the edge around the door, you should use only a soft warm , da mp ra g . To pre ve nt
penetration of water into the door lock and electrical components, do not use a spr ay c le aner
of any kind.
Also, never use abrasive cle ane rs or scour ing pads on the outer surfaces bec au se they will
scratch the fini sh. Some paper s towels can also scra tch or leav e marks on the sur face.
Cleaning the Drain Pump
Som ethi ng w il l occ asi onal ly m ove i nto th e fi lte rs a nd the dr ai n pum p. If this oc cur s, the dra in
pumps employed in your dishwashers are designed to automatically reverse, ejecting the
item bac k into the sump area or dow n the drain. If you have to remov e an obsta cl e from t he
drain pump, before you remove the filters, you should turn off the powe r; Then remove th e
small bla ck insert from the sumparea. (You might want to remove any standing water firs t).
Scoop out the item that is probably in the sump area and causes the obstruction. Remember
to re plac e the bla ck insert befor e you put the fil te rs back in.
How to Keep Your Dishwasher in Shape
After Every Wash
After every wash, turn off the water supply to the
appliance and leave the door slightly ajar so that
moi stu r e and od ors are not tr ap ped ins ide .
Remove the Plug
Before cle aning or performing maintenance, alw ays
re mov e the plug from the soc ket. Do not r un ris ks.
No Solvents or Abrasive Cleaning
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Rathe r, use onl y a cl oth a nd war m s oa py w ater .
To remove spots or stains from the surface of the
inte ri or, us e a cloth dam pened with wate r a nd a l ittle
white vinega r, or a cleaning product made speci fic ally
for dishwashers.
Wh en You Go on Holiday
When you go on holiday, it is recommened that you run a
wa sh cy cl e wi th the dishw as her e mpty a nd the n r em ove
the plug from the soc ke t, turn off the water supply and
leave the door of the appl ia nce slightl y ajar. This will hel p
the seals last longer and prevent odors from forming
wi thin the appl ia nce.
Moving the Appliance
If the appl ianc e mus t be mov ed, try to ke ep it in the vertica l
position.If absolutely necessary, it can be positioned on
its back .
Seals
One of the fac tors tha t c aus e od ors to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
About Electricity Connecting
.
CAUTION , for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIR CUMS TANCES, CUT OR R EMOVE THE THIRD GROUNDING PRONG FROM THE POWER CO RD.
The power-supply receptacle for the appliance shall be
ins tal led i n a cabi net or on a wa ll a dja ce nt to the
undercounter space in which the appliance is to be
installed.
There shall be an opening through the partition between
the compar tme nts spec ifi ed in 1 that is large enough for
the atta chm ent plug to pass through. The longest
dim ension of the opening shall not be more than 38mm.
The edges of the opening specified in 2 shall, if the
partition is wood, be smooth and rounded, or, if the
partition is metal , be covered with an edge protector
provided for this purpose by the manufacturer; and
Care shal l be exer ci se d, when the appliance is insta lle d or
removed, to reduce the likelihood of damage to the
power-supply cord.
12
34

10
I ns u r e pr op er gr ou n d
exists before use
Electrical Requirements
This dishwasher is designed for operation on an adequately wired individual 220~240VAC,50~60HZ. Use required fuse 10 amp.
Fused el ectrical supply is required-copper wire only. Time delay fuse or circuit breaker reco m me nded and prov ide separate
circuit serving only this appliance. Outlet should be placed in adjacent cabinet.
Afte r ma ki ng s ure tha t the volta ge and the fr equenc y va lue s for the current in the home
correspond to those on the rating plate and that the elec tric al s ys te m i s si zed for the
maximum voltage on the rati ng pl ate , insert the plug into an electrical sock et which is
earthed properly. If the electrical socket to which the appliance must be connected is not
appropriate for the , replace the socket,rather than using a adaptors or the like as
they could cause overheating and burns.
plug
Electrical Connection

11
How to Drain Excess Water
From Unicouple Hoses
If the sink is 34 or higher from the floor, the excesswater in Unicouple hoses
cannot be drained directly into the sink. It will be necessary to drain excess
water from hoses into a bowl or su itable container that is heldoutside and lower
than the sink.
Cold Water Connection
Connect the col d water supply hose to a thr ea ded 3/4(inc h) connector and make sure that it is
fastened tightly in place.
If the water pipes are ne w or hav e not bee n us ed for an extende d pe riod of time, let the water
run to make sure that the water is clear and free of impurities. If thi s precaution is not taken,
there is a risk tha t the water inl et can get blocked and damage the appliance.
Hot Water Connection
The water sup ply to the applia nce can also be connected to the house hot water line
(centralized system, heating system),as long as it doe s not exc ee d a temperature of 60 C.
In this cas e, t he wash cycle ti me will be shortene d by about 15 minutes and the wash
efficiency sli g htly reduced.
The connectio n must be made to the hot water line following the same procedures as those
for the connection to the cold water line.
DIMENSIONS(mm)
Drain hose Connection
Con nector of Mod elⅡ
Inse rt the dra in hose into a dra in pipe w ith a m inimum diame ter of 4 cm , or l et it run i nto the s ink , m aki ng s ure to a void be n di ng
or c rimping it. Use the special plastic support that comes with the appliance. The free end of the hose mus t be at a height
betw een 40 and 100cm and must not be immersed in water.
Positioning the Appliance
Levelling the Appliance
Once the appli ance is pos iti oned,adjus t the feet (screwing them in or out) to adjust the
height of the dishwasher, mak ing it level. In any case ,the appliance should not be inclined
mor e than 2 .
Position the appliance in the desired loc ation. The back should rest against the wall behind it, and the sides, along the adjacent
ca bine ts or wa ll . The di shwa she r is equippe d w ith wa ter s upply and drain hoses that can be posi tioned to the right or the left to
facilitate proper installation.
Max 1000mm Mi n 4 00mm
600 580
850
1135

Problem Possible Causes What To Do
Fuse blown, or the
circuit breaker acted
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher
Noise
Sound from soft food shredding action and detergent cup
opening .
Utensils are not secure
in the baskets or something
small has dropped in to
the basket
To ensure everything is secured in the dishwasher.
Motor hums Dishwasher has not been used regularly. If you do not use it
often, remember to set it to fill and pump out every week,
which will help keep the seal moist.
Before Calling for service . . .
Troubleshooting Tips
Review the charts on the following pages may make you be free of calling for service.
Suds in the tub
Improper deterg ent
Add 1 gallon of cold water to the tub. Close and latch the
dishwasher , then drain out the water by slowly turning the
Dial until a drain period is reached. Repeat if necessary.
Spilled rinse agent Always wipe up rinse agent
spills immediately.
Stained tub interior
Detergent with
colorant was used
Make sure that the detergent is the one without colorant.
Rinse agent dispenser
is empty
Make sure that the rinse agent dispense is filled.
Dishes and flatware
not clean
Improper program
Improper rack loading Make sure that the action of the detergent dispenser and
spray arms are not blocked by large dishware.
Spots and filming
on glasses and
flatware
Extremely hard water
Low inlet
temperature
Overloading the
dishwasher
Improper loadin g
Old or damp po wder
detergent
Empty rinse agent
dispenser
Incorrect dosage of
detergent
To remove spots from glassware:
1
Take out all metal utensils out of the dishwasher.
Do not add detergent.
Choose the longest cycle.
Start the dishwasher and allow it to run for about
18 to 22 minutes, then it will be in the main wash.
Open t he door to p our 2 cups o f white vin egar
into t he bot to m of th e d ish washer.
Close the door and let the dishwasher complete
the cycle. If the vinegar does not work: Repeat
as above, except use 1/4 cup (60 ml)of citric acid
crystals instead of vinegar.
2
3
4
5
6
Some audible soun ds are
normal
Dishwasher doesn t
run
'
Dishes are n ot dr ied
Make sure the dishwasher is turned on and the door is
closed securely.
Check that the water supply is connected properly and
the water is turn ed on.
Make sure the power cord is properly plugged into the
wall socket.
Power supply is not
turned on
Water pressure is low
Drain pump doesn t
stop
'
Overf low The system is designed to detect an overflow. When it
does, it shuts off the circulation pump and turns on the
drain pump.
Select stronger program
1
2
3
4
5
6
7
Use only the special dishwasher detergen t to avoid suds.
If this occurs, open the dishwasher and let suds evaporate.
12

Before calling for service . . .
Problem Possible Causes What To Do
Cloudiness on
glassware
Combination of soft
water and too much
detergent
Use less detergent if you have soft water and select a
shortest cycle to wash the glassware and to get them clean.
Yellow or brown film
on inside surfaces
Tea or co ffee st ains using a solut ion of 1/2 cu p of bleach and 3 cups w arm water
to remove the stains by hand.
WA R N I N G
You have to wait for 20 minutes after a cycle to let the heating
elements cool down bef ore cleaning interior; otherw ise, burns
will happen.
Iron depo sits in water
can caus e an overall film
You have to call a water softener company for a sp ecial filter.
White film on inside
surface
Hard water minerals To clean the interior, use a damp sponge with dishwasher
detergent and wear rubber gloves. Never use any other cleaner
than dishwasher detergent for the risk of foaming o r suds.
Dial is not in the
position
OFF Turn the Dial to OFF p osition and slide the door latch to the
left.
Detergent left in
dispenser cups
Dishes block detergent
cups
Re-loadin g the d ishes p roperly.
Steam
Normal phenomenon There is some steam coming t hrou gh the vent by the doo r
latch during drying and water draining.
Black or gray
marks on dishes
Aluminu m u tensils have
rubbed against dishes
Use a mild abrasive cleaner to eliminate those marks.
Detergent cup lid
won t latch
'
Water standing in This is no rmal A small amount of clean water around the outlet on
the tub bottom at the back of the tub keeps the wat er
seal lubricated.
the bottom of the tub
Dishwasher leaks
Be careful not to overfill the rinse aid dispenser.
Spilled rinse aid could cause oversudsing and lead
to overflowing. Wipe away any spills with a damp cloth.
Make sure the dishwasher is level.
Overfill dispenser or rinse
aid spills
Dishwash er isn t level
'
13
