Fan Drying

Read this Manual
Dear Customer,
Please read this User Information carefully
and keep it to refer to at a later date.
Pass it on to any subsequent owner of the
appliance.
This manual contains sections of Safety
Instructions, Operating Instructions, Installation
Instructions and Troubleshooting Tips, etc.
Carefully read it before using the dishwasher
will help you to use and maintain the
dishwasher properly.
Before Calling for Service
To review the section on Troubleshooting Tips
will help you to solve some common problems
by yourself and not need to ask for the help of
professional technicians.
NOTE:
The manufacturer, following a policy of
constant development and updating of
the product, may make modifications
without giving prior notice.
1) Safety Information .............................1-2
2) Disposal ................................................2
3) Operation Instruction.........................3-4
Control Panel ..............................................3
Dishwasher Features ..................................4
4) Prior using for the first time .............4-9
Water Softener .........................................4-5
Loading the Salt into the Softener.............5-6
Fill the Rinse Aid Dispenser......................6-7
Function of Detergent ..............................7-9
5) Loading the Dishwasher Baskets..10-13
6) Starting a washing programme ....14-15
Wash Cycle Table ......................................14
Turning on the Appliance............................14
Change the Programme.............................15
Forget to Add Dish ...............................15
7) Maintenance and cleaning.............16-18
8) Troubleshooting Tips.....................19-23
Error codes.................................................................19
Before calling for service......................................20-21
Technical information ...............................22-23
WARNING !
When using your dishwasher, follow the basic precautions including the following:
1
WARNING! PROPER USE
Do not abuse, sit on, or stand on the door or dish basket of the dishwasher.
Do not touch the heating element during or immediately after use.
Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door
very carefully if the dishwasher is operating. There is a risk of water squirting out.
Do not place any heavy objects or stand on the door when it is open. The appliance could tip
forward.
When loading items to be washed:
Locate sharp items so that they are not likely to damage the door seal;
Load sharp knives with the handles up to reduce the risk of cut-type injuries;
Warning: Knives and other utensils with sharp points must be loaded in the basket with their
points down or placed in a horizontal position.
When using your dishwasher, you should prevent plastic items from contacting with heating
element.
Check that the detergent receptacle is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic
items not so marked, check the manufacturer's recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap,
laundry detergent, or hand washing detergent in your dishwasher.
Other means for disconnection from the supply must be incorporated in the fixed wiring with at
least 3mm contact separation in all poles.
Keep children away from detergent and rinse aid, keep children away from the open door of the
dishwasher , there could still be some detergent left inside.
Young children should be supervised to ensure that they do not play with the appliance.
This product is not designed for use by persons (including children) who have reduced physical,
sensory or mental capacities or persons with no experience or knowledge, unless they are
instructed and supervised in the use of the appliance by a person responsible for their safety.
Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed.
Avoid contact with skin and eyes, and keep children away from the dishwasher when the door is
open.
The door should not be left in the open position since this could present a tripping hazard.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
Please dispose of packing materials properly.
1. Safety Information
Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using the dishwasher turn on all hot-water faucets and let the
water flow from each for several minutes. This will release any accumulated hydrogen gas. As the
gas is flammable, do not smoke or use an open flame during this time.
WARNING! HYDROGEN GAS IS EXPLOSIVE

3. Operation Instruction
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY
SAVE THESE INSTRUCTIONS
During installation, the power supply must not be excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets, and the old hose-sets
should not be reused.
Make sure that the carpet must not obstruct the openings at the bottom base.
Use the dishwasher only for its intended function.
The dishwasher is intended for indoor use only.
The dishwasher is not designed for commercial use. It is intended for use in domestic households
and in similar working and residential environments.
2．Disposal
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Cut off the power
supply cable and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper and should be disposed in the waste
paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local city office
and your household waste disposal service
IMPORTANT!
To get the best performance from your dishwasher, read all
operating instructions before using it for the first time.

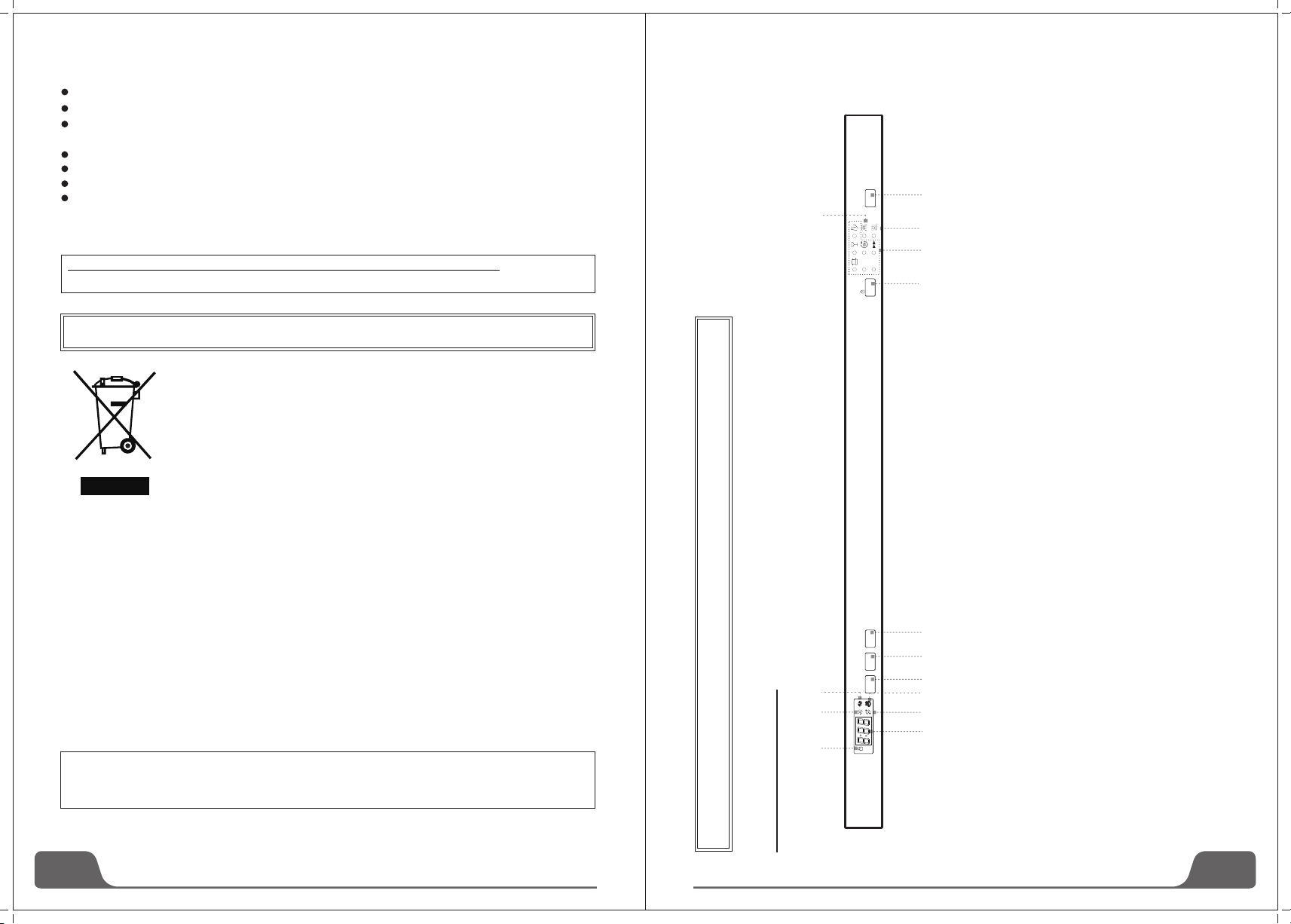

Control Panel
3
2
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
(e.g. PS for polystyrene, padding material)
This appliance is identified according to the European guideline
2012/19/EU on waste electrical and electronic equipment -WEEE. The
guideline specifies the framework for an EU-wide valid return and re-use of
old appliances.
WARNING!
8 light of lower layer: To come on when the lower
spray arm is washing.
9 Digital display: To display the running time remain, malfunction
codes and delay time.
10 indicator The "Child Lock" will be available when
you press the Child lock buttons for 3 seconds, and the
"Child lock"indicator lights up after flashing 6 times.
11 Rinse aid refill indicator: The indicator lights up when dispenser
needs to be refilled.
12 3 in 1 indicator: The indicator lights up when the additional
function be selected.
13 Salt refill indicator: The indicator lights up when the softener
needs to be refilled.
14 Dry+ indicator: An increased temperature during the final rinse
stage will improve the drying process The indicator will be
available when the Dry+ button is selected.
、Washing
、
、Child lock :
、
、 、 、
；
5
6
4
3
2
18
913 14
10 11 7
12
1、D :
、 、 、
5、ON/OFF Button:To turn on/off the power supply.
6、Program indicator light：When you select a washing programme ,
the corresponding light will display.
7、Washing light of upper layer: To come on when the upper
spray arm is washing.
elay button The START DELAY will allow you to delay the
start time of any cycle automatically up to 24 hours. 2 Press this button you can choose washing of upper layer or
washing of lower layer and the corresponding light flashes. 3 Function alternative button: Press this button you can choose the
additional function "3 IN 1" or dry+, and the corresponding light flashes. 4 Program select button/Child lock button: Press the button to select
the program. The "child lock"will be available when you press the button 3 seconds ,and "LO" flashes 6 times on digital displays.
On/Off
Alt
OptionDelay Eco
3s
Programme
Auto
Program

12
Clark
Dishwasher Features
5
4
Front View
1 Upper Basket
2 Spray Arms
3 Lower Basket
4 Water Softener
5 Detergent Dispenser
6 Rinse Aid Dispenser
7 Cutlery Tray
8 Cup Holder
1
2
3
4
5
8
7
6
4．Prior Using for the First Time
Before using your dishwasher for the first time:
A. Set the water softener
B. Pour 500ml of water inside the salt container and then fill with dishwasher salt
C. Fill the rinse aid dispenser
D. Function of detergent
B. Loading the Salt into the Softener
Always use salt intended for using with dishwasher.
NOTE: If your model has no water softener, you may skip this section
WATER SOFTENER
The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits will form on the dishes and utensils.
The appliance is equipped with a special softener that uses salts specifically
designed to eliminate lime and minerals from the water.
The salt container is located beneath the lower basket and should be filled as follows:
Attention!
Only use salt specifically designed for use in dishwashers! All other types of salt not specifically
designed for use in a dishwasher, especially table salt, will damage the water softener. In case of
damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is
liable for any caused damages.
Only fill with salt just before starting one of the complete washing programmes.
This will prevent any grains of salt or salty water, which may have been split, remaining on the
bottom of the machine for any period of time, which may cause corrosion.
After the first wash cycle the control panel light expires.
For optional
2. Set value can be found in the water hardness table.
3. Close the door.
4. Switch on on/off switch.
5. Hold down " Delay " button and press " Program "
button for 5 seconds.The buzzer rings one
time and H..
flashes on the digital dis play.(factory setting is H4)
To change the setting:
1. Press " Delay " button.
Each time the button is pressed, the set value
increasesby one level;when the value of H7 has
been reached, the display jumps back to H0(off).
2. Press " Program " button. The chosen setting
has now been stored.
Water hardness
Range
Mmol/l Set value on
the machine
0-8
9-10
11-12
13-15
16-20
21-26
27-38
39-62
soft
soft
medium
medium
medium
hard
hard
hard
0-1.1
1.2-1.4
1.5-1.8
1.9-2.1
2.2-2.9
3.0-3.7
3.8-5.4
5.5-8.9
H0
H1
H2
H3
H4
H5
H6
H7
Water hardness table
A. Remove the lower basket and then unscrew and remove the cap from the salt container.
B. If you are filling the container for the first time, fill 2/3 of its volume with water (around 500ml).
1
2
A. Set the Water Softener
The water softener is designed to remove minerals and salts from the water, which would have a
detrimental or adverse effect on the operation of the appliance. The higher the content of these
minerals and salts, the harder the water is. The softener should be adjusted according to the
hardness of the water in your area. Your local Water Authority can advise you on the hardness of
the water in your area.
Setting
The amount of salt dispensed can be set from H0 to H7.
Salt is not required at the set value H0.
1. Find out about the hardness value of your tap water. Your water utility company will help you
with this.
2. Set value can be found in the water hardness table.
3. Close the door.
4. Switch on "Power" switch.
5. Hold down " Delay" button and then press "Program" button for 5 seconds.The buzzer rings
one time and H..
flashes on the digital display.(factory setting is H4)

1
2
3
1
2
3
4
5
6
MAX
2
13
1
2
3
4
5
6
MAX
7
D. Function of Detergent
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, be careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the "closed" (right)
arrow.
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes
that can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes.
Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the
door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator
turns completely black. The volume of the rinse aid container is about 140ml.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming during the
next wash.
Adjusting Rinse Aid Dispenser
The rinse aid dispenser has four or six settings. Always start with
the dispenser set on "4" If spots and poor drying are problems,
increase the amount of rinse aid dispensed by removing the
dispenser lid and rotating the dial to "5". If the dishes still are not
drying properly or are spotted, adjust the dial to the next higher
number until your dishes are spot-free. The dose is factory set in
position 5.
NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife
blades.
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out
of the dishwasher. Most of commercial quality detergents are suitable for this purpose.
Concentrated Detergent
Based on their chemical composition, dishwasher can be split in two basic types:
■conventional, alkaline detergents with caustic components
■low alkaline concentrated detergents with natural enzymes
The use of "Eco" washing programme in conjunction with concentrated detergents reduces pollution
and is good for your dishes; these washing programmes are specially matched to the dirt-dissolving
properties of the enzymes of the concentrated detergent. For this reason"Eco" washing programme
in which concentrated detergents are used can achieve the same results that can otherwise only be
achieved using"intensive" programme.
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason some detergent
Adjust lever
(Rinse)
6
1. The salt container must be refilled when the salt warning light in the control panel comes
on. Though the salt container is filled enough, the indicator light may not black out before
the salt fully dissolve. If there is no salt warning light in the control panel (for some models),
you can judge when to load the salt into the softener by the cycles that the dishwasher had
run (see the following schema).
2. If there are spills of the salt, a soak program could be run to wipe them out.
NOTE:
C. Fill the Rinse Aid Dispenser
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak
free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other
substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light on the control panel, you can judge the amount of rinse-aid by
the color of the optical level indicator "D" located next to the cap. When the rinse-aid container is
full, the whole indicator will be dark .As the rinse aid diminishes, the size of the dark dot decreases.
You should never let the rinse aid get below 1 / 4 full.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3 / 4 full
1 / 2 full
1 / 4 full - Should refill to eliminate spotting
Empty
D (Rinse-Aid indicator)
RINSE AID DISPENSER
C. Place the end of the funnel (supplied) into the hole and introduce about 2kg of salt. It is
normal for a small amount of water to come out of the salt container.
D. Carefully screw the cap back on.
E. Usually, the salt warning light will be off in 2-6 days after the salt container is filled with salt.

9
8
2
1
2
1
NOTE:
If the lid is closed: press release button. The lid springs open.
Always add the detergent just before starting each wash cycle. Only use branded detergent aid
for dishwasher.
WARNING!
Dishwasher detergent is corrosive! Take care to keep it out of reach of children
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Don't put powder detergent into the dispenser until you're ready to wash dishes.
Fill in the detergent
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
The place of main wash cycle detergent placed,
MIN means approximately 20g of detergent.
The place of pre-wash cycle detergent placed ,
approximately 5g of detergent.
" "
If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent
chamber. This detergent will take effect during the pre-wash phase.
NOTE:
You find information about the amount of detergent for the single programme on the last page.
Please be aware that according to the level soiling and the specific hardness of water, differences
are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chloride
Normally new pulverized detergent is without phosphate. The water softener function of phosphate
is not given. In this case we recommend to fill salt in the salt container even when the hardness of
water is only 6 dH. If detergents without phosphate were used in case of hard water often white
spots appear at dishes and glasses. In this case please add more detergent to reach better results.
Detergents without chlorine do only bleach a little. Strong and coloured spots will not removed
completely. In this case please choose a programme with higher temperature.
cannot dissolve and develop their full cleaning power during short programmes. Therefore please
use long programmes when using detergent tablets, to ensure the complete removal of detergent
residuals.
Detergent Dispenser
The dispenser must be refilled before the start of each washing cycle following the instructions
provided in the Wash Cycle Table. Your dishwashers use less detergent and rinse aid than
conventional dishwashers. Generally, only one tablespoon of detergent is needed fora normal wash
load. Also, more heavily soiled items need more detergent. Always add the detergent just before
starting dishwasher, otherwise it could get damp and will not dissolve properly.
Amount of Detergent to Use
Please observe the manufacturer's dosing and storage recommendations as stated on the
detergent packaging.
Close the lid and press until it locks in place.
1
2
3
4
5
6
MAX
2
1
1 2

11
10
Loading the Lower Basket
We recommend that you place large items which are most difficult to clean in to the lower basket:
pots, pans, lids, serving dishes and bowls, as shown in the figure below.
It is preferable to place serving dishes and lids on the side of the baskets in order to avoid blocking
the rotation of the top spray arm.
Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom basket features fold down tine rows so that larger or more pots and pans can be loaded.
For optional
Lower Basket
Lower basket
Type Item
Dessert plate
G
H
I
Dinner plate
Soup plate
Serving bowl
Oval plate
J
F
12
In loaded basket adjustment mechanism, make sure that both sides are in the same position
(up or down).
Upper position Lower position
Upper/Lower basket Folding racks
Folding racks consisting of three/two parts in the upper/lower basket of your machine are designed
in order to let you place big items easier as pots, pans, etc. If requested, each part can be folded
separately, or all of them can be folded and larger can be obtained. You can use folding racks by
rasing thenupwards, or by folding.
For best performance of the dishwasher, follow these loading guidelines. Features and appearance
of baskets and silverware baskets may vary from your model.
Attention before or after Loading the Dishwasher Baskets
Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under running
water. Place objects in the dishwasher in the following way:
1.Items such as cups, glasses, pots/pans, etc. are stood upside down.
2.Curve items, or those with recesses, should be at a slant so that water can run off.
3.They are stacked securely and can not tip over.
4.They do not prevent the spray arms from rotating while washing takes place.
Very small items should not be washed in the dishwasher as they could easily fall out of the baskets.
Removing the Dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.

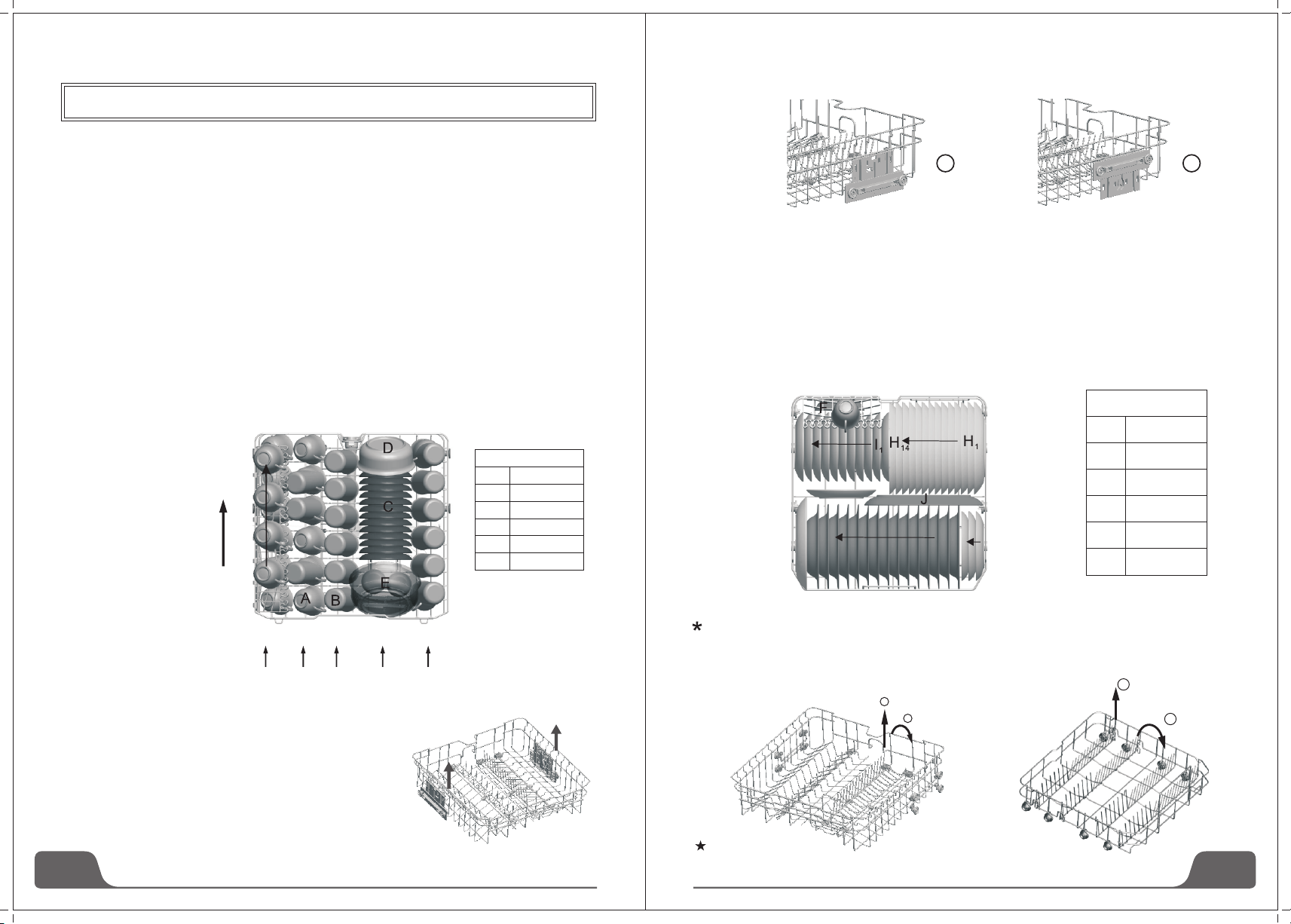

Loading the Upper Basket
The upper basket is designed to
hold more delicate and lighter
dishware such as glasses,
coffee and tea cup and
saucers, as well as plates,
small bowls and shallow
pans (as long as they are
not too dirty). Position the
dishes and cookware so
that they do not get moved
by the spray of water.
5．Loading the Dishwasher Baskets
Upper basket
Type Item
Cup
Glass
Saucer
Serving bowl
Serving bowl
A
B
C
D
E
Basket height adjustment mechanism on the upper basket
of your machine is designed to let you adjust the height of
your upper basket upwards or downwards,without
removing it from your machine when it is full,and create
large spaces at the top or bottom area of your machine as
needed.Basket of your machine is set to lower position in
factory settings.
In order to raise your basket,hold it from both sides and
pull it upwards.In order to lower it,hold it from both sides
again,and leave it.
Upper Basket Height Adjustment
B1
B6
Upper Basket
IN
A1
A3
B7
B12
B13
A4
A7
B14
B15
C1
C13
A8
A13
A13
l11
l12
H15 G15 G1l13
l14
2
1
1
2
Upper Basket
Lower Basket

13
NOTE:
Do not use dish that is not suitable for dishwashers. This is important for good results and for
reasonable energy consumption.
Please do not overload your dishwasher. There is only space for 14 standard dishes.
Before loading the dishes, you should:
Remove large left-over
Soften remnants of burnt food in pans
Loading Cutlery and Dishes
When Loading the Dishes and Cutlery, Please Note:
Dishes and cutlery must not impede the rotation of the spray arms.
Load hollow items such as cups, glasses, pans etc. with the opening downwards so that water cannot
collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other
■To avoid damage to glasses, they must not touch
■Load large items which are most difficult to clean into the lower basket
■The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and
tea cups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper
basket
Attention!
Damage to Glassware and other Dishes
Possible causes:
■Type of glass or manufacturing process. Chemical composition of detergent.
■Water temperature and duration of dishwasher programme.
Suggested remedy:
■Use glassware or porcelain dishes that have been marked dishwasher-proof by the manufacturer.
■Use a mild detergent that is described as kind of dishes. If necessary, seek further information from
detergent manufacturers.
■Select a programme with a low temperature.
■To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the
programme has ended.
At the End of the Wash
When the working cycle has finished, the buzzer of dishwasher will ring for 6 times, then stop. Turn
off the appliance using the ON/OFF button, shut off the water supply and open the door of the
dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and
utensils while they are still hot and more susceptible to breakage. They will also dry better.
12
For washing in the dishwasher the following cutlery/dishes
Are not suitable
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that is not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Lead crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibre
WARNING!
Do not let any item extend through bottom
Are of limited suitability
Some types of glasses can become
dull after a large number of washes
Silver and aluminium parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
NOTE:
new dishes please make sure that they are suitable for dishwashers.
Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint. If you buy
Cutlery tray
Arrange the cutlery in the tray as shown. Cutlery should be placed to ensure that water
runs off freely.
Cutlery tray
Type Item
Tea spoons
Dessert spoons
Soup spoons
Forks
Knives
Serving fork
1
2
3
4
5
6
7
8Serving spoons
Gravy ladle
1 2 34567 8

15
14
NOTE: A click could be heard when the door is closed perfectly.
When the washing is over, you can shut off the switch by pressing ON/OFF button.
NOTE:
main power and water supply before calling a service.
If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the
Forget to Add Dish
A forgotten dish can be added any time before the detergent cup opens.
1 Open the door a little to stop the washing.
2 After the spray arms stop working, you can open the door completely.
3 Add forgotten dishes.
4 Close the door, the dishwasher will work after ten seconds.
WARNING!
It is dangerous to open the door when washing, because the hot water may scald you.
Switch Off the Dishwasher
The digital display appears "---" and the buzzer rings 6 times, only in this case the programme
has ended.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap!
Open the door carefully. Hot steam may escape when the door is opened!
■Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around
15 minutes before removing from the appliance.
■Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In
this way they will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper
basket onto the dishes in the lower one.
Change the Programme.
Premise: A cycle that is underway can only be modified if it has only been running for a short time.
Otherwise, the detergent may have already been released, and the appliance may have already
drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section
entitled " Fill in the Detergent " ).
Open the door, Press current prog. button more than three seconds to cancel the programme, then
you can change the programme to the desired cycle setting (see the section entitled "Starting a wash
cycle. . . " ). Then, close the door.
NOTE: If you open the door when washing, the machine pauses and warning alarm rings, the display
appears E1. When you close the door, the machine will keep on working after 10 seconds.
The 6 programme lights show the state of the dishwasher:
a) All program lights off --> stand by
b) One of the program lights on --> cycle running
c) One of the program lights blinking --> pause
2. Insert the plug into the socket. The power supply is 220-240V AC 50 Hz, the specification of the
socket is 12 A 250 VAC.50 Hz.
Make sure that the water supply is turned on to full pressure. Open the door, press the ON/OFF
button, Press the "program." button to select a desired "Wash cycle". (See the section entitled "Wash
Cycle Table") . With a little force to ensure the door is properly closed.
6. Starting a Washing Programme
Starting a wash cycle...
Draw out the lower and upper basket, load the dishes and
1. push them back. It is recommended to load the lower basket first, then the upper one (see the
section entitled "Loading the Dishwasher"). Pour in the detergent (see the section entitled "Salt,
Detergent and Rinse Aid").
2. Insert the plug into the socket. The power supply is 220-240V AC 50 Hz, the specification of the
socket is 12 A 250 VAC.50 Hz.
Make sure that the water supply is turned on to full pressure. Close the door, press the "Power"
button, press the "program". button to select a desired "Wash cycle". (See the section entitled "Wash
Turning on the Appliance
50242:this program is the test cycle.
EN
The information for comparability test in accordance with EN 50242,as follows:
-
-
Position of upper basket :Low position
Capacity:15 settings
-
Rinse aid setting:6(or 4 for four setting dispenser)
Wash cycle table
60 min
For lightly and normally
soiledplates and pans
for everyday
Hot rinse 1
Hot rinse 2
Hot rinse(50℃)
Drying
Program
Cycle Selection
Information
Description
of Cycle
Detergent
Pre/main
Running
Time(min)
Energy
(kWh)
Water
(L)
Intensive
Eco
Crystal
Rapid
Pre-wash
For the heaviest soiled
loads,such as pots, pans,
casseroledishes and
dishes that havebeen
sitting with dried foodon
them for a while.
For normally soiled loads,
such as pots, plates,
glassesand lightly soiled
pans.standard daily cycle.
For lightly soiled loads,
suchas plates, glasses,
bowls andlightly soiled
pans.
A shorter wash for lightly
soiled loads that do not
need drying.
Pre-wash
Main wash(60℃)
Rinse1
Rinse2
Hot rinse
Drying
Pre-wash
Main wash(48℃)
Hot rinse
Drying
Rinse
Hot rinse
Drying
Main wash(40℃)
Main wash(45℃)
Hot rinse
5/32.5
5/32.5
5/20
5/20
15
213
234
124
40
15.3
10.0
9.5
6.6
1.680
0.836
0.800
0.600
60 1.050 9.6
Programme)
(Standard
(*E 50242)
N
(Or 3in1)
(Or 3in1)
5/30 140-228 6.5-18
0.930-
1.950
Auto
Is optimised according to
the soiled loads,such as
pots,pans,utensils and
cutlery ,with the aid of
sensors.
To rinse dishes that you
plan to wash later that
day
Pre-wash 12
/0.010 3.9
Pre-wash
Main wash(45℃)
Rinse
Hot rinse
Drying

17
16
WARNING!
1 2
2
1
3
WARNING!

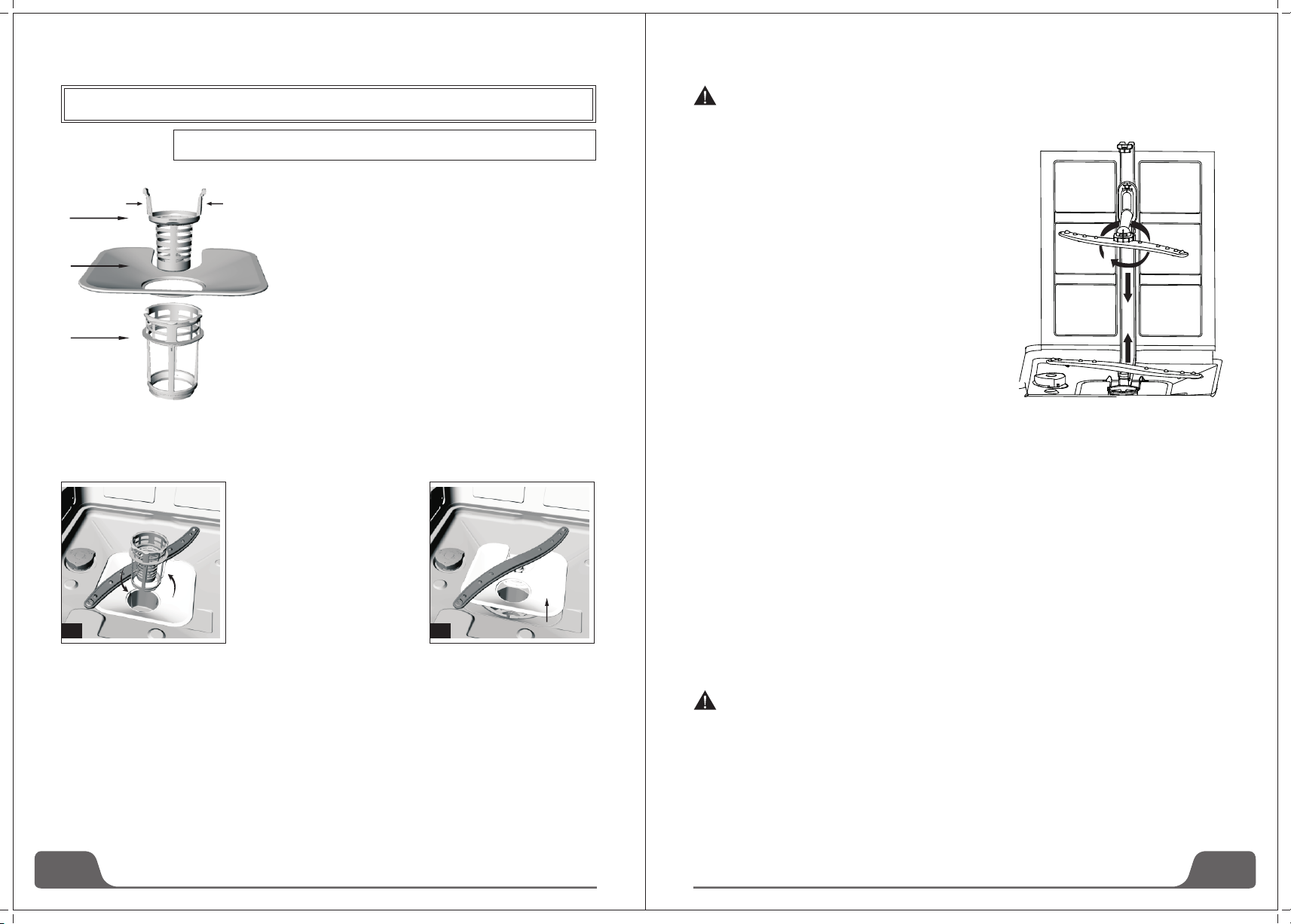

Filtering System The filter is used to avoid the big remnants and other sundries getting inside
the pump. The residue can obstruct the filter in sometime.
The filter system consists of a coarse filter, a flat
(Main filter) and a micro filter (fine filter).
1 Flat filter
Food and debris will be trapped by a special jet
on the lower spray arm.
2 Coarse filter
Big debris, such as bone and glass that could clog the
drain will be trapped in the coarse filter.
To remove an item caught in this filter, gently squeeze
the taps on the top of this filter and lift it out.
3 Micro filter
This filter holds soil and food residue in the sump area
and prevents it from being redeposit on the dishes
during a cycle.
- Inspect the filters for obstructions every time the
dishwasher has been used.
- By unscrewing the coarse filter, you can remove
the filter system. Remove any food remnants and
clean the filters under running water.
Step 1：contrarotate the
Coarse filter ,and then lift it up;
Step 2：lift the filter upFlat
7. Maintenance and cleaning
NOTE:
to step 1, the filter system will be installed.
If operate from step 1 to step 2, the filter system will be removed; while operate from step 2
Filter assembly
For best performance and results, the filter assembly must be cleaned. The filter efficiently removes
food particles from the wash water, allowing it to be recirculated during the cycle. For this reason, it
is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing
the semicircular filter and cup under running water. To remove the filter assembly, pull on the cup
handle in the upward direction. The entire filter assembly should be cleaned once a week. To clean
the coarse filter and the micro filter, use a cleaning brush. Then, reassemble the filter parts as shown
in the figures above and reinsert the entire assembly in the dishwasher, positioning in its seat and
pressing downward. The dishwasher must never be used without the filters. Improper replacement
of the filter may reduce the performance level of the appliance and damage dishes and utensils.
Never run the dishwasher without the filters in place. When cleaning the filters, don't knock on them.
Otherwise, the filters could be contorted and the performance of dishwasher could be debased.
Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for hard
water chemicals will clog the spray arm jets and bearings.
To remove the spray arms, screw off the nut clockwise to
take out the washer on top of the spray arm and remove the
arm. Wash the arms in soapy and warm water and use a soft
brush to clean the jets. Replace them after rinsing thoroughly.
Caring for the Dishwasher
To clean the control panel, use a lightly dampened cloth then
dry thoroughly.
To clean the exterior, use a good appliance polish wax.
Never use sharp objects, scouring pads or harsh cleaners
on any part of the dishwasher.
Protect Against Freezing
If your dishwasher is left in an unheated place during the winter, ask a service technical to:
1.Cut off electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter in the tub and the bottom and use a sponge to use up water in sump
Cleaning the Door
To clean the edge around the door, you should use only a soft warm, damp rag. To prevent
penetration of water into the door lock and electrical components, do not use a spray cleaner of any
kind.
Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch
the finish. Some papers towels can also scratch or leave marks on the surface.
Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical
components. It is not allowed to use the abrasive agent or some paper towel because of the risk of
scratching or leaving spots on the stainless steel surface.

19
18
How to Keep Your Dishwasher in Shape
After Every Wash
After every wash, turn off the water supply
to the appliance and leave the door slightly
ajar so that moisture and odors are not
trapped inside.
Remove the Plug
Before cleaning or performing
maintenance, always remove the plug from
the socket. Do not run risks.
No Solvents or Abrasive Cleaning
To clean the exterior and rubber parts of
the dishwasher, do not use solvents or
abrasive cleaning products. Use only a
cloth and warm soapy water. To remove
spots or stains from the surface of the
interior, use a cloth dampened with water
and a little white vinegar, or a cleaning
product made specifically for dishwashers.
When You Go on holiday
When you go on holiday, it is
recommended that you run a wash cycle
with the dishwasher empty and then
remove the plug from the socket, turn off
the water supply and leave the door of the
appliance slightly ajar. This will help the
seals last longer and prevent odors from
forming in the appliance.
Moving the Appliance
If the appliance must be moved, try to keep
it in the vertical position. If absolutely
necessary, it can be positioned on its back.
Seals
One of the factors that cause odors to form
in the dishwasher is food that remains
trapped in the seals. Periodic cleaning with
a damp sponge will prevent this.
Attention:
The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard!
Disconnect electrical power before
installing dishwasher.
Failure to do so can result in death or
electrical shock.
Warning
8. Troubleshooting Tips
ERROR CODES
When some malfunctions happen, the appliance will display error codes to warn you.
Codes Meanings Possible Causes
Water drainage malfunction
E1
E2
E3
E4
E5
E6
E7
Door open
Water inlet
Water drainage
Temperature sensor
Overflow/leakage
Water leakage
The door is opened when the
dishwasher is operating
Water inlet malfunction
Temperature sensor malfunction
Overflow occurs/Water leakage occurs
Water leakage occurs
Heating element Abnormal heating
WARNING!
If overflow occurs, turn off the main water supply before calling a service. If there is water in the base
pan because of an overfill or small leak, the water should be removed before restarting the
dishwasher.

21
20
Stained tub
interior
Detergent with
colorant was used Make sure that the detergent is the one without colorant.
Dishes and
flatware
not clean
Make sure that the action of the detergent dispenser
and spray arms are not blocked by large dishware.
Improper program
Improper basket
loading
Select a stronger programme.
Spots and
filming on
glasses and
flatware
1 Extremely hard
water
2 Low inlet
temperature
3 Overloading the
dishwasher
4 Improper loading
5 Old or damp
powder detergent
6 Empty rinse agent
dispenser
7 Incorrect dosage
of detergent
To remove spots from glassware:
1 Take out all metal utensils out of the dishwasher.
2 Do not add detergent.
3 Choose the longest cycle.
4 Start the dishwasher and allow it to run for about
18 to 22 minutes, then it will be in the main wash.
5 Open the door to pour 2 cups of white vinegar
into the bottom of the dishwasher.
6 Close the door and let the dishwasher complete
the cycle. If the vinegar does not work: Repeat
as above, except use 1/4 cup (60 ml)of citric acid
crystals instead of vinegar.
Before Calling for Service
Reviewing the charts on the following pages may make you be free of calling for service.
Use only the special dishwasher detergent to avoid
suds.If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then start the "pre-rinse" wash
cycle to drain out the water... Repeat if necessary.
Problem
Dishwasher
doesn't run
Drain pump
doesn't stop
Noise
Suds in
the tub
Possible Causes What To Do
Spilled rinse agent
Always wipe up rinse agent spills immediately.
Fuse blown, or the
circuit breaker acted
Power supply is
not turned on
Water pressure
is low
Overflow
The system is designed to detect an overflow. When it
does, it shuts off the circulation pump and turns on the
drain pump.
Some audible
sounds are normal
Utensils are not
secure in the
baskets or
something small
has dropped into
the basket
Motor hums
Improper detergent
Dishwasher has not been used regularly. If you do not
use it often, remember to set it to fill and pump out
every week, which will help keep the seal moist.
To ensure everything is secured in the dishwasher.
Sound from detergent cup opening.
Check that the water supply is connected properly and
the water is turned on.
Make sure the dishwasher is turned on and the door is
closed securely. Make sure the power cord is properly
plugged into the wall socket.
Replace fuse or reset circuit breaker. Remove any other
appliances sharing the same circuit with the dishwasher.
Cloudiness
on glassware
Combination of soft
water and too much
detergent
Use less detergent if you have soft water and select a
shortest cycle to wash the glassware and to get them
clean.
Yellow or
brown film
on inside
surfaces
White film
on inside
surface
The Detergent
dispenser lid
cannot be
closed properly
Detergent left
in dispenser
cups
Steam
Black or
gray marks
on dishes
Water
standing on
the bottom
of the tub
Iron deposits in
water can cause
an overall film
Dishes block
detergent Cups
Using a solution of 1/2 cup of bleach and 3 cups of
warm water to remove the stains by hand.
WARNING
You have to wait for 20 minutes after a cycle to let the
heating elements cool down before cleaning interior;
otherwise, burns will happen.
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves. Never
use any other cleaner than dishwasher detergent for the
risk of foaming or suds.
Hard water minerals
Clogged detergent
residue is blocking
the catch
Tea or coffee stains
A small amount of clean water around the outlet on
the tub bottom keeps the water seal lubricated.
Use a mild abrasive cleaner to eliminate those marks.
There is some steam coming through the vent by the
door latch during drying and water draining.
Re-loading the dishes properly.
Clean the detergent from the catch.
You have to call a water softener company for a special
filter.
This is normal
Aluminum utensils
have rubbed
against dishes
Normal phenomenon
Dishwasher
leaks Dishwasher
isn't level Make sure the dishwasher is level.
Be careful not to overfill the rinse aid dispenser.
Spilled rinse aid could cause oversudsing and lead
to overflowing. Wipe away any spills with a damp cloth.
Overfill dispenser or
rinse aid spills

23
22
Technical Data Sheet
Sheet of household dishwasher according to EU Directive 1059/2010:
Manufacture
Standard place settings
ZhongShan Galanz Consumer Electric Appliance Co.,Ltd
Model
Energy efficiency class
1
Annual energy consumption2
Energy consumption of the standard cleaning cycle
Power consumption of off-mode
Power consumption of left-on mode
Annual water consumption3
Drying efficiency class 4
Standard cleaning cycle5
Program duration of the cleaning cycle
Noise level
Mounting
Could be built in
Height
Width
Depth (with connectors)
Power consumption
Rated voltage / frequency
Water pressure / (flow pressure)
Water temperature
NOTE:
1. A+++ (highest efficiency) to D(lowest efficiency).
2. Energy consumption "241" kWh per year, based on 280 standard cleaning cycles using cold water
fill and the consumption of the low power modes. Actual energy consumption will depend on how
the appliance is used.
3 Water consumption “2800" litres per year, based on 280 standard cleaning cycles. Actual water
consumption will depend on how the appliance is used.
4 A (highest efficiency) to G(lowest efficiency).
5 This program is suitable for soiled normally soiled tableware and that it is the most efficient
programin terms of its combined energy and water consumption for that type of tableware.
NOTE : The above values have been measured in accordance with standards under specified
operating conditions. Results may vary greatly according to quantity and pollution of the dishes ,
water hardness ,amount of detergent, etc.
241kWh
0.836kWh
0.35W
2800 liter
Eco
42dB(A) re 1 pW
Built-in
Yes
81.5cm
59.6cm
55.8cm
1850 W
AC 220-240 V/ 50 Hz
0.4-10bar=0.04-1.0MPa
Max.57 C
23
22
Technical Data Sheet
Sheet of household dishwasher according to EU Directive 1059/2010:
ZhongShan Galanz Consumer Electric Appliance Co.,Ltd
W60C4A101D-C
NOTE:
The device meets the European standards and the directives in the current version at delivery.
-LVD 2014/35/EU
-EMC 2014/30/EU
-EUP 2010/1016
The manual is based on the European Union's standards and rules.
15
0.8W
A
234 min
A+++
