Installation Instructions Horizon Three Sided
Natural Draft Electronic Ignition
Gas Fireplaces

25/02/2021 Ver. 1 2
SINGLE SIDED MODELS
SUITABLE GAS BURNER OPTION
Location Requirements
Power flue systems utilizes a fan assisted draft to
ensure products of combustion are exited through a
flue terminal either horizontally or vertically
terminated.
The following Australian location requirements for
flues are to be observed when installing a powered
flue system.
1100 Edge 1000 Mk2Pebble
1000 Mk2Coal
850 Ironbark LogMk4
1500 Edge 1400 Mk2Pebble
1400 Mk2Coal
2000 Edge 1800 Mk2Pebble
1800 Mk2Coal
Ventilation Requirements:
Rooms with gas open fireplaces require as per
clause 6.10.9.5 in AS/NZS5601.1:2013, one or more
ventilation openings with a combined free ventilation
area of not less than the equivalent cross section
area of the flue cowl shall be provided for each
decorative flame effect fire, and calculations based
on clause 6.4.4
.
NOTE: The chimney in which the appliance is installed
is not to be considered as a ventilation opening.
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces
Model Type 2: Natural Draft
Electronic Ignition Gas Fireplace
DATA PLATE: Refer to information on page 13 of this
Instruction booklet in respect to gas pressure,
consumption and gas type, Natural, ULPG or LPG.
Data Plate is located under the gas burner and is
accessed by lifting front access panel or removing
base plate.

25/02/2021 Ver. 1 3
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces
Before Installation
The Natural Draft Electronic Ignition (N.D.E.I.) flue
system shall be installed by authorized personnel in
accordance with the manufacturer’s installation
instructions, local gas fitting regulations, municipal
building codes, electrical wiring regulations, and any
other statutory regulations. Contact your local building
authorities about restrictions and installation inspections
that may be required. If in doubt, contact your local
dealer or Kemlan’s Head office.
IMPORTANT AUSTRALIAN CODES:
• Australian Standards AS 5601 Gas Installation
• Australian Standards AS 3000 Electrical
Important Safety Notes
•Comply with all instructions in manual
including clearances to combustible material.
• Do not operate without fully assembling
all components.
• All open gas fires require ventilation into the
room.
• Do not connect to any other air distribution duct or
system.
• An Australian approved cowl is required at flue
terminal. Cowls are made from ss304 2b materials.
• Refer to the table below for flue diameter and flue
cowl size.
• Air movement of systems- A decorative gas log fire
must not be installed where the operation of any
ventilation system, fan or air blower could in any
circumstances cause the air pressure to be less than
atmospheric at the appliance.
• Do not block or restrict chimney.
• After installing appliance check that the flue draws
well with smoke pellet.
• Kemlan recommends that all gas fires be serviced
every year.
• All gas units must be fitted by a licensed gas fitter.
• It is the responsibility of the gas fitter to follow the
regulations set out in the Gas Code that dictate the
procedures to follow when installing a gas appliance,
particularly regarding gas pipe sizing and checking of
pressures.
•All Horizon gas appliances range are recommended
to use Kemlan manufactured double flue system.
Sizes depend on the appliance/s purchased. The
active flue is manufactured using .55mm ss3o4 2B
and the outer flues are manufactured using .55mm
galvanised steel. All flues are 900mm long as
standard.
Installation
1 The N.D.E.I. system is supplied with all
required electrical fittings. Work needs to be
undertaken by a licensed electrician if extending
wiring. Wiring requires clearance of minimum
100mm to flues and fireplace body due to heat. See
Wiring diagram page 14. Wiring must be positively
secured away from heat source.
2 An isolation switch needs to be provided if
connecting within fireplace framework.
3 Build frame to specifications provided. Note: 80mm
clearance above fireplace and 5mm to front surface
of firebox.
4 Unit located on 10mm fiber cement sheeting.
5 Unit and flues to be installed prior to plastering.
6 Gas line run to desired position prior to plastering.
7 Clearance of 25mm to vertical flue.
8 Allow for a minimum flue height of 3.6 m.
9 All flue components to be riveted together.
10 Rooms with Gas Open Fires require fresh air vents
of 400sq centimetres for each Decorative Gas,
Coal Fire.
11 Important: Both caps to stay off if heatzone is not
used.
12 Important: if a heatzone kit with fan is used, the
unused outlet must remain uncapped.
13 Vent (240mm x 90mm) supplied by Kemlan is
required to ventilate chase to room
Rear clearances to
combustible material
Low line: 25mm
WARNING:
Do not use an unlined masonry chimney as
the flue for this appliance

25/02/2021 Ver. 1 4
WALL LINING BY
INSTALLER
(ALL SIDES)
COMBUSTIBLE
FRAMING
CEILING

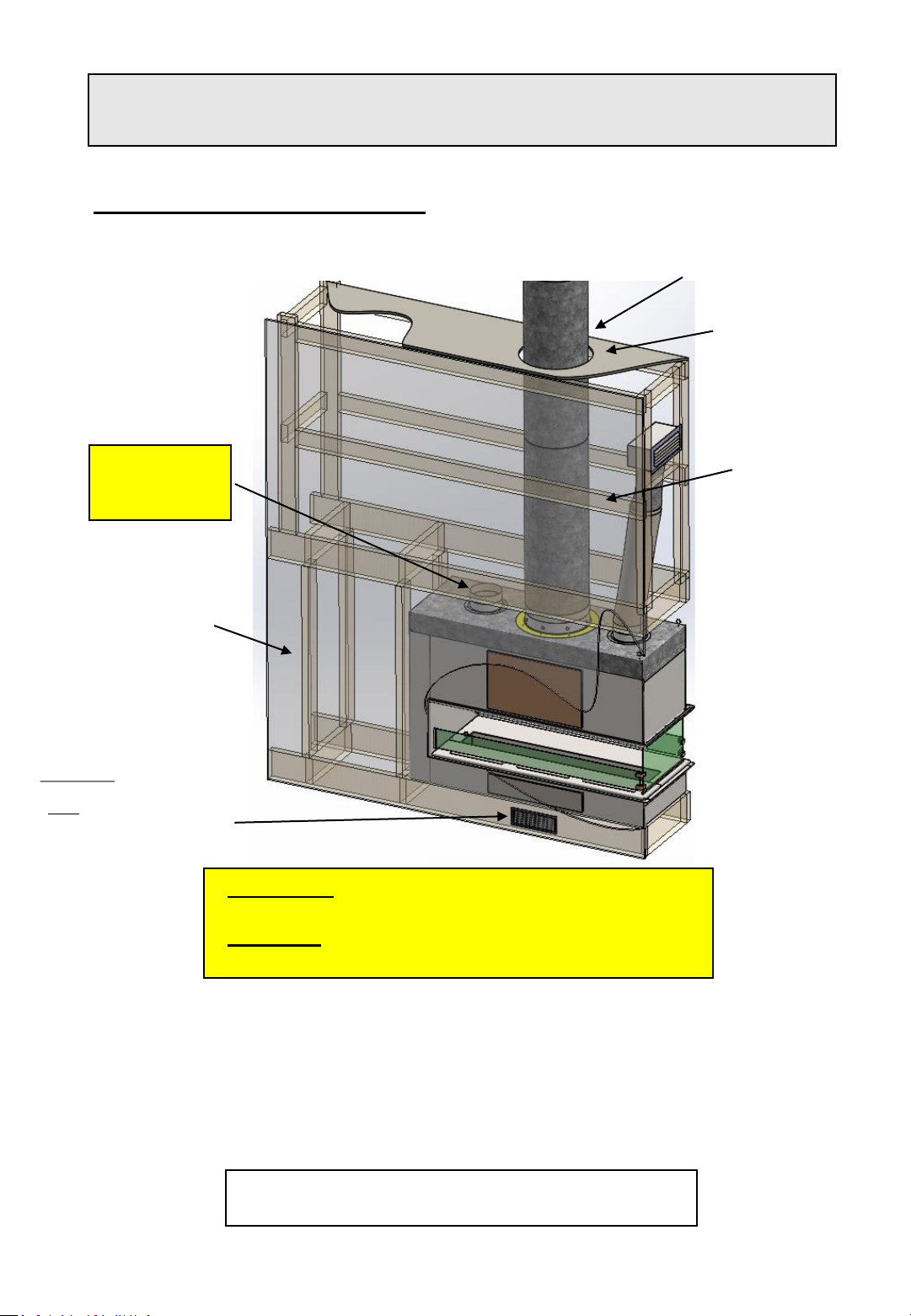

IMPORTANT: VENTILATION INTO
CHASE FROM VENT (SUPPLIED)
NOTE: VENT 240MM X 90MM
CAN ALSO BE INSTALLED ON THE
SIDE WALLS AS AN OPTION.
IMPORTANT: BOTH
CAPS NEEDS TO STAY
OFF, IF HEAT ZONE IS
NOT USED
Ventilation Requirements:
Rooms with gas open fireplaces require fresh air
vents according to clause 6.4.4 in AS/NZS5601.
Ventilation size can be altered depending on the
appliances Mj usage Vs the total room size the
appliance is situated m3, this will be determined by a
licensed gas fitter.
NOTE: The chimney in which the appliance is installed
is not to be considered as a ventilation opening.
Important: Both caps to stay off if heatzone is
not used.
Important: If a heatzone kit with fan is used, the
unsused outlet must remain uncapped
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces
DOUBLE SKIN FLUE
(SIZES VARY DUE TO
MODEL )
ASSEMBLY REQUIREMENTS : THREE SIDED MODEL SHOWN

25/02/2021 Ver. 1 5

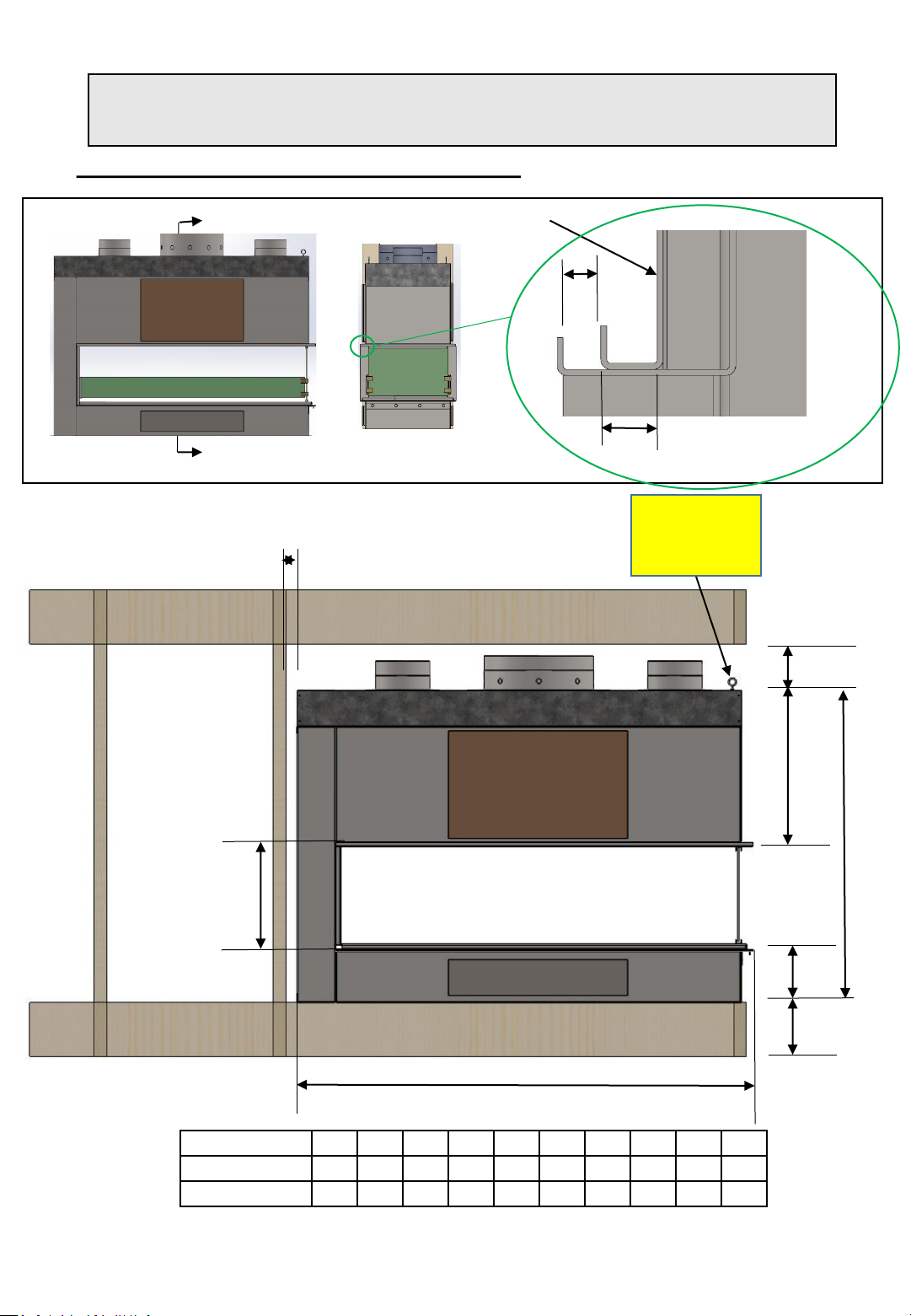

Measurement and Specification of NDEI
E
E1
F
B
G
* NOT INCLUDING 10MM FIBRE CEMENT SHEETING
HORIZON THREE SIDED :
NOTE: GLASS ONE SIDE IS OPTIONAL CEMENT
SHEETING
UNDER
Z
DETAIL Z
USE EYELETS TO
SUPPORT OPEN
END TO FRAME
ABOVE
THREE SIDED A B* C D E E1 F G H I
1100 LOW LINE
1274
480* 870 435 10” 12" 450 135 10 15
1500 LOW LINE
1670
490*
1000
565 12” 14" 435 60 10 15
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 6
Measurement and Specification of NDEI
110mm Min.
D
150mm
150mm Min.
C
A
25mm
THREE SIDED A B* C D E E1 F G H I
1100 LOW LINE
1274
480* 870 435 10” 12" 450 135 10 15
1500 LOW LINE
1670
490*
1000
565 12” 14" 435 60 10 15
* NOT INCLUDING 10MM FIBRE CEMENT SHEETING
+/- 285mm
USE EYELETS TO
SUPPORT OPEN
END TO FRAME
ABOVE
SECTION VIEW
Z-Z
Y
Z
Z
I
FRONT OF
FIREPLACE
DETAIL Y -
LIP TRIM ASSEMBLY
H
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 7
•Eyelets on the unit are supplied for attaching a turn buckle system,
6-8mm threaded rod is required with a nut and washer either side
of a sufficient supporting roof member. Alternatively, a stainless
steel wire with a minimum 1mm diameter or heavier and a
minimum break load of 130kg can also be used.
•Once hooks have been attached to the eyelets the turn buckle can
then be simply wound up to take the tension.
•Tighten the turn buckle until both the top and bottom glass runners
are parallel.
•Removable glass panel can now be placed in position allowing an
even gap between glass and underside of channel.
EYELET
MAKE SURE THESE
PLANES ARE PARALLEL,
AND MAKE SURE ALL
CORNERS ARE SQUARE
THREADED ROD
DRILL THROUGH THE
BEAM , RAFTER OR
FRAMING IF REQUIRED
AND PUSH THROUGH
THE THREADED ROD.
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 8
FAN ( 300MM x 105MM )
SPIRAL DUCT 150MM MAX.
- WITH NO AIR POCKETS
- CANNOT BE VENTED
UNDERNEATH UNIT
INSULATION BOARD
SECTION A-A
HEATZONE
ACTIVE FLUE
CASING STANDARD VENT
HOLES
FULL WELD
HEAT ZONE CONVERSION
IMPORTANT:
VENTILATION INTO
CHASE FROM VENT
(240MM X 90MM
(SUPPLIED)
CEILING WITH 25MM
AIR SPACE TO OUTER
FLUE
IMPORTANT: BOTH
CAPS NEED TO STAY
OFF, IF UNIT IS NOT
VENTED INTO A ROOM
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 9

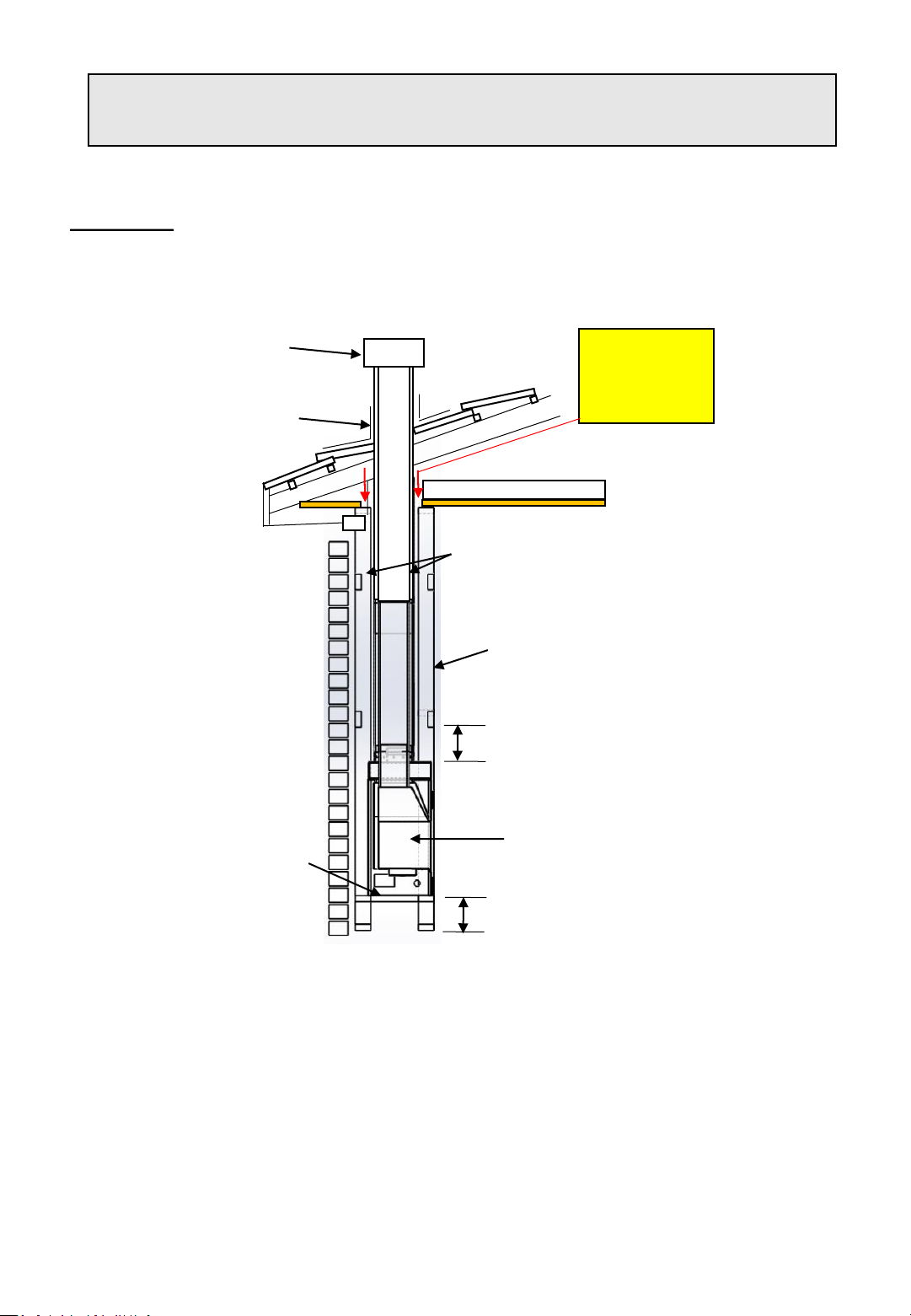

AUSTRALIAN APPROVED
GAS COWL
APPROVED
FLASHING
25MM MIN. FLUE
CLEARANCE TO
TIMBER
HORIZON GAS
FIREPLACE
10MM
COMPRESSED
FIBRE CEMENT
SHEET BETWEEN
UNIT AND BOTTOM
SUPPORT FRAMING
FRAMEWORK
AND 10MM WALL
LINING BY
INSTALLER
150MM MIN .
110MM MIN .
CEILING
CEILING WITH 25MM
AIR SPACE TO OUTER
FLUE,REQUIRED TO
SEAL CHASE
SECTIONS
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 10

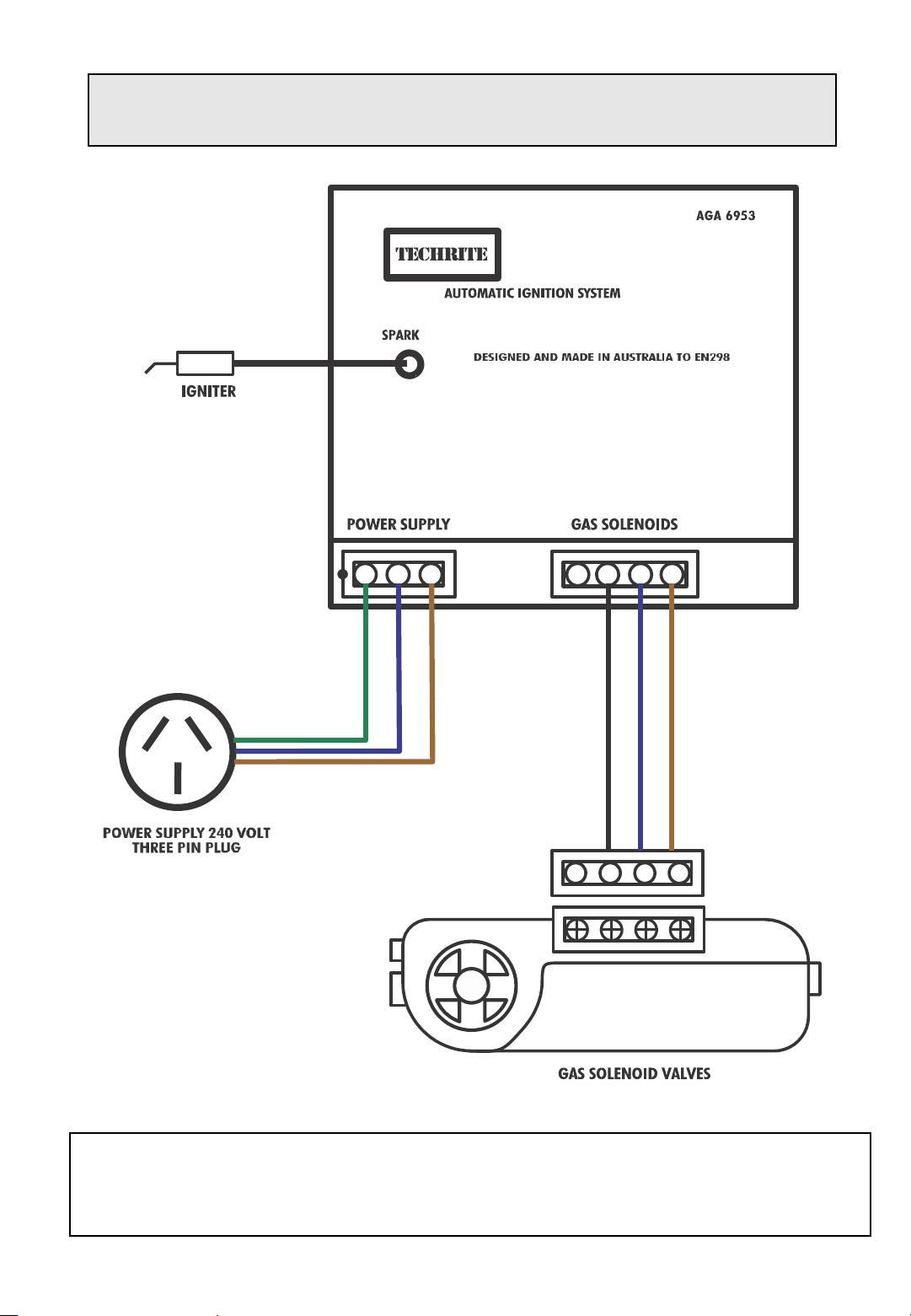

HEAT ZONE CONVERSION
Fireplace ON/OFF Switch S1
Optional Heat zone ON/OFF Switch
S2
General Purpose Outlet
GPO
2 x10 amp GPO’S
IMPORTANT: IF
HEATZONE KIT IS USED,
UNUSED OUTLET MUST
REMAIN UNCAPPED
CEILING
SW 1
SW 2
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 11
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces
KEMLAN
INDUSTRIES
SERIAL No. xxxx
13 FRENCH
AVENUE
IAPMO No. GMK10737
BRENDALE
QLD 4500
MODEL: MODEL NO. GAS TYPE BURNER
GAS CONS.
GAS CONS.
INJECTOR
INJECTOR
T.P.P. T.P.P.
HORIZON RANGE OPTION MJ / HR MJ / HR SIZE SIZE K/PA K/PA
NAT GAS LPG NAT GAS LPG
NAT GAS
LPG
SINGLE SIDED:
700 Low Line
HLLC/P/L700
NAT GAS/LPG
700 Mk2 Pebble 55 39 3.5 1.85 1.00 2.35
700 Mk2 Coal 55 39 3.5 1.85 1.00 2.35
700 Ironbark Log
Mk4 55 39 3.5 1.85 1.00 2.35
850 Low Line
HLLC/P/L850
NAT GAS/LPG
800 Mk2 Pebble 55 55 3.5 2.1 1.00 2.35
800 Mk2 Coal 55 55 3.5 2.1 1.00 2.35
850 Ironbark Log
Mk4 65 55 4 2.1 1.00 2.35
1100 Low Line
HLLC/P/L1100
NAT GAS/LPG
1000 Mk2 Pebble 65 68 2.2 x 3 1.35 x 3 0.90 2.4
1000 Mk2 Coal 65 68 2.2 x 3 1.35 x 3 0.90 2.4
850 Ironbark Log
Mk4 65 55 4 2.1 1.00 2.35
1500 Low Line
HLLC/P/L1500
NAT GAS/LPG
1400 Mk2 Pebble 65 68 2.2 x 3 1.35 x 3 0.90 2.4
1400 Mk2 Coal 65 68 2.2 x 3 1.35 x 3 0.90 2.4
2000 Low Line
HLLC/P/L2000
NAT GAS/LPG
1800 Mk2 Pebble 70 72 2.2 x 3 1.4 x 3 0.90 2.4
1800 Mk2 Coal 70 72 2.2 x 3 1.4 x 3 0.90 2.4
700 Cantilever
HCLC/P/L700
NAT GAS/LPG
700 Mk2 Pebble 55 39 3.5 1.85 1.00 2.35
700 Mk2 Coal 55 39 3.5 1.85 1.00 2.35
700 Ironbark Log
Mk4 55 39 3.5 1.85 1.00 2.35
1100 Cantilever
HCLC/P/L1100
NAT GAS/LPG
1000 Mk2 Pebble 65 68 2.2 x 3 1.35 x 3 0.90 2.4
1000 Mk2 Coal 65 68 2.2 x 3 1.35 x 3 0.90 2.4
850 Ironbark Log
Mk4 65 55 4 2.1 1.00 2.35
DOUBLE SIDED:
700 Low Line HLLDC/P700
NAT GAS/LPG
700 Mk2 Pebble 55 39 3.5 1.85 1.00 2.35
700 Mk2 Coal 55 39 3.5 1.85 1.00 2.35
850 Low Line HLLDC/P850
NAT GAS/LPG
800 Mk2 Pebble 55 55 3.5 2.1 1.00 2.35
800 Mk2 Coal 55 55 3.5 2.1 1.00 2.35
1100 Low Line
HLLDC/P1100
NAT GAS/LPG
1000 Mk2 Pebble 65 68 2.2 x 3 1.35 x 3 0.90 2.4
1000 Mk2 Coal 65 68 2.2 x 3 1.35 x 3 0.90 2.4
1500 Low Line
HLLDC/P1500
NAT GAS/LPG
1400 Mk2 Pebble 65 68 2.2 x 3 1.35 x 3 0.90 2.4
1400 Mk2 Coal 65 68 2.2 x 3 1.35 x 3 0.90 2.4
2000 Low Line
HLLDC/P2000
NAT GAS/LPG
1800 Mk2 Pebble 70 72 2.2 x 3 1.4 x 3 0.90 2.4
1800 Mk2 Coal 70 72 2.2 x 3 1.4 x 3 0.90 2.4
* THIS APPLIANCE CONSISTS OF A COMPLETE ASSEMBLY WHICH INCLUDES A FIREBOX AND
FABRICATED FLUE SYSTEM. PLEASE REFER TO INSTRUCTIONS FOR CLEARANCES TO
COMBUSTIBLE MATERIAL, FLUE SIZES AND METHOD OF INSTALLATION.
* PRIMARILY A DECORATIVE AND NOT A HEATING APPLIANCE.
AFTER INSTALLING APPLIANCE CHECK THAT CHIMNEY DRAWS PROPERLY.

25/02/2021 Ver. 1 12
Gas Installation
1 Check unit is suitable for intended gas supply.
2 Note position on gas appliance on drawing
specification on right hand side of appliance.
3 A gas cock has to be fitted prior to gas burner to allow
unit to be removed for servicing.
4 If material has been installed around firebox and
access panel below is not accessible the top plate
can be removed to gain access by removing four
screws and lifting out top plate.
5 Connection is half inch BSP fitting. Cut and deburr
both ends of pipe. Fit end to gas supply point and
turn on for approximately 5 seconds to clear dirt and
grit out of pipe. Connect into gas valve.
6 Turn on the gas and check all connections for leaks
using approved method for testing. Fix any leaks.
Adjusting Pressure, Pilot and
Low Fire
1 All settings are set to operate at nominal pressure
(see data plate). Test points to measure inlet
and outlet pressure are located on gas valve.
Unscrew brass screw on test point pressure
nipples and attach manometer and read pressures
with unit running. Adjust pressure to data plate
requirements.
2 Check low fire if adjusted correctly.
3 Note: Failure to set pressures correctly will void
warranty on the unit.
Lighting Instructions
Natural Draft Electronic Ignition Fireplaces are provided
with 240volt electronic ignition systems.
An on/off wall switch is supplied and fitted with unit. The
fireplace is switched on from wall switch. Power is then sent
to valve to light pilot and main burner will then ignite from
pilot.
Burner is turned off by turning off wall switch. System does
not have a high low burner switch.
Laying the fire –
Coal & Pebble
• Evenly spread a bag of Vermiculite into the burner
tray. Tray should be completely filled to the top with
Vermiculite to a depth of approximately 45mm.
• Unpack the coals/pebbles contained in a clear
plastic bag and lay a row of coals/pebbles on the
vermiculite along the back of the burner tray leaving
approximately 12-15mm between them.
• Leave spaces at the edges to allow free flow of gas.
• Place a further row of coals/pebbles directly in front
of the first row but staggered so that the second row
of coals are behind the gaps of the first row leaving
approximately 12-15mm between the rows of each
coal/pebble.
• Lay further rows of staggered coals/pebbles
depending on the size of the basket grate.
• Once the bottom layer is completed, build up 2-3
tiers of coals in a honeycomb pattern to form an
elongated pyramid.
• Lay the coals/pebbles so that some irregularity to the
pile through which the flames may lick, is created.
• Your aim is to build “windows” into the fire through
which the radiant effect may show but at the same
time, not leaving such large gaps between the coals/
pebbles that excessive air may enter and “damp
down” the red glow.
• After the fire has been alight for 15 minutes, you may
wish to add the odd coal/pebble or even relay the fire
completely. Allow to cool before touching the
coals/pebbles.
• Experience will enable you to obtain a pleasing
appearance with suitable heat output, but please bear
in mind that it is important to maintain the general
pattern described above and indicated in illustrations.
SEE NEXT PAGE FOR COAL & PEBBLE
DIAGRAMS
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 13
Laying the fire –Coal & Pebble
MARK 2 COALS 700/800 –600 X 155
MARK 2 PEBBLES 1000 –992 X 135
MARK 2 COALS 1400 –1400 X 64
MARK 2 PEBBLES 1400 –1400 X 64
MARK 2 COALS 1800 –1800 X 64
MARK 2 PEBBLES 1800 –1800 X 64
MARK 2 COALS 1000 –992 X 135
MARK 2 PEBBLES 700/800 –600 X 155
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 14
Laying the fire - 850 Ceramic Log
P O S I T I O N I N G O F
A L L L O G S
• It is important to follow the log recommended
positioning.
• Log NO. 6, 10, 9 and 4 must be pinned to rear log
with pins provided.
• Not doing so can adversely effect the operation
of the appliance.
• This diagram shows the recommended
log positions, when viewed from above.
2 . L O C AT E L O G N O. 1 :
This is the largest log that is positioned at the rear of
the grate. Two locating pins are positioned at the
rear of the burner. The large log has two holes on
the underside to position in place.
1 . L O C AT E 4 C E R A M I C C OA L S :
Four ceramic coals are supplied with the burner base.
These coals must be laid in the position indicated on
the drawing with the taller coals on the ends and
smaller coals in-between.
3. LOCATE LOG NO’S 2 & 3
Two front log NO’S. 2 & 3 are supplied to fit into the
space between the metal frame and the ceramic base.
These logs do not cover the front burner ports but are
designed to deflect the front flameback into the fire.
LO G S
Only use logs supplied
by the manufacturer as
other logs may effect
combustion performance
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 15
Laying the fire –700 Ceramic Log
2. LOCATE LO G NO. 1:
This is the largest log that is positioned at the rear of
the grate.Two locatingpins are positioned at the rear
of the burner. The large log has two holes on the
underside to position in place.
1. LO CATE 4 CERAMIC COALS:
Four ceramic coals are supplied with the burner
base. These coals must be laid in the position
indicated on the drawing with the taller coals on
the ends and smaller coals in-between
3. LOCATE LOG NO’S 2 & 3:
Two front log no’s. 2 and 3 are supplied to fit into the space
between the metal frame and the ceramic base. These logs
do not cover the front burner ports but are designed to deflect
the front flame back into the fire
LO G S
P O S I T I O N I N G OF
A LL LO G S
• It is importantto follow thelog
recommended positioning.
• Not doing so canadversely effectthe
operation of the appliance.
• Thisdiagramshows the recommended log
positions, when viewed from above.
Only use logs supplied
by the manufacturer as
other logs may effect
combustion performance
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 16

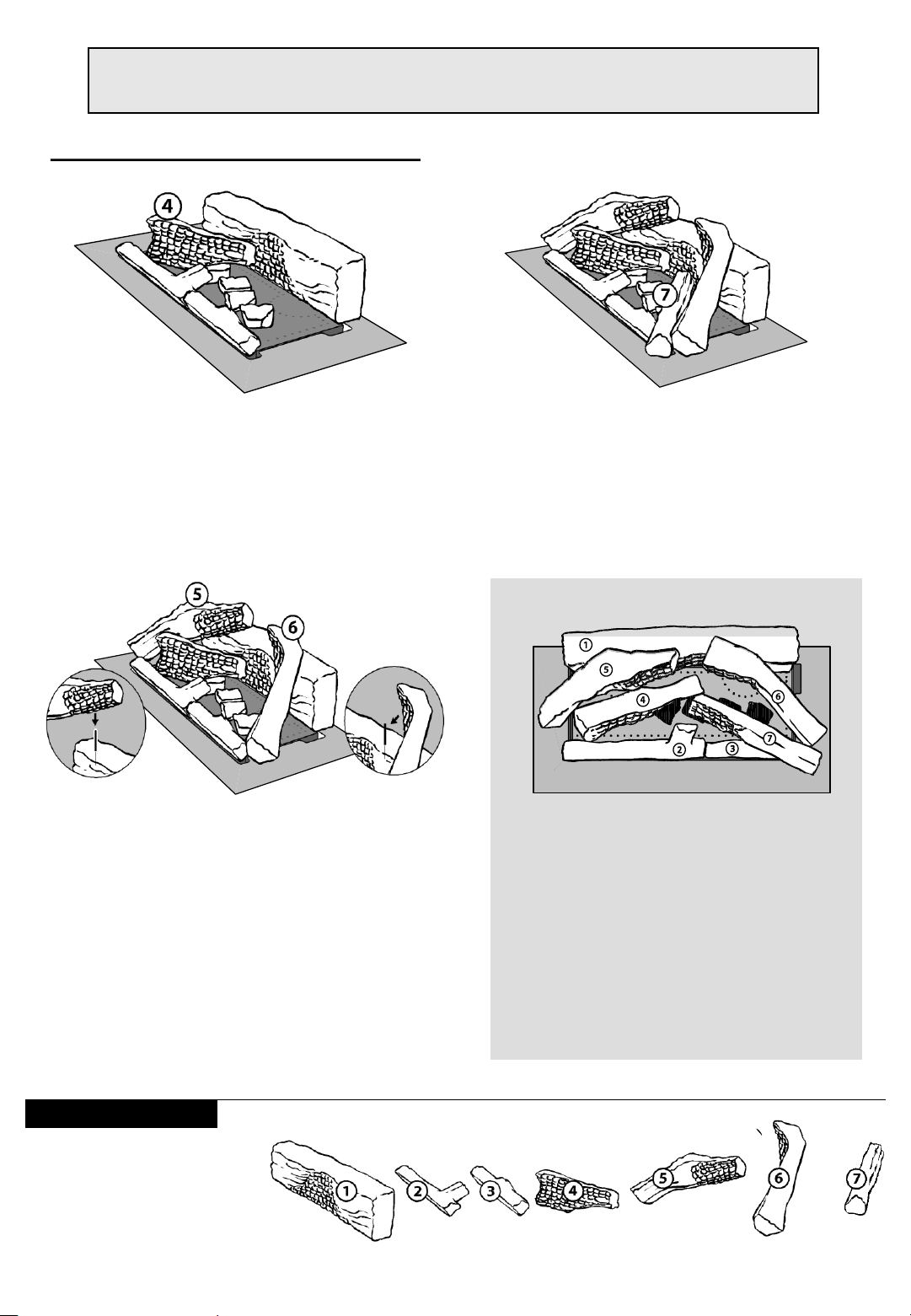

Laying the fire - 700 Ceramic Log
6 . L O C AT E L O G N O. 7 :
The charred effect of the log is positioned on the
smaller coal in the centre of the burner on the right
hand side.
The right hand side of the log is positioned between
the front metal upright on the side.
5 . LO C AT E L O G N O ’ S 5 & 6 .
Log no.5 is positioned onto the larger rear log on
the left hand side. The charred effect faces
inwards and the bark effect on the outside. The left
hand side of the log is positioned between the
metal uprights on the side of the grate. Log no. 6 is
positioned in the same manner but on the right
hand side of the burner with the right hand side of
the logs positioned between the metal uprights of
the grate. Two pins are provided to firmly position
these two logs onto the large rear log
(no. 1).
.
P O S I T I O N I N G O F
A L L L O G S
• It is important to follow the log
recommended positioning.
• Not doing so can adversely effect the
operation of the appliance.
• This diagram shows the recommended log
positions, when
4 . LOC ATE LOG NO. 4.
This log is placed with the thinner edge on the
smaller coal. The charred effect is facing towards
the front of the burner. The whole log is positioned
on the burner base.
Only use logs supplied
by the manufacturer as
other logs may effect
combustion
performance
LO G S
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 17
Commissioning Procedure
Installed correctly the burner should not emit any
fumes into the room. The following procedure should be
undertaken to test that the unit is operating correctly.
1 After unit has been operating for a short period a
smoke match, smoke tube, carbon dioxide analyser or
similar should be directed at the top opening of the
unit.
2 This procedure should be undertaken with the
following conditions in the room:
• Open or closed windows
• Operation of extraction/exhaust fans, range hoods
etc.
• Operation of other gas appliances
• Operation of optional appliance fan at any speed.
3 Should any spillage be detected the cause must be
rectified before allowing commissioning of unit.
4. Please test appliance operation before leaving.
User Instructions
1. WARNING NOTE: Properly installed and
operated this appliance will not leak gases.
Persistent fume emission must not be tolerated.
If fume emission does exist, then the following
immediate action should be taken.
A Open doors and windows to ventilate room.
B Turn the fire off.
C Check for flue blockage and clear if necessary.
D Do not attempt to relight the burner until the cause
of the emission has been identified and rectified.
Should assistance be required contact nearest
agent.
E The gas burner is designed to work in a Kemlan
Horizon electronic power flue ignition system.
Working correctly there will be no spillage. Unit
should cut out if not enough draw to ensure proper
functioning.
2 Initially the Kemlan coal fire may burn with a
slightly blue flame. After approximately 20 minutes
the fire will settle down and burn with a yellow
flame.
3 As with all gas fires your gas coal/pebble or log
fire should be regularly serviced. We
recommend once each year. Service information
for an authorised person to follow has been set
out in attached leaflet.
4 PLEASE NOTE: Only logs provided by Kemlan
should be used with this appliance.
5 DO NOT place articles on or against this
appliance.
DO NOT use or store flammable materials
near this appliance.
DO NOT spray aerosols in the vicinity of this
appliance whilst it is in operation.
DO NOT modify this appliance.
Primarily a decorative appliance not certified as
a space heater.
6 The appliance is a live fuel effect product
designed to operate with luminous flames and
may exhibit slight carbon deposition.
7. The guard is fitted to this appliance to reduce the
risk of fire or injury from burns and no part of it
should be permanently removed.
SERVICE - WARNING: ONLY TO BE SERVICED
BY AN AUTHORISED PERSON
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 18
For further service information contact Kemlan Australia
Head Office –13 French Avenue, Brendale, Queensland 4500
Telephone –PH: [phone]
TAIS 00-L140-D5-000V
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 19
Service Instructions for Direct Ignition and
Power Flue Horizon fireplaces.
POWER FLUE SERVICE INSTRUCTIONS
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
PILOT WILL NOT LIGHT WITH FAN
1) NO GAS
- CHECK FOR GAS SUPPLY AND TURN ON
WORKING
ALL CONNECTIONS
-
CHECK GAS PRESSURE
-
CHECK PILOT AND CLEAN INJECTOR
2) NO SPARK AT PILOT
-
CHECK ALL CONNECTIONS
-
CHECK SPARK ELECTRODE
CONNECTIONS AND REPLACE
ELECTRODE IF DAMAGED.
-
CHECK SOLENOID CONNECTIONS AT
VALVE
-
CHECK PRESSURE SWITCH
FUNCTIONS IN FAN.
Note :flash codes/red LED for pressure
switch functions on module.
FAN DOES NOT TURN ON
1) POWER SUPPLY
-
TURN ON ALL POWER SWITCHES
-
CHECK ALL CONNECTIONS
-
CHECK FAN ON INDEPENDENT POWER
SWITCH
FAN COMES ON. PILOT ON. MAIN
BURNER DOES NOT LIGHT
1)
FLAME SENSOR NOT SENDING
SIGNAL TO OPEN VALVE
-
CHECK ELECTRODE IS IN PILOT FLAME
-
CLEAN ELECTRODE
-
CHECK ELECTRODE CONNECTIONS
-
REPLACE ELECTRODE IF DAMAGED
2) MODULE NOT SENDING
-
CHECK CONNECTIONS
SIGNAL TO OPEN VALVE
-
REPLACE MODULE
3) FAULTY VALVE
- REPLACE VALVE
FLAME FAIL LOCKOUT UNIT HAS
DETECTED LOSS OF FLAME AND
LOCKED OUT
1) POWER FAILURE
-
TURN ON/OFF SWITCH OFF AND ON
AGAIN TO RESET ONCE POWER
ESTABLISHED
2) GAS SUPPLY
-
CHECK GAS PRESSURE AND ADJUST
-
RESET AT ON/OFF SWITCH
3) DIRTY ELECTRODE
-
CLEAN ELECTODE OR REPLACE
4) PILOT BLOCKED
-
CLEAN PILOT INJECTOR
5) PRESSURE SWITCHES
NOTE:FLASH CODES (RED LED) WITH
ENCLOSED INSTRUCTIONS TO IDENTIFY
PRESSURE SWITCH PROBLEMS.
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces

25/02/2021 Ver. 1 20
DIRECT IGNITION
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
PILOT WILL NOT LIGHT
1) NO GAS
-
CHECK FOR GAS SUPPLY AND
TURN ON ALL CONNECTIONS
-
CHECK GAS PRESSURE
-
CHECK PILOT AND CLEAN INJECTOR
2) NO SPARK AT PILOT
-
CHECK ELECTRIC SUPPLY AND
TURN ON ALL SWITCHES
-
CHECK ALL CONNECTIONS
-
CHECK SPARK ELECTRODE CONNECTIONS
AND REPLACE ELECTRODE IF DAMAGED.
-
CHECK SOLENOID CONNECTIONS AT VALVE
PILOT LIGHTS BUT
1) FLAME SENSOR NOT
-
CHECK ELECTRODE IS IN PILOT
VALVE DOES NOT OPEN TO LIGHT MAIN
BURNER
SENDING SIGNAL TO OPEN
VALVE
FLAME
-
CHECK ELECTRODE CONNETCTIONS
-
CLEAN ELECTRODE
-
CHECK ELECTRODE FOR DAMAGE
-
REPLACE ELECRODE
2) MODULE NOT SENDING
-
REPLACE MODULE
SIGNAL TO OPEN VALVE
3) FAULTY VALVE
- REPLACE VALVE
FLAME
FAIL LOCKOUT
1) POWER FAILURE
-
TURN ON/OFF SWITCH OFF AND
UNIT
HAS DETECTED LOSS OF FLAME
AND
LOCKED OUT
ON AGAIN TO RESET ONCE POWER
ESTABLISHED
2) GAS SUPPLY
-
CHECK GAS PRESSURE AND ADJUST
-
RESET AT ON/OFF SWITCH
3) DIRTY ELECTRODE
-
CLEAN ELECTODE OR REPLACE
4) PILOT BLOCKED
-
CLEAN PILOT INJECTOR
5) PRESSURE SWITCHES
NOTE: TECHRITE IGNITION PACK FLASH CODES
(RED LED) TO IDENTIFY PROBLEM.
Installation Instructions Kemlan Three Sided Natural Draft
Electronic Ignition Gas Fireplaces
