Kemlan Power Flue Horizon Gas Fireplaces User manual

----FIREPLACES----
Installation Instructions
Power Flue Horizon Gas Fireplaces

SINGLE SIDED MODELS
SUITABLE GAS BURNER OPTION
CANTILEVER
700 Cantilever 700 Mk2Pebble
700 Mk2Coal
700 Ironbark LogMk4
1100 Cantilever 1000 Mk2 Pebble
1000 Mk2Coal
850 Ironbark Log Mk4
1500 Low Line 1400 Mk2Pebble
1400 Mk2Coal
DOUBLE SIDED MODELS
2
Power Flue approved for the
following models:
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces
Location Requirements
Power flue systems utilizes a fan assisted draft to
ensure products of combustion are exited through a
flue terminal either horizontally or vertically
terminated.
The following A.G.A location requirements for flues
are to be observed when installing a powered flue
system.
SEE NEXT PAGE FOR LOCATION EQUIREMENTS
Model Type 2: Power Flue
Decorative Gas Fireplace
DATA PLATE: Refer to data plate for information in
respect to gas pressure, consumption and gas type,
Natural or LPG.
Data Plate is located under the gas burner and is
accessed by lifting front access panel or removing
base plate.
700 Low Line 700 Mk2Pebble
700 Mk2Coal
700 Ironbark LogMk4
850 Low Line 800 Mk2Pebble
800 Mk2Coal
850 Ironbark Mk4
1100 Low Line 1000 Mk2Pebble
1000 Mk2Coal
850 Ironbark LogMk4
1500 Low Line 1400 Mk2Pebble
1400 Mk2Coal
2000 Low Line 1800 Mk2Pebble
1800 Mk2Coal
700 Low Line 700 Mk2Pebble
700 Mk2Coal
700 Ironbark LogMk4
850 Low Line 800 Mk2Pebble
800 Mk2Coal
850 Ironbark Mk4
1100 Low Line 1000 Mk2Pebble
1000 Mk2Coal
850 Ironbark LogMk4
1500 Low Line 1400 Mk2Pebble
1400 Mk2Coal
2000 Low Line 1800 Mk2Pebble
1800 Mk2Coal

3
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces
T=flue terminal
I =Mechanical air inletM=Gas meter
P = Electricity meter or
fuse box
Shading indicates
prohibited
areas for flueterminals
aBelow eaves, balconiesor other projections:
Appliances upto50 MJ/h input
Appliances over 50 MJ/hinput
From the ground or above a balcony
From a return wall orexternal corner
From agasmeter (M)
From anelectricity meter or fusebox (P)
From a drain orsoil pipe
Horizontally fromany building structure (unless applianceapproved for closer
installation) or obstruction facingaterminal
Fromany other flueterminal, cowl,orcombustion air intake
Horizontally from anopenable window, door, non-mechanical air
inlet, or any other opening into abuilding, with theexception of
sub-floor ventilation:
Appliances upto150 MJ/h input
Appliances over 150MJ/h input
From amechanical air inlet, including a spa blower
MIN. CLEARANCE
(mm)
300
500
300
500
1000
500
150
g500
500
h
j
50
150
150
k
nVerticallybelow an openable window, non-mechanical air inlet
orany otheropening into a building,with theexception of
sub-floor ventilation See table below
NOTES:I. All distancesare measured vertically or horizontally alongthewall to apoint
in line with the nearest partoftheterminal.
2. Prohibited areabelow electricity meter or fuse boxextends toground level.
3. Seeclause 5.13.6.6 for restrictions onaflueterminal under aroofed area.
4. SeeAppendixJ, Figure JI (a) and J2(a)forclearances required from a flue
terminal to aLPGas cylinder. Aflue terminal is considered tobe a source ofignition.
MINIMUM CLEARANCES REQUIRED FOR BALANCED FLUE TERMINALS
OR THE FLUE TERMINALS OF OUTDOOR APPLIANCES
CLEARANCES'n' (mm)
Space heatersAll other appliances
Upto50
MJ/h
Input
UPto 50 MJ/h
inputOver 50 MJ/h&up
to 150 MJ/h Over 150 MJ/h
input
150 500 10001500
b
c
d
e
f

4
Before Installation
The Natural Draft Electronic Ignition (N.D.E.I.) flue
system shall be installed by authorized personnel in
accordance with the manufacturer’s installation
instructions, local gas fitting regulations, municipal
building codes, electrical wiring regulations, and any
other statutory regulations. Contact your local building
authorities about restrictions and installation inspections
that may be required. If in doubt contact your local
dealer or Kemlan’s Head office.
IMPORTANT AUSTRALIAN CODES:
• Australian Standards AS 5601 Gas Installation
• Australian Standards AS 3000 Electrical
Important Safety Notes
•Comply with all instructions in manual
including clearances to combustible material.
• Do not operate without fully assembling
all components.
• All open gas fires require ventilation in the
room.
• Do not connect to any other air distribution duct or
system.
• An A.G.A approved cowl is required at flue terminal.
• Refer to the table below for flue diameter and flue
cowl size.
• Air movement of systems- A decorative gas log fire
must not be installed where the operation of any
ventilation system, fan or air blower could in any
circumstances cause the air pressure to be less than
atmospheric at the appliance.
• Do not block or restrict chimney.
• After installing appliance check that the flue draws
well with smoke pellet.
• Kemlan recommends that all gas fires be serviced
every year.
• All gas units must be fitted by a licensed gas fitter.
• It is the responsibility of the gas fitter to follow the
regulations set out in the Gas Code that dictate the
procedures to follow when installing a gas appliance,
particularly regarding gas pipe sizing and checking of
pressures.
Installation
1 The N.D.E.I. system is supplied with all
required electrical fittings. Work needs to be
undertaken by a licensed electrician if extending
wiring. Wiring requires clearance of minimum
100mm to flues and fireplace body due to heat. See
Wiring diagram page 15. Wiring must be positively
secured away from heat source.
2 An isolation switch needs to be provided if
connecting within fireplace framework.
3 Build frame to specifications provided. Note: 80mm
clearance above fireplace and 5mm to front surface
of firebox.
4 Unit located on 10mm fiber cement sheeting.
Sheeting required for access to gas burner.
5 Unit and flues to be installed prior to plastering.
6 Gas line run to desired position prior to plastering.
7 A minimum height of 150mm from floor needs to be
available for use of front fascia on firebox.
8 Clearance of 25mm to vertical flue.
9 Allow for a minimum flue height of 3.6m.
10 All flue components to be riveted together.
11 Rooms with Gas Open Fires require fresh air vents
of 400sq centimetres for each Decorative Gas,
Coal Fire.
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces

E
C
B*
D
C
*OPENING DIMENSIONS
ON/OFF
SWITCH TO
BURNER
*OPENING DIMENSIONS
INTERNAL FAN
CANTILEVER –REAR EXIT
G
F
C
A
B
B1 A1

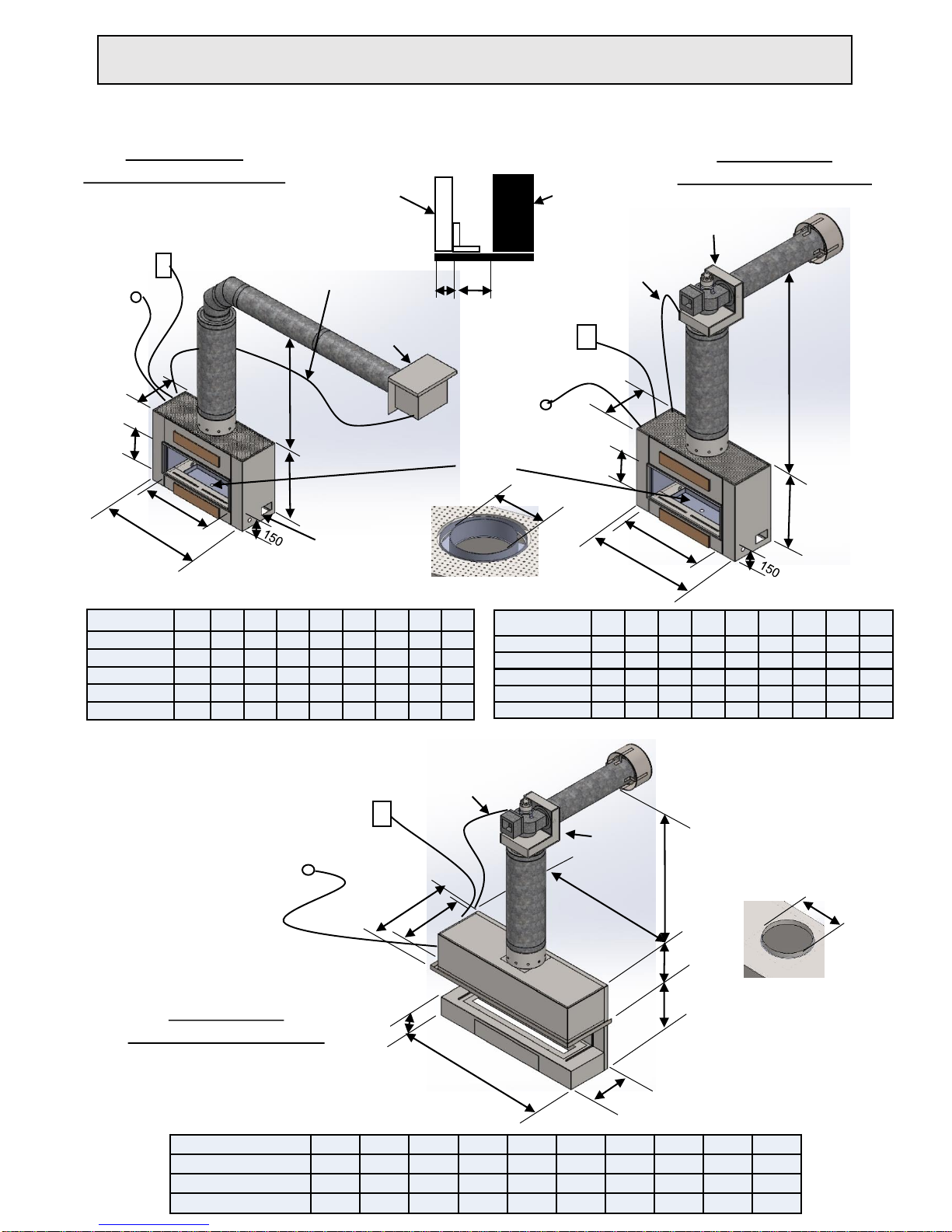

Measurement and Specifications of Fan Power Flue
EXTERNAL FAN
CASING
3 PIN PLUG
240 VOLT
10 AMP
ISOLATING
SWITCH
3 PIN PLUG 240
VOLT 10 AMP
ISOLATING
SWITCH
3 PIN PLUG
240 VOLT
10 AMP
ISOLATING
SWITCH
HION/OFF SWITCH
TO BURNER
DOUBLE SIDED A* B* C D E F G H I
700 LOW LINE
700
270
450
670
1000
1010
250
10 27
850 LOW LINE
850
270
450
770
1095
1010
250
10 27
1100 LOW LINE
1100
275
450
770
1345
1010
250
10 27
1500 LOW LINE
1500
290
435
900
1746
1010
300
10 27
2000 LOW LINE
2000
290
435
900
2246
1010
300
10 27
SINGLE SIDED A* B* C D E F G H I
700 LOW LINE
700
270
365
670
1000
1210
176
10 15
850 LOW LINE
850
270
405
770
1095
1210
225
10 15
1100 LOW LINE
1100
275
405
770
1345
1210
225
10 15
1500 LOW LINE
1500
290
435
900
1746
1210
250
10 15
2000 LOW LINE
2000
290
435
900
2246
1210
250
10 15
LIP FRAME DETAIL
TYP.
SINGLE SIDED A A1 BB1 C D D1 E F G
CANTLEVER 700 1190 1266 440 478 455 228 1010 177 405 336
CANTLEVER 1100 1420 1500 440 478 455 228 1010 177 405 336
CANTLEVER 1500 1850 1935 440 478 455 254 1010 177 405 336
A*
SHEETING FRONT
PANEL
D
INTERNAL FAN
SINGLE SIDED-REAR EXIT
EXTERNAL FAN
DOUBLE SIDED-SIDE EXIT
ON/OFF SWITCH
TO BURNER
GAS INLET
CONNECTION UNDER
BURNER TYP. E
ELECTRICAL LOOM
CONNECTOR BURNER
TO FAN
ELECTRICAL LOOM
CONNECTOR BURNER
TO FAN
REMOVABLE GAS
BURNER PEBBLE/COAL
OR LOG
ELECTRICAL LOOM
CONNECTOR BURNER
TO FAN
AGA APPROVED
GAS COWL
AGA APPROVED
GAS COWL
INTERNAL FAN
CASING
INTERNAL FAN
CASING
A*
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces
B*
D
E
G
F
F
D1
SPIGGOT TYP. DETAIL
SPIGGOT TYP. DETAIL

Power Flue with Internal Fan
HEAT TRANSFER
BOX
SILENCER
8” x 900
REDUCER
7” –6”
8” –6”
9” –6”
10” –6”
12” –6”
14”-- 6”
GAS COWL
COOLING ROTOR
INBUILT THERMAL
OVERLOAD
COOLING IMPELLER
6” x 900
12” x 900
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces
12” x 200 VENTED FLUE

Power Flue with External Fan
SILENCER
8” x 900
REDUCER
7” –6”
8” –6”
9” –6”
10” –6”
12” –6”
14 ”-- 6”
WALL MOUNTED
FAN
2x 8” 45 DEG
12” –8”
REDUCING CAP
6” x 900
12” x 900
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces
2x 6” 45 DEG
12” x 200 VENTED FLUE
10MM GAP BETWEEN
END OF FLUE TO WALL

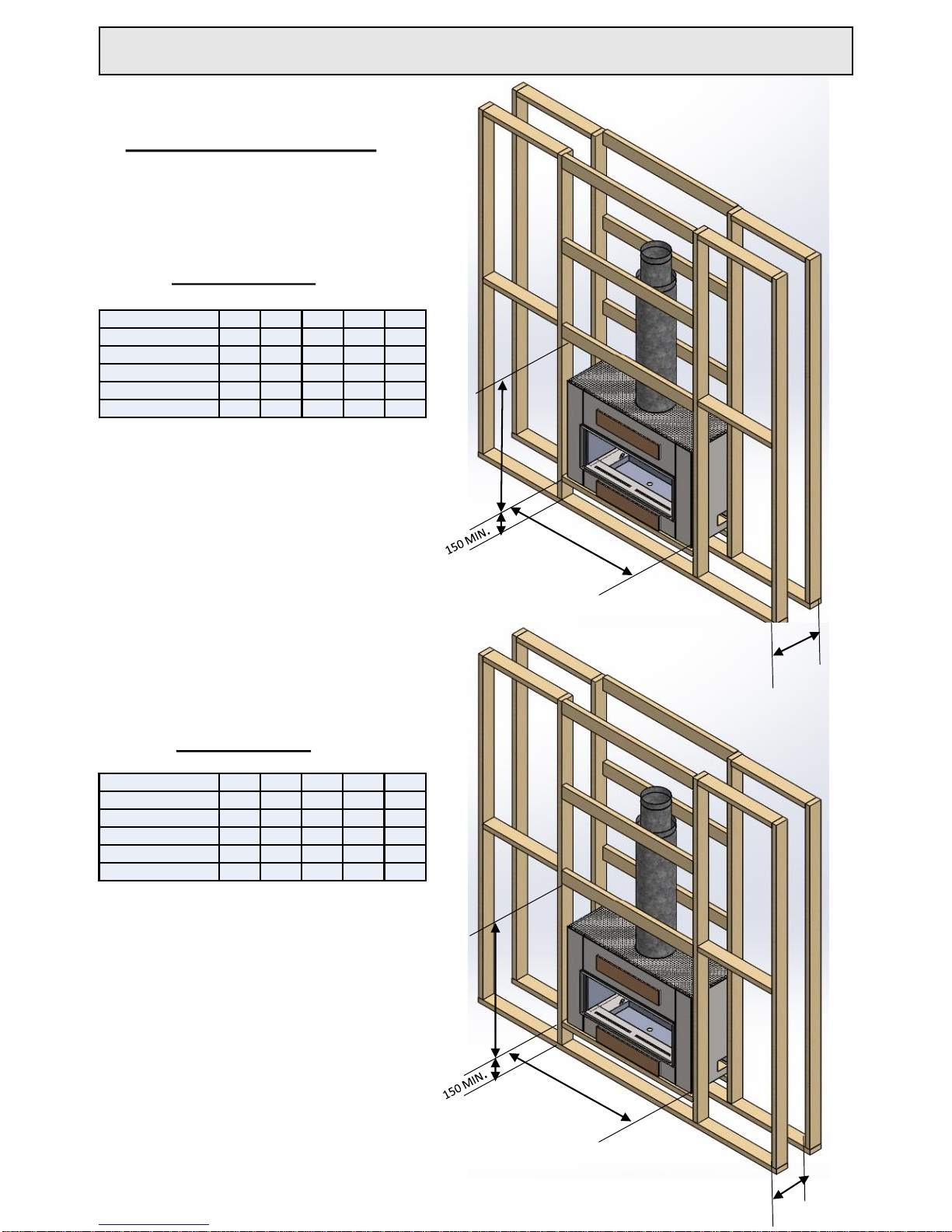

FRAMING DIMENSIONS
SINGLE SIDED
DOUBLE SIDED
C
B
B
C
8
A
A
DOUBLE SIDED A B B* CC*
700 LOW LINE
1056
480 500 750
1050
850 LOW LINE
1145
480 500 845
1145
1100 LOW LINE
1408
480 500 845
1145
1500 LOW LINE
1796
490 510 980
1280
2000 LOW LINE
2293
490 510 980
1280
* INCLUDING 10mm PLASTERBOARD
C* - INTERNAL FRAME HEIGHT WHEN USING HEAT ZONE KIT.
REFER TO HEAT ZONE CONVERSION PAGE.
SINGLE SIDED A B B* CC*
700 LOW LINE 1056 410 420 750 1050
850 LOW LINE 1145 450 460 845 1145
1100 LOW LINE 1408 450 460 845 1145
1500 LOW LINE 1796 480 490 950 1280
2000 LOW LINE 2293 480 490 950 1280
* INCLUDING 10mm PLASTERBOARD
C* - INTERNAL FRAME HEIGHT WHEN USING HEAT ZONE KIT.
REFER TO HEAT ZONE CONVERSION PAGE.
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces

9

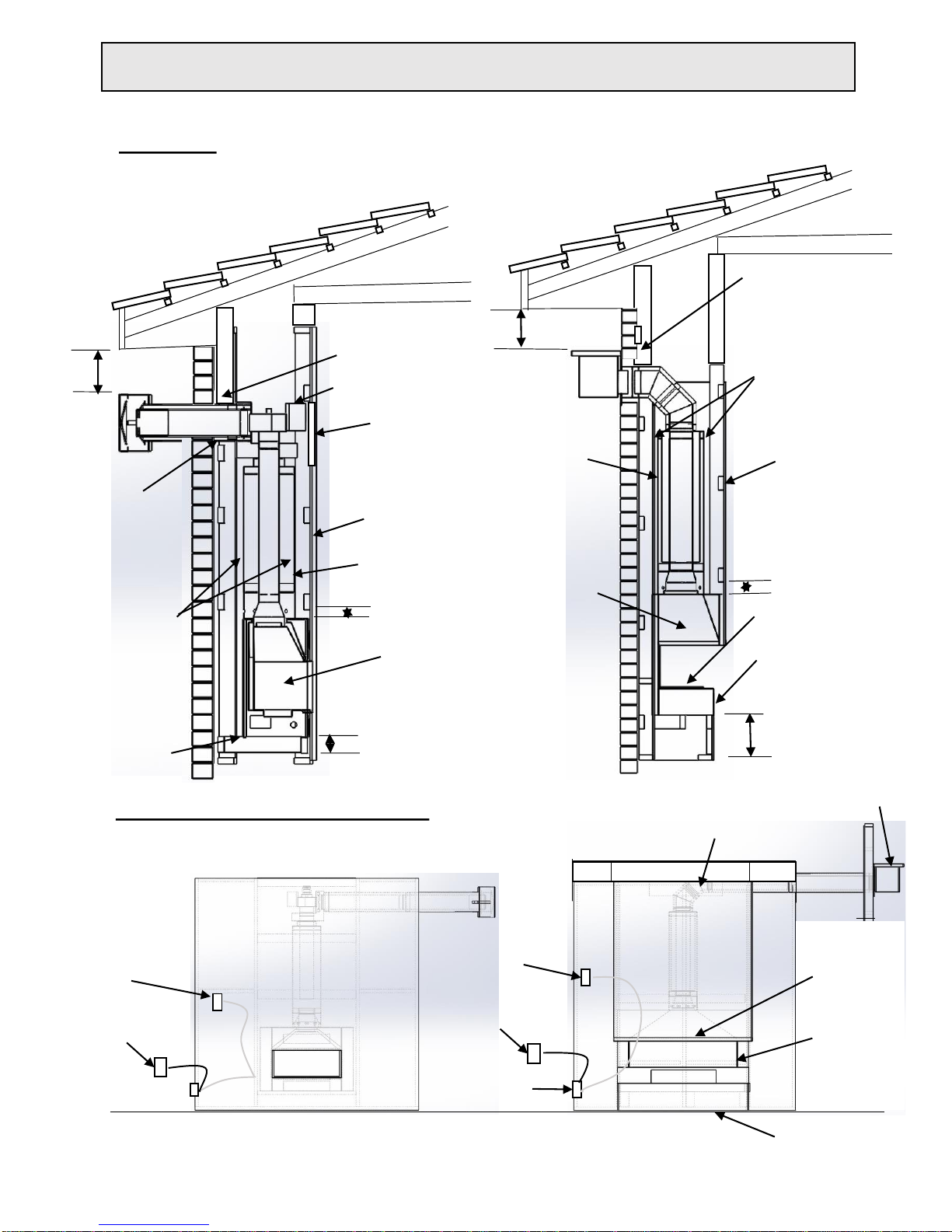

SECTIONS
25MM MIN. FLUE
CLEARANCE TO
TIMBER
80MM
HORIZON GAS
FIREPLACE
10MM
COMPRESSED
FIBRE CEMENT
SHEET
25MM MIN. FLUE
CLEARANCE TO
TIMBER
CANTILEVER
HORIZON
FIREPLACE 80MM
150MM MIN .
GAS BURNER
FRAMEWORK
AND 10MM WALL
LINING BY
INSTALLER
SELECTED
FACING
BY INSTALLER
ELEVATION OF FAN POWER FLUE
FLOOR
WALL SWITCH
ON/OFF SWITCH
BURNER
ISOLATING
ELECTRICAL
SWITCH
240 V PLUG
WALL SWITCH
ON/OFF SWITCH
BURNER
ISOLATING
ELECTRICAL
SWITCH
240 V PLUG
INTERNAL FAN - SIDE EXIT EXTERNAL FAN –SIDE EXIT
FRAMEWORK AND
10MM WALL LINING
BY INSTALLER
150MM MIN .
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces
MUFFLER
25MM
CLEARANCE
TO TIMBER
300MM
CLEARANCE TO
EAVES *
*
75MM MIN.
CLEARANCE TO
TIMBER
INTERNAL FAN CASING
ACCESS PANEL FOR
FAN SERVICE TO
ARCHITECTS DETAIL
(400 x 400MM MIN.)
75MM MIN.
CLEARANCE TO
TIMBER
MUFFLER
STAINLESS
STEEL EDGE
TRIM
GLASS SIDE
VENTILATION
TO BURNERS
90 DEG BEND
EXTERNAL
FAN CASING
SINGLE SIDED ELEVATION
MAX HEIGHT 220MM BASED ON 2.4M CEILING CANTILEVER ELEVATION
MAX HEIGHT 220MM BASED ON 2.4M CEILING
*

10
Gas Installation
1 Check unit is suitable for intended gas supply.
2 Note position on gas appliance on drawing
specification on right hand side of appliance.
3 A gas cock has to be fitted prior to gas burner to allow
unit to be removed for servicing.
4 If material has been installed around firebox and
access panel below is not accessible the top plate
can be removed to gain access by removing four
screws and lifting out top plate.
5 Connection is half inch BSP fitting. Cut and deburr
both ends of pipe. Fit end to gas supply point and
turn on for approximately 5 seconds to clear dirt and
grit out of pipe. Connect into gas valve.
6 Turn on the gas and check all connections for leaks
using approved method for testing. Fix any leaks.
Adjusting Pressure, Pilot and
Low Fire
1 All settings are set to operate at nominal pressure
(see data plate). Test points to measure inlet
and outlet pressure are located on gas valve.
Unscrew brass screw on test point pressure
nipples and attach manometer and read pressures
with unit running. Adjust pressure to data plate
requirements.
2 Check low fire if adjusted correctly.
3 Note: Failure to set pressures correctly will void
warranty on the unit.
Lighting Instructions
Natural Draft Electronic Ignition Fireplaces are provided
with 240 volt electronic ignition systems.
An on/off wall switch is supplied and fitted with unit. The
fireplace is switched on from wall switch. Power is then
sent to valve to light pilot and main burner will then
ignite from pilot.
Burner is turned off by turning off wall switch. System
does not have a high low burner switch.
Laying the fire –
Coal & Pebble
• Evenly spread a bag of Vermiculite into the burner
tray. Tray should be completely filled to the top with
Vermiculite to a depth of approximately 45mm.
• Unpack the coals/pebbles contained in a clear
plastic bag and lay a row of coals/pebbles on the
vermiculite along the back of the burner tray leaving
approximately 12-15mm between them.
• Leave spaces at the edges to allow free flow of gas.
• Place a further row of coals/pebbles directly in front
of the first row but staggered so that the second row of
coals are behind the gaps of the first row leaving
approximately 12-15mm between the rows of each
coal/pebble.
• Lay further rows of staggered coals/pebbles
depending on the size of the burner.
• Once the bottom layer is completed, build up 2-3
tiers of coals in a honeycomb pattern to form an
elongated pyramid.
• Lay the coals/pebbles so that some irregularity to the
pile through which the flames may lick, is created.
• Your aim is to build “windows” into the fire through
which the radiant effect may show but at the same
time, not leaving such large gaps between the coals/
pebbles that excessive air may enter and “damp down”
the red glow.
• After the fire has been alight for 15 minutes, you
may wish to add the odd coal/pebble or even relay the
fire completely. Allow to cool before touching the
coals/pebbles.
• Experience will enable you to obtain a pleasing
appearance with suitable heat output, but please bear in
mind that it is important to maintain the general
pattern described above and indicated in illustrations.
SEE NEXT PAGE FOR COAL & PEBBLE DIAGRAMS
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces

11

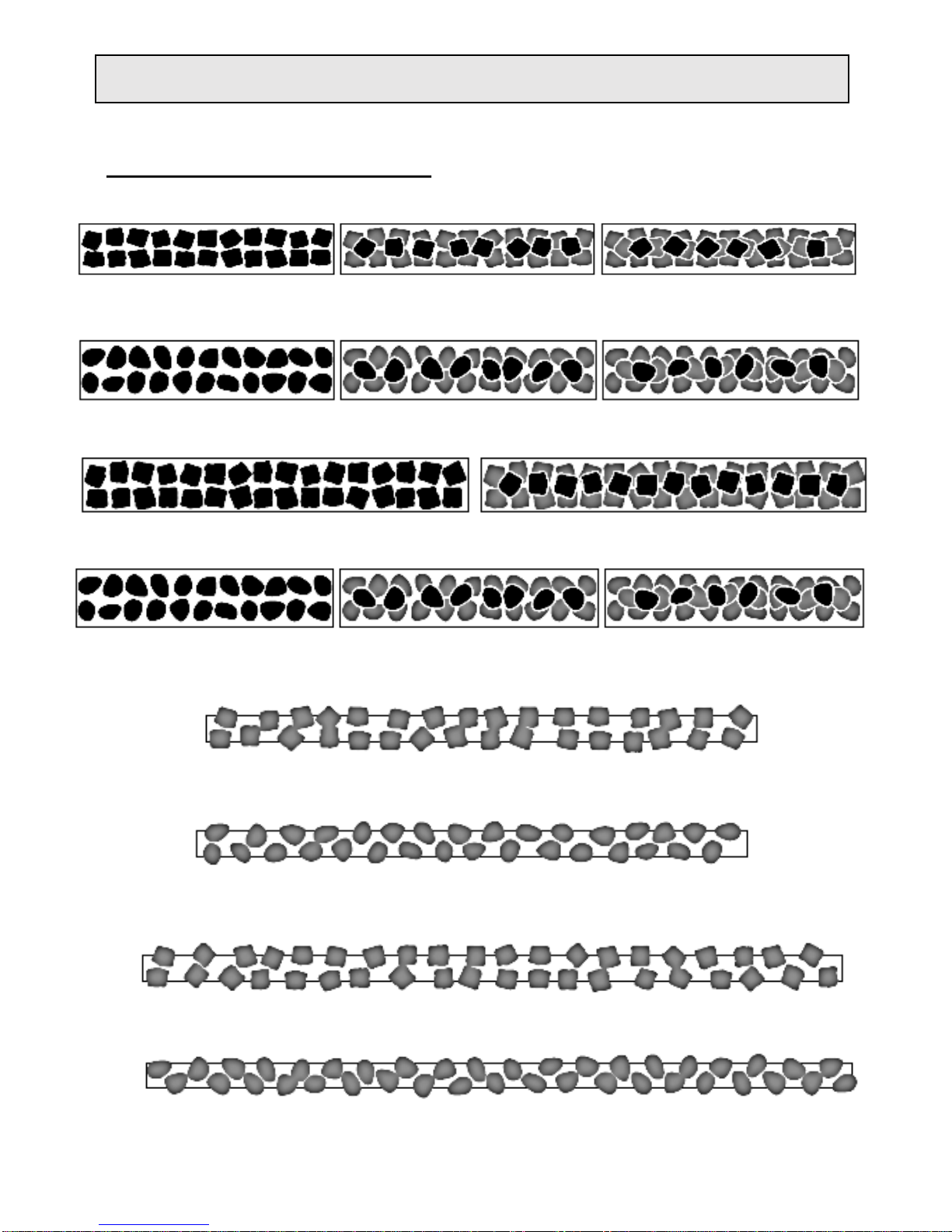

Laying the fire –Coal & Pebble
MARK 2 COALS 700/800 –600 X 155
MARK 2 PEBBLES 1000 –992 X 135
MARK 2 COALS 1400 –1400 X 64
MARK 2 PEBBLES 1400 –1400 X 64
MARK 2 COALS 1800 –1800 X 64
MARK 2 PEBBLES 1800 –1800 X 64
MARK 2 COALS 1000 –992 X 135
MARK 2 PEBBLES 700/800 –600 X 155
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces

12
Laying the fire - 850 Ceramic Log
P O S I T I O N I N G O F
A L L L O G S
• It is important to follow the log recommended
positioning.
• Log NO. 6, 10, 9 and 4 must be pinned to rear log
with pins provided.
• Not doing so can adversely effect the operation
of the appliance.
• This diagram shows the recommended
log positions, when viewed from above.
2 . L O C AT E L O G N O. 1 : This is the largest
log that is positioned at the rear of the grate. Two
locating pins are positioned at the rear of the
burner. The large log has two holes on the
underside to position in place.
1 . L O C AT E 4 C E R A M I C C OA L S : Four
ceramic coals are supplied with the burner base. These
coals must be laid in the position indicated on the
drawing with the taller coals on the ends and smaller
coals in-between.
3. LOCATE LOG NO’S 2 & 3
Two front log NO’S. 2 & 3 are supplied to fit into the
space between the metal frame and the ceramic base.
These logs do not cover the front burner ports but are
designed to deflect the front flameback into the fire.
LO G S
Only use logs supplied
by the manufacturer as
other logs may effect
combustion performance
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces

13
Laying the fire - 850 Ceramic Log
4. LOCATE LOG NO. 4. Place it on the left
side of the rear log. Charred end facing inwards.
LOCATE LOG NO. 5.This log is placed with the
thinner edge on the smaller coal. The charred
effect is facing towards the front of the burner. The
whole log is positioned on the burner base.
6. LOCATELOG NO. 9. This log is placed on the
log in the centre of the burner. Charred effect facing
toward the left of the burner. The front rests on logs 2
& 3 on the join.
LOCATE LOG NO. 10.This log is located on the
rear log in the position where the log reduces in
height. The charred end is located on the front log 3
with the charred effect facing toward the right hand
side.
5 . L O C AT E L O G N O. 6 . Place this log on the
right hand side of the burner on the rear log in front of
the pilot. Charred end facing inwards. The left hand
side of the log is positioned between the metal
uprights on the side of the grate.
LOCATE LOG NO. 7. The charred effect of the
log is positioned on the smaller coal in the centre of
the burner on the right hand side.
LOCATE LOG NO. 8. This smaller log is placed on
the top of log NO. 2 and rests on the left hand coal
in the centre of the burner.
LO G S
P O S IT I O N IN G OF
A LL LO G S
• It is important to follow the log
recommended positioning.
• Log NO. 6, 10, 9 and 4 must be pinned
to rearlog with pins provided.
• Not doing so canadversely effectthe
operation of the appliance.
• This diagram shows the
recommended log positions, when
viewed from above.
Only use logs supplied
by the manufacturer as
other logs may effect
combustion
performance
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces

14
Laying the fire –700 Ceramic Log
2. LOCATE LO G NO. 1: This is the largest log that
is positioned at the rear of the grate.Two locatingpins
are positioned at the rear of the burner. The large
log has two holes on the underside to position in
place
1. LO CATE 4 CERAMIC COALS: Four
ceramic coals are supplied with the burner
base. These coals must be laid in the position
indicated on the drawing with the taller coals on
the ends and smaller coals in-between.
3. LOCATE LOG NO’S 2 & 3: Two front log no’s. 2
and 3 are supplied to fit into the space between the metal
frame and the ceramic base. These logs do not cover the
front burner ports but are designed to deflect the front flame
back into the fire.
LO G S
P O S IT IO N IN G OF
A LL LO G S
• It is important to follow the log
recommended positioning.
• Not doing so can adversely effect the
operation of the appliance.
• Thisdiagramshows the recommended log
positions, when viewed from above.
Only use logs supplied
by the manufacturer as
other logs may effect
combustion performance
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces

15
Laying the fire - 700 Ceramic Log
6 . L O C AT E L O G N O. 7 : The charred
effect of the log is positioned on the smaller coal in
the centre of the burner on the right hand side.
The right hand side of the log is positioned between
the front metal upright on the side.
5 . LO C AT E L O G N O ’ S 5 & 6 . Log
no. 5 is positioned onto the larger rear log on the
left hand side. The charred effect faces inwards
and the bark effect on the outside. The left hand
side of the log is positioned between the metal
uprights on the side of the grate. Log no. 6 is
positioned in the same manner but on the right
hand side of the burner with the right hand side of
the logs positioned between the metal uprights
of the grate. Two pins are provided to firmly
position these two logs onto the large rear log
(no. 1).
.
P O S I T I O N I N G O F
A L L L O G S
• It is important to follow the log
recommended positioning.
• Not doing so can adversely effect the
operation of the appliance.
• This diagram shows the recommended log
positions, when
4 . LOC ATE LOG NO. 4. This log is placed
with the thinner edge on the smaller coal. The
charred effect is facing towards the front of the
burner. The whole log is positioned on the burner
base.
Only use logs supplied
by the manufacturer as
other logs may effect
combustion
performance
LO G S
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces

16
Commissioning Procedure
Installed correctly the burner should not emit any
fumes into the room. The following procedure should be
undertaken to test that the unit is operating correctly.
1 After unit has been operating for a short period a
smoke match, smoke tube, carbon dioxide analyser
or similar should be directed at the top opening of
the unit.
2 This procedure should be undertaken with the following
conditions in the room:
• Open or closed windows
• Operation of extraction/exhaust fans, range hoods
etc
• Operation of other gas appliances
• Operation of optional appliance fan at any speed.
3 Should any spillage be detected the cause must be
rectified before allowing commissioning of unit.
4. Please test appliance operation before leaving.
2 Initially the Kemlan coal fire may burn with a
slightly blue flame. After approximately 20
minutes the fire will settle down and burn with a
yellow flame.
3 As with all gas fires your gas coal/pebble or log
fire should be regularly serviced. We
recommend once each year. Service information
for an authorised person to follow has been set
out in attached leaflet.
4 PLEASE NOTE: Only logs provided by
Kemlan should be used with this appliance.
5 DO NOT place articles on or against this
appliance.
DO NOT use or store flammable materials
near this appliance.
DO NOT spray aerosols in the vicinity of this
appliance whilst it is in operation.
DO NOT modify this appliance. Primarily a
decorative appliance not certified as a space
heater.
6 The appliance is a live fuel effect product
designed to operate with luminous flames and
may exhibit slight carbon deposition.
7. The guard is fitted to this appliance to reduce the
risk of fire or injury from burns and no part of it
should be permanently removed.
SERVICE - WARNING: ONLY TO BE SERVICED
BY AN AUTHORISED PERSON
Warranty
Provided the appliance has been correctly
installed according to instructions, Kemlan guarantee
the cost of replacing parts and the labour in
connection therewith for a period of 12 months from
the date of installation.
User Instructions
1. WARNING NOTE: Properly installed and
operated this appliance will not leak gases.
Persistent fume emission must not be tolerated.
If fume emission does exist, then the following
immediate action should be taken.
A Open doors and windows to ventilate room.
B Turn the fire off.
C Check for flue blockage and clear if necessary.
D Do not attempt to relight the burner until the cause
of the emission has been identified and rectified.
Should assistance be required contact nearest
agent.
E The gas burner is designed to work in a Kemlan
Horizon electronic power flue ignition system.
Working correctly there will be no spillage. Unit
should cut out if not enough draw to ensure proper
functioning.
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces

17
Wiring Diagram
For further service information contact Kemlan Australia
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces
Head Office –13 French Avenue, Brendale,
Queensland 4500
Telephone –PH: [phone]

18
Service Instructions for Direct Ignition and
Power Flue Horizon fireplaces.
POWER FLUE SERVICE INSTRUCTIONS
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
PILOT WILL NOT LIGHT WITH FAN
1) NO
GAS
-
CHECK
FOR GAS SUPPLY AND TURN ON
WORKING
ALL CONNECTIONS
-
CHECK GAS PRESSURE
-
CHECK PILOT AND CLEAN INJECTOR
2) NO
SPARK AT PILOT
-
CHECK ALL CONNECTIONS
-
CHECK SPARK ELECTRODE
CONNECTIONS AND REPLACE
ELECTRODE IF DAMAGED.
-
CHECK SOLENOID CONNECTIONS AT
VALVE
-
CHECK PRESSURE SWITCH
FUNCTIONS IN FAN.
Note
:flash codes/red LED for pressure
switch functions on module.
FAN DOES NOT TURN ON
1) POWER
SUPPLY
-
TURN ON ALL POWER SWITCHES
-
CHECK ALL CONNECTIONS
-
CHECK FAN ON INDEPENDENT
POWER
SWITCH
FAN COMES ON. PILOT ON. MAIN
BURNER
DOES NOT LIGHT
1)
FLAME SENSOR NOT SENDING
SIGNAL TO OPEN VALVE
-
CHECK ELECTRODE IS IN PILOT FLAME
-
CLEAN ELECTRODE
-
CHECK ELECTRODE CONNECTIONS
-
REPLACE ELECTRODE IF DAMAGED
2) MODULE
NOT SENDING
-
CHECK CONNECTIONS
SIGNAL TO OPEN VALVE
-
REPLACE MODULE
3) FAULTY
VALVE
- REPLACE
VALVE
FLAME FAIL LOCKOUT UNIT HAS
DETECTED
LOSS OF FLAME AND
LOCKED OUT
1) POWER
FAILURE
-
TURN ON/OFF SWITCH OFF AND ON
AGAIN TO RESET ONCE POWER
ESTABLISHED
2) GAS
SUPPLY
-
CHECK GAS PRESSURE AND ADJUST
-
RESET AT ON/OFF SWITCH
3) DIRTY
ELECTRODE
-
CLEAN ELECTODE OR REPLACE
4) PILOT
BLOCKED
-
CLEAN PILOT INJECTOR
5) PRESSURE
SWITCHES
NOTE:FLASH CODES (RED LED) WITH
ENCLOSED INSTRUCTIONS TO IDENTIFY
PRESSURE SWITCH PROBLEMS.
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces

19
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
PILOT WILL NOT LIGHT
1) NO
GAS
-
CHECK FOR GAS SUPPLY AND
TURN
ON ALL CONNECTIONS
-
CHECK GAS PRESSURE
-
CHECK PILOT AND CLEAN INJECTOR
2) NO
SPARK AT PILOT
-
CHECK ELECTRIC SUPPLY AND
TURN
ON ALL SWITCHES
-
CHECK ALL CONNECTIONS
-
CHECK SPARK ELECTRODE CONNECTIONS
AND
REPLACE ELECTRODE IF DAMAGED.
-
CHECK SOLENOID CONNECTIONS AT VALVE
PILOT LIGHTS BUT
1) FLAME
SENSOR NOT
-
CHECK ELECTRODE IS IN PILOT
VALVE DOES NOT OPEN TO LIGHT MAIN
BURNER
SENDING SIGNAL TO OPEN
VALVE
FLAME
-
CHECK ELECTRODE CONNETCTIONS
-
CLEAN ELECTRODE
-
CHECK ELECTRODE FOR DAMAGE
-
REPLACE ELECRODE
2) MODULE
NOT SENDING
-
REPLACE MODULE
SIGNAL TO OPEN VALVE
3) FAULTY
VALVE
- REPLACE
VALVE
FLAME
FAIL LOCKOUT
1) POWER
FAILURE
-
TURN ON/OFF SWITCH OFF AND
UNIT
HAS DETECTED LOSS OF FLAME
AND
LOCKED OUT
ON AGAIN TO RESET ONCE POWER
ESTABLISHED
2) GAS
SUPPLY
-
CHECK GAS PRESSURE AND ADJUST
-
RESET AT ON/OFF SWITCH
3) DIRTY
ELECTRODE
-
CLEAN ELECTODE OR REPLACE
4) PILOT
BLOCKED
-
CLEAN PILOT INJECTOR
5) PRESSURE
SWITCHES
NOTE: TECHRITE IGNITION PACK FLASH CODES
(RED LED) TO IDENTIFY PROBLEM.
DIRECT IGNITION
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces

20
1
2Pressure switch off
Pressureswitch
contacts. have not
closed.
Check if fan starts. If fan
starts OK, check pressure switch.
1
3Pressure switch on
Pressure switch contacts Pressure switch is faulty and is stuck on, or fan has
have not opened after not turned off.
last heat cycle.
Trouble shooting guide for Techrite ignition pack
Warning: This is a 240VAC module. All connections to the module are 240V (except ignition cable and
flame sense). Ensure power is switched off before checking any connection or replacing any
components.
There is a red LED (light) and a green LED (light) on the blue ignition box. If a fault occurs the sequence
of the flashing red light indicates the fault. These codes are listed below.
The green light indicated the ignition box is sensing the flame.
Fan Forced Models
The codes above still apply plus the codes below.
Atmospheric Models
Flash Code Meaning Possible Cause
(Red LED)
L
ong
1
sh
ort
0
Running OK Appliance running correctly
(Green LED will be on)
2
1
Maximum retries
exceeded Check spark electrode for damag
e and
clean if necessary. Check
Unit has tried to light electrode connection. Check
and not detected flame. solenoid connections. Check gas
supply.
2
2
Flame fail lockout.
Unit has detected loss Check electrode, lead and connection. Check gas supply.
of flame. It has tried
re-ignition and locked out
Installation Instructions Kemlan Power Flue Horizon Gas Fireplaces
