European Home MILAN II Manual

®
C US
IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
DANGER
Irritant
Cutting
Watch your step
Slippery floor
High temperatures
Glass hazard
Danger of suffocation
High voltage
Toxic
Flammable materials
Corrosive
Fork lift trucks
Danger overhead crane
Explosion risk
Oxidising
Danger of death
Biohazard
Laser Radiation
Danger of entrapment
Hot surface
General Warning
Blank
Gas bottles
Watch for
falling objects
Electricity
Danger for cutter
Entrapment hazard
Battery hazard
Rotating parts
Low temperature
Strong magnetic field
Optical radiation
Non ionizing
radiation
Radiation
Hazardous to the
Environment
Danger of harming
your hands
Irritant
Cutting
Watch your step
Slippery floor
High temperatures
Glass hazard
Danger of suffocation
High voltage
Toxic
Flammable materials
Corrosive
Fork lift trucks
Danger overhead crane
Explosion risk
Oxidising
Danger of death
Biohazard
Laser Radiation
Danger of entrapment
Hot surface
General Warning
Blank
Gas bottles
Watch for
falling objects
Electricity
Danger for cutter
Entrapment hazard
Battery hazard
Rotating parts
Irritant
Cutting
Watch your step
Slippery floor
High temperatures
Glass hazard
Danger of suffocation
High voltage
Toxic
Flammable materials
Corrosive
Fork lift trucks
Danger overhead crane
Explosion risk
Oxidising
Danger of death
Biohazard
Laser Radiation
Danger of entrapment
Hot surface
General Warning
Blank
High voltage
Toxic
Flammable materials
Corrosive
Fork lift trucks
Danger overhead crane
Explosion risk
Oxidising
Danger of death
Biohazard
Laser Radiation
Danger of entrapment
Hot surface
General Warning
Blank
April 2014
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
NOTICE
Glass doors on gas fireplaces are extremely hot while the fireplace is on and
remain hot even after the fireplace has been turned off.
CAUTIO N
This fireplace is
equipped with a safety screen. Do not operate the fireplace without the safety
screen. Keep children away from the fireplace at all times.
If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
WARNING
Glass doors on gas fireplaces are extremely hot while the fireplace is on and
remain hot even after the fireplace has been turned off. Safety screens are
available and can reduce the risks of severe burns. Please keep children away
from the fireplace at all times.
CAUTION
This fireplace is certified to ANSI Z21.50 / CSA 2.22 Vented Fireplace Standard as a
power assisted direct vent fireplace. This product uses outdoor air for combustion and
and exhausts combustion products outdoors.
NOTICE
MILAN II
Indoor Gas Fireplace
Installation and Maintenance Manual

Page 2

Safety Alert Key .........................................................................................3
Introduction .........................................................................................3
Section A: Before You Begin ...........................................................................4
Section 1: Product Dimensions and introduction .......................................5 - 6
Installation

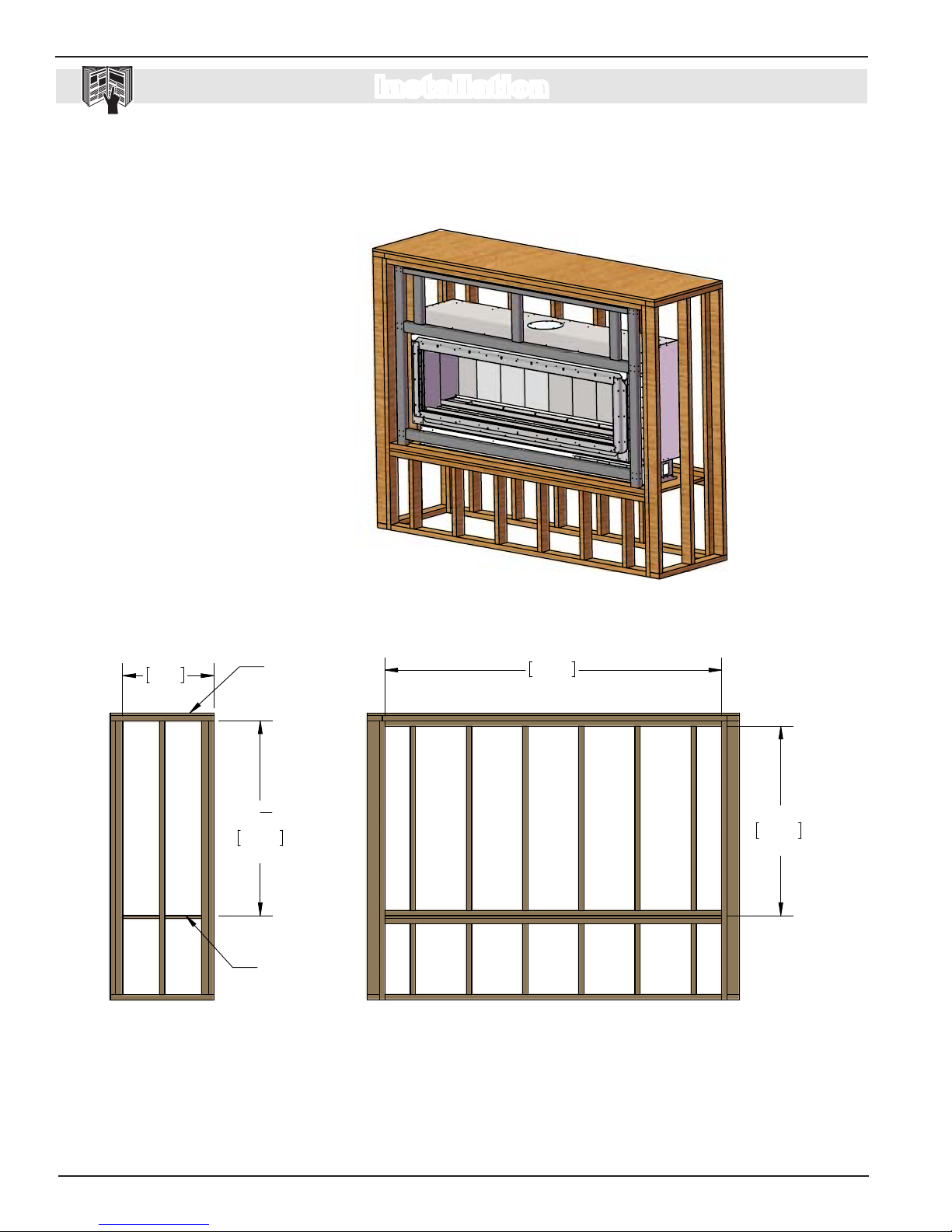

Section 2: Framing ..................................................................................8 - 15
Section 3: Finishing ...............................................................................32 - 34
Section 4: Wiring ................................................................................17 - 18
Section 5: Installing the Gas Line ...................................................................19
Section 6: Venting ................................................................................20 - 27
Section 7: Testing the System ........................................................................28
Section 8: Removing & Installing the Screen and Doors .................29 - 30
Section 9: Installing the Accessories ......................................................31 - 36
Operation .......................................................................................42
Start-up Sequence .......................................................................................42
Maintenance ................................................................................38 - 40
Appendix ................................................................................41 - 42
Appendix A: Warranty
Appendix B: State of Massachusetts

Page 3


Thank you for purchasing a European Home fireplace.
With over 30 years of experience, we are committed to
providing you with a gas fireplace that is not only a beautiful
addition to your space, but is also designed and manufactured
to the highest safety, reliability and engineering standards.
We strongly encourage you to read and carefully follow the instructions
laid out in this Installation, Operation and Maintenance Manual
and retain it for your future reference. Pay special attention to all
cautions, warnings, and notices throughout this manual intended
to ensure your safety.
This manual covers installation, operation and maintenance. Lighting,
operation and care of this replace can be easily performed by the
homeowner. All installation and service work should be performed
by a qualied or licensed installer, plumber or gas tter as certied
by the state, province, region or governing body where the replace
is being installed.
This installation, operation and maintenance manual is applicable
to the models described below. Refer to your rating plate to verify
included options.
Warranty and Installation Information: (See Appendix B)
The warranty will be voided by, and European Home disclaims
any responsibility for, the following actions:
► Modication of the replace and/or components including
Direct-Vent assembly or glass doors.
► Use of any component part not manufactured or approved
by European Home in combination with this fireplace system.
► Installation other than as instructed in this manual.
Consult your local Gas Inspection Branch on installation requirements
for factory-built gas replaces. Installation & repairs should be done
by a qualied contractor.
Milan II NG X 75,000 X X
X 70,000 X X
MODEL Natural Gas Liquid Propane Gas Rating (BTU hr) Linear Burner w/ Glass Accessories Honeywell Hot Surface Ignition
WARNING
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and
shall be installed.
This appliance is equipped for altitudes from 0 - 4500 feet
[0 -1370 m]. For higher altitudes contact your dealer.
Milan II LP

Page 4
Section A: Before You Begin


Rating label sample: Natural Gas Sample Shown
Installation and repairs should be done by an authorized gas fireplace service technician.
The appliance should be inspected before use and at least annually by a professional. More
frequesnt cleaning may be required due to exessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
the fireplace are kept clean.
NOTICE
IMPORTANT MESSAGE: SAVE THESE INSTRUCTIONS
The Milan II Power Vent fireplaces must be installed in
accordance with these Instructions. Carefully read all the
instructions in this manual first. Consult the Local Gas
Branch to determine the need for a permit prior to starting
the installation. It is the responsibility of the installer to ensure
this replace is installed in compliance with the manufacturers
instructions and all applicable codes.
BEFORE YOU START:
Due to high operating temperatures, this appliance should be located out of traffic &
away from furniture and draperies.
Children and adults should be alerted to the hazards of the high surface temperature,
which could cause burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance.
Clothing or other flammable materials should not be placed on or near the appliance.
CAUTION
When this appliance is installed directly on any combustible material other than wood
flooring, it must be installed on a metal or wood panel extending the full width and
depth of the appliance or a fire will occur causing serious injury, property damage or
even death.
DANGER
Young children should be carefully supervised when they are
in the same room as the applicance. Toddlers, young children
and others may be susceptible to accidental contact burns. A
physical barrier is recommended if there are at risk individuals
in the house. To restrict access to a fireplace or stove, install
an adjustable safety gate to keep toddles, young children and
other at risk individuals out of the room and away from hot
surfaces.
CAUTION



 












R(P)VIEW_HSI_LBL1207D-V4.4_Dec.2.2013
  










  

    




  
 


 




    






 
 
 

 



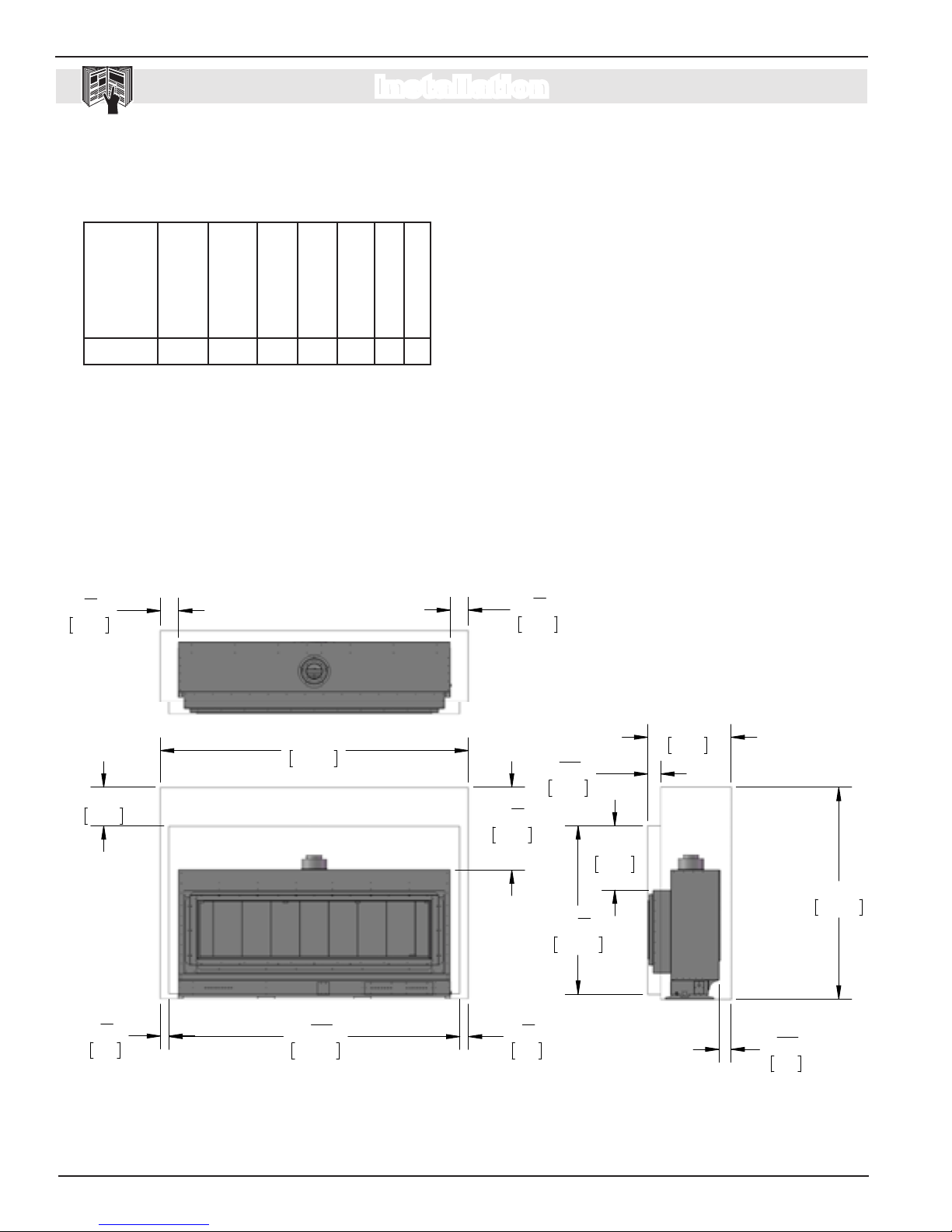

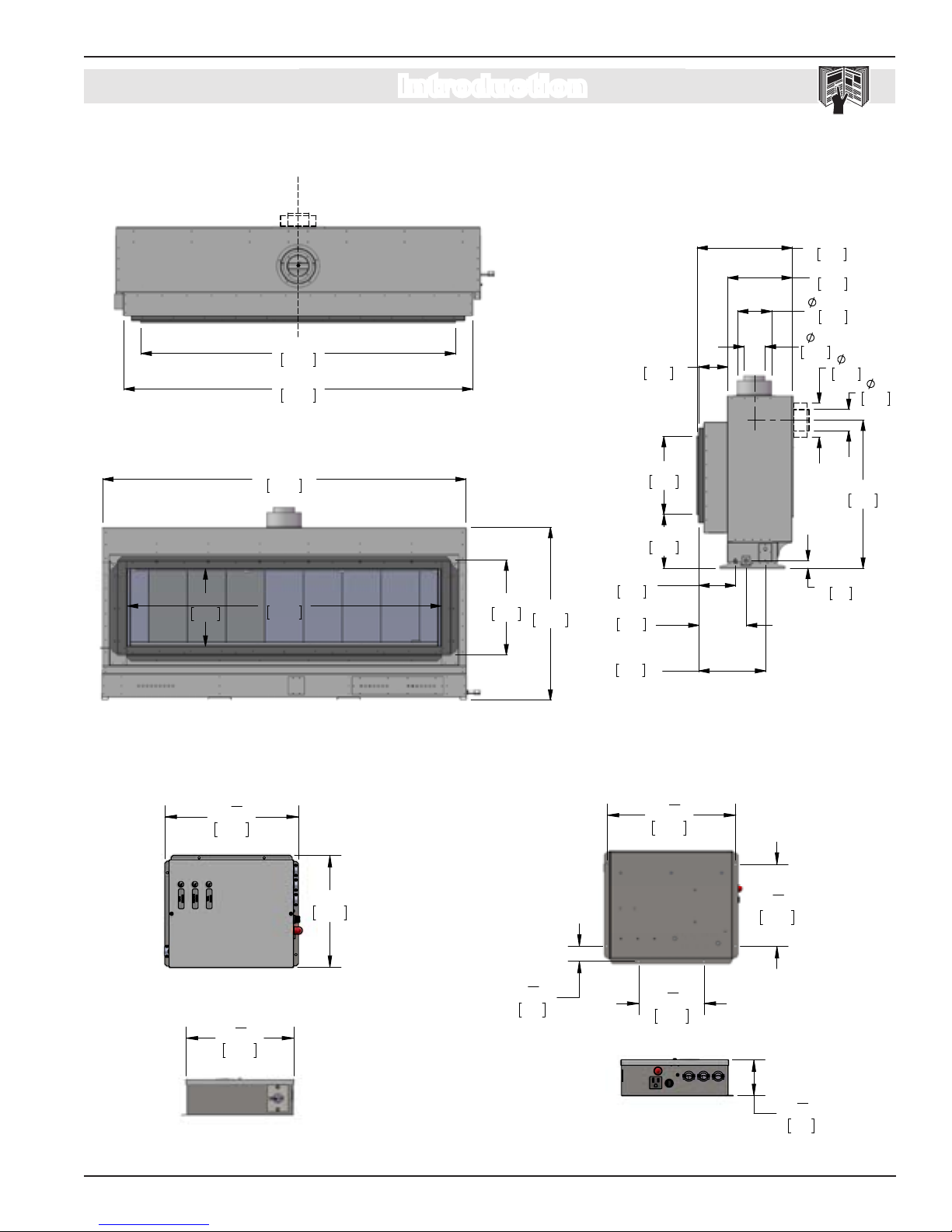

Section 1: Product Dimensions

Page 5

Rating label sample: Natural Gas Sample Shown

Section 1: Product Dimensions
Figure 1.±⅛ [3 mm]

84 11/16"
2151
40 1/4"
1022
73 1/8"
1857
18"
457
22 1/16"
560
73 1/4"
1861
81 1/4"
2064
5"
126
8"
203
11 1/16"
281
Gas Inlet
12 9/16"
318
18 1/8"
460
6 11/16"
170
15"
381
22 3/16"
563
8 9/16"
217
5"
126
7 15/16"
202
1 3/4"
45
15 1/2"
394
Light Wiring
34 1/2"
876
11 7
8
"
303
10"
255
31
4
"
82
11 1
2
"
292
71
4
"
186
53
4
"
148
13
8
"
34
95
8
"
244
Figure 1a.±⅛[3 mm]
11 7
8
"
303
10"
255
31
4
"
82
11 1
2
"
292
71
4
"
186
53
4
"
148
13
8
"
34
95
8
"
244
11 7
8
"
303
10"
255
31
4
"
82
11 1
2
"
292
71
4
"
186
53
4
"
148
13
8
"
34
95
8
"
244
11 7
8
"
303
10"
255
31
4
"
82
11 1
2
"
292
71
4
"
186
53
4
"
148
13
8
"
34
9
5
8
"
244
84 11/16"
2151
40 1/4"
1022
73 1/8"
1857
18"
457
22 1/16"
560
73 1/4"
1861
81 1/4"
2064
5"
126
8"
203
11 1/16"
281
Gas Inlet
12 9/16"
318
18 1/8"
460
6 11/16"
170
15"
381
22 3/16"
563
8 9/16"
217
5"
126
7 15/16"
202
1 3/4"
45
15 1/2"
394
Light Wiring
34 1/2"
876
84 11/16"
2151
40 1/4"
1022
73 1/8"
1857
18"
457
22 1/16"
560
73 1/4"
1861
81 1/4"
2064
5"
126
8"
203
11 1/16"
281
Gas Inlet
12 9/16"
318
18 1/8"
460
6 11/16"
170
15"
381
22 3/16"
563
8 9/16"
217
5"
126
7 15/16"
202
1 3/4"
45
15 1/2"
394
Light Wiring
34 1/2"
876

Page 6


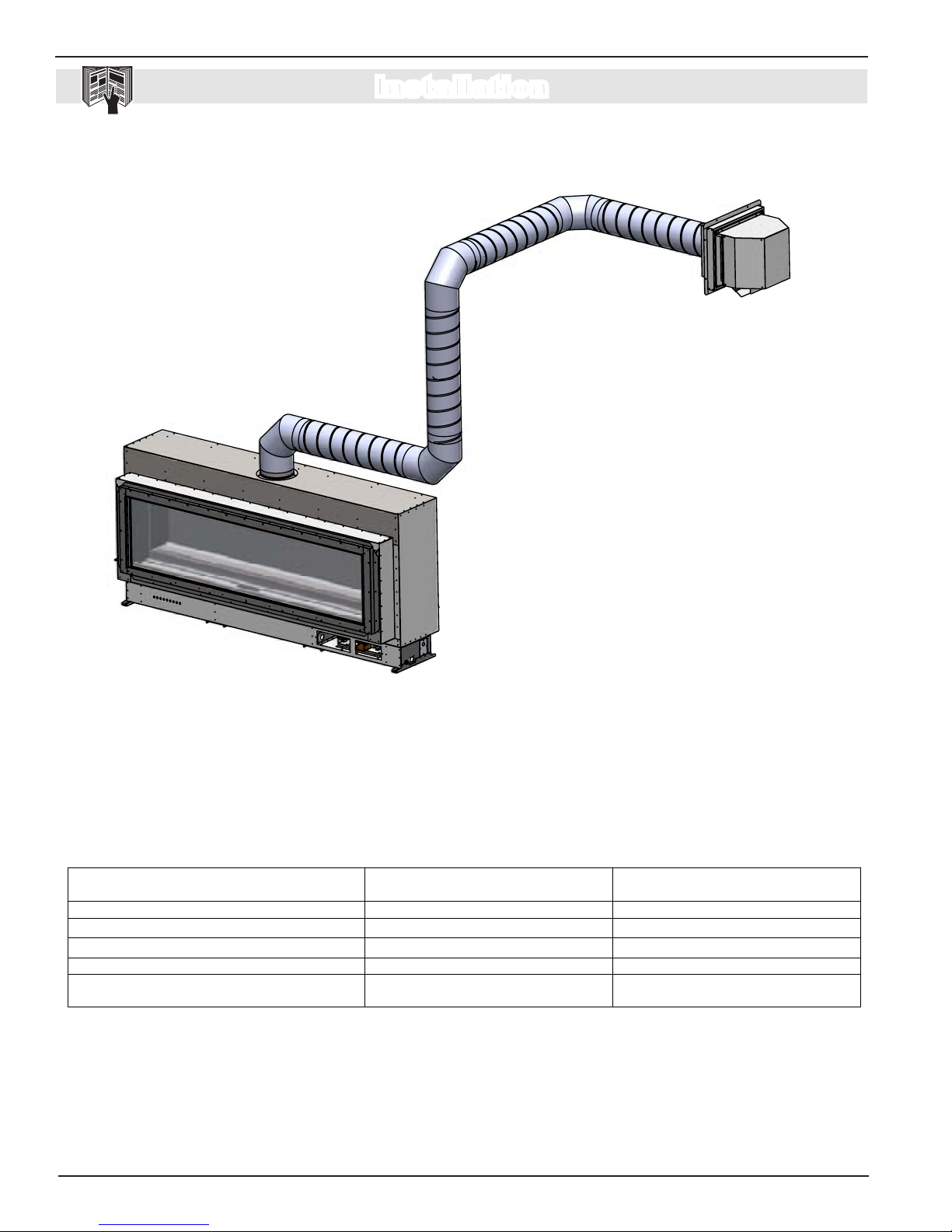

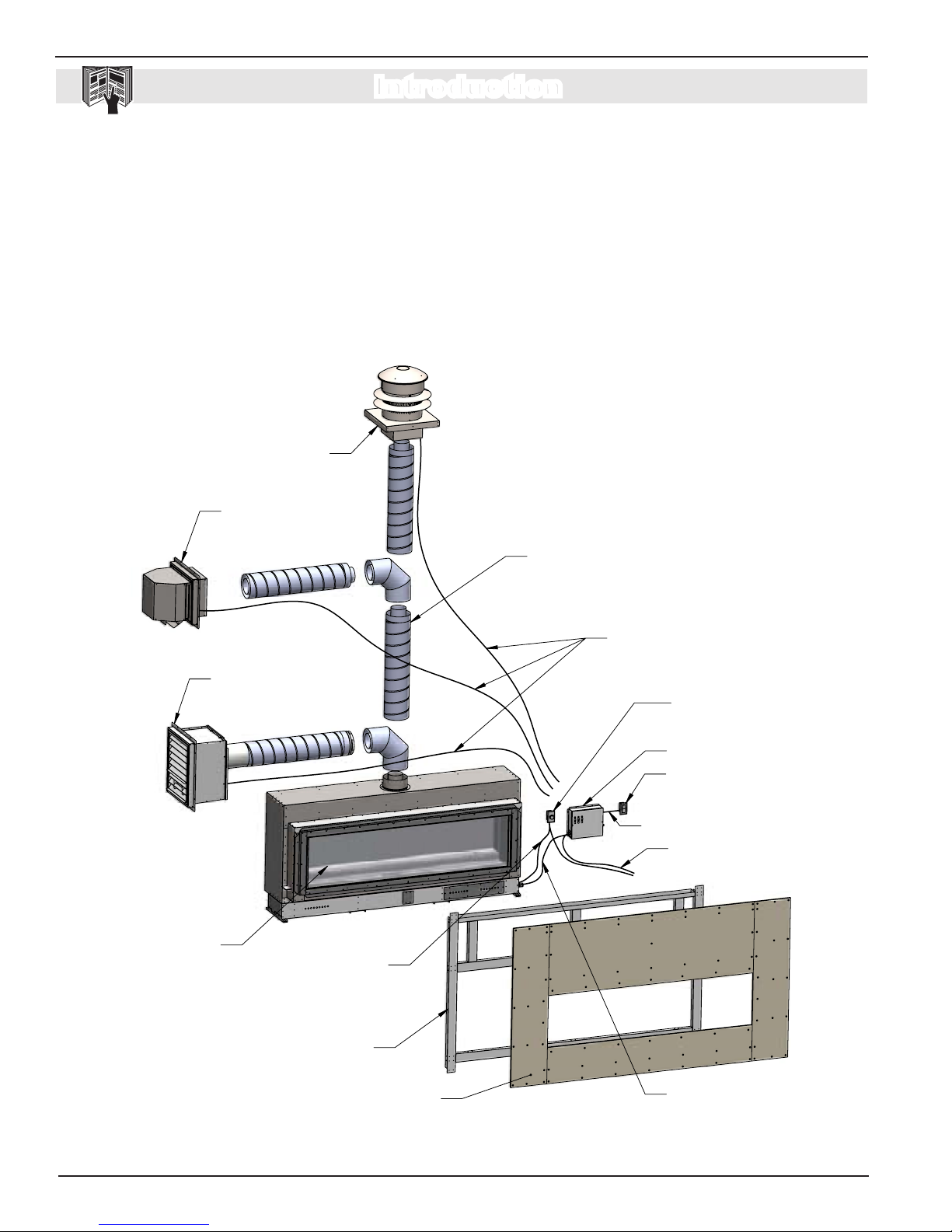

PVVEX58-300
Vertical Power Vent
PVHEX58-300
Horizontal Power Vent
PVHFL58-300
Horizontal Power Vent
Flush/Louvered

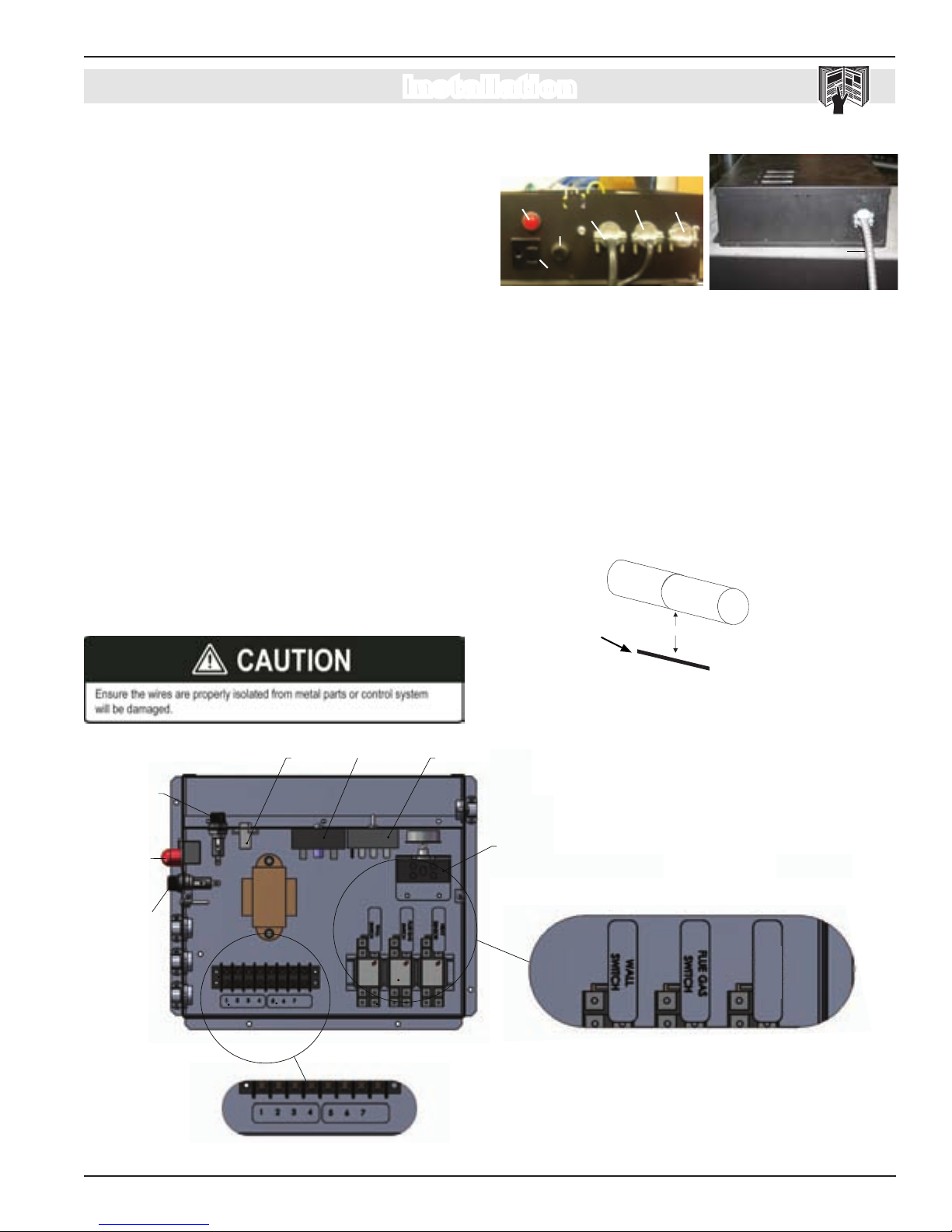

Control Panel
Wall Switch
On/Off
(not supplied)
Fireplace Light
Switch or Dimmer
(not supplied)
115 VAC 60 Hz
supply from
distribution panel
Fireplace
Power Vent Control Cable
(Not supplied, order required
length from your dealer)
Appropriate European Home Venting
Components 5" x 8" (not supplied)

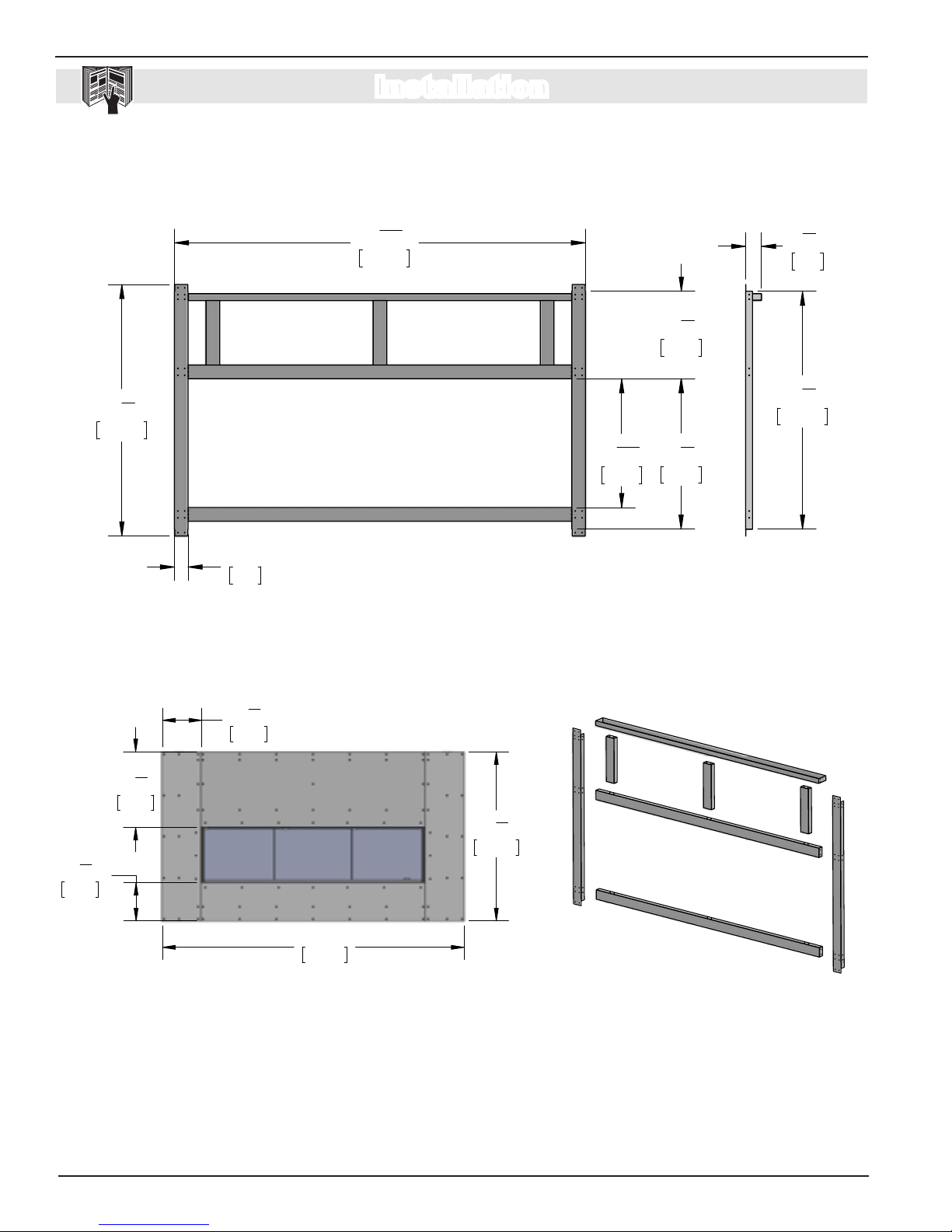

Steel Stud Kit
(supplied)
Non-Combustible
Wall Board Facing
(supplied)
Light Wiring
(not supplied)
Control Box Cable
30' supplied standard
20' low voltage wire supplied
Figure 2. Major Components

Introduction to the Milan II Fireplace:
The complete system will require a rebox, a power vent
termination, an electrical control panel, and a vent system.
There are 3 different power vent terminations available
depending on your installation requirements. Each power vent
requires a control cable to be installed between the power vent
and the control panel. Review the installation sequence on
page 7 for general information on preparing for a successful
installation of your fireplace. The Milan II fireplace is not
intended to be used as a primary heat source and should
not be connected and operated with a thermostat switch.

Page 7

Install location:
The Milan II fireplace may be installed in any location that
maintains proper clearances to air conditioning ducts,
electrical wiring, and plumbing. Safety, as well as efficiency of
operation, must be considered when selecting the fireplace
location. Try to select a location that does not interfere with
room traffic, has adequate ventilation, and offers an accessible
pathway for Power Vent installation.
Basic Operation:
The gas control components of this 
replace are located in the
bottom of the firebox below the burner system. All models are
supplied with a Honeywell Smart Valve gas control and do
NOT have a variable flame control. A differential pressure
switch is located at the bottom of the firebox monitors airflow
and controls the gas valve. A thermal switch located on the top
of the firebox acts as a secondary safety system and shuts
down the fireplace in the event that normal operating
temperatures exceeded. These components communicate
with the electrical control panel through a six conductor cable
supplied with the fireplace.
To operate the fireplace, 20' of low voltage wire (from the
electrical control panel) is supplied. Connect the two wires
(BL/WH) to a standard single pole ON/OFF switch at the
location of your choice. You may extend these wires up to
100' in length with a wire of equal quality.

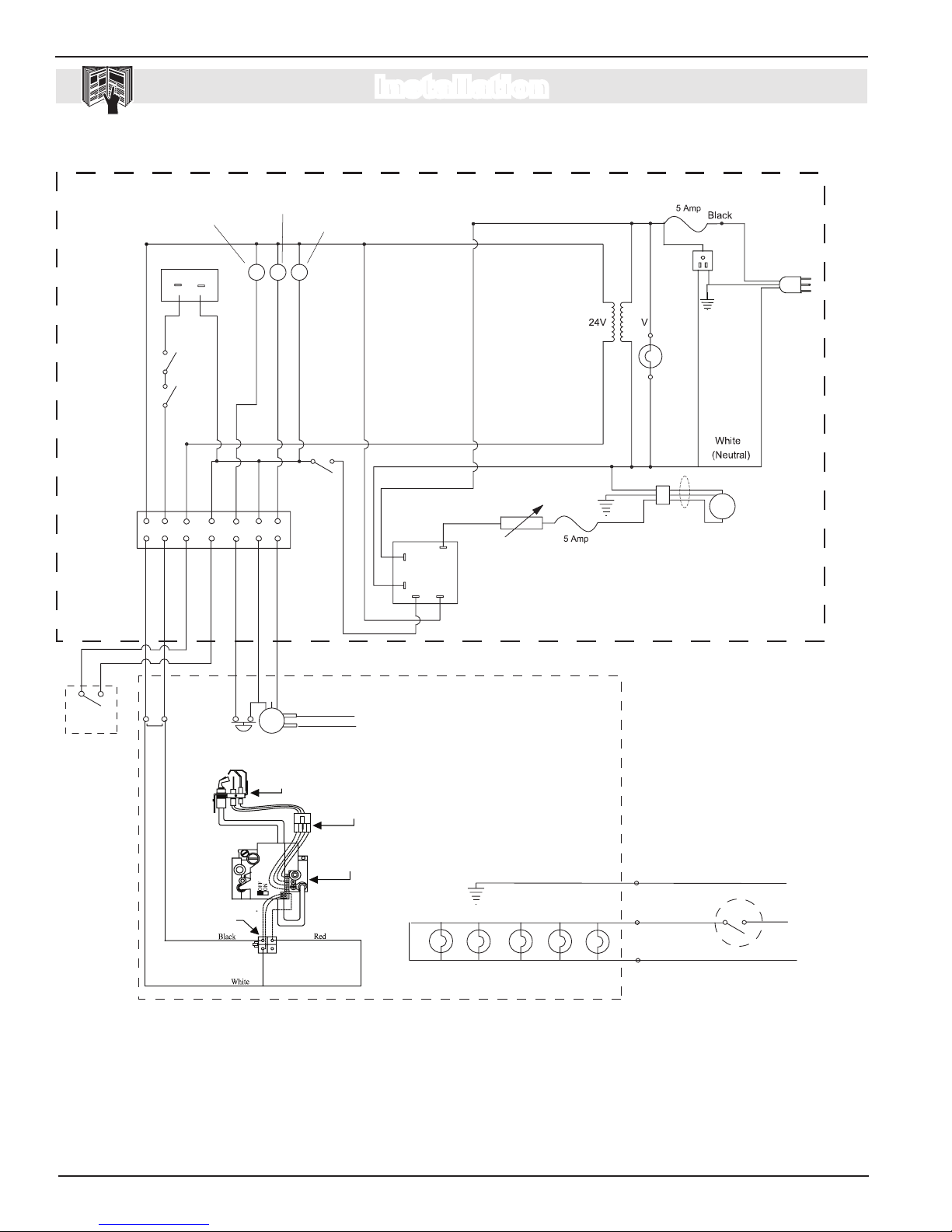

This replace is equipped with lights which need to be wired
through a wall switch or dimmer circuit as shown in the
schematic.
ON/OFF control of this appliance can also be performed
using an optional remote control available from your dealer.
Installation Sequence
■Unpacking and set-up
■ Framing
■ Fireplace placement and securing
■ Power connection
■ Gas connection
■ Power vent termination installation.
■ Vent installation.
■ Test ring.
■ Steel framing.
■Wall boarding/finishing
■Installation of windows/accessories
Installation and repairs should be done by a qualied contractor
and must conform to:
• Installations in Canada must conform to the local codes or
in the absence of local codes to the current version of Natural Gas
and Propane Installation Code, CSA B149. Electrical Installations
must conform to the local codes or, in the absence of local codes,
to the current version of Canadian Electrical Code, CSA C22.1.1
•Installations in the USA must conform to the local codes
or in the absence of local codes to the current version of National
Fuel Gas Code, ANSI Z223.1/NFPA 54. Electrical Installations must
conform to the local codes or, in the absence of local codes, to the
current version of the National Electrical Code, ANSI/NFPA 70.
See Appendix B for installation within the State of Massachusetts.
Fuel Type
Verify that your fireplace is compatible with your available
gas type. Natural gas or propane is shown on the rating plate.

Page 8

Section 2: Framing

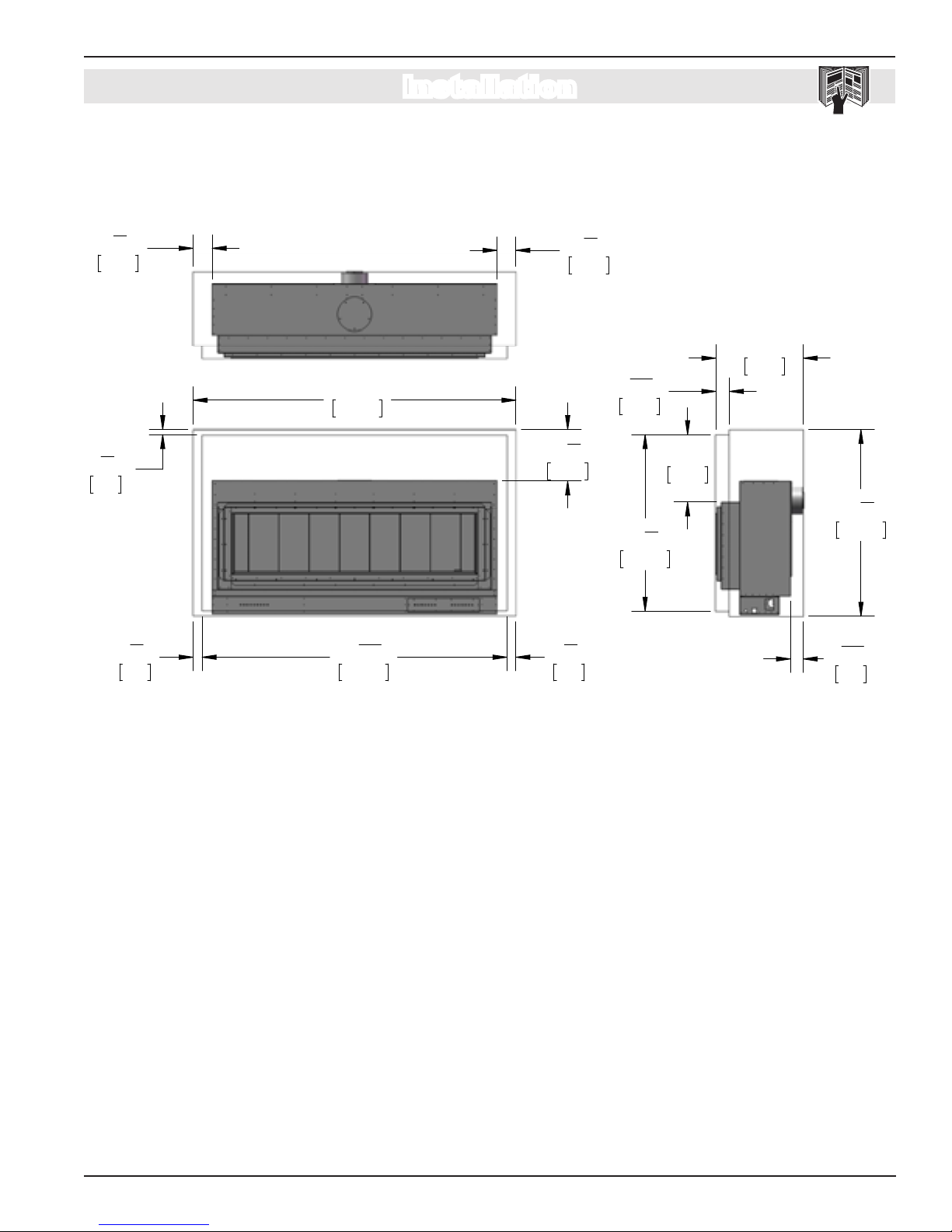

Figure 3. Top Vented Framing Clearances
Clearances to combustibles:
To ensure the replace operates safely, all models must maintain
the following clearances to combustibles:
Milan II 15¼"25¾" 4⅜" 4⅜" 5⅝" 0 2"
MODEL Top - Rear Vent †
Rear - Top Vent
Top - Top Vent †
† Note: Clearance from top of replace to a combustible ceiling
within the replace enclosure.
Unprotected combustible walls which are perpendicular to the
fireplace opening must maintain 6" clearance, see Figure 9.
Rear - Rear Vent
Sides Floor Mantel
26"
660
66"
1676
41
16
"
103
52 1
2
"
1334
313
16
"
97
20"
509
25
8
"
67
25
8
"
67
12"
305
96"
2438
25 3
4
"
655
90 11
16
"
2303
55
8
"
144
55
8
"
144
55
8
"
144
55
8
"
144
90 11
16
"
2303
25
8
"
67
25
8
"
67
11
2
"
38
15 1
4
"
388
96"
2438
55 1
2
"
1410
313
16
"
97
20"
509
52 1
2
"
1334
26"
660
41
16
"
103
Non-Combustible Zone
Top Vented
Rear Vented
When planning your installation, take into consideration
the area around the appliance where combustible building
materials cannot be placed. Regardless of the type of
construction used, or if the unit is a raised installation or any
other consideration or construction illustration else where in this
manual, combustible materials cannot be placed in this region.
This illustration depicts to a greater extent the minimum size of
the replace chase that this appliance requires. You can also
use this diagram to double check the clearances once the unit
has been installed, prior to closing the replace enclosure.
Non-combustible installations must maintain the replace
enclosure cavity volume minimum and a 1" clearance around
the rebox.

Page 9

26"
660
66"
1676
41
16
"
103
52 1
2
"
1334
313
16
"
97
20"
509
25
8
"
67
25
8
"
67
12"
305
96"
2438
25 3
4
"
655
90 11
16
"
2303
55
8
"
144
55
8
"
144
55
8
"
144
55
8
"
144
90 11
16
"
2303
25
8
"
67
25
8
"
67
11
2
"
38
15 1
4
"
388
96"
2438
55 1
2
"
1410
313
16
"
97
20"
509
52 1
2
"
1334
26"
660
41
16
"
103
Non-Combustible Zone
Top Vented
Rear Vented
Figure 3a. Rear Vented Framing Clearances

Page 10

55 1
2
"
1410
99"
2515
12 5
8
"
320
24 3
4
"
629
12 7
8
"
327
Non-combustible Framing
Assemble the non-combustible framing as shown below.
90 11
16
"
2303
55 1
2
"
1410
3"
76
33 1
4
"
844
19 1
4
"
490
28 7
16
"
723
52 1
2
"
1334
31
2
"
89
90 11
16
"
2303
55 1
2
"
1410
13
4
"
45
33 1
4
"
844
19 1
4
"
490
3"
76
52 1
2
"
1334
31
2
"
89
Exploded View
Figure 4. Non-combustible framing
Figure 4a. Wall board dimensions as supplied.

Page 11

Section 3-1: Converting to Rear Vent
Milan II units are shipped for Top Vent installations. Follow the
instructions to convert unit for Rear Vent installation.
Section 3-1-1: Converting the Flue
1. Remove the Rear ue cover with gasket (5" and 8") on
the ue outlet, as shown in Figure 5. ENSURE YOU DO
NOT DAMAGE THE FIBER GASKETS.
2. Remove the Top ue collar (5" and 8") on the ue outlet,
as shown in Figure 5. ENSURE YOU DO NOT DAMAGE
THE FIBER GASKETS.
3. Install the removed Rear ue cover (5" and 8") to the Top
Vent outlet. Fasten the cover with included hardware, as
shown in Figure 5a.
4. Install the collars (5" and 8") to the rear vent outlet using
the included hardware, as shown in Figure 5a.
5. Proceed to Section 3-1-2: Converting Pressure Sensing
Tube and Air Bafe.
5” Inner Flue Collar
8” Outer Flue Collar
8” Flue Cover Plate
5” Flue Cover Plate
(with gasket)
(with gasket)
(with gasket)
(with gasket)
8” Flue Cover Plate
5” Flue Cover Plate
5” Inner Flue Collar
8” Outer Flue Collar
(with gasket)
(with gasket)
(with gasket)
(with gasket)
Note: Read instructions for converting pressure sensing tube, page 12.
You may nd it easier to convert the pressure sensing tube at this time .
Figure 5.
Figure 5a.

Page 12


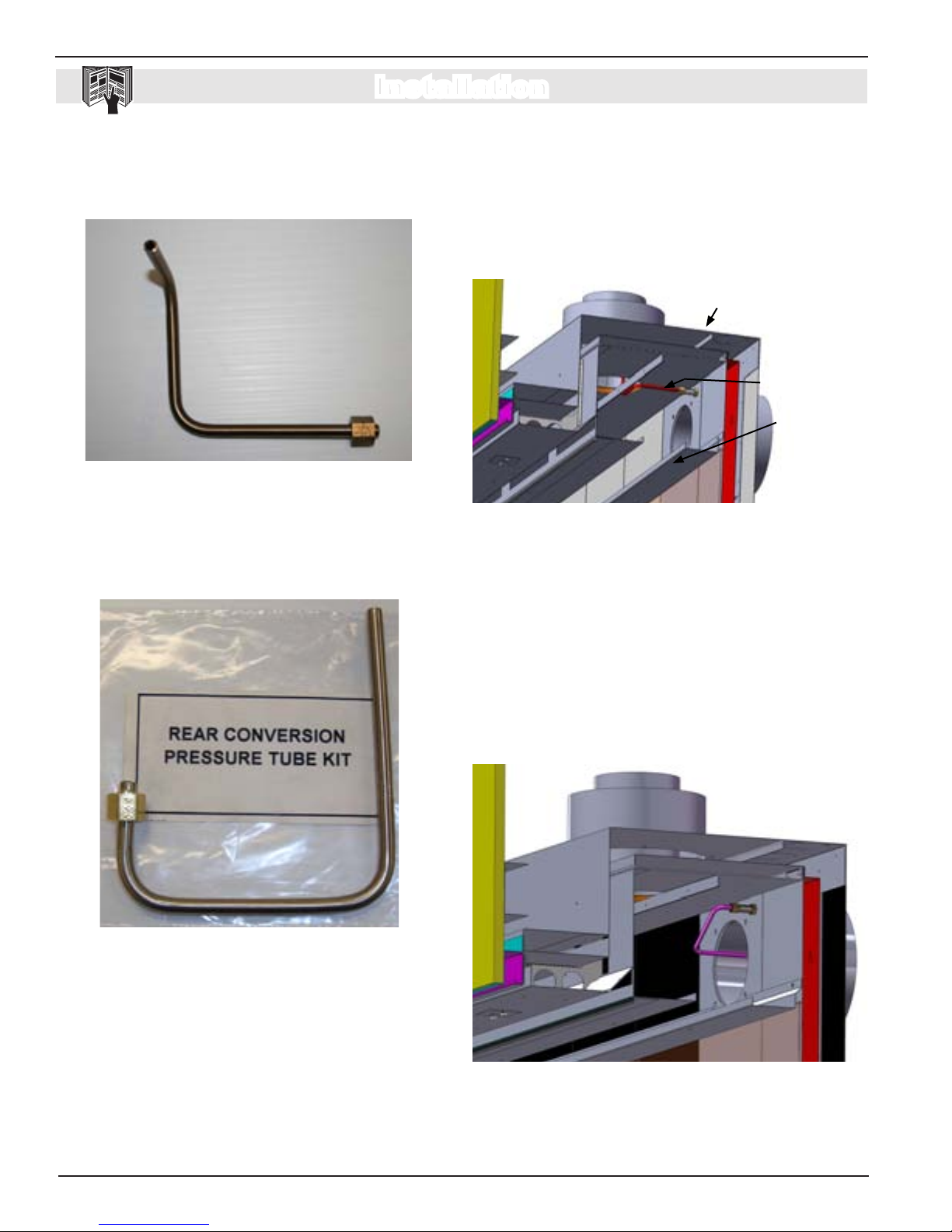

Converting the Pressure Sensing Tube 1. Remove six screws from the rebox ceiling bafe to access
pressure sensing tube from the inside of the firebox, as shown
in Figure 6b.
2. Remove Top Vent pressure sensing tube by loosening the
compression nut with a ½" wrench.
3. Position the supplied Rear Vent pressure sensing tube as
4. Re-install the rebox ceiling bafe.
shown in Figure 6c, position the tube in the center of the 5
inch pipe. Hand tighten the compression nut and tighten half
a turn with a wrench. DO NOT OVERTIGHTEN.
Top of Firebox
Top of Firebox
Pressure Tube
Firebox ceiling
with baffle
removed
The Top Vent pressure sensing tube must be removed and
replaced with supplied Rear Vent pressure sensing tube.
Figure 6.
Figure 6a.
Figure 6b.

Figure 6c.


Page 13

Framing for Top Vent installations:
66"
1676
Min
26"
660
Min
Platform
Chase
Ceiling
96"
2438
Min
54"
1372
Max
Chase Constuction TV
Typical Framing
Figure 7.

Page 14

Framing for Rear Vent installations:
55 1
2
"
1410
Min
26"
660
Min
Platform
Chase
Ceiling
96"
2438
Min
54"
1372
Max
Chase Constuction RV
Figure 7a.

Page 15

Framing for Rear Vent, Vertical Vent Run installations:
Firestop required
when penetrating
ceilings
96"
2438
Min
52 1
2
"
1334
Max
36 1
2
"
927
Min
Chase
Ceiling
Platform
Chase Constuction
Rear Vent with Vertical Vent
Figure 7b.

Page 16

Figure 8.  
Non-combustible mantels and moldings may be safely installed
over the top and on the front of the replace provided that they do
not project beyond shaded area shown in Figure 8.
The face of the replace may be painted to match the room decor,
provided you use a heat-resistant paint. Decorative facing must not
extend past the replace opening at all, because it will interfere with
the access to retainers for removal of glass door.
NOTE: National Canadian Gas Association mantel test requirements
are for re hazard prevention to combustible materials.
New technology, to meet consumer and government demands for the
wise use of energy, has prompted us to manufacture many models
of replaces which are hot, fuel and energy efcient.
Temperatures over the mantel will rise above normal room
temperature and walls above fireplace may be hot to touch.
We recommend careful consideration be given to the effects of
elevated mantel temperatures which may be in excess of product
design, for example: candles, plastic or pictures. This can cause
melting, deformation, discolouration or premature failure of T.V. and
radio components.
Side wall clearances are 6". Combustible surrounds may be installed
with 6" clearance to the side of the replace as shown in Figure 9.
Figure 9. 
45°
6"
152
6"
152
Wall Board
Window Opening
Not Allowable
Sidewall
Allowable
Area
Allowable Sidewall Clearances
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Combustible Construction
allowed in shaded area
1 23
4
5
6 78
9
10
11
12
24
23
22
21
20
12 11 10 1
0
1
2
3
4
5
6
7
n
3 2
4
5
6
7
8
9
Combustible Construction
allowed in shaded area
Non-Combustible and
Steel Framing
Finishing Around the Fireplace Mantels & Surrounds
Section 3: Finishing

Page 17

Installation of Electrical Supply
The Milan II is supplied with an external electrical control box
pre-wired by the factory. The control box is connected to the
fireplace with a 30 foot long 6-conductor cable that will
communicate with the fireplace. Extension cables are available
through your dealer only.
A 20ft low voltage black/white cable is provided for connection
to a single pole on/off switch. The length of this cable can be
extended up to a length of 100ft using a cable of equal or greater
capacity. This system operates on 24VAC. Do not connect this
switch circuit to an external power source.
Optional remote control available through your dealer.
Do not use third party remote controls without the approval
from European Home.
Section 4: Wiring
Installing the Fireplace Control Box
Install the Fireplace Control Box in an accessible location. The
location should be where maintenance, adjustments and service
may be made easily.
Conduit & Wiring clearances
Connect the power vent harness as outlined in the previous section.
Ensure that the proper clearances are maintained for the wiring and
conduit. When installing the wiring it must never run above the vent
run and it must be at least 1" clear of all venting.
1” Clearance
Wire
Note: If any of the original wire supplied with the appliance
is replaced, it must be with the same or its equivalent.
Installations in Canada must be electrically grounded in
accordance with CSA C22.1 Canadian Electrical Code Part 1
and/or Local Codes.
Installations in the USA must be electrically grounded in
accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70.
Figure 11. Control Box
Left-side View Right-side View
Power Vent
Harness
Power Vent
Speed Control
Post Purge
Timer (3 min.)
Prepurge
Timer (1 min.)
Power
Vent Fuse
(5A)
Power Vent
Connector
Control
Panel Fuse
(
5A)
LED
Power
Indicator
Heat Sensor /
Conmustion Switch
Figure 12. Conduit and Wiring
LED Indicator
Fuse
115V
Power Supply
Wall Switch Control
cable
115V
Outlet
Figure 10.

Page 18

Figure 13. HSI Wiring Diagram
115
R1 R2 R3
R1
R2
LED
Power
Indicator
PV
Plug
PV Speed
Controller
Yellow Yellow
Black
Blue
Blue
Brown
YellowBlue
Black
White
White
1
2
3
4 5
Heat
Sensor
Flue
Gas Switch
Wall
Switch
Orange
White
Black
Blk/Wht Wht/Blk
Blue
Red
Brown
NC
Heat
Sensor
NO
Flue
Gas Switch
ELECTRICAL CONTROL BOX
R3
Gas
Valve
Wall
Switch
Fuse
115 Volts
60Hz
5A
Post Purge
Timer
Pre-Purge
Timer
Honeywell (Q3450)
Pilot Assembly
Pilot Electrical
Harness Connector
Honeywell Gas
Control (SV9501M)
Gas Control
Connector
Green
Black
White
Switch or Dimmer
(Not Supplied)
Power for Lights
115VAC, 700W
FIREPLACE CONTROLS
Red Tube
Clear Tube
Grey Pressure Tap
Black Pressure Tap

Page 19

Gas Inlet
Lights
Control Cable
Gas Pressure
Optimum appliance performance requires proper inlet pressures.
Gas line sizing requirements will be determined in ANSI Z221.3
National Fuel Gas Code in the USA and CAN/CGA B149 in Canada.
Pressure requirements:

Gas Pressure Natural Gas Propane
Maximum Inlet Pressure 14" WC (1/2 psi) 14" WC (1/2 psi)
Minimum Inlet Pressure
(with replace on) 5.5" W.C. 11" W.C.
Manifold Pressure 3.5" W.C.
+/- 2
10" W.C.
+/- 0.3
Section 5: Installing the gas line
Figure 15. 
The manifold outlet pressure is set from the factory to the
appropriate pressure but should be veried.
To check pressures, gas valves have a provision to remove
a 1/8” MPT plug and to be fitted with a hose barb.
A service shut off valve is required in an accessible
location to isolate the appliance.
Only install gas shut-off valves approved for use by the state,
province, or other governing body in which the replace is
being installed.
GAS CONNECTION
See Figure 15 below for location of gas line access.
Flexible gas connectors must not exceed 3 feet in length, unless
allowable within local regulations.
Connect incoming gas line to the 1/2" MPT gas inlet.
Purge all air out of gas line before connecting.
Check appliance connection, valve and valve train under
normal operating pressure with a commercially available leak
check solution.
DO NOT USE A FLAME OF ANY KIND TO TEST FOR LEAKS.
psi. This will damage the gas control valve.
MANIFOLD PRESSURE
MANIFOLD
Figure 14.
Figure 14a.

Page 20

Vent Configurations
Vent configurations can include vertical sections, horizontal sections, elbows, flex and/or rigid vent
sections. The maximum length of any vent run is 80'. Follow the rules outlined below to determine your
specific vent options. All venting is to be 5" inner and 8" outer sizing. Because this appliance intended to
only be installed with a power vent termination, vertical and horizontal runs can be calculated in the
same manner.
Flexible venting does not flow quite as well as rigid pipe, so a factor needs to be applied, making the total
allowable vent run shorter than rigid pipe.
* Not for rigid elbows used in between flex sections
Venting Calculation Rigid Vent Flex Venting
Maximum Vent Run - Rigid 80' total length 60' total length
90 degree elbow subtract 10' each * subtract 5' each
45 degree elbows subtract 5' each * subtract 2' each
Down sections subtract 2' for every 1' down
subtract
2' for every 1' down
Flex Venting (if mixed with rigid)
Subtract 1.3' for every 1'
section
Section 6: Venting
