Kenmak K058 PTS Parts list manual

producing technology for health
Instruction for Usage of
Kenmak Hospital Furniture
Model: K058 PTS
TILTING PATIENT DINING TABLE
Read user manual before using the product!

producing technology for health
Table of Contents
1- Introduction
2- Intended Use
3- Warnings
4- General Features and Accessories
5- Assembly Instructions
6- Technical Details
7- Table Safety Devices
8- Instructions for Use
9- Spare Parts
10-Product Labelling
11-Environment, Transport and Storage
12-Maintenance and reconditioning
13-Warranty / Life age

producing technology for health
1- Introduction
Thank you for choosing your hospital furniture from Kenmak. Every single
Kenmak Hospital Furniture product is being produced under high quality
standards bearing in mind how to minimize the risk of environmetal reverse
effect. Kenmak Hospital Furniture’s operation are certified by globally
recognized authorities according to ISO 9001, ISO 13485 and ISO 14001
standards.
Kenmak Hospital Furniture products are manufactured in Turkey in line with
aforementioned quality standards and are tested before dispatching the
factory by our Quality Team.
Any incident involving the product should be reported to the manufacturer
and a relevant regulatory body.
Kenmak Hastane Malzemeleri ve Elekt. Boya San. Ve Tic. A.Ş.
Sarnıç Yolu No: 23
35414 Gaziemir, Izmir / TURKEY
T: [phone]
[email protected].tr
www.kenmak.com.tr

producing technology for health
2- Intended Use
K058-PTS Kenmak tilting patient dining table is produced with intend to be
used in hospitals, nursing homes, and homes.
Product should be used in suitable indoor atmosphere, between 0 to +40
degrees.
It is intended to be used by individuals older than 12 years old.
The product should only be used with accessories delivered together with
the table or with accessories produced by Kenmak.
For the information on maxiumum loading capacity see the “Technical
Details” section of this instruction manual.

producing technology for health
3- Warnings
Using the equipment for purposes other than those
previously described is forbidden. The equipment must only
be used by properly trained person.
Before starting to use the table, the operator must be
perfectly aware of how the table works and of all technical-
functional features. Such awareness can be acquired by
carefully reading this manual.
If it is possible, the nursing staff should properly inform
patients on how the table works and should explain the
controls so that the patient can operate the product. After
such information has been provided, if it is possible, the
patient should be asked to "trial run" the table.
Removing any safety or protection devices on the appliance
is strictly forbidden; periodically, at weekly intervals, check
the integrity of such devices and make sure they are working
properly.

producing technology for health
Before carrying out any maintenance or repair jobs on the
equipment, the operator should have carefully read and
understood the technical information provided in this
manual. All maintenance and repair jobs must be done by
skilled personnel.
Never position the equipment close to heat sources.
Position and secure the equipment in a stable manner on a
horizontal floor. The table movement area must be kept
clean, in order and devoid of objects that could restrict free
movement. The instructions, accident-prevention rules and
warnings contained in this manual must always be followed.

producing technology for health
4- General Features and
Accessories
-Height adjustment by the help of a hangrip
-Tiltable eating/reading board
-50 mm diameter double castors
-Brakes on 2 castors
-Antibacterial ABS plastic material eating/reading board
-Electrostatic coated metal frame
5- Assembly Instructions
The product is delivered fully assembled.

producing technology for health
6- Technical Details
-Possible table positions:
Height and table tilt functions are adjustable by handgrips.
-Height Range: 680-1000 mm
-Eating Board Tilting Angle: (-40)° - (+40)°
-Eating Board Lenght: 820 mm
-Eating Board Widt: 380 mm
-Castor Diameter: 50 mm
-Maximum Loading Capacity: 20 kg

producing technology for health
7- Table Safety Devices
Handgrip for Height Adjustment
When loosened, the eating/reading board can be moved up and down.
Castor Brakes
Prevents the table from accidentally moving while the patient is eating or
reading.

producing technology for health
8- Instructions for Use
Before using the table, carefully read all the instructions in this user manual.
Correct control learning will ensure proper and safe table use.
Prior to enabling the various table movements, make sure that the patient
bed and table are in convenient positions.
Locking the wheels
The bed is equipped with 2 diagonally lockable wheels. Press on the wheel
pedals to lock.
Pressed pedal = locked
Released pedal = unlocked

producing technology for health

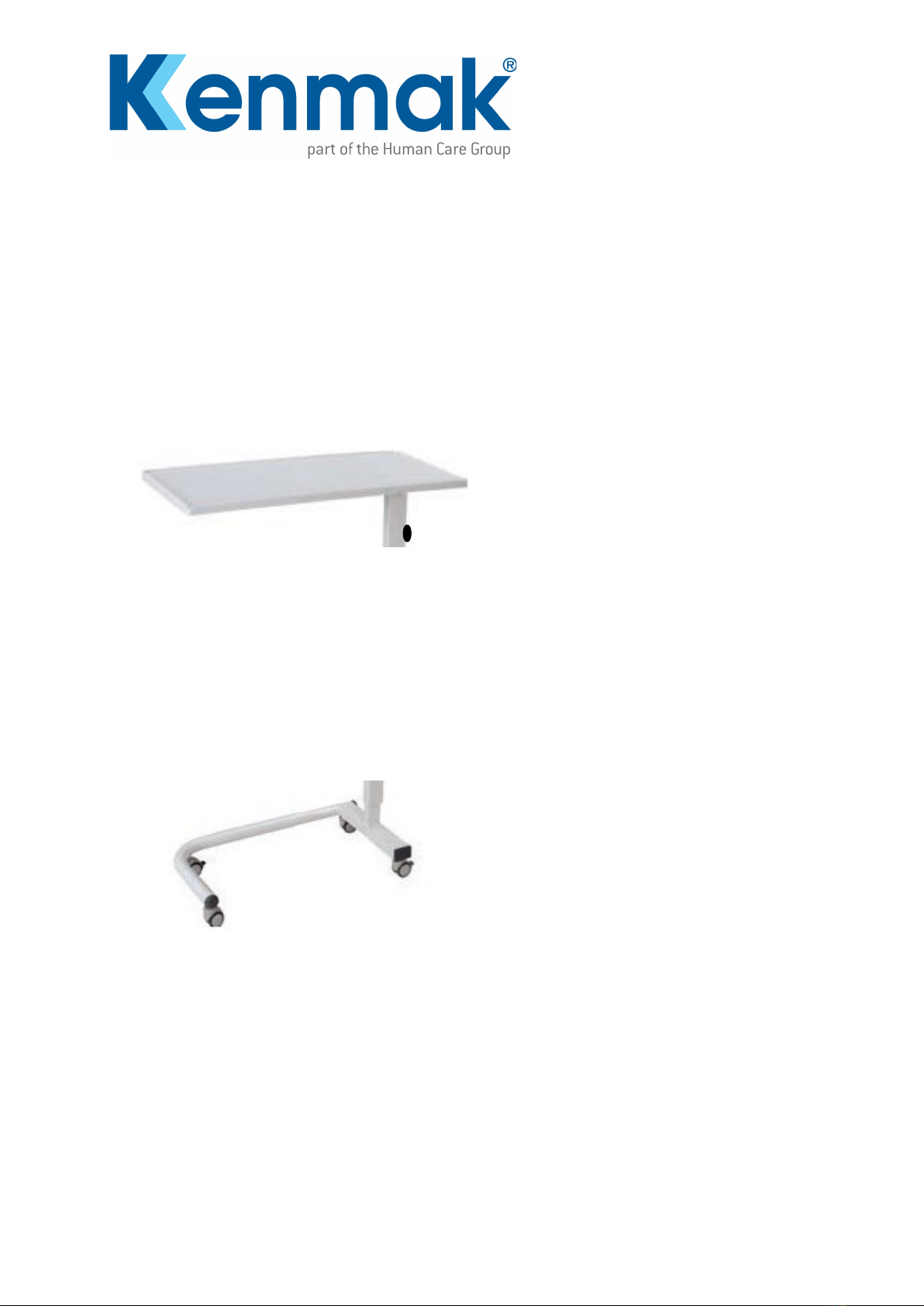

9- Spare Parts
Eating/Reading Board
Handgrip for Height Adjustment
Castors
Please visit www.kenmak.com.tr for additional accessories.

producing technology for health
10- Product Labelling

producing technology for health
11- Environment, Transport
and Storage
Environment
Kenmak is certified in accordance with ISO 14001 and work with continuous
improvement to reduce total environmental impact. A primary focus is
logistics where we have reduced our total environmental footprint.
Our products are recyclable. Help our environment and hand in the product
for recycling. Follow local instructions for recycling.
Transport and Storage
Conditions for transport and storage:
• Air humidity between 10 and 80% RH
• Temperature between -300 and 400C
• Pressure between 700 and 1100 hPa

producing technology for health
12- Maintenance and
reconditioning
The table is designed to require the minimum maintenance. It is
recommended that preventive maintenance be carried out according to our
service schedule every other year.
Normal Cleaning
Mechanics cleaned with a damp cloth. Readily available cleansers and
disinfectants can be used. Can be rinsed with water.
The table base and eating/reading board are cleaned with a damp cloth.
Readily available cleansers and disinfectants can be used.
High-pressure Wash
Before washing castors have to be in locked position.
13- Warranty / Lifeage
Warranty Time: 2 Years
Expected Lifeage: 10 Years (In case used properly with maintenance
program)

producing technology for health
Date: 23.08.2021
User Manual Number: K058-PTS / R.210823
Please contact us for any questions:
Kenmak Hastane Malzemeleri ve Elekt. Boya San. Ve Tic. A.Ş.
Sarnıç Yolu No: 23
35414 Gaziemir, Izmir / TURKEY
T: [phone]
[email protected].tr
www.kenmak.com.tr

producing technology for health
Käyttöohje
Kenmak Hospital Furniture
Malli: K058 PTS
KALLISTETTAVA POTILAAN VUODEPÖYTÄ
Lue käyttöohje ennen tuotteen käyttöä!

producing technology for health
Sisältö
1- Johdanto
2- Käyttötarkoitus
3- Varoitukset
4- Yleiset ominaisuudet ja tarvikkeet
5- Kokoamisohjeet
6- Tekniset tiedot
7- Pöydän turvalaitteet
8- Käyttöohjeet
9- Varaosat
10-Tuotteen merkinnät
11-Ympäristö, kuljetus ja varastointi
12-Huolto ja kunnostaminen
13-Takuu/käyttöikä

producing technology for health
1- Johdanto
Kiitos Kenmak-sairaalakalusteiden valinnasta. Kaikki Kenmak Hospital
Furniturec -tuotteet valmistetaan noudattaen tiukkoja laatuvaatimuksia ja
pitäen mielessä, miten ympäristöön kohdistuvat haitallisen vaikutuksen
riskit voidaan minimoida. Kenmak Hospital Furnituren toiminta on
maailmanlaajuisesti tunnustettujen viranomaisten sertifioimaa ISO 9001-,
ISO 13485- ja ISO 14001 -standardien mukaisesti.
Kenmak Hospital Furniture -tuotteet valmistetaan Turkissa edellä
mainittujen laatustandardien mukaisesti. Laadunvalvontatiimimme testaa
ne ennen niiden lähettämistä tehtaalta.
Kaikista tuotteeseen liittyvistä vaaratilanteista on ilmoitettava valmistajalle
ja asianomaiselle sääntelyviranomaiselle.
Kenmak Hastane Malzemeleri ve Elekt. Boya San. Ve Tic. A.Ş.
Sarnıç Yolu No: 23
35414 Gaziemir, Izmir, TURKKI
Puh. [phone]
[email protected].tr
www.kenmak.com.tr

producing technology for health
2- Käyttötarkoitus
Kallistettava K058-PTS Kenmak -potilasvuodepöytä on tarkoitettu
käytettäväksi sairaaloissa, hoitokodeissa ja kotikäytössä.
Sitä tulee käyttää sopivassa sisäilmastossa, jossa lämpötila on 0–+40 astetta.
Se on tarkoitettu yli 12-vuotiaiden henkilöiden käyttöön.
Tuotetta saa käyttää vain pöydän mukana toimitettujen tai Kenmakin
valmistamien lisävarusteiden kanssa.
Lisätietoja suurimmasta kuormituksesta on tämän käyttöohjeen Tekniset
tiedot -kohdassa.

producing technology for health
3- Varoitukset
Laitteen käyttö muihin kuin aiemmin kuvattuihin
tarkoituksiin on kielletty. Laitetta saa käyttää vain
asianmukaisesti koulutettu henkilö.
Ennen pöydän käytön aloittamista käyttäjän on oltava täysin
tietoinen siitä, miten pöytä toimii ja kaikista teknisistä
toiminnallisista ominaisuuksista. Tällainen osaaminen
voidaan hankkia lukemalla huolellisesti tämä käyttöohje.
Hoitohenkilöstön on mahdollisuuksien mukaan tiedotettava
potilaille pöydän toiminnasta ja selitettävä hallintalaitteiden
toiminta, jotta potilas voi käyttää sitä. Kun tällaiset tiedot on
annettu, potilasta on pyydettävä mahdollisuuksien mukaan
kokeilemaan pöydän toimintaa.
Turva- tai suojalaitteiden poistaminen laitteesta on
ehdottomasti kielletty. Tarkista tällaisten laitteiden eheys
säännöllisesti viikoittain ja varmista, että ne toimivat oikein.
