Kenmore BEER DISPENSER
OWNER'S INSTRUCTIONS
MODEL 564.8815022
THIS BOOK:
r_... t_, _n. how to operate and care for your beer dispenser. It also offers tips on how to get the
best, as well as lowest cost, performance.
...... _^-;'", ,,_l=r_.rn_.rlt oarts use
VVlI_:;': ,J,,,,,,_ .... ._ -_
the part number. Do not use the illustra-
tion number.
For parts or service information, call
your nearest Sears store or Service
Center, give the complete model num-
ber listed above.
ice provided below the model number and serial number
nce. They are located on the model number plate on the
FULL ONE-YEAR
W_ ON BEER DISPENSER
For one year from the date of purchase, when this beer dispenser is operated and maintained according to owner's in-
structions attached to or furnished with the product, Sears will repair this beer dispenser, free of charge, if defective in
material or workmanship.
FULL FIVE-YEAR WARRANTY
ON SEALED REFRIGERATION SYSTEM
For five years from the date of purchase, when this beer dispenser is operated and maintained according to owner's
instructions attached to or furnished with the product, Sears will repair the sealed system (consisting of refrigerant, con-
necting tubing and compressor motor), free of charge, if defective in material or workmanship.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS
STORE OR SERVICE CENTER THROUGHOUT THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 698/731A, Sears Tower, Chicago, IL 60684
Part No. 302104 SEARS, ROEBUCK AND CO., U.S.A.

Read and understandthese instructions thoroughly before installing
beer dispenser.
ASSEMBLY
1. Carton Inventory
Unpack and inspect the parts. Make sure all items are present
and in good condition.
1 Draft arm assembly (Package includes 1 gasket for
draft arm and 1 washer for connectionto keg tapper)
1CO2 regulator
1 CO2 cylinder
1Keg tapper (Sankey type)
1 Cleaning kit
1 Pressure tube
2 Hose clamps
2 Keg supports (wooden plates)
1 CO2 cylinder retainer (spring)
1 Guard rail
1 Drip tray
4 Wheel casters
4 Hex head screws (5mm dia x 15mm long)
16 Machine screws (5mm dia x 12mm long)
8 Small screws (5mm dia x 10mm long)
2. Installcasters
a. Empty the cabinet and then lay down the beer dispenser
sideways so that the door hingeside comes to the top.Be
careful not to cause dents or scratches on the cabinet.
Placing outer carton underneath the cabinet is
recommended.
b. Install casters to the four bottom corners of the cabinet
with the four machine screws (5mm dia x 12mm long) for
each caster.
c. Stand the cabinet upright.
3. Install Draft Arm Assembly (See Fig. 1).
a. Slide gasket over wingnut on bottomof draft arm assem-
blybeer tube. Slide gasket upbeer tube todraftarm base.
Hex. Head
Screw i
I
Draft Arm Assembly
Gasket
• / Small Screw
Guard Rail .,_ /
Fig 1.
b. Push wingnut and beer tube of draft arm assembly
through hole in top of cabinetuntil draftarm is restingon
cabinettop.
c. Alignholesin draftarm base withholes ingasket and pilot
holes in cabinet top,then securedraft arm to cabinet top
withfour hex head screws (5mm dia x 15mm).
4. Install Guard Rail (See Fig. 1).
a. Place guard rail on cabinet top and secureguard rail with
eight small screws.
INSTALLATION "
1. Installbeer dispenser on stronq,,lev_-IftnnLA_ia direct sun-
light, heatZJb'0_sa_"a_moi-sture. -
2. Connect to-120Vr- , out_et.Do not
use extension cord. Use __q,,_X_tb three-prong
grounded W'_ff'6"0t1"b.'t_"_ , .. ,.,
WARNING: Unless the _'d_O_"_gr-_ndingmethod'Js'io/lowed,
you are not _rotep_=d_,.agaim_-severe 'or lethal
sh0_k in'_h+_'eventofa shortcircuitof an electrical
cq.mponer=Lor_widngof beer dispenser.
TEMPERATURE CONTROL
1. Controlislocatedon rear. Firstset the control at NORMAL pos-
ition.Wait for 24 hours to check the temperature then adjust
temperature control, if needed.
DEFROST
1. Beer dispenser will not require much defrosting since the
door opening is at a minimum. Defrost when V4inch frost is
built up on the cold plate. The best time to defrost is when
the keg is changed. To defrost, set temperature control at
OFF position and leave door open until ice melts. Defrost
water will accumulate at the bottom of interior cabinet
which can be absorbed with asponge or towel.Do notus6
heating devices or sharp objects to speed defrosting
as this could damage cabinet liner of cold plate. Reset
temperature control after defrosting is completed.
INSTALLATION OF BEER SYSTEM
1. Installing CO 2Cylinder and CO2 Regulator
WARNING: CO2 GAS CAN BE DANGEROUS
Read front pages of "Draught Beer Facts" book in-
cluded in your cleaning kit for safety precautions
before installaing the CO2 cylinder.
OPERATING INSTRUCTIONS FOR CO2 CYLINDERS
Do not operate valvecontrolunlesscylinderiscompletely
installedand connected.
TURN HANDWHEEL FULLY COUNTERCLOCKWISE
AS FAR AS IT WILL GO-.-
IMPORTANT: Ifvalve isnot fullyopenedthe stemmay not
seal properlyagainst the upper packing washer and the
valve may leak. If leak occurswhen fully opened, tighten
down packing nutunder handwheel then open and close
valve fully several times. Replacement packing washer
must be ordereddirectlyfrom valve manufacturer whose
name is stamped on valve.
-2-

PressureVessel
• DonotremovevalvefromCO2cylinder.
• CO2cylinder should be handledonly by trained, experi-
enced personneland in accordancewiththe safe handl-
ing practicesrecommended by the current C.G.A. pam-
phlet P-l*.
•Keep out of reach of children.
•Visually inspect monthlyor more frequently. If cylinder
shows evidence of corrosionor mechanical damage, it
should be inspected and tested in accordance with the
current C.G.A. pamphlets C-1" or C-6* or it should be
replaced.
CHARGE ONLY WITH DRY CARBON DIOXIDE
• Do not charge with carbon dioxide unless the pressure
rating stamped on CO2 cylinder is 1800 PSI or greater.
•When charged with carbon dioxide do not exceed a fill
density of 68%. (Fill density is a percent ratio of the
weight of gas in the cylinderto the weight of water that
the cylinderwillhold at 60°F).
•If cylinder has been exposed to temperatures in excess
of 350°F., it must be destroyed.
Improperuseof cylinder couldcause seriousbodilyinjury
or property damage.
• C.G.A. pamphlets are published by the Compressed
Gas Association, 500 5th Ave., New York, N.Y.

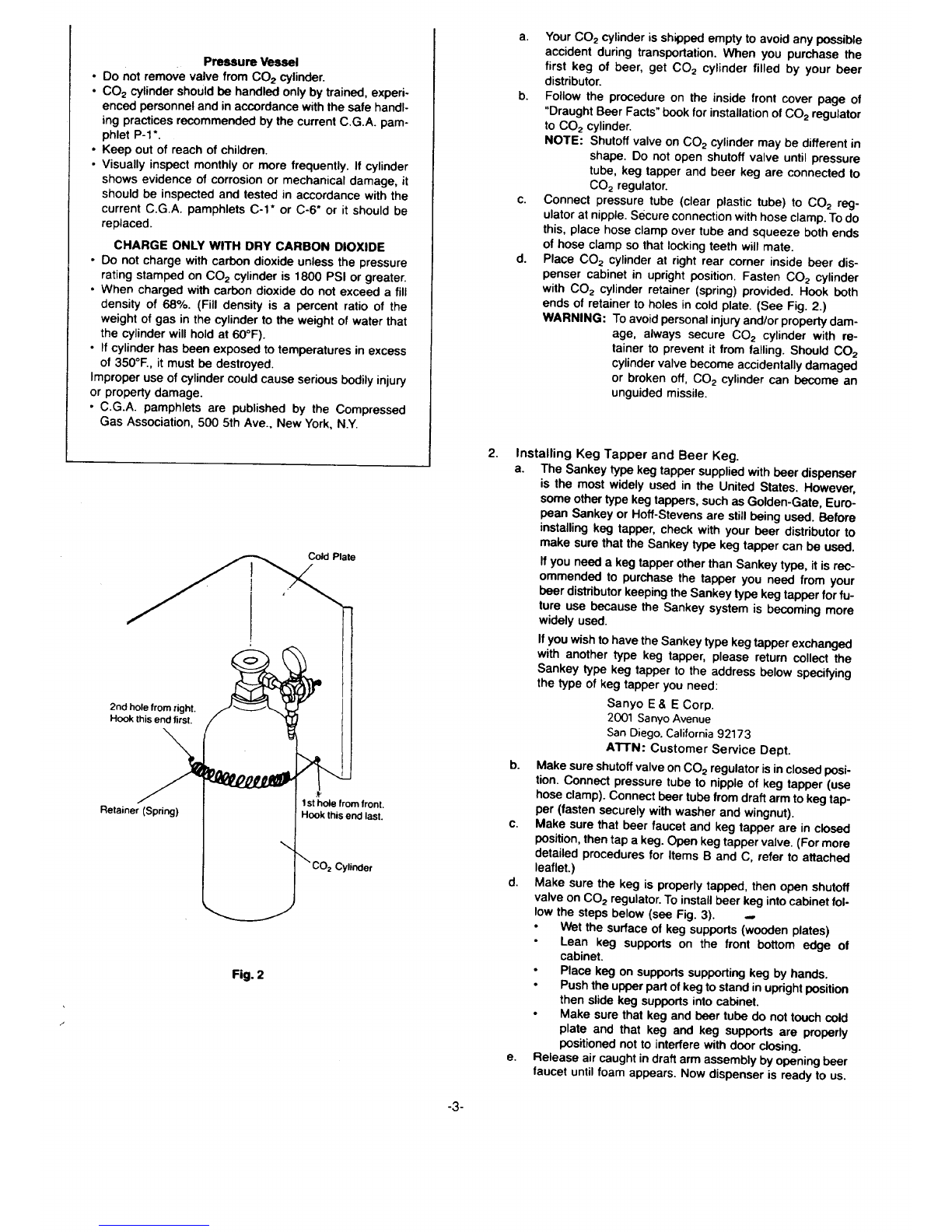

Cold Plate
2nd hole from right.
Hook this end first.
Retainer (Spring) 1 st hole from front.
Hookthisendlast.
CO2Cylinder
Fig. 2
-3-
2.
a.
a. Your CO2 cylinder is shipped empty to avoid any possible
accident during transportation. When you purchase the
first keg of beer, get CO_ cylinder filled by your beer
distributor.
b. Follow the procedure on the inside front cover page of
"Draught Beer Facts" book for installation of CO2 regulator
to CO2 cylinder.
NOTE: Shutoff valve on CO2 cylinder may be different in
shape. Do not open shutoff valve until pressure
tube, keg tapper and beer keg are connected to
CO2 regulator.
c. Connect pressure tube (clear plastic tube) to CO2 reg-
ulator at nipple. Secure connection with hose clamp. To do
this, place hose clamp over tube and squeeze both ends
of hose clamp so that locking teeth will mate.
d. Place CO2 cylinder at right rear corner inside beer dis-
penser cabinet in upright position. Fasten CO2 cylinder
with CO2 cylinder retainer (spring) provided. Hook both
ends of retainer to holes in cold plate. (See Fig. 2.)
WARNING: To avoid personal injury and/or property dam-
age, always secure CO2 cylinder with re-
tainer to prevent it from falling. Should CO2
cylinder valve become accidentally damaged
or broken off, CO2 cylinder can become an
unguided missile.
Installing Keg Tapper and Beer Keg.
The Sankey type keg tapper supplied with beer dispenser
is the most widely used in the United States. However,
some other type keg tappers, such as Golden-Gate, Euro-
pean Sankey or Hoff-Stevens are still being used. Before
installing keg tapper, check with your beer distributor to
make sure that the Sankey type keg tapper can be used.
If you need a keg tapper other than Sankey type, it is rec-
ommended to purchase the tapper you need from your
beer distributor keeping the Sankey type keg tapper for fu-
ture use because the Sankey system is becoming more
widely used.
If you wish to have the Sankey type keg tapper exchanged
with another type keg tapper, please return collect the
Sankey type keg tapper to the address below specifying
the type of keg tapper you need:
Sanyo E & E Corp.
2001 Sanyo Avenue
San Diego. California 92173
A'r-rN: Customer Service Dept.
b. Make sure shutoff valve on CO2 regulator is in closed posi-
tion. Connect pressure tube to nipple of keg tapper (use
hose clamp). Connect beer tube from draft arm to keg tap-
per (fasten securely with washer and wingnut).
c. Make sure that beer faucet and keg tapper are in closed
position, then tap a keg. Open keg tapper valve. (For more
detailed procedures for Items B and C, refer to attached
leaflet.)
d. Make sure the keg is properly tapped, then open shutoff
valve on CO2 regulator. To install beer keg into cabinet fol-
low the steps below (see Fig. 3). ,-
•Wet the surface of keg supports (wooden plates)
• Lean keg supports on the front bottom edge of
cabinet.
•Place keg on supports supporting keg by hands.
• Push the upper part of keg to stand in upright position
then slide keg supports into cabinet.
•Make sure that keg and beer tube do not touch cold
plate and that keg and keg supports are properly
positioned not to interfere with door dosing.
e. Release air caught in draft arm assembly by opening beer
faucet until foam appears. Now dispenser is ready to us.

Keg
j. Support
REPLACING EMPTY KEG
Close shutoff valve on CO2 regulator then remove keg tappel
from empty keg. To tap a new keg, follow the procedures C, D
and E of "Installing Keg Tapper and Beer Keg."
Cabinet
Bottom

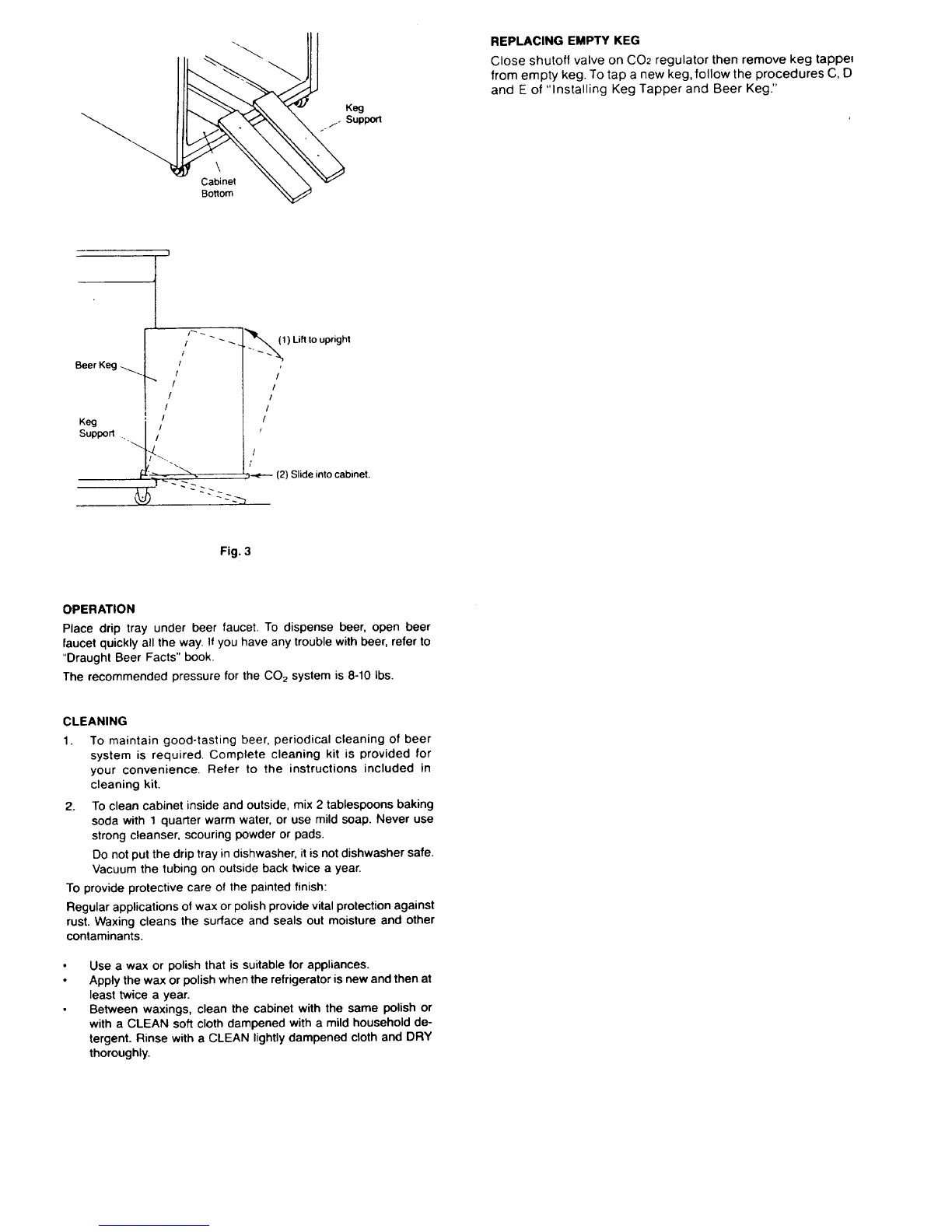

(1) Lift to upright
i
/
/
I
/
(2) Slide into cabinet.
Fig. 3
OPERATION
Place drip tray under beer faucet. To dispense beer, open beer
faucet quickly all the way. If you have any trouble with beer, refer to
"Draught Beer Facts" book.
The recommended pressure for the CO2 system is 8-10 Ibs.
CLEANING
1. To maintain good-tasting beer, periodical cleaning of beer
system is required. Complete cleaning kit is provided for
your convenience. Refer to the instructions included in
cleaning kit.
2. To clean cabinet inside and outside, mix 2 tablespoons baking
soda with 1 quarter warm water, or use mild soap. Never use
strong cleanser, scouring powder or pads.
Do not put the drip tray in dishwasher, it is not dishwasher safe.
Vacuum the tubing on outside back twice a year.
To provide protective care of the painted finish:
Regular applications of wax or polish provide vital protection against
rust. Waxing cleans the surface and seals out moisture and other
contaminants.
Use a wax or polish that is suitable for appliances.
Apply the wax or polish when the refrigerator is new and then at
least twice a year.
Between waxings, clean the cabinet with the same polish or
with a CLEAN soft cloth dampened with a mild household de-
tergent. Rinse with a CLEAN lightly dampened cloth and DRY
thoroughly.

PARTS LIST MODEL 564.8815022
CAUTION: Use Kenmore part number on all orders, not the illustration number.
Illus.
No.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
Part
No. Description
300746 Door Liner
300747 Door Gasket
300748 Door
300308 Tapping Screw
300749 Hinge, Upper
300459 Bolt
300750 BeerTube Insulation
300751 Beer Tube Sleeve
300752 Evap. Bracket (4)
300140 Machine Screw
300753 Hinge, Lower
300459 Bolt
300754 Wheel Caster (4)
300755 Machine Screw
300756 Cabinet Assembly
300757 Power Supply Cord
300758 Cord Bushing
300759 Clamp
300308 Tapping Screw
300760 Thermostat
300165 Bracket, Thermostat
300463 Machine Screw
300308 Tapping Screw
300308 Tapping Screw
300761 Back Cover
300762 Cold Control Dial
300141 Control Knob
300308 Tapping Screw
300308 Tapping Screw
300763 Bracket, Top Rear Right
300764 Bracket, Top Rear Left
300308 Tapping Screw
300765 Back Cover Support
300766 Guard Rail
300767 Hex Head Screw
300768 Draft Arm Assembly
300769 Small Screw
300770 Drip Tray
300771 Bracket, Top Front (2)
300308 Tapping Screw
300772 Table Top
300103 Plate, Support (4)
300308 Tapping Screw
300096 Condenser
300100 Dryer
300479 Clamp, Thermostat Bulb

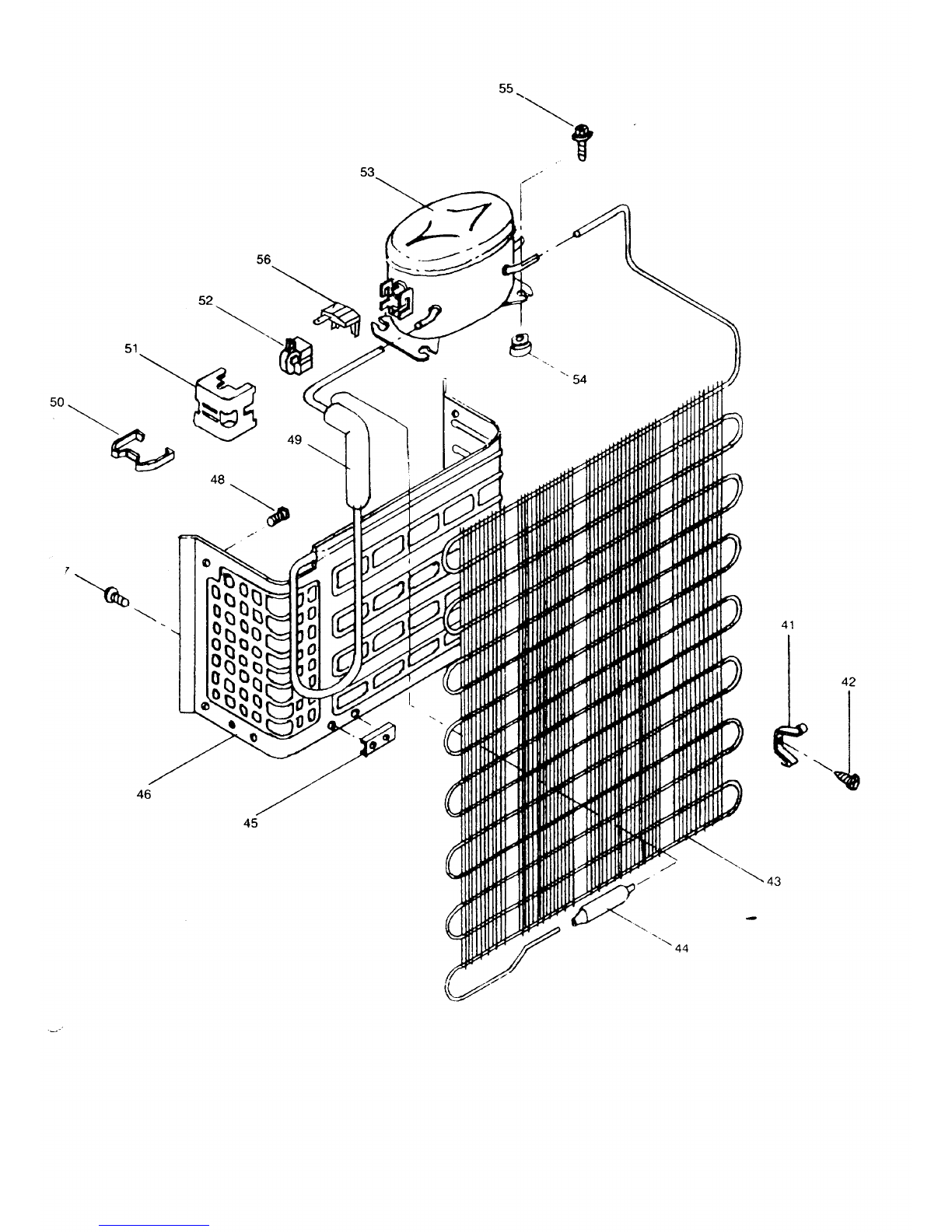

Illus. Part
No. No. Description
46. 300773 Evaporator Assembly
47. 300480 Machine Screw
48. 300494 Tapping Screw
49. 300475 Insulation,Tube
50. 301957 Retainer, Relay Cover
51. 301956 Relay Cover
52. 300736 PTC Thermistor
53. 302017 Compressor
54. 300430 Grommet (4)
55. 300413 Bolt
56. 302016 Overload Protector
PARTS NOT ILLUSTRATED
Part
No. Description
300774
300775
300776
300777
300778
300779
300780
300781
302015
302104
300784
CO2 Cylinder
CO2Regular (consists of the following)
740 Regulator
624 Pressure Gauge
1600c Air Cock
CO2Cylinder Retainer
Keg Tapper, Sankey
Cleaning Kit (consists of the following)
584P Pump
t 841-1A Cap and Jar Assembly (including tubing)
905W Faucet Brush
904A Hose Brush
4350 Faucet Wrench
1000-1 Cleaning Compound (1 lb.)
DBF Draught Beer Facts Book
JK Cleaning Instructions
Pressure Tube
Hose Clamp (2)
Keg Support (2)
Owner's Instruction Manual
Technical Sheet
Use & Care Label
OPTIONAL KEG TAPPERS (Not Included)
300786 European Sankey
300787 Golden Gate, Vent
300788 Golden Gate, KeyTap
300789 Hoff-Stevens
-5-

34
29
33
26
22
18
23
13
14
4
12
1
2

53
55
56
52
49
7
48
i
46
45
41

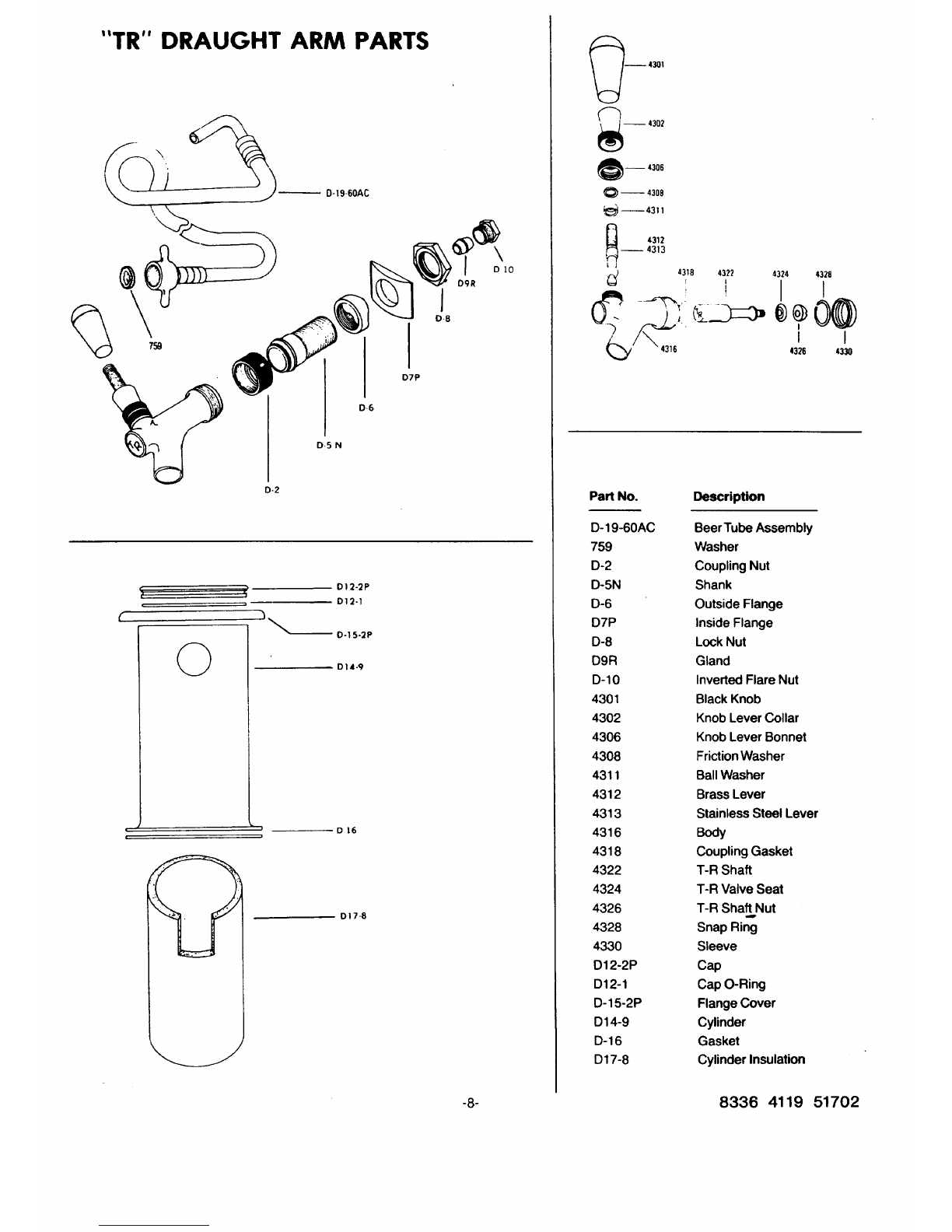

"TR" DRAUGHT ARM PARTS
\
D-19-60AC
759
D-5N
(
D-8
I
D7P
D-6
D9R
D-2
L
©
i
DI2-2P
D12-1
_'_ 0-15-2P
D14-9
D 16
DI7-8
_...____jJ
\
O I0
_4301
-- 4302
-- 4306
_) -- 4308
_--4311
,_ 4312
-- 4313
_,_ 4318 4322 4324 4328
•r,I
Part No. Description
D-19-60AC Beer Tube Assembly
759 Washer
D-2 Coupling Nut
D-5N Shank
D-6 Outside Flange
D7P Inside Flange
D-8 Lock Nut
D9R Gland
D-10 Inverted Flare Nut
4301 Black Knob
4302 KnobLever Collar
4306 KnobLever Bonnet
4308 FrictionWasher
4311 BallWasher
4312 Brass Lever
4313 Stainless Steel Lever
4316 Body
4318 Coupling Gasket
4322 T-R Shaft
4324 T-R Valve Seat
4326 T-R Shaft Nut
4328 Snap Ring
4330 Sleeve
D12-2P Cap
D12-1 Cap O-Ring
D-15-2P Flange Cover
D14-9 Cylinder
D-16 Gasket
D17-8 Cylinder Insulation
-8- 8336 4119 51702
